Target Flow meter
Catalog
Z100TF

- 1 -
1. Introduction
1) Category and applications
Based on the measurement theory of flow meter, developed a series of no...

- 2 -
2 Structure and Principle
1) Structure

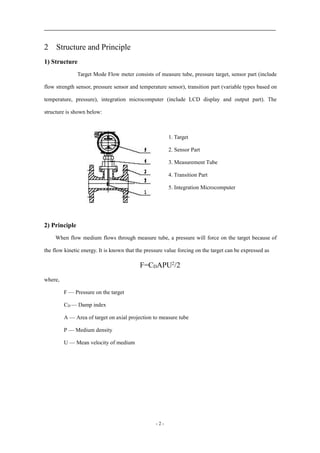

Target Mode Flow meter consists of measure tube, pressure target, sensor part...

- 3 -
3 Index and Display
1) Main indexes
Medium Liquid, Gas ，Steam and LPG
Caliber Pipe type 15~300mm Clamp type 15~600mm...

Advertisement

- 4 -
Serial No.：n××
20mA or 10V outputs corresponding to the maximum flow: H×××××
Zero-temperature compensation coefficie...

- 5 -
1, 2 and 3 are respectively the front, behind and by-pass valves and 4 is the flow
meter. L≥10D and L>=5D are respec...

- 6 -
1 2 3 4 5 6 7 8 9 10
红
黄
红黄
流
量
传
感
器
压力传感器
温
度
传
感
器
绿
黑
绿黑
白
蓝
According to the different remote output modes, w...

- 7 -
2 3 4
1 5 7
6 8 9
24V电源+
24V电源-
485输出A
485输出B
(Connection of RS485 output mode may be changed according to additiona...

- 8 -
inevitable slight impact in transport. If the flow meter do not display zero when flow velocity is zero,
zero offset...

Advertisement

- 9 -
P1 ×××× (Password)
Enter the password and press K1 again, then it will go to next display. That wrong password entry...

- 10 -
H=7370 or H=737 means respectively that each impulse expresses 1L flow or
that each impulse expresses 0.1L flow.)
L...

- 11 -
 H is set the max instantaneous flow value expressed by 20mA current or 10V voltage outputs,
that is H=Qmax.
 If ...

- 12 -
7 Test
Although the flow meter has been strictly tested before leaving factory, because of changes in
environment, ...

- 13 -
Remarks: It should be a little error between two different media test results because of different
medium character...

Advertisement

- 14 -
750
1
)
7286
.
0
100
52
.
12
1000
100
(
2





)
(
16 Kg

It is known that the force on the target is 16Kg wh...

- 15 -
 Much dirt accretes on the target. Solution: clean the target.
 Sensor is wetting then the insulation resistance ...

- 16 -
 Flow meter stores automatically all of the measure values and set coefficients in its inner FLASH
memory.
 If en...
