Brought to you by
Scaling Apache
Pulsar to 10 PB/day
Karthik Ramasamy
Senior Director of Engineering at

Karthik Ramasamy
Senior Director of Engineering
@karthikz
streaming @splunk | ex-CEO of @streamlio | co-creator of @herons...

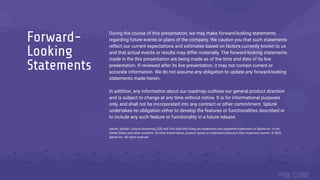

During the course of this presentation, we may make forward‐looking statements
regarding future events or plans of the com...

1) Introduction to Splunk & DSP
2) Requirements, Use Cases & Deployment
3) Initial Cluster Size Estimation
4) Optimization...

Splunk Data Stream Processor
Detect Data Patterns or Conditions
Mask Sensitive Data
Aggregate Format
Normalize Transform
F...

DSP - Bird’s Eye View
HEC
S2S
Batch
Apache Pulsar
Stream Processing
Engine
External
Systems
REST Client
Forwarders
Data So...

Customer Requirements & Deployment

■ Marquee customer is in ﬁnance and payments
■ Microservices and applications emit logs
■ Logs contain rich information
■ ...

■ Environment - Google Cloud Platform
■ Use of n1-standard-32 VMs
■ Raw data ingestion of 10 PB/day that translates ~120 G...

DSP Ingest Cluster
DSP Compute Cluster
DSP Compute Cluster
DSP Compute Cluster
Log
Publisher
Log
Publisher
Log
Publisher
A...

DSP Deployment
■ Separation of ingestion and computation
■ Pipeline isolation and no noisy neighbor issues
■ Troubleshooti...

■ 32 vCPUs
■ 120 GB of memory
■ Max number of PDs (EBS equivalent) - 128
■ Max total PD size - 257 TB
■ Max egress network...

P-SSD
P-HDD L-SSD
Storage Options in GCP

Initial Estimation

■ Replica factor of 3
■ Need to handle 120 GBps of raw traﬃc
■ Need to handle 360 GBps of storage write bandwidth
■ With j...

■ Size of a Pulsar Cluster for a given workload depends on three
parameters -
■ Storage Density - Aggregate storage capaci...

Max of 200 MB/sec write
throughput per VM
Max of 9 TB
per instance
Max of 4 GBps egress
and ingress bandwidth
Dominated by...

Max of 400 MB/sec write
throughput per VM
Max of 9 TB
per instance
Max of 4 GBps egress
and ingress bandwidth
Dominated by...

Max of 850 MB/sec write
throughput per VM
Max of 9 TB
per instance
Max of 4 GBps egress
and ingress bandwidth
Dominated by...

Estimation of VMs - Comparison

Optimizations

Optimization #1 - Eliminating Journal
Since all the data is machine logs, we implemented replicated durability
■ Different...

Estimating VMs
Dominated by
Storage Bandwidth
Dominated by
Storage Bandwidth
Dominated by
Storage Density

Optimization #2 - Direct I/O
■ Overhead of page cache in container environment is pretty high
■ Kernel needs to keep track...

Performance of Direct I/O

Estimating VMs
Dominated by
Storage Bandwidth
Dominated by
Storage Bandwidth Dominated by
Storage Density

Optimization #3 - Use of Compression
Bookie
Bookie
Bookie
Broker
Producer
Data
Data
Data
Compressed data
Consumer
Compress...

Employing compression
■ Compression ratio of 4x
■ Need to handle 360 GBps —> 90 GBps of storage write bandwidth
■ Total st...

Estimating VMs
Dominated by
Storage Bandwidth Dominated by
Storage Bandwidth Dominated by
Storage Density

Surviving Zone Failure
Segment 1
Segment 2
Segment n
.
.
.
Segment 2
Segment 3
Segment n
.
.
.
Segment 3
Segment 1
Segment...

Estimating VMs

Optimization #4 - C++ Client CPU & Memory Usage
■ Better round robin across partitions - maximizing the batch
size per par...

Finally …
Running 200 n1-standard-32 VMs for Pulsar cluster with 24 L-SSDs per VM
