© 2019 SPLUNK INC.
Scaling Apache Pulsar to 10 PB/day
June 2021
Karthik Ramasamy
Splunk

© 2020 SPLUNK INC.
Karthik
Ramasamy
Senior Director of Engineering
@karthikz
streaming @splunk | ex-CEO of @streamlio | co...

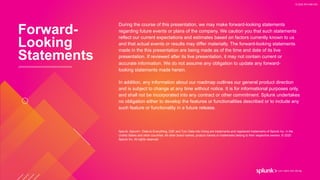

During the course of this presentation, we may make forward‐looking statements
regarding future events or plans of the com...

© 2019 SPLUNK INC.
Agenda 1) Introduction to Splunk & DSP

2) Requirements, Use Cases & Deployment

3) Initial Cluster S...

© 2020 SPLUNK INC.
Data
 
Lakes
Master Data
Management
ETL
Point Data
Management
 
Solutions
Data
 
Silos
Business
Process...

© 2019 SPLUNK INC.
Splunk DSP
A real time stream processing solution that collects, processes and delivers data to Splunk ...

© 2019 SPLUNK INC.
DSP - Bird’s Eye View
HEC
S2S
Batch
Apache Pulsar
Stream Processing
Engine
External
Systems
REST Client...

© 2019 SPLUNK INC.
Customer Requirements & Deployment

© 2019 SPLUNK INC.
Customers
✦ DSP is deployed at several customer
s

✦ Some of those customers are marquee customers with...

© 2019 SPLUNK INC.
Use Cases
✦ Microservices and applications emit log
s

✦ Logs contain rich informatio
n

✦ Process thes...

© 2019 SPLUNK INC.
Data Requirements
✦ Environment - Google Cloud Platform
✦ Use of n1-standard-32 VM
s

✦ Raw data ingest...

© 2019 SPLUNK INC.
DSP Ingest Cluster
DSP Compute Cluster
DSP Compute Cluster
DSP Compute Cluster
DSP Deployment
Log
Publi...

© 2019 SPLUNK INC.
DSP Deployment
✦ Separation of ingestion and computatio
n

✦ Pipeline isolation and no noisy neighbor i...

© 2019 SPLUNK INC.
VM Configuration - n1-standard-32
✦ 32 vCPU
s

✦ 120 GB of memor
y

✦ Max number of PDs (EBS equivalent...

© 2020 SPLUNK INC.
Storage Options in GCP
P-SSD
P-HDD L-SSD

© 2019 SPLUNK INC.
Initial Estimation

© 2019 SPLUNK INC.
Apache Pulsar Requirements
✦ Replica factor of
3

✦ Need to handle 120 GBps of raw traf
fi
c

✦ Need to...

© 2019 SPLUNK INC.
Pulsar Cluster Size Estimation
✦ Size of a Pulsar Cluster for a given workload depends on three paramet...

© 2019 SPLUNK INC.
Estimating Storage Bandwidth
Bookie
Bookie
Bookie
Broker
Producer
Journal
Data
Journal
Data
Journal
Dat...

© 2019 SPLUNK INC.
Estimating Network Bandwidth
Bookie
Bookie
Bookie
Broker
Producer
Journal
egress
ingress
egress
ingress...

© 2020 SPLUNK INC.
Estimating VMs using P-HDD
0
1000
2000
3000
4000
Storage Bandwidth Storage Density Network Bandwidth
30...

© 2020 SPLUNK INC.
Estimating VMs using P-SDD
0
500
1000
1500
2000
Storage Bandwidth Storage Density Network Bandwidth
300...

© 2019 SPLUNK INC.
Estimating Network Bandwidth using L-HDD
Bookie
Bookie
Bookie
Broker
Producer
Journal
ingress
egress
in...

© 2020 SPLUNK INC.
Estimating VMs using L-SDD
0
225
450
675
900
Storage Bandwidth Storage Density Network Bandwidth
120
44...

© 2020 SPLUNK INC.
Estimation of VMs - Comparison
0
1000
2000
3000
4000
P-HDD P-SSD L-SSD
868
1843
3686
VMs w/journal

© 2019 SPLUNK INC.
Optimizations

© 2019 SPLUNK INC.
Optimization #1 - Eliminating Journal
✦ Different types of durabilit
y

✦ Persistent Durability - No da...

© 2019 SPLUNK INC.
Replicated Durability
Bookie
Bookie
Bookie
Broker
Producer
Data
Data
Data

© 2020 SPLUNK INC.
Estimating VMs
0 ms
1000 ms
2000 ms
3000 ms
4000 ms
P-HDD P-SSD L-SSD
444
922
1843
868
1843
3686
VMs w/...

© 2019 SPLUNK INC.
Optimization #2 - Direct I/O
✦ Overhead of page cache in container environment is pretty hig
h

✦ Kerne...

© 2020 SPLUNK INC.
Performance of Direct I/O
0 MB/s
400 MB/s
800 MB/s
1200 MB/s
1600 MB/s
P-HDD P-SSD L-SSD
1600
600
300
8...

© 2020 SPLUNK INC.
Estimating VMs
0 ms
1000 ms
2000 ms
3000 ms
4000 ms
P-HDD P-SSD L-SSD
444
614
1228
444
922
1843
868
184...

© 2019 SPLUNK INC.
Optimization #3 - Use of Compression
Bookie
Bookie
Bookie
Broker
Producer
Data
Data
Data
Compressed dat...

© 2019 SPLUNK INC.
Employing compression
✦ Compression ratio of 4
x

✦ Need to handle 360 GBps —> 90 GBps of storage write...

© 2020 SPLUNK INC.
Estimating VMs
0 ms
1000 ms
2000 ms
3000 ms
4000 ms
P-HDD P-SSD L-SSD
111
154
308
444
614
1228
444
922
...

© 2019 SPLUNK INC.
Surviving Zone Failure
Segment 1
Segment 2
Segment n
. 
. 
.
Segment 2
Segment 3
Segment n
. 
. 
.
Segm...

© 2020 SPLUNK INC.
Estimating VMs
0 ms
1000 ms
2000 ms
3000 ms
4000 ms
P-HDD P-SSD L-SSD
222
308
616
111
154
308
444
614
1...

© 2019 SPLUNK INC.
Optimization #4 - C++ Client CPU & Memory Usage
✦ Better round robin across partitions - maximizing the...

© 2019 SPLUNK INC.
Finally …
Running 200 n1-standard-32 VMs for Pulsar cluster with 24 L-SSDs per VM

© 2019 SPLUNK INC.
OSS Contributions
✦ Github Pull Request 8283 - C++ Client is allocating buffer bigger than neede
d

✦ G...

© 2019 SPLUNK INC.
Future Work
✦ Typical operations involve

✦ Upgrade to new version of Pulsa
r

✦ Upgrade to new OS ve...

Thank You
