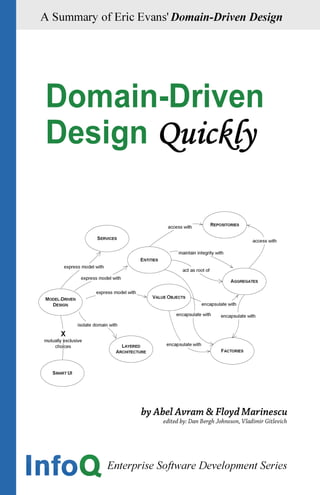

Domain-Driven
Design
Quickly

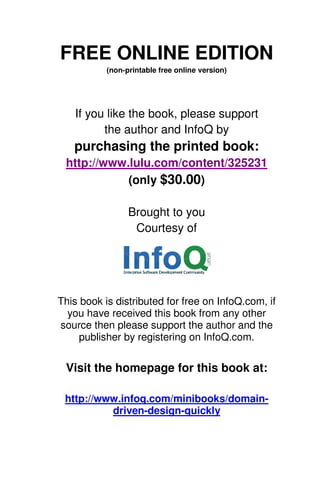

FREE ONLINE EDITION
(non-printable free online version)
If you like the book, please support
the author and InfoQ by
purch...

Domain-Driven Design
Quickly
Free Online Version.
Support this work, buy the print copy:
http://www.infoq.com/minibooks/do...

© 2006 C4Media Inc.
All rights reserved.
C4Media, Publisher of InfoQ.com Enterprise Software Development
Community
Part of...

Advertisement

Contents
Preface: Why DDD Quickly?..................................................... iv
Introduction......................

Preface: Why DDD Quickly?
first heard about Domain Driven Design and met Eric Evans at
a small gathering of architects at ...

It is my hope that by publishing a short, quickly-readable
summary and introduction to the fundamentals of DDD and
making ...

1
Introduction
oftware is an instrument created to help us deal with the
complexities of our modern life. Software is just...

Advertisement

2│DOMAIN DRIVEN DESIGN QUICKLY
method which has emerged and evolved over the last two
decades, but has crystallized more c...

1
3
What Is Domain-Driven Design
oftware development is most often applied to automating
processes that exist in the real ...

4│DOMAIN DRIVEN DESIGN QUICKLY
Software development is similar. We can’t just sit down and
type code. We can do that, and ...

WHAT IS DOMAIN DRIVEN DESIGN│5
keyboard into the computer to become code. We need to create
an abstraction of the domain. ...

6│DOMAIN DRIVEN DESIGN QUICKLY
model is the essence of the software, but we need to create ways
to express it, to communic...

Advertisement

WHAT IS DOMAIN DRIVEN DESIGN│7
Another approach is the Agile methodologies, such as Extreme
Programming (XP). These method...

8│DOMAIN DRIVEN DESIGN QUICKLY
Building Domain Knowledge
Let’s consider the example of an airplane flight control system
p...

WHAT IS DOMAIN DRIVEN DESIGN│9
OK, the plane takes off from some place and touches down in
another. But what happens in th...

10│DOMAIN DRIVEN DESIGN QUICKLY
Talking with the controller about the routes airplanes follow,
you discover that actually ...

WHAT IS DOMAIN DRIVEN DESIGN│11
What is actually happening here? You and the domain experts
are talking, you are exchangin...

Advertisement

12│DOMAIN DRIVEN DESIGN QUICKLY
domain during discussions with domain experts, and also help
construct a structure for fut...

2
13
The Ubiquitous Language
The Need for a Common Language
he previous chapter made the case that it is absolutely necess...

14│DOMAIN DRIVEN DESIGN QUICKLY
To overcome this difference in communication style, when we
build the model, we must commu...

THE UBIQUITOUS LANGUAGE│15
A core principle of domain-driven design is to use a language
based on the model. Since the mod...

16│DOMAIN DRIVEN DESIGN QUICKLY
Domain experts should object to terms or structures that are
awkward or inadequate to conv...

Advertisement

THE UBIQUITOUS LANGUAGE│17
Developer: OK, then let’s call each of those points a fix,
because it’s a fixed point of Earth’...

18│DOMAIN DRIVEN DESIGN QUICKLY
Developer: That’s better. Now that I’m looking at it, I realize
something. When we are mon...

THE UBIQUITOUS LANGUAGE│19
It is also highly recommended for the developers to implement
the main concepts of the model in...

20│DOMAIN DRIVEN DESIGN QUICKLY
names, and show the relationships between them. It’s very easy
for everyone to follow what...

THE UBIQUITOUS LANGUAGE│21
It might be tempting to try to create one large diagram over the
entire model. However, most of...

Advertisement

3
23
MODEL-DRIVEN DESIGN
he previous chapters underscored the importance of an approach
to software development that is ce...

24│DOMAIN DRIVEN DESIGN QUICKLY
final implementation. The good end result is not assured. Good
developers might pull toget...

MODEL-DRIVEN DESIGN│25
Developers will be forced to make some decisions on their own,
and will make design changes in orde...

26│DOMAIN DRIVEN DESIGN QUICKLY
something is wrong, it is identified at an early stage, and the
problem can be easily corr...

Advertisement

MODEL-DRIVEN DESIGN│27
change to the model. Its effect must ripple through the rest of the
project’s activities accordingl...

28│DOMAIN DRIVEN DESIGN QUICKLY
The Building Blocks Of A Model-Driven Design
The following sections of this chapter will p...

MODEL-DRIVEN DESIGN│29
Layered Architecture
When we create a software application, a large part of the
application is not ...

30│DOMAIN DRIVEN DESIGN QUICKLY
in each activity, a program must be kept very simple or it
becomes impossible to understan...

MODEL-DRIVEN DESIGN│31
should be focused on core domain issues. It should not be
involved in infrastructure activities. Th...

Advertisement

32│DOMAIN DRIVEN DESIGN QUICKLY
information, like temperature, it is quite possible to have two
distinct instances of the ...

MODEL-DRIVEN DESIGN│33
same identity to be considered the same by the system. If that
condition is not met, then the entir...

34│DOMAIN DRIVEN DESIGN QUICKLY
Value Objects
We have discussed entities and the importance of recognizing
entities early ...

MODEL-DRIVEN DESIGN│35
It is necessary to distinguish between Entity Objects and Value
Objects. It is not helpful to make ...

36│DOMAIN DRIVEN DESIGN QUICKLY
any consequences. If there is no identity, you can make as many
copies as you wish, and de...

Advertisement

MODEL-DRIVEN DESIGN│37
Services
When we analyze the domain and try to define the main objects
that make up the model, we d...

38│DOMAIN DRIVEN DESIGN QUICKLY
Services act as interfaces which provide operations. Services are
common in technical fram...

MODEL-DRIVEN DESIGN│39
which adds a supplementary level of complexity. Those services
are even more difficult to separate ...

40│DOMAIN DRIVEN DESIGN QUICKLY
to obtain the template which corresponds to a reportID. This
template is stored in a file ...

MODEL-DRIVEN DESIGN│41
between them. The functional cohesion is achieved when all
parts of the module work together to per...

Advertisement

42│DOMAIN DRIVEN DESIGN QUICKLY
Aggregates
The last three patterns in this chapter will deal with a different
modeling cha...

MODEL-DRIVEN DESIGN│43
understandable as possible. Most of the time it pays of to
eliminate or simplify relations from the...

44│DOMAIN DRIVEN DESIGN QUICKLY
But if the model was not carefully designed, there will be a high
degree of database conte...

MODEL-DRIVEN DESIGN│45
aggregate, it is simple to enforce the invariants because the root
will do that. It is much harder ...

46│DOMAIN DRIVEN DESIGN QUICKLY
Factories
Entities and Aggregates can often be large and complex – too
complex to create i...

MODEL-DRIVEN DESIGN│47
Creation of an object can be a major operation in itself, but
complex assembly operations do not fi...

48│DOMAIN DRIVEN DESIGN QUICKLY
when a client wants to create an object which belongs to an
Aggregate. The solution is to ...

MODEL-DRIVEN DESIGN│49
following constraints: the shortest route, the fastest route, the
cheapest route. The routes create...

50│DOMAIN DRIVEN DESIGN QUICKLY
remain simple and will serve their specific purpose without the
clutter of complex constru...

MODEL-DRIVEN DESIGN│51
Repositories
In a model-driven design, objects have a life cycle starting with
creation and ending ...

52│DOMAIN DRIVEN DESIGN QUICKLY
such code is scattered throughout the entire domain. At that
point the domain model become...

MODEL-DRIVEN DESIGN│53
may use different storage locations for different type of objects.
The overall effect is that the d...

54│DOMAIN DRIVEN DESIGN QUICKLY
parameters which represent the selection criteria used to select
an object or a set of mat...

MODEL-DRIVEN DESIGN│55
Another option is to specify a selection criteria as a
Specification. The Specification allows defi...

56│DOMAIN DRIVEN DESIGN QUICKLY
objects. It is not a creation from scratch, but a reconstitution of
an object which existe...

4
57
Refactoring Toward Deeper Insight
Continuous Refactoring
o far we have been talking about the domain, and the importa...

58│DOMAIN DRIVEN DESIGN QUICKLY
There are many ways to do code refactoring. There are even
refactoring patterns. Such patt...

REFACTORING TOWARD DEEPER INSIGHT│59
leaves the challenge of actually finding an incisive model, one
that captures subtle ...

60│DOMAIN DRIVEN DESIGN QUICKLY
risky, because ample refactoring may introduce behavioral
changes in the application.
To r...

REFACTORING TOWARD DEEPER INSIGHT│61
When building knowledge it is possible to run into
contradictions. What a domain expe...

62│DOMAIN DRIVEN DESIGN QUICKLY
We can add books to a bookshelf, but we should never add more
than its capacity. This can ...

REFACTORING TOWARD DEEPER INSIGHT│63
public class Bookshelf {
private int capacity = 20;
private Collection content;
publi...

64│DOMAIN DRIVEN DESIGN QUICKLY
The domain layer contains business rules which are applied to
Entities and Value Objects. ...

REFACTORING TOWARD DEEPER INSIGHT│65
Customer customer =
customerRepository.findCustomer(customerIdentiy);
…
Specification...

5
Preserving Model Integrity
his chapter is about large projects which require the combined
efforts of multiple teams. We ...

68│DOMAIN DRIVEN DESIGN QUICKLY
internal consistency of a model is called unification. An
enterprise project could have on...

PRESERVING MODEL INTEGRITY│69
Bounded Context
Each model has a context. When we deal with a single model,
the context is i...

70│DOMAIN DRIVEN DESIGN QUICKLY
A Bounded Context is not a Module. A Bounded Context
provides the logical frame inside of ...

PRESERVING MODEL INTEGRITY│71
the task at hand more carefully, we discover that the e-shop
application is not really relat...

72│DOMAIN DRIVEN DESIGN QUICKLY
However, breaking down the system into ever-smaller contexts
eventually loses a valuable l...

PRESERVING MODEL INTEGRITY│73
implementation. Continuous Integration applies to a Bounded
Context, it is not used to deal ...

74│DOMAIN DRIVEN DESIGN QUICKLY
together, and the entire system must work properly. If the
contexts are not clearly define...

PRESERVING MODEL INTEGRITY│75
Shared Kernel
Translation
Map
shared
When functional integration is limited, the overhead of...

76│DOMAIN DRIVEN DESIGN QUICKLY
Integrate a functional system frequently, but somewhat less often
than the pace of Continu...

PRESERVING MODEL INTEGRITY│77
a pure browser experience, while the other could be a rich GUI
application. Even if the repo...

78│DOMAIN DRIVEN DESIGN QUICKLY
changes to be done to the database, hurting the reporting team’s
activity. If the e-shoppi...

PRESERVING MODEL INTEGRITY│79
Conformist
A Customer-Supplier relationship is viable when both teams are
interested in the ...

80│DOMAIN DRIVEN DESIGN QUICKLY
model, and design without having to give a thought to the
supplier’s model. But this is no...

PRESERVING MODEL INTEGRITY│81
entangled hard to understand and hard to work with. Even if it
was well done, the legacy app...

82│DOMAIN DRIVEN DESIGN QUICKLY
achievement is that the client model remains pure and consistent
without being contaminate...

PRESERVING MODEL INTEGRITY│83
This can be a very simple object, with little functionality,
serving the basic need of data ...

84│DOMAIN DRIVEN DESIGN QUICKLY
from the user’s perspective this is one application, but from a
modeling and design point ...

PRESERVING MODEL INTEGRITY│85
The solution is to see the external subsystem as a provider of
services. If we can wrap a se...

86│DOMAIN DRIVEN DESIGN QUICKLY
When working with a large model, we should try to separate the
essential concepts from gen...

PRESERVING MODEL INTEGRITY│87
system will consider the Route as a generic subdomain. The
Core Domain of an application may...

88│DOMAIN DRIVEN DESIGN QUICKLY
Some parts of the model add complexity without capturing or
communicating specialized know...

PRESERVING MODEL INTEGRITY│89
of another domain to deal with. There is still the
inconvenience of integrating the outsourc...

6
DDD Matters Today:
An interview with Eric Evans
nfoQ.com interviews Domain Driven Design founder Eric Evans
to put Domai...

92│DOMAIN DRIVEN DESIGN QUICKLY
But now that basic level of web usage has largely been
assimilated, and projects are start...

DDD MATTERS TODAY│93
get/set prefixed accessors for all variables, etc.) produced terrible
objects. The tools were so cumb...

94│DOMAIN DRIVEN DESIGN QUICKLY
That is the Java world. Then you have the new-comers like
Ruby. Ruby has a very expressive...

DDD MATTERS TODAY│95
Among other things, they took context mapping and applied it to
evaluation of off-the-shelf software ...

96│DOMAIN DRIVEN DESIGN QUICKLY
About Eric Evans
Eric Evans is the author of "Domain-Driven Design: Tackling
Complexity in...

Advertisement on behalf of Eric Evans
Our Services
We help ambitious software projects realize the potential of
domain-dri...

Domain Driven Design Quickly

Share Slideshare

LinkedIn
Facebook
Twitter

Embed

Size (px)

Show related Slideshows at end

WordPress Shortcode

Link

Share
Email

2024 Trend Updates: What Really Wor... by Search Engine Jou... 1064483 views
Storytelling For The Web: Integrate... by Chiara Aliotta 983535 views
Artificial Intelligence, Data and C... by OECD Directorate ... 926407 views
How to Leverage AI to Boost Employe... by SocialHRCamp 393808 views
2024 State of Marketing Report – by... by Marius Sescu 222682 views
Everything You Need To Know About C... by Expeed Software 238245 views

View on Slideshare

1 of 106 Ad

View on Slideshare

1 of 106 Ad
