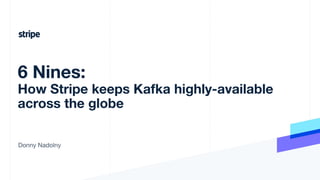

Donny Nadolny
6 Nines:
How Stripe keeps Kafka highly-available
across the globe

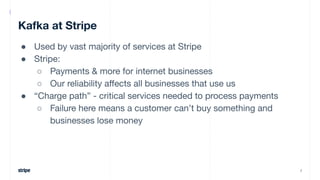

Kafka at Stripe
● Used by vast majority of services at Stripe
● Stripe:
○ Payments & more for internet businesses
○ Our re...

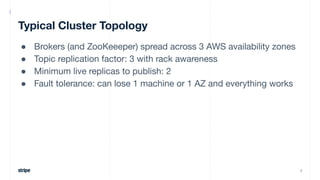

Typical Cluster Topology
● Brokers (and ZooKeeeper) spread across 3 AWS availability zones
● Topic replication factor: 3 w...

Typical Cluster Topology
4

Typical Cluster Topology
5

Typical Cluster Topology
6

7
Kafka is Highly Available

Kafka is highly available, but…
● Region failure
● 1 AZ failure + 1 machine failure
● 1 machine failure during rolling res...

High(er) availability Kafka - requirements
● Producers always need to be able to produce
● Consumers can fall behind with ...

Higher availability Kafka - classic setup
10

Higher availability Kafka
11

Higher availability Kafka
12

Higher availability Kafka
13

Higher availability Kafka - only for producers!
14

HA-write tradeoﬀs
● Pros:
○ Easy to set up
○ Much better produce availability
● Cons:
○ Worse produce latency due to mirro...

Changing requirements - consumers
● Over time, consumers became more important
16

17
Multicluster Kafka

Multicluster Kafka
18

Multicluster Kafka
19

Multicluster Kafka
20

Multicluster Kafka
21

Kproxy
● Observability
● ACLs
○ “Dark read” conﬁg
● Single place for health checking
22

Kproxy publish availability
● Extremely high publish availability
● Available if even 1 cluster is healthy
23

Kproxy consume availability
● If a cluster goes down, move publishes to another cluster
● Messages unavailable until clust...

Kproxy consume availability - unconsumed messages
● (latest oﬀset - committed oﬀset) is guaranteed upper bound
● Consumer ...

High availability consume
● Publish to all clusters instead of any cluster
● Deduplicate on the consumer
● Similarly ultra...

High availability consume
● Publish to all clusters instead of any cluster
● Deduplicate on the consumer
● Similarly ultra...

More beneﬁts
● Zero-impact: turn oﬀ cluster for maintenance
○ Route produces to other clusters, wait for consumers to catc...

Single point of failure: kproxy
Yes, but:
● Stateless
○ Health checking of clusters is in-memory
● Zero coordination betwe...

Kproxy host sets
● Isolate consumers from producers
● Isolate low-latency / high availability producers from others
● Isol...

Kproxy host sets
31

Kproxy host sets - rollout
32
1. Single host of a low priority
host set
2. A few hosts in that host set
3. Many hosts in t...

Kproxy host sets - rollout
33

Data locality
● Producers and consumers can request that they publish to / consume from
a set of regions
● Common producer...

Failure detection
● Simple or complicated?
○ By topic-partition-cluster or by cluster?
○ Use topology (broker overlap, ava...

Failure detection - our approach
● Use actual publishes as health check
● Initially by topic-cluster, simple circuit break...

37
Multicluster Kafka Limitations

Limitations
● Our implementation:
○ Custom client & API
○ Small amount of unconsumed messages if cluster goes down
○ Keyed...

Custom client & API
● Big tradeoﬀ: other tools (Apache Flink, Kafka Connect, Spark
Streaming, etc) don’t work oﬀ the shelf...

Custom client & API
● Kafka client protocol is very large & changes with versions
● How to express partitions across multi...

Gotchas
● Higher eﬀective number of partitions, but can’t use it for more
consumer parallelism unless you do extra work in...

42
Results

Kafka is highly available, but…
● Region failure
● 1 AZ failure + 1 machine failure
● 1 machine failure during rolling res...

Mitigated by multicluster / Kproxy
● Region failure
● 1 AZ failure + 1 machine failure
● 1 machine failure during rolling ...

Mostly Mitigated by multicluster / Kproxy
● Misbehaving client ﬂooding requests
○ Mostly mitigated - can isolate clients w...

Publish availability
● SLO for other teams at Stripe:
● 99.999% of publishes succeed within 5 seconds for high-priority
pu...

Publish availability
● SLO for other teams at Stripe:
● 99.999% of publishes succeed within 5 seconds for high-priority
pu...

Publish latency
● SLO: p50/p90/p99 of 10ms/15ms/35ms
● Actual: 3.5ms/5ms/9.5ms
48

49
We’re hiring! stripe.com/jobs

50
Thanks!

51
Questions?
