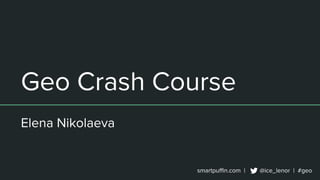

Geo Crash Course
Elena Nikolaeva

smartpuffin.com | @ice_lenor | #geo
Who am I?
● 10 years in Geo
● Started in 2GIS
● Built a distributed scalable
GIS-syste...

smartpuffin.com | @ice_lenor | #geo

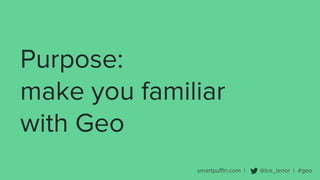

Purpose:
make you familiar
with Geo

smartpuffin.com | @ice_lenor | #geo
What is an integer?
● A whole number
● 4 bytes (nowadays, mostly)
● Unsigned or signed...

smartpuffin.com | @ice_lenor | #geo
Common wisdom
● One doesn't store money in double
● When working with strings, mind th...

smartpuffin.com | @ice_lenor | #geo
Geo data: it's a
data type!

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Geometry types

smartpuffin.com | @ice_lenor | #geo
Point
Point(25 10)

smartpuffin.com | @ice_lenor | #geo
MultiPoint
1
2
point1
point2
MultiPoint( (25 10), (32 9) )

smartpuffin.com | @ice_lenor | #geo
LineString
1
2
LineString(5 10, 22 15)
● Consists of ordered points

smartpuffin.com | @ice_lenor | #geo
MultiLineString
1
2
3
4
line1 line2
MultiLineString( (10 10, 20 20), (30 15, 40 12) )

smartpuffin.com | @ice_lenor | #geo
Polygon
1
3
2
4
Polygon((0 0, 2 5, 4 0, 0 0))
● Consists of ordered points; certain di...

smartpuffin.com | @ice_lenor | #geo
Polygon with holes
6
7
8
9
1
2
3
4
5
Polygon((0 0, 8 0, 8 5, 0 5, 0 0), (3 2, 4 5, 6 2...

smartpuffin.com | @ice_lenor | #geo
1
2
3
4
5
MultiPolygon
10
6
7 8
9
11
12 13
14
15
16
17 18
poly1
poly2
poly3

smartpuffin.com | @ice_lenor | #geo
GeometryCollection
GeometryCollection(
Polygon((...)),
LineString(...),
Point(...),
Po...

smartpuffin.com | @ice_lenor | #geo
● Name: Amsterdam
● Type: city
● Population: 821,752
● Country: The Netherlands
GeoObj...

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Coordinates

smartpuffin.com | @ice_lenor | #geo
Who thinks that
Earth is flat?

smartpuffin.com | @ice_lenor | #geo

smartpuffin.com | @ice_lenor | #geo
SHOCK!

smartpuffin.com | @ice_lenor | #geo
(x, y)
Point (0 10)
LineString (0 0, 10 0)
Flat coordinates

smartpuffin.com | @ice_lenor | #geo
(lat, long)
Point (52.373160 4.891999)
52.3680° N, 4.9036° E
Geography coordinates

smartpuffin.com | @ice_lenor | #geo
Flat coordinates
● Computer games
● Building plans
● Large scale maps of small areas
○...

smartpuffin.com | @ice_lenor | #geo
Flat coordinates
(0, 0) 5 10 15 20 25
5
10
15
Ficus is at
(23, 8)
x
y

smartpuffin.com | @ice_lenor | #geo
Geographical coordinates
● Map of the whole planet
● Map of a large area of the planet...

smartpuffin.com | @ice_lenor | #geo
Small scale: when everything is small

smartpuffin.com | @ice_lenor | #geo
Large scale: when everything is LARGE

smartpuffin.com | @ice_lenor | #geo
Latitude
0°
90° North
-90° South
North Pole
South Pole
30th parallel North
30° N
30°
4...

smartpuffin.com | @ice_lenor | #geo
Longitude
0°
-180°
West
180°
East
40th meridian east
40° E
40°20th meridian west
40° W...

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Datums and
Coordinate Systems
How round is Earth, e...

smartpuffin.com | @ice_lenor | #geo
Geoid
Earth's shape is a

smartpuffin.com | @ice_lenor | #geo
Spheroid
But we can simplify it to a

smartpuffin.com | @ice_lenor | #geo
WGS84
The latest revision is WGS 84 (also known as WGS
1984, EPSG:4326). The WGS 84 da...

smartpuffin.com | @ice_lenor | #geo
WGS84
radius
R = 6378 km
flattening
F = 1 / 298.25
● Earth is an ellipsoid
○ flattened...

smartpuffin.com | @ice_lenor | #geo
Datum describes Earth's
general shape
(Sphere? Ellipsoid? Spheroid?)

smartpuffin.com | @ice_lenor | #geo
Coordinate system describes
where coordinates start
where they end
and what’s the unit

smartpuffin.com | @ice_lenor | #geo
You must specify
the Coordinate System
to make your math correct!

smartpuffin.com | @ice_lenor | #geo
Formula for distance: flat
Point(0 0) to Point(1 1) = 1.414 (units)
● We all learned i...

smartpuffin.com | @ice_lenor | #geo
Formula for distance: haversine
● Uses radius
● Doesn’t use flattening
● => Calculates...

smartpuffin.com | @ice_lenor | #geo
Formula for distance: Vincenty
● Uses radius
● And flattening
● => Calculates on WGS84...

smartpuffin.com | @ice_lenor | #geo
SRID: Spatial Reference Id
● EPSG - European Petroleum Survey
Group
○ A registry of da...

smartpuffin.com | @ice_lenor | #geo
Why is a SRID like a toothbrush?
Because everyone has got one.
● British National Grid...

smartpuffin.com | @ice_lenor | #geo
Who still thinks
that
Earth is flat?

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Projections

smartpuffin.com | @ice_lenor | #geo
"How do we draw
a 3D-Earth
on paper?"
- Gerardus Mercator

smartpuffin.com | @ice_lenor | #geo
Projection
● A means to display a N-dimensional object
in a (N-1)-dimensional space
● ...

smartpuffin.com | @ice_lenor | #geo
We take a datum
and flatten it!

smartpuffin.com | @ice_lenor | #geo

smartpuffin.com | @ice_lenor | #geo
Projections
● A sphere can't be flattened without problems
○ You have to tug and stret...

smartpuffin.com | @ice_lenor | #geo
Specific way of flattening,
shrinking, stretching, fitting
is called
a projection

smartpuffin.com | @ice_lenor | #geo
Mercator Projection
● Preserves angles and shapes of
small objects
● => Good for navig...

smartpuffin.com | @ice_lenor | #geo
Orthographic
● "Like I'm looking at it from
space!"
● Directions from the central
poin...

smartpuffin.com | @ice_lenor | #geo
Plate Carrée
● longitude => y
● latitude => x
● Preserves angles
● Loses everything
el...

smartpuffin.com | @ice_lenor | #geo
Equal-area (i.e., Mollweide, Lambert, etc)
● Preserves
relative areas
● Distorts angle...

smartpuffin.com | @ice_lenor | #geo
Winkel Tripel: A Compromise?
● Tries to preserve all at once
● Minimises distortion of...

smartpuffin.com | @ice_lenor | #geo
Universal Transverse Mercator (UTM)
● Family of 60 projections ("zones")
○ Slice Earth...

smartpuffin.com | @ice_lenor | #geo
There is no single
"best projection"

smartpuffin.com | @ice_lenor | #geo
Each projection
is good
for a specific purpose

smartpuffin.com | @ice_lenor | #geo
Web Mercator: A Cursed Projection :)
● "Invented" by Google
○ They mix sphere and elli...

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
OGC Standard

smartpuffin.com | @ice_lenor | #geo
OGC Standard
● Open Geospatial Consortium: 500+ companies
● De-facto defines the geo-i...

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
What can I do with my geodata?
Geo Math:
Spatial Op...

smartpuffin.com | @ice_lenor | #geo
Distance
Point(0 0)
Point(4, 2)
Distance = 222.4 km
(calculated on WGS84)
Distance = 4...

smartpuffin.com | @ice_lenor | #geo
Inside

smartpuffin.com | @ice_lenor | #geo
Touches

smartpuffin.com | @ice_lenor | #geo
Overlaps

smartpuffin.com | @ice_lenor | #geo
Topological operations: Union
∪
poly1
poly2
poly1

smartpuffin.com | @ice_lenor | #geo
Topological operations: Intersection
∩
poly1
poly2

smartpuffin.com | @ice_lenor | #geo
Topological operations: Difference
poly1
poly2

smartpuffin.com | @ice_lenor | #geo
Bounding box
Geometry
Bounding box:
smallest enclosing
rectangle

smartpuffin.com | @ice_lenor | #geo
Buffer(5)
Buffer
5
5

smartpuffin.com | @ice_lenor | #geo
● Coordinates must be within SRID's limits
○ I.e., 95° North latitude is a no-no
● Lin...

smartpuffin.com | @ice_lenor | #geo
1
5
2
IsValid, MakeValid: Self-Intersection
3
4
● 8-shape polygon
● "Butterfly" geomet...

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Storing spatial data

smartpuffin.com | @ice_lenor | #geo
Well-known geometry representation
● Defined in OGC standard
● Well-known text
○ "Poin...

smartpuffin.com | @ice_lenor | #geo
Spatial databases
● OGC-compliant
● Store and index spatial data
○ Fast and correct qu...

smartpuffin.com | @ice_lenor | #geo
Spatial databases
● SQL Server
● Postgres: PostGIS extension
● Oracle Spatial and Grap...

smartpuffin.com | @ice_lenor | #geo
Spatial Elasticsearch?
● Supports only geographical coordinates on
WGS84
● Index: GeoH...

smartpuffin.com | @ice_lenor | #geo
Spatial indexes
● Quickly answer questions:
○ "What is close to this place"
○ "What is...

smartpuffin.com | @ice_lenor | #geo
Spatial index: Quadtree
● Divides space into 4
squares recursively
● Adding new object...

smartpuffin.com | @ice_lenor | #geo
Spatial index: R-tree
● Divides space into
rectangles
● Efficient for reading
● Adding...

smartpuffin.com | @ice_lenor | #geo
Spatial index: Z-order Curve
● Efficient for reading
● And for writing
● Harder to com...

smartpuffin.com | @ice_lenor | #geo
File formats
● Download your geodata into a file (like .csv)
● Then upload it somewher...

smartpuffin.com | @ice_lenor | #geo
Libraries
● OGC defines the API
● Can load a geometry from spatial db
● Can operate on...

smartpuffin.com | @ice_lenor | #geo
GIS-systems
Geographic information
systems: apps for creating
and editing geodata.
● A...

smartpuffin.com | @ice_lenor | #geo
GIS-systems
● Users: geo-specialists (cartographers)
● Create layers (types of objects...

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Common Problems in Geo

smartpuffin.com | @ice_lenor | #geo
new Point (lat, lon)
OR
new Point (lon, lat)
?
● Library-dependent
● Always check!

smartpuffin.com | @ice_lenor | #geo
Units: degrees
● Units of latitude and longitude: degrees
● You CAN'T measure distance...

smartpuffin.com | @ice_lenor | #geo
Units: degrees
● Two points on the equator:
● Point 1: latitude 0, longitude 0.
● Poin...

smartpuffin.com | @ice_lenor | #geo
Units: degrees
● Two points on Amsterdam's latitude (52° N):
● Point 1: latitude 52, l...

smartpuffin.com | @ice_lenor | #geo
The closer to the pole,
the less km's fit
in one degree longitude

smartpuffin.com | @ice_lenor | #geo
Degrees latitude
are always the same
in km's

smartpuffin.com | @ice_lenor | #geo
180th Meridian

smartpuffin.com | @ice_lenor | #geo
180th Meridian: Always Check With Fiji!
-16.760, -179.658
-16.712, 179.713
180th Merid...

smartpuffin.com | @ice_lenor | #geo
180th Meridian

smartpuffin.com | @ice_lenor | #geo
180th Meridian
● Fiji
● New Zealand
● Russia
● Kiribati
● United States

smartpuffin.com | @ice_lenor | #geo
Poles
● One latitude: 90° or -90°
● All longitudes meet there
=> It's all exactly the ...

smartpuffin.com | @ice_lenor | #geo
Poles
● Some projections don't support poles
● I.e., Mercator on WGS84:
○ "World betwe...

smartpuffin.com | @ice_lenor | #geo
Spatial operations around problem areas
● Math close to 180th meridian must work
corre...

smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Thank you
Your questions, please!

Share Slideshare

LinkedIn
Facebook
Twitter

Embed

Size (px)

Show related Slideshows at end

WordPress Shortcode

Link

Share
Email

2024 Trend Updates: What Really Wor... by Search Engine Jou... 1046658 views
Storytelling For The Web: Integrate... by Chiara Aliotta 960422 views
Artificial Intelligence, Data and C... by OECD Directorate ... 888959 views
How to Leverage AI to Boost Employe... by SocialHRCamp 374802 views
2024 State of Marketing Report – by... by Marius Sescu 212687 views
Everything You Need To Know About C... by Expeed Software 231658 views

View on Slideshare

1 of 101 Ad

View on Slideshare

1 of 101 Ad
