The Flux Capacitor of
Kafka Streams and ksqlDB
Matthias J. Sax | Software Engineer
@MatthiasJSax

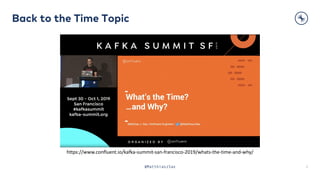

Back to the Time Topic
2@MatthiasJSax
https://www.confluent.io/kafka-summit-san-francisco-2019/whats-the-time-and-why/

Stream Processing is our Density.

Recap: Time 101
4@MatthiasJSax
Event Time
• When an event happened (embedded in the message/record)
• Ensures deterministi...

First, you turn the time circuits on.

Tracking Time
Stream-time: the maximum observed input event timestamp (aka ROWTIME)
• Monotonically increasing
• Allows to...

Yeah, well, history is gonna change
Input records with descending event timestamp are considered out-of-order
• Out-of-ord...

You are not thinking fourth-dimensionally
8@MatthiasJSax
14:11…14:05…
14:03…14:04…
14:01…
14:02… 14:08…
Topic-A, Partition...

You are not thinking fourth-dimensionally
9@MatthiasJSax
14:11…Topic-A, Partition 0
Topic-B, Partition 0 empty
Pause proce...

When the hell are they?

Tumbling Windows
• fixed size / non-overlapping / grouped (i.e, GROUP BY)
Time Windows
11@MatthiasJSax
14:00 14:05 14:1514...

Time Windows
12@MatthiasJSax
Hopping Windows
• fixed size / overlapping / grouped (i.e., GROUP BY)
• Different to a slidin...

Different use-case: aggregate the data of the last (e.g.) 10 minutes
• Window boundaries are data dependent and unknown up...

When we are processing, we don’t need watermarks
Grace period: defines a cut-off for out-of-order records that are (too) l...

Retention Time
How long to store data in a (windowed) table.
TimeWindows.of(Duration.ofMinutes(5L)).grace(Duration.ofMinut...

If my calculations are correct…
16@MatthiasJSax
Table is continuously updated, but when to emit data to the result stream?...

Crossing Timelines (aka Joins)

Stream-Stream Join
18@MatthiasJSax
Streams are conceptually unbounded
• Limited join scope via a sliding time window
leftS...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Chaining stream-stream joins is not associative!
• Order matters: ⨝(s1,s2,s3) != (s1 ⨝ s2) ⨝ s3 != (s1 ⨝ s3) ⨝ s2 != (s2 ⨝...

Stream-Table Join
27@MatthiasJSax
Stream-Table join is a temporal join
14:01a 14:03b 14:05c 14:08b 14:11a
14:02… 14:04… 14...

Time Traveling is just too Dangerous
28@MatthiasJSax
Is it? Well, mind compaction!
14:05c 14:08b 14:11a
14:02… 14:04… 14:0...

You Need to Know your History
29@MatthiasJSax
Table Changelog
Stream
append
new data
(tail)
truncation
retention time
comp...

You Need to Know your History
30@MatthiasJSax
Table Changelog
Stream
truncation
retention time
Lost History
fully compacte...

You are the doc, Doc
31@MatthiasJSax
Wrapping up
• Event time vs processing time
• Stream-time, grace period, and retentio...

Hope, it was educational.

Thanks! We are hiring!
@MatthiasJSax
matthias@confluent.io | mjsax@apache.org
