Halcyon + Vulkan
Munich Khronos Meetup
Graham Wihlidal
SEED – Electronic Arts

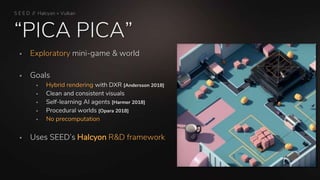

“PICA PICA”
 Exploratory mini-game & world
 Goals
 Hybrid rendering with DXR [Andersson 2018]
 Clean and consistent vi...

HALCYON

Halcyon Goals
 Rapid prototyping framework
 Different purpose than Frostbite
 Fast experimentation vs. AAA games
 Wind...

Halcyon Goals
 Minimize or eliminate busy-work
 Artist “meta-data” meshes
 Occlusion
 GI / Lighting
 Collision
 Leve...

Halcyon Goals
 Only target modern APIs
 Direct3D 12
 Vulkan 1.1
 Metal 2
 Multi-GPU
 Explicit heterogeneous mGPU
 N...

Halcyon Goals
 Local or remote streaming
 Minimal boilerplate code
 Variety of rendering techniques and approaches
 Ra...

Hybrid Rendering
S E E D // Halcyon + Vulkan
Direct Shadows
(ray trace or raster)
Direct Lighting
(compute)
Reflections
(r...

Hybrid Rendering

Rasterization Only

Halcyon Goals
 “PICA PICA” and Halcyon built from scratch
 Implemented lots of bespoke technology
 Minimal effort to ad...

Rendering Components
 Render Backend
 Render Device
 Render Handles
 Render Commands
 Render Graph
 Render Proxy
S E...

Rendering Components
S E E D // Halcyon + Vulkan
Render Handles
Render Commands
Render Backend
Render Device
Render Backen...

Render Backend

Render Backend
 Live-reloadable DLLs
 Enumerates adapters and capabilities
 Swap chain support
 Extensions (i.e. ray t...

Render Backend
 Provides debugging and profiling
 RenderDoc integration, validation layers, …
 Create and destroy rende...

Render Backend
S E E D // Halcyon + Vulkan
 Direct3D 12
 Vulkan 1.1
 Metal 2
 Proxy
 Mock

Render Backend
S E E D // Halcyon + Vulkan
 Direct3D 12
 Shader Model 6.X
 DirectX Ray Tracing
 Bindless Resources
 E...

Render Backend
S E E D // Halcyon + Vulkan
 Vulkan 1.1
 Sub-groups
 Descriptor indexing
 External memory
 Multi-draw ...

Render Backend
S E E D // Halcyon + Vulkan
 Metal 2
 Early development
 Primarily desktop
 Argument buffers
 Machine ...

Render Backend
S E E D // Halcyon + Vulkan
 Proxy
 Not discussed in this presentation

Render Backend
S E E D // Halcyon + Vulkan
 Mock
 Performs resource tracking and validation
 Command stream is parsed a...

Render Device

Render Device
S E E D // Halcyon + Vulkan
 Abstraction of a logical GPU adapter
 e.g. VkDevice, ID3D12Device, …
 Provid...

Render Device
S E E D // Halcyon + Vulkan
 Ownership of GPU resources
 Create & Destroy
 Lifetime tracking of resources...

Render Handles

S E E D // Halcyon + Vulkan
Render Handles
 Resources associated by handle
 Lightweight (64 bits)
 Constant-time lookup...

S E E D // Halcyon + Vulkan
Render Handles
ID3D12Resource ID3D12Resource
DX12: Adapter 2
ID3D12Resource
DX12: Adapter 3
ID...

S E E D // Halcyon + Vulkan
Render Handles
 Can query if a device has a handle loaded
 Safely add and remove devices
 H...

S E E D // Halcyon + Vulkan
Render Handles
 Shared resources are supported
 Primary device owner, secondaries alias prim...

S E E D // Halcyon + Vulkan
Render Handles
 Can also mix and match backends in the same process!
 Made debugging VK impl...

Render Commands

Render Commands
 Draw
 DrawIndirect
 Dispatch
 DispatchIndirect
 UpdateBuffer
 UpdateTexture
 CopyBuffer
 CopyText...

Render Commands
 Queue type specified
 Spec validation
 Allowed to run?
 e.g. draws on compute
 Automatic scheduling
...

Render Commands
S E E D // Halcyon + Vulkan

Render Command List
 Encodes high level commands
 Tracks queue types encountered
 Queue mask indicating scheduling rule...

Render Compilation
 Render command lists are “compiled”
 Translation to low level API
 Can compile once, submit multipl...

Render Graph

Render Graph
 Inspired by FrameGraph [O’Donnell 2017]
 Automatically handle transient resources
 Import explicitly mana...

Render Graph
 Basic memory management
 Not targeting current consoles
 Fine grained memory reuse sub-optimal with curre...

Render Graph
 Frame Graph  Render Graph: No concept of a “frame”
 Fully automatic transitions and split barriers
 Sing...

Render Graph
 Composition of multiple graphs at varying frequencies
 Same GPU: async compute
 mGPU: graphs per GPU
 Ou...

$Render Graph  Composition of multiple graphs at varying frequencies  e.g. translucency, refraction, global illumination ...$

Render Graph
 Two phases
 Graph construction
 Specify inputs and outputs
 Serial operation (by design)
 Graph evaluat...

 Construction phase
 Evaluation phase

Render Graph
 Automatic profiling data
 GPU and CPU counters per-pass
 Works with mGPU
 Each GPU is profiled
S E E D /...

Render Graph
 Live debugging overlay
 Evaluated passes in-order of execution
 Input and output dependencies
 Resource ...

Render Graph
Some of our render graph passes:
S E E D // Halcyon + Vulkan
 Bloom
 BottomLevelUpdate
 BrdfLut
 CocDeriv...

Shaders

Shaders
 Complex materials
 Multiple microfacet layers
 [Stachowiak 2018]
 Energy conserving
 Automatic Fresnel betwe...

Shaders
 Exclusively HLSL
 Shader Model 6.X
 Majority are compute shaders
 Performance is critical
 Group shared memo...

Shaders
 No reflection
 Avoid costly lookups
 Only explicit bindings
 … except for validation
 Extensive use of HLSL ...

Shaders
S E E D // Halcyon + Vulkan
SPIR-VDXIL
Vulkan 1.1Direct3D 12
ISPCMSL
SPIRV-CROSS
AVX2, …Metal 2
DXC
HLSL

Shader Arguments
 Commands refer to resources with “Shader Arguments”
 Each argument represents an HLSL space
 MaxShade...

Shader Arguments
 Each argument contains:
 “ShaderViews” handle
 Constant buffer handle and offset
 “ShaderViews”
 Co...

Shader Arguments
 Constant buffers are all dynamic
 Avoid temporary descriptors
 Just a few large buffers, offsets chan...

Vulkan Implementation
 Architecture simplified development effort
 Vulkan specific:
 Backend and device implementation
...

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan Implementation
S E E D // Halcyon + Vulkan

Vulkan! 

Vulkan! 

Vulkan! 

Vulkan Implementation
 Shader compilation (HLSL  SPIR-V)
 Patch SPIR-V to match DX12
 Using spirv-reflect from Hai and...

SPIR-V Patching
 SPV_REFLECT_RESOURCE_FLAG_SRV
 Offset += 1000
 SPV_REFLECT_RESOURCE_FLAG_SAMPLER
 Offset += 2000
 SP...

SPIR-V Patching
 SPV_REFLECT_RESOURCE_FLAG_CBV
 Offset Unchanged: 0
 Descriptor Set += MAX_SHADER_ARGUMENTS
 CBVs move...

SPIR-V Patching
S E E D // Halcyon + Vulkan
 If 2 of 4 HLSL spaces in use:
Unbound
SRVs (>=1000) UAVs (>=3000)Samplers (>...

Vulkan Implementation
 Translate commands
 Read command list
 Write Vulkan API
S E E D // Halcyon + Vulkan

S E E D // Halcyon + Vulkan

S E E D // Halcyon + Vulkan

Ongoing Work!
VK nearing DX12

Tools

Tools
 RenderDoc
 NV Nsight
 AMD RGP
S E E D // Halcyon + Vulkan

S E E D // Halcyon + Vulkan

Tools
S E E D // Halcyon + Vulkan

Tools
S E E D // Halcyon + Vulkan
 C++ Export!
 Standalone

Dear ImGui + ImGuizmo
 Live tweaking
 Very useful!
S E E D // Halcyon + Vulkan

References
S E E D // Halcyon + Vulkan
 [Stachowiak 2018] Tomasz Stachowiak. “Towards Effortless Photorealism Through Rea...

Thanks
 Matthäus Chajdas
 Rys Sommefeldt
 Timothy Lottes
 Tobias Hector
 Neil Henning
 John Kessenich
 Hai Nguyen
...

Thanks
 SEED
 Johan Andersson
 Colin Barré-Brisebois
 Jasper Bekkers
 Joakim Bergdahl
 Ken Brown
 Dean Calver
 Dir...

S E E D / / S E A R C H F O R E X T R A O R D I N A R Y E X P E R I E N C E S D I V I S I O N
S T O C K H O L M – L O S A ...

Questions?
