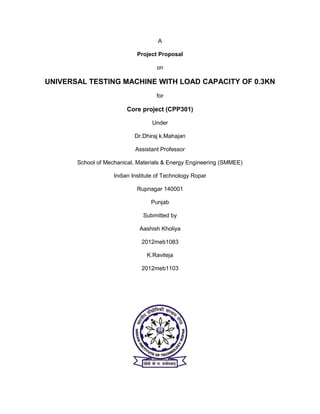

A
Project Proposal
on
UNIVERSAL TESTING MACHINE WITH LOAD CAPACITY OF 0.3KN
for
Core project (CPP301)
Under
Dr.Dhiraj k.Ma...

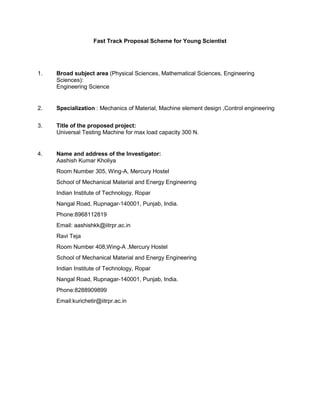

Fast Track Proposal Scheme for Young Scientist
1. Broad subject area (Physical Sciences, Mathematical Sciences, Engineerin...

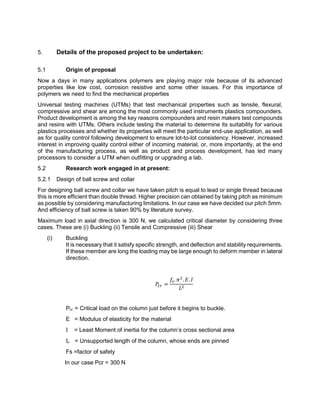

5. Details of the proposed project to be undertaken:
5.1 Origin of proposal
Now a days in many applications polymers are p...

𝐼 = 𝜋. (
𝑑
2
)
4
.
1
4
𝑑 = (
𝑓𝑠.𝑃 𝑐𝑟.𝐿2
𝜋3. 𝐸
)
1
4
(ii) Tensile and compression
To prevent with yielding of ball screw it...

Advertisement

5.2.2 Design of Base Plate
In experiment in universal testing machine we fix one end of ball screw on base plate an.
At th...

Thickness = 3cm
Thickness =3.5 cm

Thickness = 4 cm
5.2.3 Selection of Transducers
1. Linear Encoder
A linear encoder is a sensor, transducer paired with a s...

Incremental linear encoder gives output in terms of pulses and resolution
also depends on PPR
For cross checking of displa...

5.4 Review of R&D in the proposed area (National & International Status, Importance,
patents etc.):
5.5 Work plan (includi...

Advertisement

3. Simulation and Problem recognitions
Necessity of simulation in our project is only for finding dimensions of base plate...

1. Cylindrical columns
2. Ball screw
3. Cross head
4. Load cell
5. Gripper
6. Base plate
7. Stepper motor
8. gears
5. Cont...

Required torque - 265 mNm
Base plate
Dimensions of base plate
Length - 300mm
Breath - 300mm
Thickness - 30mm
Material - st...

Linear encoder
It measures the position of linear axis without any additional mechanical transfer elements
Optical linear ...

Load cell
They are 5 types of load cell is available in market
Preferred load cell for our UTM - S-type
Load capacity - 30...

Advertisement

Ball screw
Generally lead screw is used in universal testing machine but our case we are using ball
screw because ball scr...

1.1.1.1.1.1Detailed Biodata
Applicant No. 1
1. Name of the Applicant : kuricheti ravi teja
2. Mailing Address : kurichetir...

Applicant No. 2
1. Name of the Applicant : Aashish kholiya
2. Mailing Address : aashishkk@iitrpr.ac.in
3. Date of Birth : ...

Reference
[1] V.B.BHANDARI,Design of machine elements,3rd
edition
[2] RUSSELL C.HIBBELER ,Mechanics of materials,9th
editi...
