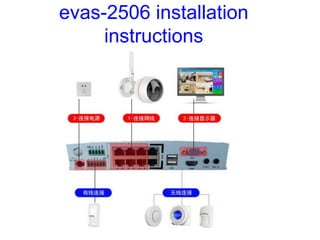

evas-2506 installation
instructions

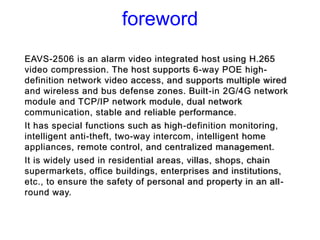

foreword
EAVS-2506 is an alarm video integrated host using H.265
video compression. The host supports 6-way POE high-
defi...

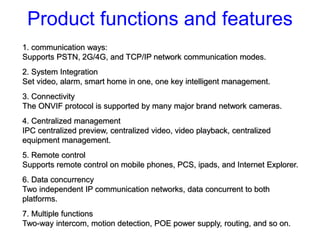

Product functions and features
1. communication ways:
Supports PSTN, 2G/4G, and TCP/IP network communication modes.
2. Sys...

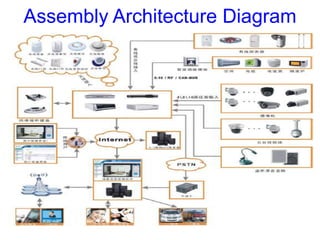

Assembly Architecture Diagram

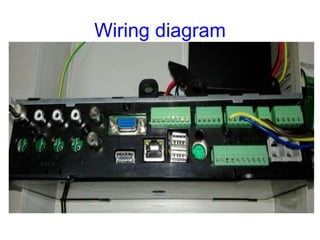

Wiring diagram

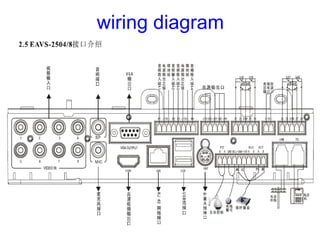

wiring diagram

Wired Zone Wiring
The detector power
supply pole is
connected to
12V+, and the
negative pole is
connected to 12V-.
The sig...

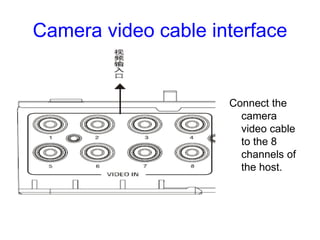

Camera video cable interface
Connect the
camera
video cable
to the 8
channels of
the host.

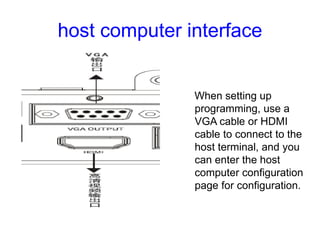

host computer interface
When setting up
programming, use a
VGA cable or HDMI
cable to connect to the
host terminal, and yo...

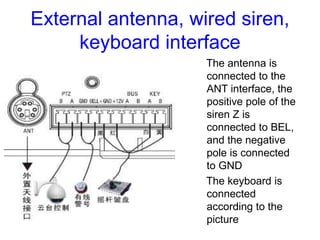

External antenna, wired siren,
keyboard interface
The antenna is
connected to the
ANT interface, the
positive pole of the
...

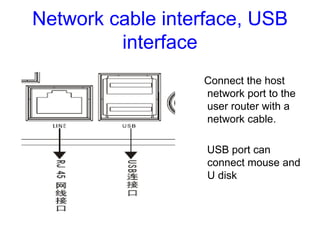

Network cable interface, USB
interface
Connect the host
network port to the
user router with a
network cable.
USB port can...

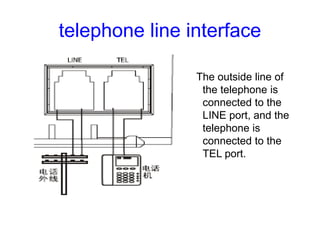

telephone line interface
The outside line of
the telephone is
connected to the
LINE port, and the
telephone is
connected t...

Configure page settings

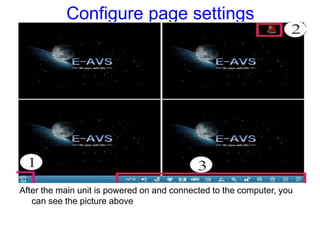

After the main unit is powered on and connected to the computer, you
can see the picture above

Configure page settings

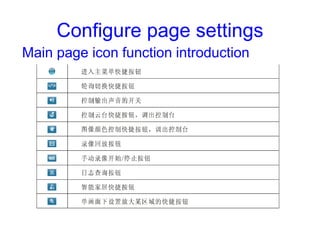

Main page icon function introduction

Configure page settings

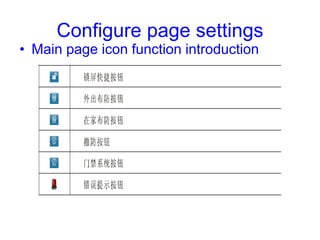

• Main page icon function introduction

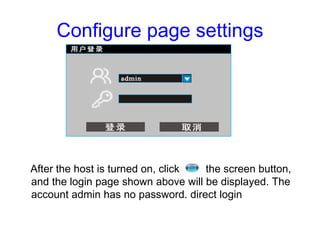

Configure page settings
After the host is turned on, click the screen button,
and the login page shown above will be displ...

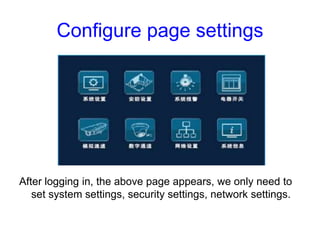

Configure page settings
After logging in, the above page appears, we only need to
set system settings, security settings, ...

Configure page settings

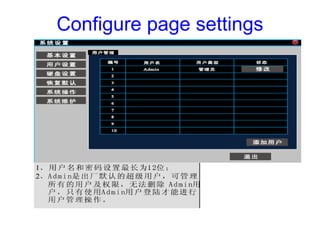

Including: basic settings, user settings, hard disk settings, default settings,
system operation, ...

Configure page settings
In the system settings, the basic settings can set the content on the
picture, and the factory def...

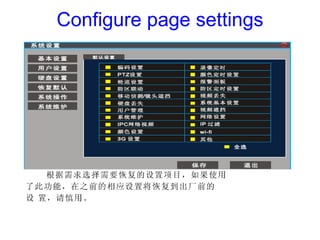

Configure page settings

Configure page settings
In the hard disk setting, the new hard disk needs to be formatted before
recording

Configure page settings

Configure page settings

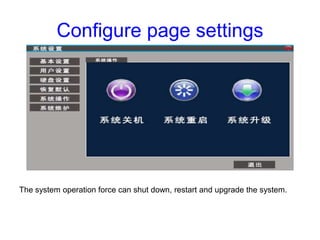

The system operation force can shut down, restart and upgrade the system.

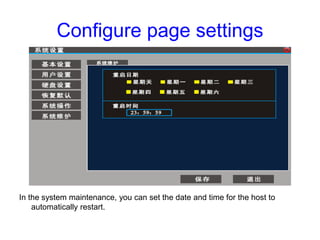

Configure page settings
In the system maintenance, you can set the date and time for the host to
automatically restart.

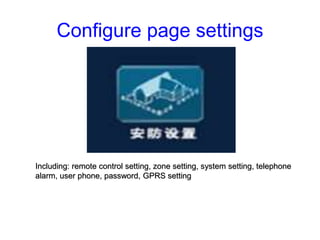

Configure page settings
Including: remote control setting, zone setting, system setting, telephone
alarm, user phone, pass...

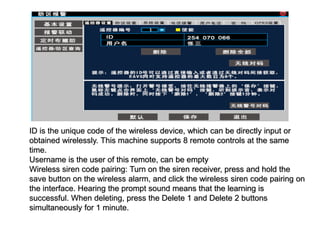

ID is the unique code of the wireless device, which can be directly input or
obtained wirelessly. This machine supports 8 ...

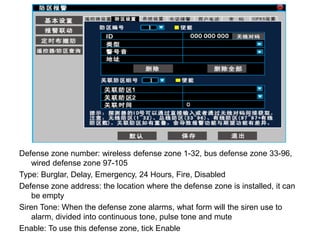

Defense zone number: wireless defense zone 1-32, bus defense zone 33-96,
wired defense zone 97-105
Type: Burglar, Delay, E...

Configure page settings

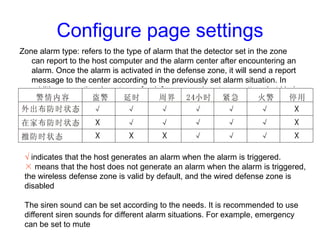

Zone alarm type: refers to the type of alarm that the detector set in the zone
can report to the h...

Configure page settings
Click the wireless code pairing with the mouse to enter the
code pairing interface: when the code ...

Configure page settings
Associated defense zone: In order to prevent false alarms, associate
two ringing detectors as need...

Configure page settings

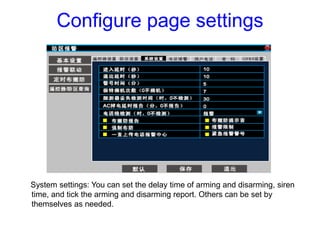

System settings: You can set the delay time of arming and disarming, siren
time, and tick the armi...

Configure page settings

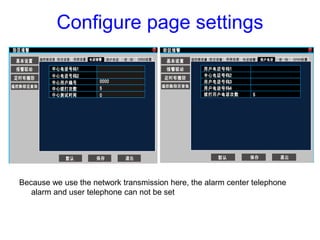

Because we use the network transmission here, the alarm center telephone
alarm and user telephone ...

Configure page settings

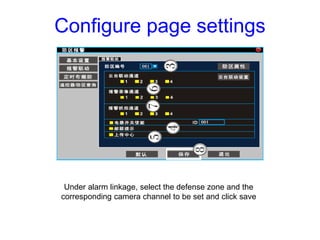

Under alarm linkage, select the defense zone and the
corresponding camera channel to be set and cl...

Configure page settings

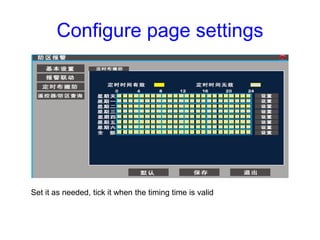

Set it as needed, tick it when the timing time is valid

Configure page settings

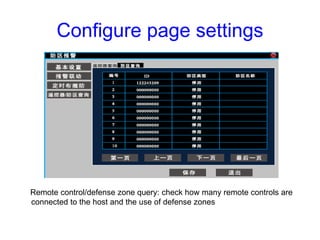

Remote control/defense zone query: check how many remote controls are
connected to the host and th...

Configure page settings

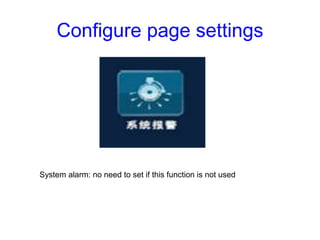

System alarm: no need to set if this function is not used

Configure page settings

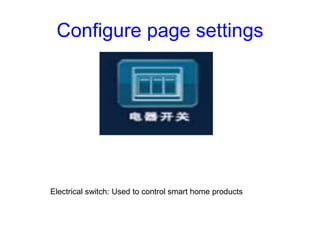

Electrical switch: Used to control smart home products

Configure page settings

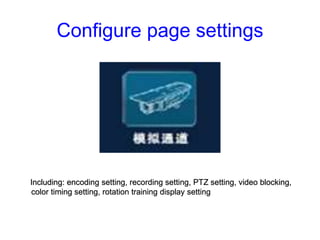

Including: encoding setting, recording setting, PTZ setting, video blocking,
color timing setting,...

Configure page settings
The encoding can be set by default, and the format can also be set
according to the needs: the cod...

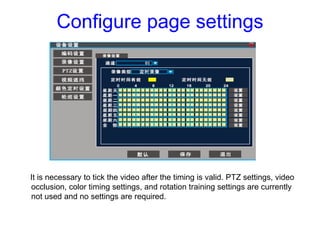

Configure page settings
It is necessary to tick the video after the timing is valid. PTZ settings, video
occlusion, color ...

Configure page settings
Including: basic settings, advanced settings, network time synchronization,
IP filtering, platform...

Configure page settings
Tick the following IP address, fill in the IP address according to the customer
route, subnet mask...

Configure page settings

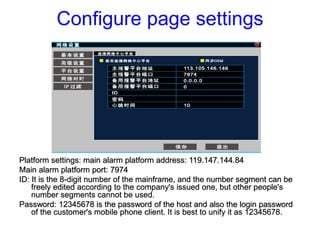

Platform settings: main alarm platform address: 119.147.144.84
Main alarm platform port: 7974
ID: ...
