CITOOLKI
Process Chart
Process Charts and Process Sequence Charts: Tools for Process Improvement

citoolkit.com

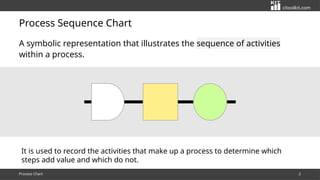

Process Sequence Chart
A symbolic representation that illustrates the sequence of activities
within a proces...

citoolkit.com

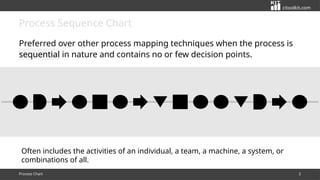

Process Sequence Chart
Preferred over other process mapping techniques when the process is
sequential in nat...

citoolkit.com
Characteristics
A useful feature of the process sequence chart is that it can be drawn
up as the process is ...

citoolkit.com
Characteristics
Later when analyzing the process, some steps become obvious
candidates for improvement, such...

citoolkit.com
Characteristics
Tracks performance measures such as cycle times, error rates, and
distance travelled.
Proces...

citoolkit.com
Uses
Can be used to analyze value-added and non-value-added activities
within a process
Process Chart 7
Help...

citoolkit.com
Uses
Used to show all the operation, inspection, storage, and transportation
activities that exist in a proc...

citoolkit.com
Components
The record of the process steps is made along a vertical or horizontal
line.
Process Chart 9
Colo...

citoolkit.com
Components
The process activities are displayed using common symbols along with
text.
Process Chart 10
Waiti...

citoolkit.com
Common Categories and Symbols
Common categories and symbols are . . .
Process Chart 11
Operation Inspection ...

citoolkit.com
Common Categories and Symbols
The five type of activities for a typical process are . . .
Process Chart 12
I...

citoolkit.com
Common Categories and Symbols
Process Chart 13
Operation - Produce, change, add or process something
Example...

citoolkit.com
Common Categories and Symbols
Process Chart 14
Inspection - Checking of items to ensure correct quality and/...

citoolkit.com
Common Categories and Symbols
Process Chart 15
Storage - The storing of items until later time
Examples: Sto...

citoolkit.com
Common Categories and Symbols
Process Chart 16
Transport - The movement of people, materials, documents, too...

citoolkit.com
Common Categories and Symbols
Process Chart 17
Delay - The temporary waiting of something or somebody
Exampl...

citoolkit.com
Value-Added Activities and Waste
Only operations will add value (BUT not all operations!).
Process Chart 18
...

citoolkit.com
Symbols
Other symbols may be used . . .
Process Chart 19
Rework or scrap point
Decision
Longer-term storage ...

citoolkit.com
Hint
Care should be taken when choosing the right category, as a delay of a
machine could be an inspection m...

citoolkit.com
Types
There are three common types of process sequence charts, based on
what is being charted . . .
Process ...

citoolkit.com
Man-Type Chart
Shows the actions of a person or group of people.
Example - Samples Inspection
Process Chart ...

citoolkit.com
Material-Type Chart
Shows what happens to a product or item as it moves.
Example - Supplier Invoice Processi...

citoolkit.com
Equipment-Type Chart
Shows how a tool or an equipment is used.
Example - Use of an office copy machine
Proce...

citoolkit.com
Current vs. Future State Map
A good practice is to chart the present process as
well as the future process i...

citoolkit.com
Current vs. Future State Map
When charting for the future state, each step is subject to . . .
Process Chart...

citoolkit.com
Current vs. Future State Map
The time for each process step and the distance travelled should be
calculated....

citoolkit.com
Current vs. Future State Map
Improvements can be achieved as a result of the reduction of the
number of step...

citoolkit.com
Steps for Constructing a Process Sequence Chart
Process Chart 29
With your team, describe the process, the s...

citoolkit.com
Steps for Constructing a Process Sequence Chart
Process Chart 30
Draw on a line the process activities as ob...

citoolkit.com
Steps for Constructing a Process Sequence Chart
Process Chart 31
Identify problem areas and improvement oppo...

citoolkit.com
Example - Production
The following example illustrates a material-type
process sequence chart prepared for a...

citoolkit.com
Process Chart
Presenting the process activities and the related information in the
form of a table.
Process ...

citoolkit.com
Process Chart
Helps estimating key metrics such as:
1. The percentage of value-added activities to total act...

citoolkit.com
Example – Supplier Invoice Processing
Process Chart 35
Enter invoice
into system
15 minutes
Match invoice
to...

citoolkit.com
Example – Process Chart Summary
The following table serves as a summary of the above process chart
which is ...

citoolkit.com
Key Metrics
Process Chart 37
Number of steps 2 2 1 1 0 6
Time (IN MINS) 45 10 10 60 0 125
Distance (IN METER...

citoolkit.com
Key Metrics
Process Chart 38
Number of steps 2 2 1 1 0 6
Time (IN MINS) 45 10 10 60 0 125
Distance (IN METER...

citoolkit.com
Key Metrics - More advanced metrics can be calculated
Process Chart 39
Annual
Labor
Cost
=
Process
time in
h...

citoolkit.com
Further Information
Process charting is sometimes used in conjunction with flow
diagramming.
Process Chart 4...

citoolkit.com
Further Information
What do we think of a process is not necessary what it actually is . . .
Process Chart 4...

citoolkit.com
Further Information
Common Process Problems . . .
Process Chart 42
Long cycle times
Too many inspections
Err...

citoolkit.com
Further Information – Can Making Process
Process Chart 43
Start
Lubricator
Cupper
De-Reeler
Body M
aker 8
Tr...
