CITOOLKIT
Process Mapping
The Simple Drawing Way To Map Business Processes
10
30
20
40

citoolkit.com

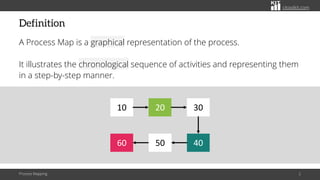

Definition
A Process Map is a graphical representation of the process.
It illustrates the chronological sequ...

citoolkit.com

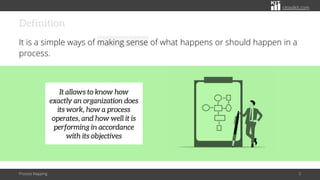

Definition
It is a simple ways of making sense of what happens or should happen in a
process.
Process Mappin...

citoolkit.com
Characteristics of Process Maps
Process Mapping 4
Provides a mechanism for analyzing and
studying processes
...

citoolkit.com
Characteristics of Process Maps
The preparation of a process map is not a solution by itself.
It will howeve...

citoolkit.com
Uses
Process maps helps identifying process variation, waste and non-value
adding activities.
Process Mappin...

citoolkit.com
Benefits
Process Mapping 7
Identifies problem areas and
opportunities for process
improvement
02
Helps under...

citoolkit.com
Benefits
By analyzing processes, we will be able to:
Process Mapping 8
Cost Delivery
Quality
Customer
Satisf...

citoolkit.com
Benefits
Process Mapping 9
Process Optimization
The measurement and improvement of the process variables
res...

citoolkit.com
Benefits
Process mapping can provide inputs to other continuous improvement
techniques such as . . .
Process...

citoolkit.com
Process Perspectives
Three Process Perspectives . . .
Process Mapping 11
10
30
20
40
What the process
really...

citoolkit.com
Process Mapping Techniques
There are different techniques to map a process . . .
Process Mapping 12
All thes...

citoolkit.com
Process Mapping Techniques
Process Mapping 13
Simple Drawing Process Map
Only uses arrows and boxes to repre...

citoolkit.com
Process Mapping Techniques
Process Mapping 14
SIPOC Map
A high-level summary of the process that lists suppl...

citoolkit.com
Process Mapping Techniques
Process Mapping 15
Flowchart
Provides a detailed view of the “should-be” process ...

citoolkit.com
Process Mapping Techniques
Process Mapping 16
Opportunity Map
Helps identifying waste, delays and other non-...

citoolkit.com
Process Mapping Techniques
Process Mapping 17
Process Sequence Chart
Provides a way to identify the non-valu...

citoolkit.com
Process Mapping Techniques
Process Mapping 18
Step
#
Time
IN MINS
Distance
IN METERS
Process description
Pro...

citoolkit.com
Process Mapping Techniques
Process Mapping 19
Value Stream Map
Used to prioritize improvement opportunities ...

citoolkit.com
Process Mapping Techniques
Process Mapping 20
Flow Diagram
Depicts patterns of movement of product, material...

citoolkit.com
Process Mapping Techniques
So which process mapping technique is best?
Process Mapping 21

citoolkit.com
Process Mapping Techniques
It depends on what you want to achieve . . .
Process Mapping 22
Simply presenting...

citoolkit.com
Process Mapping Techniques
From this point until the end of the material, we will use the simple drawing
pro...

citoolkit.com
Simple Drawing Process Map
Simple drawing is the most basic form of process maps which uses only
boxes and a...

citoolkit.com
Example – Doing the Laundry
Process Mapping 25
30
Select
settings
10
Sort
laundry
40
Add
detergent
20
Load
w...

citoolkit.com
Process Levels
Just like real maps, process maps can be created for different levels in the
organization.
Pr...

citoolkit.com
Process Levels
Every business process can be described at different levels of detail.
1 2
1.1 1.3
1.2
1.1.1 ...

citoolkit.com
Process Levels
Process Mapping 28
SUB-SUB PROCESS
CORE PROCESSES L1
SUB PROCESS L2
L3
DOWN TO THE TASK LEVEL

citoolkit.com
Process Levels
The level of detail varies depending on the needs.
Process Mapping 29
Seeing the big picture ...

citoolkit.com
Process Levels
Work at the level that makes sense for your situation.
Process Mapping 30
Level 1
Highest-lev...

citoolkit.com
Example – Making Orange Juice
The following is a process map for making orange juice. This process may be
pa...

citoolkit.com
Example – Repairing a Defective Unit
This is a process map for repairing a defective unit after received by ...

citoolkit.com
Example – Repairing a Defective Unit
So far, only one process step has been mapped to a second level.
Proces...

citoolkit.com
Example – Repairing a Defective Unit
Notice the rework loop which occurs when it is discovered during testin...

citoolkit.com
Vertical vs. Horizontal Expansions
Process Mapping 35
Sub process
Vertical expansion
Detailed process
Horizo...

citoolkit.com
Horizontal Expansion
The amount of detail varies depending on the needs.
Steps taken when things go
wrong
Th...

citoolkit.com
Horizontal Expansion
Process Mapping 37
Makes a process map easier to create and interpret and useful when t...

citoolkit.com
Example – Can Making Process Map
Process Mapping 38
20
Drawing cups
120
Form & flange necks
100
Drying insid...

citoolkit.com
How Much Detail is Needed?
Process maps can quickly become long and complicated when there is
much detail to...

citoolkit.com
Other Process Mapping Formats
Process Mapping 40
Time-function Mapping
Flow Dept. X Y KPI Time
Process Map T...

citoolkit.com
Time-Function Mapping
A process map with the time added on one
axis and the function on the other axis.
Can ...

citoolkit.com
Example – Waiting Time to Repair Defective Units
Process Mapping 42
Troubleshoot
to locate
the problem
Recei...

citoolkit.com
Process Map Table
More information can be displayed in process
maps such as . . .
The time it takes to perfo...

citoolkit.com
Example – Hotel Check-Out
Process Mapping 44
Process flow Description Department Responsible Inputs Outputs ...

citoolkit.com
Input Variables
One of the main benefits of a process map is to identify key process input
variables that ca...

citoolkit.com
Input Variables
Identify all factors that are present for each of the process steps, including
the . . .
Pro...

citoolkit.com
Input Variables – Noise Factors
Process Mapping 47
N
Uncontrollable, costly or preferably not to
be controll...

citoolkit.com
Input Variables – Standard factors (SOPs)
Process Mapping 48
Have been standardized according to some
operat...

citoolkit.com
Input Variables – Design Factors
Process Mapping 49
The controllable factors that can be
adjusted and contro...

citoolkit.com
Input Variables
Process Mapping 50
There is a fourth factor! the ‘never thought of before’ factors

citoolkit.com
Example – Process an Expense Report
Process Mapping 51
10
Prepare expense
report
Employee
20
Approve
and Sig...

citoolkit.com
Example – Making Coffee
The following is an example of a process map that details the steps
required for pre...

citoolkit.com
Steps for Constructing a Process Map
Process Mapping 53
Gather the team and ensure everyone is clear on the ...

citoolkit.com
Steps for Constructing a Process Map
Process Mapping 54
Agree on the mapping technique and the scope and bou...

citoolkit.com
Steps for Constructing a Process Map
Process Mapping 55
Generate the ‘As-Is’ process map by identifying all ...

citoolkit.com
Steps for Constructing a Process Map
Process Mapping 56
Add further details as necessary, and classify the i...

citoolkit.com
Steps for Constructing a Process Map
Process Mapping 57
Analyze the mapped process to identify problem areas...

citoolkit.com
Steps for Constructing a Process Map
Process Mapping 58
Build the ‘Should-Be’ process map that corrects the ...

citoolkit.com
Hints
Process Mapping 59
Clarify process
boundaries
Use brief
description to
describe each
activity
Number y...

citoolkit.com
Potential Pitfalls
Process Mapping 60
Mapping without a
clear purpose
Not verifying the
facts
Lost in the de...

citoolkit.com
Further Information
Process Mapping 61
It’s always recommended to walk the
process before you draw your
proc...

citoolkit.com
Further Information
Supportive Questions . . .
Process Mapping 62
Are things done in the right
sequence?
Are...

citoolkit.com
Further Information
If several people are going to chart the
processes, design a template to ensure
that one...

citoolkit.com
Further Information
Common Process Problems . . .
Process Mapping 64
Long cycle times
Too many inspections
E...

citoolkit.com
Further Information
What do we think of a process is not necessary what it actually is . . .
Process Mapping...
