The document discusses electronic components and connections, specifically detailing a simple circuit setup using breadboards, LEDs, resistors, and push buttons. It explains the connections for a common cathode and common anode seven segment display. Instructions for connecting the components to power sources are provided.

1. Electronic Components and Connections
G. Mahalakshmi Malini, AP/ECE
Avinashilingam Institute for Home Science and Higher Education for Women, School of Engineering
Department of Electronics and Communication Engineering

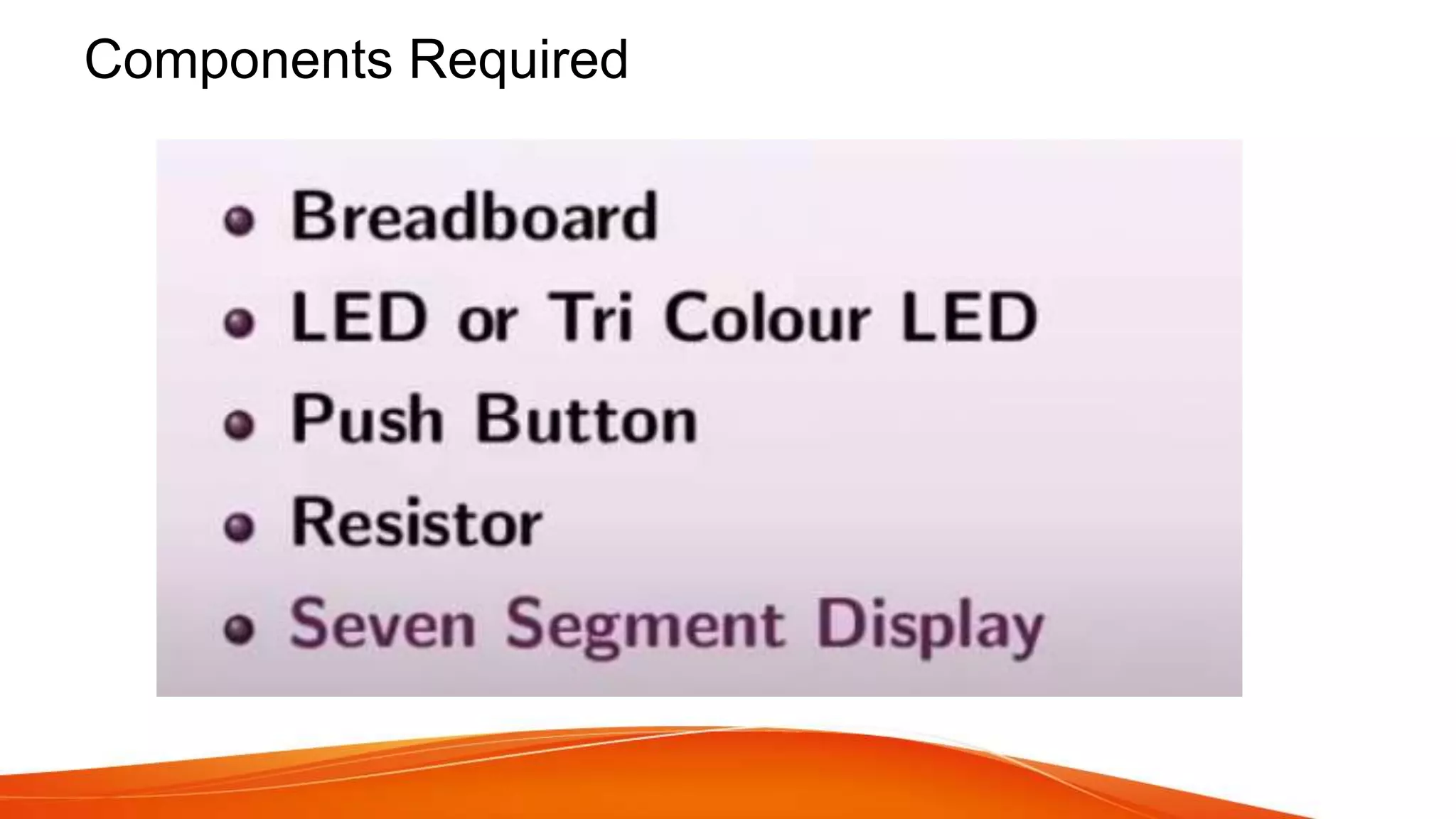

2. Components Required

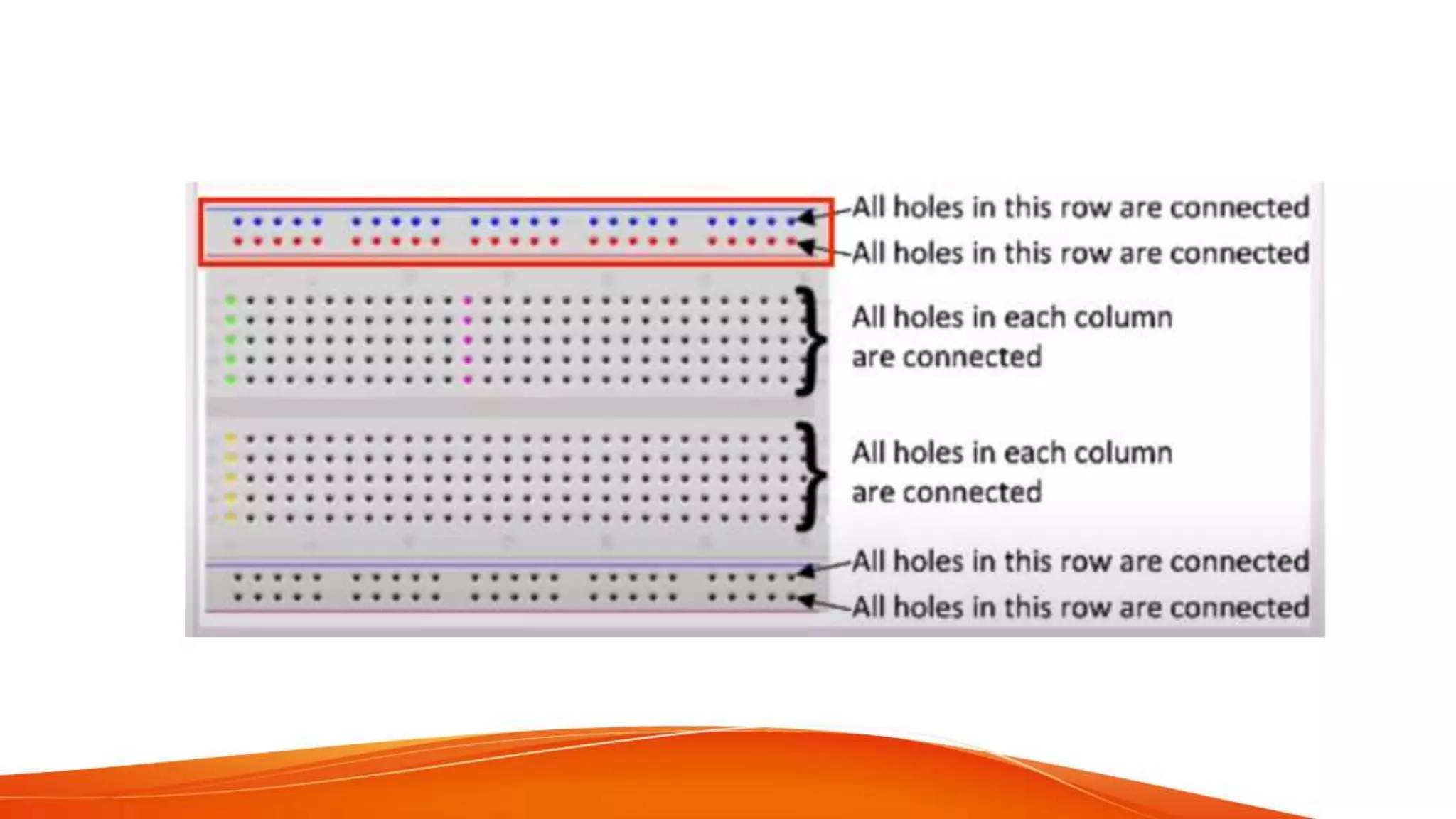

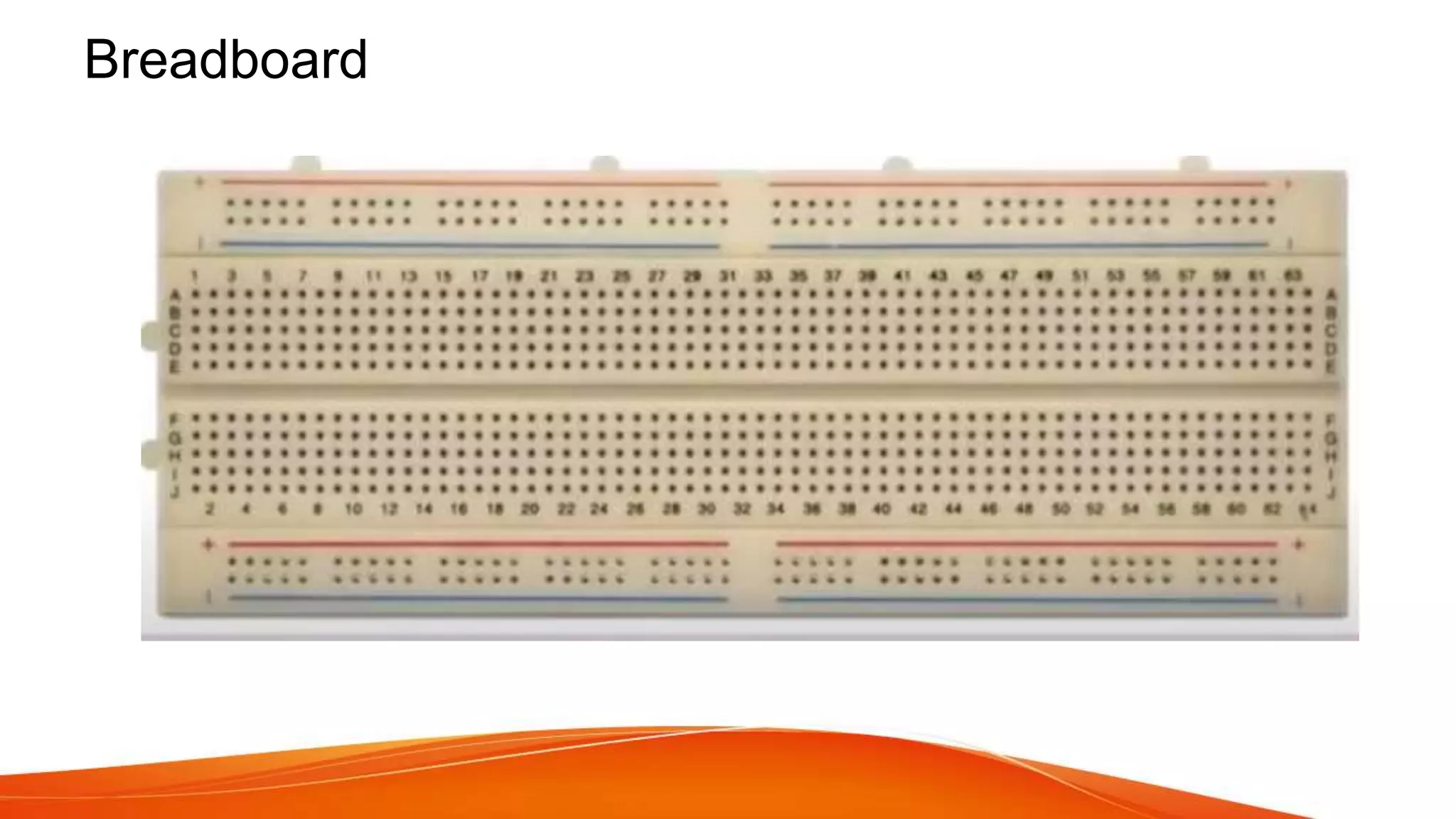

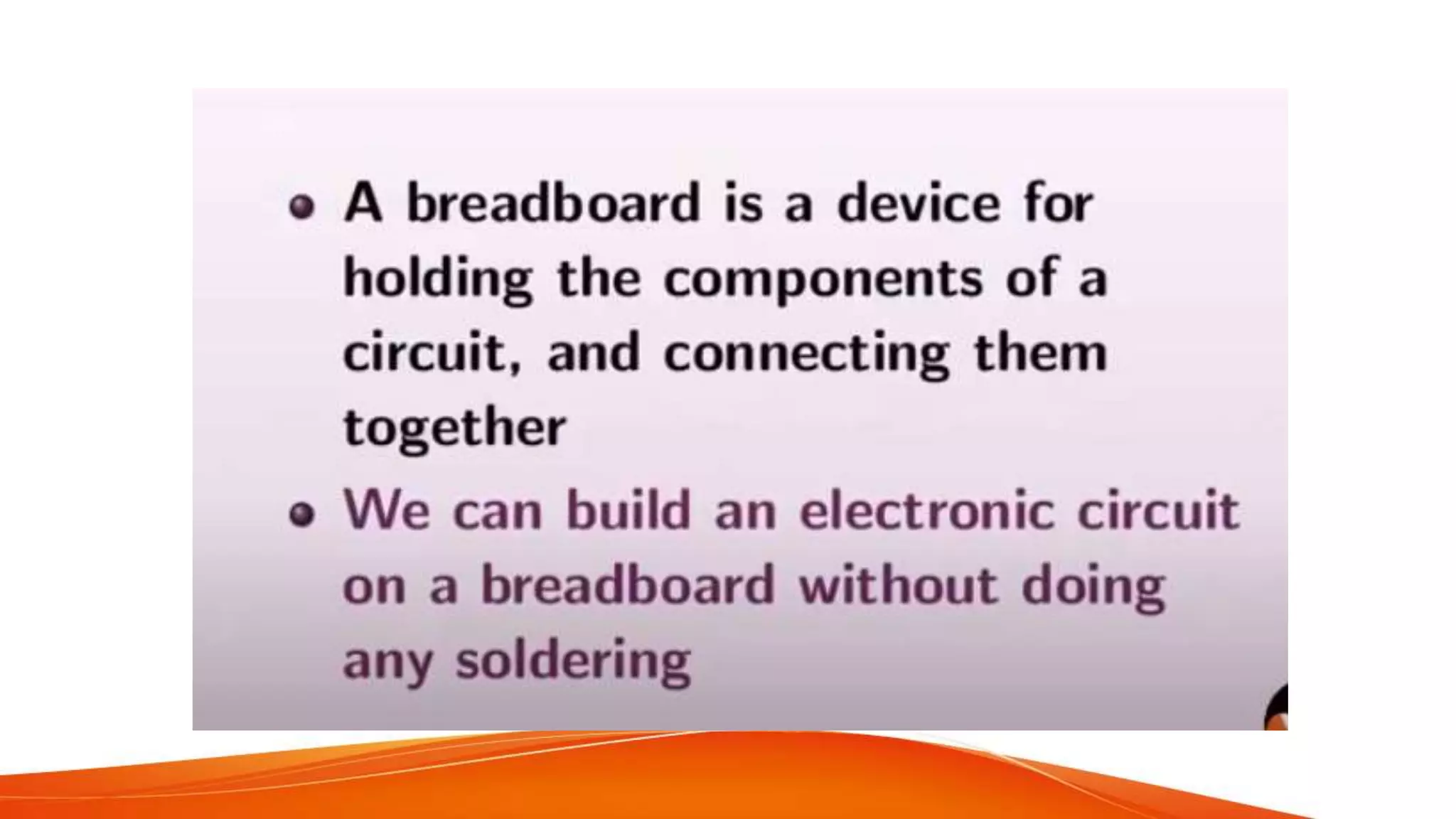

3. Breadboard

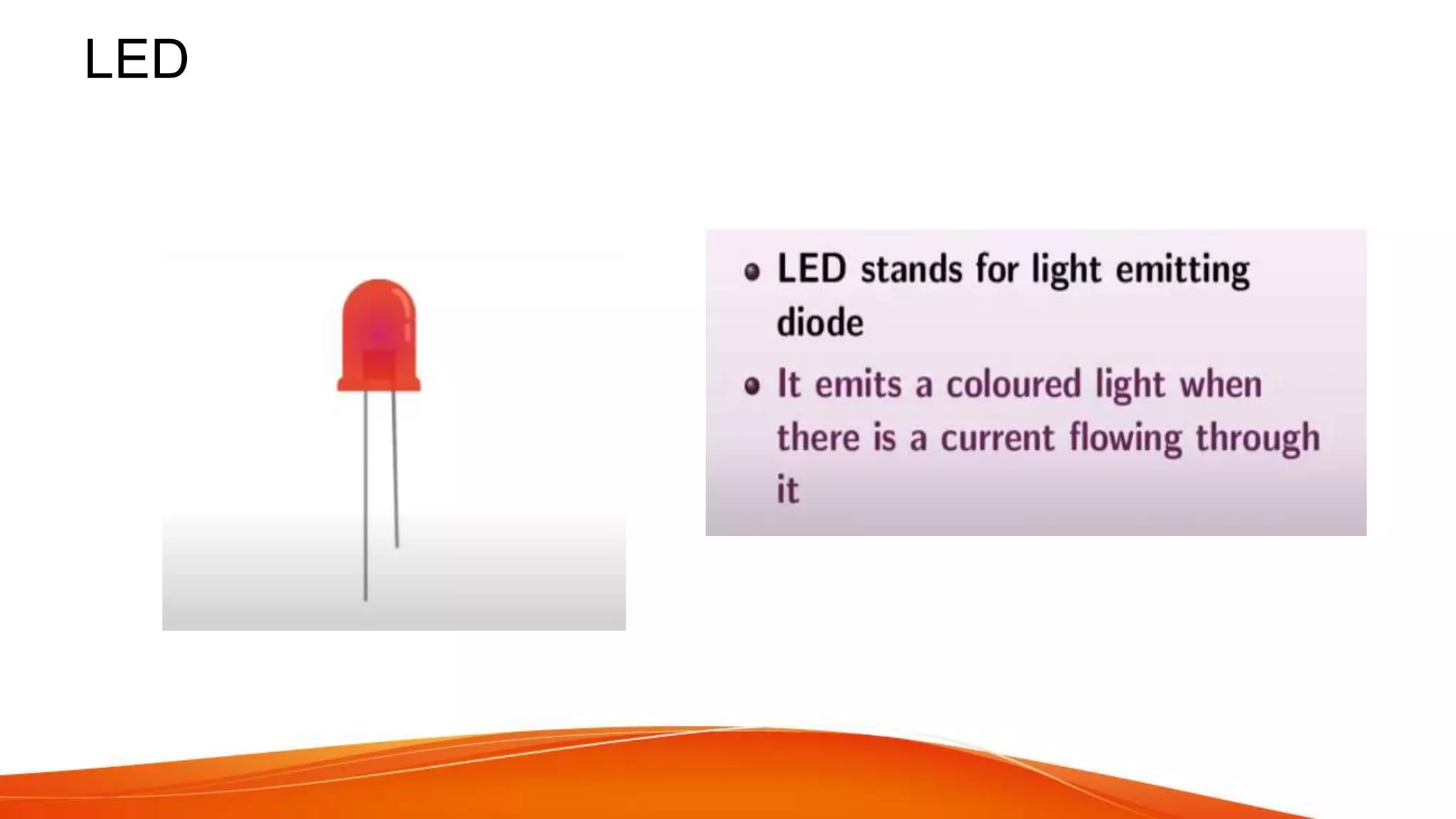

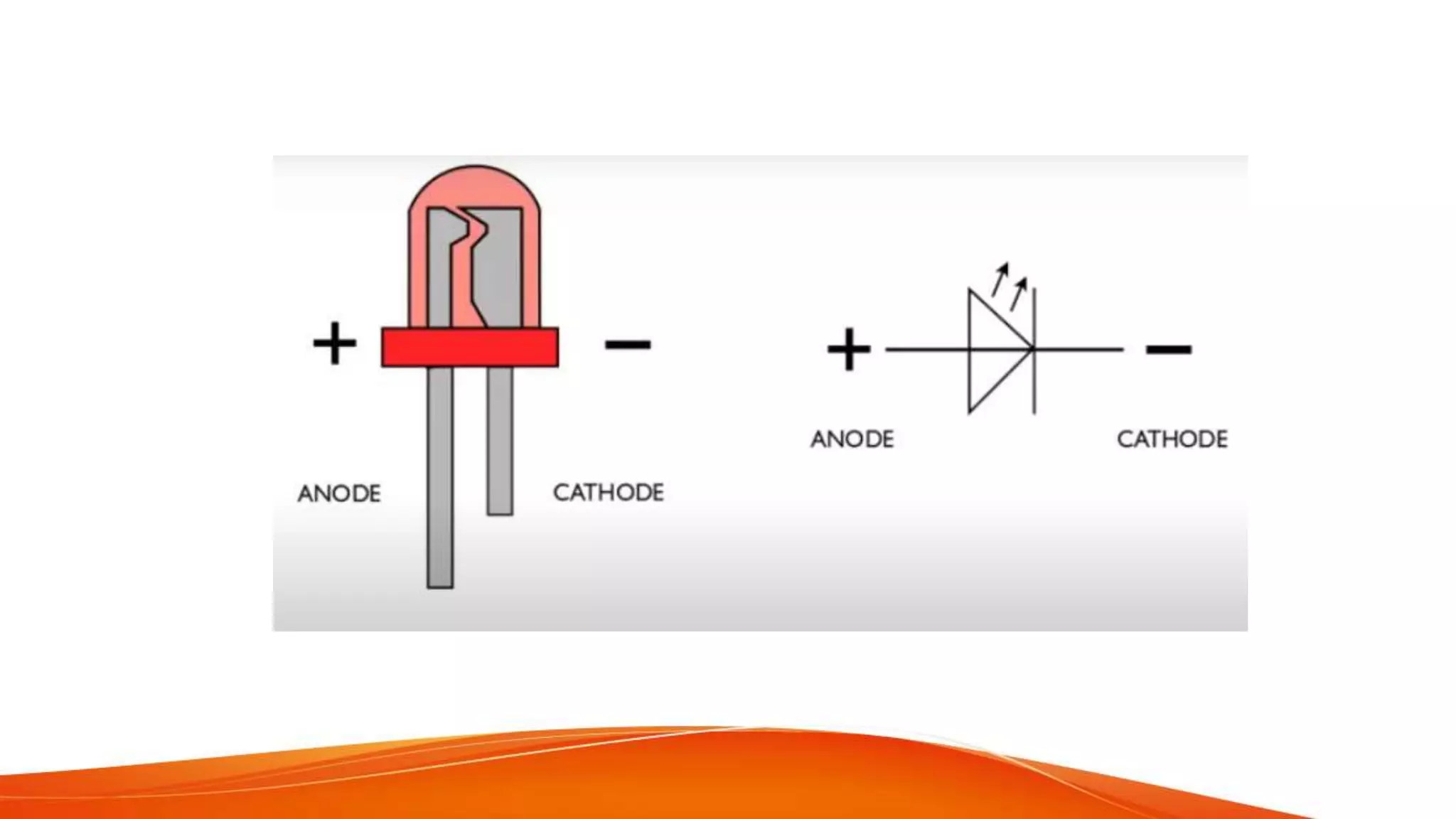

6. LED

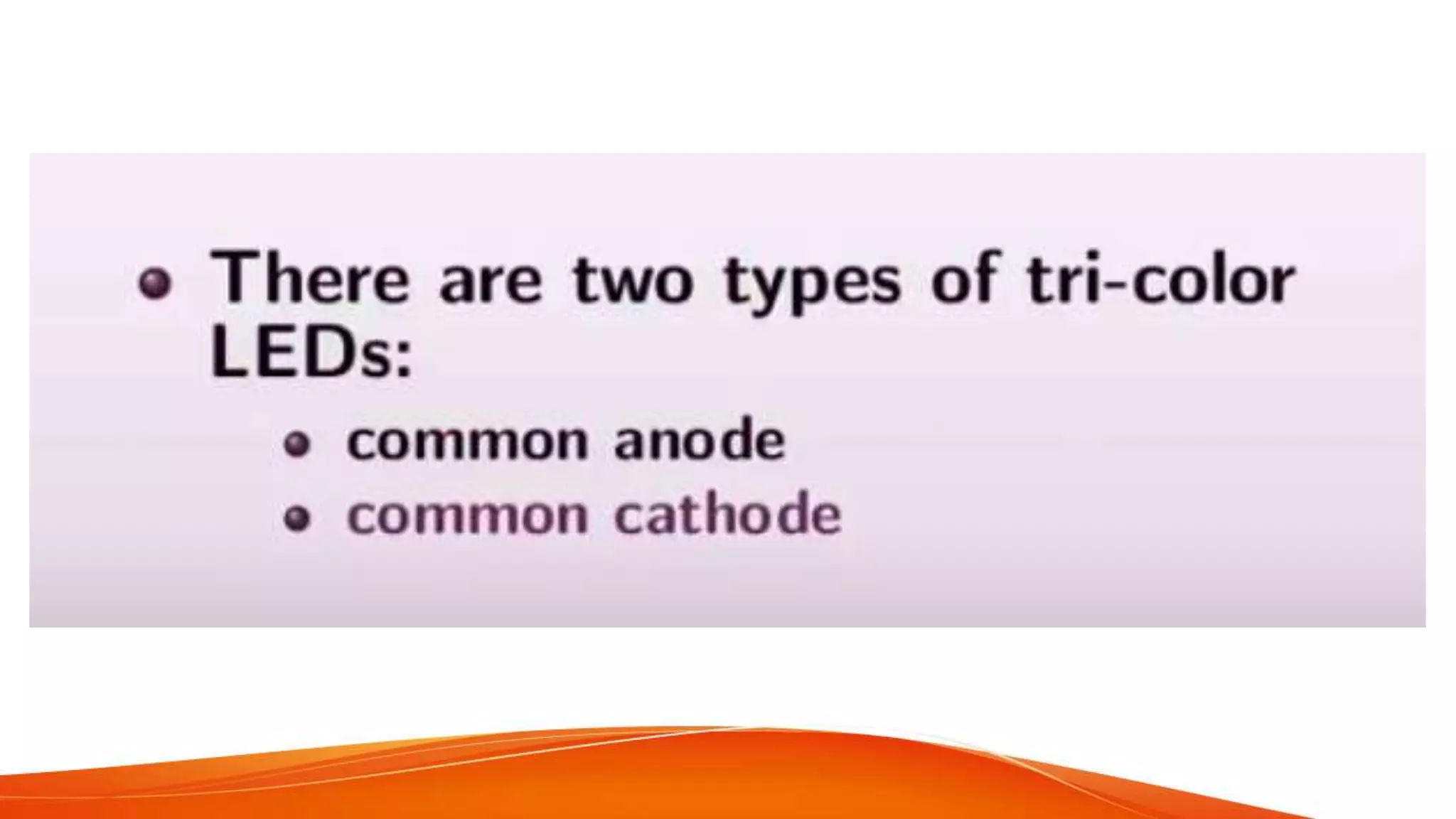

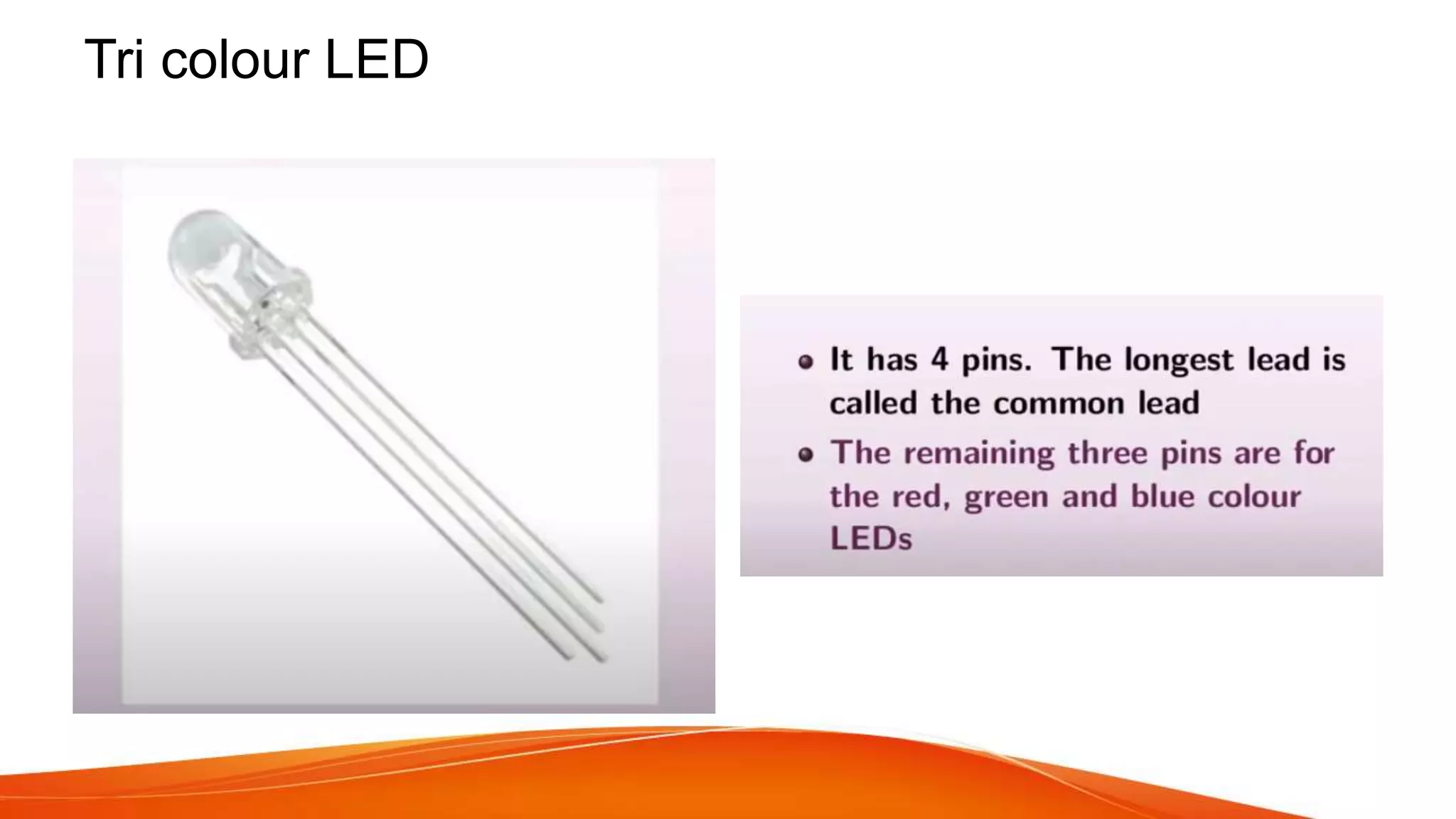

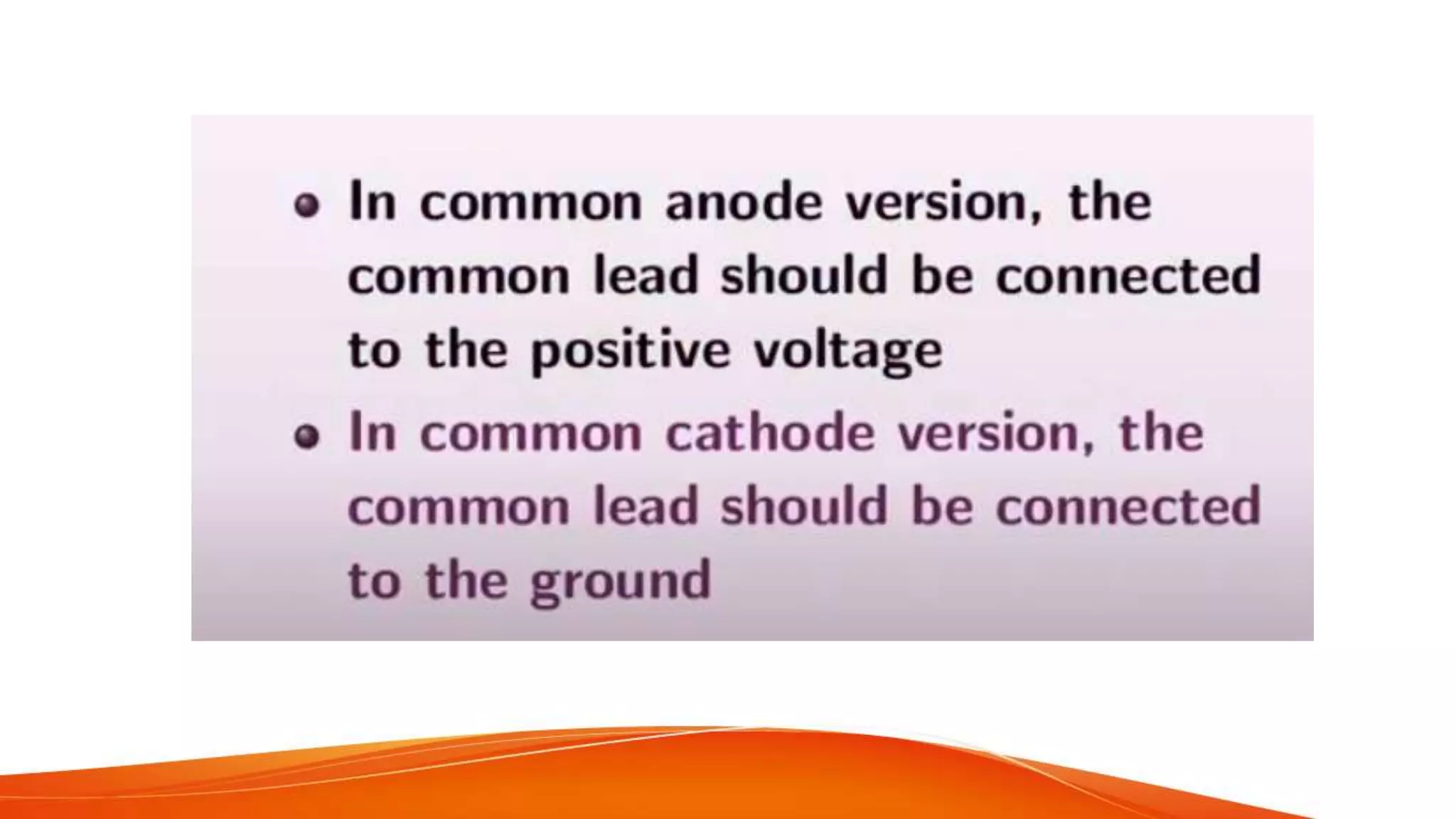

8. Tri colour LED

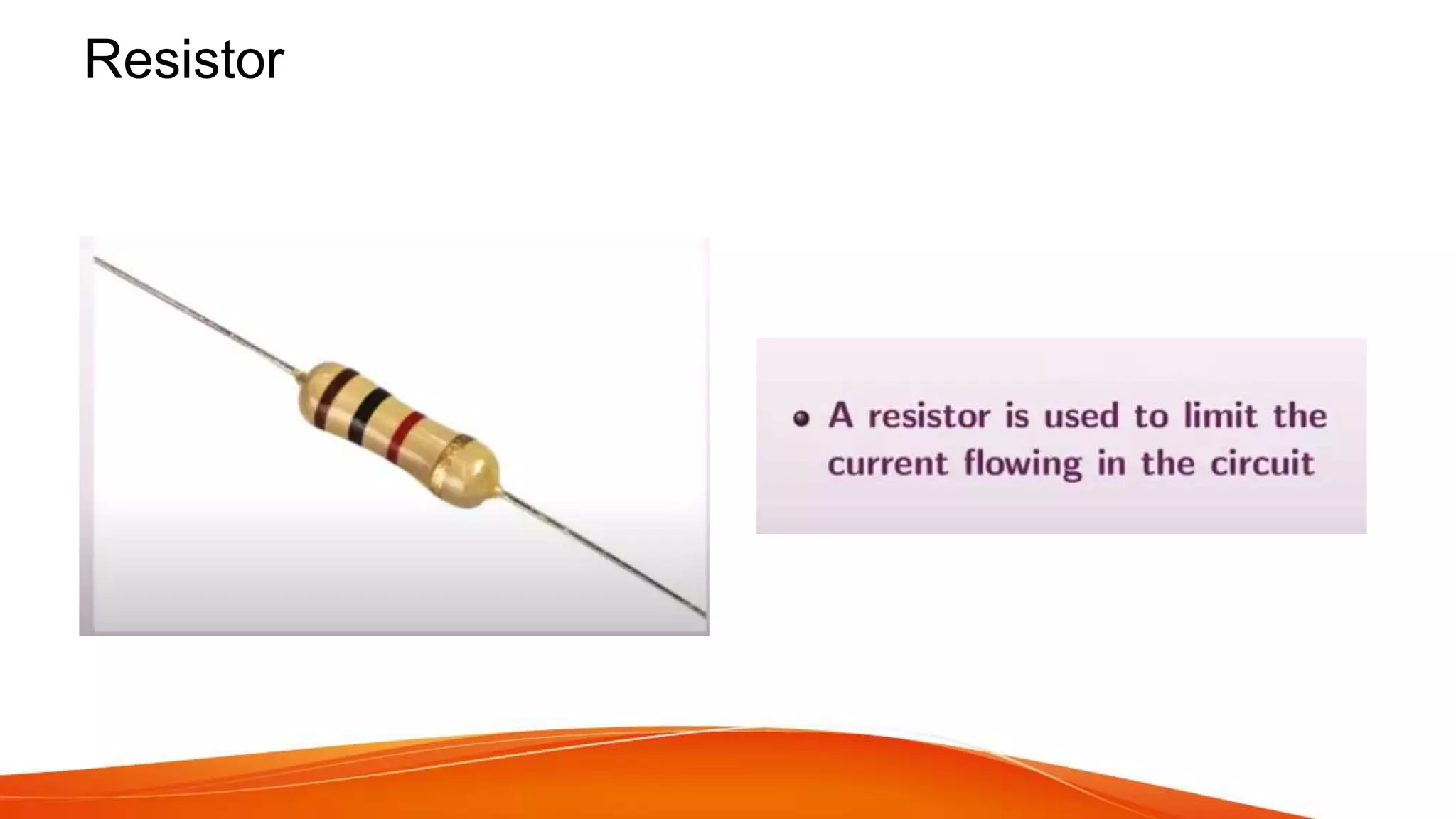

11. Resistor

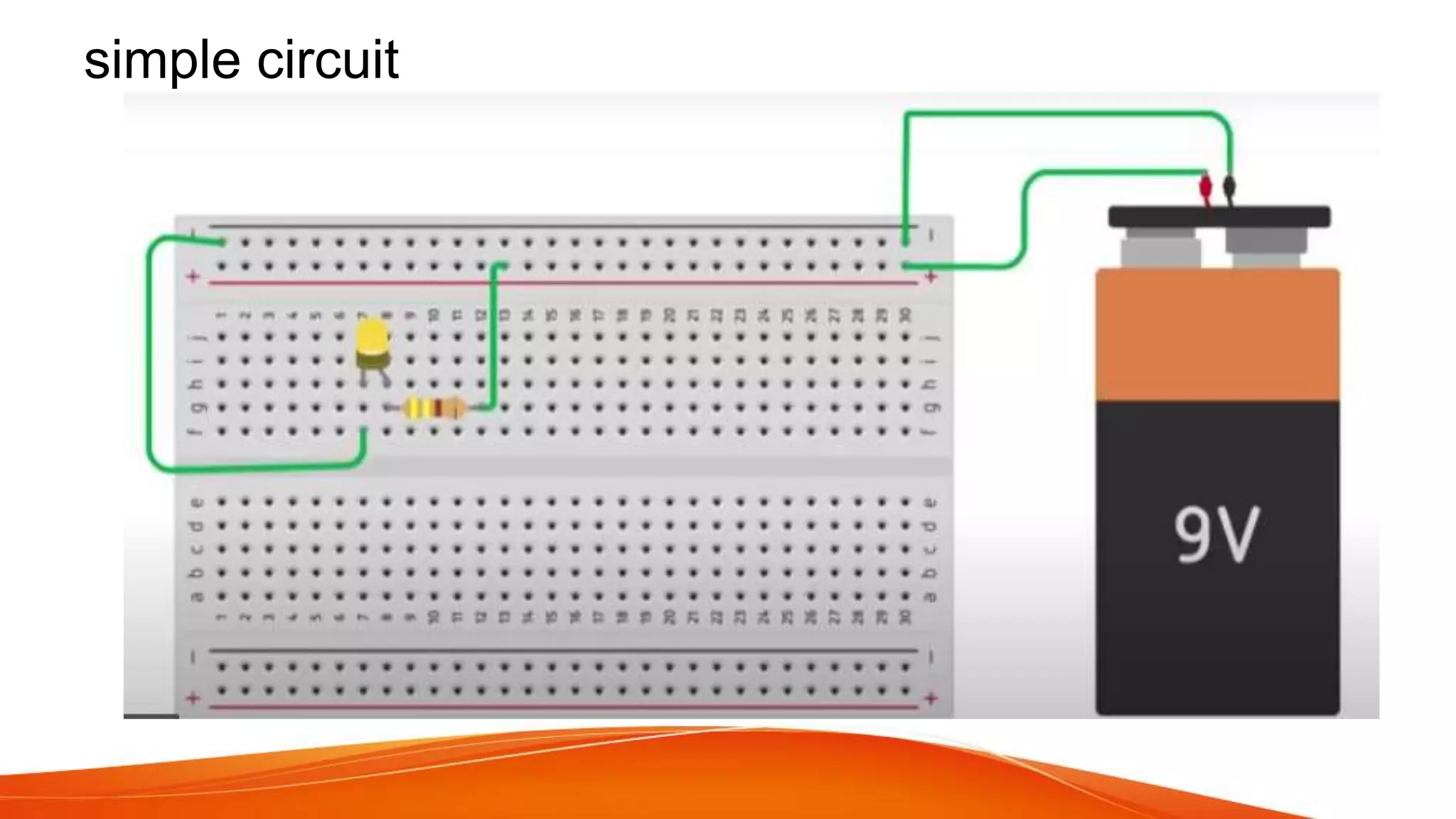

12. simple circuit

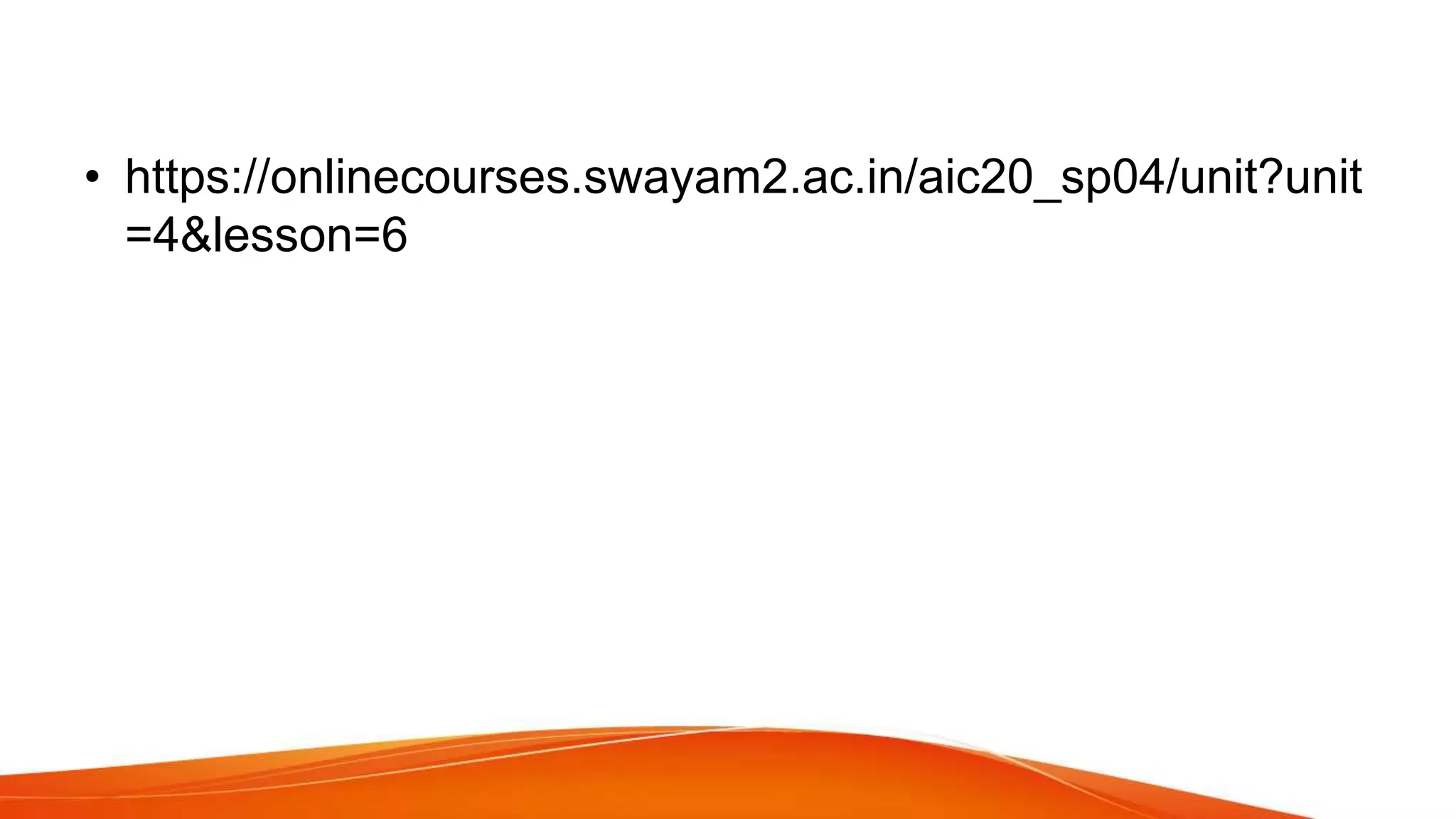

13. • https://onlinecourses.swayam2.ac.in/aic20_sp04/unit?unit
=4&lesson=6

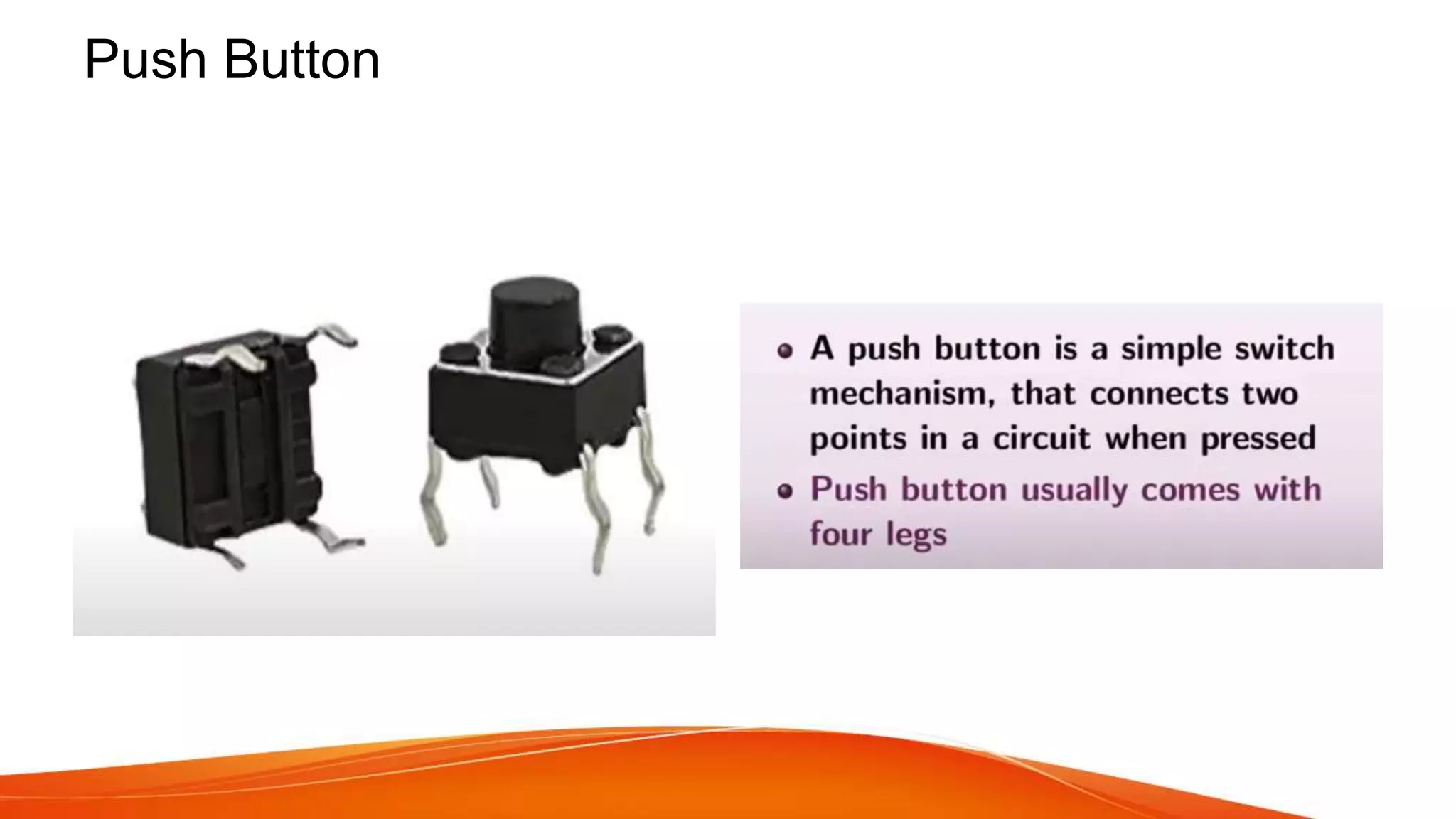

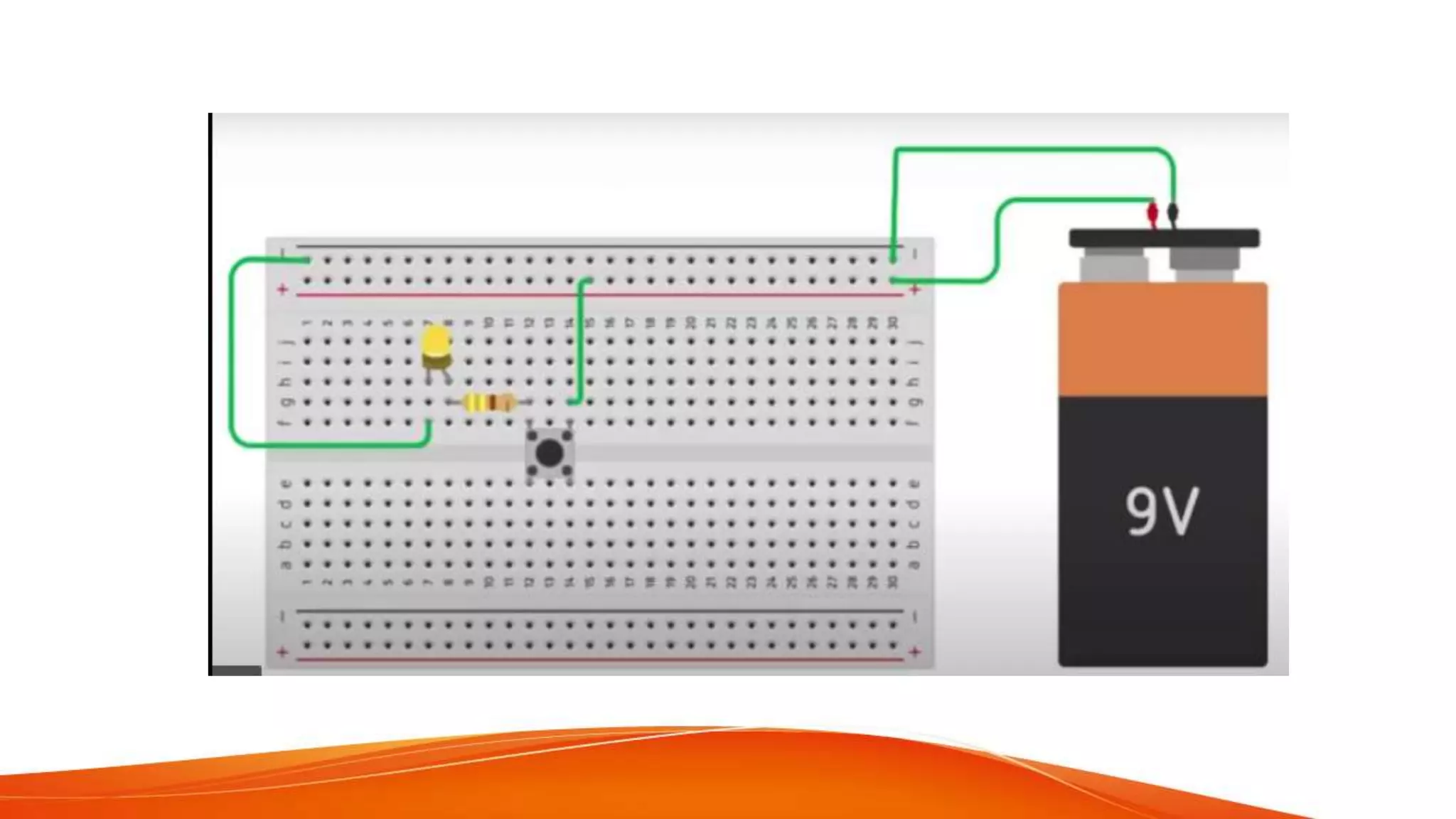

14. Push Button

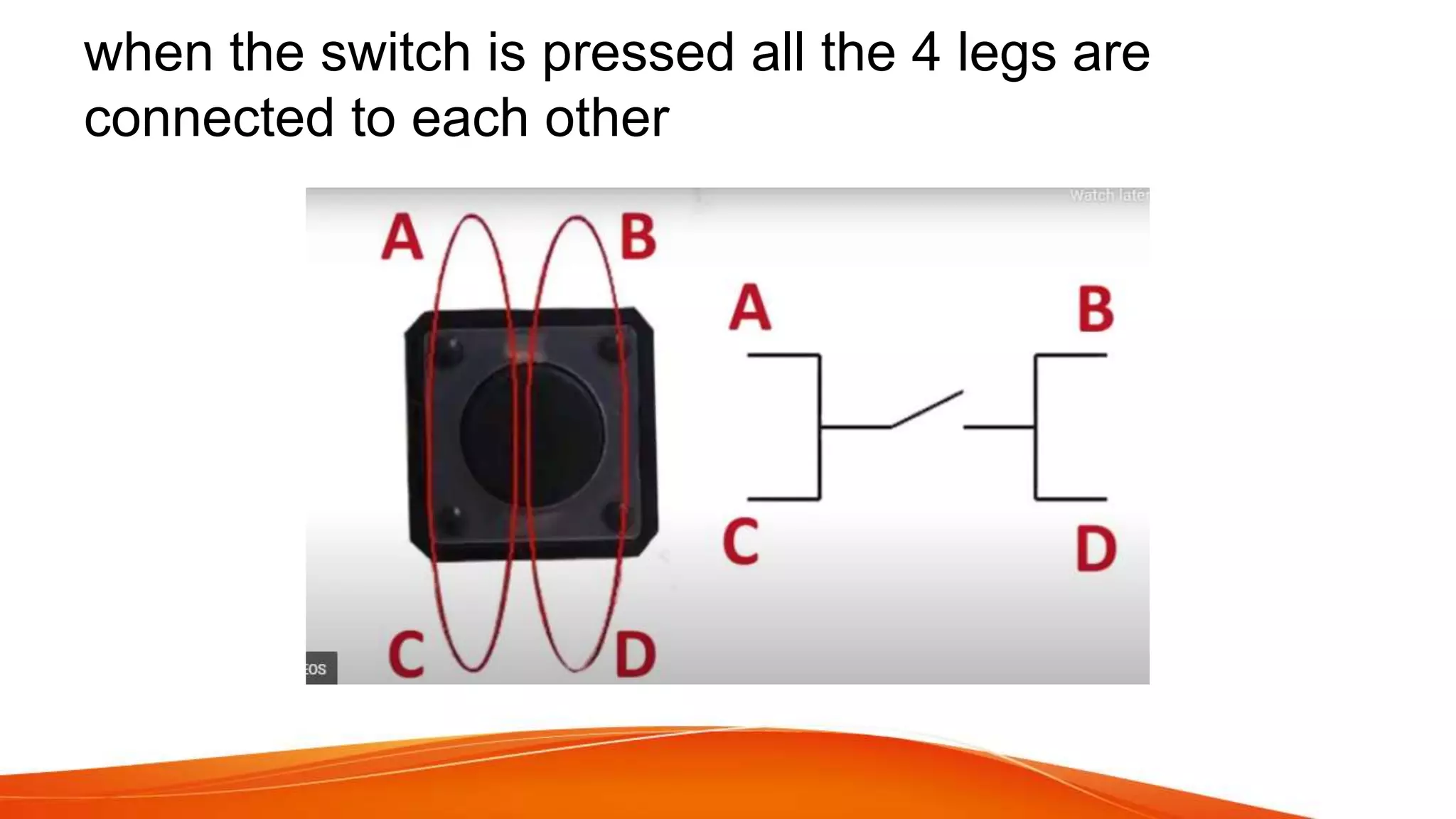

15. when the switch is pressed all the 4 legs are
connected to each other

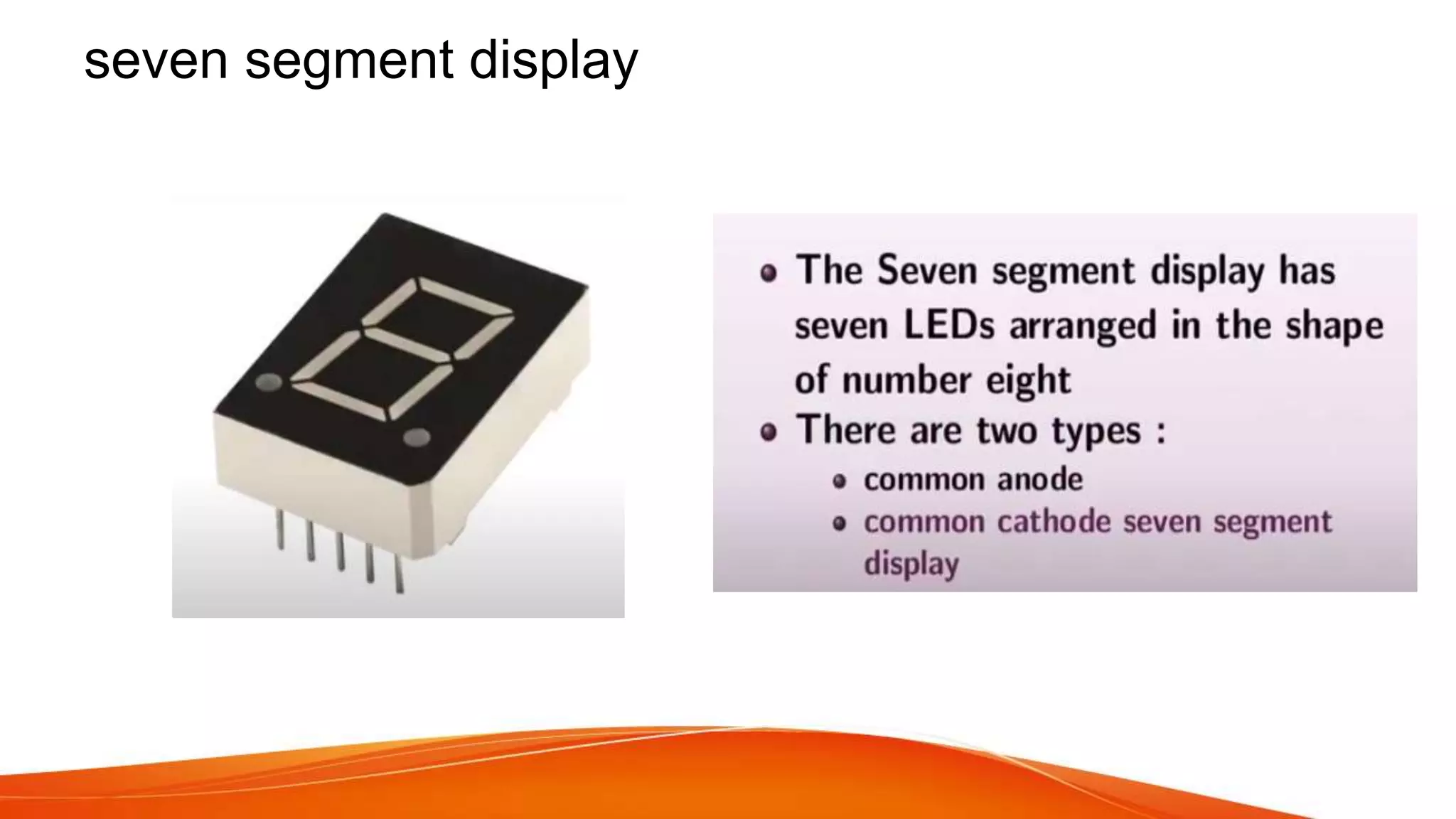

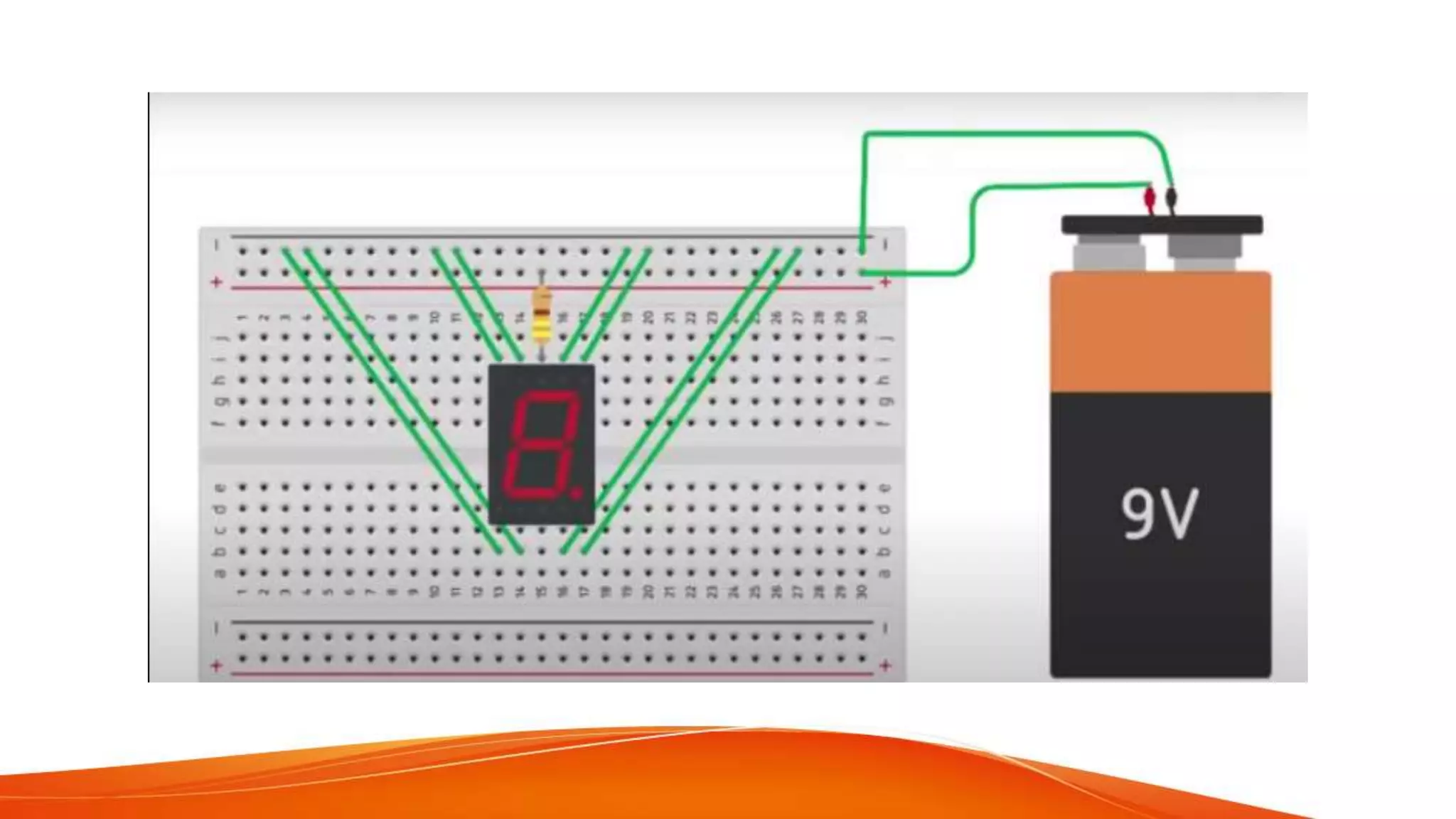

17. seven segment display

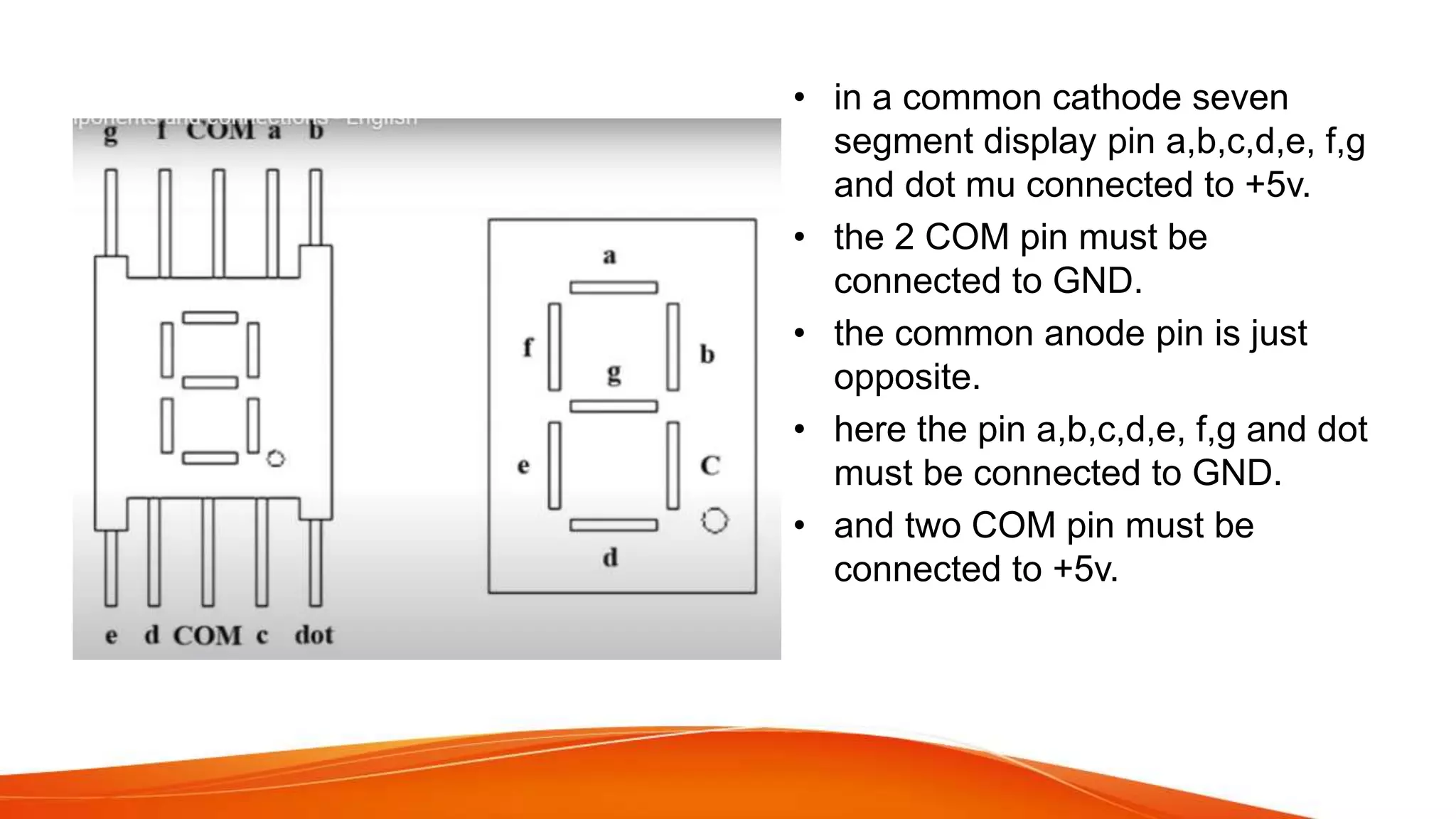

18. • in a common cathode seven
segment display pin a,b,c,d,e, f,g
and dot mu connected to +5v.
• the 2 COM pin must be
connected to GND.
• the common anode pin is just
opposite.
• here the pin a,b,c,d,e, f,g and dot
must be connected to GND.
• and two COM pin must be
connected to +5v.
