1 of 39
1
Does Java process memory utilization go beyond –Xmx?
2
–XX:MaxMetaspaceSize
-Xmx
Young Old
Metaspac
e
Threads JNI misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
Java Process Memory
3
Demo
OutOfMemoryError
4
How to know the type of OutOfMemoryError?
java.lang.OutOfMemoryError: <type>
5
Java Heap Space
Metaspac
e
Threads JNI misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
JVM Memory
Most common type
6
GC Behavior of a Healthy Application
- Full Garbage Collection Event
7
GC Behavior of Acute Memory Leak
- Full Garbage Collection Event
8
GC Behavior when there is a Memory Leak
- Full Garbage Collection Event
9
How to study GC Behavior?
-XX:+PrintGCDetails -XX:+PrintGCDateStamps -Xloggc:<file-path>
Till Java 8
-Xlog:gc*:file=<file-path>
From Java 9
Enable GC logs (always)
Almost zero overhead
10
GCeasy
GC Log Analysis Demo
11
How to capture Heap Dumps?
8 options: https://blog.heaphero.io/2017/10/13/how-to-capture-java-heap-dumps-7-options/
1. GC Log
10. netstat
12. vmstat
2. Thread Dump
9. dmesg
3. Heap Dump
6. ps
8. Disk Usage
5. top 13. iostat
11. ping
14. Kernel Params
15. App Logs
16. metadata
4. Heap Substitute
7. top -H
12
Open-source script:
https://github.com/ycrash/yc-data-script
360° Troubleshooting artifacts
13
HeapHero
Heap Dump Analysis Demo
14
OutOfMemoryError: Java Heap Space
Causes
1. Increase in Traffic Volume
2. Memory leak due to
buggy code
Solutions
1. Fix Memory Leak in the
code
2. Increase heap size (-Xmx)
Artifacts
1. Garbage Collection Log
2. Heap Dump
Tools
1. GCeasy (GC log
analysis)
2. HeapHero
3. Eclipse MAT
4. JProfiler
15
GC overhead limit exceeded
Metaspac
e
Threads JNI misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
JVM Memory
16
OutOfMemoryError: GC overhead limit exceeded
Diagnosis: Same as ‘Java Heap Space’ 
17
Requested array size exceeds VM limit
Young Old
Metaspac
e
Threads JNI misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
JVM Memory
18
Demo
OutOfMemoryError: Requested array size exceeds VM
limit
19
OutOfMemoryError: Requested array size exceeds VM limit
Causes
1. Allocated array larger than
heap size
Solutions
1. Fix Memory Leak code
2. Increase heap size (-Xmx)
Artifacts
1. Application Log or std error
Tools
20
Metaspace
Young Old Threads JNI misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
JVM Memory
21
Demo
OutOfMemoryError: Metaspace
22
Metaspace Memory Leak
- Full Garbage Collection Event
23
OutOfMemoryError: Metaspace
Causes
1. Creating large number of
Dynamic classes (Java
Reflection, Groovy type of script
languages)
2. Loading large number of Classes
3. Loading large number of
Classloaders
Solutions
1. Fix Memory Leak code
2. Increase -XX:MetaspaceSize
and
-XX:MaxMetaspaceSize.
Artifacts
1. Java 8 & below: java
{app_name} -verbose:class
2. Java 9 & above: java
{app_name} -
Xlog:class+load=info:<filena
me>
3. jcmd {pid} GC.class_histogram
4. Heap Dump
Tools
1. Gceasy (GC log analysis)
2. HeapHero
3. Eclipse MAT
4. JProfiler
5. JHat
24
Permgen space
Young Old Threads JNI misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
JVM Memory
Happens only in Java 7 & below
25
OutOfMemoryError: Permgen Space
Diagnosis: Same as ‘Metaspace’ 
26
Unable to create new native threads
Young Old
Metaspac
e
JNI misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
JVM Memory
27
Real Case Study
Slowdown in a Major Financial Institution’s Middleware
http://fastthread.io/my-thread-report.jsp?p=c2hhcmVkLzIwMTcvMDMvMTQvLS10aHJlYWREdW1wLTIudHh0LS0xMi0yOC0zMw==&s=t
28
OutOfMemoryError: Unable to create new native
threads
Causes
1. Threads are leaking
Solutions
1. Fix thread leak
2. Increase the Thread Limits Set
at Operating System(ulimit –u)
3. Reduce Java Heap Size
4. Kills other processes
5. Increase RAM capacity
6. Reduce thread stack size (-Xss).
Note: can cause
Artifacts
1. Thread Dump
Tools
1. FastThread
2. Text Editor
29
Direct buffer memory
Young Old
Metaspac
e
Threads JNI misc
GC
Code
Cach
e
Heap Memory Native Memory
JVM Memory
Becoming Prevasive in modern Spring Boot Frameworks
30
OutOfMemoryError: Direct buffer memory
Causes
1. Increase(or Leak) in direct buffers
usage
a. java.nio package
b. Moving from Spring
RestTemplate to WebClient
c. Image Processing Libraries
d. Networking Libraries
e. Some JDBC Drives
Solutions
1. Fix Memory Leak code
2. Increase -
XX:MaxDirectMemorySize
3. Upgrade to Java 17 (There some
issues in Java 11)
Artifacts
1. App Log or Std error
2. Native Memory Tracking
Tools
31
Kill process or sacrifice child
JVM Kernel
X
32
Real Case Study
Intermittent HTTP 502 errors in AWS EBS Service
EBS Architecture
33
Clue: Nginx Error
34
35
36
OutOfMemoryError: Kill process or sacrifice child
Causes
1. Lack of RAM capacity
2. High Memory utilization by
other processes
3. Memory Leak in the code
Solutions
1. Kill other processes
2. Increase RAM capacity
3. Fix Memory Leak in the code
Artifacts
1. Dmesg
2. GC Log
3. Heap Dump
4. Native Memory Tracking
Tools
1. HeapHero
2. Eclipse MAT
3. yCrash
37
Reason stack_trace_with_native_method
Young Old
Metaspac
e
Threads misc
GC
Direct
Buff
Code
Cach
e
Heap Memory Native Memory
JVM Memory
38
OutOfMemoryError: Reason stack_trace_with_native_method
Don’t worry, if you are not using JNI 
Ram Lakshmanan ram@tier1app.com
@tier1app https://www.linkedin.com/company/ycrash
This deck will be published in:
https://blog.heaphero.io
If you want to learn more …
39
THANK YOU
FRIENDS

More Related Content

Similar to Effectively Troubleshoot 9 Types of OutOfMemoryError

Efficient Memory and Thread Management in Highly Parallel Java Applications
Efficient Memory and Thread Management in Highly Parallel Java ApplicationsEfficient Memory and Thread Management in Highly Parallel Java Applications
Efficient Memory and Thread Management in Highly Parallel Java ApplicationsPhillip Koza

Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...
Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...
Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...Jean-Philippe BEMPEL

Don't dump thread dumps
Don't dump thread dumpsDon't dump thread dumps
Don't dump thread dumpsTier1 App

Shooting the troubles: Crashes, Slowdowns, CPU Spikes
Shooting the troubles: Crashes, Slowdowns, CPU SpikesShooting the troubles: Crashes, Slowdowns, CPU Spikes
Shooting the troubles: Crashes, Slowdowns, CPU SpikesTier1 app

Mastering java in containers - MadridJUG
Mastering java in containers - MadridJUGMastering java in containers - MadridJUG
Mastering java in containers - MadridJUGJorge Morales

Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)
Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)
Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)Ontico

java-monitoring-troubleshooting
java-monitoring-troubleshootingjava-monitoring-troubleshooting
java-monitoring-troubleshootingWilliam Au

What to do if Your Kafka Streams App Gets OOMKilled? with Andrey Serebryanskiy
What to do if Your Kafka Streams App Gets OOMKilled? with Andrey SerebryanskiyWhat to do if Your Kafka Streams App Gets OOMKilled? with Andrey Serebryanskiy
What to do if Your Kafka Streams App Gets OOMKilled? with Andrey SerebryanskiyHostedbyConfluent

JBoss Enterprise Application Platform 6 Troubleshooting
JBoss Enterprise Application Platform 6 TroubleshootingJBoss Enterprise Application Platform 6 Troubleshooting
JBoss Enterprise Application Platform 6 TroubleshootingAlexandre Cavalcanti

Introduction of Java GC Tuning and Java Java Mission Control
Introduction of Java GC Tuning and Java Java Mission ControlIntroduction of Java GC Tuning and Java Java Mission Control
Introduction of Java GC Tuning and Java Java Mission ControlLeon Chen

16 artifacts to capture when there is a production problem
16 artifacts to capture when there is a production problem16 artifacts to capture when there is a production problem
16 artifacts to capture when there is a production problemTier1 app

Troubleshooting real production problems
Troubleshooting real production problemsTroubleshooting real production problems
Troubleshooting real production problemsTier1 app

Java 어플리케이션 성능튜닝 Part1
Java 어플리케이션 성능튜닝 Part1Java 어플리케이션 성능튜닝 Part1
Java 어플리케이션 성능튜닝 Part1상욱 송

Java on Linux for devs and ops
Java on Linux for devs and opsJava on Linux for devs and ops
Java on Linux for devs and opsaragozin


Similar to Effectively Troubleshoot 9 Types of OutOfMemoryError (20)

Efficient Memory and Thread Management in Highly Parallel Java Applications
Efficient Memory and Thread Management in Highly Parallel Java ApplicationsEfficient Memory and Thread Management in Highly Parallel Java Applications
Efficient Memory and Thread Management in Highly Parallel Java Applications

Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...
Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...
Devoxx Fr 2022 - Remèdes aux oomkill, warm-ups, et lenteurs pour des conteneu...

Java performance tuning
Java performance tuningJava performance tuning
Java performance tuning

Javasession10
Javasession10Javasession10
Javasession10

Don't dump thread dumps
Don't dump thread dumpsDon't dump thread dumps
Don't dump thread dumps

Shooting the troubles: Crashes, Slowdowns, CPU Spikes
Shooting the troubles: Crashes, Slowdowns, CPU SpikesShooting the troubles: Crashes, Slowdowns, CPU Spikes
Shooting the troubles: Crashes, Slowdowns, CPU Spikes

Mastering java in containers - MadridJUG
Mastering java in containers - MadridJUGMastering java in containers - MadridJUG
Mastering java in containers - MadridJUG

Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)
Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)
Java и Linux — особенности эксплуатации / Алексей Рагозин (Дойче Банк)

[BGOUG] Java GC - Friend or Foe
[BGOUG] Java GC - Friend or Foe[BGOUG] Java GC - Friend or Foe
[BGOUG] Java GC - Friend or Foe

java-monitoring-troubleshooting
java-monitoring-troubleshootingjava-monitoring-troubleshooting
java-monitoring-troubleshooting

Cache is King
Cache is KingCache is King
Cache is King

What to do if Your Kafka Streams App Gets OOMKilled? with Andrey Serebryanskiy
What to do if Your Kafka Streams App Gets OOMKilled? with Andrey SerebryanskiyWhat to do if Your Kafka Streams App Gets OOMKilled? with Andrey Serebryanskiy
What to do if Your Kafka Streams App Gets OOMKilled? with Andrey Serebryanskiy

JBoss Enterprise Application Platform 6 Troubleshooting
JBoss Enterprise Application Platform 6 TroubleshootingJBoss Enterprise Application Platform 6 Troubleshooting
JBoss Enterprise Application Platform 6 Troubleshooting

Introduction of Java GC Tuning and Java Java Mission Control
Introduction of Java GC Tuning and Java Java Mission ControlIntroduction of Java GC Tuning and Java Java Mission Control
Introduction of Java GC Tuning and Java Java Mission Control

16 artifacts to capture when there is a production problem
16 artifacts to capture when there is a production problem16 artifacts to capture when there is a production problem
16 artifacts to capture when there is a production problem

Troubleshooting real production problems
Troubleshooting real production problemsTroubleshooting real production problems
Troubleshooting real production problems

Inside the jvm
Inside the jvmInside the jvm
Inside the jvm

Java 어플리케이션 성능튜닝 Part1
Java 어플리케이션 성능튜닝 Part1Java 어플리케이션 성능튜닝 Part1
Java 어플리케이션 성능튜닝 Part1

Heap & thread dump
Heap & thread dumpHeap & thread dump
Heap & thread dump

Java on Linux for devs and ops
Java on Linux for devs and opsJava on Linux for devs and ops
Java on Linux for devs and ops


More from Tier1 app

Top-5-java-perf-problems-jax_mainz_2024.pptx
Top-5-java-perf-problems-jax_mainz_2024.pptxTop-5-java-perf-problems-jax_mainz_2024.pptx
Top-5-java-perf-problems-jax_mainz_2024.pptxTier1 app

KnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptx
KnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptxKnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptx
KnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptxTier1 app

Top-5-production-devconMunich-2023-v2.pptx
Top-5-production-devconMunich-2023-v2.pptxTop-5-production-devconMunich-2023-v2.pptx
Top-5-production-devconMunich-2023-v2.pptxTier1 app

predicting-m3-devopsconMunich-2023-v2.pptx
predicting-m3-devopsconMunich-2023-v2.pptxpredicting-m3-devopsconMunich-2023-v2.pptx
predicting-m3-devopsconMunich-2023-v2.pptxTier1 app

Top-5-production-devconMunich-2023.pptx
Top-5-production-devconMunich-2023.pptxTop-5-production-devconMunich-2023.pptx
Top-5-production-devconMunich-2023.pptxTier1 app

predicting-m3-devopsconMunich-2023.pptx
predicting-m3-devopsconMunich-2023.pptxpredicting-m3-devopsconMunich-2023.pptx
predicting-m3-devopsconMunich-2023.pptxTier1 app

Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...
Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...
Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...Tier1 app

7-JVM-arguments-JaxLondon-2023.pptx
7-JVM-arguments-JaxLondon-2023.pptx7-JVM-arguments-JaxLondon-2023.pptx
7-JVM-arguments-JaxLondon-2023.pptxTier1 app

Top-5-Performance-JaxLondon-2023.pptx
Top-5-Performance-JaxLondon-2023.pptxTop-5-Performance-JaxLondon-2023.pptx
Top-5-Performance-JaxLondon-2023.pptxTier1 app

16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLE
16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLE16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLE
16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLETier1 app

MAJOR OUTAGES IN MAJOR ENTERPRISES
MAJOR OUTAGES IN MAJOR ENTERPRISESMAJOR OUTAGES IN MAJOR ENTERPRISES
MAJOR OUTAGES IN MAJOR ENTERPRISESTier1 app

KnowAPIs-UnknownPerf-confoo-2023 (1).pptx
KnowAPIs-UnknownPerf-confoo-2023 (1).pptxKnowAPIs-UnknownPerf-confoo-2023 (1).pptx
KnowAPIs-UnknownPerf-confoo-2023 (1).pptxTier1 app

memory-patterns-confoo-2023.pptx
memory-patterns-confoo-2023.pptxmemory-patterns-confoo-2023.pptx
memory-patterns-confoo-2023.pptxTier1 app

this-is-garbage-talk-2022.pptx
this-is-garbage-talk-2022.pptxthis-is-garbage-talk-2022.pptx
this-is-garbage-talk-2022.pptxTier1 app

millions-gc-jax-2022.pptx
millions-gc-jax-2022.pptxmillions-gc-jax-2022.pptx
millions-gc-jax-2022.pptxTier1 app

lets-crash-apps-jax-2022.pptx
lets-crash-apps-jax-2022.pptxlets-crash-apps-jax-2022.pptx
lets-crash-apps-jax-2022.pptxTier1 app

‘16 artifacts’ to capture when there is a production problem
‘16 artifacts’ to capture when there is a production problem‘16 artifacts’ to capture when there is a production problem
‘16 artifacts’ to capture when there is a production problemTier1 app

Lets crash-applications
Lets crash-applicationsLets crash-applications
Lets crash-applicationsTier1 app

Lets crash-applications
Lets crash-applicationsLets crash-applications
Lets crash-applicationsTier1 app

7 habits of highly effective Performance Troubleshooters
7 habits of highly effective Performance Troubleshooters7 habits of highly effective Performance Troubleshooters
7 habits of highly effective Performance TroubleshootersTier1 app


More from Tier1 app (20)

Top-5-java-perf-problems-jax_mainz_2024.pptx
Top-5-java-perf-problems-jax_mainz_2024.pptxTop-5-java-perf-problems-jax_mainz_2024.pptx
Top-5-java-perf-problems-jax_mainz_2024.pptx

KnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptx
KnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptxKnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptx
KnowAPIs-UnknownPerf-jaxMainz-2024 (1).pptx

Top-5-production-devconMunich-2023-v2.pptx
Top-5-production-devconMunich-2023-v2.pptxTop-5-production-devconMunich-2023-v2.pptx
Top-5-production-devconMunich-2023-v2.pptx

predicting-m3-devopsconMunich-2023-v2.pptx
predicting-m3-devopsconMunich-2023-v2.pptxpredicting-m3-devopsconMunich-2023-v2.pptx
predicting-m3-devopsconMunich-2023-v2.pptx

Top-5-production-devconMunich-2023.pptx
Top-5-production-devconMunich-2023.pptxTop-5-production-devconMunich-2023.pptx
Top-5-production-devconMunich-2023.pptx

predicting-m3-devopsconMunich-2023.pptx
predicting-m3-devopsconMunich-2023.pptxpredicting-m3-devopsconMunich-2023.pptx
predicting-m3-devopsconMunich-2023.pptx

Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...
Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...
Predicting Production Outages: Unleashing the Power of Micro-Metrics – ADDO C...

7-JVM-arguments-JaxLondon-2023.pptx
7-JVM-arguments-JaxLondon-2023.pptx7-JVM-arguments-JaxLondon-2023.pptx
7-JVM-arguments-JaxLondon-2023.pptx

Top-5-Performance-JaxLondon-2023.pptx
Top-5-Performance-JaxLondon-2023.pptxTop-5-Performance-JaxLondon-2023.pptx
Top-5-Performance-JaxLondon-2023.pptx

16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLE
16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLE16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLE
16 ARTIFACTS TO CAPTURE WHEN YOUR CONTAINER APPLICATION IS IN TROUBLE

MAJOR OUTAGES IN MAJOR ENTERPRISES
MAJOR OUTAGES IN MAJOR ENTERPRISESMAJOR OUTAGES IN MAJOR ENTERPRISES
MAJOR OUTAGES IN MAJOR ENTERPRISES

KnowAPIs-UnknownPerf-confoo-2023 (1).pptx
KnowAPIs-UnknownPerf-confoo-2023 (1).pptxKnowAPIs-UnknownPerf-confoo-2023 (1).pptx
KnowAPIs-UnknownPerf-confoo-2023 (1).pptx

memory-patterns-confoo-2023.pptx
memory-patterns-confoo-2023.pptxmemory-patterns-confoo-2023.pptx
memory-patterns-confoo-2023.pptx

this-is-garbage-talk-2022.pptx
this-is-garbage-talk-2022.pptxthis-is-garbage-talk-2022.pptx
this-is-garbage-talk-2022.pptx

millions-gc-jax-2022.pptx
millions-gc-jax-2022.pptxmillions-gc-jax-2022.pptx
millions-gc-jax-2022.pptx

lets-crash-apps-jax-2022.pptx
lets-crash-apps-jax-2022.pptxlets-crash-apps-jax-2022.pptx
lets-crash-apps-jax-2022.pptx

‘16 artifacts’ to capture when there is a production problem
‘16 artifacts’ to capture when there is a production problem‘16 artifacts’ to capture when there is a production problem
‘16 artifacts’ to capture when there is a production problem

Lets crash-applications
Lets crash-applicationsLets crash-applications
Lets crash-applications

Lets crash-applications
Lets crash-applicationsLets crash-applications
Lets crash-applications

7 habits of highly effective Performance Troubleshooters
7 habits of highly effective Performance Troubleshooters7 habits of highly effective Performance Troubleshooters
7 habits of highly effective Performance Troubleshooters


Recently uploaded

Community is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea GouletCommunity is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea GouletAndrea Goulet

Rapidoform for Modern Form Building and Insights
Rapidoform for Modern Form Building and InsightsRapidoform for Modern Form Building and Insights
Rapidoform for Modern Form Building and Insightsrapidoform

The Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test AutomationThe Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test AutomationElement34

architecting-ai-in-the-enterprise-apis-and-applications.pdf
architecting-ai-in-the-enterprise-apis-and-applications.pdfarchitecting-ai-in-the-enterprise-apis-and-applications.pdf
architecting-ai-in-the-enterprise-apis-and-applications.pdfWSO2

Software Engineering - Introduction + Process Models + Requirements Engineering
Software Engineering - Introduction + Process Models + Requirements EngineeringSoftware Engineering - Introduction + Process Models + Requirements Engineering
Software Engineering - Introduction + Process Models + Requirements EngineeringPrakhyath Rai

Jax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckJax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckMarc Lester

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAShane Coughlan

Prompt Engineering - an Art, a Science, or your next Job Title?
Prompt Engineering - an Art, a Science, or your next Job Title?Prompt Engineering - an Art, a Science, or your next Job Title?
Prompt Engineering - an Art, a Science, or your next Job Title?Maxim Salnikov

From Knowledge Graphs via Lego Bricks to scientific conversations.pptx
From Knowledge Graphs via Lego Bricks to scientific conversations.pptxFrom Knowledge Graphs via Lego Bricks to scientific conversations.pptx
From Knowledge Graphs via Lego Bricks to scientific conversations.pptxNeo4j

Evolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI EraEvolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI Eraconfluent

Microsoft365_Dev_Security_2024_05_16.pdf
Microsoft365_Dev_Security_2024_05_16.pdfMicrosoft365_Dev_Security_2024_05_16.pdf
Microsoft365_Dev_Security_2024_05_16.pdfMarkus Moeller

Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit MilanWorkshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit MilanNeo4j

CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...Neo4j

Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...drm1699

Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...
Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...
Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...Abortion Clinic

Effective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConEffective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConNatan Silnitsky

BusinessGPT - Security and Governance for Generative AI
BusinessGPT  - Security and Governance for Generative AIBusinessGPT  - Security and Governance for Generative AI
BusinessGPT - Security and Governance for Generative AIAGATSoftware


Recently uploaded (20)

Community is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea GouletCommunity is Just as Important as Code by Andrea Goulet
Community is Just as Important as Code by Andrea Goulet

Rapidoform for Modern Form Building and Insights
Rapidoform for Modern Form Building and InsightsRapidoform for Modern Form Building and Insights
Rapidoform for Modern Form Building and Insights

The Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test AutomationThe Strategic Impact of Buying vs Building in Test Automation
The Strategic Impact of Buying vs Building in Test Automation

architecting-ai-in-the-enterprise-apis-and-applications.pdf
architecting-ai-in-the-enterprise-apis-and-applications.pdfarchitecting-ai-in-the-enterprise-apis-and-applications.pdf
architecting-ai-in-the-enterprise-apis-and-applications.pdf

Software Engineering - Introduction + Process Models + Requirements Engineering
Software Engineering - Introduction + Process Models + Requirements EngineeringSoftware Engineering - Introduction + Process Models + Requirements Engineering
Software Engineering - Introduction + Process Models + Requirements Engineering

Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...

Jax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined DeckJax, FL Admin Community Group 05.14.2024 Combined Deck
Jax, FL Admin Community Group 05.14.2024 Combined Deck

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCA

Prompt Engineering - an Art, a Science, or your next Job Title?
Prompt Engineering - an Art, a Science, or your next Job Title?Prompt Engineering - an Art, a Science, or your next Job Title?
Prompt Engineering - an Art, a Science, or your next Job Title?

From Knowledge Graphs via Lego Bricks to scientific conversations.pptx
From Knowledge Graphs via Lego Bricks to scientific conversations.pptxFrom Knowledge Graphs via Lego Bricks to scientific conversations.pptx
From Knowledge Graphs via Lego Bricks to scientific conversations.pptx

Abortion Pill Prices Turfloop ](+27832195400*)[ 🏥 Women's Abortion Clinic in ...
Abortion Pill Prices Turfloop ](+27832195400*)[ 🏥 Women's Abortion Clinic in ...Abortion Pill Prices Turfloop ](+27832195400*)[ 🏥 Women's Abortion Clinic in ...
Abortion Pill Prices Turfloop ](+27832195400*)[ 🏥 Women's Abortion Clinic in ...

Evolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI EraEvolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI Era

Microsoft365_Dev_Security_2024_05_16.pdf
Microsoft365_Dev_Security_2024_05_16.pdfMicrosoft365_Dev_Security_2024_05_16.pdf
Microsoft365_Dev_Security_2024_05_16.pdf

Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit MilanWorkshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan
Workshop: Enabling GenAI Breakthroughs with Knowledge Graphs - GraphSummit Milan

Abortion Clinic In Springs ](+27832195400*)[ 🏥 Safe Abortion Pills in Springs...
Abortion Clinic In Springs ](+27832195400*)[ 🏥 Safe Abortion Pills in Springs...Abortion Clinic In Springs ](+27832195400*)[ 🏥 Safe Abortion Pills in Springs...
Abortion Clinic In Springs ](+27832195400*)[ 🏥 Safe Abortion Pills in Springs...

CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...
CERVED e Neo4j su una nuvola, migrazione ed evoluzione di un grafo mission cr...

Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...

Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...
Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...
Abortion Pill Prices Jane Furse ](+27832195400*)[ 🏥 Women's Abortion Clinic i...

Effective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConEffective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeCon

BusinessGPT - Security and Governance for Generative AI
BusinessGPT  - Security and Governance for Generative AIBusinessGPT  - Security and Governance for Generative AI
BusinessGPT - Security and Governance for Generative AI

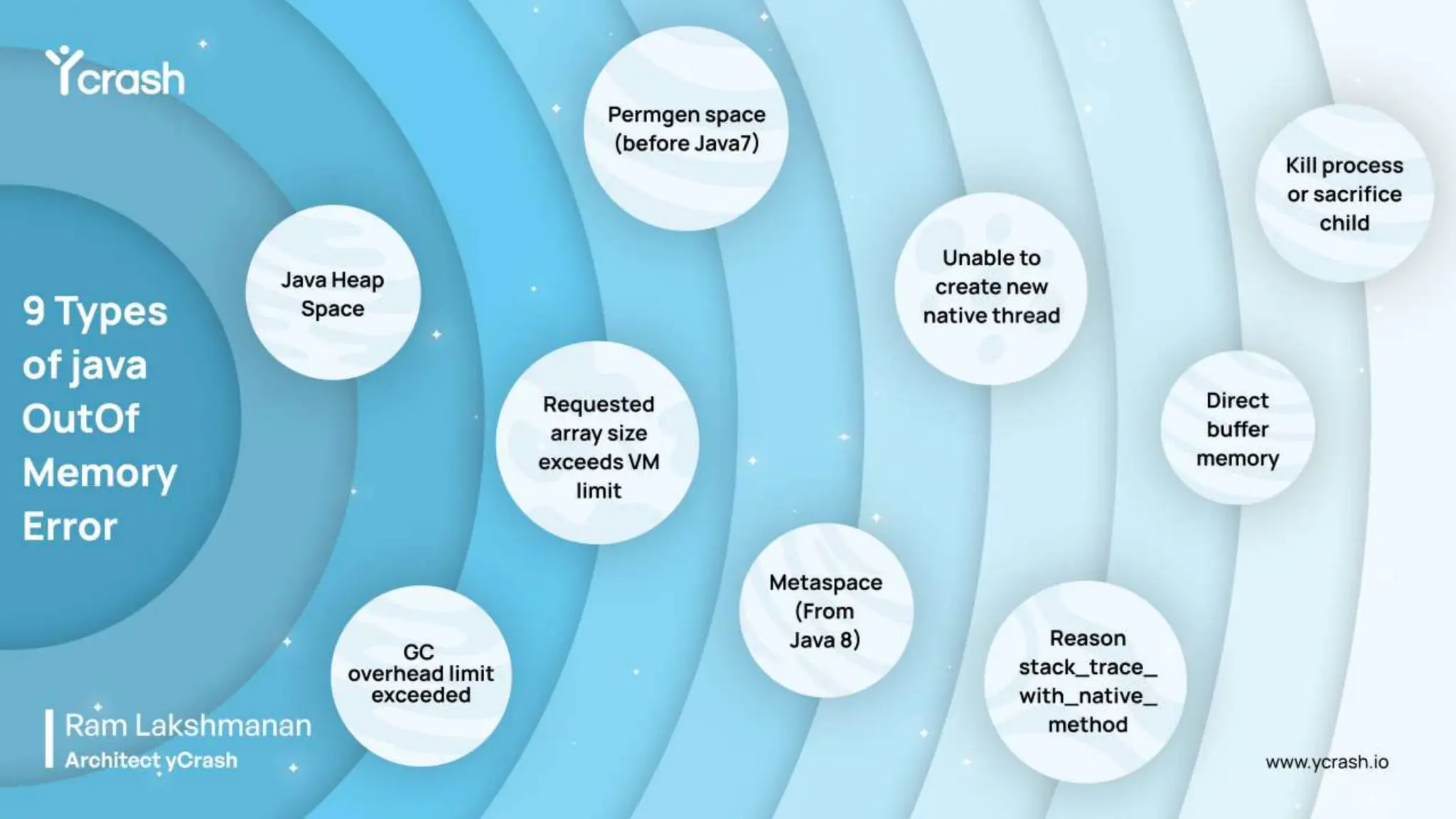

Effectively Troubleshoot 9 Types of OutOfMemoryError

  • 1. 1
  • 2. Does Java process memory utilization go beyond –Xmx? 2 –XX:MaxMetaspaceSize -Xmx Young Old Metaspac e Threads JNI misc GC Direct Buff Code Cach e Heap Memory Native Memory Java Process Memory
  • 4. 4 How to know the type of OutOfMemoryError? java.lang.OutOfMemoryError: <type>
  • 5. 5 Java Heap Space Metaspac e Threads JNI misc GC Direct Buff Code Cach e Heap Memory Native Memory JVM Memory Most common type
  • 6. 6 GC Behavior of a Healthy Application - Full Garbage Collection Event
  • 7. 7 GC Behavior of Acute Memory Leak - Full Garbage Collection Event
  • 8. 8 GC Behavior when there is a Memory Leak - Full Garbage Collection Event
  • 9. 9 How to study GC Behavior? -XX:+PrintGCDetails -XX:+PrintGCDateStamps -Xloggc:<file-path> Till Java 8 -Xlog:gc*:file=<file-path> From Java 9 Enable GC logs (always) Almost zero overhead
  • 11. 11 How to capture Heap Dumps? 8 options: https://blog.heaphero.io/2017/10/13/how-to-capture-java-heap-dumps-7-options/
  • 12. 1. GC Log 10. netstat 12. vmstat 2. Thread Dump 9. dmesg 3. Heap Dump 6. ps 8. Disk Usage 5. top 13. iostat 11. ping 14. Kernel Params 15. App Logs 16. metadata 4. Heap Substitute 7. top -H 12 Open-source script: https://github.com/ycrash/yc-data-script 360° Troubleshooting artifacts
  • 14. 14 OutOfMemoryError: Java Heap Space Causes 1. Increase in Traffic Volume 2. Memory leak due to buggy code Solutions 1. Fix Memory Leak in the code 2. Increase heap size (-Xmx) Artifacts 1. Garbage Collection Log 2. Heap Dump Tools 1. GCeasy (GC log analysis) 2. HeapHero 3. Eclipse MAT 4. JProfiler
  • 15. 15 GC overhead limit exceeded Metaspac e Threads JNI misc GC Direct Buff Code Cach e Heap Memory Native Memory JVM Memory
  • 16. 16 OutOfMemoryError: GC overhead limit exceeded Diagnosis: Same as ‘Java Heap Space’ 
  • 17. 17 Requested array size exceeds VM limit Young Old Metaspac e Threads JNI misc GC Direct Buff Code Cach e Heap Memory Native Memory JVM Memory
  • 19. 19 OutOfMemoryError: Requested array size exceeds VM limit Causes 1. Allocated array larger than heap size Solutions 1. Fix Memory Leak code 2. Increase heap size (-Xmx) Artifacts 1. Application Log or std error Tools
  • 20. 20 Metaspace Young Old Threads JNI misc GC Direct Buff Code Cach e Heap Memory Native Memory JVM Memory
  • 22. 22 Metaspace Memory Leak - Full Garbage Collection Event
  • 23. 23 OutOfMemoryError: Metaspace Causes 1. Creating large number of Dynamic classes (Java Reflection, Groovy type of script languages) 2. Loading large number of Classes 3. Loading large number of Classloaders Solutions 1. Fix Memory Leak code 2. Increase -XX:MetaspaceSize and -XX:MaxMetaspaceSize. Artifacts 1. Java 8 & below: java {app_name} -verbose:class 2. Java 9 & above: java {app_name} - Xlog:class+load=info:<filena me> 3. jcmd {pid} GC.class_histogram 4. Heap Dump Tools 1. Gceasy (GC log analysis) 2. HeapHero 3. Eclipse MAT 4. JProfiler 5. JHat
  • 24. 24 Permgen space Young Old Threads JNI misc GC Direct Buff Code Cach e Heap Memory Native Memory JVM Memory Happens only in Java 7 & below
  • 25. 25 OutOfMemoryError: Permgen Space Diagnosis: Same as ‘Metaspace’ 
  • 26. 26 Unable to create new native threads Young Old Metaspac e JNI misc GC Direct Buff Code Cach e Heap Memory Native Memory JVM Memory
  • 27. 27 Real Case Study Slowdown in a Major Financial Institution’s Middleware http://fastthread.io/my-thread-report.jsp?p=c2hhcmVkLzIwMTcvMDMvMTQvLS10aHJlYWREdW1wLTIudHh0LS0xMi0yOC0zMw==&s=t
  • 28. 28 OutOfMemoryError: Unable to create new native threads Causes 1. Threads are leaking Solutions 1. Fix thread leak 2. Increase the Thread Limits Set at Operating System(ulimit –u) 3. Reduce Java Heap Size 4. Kills other processes 5. Increase RAM capacity 6. Reduce thread stack size (-Xss). Note: can cause Artifacts 1. Thread Dump Tools 1. FastThread 2. Text Editor
  • 29. 29 Direct buffer memory Young Old Metaspac e Threads JNI misc GC Code Cach e Heap Memory Native Memory JVM Memory Becoming Prevasive in modern Spring Boot Frameworks
  • 30. 30 OutOfMemoryError: Direct buffer memory Causes 1. Increase(or Leak) in direct buffers usage a. java.nio package b. Moving from Spring RestTemplate to WebClient c. Image Processing Libraries d. Networking Libraries e. Some JDBC Drives Solutions 1. Fix Memory Leak code 2. Increase - XX:MaxDirectMemorySize 3. Upgrade to Java 17 (There some issues in Java 11) Artifacts 1. App Log or Std error 2. Native Memory Tracking Tools
  • 31. 31 Kill process or sacrifice child JVM Kernel X
  • 32. 32 Real Case Study Intermittent HTTP 502 errors in AWS EBS Service
  • 35. 35
  • 36. 36 OutOfMemoryError: Kill process or sacrifice child Causes 1. Lack of RAM capacity 2. High Memory utilization by other processes 3. Memory Leak in the code Solutions 1. Kill other processes 2. Increase RAM capacity 3. Fix Memory Leak in the code Artifacts 1. Dmesg 2. GC Log 3. Heap Dump 4. Native Memory Tracking Tools 1. HeapHero 2. Eclipse MAT 3. yCrash
  • 37. 37 Reason stack_trace_with_native_method Young Old Metaspac e Threads misc GC Direct Buff Code Cach e Heap Memory Native Memory JVM Memory
  • 39. Ram Lakshmanan ram@tier1app.com @tier1app https://www.linkedin.com/company/ycrash This deck will be published in: https://blog.heaphero.io If you want to learn more … 39 THANK YOU FRIENDS

Editor's Notes

  1. Eclipse: LaunchPad_oom
  2. Gceasy - C:\workspace\ycrash\speeches\9-types-oom\memory-leak.log
  3. https://blog.heaphero.io/2017/10/13/how-to-capture-java-heap-dumps-7-options/
  4. http://localhost:8080/heap-index.jsp C:\workspace\tmp\dev-nexus\dump-2024-04-09.hprof http://localhost:8080/heap-report-wc.jsp?p=ZDI0ZHIxRGJtaUhHQXN3eUFWa3htQW9QeERicTZpZjNUczlXTFVVTE9jcWpMeHBsRkpSZEV4Vkk5cDZqZHJIK2NzditQeWx0UDZDbUhmNEIySTBZMkZ6NUhjMkh3SFdOSUdPZU5WTHZHZlk2dEdnQnNCMmp2MkltMEdoUnFxcUY=
  5. OOMRequestedArraySizeExceedsVMLimit
  6. com.buggyapp.oom.RequestedArraySizeExceedsVMLimit
  7. OOMMetaspace OOMMetaspace_verbose
  8. C:\workspace\ycrash\speeches\9-types-oom\thread-leak.txt Backup: http://localhost:8080/yc-report.jsp?ou=SAP&de=127.0.0.1&app=yc&ts=2024-04-09T11-09-51
  9. http://localhost:8080/yc-report.jsp?ou=SAP&de=10.160.1.221&app=yc&ts=2024-04-02T09-59-41
  10. https://test.ycrash.io/yc-report-kernel.jsp?ou=czlWbG0rUko0UXAxazlSbjZrSUIwUT09&de=172.31.7.106&app=yc&ts=2023-09-01T10-25-39
