1. Jagannath Institute of Management Sciences
Vasant Kunj-II, New Delhi - 110070
Subject Name: BVITSD 506 : Web Programming
Department of Information Technology
Created By: Dr. Arpana Chaturvedi
@Dr. Arpana Chaturvedi

2. Subject: BVITSD 506 : Web Programming
Topic: Unit I- Eclipse
@Dr. Arpana Chaturvedi

3. Unit-I Configuring GUI -Eclipse in Java
▰ Go To Windows: Eclipse Marketplace
@Dr. Arpana Chaturvedi

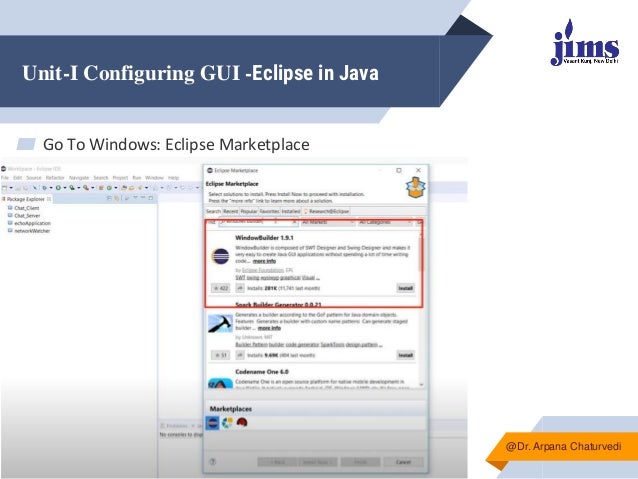

4. Unit-I Configuring GUI -Eclipse in Java
▰ Go To Windows: Eclipse Marketplace
@Dr. Arpana Chaturvedi

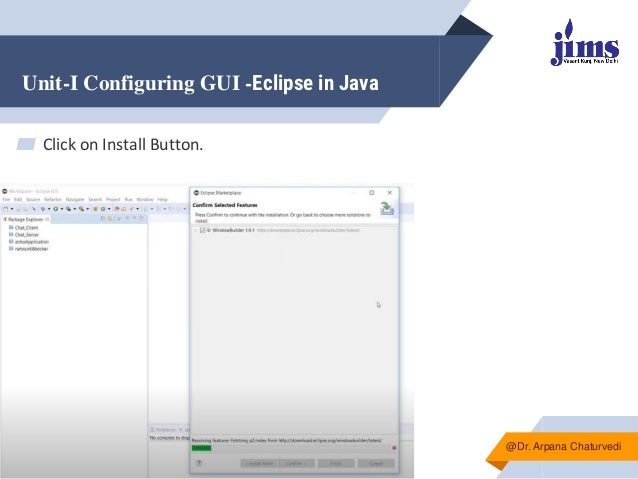

5. Unit-I Configuring GUI -Eclipse in Java
@Dr. Arpana Chaturvedi
▰ Click on Install Button.

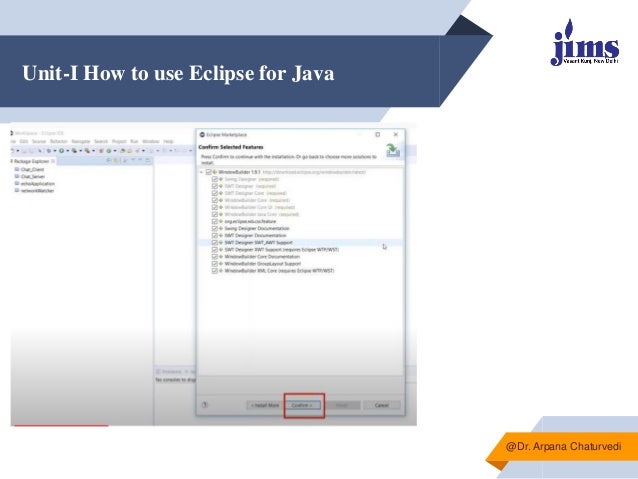

6. Unit-I How to use Eclipse for Java
@Dr. Arpana Chaturvedi

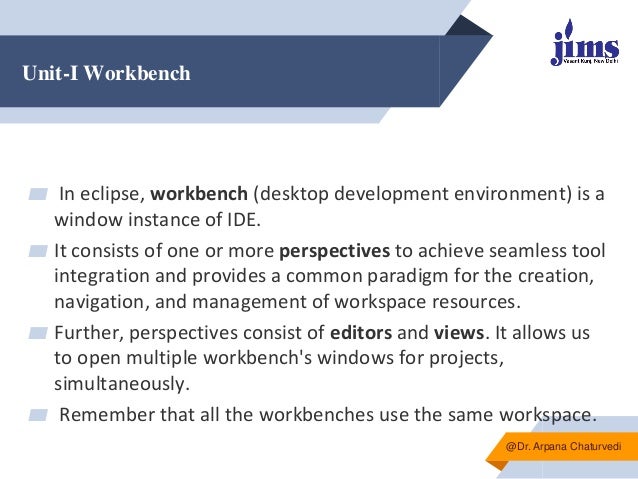

7. Unit-I Workbench
▰ In eclipse, workbench (desktop development environment) is a
window instance of IDE.
▰ It consists of one or more perspectives to achieve seamless tool
integration and provides a common paradigm for the creation,
navigation, and management of workspace resources.
▰ Further, perspectives consist of editors and views. It allows us
to open multiple workbench's windows for projects,
simultaneously.
▰ Remember that all the workbenches use the same workspace.
@Dr. Arpana Chaturvedi

8. Unit-I Workbench

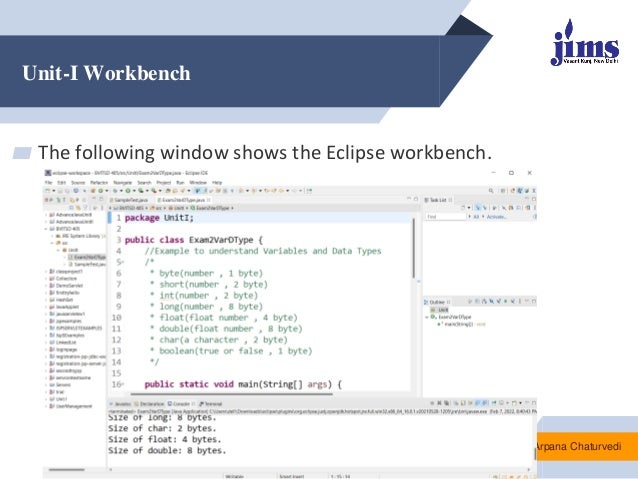

▰ The following window shows the Eclipse workbench.
@Dr. Arpana Chaturvedi

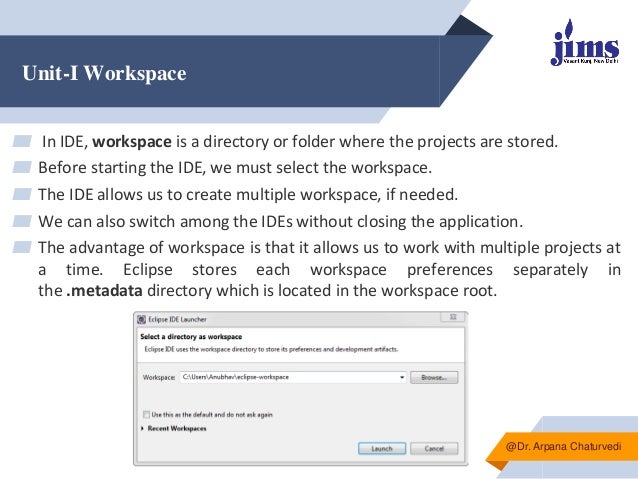

9. Unit-I Workspace
▰ In IDE, workspace is a directory or folder where the projects are stored.
▰ Before starting the IDE, we must select the workspace.
▰ The IDE allows us to create multiple workspace, if needed.
▰ We can also switch among the IDEs without closing the application.
▰ The advantage of workspace is that it allows us to work with multiple projects at
a time. Eclipse stores each workspace preferences separately in
the .metadata directory which is located in the workspace root.
@Dr. Arpana Chaturvedi

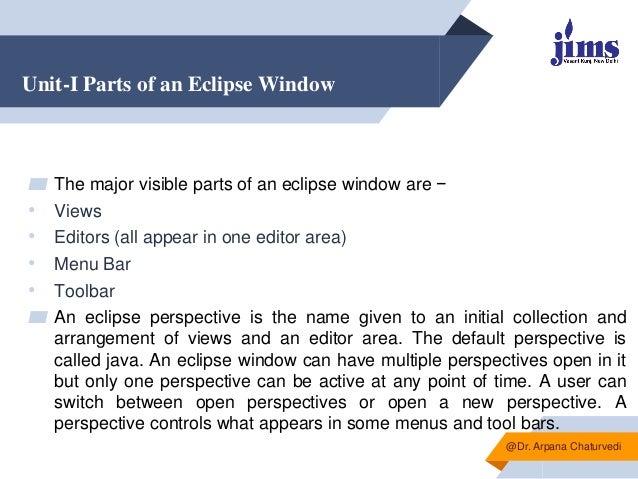

10. Unit-I Parts of an Eclipse Window
▰ The major visible parts of an eclipse window are −
• Views
• Editors (all appear in one editor area)
• Menu Bar
• Toolbar
▰ An eclipse perspective is the name given to an initial collection and
arrangement of views and an editor area. The default perspective is
called java. An eclipse window can have multiple perspectives open in it
but only one perspective can be active at any point of time. A user can
switch between open perspectives or open a new perspective. A
perspective controls what appears in some menus and tool bars.
@Dr. Arpana Chaturvedi

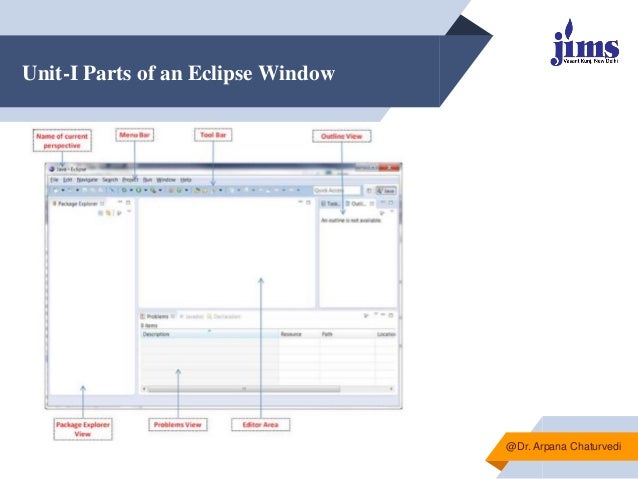

11. Unit-I Parts of an Eclipse Window
@Dr. Arpana Chaturvedi

12. Unit-I Parts of an Eclipse Window

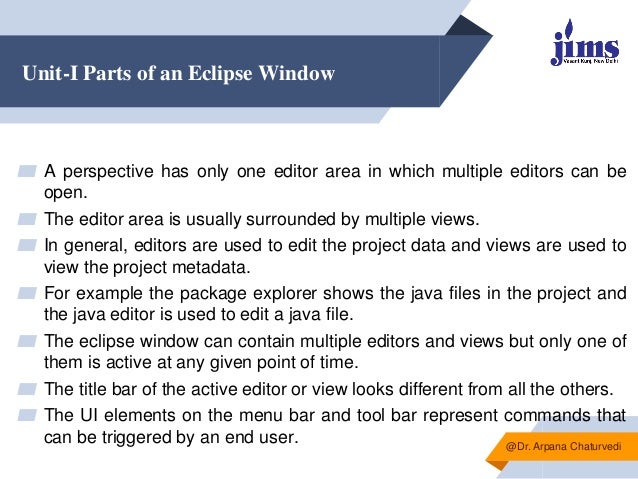

▰ A perspective has only one editor area in which multiple editors can be
open.
▰ The editor area is usually surrounded by multiple views.
▰ In general, editors are used to edit the project data and views are used to
view the project metadata.
▰ For example the package explorer shows the java files in the project and
the java editor is used to edit a java file.
▰ The eclipse window can contain multiple editors and views but only one of
them is active at any given point of time.
▰ The title bar of the active editor or view looks different from all the others.
▰ The UI elements on the menu bar and tool bar represent commands that
can be triggered by an end user. @Dr. Arpana Chaturvedi

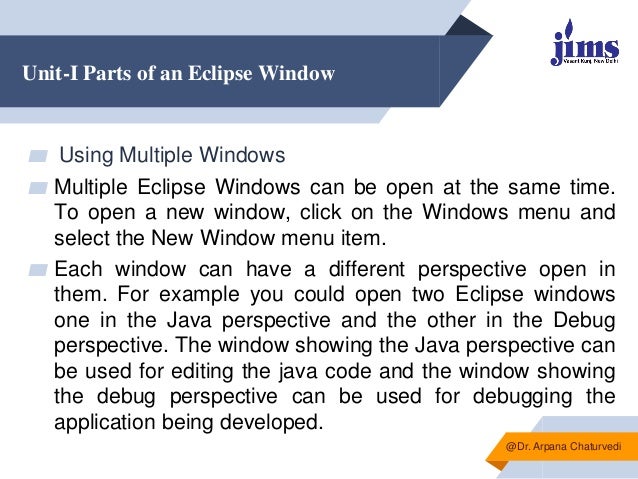

13. Unit-I Parts of an Eclipse Window
▰ Using Multiple Windows
▰ Multiple Eclipse Windows can be open at the same time.
To open a new window, click on the Windows menu and
select the New Window menu item.
▰ Each window can have a different perspective open in
them. For example you could open two Eclipse windows
one in the Java perspective and the other in the Debug
perspective. The window showing the Java perspective can
be used for editing the java code and the window showing
the debug perspective can be used for debugging the
application being developed.
@Dr. Arpana Chaturvedi

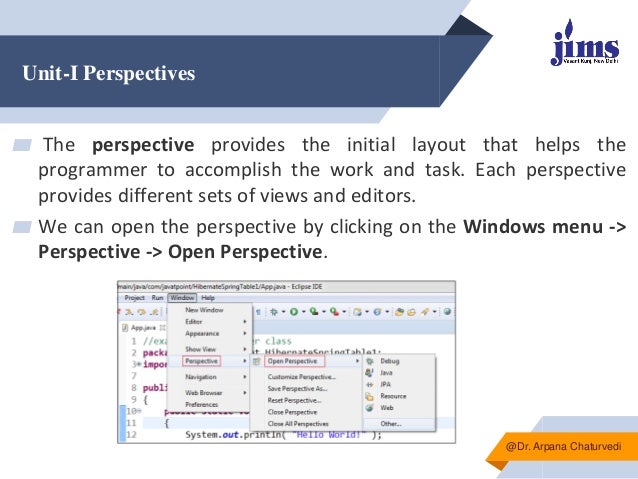

14. Unit-I Perspectives
▰ The perspective provides the initial layout that helps the
programmer to accomplish the work and task. Each perspective
provides different sets of views and editors.
▰ We can open the perspective by clicking on the Windows menu ->
Perspective -> Open Perspective.
@Dr. Arpana Chaturvedi

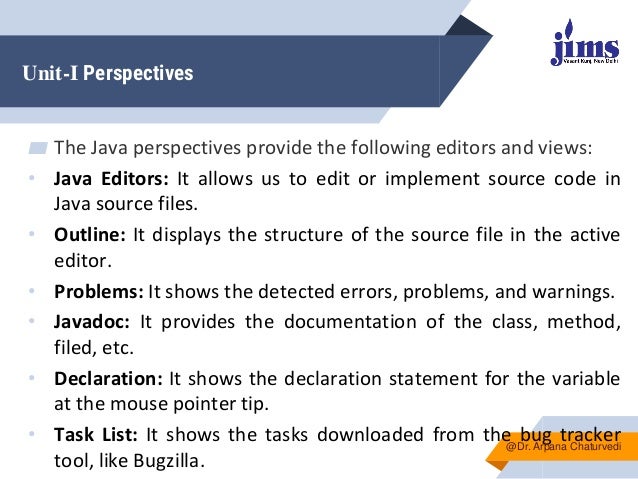

15. Unit-I Perspectives
▰ The Java perspectives provide the following editors and views:
• Java Editors: It allows us to edit or implement source code in
Java source files.
• Outline: It displays the structure of the source file in the active
editor.
• Problems: It shows the detected errors, problems, and warnings.
• Javadoc: It provides the documentation of the class, method,
filed, etc.
• Declaration: It shows the declaration statement for the variable
at the mouse pointer tip.
• Task List: It shows the tasks downloaded from the bug tracker
tool, like Bugzilla.
@Dr. Arpana Chaturvedi

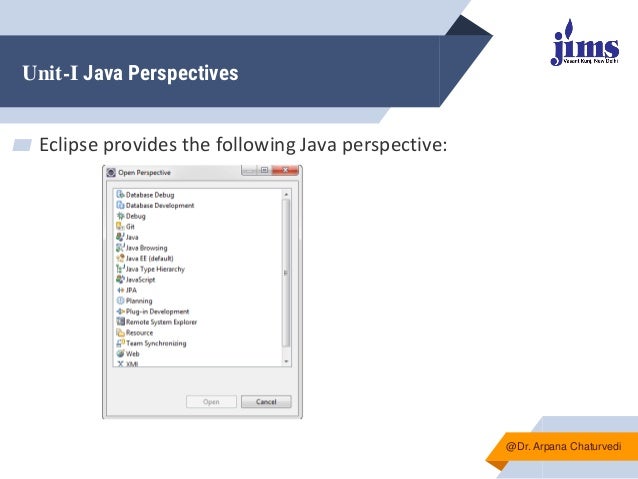

16. Unit-I Java Perspectives
▰ Eclipse provides the following Java perspective:
@Dr. Arpana Chaturvedi

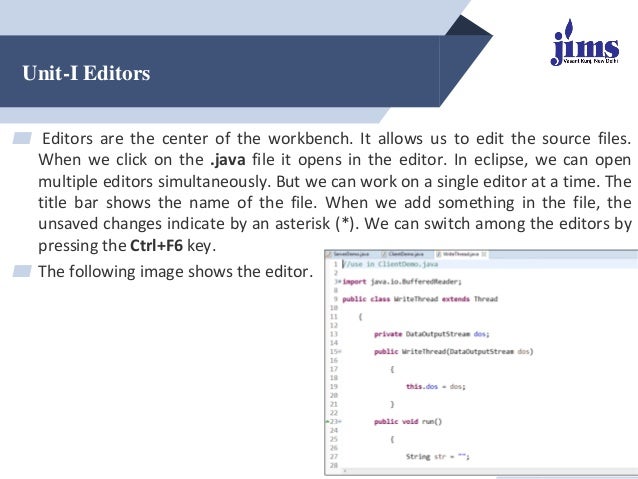

17. Unit-I Editors
▰ Editors are the center of the workbench. It allows us to edit the source files.
When we click on the .java file it opens in the editor. In eclipse, we can open
multiple editors simultaneously. But we can work on a single editor at a time. The
title bar shows the name of the file. When we add something in the file, the
unsaved changes indicate by an asterisk (*). We can switch among the editors by
pressing the Ctrl+F6 key.
▰ The following image shows the editor.
@Dr. Arpana Chaturvedi

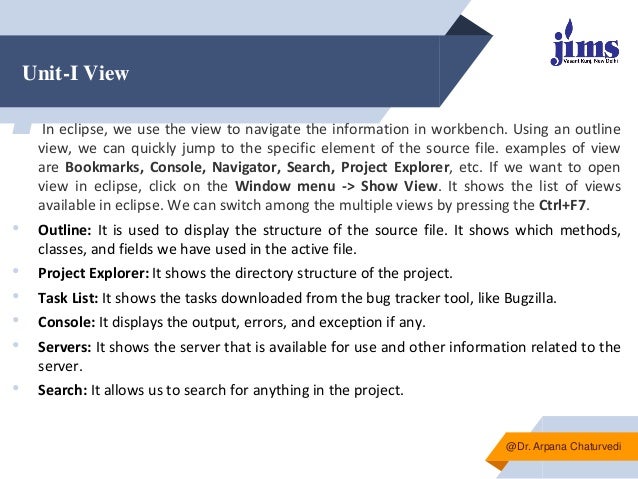

18. Unit-I View

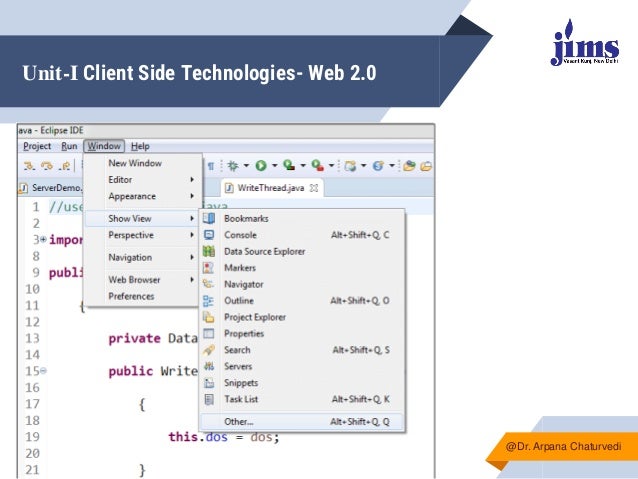

▰ In eclipse, we use the view to navigate the information in workbench. Using an outline
view, we can quickly jump to the specific element of the source file. examples of view
are Bookmarks, Console, Navigator, Search, Project Explorer, etc. If we want to open
view in eclipse, click on the Window menu -> Show View. It shows the list of views
available in eclipse. We can switch among the multiple views by pressing the Ctrl+F7.
• Outline: It is used to display the structure of the source file. It shows which methods,
classes, and fields we have used in the active file.
• Project Explorer: It shows the directory structure of the project.
• Task List: It shows the tasks downloaded from the bug tracker tool, like Bugzilla.
• Console: It displays the output, errors, and exception if any.
• Servers: It shows the server that is available for use and other information related to the
server.
• Search: It allows us to search for anything in the project.
@Dr. Arpana Chaturvedi

19. Unit-I Client Side Technologies- Web 2.0
@Dr. Arpana Chaturvedi

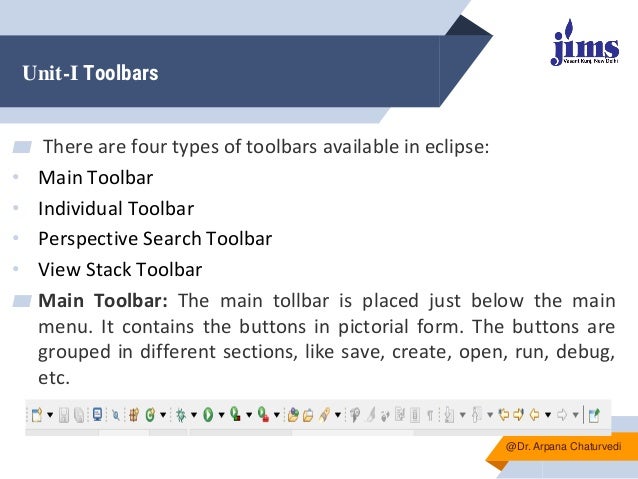

20. Unit-I Toolbars
▰ There are four types of toolbars available in eclipse:
• Main Toolbar
• Individual Toolbar
• Perspective Search Toolbar
• View Stack Toolbar
▰ Main Toolbar: The main tollbar is placed just below the main
menu. It contains the buttons in pictorial form. The buttons are
grouped in different sections, like save, create, open, run, debug,
etc.
@Dr. Arpana Chaturvedi

21. Unit-I Client Side Technologies- Web 2.0

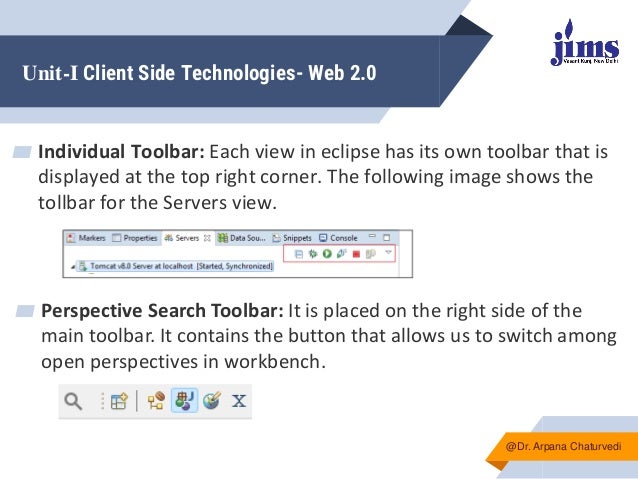

▰ Individual Toolbar: Each view in eclipse has its own toolbar that is
displayed at the top right corner. The following image shows the
tollbar for the Servers view.
@Dr. Arpana Chaturvedi
▰ Perspective Search Toolbar: It is placed on the right side of the
main toolbar. It contains the button that allows us to switch among
open perspectives in workbench.

22. Unit-I Client Side Technologies- Web 2.0

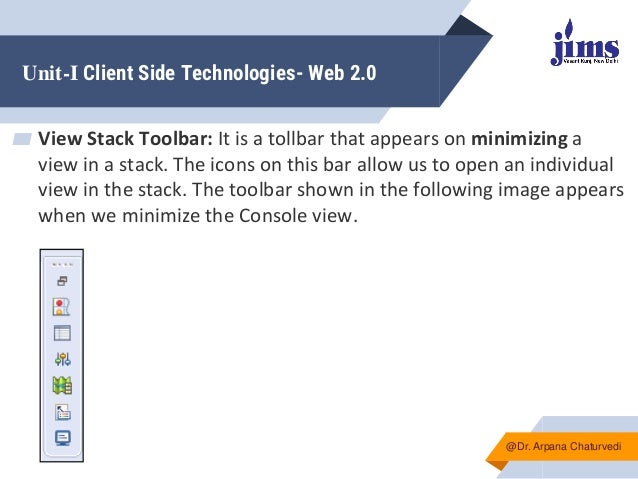

▰ View Stack Toolbar: It is a tollbar that appears on minimizing a
view in a stack. The icons on this bar allow us to open an individual
view in the stack. The toolbar shown in the following image appears
when we minimize the Console view.
@Dr. Arpana Chaturvedi

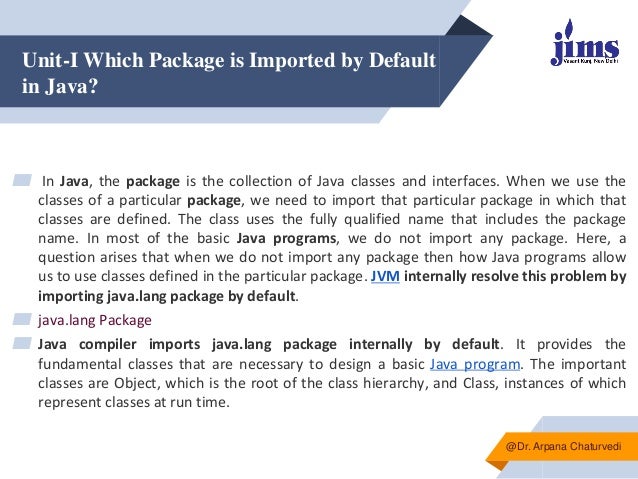

23. Unit-I Which Package is Imported by Default
in Java?
▰ In Java, the package is the collection of Java classes and interfaces. When we use the
classes of a particular package, we need to import that particular package in which that
classes are defined. The class uses the fully qualified name that includes the package
name. In most of the basic Java programs, we do not import any package. Here, a
question arises that when we do not import any package then how Java programs allow
us to use classes defined in the particular package. JVM internally resolve this problem by
importing java.lang package by default.
▰ java.lang Package
▰ Java compiler imports java.lang package internally by default. It provides the
fundamental classes that are necessary to design a basic Java program. The important
classes are Object, which is the root of the class hierarchy, and Class, instances of which
represent classes at run time.
@Dr. Arpana Chaturvedi

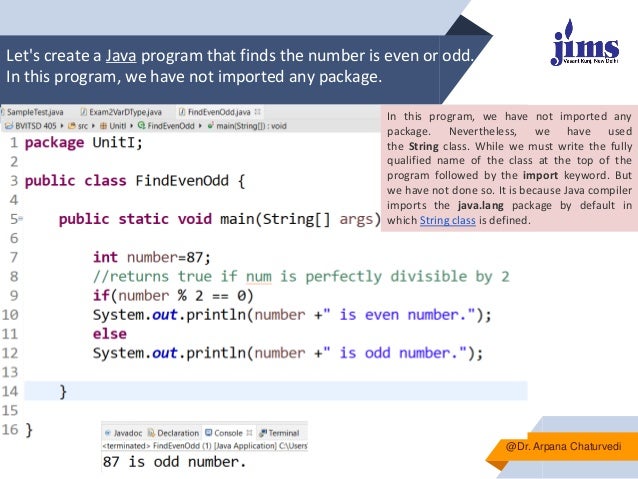

24. Let's create a Java program that finds the number is even or odd.
In this program, we have not imported any package.
▰
@Dr. Arpana Chaturvedi
In this program, we have not imported any
package. Nevertheless, we have used
the String class. While we must write the fully
qualified name of the class at the top of the
program followed by the import keyword. But
we have not done so. It is because Java compiler
imports the java.lang package by default in
which String class is defined.

25. Unit-I Java decompiler

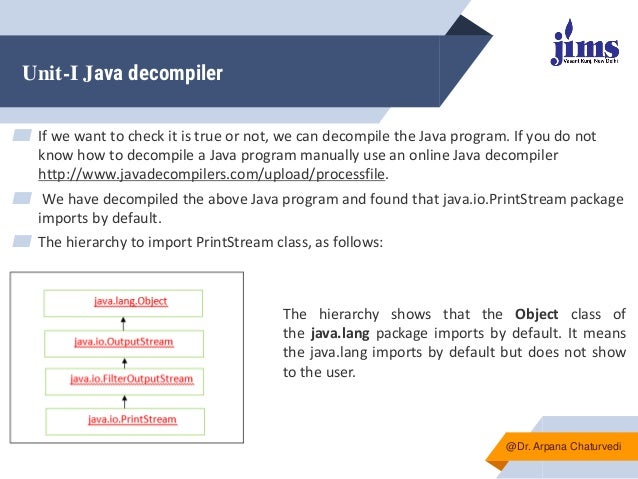

▰ If we want to check it is true or not, we can decompile the Java program. If you do not
know how to decompile a Java program manually use an online Java decompiler
http://www.javadecompilers.com/upload/processfile.
▰ We have decompiled the above Java program and found that java.io.PrintStream package
imports by default.
▰ The hierarchy to import PrintStream class, as follows:
@Dr. Arpana Chaturvedi
The hierarchy shows that the Object class of
the java.lang package imports by default. It means
the java.lang imports by default but does not show
to the user.

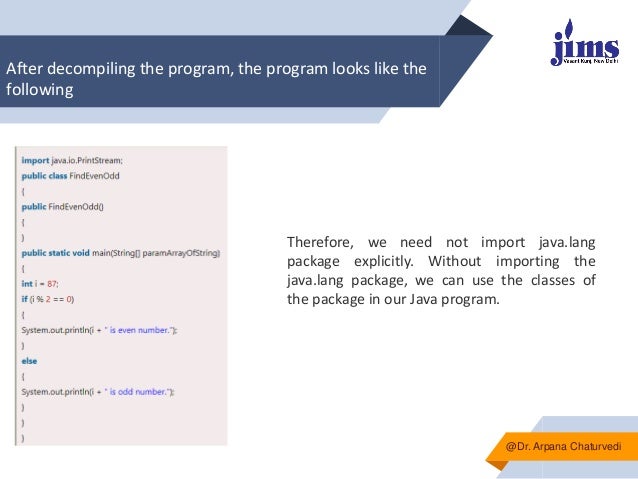

26. After decompiling the program, the program looks like the
following
▰
@Dr. Arpana Chaturvedi
Therefore, we need not import java.lang
package explicitly. Without importing the
java.lang package, we can use the classes of
the package in our Java program.

27. Thank You !!
