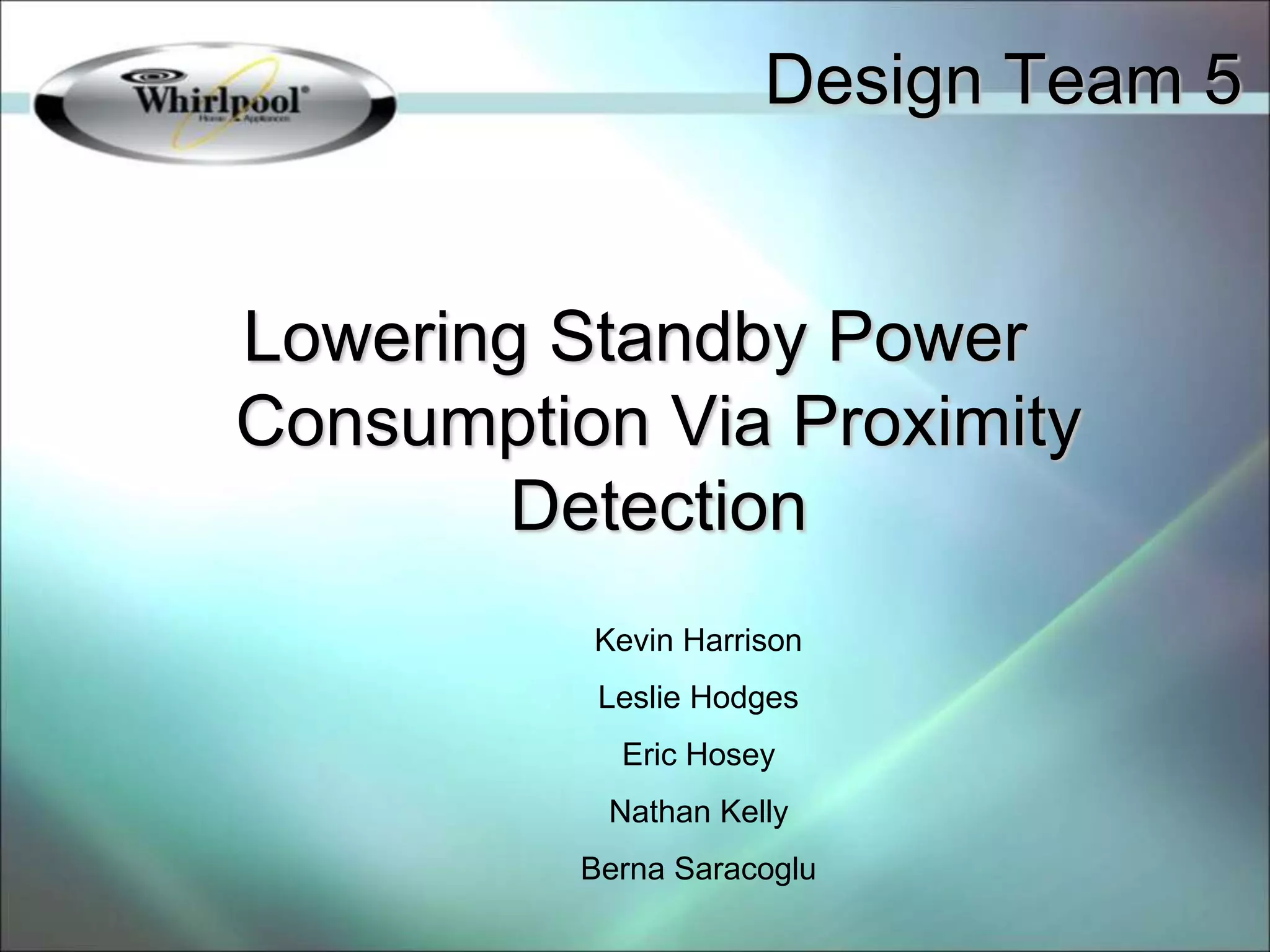

1. Design Team 5
Lowering Standby Power
Consumption Via Proximity
Detection
Kevin Harrison
Leslie Hodges
Eric Hosey
Nathan Kelly
Berna Saracoglu

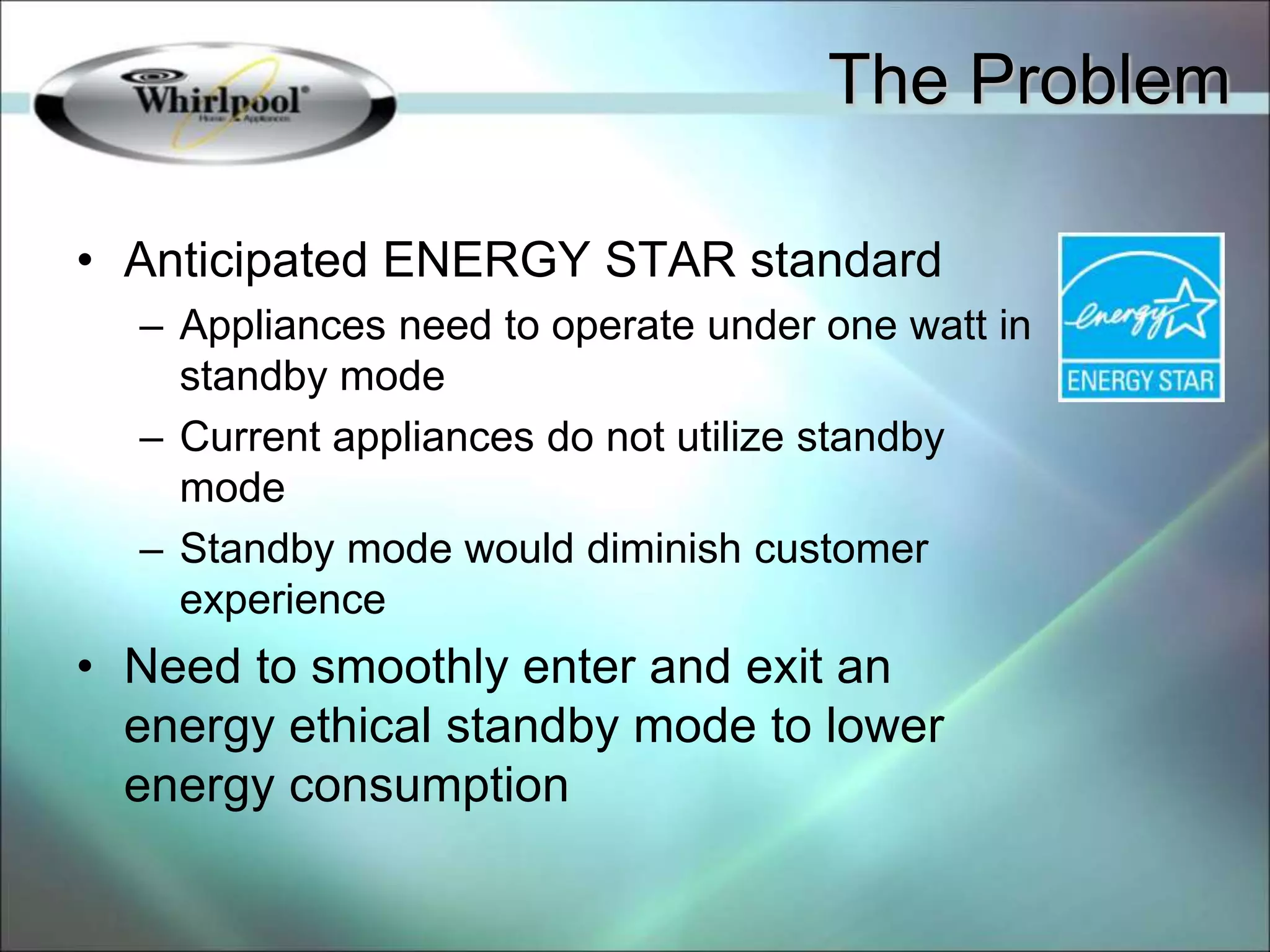

2. • Anticipated ENERGY STAR standard
– Appliances need to operate under one watt in
standby mode
– Current appliances do not utilize standby
mode
– Standby mode would diminish customer
experience
• Need to smoothly enter and exit an
energy ethical standby mode to lower
energy consumption
The Problem

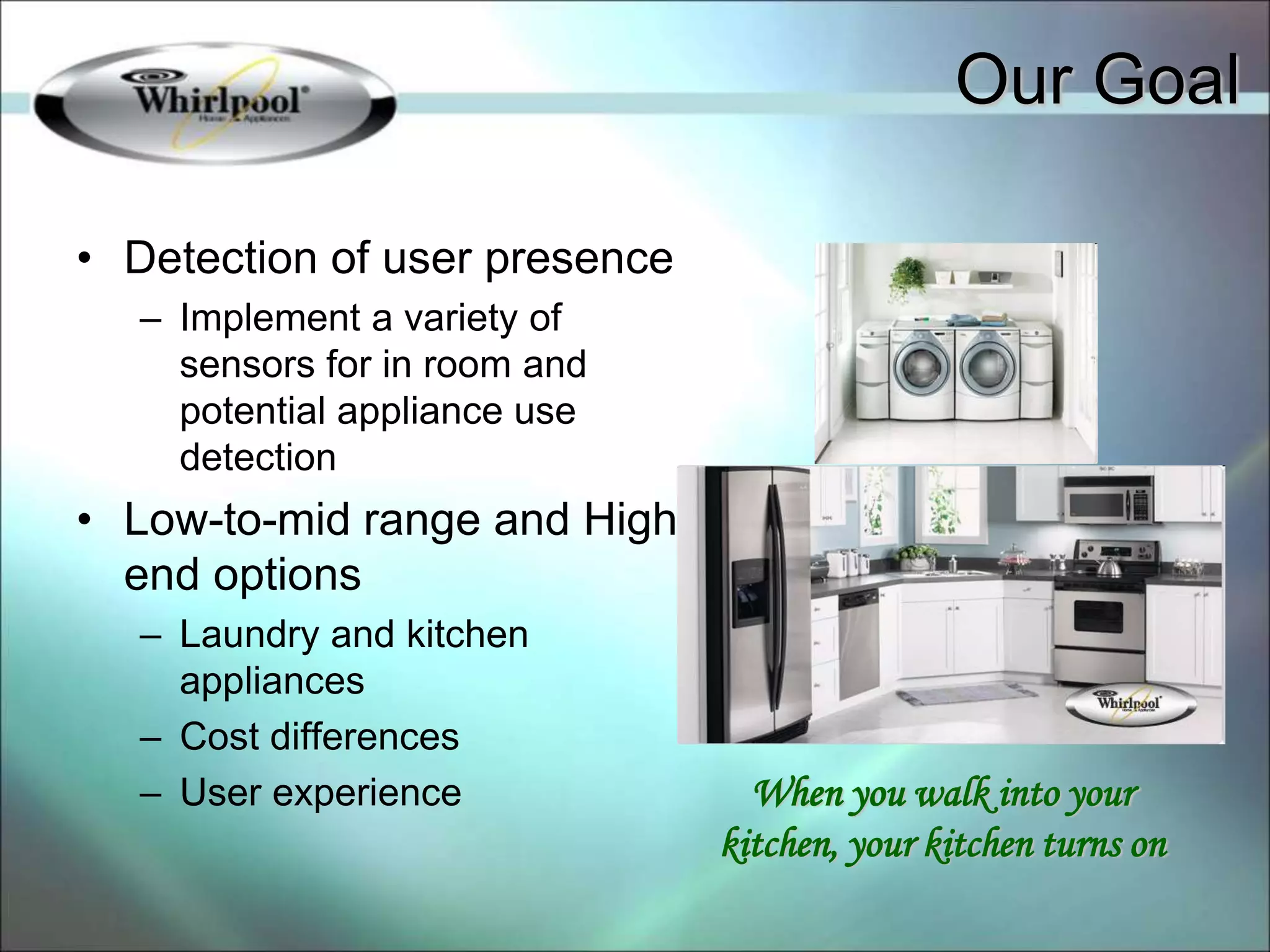

3. • Detection of user presence
– Implement a variety of
sensors for in room and
potential appliance use
detection
• Low-to-mid range and High-
end options
– Laundry and kitchen
appliances
– Cost differences
– User experience When you walk into your
kitchen, your kitchen turns on
Our Goal

4. • Power
– Less than 1 watt in standby mode
• Size
– Fit aesthetically into appliance and room
• Cost
– Limitations dependant on appliance price
• Flexibility
– Adapt intelligently to different environments
– Current and future appliances
• Accuracy
– Not interfere with appliance functionality
– Not susceptible to interference
• Safety
– Product used by general public

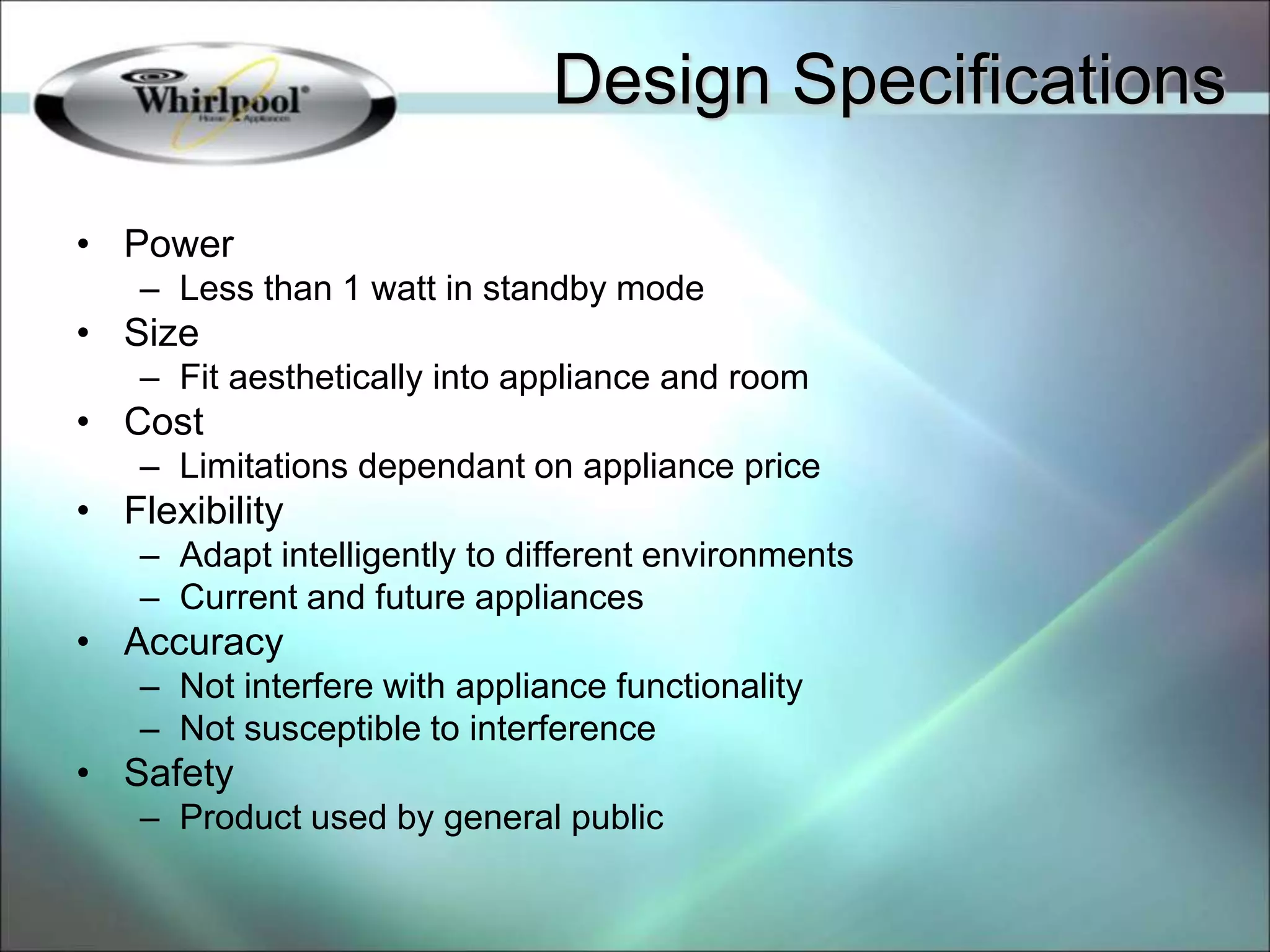

Design Specifications

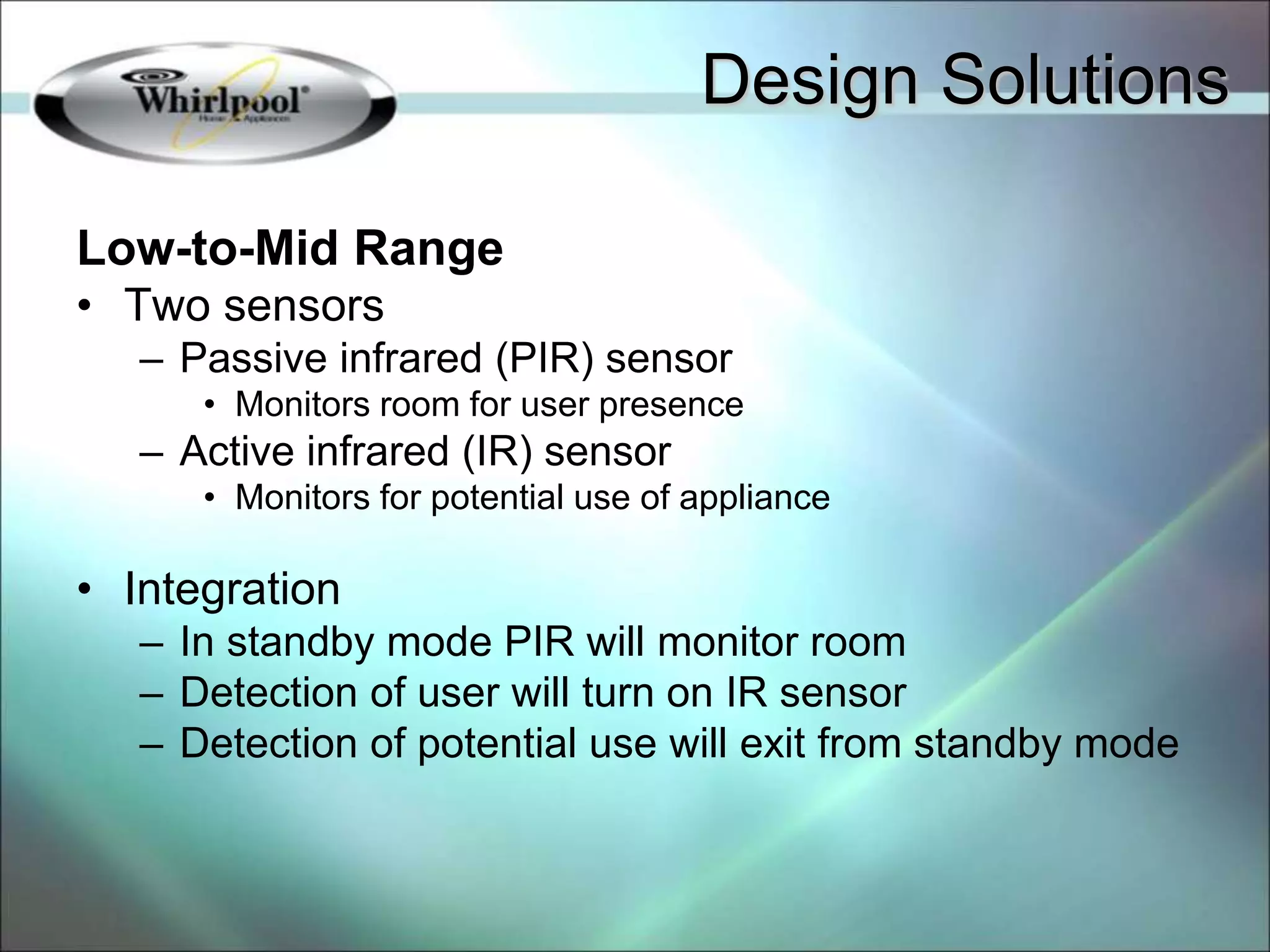

5. Low-to-Mid Range
• Two sensors
– Passive infrared (PIR) sensor
• Monitors room for user presence
– Active infrared (IR) sensor
• Monitors for potential use of appliance
• Integration
– In standby mode PIR will monitor room
– Detection of user will turn on IR sensor
– Detection of potential use will exit from standby mode
Design Solutions

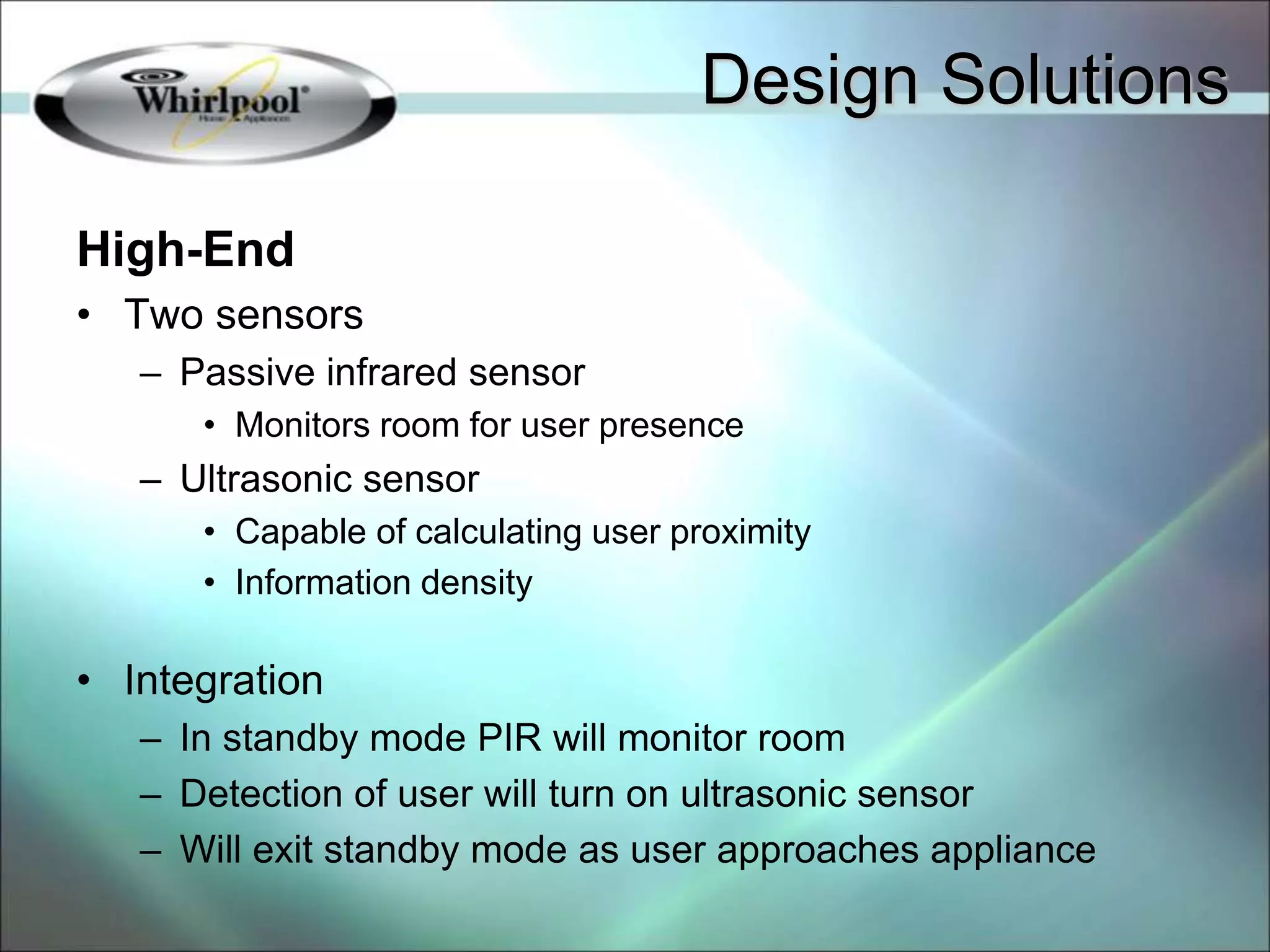

6. High-End
• Two sensors
– Passive infrared sensor
• Monitors room for user presence
– Ultrasonic sensor
• Capable of calculating user proximity
• Information density
• Integration
– In standby mode PIR will monitor room
– Detection of user will turn on ultrasonic sensor
– Will exit standby mode as user approaches appliance
Design Solutions

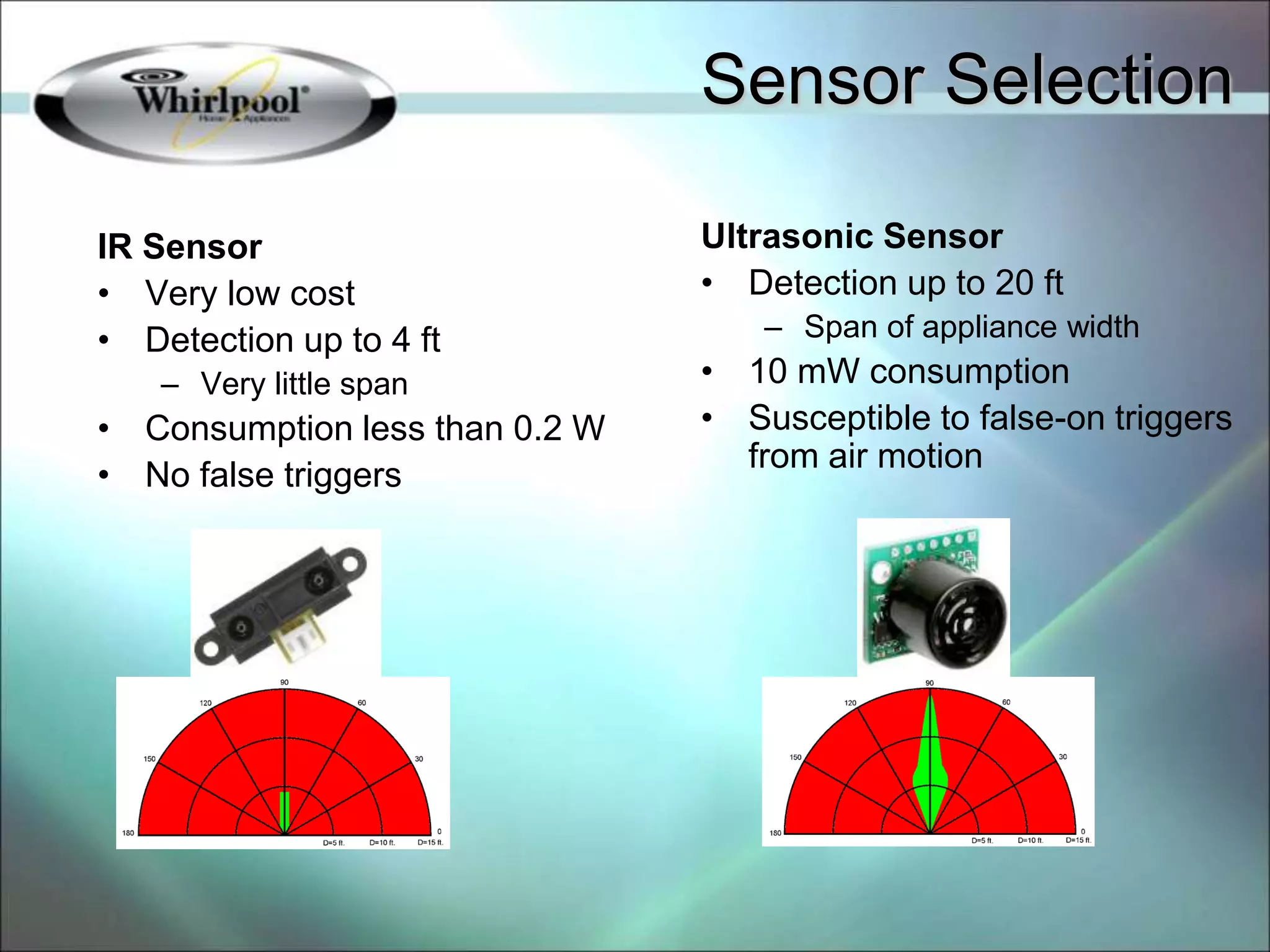

7. IR Sensor
• Very low cost
• Detection up to 4 ft
– Very little span
• Consumption less than 0.2 W
• No false triggers
Ultrasonic Sensor
• Detection up to 20 ft
– Span of appliance width
• 10 mW consumption
• Susceptible to false-on triggers
from air motion
Sensor Selection

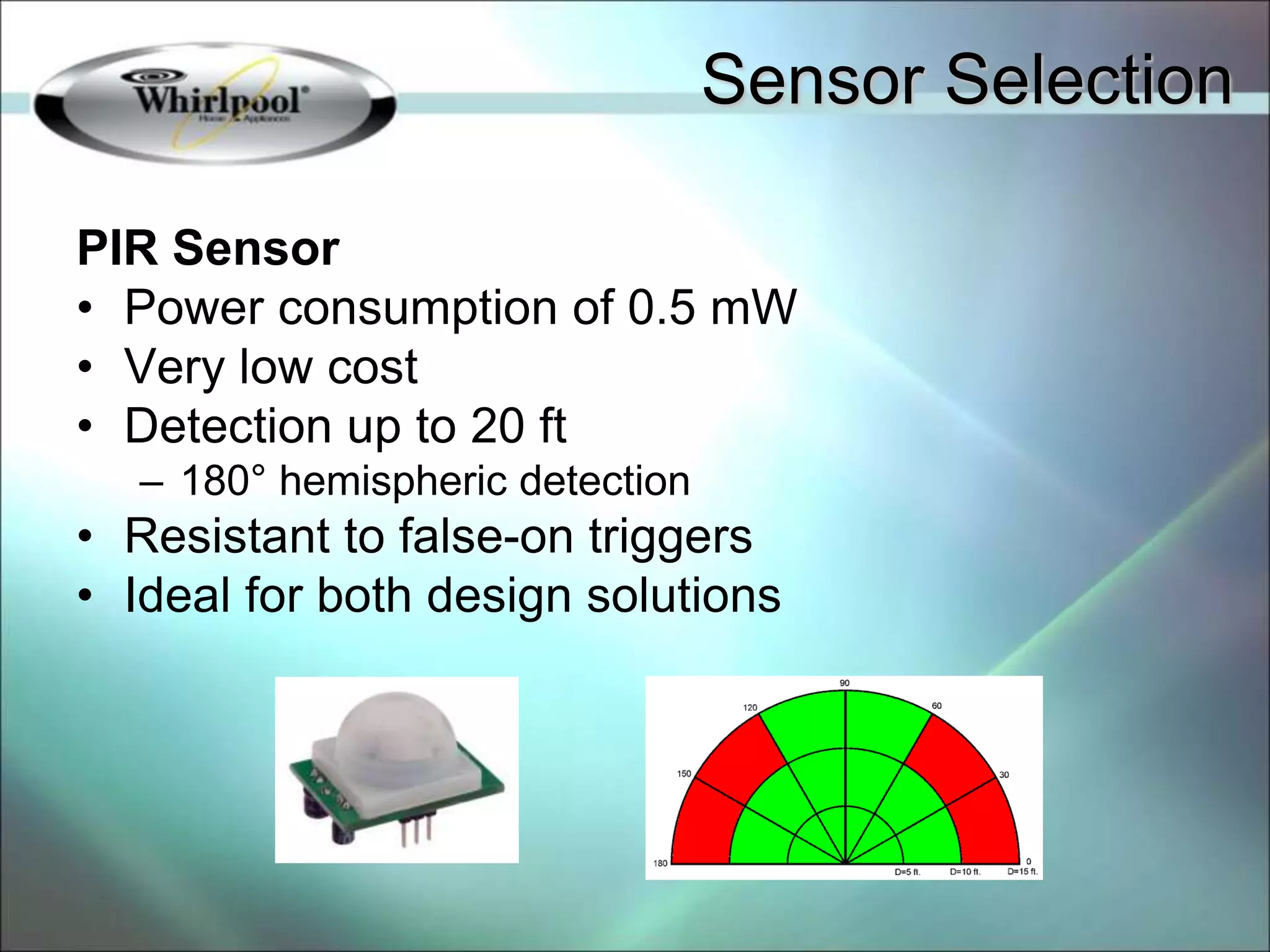

8. PIR Sensor
• Power consumption of 0.5 mW
• Very low cost
• Detection up to 20 ft
– 180° hemispheric detection
• Resistant to false-on triggers
• Ideal for both design solutions
Sensor Selection

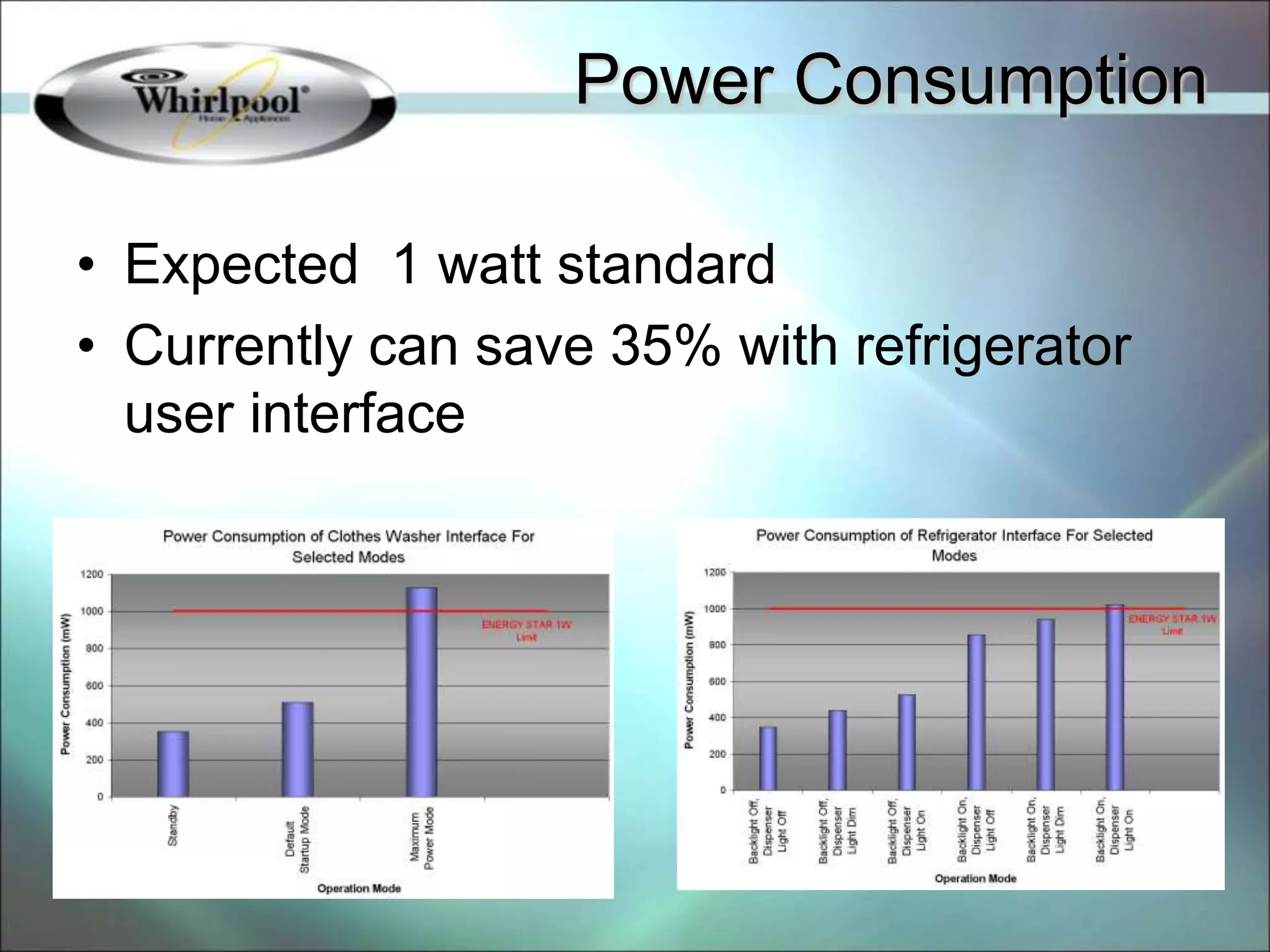

9. • Expected 1 watt standard
• Currently can save 35% with refrigerator
user interface
Power Consumption

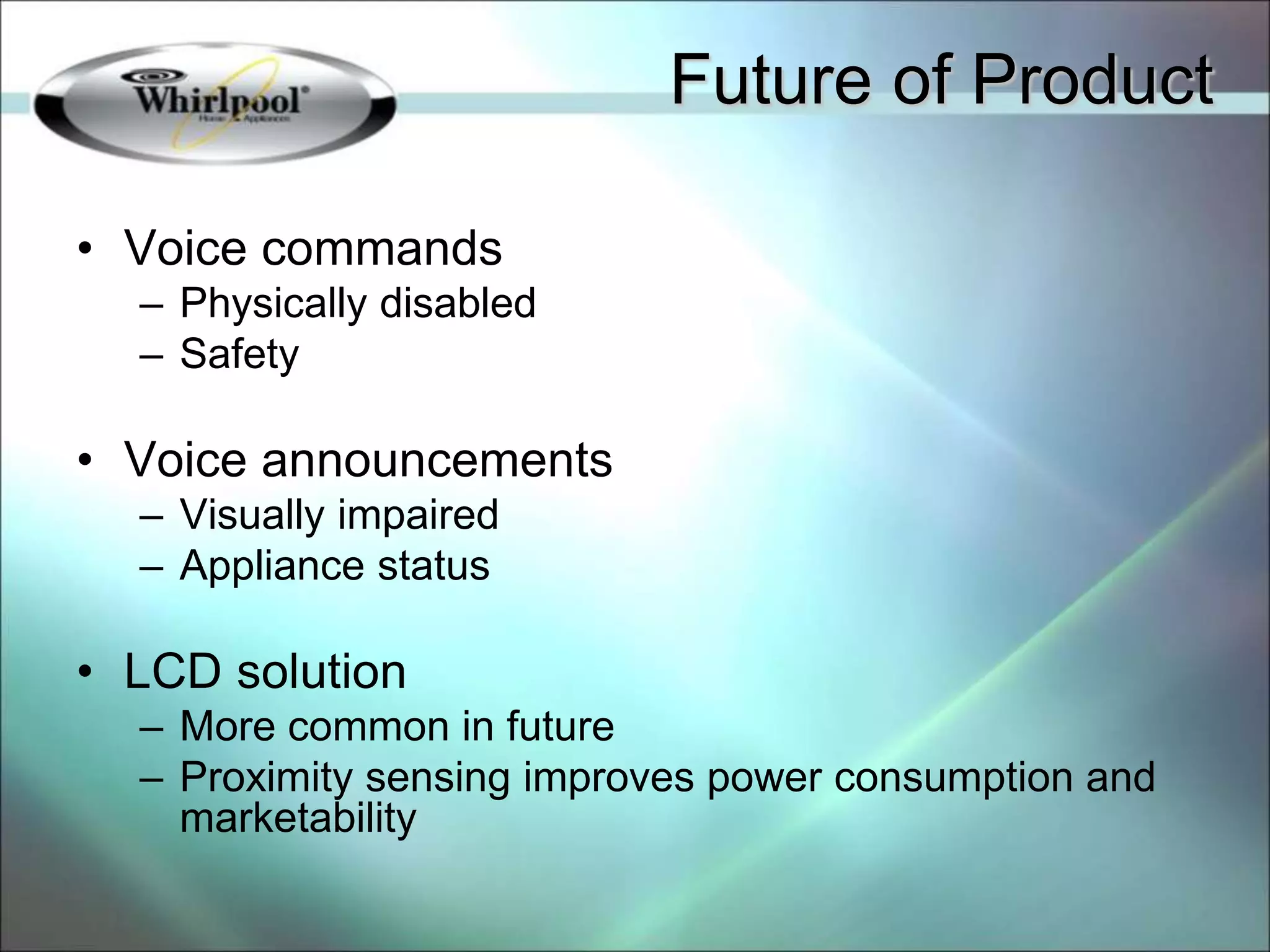

10. • Voice commands
– Physically disabled
– Safety
• Voice announcements
– Visually impaired
– Appliance status
• LCD solution
– More common in future
– Proximity sensing improves power consumption and
marketability
Future of Product
