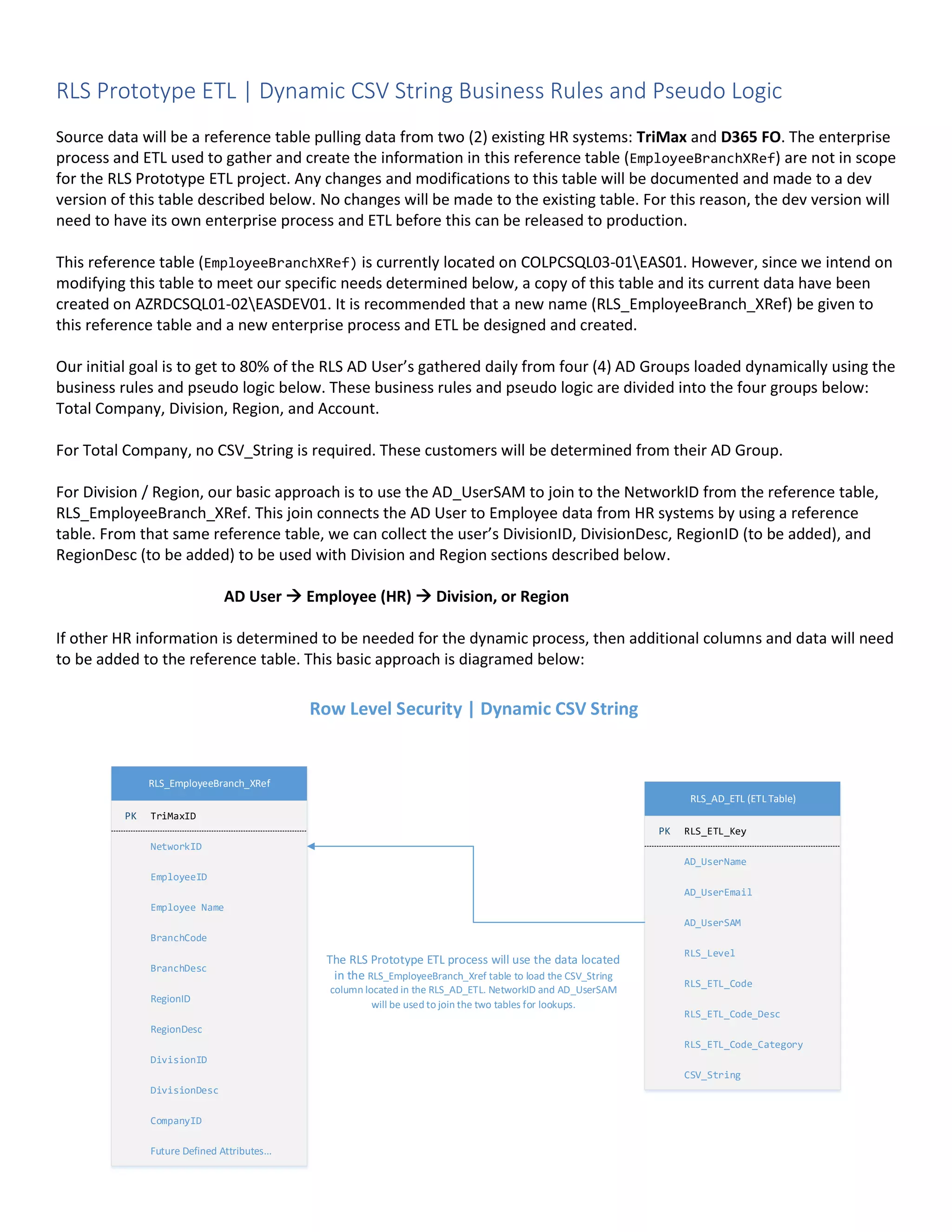

RLS Prototype ETL | Dynamic CSV String Business Rules and Pseudo Logic
Source data will be a reference table pulling data from two (2) existing HR systems: TriMax and D365 FO. The enterprise
process and ETL used to gather and create the information in this reference table (EmployeeBranchXRef) are not in scope
for the RLS Prototype ETL project. Any changes and modifications to this table will be documented and made to a dev
version of this table described below. No changes will be made to the existing table. For this reason, the dev version will
need to have its own enterprise process and ETL before this can be released to production.
This reference table (EmployeeBranchXRef) is currently located on COLPCSQL03-01EAS01. However, since we intend on
modifying this table to meet our specific needs determined below, a copy of this table and its current data have been
created on AZRDCSQL01-02EASDEV01. It is recommended that a new name (RLS_EmployeeBranch_XRef) be given to
this reference table and a new enterprise process and ETL be designed and created.
Our initial goal is to get to 80% of the RLS AD User’s gathered daily from four (4) AD Groups loaded dynamically using the
business rules and pseudo logic below. These business rules and pseudo logic are divided into the four groups below:
Total Company, Division, Region, and Account.
For Total Company, no CSV_String is required. These customers will be determined from their AD Group.
For Division / Region, our basic approach is to use the AD_UserSAM to join to the NetworkID from the reference table,
RLS_EmployeeBranch_XRef. This join connects the AD User to Employee data from HR systems by using a reference
table. From that same reference table, we can collect the user’s DivisionID, DivisionDesc, RegionID (to be added), and
RegionDesc (to be added) to be used with Division and Region sections described below.
AD User  Employee (HR)  Division, or Region
If other HR information is determined to be needed for the dynamic process, then additional columns and data will need
to be added to the reference table. This basic approach is diagramed below:
Row Level Security | Dynamic CSV String
The RLS Prototype ETL process will use the data located
in the RLS_EmployeeBranch_Xref table to load the CSV_String
column located in the RLS_AD_ETL. NetworkID and AD_UserSAM
will be used to join the two tables for lookups.
RLS_AD_ETL (ETL Table)
RLS_ETL_KeyPK
AD_UserName
AD_UserEmail
RLS_Level
RLS_ETL_Code
RLS_ETL_Code_Desc
RLS_ETL_Code_Category
CSV_String
AD_UserSAM
RLS_EmployeeBranch_XRef
TriMaxIDPK
NetworkID
EmployeeID
BranchCode
BranchDesc
DivisionID
DivisionDesc
CompanyID
Employee Name
Future Defined Attributes...
RegionID
RegionDesc
For Account(s), our approach is to use the AD_UserSAM (?) to join to the DimCustomer table. We will circle back and
define this section in more detail including a diagram similar to the one above.
AD User  Packaging Consulting Group (DimCustomer)  Account(s)
Business Rules and Pseudo Logic
The logic to determine users specific access (CSV_String) is controlled by the AD group they are assigned to. There are
four (4) AD Groups that divide what security bucket users fall into. These buckets of users are then used to determine
which specific object(s) (division, region, account) they have access to according to the AD group they came from.
To accomplish what objects a user should have access to (objects added to the CSV_String), we will examine the
RLS_EmployeeBranch_XRef table associated with a specific user, for division and region RLS_Levels. For account(s), we
will examine the DimCustomer table.
Total Company
If the user is in a Corporate branch (typically a numeric code less than 2000) and they are in the Corporate AD group,
they have Corporate access. Total company does not require a CSV_String since the ETL process relies on the members
of the Total Company AD Group to allow access. It would be possible to populate this with a CompanyID.
Test Users from Test AD Groups (temporary, waiting on Real AD Groups with our 3 Test Users)
AD_UserName AD_UserEmail AD_UserSAM RLS_Level
Bill Stultz bstultz@tricorbraun.com tricorbraunbstultz TotalCompany
Jill Pellerito jpellerito@tricorbraun.com tricorbraunjpellerito TotalCompany
Jason White jwhite@tricorbraun.com tricorbraunjwhite TotalCompany
Division
If the user is in the Division AD group, we will determine the primary (default) division of the user by using the DivisionID
in the RLS_EmployeeBranch_XRef table. This should give us the specific Division the user has access to. I can only think
of a couple of individuals that have access to more than one Division at a time. This is another one-off case we would
need to review.
This Division AD Group process will only add the primary (default) division assigned to the user. This is what we have
determined to meet the 80%. Addressing users that have multiple divisions will be addressed in a future development
phase possibly using a lookup table that is maintained manually.
Test Users from Test AD Groups (temporary, waiting on Real AD Groups with our 3 Test Users)
AD_UserName AD_UserEmail AD_UserSAM RLS_Level
Shawn Viola sviola@tricorbraun.com tricorbraunsviola Division
Region
If the user is in the Regional AD group, we will determine the primary (default) region of the user by using the RegionID
in the RLS_EmployeeBranch_XRef table. This should give us the specific Region the user has access to. There will be
individuals with access to multiple Regions, we will also have to determine how to deal with those.
This Region AD Group process will only add the primary (default) region assigned to the user. This is what we have
determined to meet the 80%. Addressing users that have multiple regions will be addressed in a future development
phase possibly using a lookup table that is maintained manually.
Test Users from Test AD Groups (temporary, waiting on Real AD Groups with our 3 Test Users)
AD_UserName AD_UserEmail AD_UserSAM RLS_Level
Paul Herrick PHerrick@tricorbraun.com tricorbraunPHerrick Region
Dolores Mcdaniel dmcdaniel@tricorbraunwinepak.com tricorbraundmcdaniel Region
Jim Muster jmuster@tricorbraun.com tricorbraunjmuster Region
Account
If the user is in the Account AD group, then we will determine which accounts they are assigned to directly. This is an
80% issue. We have cases where two people are technically assigned to an account, but through our system only one is
actually assigned. We will need to determine how to approach this. Account level individuals will be given access to any
accounts they are specifically associated with.
For the Account AD Group process, we will circle back and address this again once Brian had more time to consider. We
will have another meeting for this once the sandbox processes for Total Company, Division, and Region AD Groups
(discussed above) has been developed.
Test Users from Test AD Groups (temporary, waiting on Real AD Groups with our 3 Test Users)
AD_UserName AD_UserEmail AD_UserSAM RLS_Level
Kim Vega kvega@tricorbraunwinepak.com tricorbraunkvega Account
Jayme Herr jherr@tricorbraun.com tricorbraunjherr Account
Kari Sinner ksinner@tricorbraun.com tricorbraunksinner Account
** The exceptions (non-80%) may be dealt with in an exception table or some other mechanism. **
