DSP Based Implementation of Scrambler for 56kbps Modem

Davinder Pal Sharma & Jasvir Singh
Signal Processing – An International Journal (SPIJ), Volume (4) : Issue (2) 85
DSP Based Implementation of Scrambler for 56Kbps Modem
Davinder Pal Sharma davinder.sharma@sta.uwi.edu
Department of Physics
University of the West Indies
St. Augustine, Tinidad & Tobago
Jasvir Singh j_singh00@rediffmail.com
Department of Electronics Technology
Guru Nanak Dev University
Amritsar -143105, India
_____________________________________________________________________________
Abstract
Scrambler is generally employed in data communication systems to add
redundancy in the transmitted data stream so that at the receiver end, timing
information can be retrieved to aid the synchronization between data terminals.
Present paper deals with simulation and implementation of the scrambler for
56Kbps voice-band modem. Scrambler for the transmitter of 56Kbps modem was
chosen as a case study. Simulation has been carried out using Simulink of
Matlab. An algorithm for the scrambling function has been developed and
implemented on Texas Instrument’s based TMS320C50PQ57 Digital Signal
Processor (DSP). Signalogic DSP software has been used to compare the
simulated and practical results.
Keywords: Scrambler, 56Kbps Modem, Matlab, Signalogic, Digital Signal Processor.
_____________________________________________________________________________
1. INTRODUCTION
Often, it is required by the user to ensure that the transmitted signal should has sufficient
randomness or activity so that timing recovery, adaptive equalization and echo cancellation can
be reliably performed. Mostly users type characters on PC relatively slow due to which computer
terminal transmits null characters most of the time. A long sequence of null characters results in a
highly correlated line signal. Such signals can foil timing recovery and other functions, all of which
assume that the transmitted symbols are uncorrelated. Scrambling is intended to minimize strong
correlations among the information bits so as to make them appear more random. It is a method
of achieving dc balance (dc null) and eliminating long sequences of zeros to ensure timing
recovery without redundant line coding. Scrambler does not add anything in signal, as it is not
based on redundancy. Scrambler performs one-to-one mapping between input data bits and
coded data bits. The objective is to map the bit sequences, which are problematic and likely to
occur, into a coded sequence that looks more random and less problematic.
Scrambler is a digital device, which maps a data sequence into a channel sequence. If the data
sequence is periodic, it converts it into a periodic channel sequence with period, which is many
times the data period. A simple scrambler adds a Maximum-Length Shift-Registers (MLSR)
sequence to the input bit stream to randomize or whiten the statistics of the data, making it more
random. Scrambler consists of linear sequential filters with feedback paths, counters, storage

elements and peripheral logic in their discrete form. The counters, storage elements and
peripheral logic, monitor the channel sequence but react infrequently so that the scrambler
behaves principally as linear sequential filter [1].
There are many applications of scrambler. This is used for encryption of data in security systems,
to remove non-linearity of common carrier systems which causes inter-channel interference and
to remove systematic jitter caused by self-retiming circuits in base-band Pulse Code Modulation
(PCM) systems. In data communication systems, main purpose of the scrambler is to add
redundancy in the transmitted data stream so that at the receiver, timing information can be
retrieved from received data i.e. to aid the synchronization between two modems. The present
study deals with the implementation of the scrambler used for synchronization purpose.
2. THEORETICAL BACKGROUND
In the beginning, scrambler was used to reduce the effect of jitter in the PCM systems. Jitter is a
very serious problem as it reduces the Signal-to-Noise Ratio (SNR) and causes more errors to be
introduced at the receiver. In addition, jitter also effects the functioning of the repeaters, which
has a commutative effect. The proceeding timing circuits generates systematic jitter, which
degrades the transmission quality because the r.m.s. value of the jitter increases in proportion to
the square root of the number of repeaters. A self-retiming circuit is used in conventional base-
band PCM systems to minimize the jitter in which a timing waveform is extracted from an
equalized pulse train [2]-[3].
There are certain impairments that vary with the statistics of the digital source in digital
transmission systems and these statistics of the data source is related to the problem of timing
recovery, equalization and cross talk. One of the methods to isolate the system performance from
the source statistics is to use redundant transmission codes. These codes could not provide
complete isolation however they generate additional problems by increasing the symbol rate.
Alternative method to cope up with this problem is scrambling, which whitens the statistics of
digital source. Any source is said to white if it generates statistically independent and
equiviprobable symbols using which system impairment can be easily analyzed. All the first order
and second order statistics of any binary source can be whiten to any degree at the cost of an
arbitrarily small controllable rate [4].
3. BASIC SCRAMBLING ACTION
Data transmission through any communication system will be errorless if the timing of each
device attached to the system is accurate enough. But it is difficult to ensure the accuracy of the
timing in a larger system having many devices or having very large data packets. The solution to
this problem of highly accurate clocks can be found by using synchronous communication
techniques. In synchronous systems, it is necessary to extract timing information from the
received data, which in turn reduces the burden of internal clock circuitry. There are many
methods using which timing information from the received data can be retrieved. Line coding
techniques like Return to Zero coding and Manchester coding are the few familiar techniques that
may be used for this purpose [1]. The problem with the usage of these line-coding techniques is
that the timing benefits come at the expense of bandwidth, so these techniques are not used in
Public Switched Telephone Network (PSTN), which is severely band-limited network, so one has
to choose other options. Scrambling is a technique that can be used in conjunction with simpler
line coding algorithms such as simple binary and RS232C protocol to achieve above-mentioned
goal without sacrificing the bandwidth requirement.

In digital system, it is common practice to encounter long strings of 1’s and 0’s within the
transmitted data that results in constant output levels. Timing information cannot be retrieved
from such outputs because there will be no state-transition during these sequences which may
result in transmission errors at the receiver. Scrambler can eliminate this problem by detecting
undesirable sequences of bits and inserting state transitions in a pseudo random manner. If
there is a long sequence of 1’s, 0’s will be pseudo randomly inserted in to the stream. It ensures
that the probability of receiving a ‘1’ is equal to the probability of receiving ‘0’ and minimizes the
probability of periodic or repetitive data transmission, which in turn make clock recovery easier
[5]. Simple scrambling action of a scrambler is shown in Fig. (1). While it may not be possible to
prevent the occurrence of all undesirable sequences with absolute certainty, at least most of the
common replications in the input data stream can be removed by the use of a scrambler. It has
been found that the transmission of short repetitive patterns could play havoc with both the
equalizer and timing recovery systems [2].
4. SYSTEM DESIGN
There are many ways to implement scrambler but all rely on the same basic building blocks of
linear feedback shift registers and modulo-2-addition functions. Many researchers have
discussed the general theory of implementation of scramblers [2-4], [6-7]. In general, the serial
data enters in linear feedback shift register, where each stage in the register delays the signal by
one time unit as shown in Fig. (2). The delayed version of the output signal is then fed back and
modulo-2-addition is performed with the input signal. The scrambler's input and output relation, in
general, is given by [1]-[2] :
(1)
D D D
hm
y (n-2) y (n-m)
h2
h1 hm-1
y (n-1)
y (n)
x (n)
FIGURE 2: Basic Structure of a Scrambler
1 0 1 0 1 0 1 0 0 0 0 0 1 1
SCRAMBLER
FIGURE 1: Scrambling Action
Unscrambled data
stream having
long string of 0s
Scrambled output in
which long string of
0s has been
removed
1 0 1 1 1 0 0 0 1 1 0 1 0 0
∑
=
−+=
m
k
knyhnxny k
1
)()()(

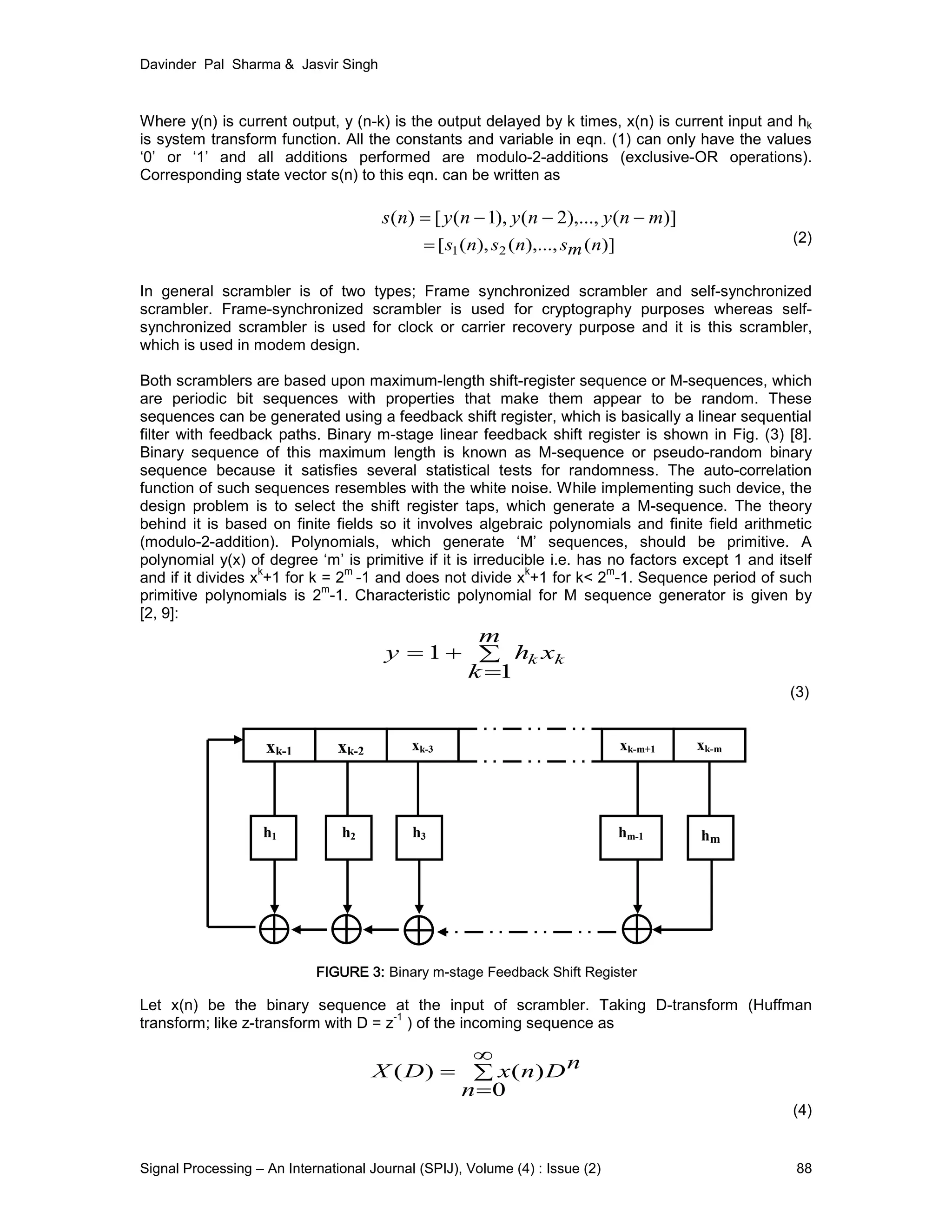

Where y(n) is current output, y (n-k) is the output delayed by k times, x(n) is current input and hk
is system transform function. All the constants and variable in eqn. (1) can only have the values
‘0’ or ‘1’ and all additions performed are modulo-2-additions (exclusive-OR operations).
Corresponding state vector s(n) to this eqn. can be written as
(2)
In general scrambler is of two types; Frame synchronized scrambler and self-synchronized
scrambler. Frame-synchronized scrambler is used for cryptography purposes whereas self-
synchronized scrambler is used for clock or carrier recovery purpose and it is this scrambler,
which is used in modem design.
Both scramblers are based upon maximum-length shift-register sequence or M-sequences, which
are periodic bit sequences with properties that make them appear to be random. These
sequences can be generated using a feedback shift register, which is basically a linear sequential
filter with feedback paths. Binary m-stage linear feedback shift register is shown in Fig. (3) [8].
Binary sequence of this maximum length is known as M-sequence or pseudo-random binary
sequence because it satisfies several statistical tests for randomness. The auto-correlation
function of such sequences resembles with the white noise. While implementing such device, the
design problem is to select the shift register taps, which generate a M-sequence. The theory
behind it is based on finite fields so it involves algebraic polynomials and finite field arithmetic
(modulo-2-addition). Polynomials, which generate ‘M’ sequences, should be primitive. A
polynomial y(x) of degree ‘m’ is primitive if it is irreducible i.e. has no factors except 1 and itself
and if it divides x
k
+1 for k = 2
m
-1 and does not divide x
k
+1 for k< 2
m
-1. Sequence period of such
primitive polynomials is 2
m
-1. Characteristic polynomial for M sequence generator is given by
[2, 9]:
(3)
Let x(n) be the binary sequence at the input of scrambler. Taking D-transform (Huffman
transform; like z-transform with D = z
-1
) of the incoming sequence as
(4)
)](),...,2(),1([)( mnynynyns −−−=
)](),...,(),([ 21 nmsnsns=
∑
∞
=
=
0
)()(
n
nDnxDX
∑
=
+=
m
k
xhy kk
1
1
xk-1 xk-2 xk-3 xk-m+1 xk-m
h1 h2 h3 hm-1 hm
FIGURE 3: Binary m-stage Feedback Shift Register

Then the connecting polynomial for the scrambler given in Fig. (2) can be written as
(5)
Output transform with zero initial state is given by
(6)
Taking D-transform on both sides of the above equation, we have:
(7)
The output of the scrambler is therefore given by
(8)
So mathematical operation performed by the scrambler is basically equivalent to dividing the
input information sequence by a Generating Polynomial (GP). The polynomial resulting in the
fewest feedback connection is often the most attractive for scrambling purpose. Scrambling
action of a simple five-tap scrambler specified by the generating polynomial
(9)
is shown in Fig. (4).
There are many types of characteristic polynomials that can be used in modems. Some of the
popular generating polynomials are those which have been used in the CCITT V.22 and CCITT
V.27 protocols. The V.22 polynomial is the one in which seventeen-stage operation is
recommended [6]. The CCITT V.27 protocol suggests a seven-stage register. Finally, the CCITT
V.29 recommends the 23-stage register to implement generating polynomial. Everyone has his
own preference regarding which polynomial to use but all rely on the same basic cells; shift
registers and modulo-2-adders.
∑
=
+=
m
k
kDkhDh
1
1)(
)(/)()( DhDXDY =
)()()( DXDhDY =
)(
1
)()( . nx
m
k
knyhny k =∑
=
−+
531)( −+−+= xxxy
FIGURE 4: Input and Output Waveforms of a Five-tap Scrambler
Input
Output
1 0 1 0 1 0 1 0 0 0 0 0 1 1
1 0 1 1 1 0 0 0 1 1 0 1 0 0

5. SCRAMBLER IN 56KBPS MODEM
56Kbps modem uses PCM in the downstream (server to client). Clock recovery circuit of the
modem generally uses high-Q resonant tank circuit, which averages the clock phase over several
bit periods. Clock phase resulting from sampling a constant signal level will attain a static value
and if this bit pattern changes to another pattern, the implementation of clock recovery circuit will
force the clock phase to change and attain a new value. The serial PCM bit stream reflects the
deterministic parts of the signal and this leads to clock phase jitter in the repeater. Its r.m.s. value
increases linearly as square root of the number of cascaded repeaters. Since a clock phase
change is equivalent to timing jitter, the data eye will not always be sampled at the optimum time
and so there will be an increase in bit error probability. Scrambling is one of the effective methods
for the suppression of this jitter [10-11].
The data scrambler specified for the transmitter of 56Kbps digital modem is designed using the
following generating polynomial [12]:
(10)
This is a self-synchronizing scrambler, which means that it will not only provide clocking
information throughout the transmission but also will be used to create the signals for the initial
handshaking between the modems on the receiving and transmitting end. If there is an error free
transmission then one can use the same generating polynomial with the feed-forward shift-
register device for de-scrambling but if there is any error then one have to use different
polynomial. Block diagram of 56Kbps digital modem’s scrambler is given in Fig. (5).
6. SIMULATION OF SCRAMBLER USING MATLAB
Matlab has been used to study the scrambling action in the transmitter of 56Kbps digital modem
which uses generating polynomial given by eqn. (10). Using Simulink toolbox of Matlab, a model
of scrambler as shown in Fig. (6), corresponding to the eqn. (10) has been developed and its
performance against input binary sequences with different probabilities of occurrence of 0’s (P)
has been evaluated. Model contains a Bernoulli Random Binary Generator (BRBG) block, which
generates random number using Bernoulli distribution [13].
The Bernoulli distribution produces zeros with the probability P and ones with the probability 1-P.
The Bernoulli distribution has mean value 1-P and variance P (1-P) [14]. The scrambler block
scrambles the input signal (the output of BRBG) using scramble polynomial parameter ρ, which
23181)( −+−+= xxxy
FIGURE 5: Scrambler for 56Kbps Digital Modem
Output
Input
D1 D2 D18 D19 D23

defines the feedback connections in the scrambler i.e. feedback connection from 1
st
, 3
rd
and 5
th
delay elements can be represented as ρ = [0,-3,-5] or as ρ = [1 0 0 1 0 1].
Simulation results corresponding to different values of P in time domain were obtained and from
these results, the number of transitions in input data (Ti/p) and in output data (To/p) have been
calculated. The ratio of To/p to the Ti/p gives the Randomization Parameter R which can be
considered as a measure of performance of the scrambler, R therefore describes how effectively
scrambler randomizes the incoming binary signal. Fig. (7) gives the graphical representation of
the results obtained and hence it can be concluded that scrambling action of the scrambler is
more effective for the input data sequences having high value of probability of occurrence of
zeros or ones i.e. the signal having long sequences of 0s or 1s. Scrambler is less effective for the
input data sequences having frequent transitions and more over no scrambling is needed for such
inputs because these sequences have sufficient number of transitions in it, using which clock
information can easily be retrieved.
7. IMPLEMENTATION OF SCRAMBLER ON DSP CHIP
Scrambler for 56Kbps server (digital) modem has been implemented on TMS320C50PQ57 DSP
chip using MICRO-50EB evaluation module. Experimental setup used for the present
implementation is shown in Fig. (8). Evaluation module contains a 16 bit fixed point processor
TMS320C50PQ57 along with 48-Kiloword (KW) of monitor EPROM, 16KW of program RAM, 32
KW of data RAM & 32KW of I/O RAM. The highly paralleled architecture and efficient instruction
set provide speed and flexibility which make the TMS320C50PQ57 DSP to capable of executing
about 57 Million Instructions Per Second (MIPS). TMS320C50PQ57 DSP optimizes speed by

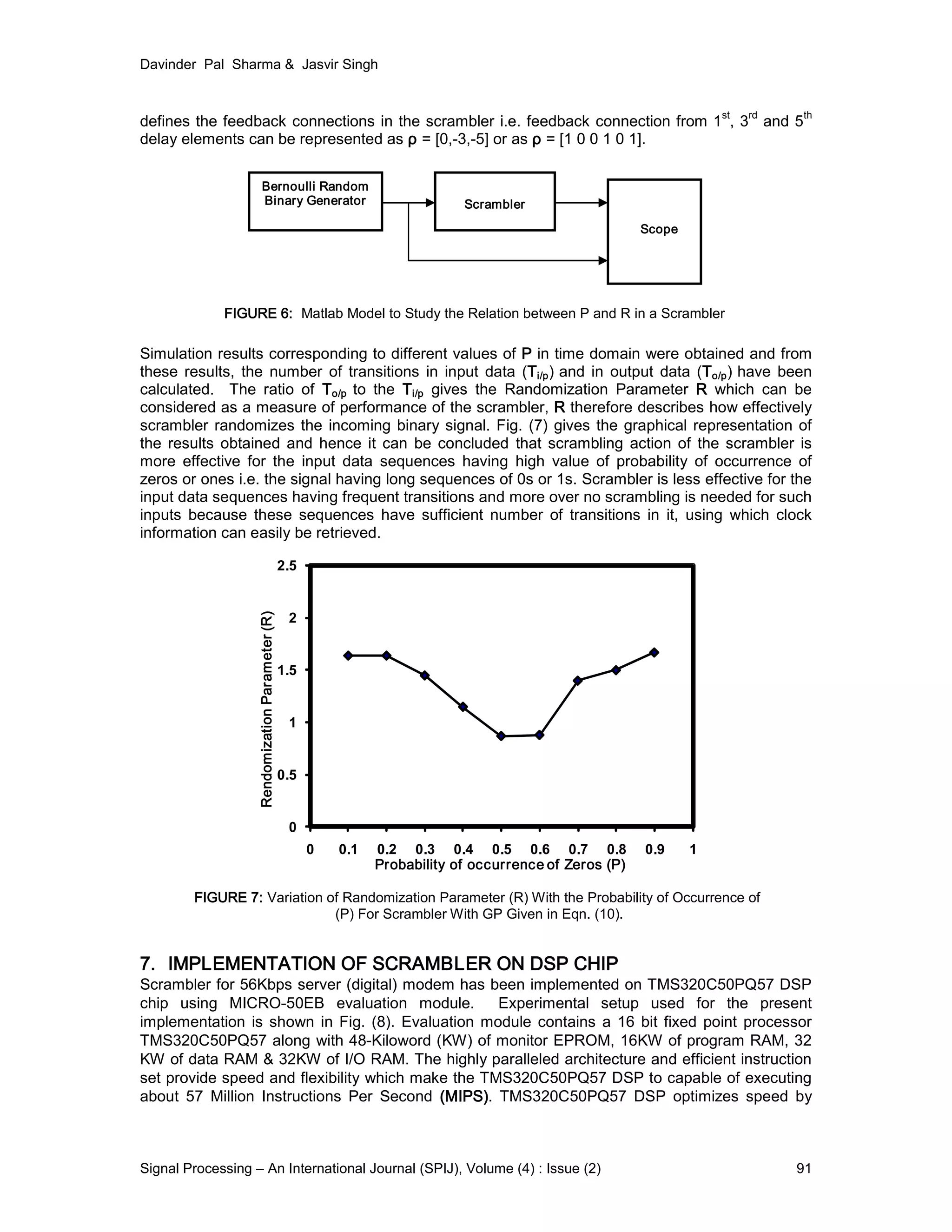

FIGURE 7: Variation of Randomization Parameter (R) With the Probability of Occurrence of
(P) For Scrambler With GP Given in Eqn. (10).
0
0.5
1
1.5
2
2.5
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
RendomizationParameter(R)
Probability of occurrence of Zeros (P)
Bernoulli Random
Binary Generator Scrambler
Scope
FIGURE 6: Matlab Model to Study the Relation between P and R in a Scrambler

implementing functions in hardware that other processors implement through micro-code or
software. This hardware intensive approach provides high processing power previously
unavailable on single chip. Its powerful instruction set, inherent flexibility, high-speed number-
crunching capabilities, and innovative architecture have made this high-performance, cost
effective processor; the ideal solution to many telecommunications, commercial, industrial and
military applications [15].
7.1. Algorithm for Soft Implementation of the Scrambler
Scrambler has been implemented using the circular buffers of the TMS320C50PQ57 DSP chip.
The chip has special memory mapped registers and associated circuitry for two circular buffers.
One of the eight auxiliary registers can be used as a pointer into the circular buffer. Circular buffer
was implemented on the DSP on-chip memory block. Two memory-mapped registers are
associated with each circular buffer that needs to be initialized with the start and end address.
Block diagram of I/P sample circular buffer is given in Fig. (9), where x(n) is the input data at a
time n, x(n-1) is input data delayed by single time unit and N is length of linear feedback or feed
forward shift register. Initialized circular buffer can be used for producing delay and data can be
read from any position pointed by the auxiliary register AR-1. Then XOR operation can be
performed on delayed samples to achieve scrambling action. Before the initialization of circular
buffer we have to initialize the DSP chip and I/O devices [9].
MICRO50EB
DSP
Module
Personal
Computer

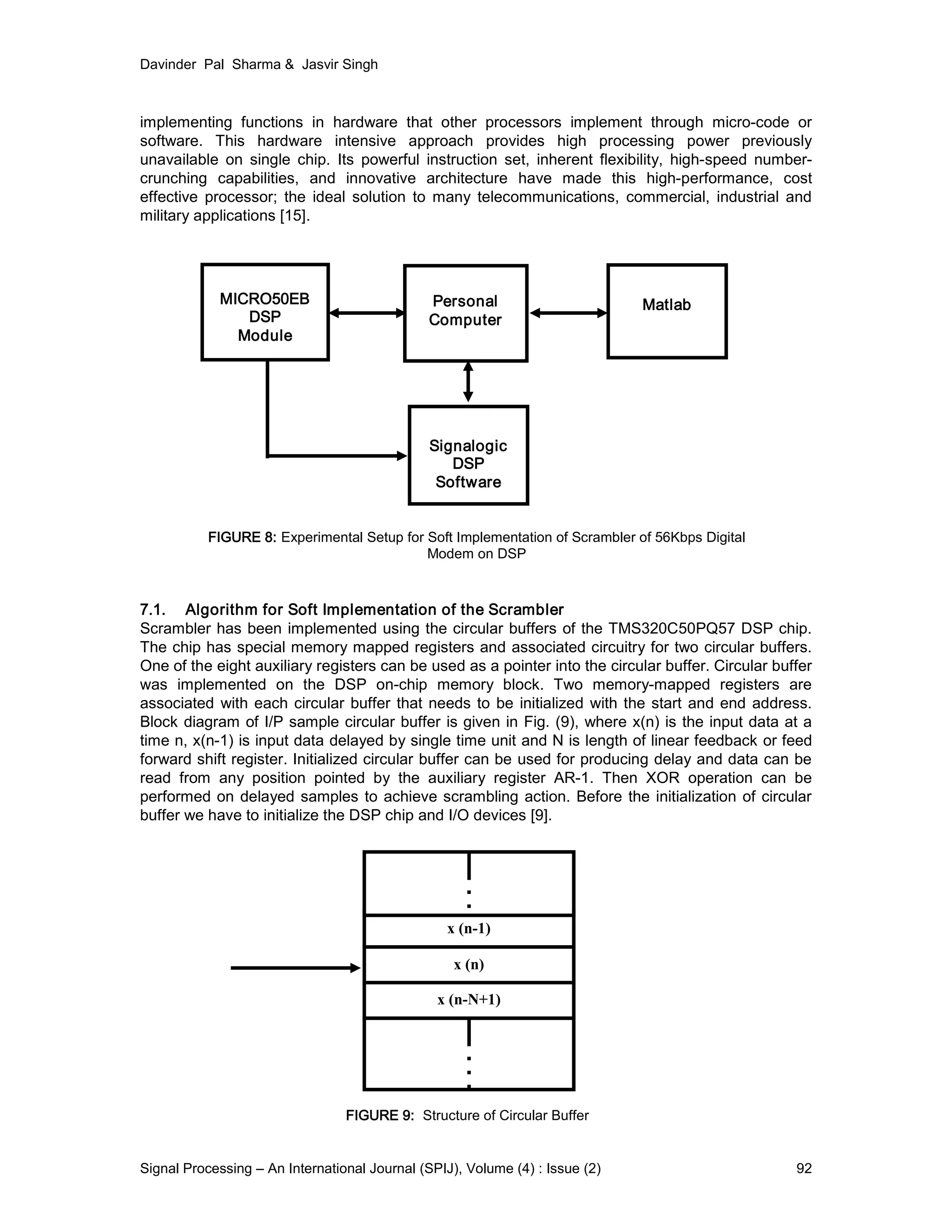

FIGURE 8: Experimental Setup for Soft Implementation of Scrambler of 56Kbps Digital
Modem on DSP
Matlab
Signalogic
DSP
Software
FIGURE 9: Structure of Circular Buffer
x (n-1)
x (n)
x (n-N+1)

In present implementation TLC32044 AIC (Analog Interface Circuit) has been used as I/O device.
The supporting algorithm for the initialization of DSP module and algorithm for implementation of
scrambler of digital modem is given in Appendix (A) along with the algorithm of main scrambling
routine using circular buffer.
Assembly level program (source code) for the scrambler of 56Kbps digital modem has been
written using algorithm given in Appendix (A). Source code were loaded into the DSP and output
data obtained was stored at appropriate data memory location with the slight modification in the
program i.e. one more step of data storage in addition with the data transmission has been
included in the main program. Stored data was loaded into the Signalogic DSP Software for time
and frequency domain analysis of practically obtained results. In the similar fashion output data
obtained from the simulation was loaded in to the software package and simulated and practical
results were compared in time as well as frequency domain.

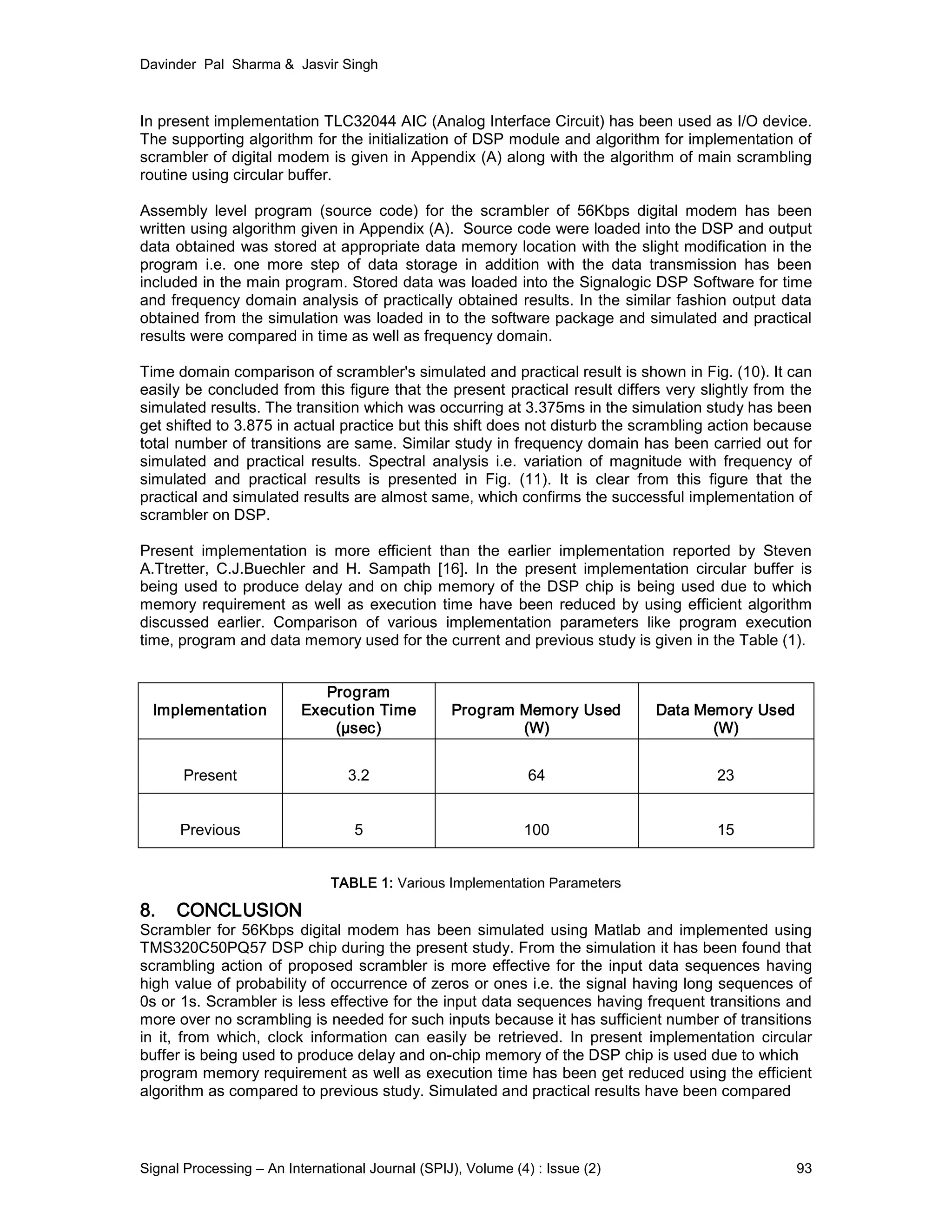

Time domain comparison of scrambler's simulated and practical result is shown in Fig. (10). It can
easily be concluded from this figure that the present practical result differs very slightly from the
simulated results. The transition which was occurring at 3.375ms in the simulation study has been
get shifted to 3.875 in actual practice but this shift does not disturb the scrambling action because
total number of transitions are same. Similar study in frequency domain has been carried out for
simulated and practical results. Spectral analysis i.e. variation of magnitude with frequency of
simulated and practical results is presented in Fig. (11). It is clear from this figure that the
practical and simulated results are almost same, which confirms the successful implementation of
scrambler on DSP.
Present implementation is more efficient than the earlier implementation reported by Steven
A.Ttretter, C.J.Buechler and H. Sampath [16]. In the present implementation circular buffer is
being used to produce delay and on chip memory of the DSP chip is being used due to which
memory requirement as well as execution time have been reduced by using efficient algorithm
discussed earlier. Comparison of various implementation parameters like program execution
time, program and data memory used for the current and previous study is given in the Table (1).
TABLE 1: Various Implementation Parameters
8. CONCLUSION
Scrambler for 56Kbps digital modem has been simulated using Matlab and implemented using
TMS320C50PQ57 DSP chip during the present study. From the simulation it has been found that
scrambling action of proposed scrambler is more effective for the input data sequences having
high value of probability of occurrence of zeros or ones i.e. the signal having long sequences of
0s or 1s. Scrambler is less effective for the input data sequences having frequent transitions and
more over no scrambling is needed for such inputs because it has sufficient number of transitions
in it, from which, clock information can easily be retrieved. In present implementation circular
buffer is being used to produce delay and on-chip memory of the DSP chip is used due to which
program memory requirement as well as execution time has been get reduced using the efficient
algorithm as compared to previous study. Simulated and practical results have been compared
Implementation
Program
Execution Time
(µsec)
Program Memory Used
(W)
Data Memory Used
(W)
Present 3.2 64 23
Previous 5 100 15

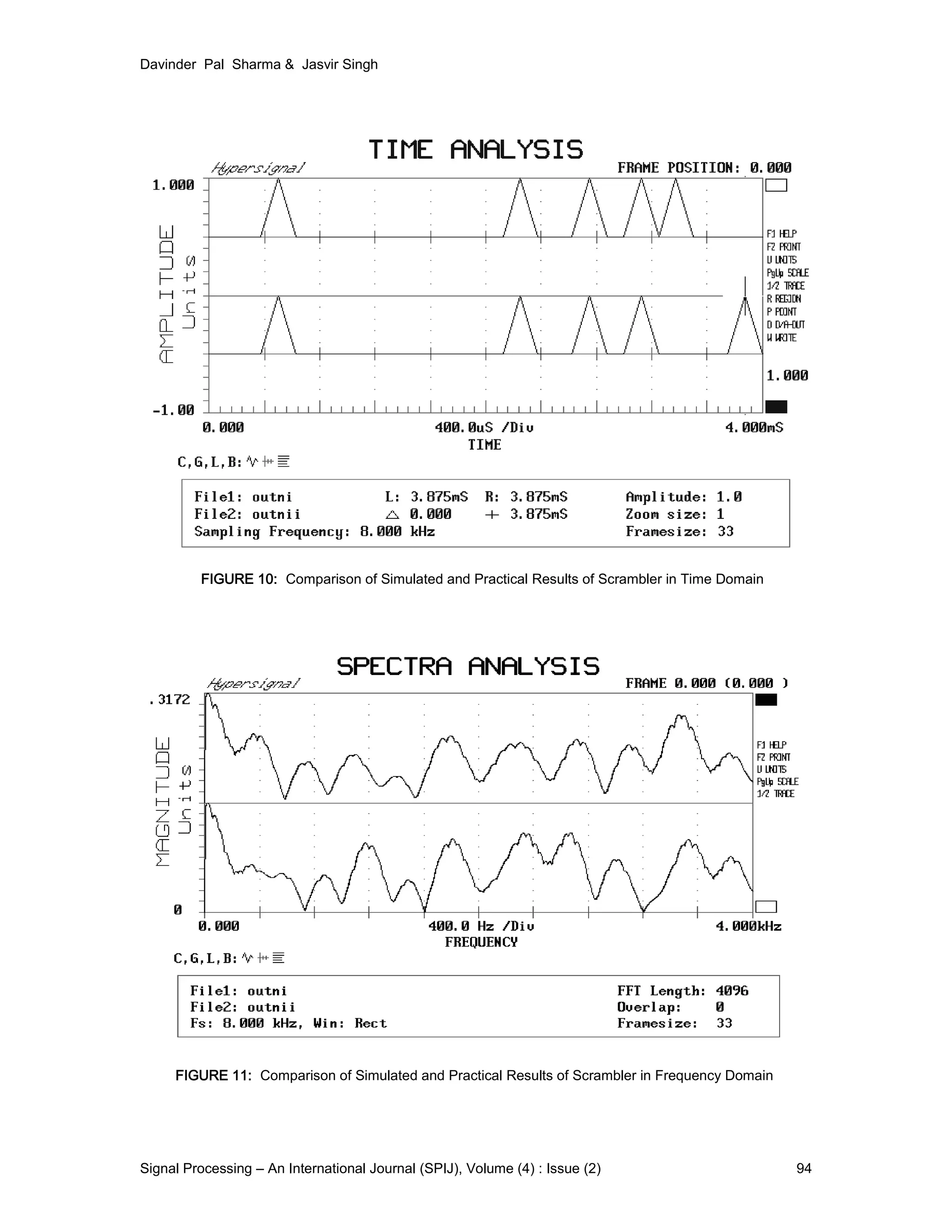

FIGURE 11: Comparison of Simulated and Practical Results of Scrambler in Frequency Domain
FIGURE 10: Comparison of Simulated and Practical Results of Scrambler in Time Domain

using Signalogic DSP Software in time as well as frequency domain and have been found same
which confirms the successful implementation of scrambler on DSP.
ACKNOWLEDGEMENTS
One of the authors Davinder Pal Sharma is thankful to Guru Nanak Dev University, Amritsar, for
providing DSP Research facilities at Department of Electronics Technology for present research
work.

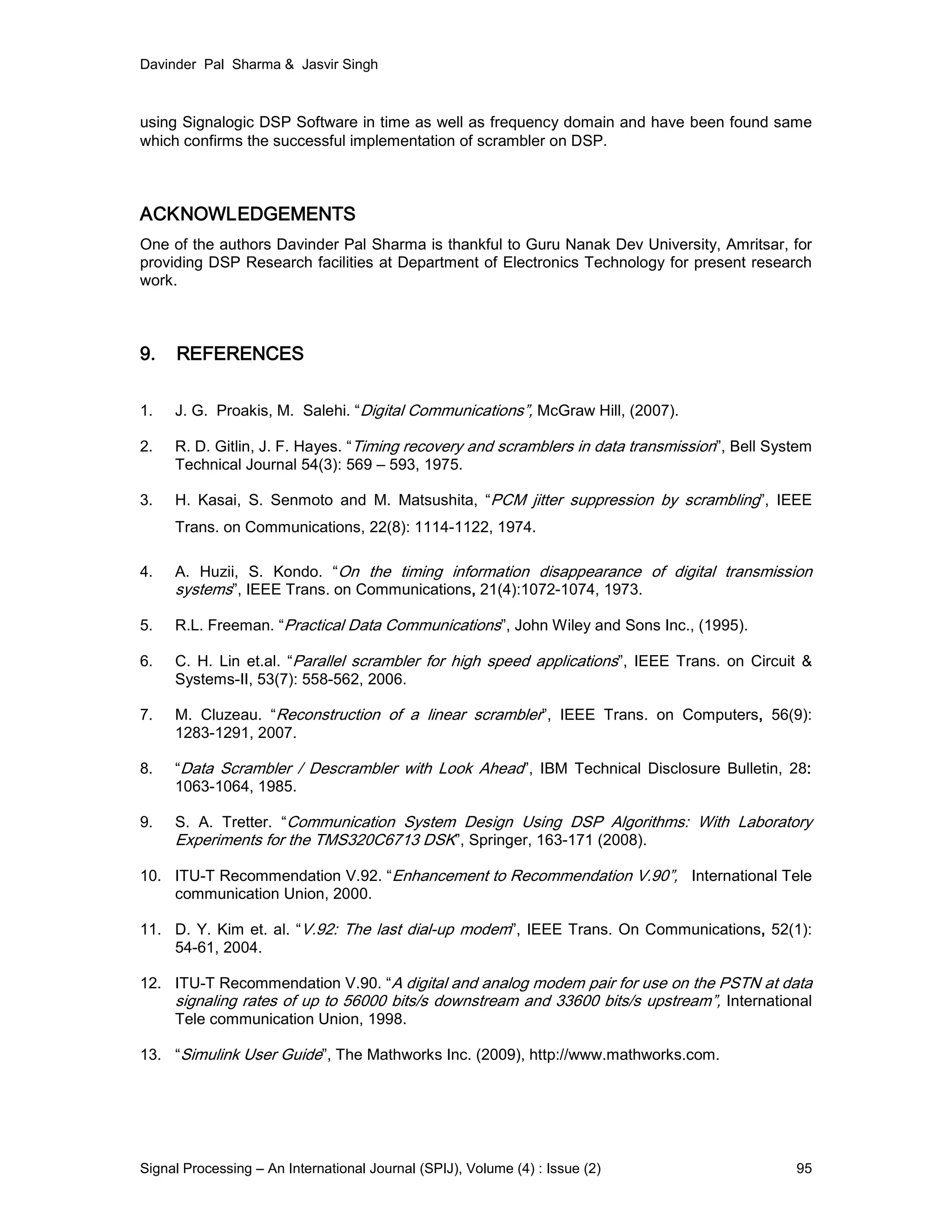

9. REFERENCES
1. J. G. Proakis, M. Salehi. “Digital Communications”, McGraw Hill, (2007).
2. R. D. Gitlin, J. F. Hayes. “Timing recovery and scramblers in data transmission”, Bell System
Technical Journal 54(3): 569 – 593, 1975.
3. H. Kasai, S. Senmoto and M. Matsushita, “PCM jitter suppression by scrambling”, IEEE
Trans. on Communications, 22(8): 1114-1122, 1974.
4. A. Huzii, S. Kondo. “On the timing information disappearance of digital transmission
systems”, IEEE Trans. on Communications, 21(4):1072-1074, 1973.
5. R.L. Freeman. “Practical Data Communications”, John Wiley and Sons Inc., (1995).
6. C. H. Lin et.al. “Parallel scrambler for high speed applications”, IEEE Trans. on Circuit &
Systems-II, 53(7): 558-562, 2006.
7. M. Cluzeau. “Reconstruction of a linear scrambler”, IEEE Trans. on Computers, 56(9):
1283-1291, 2007.
8. “Data Scrambler / Descrambler with Look Ahead”, IBM Technical Disclosure Bulletin, 28:
1063-1064, 1985.
9. S. A. Tretter. “Communication System Design Using DSP Algorithms: With Laboratory
Experiments for the TMS320C6713 DSK”, Springer, 163-171 (2008).
10. ITU-T Recommendation V.92. “Enhancement to Recommendation V.90”, International Tele
communication Union, 2000.
11. D. Y. Kim et. al. “V.92: The last dial-up modem”, IEEE Trans. On Communications, 52(1):
54-61, 2004.
12. ITU-T Recommendation V.90. “A digital and analog modem pair for use on the PSTN at data
signaling rates of up to 56000 bits/s downstream and 33600 bits/s upstream”, International
Tele communication Union, 1998.
13. “Simulink User Guide”, The Mathworks Inc. (2009), http://www.mathworks.com.

14. G. Zimmermann. “Probabilities of long sequences of identical bits after data scrambling”. In
Proceeding of IEEE International Conference on Communications, 1990, 1521-1525.
15. "Micro-50 EB user manual", DSP Series, Vi Microsystems Pvt. Ltd., (2000).
16. S. A. Tretter et. al. " V.34 Transmitter and receiver implementation on the TMS320C50
DSP", Digital Signal Processing Solutions, Texas Instruments, USA, 1997.
APPENDIX (A)
Start
Select I/O device by
setting appropriate bits
Initialize I/O device
Enable RINT interrupt
IDLE
Initialize the RINT & XINT
vectors
B
RINT ISR
Algorithm for
initialization of DSP
Module
Get data from I/O and
store it at 100H
Load the address of last
data in the window
100H + (N-1)H
Clear Acc. and
P-register
Do Scrambling (C)
Transmit the resultant
data to AIC
IDLE
B
Algorithm for initialization
of scrambling function of
56Kbps digital modem.
Initialize the Circular Buffer
Move the data using
RPT/DMOV
Repeat (N-1) time
Set ARP for digital modem
scrambler
1st
=100H, 2nd
= 112H. 3rd
= 117H
Load data from DRR to start
address of Circular Buffer
Scrambled data
XOR the ACC. with the data
pointed by ARP
Main scrambling routine
C

DSP Based Implementation of Scrambler for 56kbps Modem

More Related Content

What's hot

Similar to DSP Based Implementation of Scrambler for 56kbps Modem

Recently uploaded

DSP Based Implementation of Scrambler for 56kbps Modem
