This document discusses semantic annotation using custom vocabularies. It introduces Gabriel Dragomir and provides background on semantic web and linked data. It then describes Apache Stanbol, a framework for semantic annotation of documents. Stanbol allows modular processing of documents using configurable workflows and vocabularies. The document outlines Stanbol's architecture and components. It also discusses integrating Stanbol with Drupal for semantic indexing and annotation of content. A demo is proposed to index Drupal data in Stanbol and annotate entities using DBPedia and a custom semantic web vocabulary.

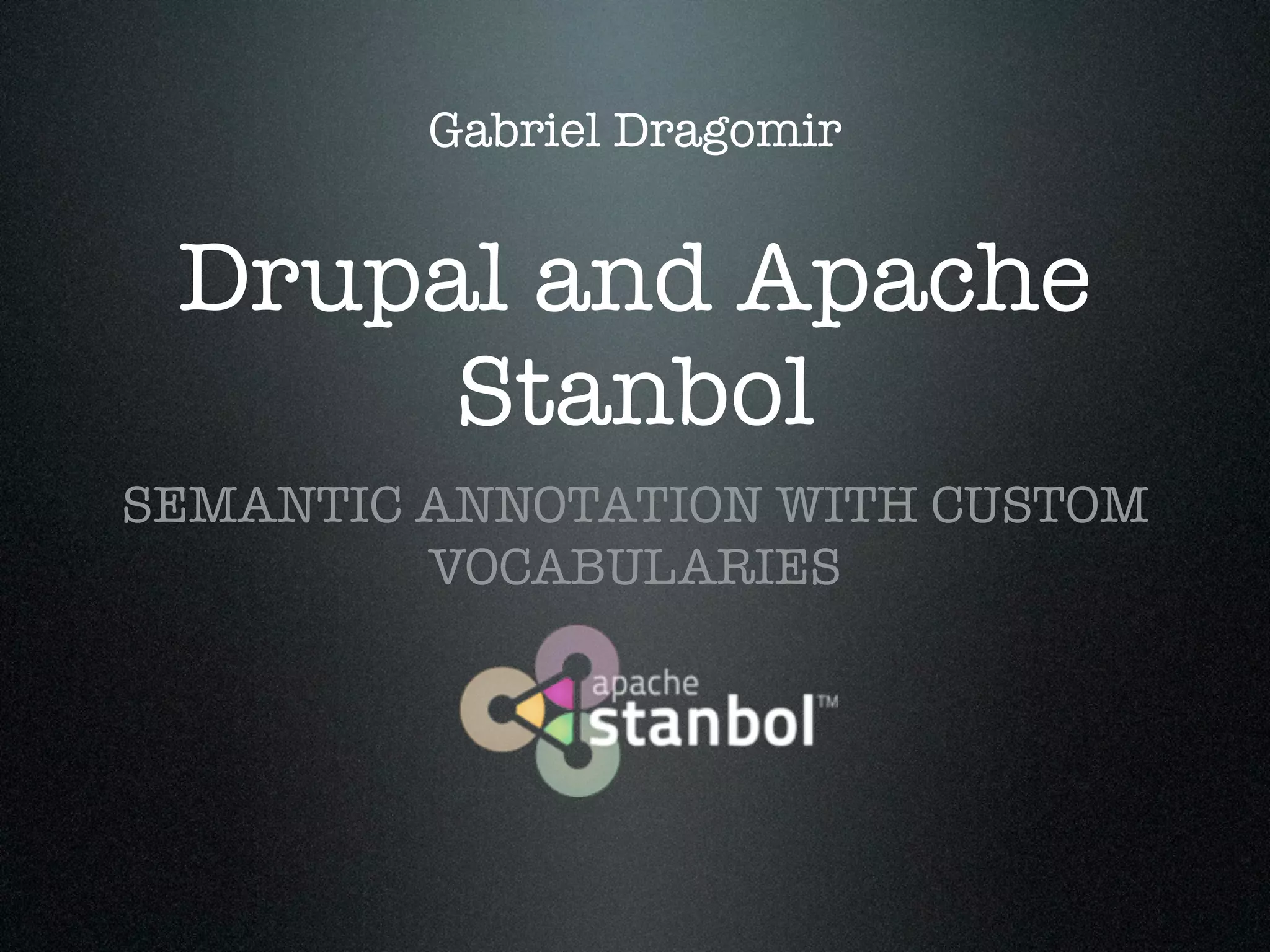

1. Gabriel Dragomir
Drupal and Apache
Stanbol
SEMANTIC ANNOTATION WITH CUSTOM
VOCABULARIES

2. About me
• Drupal developer, trainer and consultant
• Founding member of Drupal Romania
Association

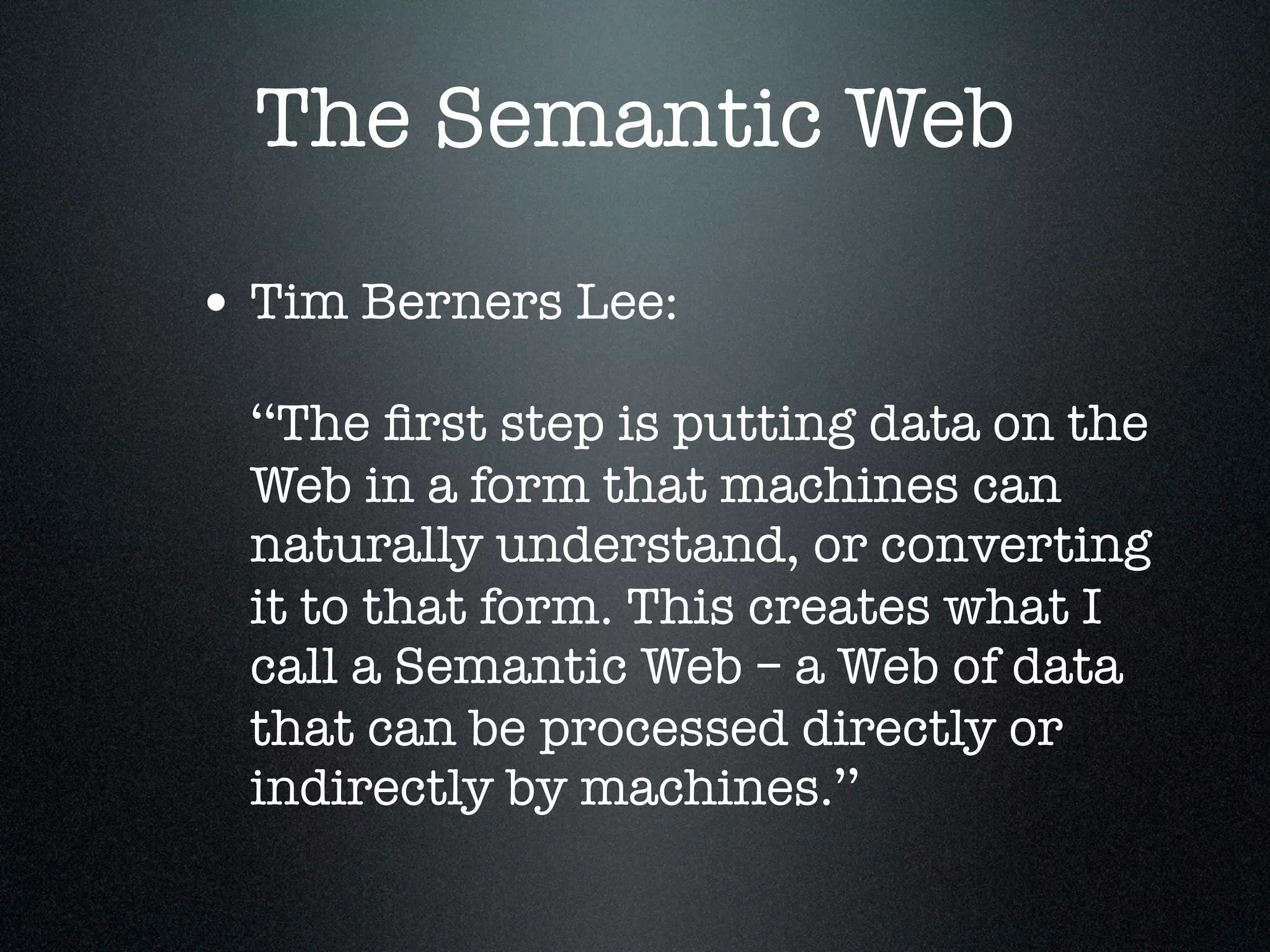

3. The Semantic Web
• Tim Berners Lee:
‘‘The first step is putting data on the
Web in a form that machines can
naturally understand, or converting
it to that form. This creates what I
call a Semantic Web – a Web of data
that can be processed directly or
indirectly by machines.’’

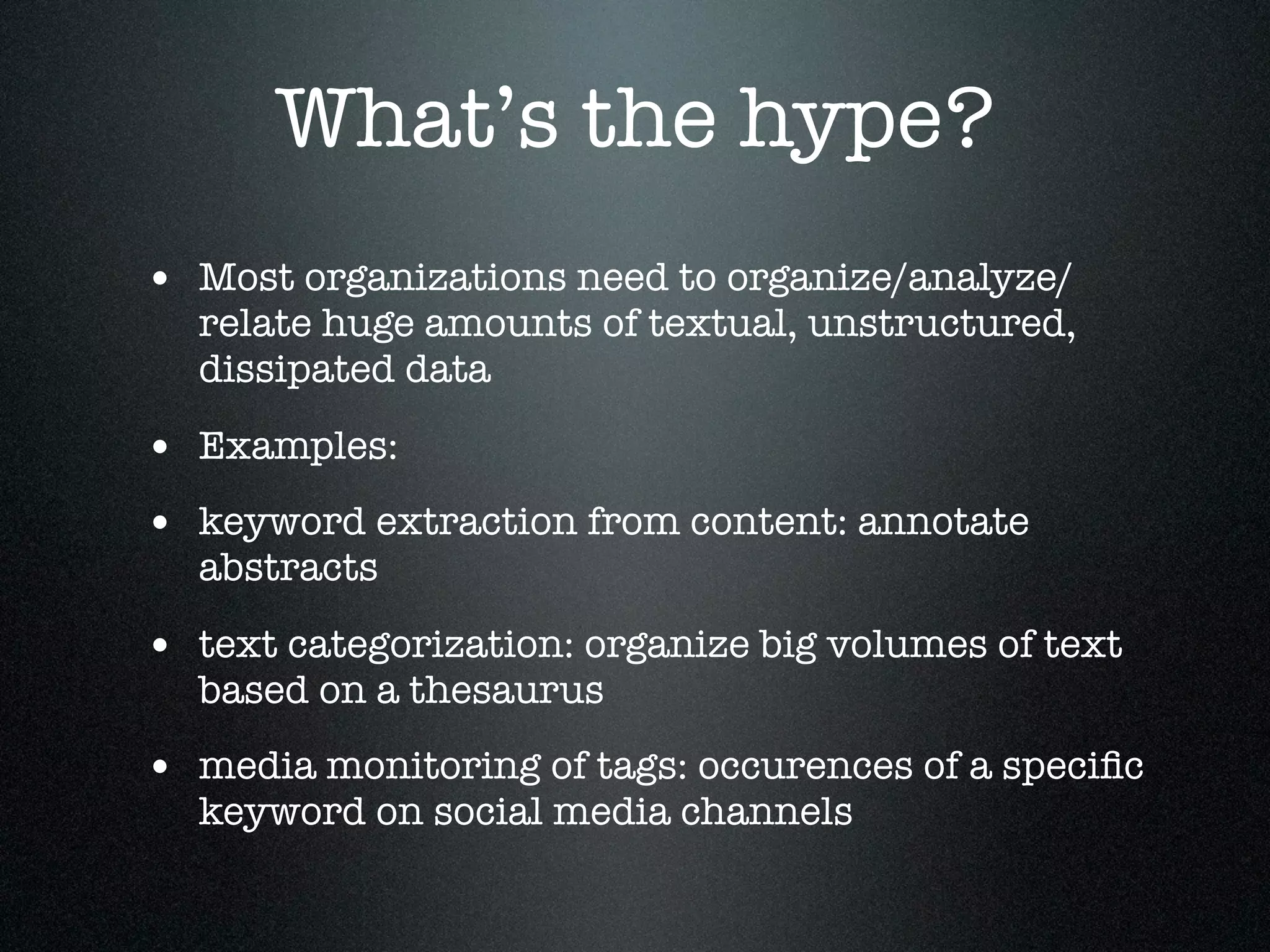

4. What’s the hype?
• Most organizations need to organize/analyze/
relate huge amounts of textual, unstructured,
dissipated data
• Examples:
• keyword extraction from content: annotate
abstracts
• text categorization: organize big volumes of text
based on a thesaurus
• media monitoring of tags: occurences of a specific
keyword on social media channels

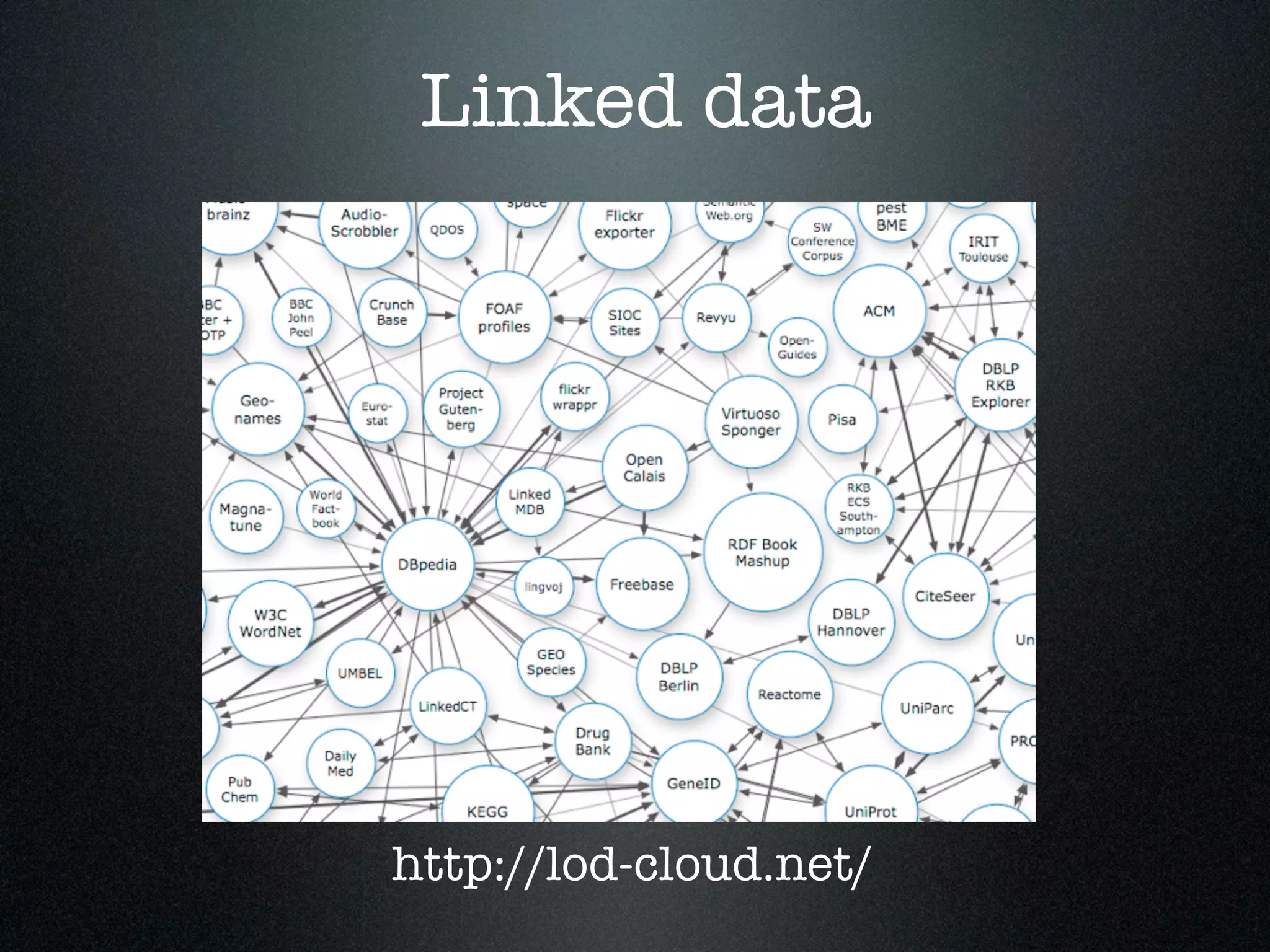

5. Linked data
http://lod-cloud.net/

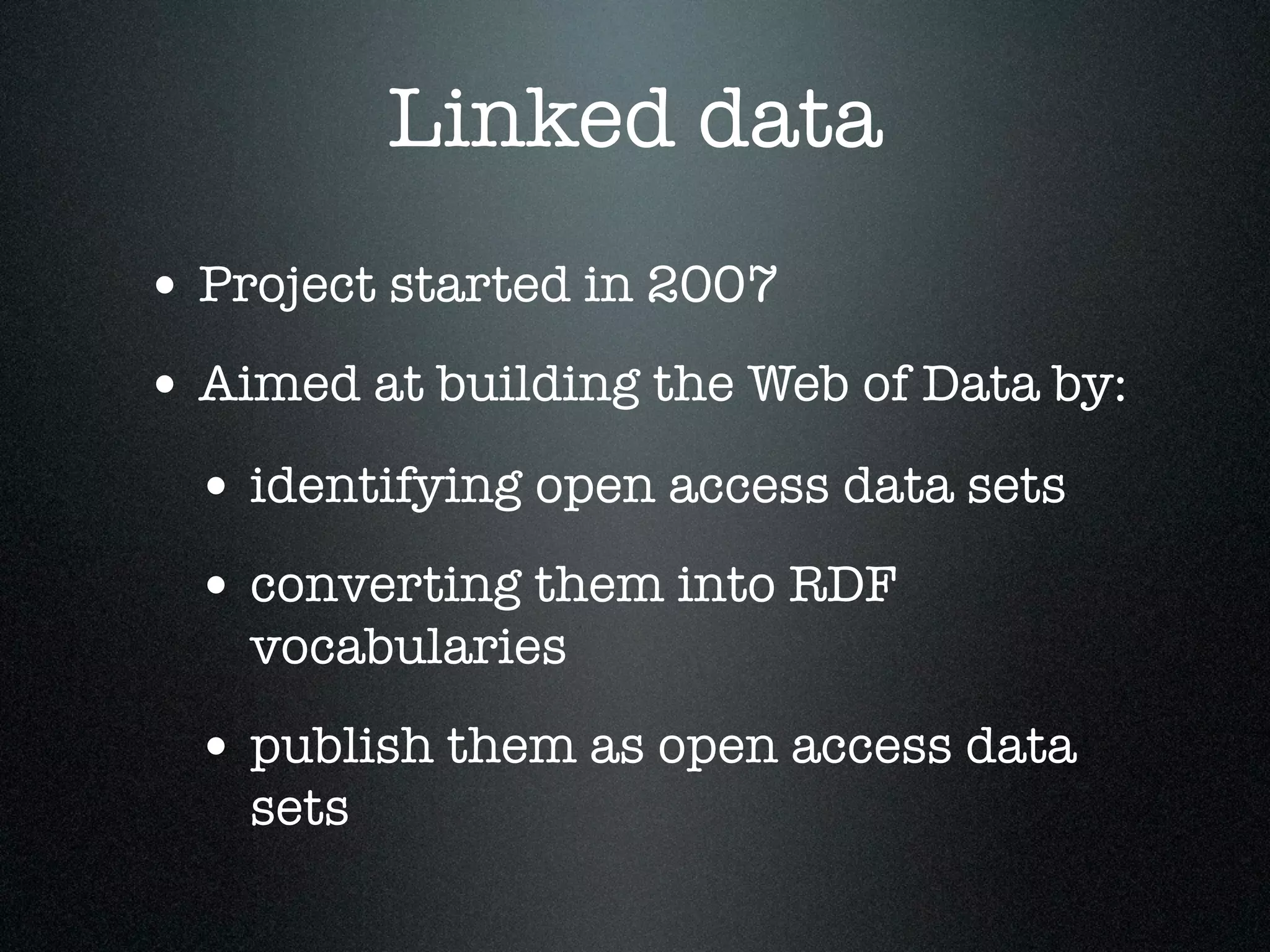

6. Linked data
• Project started in 2007
• Aimed at building the Web of Data by:
• identifying open access data sets
• converting them into RDF
vocabularies
• publish them as open access data
sets

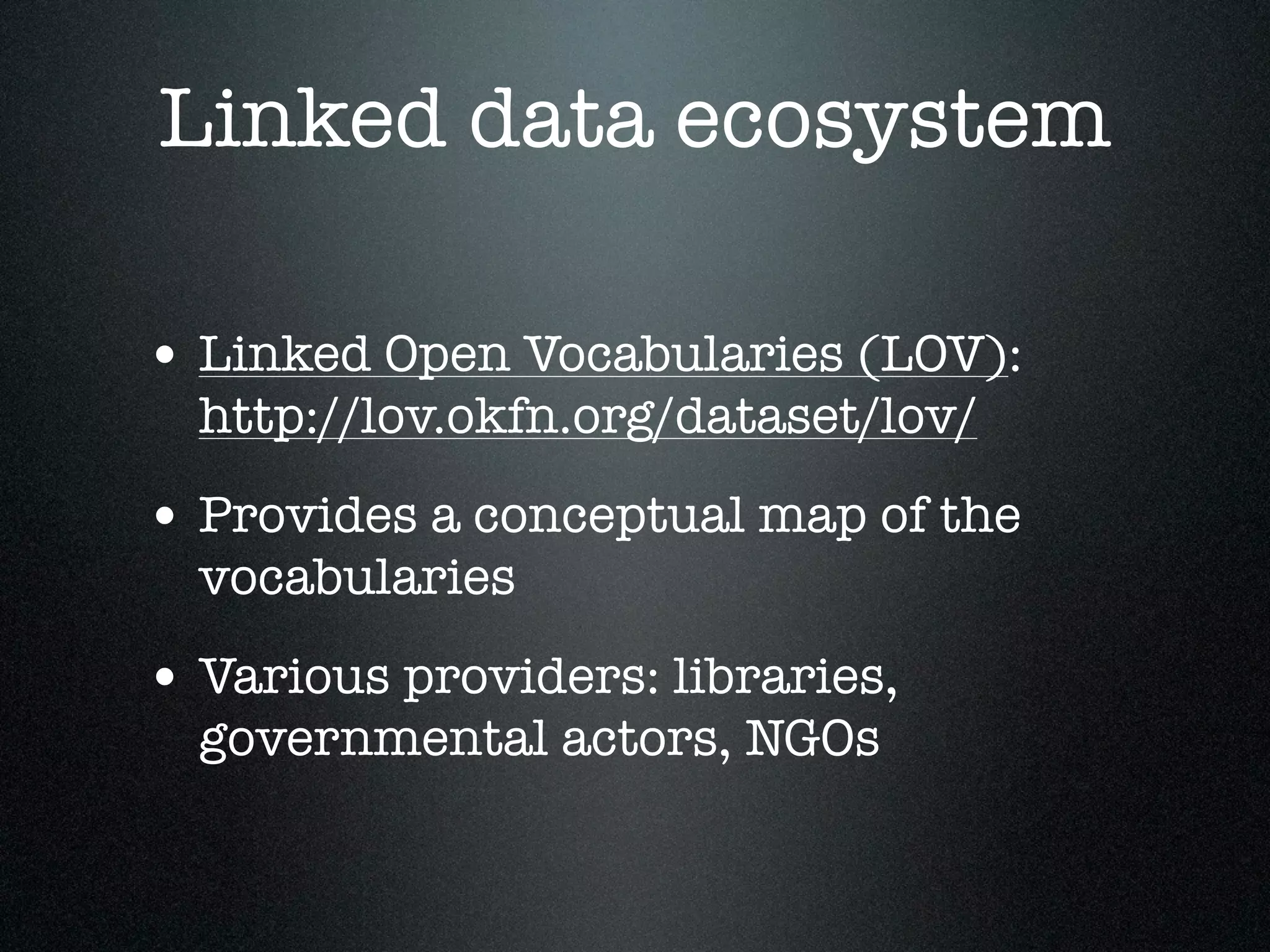

7. Linked data ecosystem
• Linked Open Vocabularies (LOV):
http://lov.okfn.org/dataset/lov/
• Provides a conceptual map of the
vocabularies
• Various providers: libraries,
governmental actors, NGOs

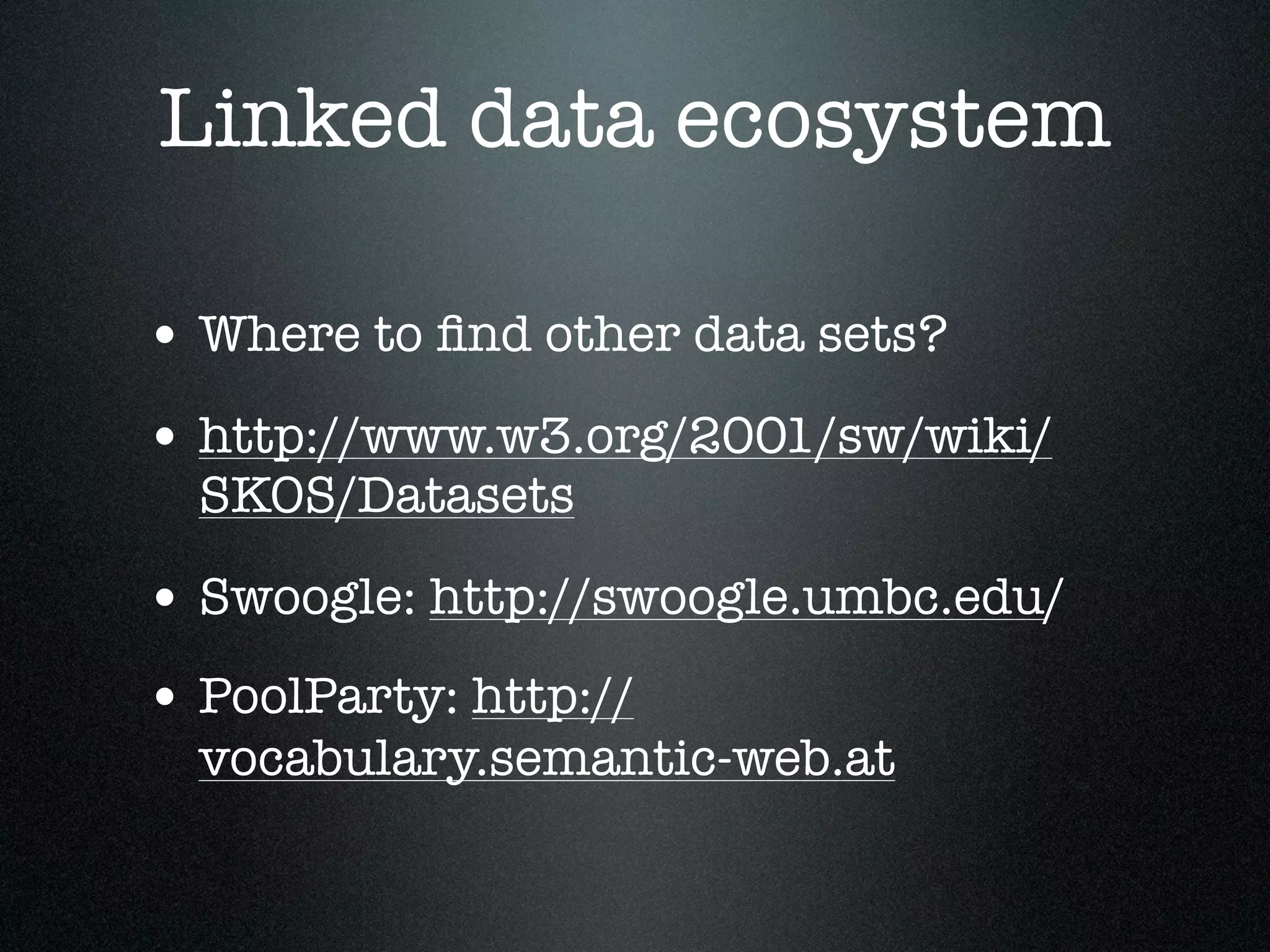

8. Linked data ecosystem
• Where to find other data sets?
• http://www.w3.org/2001/sw/wiki/
SKOS/Datasets
• Swoogle: http://swoogle.umbc.edu/
• PoolParty: http://
vocabulary.semantic-web.at

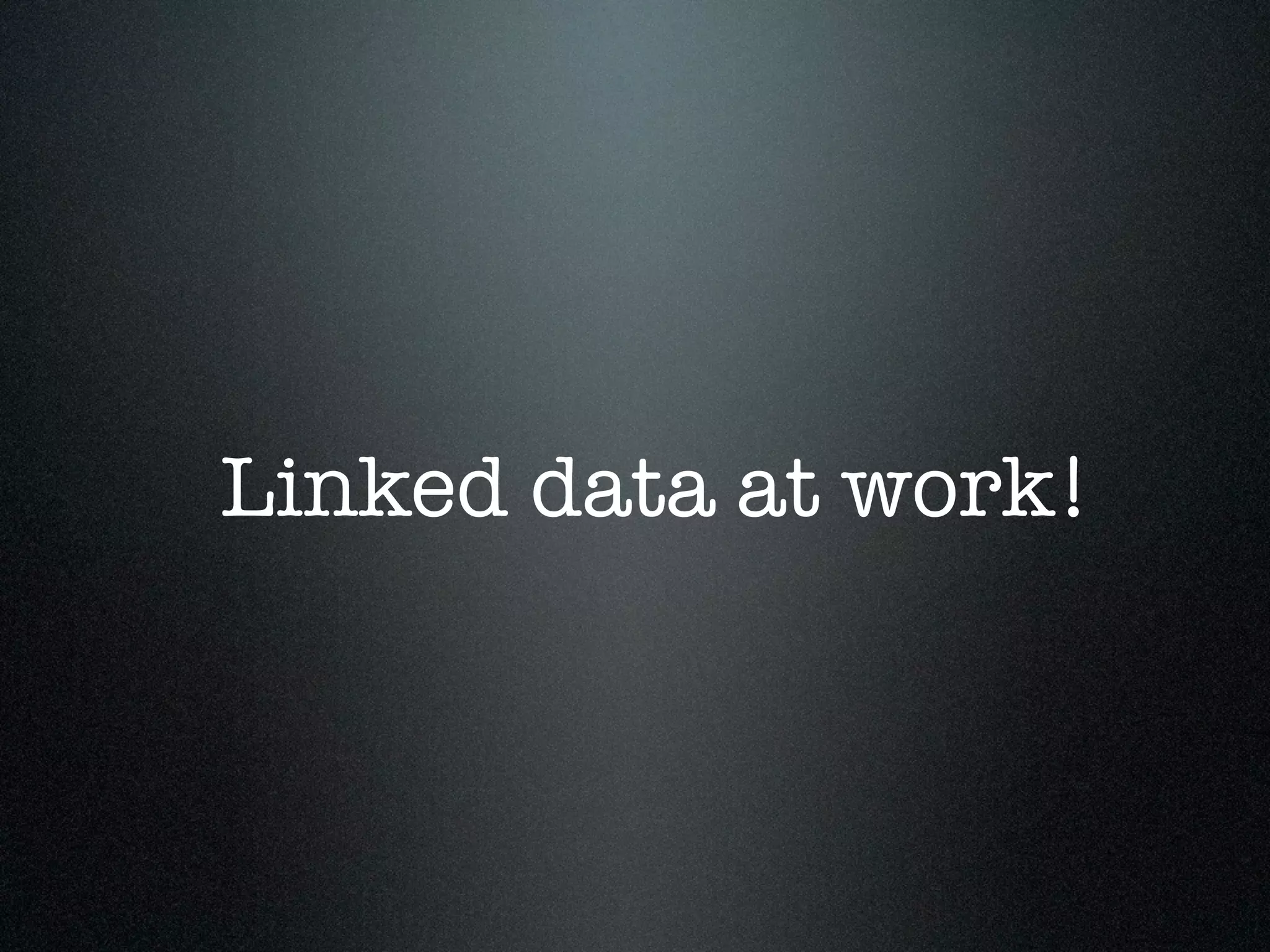

9. Linked data at work!

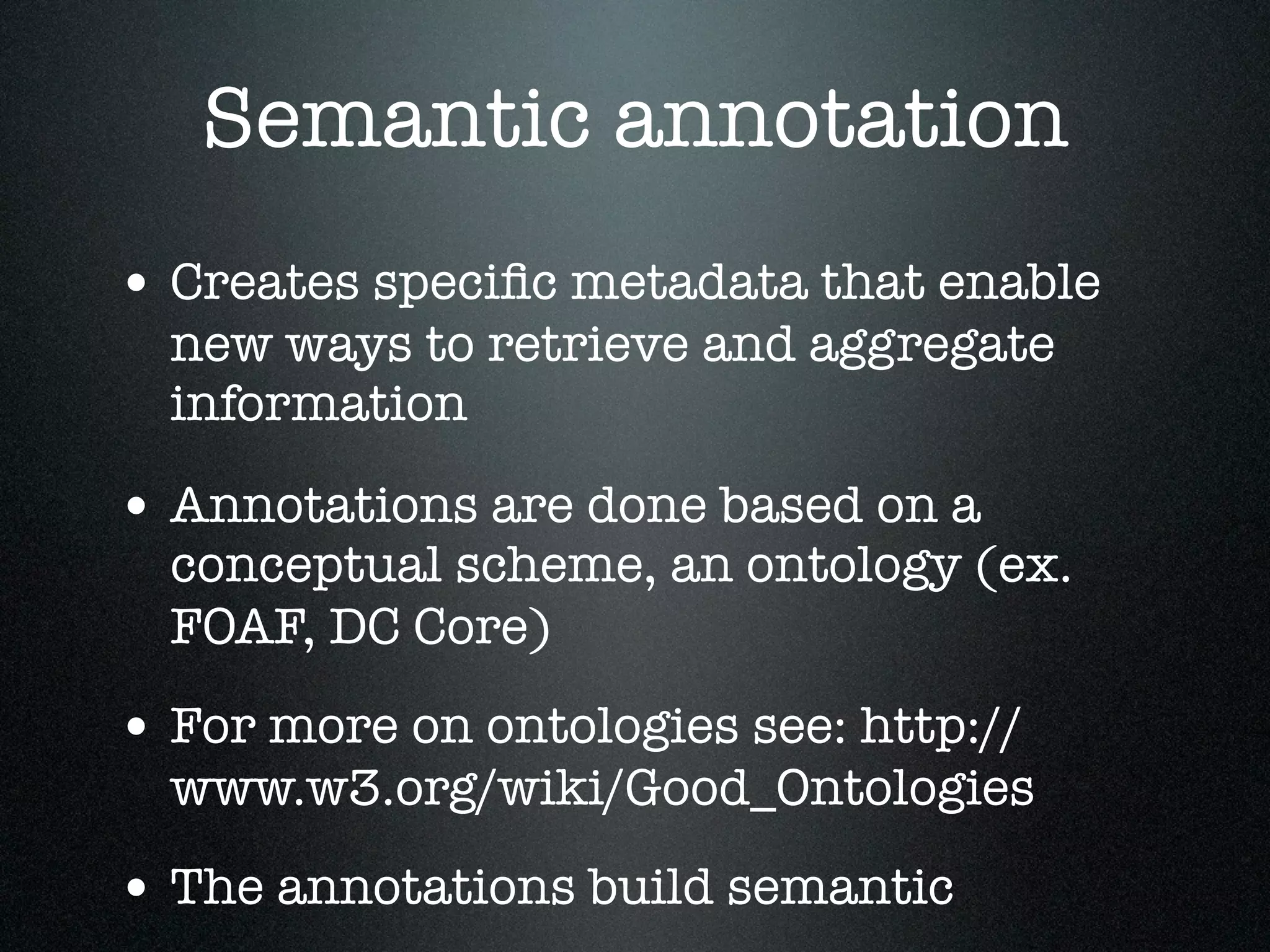

10. Semantic annotation
• Creates specific metadata that enable
new ways to retrieve and aggregate
information
• Annotations are done based on a
conceptual scheme, an ontology (ex.
FOAF, DC Core)
• For more on ontologies see: http://
www.w3.org/wiki/Good_Ontologies
• The annotations build semantic

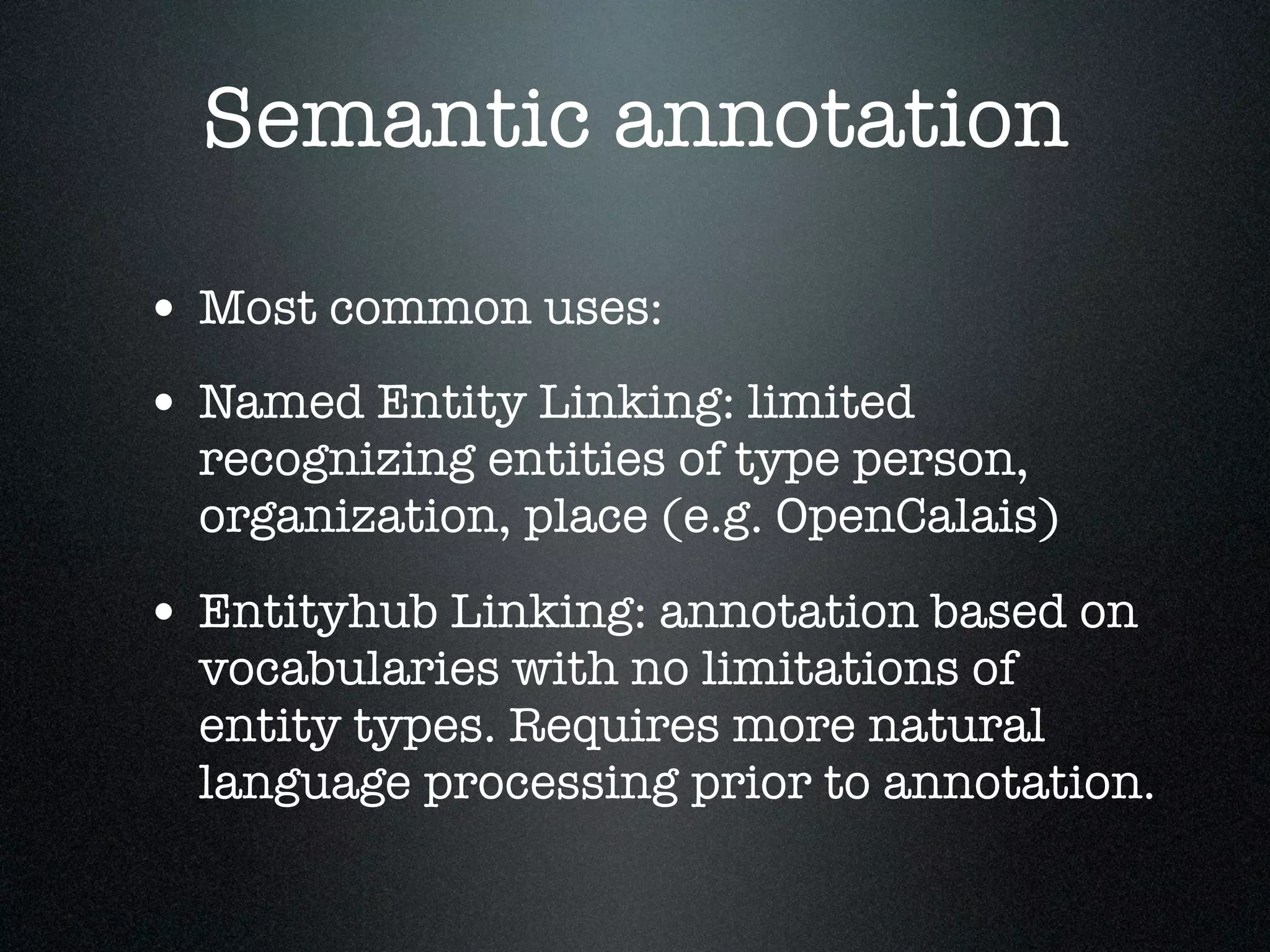

11. Semantic annotation
• Most common uses:
• Named Entity Linking: limited
recognizing entities of type person,
organization, place (e.g. OpenCalais)
• Entityhub Linking: annotation based on
vocabularies with no limitations of
entity types. Requires more natural
language processing prior to annotation.

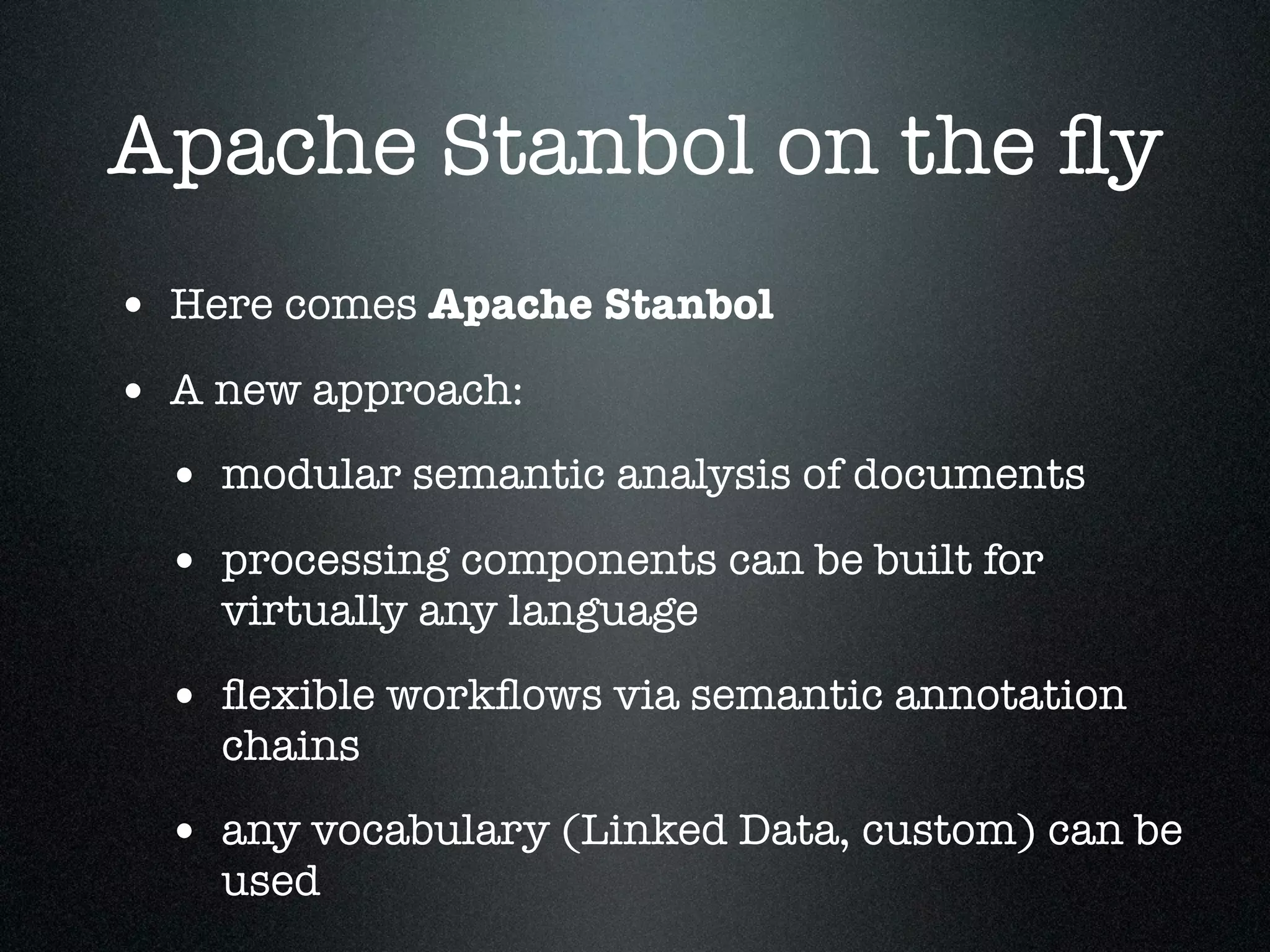

12. Apache Stanbol on the fly
• Here comes Apache Stanbol
• A new approach:
• modular semantic analysis of documents
• processing components can be built for
virtually any language
• flexible workflows via semantic annotation
chains
• any vocabulary (Linked Data, custom) can be
used

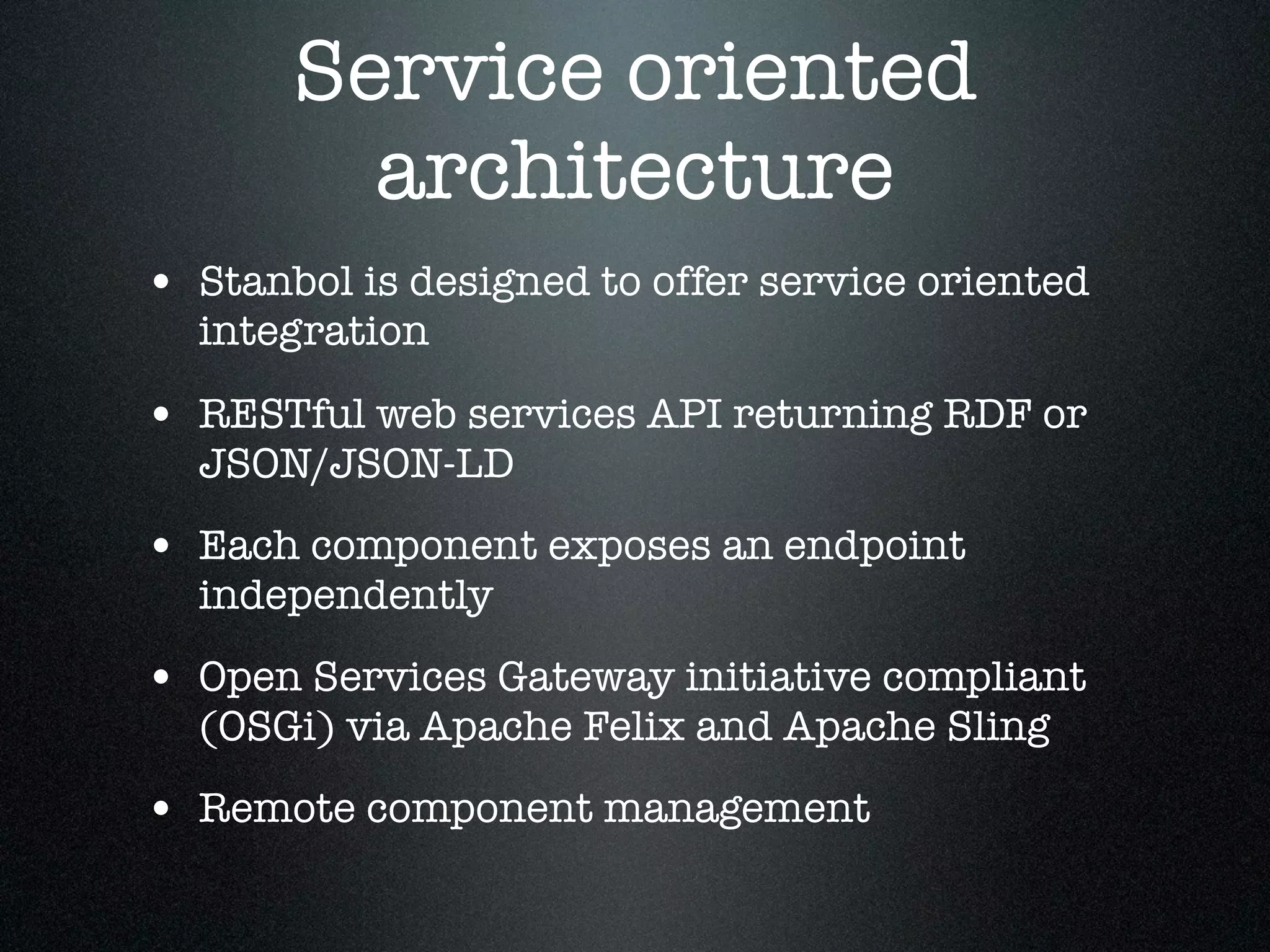

13. Service oriented
architecture
• Stanbol is designed to offer service oriented
integration
• RESTful web services API returning RDF or
JSON/JSON-LD
• Each component exposes an endpoint
independently
• Open Services Gateway initiative compliant
(OSGi) via Apache Felix and Apache Sling
• Remote component management

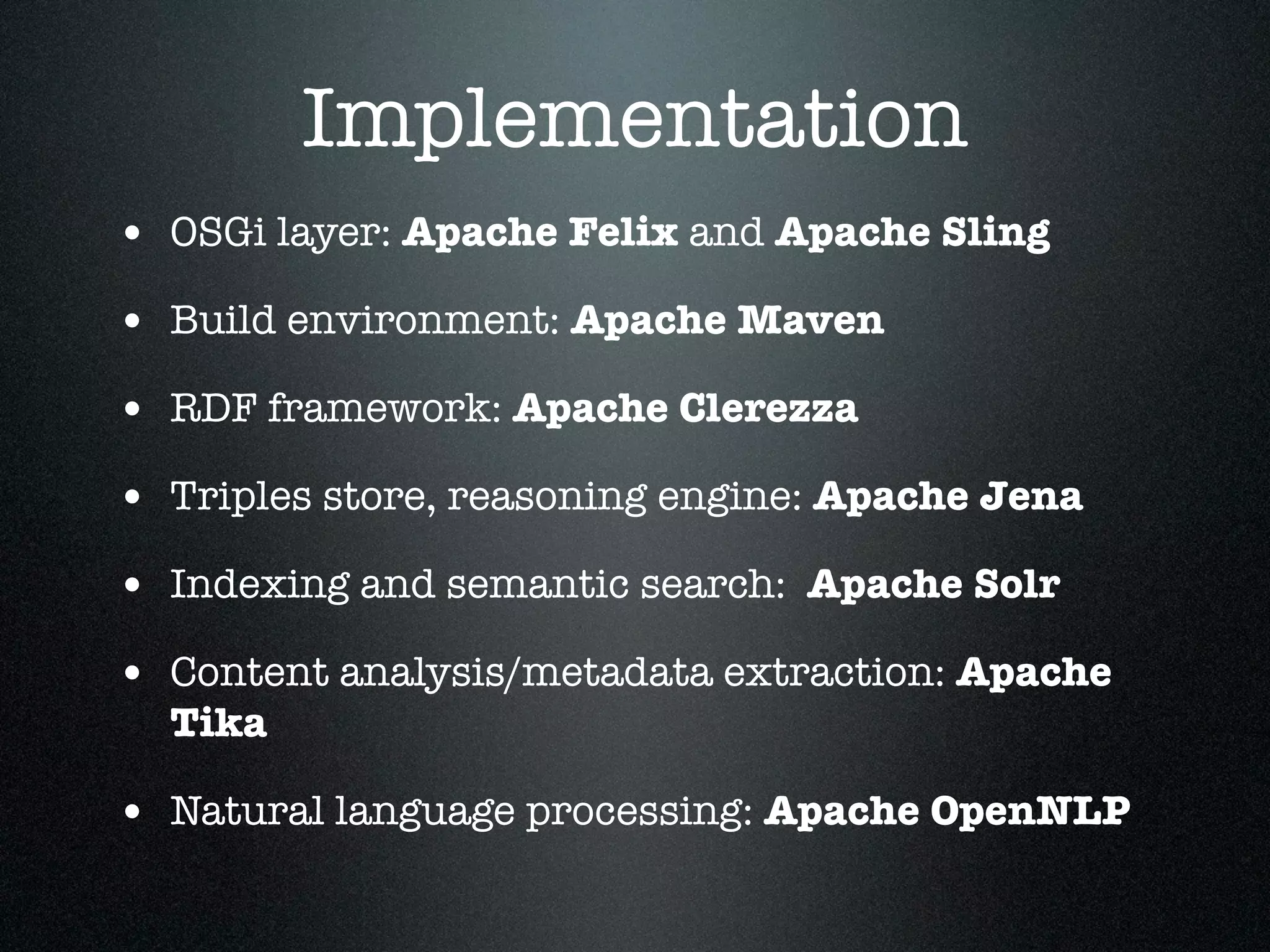

14. Implementation
• OSGi layer: Apache Felix and Apache Sling
• Build environment: Apache Maven
• RDF framework: Apache Clerezza
• Triples store, reasoning engine: Apache Jena
• Indexing and semantic search: Apache Solr
• Content analysis/metadata extraction: Apache
Tika
• Natural language processing: Apache OpenNLP

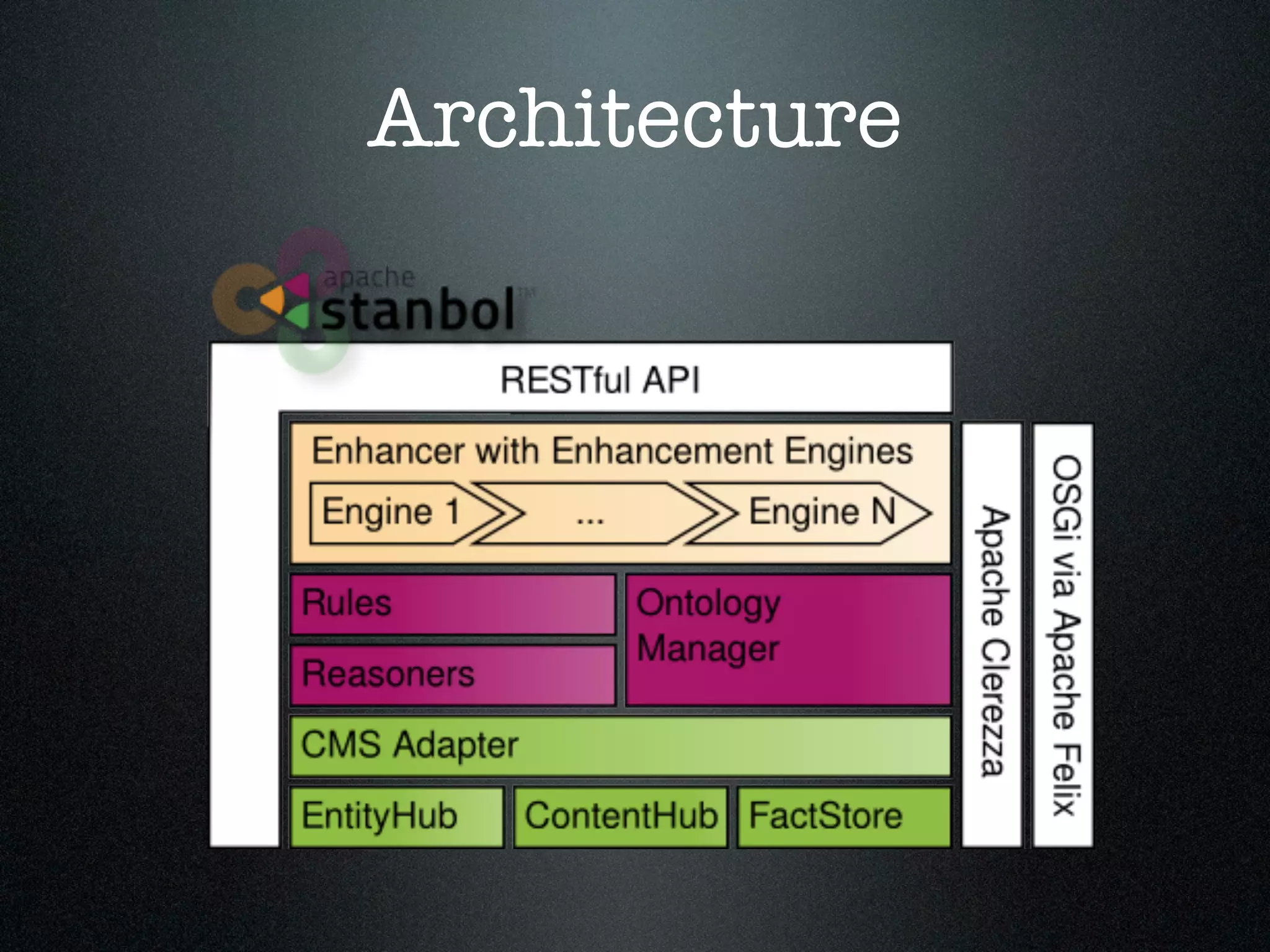

15. Architecture

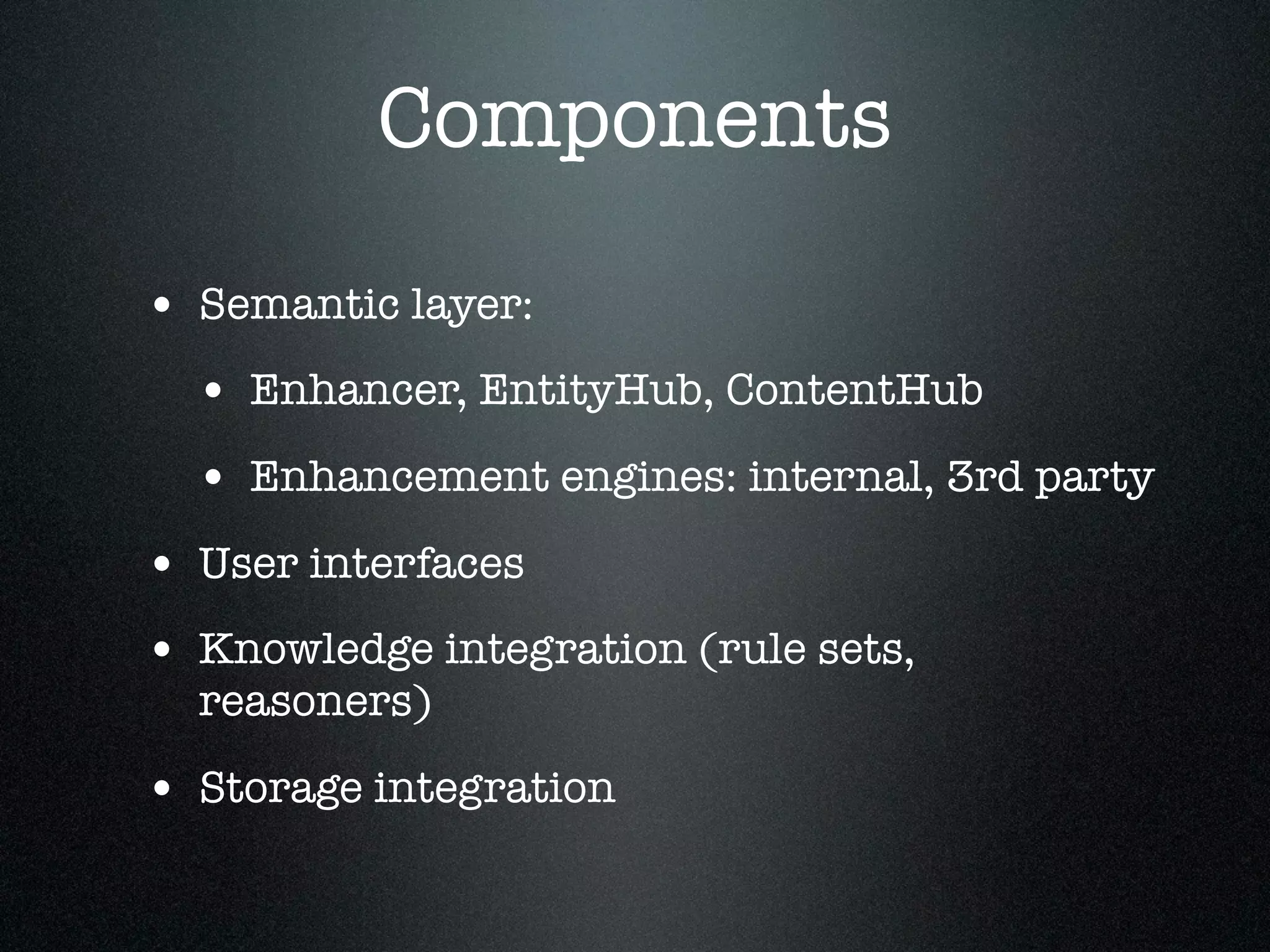

16. Components
• Semantic layer:
• Enhancer, EntityHub, ContentHub
• Enhancement engines: internal, 3rd party
• User interfaces
• Knowledge integration (rule sets,
reasoners)
• Storage integration

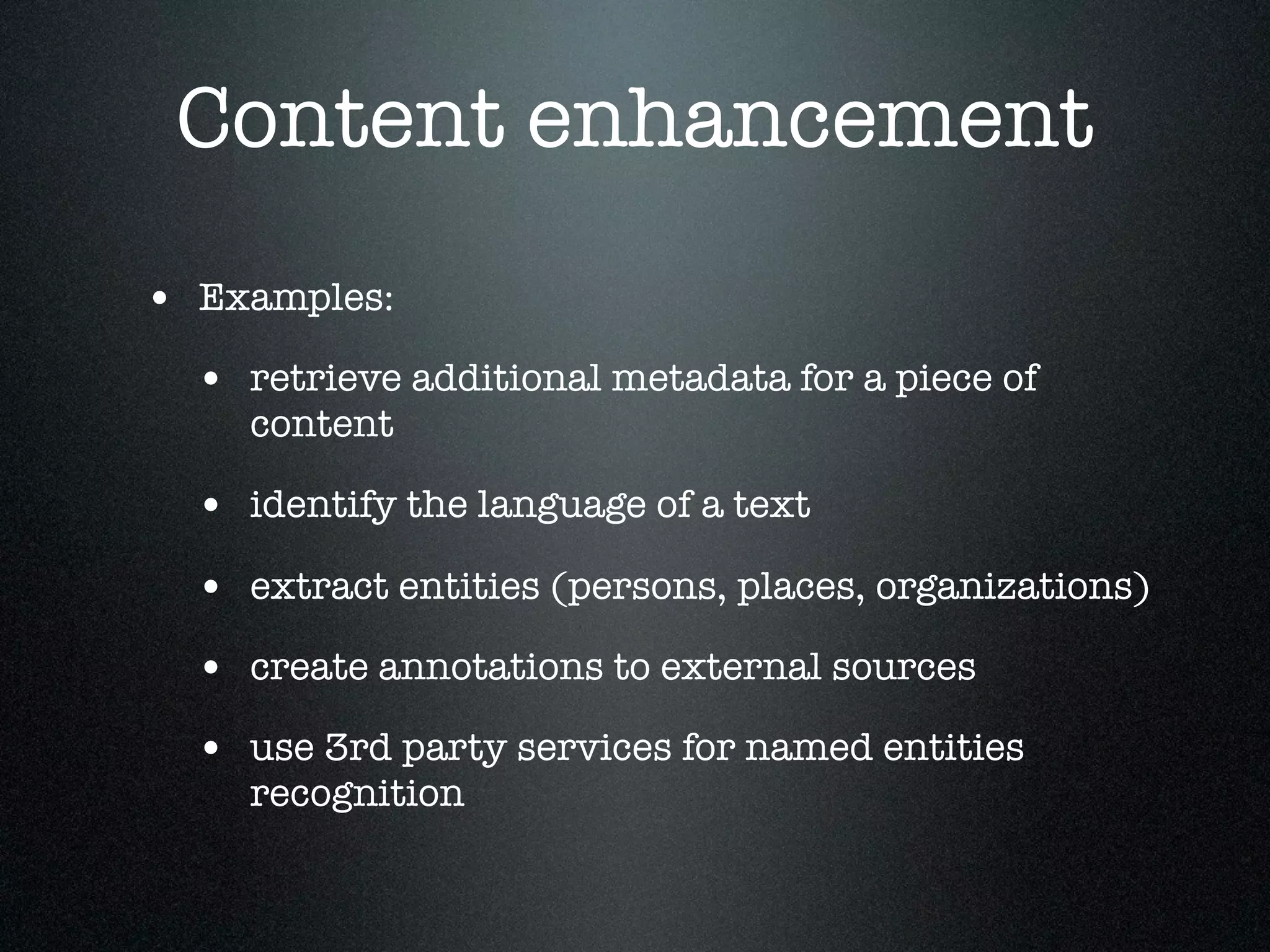

17. Content enhancement
• Examples:
• retrieve additional metadata for a piece of
content
• identify the language of a text
• extract entities (persons, places, organizations)
• create annotations to external sources
• use 3rd party services for named entities
recognition

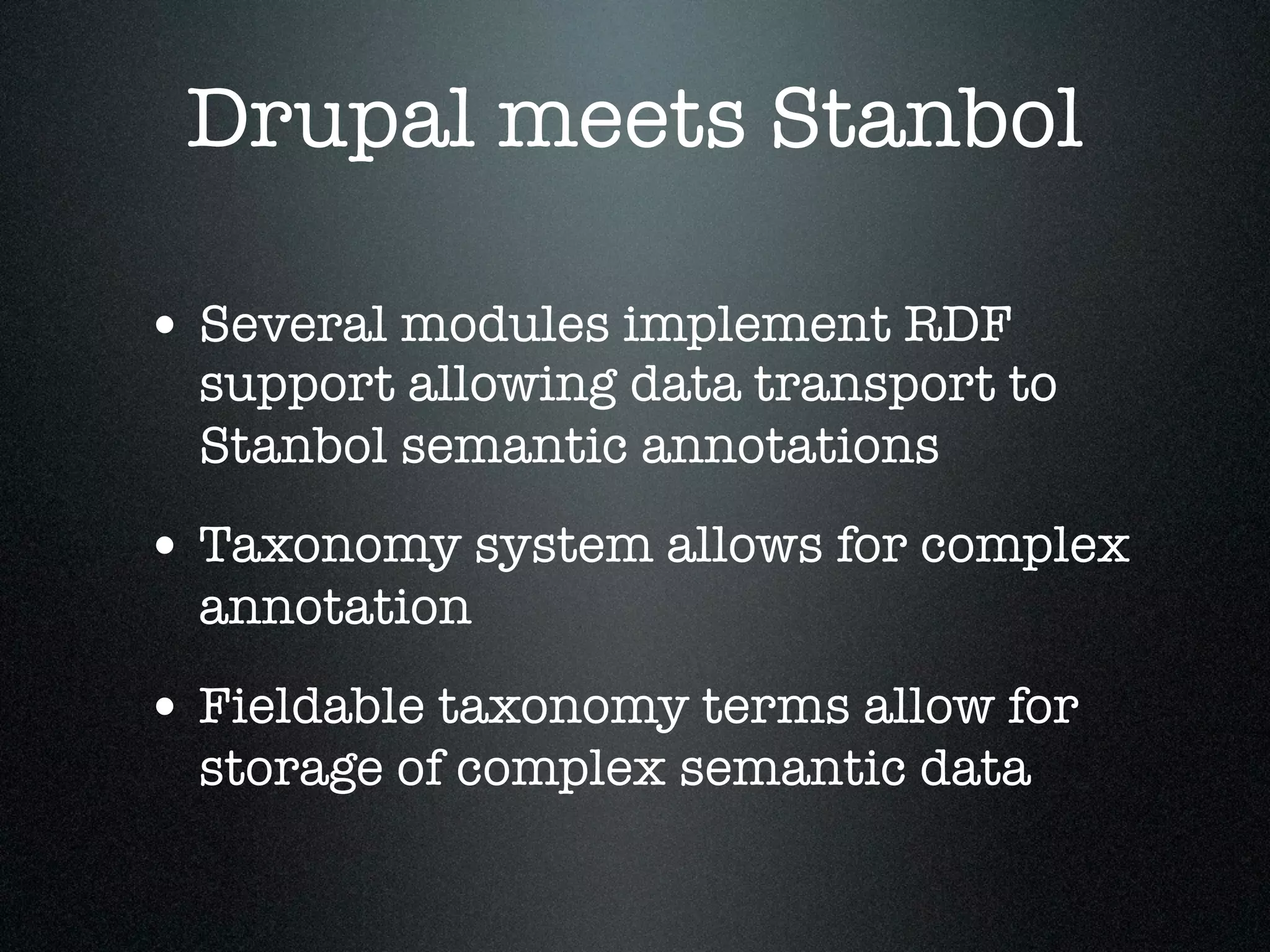

18. Drupal meets Stanbol
• Several modules implement RDF
support allowing data transport to
Stanbol semantic annotations
• Taxonomy system allows for complex
annotation
• Fieldable taxonomy terms allow for
storage of complex semantic data

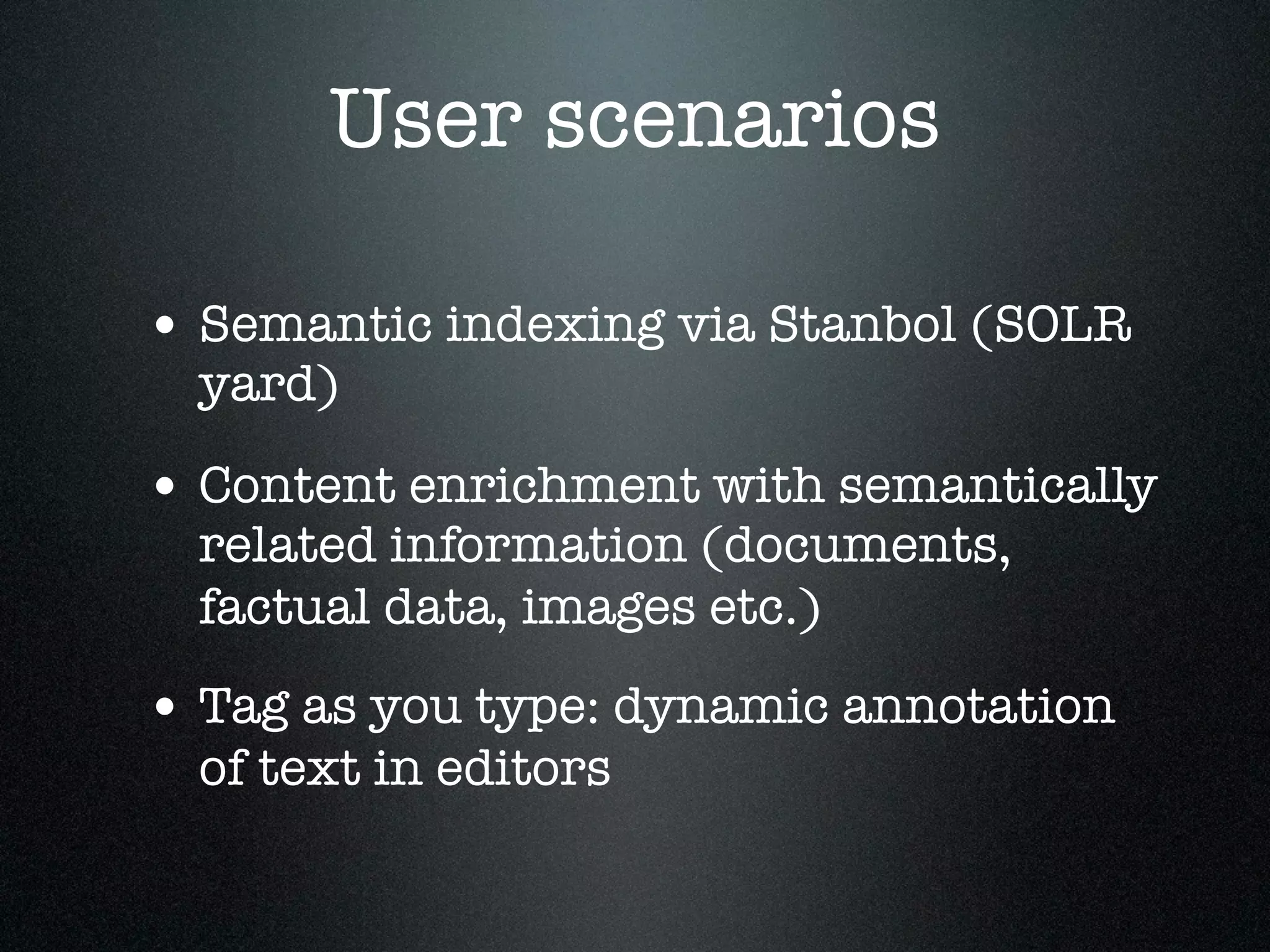

19. User scenarios
• Semantic indexing via Stanbol (SOLR
yard)
• Content enrichment with semantically
related information (documents,
factual data, images etc.)
• Tag as you type: dynamic annotation
of text in editors

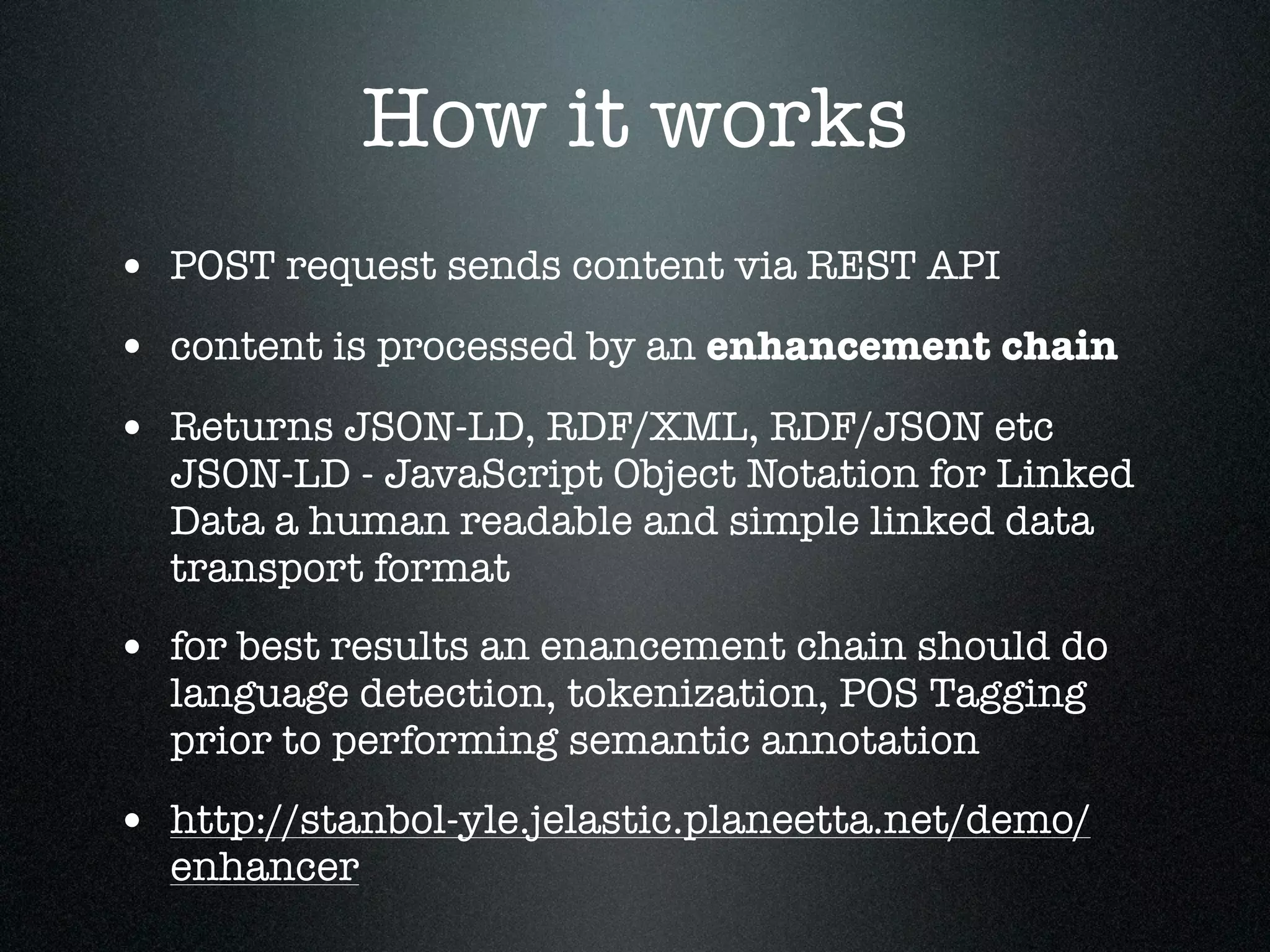

20. How it works
• POST request sends content via REST API
• content is processed by an enhancement chain
• Returns JSON-LD, RDF/XML, RDF/JSON etc
JSON-LD - JavaScript Object Notation for Linked
Data a human readable and simple linked data
transport format
• for best results an enancement chain should do
language detection, tokenization, POS Tagging
prior to performing semantic annotation
• http://stanbol-yle.jelastic.planeetta.net/demo/
enhancer

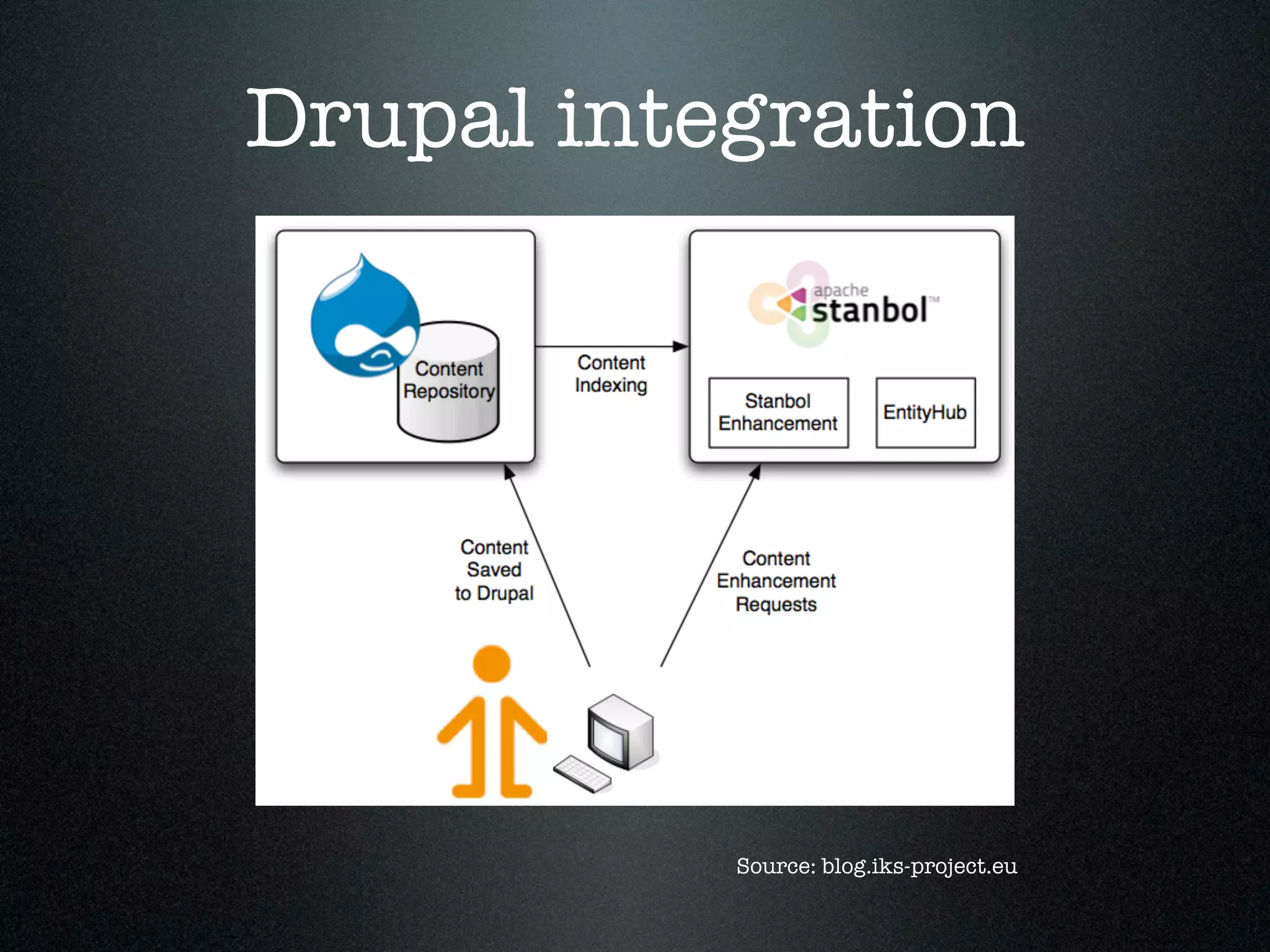

21. Drupal integration
Source: blog.iks-project.eu

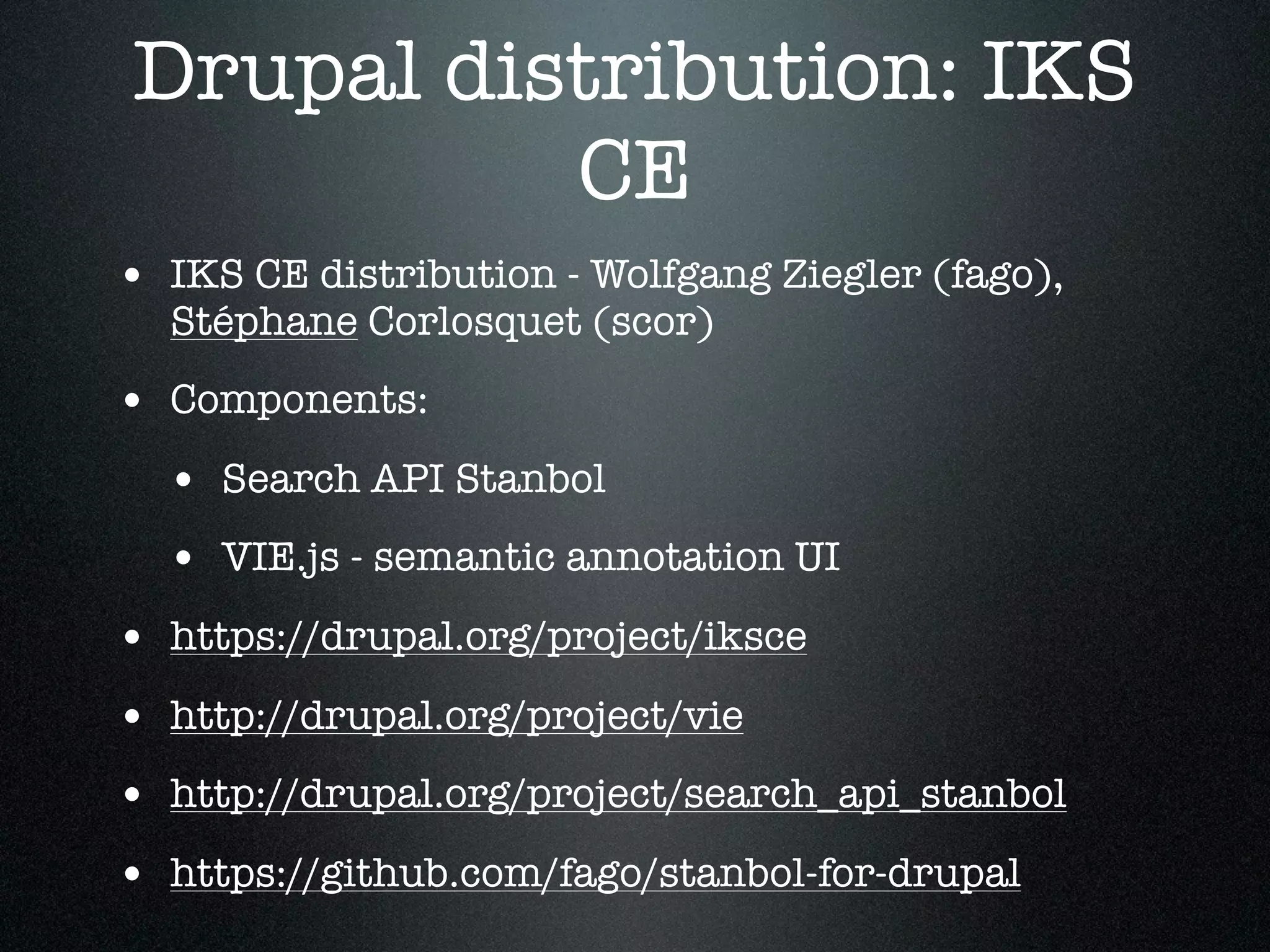

22. Drupal distribution: IKS
CE
• IKS CE distribution - Wolfgang Ziegler (fago),
Stéphane Corlosquet (scor)
• Components:
• Search API Stanbol
• VIE.js - semantic annotation UI
• https://drupal.org/project/iksce
• http://drupal.org/project/vie
• http://drupal.org/project/search_api_stanbol
• https://github.com/fago/stanbol-for-drupal

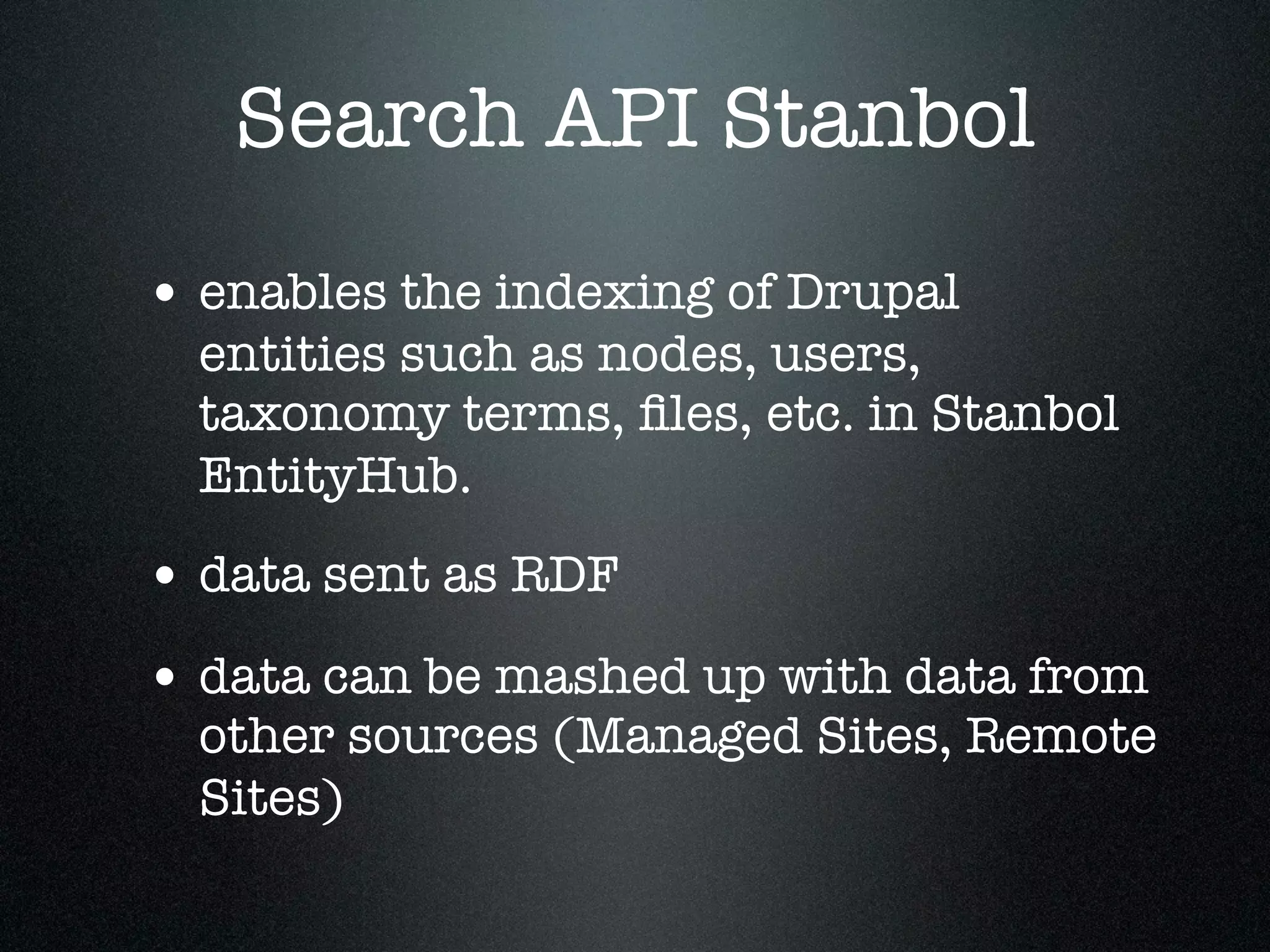

23. Search API Stanbol
• enables the indexing of Drupal
entities such as nodes, users,
taxonomy terms, files, etc. in Stanbol
EntityHub.
• data sent as RDF
• data can be mashed up with data from
other sources (Managed Sites, Remote
Sites)

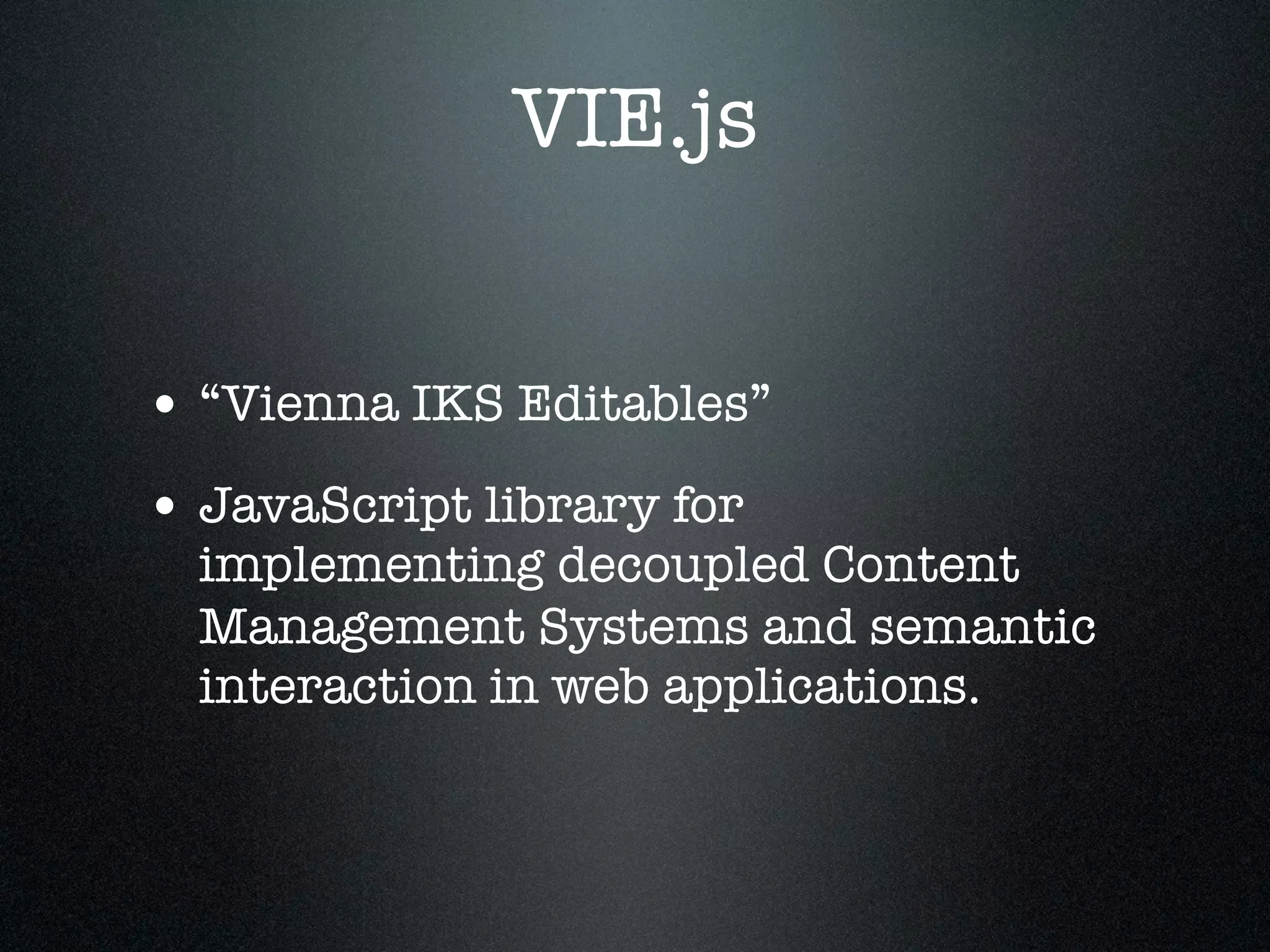

24. VIE.js
• “Vienna IKS Editables”
• JavaScript library for
implementing decoupled Content
Management Systems and semantic
interaction in web applications.

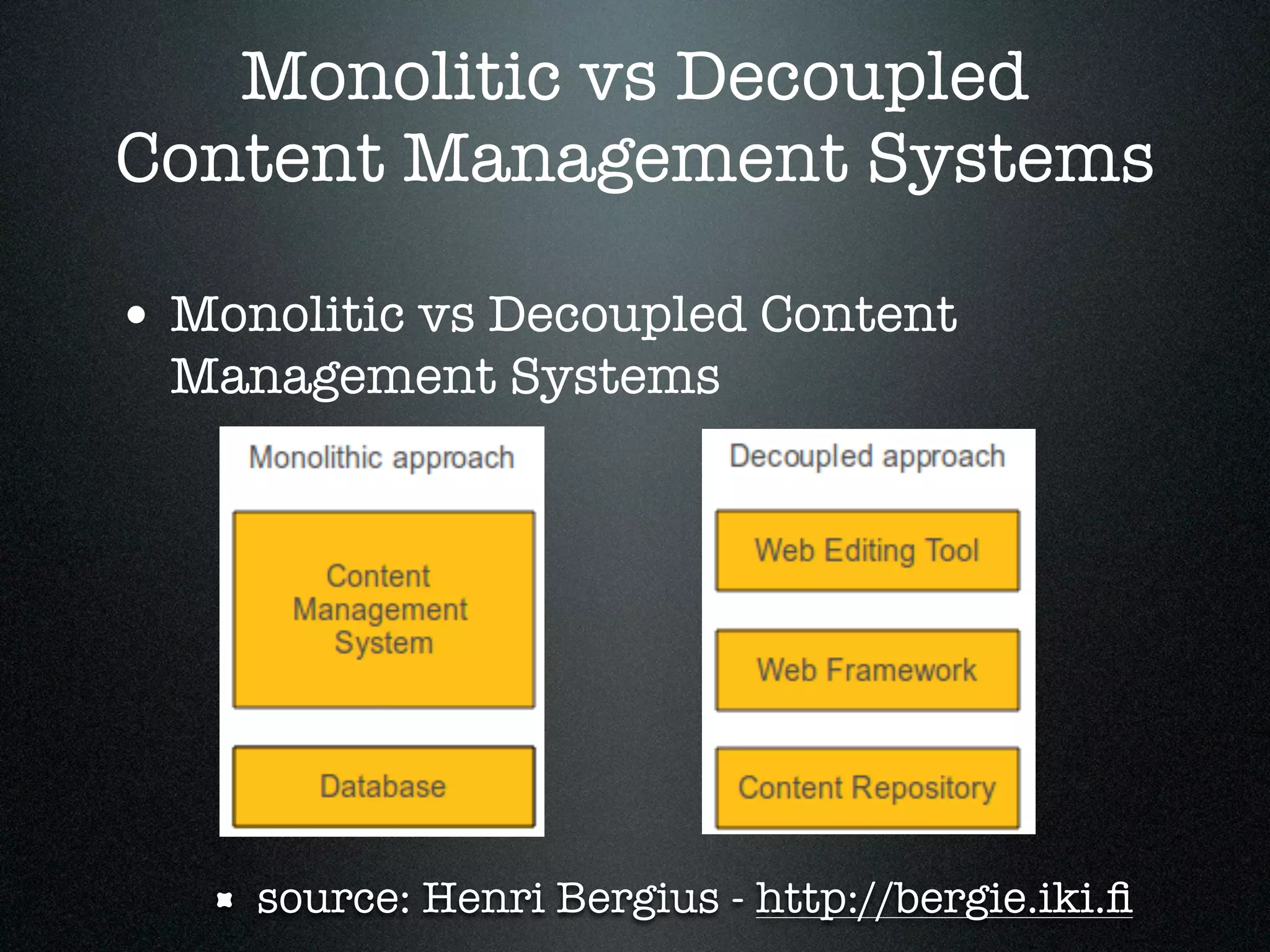

25. Monolitic vs Decoupled
Content Management Systems
• Monolitic vs Decoupled Content
Management Systems
source: Henri Bergius - http://bergie.iki.fi

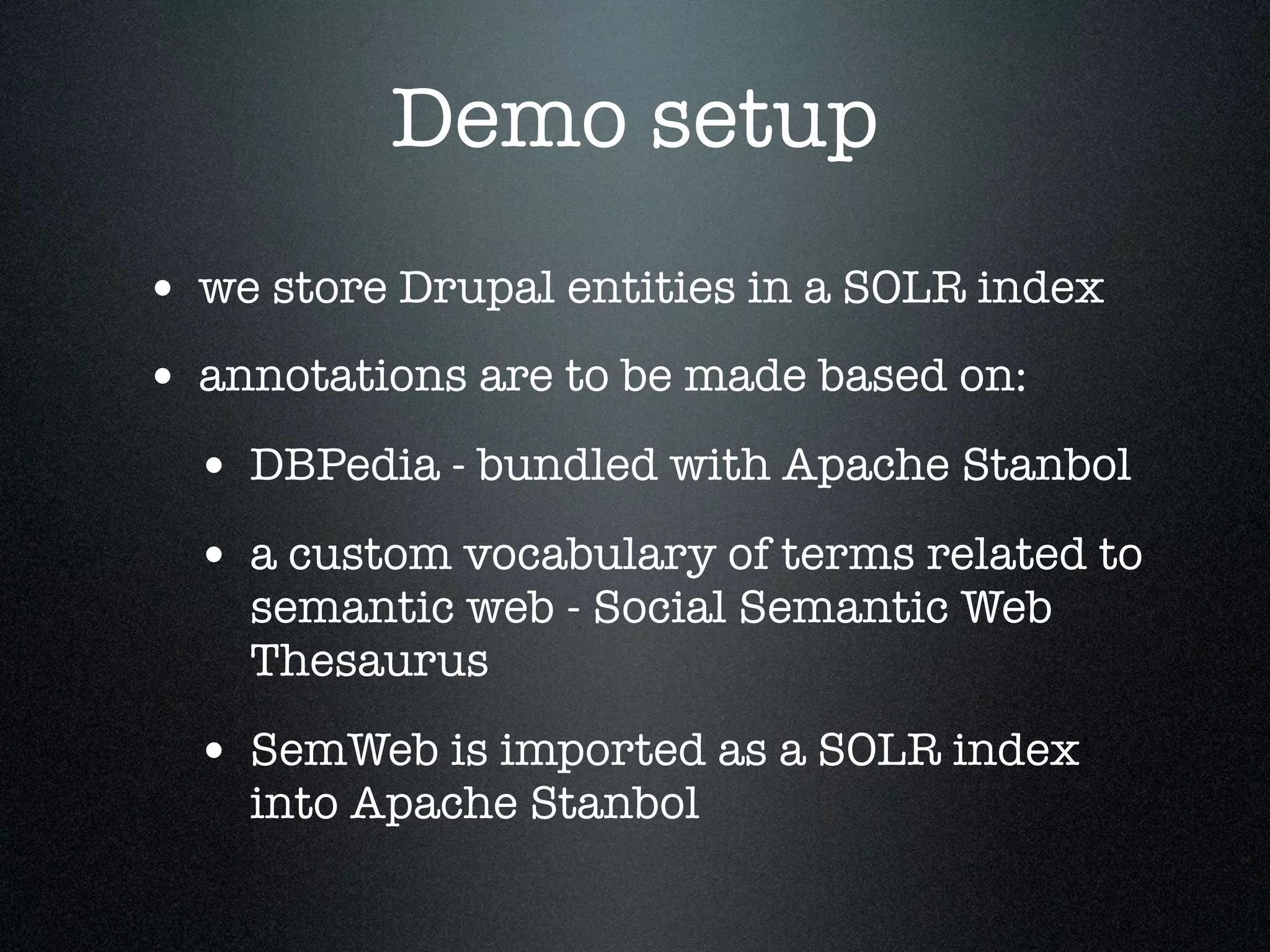

26. Demo setup
• we store Drupal entities in a SOLR index
• annotations are to be made based on:
• DBPedia - bundled with Apache Stanbol
• a custom vocabulary of terms related to
semantic web - Social Semantic Web
Thesaurus
• SemWeb is imported as a SOLR index
into Apache Stanbol

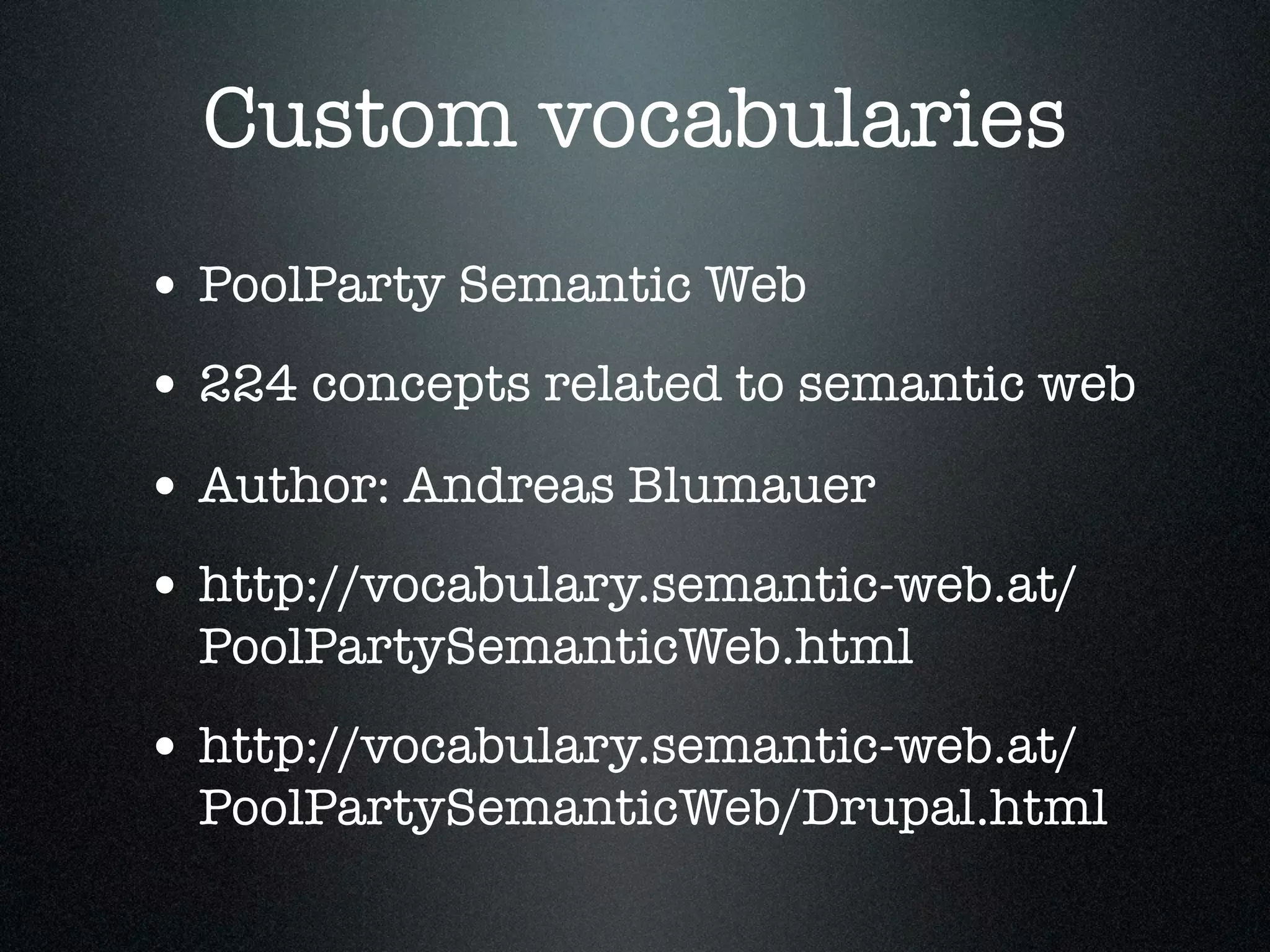

27. Custom vocabularies
• PoolParty Semantic Web
• 224 concepts related to semantic web
• Author: Andreas Blumauer
• http://vocabulary.semantic-web.at/
PoolPartySemanticWeb.html
• http://vocabulary.semantic-web.at/
PoolPartySemanticWeb/Drupal.html

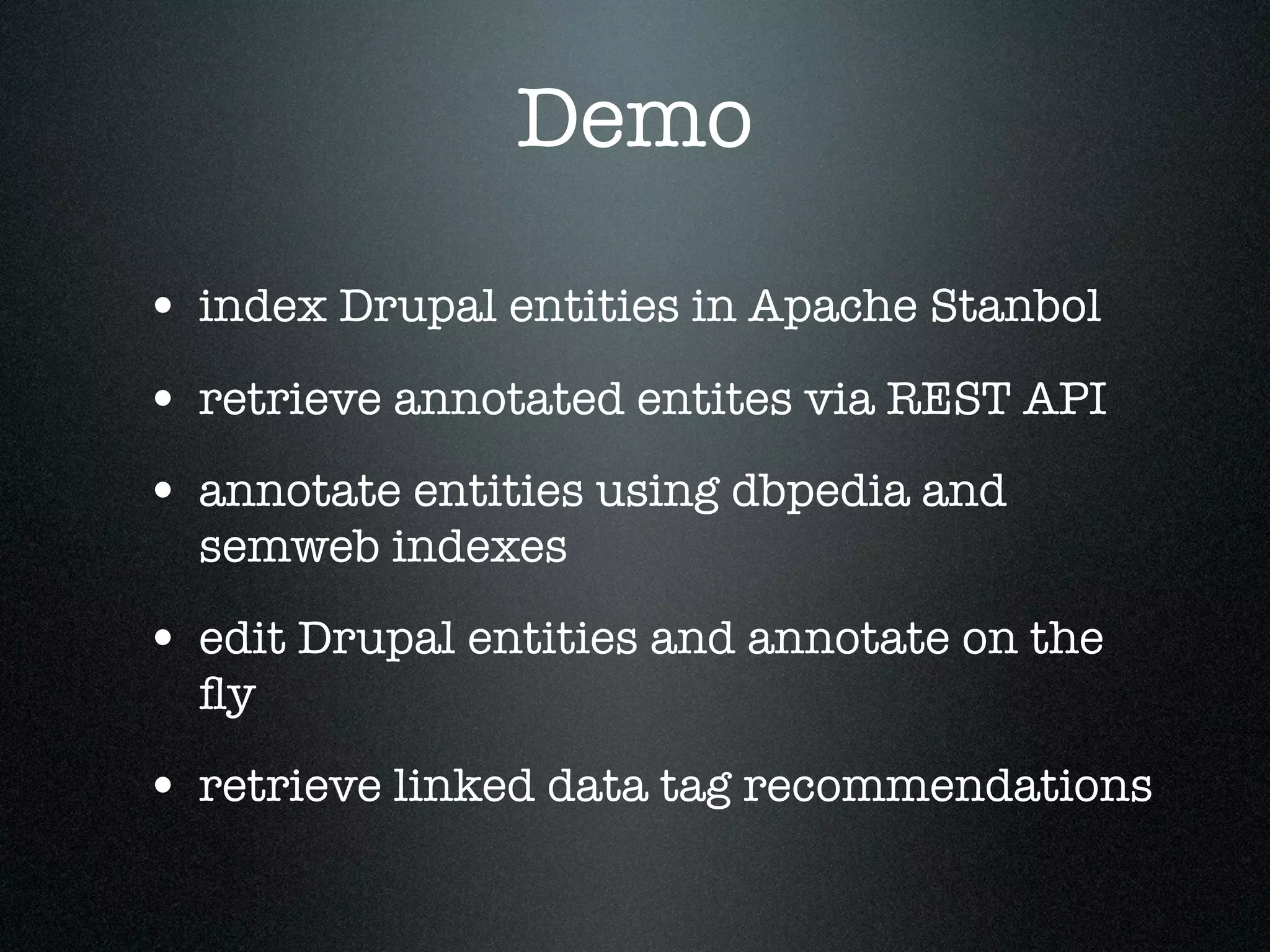

28. Demo
• index Drupal entities in Apache Stanbol
• retrieve annotated entites via REST API
• annotate entities using dbpedia and
semweb indexes
• edit Drupal entities and annotate on the
fly
• retrieve linked data tag recommendations

29. Questions?

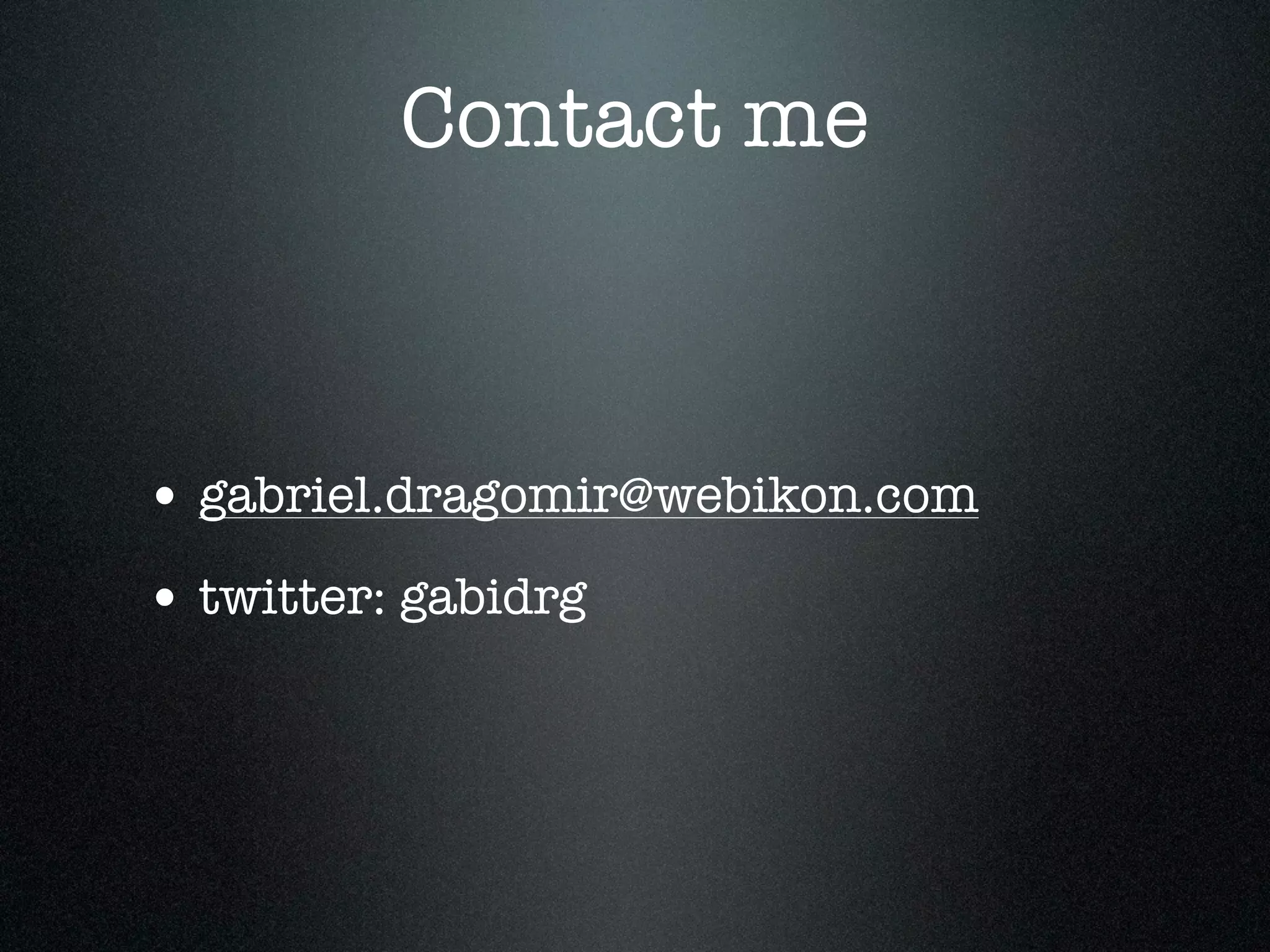

30. Contact me
• gabriel.dragomir@webikon.com
• twitter: gabidrg

31. Thank you!
