1. Drinking
from the
Firehose
With Virtual Streams & Virtual Actors
Sergey Bykov
Microsoft, @sergeybykov

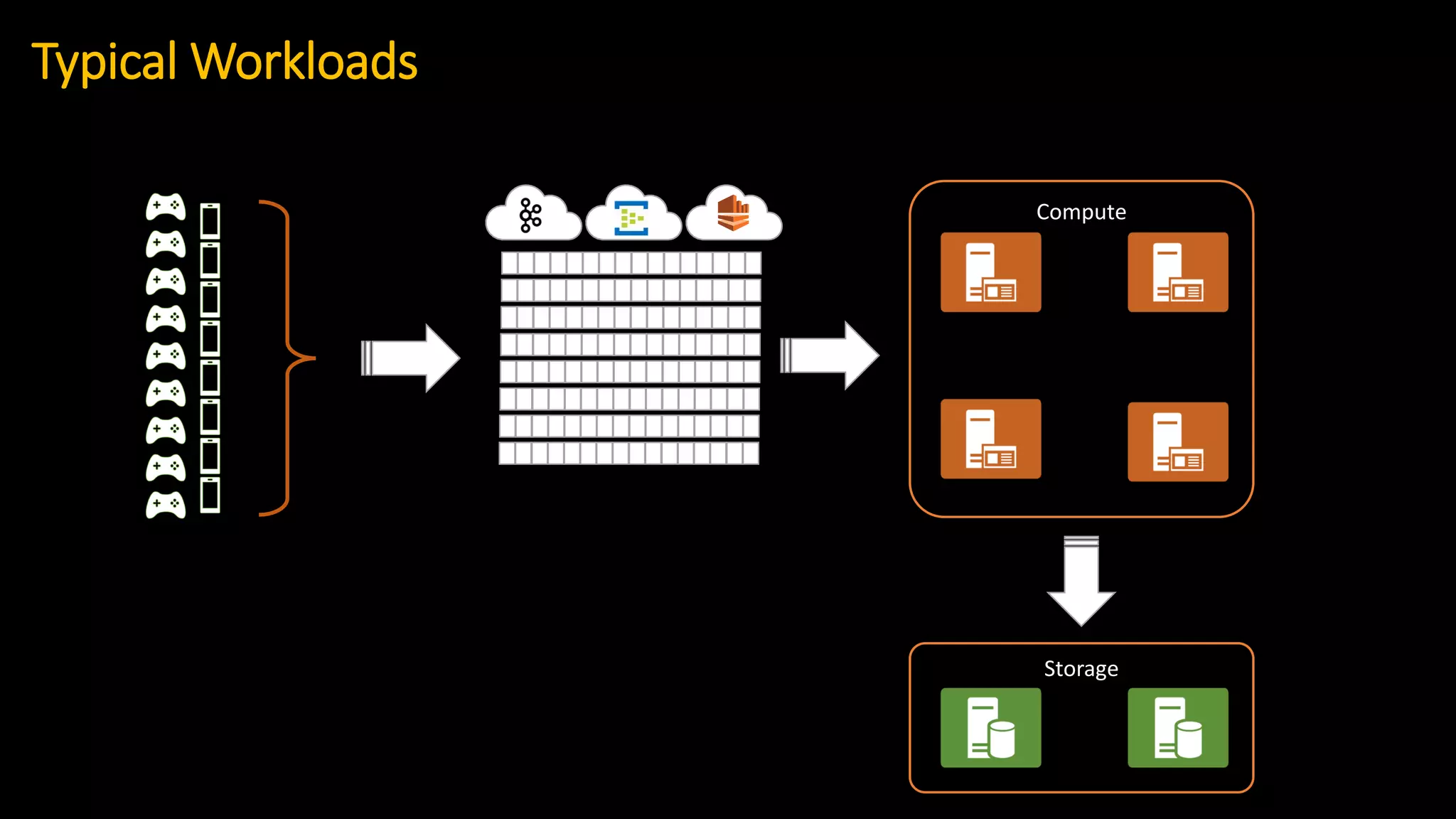

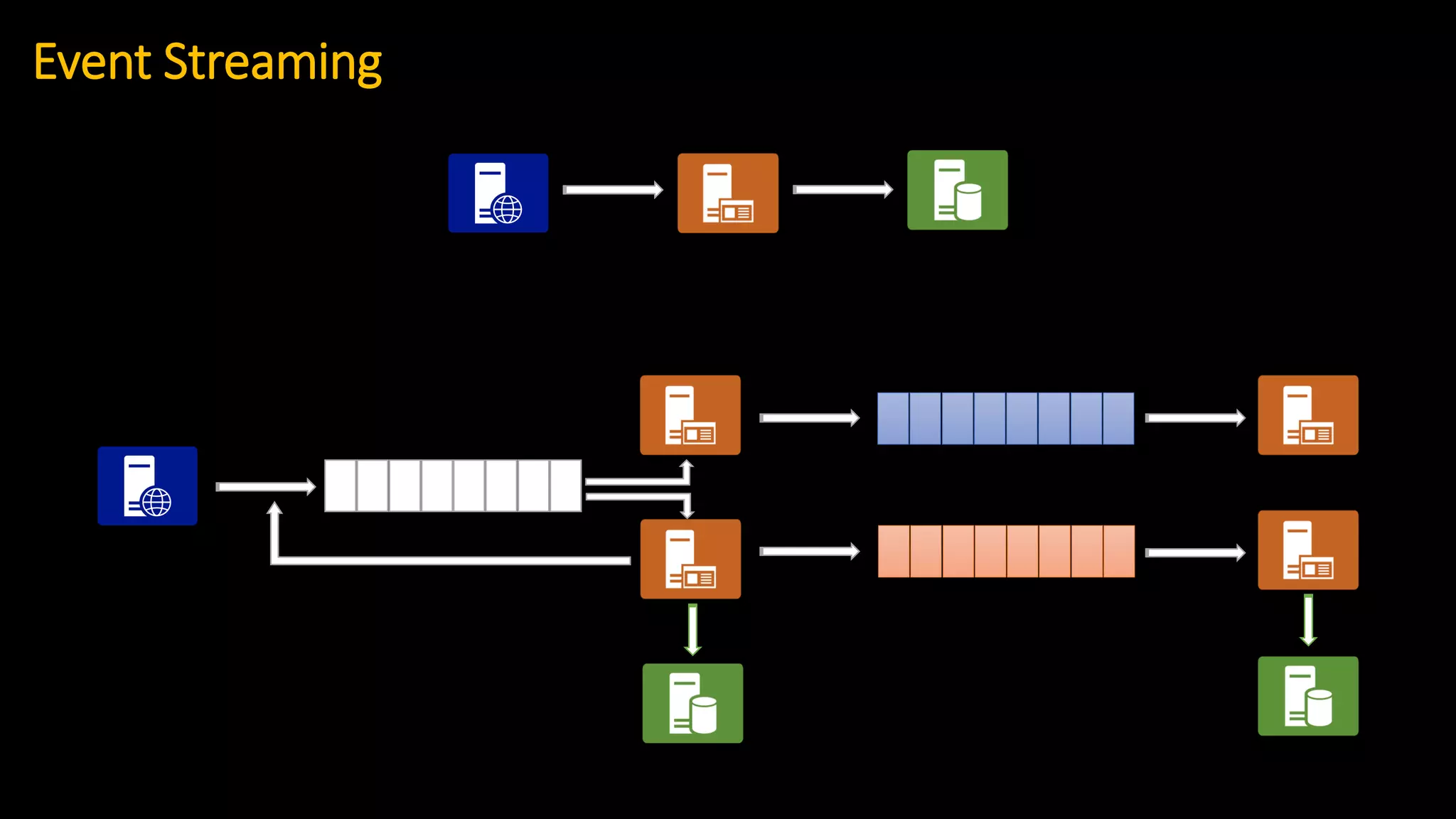

3. Event Streaming

4. Compute
Storage
Typical Workloads

5. User X
Event
User X
State
Updated
User X
State
User X
Event
User X
Event

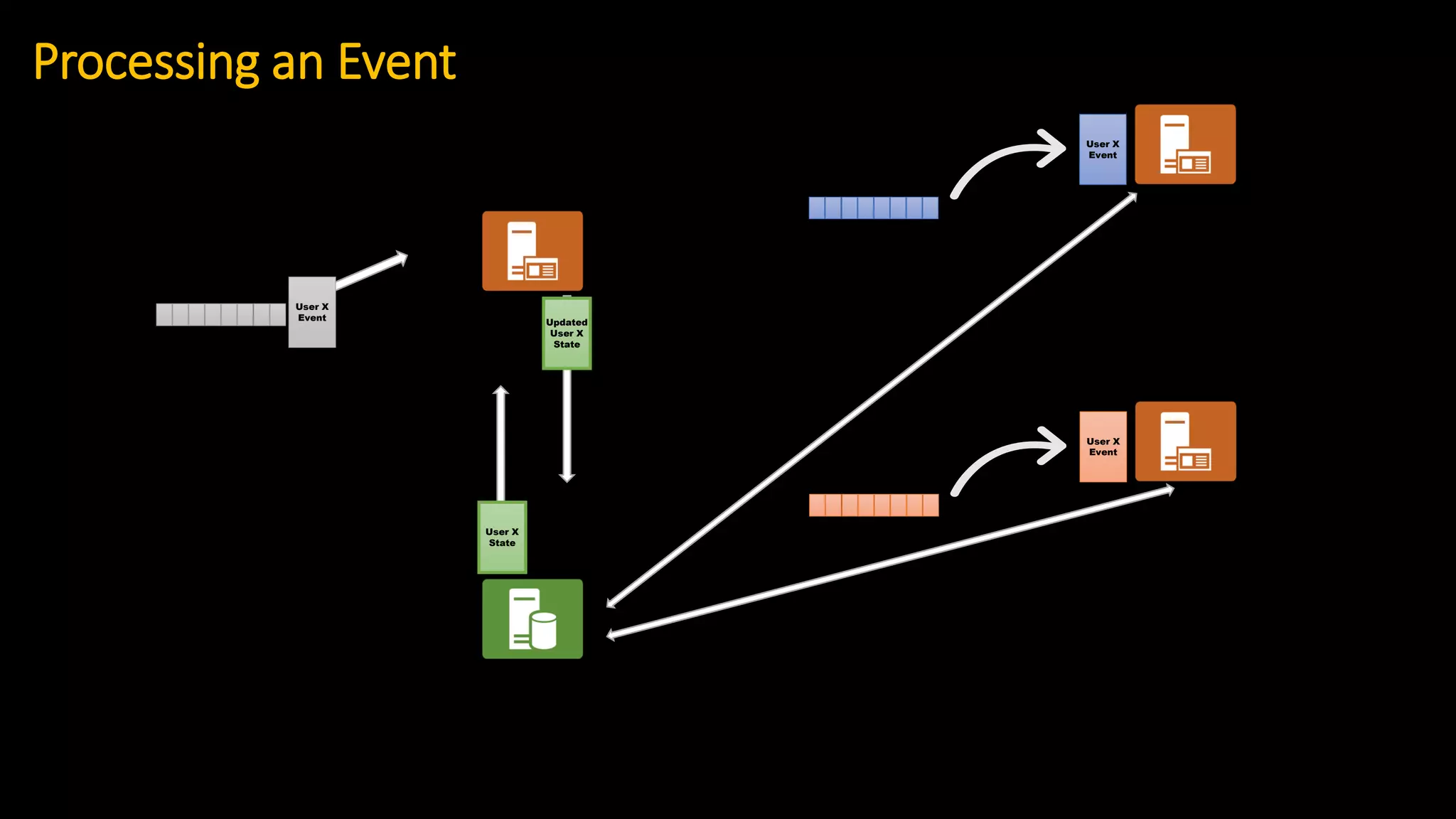

Processing an Event

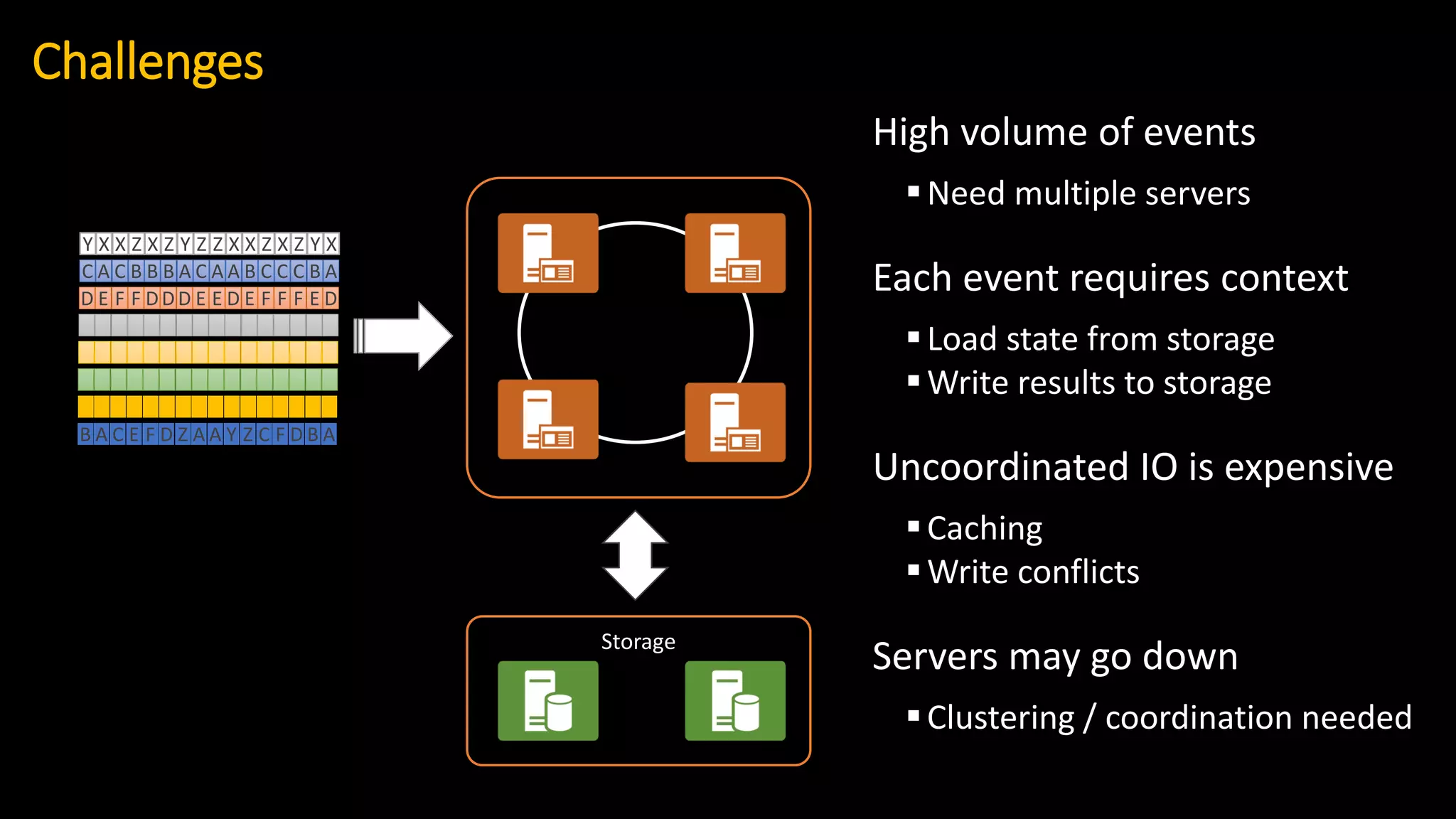

6. Challenges
Y X X Z X Z Y Z
C A C B B B A C
D E F F DD D E
B A C E F D Z A
Z X X Z X Z Y X
A A B C C C B A
E D E F F F E D
A Y Z C F D B A
Storage
High volume of events
▪Need multiple servers
Each event requires context
▪Load state from storage
▪Write results to storage
Uncoordinated IO is expensive
▪Caching
▪Write conflicts
Servers may go down
▪Clustering / coordination needed

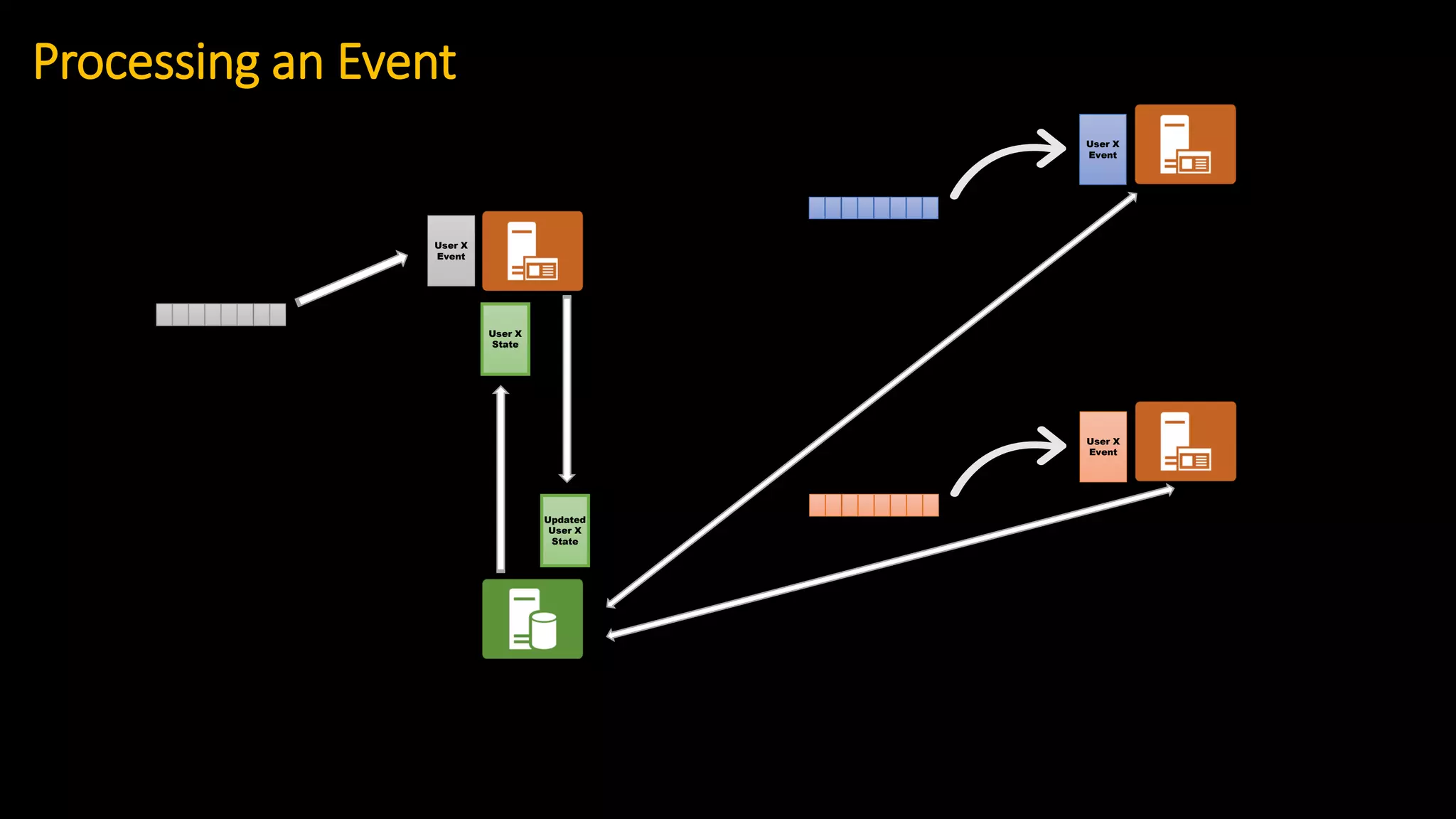

7. User X
Event
User X
Event
Processing an Event
User X
Event
User X
State
Updated
User X
State

8. User X
Event
User X
State
Updated
User X
State

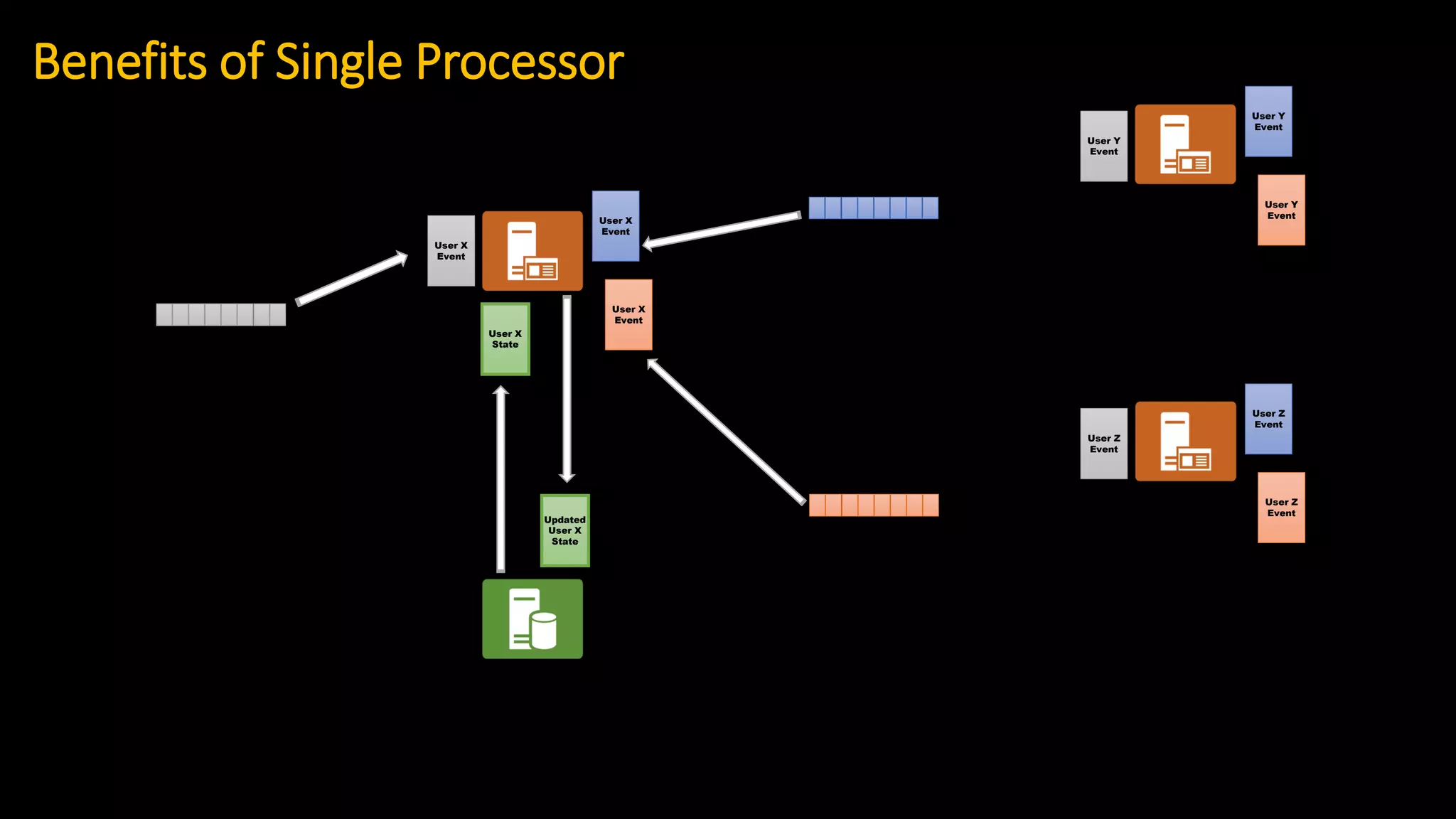

Benefits of Single Processor
User X
Event
User X
Event
User Y
Event
User Y
Event
User Y
Event
User Z
Event
User Z
Event
User Z
Event

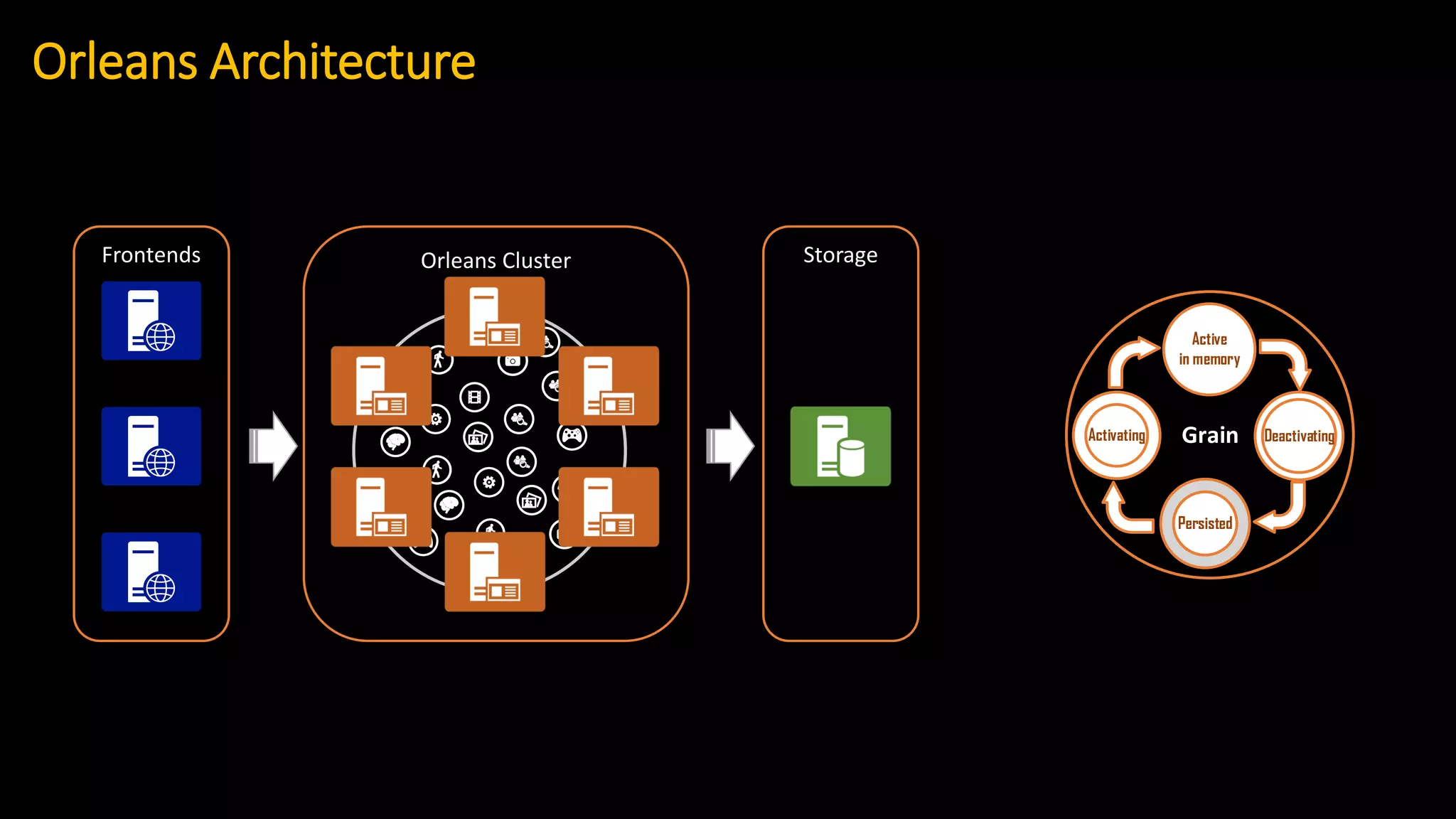

9. Orleans Architecture
Frontends Orleans Cluster Storage
Grain
Persisted
Activating
Active
in memory
Deactivating

10. Challenges
Y X X Z X Z Y Z
C A C B B B A C
D E F F DD D E
B A C E F D Z A
Z X X Z X Z Y X
A A B C C C B A
E D E F F F E D
A Y Z C F D B A
Storage
High volume of events
▪Need multiple servers
Each event requires context
▪Load state from storage
▪Write results to storage
Uncoordinated IO is expensive
▪Caching
▪Write conflicts
Servers may go down
▪Clustering / coordination needed

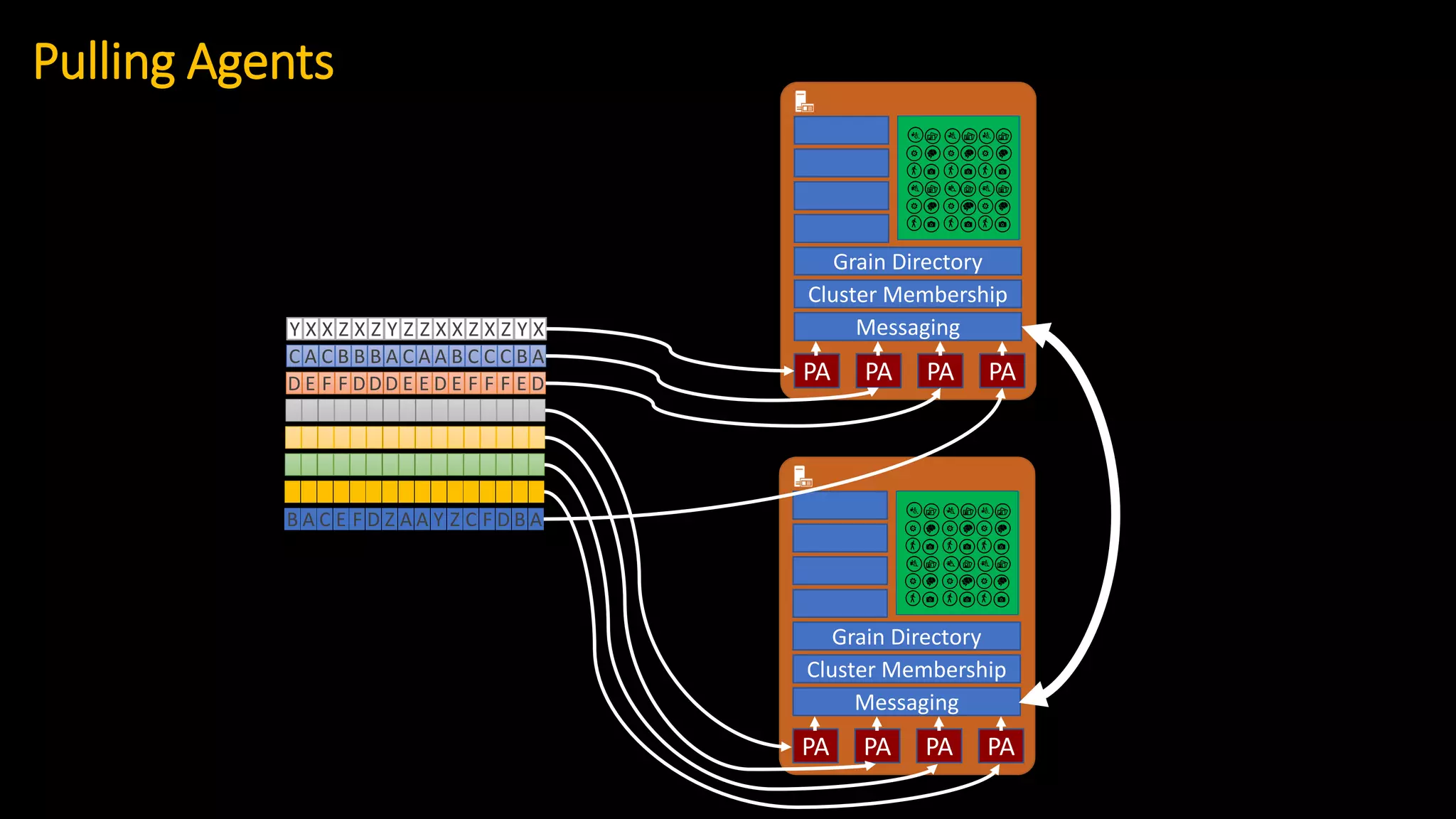

11. PA PA PA PA
Messaging
Cluster Membership
Grain Directory
PA PA PA PA
Messaging
Cluster Membership
Grain Directory
Pulling Agents
Y X X Z X Z Y Z
C A C B B B A C
D E F F DD D E
B A C E F D Z A
Z X X Z X Z Y X
A A B C C C B A
E D E F F F E D
A Y Z C F D B A

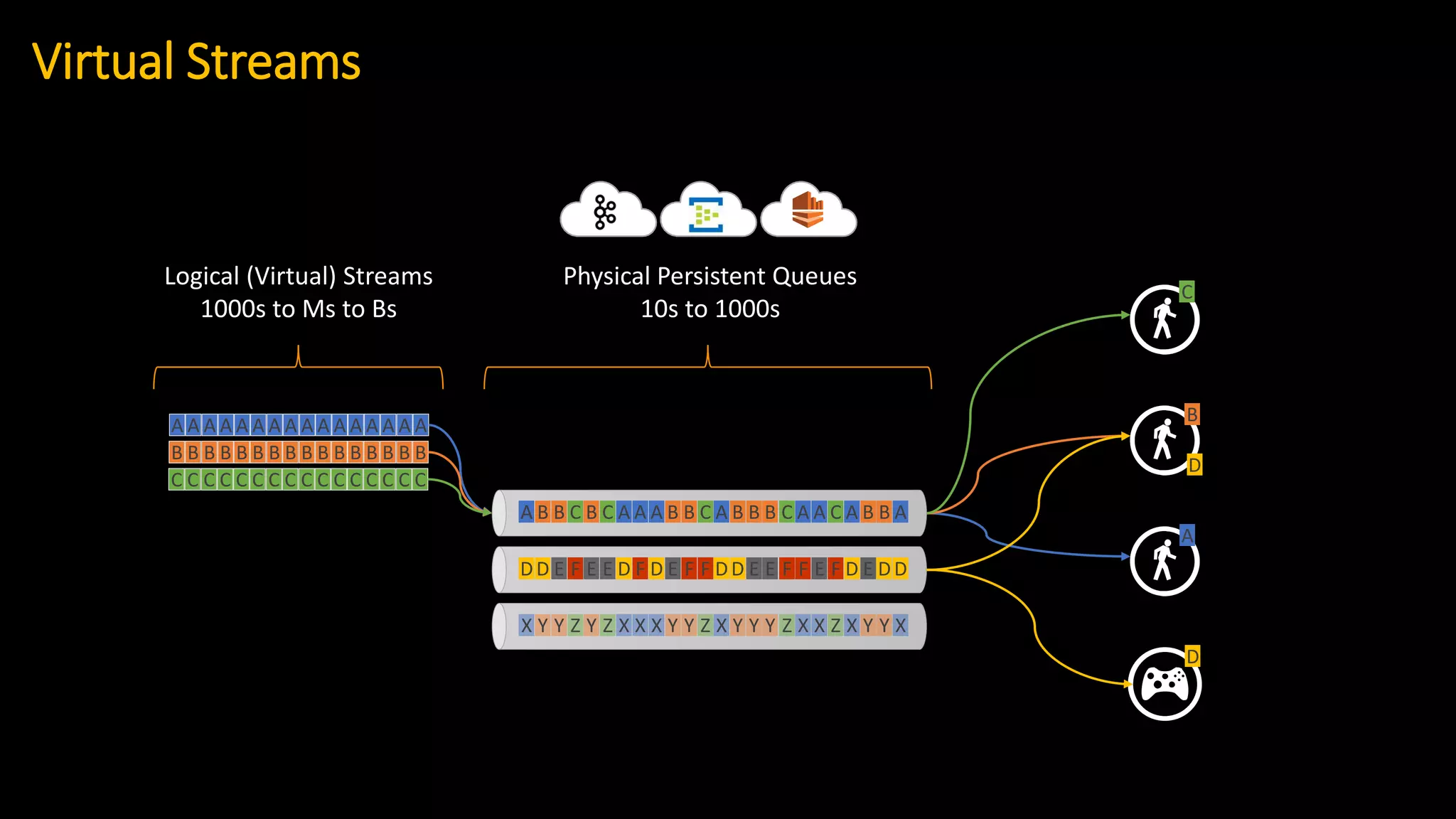

12. Virtual Streams
A A A A A A A A
B B B B B B B B
C C C C C C C C
A A A A A A A A
B B B B B B B B
C C C C C C C C
A B B C B C A A A B B C A B B B C A A C A B B A
DD E F E E D F D E F F DD E E F F E F D E DD
X Y Y Z Y Z X X X Y Y Z X Y Y Y Z X X Z X Y Y X
A
B
C
D
D
Logical (Virtual) Streams
1000s to Ms to Bs
Physical Persistent Queues
10s to 1000s

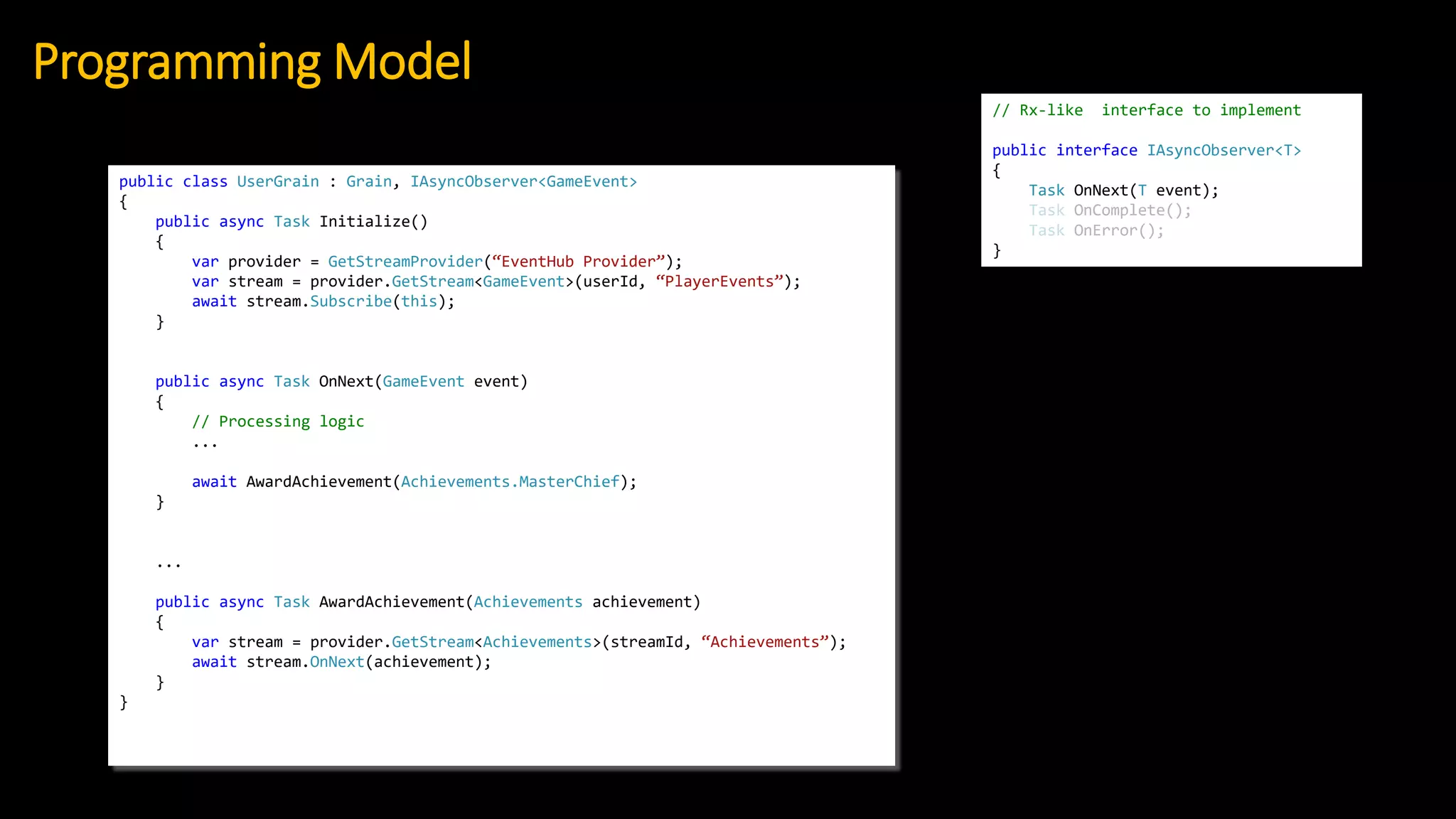

13. Programming Model
public class UserGrain : Grain, IAsyncObserver<GameEvent>
{
public async Task Initialize()
{
var provider = GetStreamProvider(“EventHub Provider”);
var stream = provider.GetStream<GameEvent>(userId, “PlayerEvents”);
await stream.Subscribe(this);
}
public async Task OnNext(GameEvent event)
{
// Processing logic
...
await AwardAchievement(Achievements.MasterChief);
}
...
public async Task AwardAchievement(Achievements achievement)
{
var stream = provider.GetStream<Achievements>(streamId, “Achievements”);
await stream.OnNext(achievement);
}
}
// Rx-like interface to implement
public interface IAsyncObserver<T>
{
Task OnNext(T event);
Task OnComplete();
Task OnError();
}

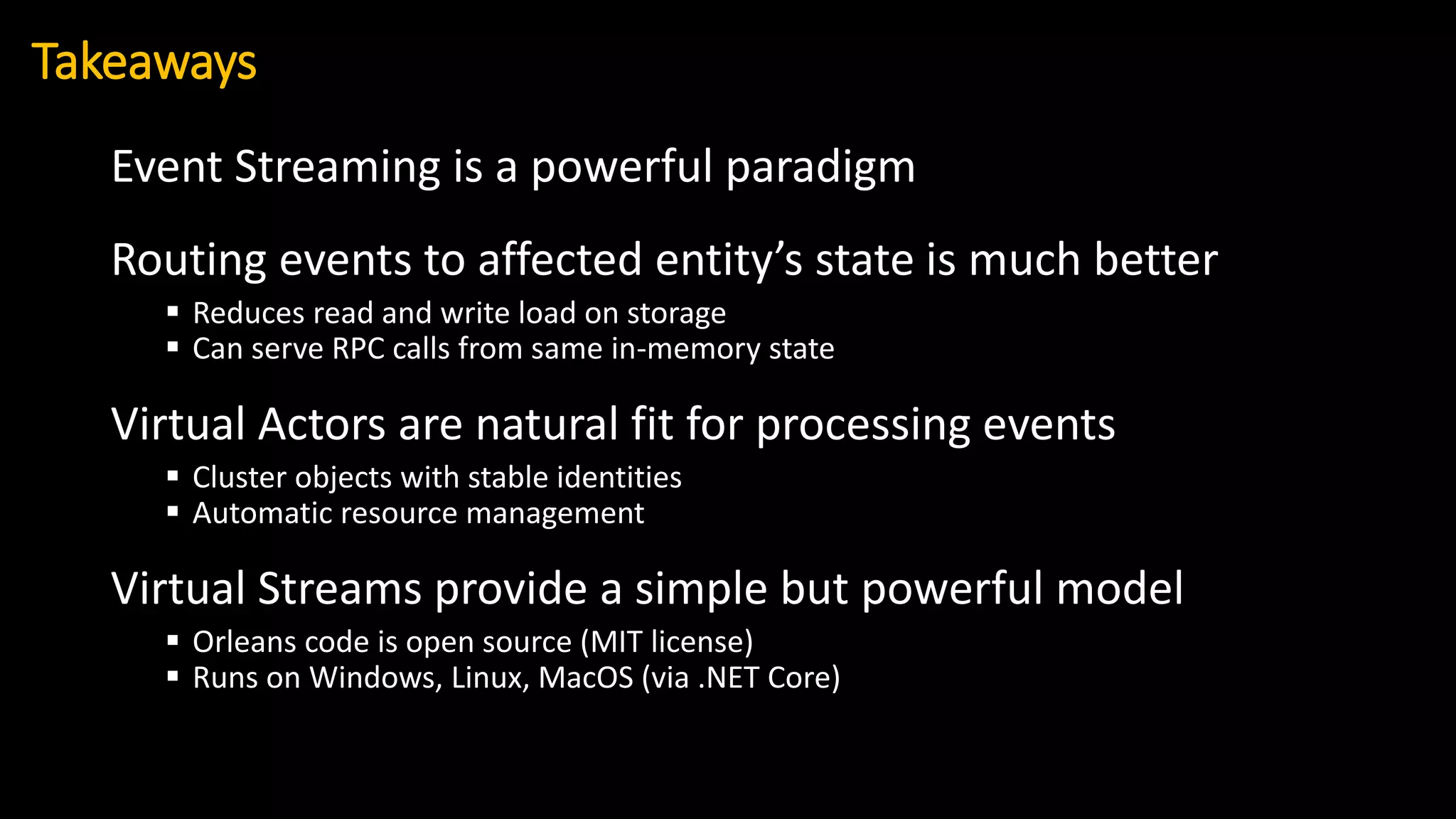

14. Event Streaming is a powerful paradigm
Routing events to affected entity’s state is much better
▪ Reduces read and write load on storage
▪ Can serve RPC calls from same in-memory state
Virtual Actors are natural fit for processing events
▪ Cluster objects with stable identities
▪ Automatic resource management
Virtual Streams provide a simple but powerful model
▪ Orleans code is open source (MIT license)
▪ Runs on Windows, Linux, MacOS (via .NET Core)
Takeaways

16. Muchas Gracias!
Sergey Bykov
Microsoft, @sergeybykov
