1

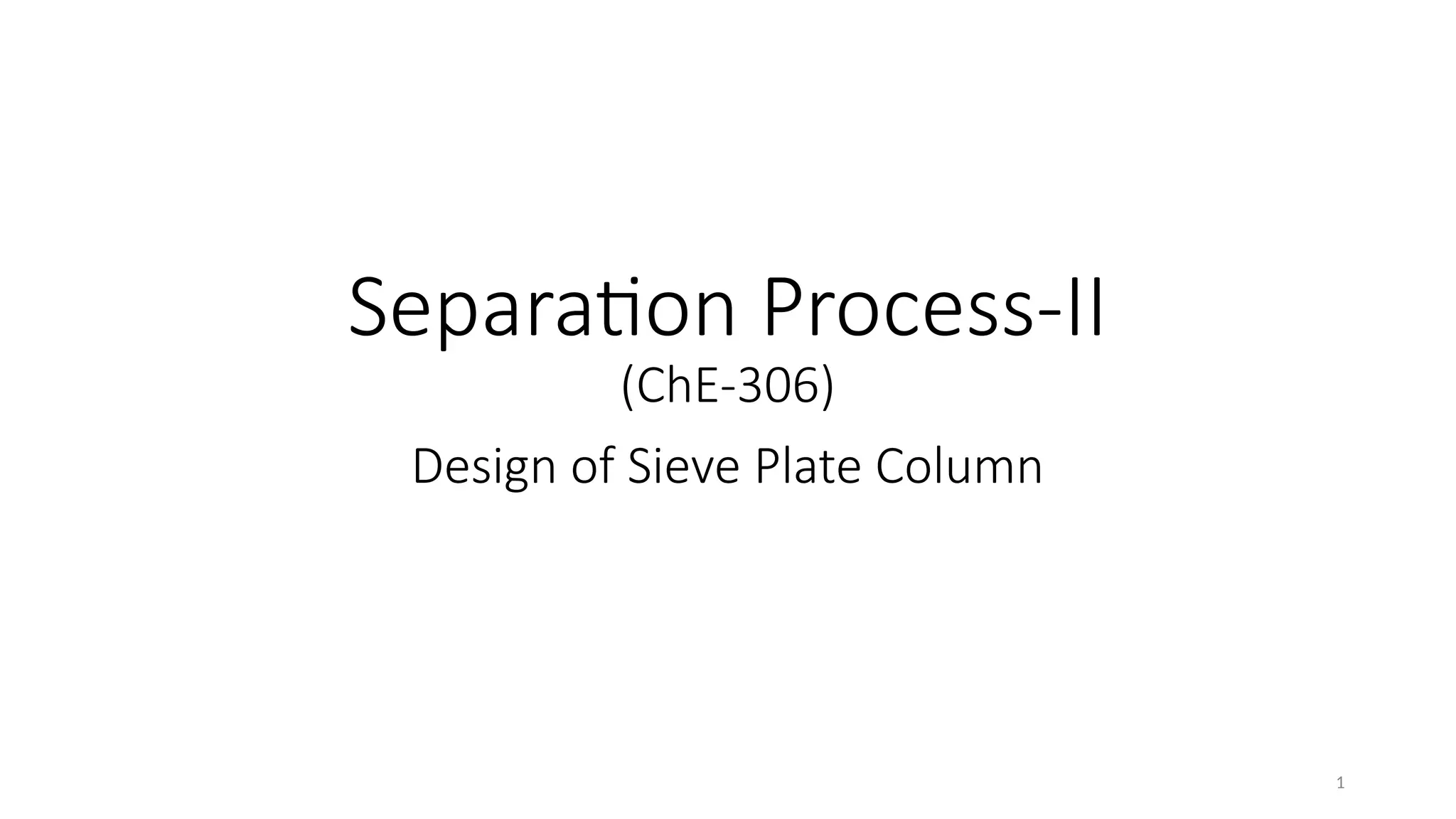

Separation Process-II
(ChE-306)
Design of Sieve Plate Column
2

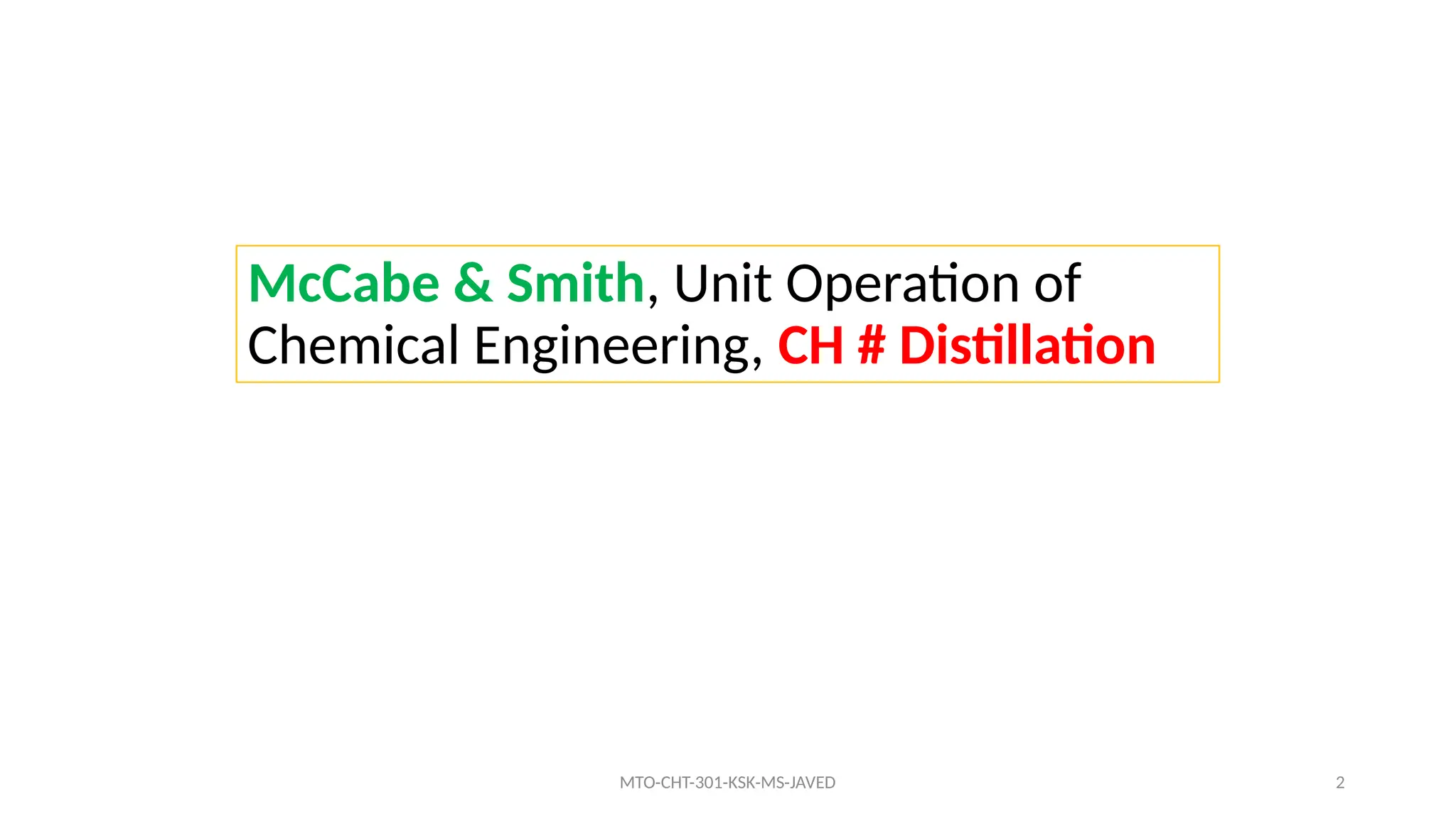

McCabe & Smith, Unit Operation of
Chemical Engineering, CH # Distillation
MTO-CHT-301-KSK-MS-JAVED
3

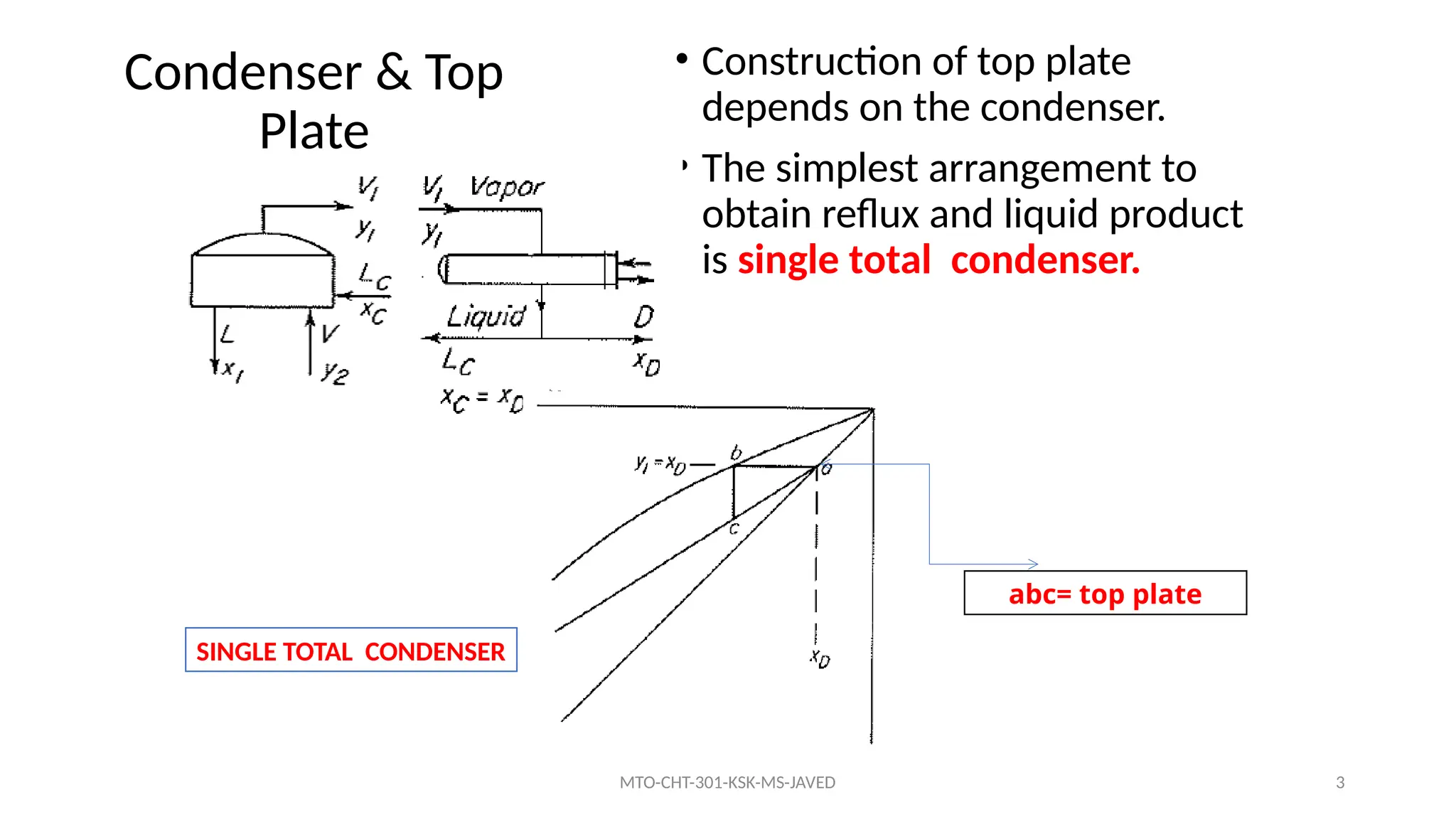

Condenser & Top
Plate
• Construction of top plate
depends on the condenser.
• The simplest arrangement to
obtain reflux and liquid product
is single total condenser.
SINGLE TOTAL CONDENSER
abc= top plate
MTO-CHT-301-KSK-MS-JAVED
4

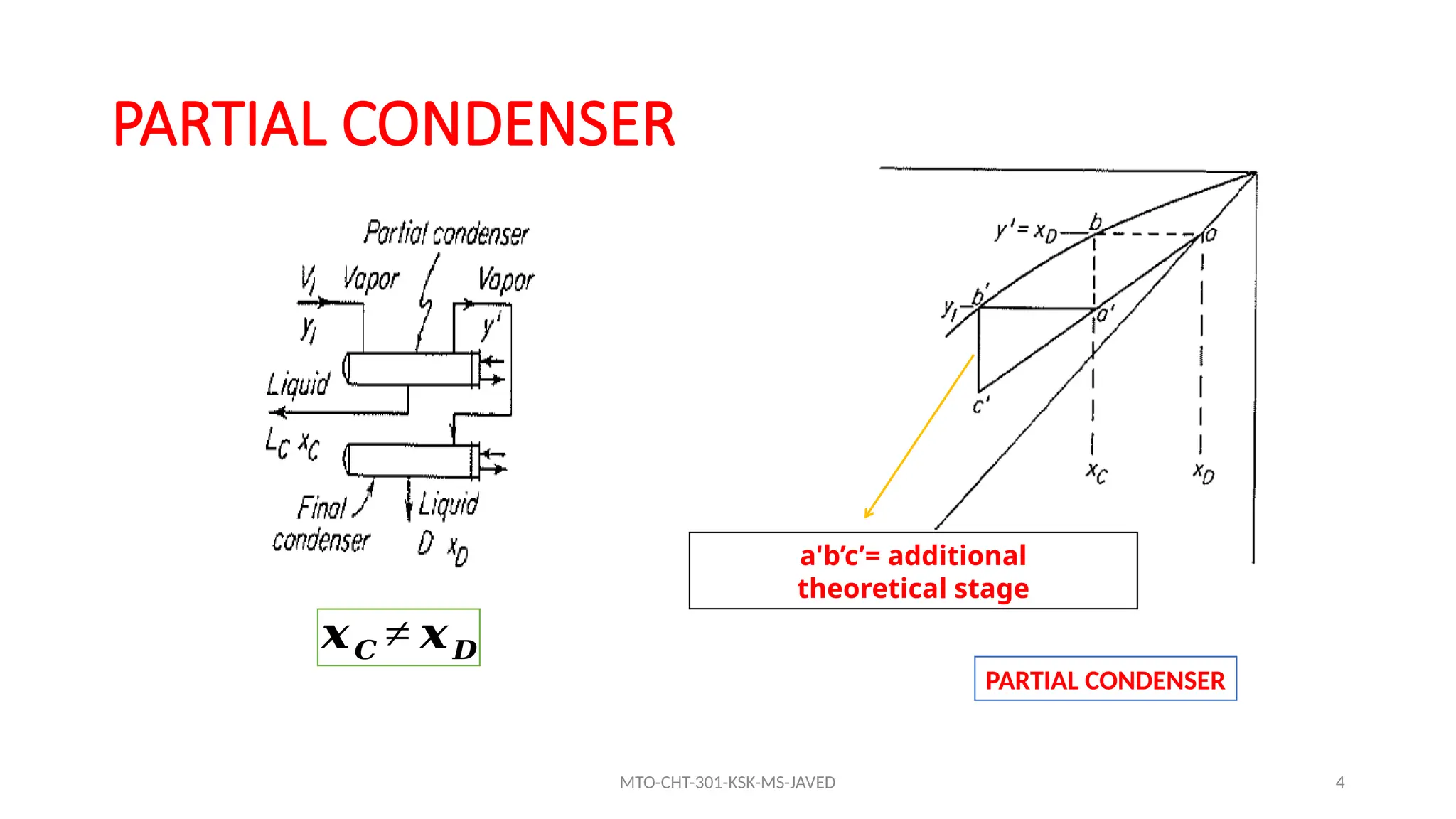

PARTIAL CONDENSER
PARTIAL CONDENSER
a'b’c’= additional
theoretical stage
𝒙𝑪 ≠ 𝒙𝑫
MTO-CHT-301-KSK-MS-JAVED
5

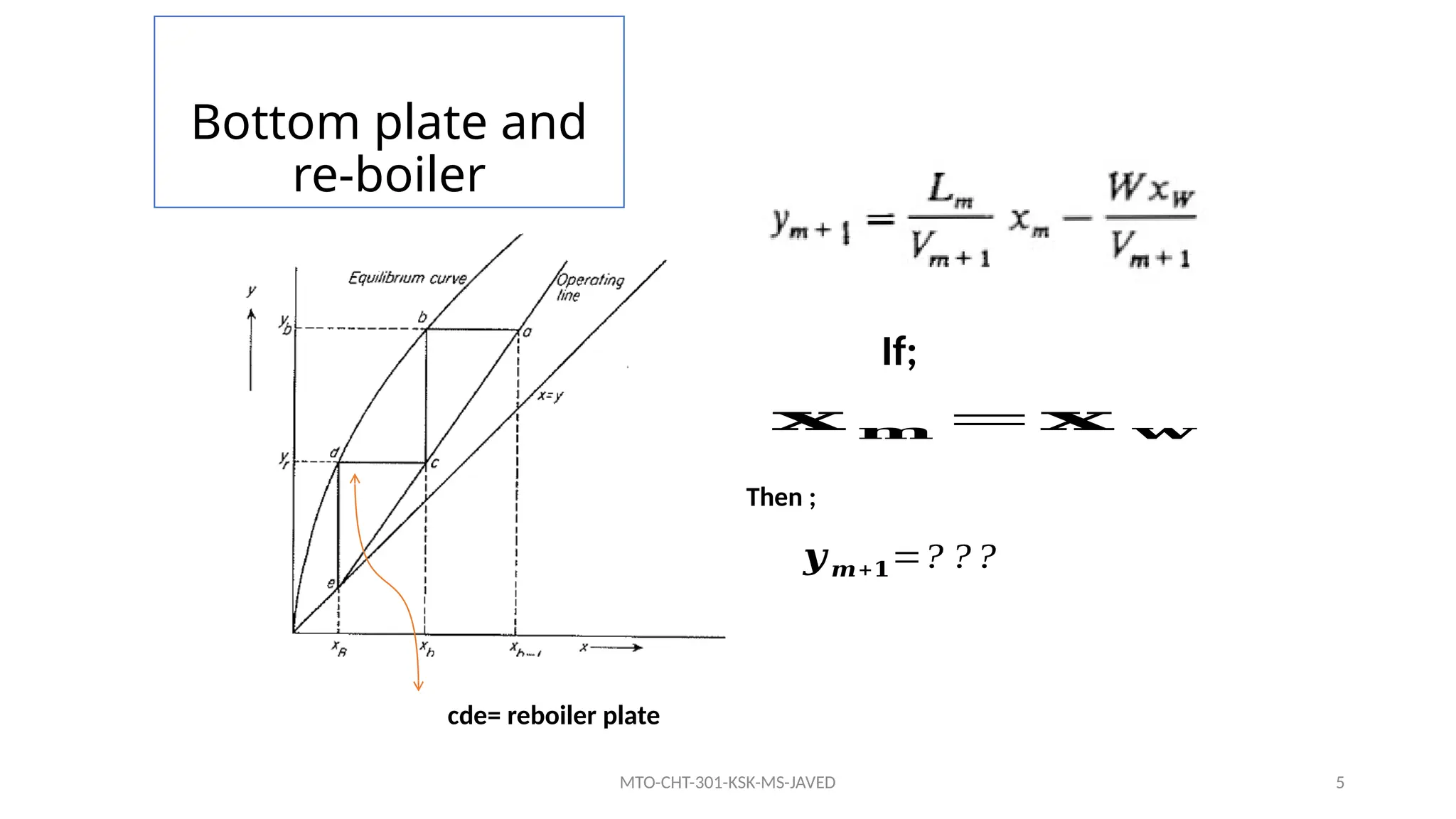

Bottom plate and
re-boiler
𝐱 𝐦 =𝐱 𝐰
If;
Then ;
𝒚𝒎+𝟏=? ??
cde= reboiler plate
MTO-CHT-301-KSK-MS-JAVED
6
Invariant Zone
Recall min reflux ratio
• At min. reflux ratio an acute angle is formed.
• It contains an infinite no of plates.
• At this point, there is no change in liquid and vapor concentration.
• The term “Invariant Zone” is used to describe these infinite no of
plates.
• It is also known as “PINCH POINT”.
MTO-CHT-301-KSK-MS-JAVED
7
Design of Sieve Plate Column
8

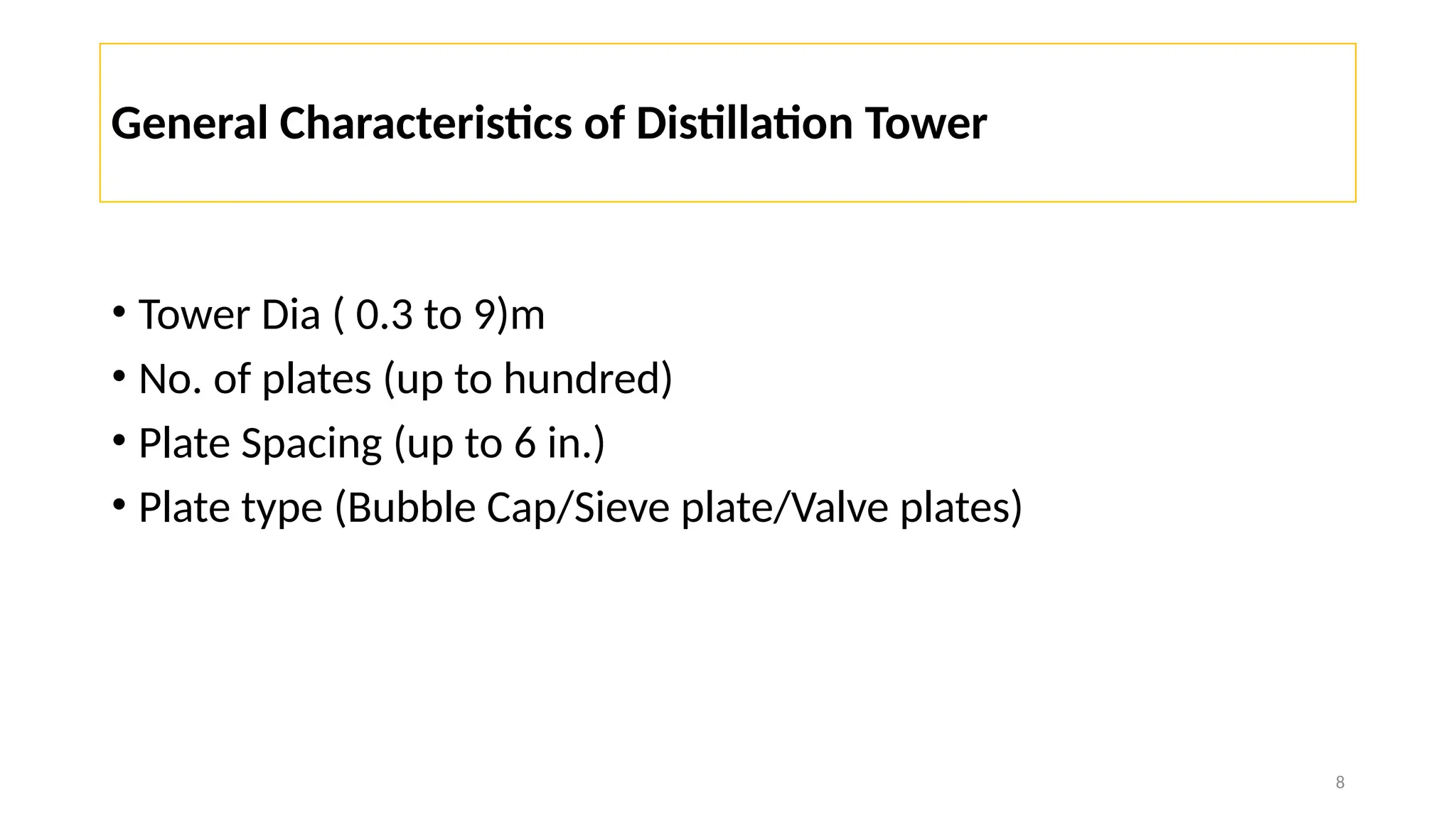

General Characteristics of Distillation Tower
• Tower Dia ( 0.3 to 9)m
• No. of plates (up to hundred)
• Plate Spacing (up to 6 in.)
• Plate type (Bubble Cap/Sieve plate/Valve plates)
9

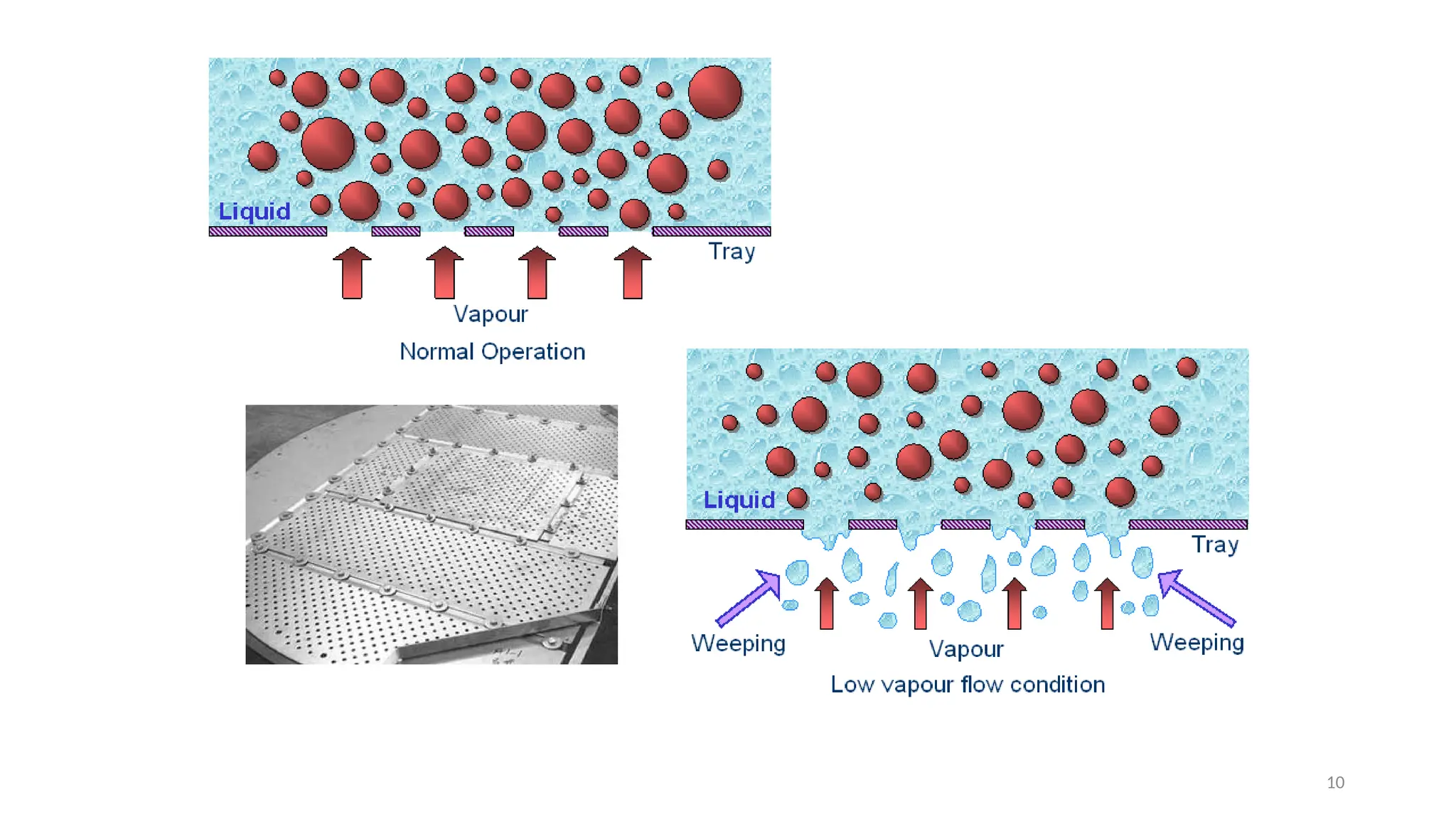

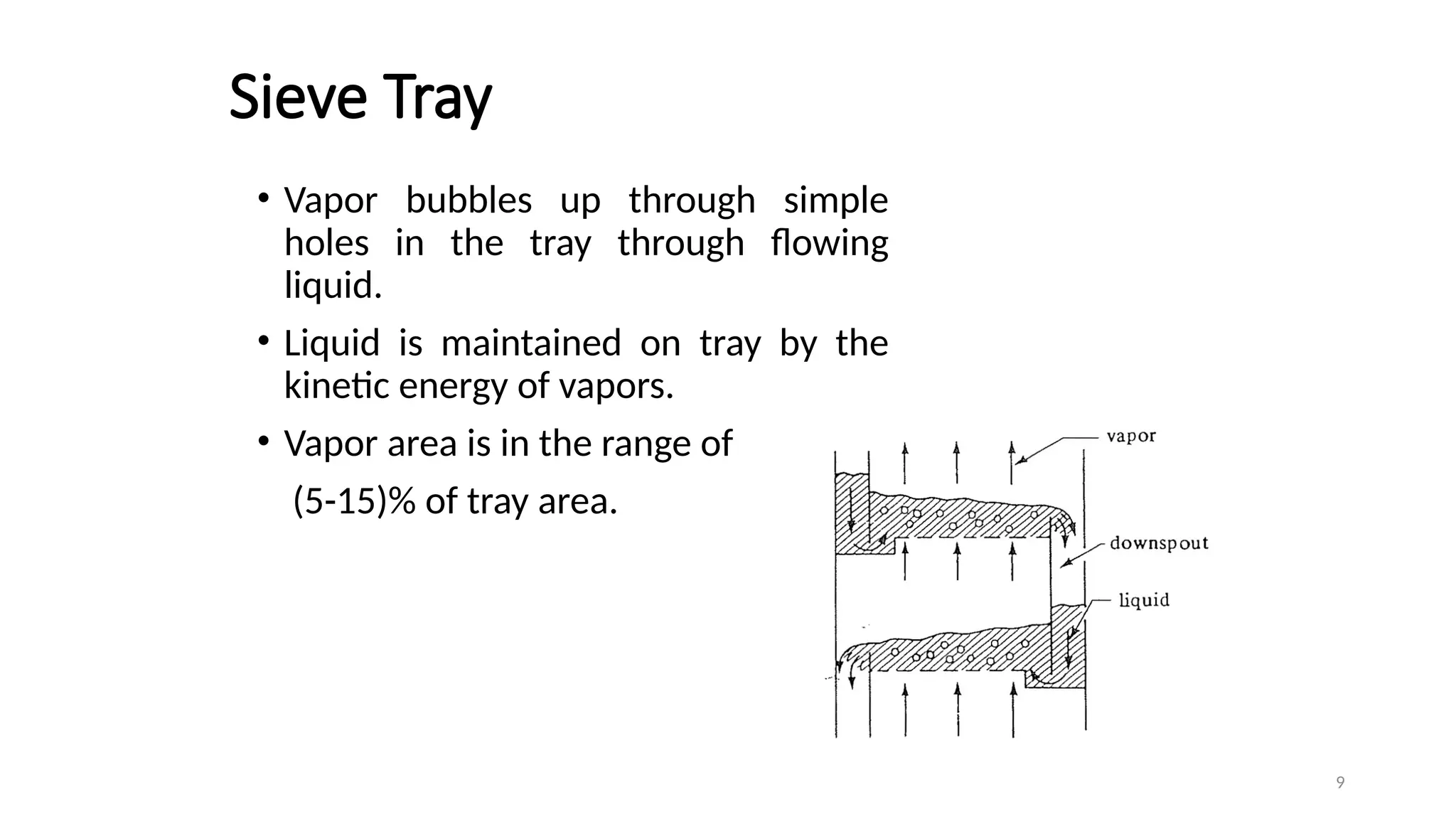

Sieve Tray
• Vapor bubbles up through simple
holes in the tray through flowing
liquid.
• Liquid is maintained on tray by the
kinetic energy of vapors.
• Vapor area is in the range of
(5-15)% of tray area.
10
11

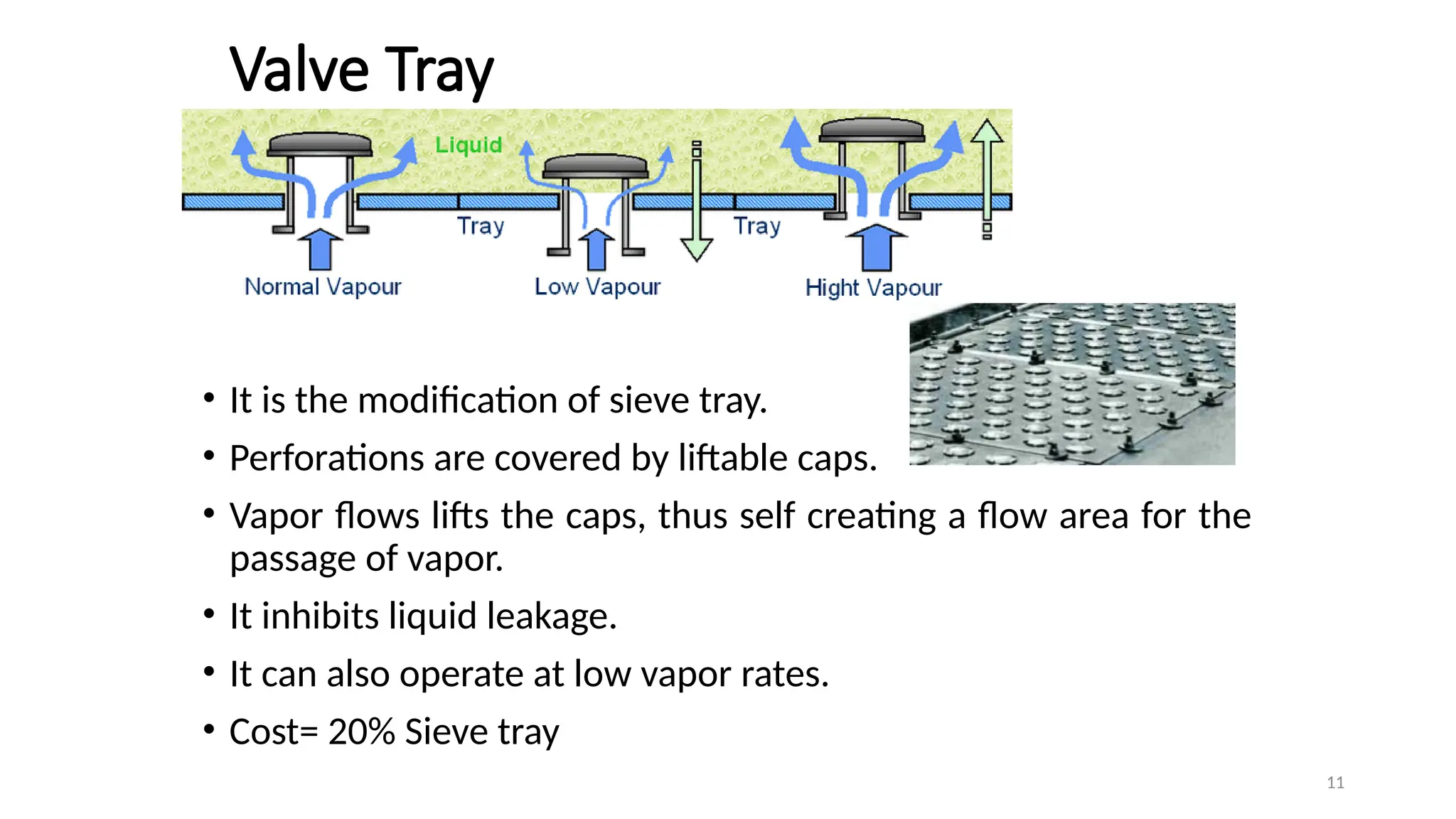

Valve Tray
• It is the modification of sieve tray.
• Perforations are covered by liftable caps.
• Vapor flows lifts the caps, thus self creating a flow area for the
passage of vapor.
• It inhibits liquid leakage.
• It can also operate at low vapor rates.
• Cost= 20% Sieve tray
12

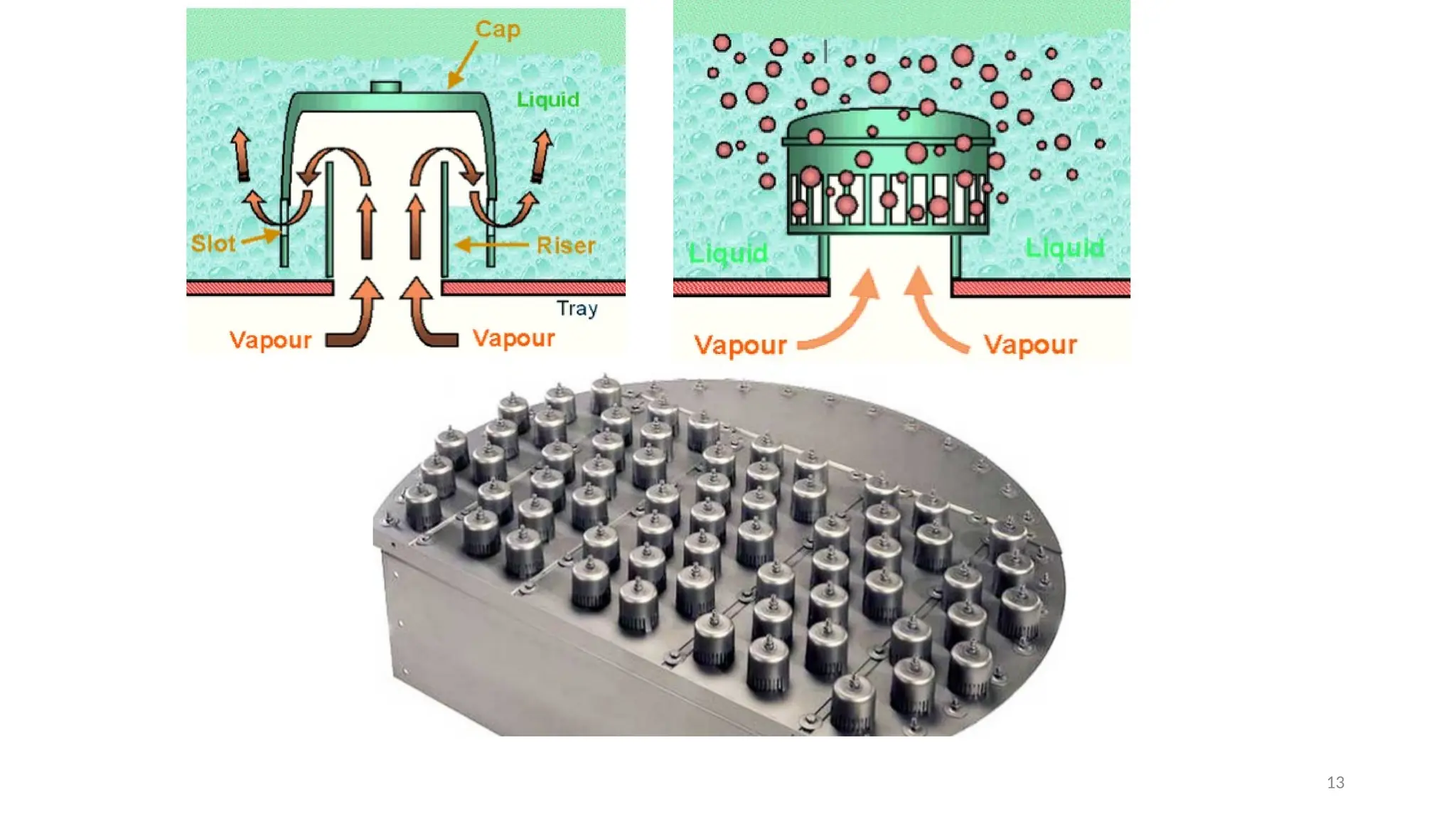

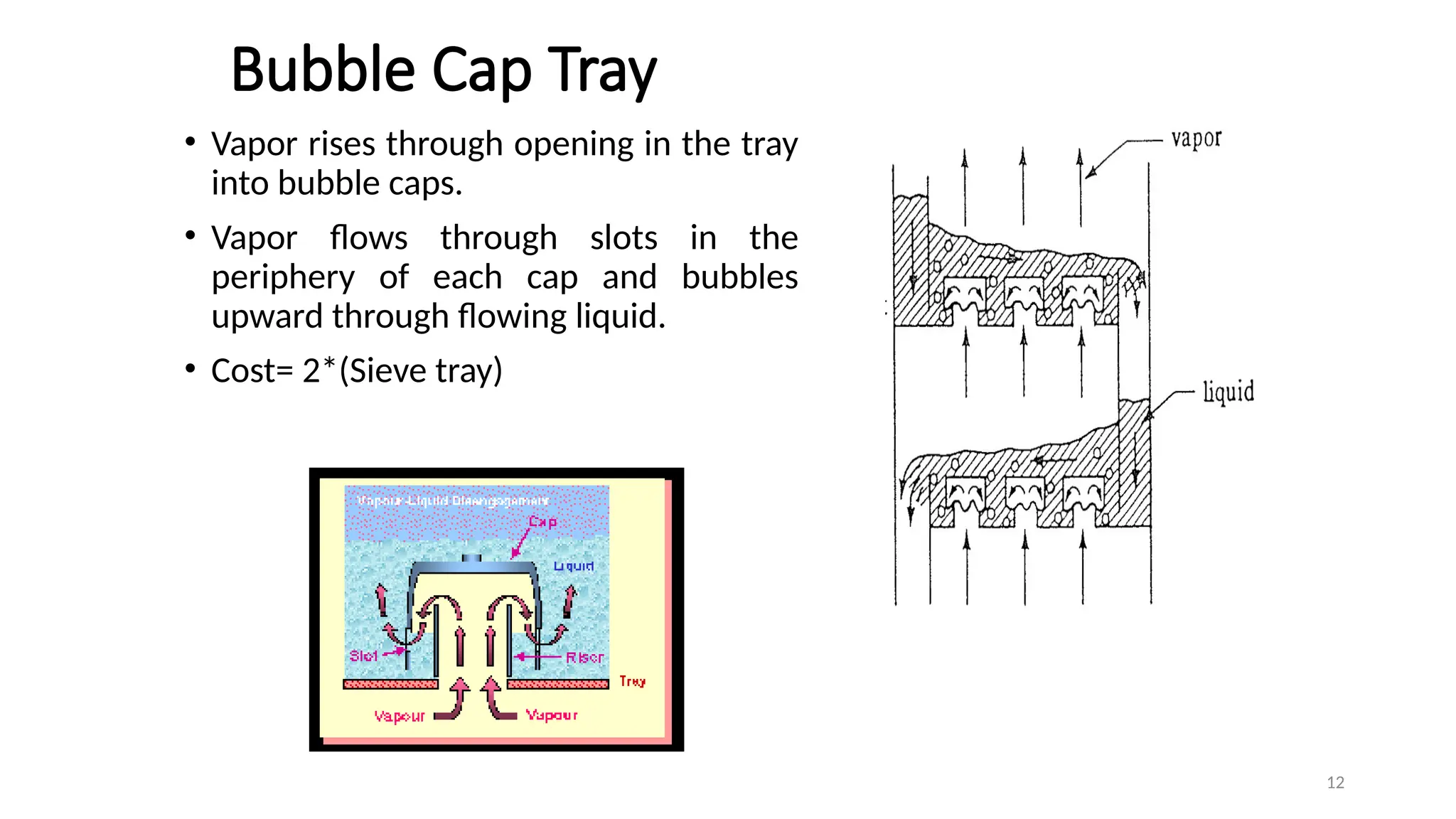

Bubble Cap Tray
• Vapor rises through opening in the tray
into bubble caps.
• Vapor flows through slots in the
periphery of each cap and bubbles
upward through flowing liquid.
• Cost= 2*(Sieve tray)
13
14
Packings versus Trays
• A tray column that is facing throughput problems may be de-
bottlenecked by replacing a section of trays with packings.
Advantages of packings
• packings provide extra inter-facial area for liquid-vapour contact
• efficiency of separation is increased for the same column height
• packed columns are shorter than trayed columns
15

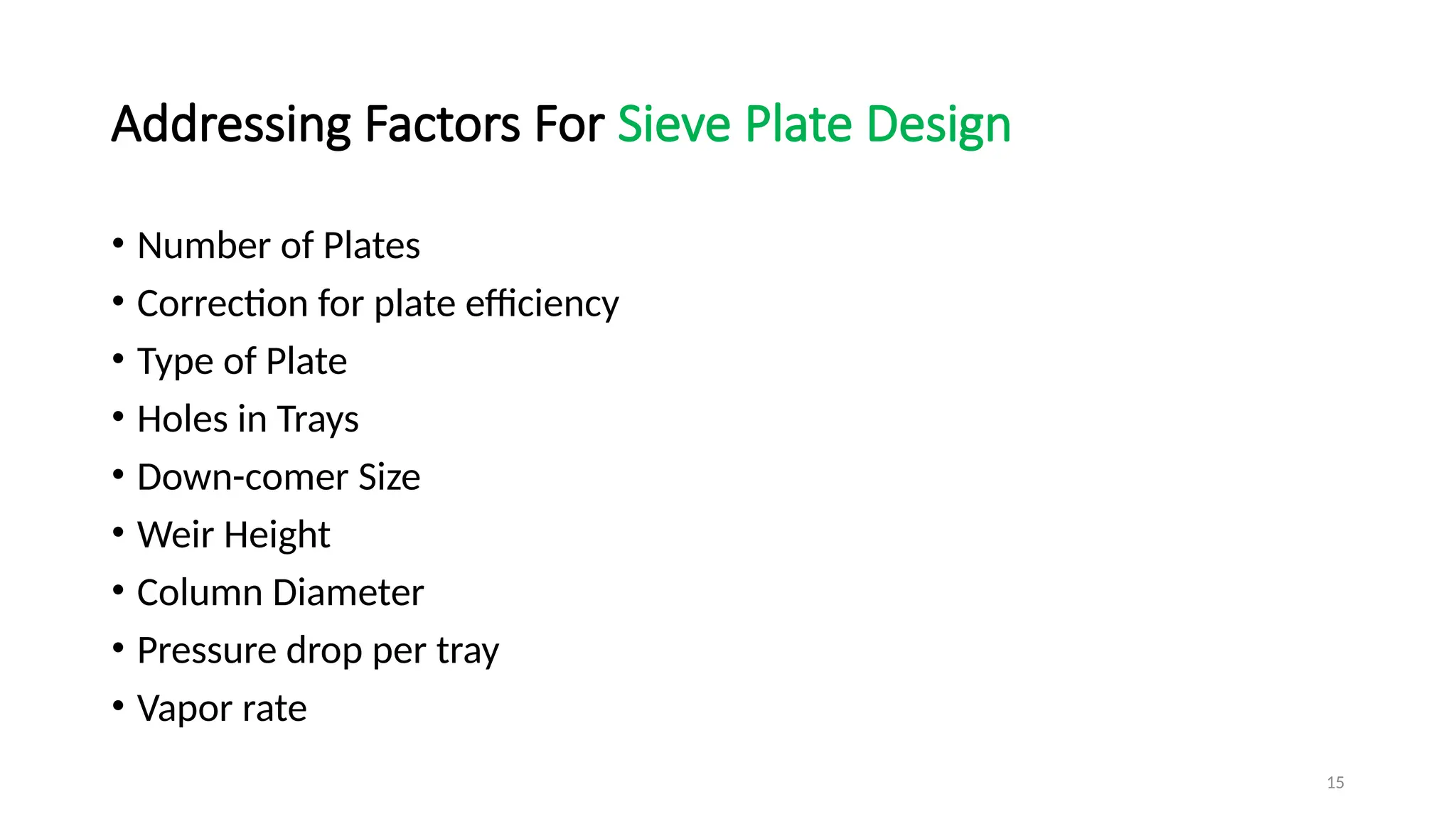

Addressing Factors For Sieve Plate Design
• Number of Plates
• Correction for plate efficiency
• Type of Plate
• Holes in Trays
• Down-comer Size
• Weir Height
• Column Diameter
• Pressure drop per tray
• Vapor rate
16

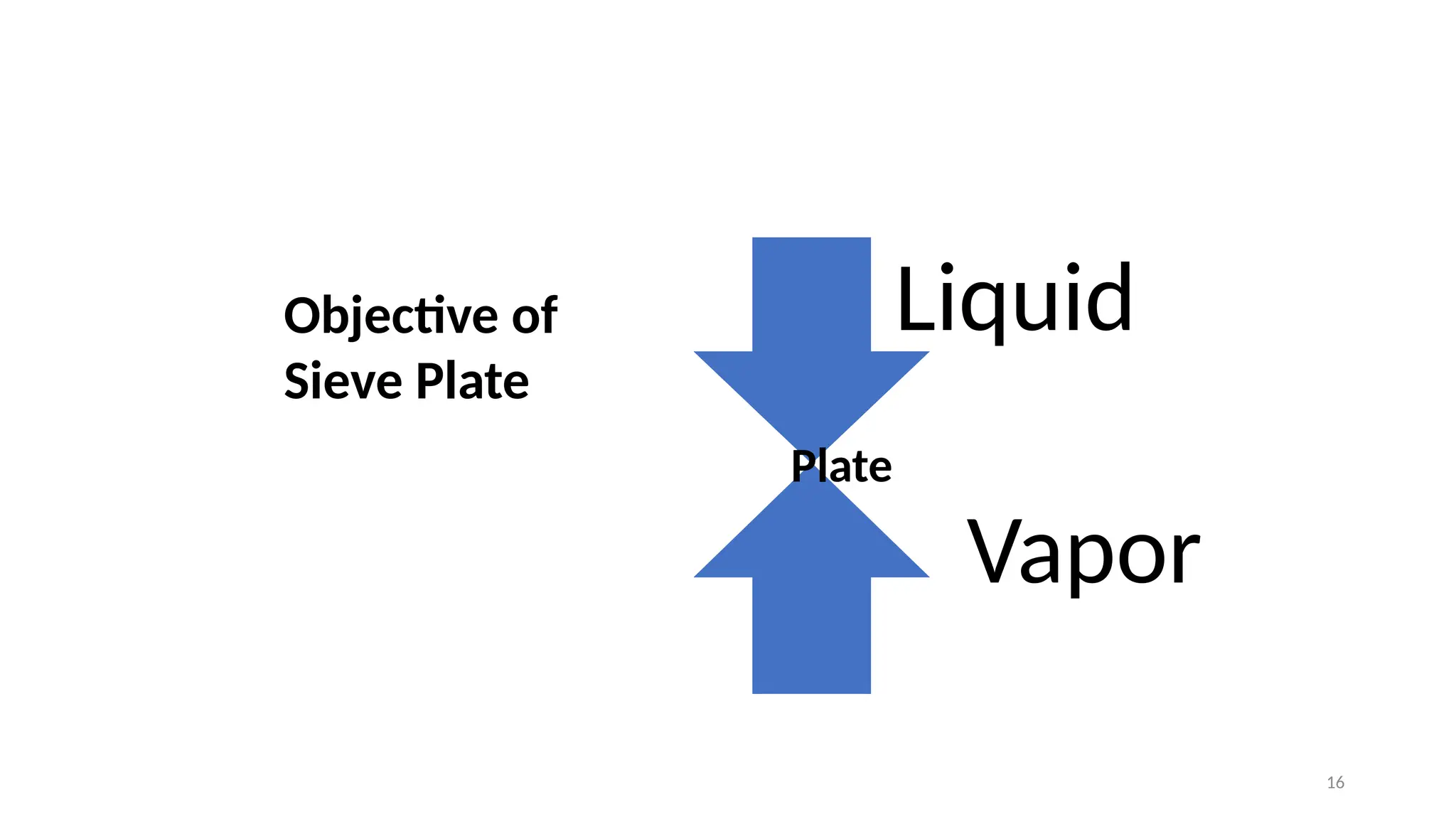

Liquid
Vapor
Plate
Objective of
Sieve Plate
17

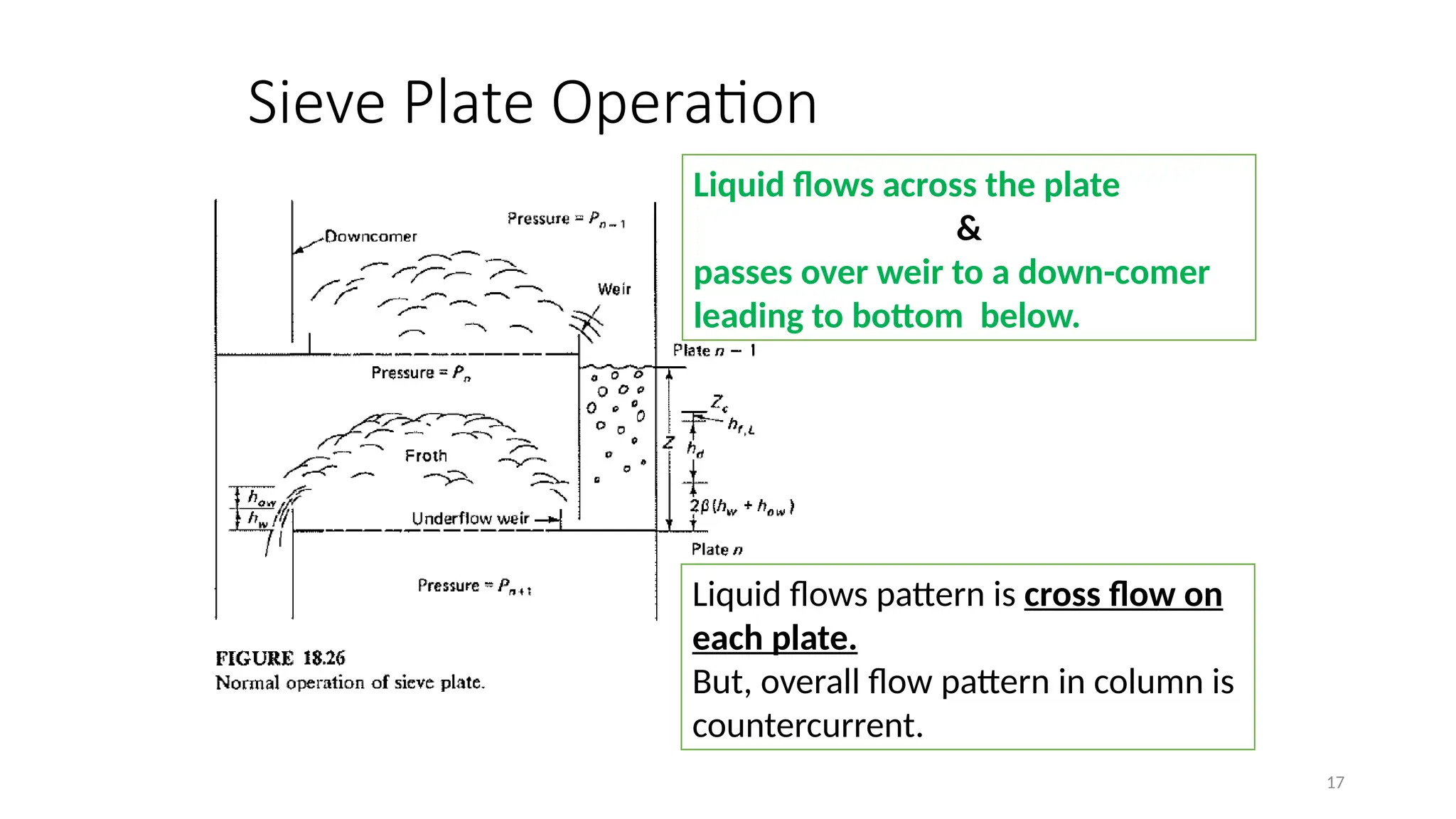

Sieve Plate Operation
Liquid flows across the plate
&
passes over weir to a down-comer
leading to bottom below.
Liquid flows pattern is cross flow on
each plate.
But, overall flow pattern in column is
countercurrent.
18

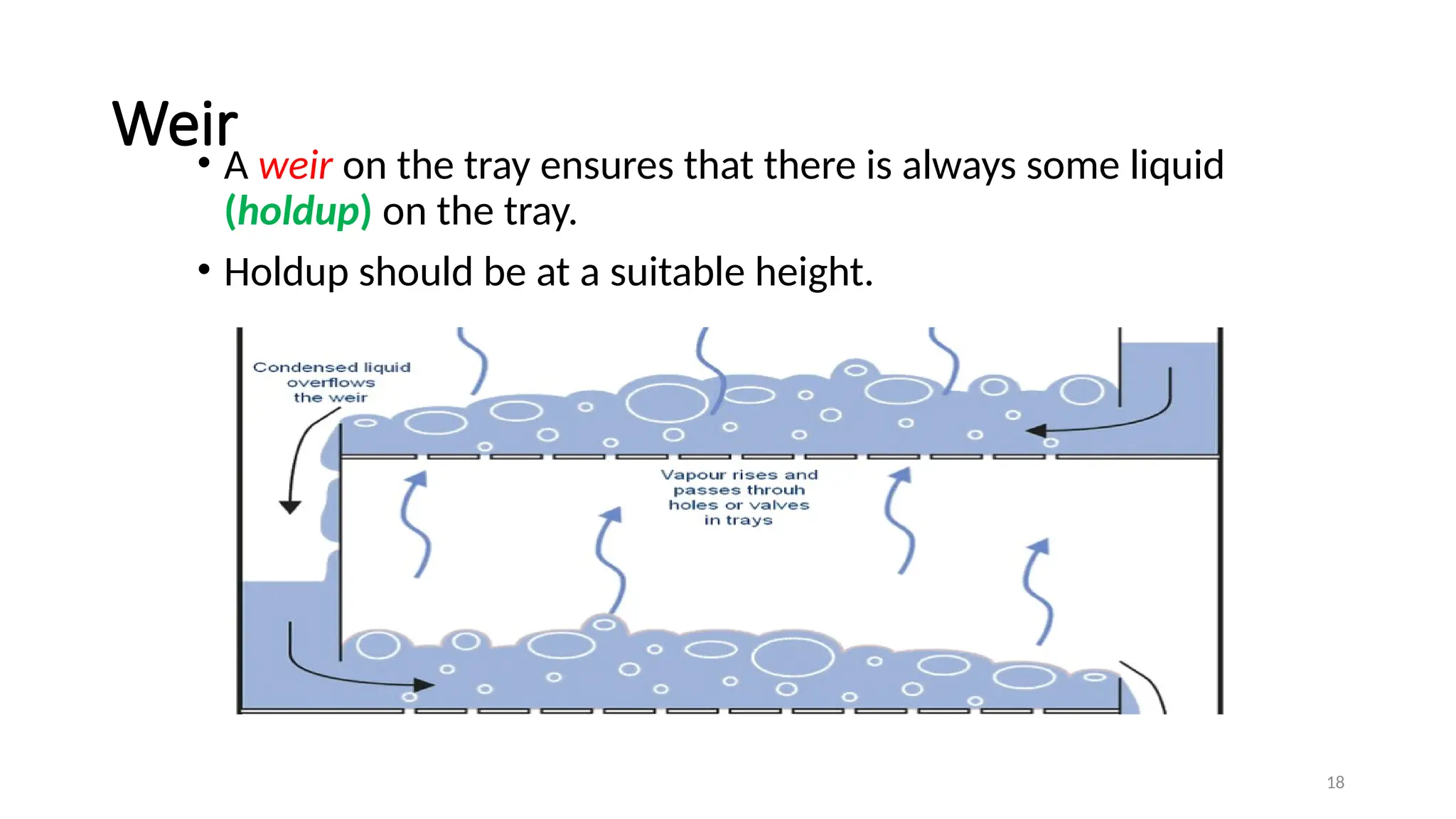

Weir
• A weir on the tray ensures that there is always some liquid
(holdup) on the tray.
• Holdup should be at a suitable height.
19
Downcomer • It is usually a pipe, welded
to the plate.
• It is used to transport fluid in
downward direction.
• It covers (10-15)% of column
X-section area.
20

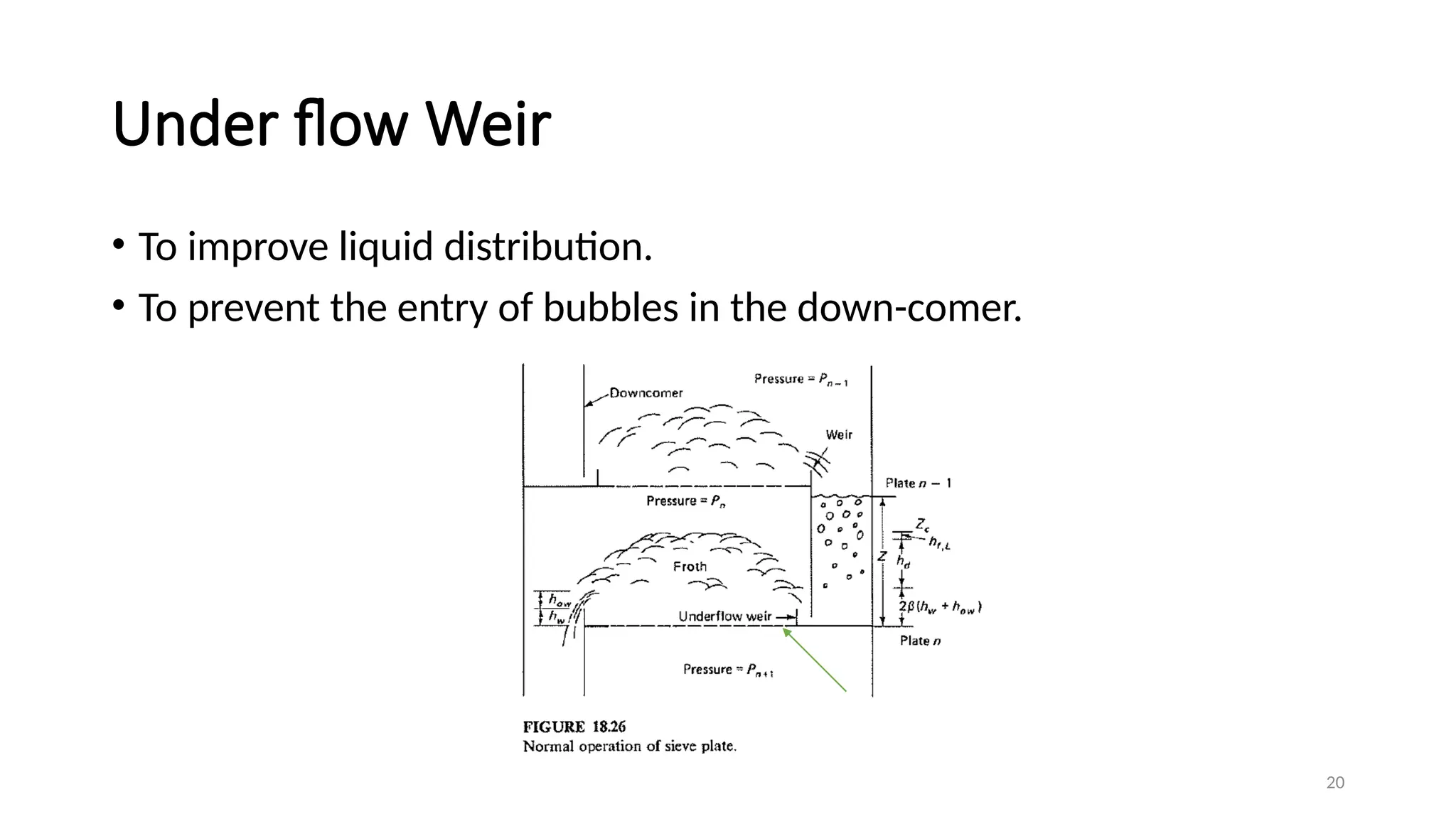

Under flow Weir
• To improve liquid distribution.
• To prevent the entry of bubbles in the down-comer.
21
Vapor Flow
• Flow of vapor in upward
direction is occurred through
holes.
• Holes are arranged in
triangular pattern
• Hole size ( 5-12) mm.
22
Vapor Velocity
• Velocity of upward moving vapors should
be high enough that can create frothy
mixture of liquid and vapors .
• It can provide large surface area for mass
transfer.
• Froth density = 0.2* liquid density
• Froth height should be several times high
than liquid height on plate.
23
Vapor Pressure Drop
• is needed;
1. to make flow of vapors through perforated regions
2. to make liquid flow on the plate.
Pressure drop across a single plate is 50-70 mm H2O.
24

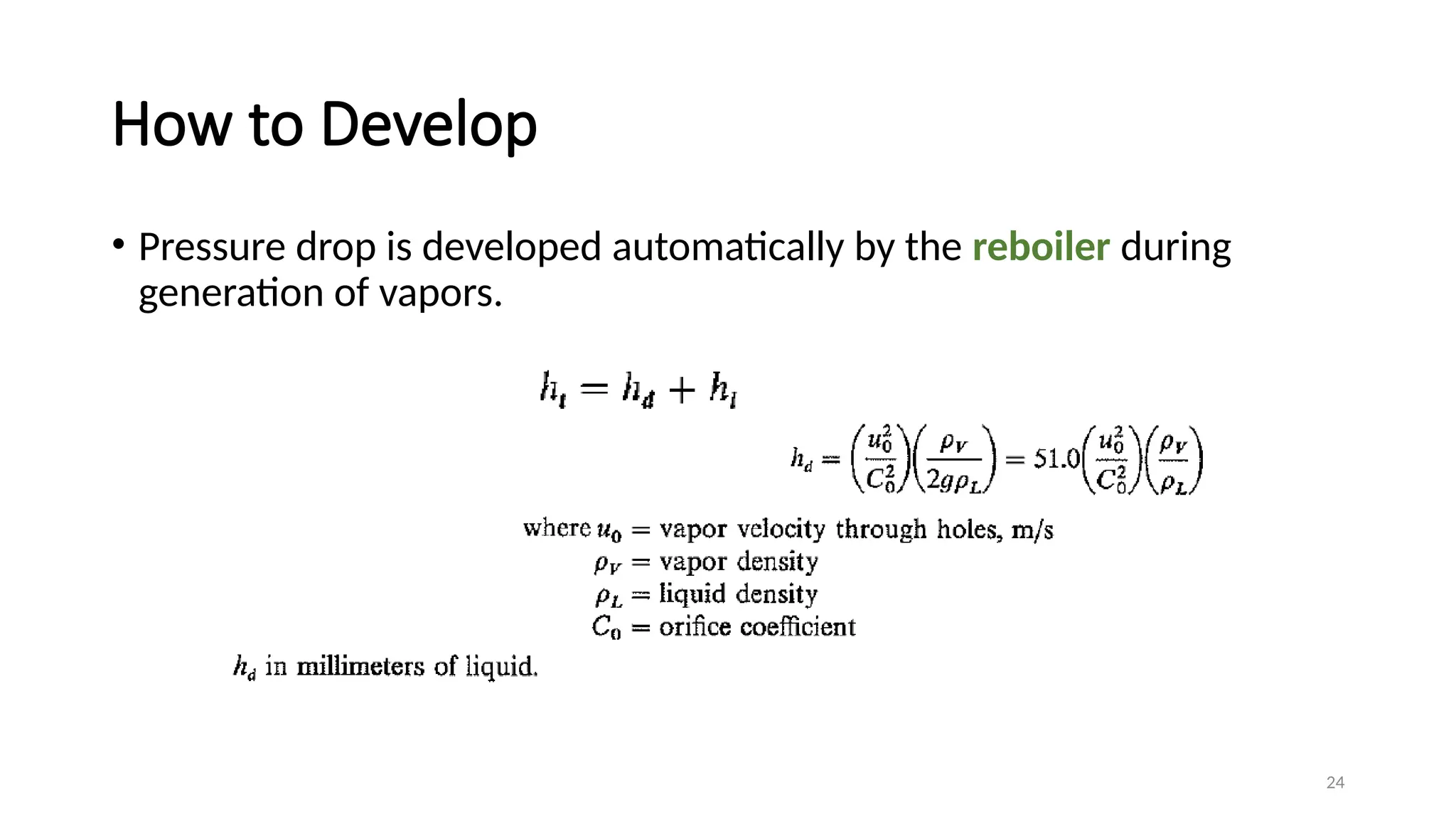

How to Develop
• Pressure drop is developed automatically by the reboiler during
generation of vapors.
25

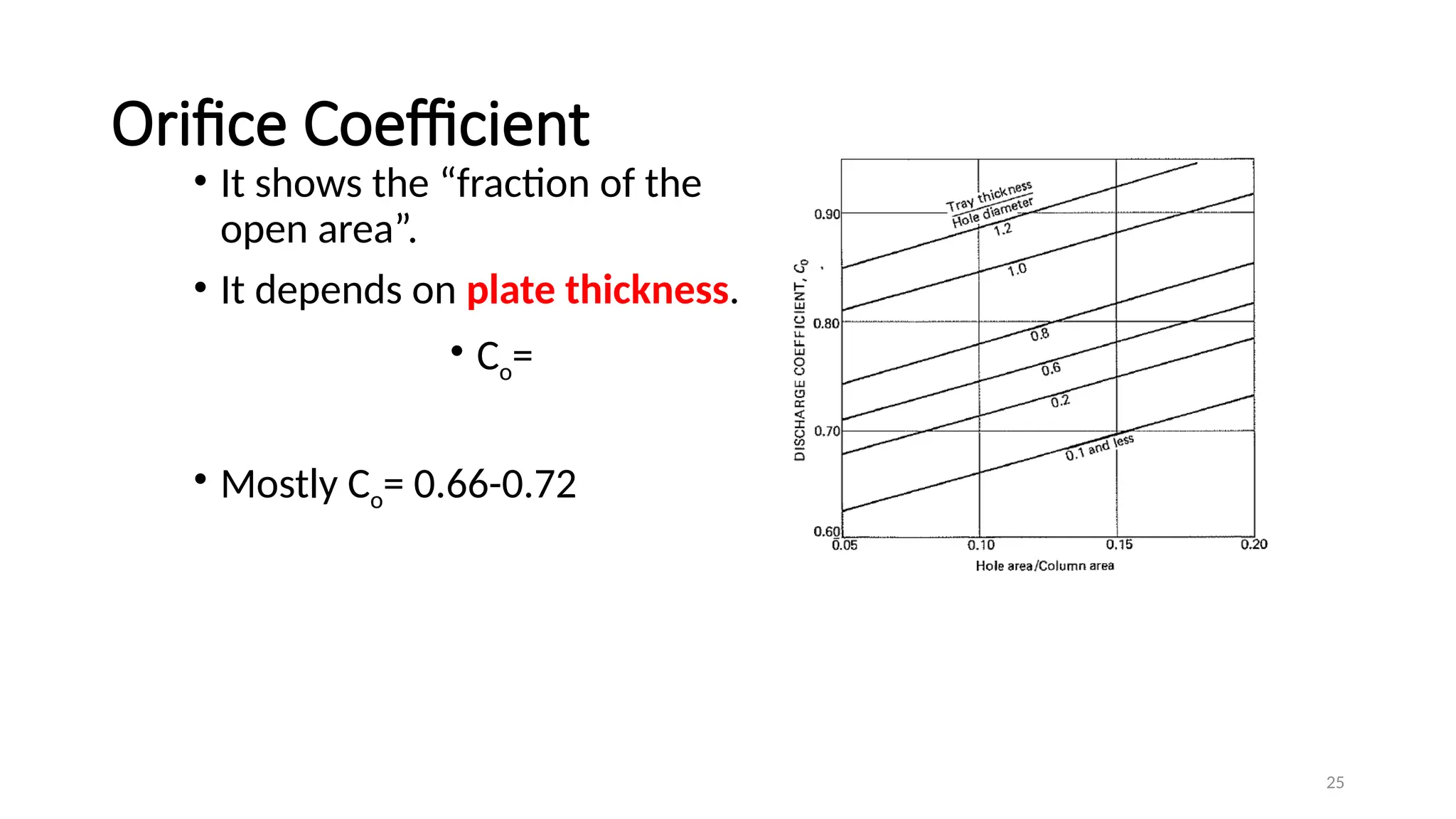

Orifice Coefficient
• It shows the “fraction of the
open area”.
• It depends on plate thickness.
• Co=
• Mostly Co= 0.66-0.72
26

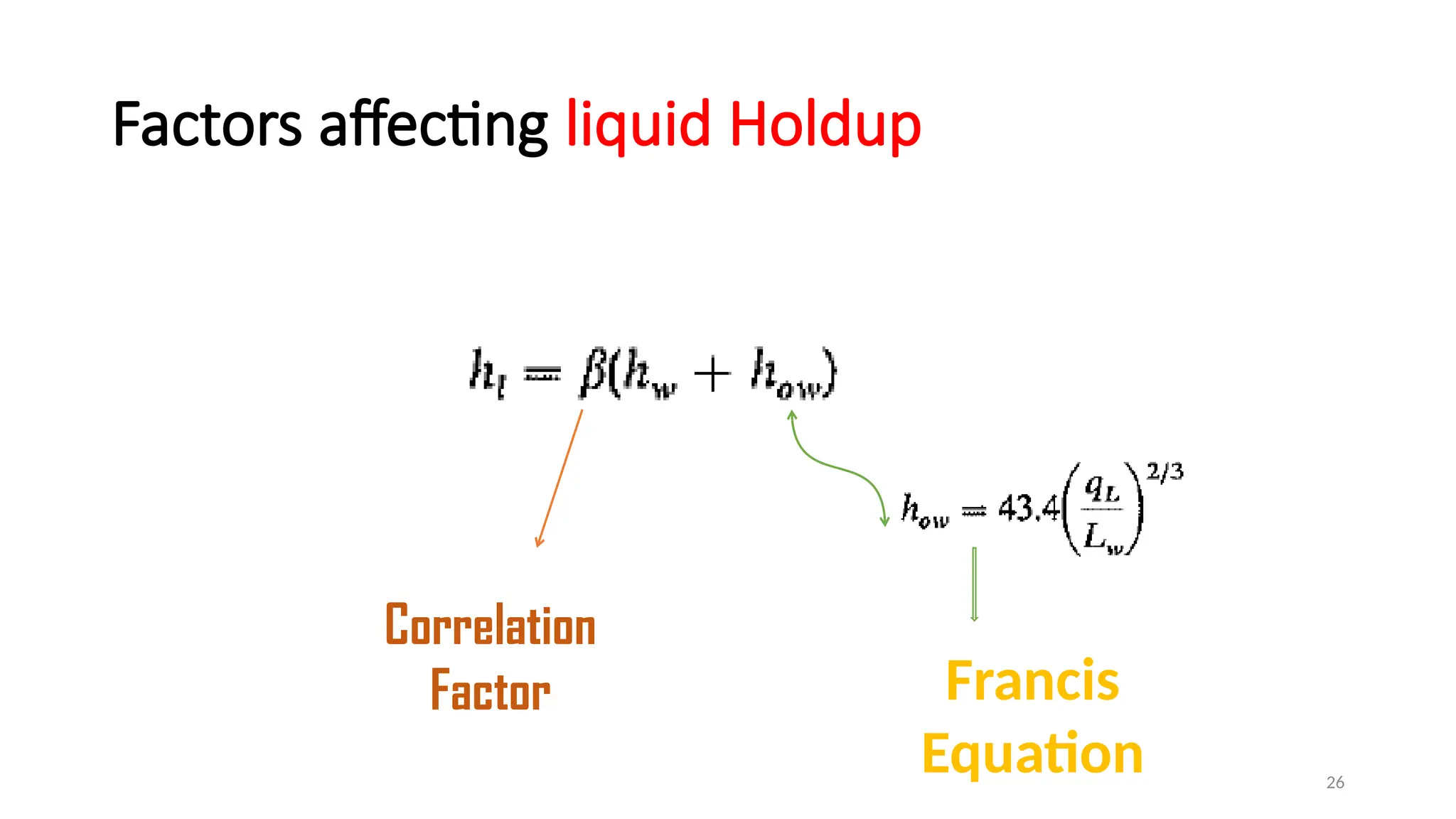

Factors affecting liquid Holdup
Francis
Equation
Correlation
Factor
27
Downcomer Level
• Level in downcomer must be greater or less than level
on plate?
Liquid
volume
fraction
Height of aerated liquid
28

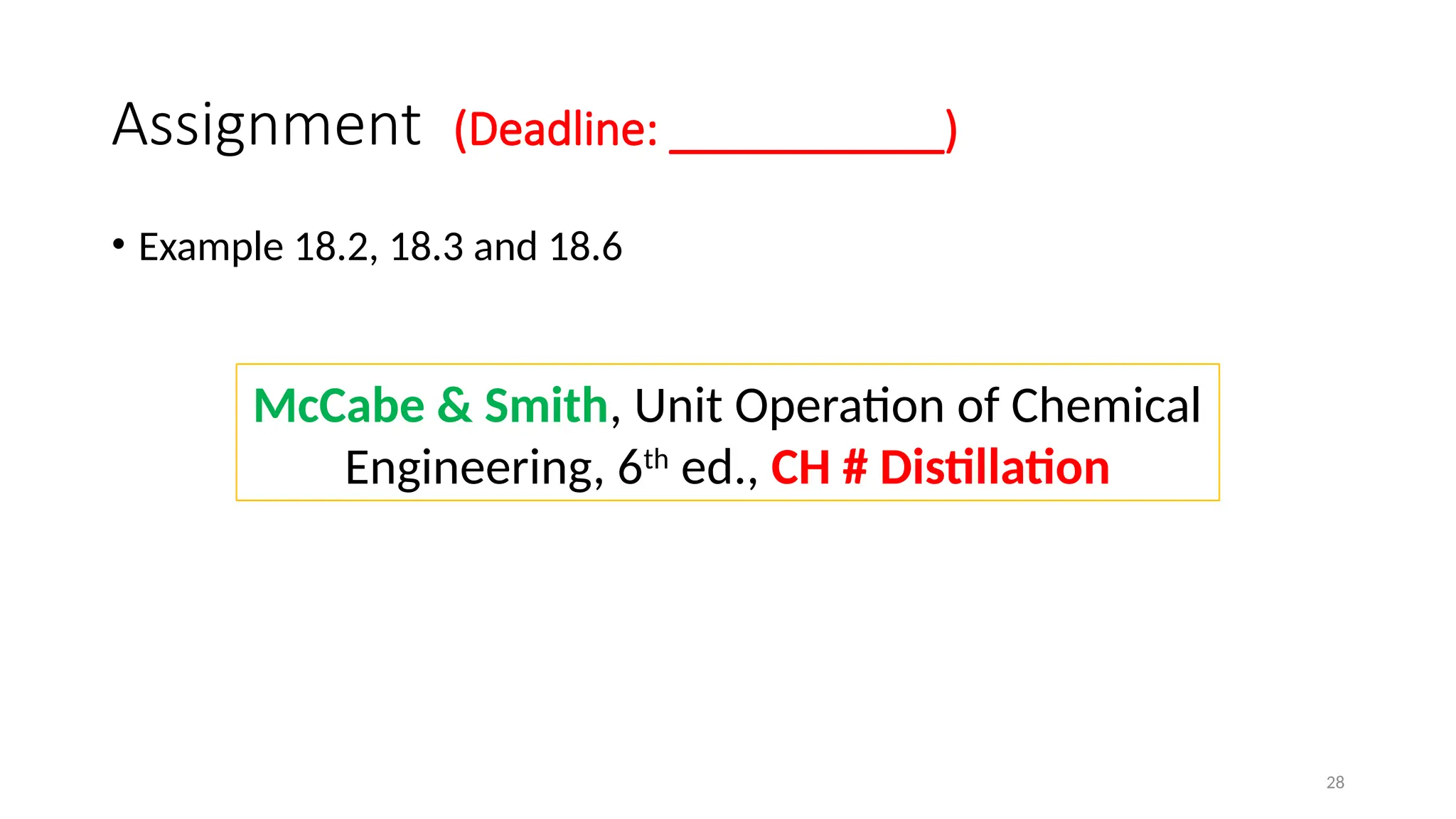

Assignment (Deadline: ___________)
• Example 18.2, 18.3 and 18.6
McCabe & Smith, Unit Operation of Chemical
Engineering, 6th
ed., CH # Distillation
29

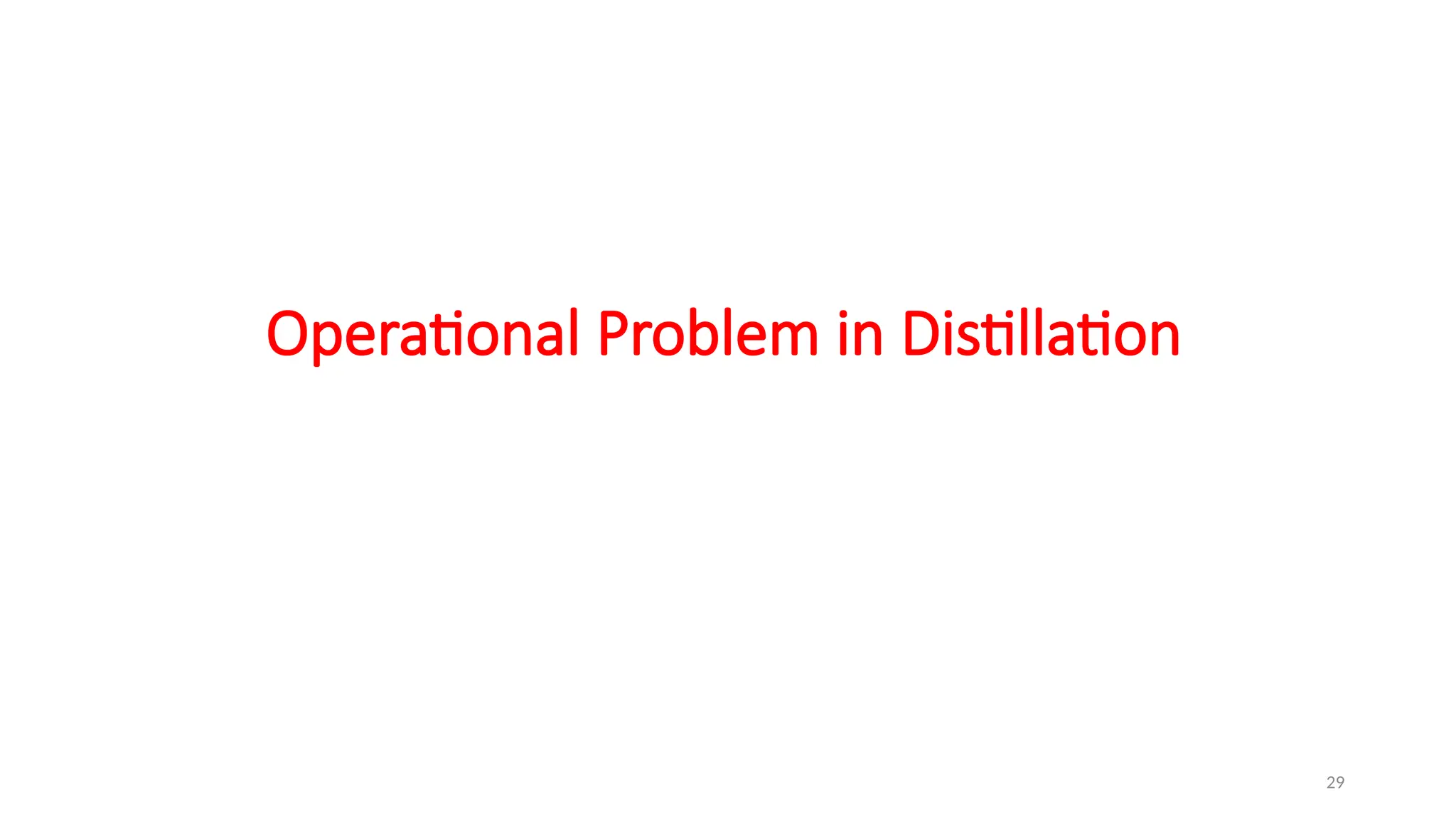

Operational Problem in Distillation
30
Flooding
• Flooding Occurs when;
“height of aerated liquid becomes greater than plate spacing”.
Flooding >>> due to excessive vapor flow
What is the consequence of flooding???
Flow to next plate is hindered
31

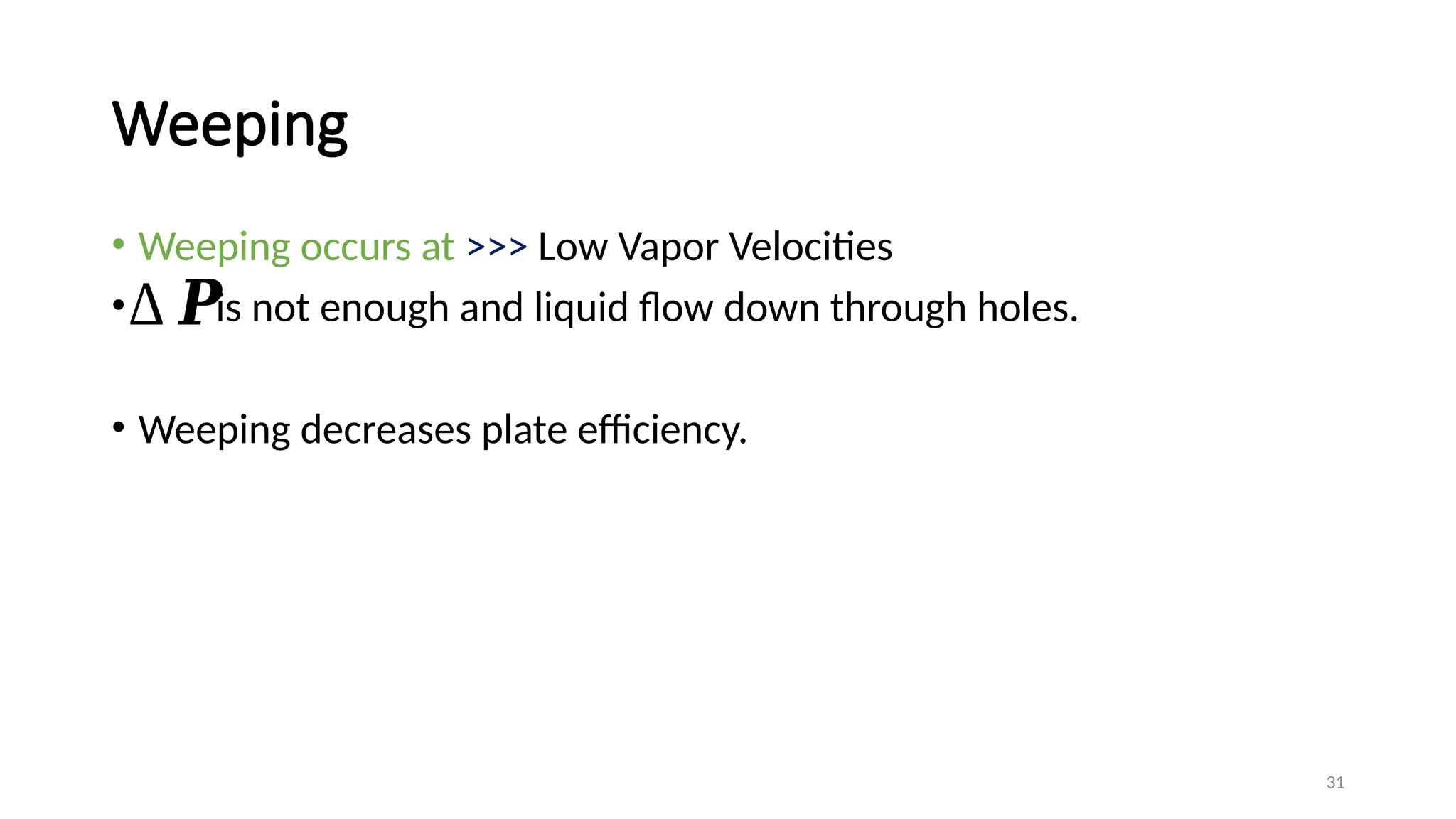

Weeping
• Weeping occurs at >>> Low Vapor Velocities
• is not enough and liquid flow down through holes.
• Weeping decreases plate efficiency.
∆ 𝑷
32
Entrainment
• A phenomenon where small portion of liquor undergoes vaporization
which is carried out by vapors as a droplet in a condenser.
• Results in contamination of
condensate
33

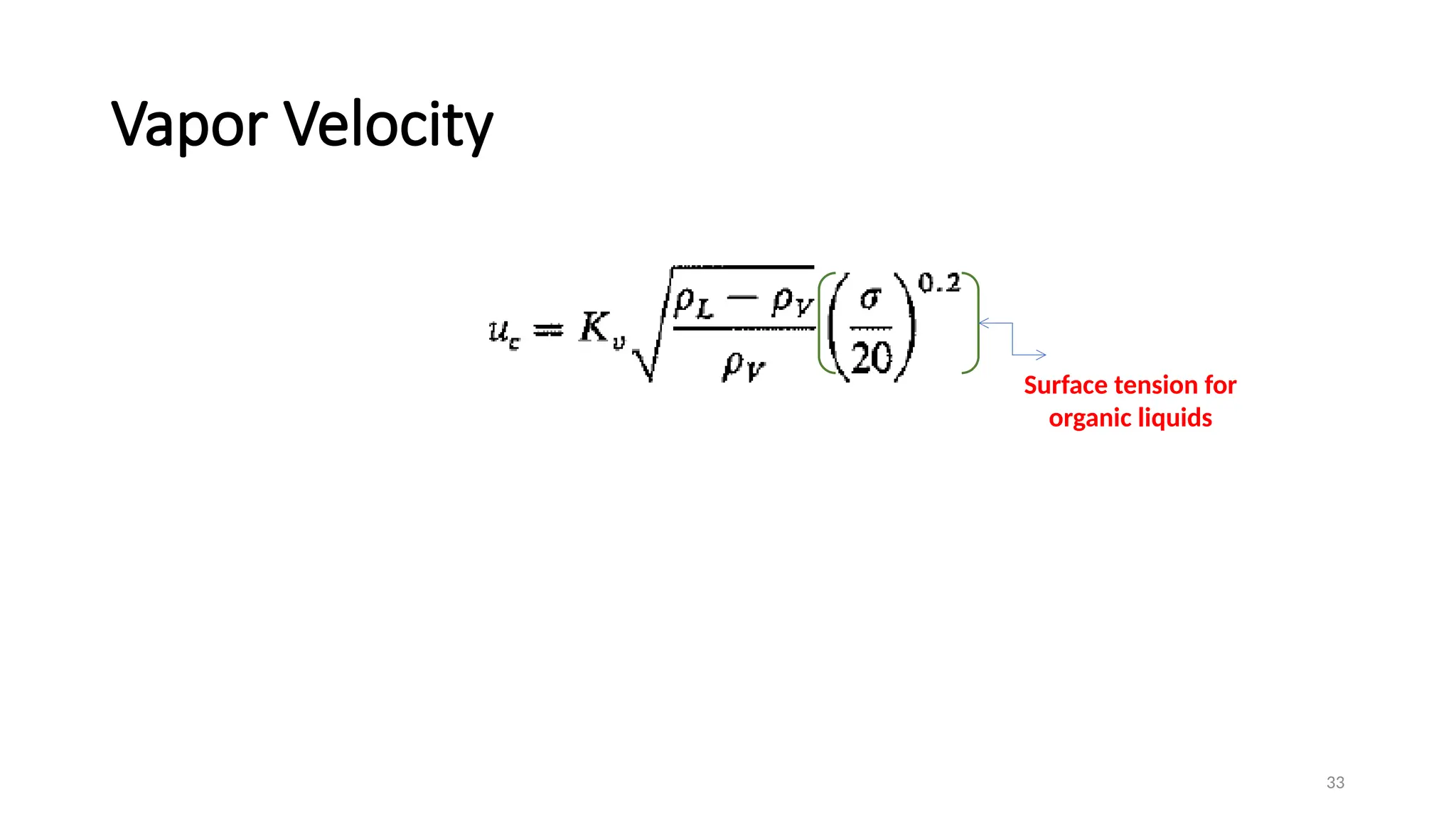

Vapor Velocity
Surface tension for
organic liquids
35

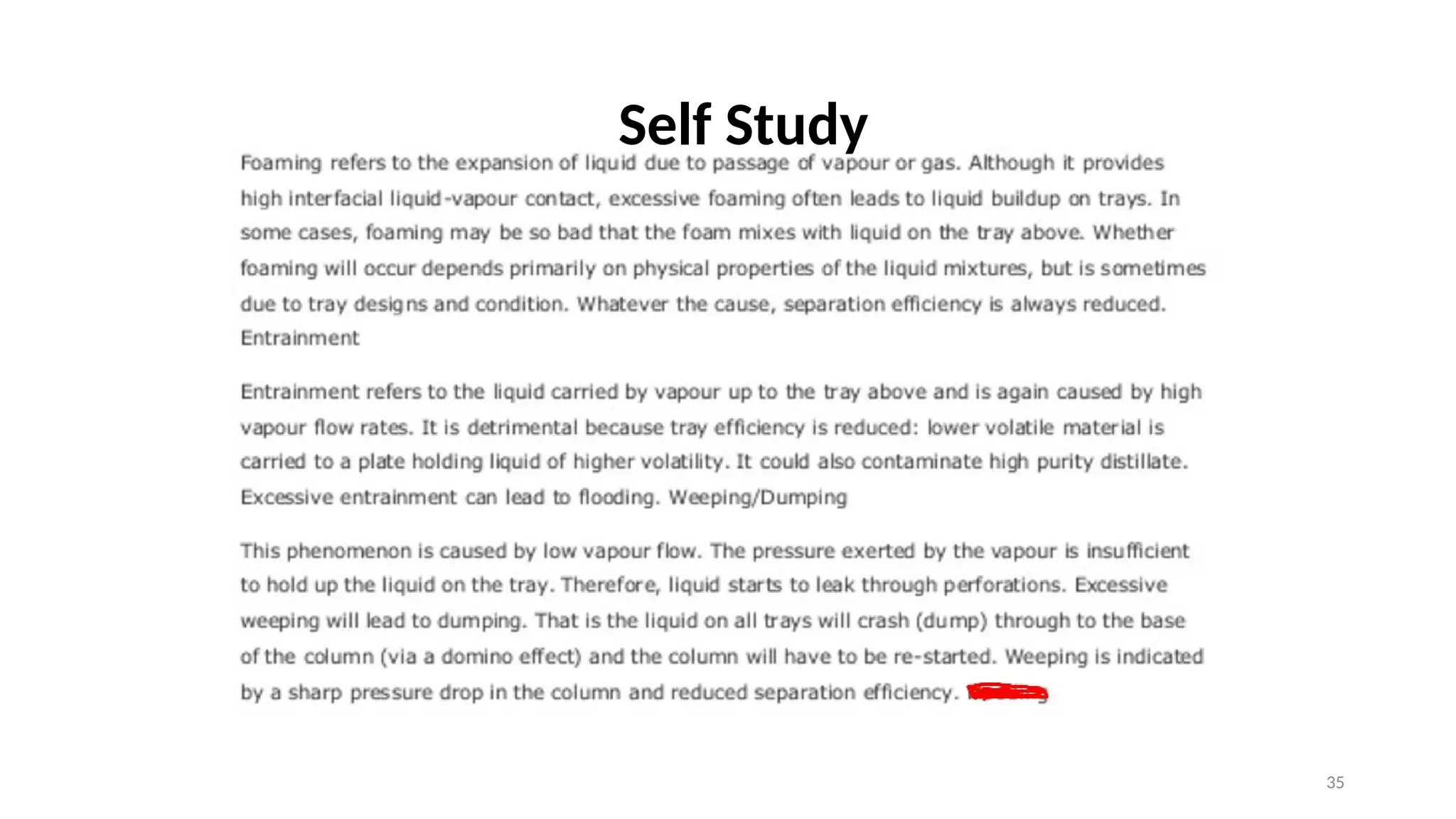

Self Study
36
Self Study
37

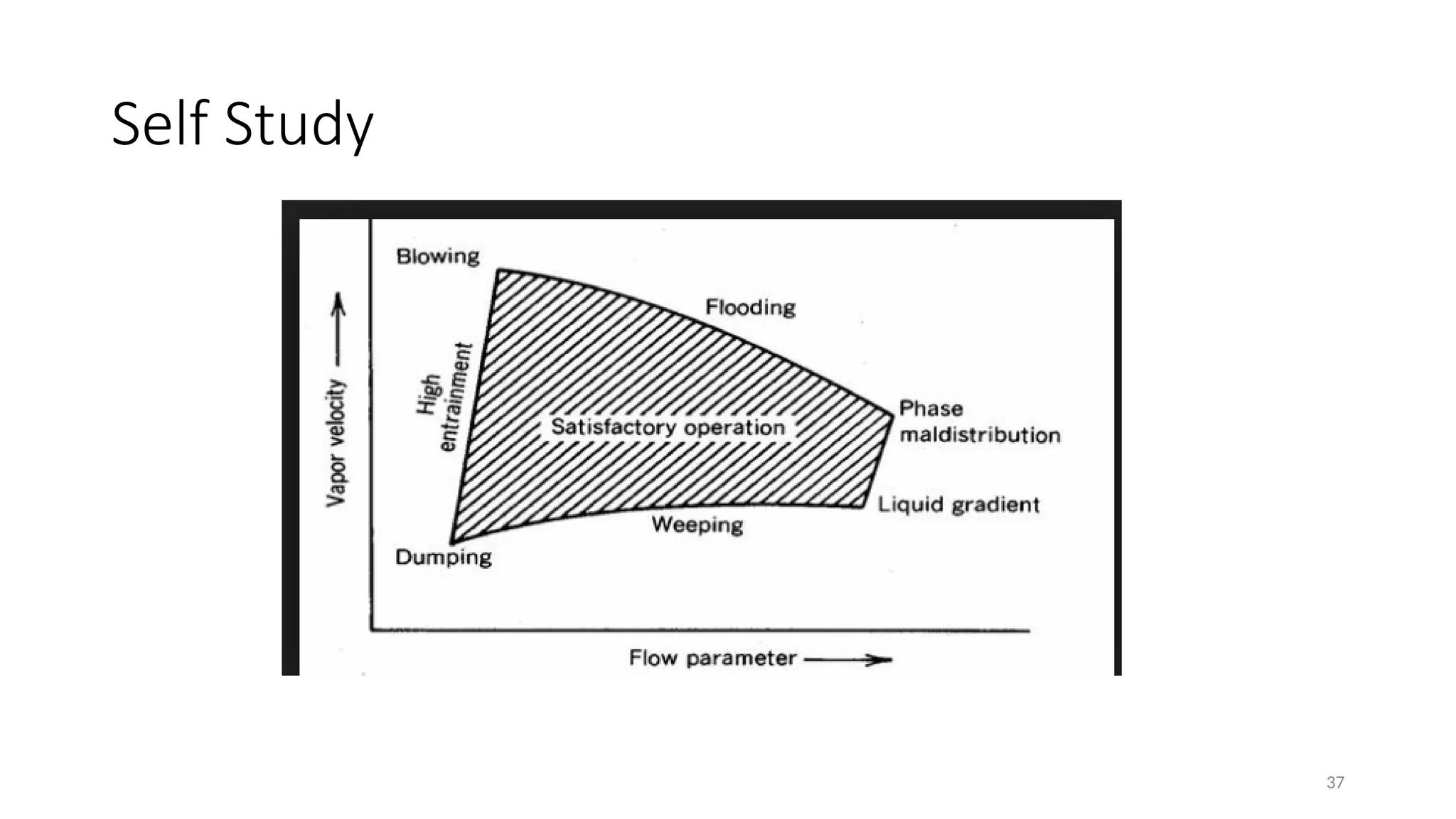

Self Study
