1. .consulting .solutions .partnership
Developing Mobile Apps with HCPms
Mobility@SAP

2. Developing Mobile Apps with HCPms
2

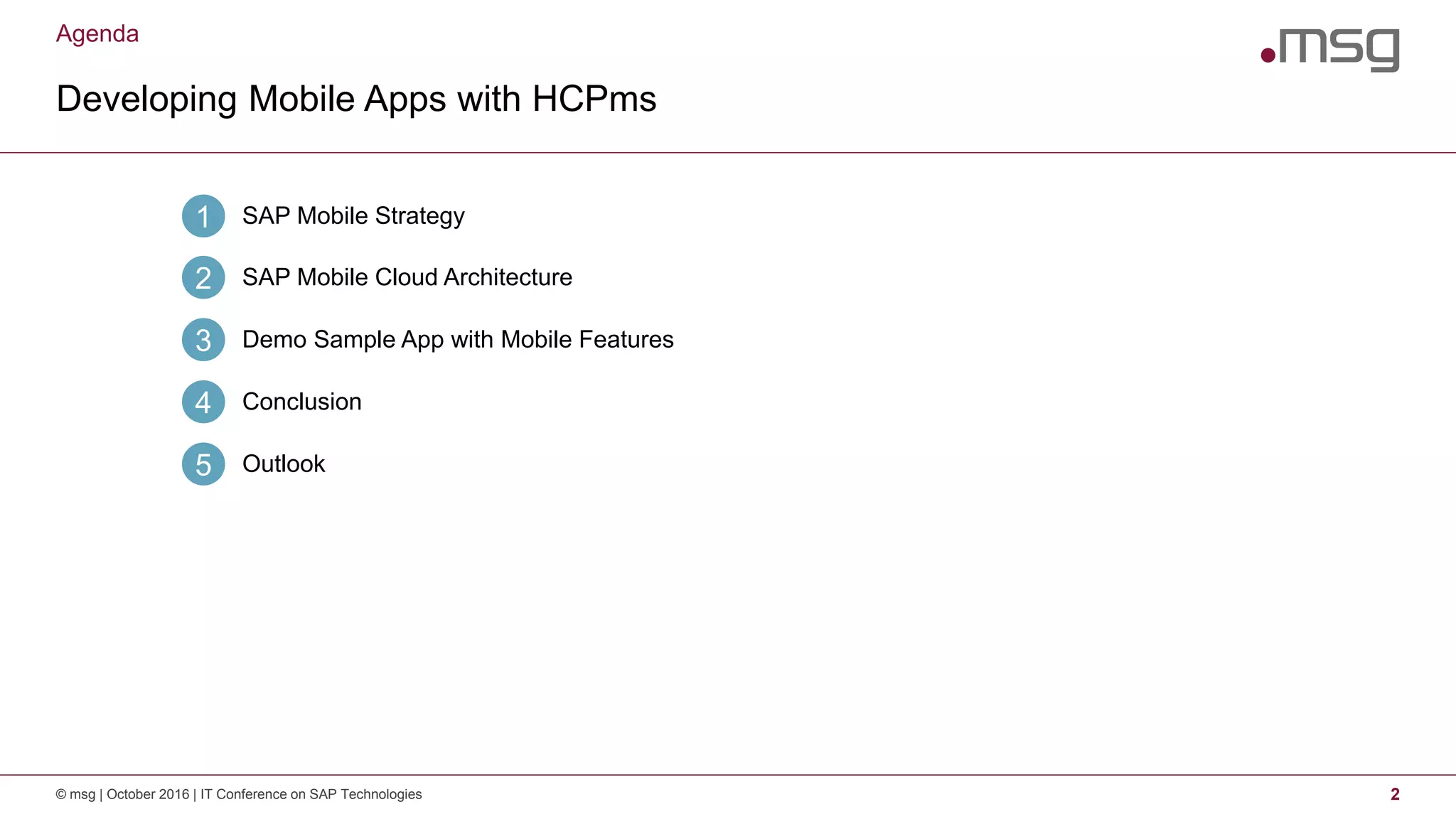

Agenda
© msg | October 2016 | IT Conference on SAP Technologies
SAP Mobile Strategy1
SAP Mobile Cloud Architecture2
Demo Sample App with Mobile Features3
Conclusion4
Outlook5

3. SAP Mobile Strategy
SAP Fiori
© msg | October 2016 | IT Conference on SAP Technologies 3
© SAP SE

4. SAP Mobile Strategy
Developer focused
© msg | October 2016 | IT Conference on SAP Technologies 4
© SAP SE

5. SAP Mobile Strategy
SAP Mobile Platform
© msg | October 2016 | IT Conference on SAP Technologies 5
© SAP SE

6. SAP Mobile Strategy
Enterprise Apps
© msg | October 2016 | IT Conference on SAP Technologies 6
© SAP SE

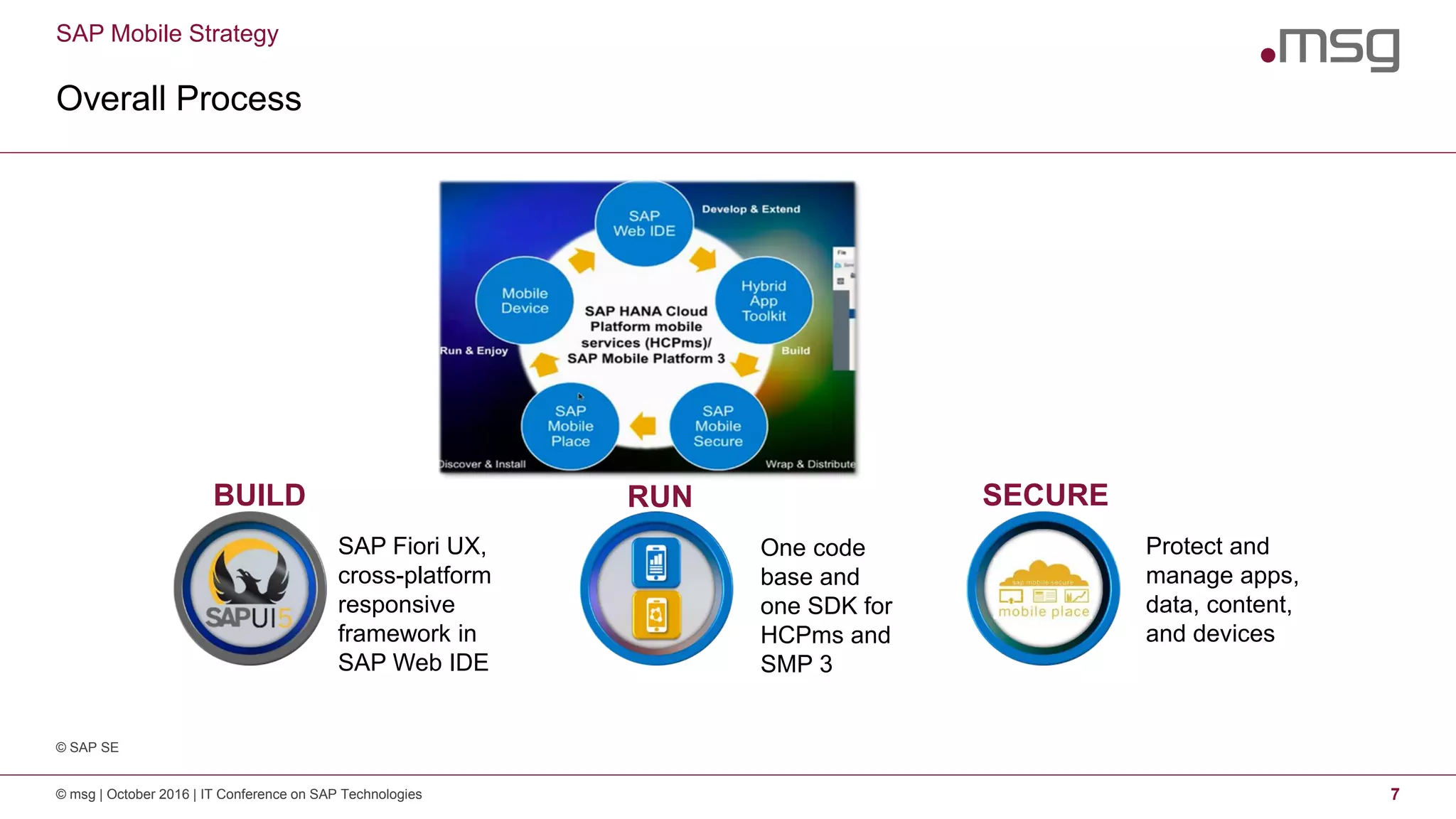

7. SAP Mobile Strategy
Overall Process
© msg | October 2016 | IT Conference on SAP Technologies 7
BUILD
SAP Fiori UX,
cross-platform
responsive
framework in
SAP Web IDE
RUN
One code
base and
one SDK for
HCPms and
SMP 3
SECURE
Protect and
manage apps,
data, content,
and devices
© SAP SE

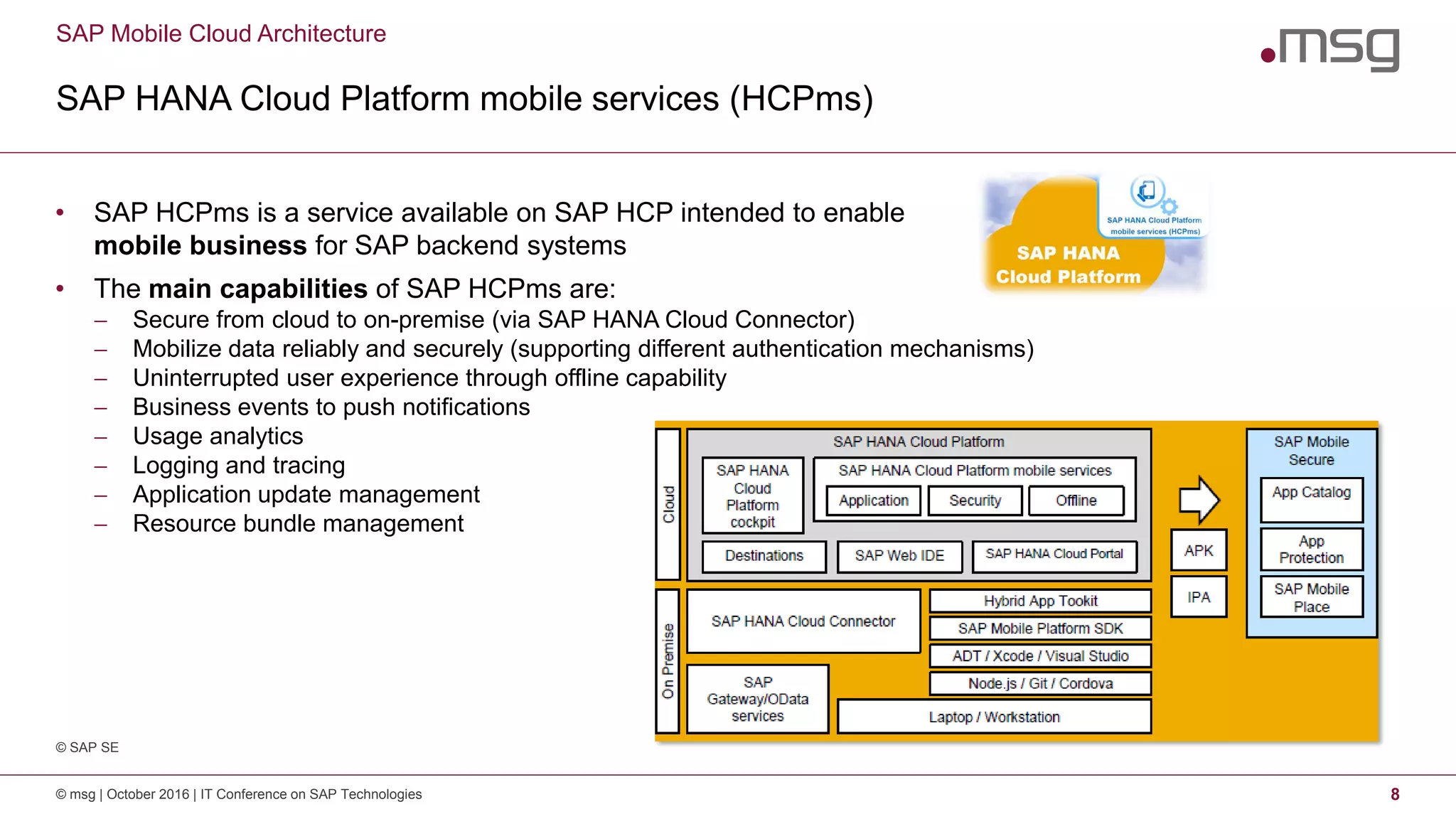

8. SAP Mobile Cloud Architecture
SAP HANA Cloud Platform mobile services (HCPms)
© msg | October 2016 | IT Conference on SAP Technologies 8
• SAP HCPms is a service available on SAP HCP intended to enable
mobile business for SAP backend systems
• The main capabilities of SAP HCPms are:
 Secure from cloud to on-premise (via SAP HANA Cloud Connector)
 Mobilize data reliably and securely (supporting different authentication mechanisms)
 Uninterrupted user experience through offline capability
 Business events to push notifications
 Usage analytics
 Logging and tracing
 Application update management
 Resource bundle management
© SAP SE

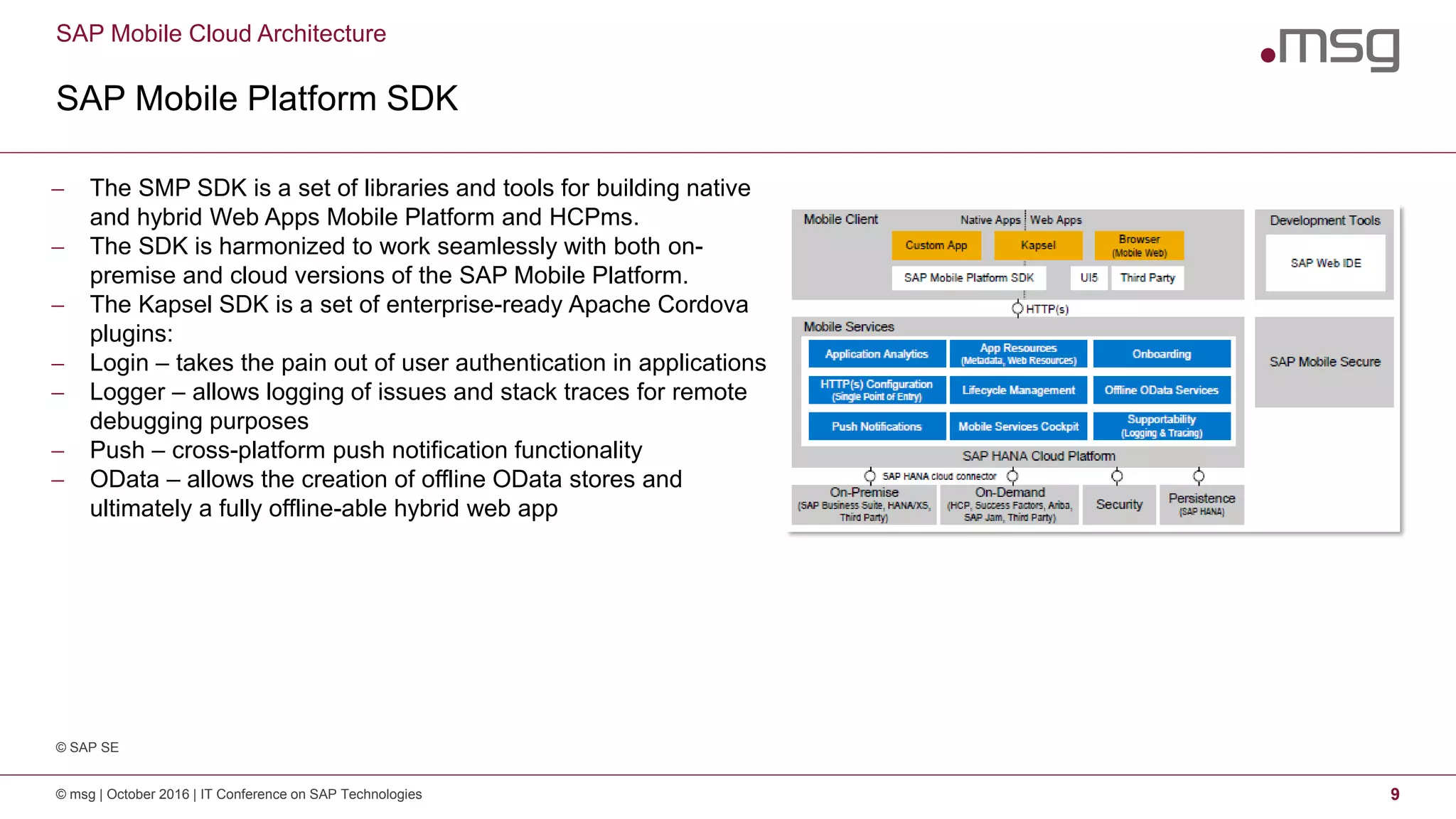

9. SAP Mobile Cloud Architecture
SAP Mobile Platform SDK
© msg | October 2016 | IT Conference on SAP Technologies 9
 The SMP SDK is a set of libraries and tools for building native
and hybrid Web Apps Mobile Platform and HCPms.
 The SDK is harmonized to work seamlessly with both on-
premise and cloud versions of the SAP Mobile Platform.
 The Kapsel SDK is a set of enterprise-ready Apache Cordova
plugins:
 Login – takes the pain out of user authentication in applications
 Logger – allows logging of issues and stack traces for remote
debugging purposes
 Push – cross-platform push notification functionality
 OData – allows the creation of offline OData stores and
ultimately a fully offline-able hybrid web app
© SAP SE

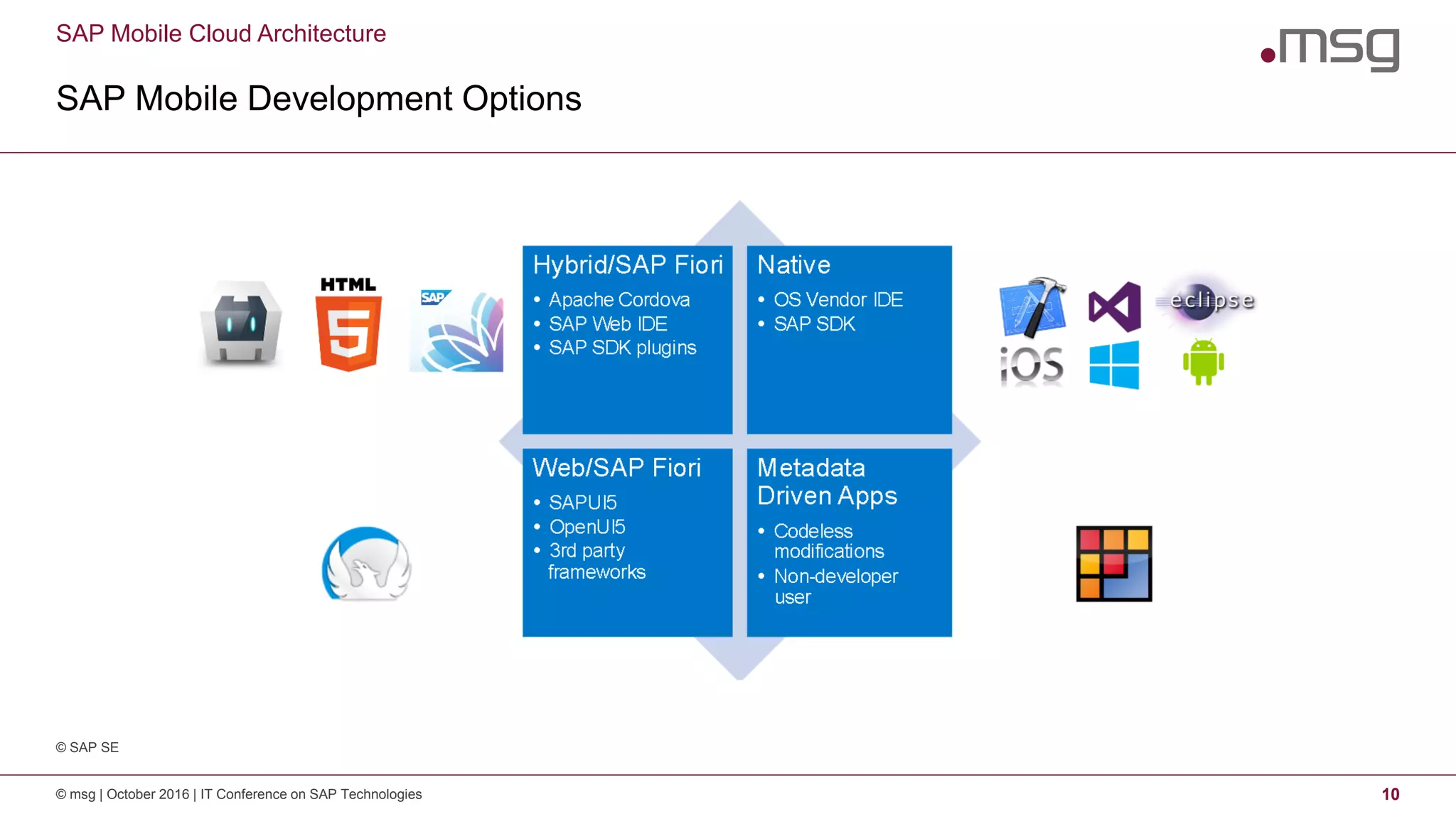

10. SAP Mobile Cloud Architecture
SAP Mobile Development Options
© msg | October 2016 | IT Conference on SAP Technologies 10
© SAP SE

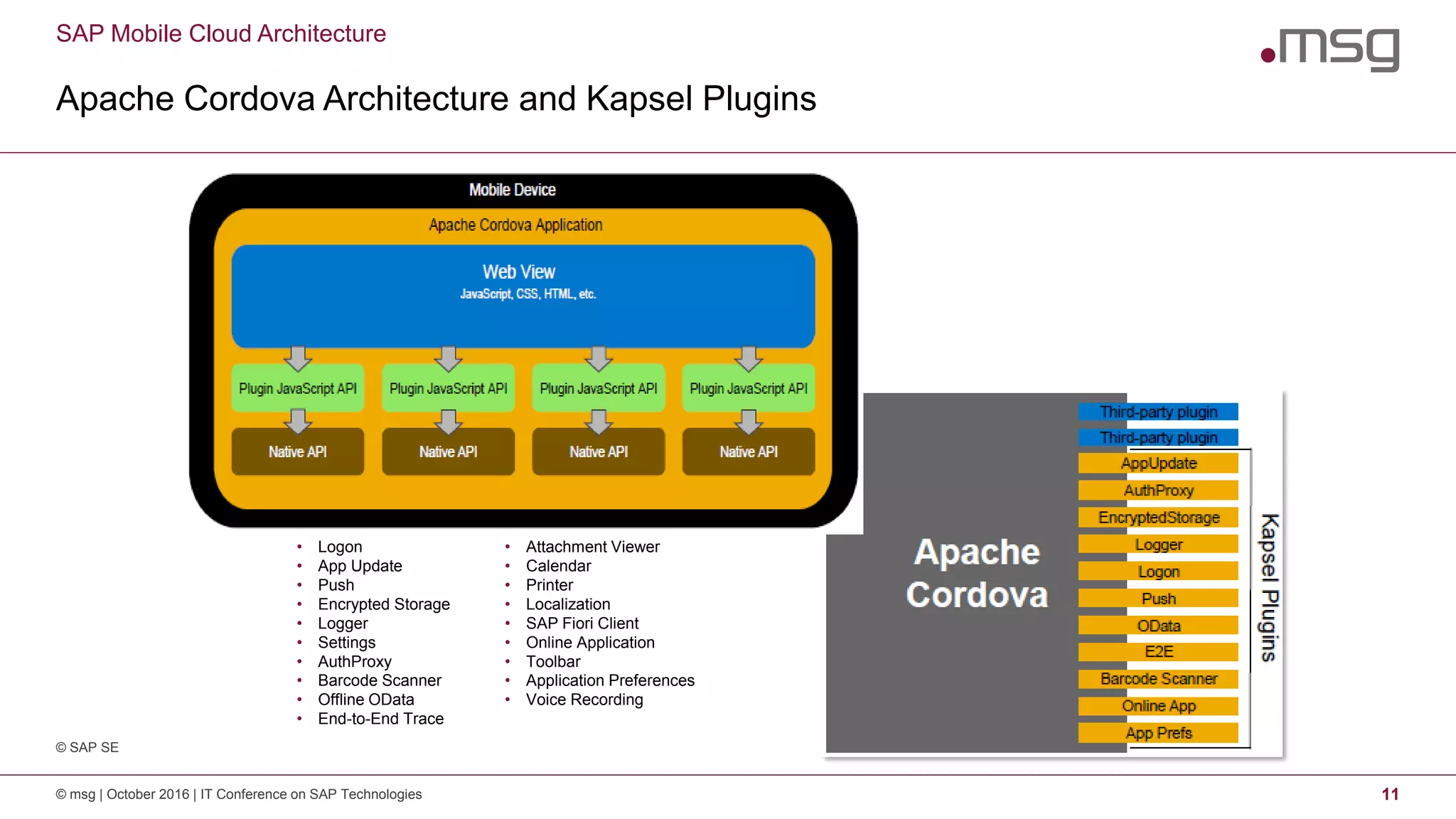

11. SAP Mobile Cloud Architecture
Apache Cordova Architecture and Kapsel Plugins
© msg | October 2016 | IT Conference on SAP Technologies 11
• Attachment Viewer
• Calendar
• Printer
• Localization
• SAP Fiori Client
• Online Application
• Toolbar
• Application Preferences
• Voice Recording
• Logon
• App Update
• Push
• Encrypted Storage
• Logger
• Settings
• AuthProxy
• Barcode Scanner
• Offline OData
• End-to-End Trace
© SAP SE

12. SAP Mobile Cloud Architecture
Hybrid Mobile App Runtime Architecture with Apache Cordova
© msg | October 2016 | IT Conference on SAP Technologies 12
SAP HCPms
(Cloud Version of
SAP Mobile Platform)
HCP
Destinations
IdP
https
© SAP SE

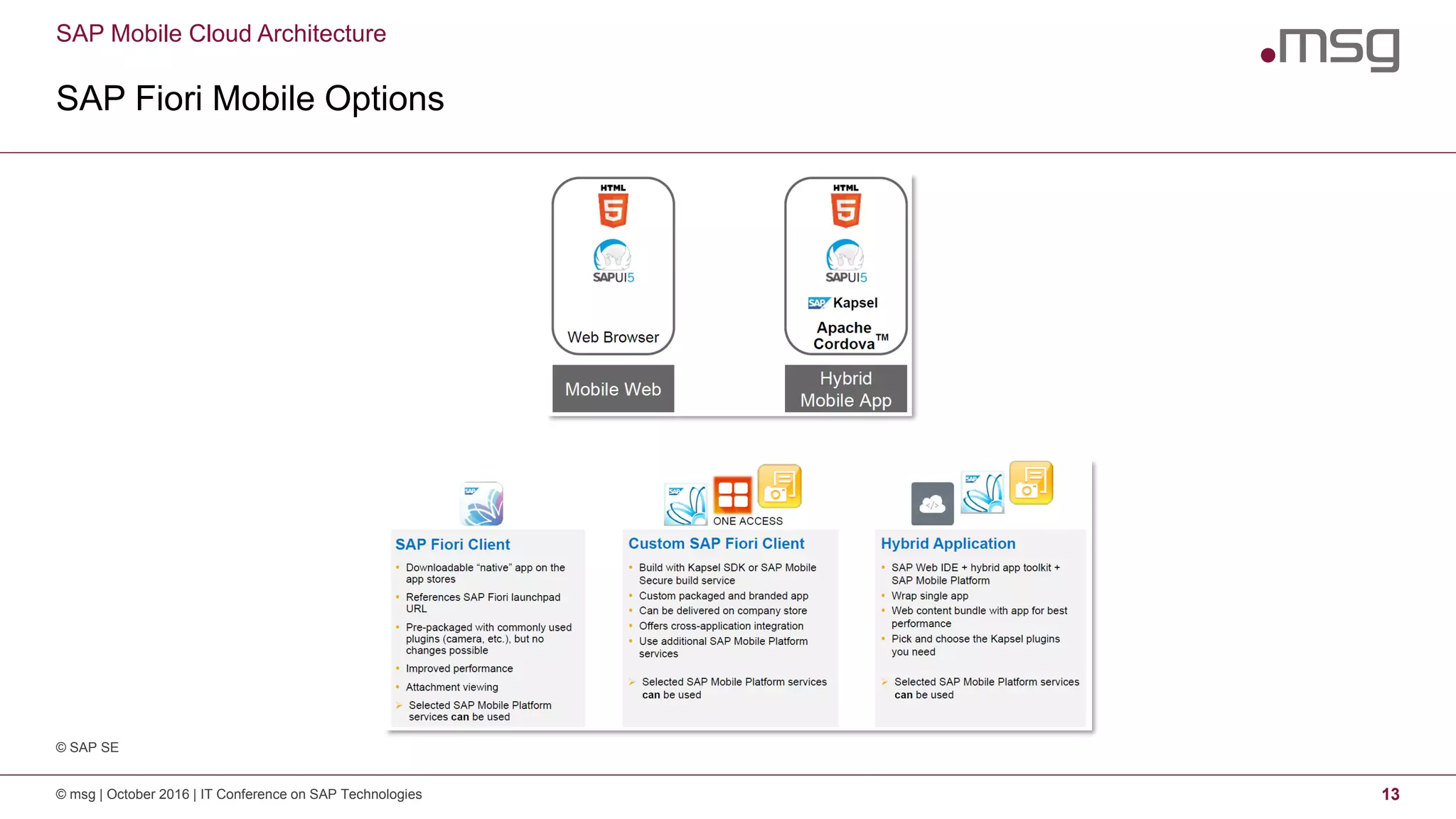

13. SAP Mobile Cloud Architecture
SAP Fiori Mobile Options
© msg | October 2016 | IT Conference on SAP Technologies 13
© SAP SE

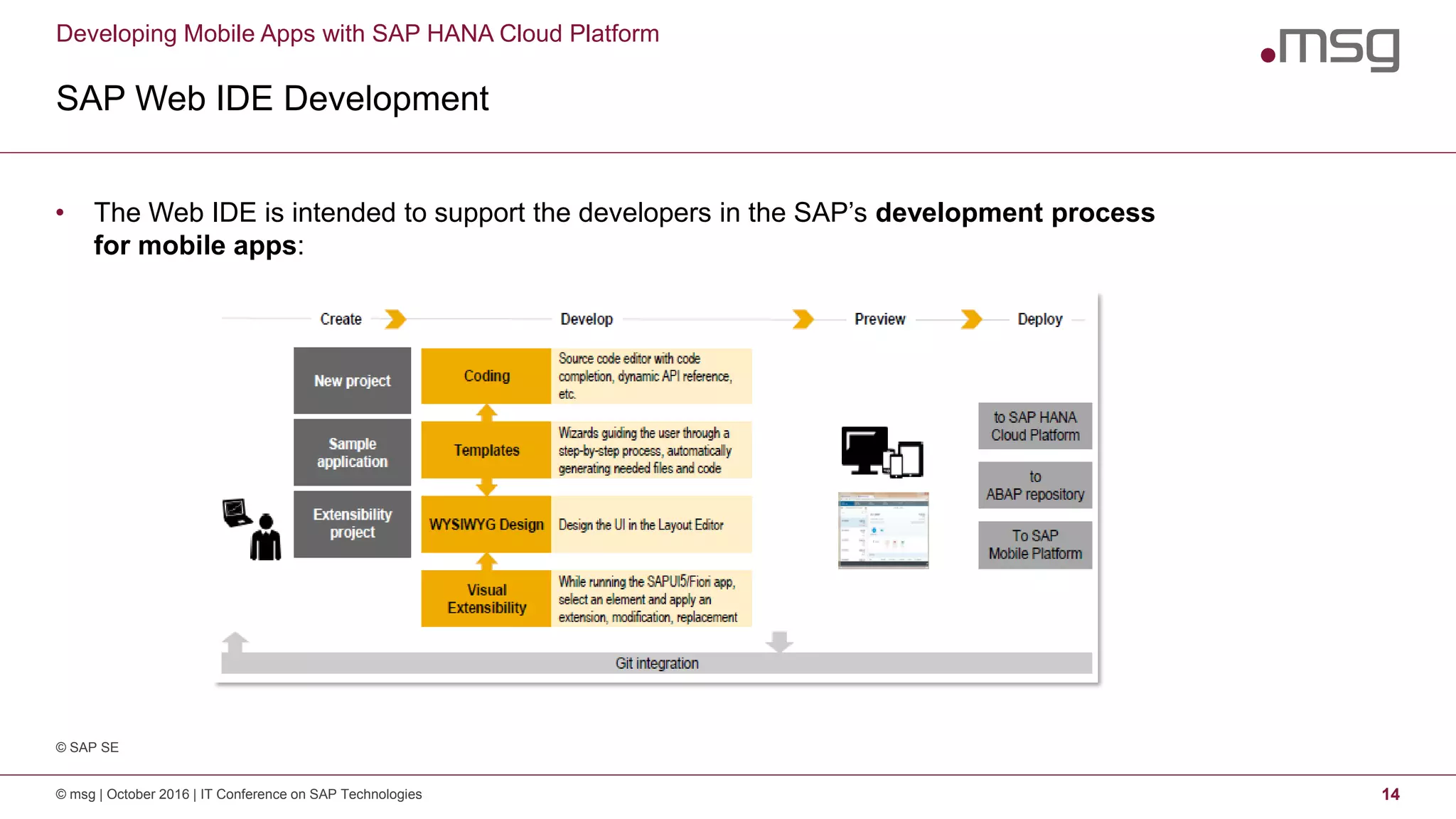

14. Developing Mobile Apps with SAP HANA Cloud Platform
SAP Web IDE Development
© msg | October 2016 | IT Conference on SAP Technologies 14
• The Web IDE is intended to support the developers in the SAP’s development process
for mobile apps:
© SAP SE

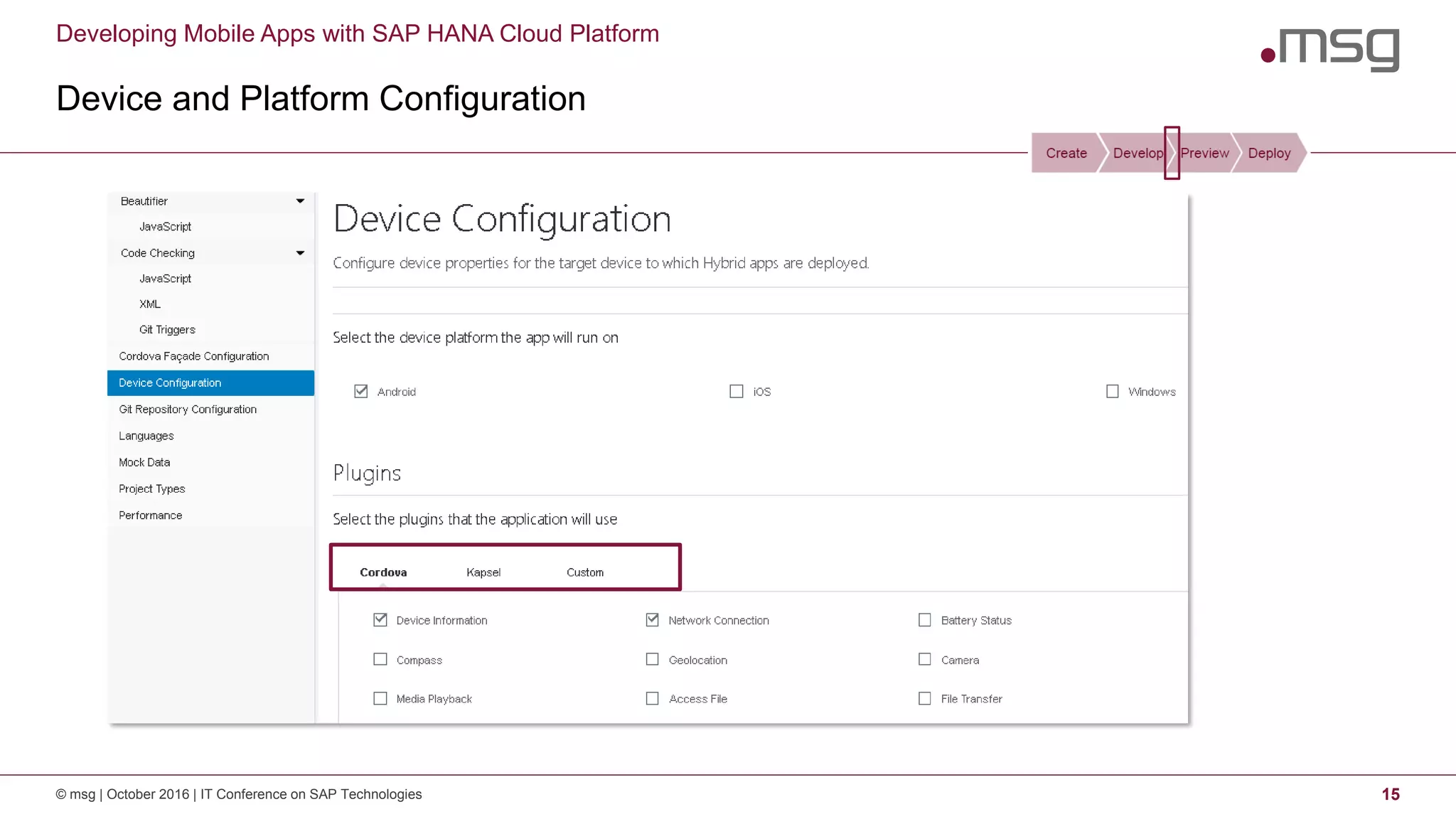

15. Developing Mobile Apps with SAP HANA Cloud Platform
Device and Platform Configuration
© msg | October 2016 | IT Conference on SAP Technologies 15

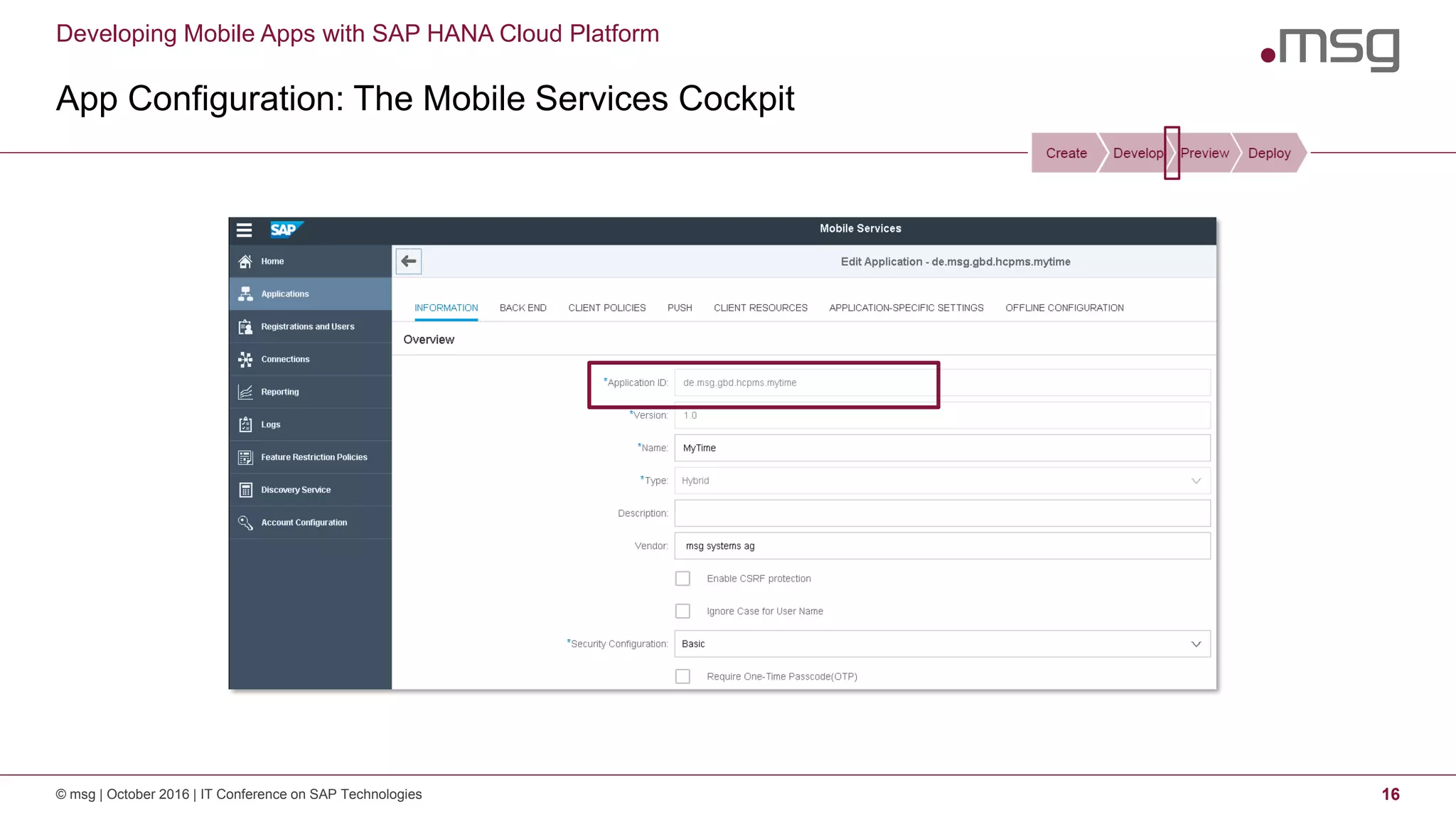

16. Developing Mobile Apps with SAP HANA Cloud Platform
App Configuration: The Mobile Services Cockpit
© msg | October 2016 | IT Conference on SAP Technologies 16

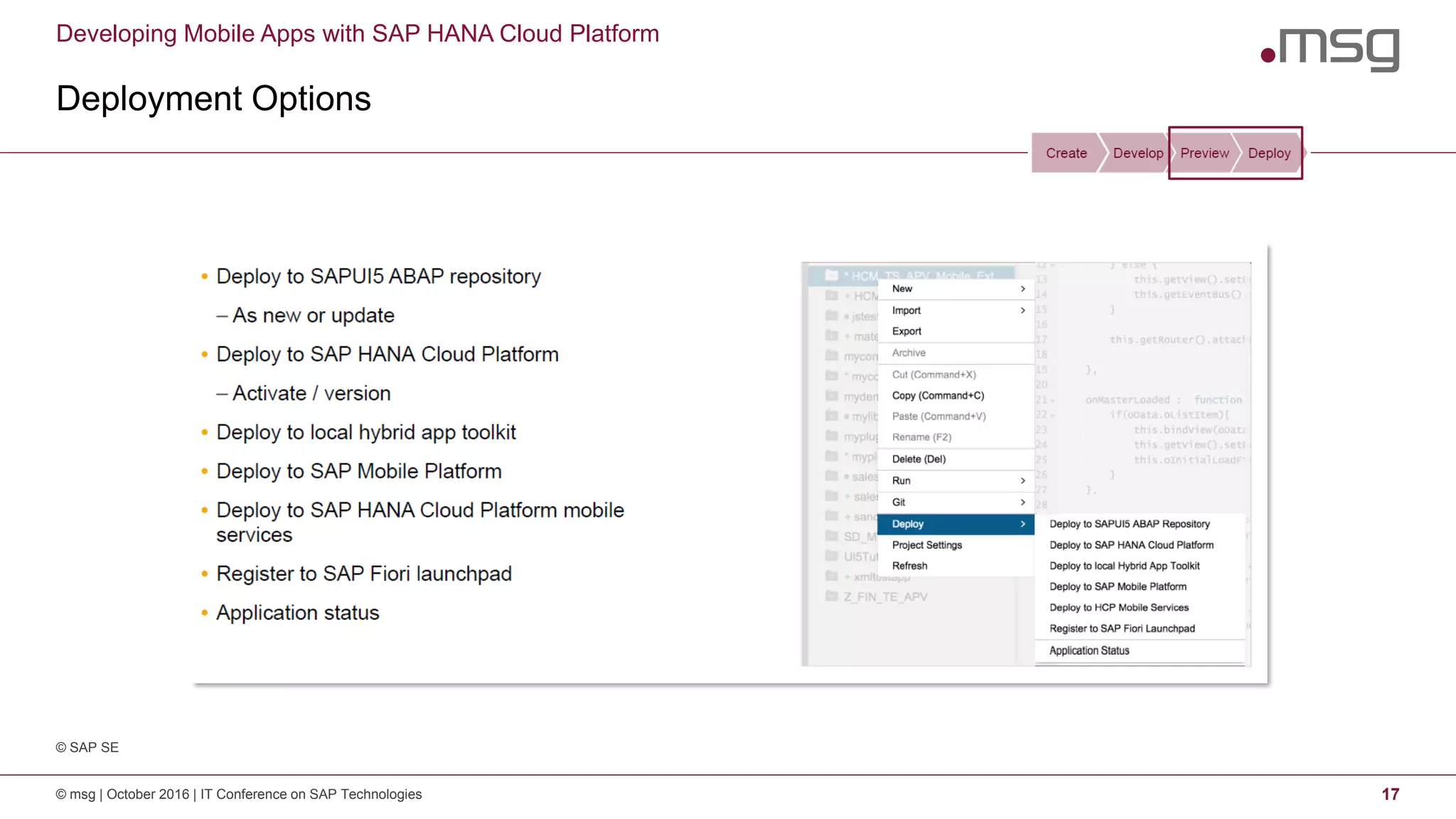

17. Developing Mobile Apps with SAP HANA Cloud Platform
Deployment Options
© msg | October 2016 | IT Conference on SAP Technologies 17
© SAP SE

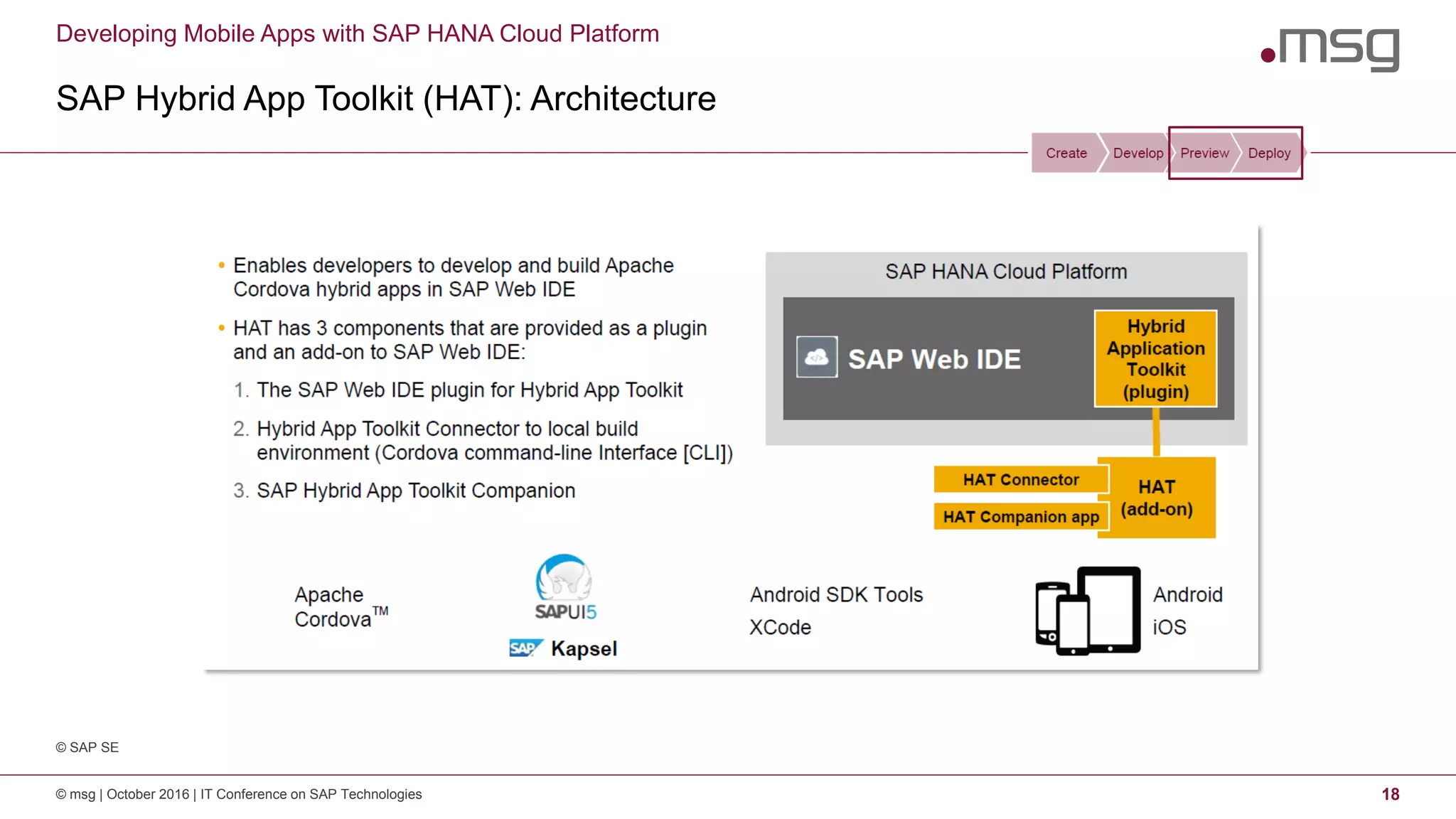

18. Developing Mobile Apps with SAP HANA Cloud Platform
SAP Hybrid App Toolkit (HAT): Architecture
© msg | October 2016 | IT Conference on SAP Technologies 18
© SAP SE

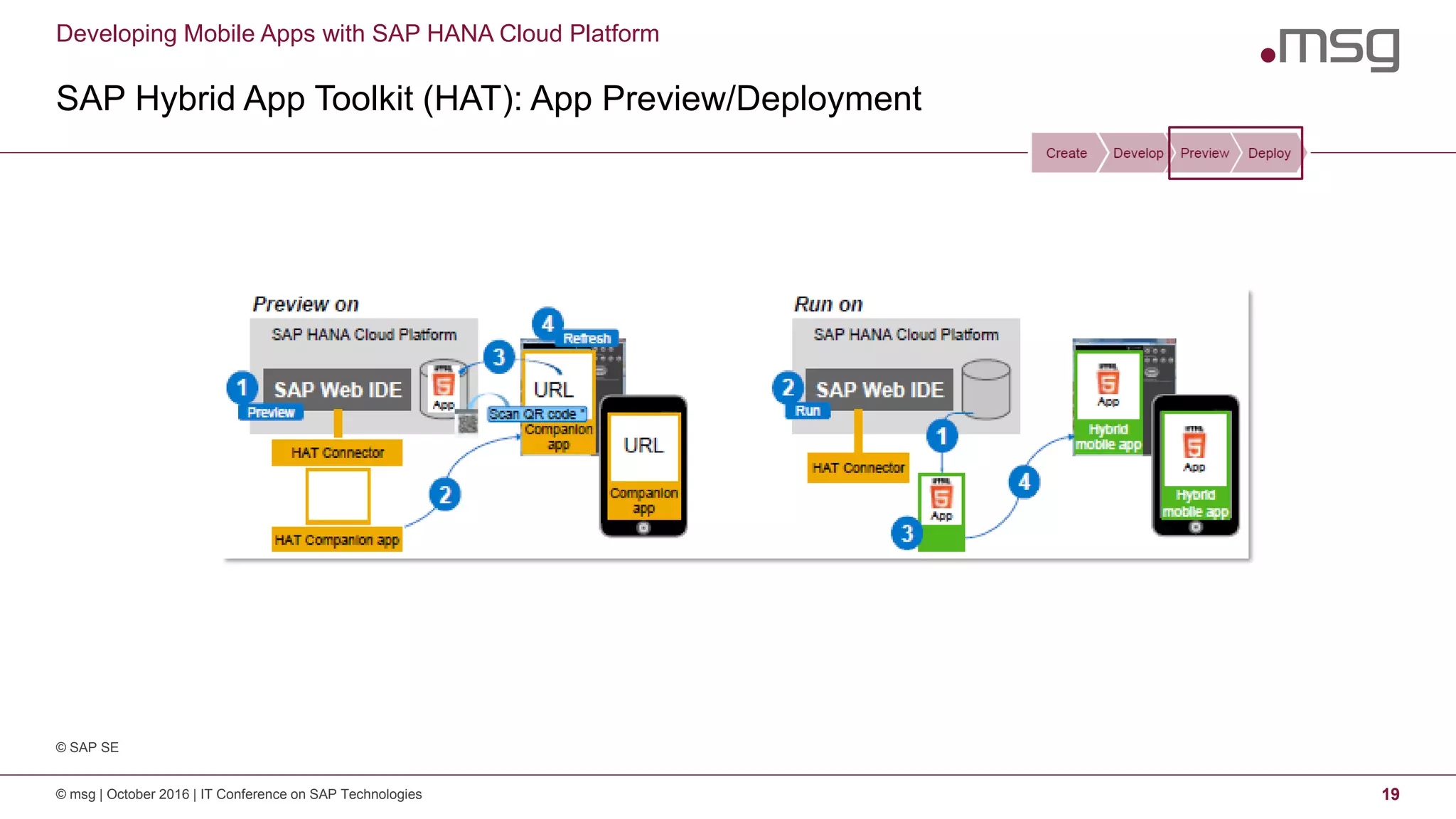

19. Developing Mobile Apps with SAP HANA Cloud Platform
SAP Hybrid App Toolkit (HAT): App Preview/Deployment
© msg | October 2016 | IT Conference on SAP Technologies 19
© SAP SE

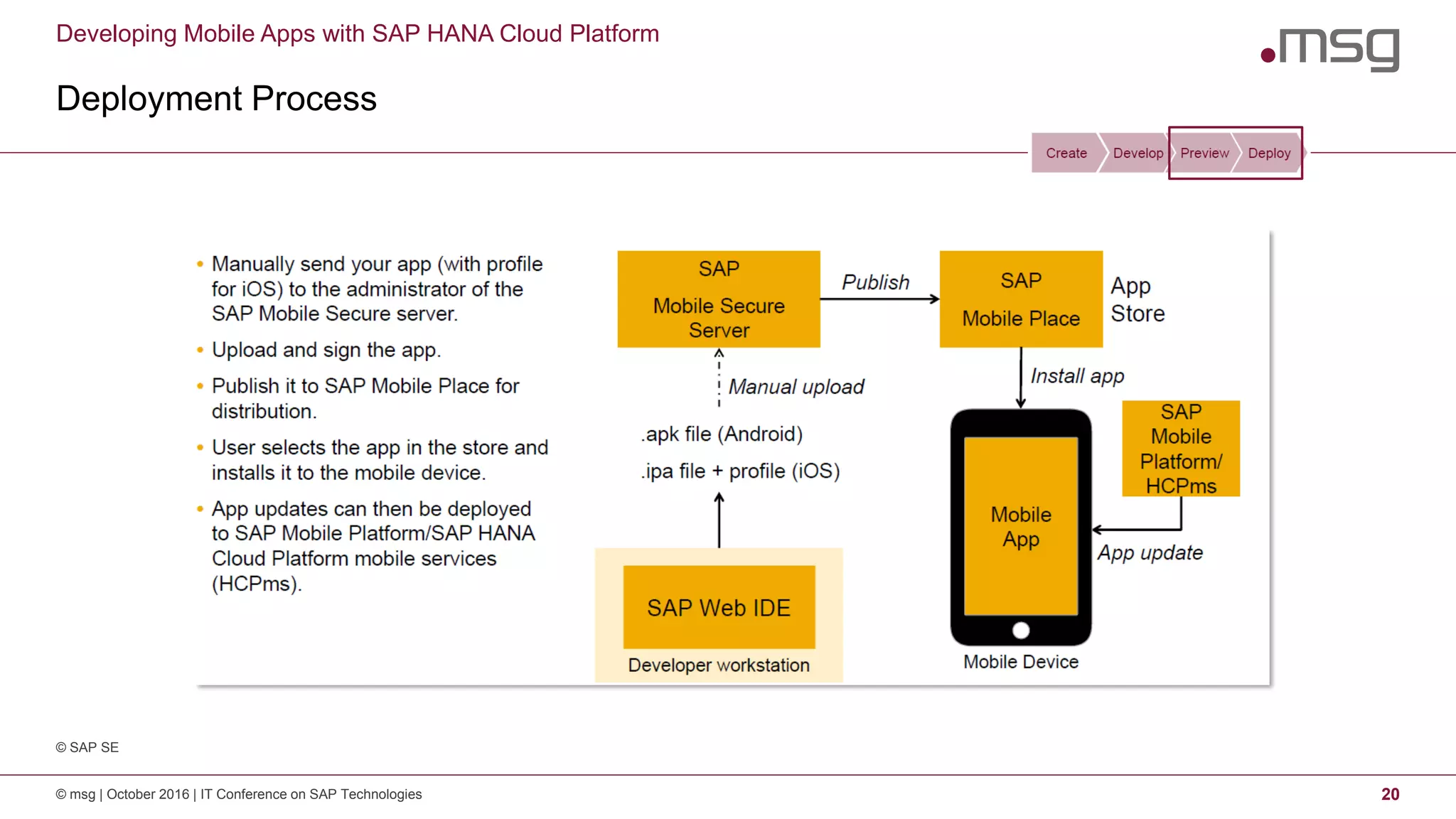

20. Developing Mobile Apps with SAP HANA Cloud Platform
Deployment Process
© msg | October 2016 | IT Conference on SAP Technologies 20
© SAP SE

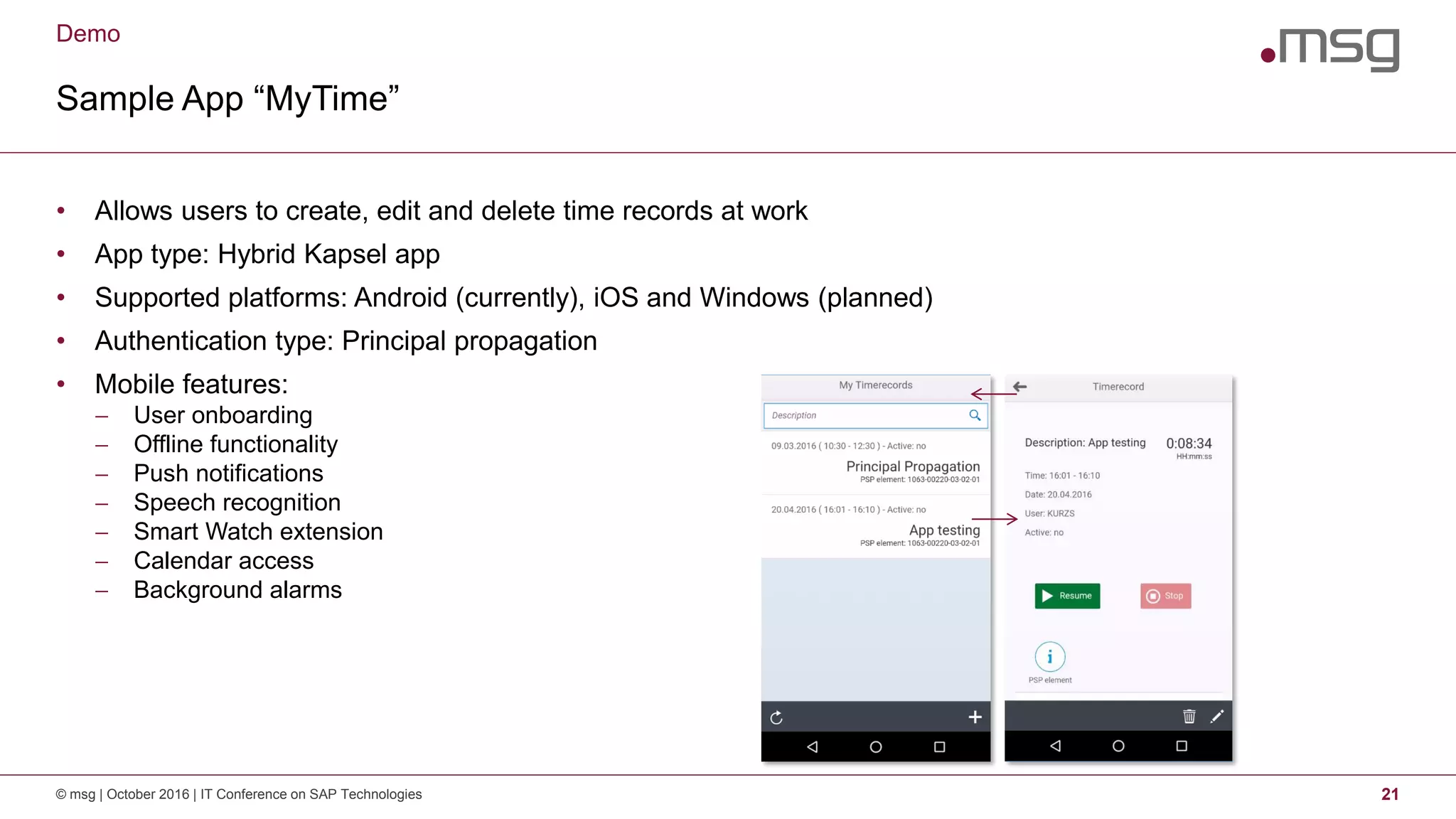

21. Demo
Sample App “MyTime”
© msg | October 2016 | IT Conference on SAP Technologies 21
• Allows users to create, edit and delete time records at work
• App type: Hybrid Kapsel app
• Supported platforms: Android (currently), iOS and Windows (planned)
• Authentication type: Principal propagation
• Mobile features:
 User onboarding
 Offline functionality
 Push notifications
 Speech recognition
 Smart Watch extension
 Calendar access
 Background alarms

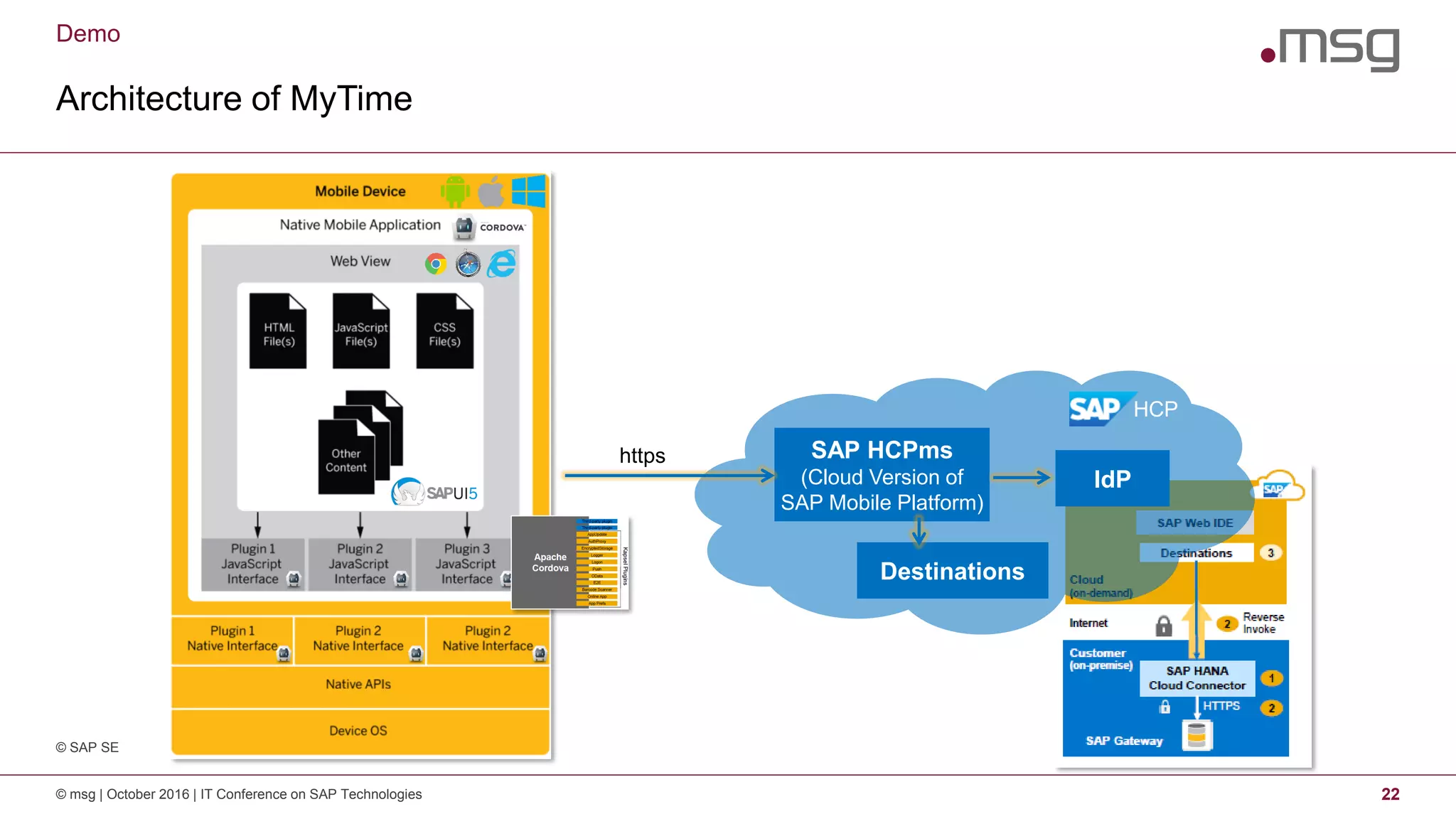

22. Demo
Architecture of MyTime
© msg | October 2016 | IT Conference on SAP Technologies 22
SAP HCPms
(Cloud Version of
SAP Mobile Platform)
HCP
Destinations
IdP
https
© SAP SE

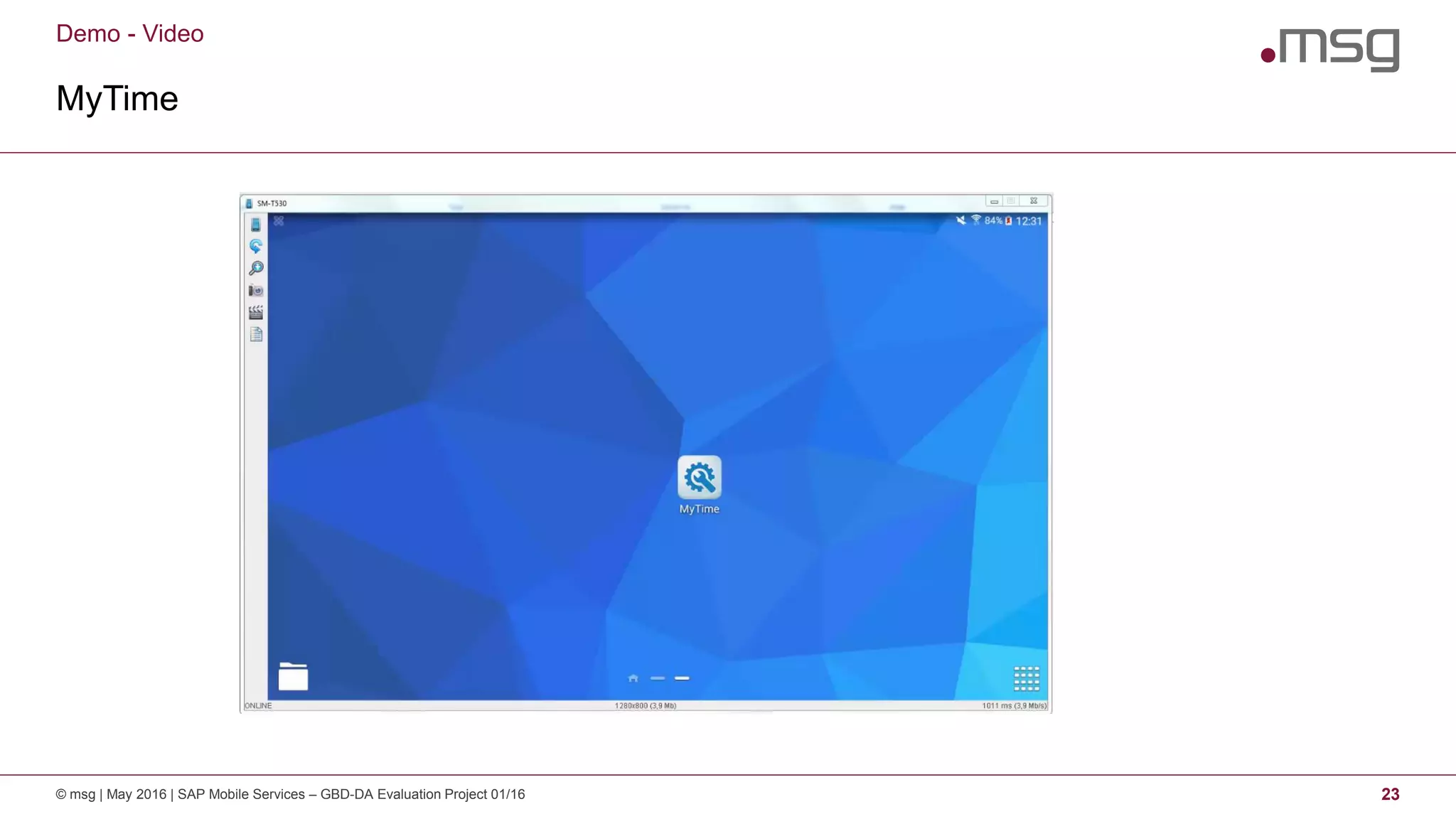

23. Demo - Video
MyTime
© msg | May 2016 | SAP Mobile Services – GBD-DA Evaluation Project 01/16 23

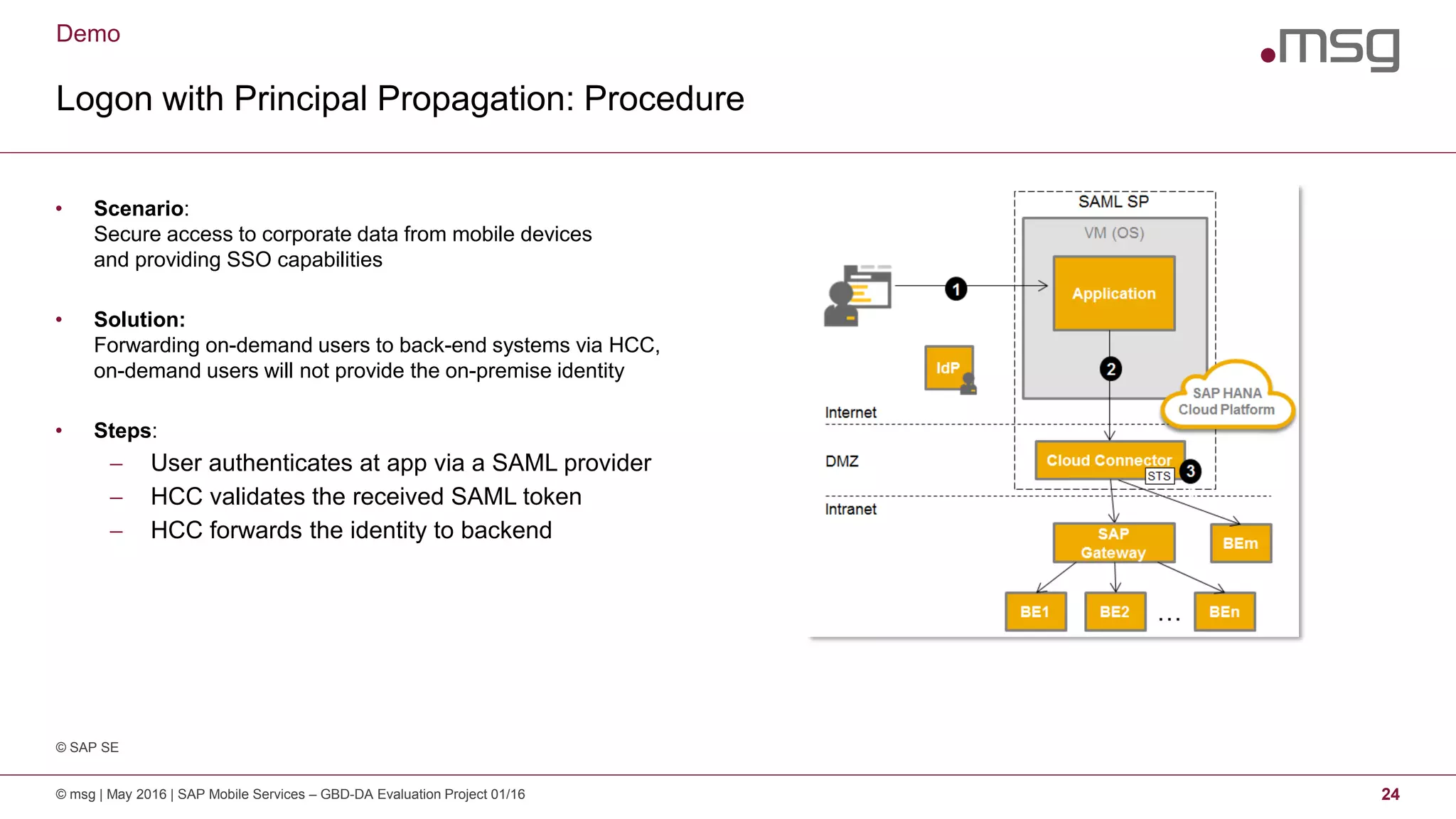

24. Demo
Logon with Principal Propagation: Procedure
© msg | May 2016 | SAP Mobile Services – GBD-DA Evaluation Project 01/16 24
• Scenario:
Secure access to corporate data from mobile devices
and providing SSO capabilities
• Solution:
Forwarding on-demand users to back-end systems via HCC,
on-demand users will not provide the on-premise identity
• Steps:
 User authenticates at app via a SAML provider
 HCC validates the received SAML token
 HCC forwards the identity to backend
© SAP SE

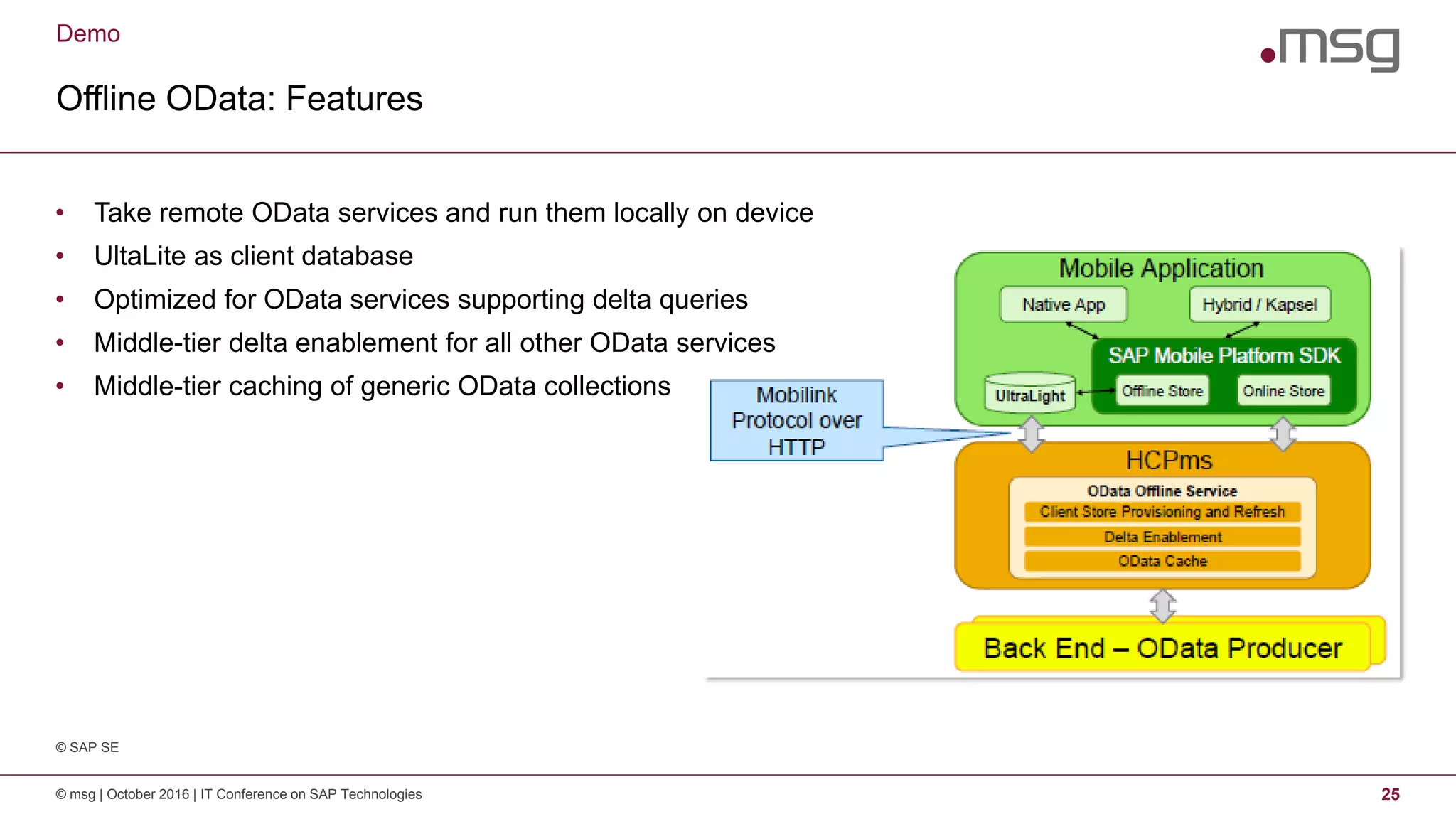

25. Demo
Offline OData: Features
© msg | October 2016 | IT Conference on SAP Technologies 25
• Take remote OData services and run them locally on device
• UltaLite as client database
• Optimized for OData services supporting delta queries
• Middle-tier delta enablement for all other OData services
• Middle-tier caching of generic OData collections
© SAP SE

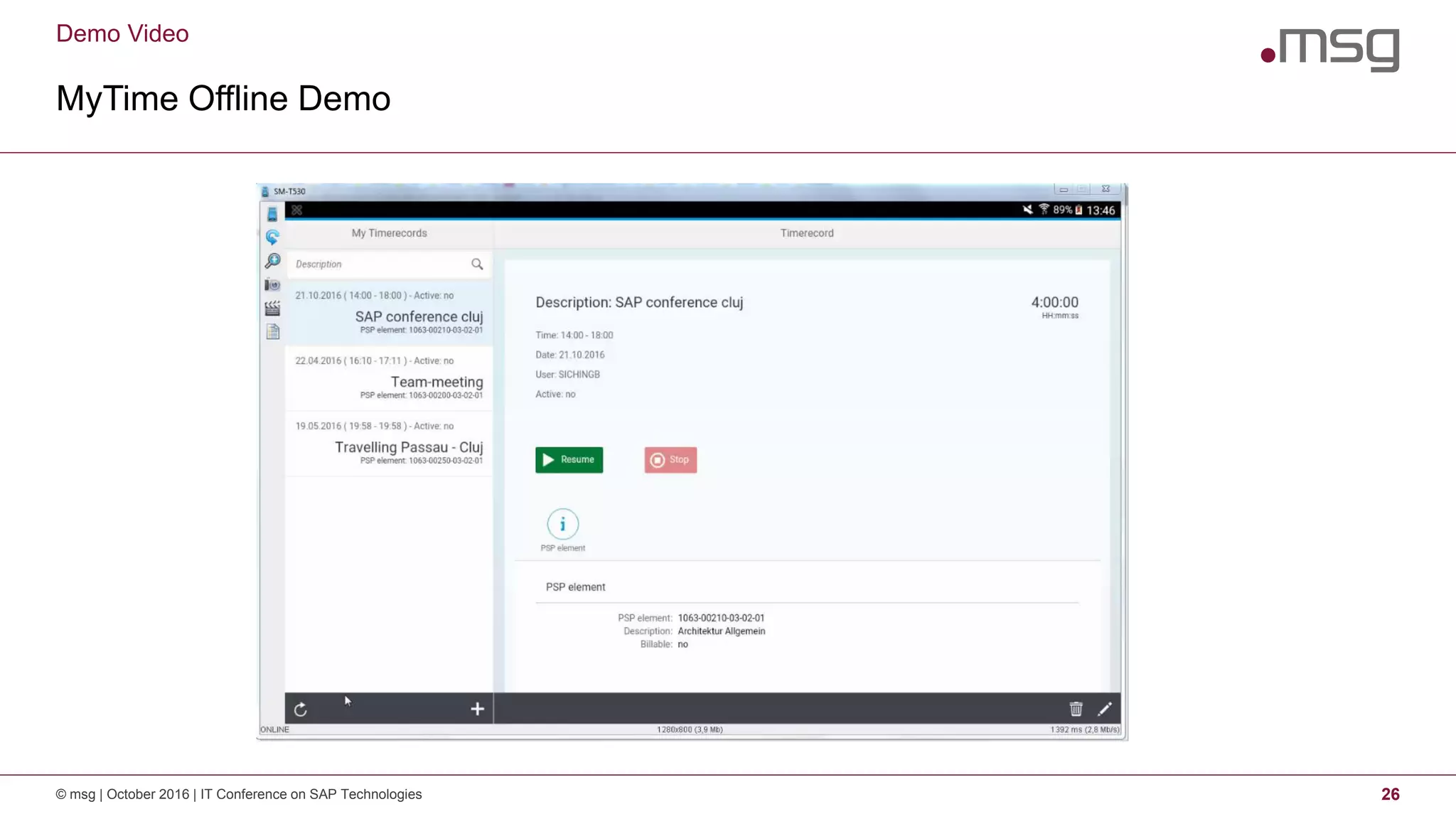

26. Demo Video
MyTime Offline Demo
© msg | October 2016 | IT Conference on SAP Technologies 26

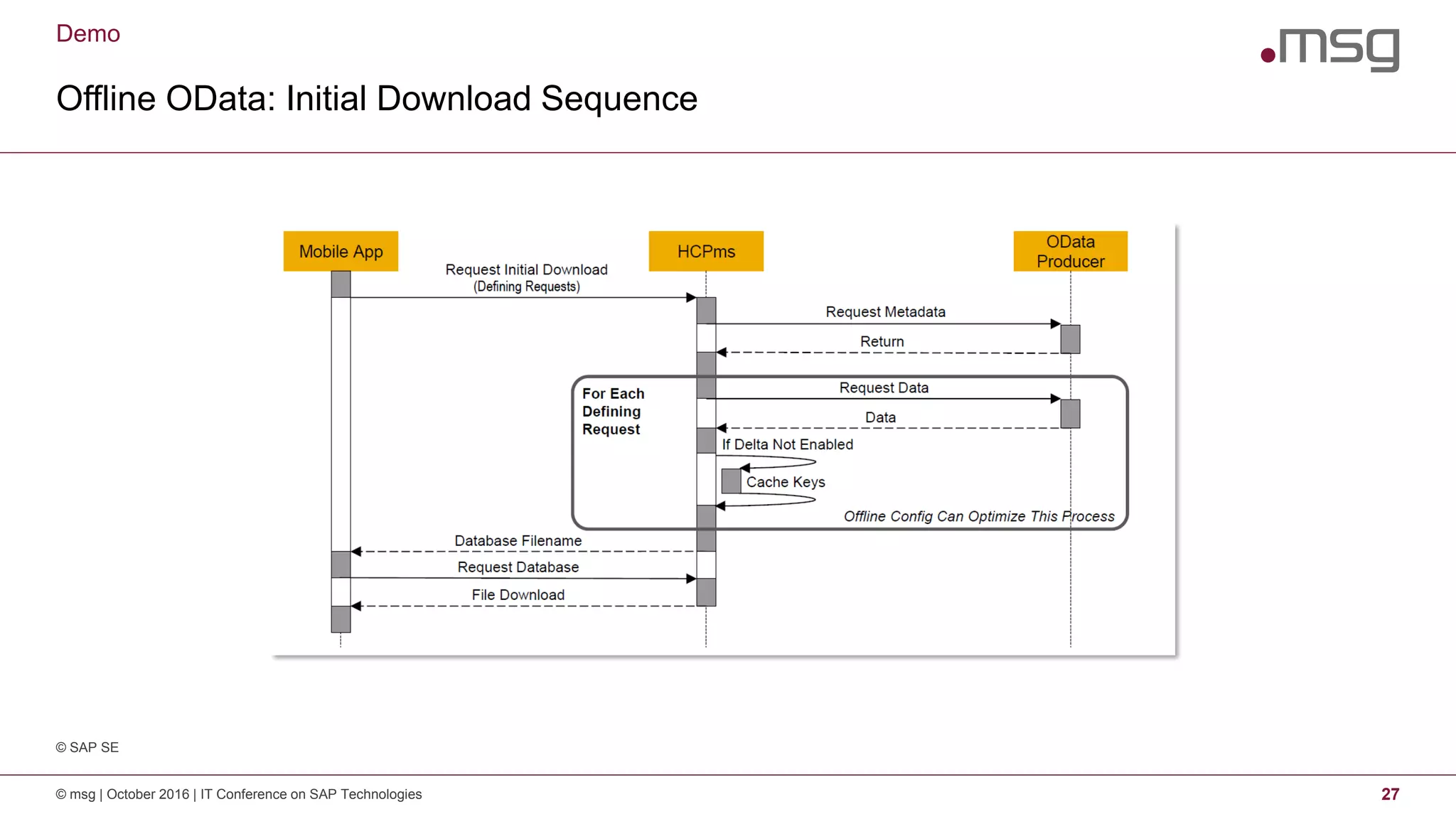

27. Demo
Offline OData: Initial Download Sequence
© msg | October 2016 | IT Conference on SAP Technologies 27
© SAP SE

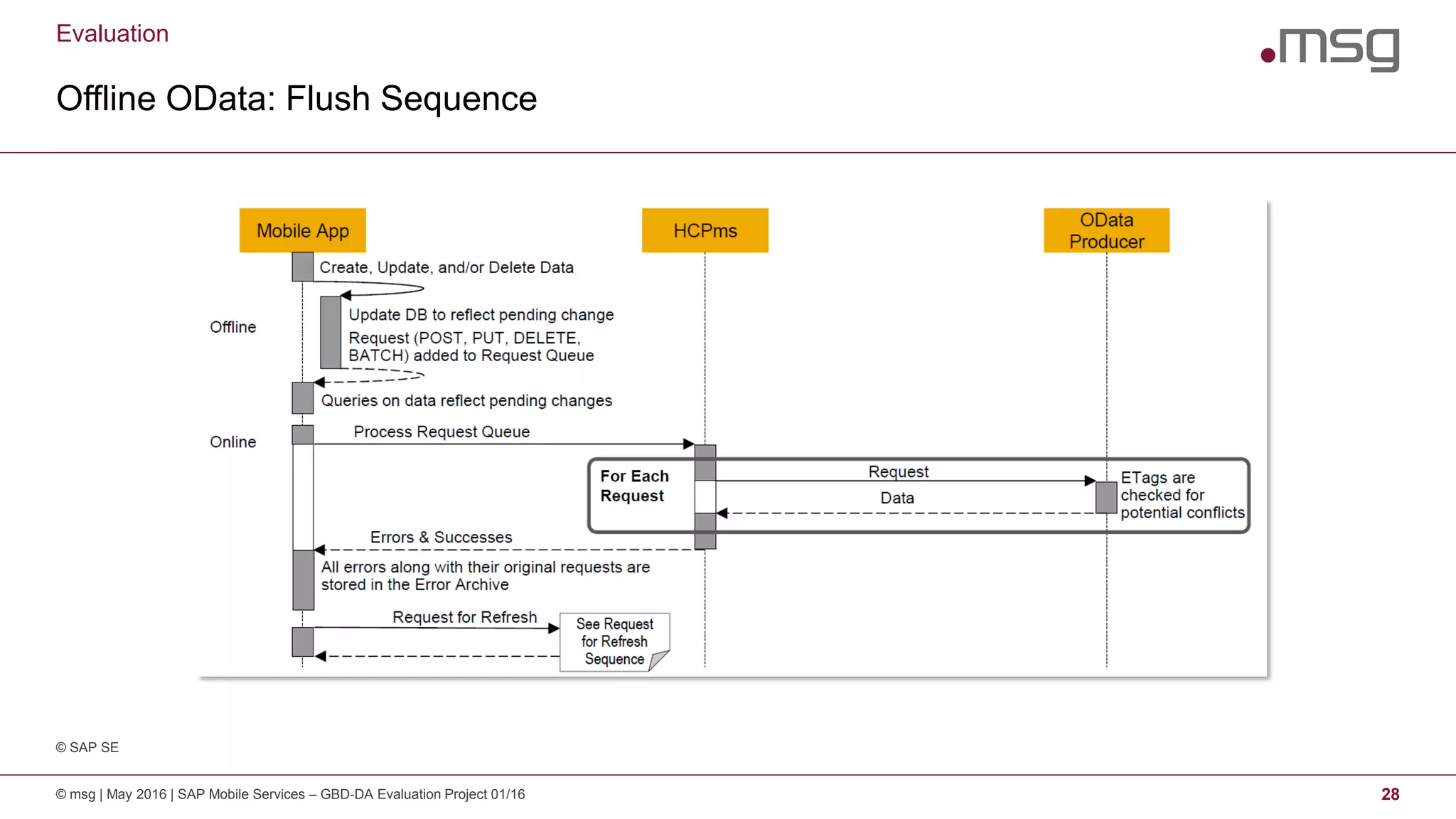

28. Evaluation
Offline OData: Flush Sequence
© msg | May 2016 | SAP Mobile Services – GBD-DA Evaluation Project 01/16 28
© SAP SE

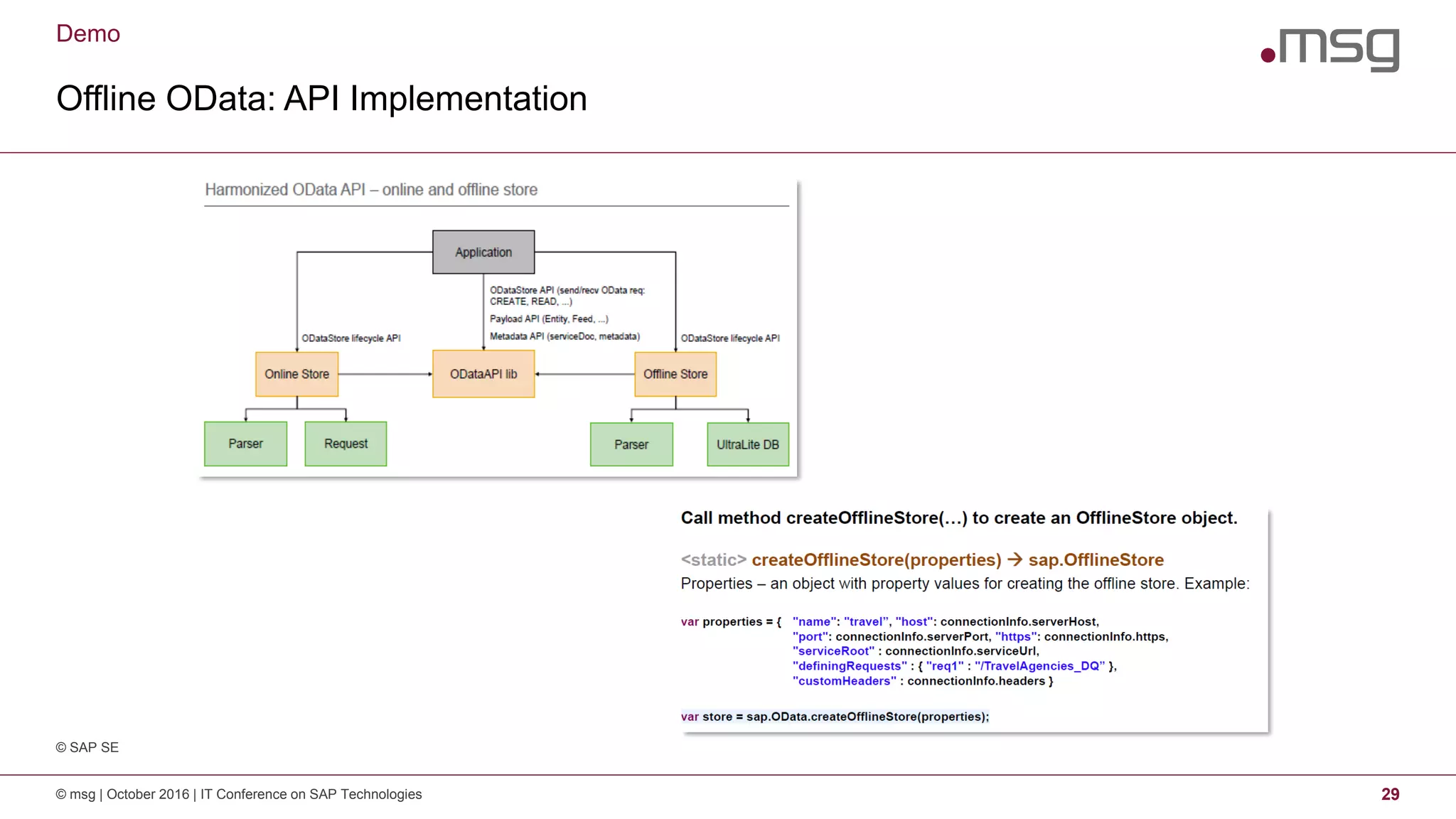

29. Demo
Offline OData: API Implementation
© msg | October 2016 | IT Conference on SAP Technologies 29
© SAP SE

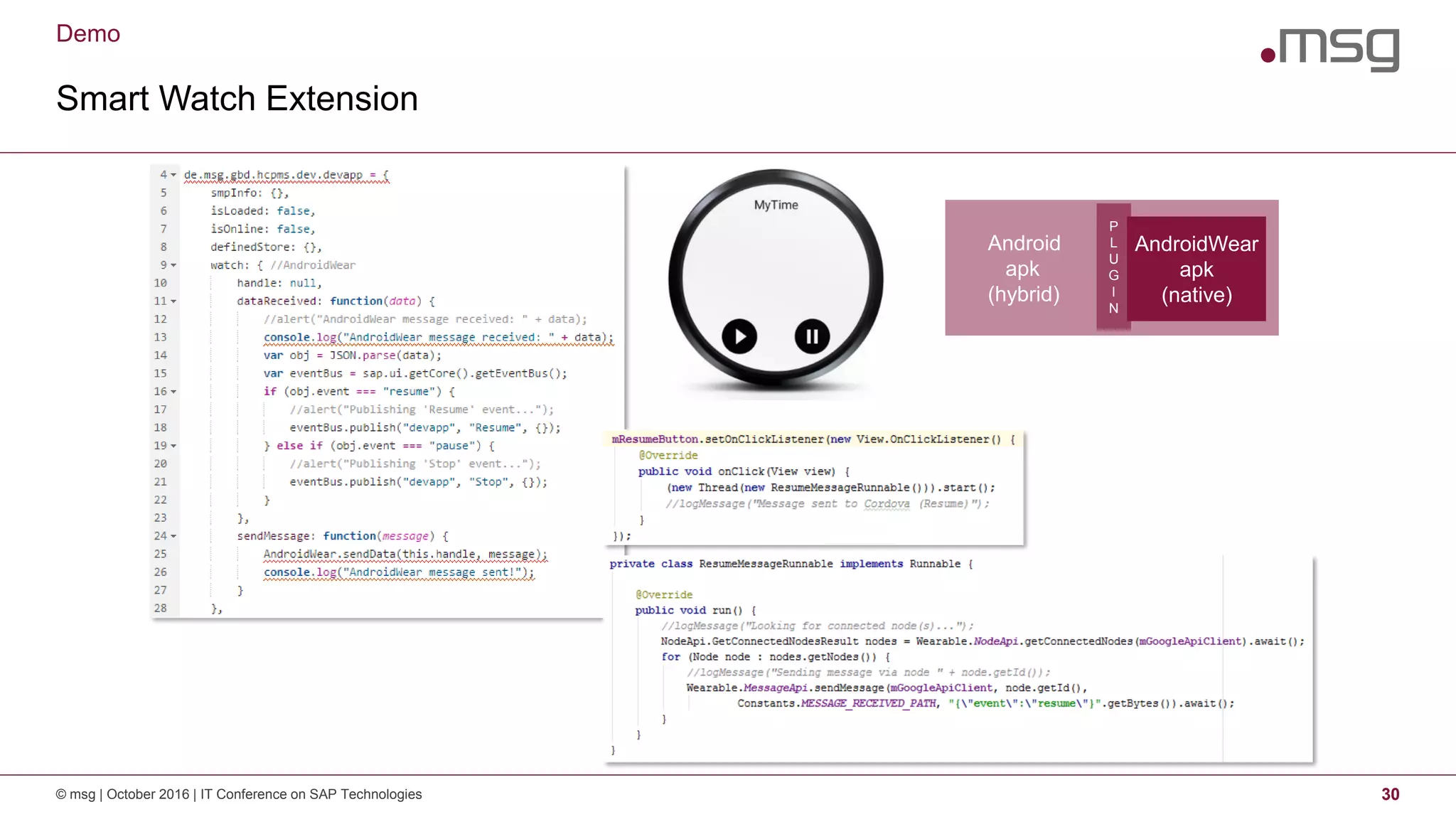

30. Demo
Smart Watch Extension
© msg | October 2016 | IT Conference on SAP Technologies 30
Android
apk
(hybrid)
AndroidWear
apk
(native)
P
L
U
G
I
N

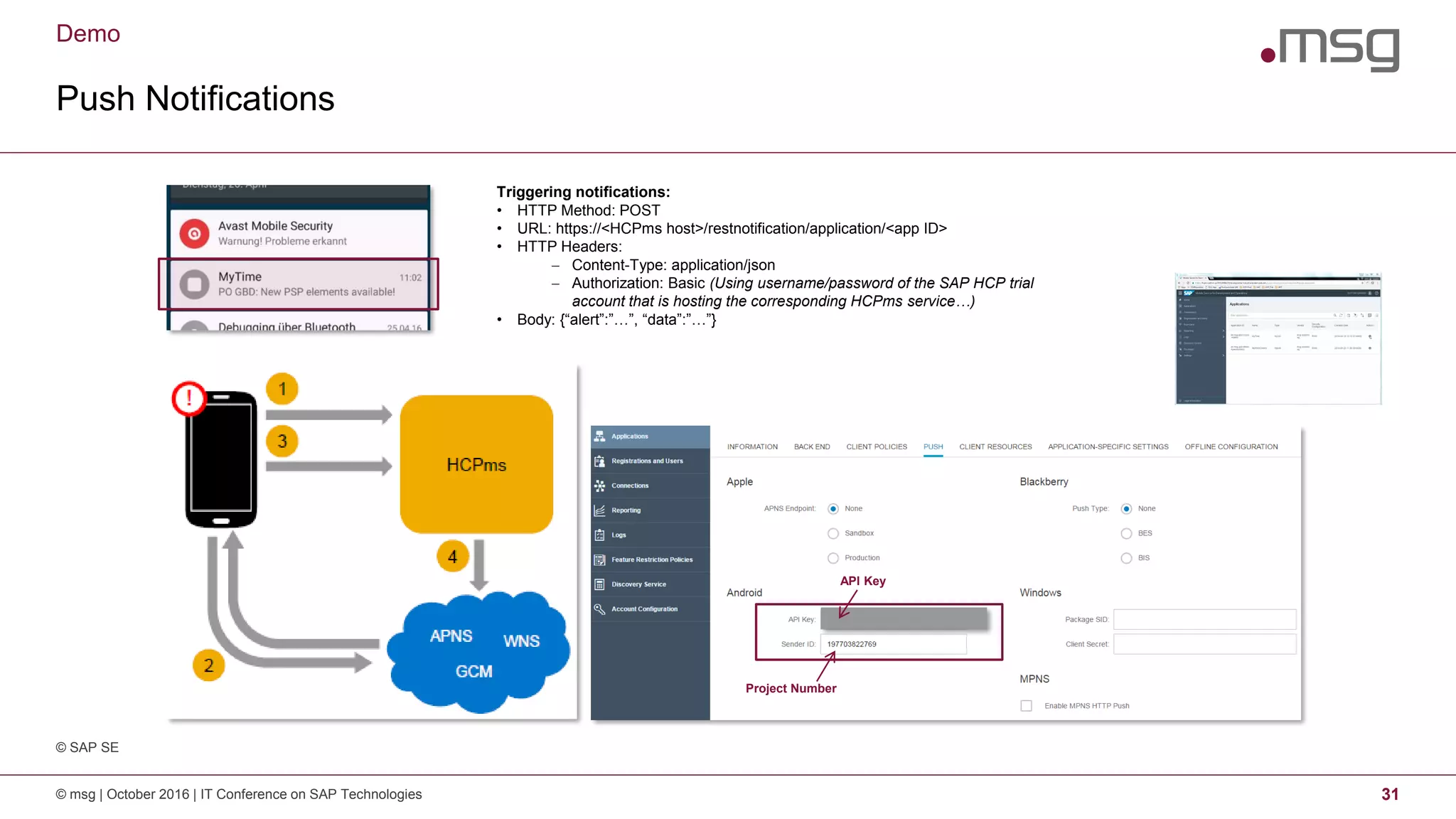

31. Demo
Push Notifications
© msg | October 2016 | IT Conference on SAP Technologies 31
Triggering notifications:
• HTTP Method: POST
• URL: https://<HCPms host>/restnotification/application/<app ID>
• HTTP Headers:
 Content-Type: application/json
 Authorization: Basic (Using username/password of the SAP HCP trial
account that is hosting the corresponding HCPms service…)
• Body: {“alert”:”…”, “data”:”…”}
Project Number
API Key
© SAP SE

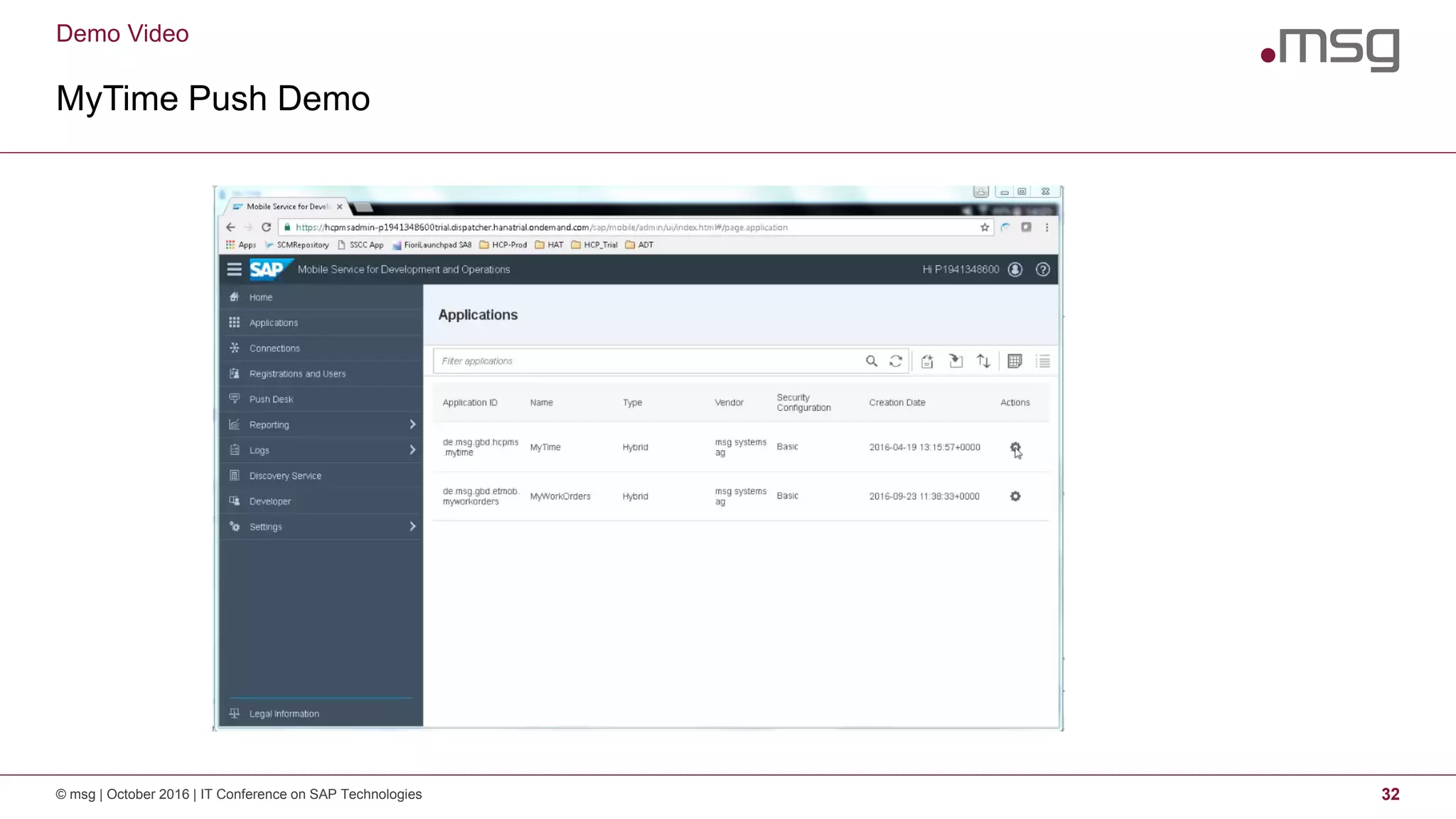

32. Demo Video
MyTime Push Demo
© msg | October 2016 | IT Conference on SAP Technologies 32

33. Demo
Speech Recognition
© msg | October 2016 | IT Conference on SAP Technologies 33

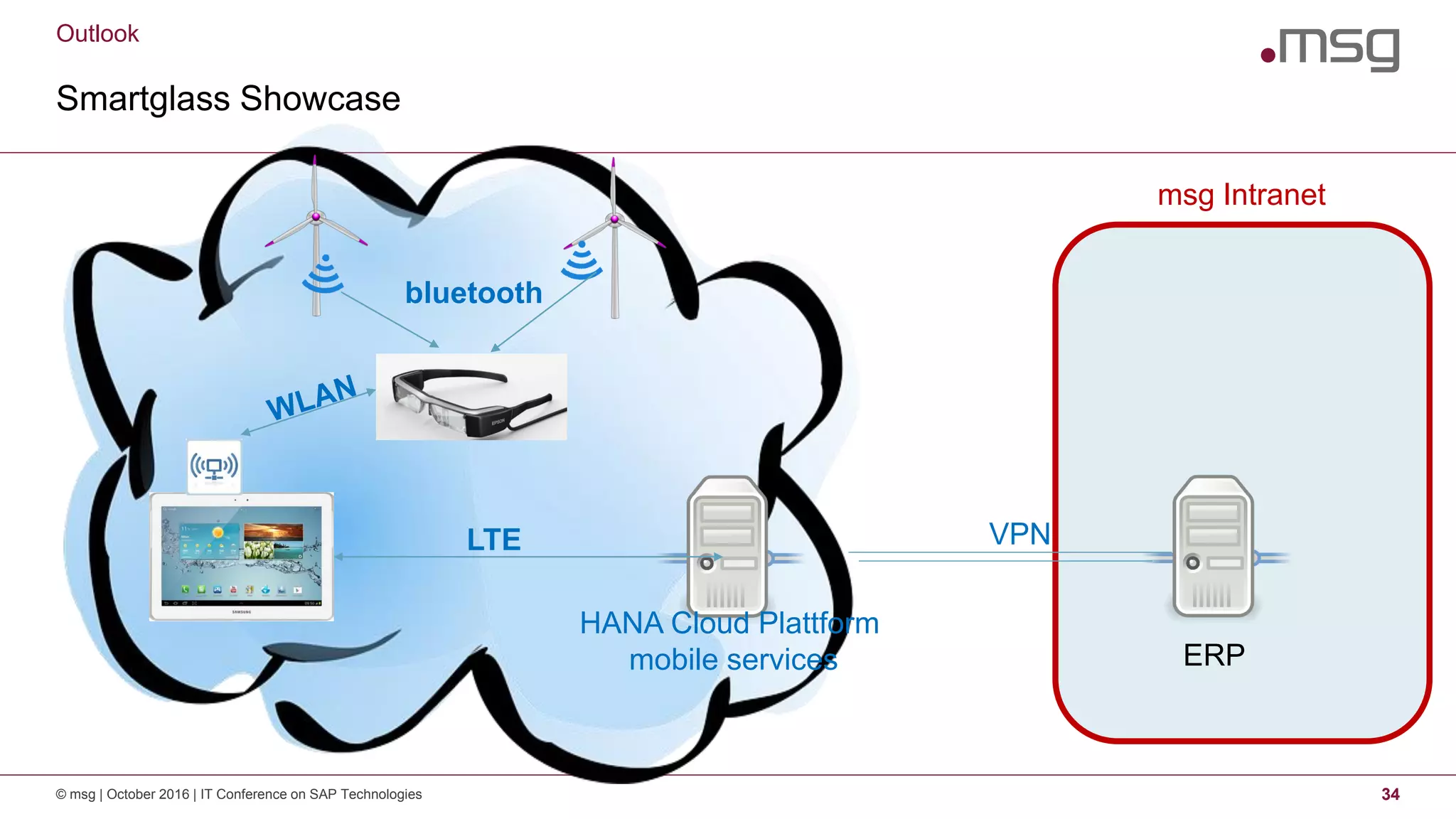

34. Outlook
Smartglass Showcase
© msg | October 2016 | IT Conference on SAP Technologies 34
bluetooth
LTE
HANA Cloud Plattform
mobile services
msg Intranet
ERP
VPN

35. Conclusion
SAP Mobile Services: Best Features, Limitations, Recommended Use
© msg | October 2016 | IT Conference on SAP Technologies 35
 Support for native and hybrid mobile app development
 Regarding SAP HCPms and hybrid app development:
 Platform is based on open standards (especially Apache Cordova)
 Kapsel plugins comprising the following features:
• User onboarding and authentication
• Offline functionality out of the box
• Push notifications
• and much more
 Smooth integration of SAP Web IDE with a local HAT installation
 Various deployment options (HCP, Fiori Launchpad, Companion App, device)

36. Conclusion
SAP Mobile Services: Best Features, Limitations, Recommended Use
© msg | October 2016 | IT Conference on SAP Technologies 36
• Costly and time-consuming setting up of local build environment (especially updates)
• Kapsel offline plugin not very transparent, i.e. no options to show cached data in HCPms
or to trigger a refresh etc.
• No use of destinations from HCP

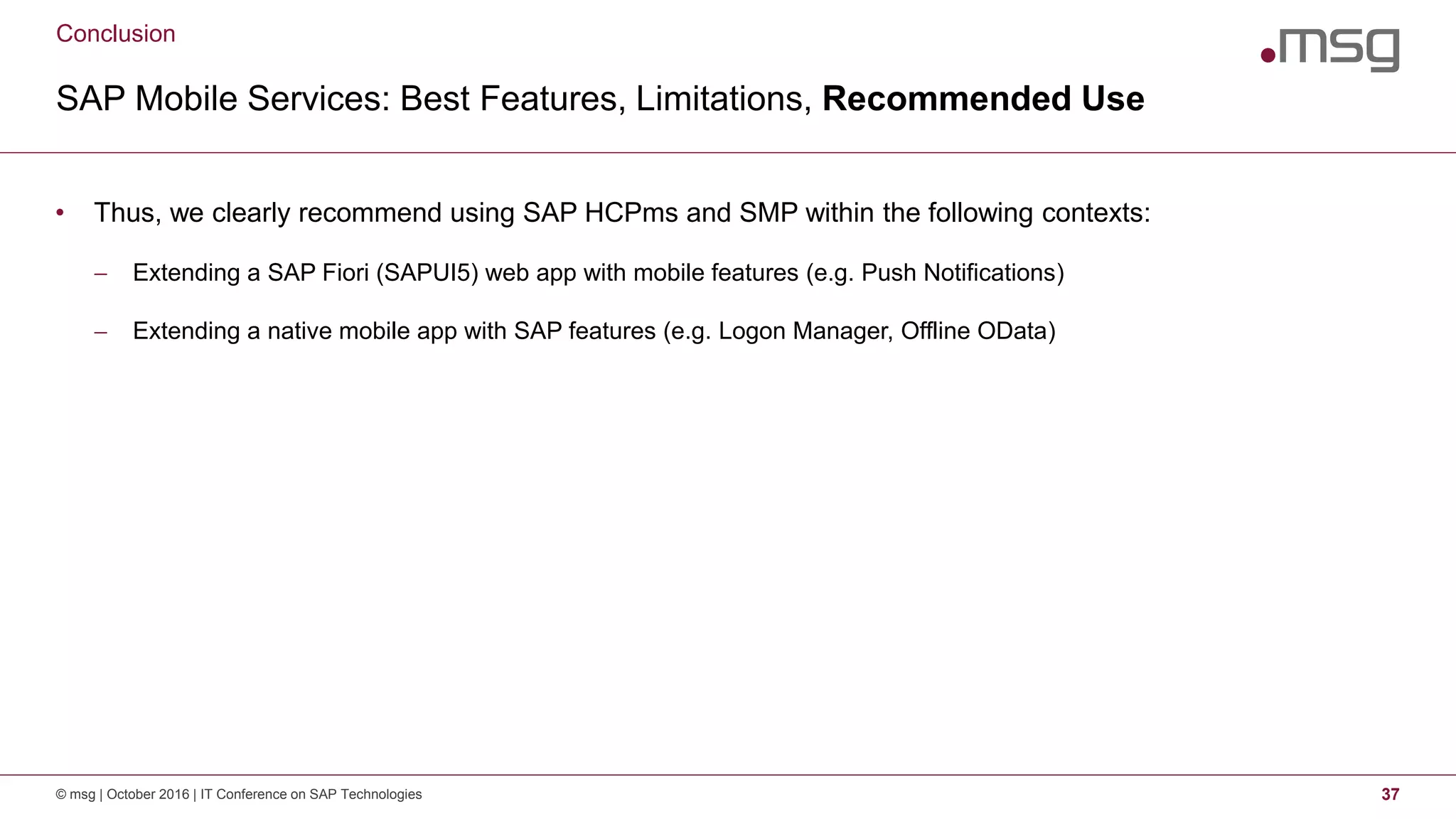

37. Conclusion
SAP Mobile Services: Best Features, Limitations, Recommended Use
© msg | October 2016 | IT Conference on SAP Technologies 37
• Thus, we clearly recommend using SAP HCPms and SMP within the following contexts:
 Extending a SAP Fiori (SAPUI5) web app with mobile features (e.g. Push Notifications)
 Extending a native mobile app with SAP features (e.g. Logon Manager, Offline OData)

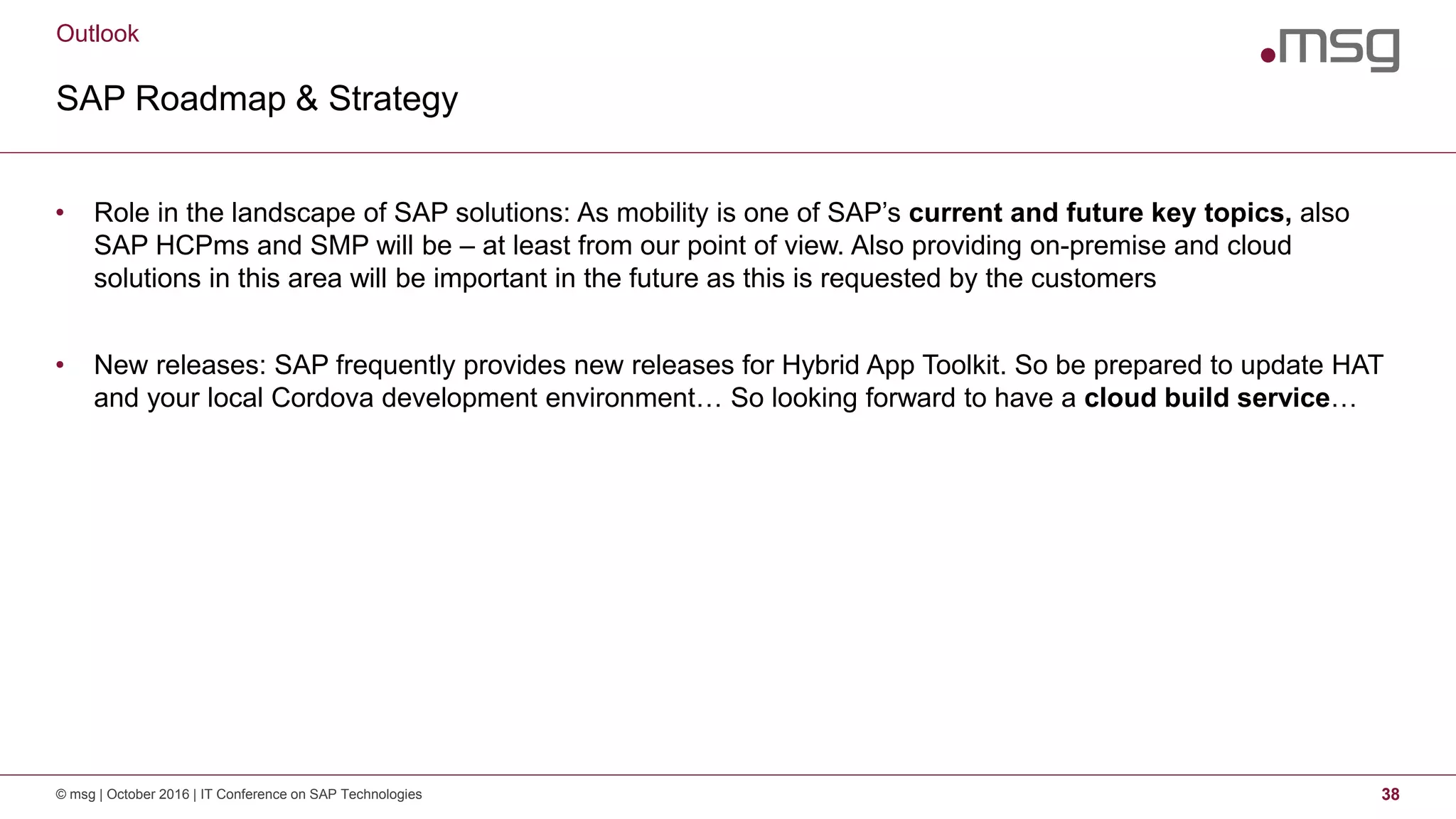

38. Outlook
SAP Roadmap & Strategy
© msg | October 2016 | IT Conference on SAP Technologies 38
• Role in the landscape of SAP solutions: As mobility is one of SAP’s current and future key topics, also
SAP HCPms and SMP will be – at least from our point of view. Also providing on-premise and cloud
solutions in this area will be important in the future as this is requested by the customers
• New releases: SAP frequently provides new releases for Hybrid App Toolkit. So be prepared to update HAT
and your local Cordova development environment… So looking forward to have a cloud build service…

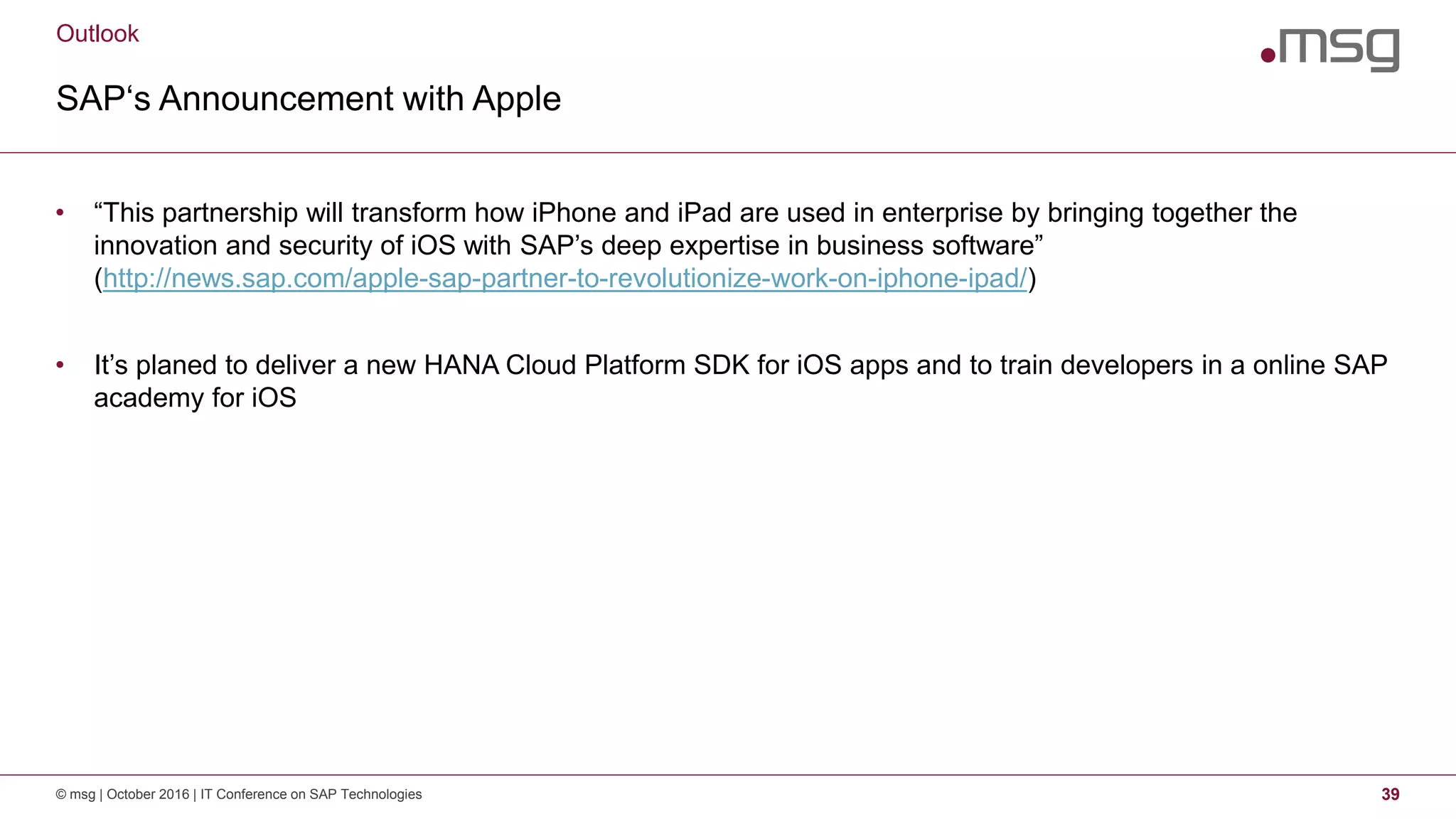

39. Outlook
SAP‘s Announcement with Apple
© msg | October 2016 | IT Conference on SAP Technologies 39
• “This partnership will transform how iPhone and iPad are used in enterprise by bringing together the
innovation and security of iOS with SAP’s deep expertise in business software”
(http://news.sap.com/apple-sap-partner-to-revolutionize-work-on-iphone-ipad/)
• It’s planed to deliver a new HANA Cloud Platform SDK for iOS apps and to train developers in a online SAP
academy for iOS

40. Developing Mobile Apps with HCPms
Q & A
© msg | October 2016 | IT Conference on SAP Technologies 40

41. .consulting .solutions .partnership
Veicht Johannes
Lead IT Consultant
johannes.veicht@msg-systems.com
msg systems ag (Headquarters)
Robert-Buerkle-Str. 1, 85737 Ismaning/Munich
Germany
www.msg-systems.com
