This document discusses developing desktop apps using Electron and Ember. It provides an overview of Electron and why developers use it to build hybrid apps. It then covers initializing an Ember app with Electron, using Electron Forge for features like live reloading and packaging, and extending an Electron app with things like global shortcuts, icons, and updates. Useful libraries like Render Vendor and FS Storage Plus that are well-suited for Electron apps are also mentioned.

1. developing desktop apps
w/ electron + ember
fitc: web unleashed (sep 25 2017)

2. © Isle of Code Inc.@anulman - #WEBU17

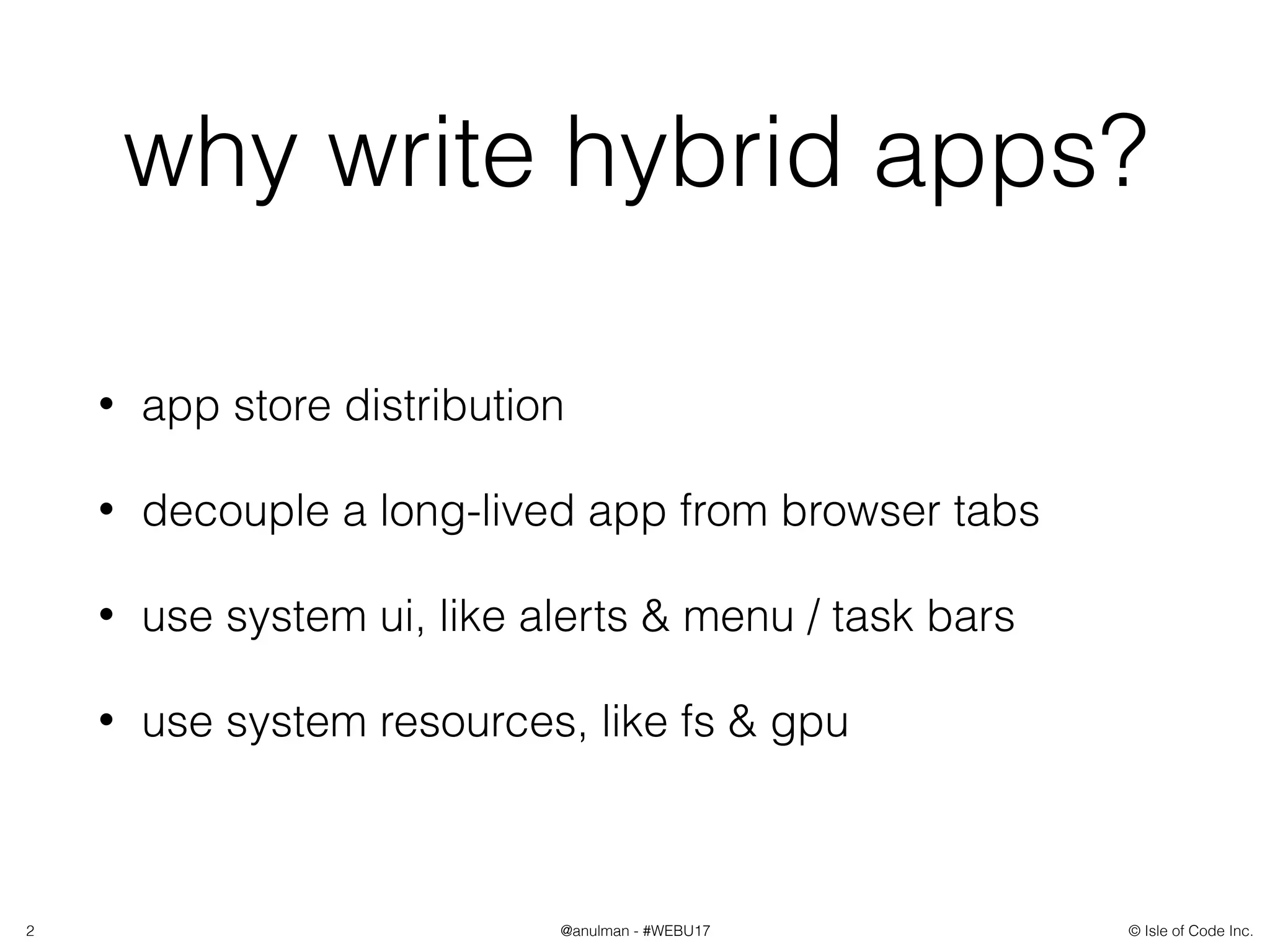

why write hybrid apps?
• app store distribution
• decouple a long-lived app from browser tabs
• use system ui, like alerts & menu / task bars
• use system resources, like fs & gpu
2

3. © Isle of Code Inc.@anulman - #WEBU17

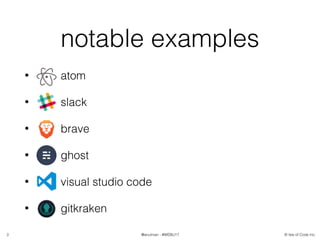

notable examples
• atom
• slack
• brave
• ghost
• visual studio code
• gitkraken
3

4. © Isle of Code Inc.@anulman - #WEBU17
things we will learn
• intro to electron
• what it is + why you’d use it
• architecture
• disclaimers
• spa frameworks + electron
• intro to electron-forge
• what it is + why you’d use it
• spa frameworks + electron-forge
4

5. © Isle of Code Inc.@anulman - #WEBU17
things we will learn (cont’d)
• building an app with ember-electron
• init
• livereload shell
• packaging / distributing
• testing
• extending your electron app
• global shortcuts + dialogs
• app icon
• app signing + autoupdate
• useful libs for electron apps
• render-vendor
• fs-storage-utils (beta!)
5

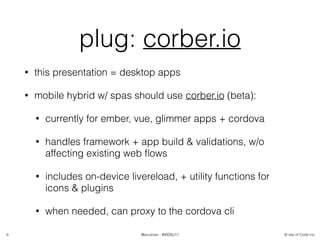

6. © Isle of Code Inc.@anulman - #WEBU17
plug: corber.io
• this presentation = desktop apps
• mobile hybrid w/ spas should use corber.io (beta):
• currently for ember, vue, glimmer apps + cordova
• handles framework + app build & validations, w/o
affecting existing web flows
• includes on-device livereload, + utility functions for
icons & plugins
• when needed, can proxy to the cordova cli
6

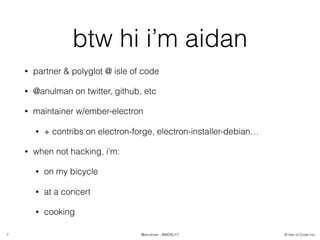

7. © Isle of Code Inc.@anulman - #WEBU17
btw hi i’m aidan
• partner & polyglot @ isle of code
• @anulman on twitter, github, etc
• maintainer w/ember-electron
• + contribs on electron-forge, electron-installer-debian…
• when not hacking, i’m:
• on my bicycle
• at a concert
• cooking
7

9. intro to electron

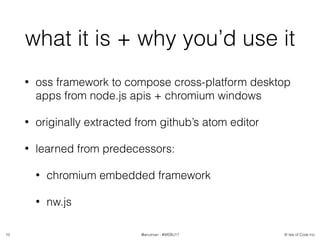

10. © Isle of Code Inc.@anulman - #WEBU17
what it is + why you’d use it
• oss framework to compose cross-platform desktop
apps from node.js apis + chromium windows
• originally extracted from github’s atom editor
• learned from predecessors:
• chromium embedded framework
• nw.js
10

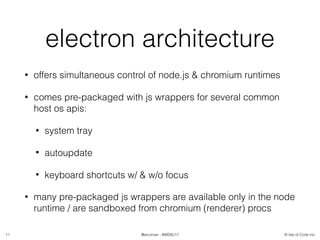

11. © Isle of Code Inc.@anulman - #WEBU17
electron architecture
• offers simultaneous control of node.js & chromium runtimes
• comes pre-packaged with js wrappers for several common
host os apis:
• system tray
• autoupdate
• keyboard shortcuts w/ & w/o focus
• many pre-packaged js wrappers are available only in the node
runtime / are sandboxed from chromium (renderer) procs
11

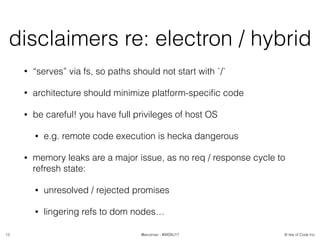

12. © Isle of Code Inc.@anulman - #WEBU17
disclaimers re: electron / hybrid
• “serves” via fs, so paths should not start with `/`
• architecture should minimize platform-specific code
• be careful! you have full privileges of host OS
• e.g. remote code execution is hecka dangerous
• memory leaks are a major issue, as no req / response cycle to
refresh state:
• unresolved / rejected promises
• lingering refs to dom nodes…
12

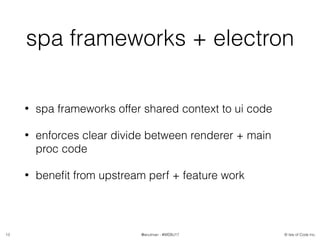

13. © Isle of Code Inc.@anulman - #WEBU17
spa frameworks + electron
• spa frameworks offer shared context to ui code
• enforces clear divide between renderer + main
proc code
• benefit from upstream perf + feature work
13

14. intro to electron-forge

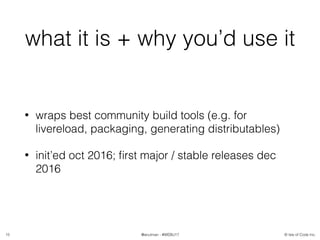

15. © Isle of Code Inc.@anulman - #WEBU17
what it is + why you’d use it
• wraps best community build tools (e.g. for
livereload, packaging, generating distributables)
• init’ed oct 2016; first major / stable releases dec
2016
15

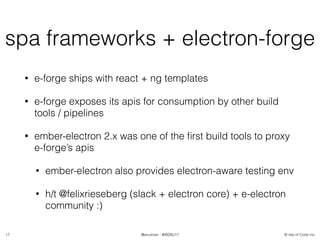

17. © Isle of Code Inc.@anulman - #WEBU17
spa frameworks + electron-forge
• e-forge ships with react + ng templates
• e-forge exposes its apis for consumption by other build
tools / pipelines
• ember-electron 2.x was one of the first build tools to proxy
e-forge’s apis
• ember-electron also provides electron-aware testing env
• h/t @felixrieseberg (slack + electron core) + e-electron
community :)
17

18. building an app with
ember-electron

19. © Isle of Code Inc.@anulman - #WEBU17

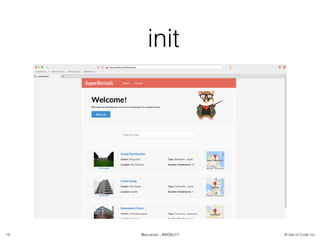

init
19

20. © Isle of Code Inc.@anulman - #WEBU17
init
• `ember install ember-electron`
• (or `ember g ember-electron`)
• runs `electron-forge init .`, + some other config
• https://github.com/felixrieseberg/ember-electron/blob/master/blueprints/ember-electron/index.js
20

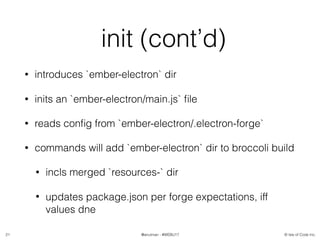

21. © Isle of Code Inc.@anulman - #WEBU17
init (cont’d)
• introduces `ember-electron` dir
• inits an `ember-electron/main.js` file
• reads config from `ember-electron/.electron-forge`
• commands will add `ember-electron` dir to broccoli build
• incls merged `resources-` dir
• updates package.json per forge expectations, iff
values dne
21

22. © Isle of Code Inc.@anulman - #WEBU17
livereload shell
• `ember electron`
• electron equivalent to `ember s`
• proxies api for `electron-forge start`
• https://github.com/felixrieseberg/ember-electron/blob/master/lib/commands/electron.js
22

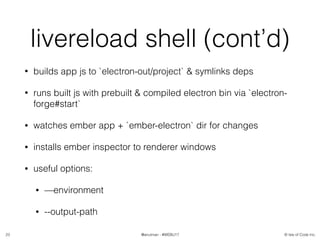

23. © Isle of Code Inc.@anulman - #WEBU17
livereload shell (cont’d)
• builds app js to `electron-out/project` & symlinks deps
• runs built js with prebuilt & compiled electron bin via `electron-
forge#start`
• watches ember app + `ember-electron` dir for changes
• installs ember inspector to renderer windows
• useful options:
• —environment
• --output-path
23

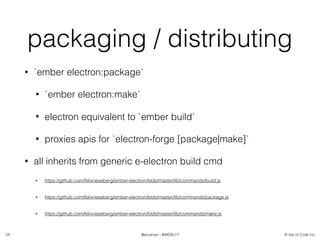

24. © Isle of Code Inc.@anulman - #WEBU17
packaging / distributing
• `ember electron:package`
• `ember electron:make`
• electron equivalent to `ember build`
• proxies apis for `electron-forge [package|make]`
• all inherits from generic e-electron build cmd
• https://github.com/felixrieseberg/ember-electron/blob/master/lib/commands/build.js
• https://github.com/felixrieseberg/ember-electron/blob/master/lib/commands/package.js
• https://github.com/felixrieseberg/ember-electron/blob/master/lib/commands/make.js
24

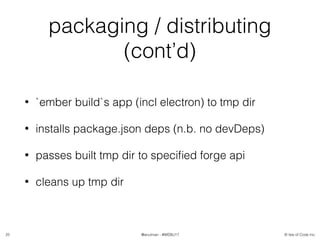

25. © Isle of Code Inc.@anulman - #WEBU17
packaging / distributing
(cont’d)
• `ember build`s app (incl electron) to tmp dir
• installs package.json deps (n.b. no devDeps)
• passes built tmp dir to specified forge api
• cleans up tmp dir
25

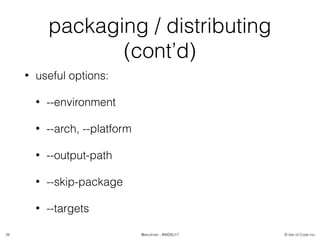

26. © Isle of Code Inc.@anulman - #WEBU17
packaging / distributing
(cont’d)
• useful options:
• --environment
• --arch, --platform
• --output-path
• --skip-package
• --targets
26

27. © Isle of Code Inc.@anulman - #WEBU17
testing
• `ember electron:test`
• electron equivalent to `ember test`
• https://github.com/felixrieseberg/ember-electron/blob/master/lib/commands/electron-test.js
27

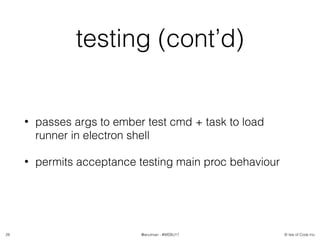

28. © Isle of Code Inc.@anulman - #WEBU17
testing (cont’d)
• passes args to ember test cmd + task to load
runner in electron shell
• permits acceptance testing main proc behaviour
28

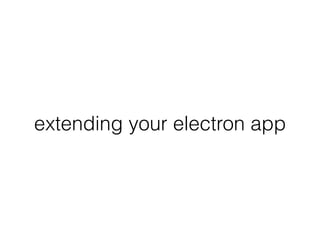

29. extending your electron app

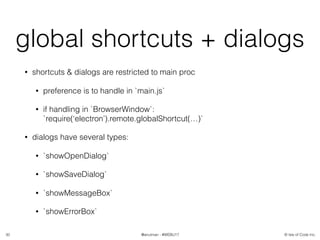

30. © Isle of Code Inc.@anulman - #WEBU17
global shortcuts + dialogs
• shortcuts & dialogs are restricted to main proc
• preference is to handle in `main.js`
• if handling in `BrowserWindow`:
`require(‘electron’).remote.globalShortcut(…)`
• dialogs have several types:
• `showOpenDialog`
• `showSaveDialog`
• `showMessageBox`
• `showErrorBox`
30

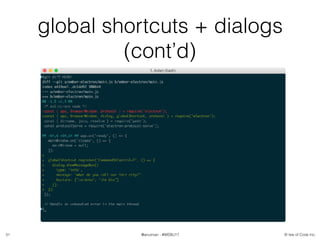

31. © Isle of Code Inc.@anulman - #WEBU17
global shortcuts + dialogs
(cont’d)
31

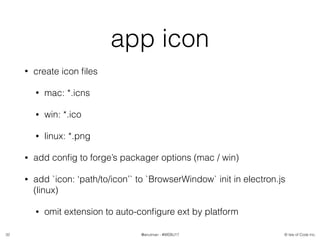

32. © Isle of Code Inc.@anulman - #WEBU17
app icon
• create icon files
• mac: *.icns
• win: *.ico
• linux: *.png
• add config to forge’s packager options (mac / win)
• add `icon: ‘path/to/icon’` to `BrowserWindow` init in electron.js
(linux)
• omit extension to auto-configure ext by platform
32

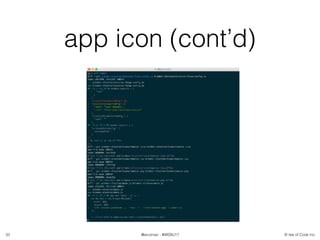

33. © Isle of Code Inc.@anulman - #WEBU17
app icon (cont’d)
33

34. © Isle of Code Inc.@anulman - #WEBU17

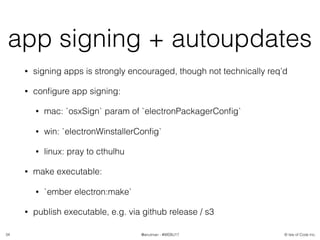

app signing + autoupdates
• signing apps is strongly encouraged, though not technically req’d
• configure app signing:
• mac: `osxSign` param of `electronPackagerConfig`
• win: `electronWinstallerConfig`
• linux: pray to cthulhu
• make executable:
• `ember electron:make`
• publish executable, e.g. via github release / s3
34

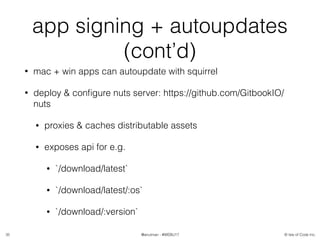

35. © Isle of Code Inc.@anulman - #WEBU17
app signing + autoupdates
(cont’d)
• mac + win apps can autoupdate with squirrel
• deploy & configure nuts server: https://github.com/GitbookIO/
nuts
• proxies & caches distributable assets
• exposes api for e.g.
• `/download/latest`
• `/download/latest/:os`
• `/download/:version`
35

36. © Isle of Code Inc.@anulman - #WEBU17

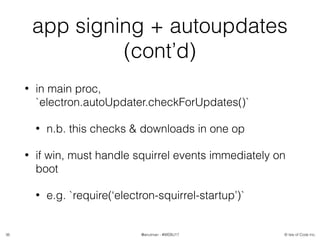

app signing + autoupdates
(cont’d)
• in main proc,
`electron.autoUpdater.checkForUpdates()`
• n.b. this checks & downloads in one op
• if win, must handle squirrel events immediately on
boot
• e.g. `require(‘electron-squirrel-startup’)`
36

38. useful libs for electron apps

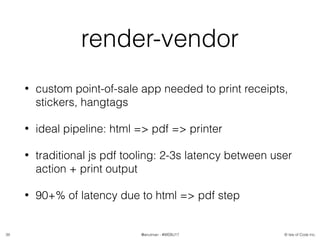

39. © Isle of Code Inc.@anulman - #WEBU17
render-vendor
• custom point-of-sale app needed to print receipts,
stickers, hangtags
• ideal pipeline: html => pdf => printer
• traditional js pdf tooling: 2-3s latency between user
action + print output
• 90+% of latency due to html => pdf step
39

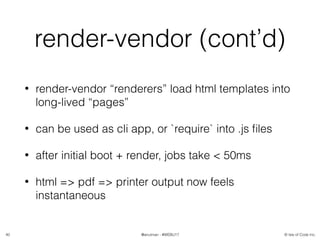

40. © Isle of Code Inc.@anulman - #WEBU17
render-vendor (cont’d)
• render-vendor “renderers” load html templates into
long-lived “pages”
• can be used as cli app, or `require` into .js files
• after initial boot + render, jobs take < 50ms
• html => pdf => printer output now feels
instantaneous
40

41. © Isle of Code Inc.@anulman - #WEBU17
fs-storage-plus (beta)
• app needed to sign into third party services
• ideal solution would store cookies + user creds for
reuse between boots
• fs-storage-plus implements localstorage API with fs
storage backend
• encrypted storage class (constructor) extends
base with crypto + node-keytar libs to generate,
cycle, and securely persist encryption keys
41

42. © Isle of Code Inc.@anulman - #WEBU17

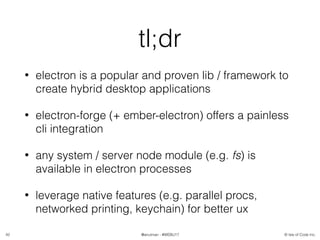

tl;dr
• electron is a popular and proven lib / framework to
create hybrid desktop applications
• electron-forge (+ ember-electron) offers a painless
cli integration
• any system / server node module (e.g. fs) is
available in electron processes
• leverage native features (e.g. parallel procs,
networked printing, keychain) for better ux
42

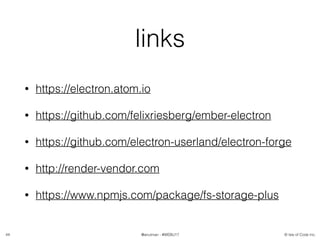

44. © Isle of Code Inc.@anulman - #WEBU17
links
• https://electron.atom.io
• https://github.com/felixriesberg/ember-electron
• https://github.com/electron-userland/electron-forge
• http://render-vendor.com
• https://www.npmjs.com/package/fs-storage-plus
44
