Gary Helmling, Software Engineer
@gario
HBaseCon 2015 - May 7
Reusable Data Access Patterns

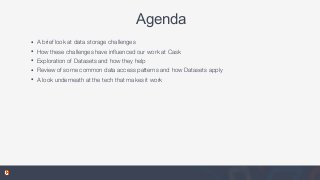

Agenda
• A brief look at data storage challenges
• How these challenges have influenced our work at Cask
• Exploration of Datasets and how they help
• Review of some common data access patterns and how Datasets apply
• A look underneath at the tech that makes it work

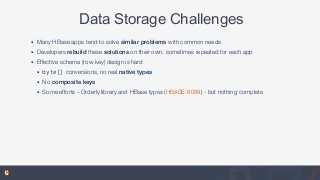

Data Storage Challenges
• Many HBase apps tend to solve similar problems with common needs
• Developers rebuild these solutions on their own, sometimes repeated for each app
• Effective schema (row key) design is hard
• byte[] conversions, no real native types
• No composite keys
• Some efforts - Orderly library and HBase types (HBASE-8089) - but nothing complete
Data Storage Challenges
• Easy to wind up with many similar, but slightly different implementations
Cask Data Application Platform
• CDAP is a scale-out application platform for Hadoop and HBase
• Enables easy scaling of application components
• Combines real-time and batch data processing
• Abstracts data storage details with Datasets
• Built from experience by Hadoop and HBase users and contributors
• CDAP and the components it builds on are open source (Apache License v2.0):
• Tephra, a scalable transaction engine for HBase and Hadoop
• Apache Twill, makes writing distributed apps on YARN as simple as running threads

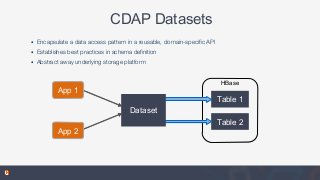

• Encapsulate a data access pattern in a reusable, domain-specific API
• Establishes best practices in schema definition
• Abstract away underlying storage platform
HBase
CDAP Datasets
Table 1
Table 2
Dataset
App 2
App 1
How CDAP Datasets Help
• Reusable as data storage templates
• Easy sharing of stored data:
• Between applications
• Batch and real-time processing
• Integrated testing
• Extensible to create your own solutions
• Leverage common services to ease development:
• Transactions
• Readless increments
Reusing Datasets
• CDAP integrates lifecycle management
• Centralized metadata provides key configuration
• Transparent integration with other systems
• Hive metastore
• Map Reduce Input/OutputFormats
• Spark RDDs
Reusing Datasets
/**
* Counter Flowlet.
*/
public class Counter extends AbstractFlowlet {
@UseDataSet("wordCounts")
private KeyValueTable wordCountsTable;
…
}
Testing Datasets
• CDAP provides three storage backends: in-memory, local (standalone), distributed
In-Memory
NavigableMap
Local Temp Files
Local
LevelDB
Local Files
Distributed
HBase
HDFS
Dataset APIs
Development Lifecycle
Extending Datasets
• Existing datasets can be used as building blocks for your own patterns
• @EmbeddedDataset annotation injects wrapped instance in custom code
• Operations seamlessly wrapped in same transaction, no need to re-implement
public class UniqueCountTable extends AbstractDataset {
public UniqueCountTable(DatasetSpecification spec,
@EmbeddedDataset("unique") Table uniqueCountTable,
@EmbeddedDataset("entry") Table entryCountTable) {
…
}
}

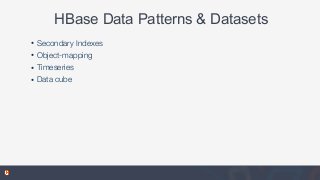

HBase Data Patterns & Datasets
• Secondary Indexes
• Object-mapping
• Timeseries
• Data cube
Secondary Indexing
• Example use case: Entity storage - store customer records indexed by location
• HBase sorts data by row key
• Retrieving by a secondary value means storing a reference in another table
• Two types: global and local
• Global: efficient reads, but updates can be inconsistent
• Local: updates can be made consistent, but reads require contacting all servers
• IndexedTable Dataset performs global indexing
• Uses two tables: data table, index table
• Uses global transactions to keep updates consistent

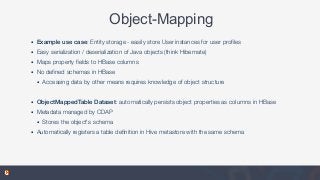

Object-Mapping
• Example use case: Entity storage - easily store User instances for user profiles
• Easy serialization / deserialization of Java objects (think Hibernate)
• Maps property fields to HBase columns
• No defined schemas in HBase
• Accessing data by other means requires knowledge of object structure
• ObjectMappedTable Dataset: automatically persists object properties as columns in HBase
• Metadata managed by CDAP
• Stores the object's schema
• Automatically registers a table definition in Hive metastore with the same schema

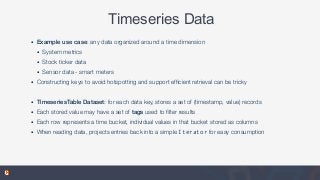

Timeseries Data
• Example use case: any data organized around a time dimension
• System metrics
• Stock ticker data
• Sensor data - smart meters
• Constructing keys to avoid hotspotting and support efficient retrieval can be tricky
• TimeseriesTable Dataset: for each data key, stores a set of (timestamp, value) records
• Each stored value may have a set of tags used to filter results
• Each row represents a time bucket, individual values in that bucket stored as columns
• When reading data, projects entries back into a simple Iterator for easy consumption

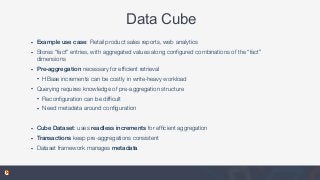

Data Cube
• Example use case: Retail product sales reports, web analytics
• Stores “fact” entries, with aggregated values along configured combinations of the “fact”
dimensions
• Pre-aggregation necessary for efficient retrieval
• HBase increments can be costly in write-heavy workload
• Querying requires knowledge of pre-aggregation structure
• Reconfiguration can be difficult
• Need metadata around configuration
• Cube Dataset: uses readless increments for efficient aggregation
• Transactions keep pre-aggregations consistent
• Dataset framework manages metadata

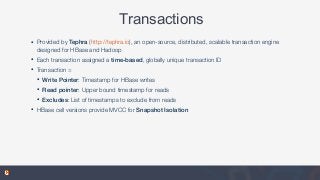

Transactions
• Provided by Tephra (http://tephra.io), an open-source, distributed, scalable transaction engine
designed for HBase and Hadoop
• Each transaction assigned a time-based, globally unique transaction ID
• Transaction =
• Write Pointer: Timestamp for HBase writes
• Read pointer: Upper bound timestamp for reads
• Excludes: List of timestamps to exclude from reads
• HBase cell versions provide MVCC for Snapshot Isolation

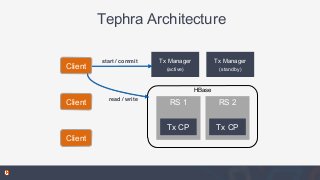

Tephra Architecture
Tx Manager
(active)
Tx Manager
(standby)
HBase
RS 1
start / commit
Client
Client
Client
read / write
RS 2
Tx CP Tx CP

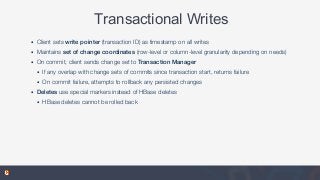

Transactional Writes
• Client sets write pointer (transaction ID) as timestamp on all writes
• Maintains set of change coordinates (row-level or column-level granularity depending on needs)
• On commit, client sends change set to Transaction Manager
• If any overlap with change sets of commits since transaction start, returns failure
• On commit failure, attempts to rollback any persisted changes
• Deletes use special markers instead of HBase deletes
• HBase deletes cannot be rolled back

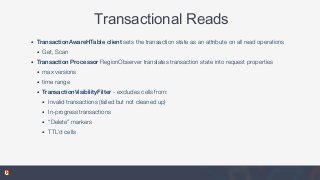

Transactional Reads
• TransactionAwareHTable client sets the transaction state as an attribute on all read operations
• Get, Scan
• Transaction Processor RegionObserver translates transaction state into request properties
• max versions
• time range
• TransactionVisibilityFilter - excludes cells from:
• Invalid transactions (failed but not cleaned up)
• In-progress transactions
• “Delete” markers
• TTL’d cells

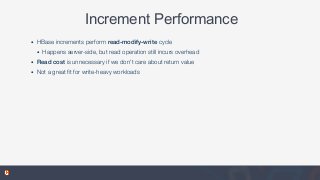

Increment Performance
• HBase increments perform read-modify-write cycle
• Happens server-side, but read operation still incurs overhead
• Read cost is unnecessary if we don't care about return value
• Not a great fit for write-heavy workloads

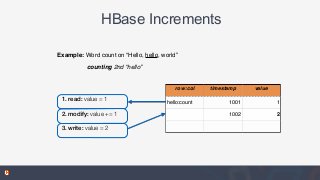

HBase Increments
row:col timestamp value
hello:count 1001 1
1002 2
Example: Word count on “Hello, hello, world”
counting 2nd “hello”
1. read: value = 1
2. modify: value += 1
3. write: value = 2

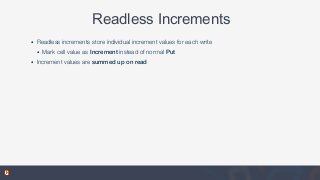

Readless Increments
• Readless increments store individual increment values for each write
• Mark cell value as Increment instead of normal Put
• Increment values are summed up on read

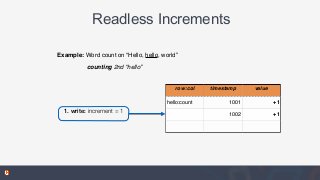

Readless Increments
row:col timestamp value
hello:count 1001 +1
1002 +1
1. write: increment = 1
Example: Word count on “Hello, hello, world”
counting 2nd “hello”

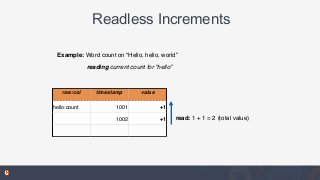

Readless Increments
row:col timestamp value
hello:count 1001 +1
1002 +1
Example: Word count on “Hello, hello, world”
reading current count for “hello”
read: 1 + 1 = 2 (total value)
Readless Increments
• Increments become simple writes
• Good for write-heavy workloads (many uses of increments)
• Reads incur extra cost from reading all versions up to latest full sum
• HBase RegionObserver merges increments on flush and compaction
• Limits cost of coalesce-on-read
• Work well with transactions: increments do not conflict!

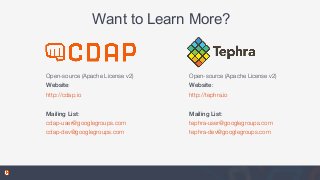

Want to Learn More?
Open-source (Apache License v2)
Website:
http://cdap.io
Mailing List:
cdap-user@googlegroups.com
cdap-dev@googlegroups.com
Open-source (Apache License v2)
Website:
http://tephra.io
Mailing List:
tephra-user@googlegroups.com
tephra-dev@googlegroups.com

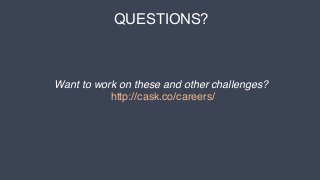

QUESTIONS?
Want to work on these and other challenges?
http://cask.co/careers/
