Designing Efficient Machines: Translational and Rotational Motion in Simple and Compound Machine Design

Editor's Notes

• #1 "Good day, everyone! Today, we will learn how physics is applied in designing machines that make our daily lives easier. Every machine that we use—from bicycles and elevators to cranes and conveyor belts—operates because of the principles of motion. In our previous lessons, we learned about translational motion, which refers to movement in a straight path, and rotational motion, which refers to movement around an axis. Today, we will combine these concepts and discover how engineers use them to design efficient machines. By the end of today's lesson, you will not only understand how these motions work together but also apply your knowledge by designing and building your own machine prototype."
• #2 "Can anyone name a machine that you used before coming to school today?" Possible responses: Motorcycle Bicycle Tricycle Electric fan Elevator Door Washing machine Explain: "Excellent! Almost every machine around us involves either translational motion, rotational motion, or both.“ "Before we build our own machine, let us first understand what we are expected to learn."
• #3 Notice that our lesson does not stop at understanding concepts. We will also apply these concepts through an engineering design challenge. This means you will become young engineers today."
• #4 "Which objective do you think will be the most challenging?" Possible responses Building the prototype Applying formulas Designing the machine Respond "That is perfectly normal. Engineering always involves solving problems, and that's exactly what we will practice today." Transition "Before discussing the concepts, let's observe some everyday machines."
• #5 "Look carefully at these different machines. Think about how each one works." Ask: "What do all these machines have in common?" Possible responses "They all move." "They help people." "They have wheels." "They make work easier." Explain "Exactly. Machines are devices designed to make work easier.
• #6 Ask "Which part of the bicycle rotates?" Students: "The wheels." "The pedals." "The gears." Ask "What moves in a straight line?" Students "The bicycle moves forward." "The rider moves forward." Explain "This tells us something important. The wheels rotate, but because they rotate, the bicycle moves forward. This means rotational motion produces translational motion." Ask "Why don't we simply push the bicycle instead of using wheels?" Expected response "Because wheels reduce friction." "It is easier." Explain "Correct! Engineers design machines to reduce effort while increasing efficiency." Transition "To understand machines better, let's first review translational motion."
• #7 "Translational motion is one of the most common types of motion. It occurs when every part of an object moves the same distance in the same direction during the same amount of time." Show examples Elevator Train Sliding door Conveyor belt Explain "When an elevator moves upward, every part of the elevator moves together. The roof, floor, and walls all travel the same distance. There is no spinning. There is no turning. Only straight-line movement." Discuss Characteristics ✔ Linear displacement "The distance travelled along a straight path." ✔ Linear velocity "How fast the object moves."
• #8 "What are other examples of translational motion?" Possible responses Walking Running Escalator Moving car Airplane taking off Emphasize "Even though a car has rotating wheels, the entire car itself moves through translational motion." Transition "Now let us compare this with rotational motion."

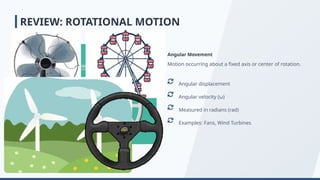

• #9 "Unlike translational motion, rotational motion occurs when an object spins around a fixed point or axis." Examples Electric fan Ferris wheel Wind turbine Steering wheel Clock hands Explain "Notice that the center stays fixed while the outer parts move in circles."
• #10 Introduce Angular displacement "Measures how much an object rotates." Angular velocity "Measures how fast it rotates." Symbol Units Radians per second Angular acceleration Symbol Explains how quickly angular velocity changes.
• #11 "What rotates inside a bicycle?" Possible responses Wheels Pedals Chain gears Explain "All these rotating parts help the bicycle move forward." Misconception "A rotating object does not necessarily move from one place to another. For example, a ceiling fan rotates, but it remains fixed." Transition "So how are these two motions connected?"
• #12 "This slide explains one of the most important ideas in mechanics. Many machines convert rotational motion into translational motion." Example "A bicycle wheel rotates. As it rotates, it pushes against the ground. This causes the bicycle to move forward." Interpretation "If the wheel rotates faster, the bicycle moves faster. If the wheel is larger, one complete rotation covers more distance.“ Interpretation "If the wheel rotates faster, the bicycle moves faster. If the wheel is larger, one complete rotation covers more distance." Explain "The faster the angular acceleration, the greater the linear acceleration."
• #13 Real-life examples Rolling tires Conveyor rollers Skateboard wheels Rolling coins Shopping cart wheels Ask "Why do trucks have larger wheels than bicycles?" Expected responses "They travel farther in one rotation." "They carry heavier loads." "They improve performance." Conclude "Understanding the relationship between rotational and translational motion helps engineers design safer, faster, and more efficient machines." Now that we understand how machines move, the next question is: What makes a machine efficient?"
• #14 Most of you would probably choose the ramp because it makes the task easier. This is what we mean by an efficient machine. An efficient machine uses less input energy while producing more useful work. Although no machine is 100% efficient because some energy is always lost—usually as heat due to friction—engineers always try to design machines that minimize these losses."
• #15 Explain: Input Work is the work you put into the machine. Output Work is the useful work produced by the machine. The closer the efficiency is to 100%, the better the machine performs. For example: "If you exert 100 Joules of energy to operate a machine and only 80 Joules become useful work, then the machine has an efficiency of 80%. The remaining 20 Joules are lost, mainly because of friction."
• #16 "Friction is the force that opposes motion. Although friction is useful in some situations—for example, allowing tires to grip the road—it also causes energy loss in machines." Examples: Bicycle chain Door hinges Engine parts Explain: "Without lubrication, moving parts rub against each other, producing heat and wearing out the machine."
• #17 "The material used in constructing a machine affects both its strength and weight. For example: Aluminum is lightweight and rust-resistant. Steel is stronger but heavier. Plastic is inexpensive but may not withstand heavy loads." Engineers carefully select materials depending on the machine's purpose.
• #18 "If the moving parts are not properly aligned, friction increases. Imagine riding a bicycle with a bent wheel. The wheel rubs against the frame, making it difficult to pedal." Proper alignment allows smoother motion and less energy loss.
• #19 "What happens if we never lubricate the chain of a bicycle?" Expected responses: It becomes difficult to pedal. More friction is produced. The chain may rust. More effort is required. Explain: "Exactly! Reducing friction is one of the easiest ways to improve machine efficiency." Transition "Now that we know what makes machines efficient, let's examine the building blocks of all machines."

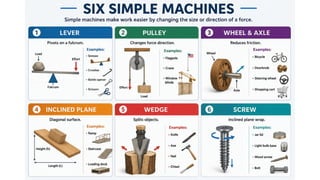

• #20 "Every complex machine you see today is made from one or more simple machines. A simple machine is a device that changes the magnitude or direction of a force, making work easier." "There are six classical simple machines."
• #21 "A lever is a rigid bar that rotates around a fixed point called the fulcrum.“ "A pulley consists of a wheel with a rope passing around it.“ A wheel attached to a smaller axle rotates together.This simple machine reduces friction and allows objects to move more easily.“ Instead of lifting an object straight upward, an inclined plane allows you to move it gradually along a slope.“ A wedge is simply two inclined planes joined together.“ "A screw is an inclined plane wrapped around a cylinder. The threads convert rotational motion into translational motion.“
• #22 Can you identify simple machines inside your classroom?" Expected answers: Door knob Chair screws Window blinds Ramp Scissors Although these six simple machines are useful individually, most modern machines combine several of them."
• #23 A compound machine consists of two or more simple machines working together. These machines perform more complicated tasks than simple machines." "Why do engineers prefer compound machines?" Expected responses: Perform more work Save time Reduce effort Increase efficiency Explain: "Exactly. Combining simple machines allows engineers to solve more complex problems." Transition "Let's identify where translational and rotational motion occur in these machines."
• #24 Ask Students "What would happen if only rotational motion existed without translational motion?" Expected response: "The machine would simply spin without moving." Explain: "Exactly. Most useful machines combine both types of motion." Transition "Now let's think like engineers."
• #25 "Scientists discover knowledge. Engineers apply that knowledge to solve problems." Introduce each step. 1. What problem needs solving?" Example: "We need a machine that can lift books." 2. Generate many ideas. "No idea is wrong during brainstorming.“3 3. Draw the proposed design. Include labels. 4. Select Materials Discuss properties. Examples: Cardboard Popsicle sticks String Bottle caps 5. Construct the prototype carefully. 6. TEST YOUR PROTOTYPE
