• 1.
  Dental Implant Screw Loosening WhyIt Happens, How to Prevent It, and How to Manage It Ev i d ence- B as ed Cl i n i ca l U p date Question: Can implant screws ever be permanently tightened? No. Every screw begins losing preload immediately after tightening.
• 2.
  Why Should WeCare? Screw Loosening Remains a Common Complication Mechanical Complication Mean Incidence (Goodacre et al., 2003) Prosthesis screw loosening 7% Abutment screw loosening 6% Clinical Consequences Prosthesis mobility Patient dissatisfaction Plaque accumulation Peri-implant inflammation Screw fracture Abutment fracture Implant fracture 26% of abutment screws require retightening after Year 1 Reference: Goodacre CJ et al. J Prosthet Dent. 2003;90:121–132.
• 3.

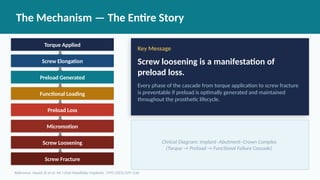

  The Mechanism —The Entire Story Torque Applied Screw Elongation Preload Generated Functional Loading Preload Loss Micromotion Screw Loosening Screw Fracture Key Message Screw loosening is a manifestation of preload loss. Every phase of the cascade from torque application to screw fracture is preventable if preload is optimally generated and maintained throughout the prosthetic lifecycle. Clinical Diagram: Implant–Abutment–Crown Complex (Torque → Preload → Functional Failure Cascade) Reference: Haack JE et al. Int J Oral Maxillofac Implants. 1995;10(5):529–536.
• 4.

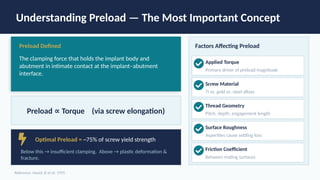

  Understanding Preload —The Most Important Concept Preload Defined The clamping force that holds the implant body and abutment in intimate contact at the implant–abutment interface. Preload Torque (via screw elongation) ∝ Optimal Preload = ~75% of screw yield strength Below this → insufficient clamping. Above → plastic deformation & fracture. Factors Affecting Preload Applied Torque Primary driver of preload magnitude Screw Material Ti vs. gold vs. steel alloys Thread Geometry Pitch, depth, engagement length Surface Roughness Asperities cause settling loss Friction Coefficient Between mating surfaces Reference: Haack JE et al. 1995.
• 5.
  Applied Torque &The Settling Effect Applied Torque 20 Ncm ↓ Increasing torque ↓ 30 Ncm Results in: Greater screw elongation Greater preload generated Greater resistance to loosening Settling Effect (Embedment Relaxation) Microscopic surface irregularities flatten under load — causing immediate preload loss. 2–10% preload loss within minutes after tightening Clinical Protocol: 1 Torque to target (manufacturer spec) 2 Wait 5–10 minutes 3 Re-torque to restore lost preload Use calibrated torque wrench Never rely on hand tightening References: Haack 1995; Breeding 1993; Siamos 2002.
• 6.
  Connection Geometry Matters ExternalHex Greater micromotion at IAJ Higher dependence on screw stability More susceptible to loosening ⚠ Higher risk Internal Hex Better load distribution Reduced micromotion vs external More stable platform ✓ Moderate improvement Morse Taper / Conical Frictional self-locking mechanism Minimal micromotion Lowest screw loosening incidence ✓✓ Superior stability Systematic Review: Internal connections generally demonstrate lower screw loosening rates (Theoharidou et al., 2008).
• 7.
  Bending Moment —The Real Culprit Stress concentrates at the implant–abutment junction under occlusal loading. Key Message: Bending moments OVERCOME preload. High-Risk Factors Cantilever prostheses Bruxism / parafunctional loading Off-axis implant positioning High crown-to-implant ratio Implant malposition Bending Moment at IAJ Cantilever Bruxism Off-axis High C:I ratio Malposition Reference: Rangert et al. Int J Oral Maxillofac Implants. 1995.
• 8.

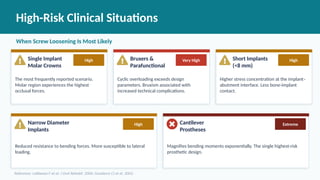

  High-Risk Clinical Situations WhenScrew Loosening Is Most Likely Single Implant Molar Crowns The most frequently reported scenario. Molar region experiences the highest occlusal forces. High Bruxers & Parafunctional Cyclic overloading exceeds design parameters. Bruxism associated with increased technical complications. Very High Short Implants (<8 mm) Higher stress concentration at the implant– abutment interface. Less bone-implant contact. High Narrow Diameter Implants Reduced resistance to bending forces. More susceptible to lateral loading. High Cantilever Prostheses Magnifies bending moments exponentially. The single highest-risk prosthetic design. Extreme Reference: Lobbezoo F et al. J Oral Rehabil. 2006; Goodacre CJ et al. 2003.
• 9.

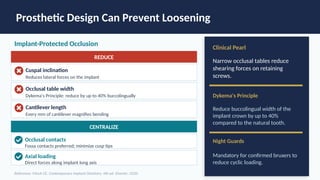

  Prosthetic Design CanPrevent Loosening Implant-Protected Occlusion REDUCE Cuspal inclination Reduces lateral forces on the implant Occlusal table width Dykema's Principle: reduce by up to 40% buccolingually Cantilever length Every mm of cantilever magnifies bending CENTRALIZE Occlusal contacts Fossa contacts preferred; minimize cusp tips Axial loading Direct forces along implant long axis Clinical Pearl Narrow occlusal tables reduce shearing forces on retaining screws. Dykema's Principle Reduce buccolingual width of the implant crown by up to 40% compared to the natural tooth. Night Guards Mandatory for confirmed bruxers to reduce cyclic loading. Reference: Misch CE. Contemporary Implant Dentistry. 4th ed. Elsevier; 2020.
• 10.
  Clinical Management Algorithm:"My Implant Is Loose" 1 Determine What Is Loose Crown? Abutment? Implant? Careful clinical exam first. 2 Radiograph & Assessment Check for abutment gap, screw fracture, bone loss, or prosthetic misfit. 3 Remove & Inspect Remove restoration. Inspect screw threads, internal connection, and titanium surfaces. 4 Clean the Connection Eliminate blood, debris, old cement. Use appropriate irrigation. 5 Retorque Follow manufacturer's torque specification with calibrated wrench. Wait 5–10 min, then retorque. 6 Adjust Occlusion Check and correct occlusal contacts in centric and excursions. Reference: Goodacre CJ et al. J Prosthet Dent. 2003.
• 11.

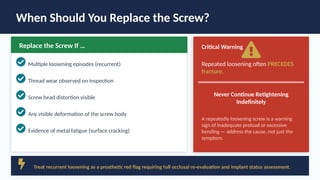

  When Should YouReplace the Screw? Replace the Screw If … Multiple loosening episodes (recurrent) Thread wear observed on inspection Screw head distortion visible Any visible deformation of the screw body Evidence of metal fatigue (surface cracking) Critical Warning Repeated loosening often PRECEDES fracture. Never Continue Retightening Indefinitely A repeatedly loosening screw is a warning sign of inadequate preload or excessive bending — address the cause, not just the symptom. Treat recurrent loosening as a prosthetic red flag requiring full occlusal re-evaluation and implant status assessment.
• 12.

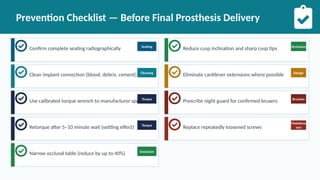

  Prevention Checklist —Before Final Prosthesis Delivery Confirm complete seating radiographically Seating Clean implant connection (blood, debris, cement) Cleaning Use calibrated torque wrench to manufacturer specTorque Retorque after 5–10 minute wait (settling effect) Torque Narrow occlusal table (reduce by up to 40%) Occlusion Reduce cusp inclination and sharp cusp tips Occlusion Eliminate cantilever extensions where possible Design Prescribe night guard for confirmed bruxers Bruxism Replace repeatedly loosened screws Maintena nce
• 13.
  Take-Home Messages 1 Lossof preload is the primary mechanism of screw loosening. Every clinical decision should preserve or restore preload. 2 Settling effect explains why retorquing is mandatory. Torque → wait 5–10 min → retorque. Non-negotiable. 3 Internal conical connections resist loosening best. Choose connection geometry informed by evidence. 4 Control bending moments through occlusion & design. Occlusal table, cantilever, and implant axis all matter. 5 Recurrent loosening is a warning sign — not just a screw problem. Investigate the cause: overload, misfit, or system failure. Evidence-Based Clinical Update | Dental Implant Screw Loosening
• 14.

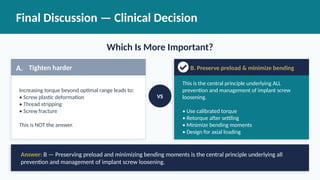

  Final Discussion —Clinical Decision Which Is More Important? A. Tighten harder Increasing torque beyond optimal range leads to: • Screw plastic deformation • Thread stripping • Screw fracture This is NOT the answer. VS B. Preserve preload & minimize bending This is the central principle underlying ALL prevention and management of implant screw loosening. • Use calibrated torque • Retorque after settling • Minimize bending moments • Design for axial loading Answer: B — Preserving preload and minimizing bending moments is the central principle underlying all prevention and management of implant screw loosening.
• 15.
  References (Vancouver Style) GoodacreCJ, Bernal G, Rungcharassaeng K, Kan JYK. Clinical complications with implants and implant prostheses. J Prosthet Dent. 2003;90(2):121–132. Haack JE, Sakaguchi RL, Sun T, Coffey JP. Elongation and preload stress in dental implant abutment screws. Int J Oral Maxillofac Implants. 1995;10(5):529–536. Breeding LC, Dixon DL, Sadler JP, McKay ML. Mechanical considerations for the implant tooth-abutment connection. J Prosthet Dent. 1993;70(6):510–513. Siamos G, Winkler S, Boberick KG. Relationship between implant preload and screw loosening on implant-supported prostheses. J Oral Implantol. 2002;28(2):67–73. Theoharidou A, Petridis HP, Tzannas K, Garefis P. Abutment screw loosening in single-implant restorations: a systematic review. Int J Oral Maxillofac Implants. 2008;23(4):681–690. Rangert B, Krogh PH, Langer B, Van Roekel N. Bending overload and implant fracture. Int J Oral Maxillofac Implants. 1995;10(3):326–334. Lobbezoo F, Brouwers JEIG, Cune MS, Naeije M. Dental implants in patients with bruxing habits. J Oral Rehabil. 2006;33(2):152–159. Jung RE et al. Systematic review of survival and complications of single crowns on implants. Clin Oral Implants Res. 2012;23(Suppl 6):2–21. Pjetursson BE et al. Comparison of tooth-supported and implant-supported FDPs. Clin Oral Implants Res. 2007;18(Suppl 3):97–113. Misch CE. Contemporary Implant Dentistry. 4th ed. Elsevier; 2020. Misch CE. Dental Implant Prosthetics. 3rd ed. Elsevier; 2021.
