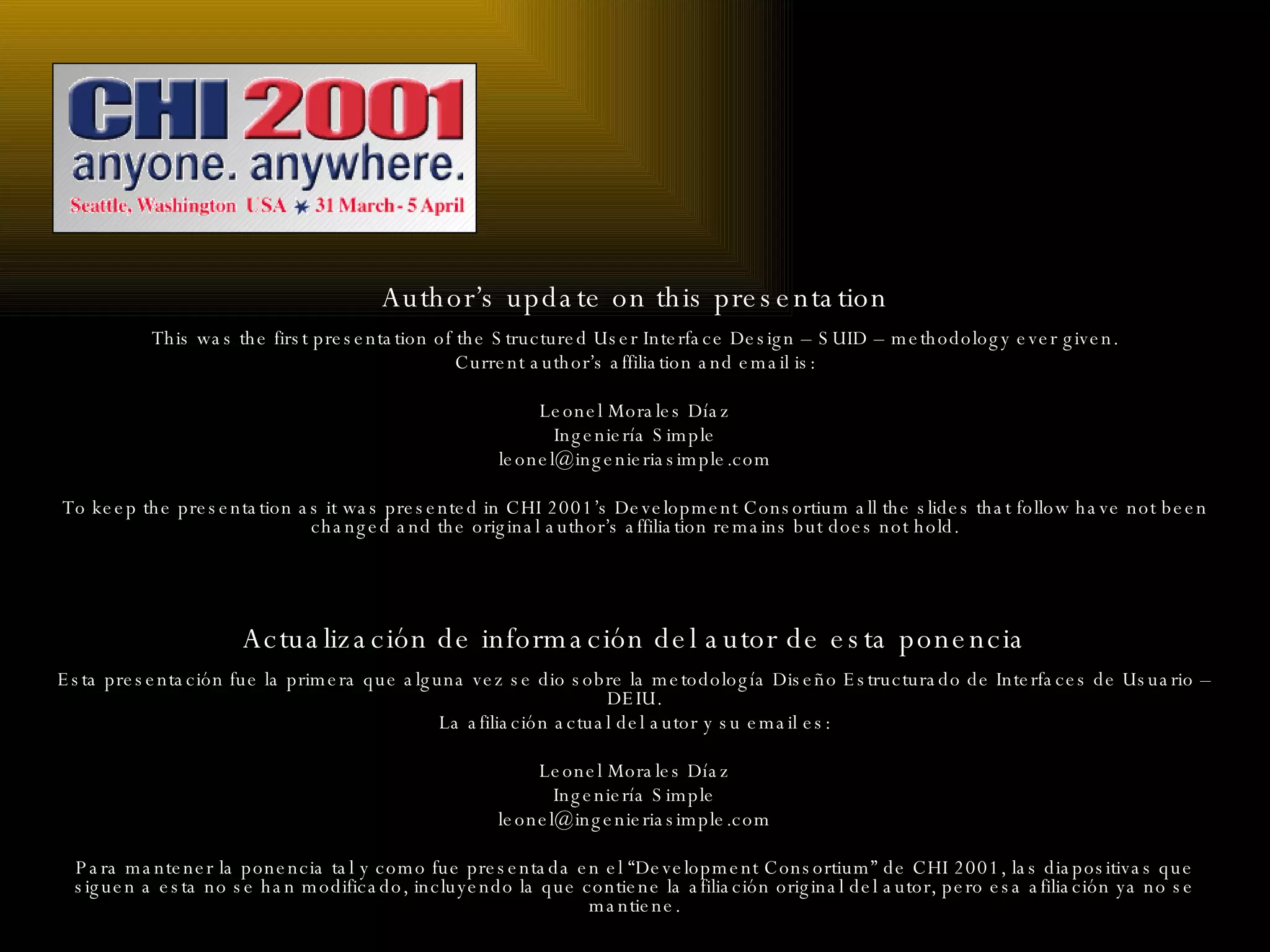

Author’s update on this presentation This was the first presentation of the Structured User Interface Design – SUID – methodology ever given. Current author’s affiliation and email is: Leonel Morales Díaz Ingeniería Simple [email_address] To keep the presentation as it was presented in CHI 2001’s Development Consortium all the slides that follow have not been changed and the original author’s affiliation remains but does not hold. Actualización de información del autor de esta ponencia Esta presentación fue la primera que alguna vez se dio sobre la metodología Diseño Estructurado de Interfaces de Usuario – DEIU. La afiliación actual del autor y su email es: Leonel Morales Díaz Ingeniería Simple [email_address] Para mantener la ponencia tal y como fue presentada en el “Development Consortium” de CHI 2001, las diapositivas que siguen a esta no se han modificado, incluyendo la que contiene la afiliación original del autor, pero esa afiliación ya no se mantiene.
Structured User Interface Design Methodology Leonel Morales Díaz - litomd@usa.net Universidad Francisco Marroquín Guatemala, C.A. Development Consortium: anyone. anywhere. In Latin America. Seattle, Washington  March 31st - April 2nd, 2001
Esta presentación requiere el tipo de letra Tempus Sanz ITC
Interactions Design - General The usability engineering paradigm Analyze Design Build Evaluate A D B E A D B E A D E A D B E B Iterative prototyping or spiral design Solution
Design and Engineering Science: the seeing of where you are Design: the exploration of where you would like to be Engineering: the getting from where you are to where you’d like to be
Structured User Interface Design Specification of ten layers of design Designs complete when all layers are specified One application-specific start point The set of objects to be handled Main assumption: “ Every  information system  or  information appliance  is  devoted  to  handling  a  set of objects   or things  from the  real world ”
SUID Overview access organization    capture       update       creation       destruction    change    action       reaction    representation reality
SUID: Representation Representation To represent the real world objects with the needed attributes as exactly as possible recognizable (intuitive) easy to associate with the real object if not intuitive then formal
SUID: Representation There is an implied reduction Every being has multitude of aspects Only some aspects can be considered in the system The aspects considered have to be represented
SUID: Organization Organization There are multiple objects in the system the order, grouping, separation, location, etc. decided by the designer to help the user acquire information “ the user should be capable of recognizing the underlying organization”
SUID: Organization “ the user should be capable of recognizing the underlying organization”
SUID: Access Access Allow the user to access the objects... methods for getting to the objects easy to learn (better: intuitive) every object should be accessible with role considerations ...and their properties and attributes Example: the open/close/save file paradigm
SUID: Access “ Access methods should be easy to learn, or better, intuitive”
SUID: Access Diagram Outside the system No object Any object “A” Any object “B”
SUID: Capture Capture Introduce new objects in the system easy to use and learn (intuitive) produces a representation of the object lead the user to associate both the capture and the captured object able to capture all needed objects
SUID: Update Update Maintain the object and the representation consistent if one change the other should also change works both ways automatic, if possible
SUID: Capture and Update capture update
SUID: Creation Some objects begin to exist in the human mind products of creativity The user must “create” their representation Creation Allow the user to “create” new objects easy and intuitive providing “raw material”
SUID: Destruction Destruction Allow the user to “destroy” representations dispose of the representation or... ...physically affect the corresponding object Backup alternatives
SUID: Creation and Destruction
SUID: Action Action The user “acts” over the objects Methods for acting must be designed easy to learn, easy to use (intuitive) all necessary actions Methods for objects to act over other objects
SUID: Reaction Reaction The response of objects to actions Must be designed the user should be capable of associating the response with the object  associating the response with the actions that caused it predict the possible set of reactions
SUID: Action and Reaction
SUID: Change Change Advice users about changes in objects things change... due to the user due to other agents due to the object’s nature made the user aware of those changes immediately or afterwards initial, subsequent and final states
SUID: Change
The SUID Diagram access organization    capture       update       creation       destruction    change    action       reaction    representation reality
Using SUID Main use: Design user interfaces (structured) redesign is possible for individual layers complete specification can be generated may be used as part of UCD, PD, etc.
Using SUID Other uses: Evaluate user interfaces evaluation goes layer by layer Compare user interfaces comparing layer by layer “ This  structure   exists  in  every  user interface  already designed ”
Why SUID? A method to teach to developers If they have a method they will design better than not to design at all ER d., state d., flow d., etc. design of the UI tends to blur SUID alone can do something help produce complete designs
