Deep Learning and WebGL
WebGL Meetup 03/27/2018
GTC SJ Convention Center
Oswald Campesato
oswald@perceptrons.io
ocampesato@yahoo.com

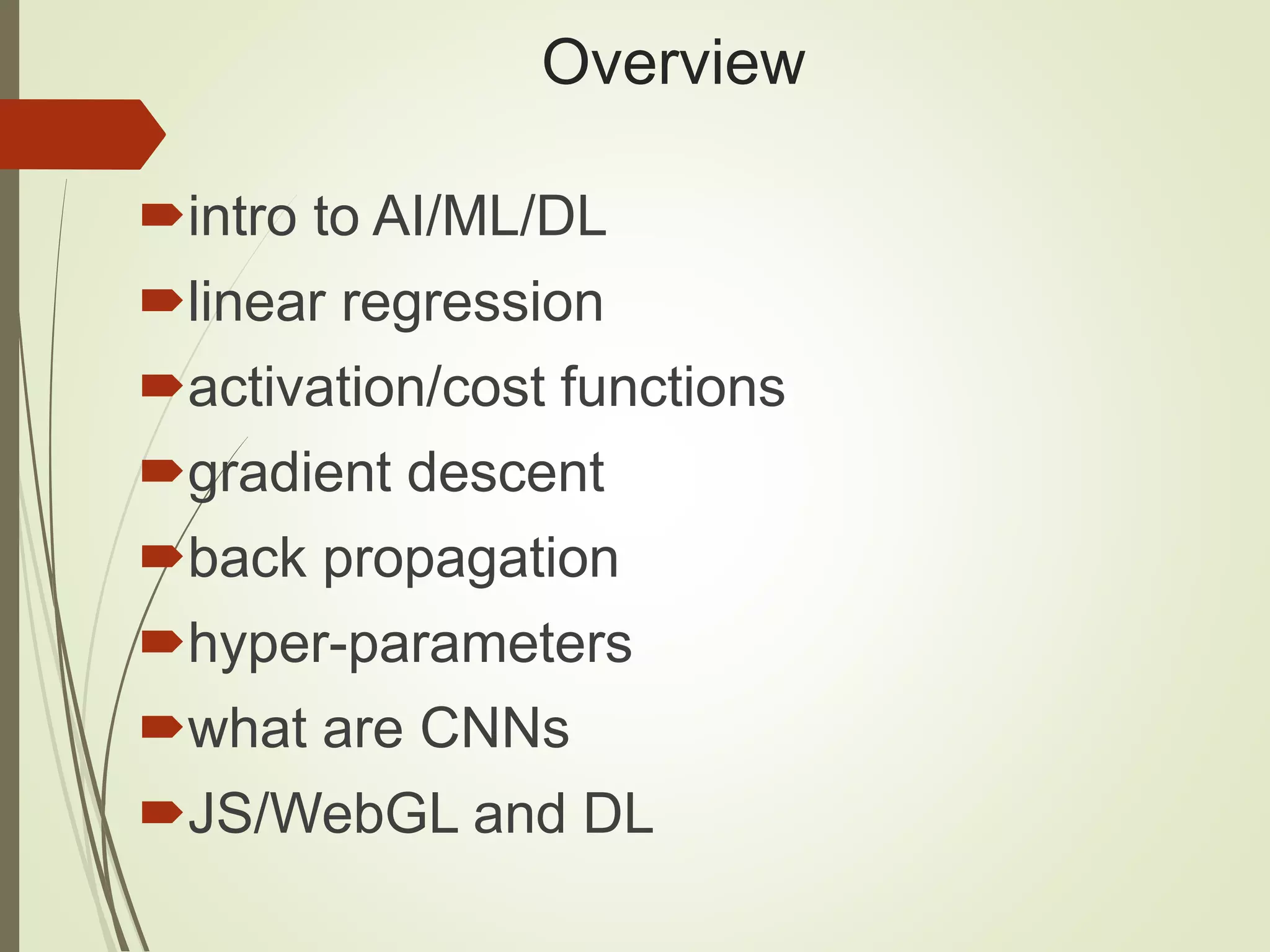

Overview
intro to AI/ML/DL
linear regression
activation/cost functions
gradient descent
back propagation
hyper-parameters
what are CNNs
JS/WebGL and DL

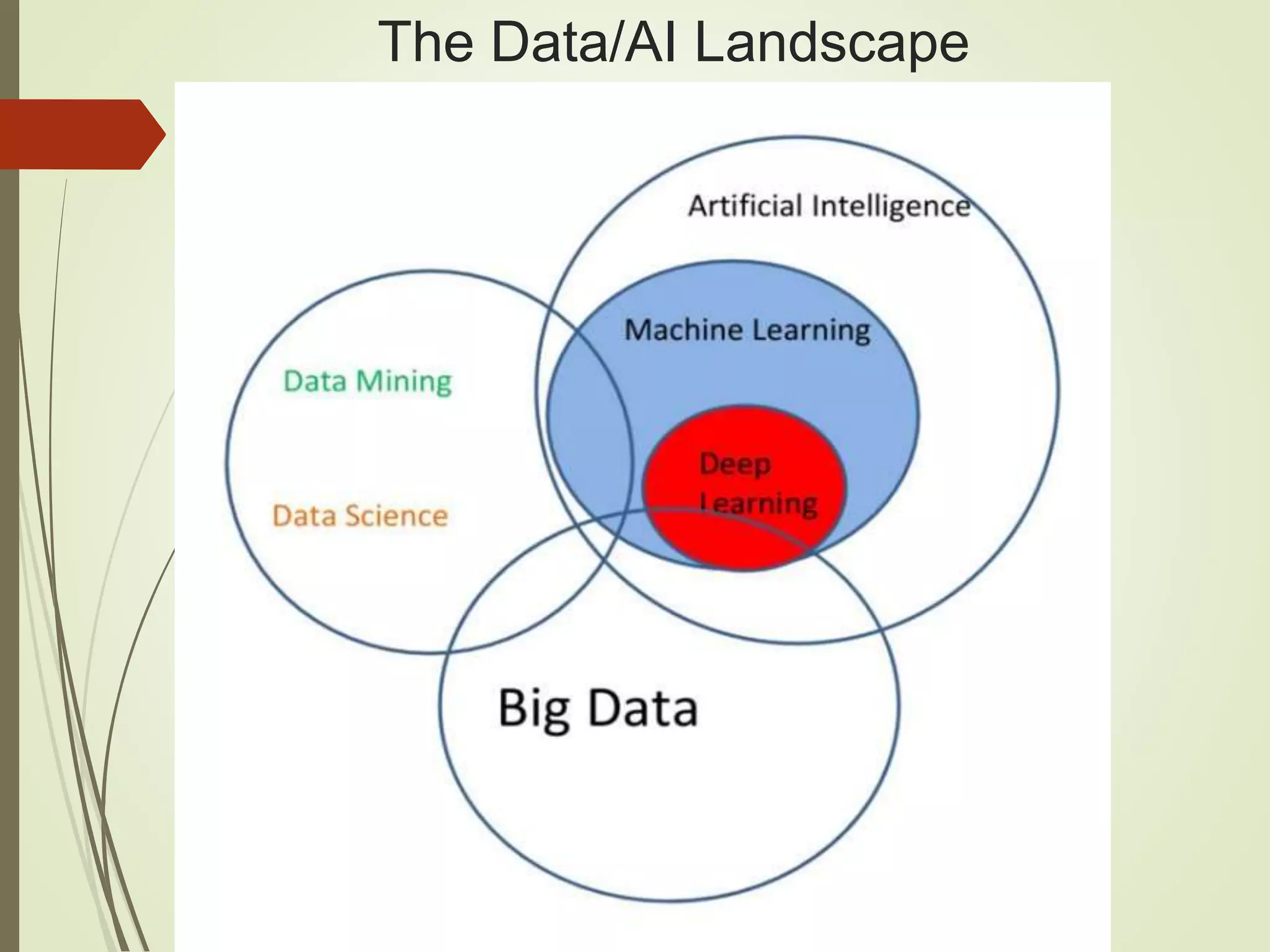

The Data/AI Landscape

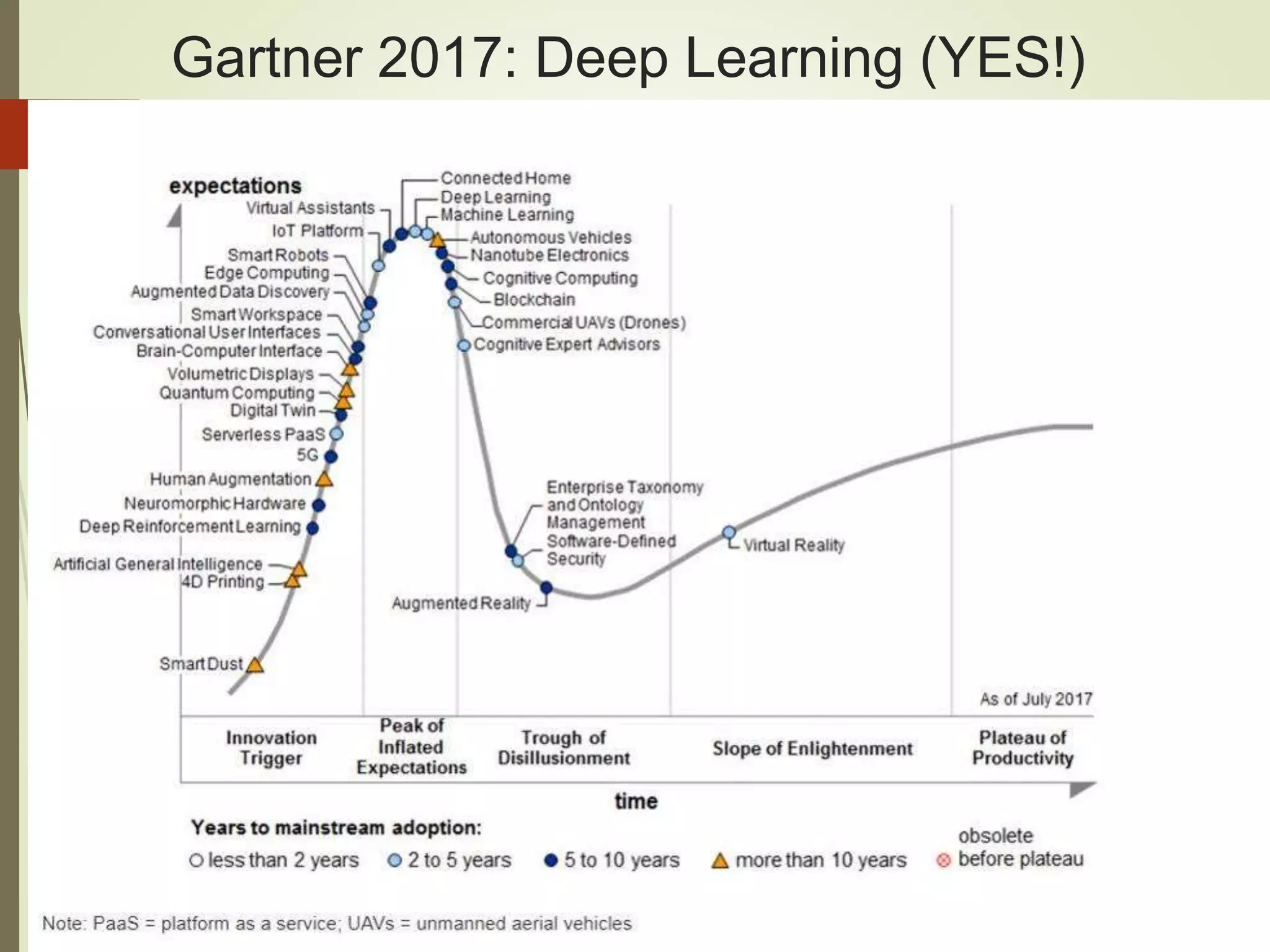

Gartner 2017: Deep Learning (YES!)
The Official Start of AI (1956)

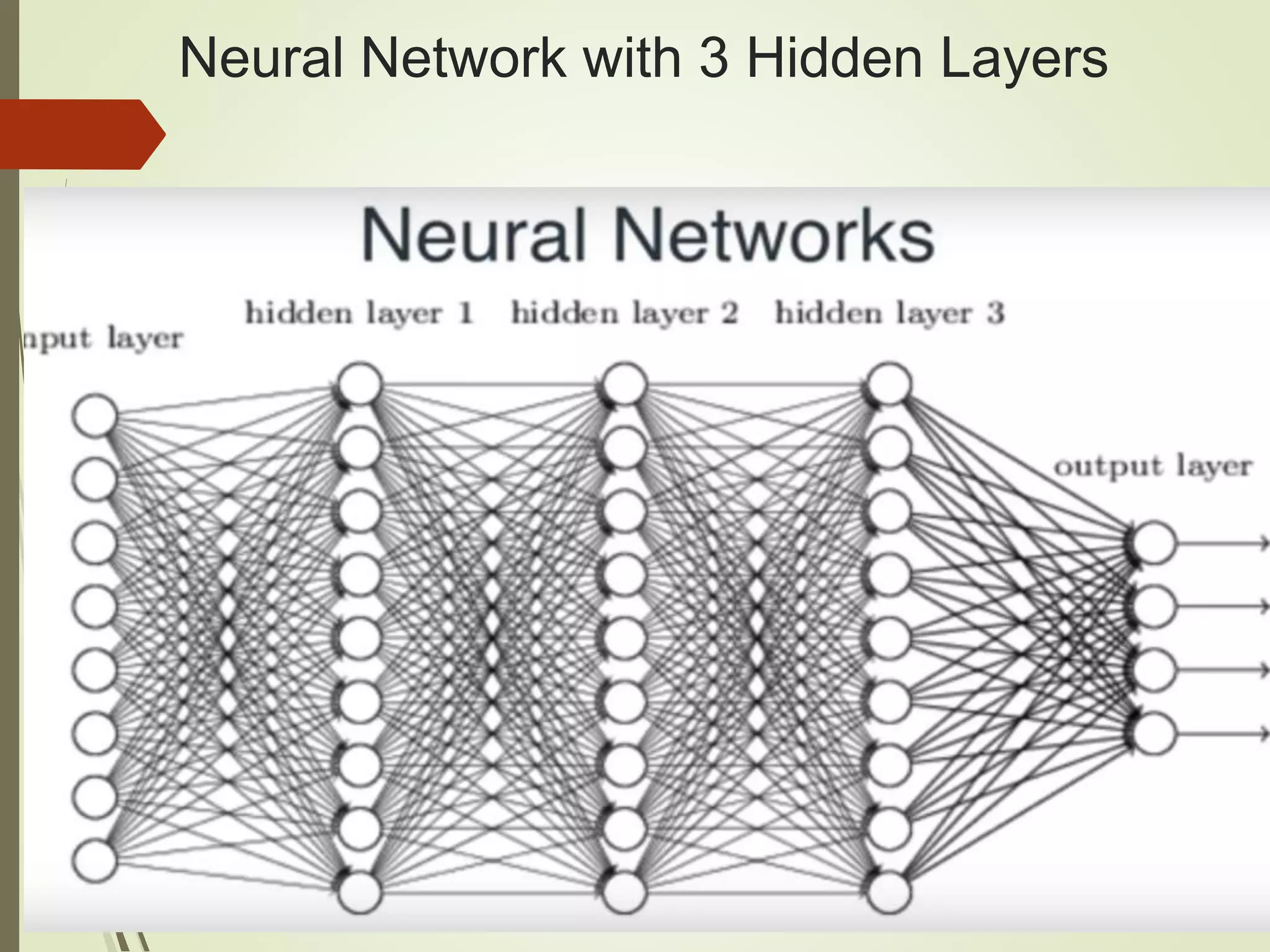

Neural Network with 3 Hidden Layers

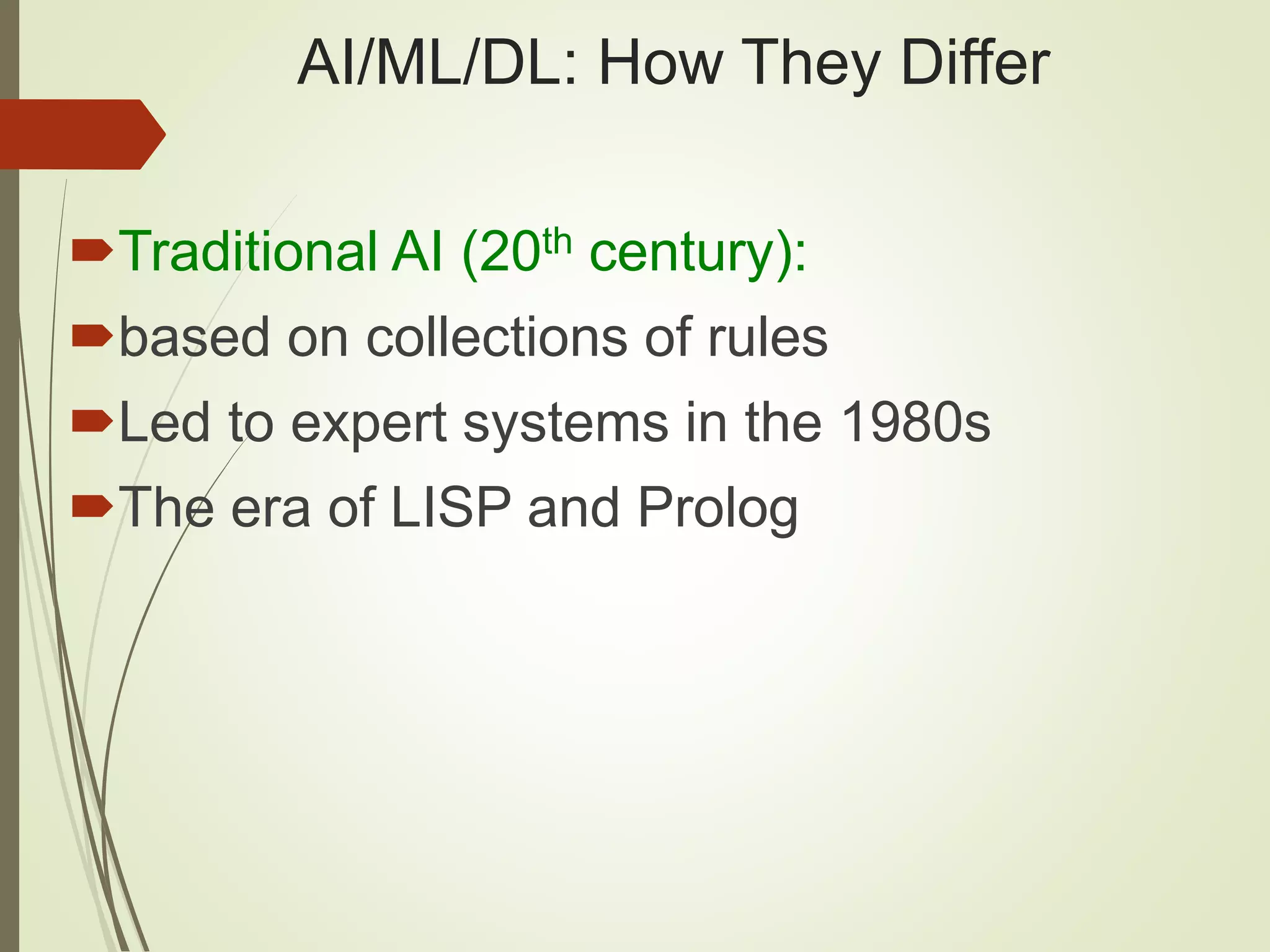

AI/ML/DL: How They Differ
Traditional AI (20th century):
based on collections of rules
Led to expert systems in the 1980s
The era of LISP and Prolog

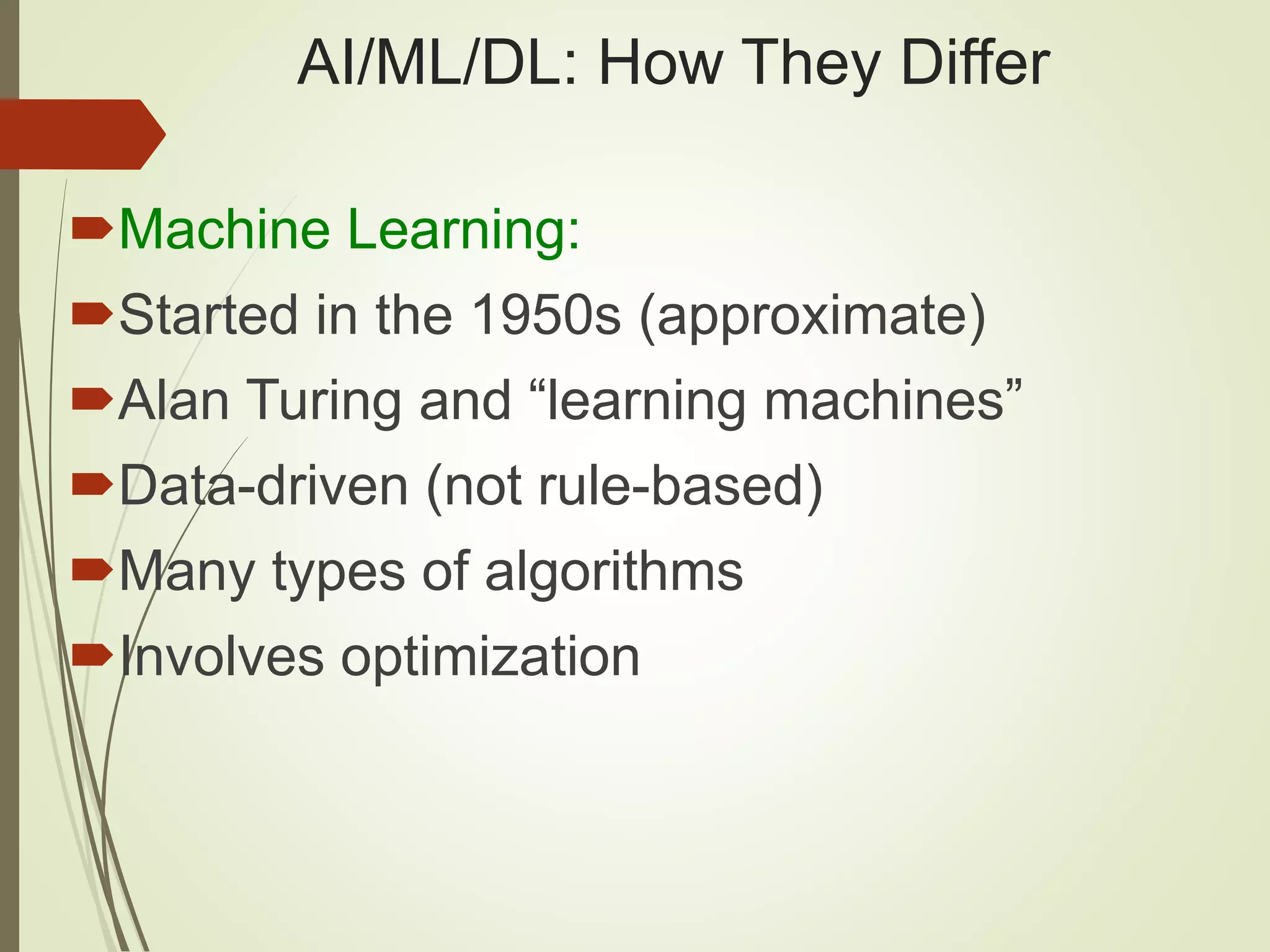

AI/ML/DL: How They Differ
Machine Learning:
Started in the 1950s (approximate)
Alan Turing and “learning machines”
Data-driven (not rule-based)
Many types of algorithms
Involves optimization

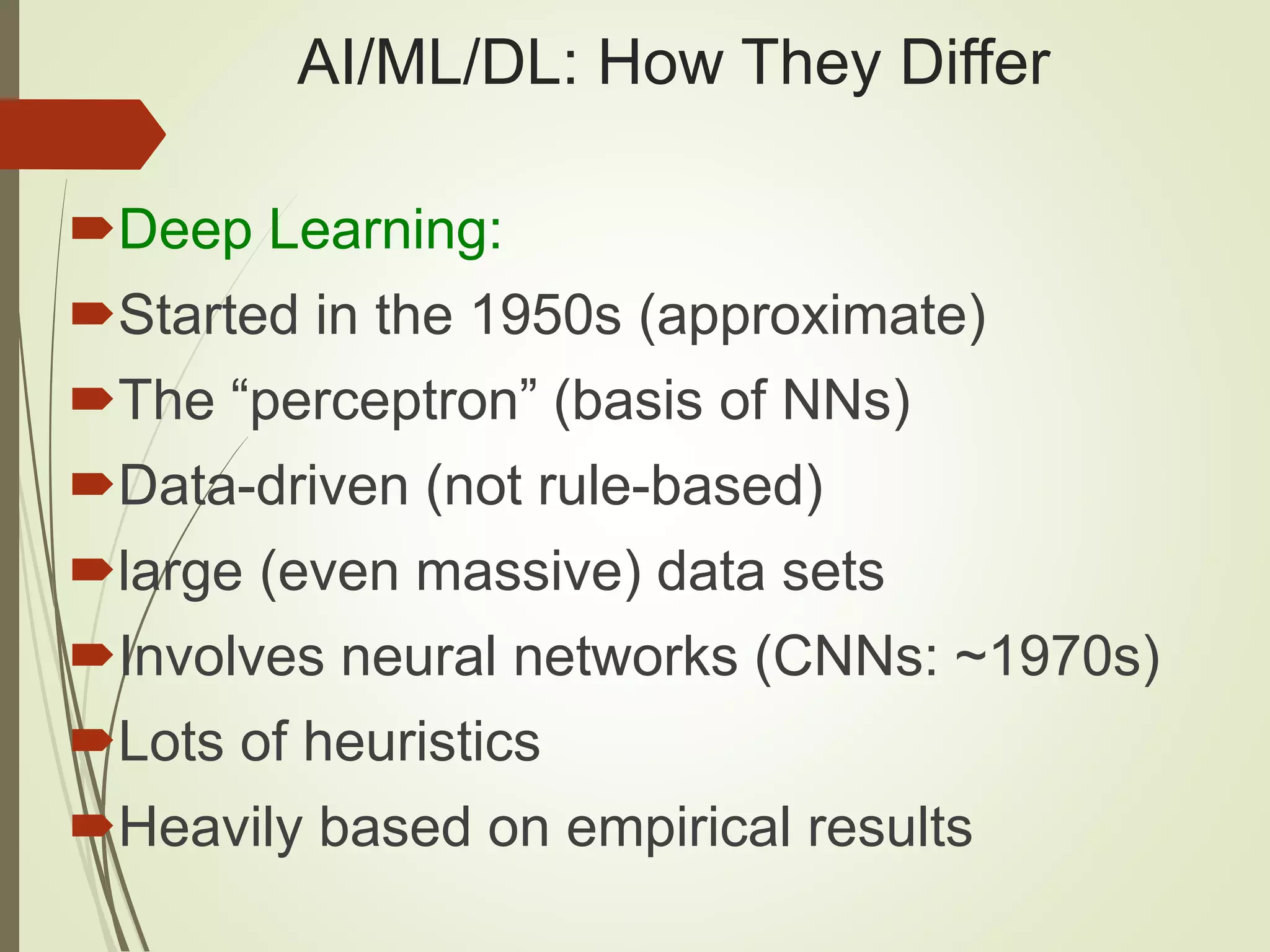

AI/ML/DL: How They Differ
Deep Learning:
Started in the 1950s (approximate)
The “perceptron” (basis of NNs)
Data-driven (not rule-based)
large (even massive) data sets
Involves neural networks (CNNs: ~1970s)
Lots of heuristics
Heavily based on empirical results

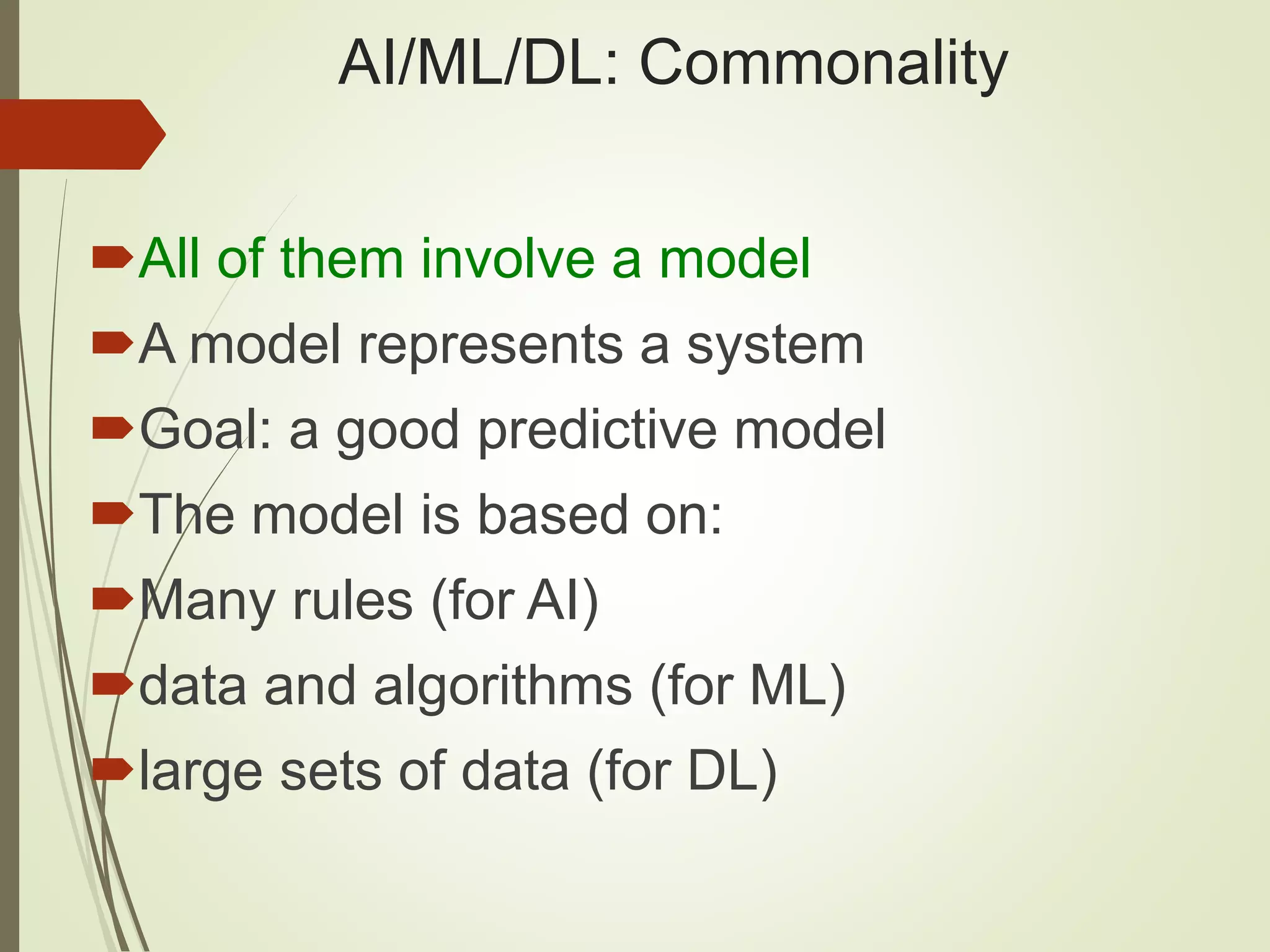

AI/ML/DL: Commonality
All of them involve a model
A model represents a system
Goal: a good predictive model
The model is based on:
Many rules (for AI)
data and algorithms (for ML)
large sets of data (for DL)

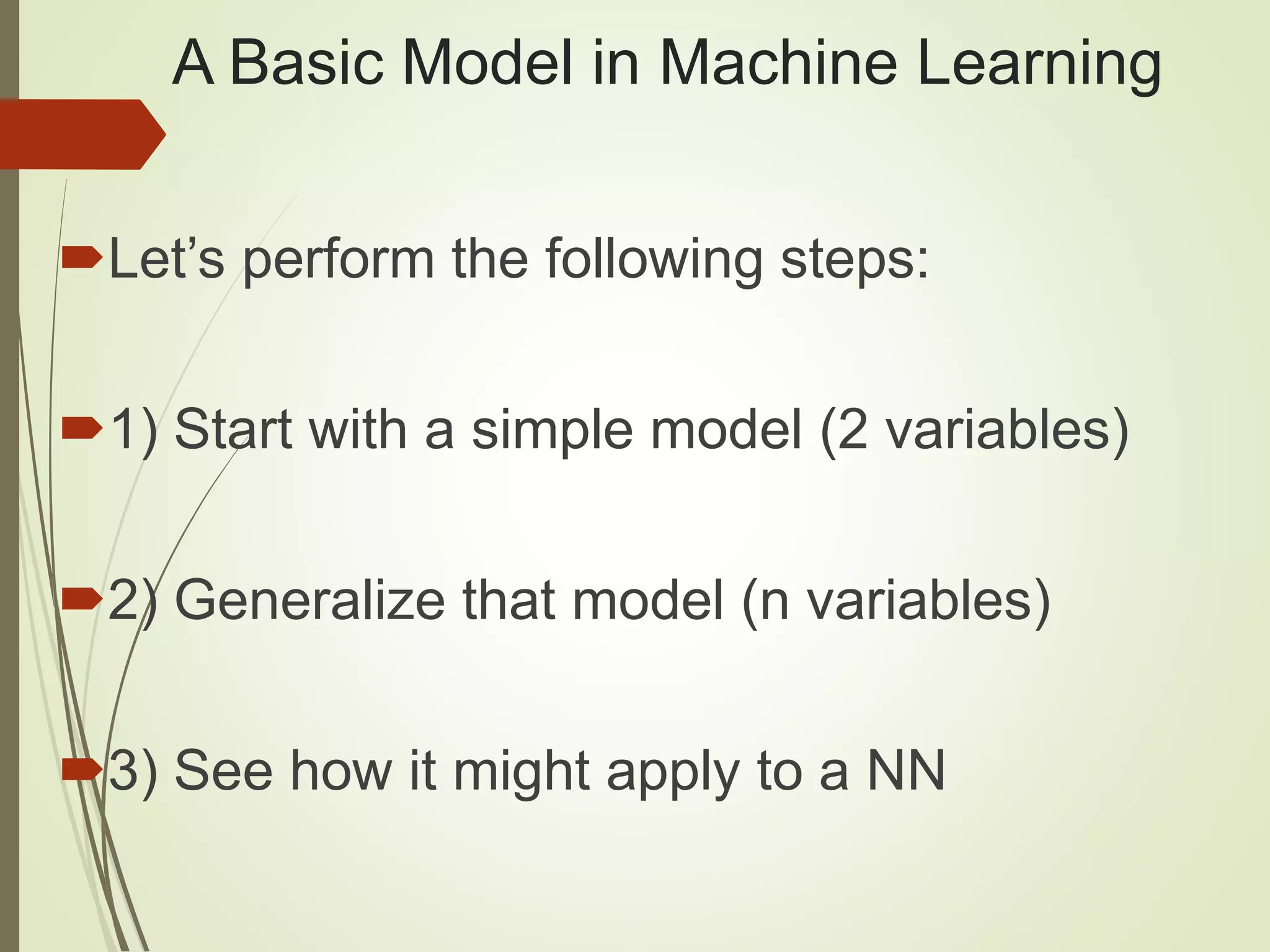

A Basic Model in Machine Learning
Let’s perform the following steps:
1) Start with a simple model (2 variables)
2) Generalize that model (n variables)
3) See how it might apply to a NN

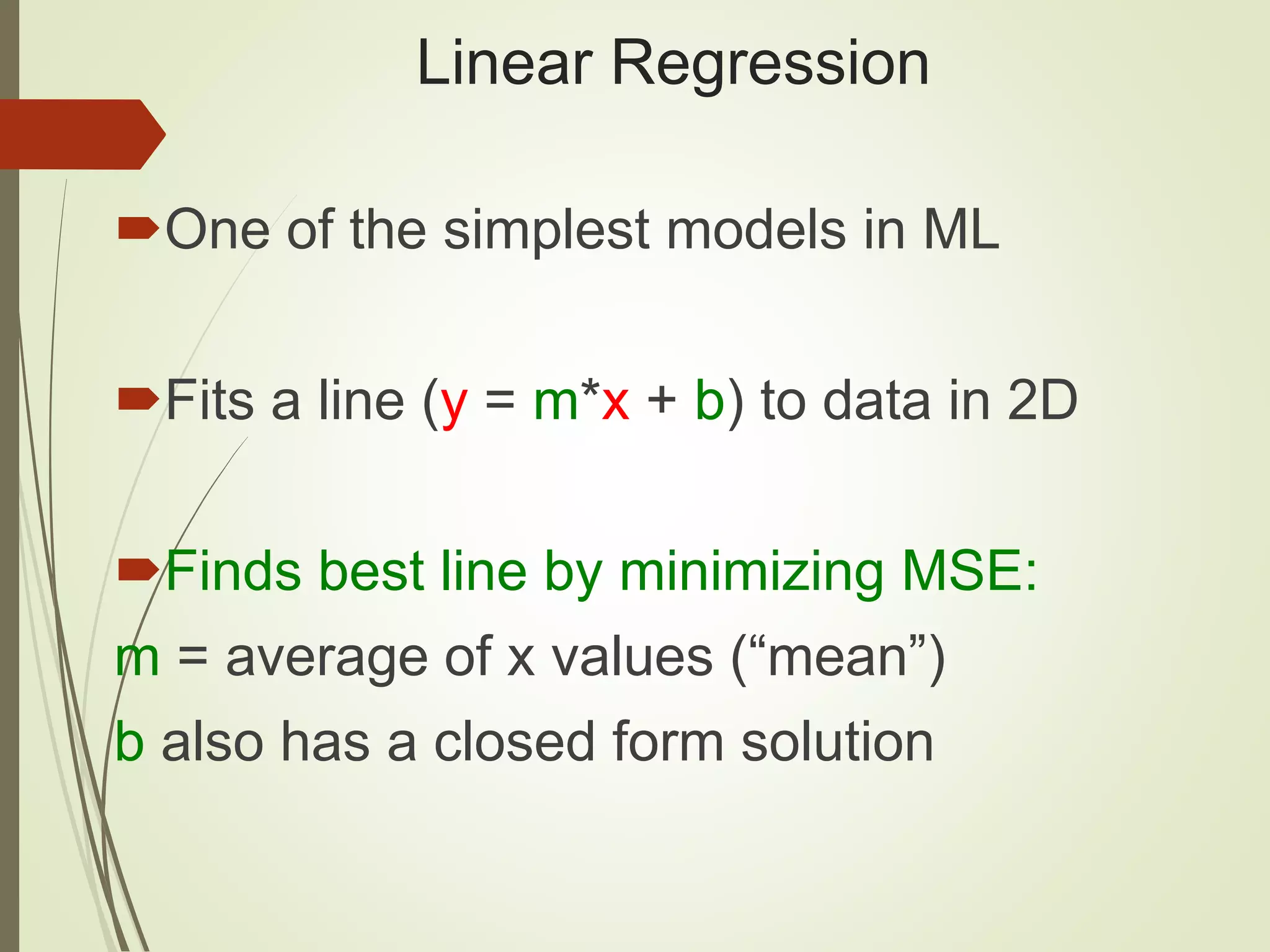

Linear Regression
One of the simplest models in ML
Fits a line (y = m*x + b) to data in 2D
Finds best line by minimizing MSE:
m = average of x values (“mean”)
b also has a closed form solution

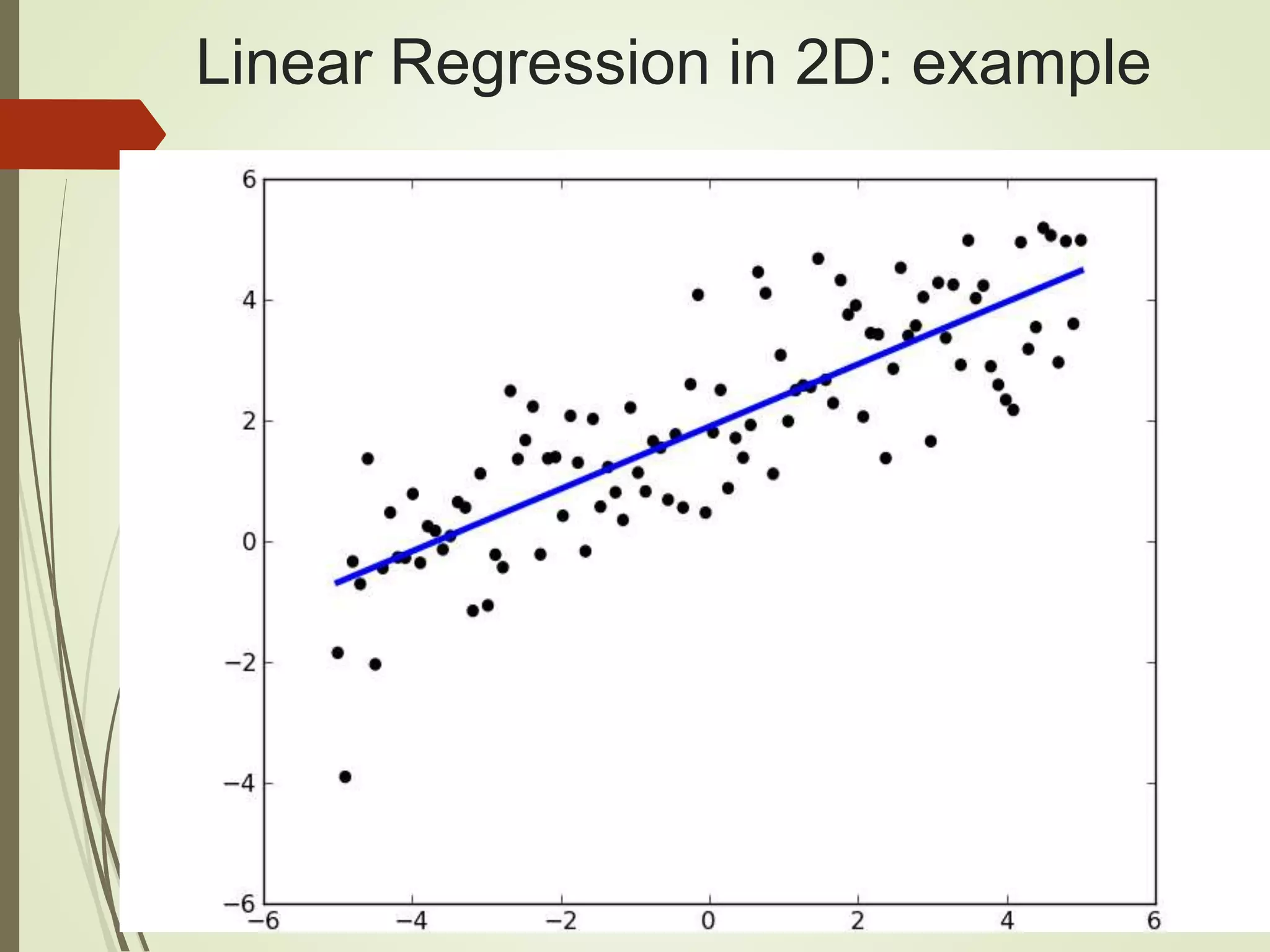

Linear Regression in 2D: example

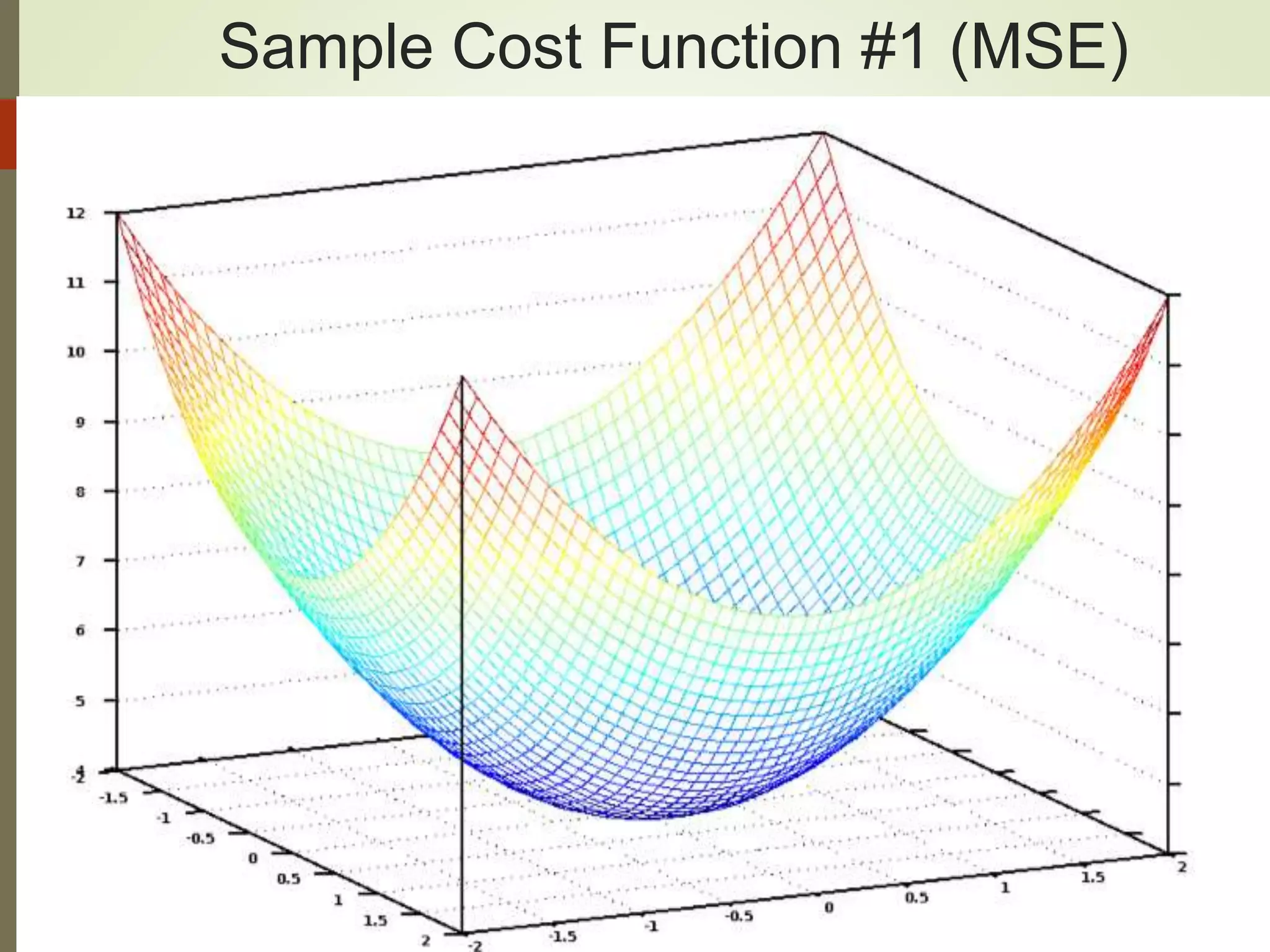

Sample Cost Function #1 (MSE)

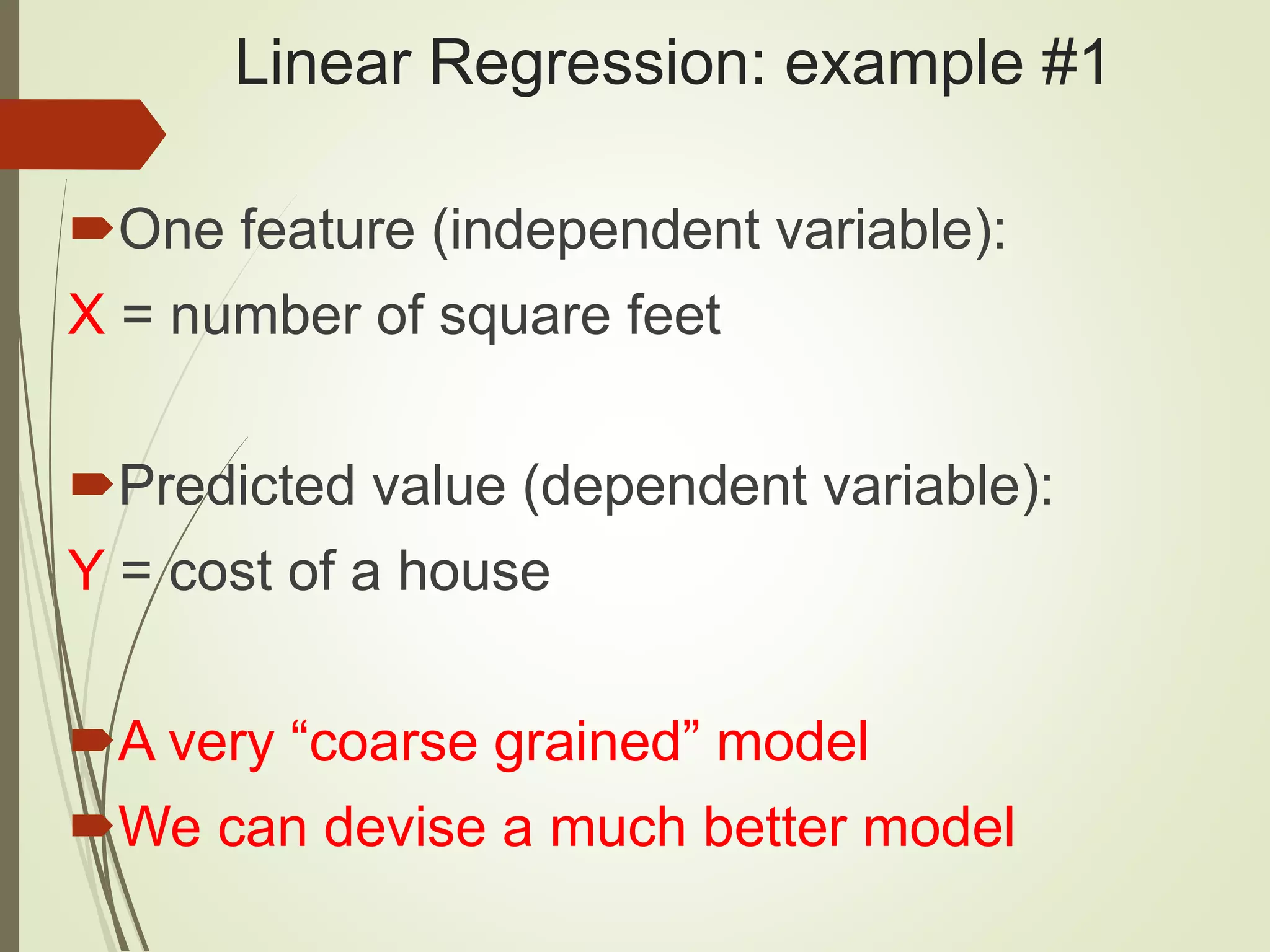

Linear Regression: example #1
One feature (independent variable):
X = number of square feet
Predicted value (dependent variable):
Y = cost of a house
A very “coarse grained” model
We can devise a much better model

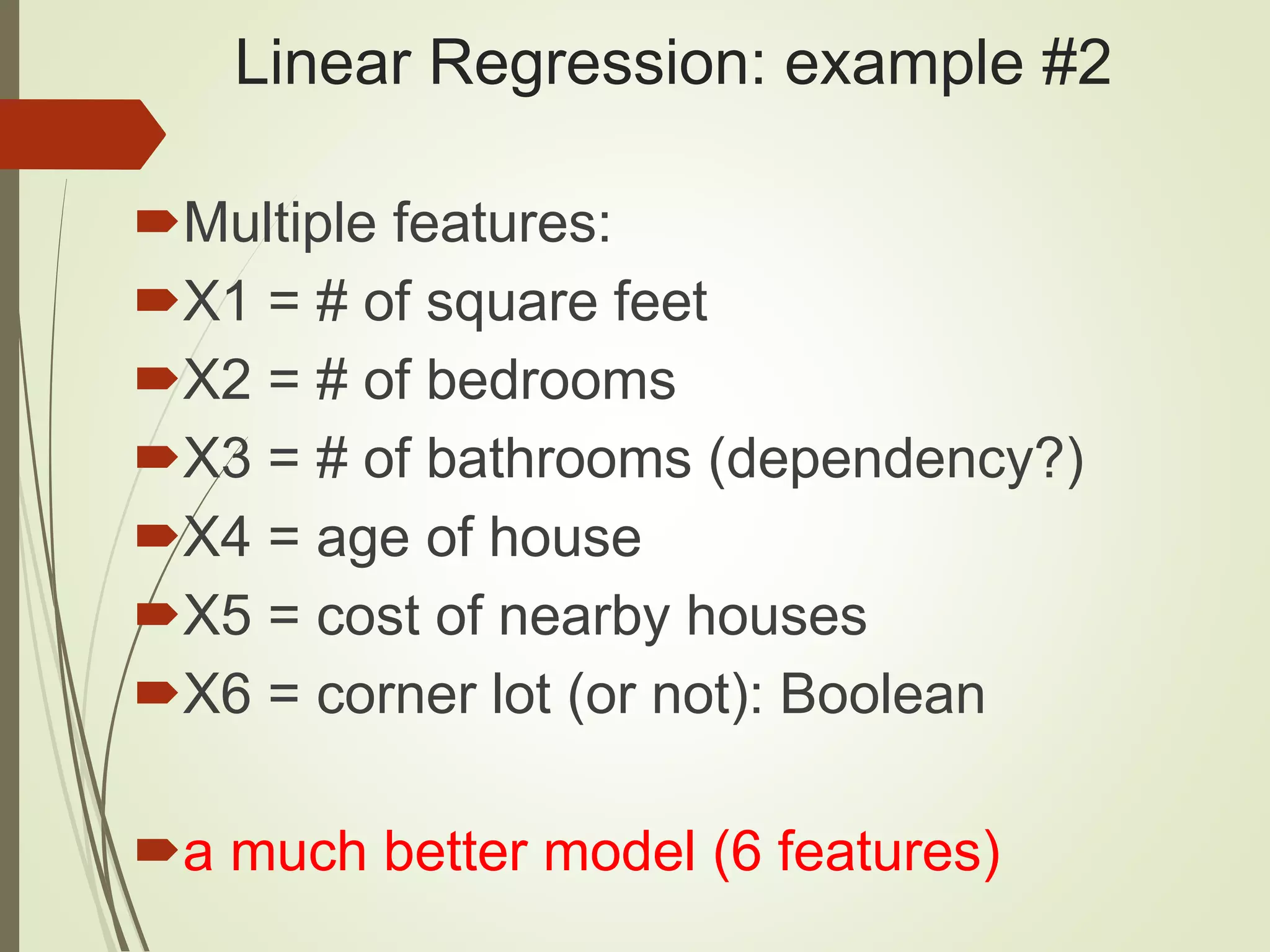

Linear Regression: example #2
Multiple features:
X1 = # of square feet
X2 = # of bedrooms
X3 = # of bathrooms (dependency?)
X4 = age of house
X5 = cost of nearby houses
X6 = corner lot (or not): Boolean
a much better model (6 features)

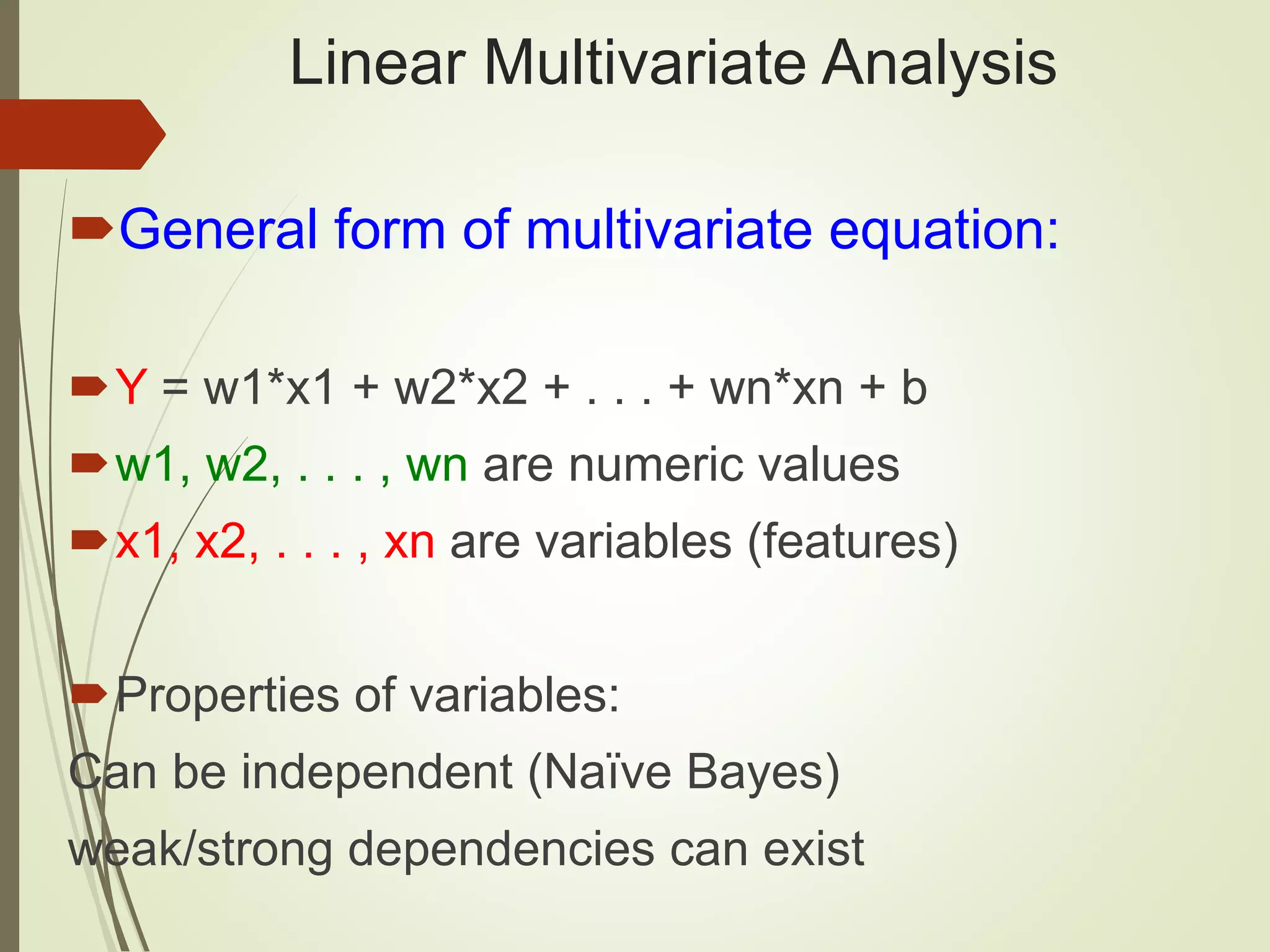

Linear Multivariate Analysis
General form of multivariate equation:
Y = w1*x1 + w2*x2 + . . . + wn*xn + b
w1, w2, . . . , wn are numeric values
x1, x2, . . . , xn are variables (features)
Properties of variables:
Can be independent (Naïve Bayes)
weak/strong dependencies can exist
Neural Network with 3 Hidden Layers

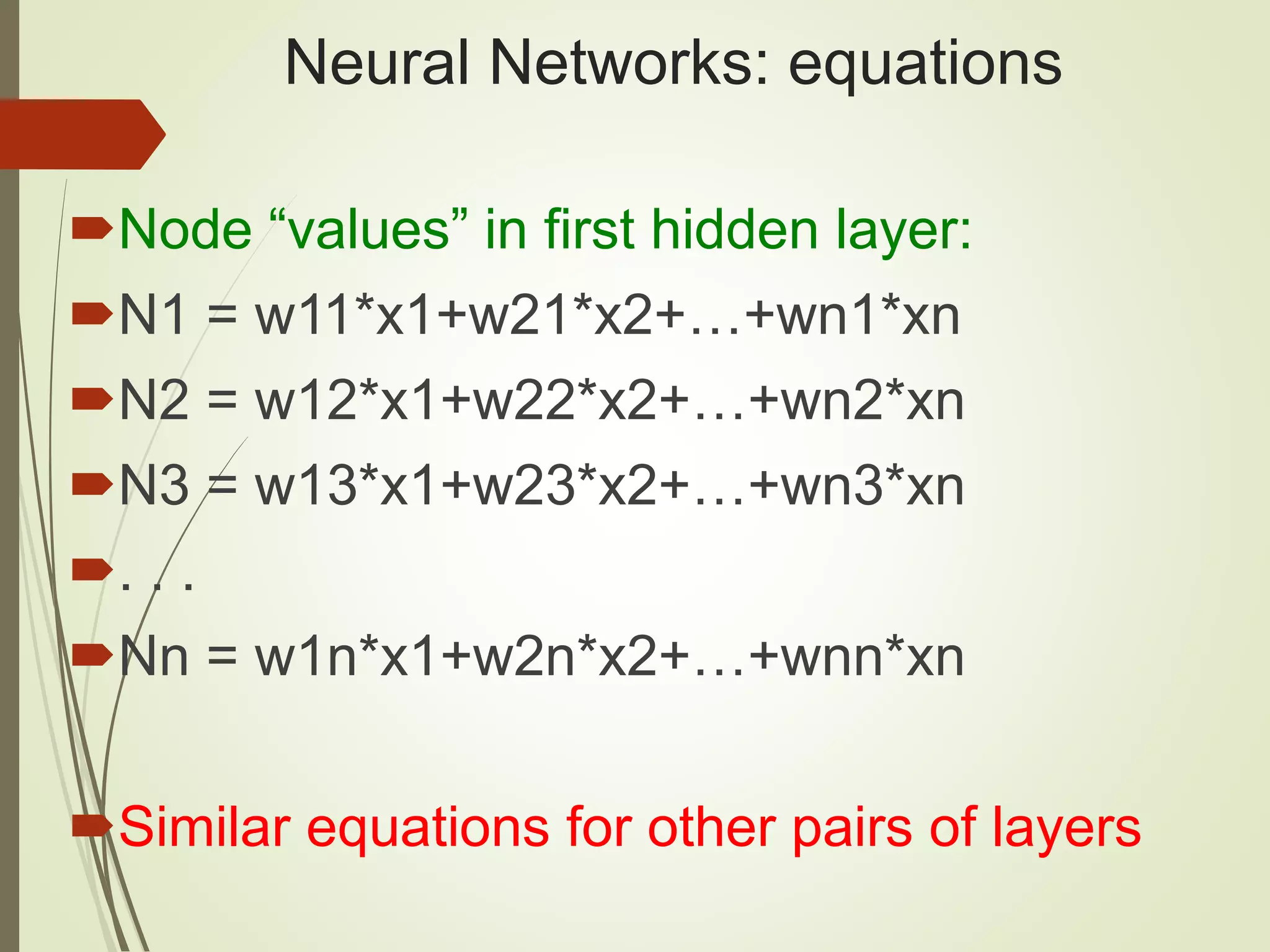

Neural Networks: equations
Node “values” in first hidden layer:
N1 = w11*x1+w21*x2+…+wn1*xn
N2 = w12*x1+w22*x2+…+wn2*xn
N3 = w13*x1+w23*x2+…+wn3*xn
. . .
Nn = w1n*x1+w2n*x2+…+wnn*xn
Similar equations for other pairs of layers

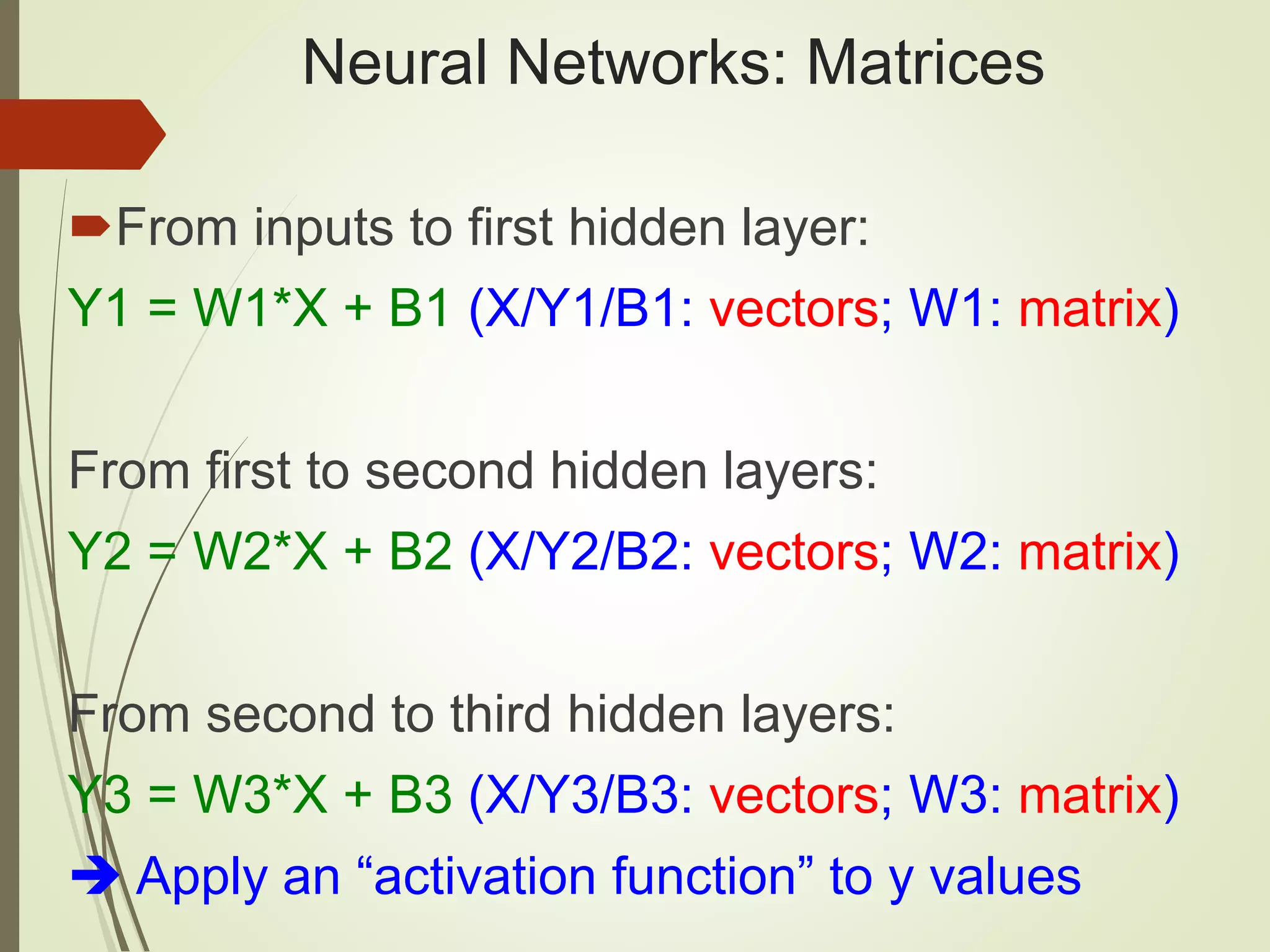

Neural Networks: Matrices
From inputs to first hidden layer:
Y1 = W1*X + B1 (X/Y1/B1: vectors; W1: matrix)
From first to second hidden layers:
Y2 = W2*X + B2 (X/Y2/B2: vectors; W2: matrix)
From second to third hidden layers:
Y3 = W3*X + B3 (X/Y3/B3: vectors; W3: matrix)
 Apply an “activation function” to y values

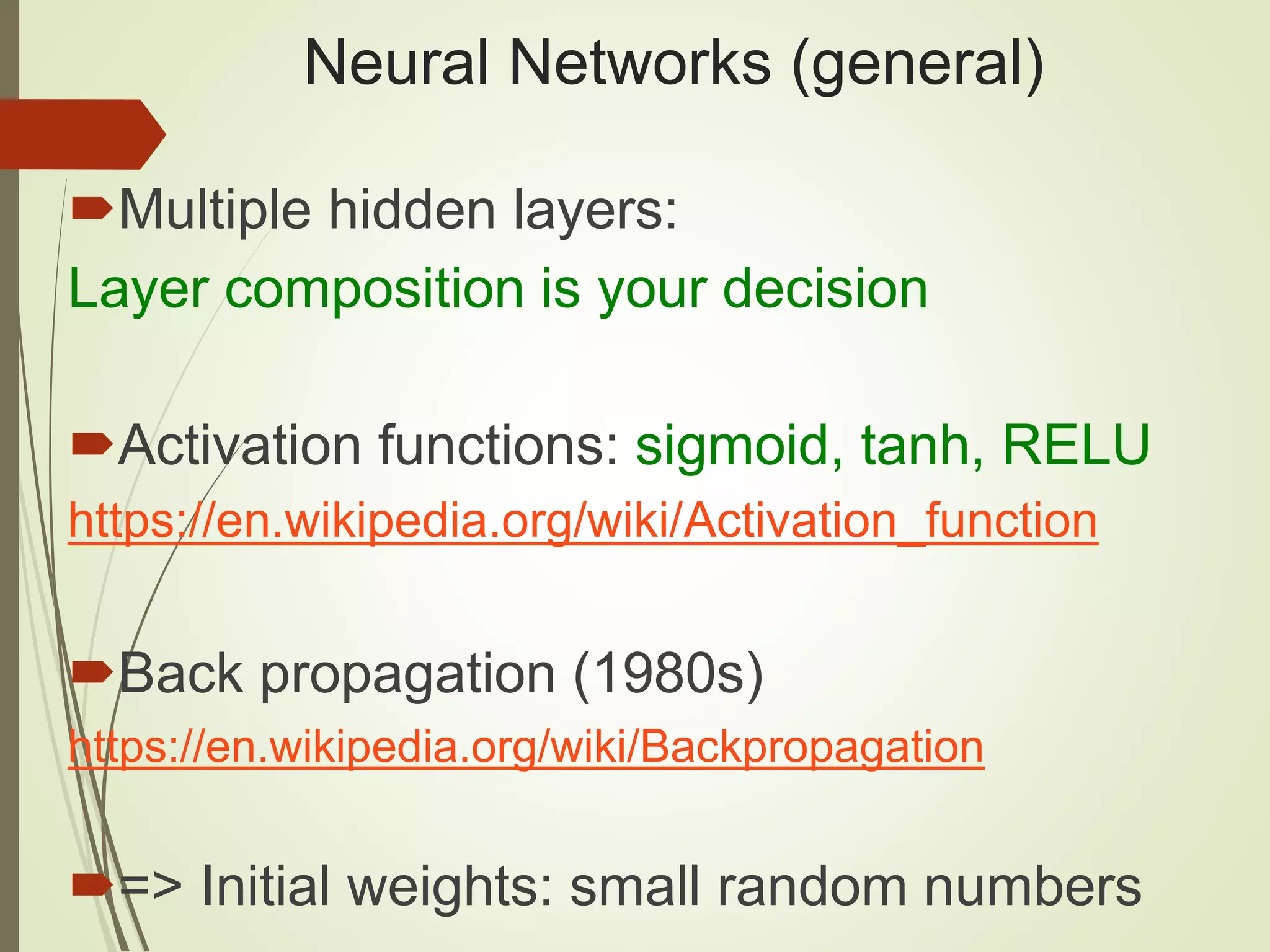

Neural Networks (general)
Multiple hidden layers:
Layer composition is your decision
Activation functions: sigmoid, tanh, RELU
https://en.wikipedia.org/wiki/Activation_function
Back propagation (1980s)
https://en.wikipedia.org/wiki/Backpropagation
=> Initial weights: small random numbers

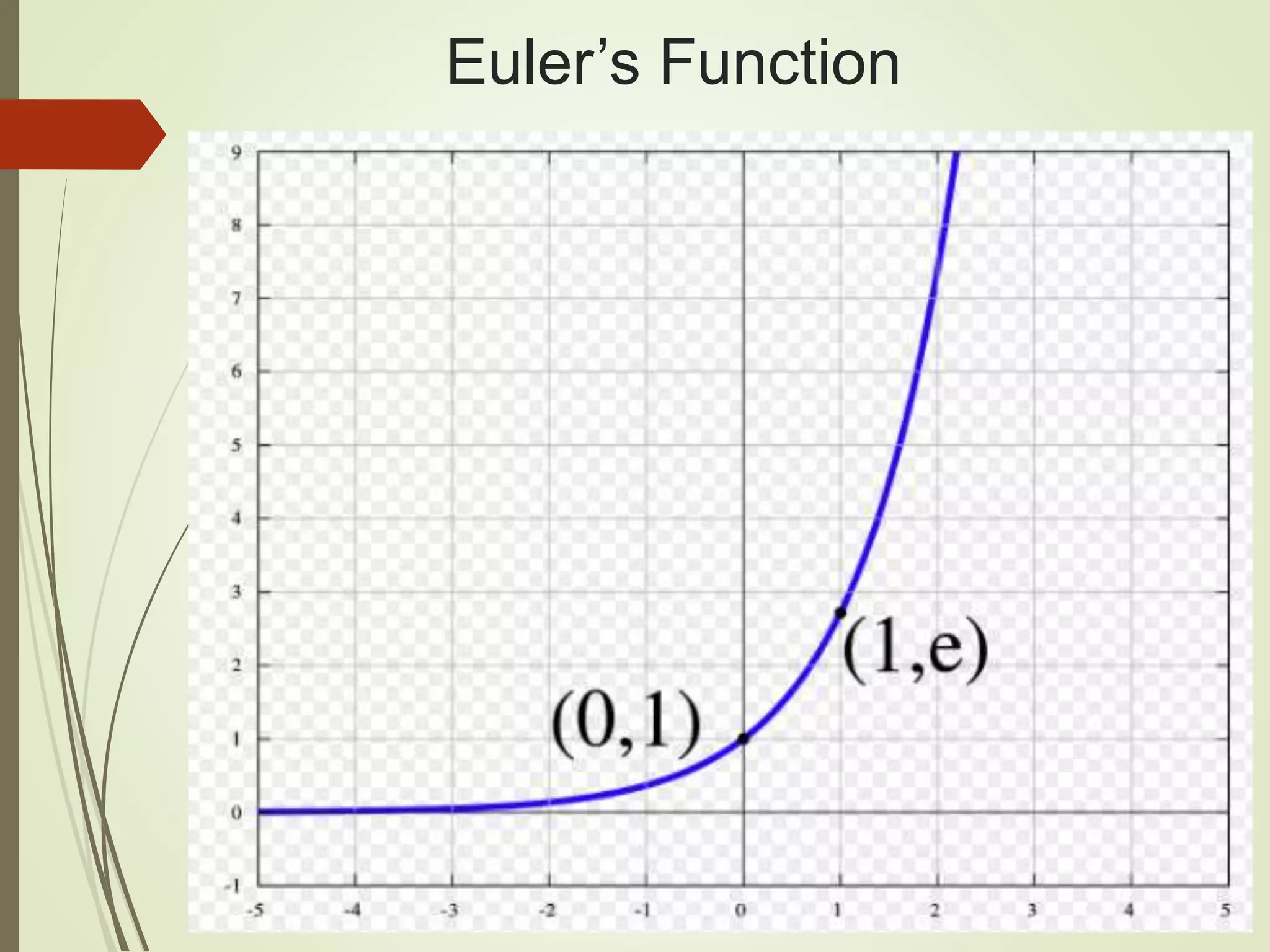

Euler’s Function

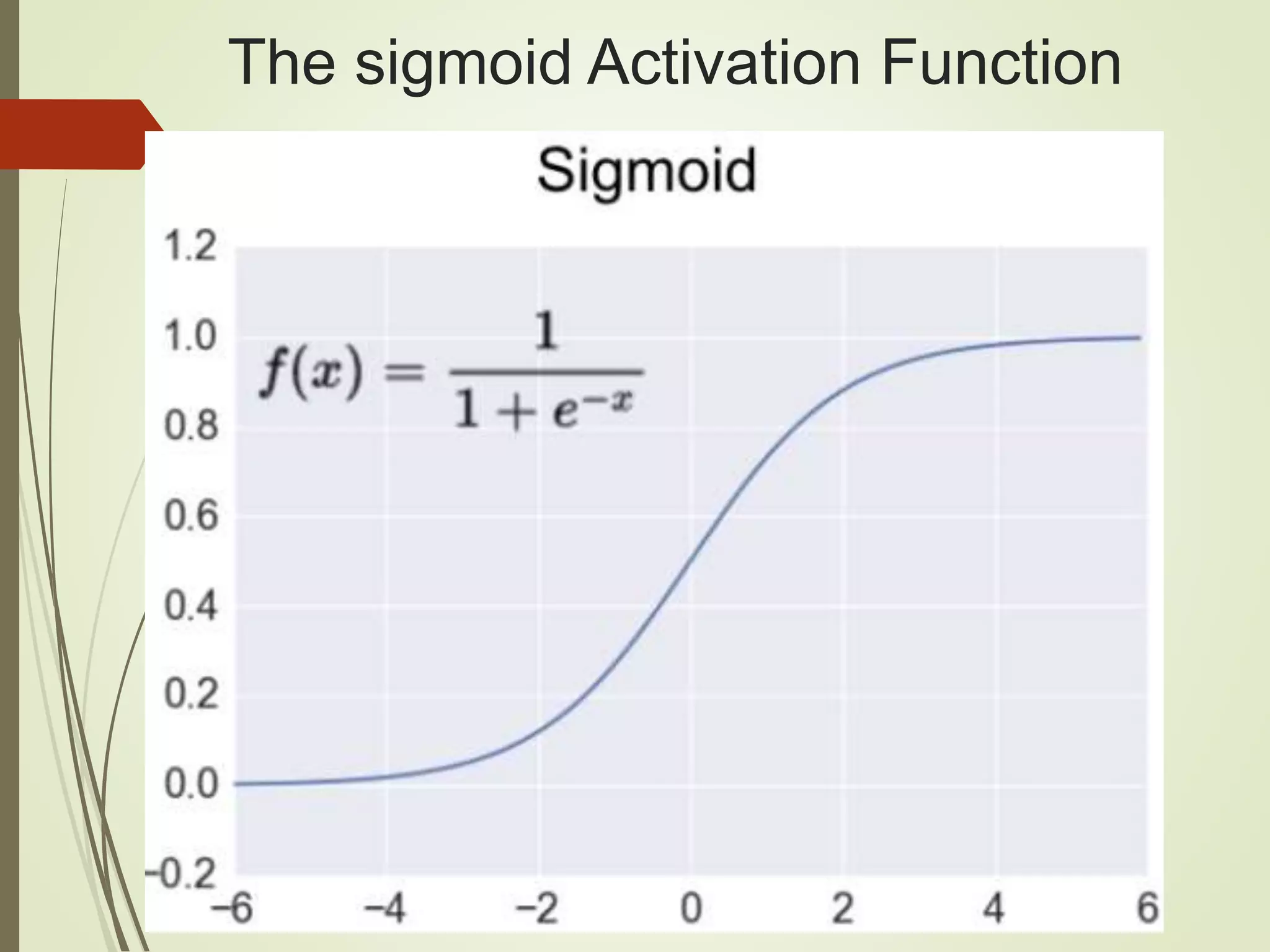

The sigmoid Activation Function

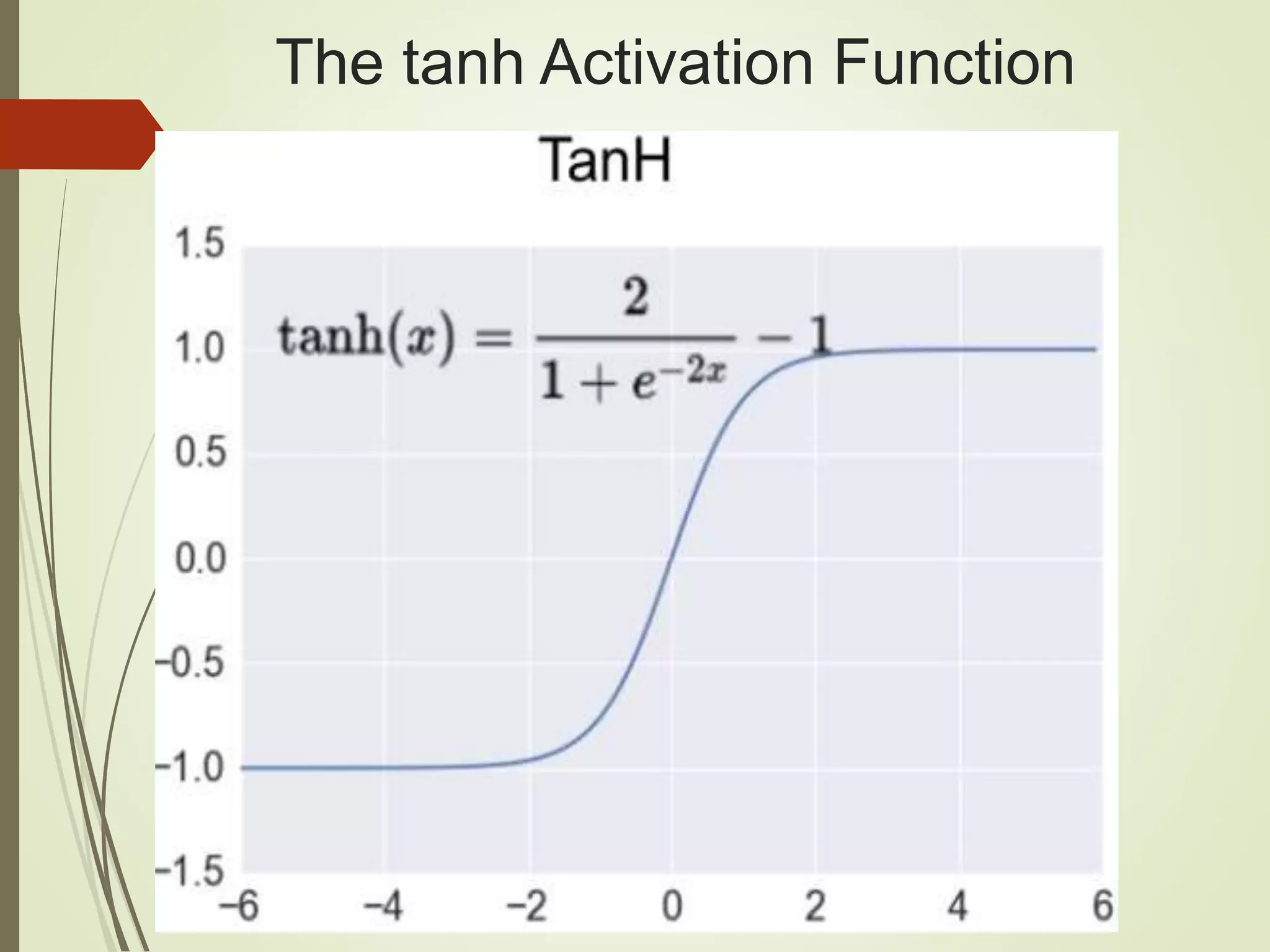

The tanh Activation Function

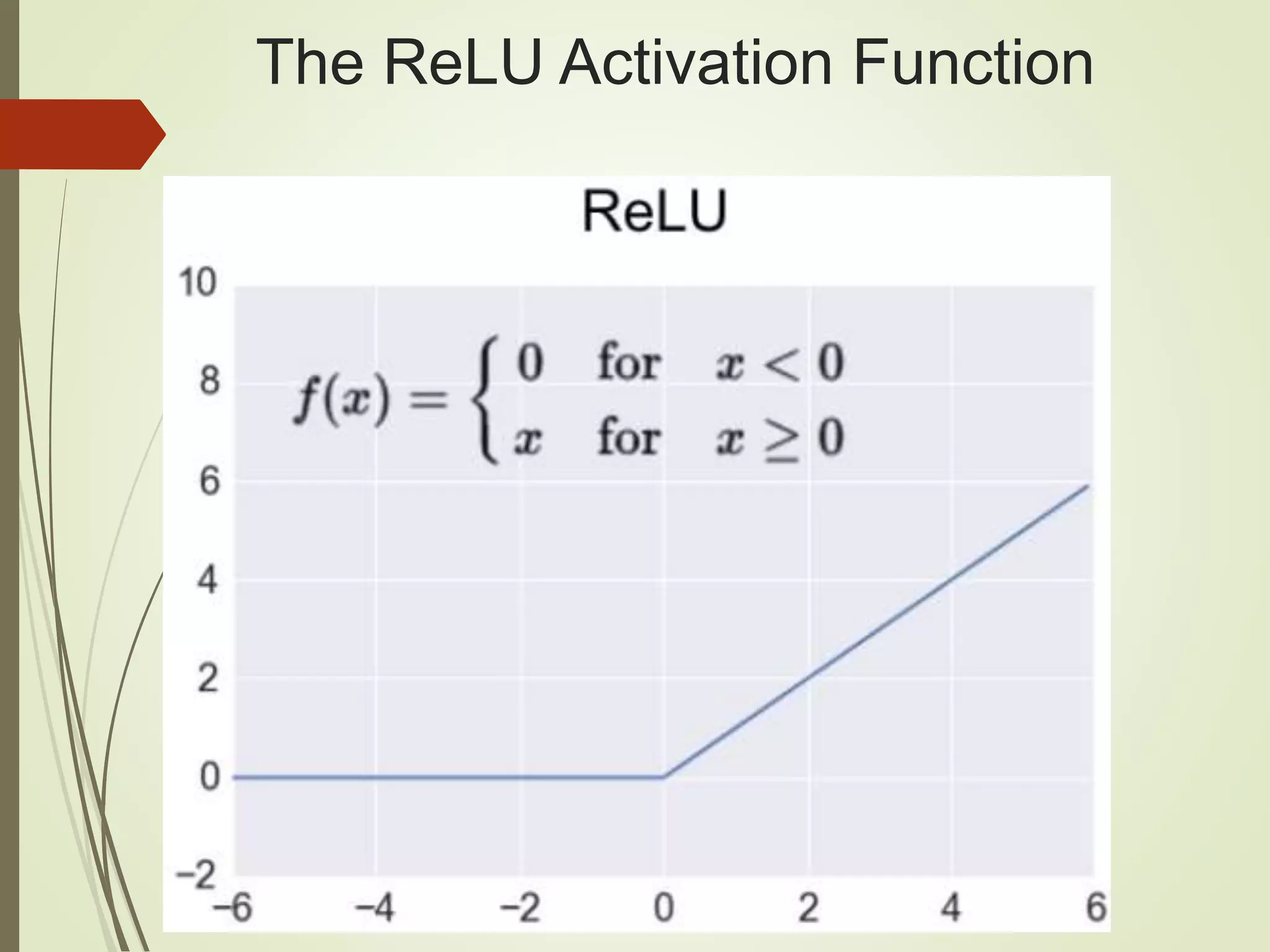

The ReLU Activation Function

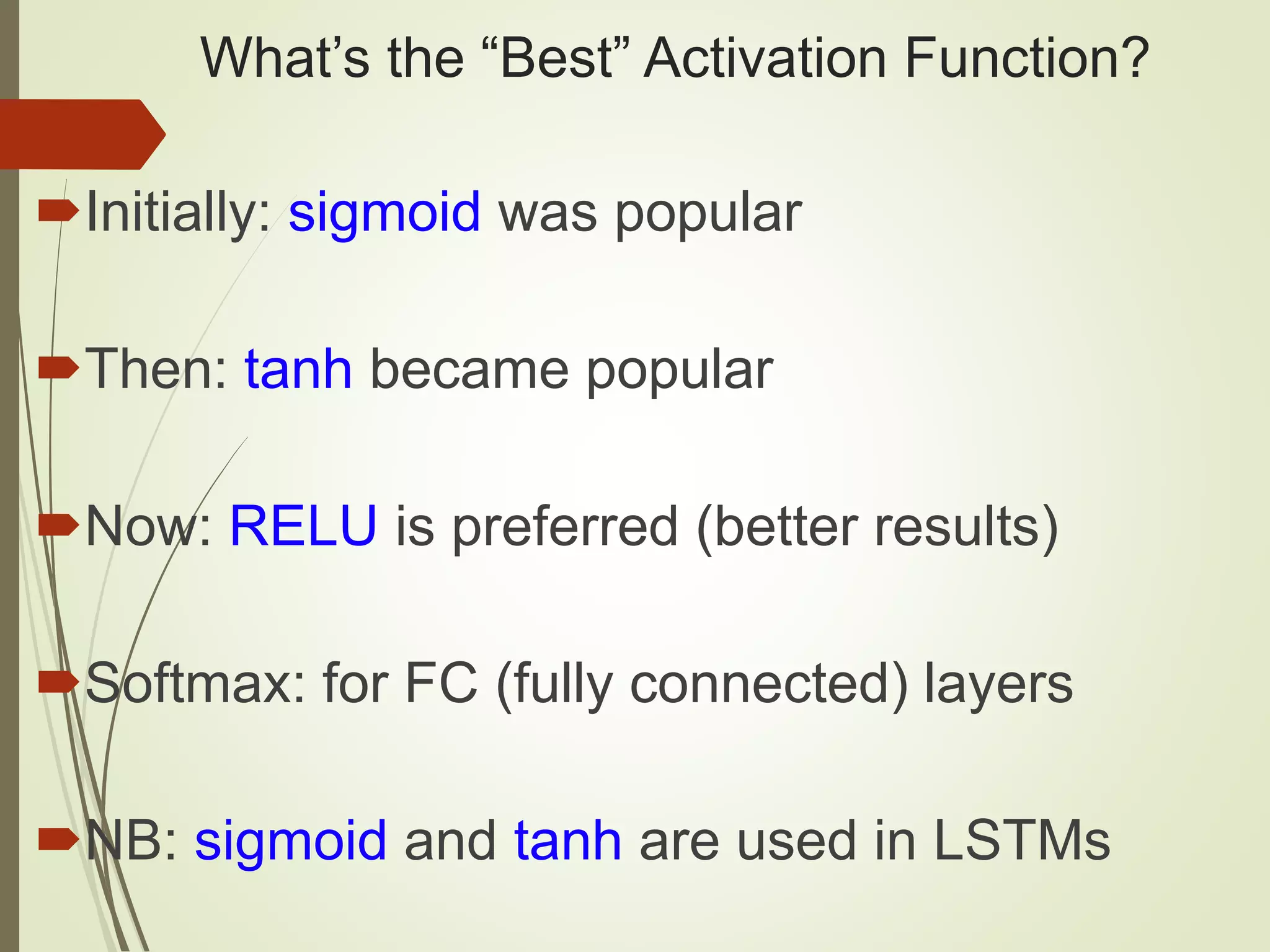

What’s the “Best” Activation Function?
Initially: sigmoid was popular
Then: tanh became popular
Now: RELU is preferred (better results)
Softmax: for FC (fully connected) layers
NB: sigmoid and tanh are used in LSTMs
Sample Cost Function #1 (MSE)

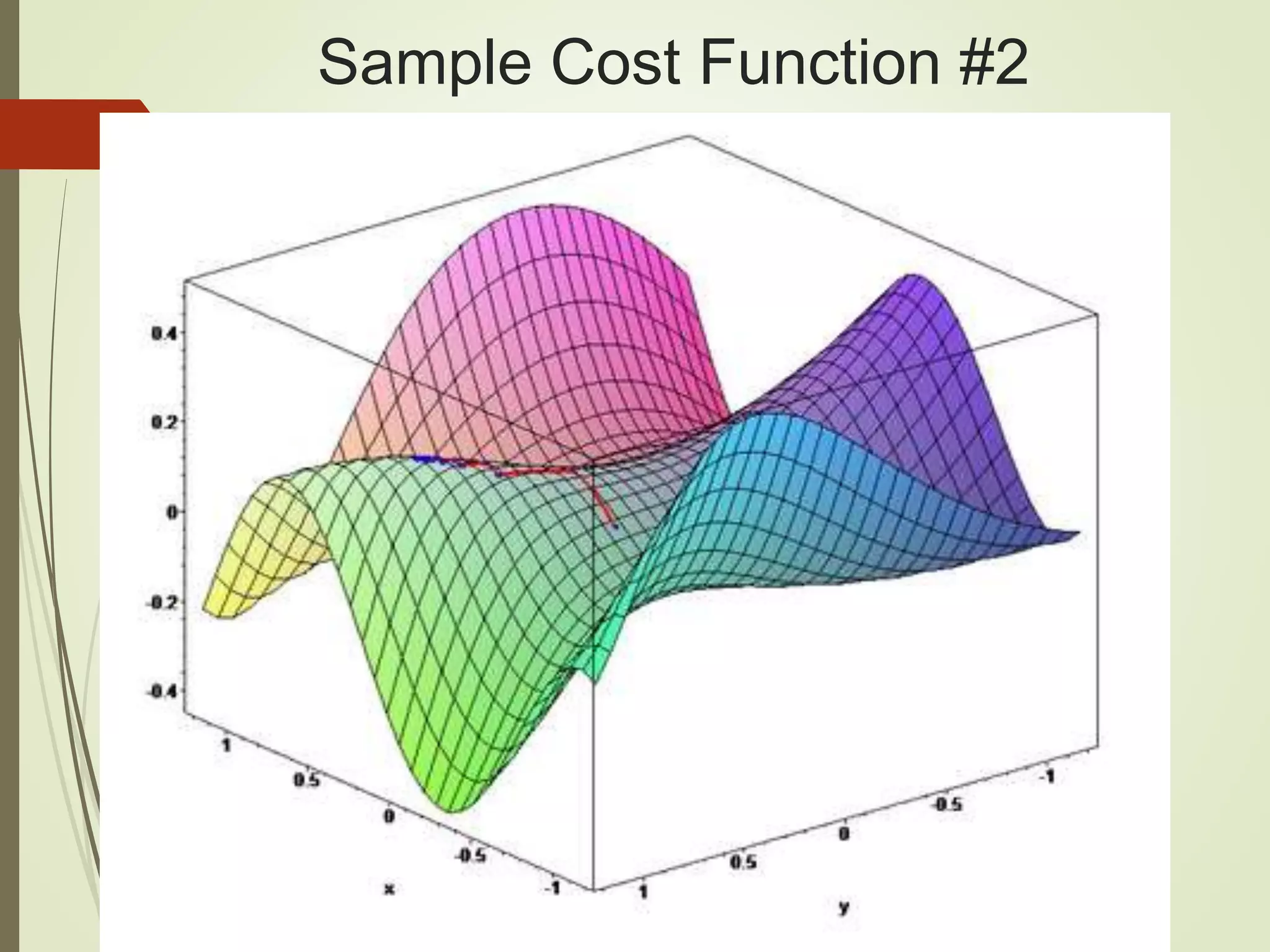

Sample Cost Function #2
Sample Cost Function #3

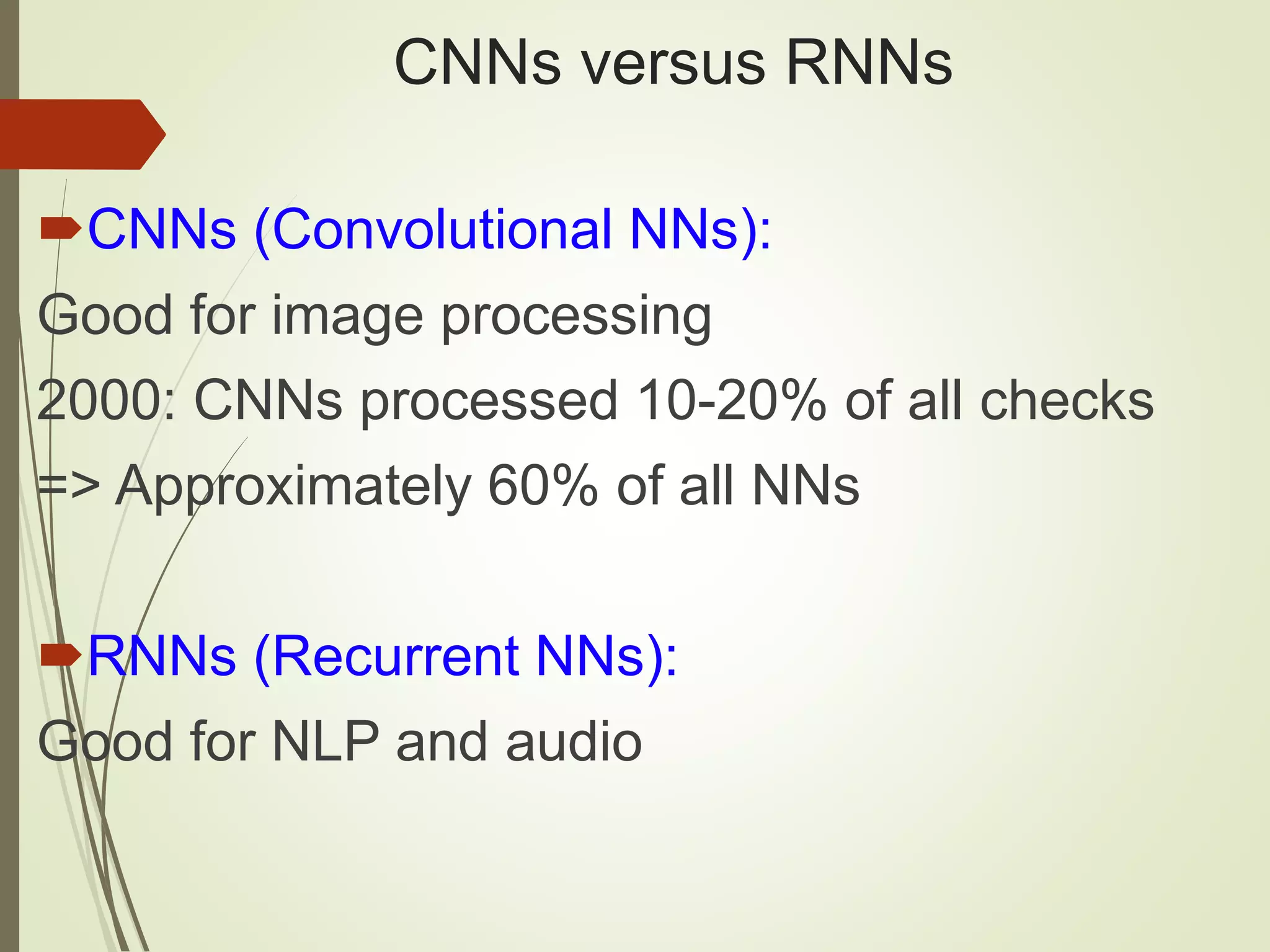

CNNs versus RNNs
CNNs (Convolutional NNs):
Good for image processing
2000: CNNs processed 10-20% of all checks
=> Approximately 60% of all NNs
RNNs (Recurrent NNs):
Good for NLP and audio

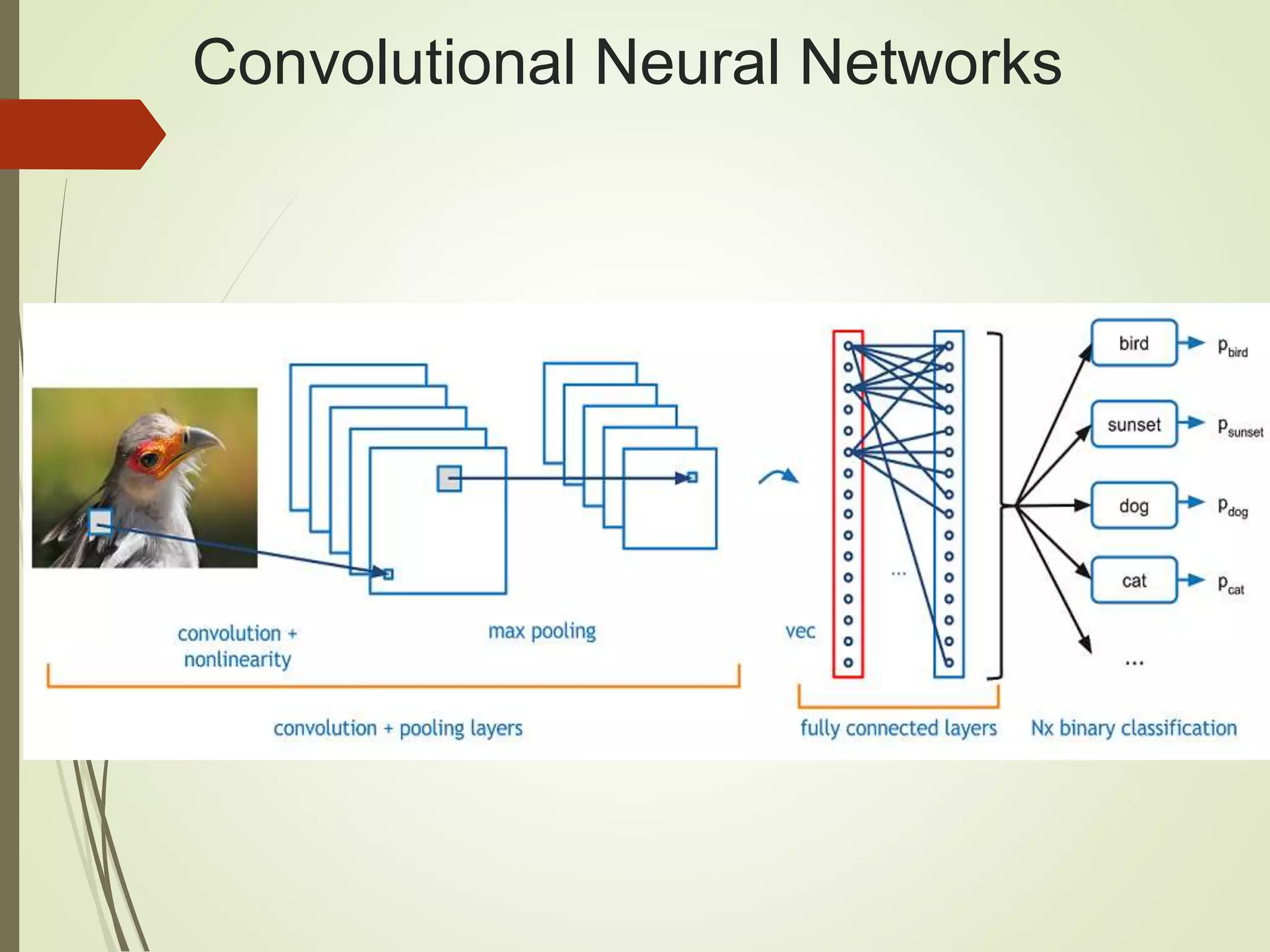

Convolutional Neural Networks

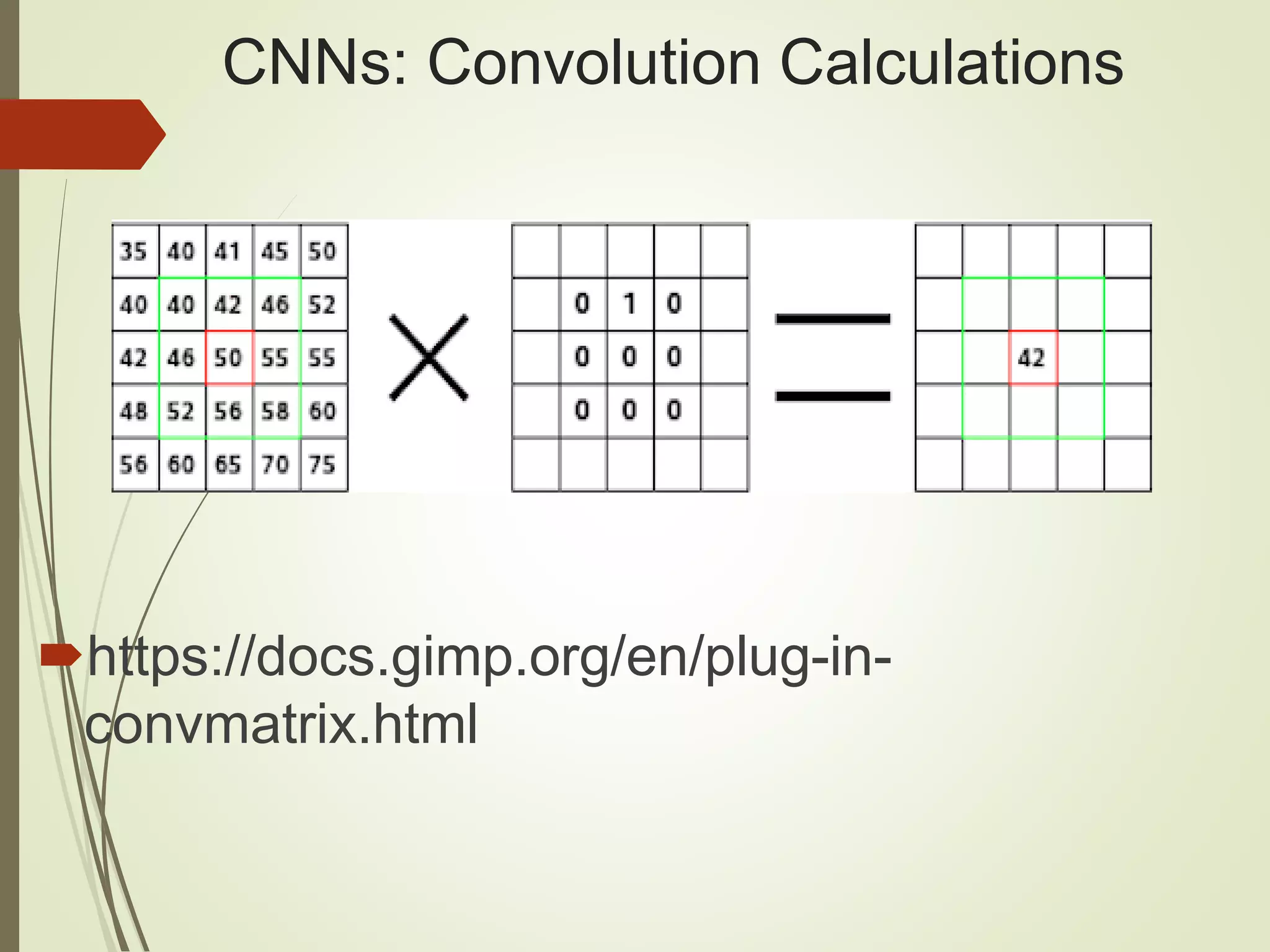

CNNs: Convolution Calculations
https://docs.gimp.org/en/plug-in-
convmatrix.html

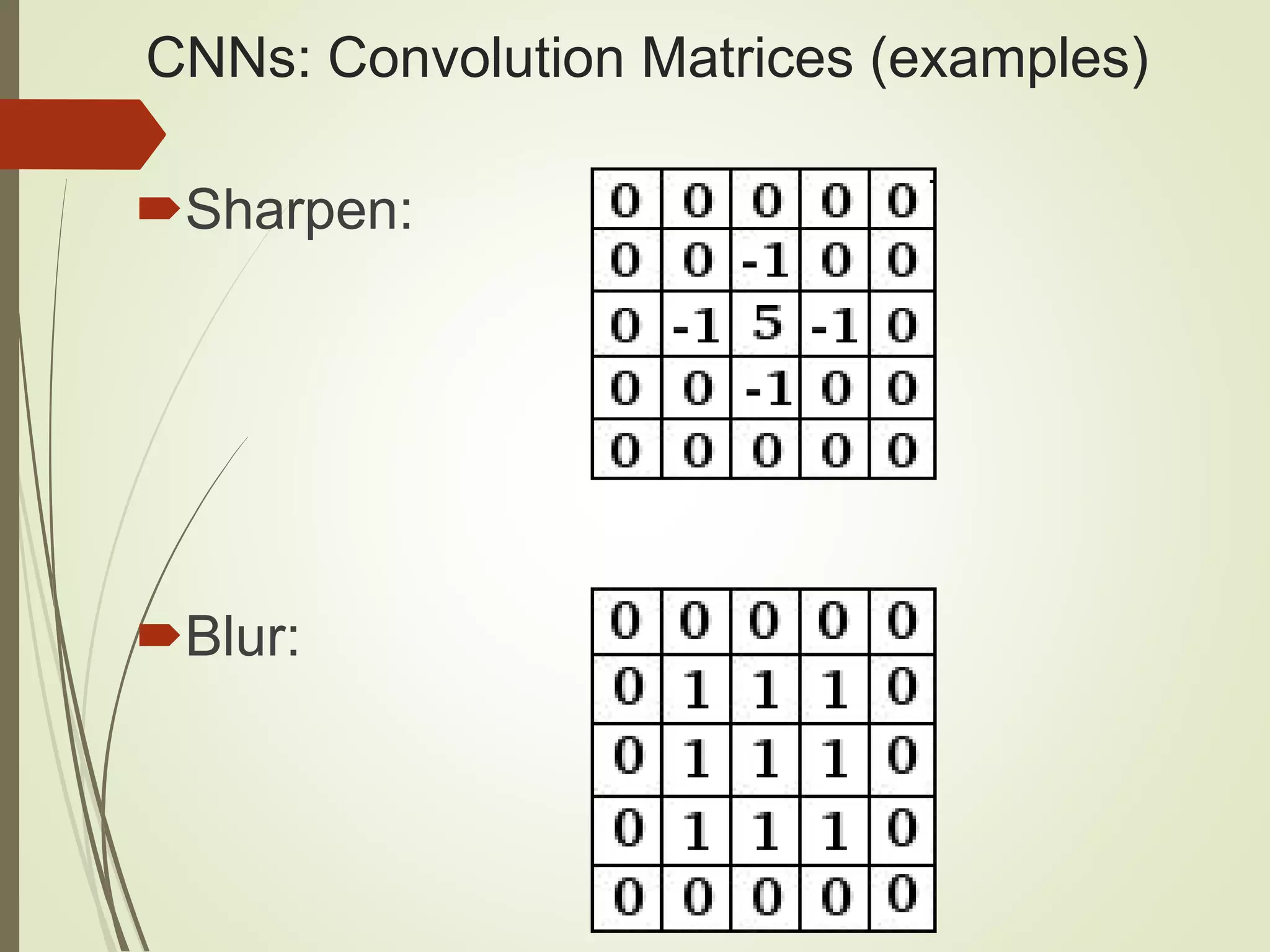

CNNs: Convolution Matrices (examples)
Sharpen:
Blur:

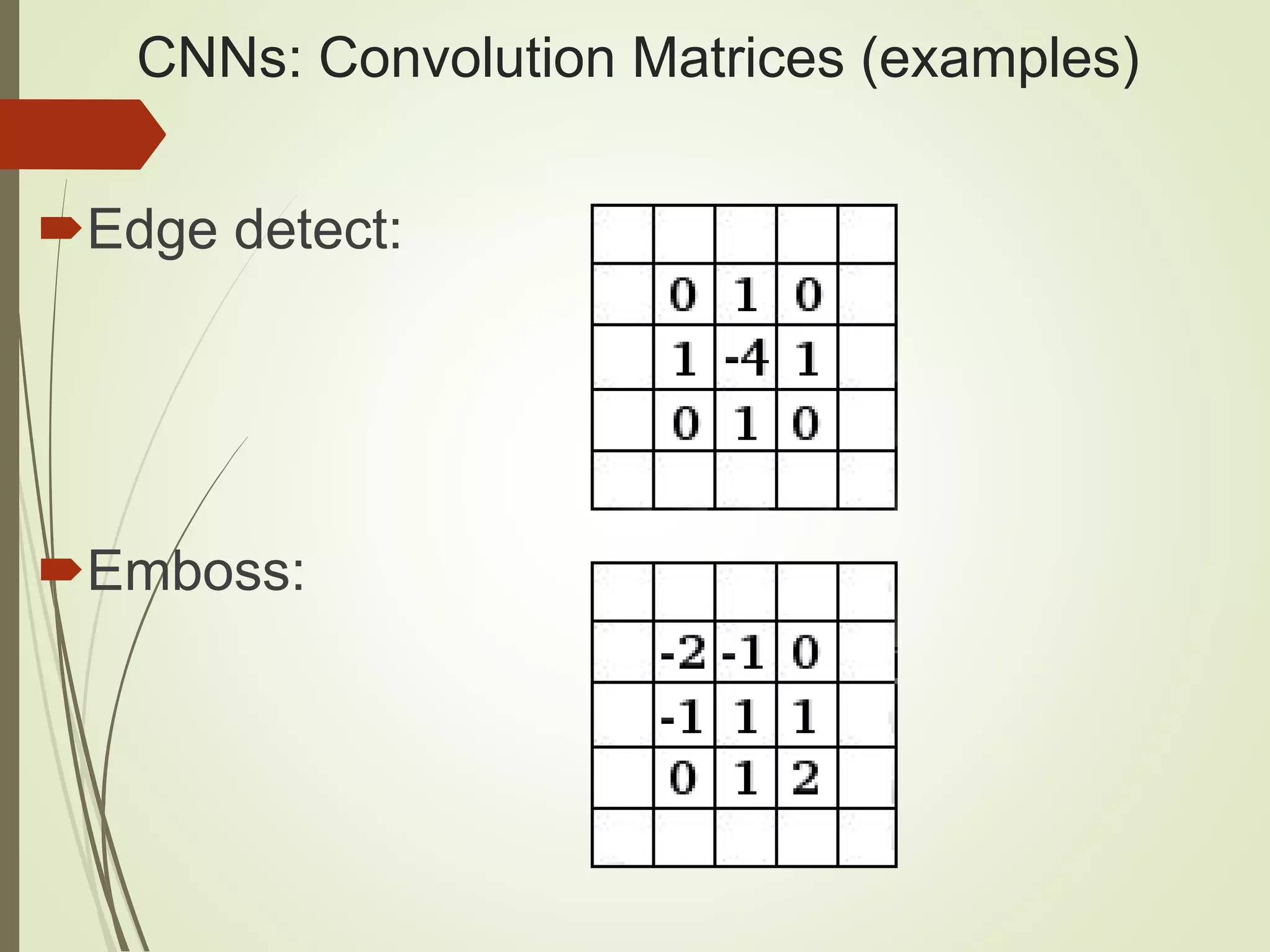

CNNs: Convolution Matrices (examples)
Edge detect:
Emboss:
How do Filters Work?
 compute “inner product” with an image
The “padding” parameter
Filter size: 3x3, 5x5, or 1x1 are common
Stride values: 1 or 2 (possibly greater)
“parallelize” multiple filters then merge

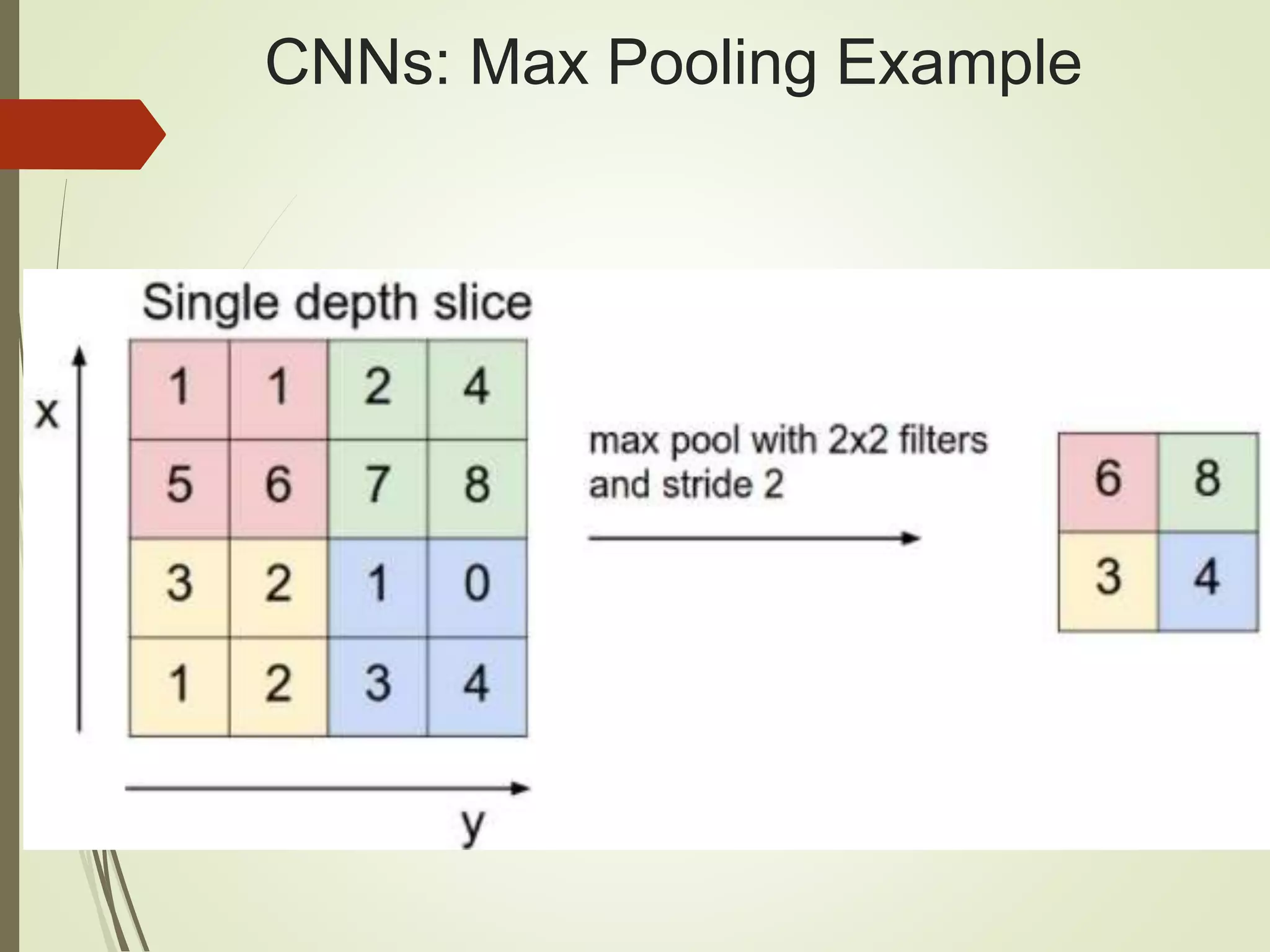

CNNs: Max Pooling Example

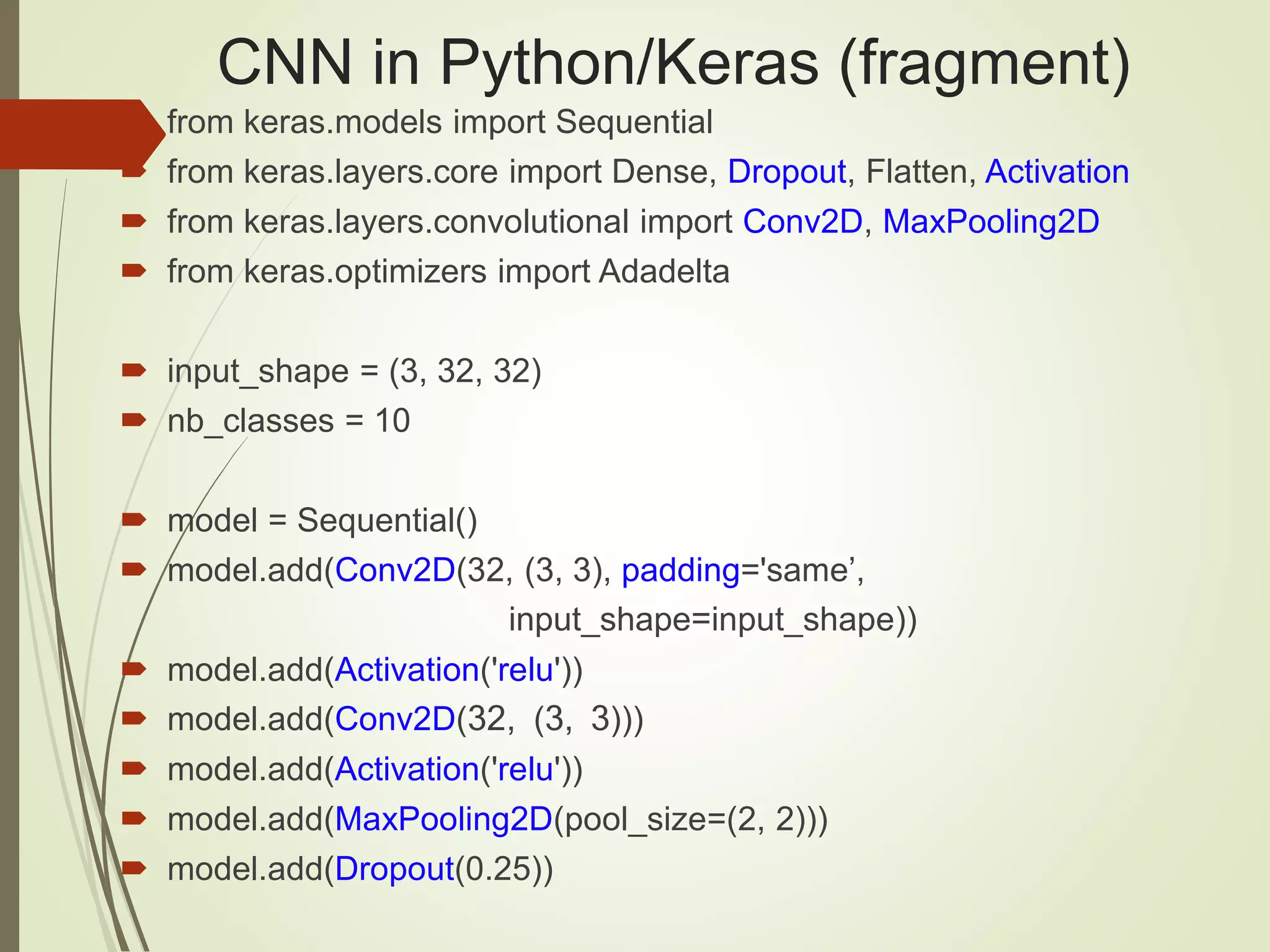

CNN in Python/Keras (fragment)
 from keras.models import Sequential
 from keras.layers.core import Dense, Dropout, Flatten, Activation
 from keras.layers.convolutional import Conv2D, MaxPooling2D
 from keras.optimizers import Adadelta
 input_shape = (3, 32, 32)
 nb_classes = 10
 model = Sequential()
 model.add(Conv2D(32, (3, 3), padding='same’,
input_shape=input_shape))
 model.add(Activation('relu'))
 model.add(Conv2D(32, (3, 3)))
 model.add(Activation('relu'))
 model.add(MaxPooling2D(pool_size=(2, 2)))
 model.add(Dropout(0.25))

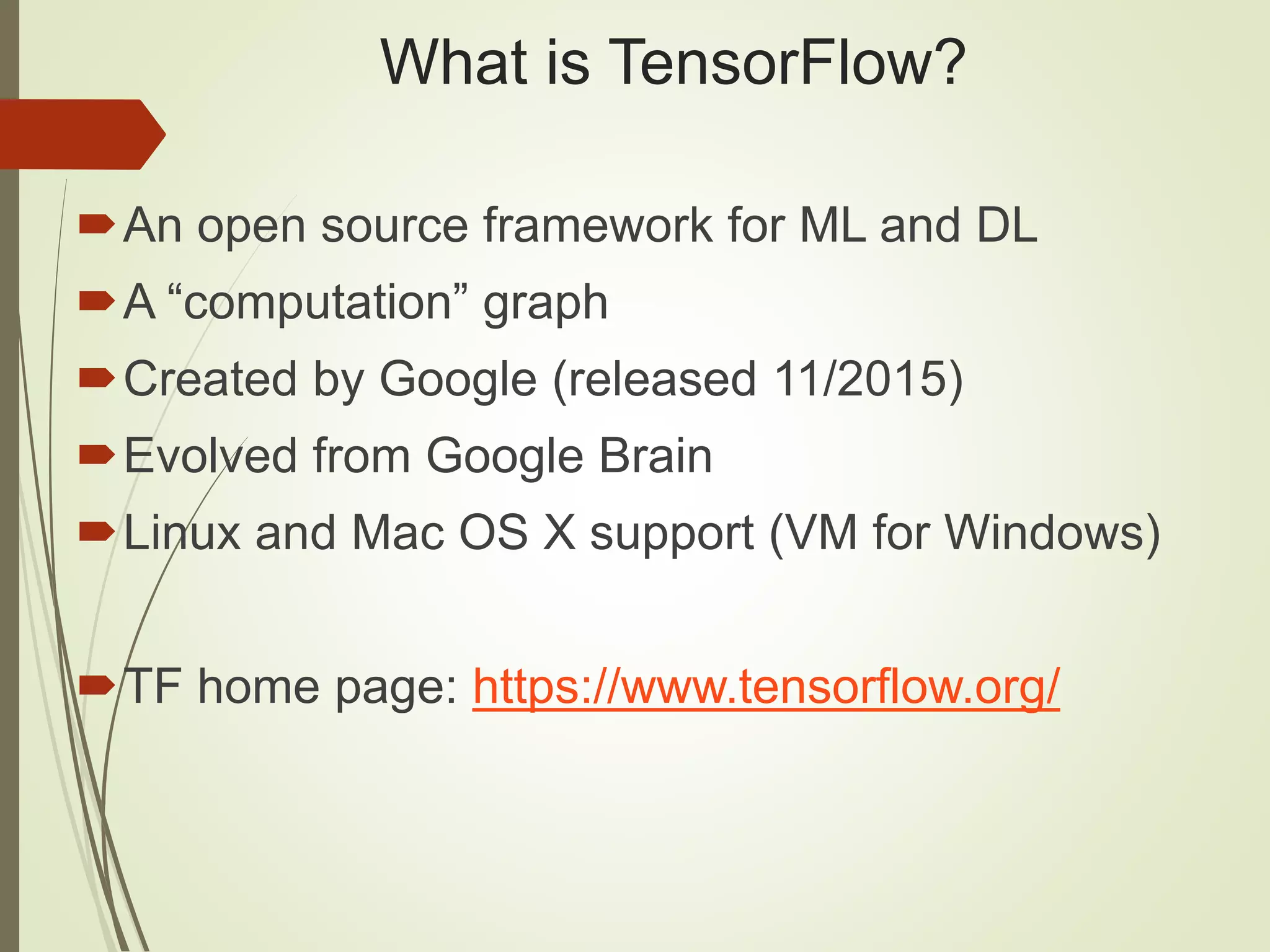

What is TensorFlow?
An open source framework for ML and DL
A “computation” graph
Created by Google (released 11/2015)
Evolved from Google Brain
Linux and Mac OS X support (VM for Windows)
TF home page: https://www.tensorflow.org/

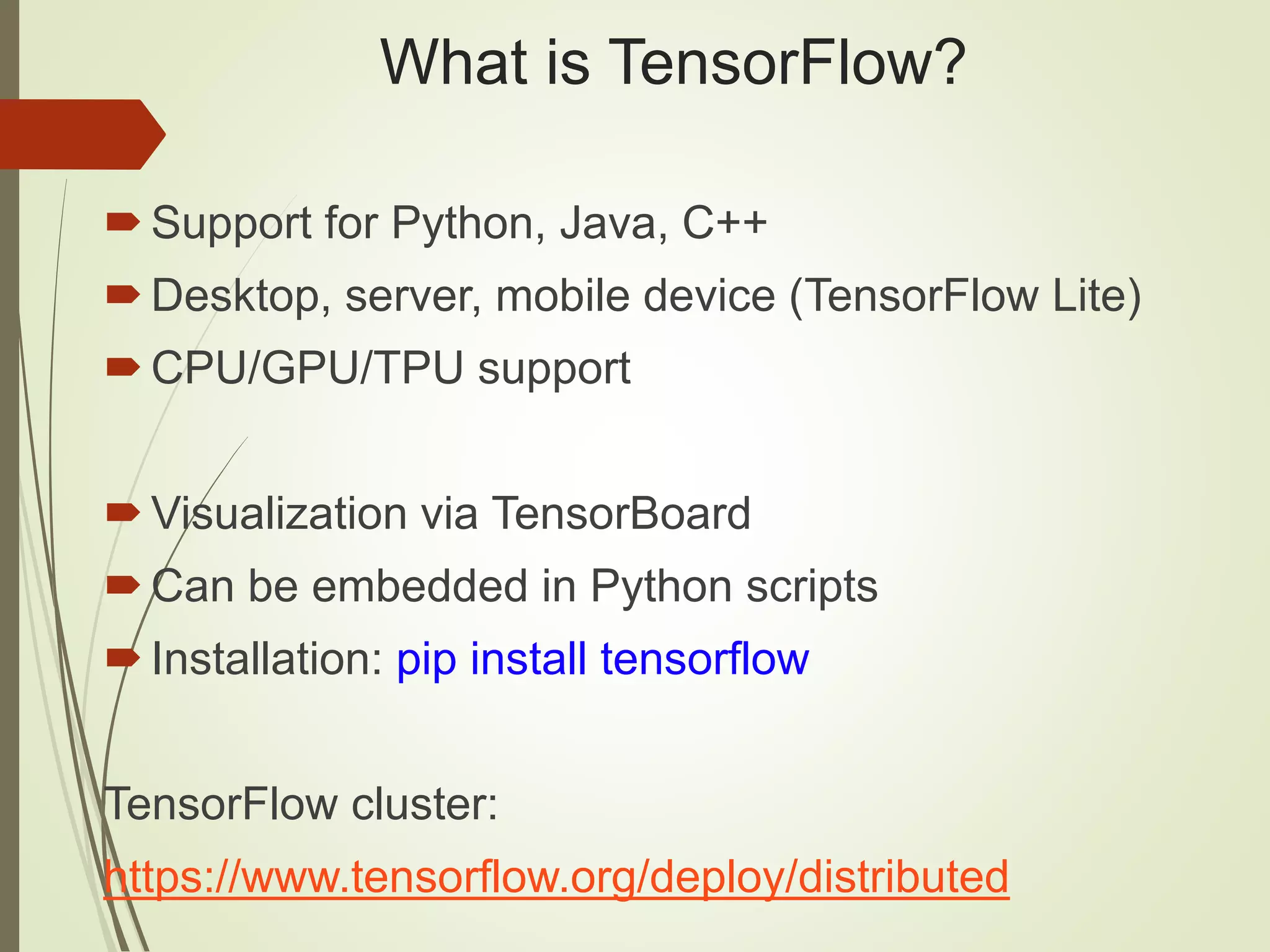

What is TensorFlow?
Support for Python, Java, C++
Desktop, server, mobile device (TensorFlow Lite)
CPU/GPU/TPU support
Visualization via TensorBoard
Can be embedded in Python scripts
Installation: pip install tensorflow
TensorFlow cluster:
https://www.tensorflow.org/deploy/distributed

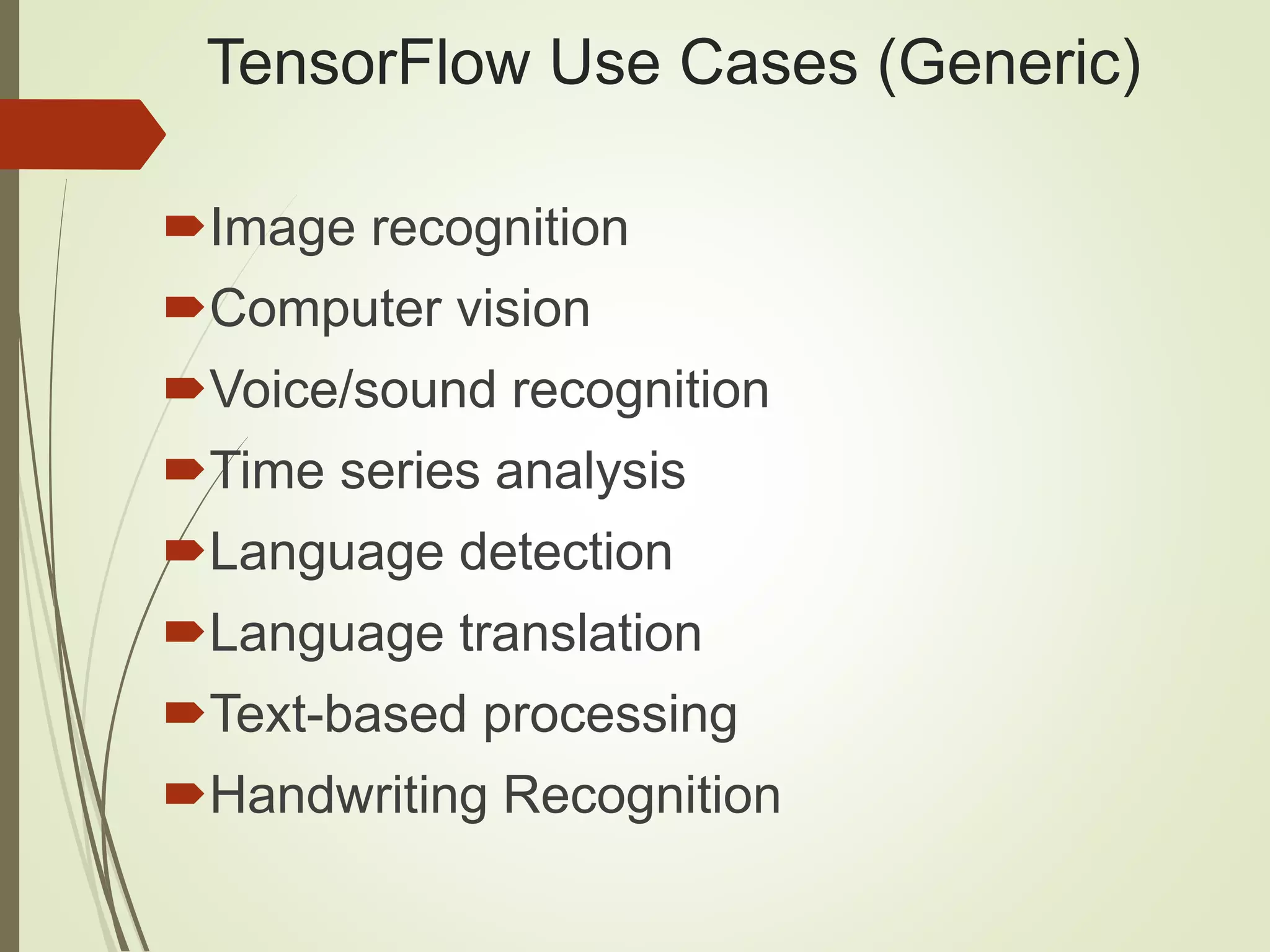

TensorFlow Use Cases (Generic)
Image recognition
Computer vision
Voice/sound recognition
Time series analysis
Language detection
Language translation
Text-based processing
Handwriting Recognition

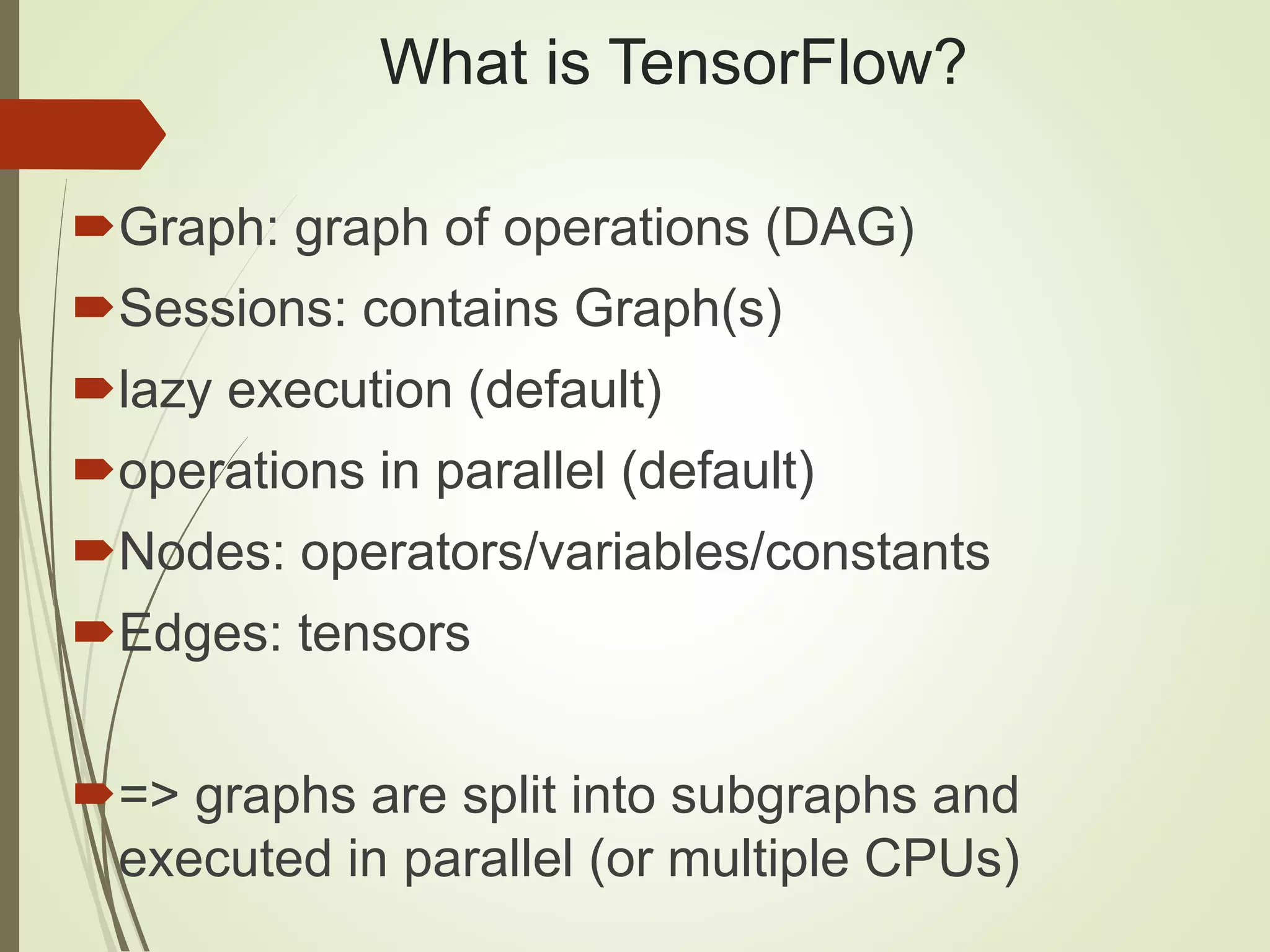

What is TensorFlow?
Graph: graph of operations (DAG)
Sessions: contains Graph(s)
lazy execution (default)
operations in parallel (default)
Nodes: operators/variables/constants
Edges: tensors
=> graphs are split into subgraphs and
executed in parallel (or multiple CPUs)

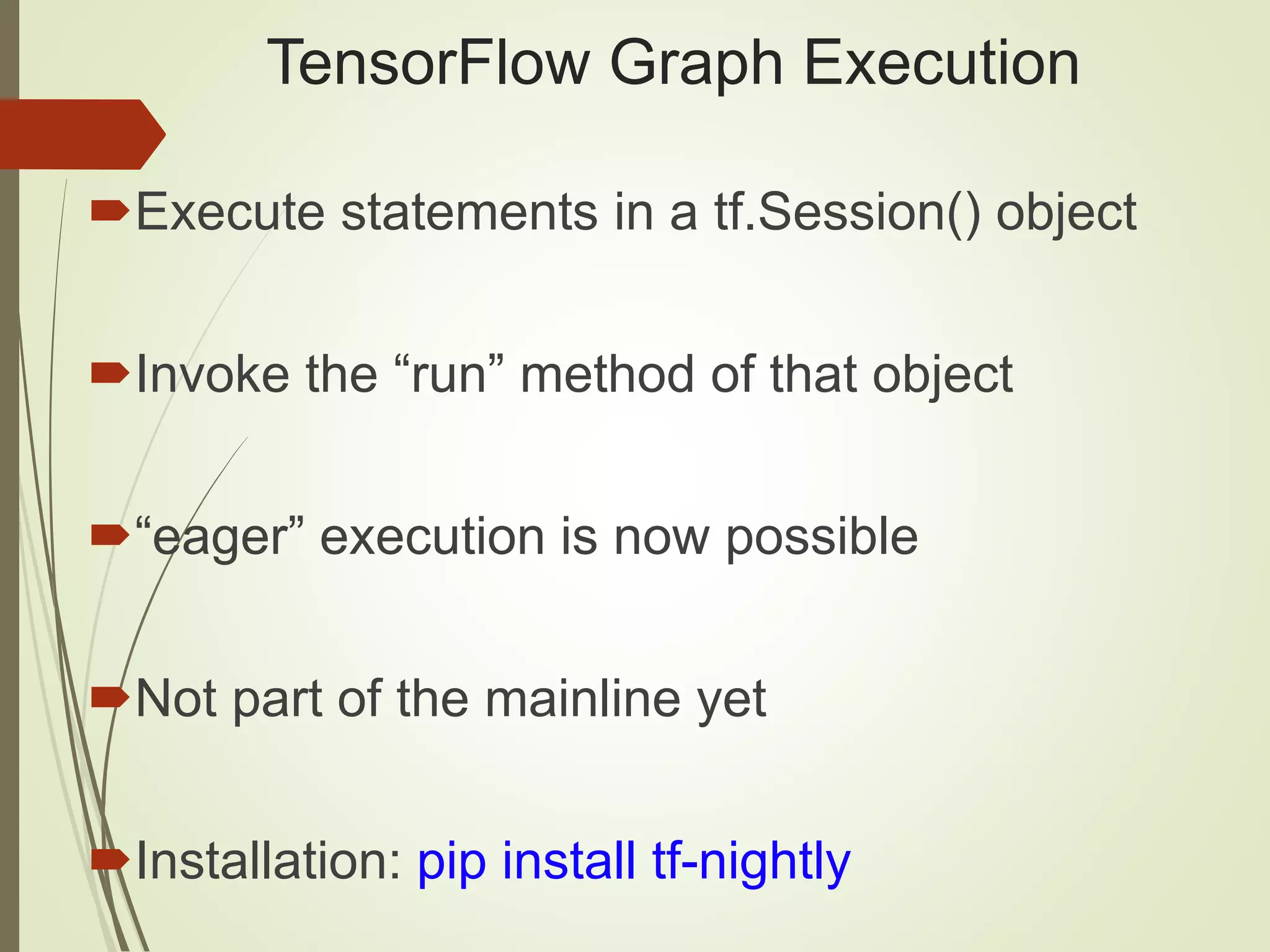

TensorFlow Graph Execution
Execute statements in a tf.Session() object
Invoke the “run” method of that object
“eager” execution is now possible
Not part of the mainline yet
Installation: pip install tf-nightly

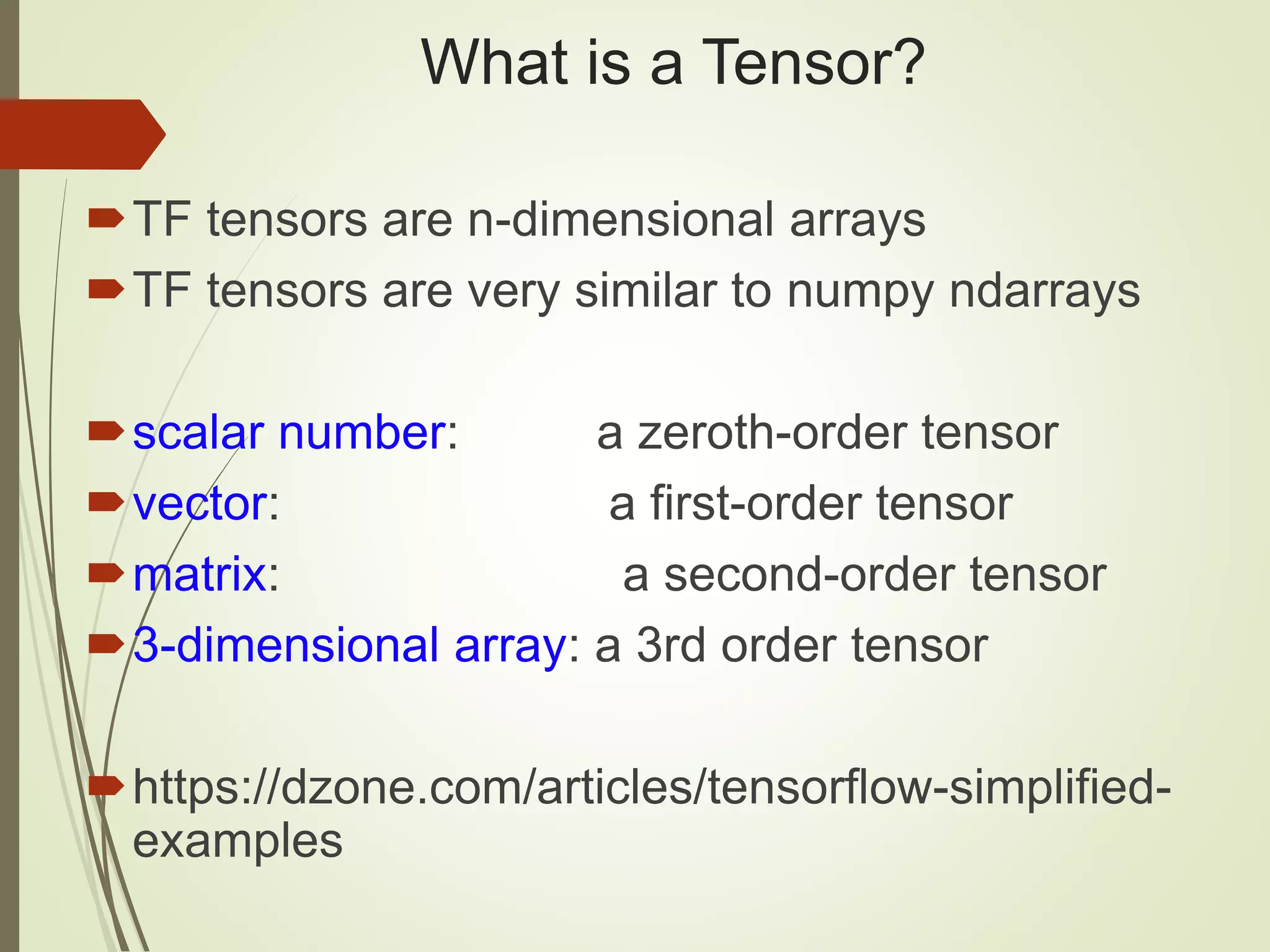

What is a Tensor?
TF tensors are n-dimensional arrays
TF tensors are very similar to numpy ndarrays
scalar number: a zeroth-order tensor
vector: a first-order tensor
matrix: a second-order tensor
3-dimensional array: a 3rd order tensor
https://dzone.com/articles/tensorflow-simplified-
examples

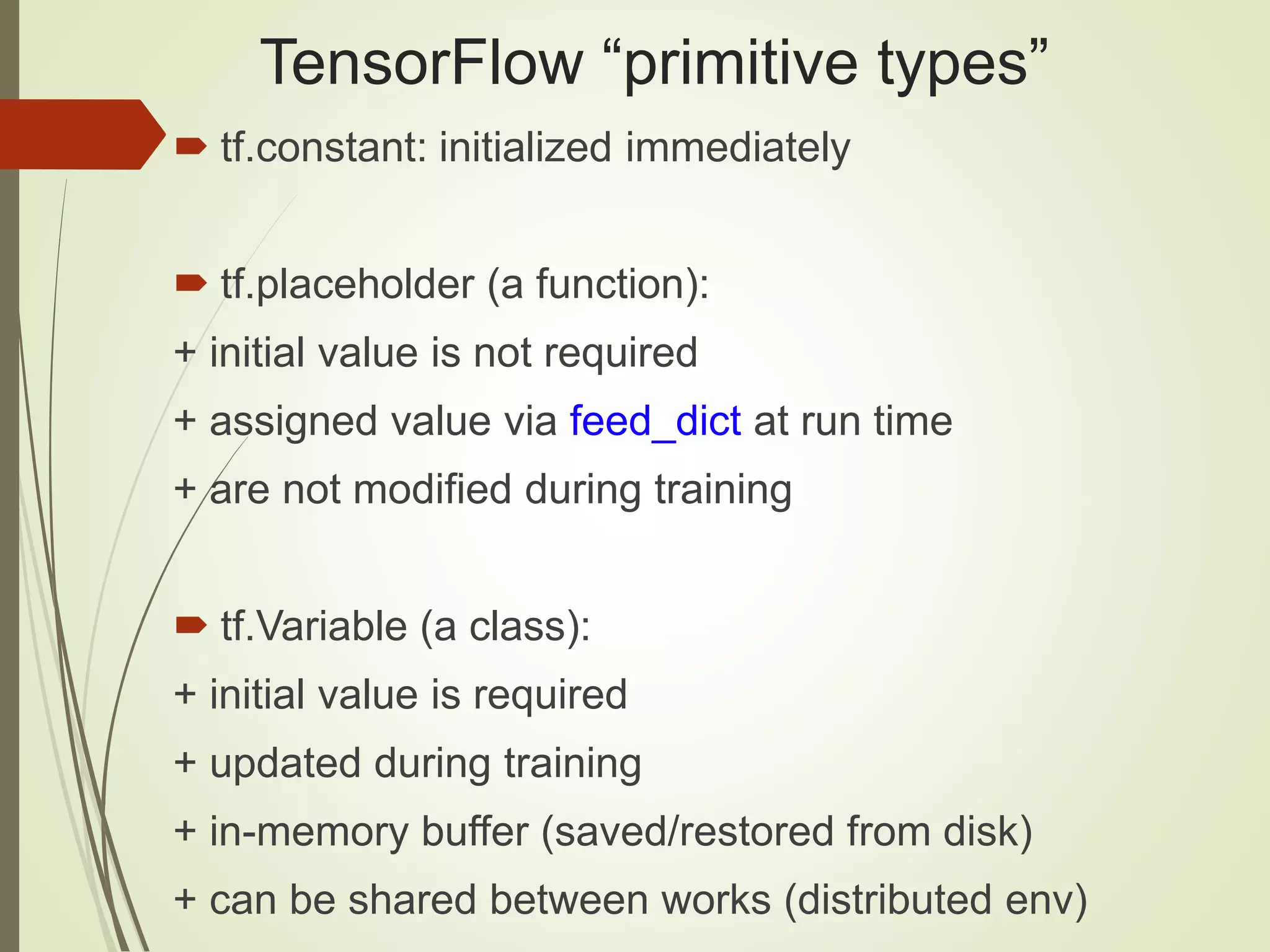

TensorFlow “primitive types”
 tf.constant: initialized immediately
 tf.placeholder (a function):
+ initial value is not required
+ assigned value via feed_dict at run time
+ are not modified during training
 tf.Variable (a class):
+ initial value is required
+ updated during training
+ in-memory buffer (saved/restored from disk)
+ can be shared between works (distributed env)

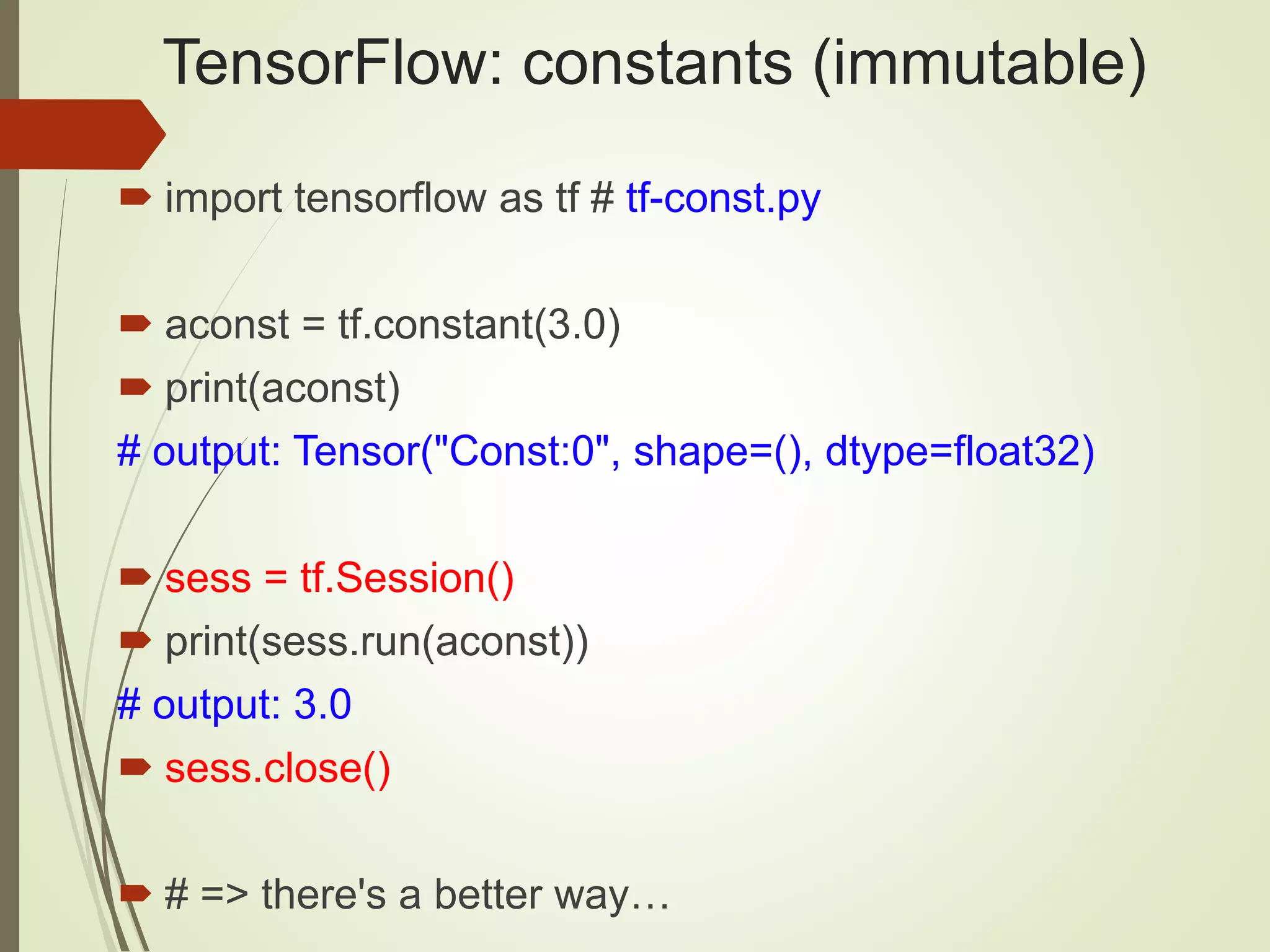

TensorFlow: constants (immutable)
 import tensorflow as tf # tf-const.py
 aconst = tf.constant(3.0)
 print(aconst)
# output: Tensor("Const:0", shape=(), dtype=float32)
 sess = tf.Session()
 print(sess.run(aconst))
# output: 3.0
 sess.close()
 # => there's a better way…
TensorFlow: constants
import tensorflow as tf # tf-const2.py
aconst = tf.constant(3.0)
print(aconst)
Automatically close “sess”
with tf.Session() as sess:
 print(sess.run(aconst))
TensorFlow Arithmetic
import tensorflow as tf # basic1.py
a = tf.add(4, 2)
b = tf.subtract(8, 6)
c = tf.multiply(a, 3)
d = tf.div(a, 6)
with tf.Session() as sess:
print(sess.run(a)) # 6
print(sess.run(b)) # 2
print(sess.run(c)) # 18
print(sess.run(d)) # 1

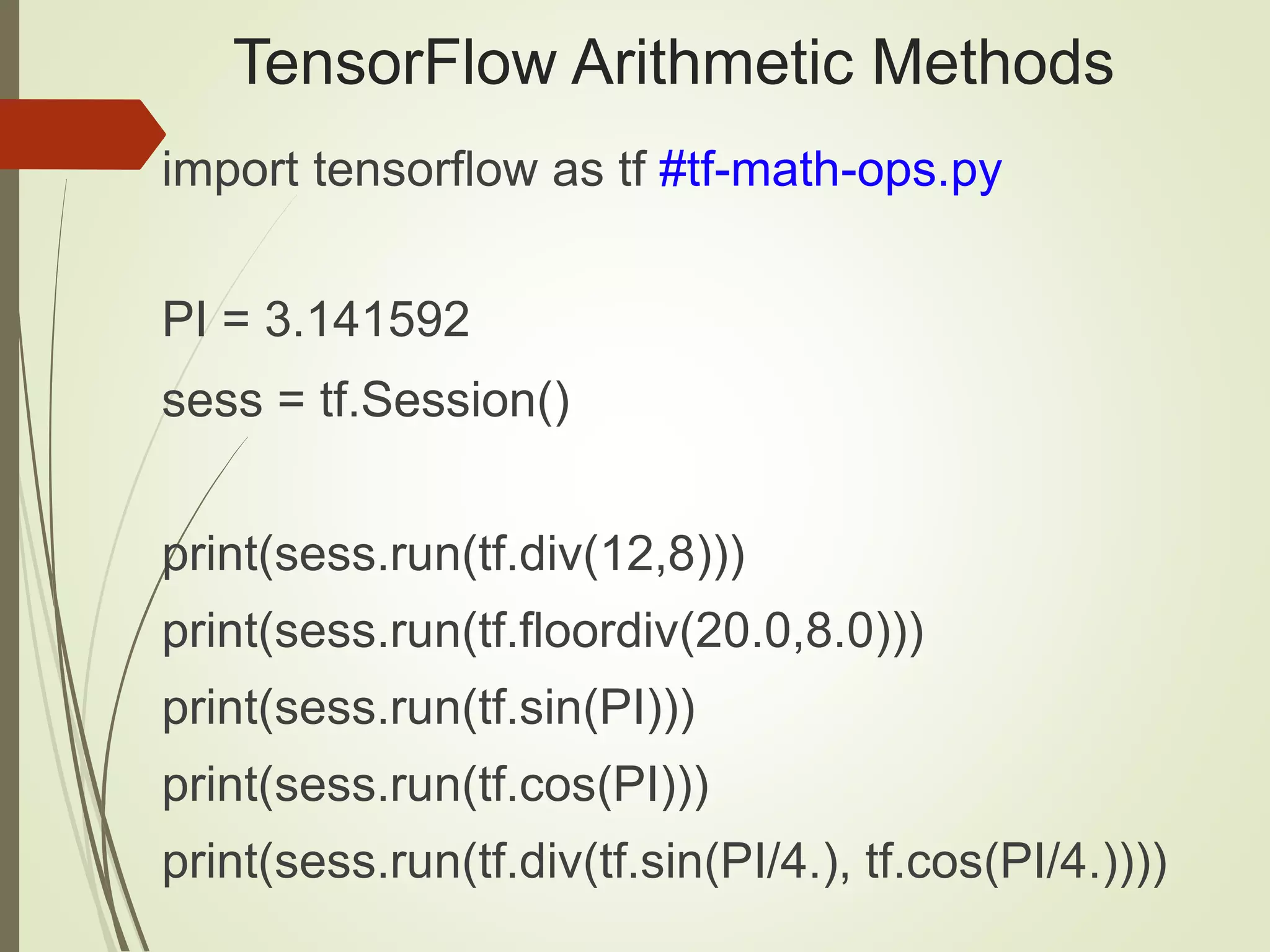

TensorFlow Arithmetic Methods
import tensorflow as tf #tf-math-ops.py
PI = 3.141592
sess = tf.Session()
print(sess.run(tf.div(12,8)))
print(sess.run(tf.floordiv(20.0,8.0)))
print(sess.run(tf.sin(PI)))
print(sess.run(tf.cos(PI)))
print(sess.run(tf.div(tf.sin(PI/4.), tf.cos(PI/4.))))

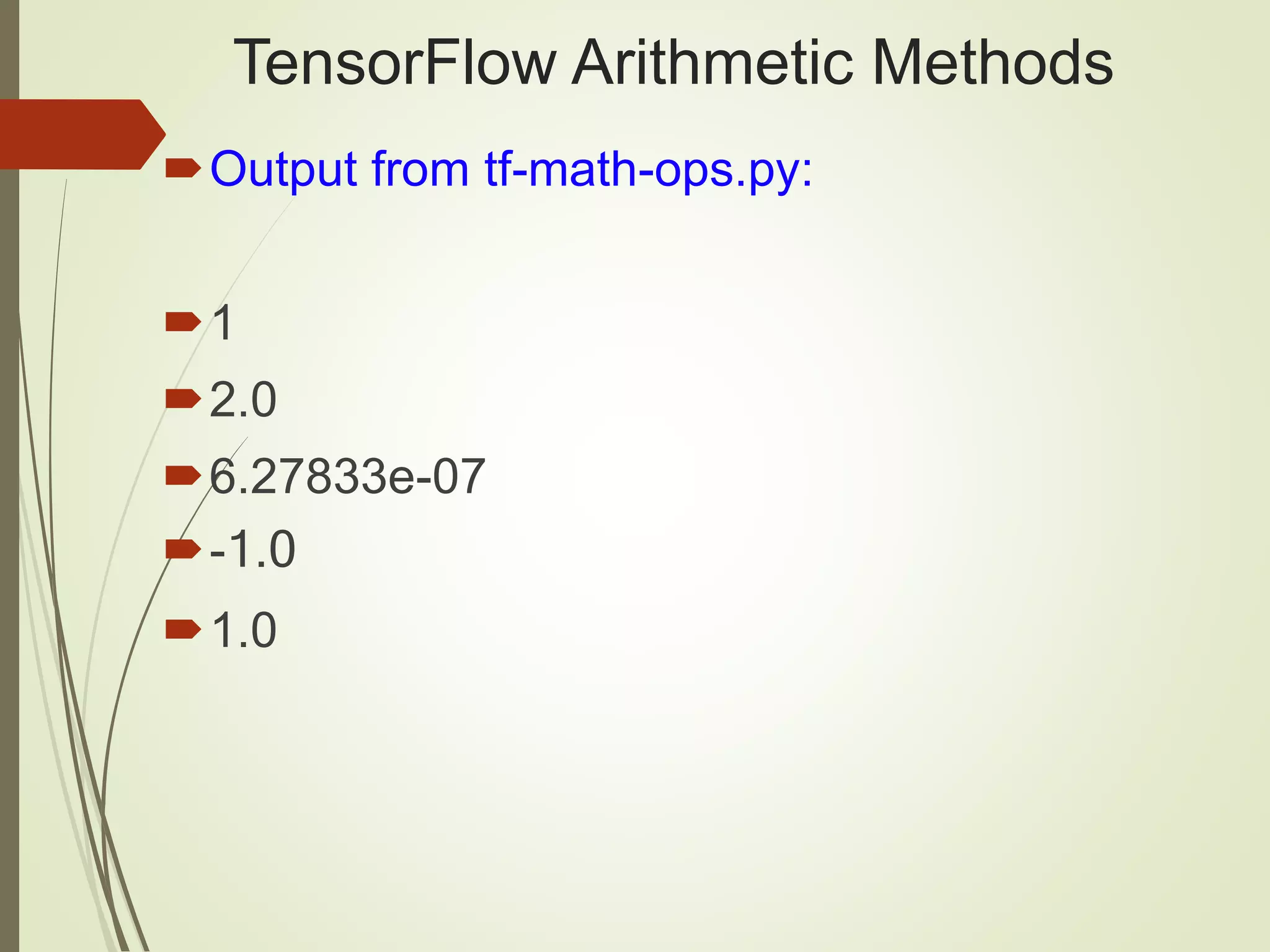

TensorFlow Arithmetic Methods
Output from tf-math-ops.py:
1
2.0
6.27833e-07
-1.0
1.0

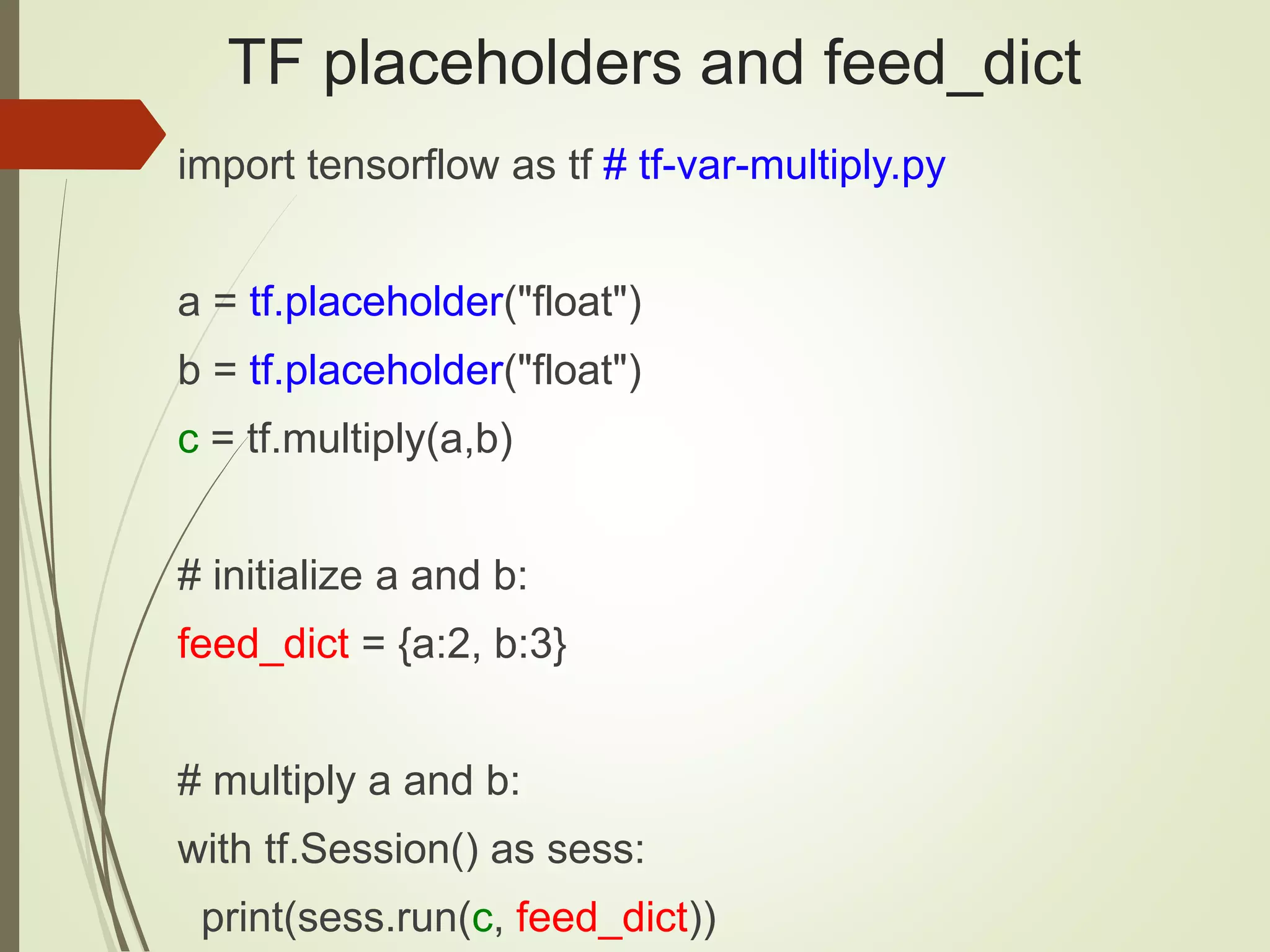

TF placeholders and feed_dict
import tensorflow as tf # tf-var-multiply.py
a = tf.placeholder("float")
b = tf.placeholder("float")
c = tf.multiply(a,b)
# initialize a and b:
feed_dict = {a:2, b:3}
# multiply a and b:
with tf.Session() as sess:
print(sess.run(c, feed_dict))

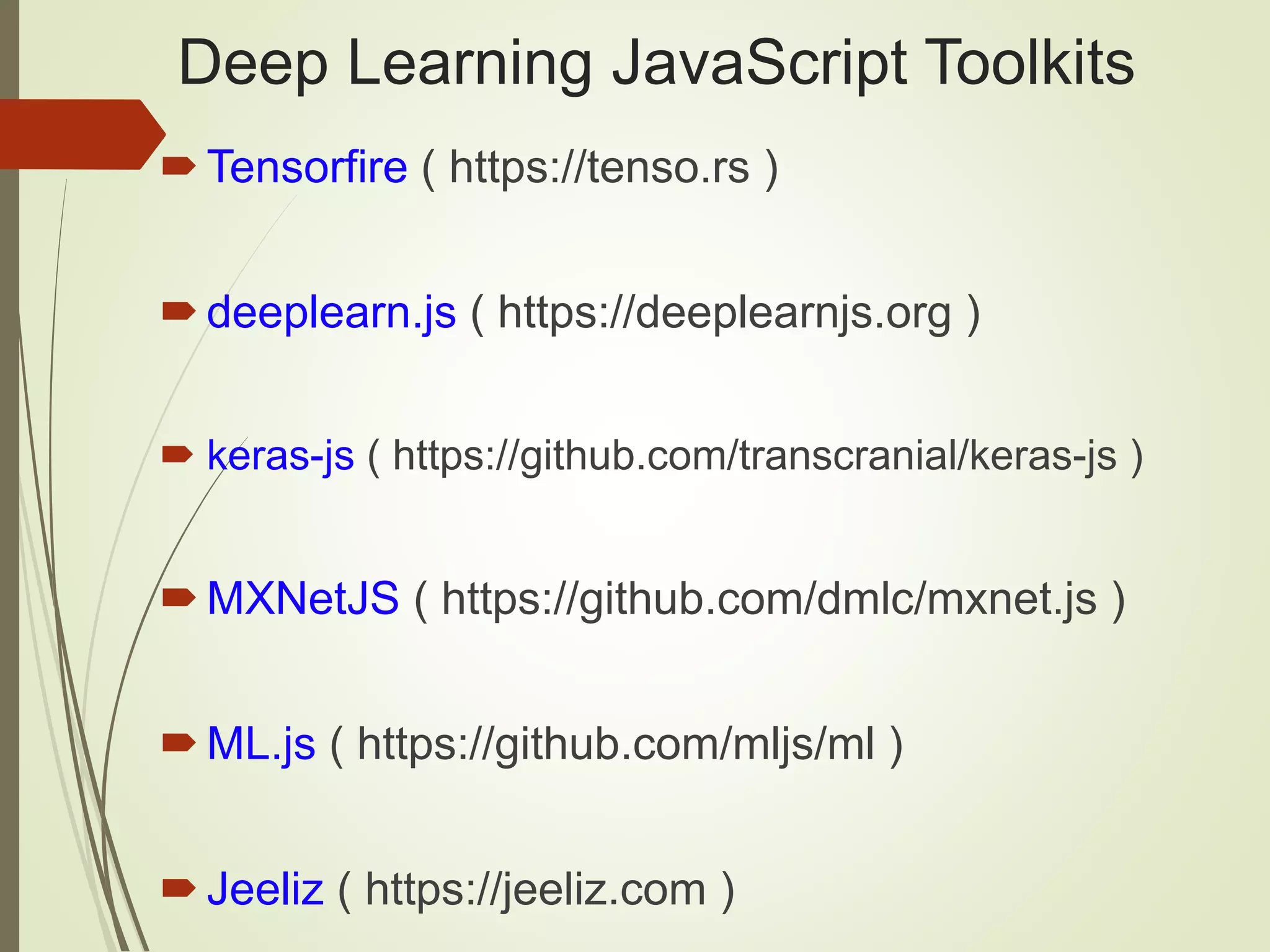

Deep Learning JavaScript Toolkits
Tensorfire ( https://tenso.rs )
deeplearn.js ( https://deeplearnjs.org )
 keras-js ( https://github.com/transcranial/keras-js )
MXNetJS ( https://github.com/dmlc/mxnet.js )
ML.js ( https://github.com/mljs/ml )
Jeeliz ( https://jeeliz.com )

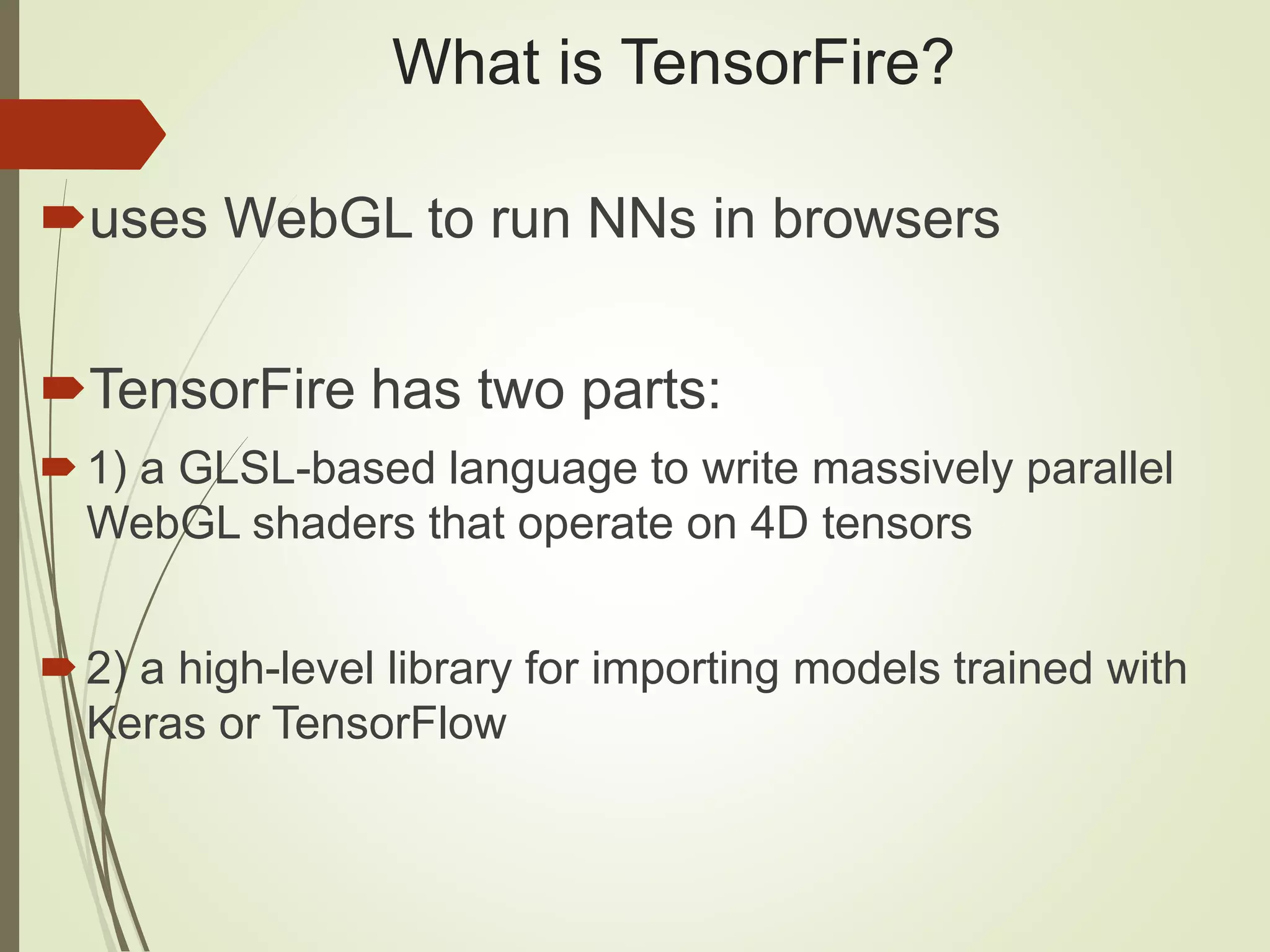

What is TensorFire?
uses WebGL to run NNs in browsers
TensorFire has two parts:
1) a GLSL-based language to write massively parallel
WebGL shaders that operate on 4D tensors
2) a high-level library for importing models trained with
Keras or TensorFlow

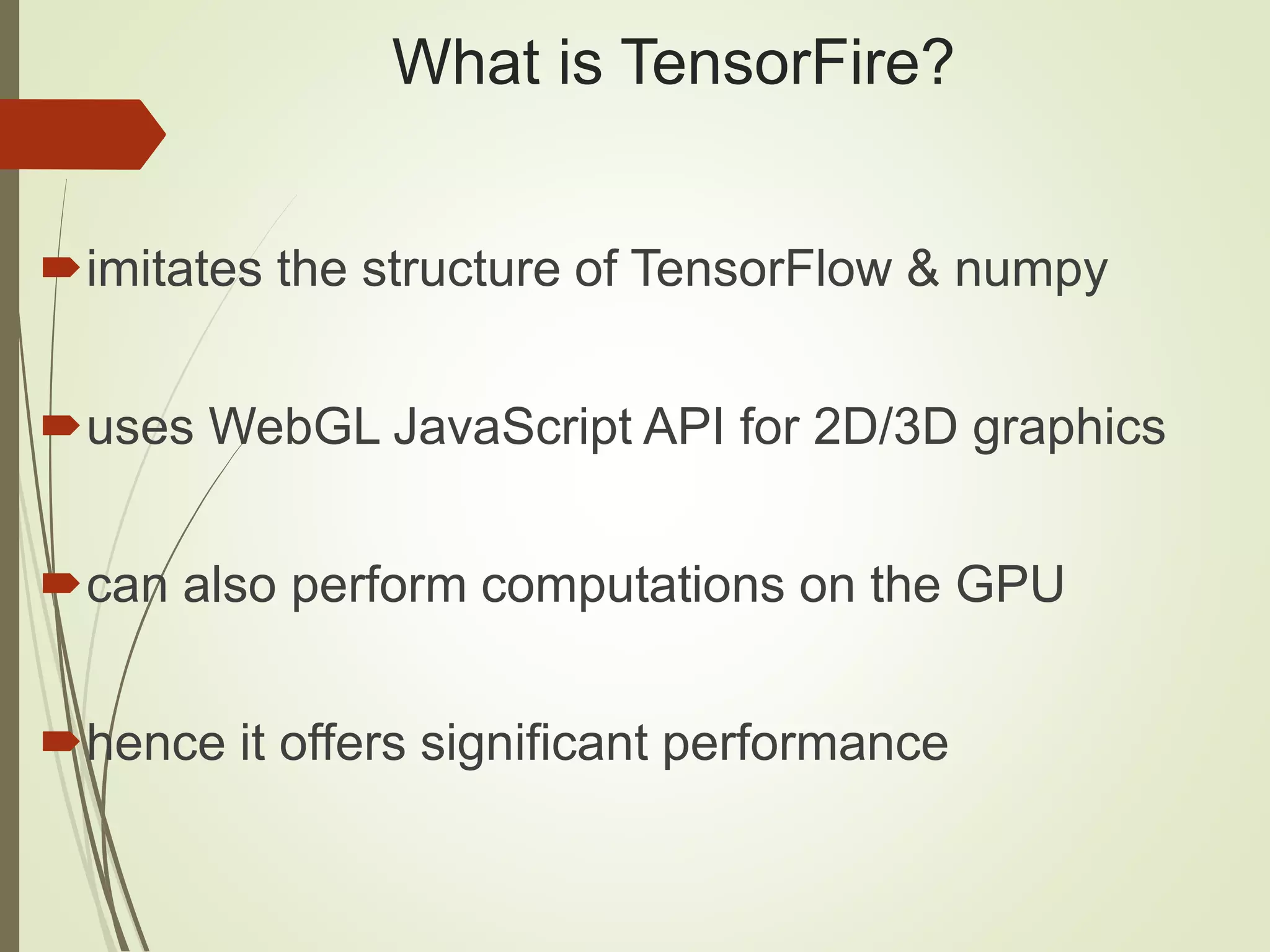

What is TensorFire?
imitates the structure of TensorFlow & numpy
uses WebGL JavaScript API for 2D/3D graphics
can also perform computations on the GPU
hence it offers significant performance

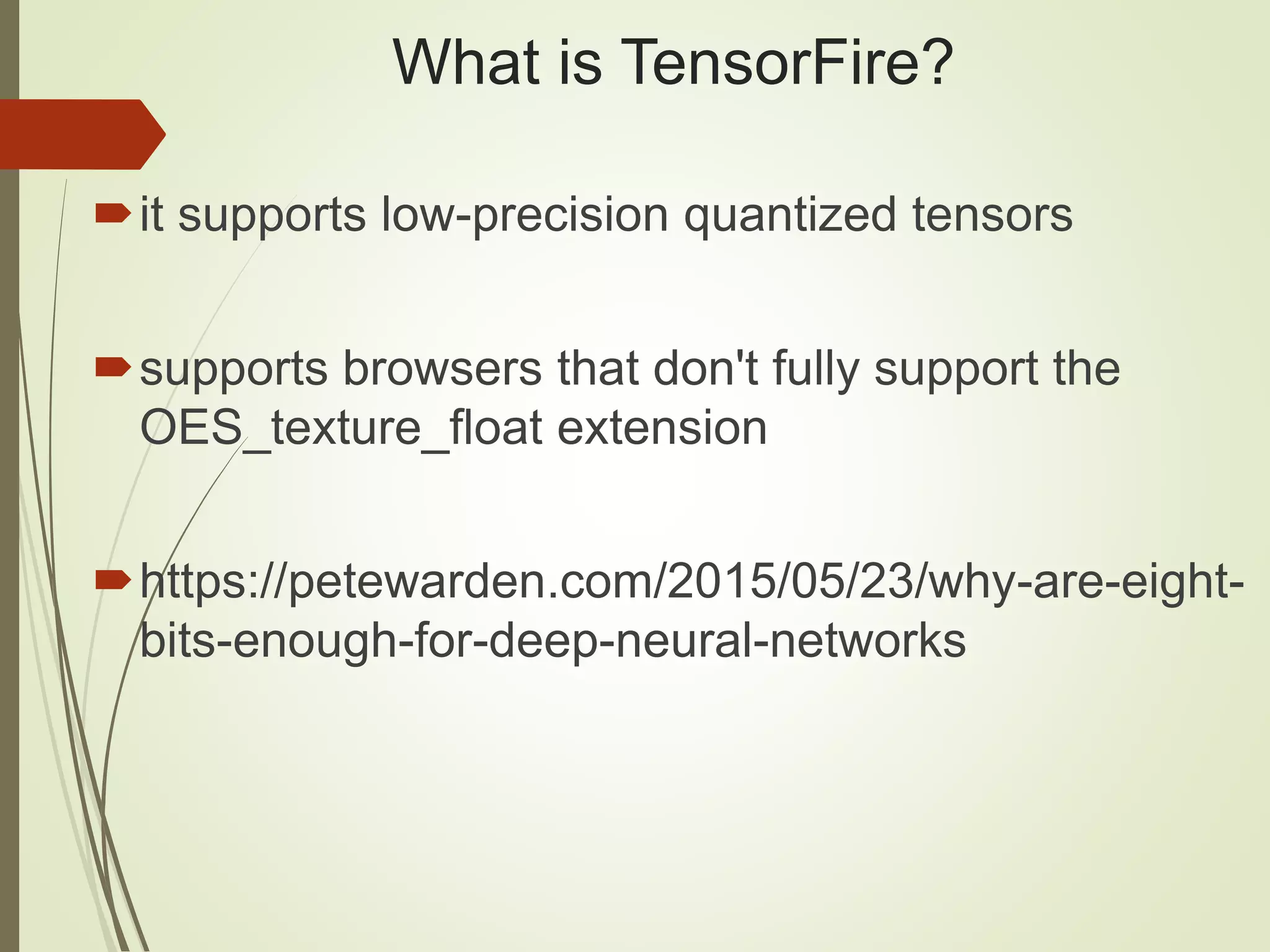

What is TensorFire?
it supports low-precision quantized tensors
supports browsers that don't fully support the
OES_texture_float extension
https://petewarden.com/2015/05/23/why-are-eight-
bits-enough-for-deep-neural-networks

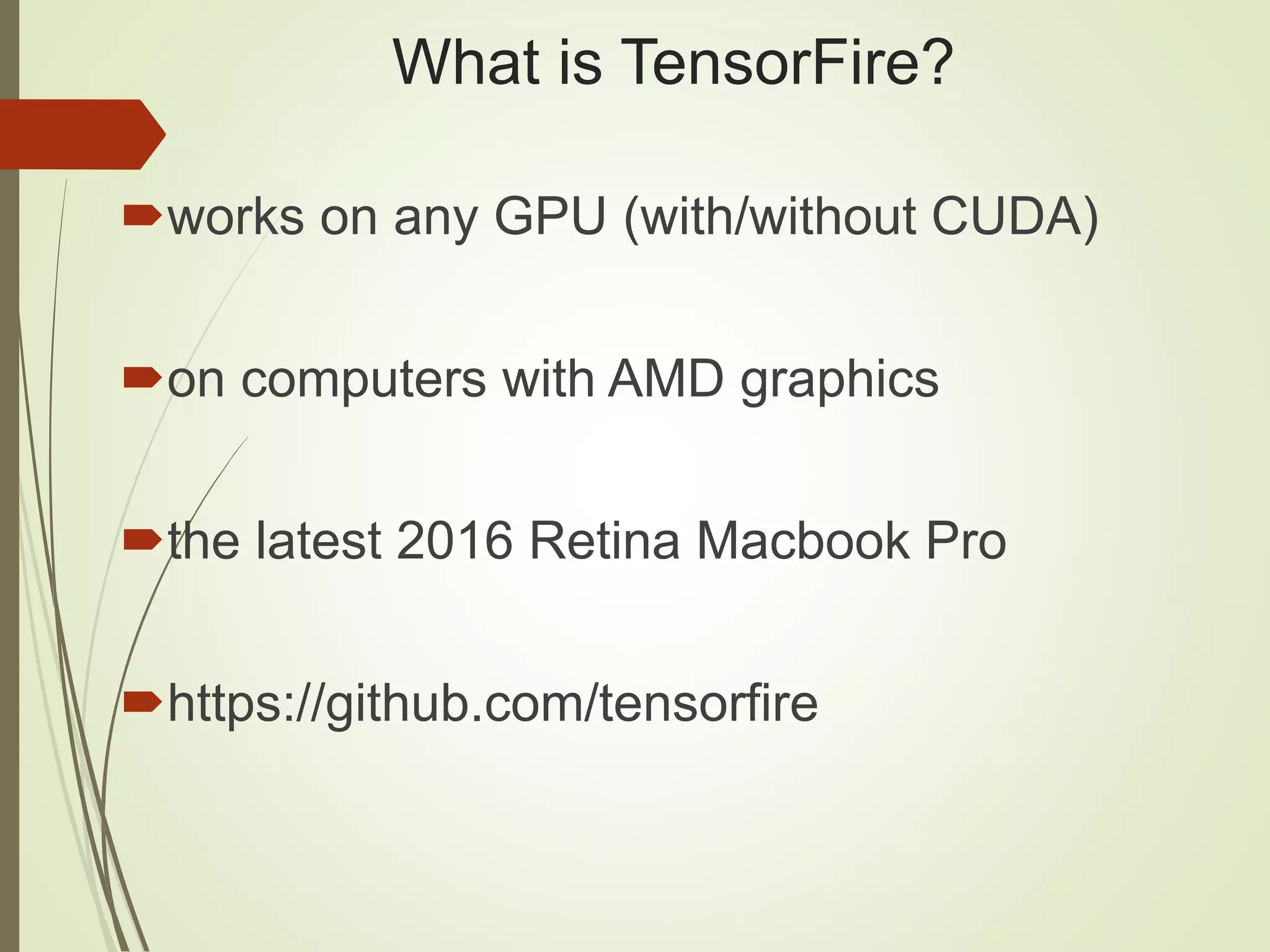

What is TensorFire?
works on any GPU (with/without CUDA)
on computers with AMD graphics
the latest 2016 Retina Macbook Pro
https://github.com/tensorfire

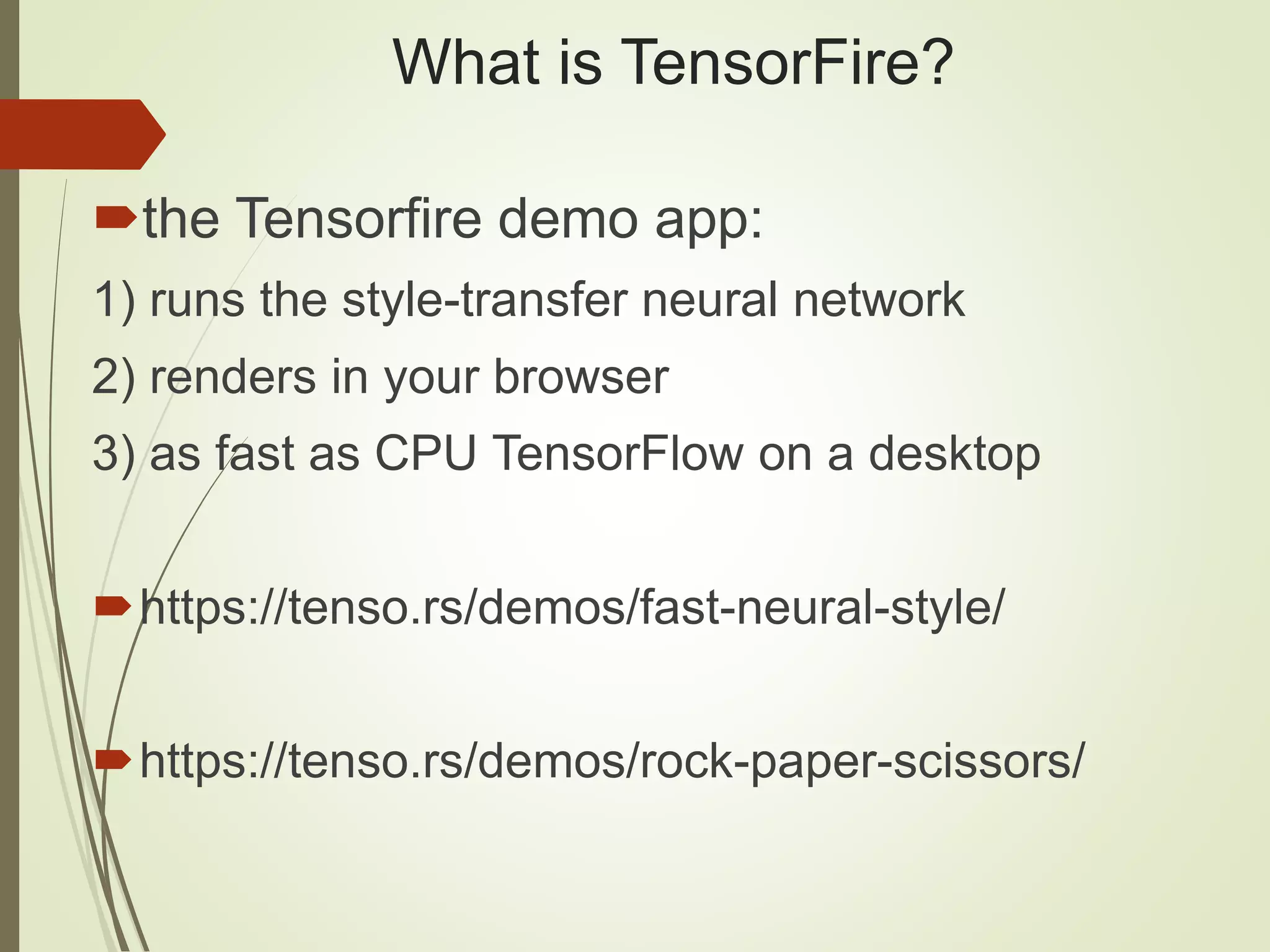

What is TensorFire?
the Tensorfire demo app:
1) runs the style-transfer neural network
2) renders in your browser
3) as fast as CPU TensorFlow on a desktop
https://tenso.rs/demos/fast-neural-style/
https://tenso.rs/demos/rock-paper-scissors/

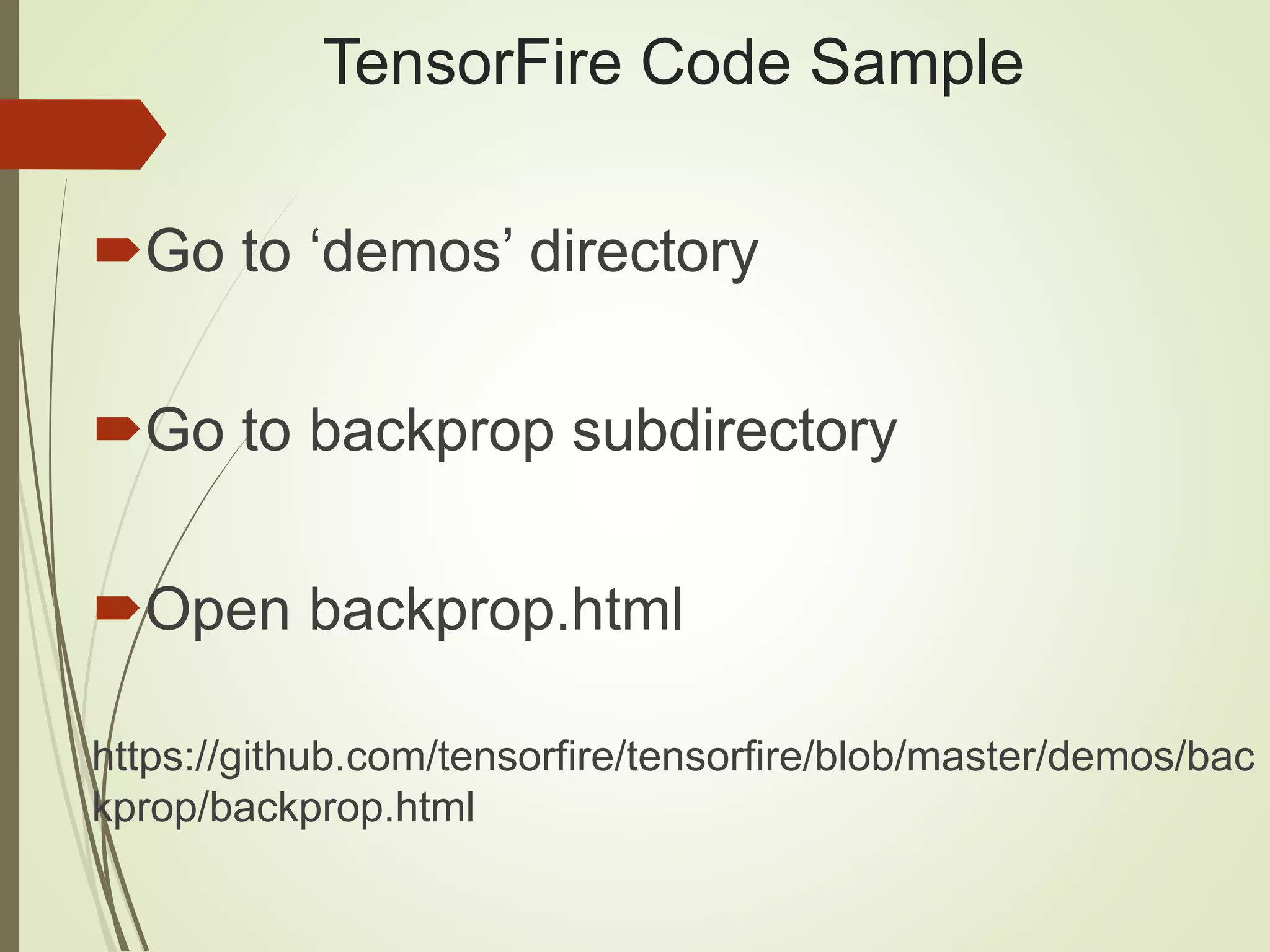

TensorFire Code Sample
Go to ‘demos’ directory
Go to backprop subdirectory
Open backprop.html
https://github.com/tensorfire/tensorfire/blob/master/demos/bac
kprop/backprop.html
What is deeplearn.js?
an open-source library
developed by the Google Brain PAIR team
API closely mirrors TensorFlow eager API
can be used with TypeScript (preferred)
can be used with plain JavaScript

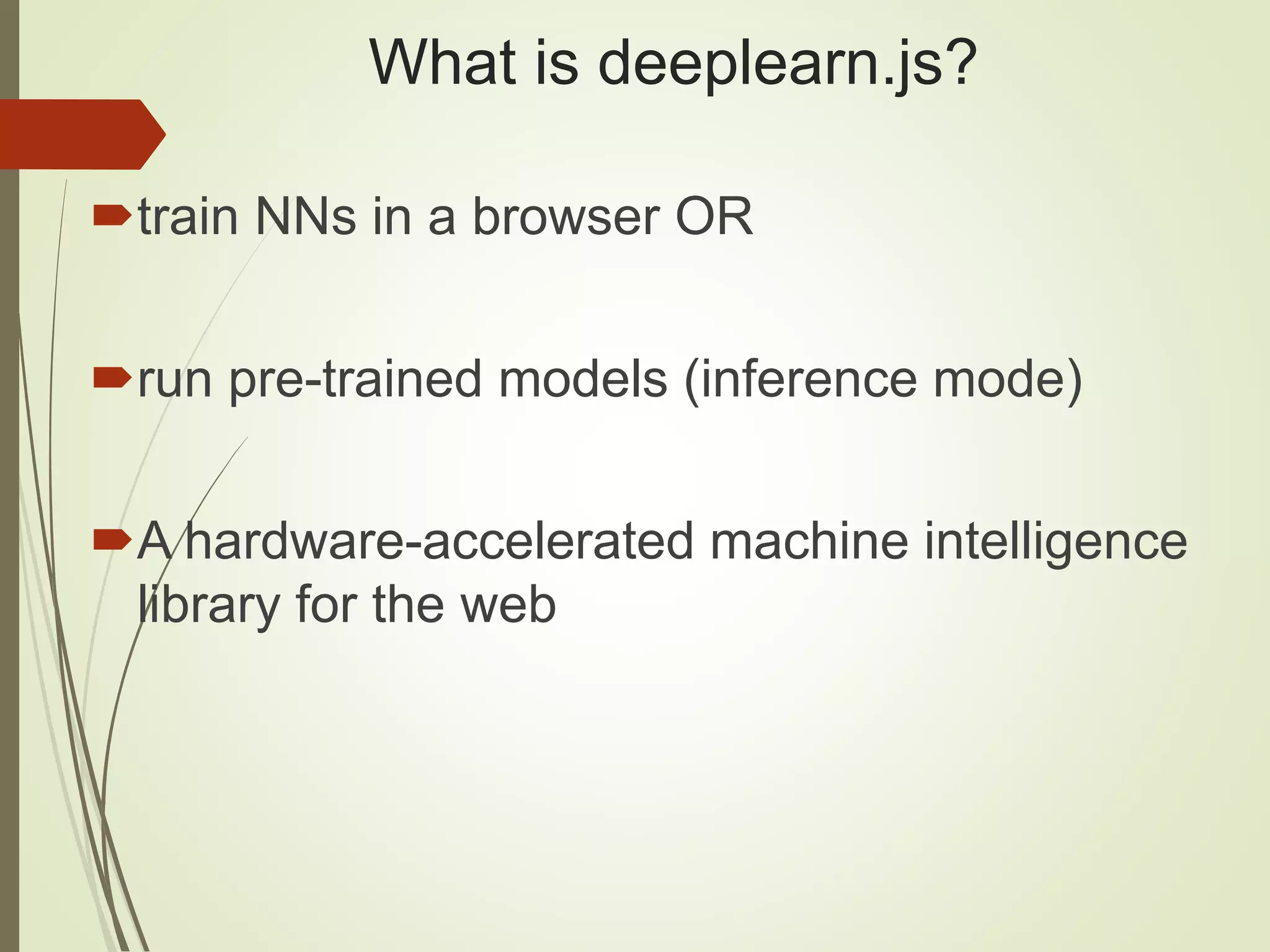

What is deeplearn.js?
train NNs in a browser OR
run pre-trained models (inference mode)
A hardware-accelerated machine intelligence
library for the web

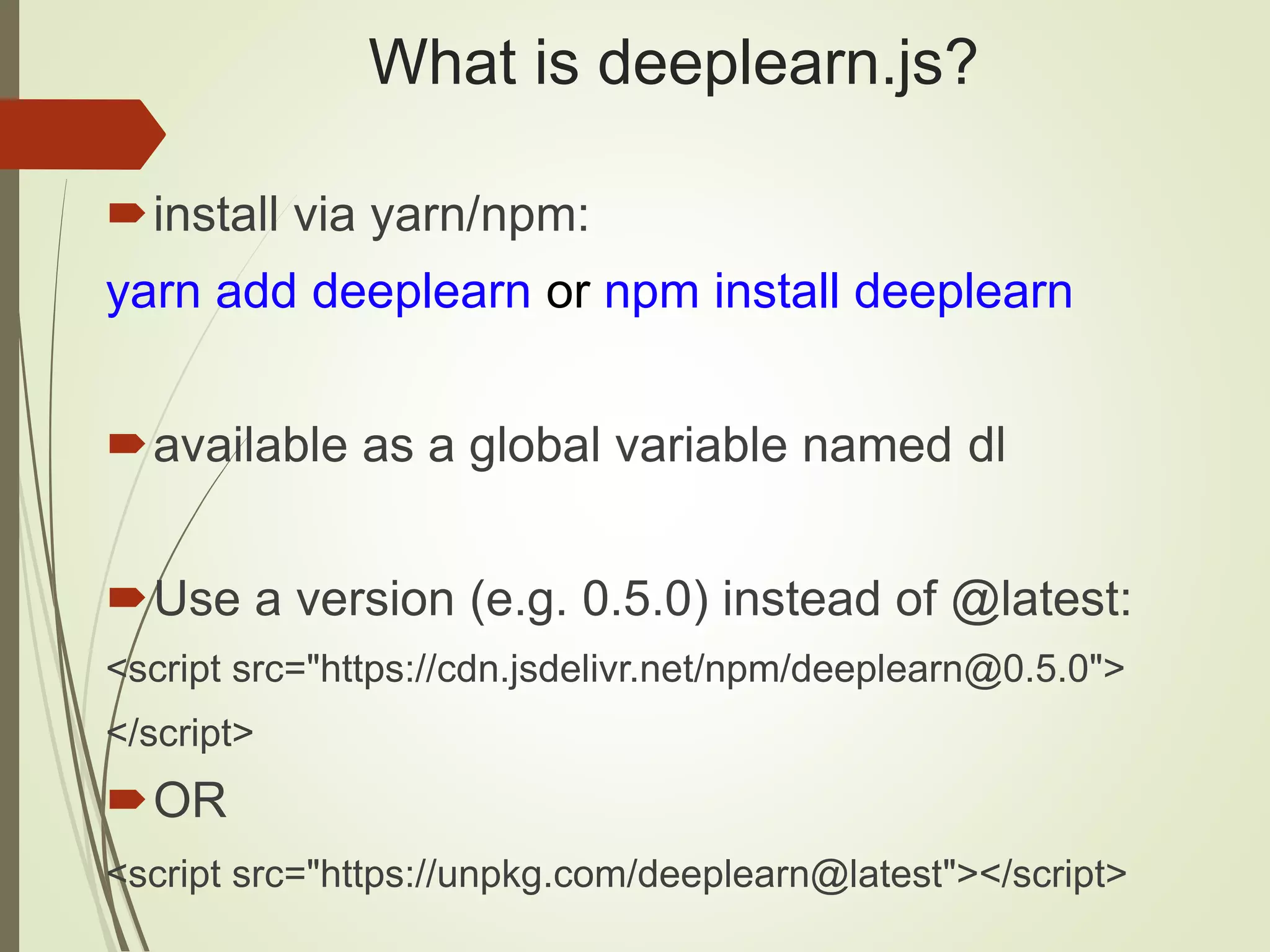

What is deeplearn.js?
install via yarn/npm:
yarn add deeplearn or npm install deeplearn
available as a global variable named dl
Use a version (e.g. 0.5.0) instead of @latest:
<script src="https://cdn.jsdelivr.net/npm/deeplearn@0.5.0">
</script>
OR
<script src="https://unpkg.com/deeplearn@latest"></script>

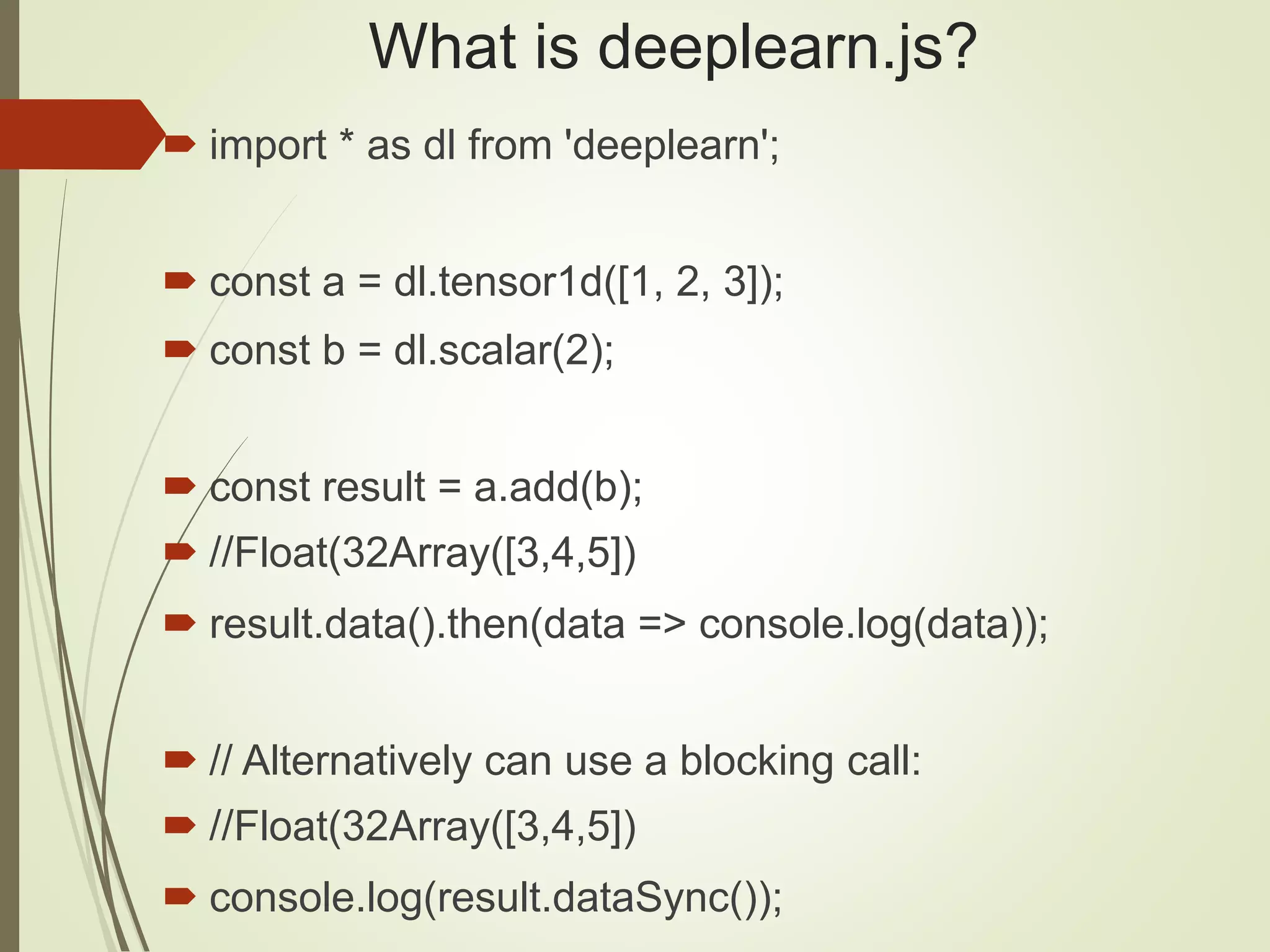

What is deeplearn.js?
 import * as dl from 'deeplearn';
 const a = dl.tensor1d([1, 2, 3]);
 const b = dl.scalar(2);
 const result = a.add(b);
 //Float(32Array([3,4,5])
 result.data().then(data => console.log(data));
 // Alternatively can use a blocking call:
 //Float(32Array([3,4,5])
 console.log(result.dataSync());
deeplearn.js Code Sample
Go to ‘demos’ directory
Go to mnist_eager subdirectory
Open model.ts
https://github.com/PAIR-
code/deeplearnjs/blob/master/demos/mnist_eager/model.ts
deeplearn.js Useful Links
port TensorFlow models to deeplearn.js:
https://deeplearnjs.org/demos/mnist/mnist.html
API reference:
https://deeplearnjs.org/docs/api/index.html
Other samples:
https://deeplearnjs.org/index.html#demos

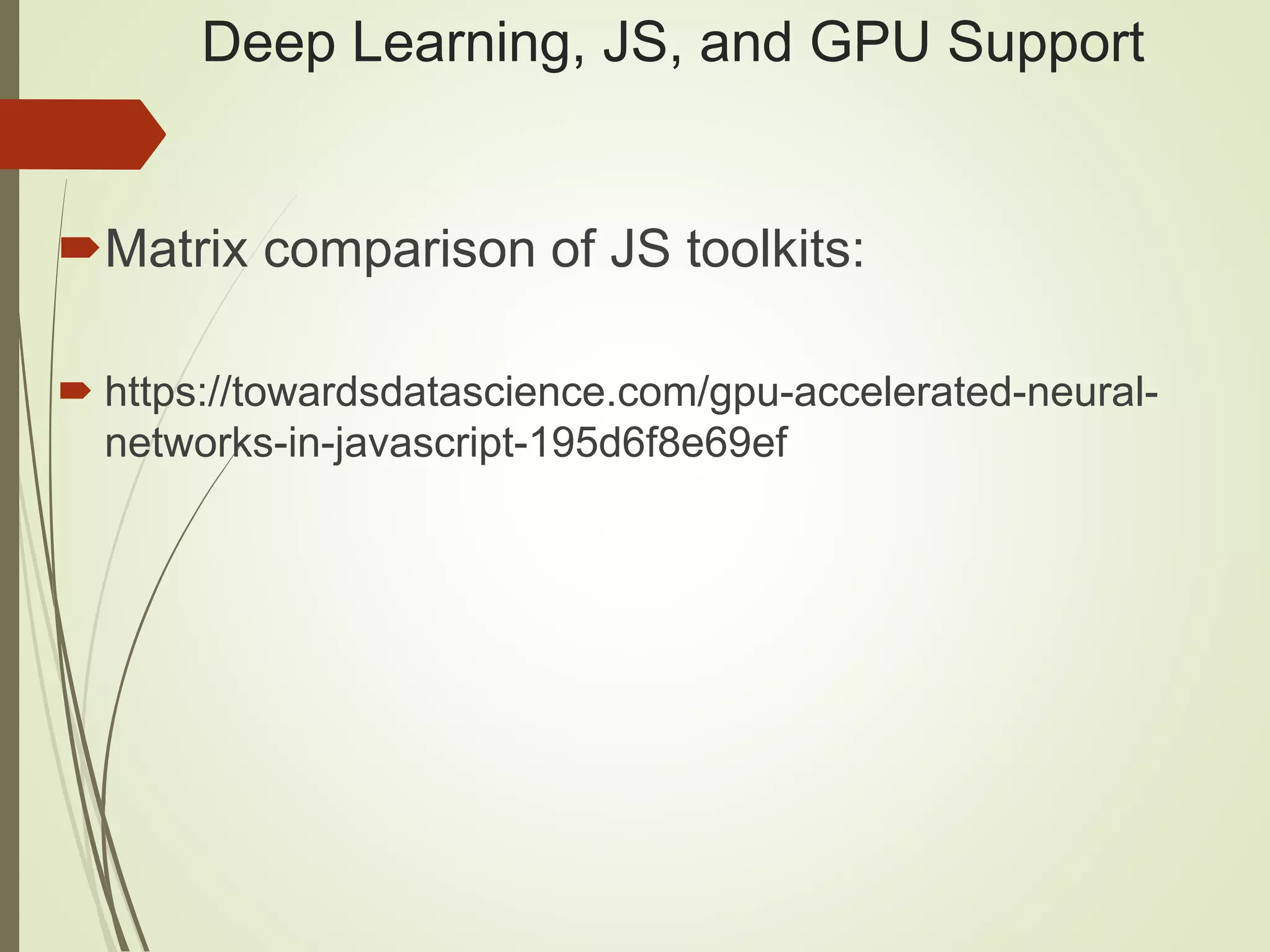

Deep Learning, JS, and GPU Support
Matrix comparison of JS toolkits:
 https://towardsdatascience.com/gpu-accelerated-neural-
networks-in-javascript-195d6f8e69ef

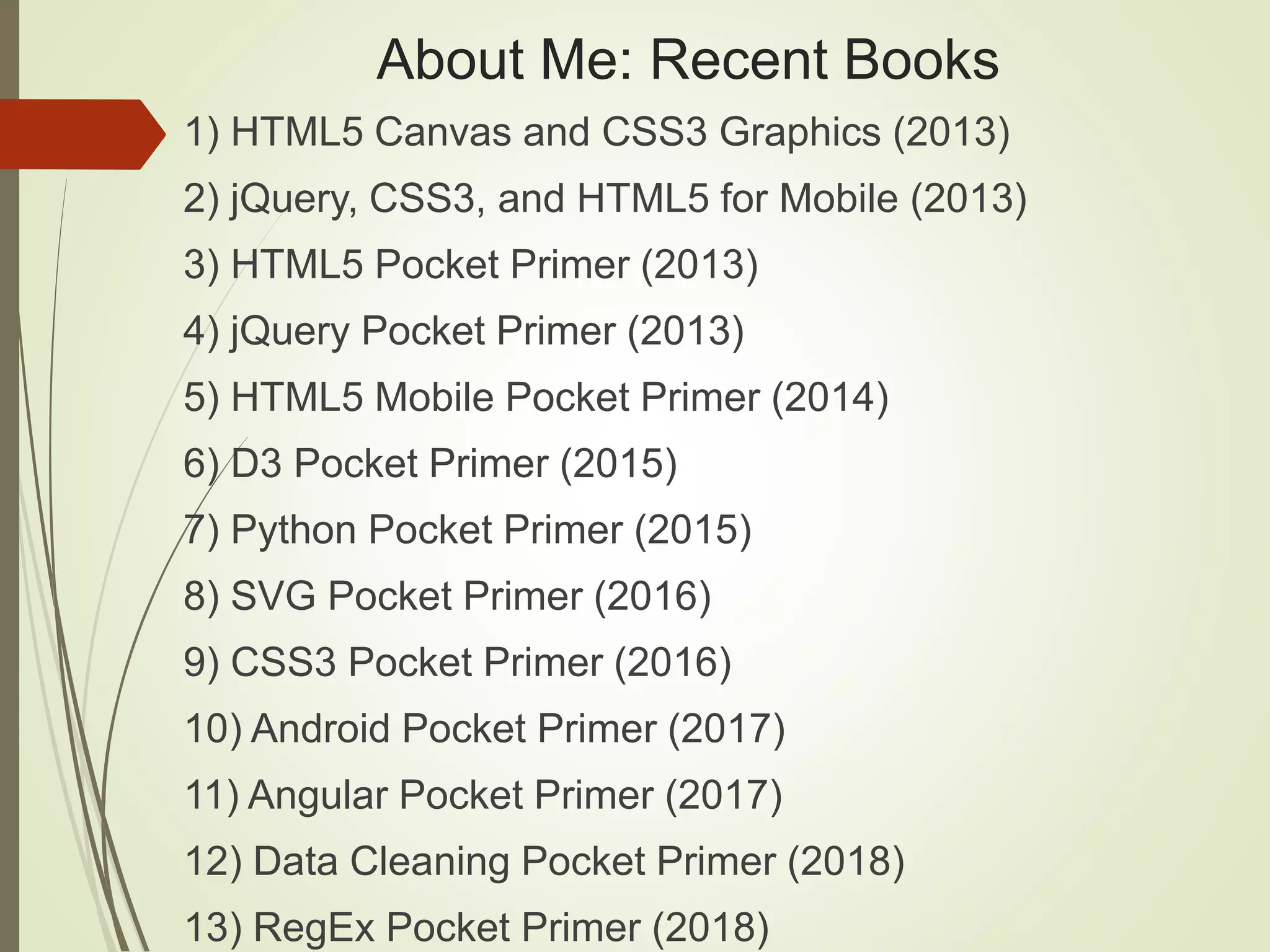

About Me: Recent Books
1) HTML5 Canvas and CSS3 Graphics (2013)
2) jQuery, CSS3, and HTML5 for Mobile (2013)
3) HTML5 Pocket Primer (2013)
4) jQuery Pocket Primer (2013)
5) HTML5 Mobile Pocket Primer (2014)
6) D3 Pocket Primer (2015)
7) Python Pocket Primer (2015)
8) SVG Pocket Primer (2016)
9) CSS3 Pocket Primer (2016)
10) Android Pocket Primer (2017)
11) Angular Pocket Primer (2017)
12) Data Cleaning Pocket Primer (2018)
13) RegEx Pocket Primer (2018)

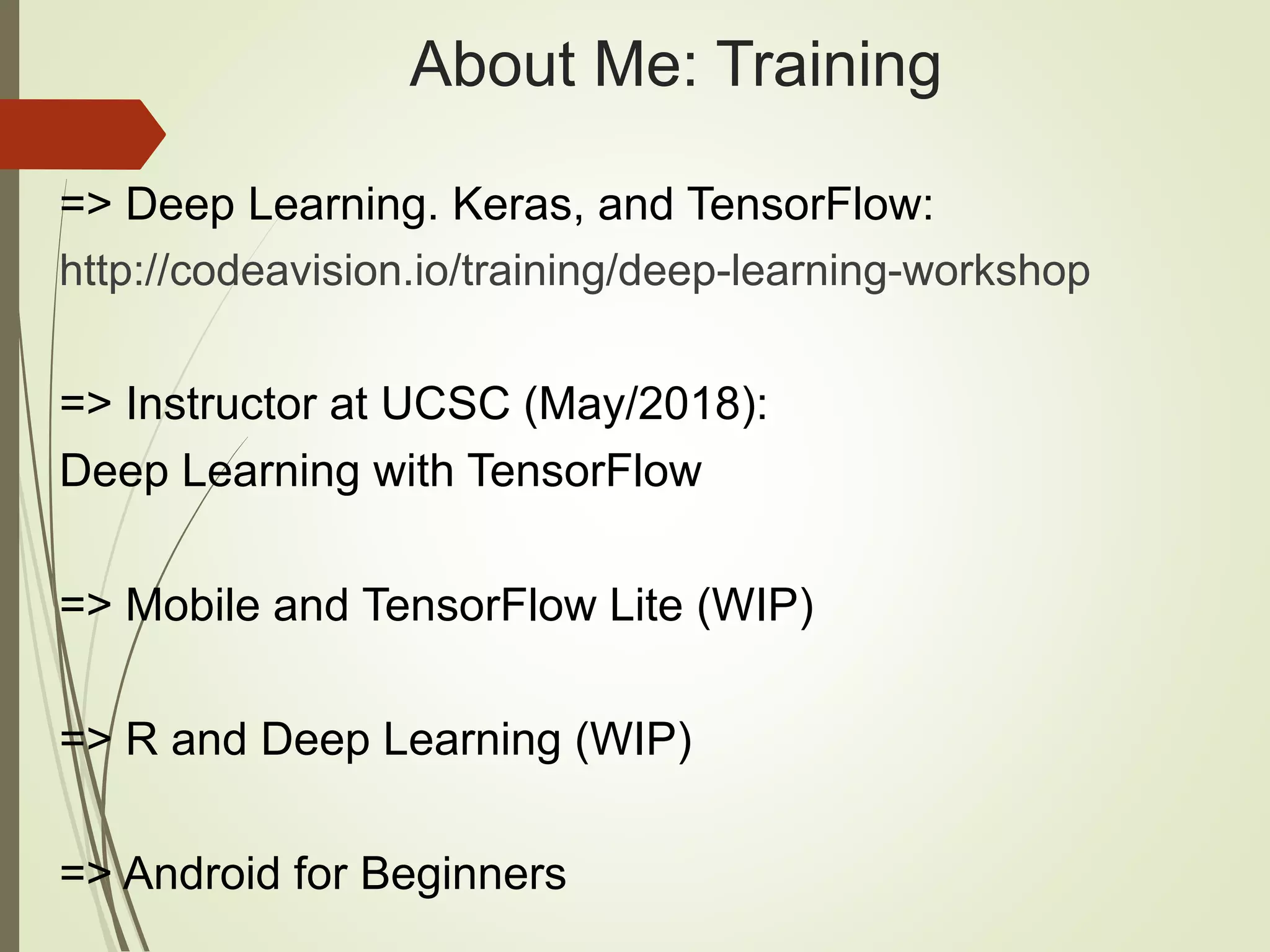

About Me: Training
=> Deep Learning. Keras, and TensorFlow:
http://codeavision.io/training/deep-learning-workshop
=> Instructor at UCSC (May/2018):
Deep Learning with TensorFlow
=> Mobile and TensorFlow Lite (WIP)
=> R and Deep Learning (WIP)
=> Android for Beginners

More Related Content

What's hot

Introduction to Deep Learning, Keras, and Tensorflow
Introduction to Deep Learning, Keras, and TensorflowIntroduction to Deep Learning, Keras, and Tensorflow
Introduction to Deep Learning, Keras, and TensorflowOswald Campesato

Introduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLab
Introduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLabIntroduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLab
Introduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLabCloudxLab

TensorFlow example for AI Ukraine2016
TensorFlow example  for AI Ukraine2016TensorFlow example  for AI Ukraine2016
TensorFlow example for AI Ukraine2016Andrii Babii

Java and Deep Learning (Introduction)
Java and Deep Learning (Introduction)Java and Deep Learning (Introduction)
Java and Deep Learning (Introduction)Oswald Campesato

Deep Learning, Scala, and Spark
Deep Learning, Scala, and SparkDeep Learning, Scala, and Spark
Deep Learning, Scala, and SparkOswald Campesato

Deep Learning: R with Keras and TensorFlow
Deep Learning: R with Keras and TensorFlowDeep Learning: R with Keras and TensorFlow
Deep Learning: R with Keras and TensorFlowOswald Campesato

Working with tf.data (TF 2)
Working with tf.data (TF 2)Working with tf.data (TF 2)
Working with tf.data (TF 2)Oswald Campesato

Machine Learning - Introduction to Tensorflow
Machine Learning - Introduction to TensorflowMachine Learning - Introduction to Tensorflow
Machine Learning - Introduction to TensorflowAndrew Ferlitsch

Tensorflow - Intro (2017)
Tensorflow - Intro (2017)Tensorflow - Intro (2017)
Tensorflow - Intro (2017)Alessio Tonioni

Introduction to TensorFlow 2
Introduction to TensorFlow 2Introduction to TensorFlow 2
Introduction to TensorFlow 2Oswald Campesato

Introduction to TensorFlow 2
Introduction to TensorFlow 2Introduction to TensorFlow 2
Introduction to TensorFlow 2Oswald Campesato

Tensor flow (1)
Tensor flow (1)Tensor flow (1)
Tensor flow (1)景逸 王

Introduction to TensorFlow 2 and Keras
Introduction to TensorFlow 2 and KerasIntroduction to TensorFlow 2 and Keras
Introduction to TensorFlow 2 and KerasOswald Campesato

Introduction to Tensorflow
Introduction to TensorflowIntroduction to Tensorflow
Introduction to TensorflowTzar Umang

Tensor board
Tensor boardTensor board
Tensor boardSung Kim

Introducton to Convolutional Nerural Network with TensorFlow
Introducton to Convolutional Nerural Network with TensorFlowIntroducton to Convolutional Nerural Network with TensorFlow
Introducton to Convolutional Nerural Network with TensorFlowEtsuji Nakai


What's hot (20)

Introduction to Deep Learning, Keras, and Tensorflow
Introduction to Deep Learning, Keras, and TensorflowIntroduction to Deep Learning, Keras, and Tensorflow
Introduction to Deep Learning, Keras, and Tensorflow

Introduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLab
Introduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLabIntroduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLab
Introduction To TensorFlow | Deep Learning Using TensorFlow | CloudxLab

TensorFlow example for AI Ukraine2016
TensorFlow example  for AI Ukraine2016TensorFlow example  for AI Ukraine2016
TensorFlow example for AI Ukraine2016

Java and Deep Learning (Introduction)
Java and Deep Learning (Introduction)Java and Deep Learning (Introduction)
Java and Deep Learning (Introduction)

Deep Learning, Scala, and Spark
Deep Learning, Scala, and SparkDeep Learning, Scala, and Spark
Deep Learning, Scala, and Spark

Deep Learning: R with Keras and TensorFlow
Deep Learning: R with Keras and TensorFlowDeep Learning: R with Keras and TensorFlow
Deep Learning: R with Keras and TensorFlow

H2 o berkeleydltf
H2 o berkeleydltfH2 o berkeleydltf
H2 o berkeleydltf

Working with tf.data (TF 2)
Working with tf.data (TF 2)Working with tf.data (TF 2)
Working with tf.data (TF 2)

Machine Learning - Introduction to Tensorflow
Machine Learning - Introduction to TensorflowMachine Learning - Introduction to Tensorflow
Machine Learning - Introduction to Tensorflow

Scala and Deep Learning
Scala and Deep LearningScala and Deep Learning
Scala and Deep Learning

C++ and Deep Learning
C++ and Deep LearningC++ and Deep Learning
C++ and Deep Learning

Tensorflow - Intro (2017)
Tensorflow - Intro (2017)Tensorflow - Intro (2017)
Tensorflow - Intro (2017)

Introduction to TensorFlow 2
Introduction to TensorFlow 2Introduction to TensorFlow 2
Introduction to TensorFlow 2

Introduction to TensorFlow 2
Introduction to TensorFlow 2Introduction to TensorFlow 2
Introduction to TensorFlow 2

Tensor flow (1)
Tensor flow (1)Tensor flow (1)
Tensor flow (1)

Introduction to TensorFlow 2 and Keras
Introduction to TensorFlow 2 and KerasIntroduction to TensorFlow 2 and Keras
Introduction to TensorFlow 2 and Keras

Introduction to Tensorflow
Introduction to TensorflowIntroduction to Tensorflow
Introduction to Tensorflow

Tensor board
Tensor boardTensor board
Tensor board

Introduction to TensorFlow
Introduction to TensorFlowIntroduction to TensorFlow
Introduction to TensorFlow

Introducton to Convolutional Nerural Network with TensorFlow
Introducton to Convolutional Nerural Network with TensorFlowIntroducton to Convolutional Nerural Network with TensorFlow
Introducton to Convolutional Nerural Network with TensorFlow


Similar to Deep Learning in your Browser: powered by WebGL

TypeScript and Deep Learning
TypeScript and Deep LearningTypeScript and Deep Learning
TypeScript and Deep LearningOswald Campesato

Deep Learning and TensorFlow
Deep Learning and TensorFlowDeep Learning and TensorFlow
Deep Learning and TensorFlowOswald Campesato

Deep Learning and TensorFlow
Deep Learning and TensorFlowDeep Learning and TensorFlow
Deep Learning and TensorFlowOswald Campesato

Diving into Deep Learning (Silicon Valley Code Camp 2017)
Diving into Deep Learning (Silicon Valley Code Camp 2017)Diving into Deep Learning (Silicon Valley Code Camp 2017)
Diving into Deep Learning (Silicon Valley Code Camp 2017)Oswald Campesato

Introduction to Deep Learning and Tensorflow
Introduction to Deep Learning and TensorflowIntroduction to Deep Learning and Tensorflow
Introduction to Deep Learning and TensorflowOswald Campesato

Introduction to Deep Learning
Introduction to Deep LearningIntroduction to Deep Learning
Introduction to Deep LearningOswald Campesato

TensorFlow for IITians
TensorFlow for IITiansTensorFlow for IITians
TensorFlow for IITiansAshish Bansal

Advanced Spark and TensorFlow Meetup May 26, 2016
Advanced Spark and TensorFlow Meetup May 26, 2016Advanced Spark and TensorFlow Meetup May 26, 2016
Advanced Spark and TensorFlow Meetup May 26, 2016Chris Fregly

Language translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlowLanguage translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlowS N

Introduction To Using TensorFlow & Deep Learning
Introduction To Using TensorFlow & Deep LearningIntroduction To Using TensorFlow & Deep Learning
Introduction To Using TensorFlow & Deep Learningali alemi

What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...
What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...
What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...Simplilearn

Introduction to Tensor Flow for Optical Character Recognition (OCR)
Introduction to Tensor Flow for Optical Character Recognition (OCR)Introduction to Tensor Flow for Optical Character Recognition (OCR)
Introduction to Tensor Flow for Optical Character Recognition (OCR)Vincenzo Santopietro

24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmm
24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmm24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmm
24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmmSasidharaKashyapChat

A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...
A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...
A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...Databricks

Natural language processing open seminar For Tensorflow usage
Natural language processing open seminar For Tensorflow usageNatural language processing open seminar For Tensorflow usage
Natural language processing open seminar For Tensorflow usagehyunyoung Lee

Signals And Systems Lab Manual, R18 Batch
Signals And Systems Lab Manual, R18 BatchSignals And Systems Lab Manual, R18 Batch
Signals And Systems Lab Manual, R18 BatchAmairullah Khan Lodhi


Similar to Deep Learning in your Browser: powered by WebGL (20)

Angular and Deep Learning
Angular and Deep LearningAngular and Deep Learning
Angular and Deep Learning

TypeScript and Deep Learning
TypeScript and Deep LearningTypeScript and Deep Learning
TypeScript and Deep Learning

Java and Deep Learning
Java and Deep LearningJava and Deep Learning
Java and Deep Learning

Deep Learning and TensorFlow
Deep Learning and TensorFlowDeep Learning and TensorFlow
Deep Learning and TensorFlow

Deep Learning and TensorFlow
Deep Learning and TensorFlowDeep Learning and TensorFlow
Deep Learning and TensorFlow

Android and Deep Learning
Android and Deep LearningAndroid and Deep Learning
Android and Deep Learning

Diving into Deep Learning (Silicon Valley Code Camp 2017)
Diving into Deep Learning (Silicon Valley Code Camp 2017)Diving into Deep Learning (Silicon Valley Code Camp 2017)
Diving into Deep Learning (Silicon Valley Code Camp 2017)

Introduction to Deep Learning and Tensorflow
Introduction to Deep Learning and TensorflowIntroduction to Deep Learning and Tensorflow
Introduction to Deep Learning and Tensorflow

Introduction to Deep Learning
Introduction to Deep LearningIntroduction to Deep Learning
Introduction to Deep Learning

TensorFlow for IITians
TensorFlow for IITiansTensorFlow for IITians
TensorFlow for IITians

Advanced Spark and TensorFlow Meetup May 26, 2016
Advanced Spark and TensorFlow Meetup May 26, 2016Advanced Spark and TensorFlow Meetup May 26, 2016
Advanced Spark and TensorFlow Meetup May 26, 2016

Language translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlowLanguage translation with Deep Learning (RNN) with TensorFlow
Language translation with Deep Learning (RNN) with TensorFlow

Introduction To Using TensorFlow & Deep Learning
Introduction To Using TensorFlow & Deep LearningIntroduction To Using TensorFlow & Deep Learning
Introduction To Using TensorFlow & Deep Learning

What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...
What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...
What is TensorFlow? | Introduction to TensorFlow | TensorFlow Tutorial For Be...

Introduction to Tensor Flow for Optical Character Recognition (OCR)
Introduction to Tensor Flow for Optical Character Recognition (OCR)Introduction to Tensor Flow for Optical Character Recognition (OCR)
Introduction to Tensor Flow for Optical Character Recognition (OCR)

24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmm
24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmm24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmm
24-TensorFlow-Clipper.pptxnjjjjnjjjjjjmm

A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...
A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...
A Tale of Three Deep Learning Frameworks: TensorFlow, Keras, & PyTorch with B...

Meetup tensorframes
Meetup tensorframesMeetup tensorframes
Meetup tensorframes

Natural language processing open seminar For Tensorflow usage
Natural language processing open seminar For Tensorflow usageNatural language processing open seminar For Tensorflow usage
Natural language processing open seminar For Tensorflow usage

Signals And Systems Lab Manual, R18 Batch
Signals And Systems Lab Manual, R18 BatchSignals And Systems Lab Manual, R18 Batch
Signals And Systems Lab Manual, R18 Batch


Recently uploaded

Design Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxDesign Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxFIDO Alliance

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGDSC PJATK

Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdfFrisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdfAnubhavMangla3

Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)Paige Cruz

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...panagenda

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...ScyllaDB

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsLeah Henrickson

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)Samir Dash

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAnitaRaj43

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!Memoori

Introduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxIntroduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxFIDO Alliance

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxFIDO Alliance

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024Lorenzo Miniero

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceSamy Fodil

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimaginedpanagenda

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentationyogeshlabana357357

ChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityVictorSzoltysek

CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)Wonjun Hwang

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data SciencePaolo Missier

ERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctBrainSell Technologies


Recently uploaded (20)

Design Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxDesign Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptx

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 Warsaw

Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdfFrisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf

Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)
Observability Concepts EVERY Developer Should Know (DevOpsDays Seattle)

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by Anitaraj

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!

Introduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxIntroduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptx

Intro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptxIntro to Passkeys and the State of Passwordless.pptx
Intro to Passkeys and the State of Passwordless.pptx

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM Performance

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimagined

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentation

ChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps Productivity

CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)

Design and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data ScienceDesign and Development of a Provenance Capture Platform for Data Science
Design and Development of a Provenance Capture Platform for Data Science

ERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage Intacct


Deep Learning in your Browser: powered by WebGL

  • 1. Deep Learning and WebGL WebGL Meetup 03/27/2018 GTC SJ Convention Center Oswald Campesato oswald@perceptrons.io ocampesato@yahoo.com
  • 2. Overview intro to AI/ML/DL linear regression activation/cost functions gradient descent back propagation hyper-parameters what are CNNs JS/WebGL and DL
  • 4. Gartner 2017: Deep Learning (YES!)
  • 5. The Official Start of AI (1956)
  • 6. Neural Network with 3 Hidden Layers
  • 7. AI/ML/DL: How They Differ Traditional AI (20th century): based on collections of rules Led to expert systems in the 1980s The era of LISP and Prolog
  • 8. AI/ML/DL: How They Differ Machine Learning: Started in the 1950s (approximate) Alan Turing and “learning machines” Data-driven (not rule-based) Many types of algorithms Involves optimization
  • 9. AI/ML/DL: How They Differ Deep Learning: Started in the 1950s (approximate) The “perceptron” (basis of NNs) Data-driven (not rule-based) large (even massive) data sets Involves neural networks (CNNs: ~1970s) Lots of heuristics Heavily based on empirical results
  • 10. AI/ML/DL: Commonality All of them involve a model A model represents a system Goal: a good predictive model The model is based on: Many rules (for AI) data and algorithms (for ML) large sets of data (for DL)
  • 11. A Basic Model in Machine Learning Let’s perform the following steps: 1) Start with a simple model (2 variables) 2) Generalize that model (n variables) 3) See how it might apply to a NN
  • 12. Linear Regression One of the simplest models in ML Fits a line (y = m*x + b) to data in 2D Finds best line by minimizing MSE: m = average of x values (“mean”) b also has a closed form solution
  • 13. Linear Regression in 2D: example
  • 15. Linear Regression: example #1 One feature (independent variable): X = number of square feet Predicted value (dependent variable): Y = cost of a house A very “coarse grained” model We can devise a much better model
  • 16. Linear Regression: example #2 Multiple features: X1 = # of square feet X2 = # of bedrooms X3 = # of bathrooms (dependency?) X4 = age of house X5 = cost of nearby houses X6 = corner lot (or not): Boolean a much better model (6 features)
  • 17. Linear Multivariate Analysis General form of multivariate equation: Y = w1*x1 + w2*x2 + . . . + wn*xn + b w1, w2, . . . , wn are numeric values x1, x2, . . . , xn are variables (features) Properties of variables: Can be independent (Naïve Bayes) weak/strong dependencies can exist
  • 18. Neural Network with 3 Hidden Layers
  • 19. Neural Networks: equations Node “values” in first hidden layer: N1 = w11*x1+w21*x2+…+wn1*xn N2 = w12*x1+w22*x2+…+wn2*xn N3 = w13*x1+w23*x2+…+wn3*xn . . . Nn = w1n*x1+w2n*x2+…+wnn*xn Similar equations for other pairs of layers
  • 20. Neural Networks: Matrices From inputs to first hidden layer: Y1 = W1*X + B1 (X/Y1/B1: vectors; W1: matrix) From first to second hidden layers: Y2 = W2*X + B2 (X/Y2/B2: vectors; W2: matrix) From second to third hidden layers: Y3 = W3*X + B3 (X/Y3/B3: vectors; W3: matrix)  Apply an “activation function” to y values
  • 21. Neural Networks (general) Multiple hidden layers: Layer composition is your decision Activation functions: sigmoid, tanh, RELU https://en.wikipedia.org/wiki/Activation_function Back propagation (1980s) https://en.wikipedia.org/wiki/Backpropagation => Initial weights: small random numbers
  • 26. What’s the “Best” Activation Function? Initially: sigmoid was popular Then: tanh became popular Now: RELU is preferred (better results) Softmax: for FC (fully connected) layers NB: sigmoid and tanh are used in LSTMs
  • 30. CNNs versus RNNs CNNs (Convolutional NNs): Good for image processing 2000: CNNs processed 10-20% of all checks => Approximately 60% of all NNs RNNs (Recurrent NNs): Good for NLP and audio
  • 33. CNNs: Convolution Matrices (examples) Sharpen: Blur:
  • 34. CNNs: Convolution Matrices (examples) Edge detect: Emboss:
  • 35. How do Filters Work?  compute “inner product” with an image The “padding” parameter Filter size: 3x3, 5x5, or 1x1 are common Stride values: 1 or 2 (possibly greater) “parallelize” multiple filters then merge
  • 36. CNNs: Max Pooling Example
  • 37. CNN in Python/Keras (fragment)  from keras.models import Sequential  from keras.layers.core import Dense, Dropout, Flatten, Activation  from keras.layers.convolutional import Conv2D, MaxPooling2D  from keras.optimizers import Adadelta  input_shape = (3, 32, 32)  nb_classes = 10  model = Sequential()  model.add(Conv2D(32, (3, 3), padding='same’, input_shape=input_shape))  model.add(Activation('relu'))  model.add(Conv2D(32, (3, 3)))  model.add(Activation('relu'))  model.add(MaxPooling2D(pool_size=(2, 2)))  model.add(Dropout(0.25))
  • 38. What is TensorFlow? An open source framework for ML and DL A “computation” graph Created by Google (released 11/2015) Evolved from Google Brain Linux and Mac OS X support (VM for Windows) TF home page: https://www.tensorflow.org/
  • 39. What is TensorFlow? Support for Python, Java, C++ Desktop, server, mobile device (TensorFlow Lite) CPU/GPU/TPU support Visualization via TensorBoard Can be embedded in Python scripts Installation: pip install tensorflow TensorFlow cluster: https://www.tensorflow.org/deploy/distributed
  • 40. TensorFlow Use Cases (Generic) Image recognition Computer vision Voice/sound recognition Time series analysis Language detection Language translation Text-based processing Handwriting Recognition
  • 41. What is TensorFlow? Graph: graph of operations (DAG) Sessions: contains Graph(s) lazy execution (default) operations in parallel (default) Nodes: operators/variables/constants Edges: tensors => graphs are split into subgraphs and executed in parallel (or multiple CPUs)
  • 42. TensorFlow Graph Execution Execute statements in a tf.Session() object Invoke the “run” method of that object “eager” execution is now possible Not part of the mainline yet Installation: pip install tf-nightly
  • 43. What is a Tensor? TF tensors are n-dimensional arrays TF tensors are very similar to numpy ndarrays scalar number: a zeroth-order tensor vector: a first-order tensor matrix: a second-order tensor 3-dimensional array: a 3rd order tensor https://dzone.com/articles/tensorflow-simplified- examples
  • 44. TensorFlow “primitive types”  tf.constant: initialized immediately  tf.placeholder (a function): + initial value is not required + assigned value via feed_dict at run time + are not modified during training  tf.Variable (a class): + initial value is required + updated during training + in-memory buffer (saved/restored from disk) + can be shared between works (distributed env)
  • 45. TensorFlow: constants (immutable)  import tensorflow as tf # tf-const.py  aconst = tf.constant(3.0)  print(aconst) # output: Tensor("Const:0", shape=(), dtype=float32)  sess = tf.Session()  print(sess.run(aconst)) # output: 3.0  sess.close()  # => there's a better way…
  • 46. TensorFlow: constants import tensorflow as tf # tf-const2.py aconst = tf.constant(3.0) print(aconst) Automatically close “sess” with tf.Session() as sess:  print(sess.run(aconst))
  • 47. TensorFlow Arithmetic import tensorflow as tf # basic1.py a = tf.add(4, 2) b = tf.subtract(8, 6) c = tf.multiply(a, 3) d = tf.div(a, 6) with tf.Session() as sess: print(sess.run(a)) # 6 print(sess.run(b)) # 2 print(sess.run(c)) # 18 print(sess.run(d)) # 1
  • 48. TensorFlow Arithmetic Methods import tensorflow as tf #tf-math-ops.py PI = 3.141592 sess = tf.Session() print(sess.run(tf.div(12,8))) print(sess.run(tf.floordiv(20.0,8.0))) print(sess.run(tf.sin(PI))) print(sess.run(tf.cos(PI))) print(sess.run(tf.div(tf.sin(PI/4.), tf.cos(PI/4.))))
  • 49. TensorFlow Arithmetic Methods Output from tf-math-ops.py: 1 2.0 6.27833e-07 -1.0 1.0
  • 50. TF placeholders and feed_dict import tensorflow as tf # tf-var-multiply.py a = tf.placeholder("float") b = tf.placeholder("float") c = tf.multiply(a,b) # initialize a and b: feed_dict = {a:2, b:3} # multiply a and b: with tf.Session() as sess: print(sess.run(c, feed_dict))
  • 51. Deep Learning JavaScript Toolkits Tensorfire ( https://tenso.rs ) deeplearn.js ( https://deeplearnjs.org )  keras-js ( https://github.com/transcranial/keras-js ) MXNetJS ( https://github.com/dmlc/mxnet.js ) ML.js ( https://github.com/mljs/ml ) Jeeliz ( https://jeeliz.com )
  • 52. What is TensorFire? uses WebGL to run NNs in browsers TensorFire has two parts: 1) a GLSL-based language to write massively parallel WebGL shaders that operate on 4D tensors 2) a high-level library for importing models trained with Keras or TensorFlow
  • 53. What is TensorFire? imitates the structure of TensorFlow & numpy uses WebGL JavaScript API for 2D/3D graphics can also perform computations on the GPU hence it offers significant performance
  • 54. What is TensorFire? it supports low-precision quantized tensors supports browsers that don't fully support the OES_texture_float extension https://petewarden.com/2015/05/23/why-are-eight- bits-enough-for-deep-neural-networks
  • 55. What is TensorFire? works on any GPU (with/without CUDA) on computers with AMD graphics the latest 2016 Retina Macbook Pro https://github.com/tensorfire
  • 56. What is TensorFire? the Tensorfire demo app: 1) runs the style-transfer neural network 2) renders in your browser 3) as fast as CPU TensorFlow on a desktop https://tenso.rs/demos/fast-neural-style/ https://tenso.rs/demos/rock-paper-scissors/
  • 57. TensorFire Code Sample Go to ‘demos’ directory Go to backprop subdirectory Open backprop.html https://github.com/tensorfire/tensorfire/blob/master/demos/bac kprop/backprop.html
  • 58. What is deeplearn.js? an open-source library developed by the Google Brain PAIR team API closely mirrors TensorFlow eager API can be used with TypeScript (preferred) can be used with plain JavaScript
  • 59. What is deeplearn.js? train NNs in a browser OR run pre-trained models (inference mode) A hardware-accelerated machine intelligence library for the web
  • 60. What is deeplearn.js? install via yarn/npm: yarn add deeplearn or npm install deeplearn available as a global variable named dl Use a version (e.g. 0.5.0) instead of @latest: <script src="https://cdn.jsdelivr.net/npm/deeplearn@0.5.0"> </script> OR <script src="https://unpkg.com/deeplearn@latest"></script>
  • 61. What is deeplearn.js?  import * as dl from 'deeplearn';  const a = dl.tensor1d([1, 2, 3]);  const b = dl.scalar(2);  const result = a.add(b);  //Float(32Array([3,4,5])  result.data().then(data => console.log(data));  // Alternatively can use a blocking call:  //Float(32Array([3,4,5])  console.log(result.dataSync());
  • 62. deeplearn.js Code Sample Go to ‘demos’ directory Go to mnist_eager subdirectory Open model.ts https://github.com/PAIR- code/deeplearnjs/blob/master/demos/mnist_eager/model.ts
  • 63. deeplearn.js Useful Links port TensorFlow models to deeplearn.js: https://deeplearnjs.org/demos/mnist/mnist.html API reference: https://deeplearnjs.org/docs/api/index.html Other samples: https://deeplearnjs.org/index.html#demos
  • 64. Deep Learning, JS, and GPU Support Matrix comparison of JS toolkits:  https://towardsdatascience.com/gpu-accelerated-neural- networks-in-javascript-195d6f8e69ef
  • 65. About Me: Recent Books 1) HTML5 Canvas and CSS3 Graphics (2013) 2) jQuery, CSS3, and HTML5 for Mobile (2013) 3) HTML5 Pocket Primer (2013) 4) jQuery Pocket Primer (2013) 5) HTML5 Mobile Pocket Primer (2014) 6) D3 Pocket Primer (2015) 7) Python Pocket Primer (2015) 8) SVG Pocket Primer (2016) 9) CSS3 Pocket Primer (2016) 10) Android Pocket Primer (2017) 11) Angular Pocket Primer (2017) 12) Data Cleaning Pocket Primer (2018) 13) RegEx Pocket Primer (2018)
  • 66. About Me: Training => Deep Learning. Keras, and TensorFlow: http://codeavision.io/training/deep-learning-workshop => Instructor at UCSC (May/2018): Deep Learning with TensorFlow => Mobile and TensorFlow Lite (WIP) => R and Deep Learning (WIP) => Android for Beginners
