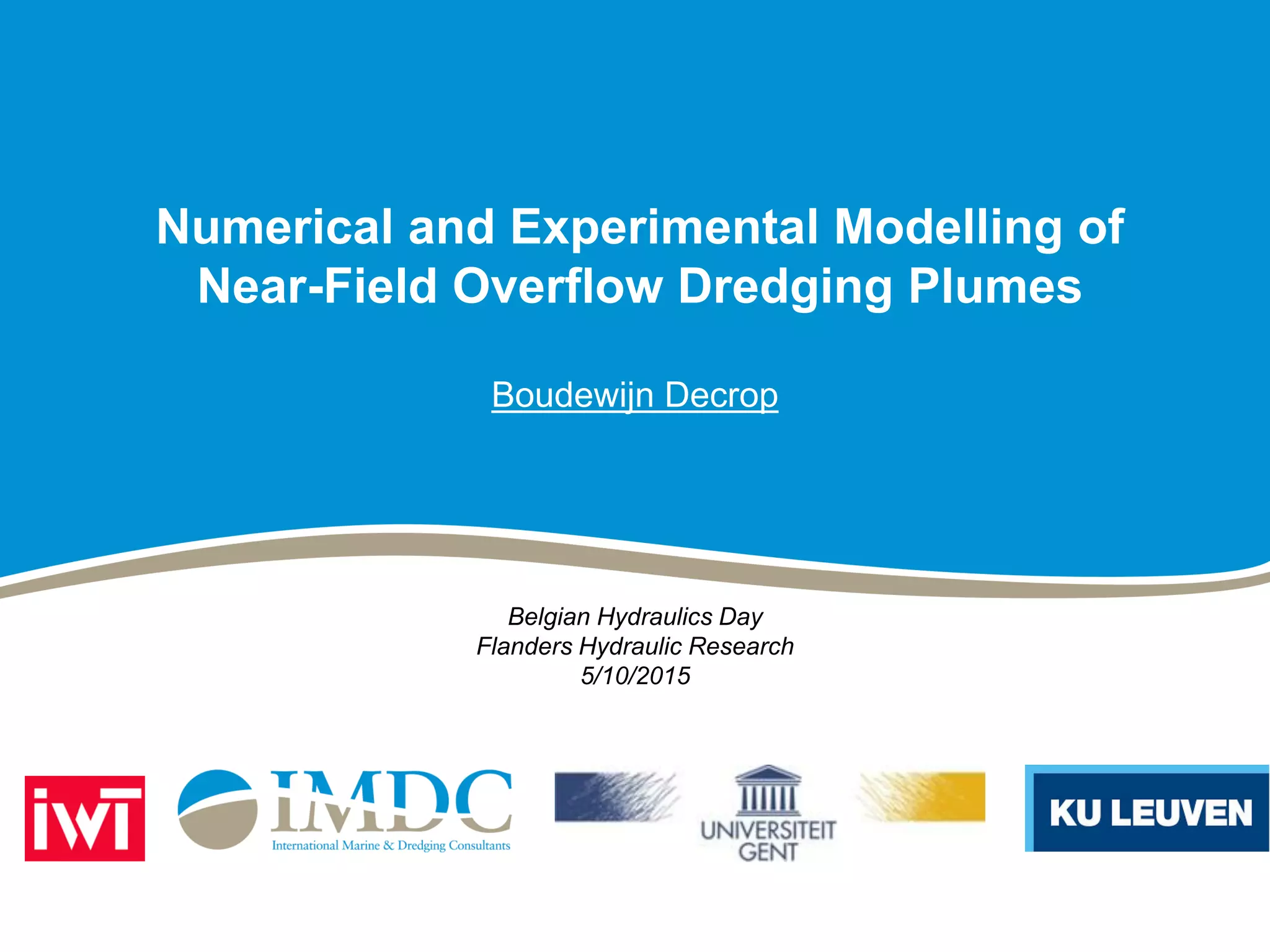

Numerical and Experimental Modelling of
Near-Field Overflow Dredging Plumes
Boudewijn Decrop
Belgian Hydraulics Day
Flanders Hydraulic Research
5/10/2015

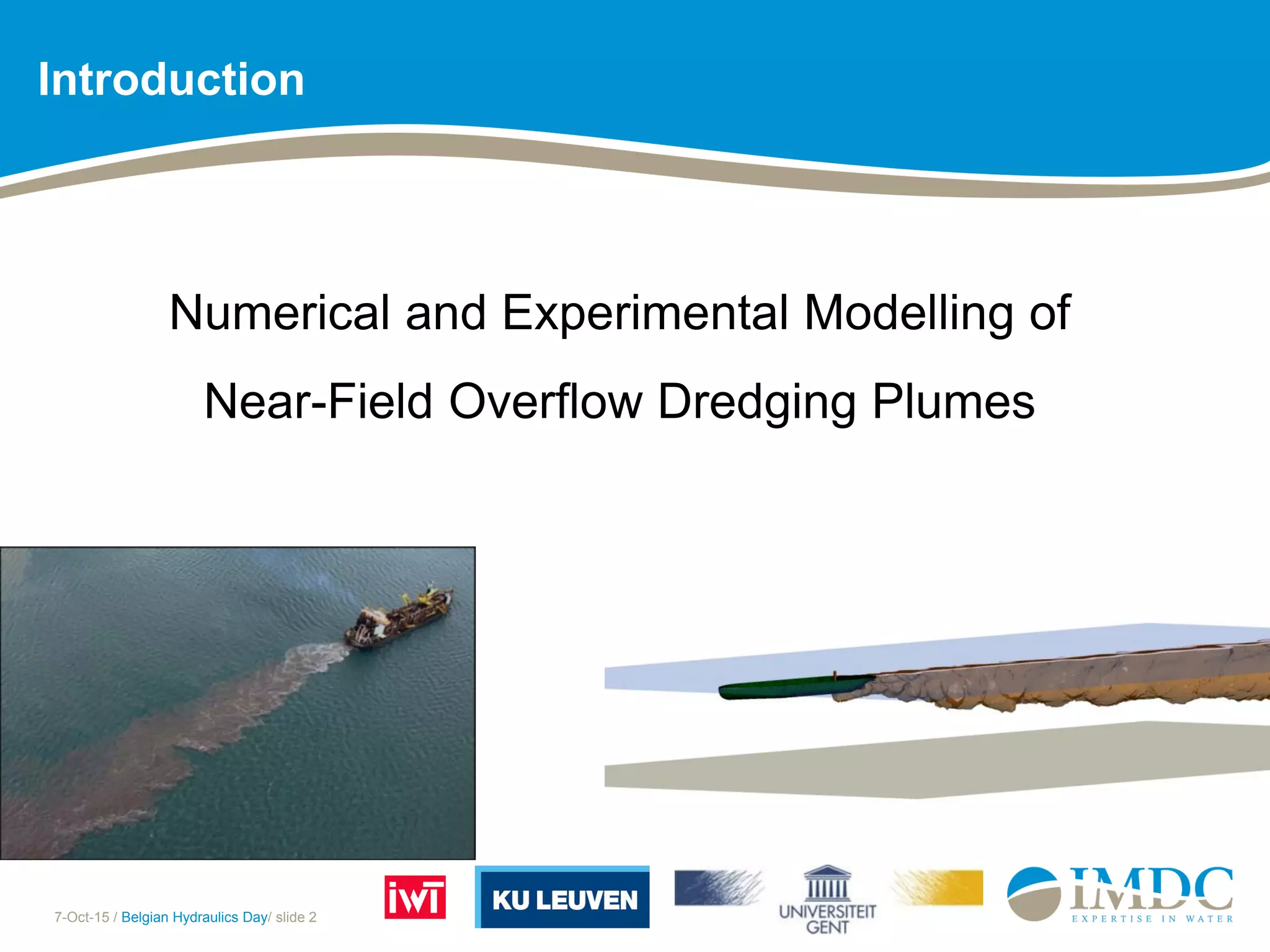

7-Oct-15 / Belgian Hydraulics Day/ slide 2
Introduction
Numerical and Experimental Modelling of
Near-Field Overflow Dredging Plumes
7-Oct-15 / Belgian Hydraulics Day/ slide 3
TSHD
Research
Hypothesis
Introduction
7-Oct-15 / Belgian Hydraulics Day/ slide 4
Introduction
General objective:
To develop a 3D near-field plume model of which the
output is used as sediment source for far-field plume
models, which renders far-field plume predictions more
accurate.
This leads to improved forecasting of the plume behaviour
and therefore to a reduced environmental impact
WHY?
7-Oct-15 / Belgian Hydraulics Day/ slide 5
Introduction
 Plume prediction modelling: far-field + near-field models
Large-scale far field models at IMDC (unstructured)
Persian
Gulf Gulf of
Oman
Gulf of
Aden
Red
Sea
Indian
Ocean
iCSM
Tethys model
7-Oct-15 / Belgian Hydraulics Day/ slide 6
Introduction
Plume predictions Environmental management
Sea current (from model)
7-Oct-15 / Belgian Hydraulics Day/ slide 7
Introduction
Plume predictions Environmental management
Sea current (from model)
7-Oct-15 / Belgian Hydraulics Day/ slide 8
Introduction
Plume predictions Environmental management
Sea current (from model)
7-Oct-15 / Belgian Hydraulics Day/ slide 9
Introduction
Plume predictions Environmental management
Sea current (from model)
7-Oct-15 / Belgian Hydraulics Day/ slide 10
Introduction
Plume predictions Environmental management
Sea current (from model)
MAIN RESEARCH QUESTION:
How much sediment to put in the far-field
model and how is it distributed??
7-Oct-15 / Belgian Hydraulics Day/ slide 11
Introduction
Plume predictions Environmental management
Sea current (from model)
TODAY:
* Assumptions with weak justification
* ‘Best guess’ sediment distribution
7-Oct-15 / Belgian Hydraulics Day/ slide 12
Introduction
Plume predictions Environmental management
Sea current (from model)
SOLUTION:
Develop a new near-field model to simulate
detailed flow near ship!
7-Oct-15 / Belgian Hydraulics Day/ slide 13
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 14
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENTLab
EXPERIMENTS
7-Oct-15 / Belgian Hydraulics Day/ slide 15
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Lab-scale
MODEL
7-Oct-15 / Belgian Hydraulics Day/ slide 16
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Model matches Experiment ?
7-Oct-15 / Belgian Hydraulics Day/ slide 17
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Next step: validate upscaling to real-life scale
7-Oct-15 / Belgian Hydraulics Day/ slide 18
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Real-scale
MODEL
7-Oct-15 / Belgian Hydraulics Day/ slide 19
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 20
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Model matches Field Measurements ?
7-Oct-15 / Belgian Hydraulics Day/ slide 21
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 22
Experiments
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 23
Results Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 24
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 25
Lab-scale Model
• Navier-Stokes eq’s for the mixture
• Large-Eddy Simulation (LES)
• Dynamic Smagorinsky SGS model
• Inflow:
• water+sediment in pipe
• flume crossflow
• Solution
• ∆t = 0.02 s
• CFL = max. 1
• Variables:
• pressure
• velocity components
• sediment fraction
• sub-grid scale variables
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Water + sediment mixture (pipe)
Background
water flow
(crossflow)
7-Oct-15 / Belgian Hydraulics Day/ slide 26
Results
• Mesh, initial:
Schematised hull
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 27
Results
• Mesh adaptation
• Based on |S| and C (from RANS run)
• Optimised number of cells (~106)
Based on C
Based on strain rate |S|
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 28
Results
• Impression of the sediment plume
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 29
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Model matches Experiment ?
7-Oct-15 / Belgian Hydraulics Day/ slide 30
Results
• Qualitatively:
Visually : Lab vs CFD
Stable stratification
Unstable stratification
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 31
Results
Quantitatively:
1. Trajectory : Laboratory vs CFD
• Centerline
• Upper/lower edge
• Plume entrainment due to vessel hull
Decrop, B. et al. (2015). Large-Eddy Simulations of turbidity plumes in crossflow. European Journal of Mechanics - B/Fluids (53), p68-84,
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 32
Results
Quantitatively:
2. SSC & Turbulence
• RMS ui’
• RMS c’
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 33
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Model matches Experiment ? YES!
7-Oct-15 / Belgian Hydraulics Day/ slide 34
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 35
Real-scale model
• Full-size TSHD
• Propellers included (actuator disk)
• Dynamic air bubble transport model:
• Lagrangian,
• Forces: drag, virtual mass, grad(p), g
• Coalescence
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 36
Real-scale model
• Mesh details
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 37
Real-scale model
! Validation needed  Monitoring campaigns
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Deep water, light mixture
Shallow water
Air bubble concentration
Deep water, heavy mixture
7-Oct-15 / Belgian Hydraulics Day/ slide 38
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 39
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Model matches Field Measurements ?
7-Oct-15 / Belgian Hydraulics Day/ slide 40
Results Validation CFD
Validation Case 1:
• H=16m ; D=2m; W0=1.9 m/s; U∞=1.5 m/s, C0=55 g/l
• CPU time: 25 hours at 32 CPU’s
7-Oct-15 / Belgian Hydraulics Day/ slide 41
Results Validation CFD
Validation Case1: Vertical profiles
• Measurement carried out at < 200 m for near-field validation
• Compared with time-averaged model results
Measured
CFD Model
7-Oct-15 / Belgian Hydraulics Day/ slide 42
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Model matches Field Measurements ?
YES!
7-Oct-15 / Belgian Hydraulics Day/ slide 43
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 44
Overview Model development
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 45
Application to turbidity forecasting
• Fast parameter model (< 1 sec.)
• Programmed inside far-field modelling software  real-time
evolution of overflow flux
• Source terms: function of
• Current velocity and direction
• Sailing speed
• Sediment Concentration, % fines
• Overflow diameter and position
Far field model
Near-field
Parameter model
Current
Source terms
Parameters from CFD data fits
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 46
General Conclusions
• 3D, multiphase CFD model
• Validated in the laboratory + the field
• Applied for:
• Parameterisation
• Overflow design
• Influence factors
THE END
7-Oct-15 / Belgian Hydraulics Day/ slide 48
Setup: Test case ‘Vertical plume’
• Geometry:
• Vertical plume as a first test case for the CFD model
• Mesh:
• Unstructured tet mesh
• ‘Inflation layers’ near walls (pipe)
• Mesh ‘Adaptation’:
1. RANS simulation on relatively coarse mesh
2. Refinement where gradients / SSC significant
3. RANS on refined mesh
4. LES
w
u
z
r
7-Oct-15 / Belgian Hydraulics Day/ slide 49
Setup: Test case ‘Vertical plume’
• Results
• Self-similarity for z/D > 8
• Comparison with experiments
• Good accuracy time-averaged W(r) and C(r)
Decrop, B. et al. (2015). New methods for ADV measurements of turbulent sediment fluxes – Application to a fine sediment plume. Journal of
Hydraulic Research 53 (3), p 317-331,
7-Oct-15 / Belgian Hydraulics Day/ slide 50
Setup: Test case ‘Vertical plume’
• Results
• Reynolds stresses accurate: peak value, peak location
• Turbulent fluctuations C: radial profile correct
Decrop, B. et al. (2015). New methods for ADV measurements of turbulent sediment fluxes – Application to a fine sediment plume. Journal of
Hydraulic Research 53 (3), p 317-331,
7-Oct-15 / Belgian Hydraulics Day/ slide 51
Experiments Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Goal of the experiments:
• Insights in sediment plume behaviour
• Produce data set to compare with model results
• Preliminary estimate of influence factors:
• Air bubbles
• Ship hull
7-Oct-15 / Belgian Hydraulics Day/ slide 52
• 34 different plumes at scale 1/50
• Flume: length = 15m, width = 0.8 m, depth = 0.6 m
• W0 = 4 – 30 cm/s; C0 = 5 – 50 g/l; D = 3.4 – 6.5 cm
• Sediment: kaolin, d50=4 μm
• Dynamically scaled:
• Densimetric Froude number FΔ
• velocity ratio λ
Experiments
Upstream
reservoir
Downstream
reservoir
ASM 2
ASM 1
ADV’s
Valve
Honeycomb
Ship ‘hull’
x
z
y
U0
ρ∞
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 53
Results
1. Plume trajectory
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
2. Profiles of:
• Sed. concentration
• Velocity components
• Turbulent properties
3. Influence factors
Air bubbles
Ship hull
7-Oct-15 / Belgian Hydraulics Day/ slide 54
Lab-scale Model
• Navier-Stokes eq’s for the mixture
• Models:
• Multiphase: mixture model (with drift flux term, slip velocity, drag)
• Turbulence: Large-Eddy Simulation (LES)
• SGS model: Dynamic Smagorinsky
 each (x,y,z,t): t, Dt and Sct
• Phases mixture model:
• Liquid phase: fresh water
• Sediment: spherical, d=4 µm
• Stokes number << 1
• Volume concentration 0.2 to 4%
• Inflow boundary: spectral synthesizer (vortex mimicking)
• Water surface: rigid lid
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 55
Setup : Plume in crossflow
• Mesh, initial:
Schematised hull
7-Oct-15 / Belgian Hydraulics Day/ slide 56
Setup : Plume in crossflow
• Mesh, refined
• Optimised number of cells (~106)
Based on C (from RANS run)
Based on strain rate
7-Oct-15 / Belgian Hydraulics Day/ slide 57
Results
• Qualitatively : well-known turbulent structures are present:
2. Counter-rotating vortex pair + double C-peak
PIV/PLIF
measurements,
Diez et al. (2005)
CFD
7-Oct-15 / Belgian Hydraulics Day/ slide 58
Validation case : Bubble plume in crossflow
• Case of Zhang et al. (2013)
• Upward bubbly jet (20 vol.% air)
• Tracer in jet fluid
• Centerline tracer plume
• Centerline bubble plume
• LES model with three phases:
• Water
• Sediment (tracer)
• Air bubbles:
• Initial diameter: 1.7 mm
• Collision model
Coalescence  bubble size distribution
• Influence bubbles on sediment plume: ok
• Separation bubble plume: ok
Sediment plume
Separating bubble plume
7-Oct-15 / Belgian Hydraulics Day/ slide 59
Results
Quantitatively:
3. Turbulent Kinetic Energy k
Decrop, B. et al. (2015). Large-Eddy Simulations of turbidity plumes in crossflow. European Journal of Mechanics - B/Fluids (53), p68-84,
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 60
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Next step: validate upscaling to real-life size
7-Oct-15 / Belgian Hydraulics Day/ slide 61
Upscaling to realistic scale:
CFD model with lab geometry
7-Oct-15 / Belgian Hydraulics Day/ slide 62
Upscaling LES model to prototype scale
1. Take CFD model lab scale
2. Scale grid to large scale
(similarity laws buoyant jets)
3. CFD simulation
4. Validation, based on:
• Trajectories in similarity
coordinates must coincide with
lab scale
• TKE resolved > 80%, for LES
completeness (Pope, 2004)
CFD (large scale, Re=1.9 106)
Physical model (small scale, Re=1.2 104)
7-Oct-15 / Belgian Hydraulics Day/ slide 63
Results Validation CFD
• Density current + Surface plume (air bubbles, propellers)
• 5% of sediments released to ‘far-field’ plume
• Hypothesis confirmed?
near-bed density current
surface plume
7-Oct-15 / Belgian Hydraulics Day/ slide 64
Measurements
Determination of sediment
concentration:
• Sampling inside the overflow (to
impose in model runs)
• Measurements and samples in the
dredging plume
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 65
Measurements
SiltProfiler:
• High-res. vertical profiler (free-fall,100 Hz)
• Wireless connection when above water
(BlueTooth)
• CTD
• 3-step turbidity sensor (0 – 50,000 mg/l)
• Design avoids seabed disturbance
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
7-Oct-15 / Belgian Hydraulics Day/ slide 66
Measurements
SiltProfiler results
Consistent profile type:
1. Diluted surface plume: 10-200 mg/l
2. Near-bed layer, 2-6m thick: 200-1500 mg/l
7-Oct-15 / Belgian Hydraulics Day/ slide 67
Measurements
Transect sailing (near-field, 100-500m from stern)
Across the plume Along the plume
7-Oct-15 / Belgian Hydraulics Day/ slide 68
Results Validation CFD (Site 2)
• Validation Case 2:
• Data from earlier campaign
• H=39m ; D=1.1m ; W0=3.2 m/s; U∞=1.5 m/s, C0=10 g/l
 In some cases: 100% of sediment released to far-field plume
log(C/C0)
CFD model
: ADCP: Bottom of plume
7-Oct-15 / Belgian Hydraulics Day/ slide 69
Validation prototype scale CFD (Case 2)
Case 2: Surface plume (OBS measurements)
• In situ measurements: lumped, crossing the plume
• Model output: at centreline
 Cmax,insitu should be = Ccentreline,model
7-Oct-15 / Belgian Hydraulics Day/ slide 70
Results Validation CFD (Site nr 2)
Validation Case 2:
• H=39m ; D=1.1m ; Overflow near stern
 In contradiction to hypothesis: 100% of sediment released to far-field plume
log(C/C0)
CFD model
: Measured bottom of plume
7-Oct-15 / Belgian Hydraulics Day/ slide 71
Environmental valve efficiency
• 2x 26 cases, with/without valve
• Valve efficiency = function of surface plume sediment flux with/without
valve
7-Oct-15 / Belgian Hydraulics Day/ slide 72
Environmental valve efficiency
• Valve efficiency turns out to be related to a combination of length
scales and a Froude number
7-Oct-15 / Belgian Hydraulics Day/ slide 73
Environmental valve efficiency
• Decomposition in constructional and operational efficiency
• Operation has more impact on efficiency than construction
influence diameter and overflow position influence sailing speed and sediment concentration
7-Oct-15 / Belgian Hydraulics Day/ slide 74
Influence on surface turbidity
• Number of overflows
7-Oct-15 / Belgian Hydraulics Day/ slide 75
Influence on surface turbidity
• Sediment load
 sediment fraction in surface plume much larger for low C0
C0=10 g/l
C0=150 g/l
log(C/C0)
log(C/C0)
Applications:
*Simplified Model
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 76
Parameter model
• Motivation: CFD model has high CPU cost, not practical in some cases
Find a simple model that is:
1. Much faster
2. Almost as accurate
A model with output:
 In suitable form for far-field models input
 Vertical profile of sediment flux behind ship
• Parameter model = combination of
• Analytical plume solutions
• Parameter fits on data of +/- 100 CFD model runs
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 77
Parameter model
• O(100) CFD runs, with variation of:
• Current velocity
• Sailing speed
• Sediment concentration
• Overflow diameter, position
• Air bubble concentration
 For ‘Model Training’
• Model Validation: against extra
dataset CFD results
• 90% has R²>0.5
• Valid for standard cases, for
specific cases still CFD needed
CFD
Par. Mod.
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 78
Overview Model development
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 79
Influence of air bubbles
• Environmental valve: air bubbles -90% (Saremi, 2014)
• Perform simulations with/without air flow rate reduction
Surface plume
No surface plume
log(C/C0)
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 80
Influence of velocity
Relative velocity sea water - ship
 sediment in surface plume x 10
2 knots
6 knots
log(C/C0)
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 81
Overview Model development
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 82
Overflow position
• Overflow at stern: plume mixed by propellers
• Overflow at aft: plume has more time to descend
Ship
Applications:
*Simplified Model
*Influence factors
* Ship Design
log(C/C0)
7-Oct-15 / Belgian Hydraulics Day/ slide 83
Overflow shaft extension
• Studied earlier by de Wit et al. (2015)
• C at surface reduced with factor up to 10
• Still surface plume because of rising air
bubbles
dair
Ship
extension
Applications:
*Simplified Model
*Influence factors
* Ship Design
log(C/C0)
7-Oct-15 / Belgian Hydraulics Day/ slide 84
Rectangular overflow shaft
 Potentially 50% reduction of sediment concentration
Applications:
*Simplified Model
*Influence factors
* Ship Design
Aspect ratio 1:3
7-Oct-15 / Belgian Hydraulics Day/ slide 85
Overview Model development
Lab
EXPERIMENTS
Lab-scale
MODEL
Real-scale
MODEL
Real-scale
MEASUREMENT
Applications:
*Simplified Model
*Influence factors
* Ship Design
7-Oct-15 / Belgian Hydraulics Day/ slide 86
Future research and applications
Overflow design (CFD model)
• Detailed study efficiency of:
• Shaft extension
• Rectangular overflow
• Influence of:
• Lateral position overflow
• Number of overflows
• Inclined overflow exit?
• Overflow via draghead jetting
Parameter model
• Real-time plume forecasting
• Tender-phase dredging strategy

More Related Content

What's hot

GradProj-Abstract
GradProj-AbstractGradProj-Abstract
GradProj-Abstract
Gustavo Boisson

IAHR2015 - Characterization of hydraulic structures by means of numerical sim...
IAHR2015 - Characterization of hydraulic structures by means of numerical sim...IAHR2015 - Characterization of hydraulic structures by means of numerical sim...
IAHR2015 - Characterization of hydraulic structures by means of numerical sim...
Deltares

DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...
DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...
DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...
Deltares

DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...
DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...
DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...
Deltares

A 20-year experience with LMS Amesim: the simulation of positive displacement...
A 20-year experience with LMS Amesim: the simulation of positive displacement...A 20-year experience with LMS Amesim: the simulation of positive displacement...
A 20-year experience with LMS Amesim: the simulation of positive displacement...
Massimo Rundo

Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...
Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...
Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...
Massimo Rundo

3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve
3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve
3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve
Massimo Rundo

Wind in Forest
Wind in ForestWind in Forest
Wind in Forest
Thomas Stalin

CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...
CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...
CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...
Massimo Rundo

DNVGL_ReDAPT_Validation_Study
DNVGL_ReDAPT_Validation_StudyDNVGL_ReDAPT_Validation_Study
DNVGL_ReDAPT_Validation_Study
Steven Parkinson

Seca seminar 2013 wilh wilhelmsen - per brinchmann
Seca seminar 2013   wilh wilhelmsen - per brinchmannSeca seminar 2013   wilh wilhelmsen - per brinchmann
Seca seminar 2013 wilh wilhelmsen - per brinchmann
Shortsea Promotion Centre Norway

ADNOC_Simulation_Challenges
ADNOC_Simulation_ChallengesADNOC_Simulation_Challenges
ADNOC_Simulation_Challenges
Faisal Al-Jenaibi

Streamline based history matching of arrival times and bottom-hole pressure d...
Streamline based history matching of arrival times and bottom-hole pressure d...Streamline based history matching of arrival times and bottom-hole pressure d...
Streamline based history matching of arrival times and bottom-hole pressure d...
Shusei Tanaka

Use of streamline flow diagnostics for injection production rate allocation o...
Use of streamline flow diagnostics for injection production rate allocation o...Use of streamline flow diagnostics for injection production rate allocation o...
Use of streamline flow diagnostics for injection production rate allocation o...
Shusei Tanaka

An effective reservoir management by streamline based simulation, history mat...
An effective reservoir management by streamline based simulation, history mat...An effective reservoir management by streamline based simulation, history mat...
An effective reservoir management by streamline based simulation, history mat...
Shusei Tanaka

OJT TOTAL research
OJT TOTAL researchOJT TOTAL research
OJT TOTAL research
Muhammad AlFarisi

Envisum first_results_2017
Envisum first_results_2017Envisum first_results_2017
Envisum first_results_2017
Sari Repka

DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...
DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...
DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...
Deltares

TEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summary
TEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summaryTEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summary
TEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summary
jorn winkler

ADVANCED PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATION
ADVANCED  PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATIONADVANCED  PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATION
ADVANCED PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATION
petroEDGE


What's hot (20)

GradProj-Abstract
GradProj-AbstractGradProj-Abstract
GradProj-Abstract

IAHR2015 - Characterization of hydraulic structures by means of numerical sim...
IAHR2015 - Characterization of hydraulic structures by means of numerical sim...IAHR2015 - Characterization of hydraulic structures by means of numerical sim...
IAHR2015 - Characterization of hydraulic structures by means of numerical sim...

DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...
DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...
DSD-NL 2014 - Geo Klantendag - 4. Modeling groundwater flow and piping under ...

DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...
DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...
DSD-INT 2018 Long-term streamflow forecasting for waterway transport in Centr...

A 20-year experience with LMS Amesim: the simulation of positive displacement...
A 20-year experience with LMS Amesim: the simulation of positive displacement...A 20-year experience with LMS Amesim: the simulation of positive displacement...
A 20-year experience with LMS Amesim: the simulation of positive displacement...

Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...
Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...
Lumped Parameter and Three-Dimensional CFD Simulation of a Variable Displacem...

3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve
3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve
3D Dynamic Simulation of a Flow Force Compensated Pressure Relief Valve

Wind in Forest
Wind in ForestWind in Forest
Wind in Forest

CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...
CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...
CFD Analysis of Gerotor Lubricating Pumps at High Speed: Geometric Features I...

DNVGL_ReDAPT_Validation_Study
DNVGL_ReDAPT_Validation_StudyDNVGL_ReDAPT_Validation_Study
DNVGL_ReDAPT_Validation_Study

Seca seminar 2013 wilh wilhelmsen - per brinchmann
Seca seminar 2013   wilh wilhelmsen - per brinchmannSeca seminar 2013   wilh wilhelmsen - per brinchmann
Seca seminar 2013 wilh wilhelmsen - per brinchmann

ADNOC_Simulation_Challenges
ADNOC_Simulation_ChallengesADNOC_Simulation_Challenges
ADNOC_Simulation_Challenges

Streamline based history matching of arrival times and bottom-hole pressure d...
Streamline based history matching of arrival times and bottom-hole pressure d...Streamline based history matching of arrival times and bottom-hole pressure d...
Streamline based history matching of arrival times and bottom-hole pressure d...

Use of streamline flow diagnostics for injection production rate allocation o...
Use of streamline flow diagnostics for injection production rate allocation o...Use of streamline flow diagnostics for injection production rate allocation o...
Use of streamline flow diagnostics for injection production rate allocation o...

An effective reservoir management by streamline based simulation, history mat...
An effective reservoir management by streamline based simulation, history mat...An effective reservoir management by streamline based simulation, history mat...
An effective reservoir management by streamline based simulation, history mat...

OJT TOTAL research
OJT TOTAL researchOJT TOTAL research
OJT TOTAL research

Envisum first_results_2017
Envisum first_results_2017Envisum first_results_2017
Envisum first_results_2017

DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...
DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...
DSD-INT 2014 - OpenMI Symposium - A selection of water-related applications o...

TEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summary
TEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summaryTEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summary
TEST RESLUTS ACS DEMONSTRATOR 2008-11-12, DKG, summary

ADVANCED PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATION
ADVANCED  PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATIONADVANCED  PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATION
ADVANCED PRODUCTION LOGGING, CASED HOLE & PRODUCTION LOG EVALUATION


Viewers also liked

Elin vanlierde sediment measurements
Elin vanlierde sediment measurementsElin vanlierde sediment measurements
Elin vanlierde sediment measurements
Waterbouwkundig Laboratorium

Emmanuel hydrometrie
Emmanuel  hydrometrieEmmanuel  hydrometrie
Emmanuel hydrometrie
Waterbouwkundig Laboratorium

Soares frazao modelling fast transient flows and morphological evolution in r...
Soares frazao modelling fast transient flows and morphological evolution in r...Soares frazao modelling fast transient flows and morphological evolution in r...
Soares frazao modelling fast transient flows and morphological evolution in r...
Waterbouwkundig Laboratorium

Luyten coherens a numerical tool for the management of the marine coastal e...
Luyten coherens   a numerical tool for the management of the marine coastal e...Luyten coherens   a numerical tool for the management of the marine coastal e...
Luyten coherens a numerical tool for the management of the marine coastal e...
Waterbouwkundig Laboratorium

DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...
DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...
DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...
Deltares

Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...
Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...
Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...
Waterbouwkundig Laboratorium

Kristof verelst belgian hydraulic_day_research_breaking_logs
Kristof verelst belgian hydraulic_day_research_breaking_logsKristof verelst belgian hydraulic_day_research_breaking_logs
Kristof verelst belgian hydraulic_day_research_breaking_logs
Waterbouwkundig Laboratorium

Dijkinspectie tijdens overstromingen Zuid-Engeland
Dijkinspectie tijdens overstromingen Zuid-EngelandDijkinspectie tijdens overstromingen Zuid-Engeland
Dijkinspectie tijdens overstromingen Zuid-Engeland
Waterbouwkundig Laboratorium

Dragana densitometry 2nd-behydroday_v2
Dragana densitometry 2nd-behydroday_v2Dragana densitometry 2nd-behydroday_v2
Dragana densitometry 2nd-behydroday_v2
Waterbouwkundig Laboratorium

FDWPortfolio
FDWPortfolioFDWPortfolio
FDWPortfolio
FrankdeWeijer

Predicitive Analytics в InterSystems Caché
Predicitive Analytics в InterSystems CachéPredicitive Analytics в InterSystems Caché
Predicitive Analytics в InterSystems Caché
InterSystems CEE

Repaso seleccion san marcos
Repaso seleccion san marcosRepaso seleccion san marcos
Repaso seleccion san marcos
Renzo Urrutia Alvarez

virus informatico
virus informaticovirus informatico
virus informatico
mariangelymileidys

Chapter 1
Chapter 1Chapter 1
Chapter 1
lopjuan

Alex Knowles letter of Rec.
Alex Knowles letter of Rec.Alex Knowles letter of Rec.
Alex Knowles letter of Rec.
Alex Knowles

Creating professional learning community schoolloop112
Creating professional learning community schoolloop112Creating professional learning community schoolloop112
Creating professional learning community schoolloop112
marcelo leal

Llocs 3r Espanya
Llocs 3r EspanyaLlocs 3r Espanya
Llocs 3r Espanya
guest9389

Deporte Para Todos
Deporte Para TodosDeporte Para Todos
Deporte Para Todos
deporbahia

Chilenos 6
Chilenos 6Chilenos 6

Viewers also liked (20)

Elin vanlierde sediment measurements
Elin vanlierde sediment measurementsElin vanlierde sediment measurements
Elin vanlierde sediment measurements

Emmanuel hydrometrie
Emmanuel  hydrometrieEmmanuel  hydrometrie
Emmanuel hydrometrie

Soares frazao modelling fast transient flows and morphological evolution in r...
Soares frazao modelling fast transient flows and morphological evolution in r...Soares frazao modelling fast transient flows and morphological evolution in r...
Soares frazao modelling fast transient flows and morphological evolution in r...

Luyten coherens a numerical tool for the management of the marine coastal e...
Luyten coherens   a numerical tool for the management of the marine coastal e...Luyten coherens   a numerical tool for the management of the marine coastal e...
Luyten coherens a numerical tool for the management of the marine coastal e...

DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...
DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...
DSD-INT 2016 Stochastic Dredge Plume Modelling in the Great Barrier Reef - Sc...

Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...
Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...
Katrien van eerdenbrugh b reach a methodology for the assessment of data cons...

Kristof verelst belgian hydraulic_day_research_breaking_logs
Kristof verelst belgian hydraulic_day_research_breaking_logsKristof verelst belgian hydraulic_day_research_breaking_logs
Kristof verelst belgian hydraulic_day_research_breaking_logs

Dijkinspectie tijdens overstromingen Zuid-Engeland
Dijkinspectie tijdens overstromingen Zuid-EngelandDijkinspectie tijdens overstromingen Zuid-Engeland
Dijkinspectie tijdens overstromingen Zuid-Engeland

Dragana densitometry 2nd-behydroday_v2
Dragana densitometry 2nd-behydroday_v2Dragana densitometry 2nd-behydroday_v2
Dragana densitometry 2nd-behydroday_v2

FDWPortfolio
FDWPortfolioFDWPortfolio
FDWPortfolio

Predicitive Analytics в InterSystems Caché
Predicitive Analytics в InterSystems CachéPredicitive Analytics в InterSystems Caché
Predicitive Analytics в InterSystems Caché

Repaso seleccion san marcos
Repaso seleccion san marcosRepaso seleccion san marcos
Repaso seleccion san marcos

virus informatico
virus informaticovirus informatico
virus informatico

Chapter 1
Chapter 1Chapter 1
Chapter 1

Alex Knowles letter of Rec.
Alex Knowles letter of Rec.Alex Knowles letter of Rec.
Alex Knowles letter of Rec.

Creating professional learning community schoolloop112
Creating professional learning community schoolloop112Creating professional learning community schoolloop112
Creating professional learning community schoolloop112

Llocs 3r Espanya
Llocs 3r EspanyaLlocs 3r Espanya
Llocs 3r Espanya

Deporte Para Todos
Deporte Para TodosDeporte Para Todos
Deporte Para Todos

Montaje
MontajeMontaje
Montaje

Chilenos 6
Chilenos 6Chilenos 6
Chilenos 6


Similar to Decrop numerical and experimental modelling of near field overflow dredging plumes

Opera presentation tecnalia_20170306_v1.3
Opera presentation tecnalia_20170306_v1.3Opera presentation tecnalia_20170306_v1.3
Opera presentation tecnalia_20170306_v1.3
TECNALIA Marine Energy

ACS-SMBG.JOJ.01 (1)
ACS-SMBG.JOJ.01 (1)ACS-SMBG.JOJ.01 (1)
ACS-SMBG.JOJ.01 (1)
jorn winkler

The influence of mixing in the process
The influence of mixing in the processThe influence of mixing in the process
The influence of mixing in the process
Aldo Shusterman

AQUASOIL FEFLOW Training Slides
AQUASOIL FEFLOW Training SlidesAQUASOIL FEFLOW Training Slides
AQUASOIL FEFLOW Training Slides
Peter Schätzl

PENNGLEN FIELD Development Plan (GULF of MEXICO)
PENNGLEN FIELD Development Plan (GULF of MEXICO)PENNGLEN FIELD Development Plan (GULF of MEXICO)
PENNGLEN FIELD Development Plan (GULF of MEXICO)
PaulOkafor6

How Advanced Simulation will Impact the Offshore Industry both Now and in the...
How Advanced Simulation will Impact the Offshore Industry both Now and in the...How Advanced Simulation will Impact the Offshore Industry both Now and in the...
How Advanced Simulation will Impact the Offshore Industry both Now and in the...
Altair

Hydro_scout_guide_ET_may10.pdf
Hydro_scout_guide_ET_may10.pdfHydro_scout_guide_ET_may10.pdf
Hydro_scout_guide_ET_may10.pdf
ttaulo

ANSYS oil&gas seminar 2013
ANSYS oil&gas seminar 2013ANSYS oil&gas seminar 2013
ANSYS oil&gas seminar 2013
Stein Tore Johansen

ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...
ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...
ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...
Egyptian Engineers Association

JIP CRYTRANSFER external
JIP CRYTRANSFER externalJIP CRYTRANSFER external
JIP CRYTRANSFER external
Bas Van Den Beemt

IOR drilling technologies
IOR drilling technologiesIOR drilling technologies
IOR drilling technologies
Statoil

Verifying Performance and Capability of New Technology for Surface and Subsur...
Verifying Performance and Capability of New Technology for Surface and Subsur...Verifying Performance and Capability of New Technology for Surface and Subsur...
Verifying Performance and Capability of New Technology for Surface and Subsur...
Society of Petroleum Engineers

PFE PP modified
PFE PP modifiedPFE PP modified
PFE PP modified
Ines Masmoudi

Apec workshop 2 presentation 8 3 vegar apec workshop 8 presentation v4 3.ppt...
Apec workshop 2 presentation 8 3 vegar apec workshop 8  presentation v4 3.ppt...Apec workshop 2 presentation 8 3 vegar apec workshop 8  presentation v4 3.ppt...
Apec workshop 2 presentation 8 3 vegar apec workshop 8 presentation v4 3.ppt...
Global CCS Institute

German perez lifes50+ design summary - deep wind 2018
German perez   lifes50+ design summary - deep wind 2018German perez   lifes50+ design summary - deep wind 2018
German perez lifes50+ design summary - deep wind 2018
TECNALIA Marine Energy

CO2 capture, transport and geological storage programmes
CO2 capture, transport and geological storage programmesCO2 capture, transport and geological storage programmes
CO2 capture, transport and geological storage programmes
Global CCS Institute

Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...
Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...
Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...
UK Carbon Capture and Storage Research Centre

The Value and the Danger of Complex Reservoir Simulations
The Value and the Danger of Complex Reservoir SimulationsThe Value and the Danger of Complex Reservoir Simulations
The Value and the Danger of Complex Reservoir Simulations
Society of Petroleum Engineers

RAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdf
RAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdfRAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdf
RAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdf
AmitRajAnand4

SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...
SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...
SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...
Forum for the Future


Similar to Decrop numerical and experimental modelling of near field overflow dredging plumes (20)

Opera presentation tecnalia_20170306_v1.3
Opera presentation tecnalia_20170306_v1.3Opera presentation tecnalia_20170306_v1.3
Opera presentation tecnalia_20170306_v1.3

ACS-SMBG.JOJ.01 (1)
ACS-SMBG.JOJ.01 (1)ACS-SMBG.JOJ.01 (1)
ACS-SMBG.JOJ.01 (1)

The influence of mixing in the process
The influence of mixing in the processThe influence of mixing in the process
The influence of mixing in the process

AQUASOIL FEFLOW Training Slides
AQUASOIL FEFLOW Training SlidesAQUASOIL FEFLOW Training Slides
AQUASOIL FEFLOW Training Slides

PENNGLEN FIELD Development Plan (GULF of MEXICO)
PENNGLEN FIELD Development Plan (GULF of MEXICO)PENNGLEN FIELD Development Plan (GULF of MEXICO)
PENNGLEN FIELD Development Plan (GULF of MEXICO)

How Advanced Simulation will Impact the Offshore Industry both Now and in the...
How Advanced Simulation will Impact the Offshore Industry both Now and in the...How Advanced Simulation will Impact the Offshore Industry both Now and in the...
How Advanced Simulation will Impact the Offshore Industry both Now and in the...

Hydro_scout_guide_ET_may10.pdf
Hydro_scout_guide_ET_may10.pdfHydro_scout_guide_ET_may10.pdf
Hydro_scout_guide_ET_may10.pdf

ANSYS oil&gas seminar 2013
ANSYS oil&gas seminar 2013ANSYS oil&gas seminar 2013
ANSYS oil&gas seminar 2013

ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...
ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...
ilovepdf_#تواصل_تطوير المحاضرة رقم 187 أستاذ دكتور / مدحت كمال عبدالله عنوان ...

JIP CRYTRANSFER external
JIP CRYTRANSFER externalJIP CRYTRANSFER external
JIP CRYTRANSFER external

IOR drilling technologies
IOR drilling technologiesIOR drilling technologies
IOR drilling technologies

Verifying Performance and Capability of New Technology for Surface and Subsur...
Verifying Performance and Capability of New Technology for Surface and Subsur...Verifying Performance and Capability of New Technology for Surface and Subsur...
Verifying Performance and Capability of New Technology for Surface and Subsur...

PFE PP modified
PFE PP modifiedPFE PP modified
PFE PP modified

Apec workshop 2 presentation 8 3 vegar apec workshop 8 presentation v4 3.ppt...
Apec workshop 2 presentation 8 3 vegar apec workshop 8  presentation v4 3.ppt...Apec workshop 2 presentation 8 3 vegar apec workshop 8  presentation v4 3.ppt...
Apec workshop 2 presentation 8 3 vegar apec workshop 8 presentation v4 3.ppt...

German perez lifes50+ design summary - deep wind 2018
German perez   lifes50+ design summary - deep wind 2018German perez   lifes50+ design summary - deep wind 2018
German perez lifes50+ design summary - deep wind 2018

CO2 capture, transport and geological storage programmes
CO2 capture, transport and geological storage programmesCO2 capture, transport and geological storage programmes
CO2 capture, transport and geological storage programmes

Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...
Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...
Status and Results from the Norcem CO2 Capture Project, Liv Bjerge (Norcem) U...

The Value and the Danger of Complex Reservoir Simulations
The Value and the Danger of Complex Reservoir SimulationsThe Value and the Danger of Complex Reservoir Simulations
The Value and the Danger of Complex Reservoir Simulations

RAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdf
RAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdfRAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdf
RAMSSES_Final_Conference_05_Keynote_Research_projects_BV.pdf

SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...
SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...
SSI workstream - Accelerating the uptake of technology: Demonstrating the bus...


More from Waterbouwkundig Laboratorium

MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...
MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...
MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...
Waterbouwkundig Laboratorium

4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet
4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet
4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet
Waterbouwkundig Laboratorium

3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?
3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?
3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?
Waterbouwkundig Laboratorium

1_Hoe we onze data online beschikbaar maken
1_Hoe we onze data online beschikbaar maken1_Hoe we onze data online beschikbaar maken
1_Hoe we onze data online beschikbaar maken
Waterbouwkundig Laboratorium

6_Hoe MONEOS helpt overstromingen te voorkomen?!
6_Hoe MONEOS helpt overstromingen te voorkomen?!6_Hoe MONEOS helpt overstromingen te voorkomen?!
6_Hoe MONEOS helpt overstromingen te voorkomen?!
Waterbouwkundig Laboratorium

2_Ecotopen en habitatmodellering in de Zeeschelde
2_Ecotopen en habitatmodellering in de Zeeschelde2_Ecotopen en habitatmodellering in de Zeeschelde
2_Ecotopen en habitatmodellering in de Zeeschelde
Waterbouwkundig Laboratorium

2_Getij in het Schelde-estuarium
2_Getij in het Schelde-estuarium2_Getij in het Schelde-estuarium
2_Getij in het Schelde-estuarium
Waterbouwkundig Laboratorium

1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...
1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...
1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...
Waterbouwkundig Laboratorium

6_Sedimentaanvoer naar het Schelde-estuarium
6_Sedimentaanvoer naar het Schelde-estuarium6_Sedimentaanvoer naar het Schelde-estuarium
6_Sedimentaanvoer naar het Schelde-estuarium
Waterbouwkundig Laboratorium

5_Zwevende stof
5_Zwevende stof5_Zwevende stof
3_Het debiet in de Zeeschelde
3_Het debiet in de Zeeschelde3_Het debiet in de Zeeschelde
3_Het debiet in de Zeeschelde
Waterbouwkundig Laboratorium

4_Fysische parameters
4_Fysische parameters4_Fysische parameters
4_Fysische parameters
Waterbouwkundig Laboratorium

Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...
Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...
Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...
Waterbouwkundig Laboratorium

Niet onze dijken, maar wij worden slimmer
Niet onze dijken, maar wij worden slimmerNiet onze dijken, maar wij worden slimmer
Niet onze dijken, maar wij worden slimmer
Waterbouwkundig Laboratorium

Dijkenverkenner: uw portaal tot dijkgerelateerde data
Dijkenverkenner: uw portaal tot dijkgerelateerde dataDijkenverkenner: uw portaal tot dijkgerelateerde data
Dijkenverkenner: uw portaal tot dijkgerelateerde data
Waterbouwkundig Laboratorium

The International Levee Handbook
The International Levee HandbookThe International Levee Handbook
The International Levee Handbook
Waterbouwkundig Laboratorium

Gallach sanchez belgian hydraulic days v1+
Gallach sanchez belgian hydraulic days v1+Gallach sanchez belgian hydraulic days v1+
Gallach sanchez belgian hydraulic days v1+
Waterbouwkundig Laboratorium


More from Waterbouwkundig Laboratorium (17)

MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...
MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...
MONEOS noodzakelijk voor evaluatie en sturing onderhoudsbaggerwerken Westersc...

4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet
4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet
4_Stilstaan is achteruitgaan: de nood tot optimalisatie van het meetnet

3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?
3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?
3_Hebben morfologie en hydrodynamiek iets te maken met waterkwaliteit?

1_Hoe we onze data online beschikbaar maken
1_Hoe we onze data online beschikbaar maken1_Hoe we onze data online beschikbaar maken
1_Hoe we onze data online beschikbaar maken

6_Hoe MONEOS helpt overstromingen te voorkomen?!
6_Hoe MONEOS helpt overstromingen te voorkomen?!6_Hoe MONEOS helpt overstromingen te voorkomen?!
6_Hoe MONEOS helpt overstromingen te voorkomen?!

2_Ecotopen en habitatmodellering in de Zeeschelde
2_Ecotopen en habitatmodellering in de Zeeschelde2_Ecotopen en habitatmodellering in de Zeeschelde
2_Ecotopen en habitatmodellering in de Zeeschelde

2_Getij in het Schelde-estuarium
2_Getij in het Schelde-estuarium2_Getij in het Schelde-estuarium
2_Getij in het Schelde-estuarium

1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...
1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...
1_MONEOS, veel werelden en één realiteit: de genese van geïntegreerde monitor...

6_Sedimentaanvoer naar het Schelde-estuarium
6_Sedimentaanvoer naar het Schelde-estuarium6_Sedimentaanvoer naar het Schelde-estuarium
6_Sedimentaanvoer naar het Schelde-estuarium

5_Zwevende stof
5_Zwevende stof5_Zwevende stof
5_Zwevende stof

3_Het debiet in de Zeeschelde
3_Het debiet in de Zeeschelde3_Het debiet in de Zeeschelde
3_Het debiet in de Zeeschelde

4_Fysische parameters
4_Fysische parameters4_Fysische parameters
4_Fysische parameters

Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...
Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...
Gezamenlijke digitale toepassing voor het beheren en inspecteren van werken v...

Niet onze dijken, maar wij worden slimmer
Niet onze dijken, maar wij worden slimmerNiet onze dijken, maar wij worden slimmer
Niet onze dijken, maar wij worden slimmer

Dijkenverkenner: uw portaal tot dijkgerelateerde data
Dijkenverkenner: uw portaal tot dijkgerelateerde dataDijkenverkenner: uw portaal tot dijkgerelateerde data
Dijkenverkenner: uw portaal tot dijkgerelateerde data

The International Levee Handbook
The International Levee HandbookThe International Levee Handbook
The International Levee Handbook

Gallach sanchez belgian hydraulic days v1+
Gallach sanchez belgian hydraulic days v1+Gallach sanchez belgian hydraulic days v1+
Gallach sanchez belgian hydraulic days v1+


Recently uploaded

Software Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project ManagementSoftware Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project Management
Prakhyath Rai

Benefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptxBenefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptx
krceseo

Ludo system project report management .pdf
Ludo  system project report management .pdfLudo  system project report management .pdf
Ludo system project report management .pdf
Kamal Acharya

PMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOCPMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOC
itssurajthakur06

Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
IJAEMSJORNAL

CCS367-STORAGE TECHNOLOGIES QUESTION BANK.doc
CCS367-STORAGE TECHNOLOGIES QUESTION BANK.docCCS367-STORAGE TECHNOLOGIES QUESTION BANK.doc
CCS367-STORAGE TECHNOLOGIES QUESTION BANK.doc
Dss

LSA Code Chaper II - Personal Life Saving Appliances.pdf
LSA Code Chaper II - Personal Life Saving Appliances.pdfLSA Code Chaper II - Personal Life Saving Appliances.pdf
LSA Code Chaper II - Personal Life Saving Appliances.pdf
danielpensoscarcella

Jet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdfJet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdf
KIET Group of Institutions

How to Manage Internal Notes in Odoo 17 POS
How to Manage Internal Notes in Odoo 17 POSHow to Manage Internal Notes in Odoo 17 POS
How to Manage Internal Notes in Odoo 17 POS
Celine George

6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
doner6

Stiffness Method for structure analysis - Truss
Stiffness Method  for structure analysis - TrussStiffness Method  for structure analysis - Truss
Stiffness Method for structure analysis - Truss
adninhaerul

Quadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and ControlQuadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and Control
Blesson Easo Varghese

21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
PradeepKumarSK3

Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
YanKing2

Unblocking The Main Thread - Solving ANRs and Frozen Frames
Unblocking The Main Thread - Solving ANRs and Frozen FramesUnblocking The Main Thread - Solving ANRs and Frozen Frames
Unblocking The Main Thread - Solving ANRs and Frozen Frames
Sinan KOZAK

Exploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative ReviewExploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative Review
sipij

Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.
Tool and Die Tech

Press Tool and It's Primary Components.pdf
Press Tool and It's Primary Components.pdfPress Tool and It's Primary Components.pdf
Press Tool and It's Primary Components.pdf
Tool and Die Tech

1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
Mani Krishna Sarkar

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk
Evan Chan


Recently uploaded (20)

Software Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project ManagementSoftware Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project Management

Benefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptxBenefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptx

Ludo system project report management .pdf
Ludo  system project report management .pdfLudo  system project report management .pdf
Ludo system project report management .pdf

PMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOCPMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOC

Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...

CCS367-STORAGE TECHNOLOGIES QUESTION BANK.doc
CCS367-STORAGE TECHNOLOGIES QUESTION BANK.docCCS367-STORAGE TECHNOLOGIES QUESTION BANK.doc
CCS367-STORAGE TECHNOLOGIES QUESTION BANK.doc

LSA Code Chaper II - Personal Life Saving Appliances.pdf
LSA Code Chaper II - Personal Life Saving Appliances.pdfLSA Code Chaper II - Personal Life Saving Appliances.pdf
LSA Code Chaper II - Personal Life Saving Appliances.pdf

Jet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdfJet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdf

How to Manage Internal Notes in Odoo 17 POS
How to Manage Internal Notes in Odoo 17 POSHow to Manage Internal Notes in Odoo 17 POS
How to Manage Internal Notes in Odoo 17 POS

6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES

Stiffness Method for structure analysis - Truss
Stiffness Method  for structure analysis - TrussStiffness Method  for structure analysis - Truss
Stiffness Method for structure analysis - Truss

Quadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and ControlQuadcopter Dynamics, Stability and Control
Quadcopter Dynamics, Stability and Control

21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY

Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...
Natural Is The Best: Model-Agnostic Code Simplification for Pre-trained Large...

Unblocking The Main Thread - Solving ANRs and Frozen Frames
Unblocking The Main Thread - Solving ANRs and Frozen FramesUnblocking The Main Thread - Solving ANRs and Frozen Frames
Unblocking The Main Thread - Solving ANRs and Frozen Frames

Exploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative ReviewExploring Deep Learning Models for Image Recognition: A Comparative Review
Exploring Deep Learning Models for Image Recognition: A Comparative Review

Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.Trends in Computer Aided Design and MFG.
Trends in Computer Aided Design and MFG.

Press Tool and It's Primary Components.pdf
Press Tool and It's Primary Components.pdfPress Tool and It's Primary Components.pdf
Press Tool and It's Primary Components.pdf

1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT
1239_2.pdf IS CODE FOR GI PIPE FOR PROCUREMENT

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk


Decrop numerical and experimental modelling of near field overflow dredging plumes

  • 1. Numerical and Experimental Modelling of Near-Field Overflow Dredging Plumes Boudewijn Decrop Belgian Hydraulics Day Flanders Hydraulic Research 5/10/2015
  • 2. 7-Oct-15 / Belgian Hydraulics Day/ slide 2 Introduction Numerical and Experimental Modelling of Near-Field Overflow Dredging Plumes
  • 3. 7-Oct-15 / Belgian Hydraulics Day/ slide 3 TSHD Research Hypothesis Introduction
  • 4. 7-Oct-15 / Belgian Hydraulics Day/ slide 4 Introduction General objective: To develop a 3D near-field plume model of which the output is used as sediment source for far-field plume models, which renders far-field plume predictions more accurate. This leads to improved forecasting of the plume behaviour and therefore to a reduced environmental impact WHY?
  • 5. 7-Oct-15 / Belgian Hydraulics Day/ slide 5 Introduction  Plume prediction modelling: far-field + near-field models Large-scale far field models at IMDC (unstructured) Persian Gulf Gulf of Oman Gulf of Aden Red Sea Indian Ocean iCSM Tethys model
  • 6. 7-Oct-15 / Belgian Hydraulics Day/ slide 6 Introduction Plume predictions Environmental management Sea current (from model)
  • 7. 7-Oct-15 / Belgian Hydraulics Day/ slide 7 Introduction Plume predictions Environmental management Sea current (from model)
  • 8. 7-Oct-15 / Belgian Hydraulics Day/ slide 8 Introduction Plume predictions Environmental management Sea current (from model)
  • 9. 7-Oct-15 / Belgian Hydraulics Day/ slide 9 Introduction Plume predictions Environmental management Sea current (from model)
  • 10. 7-Oct-15 / Belgian Hydraulics Day/ slide 10 Introduction Plume predictions Environmental management Sea current (from model) MAIN RESEARCH QUESTION: How much sediment to put in the far-field model and how is it distributed??
  • 11. 7-Oct-15 / Belgian Hydraulics Day/ slide 11 Introduction Plume predictions Environmental management Sea current (from model) TODAY: * Assumptions with weak justification * ‘Best guess’ sediment distribution
  • 12. 7-Oct-15 / Belgian Hydraulics Day/ slide 12 Introduction Plume predictions Environmental management Sea current (from model) SOLUTION: Develop a new near-field model to simulate detailed flow near ship!
  • 13. 7-Oct-15 / Belgian Hydraulics Day/ slide 13 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 14. 7-Oct-15 / Belgian Hydraulics Day/ slide 14 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENTLab EXPERIMENTS
  • 15. 7-Oct-15 / Belgian Hydraulics Day/ slide 15 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Lab-scale MODEL
  • 16. 7-Oct-15 / Belgian Hydraulics Day/ slide 16 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Model matches Experiment ?
  • 17. 7-Oct-15 / Belgian Hydraulics Day/ slide 17 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Next step: validate upscaling to real-life scale
  • 18. 7-Oct-15 / Belgian Hydraulics Day/ slide 18 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Real-scale MODEL
  • 19. 7-Oct-15 / Belgian Hydraulics Day/ slide 19 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Real-scale MEASUREMENT
  • 20. 7-Oct-15 / Belgian Hydraulics Day/ slide 20 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Model matches Field Measurements ?
  • 21. 7-Oct-15 / Belgian Hydraulics Day/ slide 21 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Applications: *Simplified Model *Influence factors * Ship Design
  • 22. 7-Oct-15 / Belgian Hydraulics Day/ slide 22 Experiments Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 23. 7-Oct-15 / Belgian Hydraulics Day/ slide 23 Results Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 24. 7-Oct-15 / Belgian Hydraulics Day/ slide 24 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 25. 7-Oct-15 / Belgian Hydraulics Day/ slide 25 Lab-scale Model • Navier-Stokes eq’s for the mixture • Large-Eddy Simulation (LES) • Dynamic Smagorinsky SGS model • Inflow: • water+sediment in pipe • flume crossflow • Solution • ∆t = 0.02 s • CFL = max. 1 • Variables: • pressure • velocity components • sediment fraction • sub-grid scale variables Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Water + sediment mixture (pipe) Background water flow (crossflow)
  • 26. 7-Oct-15 / Belgian Hydraulics Day/ slide 26 Results • Mesh, initial: Schematised hull Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 27. 7-Oct-15 / Belgian Hydraulics Day/ slide 27 Results • Mesh adaptation • Based on |S| and C (from RANS run) • Optimised number of cells (~106) Based on C Based on strain rate |S| Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 28. 7-Oct-15 / Belgian Hydraulics Day/ slide 28 Results • Impression of the sediment plume Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 29. 7-Oct-15 / Belgian Hydraulics Day/ slide 29 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Model matches Experiment ?
  • 30. 7-Oct-15 / Belgian Hydraulics Day/ slide 30 Results • Qualitatively: Visually : Lab vs CFD Stable stratification Unstable stratification Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 31. 7-Oct-15 / Belgian Hydraulics Day/ slide 31 Results Quantitatively: 1. Trajectory : Laboratory vs CFD • Centerline • Upper/lower edge • Plume entrainment due to vessel hull Decrop, B. et al. (2015). Large-Eddy Simulations of turbidity plumes in crossflow. European Journal of Mechanics - B/Fluids (53), p68-84, Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 32. 7-Oct-15 / Belgian Hydraulics Day/ slide 32 Results Quantitatively: 2. SSC & Turbulence • RMS ui’ • RMS c’ Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 33. 7-Oct-15 / Belgian Hydraulics Day/ slide 33 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Model matches Experiment ? YES!
  • 34. 7-Oct-15 / Belgian Hydraulics Day/ slide 34 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 35. 7-Oct-15 / Belgian Hydraulics Day/ slide 35 Real-scale model • Full-size TSHD • Propellers included (actuator disk) • Dynamic air bubble transport model: • Lagrangian, • Forces: drag, virtual mass, grad(p), g • Coalescence Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 36. 7-Oct-15 / Belgian Hydraulics Day/ slide 36 Real-scale model • Mesh details Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 37. 7-Oct-15 / Belgian Hydraulics Day/ slide 37 Real-scale model ! Validation needed  Monitoring campaigns Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Deep water, light mixture Shallow water Air bubble concentration Deep water, heavy mixture
  • 38. 7-Oct-15 / Belgian Hydraulics Day/ slide 38 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 39. 7-Oct-15 / Belgian Hydraulics Day/ slide 39 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Model matches Field Measurements ?
  • 40. 7-Oct-15 / Belgian Hydraulics Day/ slide 40 Results Validation CFD Validation Case 1: • H=16m ; D=2m; W0=1.9 m/s; U∞=1.5 m/s, C0=55 g/l • CPU time: 25 hours at 32 CPU’s
  • 41. 7-Oct-15 / Belgian Hydraulics Day/ slide 41 Results Validation CFD Validation Case1: Vertical profiles • Measurement carried out at < 200 m for near-field validation • Compared with time-averaged model results Measured CFD Model
  • 42. 7-Oct-15 / Belgian Hydraulics Day/ slide 42 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Model matches Field Measurements ? YES!
  • 43. 7-Oct-15 / Belgian Hydraulics Day/ slide 43 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Applications: *Simplified Model *Influence factors * Ship Design
  • 44. 7-Oct-15 / Belgian Hydraulics Day/ slide 44 Overview Model development Applications: *Simplified Model *Influence factors * Ship Design
  • 45. 7-Oct-15 / Belgian Hydraulics Day/ slide 45 Application to turbidity forecasting • Fast parameter model (< 1 sec.) • Programmed inside far-field modelling software  real-time evolution of overflow flux • Source terms: function of • Current velocity and direction • Sailing speed • Sediment Concentration, % fines • Overflow diameter and position Far field model Near-field Parameter model Current Source terms Parameters from CFD data fits Applications: *Simplified Model *Influence factors * Ship Design
  • 46. 7-Oct-15 / Belgian Hydraulics Day/ slide 46 General Conclusions • 3D, multiphase CFD model • Validated in the laboratory + the field • Applied for: • Parameterisation • Overflow design • Influence factors
  • 48. 7-Oct-15 / Belgian Hydraulics Day/ slide 48 Setup: Test case ‘Vertical plume’ • Geometry: • Vertical plume as a first test case for the CFD model • Mesh: • Unstructured tet mesh • ‘Inflation layers’ near walls (pipe) • Mesh ‘Adaptation’: 1. RANS simulation on relatively coarse mesh 2. Refinement where gradients / SSC significant 3. RANS on refined mesh 4. LES w u z r
  • 49. 7-Oct-15 / Belgian Hydraulics Day/ slide 49 Setup: Test case ‘Vertical plume’ • Results • Self-similarity for z/D > 8 • Comparison with experiments • Good accuracy time-averaged W(r) and C(r) Decrop, B. et al. (2015). New methods for ADV measurements of turbulent sediment fluxes – Application to a fine sediment plume. Journal of Hydraulic Research 53 (3), p 317-331,
  • 50. 7-Oct-15 / Belgian Hydraulics Day/ slide 50 Setup: Test case ‘Vertical plume’ • Results • Reynolds stresses accurate: peak value, peak location • Turbulent fluctuations C: radial profile correct Decrop, B. et al. (2015). New methods for ADV measurements of turbulent sediment fluxes – Application to a fine sediment plume. Journal of Hydraulic Research 53 (3), p 317-331,
  • 51. 7-Oct-15 / Belgian Hydraulics Day/ slide 51 Experiments Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Goal of the experiments: • Insights in sediment plume behaviour • Produce data set to compare with model results • Preliminary estimate of influence factors: • Air bubbles • Ship hull
  • 52. 7-Oct-15 / Belgian Hydraulics Day/ slide 52 • 34 different plumes at scale 1/50 • Flume: length = 15m, width = 0.8 m, depth = 0.6 m • W0 = 4 – 30 cm/s; C0 = 5 – 50 g/l; D = 3.4 – 6.5 cm • Sediment: kaolin, d50=4 μm • Dynamically scaled: • Densimetric Froude number FΔ • velocity ratio λ Experiments Upstream reservoir Downstream reservoir ASM 2 ASM 1 ADV’s Valve Honeycomb Ship ‘hull’ x z y U0 ρ∞ Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 53. 7-Oct-15 / Belgian Hydraulics Day/ slide 53 Results 1. Plume trajectory Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT 2. Profiles of: • Sed. concentration • Velocity components • Turbulent properties 3. Influence factors Air bubbles Ship hull
  • 54. 7-Oct-15 / Belgian Hydraulics Day/ slide 54 Lab-scale Model • Navier-Stokes eq’s for the mixture • Models: • Multiphase: mixture model (with drift flux term, slip velocity, drag) • Turbulence: Large-Eddy Simulation (LES) • SGS model: Dynamic Smagorinsky  each (x,y,z,t): t, Dt and Sct • Phases mixture model: • Liquid phase: fresh water • Sediment: spherical, d=4 µm • Stokes number << 1 • Volume concentration 0.2 to 4% • Inflow boundary: spectral synthesizer (vortex mimicking) • Water surface: rigid lid Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 55. 7-Oct-15 / Belgian Hydraulics Day/ slide 55 Setup : Plume in crossflow • Mesh, initial: Schematised hull
  • 56. 7-Oct-15 / Belgian Hydraulics Day/ slide 56 Setup : Plume in crossflow • Mesh, refined • Optimised number of cells (~106) Based on C (from RANS run) Based on strain rate
  • 57. 7-Oct-15 / Belgian Hydraulics Day/ slide 57 Results • Qualitatively : well-known turbulent structures are present: 2. Counter-rotating vortex pair + double C-peak PIV/PLIF measurements, Diez et al. (2005) CFD
  • 58. 7-Oct-15 / Belgian Hydraulics Day/ slide 58 Validation case : Bubble plume in crossflow • Case of Zhang et al. (2013) • Upward bubbly jet (20 vol.% air) • Tracer in jet fluid • Centerline tracer plume • Centerline bubble plume • LES model with three phases: • Water • Sediment (tracer) • Air bubbles: • Initial diameter: 1.7 mm • Collision model Coalescence  bubble size distribution • Influence bubbles on sediment plume: ok • Separation bubble plume: ok Sediment plume Separating bubble plume
  • 59. 7-Oct-15 / Belgian Hydraulics Day/ slide 59 Results Quantitatively: 3. Turbulent Kinetic Energy k Decrop, B. et al. (2015). Large-Eddy Simulations of turbidity plumes in crossflow. European Journal of Mechanics - B/Fluids (53), p68-84, Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 60. 7-Oct-15 / Belgian Hydraulics Day/ slide 60 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Next step: validate upscaling to real-life size
  • 61. 7-Oct-15 / Belgian Hydraulics Day/ slide 61 Upscaling to realistic scale: CFD model with lab geometry
  • 62. 7-Oct-15 / Belgian Hydraulics Day/ slide 62 Upscaling LES model to prototype scale 1. Take CFD model lab scale 2. Scale grid to large scale (similarity laws buoyant jets) 3. CFD simulation 4. Validation, based on: • Trajectories in similarity coordinates must coincide with lab scale • TKE resolved > 80%, for LES completeness (Pope, 2004) CFD (large scale, Re=1.9 106) Physical model (small scale, Re=1.2 104)
  • 63. 7-Oct-15 / Belgian Hydraulics Day/ slide 63 Results Validation CFD • Density current + Surface plume (air bubbles, propellers) • 5% of sediments released to ‘far-field’ plume • Hypothesis confirmed? near-bed density current surface plume
  • 64. 7-Oct-15 / Belgian Hydraulics Day/ slide 64 Measurements Determination of sediment concentration: • Sampling inside the overflow (to impose in model runs) • Measurements and samples in the dredging plume Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 65. 7-Oct-15 / Belgian Hydraulics Day/ slide 65 Measurements SiltProfiler: • High-res. vertical profiler (free-fall,100 Hz) • Wireless connection when above water (BlueTooth) • CTD • 3-step turbidity sensor (0 – 50,000 mg/l) • Design avoids seabed disturbance Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT
  • 66. 7-Oct-15 / Belgian Hydraulics Day/ slide 66 Measurements SiltProfiler results Consistent profile type: 1. Diluted surface plume: 10-200 mg/l 2. Near-bed layer, 2-6m thick: 200-1500 mg/l
  • 67. 7-Oct-15 / Belgian Hydraulics Day/ slide 67 Measurements Transect sailing (near-field, 100-500m from stern) Across the plume Along the plume
  • 68. 7-Oct-15 / Belgian Hydraulics Day/ slide 68 Results Validation CFD (Site 2) • Validation Case 2: • Data from earlier campaign • H=39m ; D=1.1m ; W0=3.2 m/s; U∞=1.5 m/s, C0=10 g/l  In some cases: 100% of sediment released to far-field plume log(C/C0) CFD model : ADCP: Bottom of plume
  • 69. 7-Oct-15 / Belgian Hydraulics Day/ slide 69 Validation prototype scale CFD (Case 2) Case 2: Surface plume (OBS measurements) • In situ measurements: lumped, crossing the plume • Model output: at centreline  Cmax,insitu should be = Ccentreline,model
  • 70. 7-Oct-15 / Belgian Hydraulics Day/ slide 70 Results Validation CFD (Site nr 2) Validation Case 2: • H=39m ; D=1.1m ; Overflow near stern  In contradiction to hypothesis: 100% of sediment released to far-field plume log(C/C0) CFD model : Measured bottom of plume
  • 71. 7-Oct-15 / Belgian Hydraulics Day/ slide 71 Environmental valve efficiency • 2x 26 cases, with/without valve • Valve efficiency = function of surface plume sediment flux with/without valve
  • 72. 7-Oct-15 / Belgian Hydraulics Day/ slide 72 Environmental valve efficiency • Valve efficiency turns out to be related to a combination of length scales and a Froude number
  • 73. 7-Oct-15 / Belgian Hydraulics Day/ slide 73 Environmental valve efficiency • Decomposition in constructional and operational efficiency • Operation has more impact on efficiency than construction influence diameter and overflow position influence sailing speed and sediment concentration
  • 74. 7-Oct-15 / Belgian Hydraulics Day/ slide 74 Influence on surface turbidity • Number of overflows
  • 75. 7-Oct-15 / Belgian Hydraulics Day/ slide 75 Influence on surface turbidity • Sediment load  sediment fraction in surface plume much larger for low C0 C0=10 g/l C0=150 g/l log(C/C0) log(C/C0) Applications: *Simplified Model * Ship Design
  • 76. 7-Oct-15 / Belgian Hydraulics Day/ slide 76 Parameter model • Motivation: CFD model has high CPU cost, not practical in some cases Find a simple model that is: 1. Much faster 2. Almost as accurate A model with output:  In suitable form for far-field models input  Vertical profile of sediment flux behind ship • Parameter model = combination of • Analytical plume solutions • Parameter fits on data of +/- 100 CFD model runs Applications: *Simplified Model *Influence factors * Ship Design
  • 77. 7-Oct-15 / Belgian Hydraulics Day/ slide 77 Parameter model • O(100) CFD runs, with variation of: • Current velocity • Sailing speed • Sediment concentration • Overflow diameter, position • Air bubble concentration  For ‘Model Training’ • Model Validation: against extra dataset CFD results • 90% has R²>0.5 • Valid for standard cases, for specific cases still CFD needed CFD Par. Mod. Applications: *Simplified Model *Influence factors * Ship Design
  • 78. 7-Oct-15 / Belgian Hydraulics Day/ slide 78 Overview Model development Applications: *Simplified Model *Influence factors * Ship Design
  • 79. 7-Oct-15 / Belgian Hydraulics Day/ slide 79 Influence of air bubbles • Environmental valve: air bubbles -90% (Saremi, 2014) • Perform simulations with/without air flow rate reduction Surface plume No surface plume log(C/C0) Applications: *Simplified Model *Influence factors * Ship Design
  • 80. 7-Oct-15 / Belgian Hydraulics Day/ slide 80 Influence of velocity Relative velocity sea water - ship  sediment in surface plume x 10 2 knots 6 knots log(C/C0) Applications: *Simplified Model *Influence factors * Ship Design
  • 81. 7-Oct-15 / Belgian Hydraulics Day/ slide 81 Overview Model development Applications: *Simplified Model *Influence factors * Ship Design
  • 82. 7-Oct-15 / Belgian Hydraulics Day/ slide 82 Overflow position • Overflow at stern: plume mixed by propellers • Overflow at aft: plume has more time to descend Ship Applications: *Simplified Model *Influence factors * Ship Design log(C/C0)
  • 83. 7-Oct-15 / Belgian Hydraulics Day/ slide 83 Overflow shaft extension • Studied earlier by de Wit et al. (2015) • C at surface reduced with factor up to 10 • Still surface plume because of rising air bubbles dair Ship extension Applications: *Simplified Model *Influence factors * Ship Design log(C/C0)
  • 84. 7-Oct-15 / Belgian Hydraulics Day/ slide 84 Rectangular overflow shaft  Potentially 50% reduction of sediment concentration Applications: *Simplified Model *Influence factors * Ship Design Aspect ratio 1:3
  • 85. 7-Oct-15 / Belgian Hydraulics Day/ slide 85 Overview Model development Lab EXPERIMENTS Lab-scale MODEL Real-scale MODEL Real-scale MEASUREMENT Applications: *Simplified Model *Influence factors * Ship Design
  • 86. 7-Oct-15 / Belgian Hydraulics Day/ slide 86 Future research and applications Overflow design (CFD model) • Detailed study efficiency of: • Shaft extension • Rectangular overflow • Influence of: • Lateral position overflow • Number of overflows • Inclined overflow exit? • Overflow via draghead jetting Parameter model • Real-time plume forecasting • Tender-phase dredging strategy
