Why is event-driven thinking
different from traditional thinking
about computing?
Presenters: Opher Etzion and Jeffrey Adkins

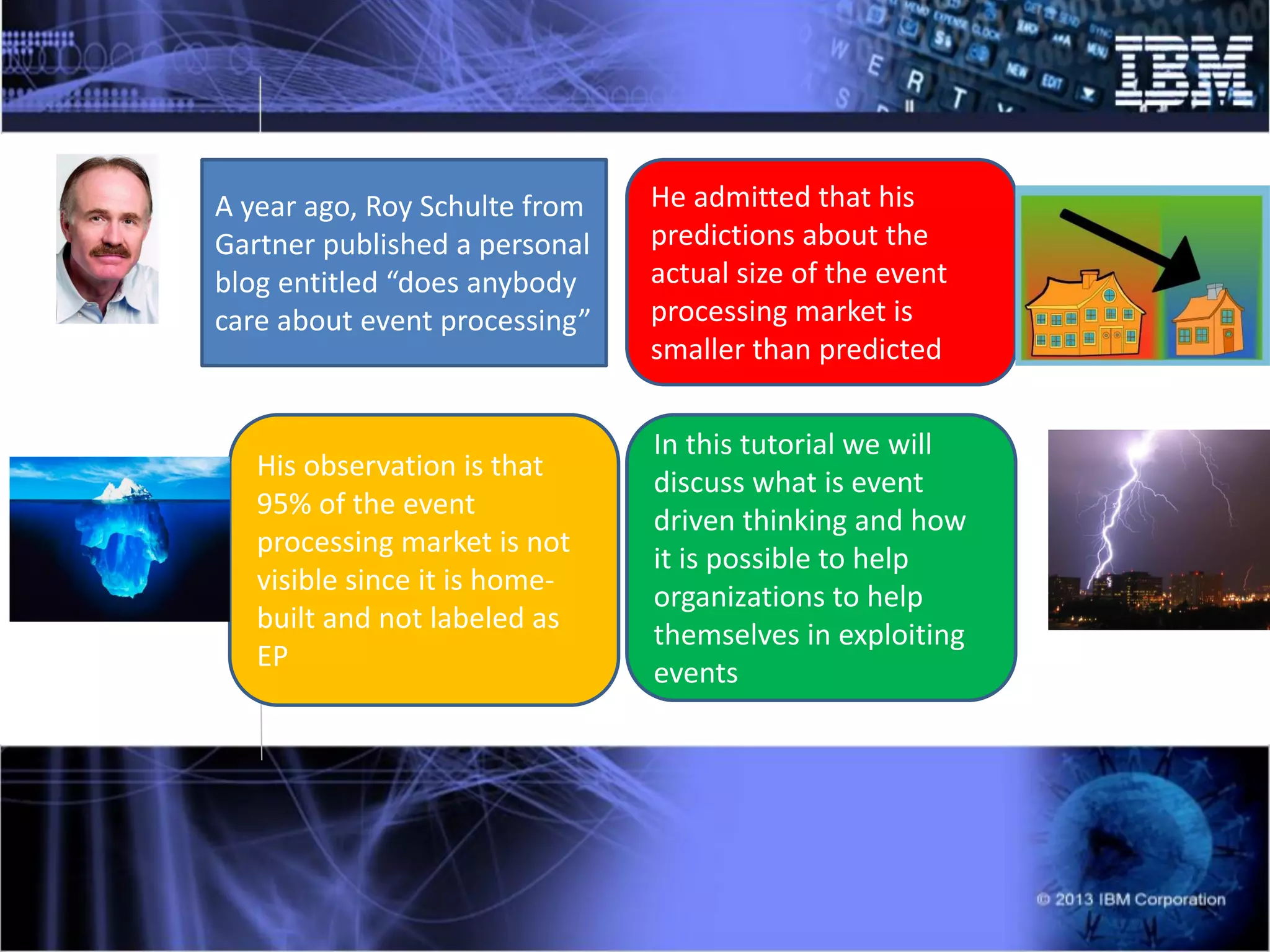

A year ago, Roy Schulte from
Gartner published a personal
blog entitled “does anybody
care about event processing”
He admitted that his
predictions about the
actual size of the event
processing market is
smaller than predicted
His observation is that
95% of the event
processing market is not
visible since it is home-
built and not labeled as
EP
In this tutorial we will
discuss what is event
driven thinking and how
it is possible to help
organizations to help
themselves in exploiting
events
© 2013, IBM Corporation
Agenda I
Introduction –
Brief History of
Event Processing
in practice
II
The major
differentiation
factor of event-
based thinking
III
The Ontology of
event and event
influence
IV
Anatomy of
reactive systems
V
Pragmatics :
A business
oriented
approach
VI
Summary
6/30/2013 3
Topic I – Introduction & a brief history
of event processing in practice
© 2013, IBM Corporation
Event Processing History
First start-ups
Descendents
of academic projects
Apama acquisition
By Progress
Around
2000
2007
TIBCO and
Oracle announce
products
Streambase
Coral8
2005
EPTS
Established
Hitting
the analysts
hype…
2008
IBM
Joins
2012
New players:
SAS. Yahoo,
Twitter
2013
EP at the height
of BIG DATA hype
Cycle
M&A:
TIBCO/Streambase
Software AG/Apama
6/30/2013 5
© 2013, IBM Corporation
Events, as “data in motion” is one of the
fundamental ingredients in big data:
event -driven analytics
Event -driven services / making events part of
SOA
Event-based decision making and event
driven Optimization
Event -driven processing as a backbone
of next generation systems: event-based
robotic, autonomic vehicles, human
enhancement technology…
Where are event used today? Virtually everywhere
6/30/2013 6
© 2013, IBM Corporation
Event Processing in 2013
There is now an accelerated development of new event-based systems – many
of the current trends in computing are event-driven
Internet of Things
6/30/2013 7
© 2013, IBM Corporation
Relatively new players in event and stream processing
Storm
S4
Google
Intelligent events
IFTTT
ON {X}
6/30/2013 8
© 2013, IBM Corporation
Big Data Hype Cycle 2012 Source: Gartner publication
G00235042, July 31, 2012
6/30/2013 9
Event processing
Again in the hype
Cycle – in different
context
© 2013, IBM Corporation
I want to know about it
immediately and react in the
best possible way
Detect Derive DoDecide
Awareness ReactionSituation
Event Driven Applications follow the 4D paradigm
6/30/2013 10
© 2013, IBM Corporation
This is how the event-driven application market looks
This is how the current event processing market looks like…
Source:
Event processing
Manifesto
manual
Build your
Own Use COTS
New segments
Source:
Event processing Manifesto
6/30/2013 11
© 2013, IBM Corporation
EPMM – Event Processing Maturity Model
0: unused
2: implicit
3: islands
4: integrated
1: manual
5: strategic
No event
awareness
Subscription to
some events,
manual handling
Events are stored in
databases and are
processed as part of
process oriented
Explicit event processing for some applications as islands;
instrumentation and actions are hard coded and sporadic
Event processing is integrated
with main business processes;
instrumentation and actuators
are well established
Strategic view
of event processing
across the enterprise
6/30/2013 12
© 2013, IBM Corporation
Lack of standards:
SOA took off only when WS standards were accepted
Lack of sufficient awareness and good ROI understanding:
Need entry points and methodology about benefits to
individuals, enterprises, packaged applications providers.
Luck of understanding of what is event-based thinking
and how to translate it to implementation
Lack of skills – current tools require
highly skilled developers to do
tricky programming
6/30/2013 13
Barriers for Wider Adoption
© 2013, IBM Corporation
Major Gap: Products in this area are geared towards IT Developers
A comprehensive user survey shows
that 84% of the users wish that
event rules could be defined by
business users
There is a
gap
Current models:
Implementation
oriented
Business analysts oriented
Modeling
6/30/2013 14
© 2013, IBM Corporation
What makes it difficult to express requirements?
Develop correct application with the right semantics
Observation:
A substantial amount of effort is invested today in many
of the tools to workaround the inability of the language
to easily create correct solutions
6/30/2013 15
© 2013, IBM Corporation
Some Correctness Topics
The right interpretation
of language constructs
The right order
of events
The right classification
of events to windows
6/30/2013 16
© 2013, IBM Corporation
A simple scenario to demonstrate complexity –
why “native implementation” does not work?
Bid scenario- ground rules:
1. All bidders that issued a bid within the validity interval participate in the bid.
2. The highest bid wins. In the case of tie between bids, the first accepted bid wins the auction
Race conditions:
Between events;
Between events and
Window start/end
6/30/2013 17
© 2013, IBM Corporation
A simple scenario to demonstrate complexity –
why “native implementation” does not work?
Bid scenario- ground rules:
1. All bidders that issued a bid within the validity interval participate in the bid.
2. The highest bid wins. In the case of tie between bids, the first accepted bid wins the auction
===Input Bids===
Bid Start 12:55:00
credit bid id=2,occurrence time=12:55:32,price=4
cash bid id=29,occurrence time=12:55:33,price=4
cash bid id=33,occurrence time=12:55:34,price=3
credit bid id=66,occurrence time=12:55:36,price=4
credit bid id=56,occurrence time=12:55:59,price=5
Bid End 12:56:00
===Winning Bid===
cash bid id=29,occurrence time=12:55:33,price=4
Trace:
Race conditions:
Between events;
Between events and
Window start/end
6/30/2013 18
© 2013, IBM Corporation
Positively looking: what is the main challenge to resolve in order to
accelerate the use of events?
6/30/2013 19
Advancing the technology is always helpful - it is happening,
yet it is not the main challenge.
Organizations are not interested in technology
for technology’s sake alone
The next frontier: change the thinking
start with the business need and then get to the IT side.
© 2013, IBM Corporation
Summary of topic I:
In the business level – it is not well understood how to
think in events and how to utilize events
In the application level – the life-cycle of event-based
systems require skilled IT developers
Next - we explain what is different about event-driven
thinking
6/30/2013 20
Topic II – the major differentiation of
event-based thinking
© 2013, IBM Corporation
Deposit Transfer abroad
A simple example: event-based Anti money Laundering
Based on events:
Identify suspicious
AccountsAn account is suspicious if any of the
following patterns are satisfied:
1. Frequent big cash deposit
2. Frequent cases of a big cash deposit
followed by transfer abroad
3. Lack of account activity
4. Increasing amounts of deposits
6/30/2013 22
Compliance
officer
© 2013, IBM Corporation
Characteristics of Event-Driven Scenarios
Events trigger action
Events influence logic
for the results
There may be multiple
events whose combined
content influences the
results
Temporal contexts
(15 days) influence the
results
I want to know about it
immediately and react in the
best possible way
A suspicious account is detected whenever there are at least three
big cash deposits followed by transfers abroad in the last 15 days
The next section
provides an
introduction to
event processing
6/30/2013 23
© 2013, IBM Corporation
Traditional Thinking
Insert the event into a database; use periodic or on-
demand queries to process the events
The processing may not
be efficient – many of the
requests will not yield results
The processing may not
be effective – the time to
react may be missed
6/30/2013 24
© 2013, IBM Corporation
Process Oriented Thinking (EPMM Level 2)
6/30/2013 25
© 2013, IBM Corporation
Difficulties in expressing such scenario in traditional thinking
The event-driven vs.
request-driven nature
Effectiveness and
Efficiency issues
The temporal
oriented behavior
The hidden state
handling
6/30/2013 26
© 2013, IBM Corporation
Efficiency and effectiveness issues
The processing may not
be efficient – many of the
requests will not yield results
The processing may not
be effective – the time to
react may be missed
6/30/2013 27
© 2013, IBM Corporation
Request driven vs. event driven thinking
6/30/2013 28
© 2013, IBM Corporation
In daily life we often react to events..
6/30/2013 29
© 2013, IBM Corporation
Traditionally programmers are trained to think in a request driven way
Searching the web, database queries, use of web
services, use of mobile applications
6/30/2013 30
© 2013, IBM Corporation
What are the differences in thinking?
6/30/2013 31
Question Response Driven Event Drive
Why is an action being taken? As a response to a specific
request
Triggered by the fact of a
specific situation
When is an action being taken? When the request is being
processed
Determined based on the
context of the situation
What happens when the
request / event occurs?
A response is always
produced
The event can be ignored,
increment the state, trigger
an internal derive event, or
trigger a situation
© 2013, IBM Corporation
Temporal consideration changes everything
The logic is sensitive
to timing of events
A delivery should be
confirmed by the
deadline
The logic is sensitive
to the order of events
The winner in the bid is
the first one who made
the highest bid
Determination by timing
considerations
Driver ranking increase
and decrease are
determined every 20
assignments
What?Why? When?
6/30/2013 32
© 2013, IBM Corporation
Temporal consideration changes everything
The logic is sensitive
to timing of events
A delivery should be
confirmed by the
deadline
The logic is sensitive
to the order of events
The winner in the bid is
the first one who made
the highest bid
Determination by timing
considerations
Driver ranking increase
and decrease are
determined every 20
assignments
What?Why? When?
In traditional models
temporal functions are
hand-coded, adding
complexity
6/30/2013 33
© 2013, IBM Corporation
Events during rush hour are of
interest, events outside rush hour are
not
Events that occur or don’t occur
relative to a deadline
Is the reported problem already
solved, or is it still open?
6/30/2013 34
Logic sensitive to the timing of events’ occurrences
© 2013, IBM Corporation
Who arrived first?
Has the bid arrived while the auction
was still open?
6/30/2013 35
Logic sensitive to the order of events’ occurrences
© 2013, IBM Corporation
Determine the status of a patient
based on blood pressure
measurements:
Every 8
measurements
Every 5 hours
6/30/2013 36
The nature of situation is determined by timing considerations
© 2013, IBM Corporation
Event
Patterns
Pattern “event1 occurs after event2”
requires keeping state of all
unmatched instances of event1
Handling Hidden State
6/30/2013 37
© 2013, IBM Corporation
Summary of topic II:
In many cases – event driven functionality is expressed
using the traditional request-response fashion
Fundamental differences exist between the two
paradigms, and benefits exist in using event-driven
modeling and implementation for certain applications
Next – drilling down to the essence of event driven
thinking
6/30/2013 38
Topic III – The ontology of events and
event influence
© 2013, IBM Corporation
What is an event – three views
An event is anything that happens, or is contemplated as
happening.
The happening view
The state change view
An event is a state of change of anything
The detectable condition
view
An event is a detectable condition that can trigger a notification
6/30/2013 40
© 2013, IBM Corporation
Events in Linguistics thinking
“Friends, you and me...
you brought another friend...
and then there were three...”
6/30/2013 41
Events that we want to know, can, and
should, be first worked through as
done as a sentence.
© 2013, IBM Corporation
Events in Linguistics thinking
6/30/2013 42
Consider the story and write it down.
This captures the essence of the event.
© 2013, IBM Corporation43
Ancient Criterion of Change
6/29/2013
An Object, x, changes if and only if
i. 𝑡ℎ𝑒𝑟𝑒 𝑖𝑠 𝑎 𝑝𝑟𝑜𝑝𝑒𝑟𝑡𝑦, 𝑃,
ii. 𝑡ℎ𝑒𝑟𝑒 𝑖𝑠 𝑎𝑛 𝑜𝑏𝑗𝑒𝑐𝑡, 𝑥,
iii. 𝑡ℎ𝑒𝑟𝑒 𝑎𝑟𝑒 𝑑𝑖𝑠𝑡𝑖𝑛𝑐𝑡 𝑡𝑖𝑚𝑒𝑠, 𝑡 𝑎𝑛𝑑 𝑡’ 𝑡 ≠ 𝑡’ , 𝑎𝑛𝑑
iv. that 𝑥 ℎ𝑎𝑠 𝑃 𝑎𝑡 𝑡 𝑎𝑛𝑑 𝑓𝑎𝑖𝑙𝑠 𝑡𝑜 ℎ𝑎𝑣𝑒 𝑃 𝑎𝑡 𝑡’
(Lombard)
© 2013, IBM Corporation44
Quality Space
6/29/2013
Quality Spaces are sets (S) of simple, static properties {P1,
P2, … Pn} which meet conditions:
(i) If at any time, t, any object, x, has 𝑃𝑖 ∈ 𝑆 then
(ii) If at any time, t’, x doesn’t have 𝑃𝑖, 𝑖𝑡 𝑤𝑖𝑙𝑙 ℎ𝑎𝑣𝑒 𝑃𝑗
∈ 𝑆 𝑤ℎ𝑒𝑟𝑒 𝑖 ≠ 𝑗
We call this a Dimension. An object can have multiple
dimensions. Could be represented by an ERD, enumeration
© 2013, IBM Corporation
The Goal
It is the MOVEMENT along this quality space that
constitutes an event.
The Goal:
To become aware of these events,
so that we may react to them.
6/30/2013 45
© 2013, IBM Corporation
Awareness Boundary
What
knowledge
is accessible
Awareness
Boundary
The Awareness boundary represents the boundary of an ecosystem’s knowledge of events /
situations. This is the knowledge that an ecosystem uses to understand situations, decide on a
course of action and perform that course of action.
6/30/2013 46
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
There are situations that occur outside of an ecosystem’s awareness boundary to which a
reaction inside the ecosystem is warranted.
6/30/2013 47
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
Sensors
Some situations’ occurrences can be directly detected by sensors or come into an ecosystem
through data feeds or some other instrumentation.
6/30/2013 48
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
Sensors
System is
now aware.
Once detected, a virtual representation of the situation, called an event, exists within the
ecosystem. These event can be used as part of the work of the ecosystem.
6/30/2013
49
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
Sensors
Because we
can’t directly
detect it
we must
derive it
Other situations that occur outside our awareness boundary can’t be directly detected, so we
have to derive that it occurred.
6/30/2013 50
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
Because we
can’t directly
detect it
we derive it
These two situations are indicators that the third situation has occurred and since we have
knowledge of their occurrence, we can use it to derive the third, non-detectable situation.
Indicators
Indicators
6/30/2013 51
Indicated
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
Derive
Mechanism
Derive
Because we
can’t directly
detect it
we derive it
Propose calling relationship
between real world event and
derived awareness of event a
Luckham Relationship
There is a relationship between the real world situation’s occurrence and the virtual
representation. We propose calling it “a Luckham relationship”.
Indicators
Indicators
6/30/2013 52
Indicated
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
Derive
Mechanism
Derive
There are still other situations that cannot be directly detected nor derived. These situations
require a human to observe it and enter it in the system.
Indicators
Indicators
6/30/2013 53
Indicated
© 2013, IBM Corporation
Awareness Boundary
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
out side
awareness
Situation occur
outside of
awareness
Derive
Mechanism
Derive
This is actually the most common way situations become known. These too should generate an
event inside the ecosystem to separate out awareness from reaction.
6/30/2013 54
© 2013, IBM Corporation
Luckham Relationship
These two situations, when occurred together in a pattern, indicated that the situation on top
has occurred.
Situation of
Concern
6/30/2013 55
© 2013, IBM Corporation
Luckham Relationship
There are different criteria of change that may play a part in this pattern indicating the situation
on top occurred.
Situation of
Concern
6/30/2013 56
© 2013, IBM Corporation
Luckham Relationship
This pattern also has a probability associated with it which indicates the confidence that the
situation on top occurred.
Situation of
Concern
6/30/2013 57
© 2013, IBM Corporation
Luckham Relationship Situation of
Concern
, ,
6/30/2013 58
A particular situation may have more than one pattern that indicates to a certain level of
confidence that it has occurred.
© 2013, IBM Corporation
Object – Nouns of our story
6/30/2013 59
Nouns
The things we manipulate, collect, buy, sell, talk with….
It has state and dimensions
It has relations with other THINGS
© 2013, IBM Corporation
All participates in the process.
• Actor (hero) is the one who
performs the change
• Helper assists “hero”
• Obstacle inhibits the
process.
These can help tell about
what is happening.
Actors – The Hero, The Helper, and The Obstacle
6/30/2013 60
© 2013, IBM Corporation
Observer – Reports what is seen
6/30/2013 61
Observer is not part of the process
There are potentially multiple observers
of the same events
Observer might have a subjective
inaccurate perspective
Observers may not be familiar with the
context
© 2013, IBM Corporation
Processes
Some
Noun of
Importance
This noun is
something
we care
about
6/30/2013 62
We have some noun / thing that is
important to the business and we
want to know when it changes.
© 2013, IBM Corporation
Processes
Some
Noun of
Importance but
different
A process is
needed to alter
the noun
The noun is altered
Process
6/30/2013 63
Some
Noun of
Importance
This noun is
something
we care
about
A process consumes that noun and
transforms it into something more
useful.
Transforms
© 2013, IBM Corporation
Processes
Some
Noun of
Importance but
different
A process is
needed to alter
the noun
The noun is altered
Process
6/30/2013 64
Some
Noun of
Importance
This noun is
something
we care
about
When a noun is changed, it gives of
indicators that can be sensed.
Transforms
Gives off indicators of
the change
© 2013, IBM Corporation
Processes
Some
Noun of
Importance but
different
A process is
needed to alter
the noun
The altered noun.
Process
6/30/2013 65
Some
Noun of
Importance
This noun is
something
we care
about
An event is created inside the
ecosystem that is the logical
representation of indicators
Transforms
Gives off indicators of
the change Event
“noun has
changed”
The event is a logical
representation of the
indicators
© 2013, IBM Corporation
Process Ownership
666/29/2013
Nature
•Seemly Random
but patterns
emerge
•Impact small to
momentous/
catastrophic
Regulatory
•Due Process
•Rules by Law &
Procedure
•Impact
significant
Competitor
•Little visibility
until in open
market
•Actively hiding
info
•Share Market
Space
Supply Chain
Partner
•Visibility to a
point
•Vested interest
in mutual
success
•Other Customers
Self
•Own Process
•Easy
instrumentation
•Have
Understanding
Processes understood
And available indicators
Processes hidden
And opaque indicators
Process can be owned by one of the five group below.
Which have several characteristics. The spectrum of each
shows how much of the process and indicators are
available or obscured.
© 2013, IBM Corporation
Data POV vs. Process POV
676/29/2013
Nature Regulatory Competitor
Supply Chain
Partner
Own
Processes Understood
And Available indicators
Processes hidden
And opaque indicates
Instrumentation Sensors, Market Intelligence
Collectors, Industry
Process, Object self-publish,
transactions, feeds
Tooling Streaming, Big Data, Master
data management
Processing / Transaction flow
D
a
t
a
P
O
V
P
r
o
c
e
s
s
P
O
V
When processes and indicators are understood and
available, we take a Process POV approach. When
they are hidden and opaque, we take a data
oriented approach.
© 2013, IBM Corporation
Awareness Engineer
686/29/2013
Nature Regulatory Competitor
Supply Chain
Partner
Own
Starting Point 1. Identifying situations, streams /
datasets available
2. Determine patterns that indicate
situation
3. Iterate over intermediate
patterns until you get to raw
data/events
1. Identifying process triggers in terms
of situation
2. Identify significant nouns, its states
and properties
3. Map situation to noun-state change
4. Instrument in processes code
significant state changes (detect)
5. For all situations that does not
directly map, iterate top-down or
bottoms-up until you connect
(derive)
Data POV Process POV
The Awareness Engineer job is to figure out how we
become aware. Below are starting points for the
awareness engineer based on the Point of View.
Awareness of events – what are the main reasons?
Business
IT
Consumers
6/30/2013 69
Reaction types
Decision first: A decision is needed in order to make reaction; the decision can be simple,
or complex (requiring OR methods)
Actuators: Automatic activation of actuator
Notification in various ways:
Activation of process/workflow/task – manual or automatic
6/30/2013 70
© 2013, IBM Corporation
By 2015, 80% of all available data will be uncertain
GlobalDataVolumeinExabytes
Multiple sources: IDC,Cisco
100
90
80
70
60
50
40
30
20
10
AggregateUncertainty%
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
2005 2010 2015
Data quality solutions exist for
enterprise data like customer,
product, and address data, but this
is only a fraction of the total
enterprise data.
By 2015 the number of networked devices will be
double the entire global population. All sensor data
has uncertainty.
The total number of social media accounts
exceeds the entire global population. This data
is highly uncertain in both its expression and
content.
6/30/2013 71
© 2013, IBM Corporation
Representative sources of uncertainty
Uncertain
input data/
Events
Source
Malfunction
Thermometer
Human error
Malicious
Source
Fake tweet
Sensor disrupter
Projection
of temporal
anomalies
Wrong hourly sales
summary
Source
Inaccuracy
Sampling
or
approximation
Propagation
of
uncertainty
Visual data
Rumor
Wrong trend
Inference based on
uncertain value
6/30/2013 72
© 2013, IBM Corporation
Types of uncertainty in event processing
Runtime
Engine
Definitions
Detected
Situations
Event
Sources
Run Time
Build Time
Events
Rules / Patterns
Situation Detection
Authoring
Tool
Actions
incomplete event
streams
insufficient event
dictionary
erroneous event
recognition
inconsistent event
annotation
imprecise event
patterns
Uncertainty in the event input, in the composite event pattern, in both
6/30/2013 73
© 2013, IBM Corporation
Uncertainty handling
Two main handling methods:
Uncertainty propagation
The uncertainty of input events is propagated to the
derived events
Uncertainty flattening
Uncertain values are replaced with
deterministic equivalents; events may be
ignored.
Traditional event processing needs to be enhanced to account for uncertain events
6/30/2013 74
© 2013, IBM Corporation
Patternmatching: Sequence(1/3)
Crime report matching
Pattern: Sequence [Suspicious observation,
Crime report]
Context: Location, Crime type
Certainty 0.8
Occurrence time Uni(9:45AM,10:05AM)
Id ‘John Doe’
…..
......
Suspicious Observation
Certainty 0.9
Occurrence time 10:02AM
Id NA
…..
......
Crime report
6/30/2013 75
© 2013, IBM Corporation
Crime report matching
Pattern: Sequence
Context: Location, Crime type
Certainty 0.8
Occurrence time Uni(9:45AM,10:05AM)
Id ‘John Doe’
…..
......
Suspicious Observation
Certainty 0.9
Occurrence time 10:02AM
Id NA
…..
......
Crime report
Certainty 0.612
Occurrence time Uni(9:45AM,10:02AM)
Id ‘John Doe’
…..
......
Matched crime
obs.certainty * crime.certainty * Prob{obs.time<crime.time}
obs.time | obs.time<crime.time
The ‘uncertainty propagation’ approach
Pattern matching: Sequence (2/3)
6/30/2013 76
© 2013, IBM Corporation
Crime report matching
Pattern: Sequence
Context: Location, Crime type
Certainty 0.8
Occurrence time Uni(9:45AM,10:05AM)
Id ‘John Doe’
…..
......
Suspicious Observation
Certainty 0.9
Occurrence time 10:02AM
Id NA
…..
......
Crime report
Certainty 0.72
Occurrence time 9:55AM
Id ‘John Doe’
…..
......
Matched crime
Occurrence time → percentile(occurrence time, 0.5)
The ‘uncertainty flattening’ approach
Pattern matching: Sequence (3/3)
6/30/2013 77
© 2013, IBM Corporation
Summary of topic III:
The ontology of event-based systems is based on
awareness of events – either directly or by derivation
from other events
The awareness is enabler for reactions
Next - we describe the anatomy of event-based systems
6/30/2013 78
Topic IV – Anatomy of reactive systems
© 2013, IBM Corporation
Two separate but connected goals:
Awareness and Reaction
Awareness Reaction
Event
Detect Derive Decide Do
6/30/2013 80
© 2013, IBM Corporation
Reactions are Events too
Becoming aware of an event and then doing something about it.
Derive
Mechanisms
Single Event
Multiple
Events
Ancillary
Info
May need
multiple iterations
May require addition
reference / state
information
Something we
want to react
to
A Situation
Detect
Mechanism
Feedback
Events
Decide
Mechanism
Do
Mechanism
Event
of
Interest
Order
Should be
indicating
Entity State
Change
Should be
indicating
Decisions
Derived Event Trigger
6/30/2013 81
© 2013, IBM Corporation
Detect
Some
Noun of
Importance but
different
The act of bringing into a system’s sphere of understanding knowledge about an event.
A person recognizes the change and enters it into some system. This is
the classic case! This is the most flexible because humans are ingenious.
6/30/2013 82
© 2013, IBM Corporation
Detect
Some
Noun of
Importance but
different
The act of bringing into a system’s sphere of understanding knowledge about an event.
A sensor senses the indicators and creates the corresponding event in
the system.
6/30/2013 83
© 2013, IBM Corporation
Detect
Some
Noun of
Importance but
different
The act of bringing into a system’s sphere of understanding knowledge about an event.
A data feed or systemic interface allows events to be published into the
system.
6/30/2013 84
© 2013, IBM Corporation
Detect
Some
Noun of
Importance but
different
The act of bringing into a system’s sphere of understanding knowledge about an event.
SwimLane
TriggerEvent
Activity
State
Change
When the processes under the system’s control makes changes to nouns
it should published these changes as events.
6/30/2013 85
© 2013, IBM Corporation
Detect
Some
Noun of
Importance but
different
The act of bringing into a system’s sphere of understanding knowledge about an event.
SwimLane
TriggerEvent
Activity
State
Change
As connected things are becoming more self-aware of their inner-
workings, they can publish their own state changes.
6/30/2013 86
© 2013, IBM Corporation
Derive
The act of becoming aware of events that are not directly detectable by bringing together
events with other events, data, patterns and publishing the observation as a derived event.
Raw
events
Raw
events
Raw
events
A Person recognizes the pattern and enters the derived event or just
reacts to it directly. Shown a lot of time by dashboards and analysis.
6/30/2013 87
© 2013, IBM Corporation
Derive
The act of becoming aware of events that are not directly detectable by bringing together
events with other events, data, patterns and publishing the observation as a derived event.
Raw
events
Raw
events
Raw
events
A Neural network processes the various inputs and determines a new
situation expressed by a derived event.
6/30/2013 88
© 2013, IBM Corporation
Derive
The act of becoming aware of events that are not directly detectable by bringing together
events with other events, data, patterns and publishing the observation as a derived event.
Raw
events
Raw
events
Raw
events
A software applies pattern matching over multiple events and data to
find derived events.
6/30/2013 89
© 2013, IBM Corporation
Derive
The act of becoming aware of events that are not directly detectable by bringing together
events with other events, data, patterns and publishing the observation as a derived event.
Raw
events
Raw
events
Raw
events
The most common place is hidden inside of every day system’s code.
6/30/2013 90
© 2013, IBM Corporation
Decide
The act of determining the course of action to do in response to the situation. This
includes the background information needed to be collected to make the decision.
Pass through: Sometimes there is no decision. There is only one course
of action.
6/30/2013 91
© 2013, IBM Corporation
Decide
The act of determining the course of action to do in response to the situation. This
includes the background information needed to be collected to make the decision.
Manual Decision: Many times the ecosystem asks a person to decide
the course of take.
6/30/2013 92
© 2013, IBM Corporation
Decide
The act of determining the course of action to do in response to the situation. This
includes the background information needed to be collected to make the decision.
Automated Decision: Algorithmic decision via a decision management
system.
6/30/2013 93
© 2013, IBM Corporation
Decide
The act of determining the course of action to do in response to the situation. This
includes the background information needed to be collected to make the decision.
Automated Goal Oriented: Algorithmic decision via a decision
management system that seeks a optimizing quantitative goals.
6/30/2013 94
© 2013, IBM Corporation
Do
The act of performing the course of action that was decided upon.
Notification: Sending a signal of sort to either a person or system. This
would include calling a web-service or subscription to alerts.
6/30/2013 95
© 2013, IBM Corporation
Do
The act of performing the course of action that was decided upon.
Manual Action: This is an order for a human to go do an action.
6/30/2013 96
© 2013, IBM Corporation
Do
The act of performing the course of action that was decided upon.
Applying Actuator: cause a action or setting change on an actuator.
6/30/2013 97
© 2013, IBM Corporation
Do
The act of performing the course of action that was decided upon.
Trigger process: Execute a process or potential a single action.
6/30/2013 98
© 2013, IBM Corporation
Richard Hackathorn’s Response Time Latency
Value in terms of Competitiveness decreases
6/30/2013 99
Source: Richard Hackathorn – Active data warehouse, from nice to
necessary, Teradata Magazine, 2006
© 2013, IBM Corporation
4D Version of Response Time Latency
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
6/30/2013 100
Converting Richard Hackathorn’s flow
to the 4D Prospective.
© 2013, IBM Corporation
Detect Latency
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
6/30/2013 101
The time it takes for a ecosystem to
detect either the business event or
indicators that can be used derive the
event.
© 2013, IBM Corporation
Derive Latency
6/30/2013 102
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
The time necessary to combine the
indicators, events, ancillary data or
human analysis to derive situations
that can’t be directly detected.
© 2013, IBM Corporation
Decide Queue Latency
6/30/2013 103
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
The time waiting for someone
(manual decisions) or something
(automated decisions) to make a
decision.
© 2013, IBM Corporation
Decide Act Latency
6/30/2013 104
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
The time it takes to decide the
course of action in reaction to the
situation.
© 2013, IBM Corporation
Do Queue Latency
6/30/2013 105
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
The time waiting for someone
(human actor) or something
(machine actor) to start executing or
orchestrating the course of action.
© 2013, IBM Corporation
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
Do Act latency
6/30/2013 106
The time it takes to execute the
course of action.
© 2013, IBM Corporation
4D Version of Response Time Latency
Value
Investment
Value
Realization
6/30/2013 107
Until the course of action is completed, everything is a value investment. After the course
of action is completed, value can be realized.
Business Event
Detected
Derived
Decide Started
Decide Completed
Do Started
Do Completed
Value
Time
Detect
Latency
Derive
Latency Decide latency Do latency
Queue ActQueue Act
© 2013, IBM Corporation
Business velocity – a key competitive edge
6/30/2013 108
© 2013, IBM Corporation
Summary of topic IV:
An event-driven system consists of the 4D architecture
Latency reduction is the key to business velocity
Next we’ll present basic ideas about the business oriented
approach
6/30/2013 109
Topic V – pragmatics – a
computational independent model for
event-based systems
© 2013, IBM Corporation
ROI
Business
Goals
Application
characteristics
Current state in the maturity model
Approaching Event Processing in an Enterprise
6/30/2013 111
© 2013, IBM Corporation
Business
Predictability
Enable the support of event-driven adaptive business
processes
Business Agility
Business
Optimization
Make faster and better (manual or autonomic)
decisions based on timely multi-source information;
ROI
Business
Goals
Application
characteristics
operational
support
proactively seeking and adapting to patterns that
might indicate an emerging event (threats and
opportunities)
Increasing level of automation and thus increase
productivity (e.g. of back office) and reduce cost
Continuous audit ensures timely handling of
violations.
Quantify the impact of:
Compliance with
Regulation
Business
Velocity
Increase business velocity by faster response to
opportunities and early detection of threats
Calculating the benefits of event processing
6/30/2013 112
© 2013, IBM Corporation
Situation
awareness
Enables the business logic to be context
sensitive
Context
sensitive
Real-time
dissemination
Taking advantage of information whose value
decreases in time.
ROI
Business
Goals
Application
characteristics
Fast change
The application includes sense and respond to
events, and situation awareness is key
requirement
Enables fast deployment of new versions when
the business logic dynamically changes
Situation
determination
complexity
Complexity stems from one or more of: event
rate, quantity of event sources, state and
context handling, event order sensitivity..
Quantify the level of relevance to each candidate application:
Return on Investment
6/30/2013 113
© 2013, IBM Corporation
EPMM: Event Processing Maturity Model (IT View)
0: unused
3: islands
4: integrated
1: manual
5: strategic
No event
awareness
Subscription to
some events,
manual handling
Events are stored in databases and
are processed as part of process
oriented
Explicit event processing for some applications as islands ;
instrumentation and actions are hard coded and sporadic
Event processing is integrated with main
business processes; instrumentation and
actuators are well established
Strategic view
of event processing
cross the enterprise
2: implicit
6/30/2013 114
© 2013, IBM Corporation
Next Step: Develop Multi-Step Method to Select Entry Points
Improve Business
Agility
Improve Business
Optimization
Select Goals Prioritize Goals
1 Improve Business
Agility
2 Improve Business
Optimization
Analyze the possible entry point
Applications based on their characteristics
Select applications that best fit
these goals
Produce plan of action
Based on the maturity model
By entry point, map both
satisfaction of business
goals and fitness
characteristics for best
ROI.
Liquidity
Management
Anti Money
Laundering
. . .
6/30/2013 115
© 2013, IBM Corporation
Vision:
Shift Governance from Programmer to Knowledge Worker
Governance occurs
through development
and maintenance of
program code.
Governance occurs
through development
and maintenance of
event models.
TODAY TOMORROW
CODE LEVEL
6/30/2013 116
© 2013, IBM Corporation
Process Oriented View
6/30/2013 117
© 2013, IBM Corporation
Next step – event processing language (ESPER)
// Big cash deposit
insert into BigCashDeposit
select * from Transaction where amount > 100,000 and
transaction_cash_deposit_indicator =’Y’
// Frequent (At least three) big cash deposits
create context AccountID partition by accountId on Transaction;
Context AccountID
Insert into FrequentBigCashDeposits select count(*) from
BigCashDeposit having count(*)>3;
// Transfer abroad
insert into TransferAbroad select * from Transaction where
transferabroad_indicator =’Y’
// Frequent cash deposits followed by transfer abroad
Context AccountID
insert into SuspiciousAccount select * from pattern [
every f=FrequentCashDeposit -> t=TransferAbroad where timer.within(15
days)]
6/30/2013 118
© 2013, IBM Corporation
Modeling according to the concept
computing principles
The application logic should be expressed
by a semantically declarative, directly executable,
implementation independent, and rigorously
structured knowledge model
Knowledge
Model
Automatic
translation to
code in regular
or specific
engine language
Free of
implementation
assumptions
Rigorous
verifiable
structure with
all
connections
Represented as
a collection of
tables
The term was
coined by Mills
Davis in 2012
6/30/2013 119
© 2013, IBM Corporation
TEM Logic Specification
Frequent big cash deposits
Row # Context Event Logic
When Partition By Regular Multiple events Conclusion
Conditions Conditions
Expression Start End Account ID Count(Big cash
deposit)
Frequent big cash
deposits
1 last 15 days same > 3 is Derived
6/30/2013 120
Lack of account activity
Row # Context Event Logic
When Partition By Regular Multiple events Conclusion
Conditions Conditions
Expression Start End Account ID Transaction Lack of account activity
1 last 10 days same is Absent is Derived
© 2013, IBM Corporation
Next step – model view
Big cash deposit
______________________________________
- - - - - - - - - - - - - -
transaction cash deposit indicator
transaction amount
(customer threshold)
______________________________________
Always Customer ID
Frequent big cash deposits
______________________________________
Big cash deposit
- - - - - - - - - - - - - -
______________________________________
Last 10 days Account ID
Frequent deposits followed by transfers abroad
______________________________________________
Deposit followed by transfer abroad
- - - - - - - - - - - - - -
_________________________________________
Last 30 days Account ID
Lack of account activity
___________________________________________
- - - - - - - - - - - - - -
Transaction is absent
___________________________________________
Last 10 days Account ID
Suspicious account
________________________________________________
Frequent big cash deposits
Frequent deposits followed by transfers abroad
Lack of account activity
- - - - - - - - - - - - - -
________________________________________________
Always Account ID
Derive Suspicious
account
Deposit followed by transfer abroad
______________________________________
Big cash deposit
- - - - - - - - - - - - - -
Transfer abroad
___________________________________________
deposit
occurrence Account ID
Bank
transaction
system
Transaction
Transfer
abroad
Transaction
Compliance
officer
6/30/2013 121
Concepts of
Facts
Actors
Events
States
Event Derivation
Logic Transitions
GoalsIT elements
Glossary Logic
Computation
Logic
6/30/2013 122
© 2013, IBM Corporation
Summary of topic V:
Systematic approach in an enterprise based on ROI and
maturity models -the business world is not interested in
technology but in business outcomes
Business user oriented modeling as a key solution point
Next we’ll present basic ideas about computing
independent model
6/30/2013 123
Topic VI – Summary
© 2013, IBM Corporation
What is the main take away from this tutorial – 1/3?
6/30/2013 125
The exploitation of events is a game changer in the
universe
In the business level – it is not well understood how to
think in events and how to utilize events
In the IT level – most of what can be functionally
thought as event processing is implemented using the
traditional thinking within application code
© 2013, IBM Corporation
An event-driven system consists of the 4D architecture
Latency reduction is the key to business velocity
6/30/2013 126
What is the main take away from this tutorial – 2/3?
The ontology of event-based systems is based on
awareness to events – either directly or by derivation
from another events
© 2013, IBM Corporation
Systematic approach in an enterprise based on ROI and
maturity models -the business world is not interested in
technology but in business outcomes
Business user oriented modeling as a key solution point
6/30/2013 127
What is the main take away from this tutorial – 3/3?
Next step: help the organizations help themselves with
realizing the benefits of events
© 2013, IBM Corporation6/30/2013 128
© 2013, IBM Corporation
Presenters
Opher Etzion Jeff Adkins
IBM Research
Haifa, Israel
opher@il.ibm.com
IBM GBS
Washington, DC
jmadkins@us.ibm.com
Thanks for
listening

More Related Content

Similar to Debs 2013 tutorial : Why is event-driven thinking different from traditional thinking

Business Mashups, or Mashup Business?
Business Mashups, or Mashup Business?Business Mashups, or Mashup Business?
Business Mashups, or Mashup Business?
guestc65425

Digital transformation and the role of cloud computing Capgemini Mark Skilt...
Digital transformation and the role of cloud computing   Capgemini Mark Skilt...Digital transformation and the role of cloud computing   Capgemini Mark Skilt...
Digital transformation and the role of cloud computing Capgemini Mark Skilt...
Mark Skilton

AIIM White Paper: Case Management and Smart Applications
AIIM White Paper: Case Management and Smart ApplicationsAIIM White Paper: Case Management and Smart Applications
AIIM White Paper: Case Management and Smart Applications
Swiss Post Solutions

SPS Abu Dhabi Communicating The Business Value of SharePoint
SPS Abu Dhabi Communicating The Business Value of SharePointSPS Abu Dhabi Communicating The Business Value of SharePoint
SPS Abu Dhabi Communicating The Business Value of SharePoint
Naomi Moneypenny

Assessment 3 - Project Report _Template (2).docx
Assessment 3 - Project Report _Template (2).docxAssessment 3 - Project Report _Template (2).docx
Assessment 3 - Project Report _Template (2).docx
LankaniPerera

Webinar for Apr 2019 - AI Powered Insurer
Webinar for Apr 2019 - AI Powered InsurerWebinar for Apr 2019 - AI Powered Insurer
Webinar for Apr 2019 - AI Powered Insurer
The Digital Insurer

Introduction to Business Process Management
Introduction to Business Process ManagementIntroduction to Business Process Management
Introduction to Business Process Management
Mustafa Jarrar

How To Integrate Business Risk & IT Risk
How To Integrate Business Risk & IT Risk How To Integrate Business Risk & IT Risk
How To Integrate Business Risk & IT Risk
SureCloud

The path to self-disruption
The path to self-disruptionThe path to self-disruption
The path to self-disruption
The Economist Media Businesses

Big data trendsdirections nimführ.ppt
Big data trendsdirections nimführ.pptBig data trendsdirections nimführ.ppt
Big data trendsdirections nimführ.ppt
Aravindharamanan S

Bimodal IT - Mode 2 Evolution Roadmap v12
Bimodal IT - Mode 2 Evolution Roadmap v12Bimodal IT - Mode 2 Evolution Roadmap v12
Bimodal IT - Mode 2 Evolution Roadmap v12
Janusz Stankiewicz

Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...
Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...
Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...
Hamid Motahari

Analytics, Insight, Action
Analytics, Insight, ActionAnalytics, Insight, Action
Analytics, Insight, Action
DisclosureNet

Operationalizing the Buzz: Big Data 2013
Operationalizing the Buzz: Big Data 2013Operationalizing the Buzz: Big Data 2013
Operationalizing the Buzz: Big Data 2013
VMware Tanzu

Brace Yourselves Because The Internet of Things Is Coming
Brace Yourselves Because The Internet of Things Is ComingBrace Yourselves Because The Internet of Things Is Coming
Brace Yourselves Because The Internet of Things Is Coming
Cherwell Software

How Insurers Can Tame Data to Drive Innovation
How Insurers Can Tame Data to Drive InnovationHow Insurers Can Tame Data to Drive Innovation
How Insurers Can Tame Data to Drive Innovation
Cognizant

I-Factor Sanjib Sahoo Techweek 2014 Presentation
I-Factor Sanjib Sahoo Techweek 2014 PresentationI-Factor Sanjib Sahoo Techweek 2014 Presentation
I-Factor Sanjib Sahoo Techweek 2014 Presentation
tradeMONSTER

Preview: 3 Steps to Monitoring in a Connected Enterprise
Preview: 3 Steps to Monitoring in a Connected Enterprise Preview: 3 Steps to Monitoring in a Connected Enterprise
Preview: 3 Steps to Monitoring in a Connected Enterprise
xMatters Inc

The Path to Self-Disruption
The Path to Self-DisruptionThe Path to Self-Disruption
A Business-Driven Approach to Mobile Enterprise Security
A Business-Driven Approach to Mobile Enterprise SecurityA Business-Driven Approach to Mobile Enterprise Security
A Business-Driven Approach to Mobile Enterprise Security
Транслируем.бел


Similar to Debs 2013 tutorial : Why is event-driven thinking different from traditional thinking (20)

Business Mashups, or Mashup Business?
Business Mashups, or Mashup Business?Business Mashups, or Mashup Business?
Business Mashups, or Mashup Business?

Digital transformation and the role of cloud computing Capgemini Mark Skilt...
Digital transformation and the role of cloud computing   Capgemini Mark Skilt...Digital transformation and the role of cloud computing   Capgemini Mark Skilt...
Digital transformation and the role of cloud computing Capgemini Mark Skilt...

AIIM White Paper: Case Management and Smart Applications
AIIM White Paper: Case Management and Smart ApplicationsAIIM White Paper: Case Management and Smart Applications
AIIM White Paper: Case Management and Smart Applications

SPS Abu Dhabi Communicating The Business Value of SharePoint
SPS Abu Dhabi Communicating The Business Value of SharePointSPS Abu Dhabi Communicating The Business Value of SharePoint
SPS Abu Dhabi Communicating The Business Value of SharePoint

Assessment 3 - Project Report _Template (2).docx
Assessment 3 - Project Report _Template (2).docxAssessment 3 - Project Report _Template (2).docx
Assessment 3 - Project Report _Template (2).docx

Webinar for Apr 2019 - AI Powered Insurer
Webinar for Apr 2019 - AI Powered InsurerWebinar for Apr 2019 - AI Powered Insurer
Webinar for Apr 2019 - AI Powered Insurer

Introduction to Business Process Management
Introduction to Business Process ManagementIntroduction to Business Process Management
Introduction to Business Process Management

How To Integrate Business Risk & IT Risk
How To Integrate Business Risk & IT Risk How To Integrate Business Risk & IT Risk
How To Integrate Business Risk & IT Risk

The path to self-disruption
The path to self-disruptionThe path to self-disruption
The path to self-disruption

Big data trendsdirections nimführ.ppt
Big data trendsdirections nimführ.pptBig data trendsdirections nimführ.ppt
Big data trendsdirections nimführ.ppt

Bimodal IT - Mode 2 Evolution Roadmap v12
Bimodal IT - Mode 2 Evolution Roadmap v12Bimodal IT - Mode 2 Evolution Roadmap v12
Bimodal IT - Mode 2 Evolution Roadmap v12

Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...
Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...
Towards Cognitive BPM as a Platform for Smart Process Support over Unstructur...

Analytics, Insight, Action
Analytics, Insight, ActionAnalytics, Insight, Action
Analytics, Insight, Action

Operationalizing the Buzz: Big Data 2013
Operationalizing the Buzz: Big Data 2013Operationalizing the Buzz: Big Data 2013
Operationalizing the Buzz: Big Data 2013

Brace Yourselves Because The Internet of Things Is Coming
Brace Yourselves Because The Internet of Things Is ComingBrace Yourselves Because The Internet of Things Is Coming
Brace Yourselves Because The Internet of Things Is Coming

How Insurers Can Tame Data to Drive Innovation
How Insurers Can Tame Data to Drive InnovationHow Insurers Can Tame Data to Drive Innovation
How Insurers Can Tame Data to Drive Innovation

I-Factor Sanjib Sahoo Techweek 2014 Presentation
I-Factor Sanjib Sahoo Techweek 2014 PresentationI-Factor Sanjib Sahoo Techweek 2014 Presentation
I-Factor Sanjib Sahoo Techweek 2014 Presentation

Preview: 3 Steps to Monitoring in a Connected Enterprise
Preview: 3 Steps to Monitoring in a Connected Enterprise Preview: 3 Steps to Monitoring in a Connected Enterprise
Preview: 3 Steps to Monitoring in a Connected Enterprise

The Path to Self-Disruption
The Path to Self-DisruptionThe Path to Self-Disruption
The Path to Self-Disruption

A Business-Driven Approach to Mobile Enterprise Security
A Business-Driven Approach to Mobile Enterprise SecurityA Business-Driven Approach to Mobile Enterprise Security
A Business-Driven Approach to Mobile Enterprise Security


More from Opher Etzion

DEBS 2019 tutorial : correctness and consistency of event-based systems
DEBS 2019 tutorial  : correctness and consistency of event-based systems DEBS 2019 tutorial  : correctness and consistency of event-based systems
DEBS 2019 tutorial : correctness and consistency of event-based systems
Opher Etzion

Sw architectures 2018 on microservices and eda
Sw architectures 2018    on microservices and edaSw architectures 2018    on microservices and eda
Sw architectures 2018 on microservices and eda
Opher Etzion

ER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmas
ER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmasER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmas
ER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmas
Opher Etzion

Event processing within the human body - Tutorial
Event processing within the human body - Tutorial Event processing within the human body - Tutorial
Event processing within the human body - Tutorial
Opher Etzion

DEBS 2015 tutorial When Artificial Intelligence meets the Internet of Things
DEBS 2015 tutorial   When Artificial Intelligence meets the Internet of ThingsDEBS 2015 tutorial   When Artificial Intelligence meets the Internet of Things
DEBS 2015 tutorial When Artificial Intelligence meets the Internet of Things
Opher Etzion

Dynamic stories
Dynamic storiesDynamic stories
Dynamic stories
Opher Etzion

Has Internet of Things really happened?
Has Internet of Things really happened? Has Internet of Things really happened?
Has Internet of Things really happened?
Opher Etzion

On the personalization of event-based systems
On the personalization of event-based systems On the personalization of event-based systems
On the personalization of event-based systems
Opher Etzion

On Internet of Everything and Personalization. Talk in INTEROP 2014
On Internet of Everything and Personalization. Talk in INTEROP 2014On Internet of Everything and Personalization. Talk in INTEROP 2014
On Internet of Everything and Personalization. Talk in INTEROP 2014
Opher Etzion

Introduction to the institute of technological empowerment
Introduction to the institute of technological empowermentIntroduction to the institute of technological empowerment
Introduction to the institute of technological empowerment
Opher Etzion

DEBS 2014 tutorial on the Internet of Everything.
DEBS 2014 tutorial  on the Internet of Everything. DEBS 2014 tutorial  on the Internet of Everything.
DEBS 2014 tutorial on the Internet of Everything.
Opher Etzion

The Internet of Things and some introduction to the Technological Empowerment...
The Internet of Things and some introduction to the Technological Empowerment...The Internet of Things and some introduction to the Technological Empowerment...
The Internet of Things and some introduction to the Technological Empowerment...
Opher Etzion

Event semantics and model - multimedia events workshop
Event semantics and model -  multimedia events workshopEvent semantics and model -  multimedia events workshop
Event semantics and model - multimedia events workshop
Opher Etzion

Debs 2012 gong show immortality
Debs 2012 gong show immortalityDebs 2012 gong show immortality
Debs 2012 gong show immortality
Opher Etzion

Debs 2012 basic proactive
Debs 2012 basic proactiveDebs 2012 basic proactive
Debs 2012 basic proactive
Opher Etzion

Debs 2012 uncertainty tutorial
Debs 2012 uncertainty tutorialDebs 2012 uncertainty tutorial
Debs 2012 uncertainty tutorial
Opher Etzion

Proactive eth talk
Proactive eth talkProactive eth talk
Proactive eth talk
Opher Etzion

Aaai 2011 event processing tutorial
Aaai 2011 event processing tutorialAaai 2011 event processing tutorial
Aaai 2011 event processing tutorial
Opher Etzion

Debs 2011 pattern rewritingforeventprocessingoptimization
Debs 2011  pattern rewritingforeventprocessingoptimizationDebs 2011  pattern rewritingforeventprocessingoptimization
Debs 2011 pattern rewritingforeventprocessingoptimization
Opher Etzion

Debs 2011 tutorial on non functional properties of event processing
Debs 2011 tutorial  on non functional properties of event processingDebs 2011 tutorial  on non functional properties of event processing
Debs 2011 tutorial on non functional properties of event processing
Opher Etzion


More from Opher Etzion (20)

DEBS 2019 tutorial : correctness and consistency of event-based systems
DEBS 2019 tutorial  : correctness and consistency of event-based systems DEBS 2019 tutorial  : correctness and consistency of event-based systems
DEBS 2019 tutorial : correctness and consistency of event-based systems

Sw architectures 2018 on microservices and eda
Sw architectures 2018    on microservices and edaSw architectures 2018    on microservices and eda
Sw architectures 2018 on microservices and eda

ER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmas
ER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmasER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmas
ER 2017 tutorial - On Paradoxes, Autonomous Systems and dilemmas

Event processing within the human body - Tutorial
Event processing within the human body - Tutorial Event processing within the human body - Tutorial
Event processing within the human body - Tutorial

DEBS 2015 tutorial When Artificial Intelligence meets the Internet of Things
DEBS 2015 tutorial   When Artificial Intelligence meets the Internet of ThingsDEBS 2015 tutorial   When Artificial Intelligence meets the Internet of Things
DEBS 2015 tutorial When Artificial Intelligence meets the Internet of Things

Dynamic stories
Dynamic storiesDynamic stories
Dynamic stories

Has Internet of Things really happened?
Has Internet of Things really happened? Has Internet of Things really happened?
Has Internet of Things really happened?

On the personalization of event-based systems
On the personalization of event-based systems On the personalization of event-based systems
On the personalization of event-based systems

On Internet of Everything and Personalization. Talk in INTEROP 2014
On Internet of Everything and Personalization. Talk in INTEROP 2014On Internet of Everything and Personalization. Talk in INTEROP 2014
On Internet of Everything and Personalization. Talk in INTEROP 2014

Introduction to the institute of technological empowerment
Introduction to the institute of technological empowermentIntroduction to the institute of technological empowerment
Introduction to the institute of technological empowerment

DEBS 2014 tutorial on the Internet of Everything.
DEBS 2014 tutorial  on the Internet of Everything. DEBS 2014 tutorial  on the Internet of Everything.
DEBS 2014 tutorial on the Internet of Everything.

The Internet of Things and some introduction to the Technological Empowerment...
The Internet of Things and some introduction to the Technological Empowerment...The Internet of Things and some introduction to the Technological Empowerment...
The Internet of Things and some introduction to the Technological Empowerment...

Event semantics and model - multimedia events workshop
Event semantics and model -  multimedia events workshopEvent semantics and model -  multimedia events workshop
Event semantics and model - multimedia events workshop

Debs 2012 gong show immortality
Debs 2012 gong show immortalityDebs 2012 gong show immortality
Debs 2012 gong show immortality

Debs 2012 basic proactive
Debs 2012 basic proactiveDebs 2012 basic proactive
Debs 2012 basic proactive

Debs 2012 uncertainty tutorial
Debs 2012 uncertainty tutorialDebs 2012 uncertainty tutorial
Debs 2012 uncertainty tutorial

Proactive eth talk
Proactive eth talkProactive eth talk
Proactive eth talk

Aaai 2011 event processing tutorial
Aaai 2011 event processing tutorialAaai 2011 event processing tutorial
Aaai 2011 event processing tutorial

Debs 2011 pattern rewritingforeventprocessingoptimization
Debs 2011  pattern rewritingforeventprocessingoptimizationDebs 2011  pattern rewritingforeventprocessingoptimization
Debs 2011 pattern rewritingforeventprocessingoptimization

Debs 2011 tutorial on non functional properties of event processing
Debs 2011 tutorial  on non functional properties of event processingDebs 2011 tutorial  on non functional properties of event processing
Debs 2011 tutorial on non functional properties of event processing


Recently uploaded

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
Anant Gupta

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx
ssuser1915fe1

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview
Steven Carlson

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide
Shiv Technolabs

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology
ldtexsolbl

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
alexjohnson7307

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase
Jimmy Lai

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
maigasapphire

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
SynapseIndia

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris


Recently uploaded (20)

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology

leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...leewayhertz.com-AI agents for healthcare Applications benefits and implementa...
leewayhertz.com-AI agents for healthcare Applications benefits and implementa...

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...


Debs 2013 tutorial : Why is event-driven thinking different from traditional thinking

  • 1. Why is event-driven thinking different from traditional thinking about computing? Presenters: Opher Etzion and Jeffrey Adkins
  • 2. A year ago, Roy Schulte from Gartner published a personal blog entitled “does anybody care about event processing” He admitted that his predictions about the actual size of the event processing market is smaller than predicted His observation is that 95% of the event processing market is not visible since it is home- built and not labeled as EP In this tutorial we will discuss what is event driven thinking and how it is possible to help organizations to help themselves in exploiting events
  • 3. © 2013, IBM Corporation Agenda I Introduction – Brief History of Event Processing in practice II The major differentiation factor of event- based thinking III The Ontology of event and event influence IV Anatomy of reactive systems V Pragmatics : A business oriented approach VI Summary 6/30/2013 3
  • 4. Topic I – Introduction & a brief history of event processing in practice
  • 5. © 2013, IBM Corporation Event Processing History First start-ups Descendents of academic projects Apama acquisition By Progress Around 2000 2007 TIBCO and Oracle announce products Streambase Coral8 2005 EPTS Established Hitting the analysts hype… 2008 IBM Joins 2012 New players: SAS. Yahoo, Twitter 2013 EP at the height of BIG DATA hype Cycle M&A: TIBCO/Streambase Software AG/Apama 6/30/2013 5
  • 6. © 2013, IBM Corporation Events, as “data in motion” is one of the fundamental ingredients in big data: event -driven analytics Event -driven services / making events part of SOA Event-based decision making and event driven Optimization Event -driven processing as a backbone of next generation systems: event-based robotic, autonomic vehicles, human enhancement technology… Where are event used today? Virtually everywhere 6/30/2013 6
  • 7. © 2013, IBM Corporation Event Processing in 2013 There is now an accelerated development of new event-based systems – many of the current trends in computing are event-driven Internet of Things 6/30/2013 7
  • 8. © 2013, IBM Corporation Relatively new players in event and stream processing Storm S4 Google Intelligent events IFTTT ON {X} 6/30/2013 8
  • 9. © 2013, IBM Corporation Big Data Hype Cycle 2012 Source: Gartner publication G00235042, July 31, 2012 6/30/2013 9 Event processing Again in the hype Cycle – in different context
  • 10. © 2013, IBM Corporation I want to know about it immediately and react in the best possible way Detect Derive DoDecide Awareness ReactionSituation Event Driven Applications follow the 4D paradigm 6/30/2013 10
  • 11. © 2013, IBM Corporation This is how the event-driven application market looks This is how the current event processing market looks like… Source: Event processing Manifesto manual Build your Own Use COTS New segments Source: Event processing Manifesto 6/30/2013 11
  • 12. © 2013, IBM Corporation EPMM – Event Processing Maturity Model 0: unused 2: implicit 3: islands 4: integrated 1: manual 5: strategic No event awareness Subscription to some events, manual handling Events are stored in databases and are processed as part of process oriented Explicit event processing for some applications as islands; instrumentation and actions are hard coded and sporadic Event processing is integrated with main business processes; instrumentation and actuators are well established Strategic view of event processing across the enterprise 6/30/2013 12
  • 13. © 2013, IBM Corporation Lack of standards: SOA took off only when WS standards were accepted Lack of sufficient awareness and good ROI understanding: Need entry points and methodology about benefits to individuals, enterprises, packaged applications providers. Luck of understanding of what is event-based thinking and how to translate it to implementation Lack of skills – current tools require highly skilled developers to do tricky programming 6/30/2013 13 Barriers for Wider Adoption
  • 14. © 2013, IBM Corporation Major Gap: Products in this area are geared towards IT Developers A comprehensive user survey shows that 84% of the users wish that event rules could be defined by business users There is a gap Current models: Implementation oriented Business analysts oriented Modeling 6/30/2013 14
  • 15. © 2013, IBM Corporation What makes it difficult to express requirements? Develop correct application with the right semantics Observation: A substantial amount of effort is invested today in many of the tools to workaround the inability of the language to easily create correct solutions 6/30/2013 15
  • 16. © 2013, IBM Corporation Some Correctness Topics The right interpretation of language constructs The right order of events The right classification of events to windows 6/30/2013 16
  • 17. © 2013, IBM Corporation A simple scenario to demonstrate complexity – why “native implementation” does not work? Bid scenario- ground rules: 1. All bidders that issued a bid within the validity interval participate in the bid. 2. The highest bid wins. In the case of tie between bids, the first accepted bid wins the auction Race conditions: Between events; Between events and Window start/end 6/30/2013 17
  • 18. © 2013, IBM Corporation A simple scenario to demonstrate complexity – why “native implementation” does not work? Bid scenario- ground rules: 1. All bidders that issued a bid within the validity interval participate in the bid. 2. The highest bid wins. In the case of tie between bids, the first accepted bid wins the auction ===Input Bids=== Bid Start 12:55:00 credit bid id=2,occurrence time=12:55:32,price=4 cash bid id=29,occurrence time=12:55:33,price=4 cash bid id=33,occurrence time=12:55:34,price=3 credit bid id=66,occurrence time=12:55:36,price=4 credit bid id=56,occurrence time=12:55:59,price=5 Bid End 12:56:00 ===Winning Bid=== cash bid id=29,occurrence time=12:55:33,price=4 Trace: Race conditions: Between events; Between events and Window start/end 6/30/2013 18
  • 19. © 2013, IBM Corporation Positively looking: what is the main challenge to resolve in order to accelerate the use of events? 6/30/2013 19 Advancing the technology is always helpful - it is happening, yet it is not the main challenge. Organizations are not interested in technology for technology’s sake alone The next frontier: change the thinking start with the business need and then get to the IT side.
  • 20. © 2013, IBM Corporation Summary of topic I: In the business level – it is not well understood how to think in events and how to utilize events In the application level – the life-cycle of event-based systems require skilled IT developers Next - we explain what is different about event-driven thinking 6/30/2013 20
  • 21. Topic II – the major differentiation of event-based thinking
  • 22. © 2013, IBM Corporation Deposit Transfer abroad A simple example: event-based Anti money Laundering Based on events: Identify suspicious AccountsAn account is suspicious if any of the following patterns are satisfied: 1. Frequent big cash deposit 2. Frequent cases of a big cash deposit followed by transfer abroad 3. Lack of account activity 4. Increasing amounts of deposits 6/30/2013 22 Compliance officer
  • 23. © 2013, IBM Corporation Characteristics of Event-Driven Scenarios Events trigger action Events influence logic for the results There may be multiple events whose combined content influences the results Temporal contexts (15 days) influence the results I want to know about it immediately and react in the best possible way A suspicious account is detected whenever there are at least three big cash deposits followed by transfers abroad in the last 15 days The next section provides an introduction to event processing 6/30/2013 23
  • 24. © 2013, IBM Corporation Traditional Thinking Insert the event into a database; use periodic or on- demand queries to process the events The processing may not be efficient – many of the requests will not yield results The processing may not be effective – the time to react may be missed 6/30/2013 24
  • 25. © 2013, IBM Corporation Process Oriented Thinking (EPMM Level 2) 6/30/2013 25
  • 26. © 2013, IBM Corporation Difficulties in expressing such scenario in traditional thinking The event-driven vs. request-driven nature Effectiveness and Efficiency issues The temporal oriented behavior The hidden state handling 6/30/2013 26
  • 27. © 2013, IBM Corporation Efficiency and effectiveness issues The processing may not be efficient – many of the requests will not yield results The processing may not be effective – the time to react may be missed 6/30/2013 27
  • 28. © 2013, IBM Corporation Request driven vs. event driven thinking 6/30/2013 28
  • 29. © 2013, IBM Corporation In daily life we often react to events.. 6/30/2013 29
  • 30. © 2013, IBM Corporation Traditionally programmers are trained to think in a request driven way Searching the web, database queries, use of web services, use of mobile applications 6/30/2013 30
  • 31. © 2013, IBM Corporation What are the differences in thinking? 6/30/2013 31 Question Response Driven Event Drive Why is an action being taken? As a response to a specific request Triggered by the fact of a specific situation When is an action being taken? When the request is being processed Determined based on the context of the situation What happens when the request / event occurs? A response is always produced The event can be ignored, increment the state, trigger an internal derive event, or trigger a situation
  • 32. © 2013, IBM Corporation Temporal consideration changes everything The logic is sensitive to timing of events A delivery should be confirmed by the deadline The logic is sensitive to the order of events The winner in the bid is the first one who made the highest bid Determination by timing considerations Driver ranking increase and decrease are determined every 20 assignments What?Why? When? 6/30/2013 32
  • 33. © 2013, IBM Corporation Temporal consideration changes everything The logic is sensitive to timing of events A delivery should be confirmed by the deadline The logic is sensitive to the order of events The winner in the bid is the first one who made the highest bid Determination by timing considerations Driver ranking increase and decrease are determined every 20 assignments What?Why? When? In traditional models temporal functions are hand-coded, adding complexity 6/30/2013 33
  • 34. © 2013, IBM Corporation Events during rush hour are of interest, events outside rush hour are not Events that occur or don’t occur relative to a deadline Is the reported problem already solved, or is it still open? 6/30/2013 34 Logic sensitive to the timing of events’ occurrences
  • 35. © 2013, IBM Corporation Who arrived first? Has the bid arrived while the auction was still open? 6/30/2013 35 Logic sensitive to the order of events’ occurrences
  • 36. © 2013, IBM Corporation Determine the status of a patient based on blood pressure measurements: Every 8 measurements Every 5 hours 6/30/2013 36 The nature of situation is determined by timing considerations
  • 37. © 2013, IBM Corporation Event Patterns Pattern “event1 occurs after event2” requires keeping state of all unmatched instances of event1 Handling Hidden State 6/30/2013 37
  • 38. © 2013, IBM Corporation Summary of topic II: In many cases – event driven functionality is expressed using the traditional request-response fashion Fundamental differences exist between the two paradigms, and benefits exist in using event-driven modeling and implementation for certain applications Next – drilling down to the essence of event driven thinking 6/30/2013 38
  • 39. Topic III – The ontology of events and event influence
  • 40. © 2013, IBM Corporation What is an event – three views An event is anything that happens, or is contemplated as happening. The happening view The state change view An event is a state of change of anything The detectable condition view An event is a detectable condition that can trigger a notification 6/30/2013 40
  • 41. © 2013, IBM Corporation Events in Linguistics thinking “Friends, you and me... you brought another friend... and then there were three...” 6/30/2013 41 Events that we want to know, can, and should, be first worked through as done as a sentence.
  • 42. © 2013, IBM Corporation Events in Linguistics thinking 6/30/2013 42 Consider the story and write it down. This captures the essence of the event.
  • 43. © 2013, IBM Corporation43 Ancient Criterion of Change 6/29/2013 An Object, x, changes if and only if i. 𝑡ℎ𝑒𝑟𝑒 𝑖𝑠 𝑎 𝑝𝑟𝑜𝑝𝑒𝑟𝑡𝑦, 𝑃, ii. 𝑡ℎ𝑒𝑟𝑒 𝑖𝑠 𝑎𝑛 𝑜𝑏𝑗𝑒𝑐𝑡, 𝑥, iii. 𝑡ℎ𝑒𝑟𝑒 𝑎𝑟𝑒 𝑑𝑖𝑠𝑡𝑖𝑛𝑐𝑡 𝑡𝑖𝑚𝑒𝑠, 𝑡 𝑎𝑛𝑑 𝑡’ 𝑡 ≠ 𝑡’ , 𝑎𝑛𝑑 iv. that 𝑥 ℎ𝑎𝑠 𝑃 𝑎𝑡 𝑡 𝑎𝑛𝑑 𝑓𝑎𝑖𝑙𝑠 𝑡𝑜 ℎ𝑎𝑣𝑒 𝑃 𝑎𝑡 𝑡’ (Lombard)
  • 44. © 2013, IBM Corporation44 Quality Space 6/29/2013 Quality Spaces are sets (S) of simple, static properties {P1, P2, … Pn} which meet conditions: (i) If at any time, t, any object, x, has 𝑃𝑖 ∈ 𝑆 then (ii) If at any time, t’, x doesn’t have 𝑃𝑖, 𝑖𝑡 𝑤𝑖𝑙𝑙 ℎ𝑎𝑣𝑒 𝑃𝑗 ∈ 𝑆 𝑤ℎ𝑒𝑟𝑒 𝑖 ≠ 𝑗 We call this a Dimension. An object can have multiple dimensions. Could be represented by an ERD, enumeration
  • 45. © 2013, IBM Corporation The Goal It is the MOVEMENT along this quality space that constitutes an event. The Goal: To become aware of these events, so that we may react to them. 6/30/2013 45
  • 46. © 2013, IBM Corporation Awareness Boundary What knowledge is accessible Awareness Boundary The Awareness boundary represents the boundary of an ecosystem’s knowledge of events / situations. This is the knowledge that an ecosystem uses to understand situations, decide on a course of action and perform that course of action. 6/30/2013 46
  • 47. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness There are situations that occur outside of an ecosystem’s awareness boundary to which a reaction inside the ecosystem is warranted. 6/30/2013 47
  • 48. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness Sensors Some situations’ occurrences can be directly detected by sensors or come into an ecosystem through data feeds or some other instrumentation. 6/30/2013 48
  • 49. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness Sensors System is now aware. Once detected, a virtual representation of the situation, called an event, exists within the ecosystem. These event can be used as part of the work of the ecosystem. 6/30/2013 49
  • 50. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness Sensors Because we can’t directly detect it we must derive it Other situations that occur outside our awareness boundary can’t be directly detected, so we have to derive that it occurred. 6/30/2013 50
  • 51. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness Because we can’t directly detect it we derive it These two situations are indicators that the third situation has occurred and since we have knowledge of their occurrence, we can use it to derive the third, non-detectable situation. Indicators Indicators 6/30/2013 51 Indicated
  • 52. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness Derive Mechanism Derive Because we can’t directly detect it we derive it Propose calling relationship between real world event and derived awareness of event a Luckham Relationship There is a relationship between the real world situation’s occurrence and the virtual representation. We propose calling it “a Luckham relationship”. Indicators Indicators 6/30/2013 52 Indicated
  • 53. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness Derive Mechanism Derive There are still other situations that cannot be directly detected nor derived. These situations require a human to observe it and enter it in the system. Indicators Indicators 6/30/2013 53 Indicated
  • 54. © 2013, IBM Corporation Awareness Boundary Situation occur out side awareness Situation occur out side awareness Situation occur out side awareness Situation occur outside of awareness Derive Mechanism Derive This is actually the most common way situations become known. These too should generate an event inside the ecosystem to separate out awareness from reaction. 6/30/2013 54
  • 55. © 2013, IBM Corporation Luckham Relationship These two situations, when occurred together in a pattern, indicated that the situation on top has occurred. Situation of Concern 6/30/2013 55
  • 56. © 2013, IBM Corporation Luckham Relationship There are different criteria of change that may play a part in this pattern indicating the situation on top occurred. Situation of Concern 6/30/2013 56
  • 57. © 2013, IBM Corporation Luckham Relationship This pattern also has a probability associated with it which indicates the confidence that the situation on top occurred. Situation of Concern 6/30/2013 57
  • 58. © 2013, IBM Corporation Luckham Relationship Situation of Concern , , 6/30/2013 58 A particular situation may have more than one pattern that indicates to a certain level of confidence that it has occurred.
  • 59. © 2013, IBM Corporation Object – Nouns of our story 6/30/2013 59 Nouns The things we manipulate, collect, buy, sell, talk with…. It has state and dimensions It has relations with other THINGS
  • 60. © 2013, IBM Corporation All participates in the process. • Actor (hero) is the one who performs the change • Helper assists “hero” • Obstacle inhibits the process. These can help tell about what is happening. Actors – The Hero, The Helper, and The Obstacle 6/30/2013 60
  • 61. © 2013, IBM Corporation Observer – Reports what is seen 6/30/2013 61 Observer is not part of the process There are potentially multiple observers of the same events Observer might have a subjective inaccurate perspective Observers may not be familiar with the context
  • 62. © 2013, IBM Corporation Processes Some Noun of Importance This noun is something we care about 6/30/2013 62 We have some noun / thing that is important to the business and we want to know when it changes.
  • 63. © 2013, IBM Corporation Processes Some Noun of Importance but different A process is needed to alter the noun The noun is altered Process 6/30/2013 63 Some Noun of Importance This noun is something we care about A process consumes that noun and transforms it into something more useful. Transforms
  • 64. © 2013, IBM Corporation Processes Some Noun of Importance but different A process is needed to alter the noun The noun is altered Process 6/30/2013 64 Some Noun of Importance This noun is something we care about When a noun is changed, it gives of indicators that can be sensed. Transforms Gives off indicators of the change
  • 65. © 2013, IBM Corporation Processes Some Noun of Importance but different A process is needed to alter the noun The altered noun. Process 6/30/2013 65 Some Noun of Importance This noun is something we care about An event is created inside the ecosystem that is the logical representation of indicators Transforms Gives off indicators of the change Event “noun has changed” The event is a logical representation of the indicators
  • 66. © 2013, IBM Corporation Process Ownership 666/29/2013 Nature •Seemly Random but patterns emerge •Impact small to momentous/ catastrophic Regulatory •Due Process •Rules by Law & Procedure •Impact significant Competitor •Little visibility until in open market •Actively hiding info •Share Market Space Supply Chain Partner •Visibility to a point •Vested interest in mutual success •Other Customers Self •Own Process •Easy instrumentation •Have Understanding Processes understood And available indicators Processes hidden And opaque indicators Process can be owned by one of the five group below. Which have several characteristics. The spectrum of each shows how much of the process and indicators are available or obscured.
  • 67. © 2013, IBM Corporation Data POV vs. Process POV 676/29/2013 Nature Regulatory Competitor Supply Chain Partner Own Processes Understood And Available indicators Processes hidden And opaque indicates Instrumentation Sensors, Market Intelligence Collectors, Industry Process, Object self-publish, transactions, feeds Tooling Streaming, Big Data, Master data management Processing / Transaction flow D a t a P O V P r o c e s s P O V When processes and indicators are understood and available, we take a Process POV approach. When they are hidden and opaque, we take a data oriented approach.
  • 68. © 2013, IBM Corporation Awareness Engineer 686/29/2013 Nature Regulatory Competitor Supply Chain Partner Own Starting Point 1. Identifying situations, streams / datasets available 2. Determine patterns that indicate situation 3. Iterate over intermediate patterns until you get to raw data/events 1. Identifying process triggers in terms of situation 2. Identify significant nouns, its states and properties 3. Map situation to noun-state change 4. Instrument in processes code significant state changes (detect) 5. For all situations that does not directly map, iterate top-down or bottoms-up until you connect (derive) Data POV Process POV The Awareness Engineer job is to figure out how we become aware. Below are starting points for the awareness engineer based on the Point of View.
  • 69. Awareness of events – what are the main reasons? Business IT Consumers 6/30/2013 69
  • 70. Reaction types Decision first: A decision is needed in order to make reaction; the decision can be simple, or complex (requiring OR methods) Actuators: Automatic activation of actuator Notification in various ways: Activation of process/workflow/task – manual or automatic 6/30/2013 70
  • 71. © 2013, IBM Corporation By 2015, 80% of all available data will be uncertain GlobalDataVolumeinExabytes Multiple sources: IDC,Cisco 100 90 80 70 60 50 40 30 20 10 AggregateUncertainty% 9000 8000 7000 6000 5000 4000 3000 2000 1000 0 2005 2010 2015 Data quality solutions exist for enterprise data like customer, product, and address data, but this is only a fraction of the total enterprise data. By 2015 the number of networked devices will be double the entire global population. All sensor data has uncertainty. The total number of social media accounts exceeds the entire global population. This data is highly uncertain in both its expression and content. 6/30/2013 71
  • 72. © 2013, IBM Corporation Representative sources of uncertainty Uncertain input data/ Events Source Malfunction Thermometer Human error Malicious Source Fake tweet Sensor disrupter Projection of temporal anomalies Wrong hourly sales summary Source Inaccuracy Sampling or approximation Propagation of uncertainty Visual data Rumor Wrong trend Inference based on uncertain value 6/30/2013 72
  • 73. © 2013, IBM Corporation Types of uncertainty in event processing Runtime Engine Definitions Detected Situations Event Sources Run Time Build Time Events Rules / Patterns Situation Detection Authoring Tool Actions incomplete event streams insufficient event dictionary erroneous event recognition inconsistent event annotation imprecise event patterns Uncertainty in the event input, in the composite event pattern, in both 6/30/2013 73
  • 74. © 2013, IBM Corporation Uncertainty handling Two main handling methods: Uncertainty propagation The uncertainty of input events is propagated to the derived events Uncertainty flattening Uncertain values are replaced with deterministic equivalents; events may be ignored. Traditional event processing needs to be enhanced to account for uncertain events 6/30/2013 74
  • 75. © 2013, IBM Corporation Patternmatching: Sequence(1/3) Crime report matching Pattern: Sequence [Suspicious observation, Crime report] Context: Location, Crime type Certainty 0.8 Occurrence time Uni(9:45AM,10:05AM) Id ‘John Doe’ ….. ...... Suspicious Observation Certainty 0.9 Occurrence time 10:02AM Id NA ….. ...... Crime report 6/30/2013 75
  • 76. © 2013, IBM Corporation Crime report matching Pattern: Sequence Context: Location, Crime type Certainty 0.8 Occurrence time Uni(9:45AM,10:05AM) Id ‘John Doe’ ….. ...... Suspicious Observation Certainty 0.9 Occurrence time 10:02AM Id NA ….. ...... Crime report Certainty 0.612 Occurrence time Uni(9:45AM,10:02AM) Id ‘John Doe’ ….. ...... Matched crime obs.certainty * crime.certainty * Prob{obs.time<crime.time} obs.time | obs.time<crime.time The ‘uncertainty propagation’ approach Pattern matching: Sequence (2/3) 6/30/2013 76
  • 77. © 2013, IBM Corporation Crime report matching Pattern: Sequence Context: Location, Crime type Certainty 0.8 Occurrence time Uni(9:45AM,10:05AM) Id ‘John Doe’ ….. ...... Suspicious Observation Certainty 0.9 Occurrence time 10:02AM Id NA ….. ...... Crime report Certainty 0.72 Occurrence time 9:55AM Id ‘John Doe’ ….. ...... Matched crime Occurrence time → percentile(occurrence time, 0.5) The ‘uncertainty flattening’ approach Pattern matching: Sequence (3/3) 6/30/2013 77
  • 78. © 2013, IBM Corporation Summary of topic III: The ontology of event-based systems is based on awareness of events – either directly or by derivation from other events The awareness is enabler for reactions Next - we describe the anatomy of event-based systems 6/30/2013 78
  • 79. Topic IV – Anatomy of reactive systems
  • 80. © 2013, IBM Corporation Two separate but connected goals: Awareness and Reaction Awareness Reaction Event Detect Derive Decide Do 6/30/2013 80
  • 81. © 2013, IBM Corporation Reactions are Events too Becoming aware of an event and then doing something about it. Derive Mechanisms Single Event Multiple Events Ancillary Info May need multiple iterations May require addition reference / state information Something we want to react to A Situation Detect Mechanism Feedback Events Decide Mechanism Do Mechanism Event of Interest Order Should be indicating Entity State Change Should be indicating Decisions Derived Event Trigger 6/30/2013 81
  • 82. © 2013, IBM Corporation Detect Some Noun of Importance but different The act of bringing into a system’s sphere of understanding knowledge about an event. A person recognizes the change and enters it into some system. This is the classic case! This is the most flexible because humans are ingenious. 6/30/2013 82
  • 83. © 2013, IBM Corporation Detect Some Noun of Importance but different The act of bringing into a system’s sphere of understanding knowledge about an event. A sensor senses the indicators and creates the corresponding event in the system. 6/30/2013 83
  • 84. © 2013, IBM Corporation Detect Some Noun of Importance but different The act of bringing into a system’s sphere of understanding knowledge about an event. A data feed or systemic interface allows events to be published into the system. 6/30/2013 84
  • 85. © 2013, IBM Corporation Detect Some Noun of Importance but different The act of bringing into a system’s sphere of understanding knowledge about an event. SwimLane TriggerEvent Activity State Change When the processes under the system’s control makes changes to nouns it should published these changes as events. 6/30/2013 85
  • 86. © 2013, IBM Corporation Detect Some Noun of Importance but different The act of bringing into a system’s sphere of understanding knowledge about an event. SwimLane TriggerEvent Activity State Change As connected things are becoming more self-aware of their inner- workings, they can publish their own state changes. 6/30/2013 86
  • 87. © 2013, IBM Corporation Derive The act of becoming aware of events that are not directly detectable by bringing together events with other events, data, patterns and publishing the observation as a derived event. Raw events Raw events Raw events A Person recognizes the pattern and enters the derived event or just reacts to it directly. Shown a lot of time by dashboards and analysis. 6/30/2013 87
  • 88. © 2013, IBM Corporation Derive The act of becoming aware of events that are not directly detectable by bringing together events with other events, data, patterns and publishing the observation as a derived event. Raw events Raw events Raw events A Neural network processes the various inputs and determines a new situation expressed by a derived event. 6/30/2013 88
  • 89. © 2013, IBM Corporation Derive The act of becoming aware of events that are not directly detectable by bringing together events with other events, data, patterns and publishing the observation as a derived event. Raw events Raw events Raw events A software applies pattern matching over multiple events and data to find derived events. 6/30/2013 89
  • 90. © 2013, IBM Corporation Derive The act of becoming aware of events that are not directly detectable by bringing together events with other events, data, patterns and publishing the observation as a derived event. Raw events Raw events Raw events The most common place is hidden inside of every day system’s code. 6/30/2013 90
  • 91. © 2013, IBM Corporation Decide The act of determining the course of action to do in response to the situation. This includes the background information needed to be collected to make the decision. Pass through: Sometimes there is no decision. There is only one course of action. 6/30/2013 91
  • 92. © 2013, IBM Corporation Decide The act of determining the course of action to do in response to the situation. This includes the background information needed to be collected to make the decision. Manual Decision: Many times the ecosystem asks a person to decide the course of take. 6/30/2013 92
  • 93. © 2013, IBM Corporation Decide The act of determining the course of action to do in response to the situation. This includes the background information needed to be collected to make the decision. Automated Decision: Algorithmic decision via a decision management system. 6/30/2013 93
  • 94. © 2013, IBM Corporation Decide The act of determining the course of action to do in response to the situation. This includes the background information needed to be collected to make the decision. Automated Goal Oriented: Algorithmic decision via a decision management system that seeks a optimizing quantitative goals. 6/30/2013 94
  • 95. © 2013, IBM Corporation Do The act of performing the course of action that was decided upon. Notification: Sending a signal of sort to either a person or system. This would include calling a web-service or subscription to alerts. 6/30/2013 95
  • 96. © 2013, IBM Corporation Do The act of performing the course of action that was decided upon. Manual Action: This is an order for a human to go do an action. 6/30/2013 96
  • 97. © 2013, IBM Corporation Do The act of performing the course of action that was decided upon. Applying Actuator: cause a action or setting change on an actuator. 6/30/2013 97
  • 98. © 2013, IBM Corporation Do The act of performing the course of action that was decided upon. Trigger process: Execute a process or potential a single action. 6/30/2013 98
  • 99. © 2013, IBM Corporation Richard Hackathorn’s Response Time Latency Value in terms of Competitiveness decreases 6/30/2013 99 Source: Richard Hackathorn – Active data warehouse, from nice to necessary, Teradata Magazine, 2006
  • 100. © 2013, IBM Corporation 4D Version of Response Time Latency Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act 6/30/2013 100 Converting Richard Hackathorn’s flow to the 4D Prospective.
  • 101. © 2013, IBM Corporation Detect Latency Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act 6/30/2013 101 The time it takes for a ecosystem to detect either the business event or indicators that can be used derive the event.
  • 102. © 2013, IBM Corporation Derive Latency 6/30/2013 102 Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act The time necessary to combine the indicators, events, ancillary data or human analysis to derive situations that can’t be directly detected.
  • 103. © 2013, IBM Corporation Decide Queue Latency 6/30/2013 103 Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act The time waiting for someone (manual decisions) or something (automated decisions) to make a decision.
  • 104. © 2013, IBM Corporation Decide Act Latency 6/30/2013 104 Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act The time it takes to decide the course of action in reaction to the situation.
  • 105. © 2013, IBM Corporation Do Queue Latency 6/30/2013 105 Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act The time waiting for someone (human actor) or something (machine actor) to start executing or orchestrating the course of action.
  • 106. © 2013, IBM Corporation Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act Do Act latency 6/30/2013 106 The time it takes to execute the course of action.
  • 107. © 2013, IBM Corporation 4D Version of Response Time Latency Value Investment Value Realization 6/30/2013 107 Until the course of action is completed, everything is a value investment. After the course of action is completed, value can be realized. Business Event Detected Derived Decide Started Decide Completed Do Started Do Completed Value Time Detect Latency Derive Latency Decide latency Do latency Queue ActQueue Act
  • 108. © 2013, IBM Corporation Business velocity – a key competitive edge 6/30/2013 108
  • 109. © 2013, IBM Corporation Summary of topic IV: An event-driven system consists of the 4D architecture Latency reduction is the key to business velocity Next we’ll present basic ideas about the business oriented approach 6/30/2013 109
  • 110. Topic V – pragmatics – a computational independent model for event-based systems
  • 111. © 2013, IBM Corporation ROI Business Goals Application characteristics Current state in the maturity model Approaching Event Processing in an Enterprise 6/30/2013 111
  • 112. © 2013, IBM Corporation Business Predictability Enable the support of event-driven adaptive business processes Business Agility Business Optimization Make faster and better (manual or autonomic) decisions based on timely multi-source information; ROI Business Goals Application characteristics operational support proactively seeking and adapting to patterns that might indicate an emerging event (threats and opportunities) Increasing level of automation and thus increase productivity (e.g. of back office) and reduce cost Continuous audit ensures timely handling of violations. Quantify the impact of: Compliance with Regulation Business Velocity Increase business velocity by faster response to opportunities and early detection of threats Calculating the benefits of event processing 6/30/2013 112
  • 113. © 2013, IBM Corporation Situation awareness Enables the business logic to be context sensitive Context sensitive Real-time dissemination Taking advantage of information whose value decreases in time. ROI Business Goals Application characteristics Fast change The application includes sense and respond to events, and situation awareness is key requirement Enables fast deployment of new versions when the business logic dynamically changes Situation determination complexity Complexity stems from one or more of: event rate, quantity of event sources, state and context handling, event order sensitivity.. Quantify the level of relevance to each candidate application: Return on Investment 6/30/2013 113
  • 114. © 2013, IBM Corporation EPMM: Event Processing Maturity Model (IT View) 0: unused 3: islands 4: integrated 1: manual 5: strategic No event awareness Subscription to some events, manual handling Events are stored in databases and are processed as part of process oriented Explicit event processing for some applications as islands ; instrumentation and actions are hard coded and sporadic Event processing is integrated with main business processes; instrumentation and actuators are well established Strategic view of event processing cross the enterprise 2: implicit 6/30/2013 114
  • 115. © 2013, IBM Corporation Next Step: Develop Multi-Step Method to Select Entry Points Improve Business Agility Improve Business Optimization Select Goals Prioritize Goals 1 Improve Business Agility 2 Improve Business Optimization Analyze the possible entry point Applications based on their characteristics Select applications that best fit these goals Produce plan of action Based on the maturity model By entry point, map both satisfaction of business goals and fitness characteristics for best ROI. Liquidity Management Anti Money Laundering . . . 6/30/2013 115
  • 116. © 2013, IBM Corporation Vision: Shift Governance from Programmer to Knowledge Worker Governance occurs through development and maintenance of program code. Governance occurs through development and maintenance of event models. TODAY TOMORROW CODE LEVEL 6/30/2013 116
  • 117. © 2013, IBM Corporation Process Oriented View 6/30/2013 117
  • 118. © 2013, IBM Corporation Next step – event processing language (ESPER) // Big cash deposit insert into BigCashDeposit select * from Transaction where amount > 100,000 and transaction_cash_deposit_indicator =’Y’ // Frequent (At least three) big cash deposits create context AccountID partition by accountId on Transaction; Context AccountID Insert into FrequentBigCashDeposits select count(*) from BigCashDeposit having count(*)>3; // Transfer abroad insert into TransferAbroad select * from Transaction where transferabroad_indicator =’Y’ // Frequent cash deposits followed by transfer abroad Context AccountID insert into SuspiciousAccount select * from pattern [ every f=FrequentCashDeposit -> t=TransferAbroad where timer.within(15 days)] 6/30/2013 118
  • 119. © 2013, IBM Corporation Modeling according to the concept computing principles The application logic should be expressed by a semantically declarative, directly executable, implementation independent, and rigorously structured knowledge model Knowledge Model Automatic translation to code in regular or specific engine language Free of implementation assumptions Rigorous verifiable structure with all connections Represented as a collection of tables The term was coined by Mills Davis in 2012 6/30/2013 119
  • 120. © 2013, IBM Corporation TEM Logic Specification Frequent big cash deposits Row # Context Event Logic When Partition By Regular Multiple events Conclusion Conditions Conditions Expression Start End Account ID Count(Big cash deposit) Frequent big cash deposits 1 last 15 days same > 3 is Derived 6/30/2013 120 Lack of account activity Row # Context Event Logic When Partition By Regular Multiple events Conclusion Conditions Conditions Expression Start End Account ID Transaction Lack of account activity 1 last 10 days same is Absent is Derived
  • 121. © 2013, IBM Corporation Next step – model view Big cash deposit ______________________________________ - - - - - - - - - - - - - - transaction cash deposit indicator transaction amount (customer threshold) ______________________________________ Always Customer ID Frequent big cash deposits ______________________________________ Big cash deposit - - - - - - - - - - - - - - ______________________________________ Last 10 days Account ID Frequent deposits followed by transfers abroad ______________________________________________ Deposit followed by transfer abroad - - - - - - - - - - - - - - _________________________________________ Last 30 days Account ID Lack of account activity ___________________________________________ - - - - - - - - - - - - - - Transaction is absent ___________________________________________ Last 10 days Account ID Suspicious account ________________________________________________ Frequent big cash deposits Frequent deposits followed by transfers abroad Lack of account activity - - - - - - - - - - - - - - ________________________________________________ Always Account ID Derive Suspicious account Deposit followed by transfer abroad ______________________________________ Big cash deposit - - - - - - - - - - - - - - Transfer abroad ___________________________________________ deposit occurrence Account ID Bank transaction system Transaction Transfer abroad Transaction Compliance officer 6/30/2013 121
  • 122. Concepts of Facts Actors Events States Event Derivation Logic Transitions GoalsIT elements Glossary Logic Computation Logic 6/30/2013 122
  • 123. © 2013, IBM Corporation Summary of topic V: Systematic approach in an enterprise based on ROI and maturity models -the business world is not interested in technology but in business outcomes Business user oriented modeling as a key solution point Next we’ll present basic ideas about computing independent model 6/30/2013 123
  • 124. Topic VI – Summary
  • 125. © 2013, IBM Corporation What is the main take away from this tutorial – 1/3? 6/30/2013 125 The exploitation of events is a game changer in the universe In the business level – it is not well understood how to think in events and how to utilize events In the IT level – most of what can be functionally thought as event processing is implemented using the traditional thinking within application code
  • 126. © 2013, IBM Corporation An event-driven system consists of the 4D architecture Latency reduction is the key to business velocity 6/30/2013 126 What is the main take away from this tutorial – 2/3? The ontology of event-based systems is based on awareness to events – either directly or by derivation from another events
  • 127. © 2013, IBM Corporation Systematic approach in an enterprise based on ROI and maturity models -the business world is not interested in technology but in business outcomes Business user oriented modeling as a key solution point 6/30/2013 127 What is the main take away from this tutorial – 3/3? Next step: help the organizations help themselves with realizing the benefits of events
  • 128. © 2013, IBM Corporation6/30/2013 128
  • 129. © 2013, IBM Corporation Presenters Opher Etzion Jeff Adkins IBM Research Haifa, Israel opher@il.ibm.com IBM GBS Washington, DC jmadkins@us.ibm.com Thanks for listening
