The document describes Dawn, a lightweight dependency injection and notification library for ActionScript. Some key points: 1. Dawn uses type-safe dependency injection to construct object graphs, eliminating the need for manual construction and allowing flexible configuration. 2. The notification system in Dawn is based on event types rather than strings, avoiding collisions and allowing full use of polymorphism. Notifications can be handled via closure callbacks. 3. Dawn includes a simple command pattern implementation where commands are configured via types rather than strings, maintaining type safety. Commands are injectable and centrally managed.

1. Dawn
standing on the shoulders of giants

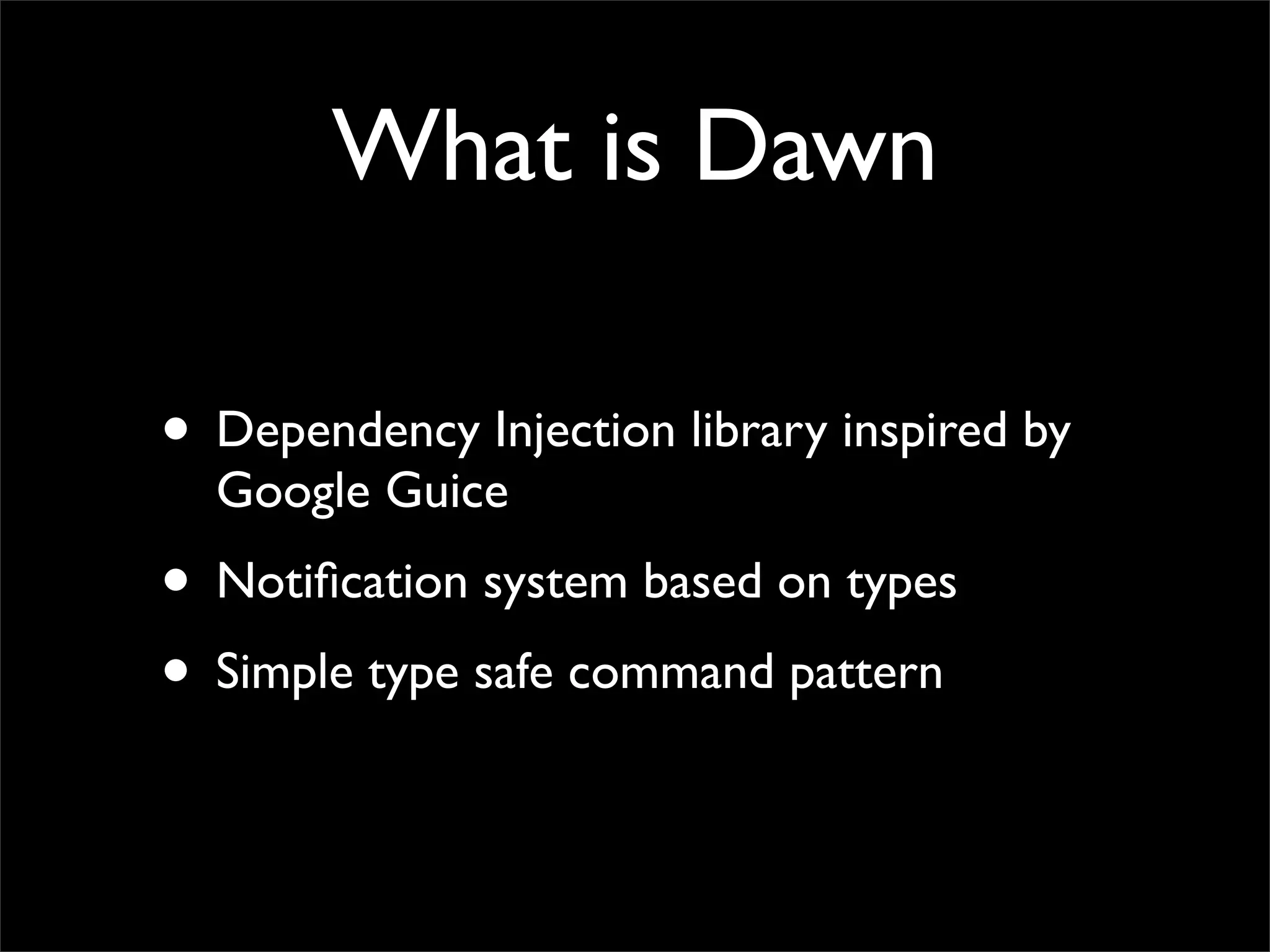

2. What is Dawn
• Dependency Injection library inspired by
Google Guice
• Notification system based on types
• Simple type safe command pattern

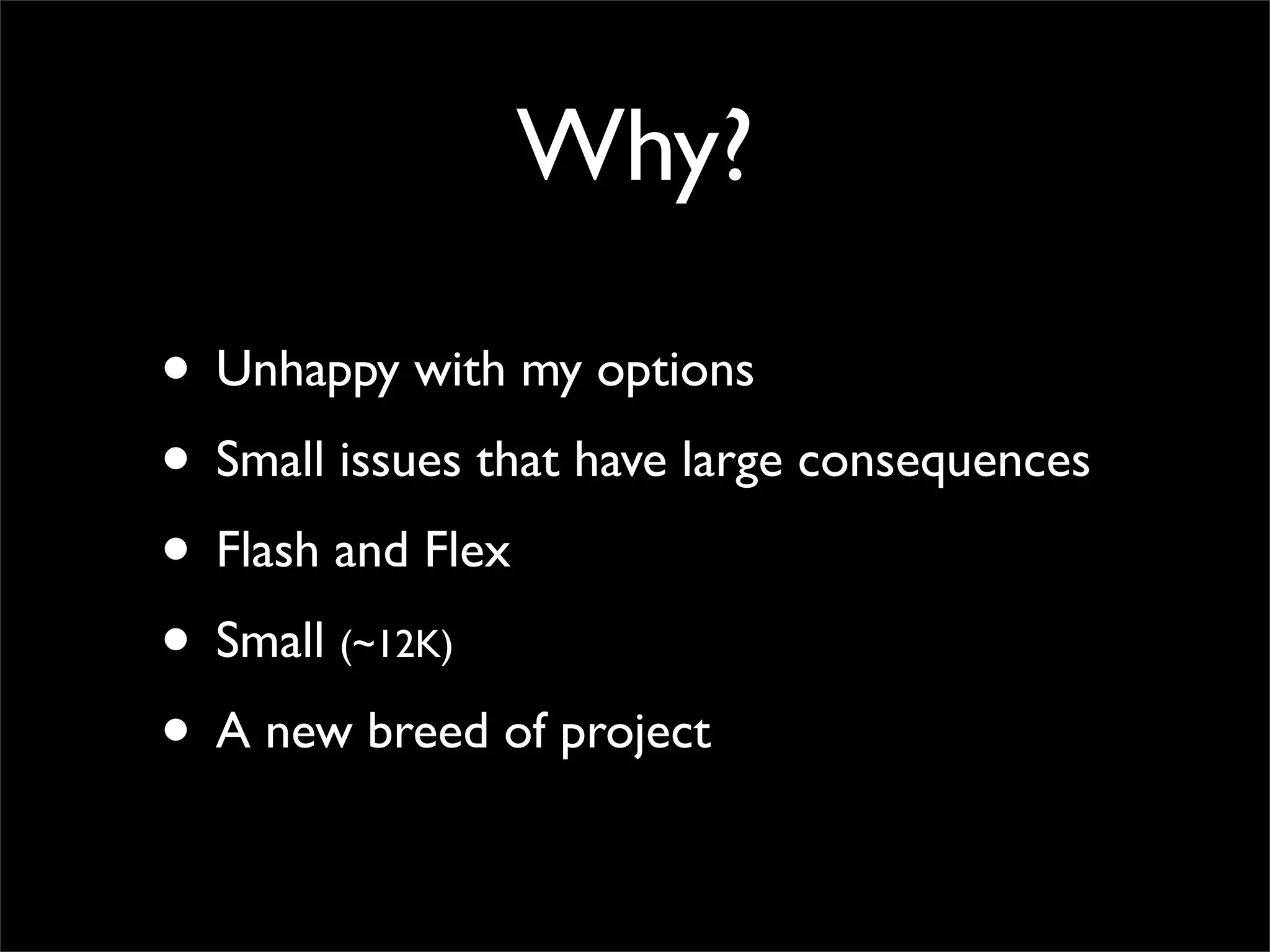

3. Why?
• Unhappy with my options
• Small issues that have large consequences
• Flash and Flex
• Small (~12K)
• A new breed of project

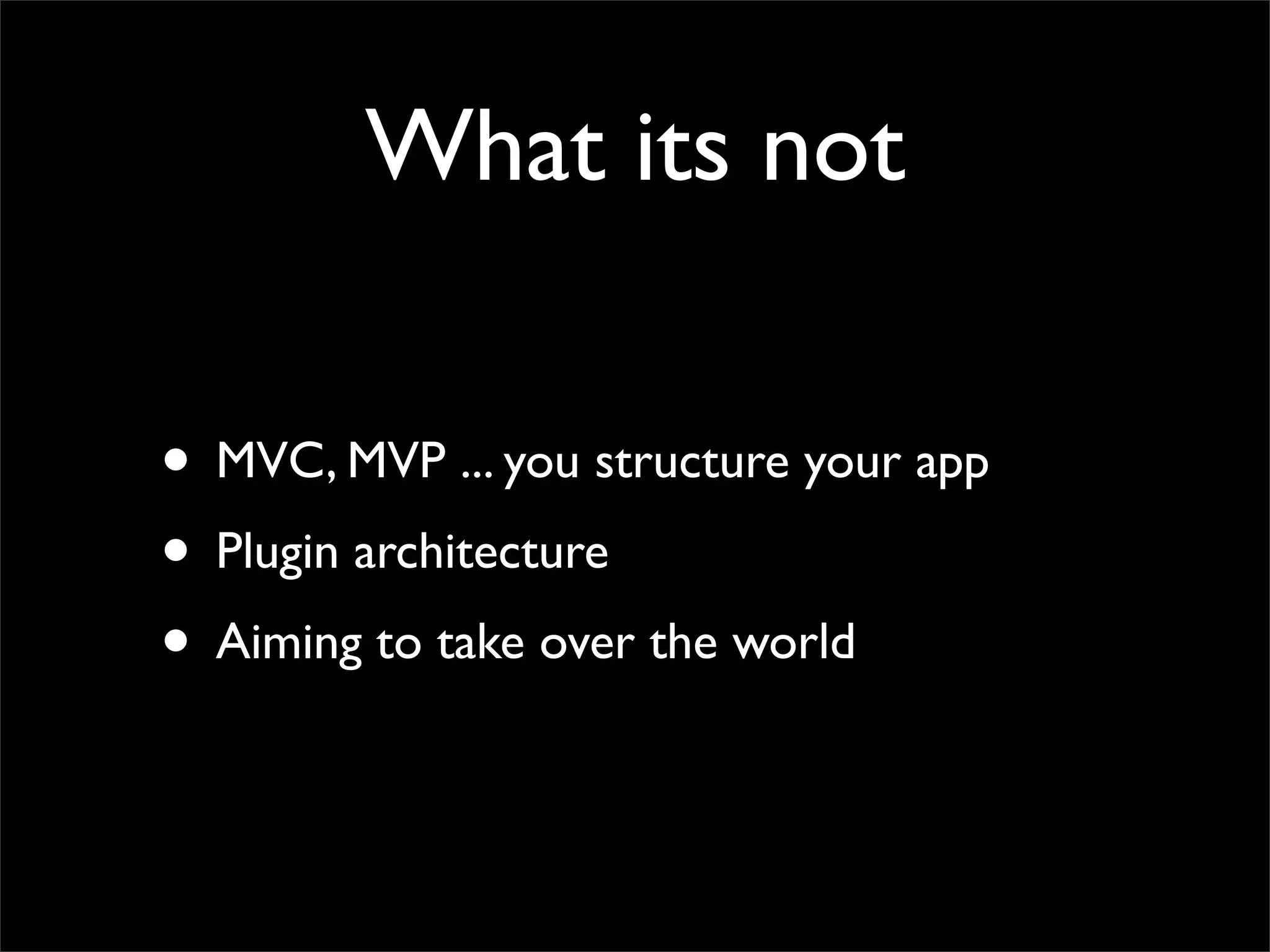

4. What its not
• MVC, MVP ... you structure your app
• Plugin architecture
• Aiming to take over the world

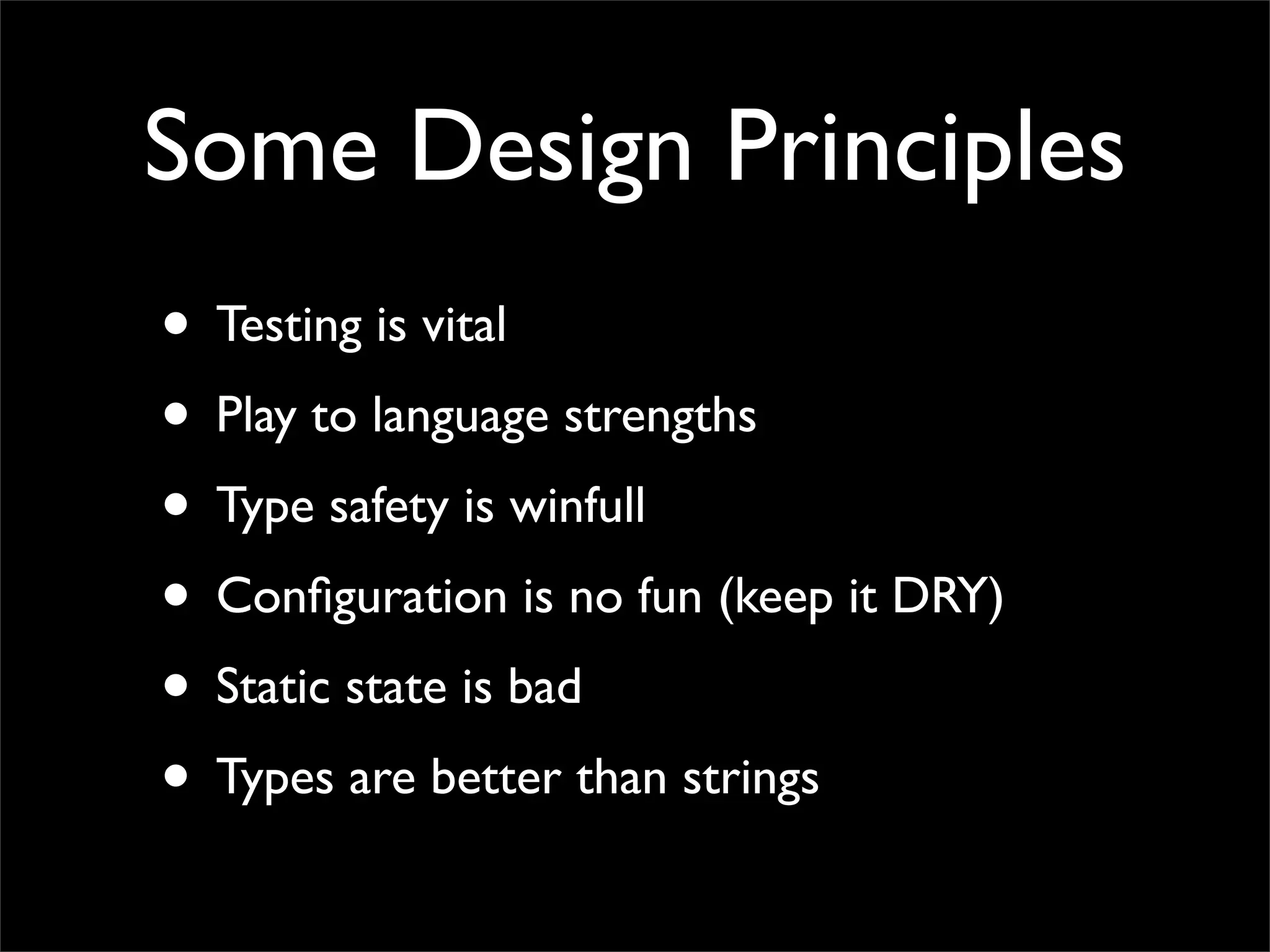

5. Some Design Principles
• Testing is vital
• Play to language strengths
• Type safety is winfull
• Configuration is no fun (keep it DRY)
• Static state is bad
• Types are better than strings

6. Dependency Injection
a lot of fuss about nothing

7. TheDoctor

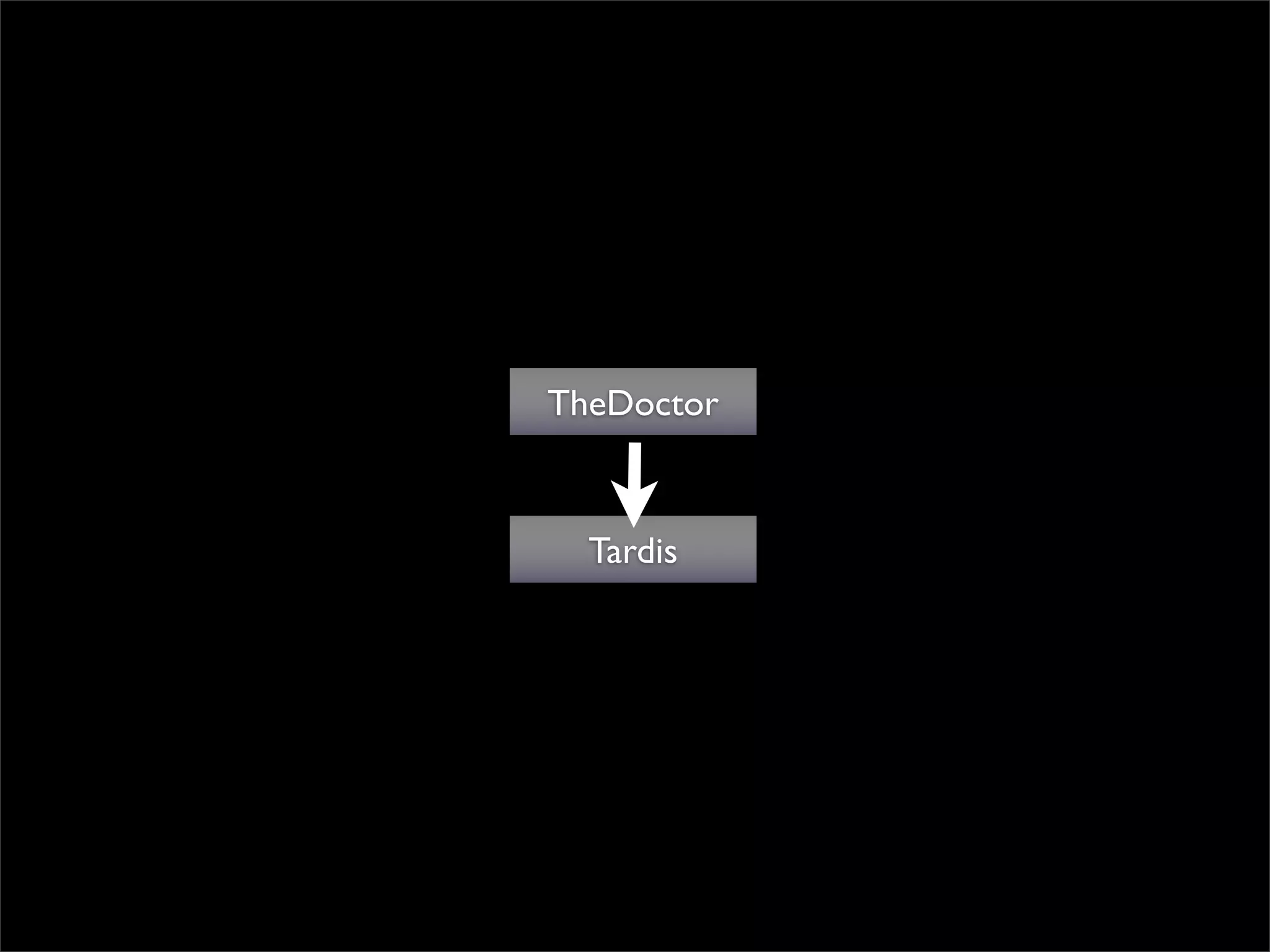

8. TheDoctor
Tardis

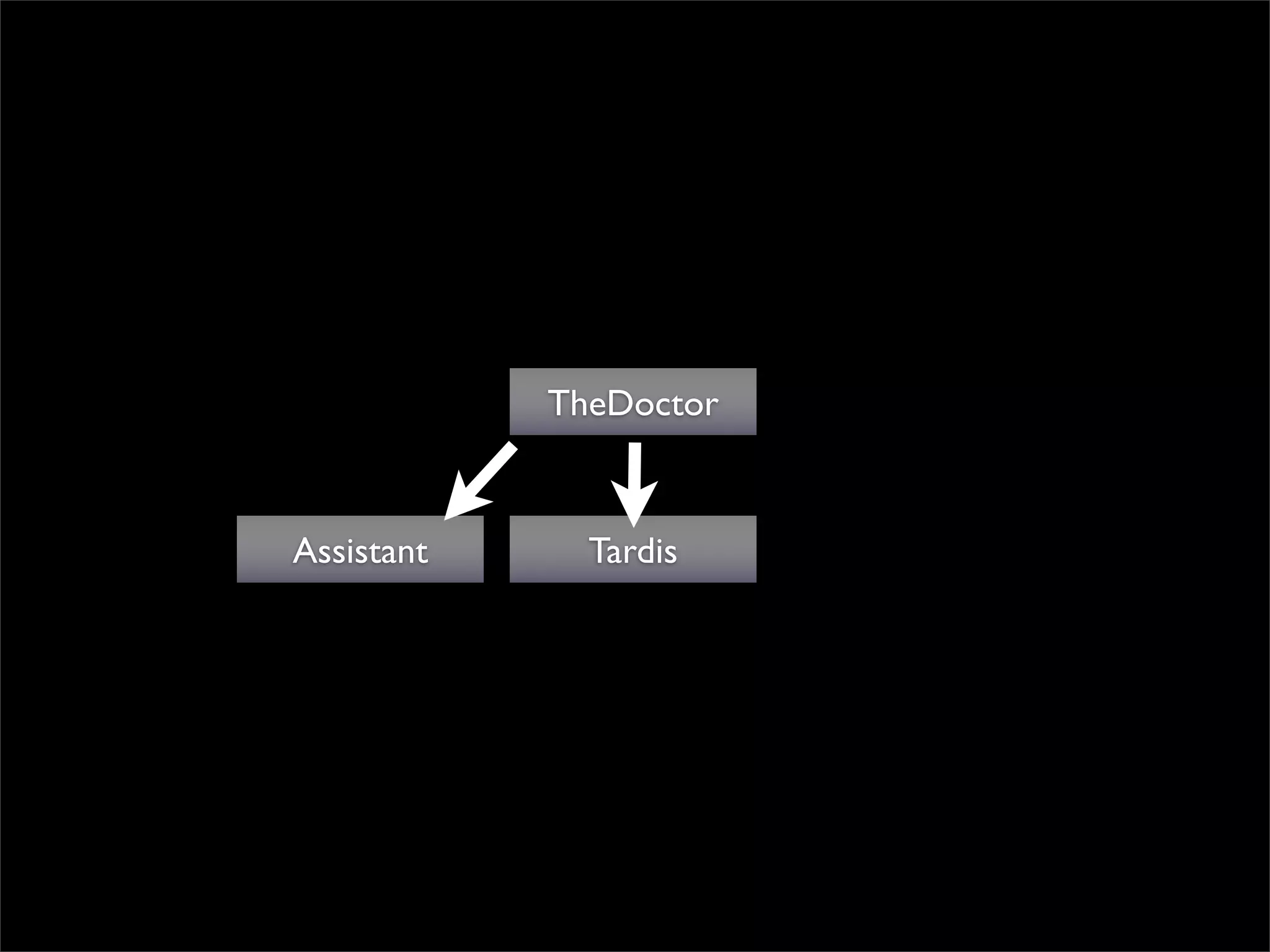

9. TheDoctor
Assistant Tardis

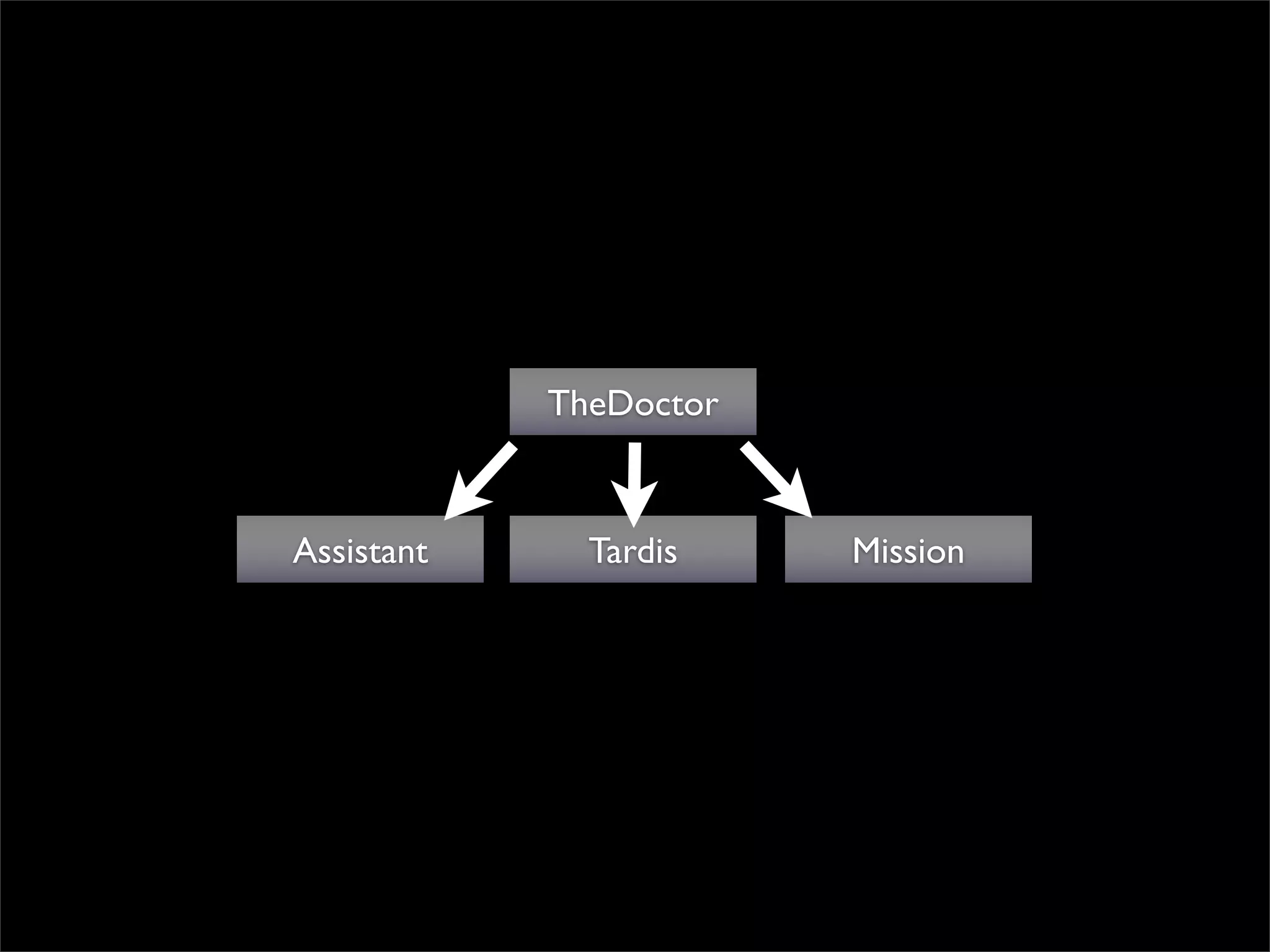

10. TheDoctor
Assistant Tardis Mission

11. TheDoctor
IAssistant Tardis IMission

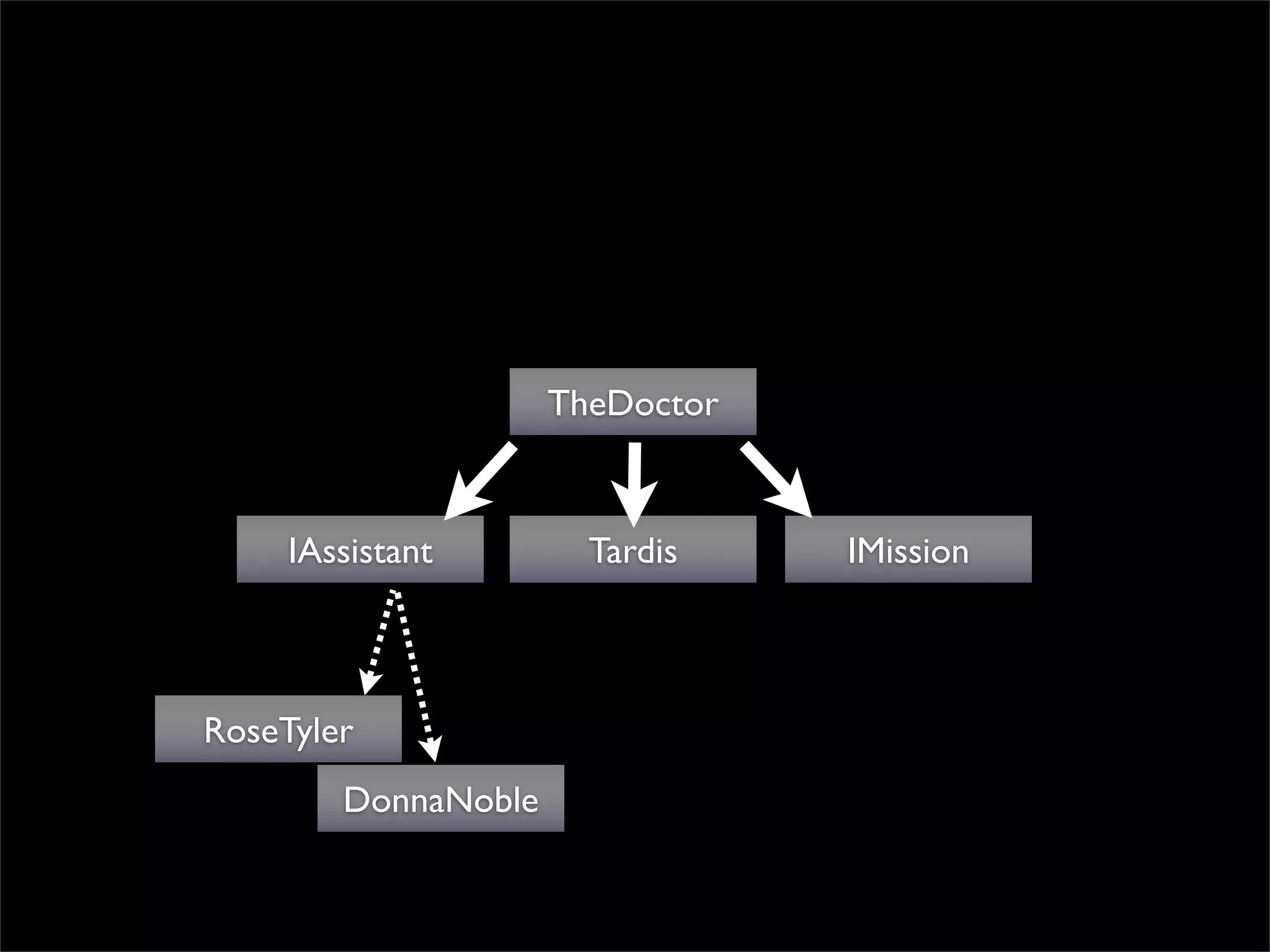

12. TheDoctor
IAssistant Tardis IMission
RoseTyler
DonnaNoble

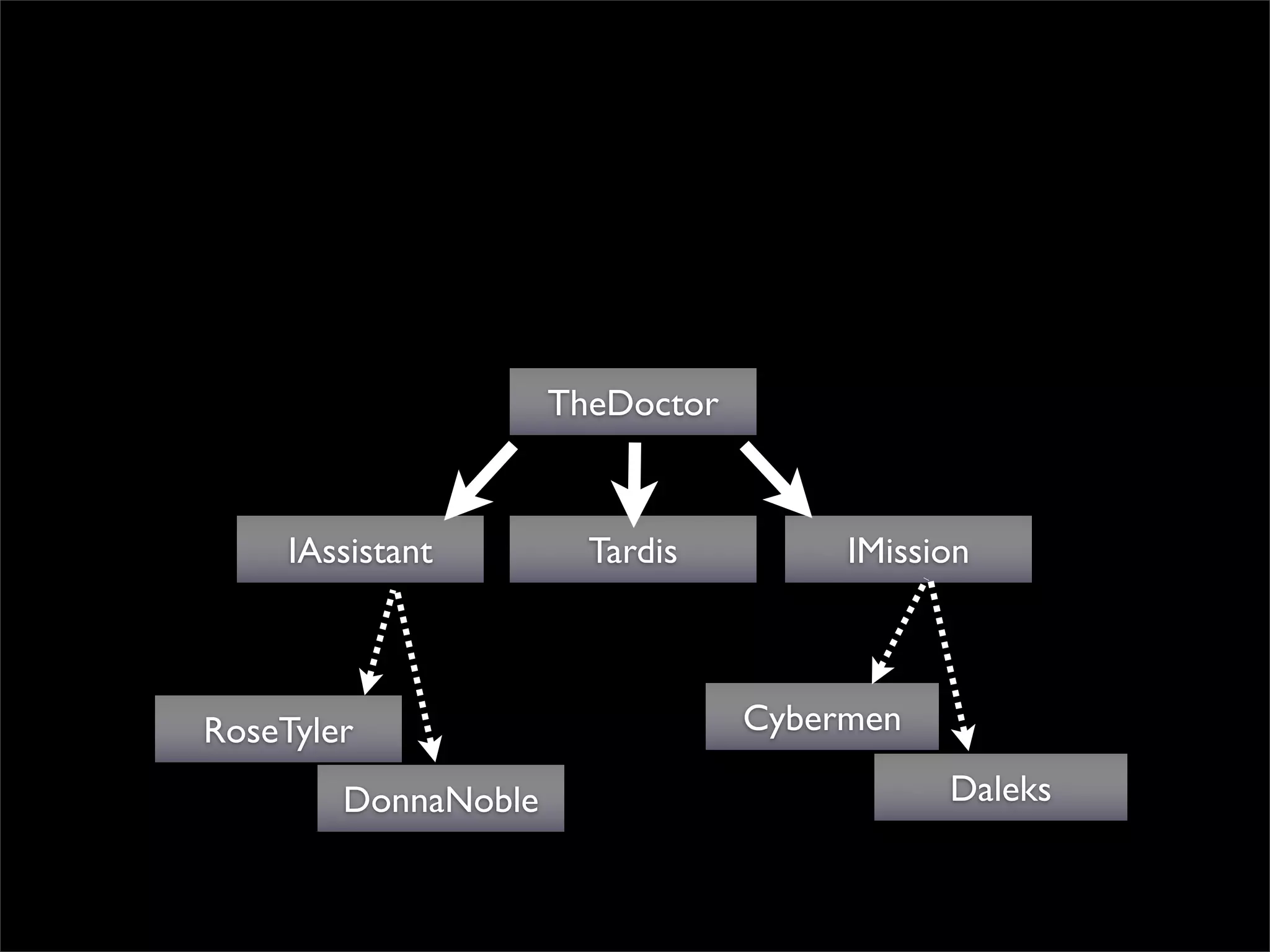

13. TheDoctor
IAssistant Tardis IMission
RoseTyler Cybermen
DonnaNoble Daleks

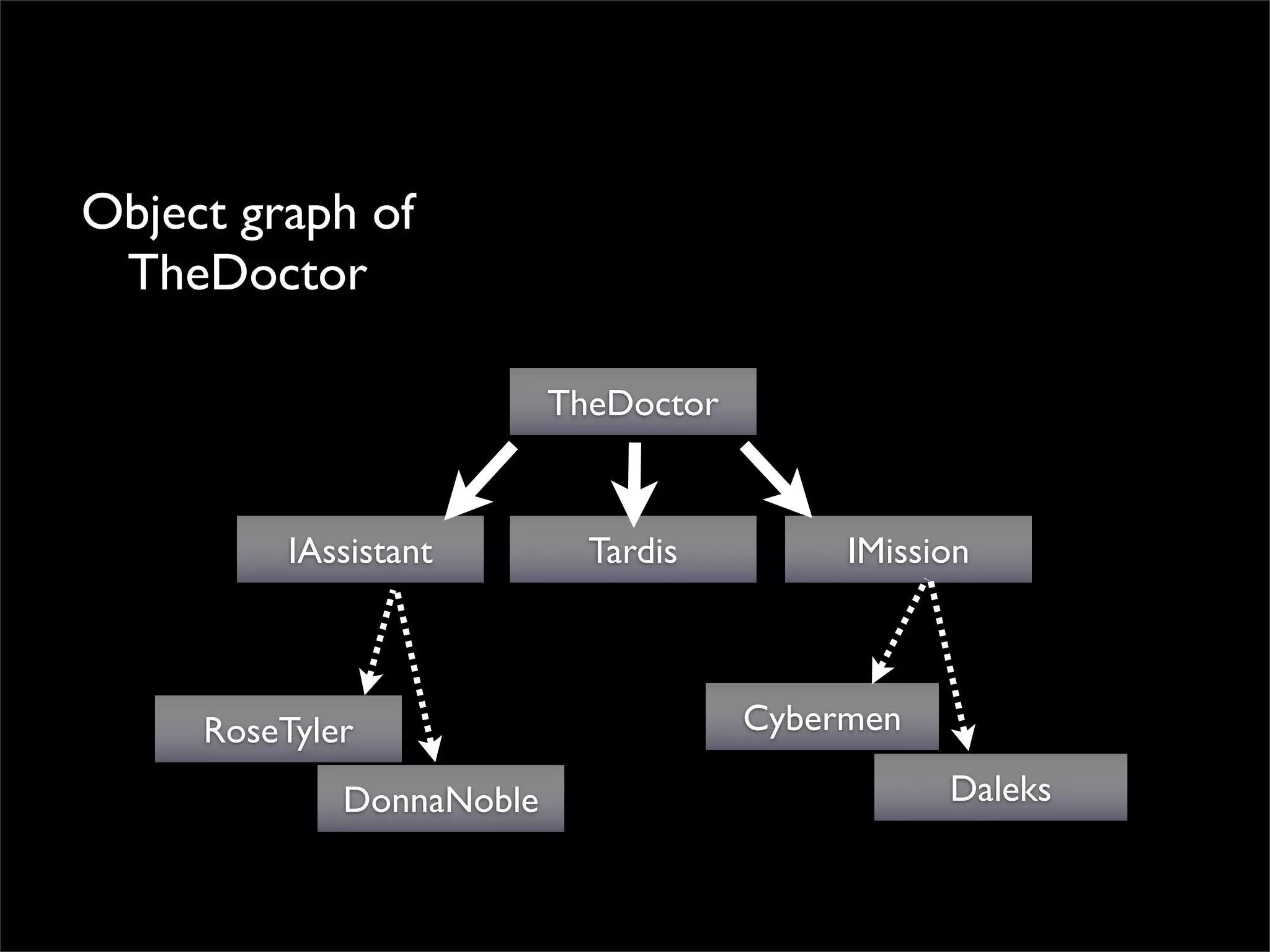

14. Object graph of
TheDoctor
TheDoctor
IAssistant Tardis IMission
RoseTyler Cybermen
DonnaNoble Daleks

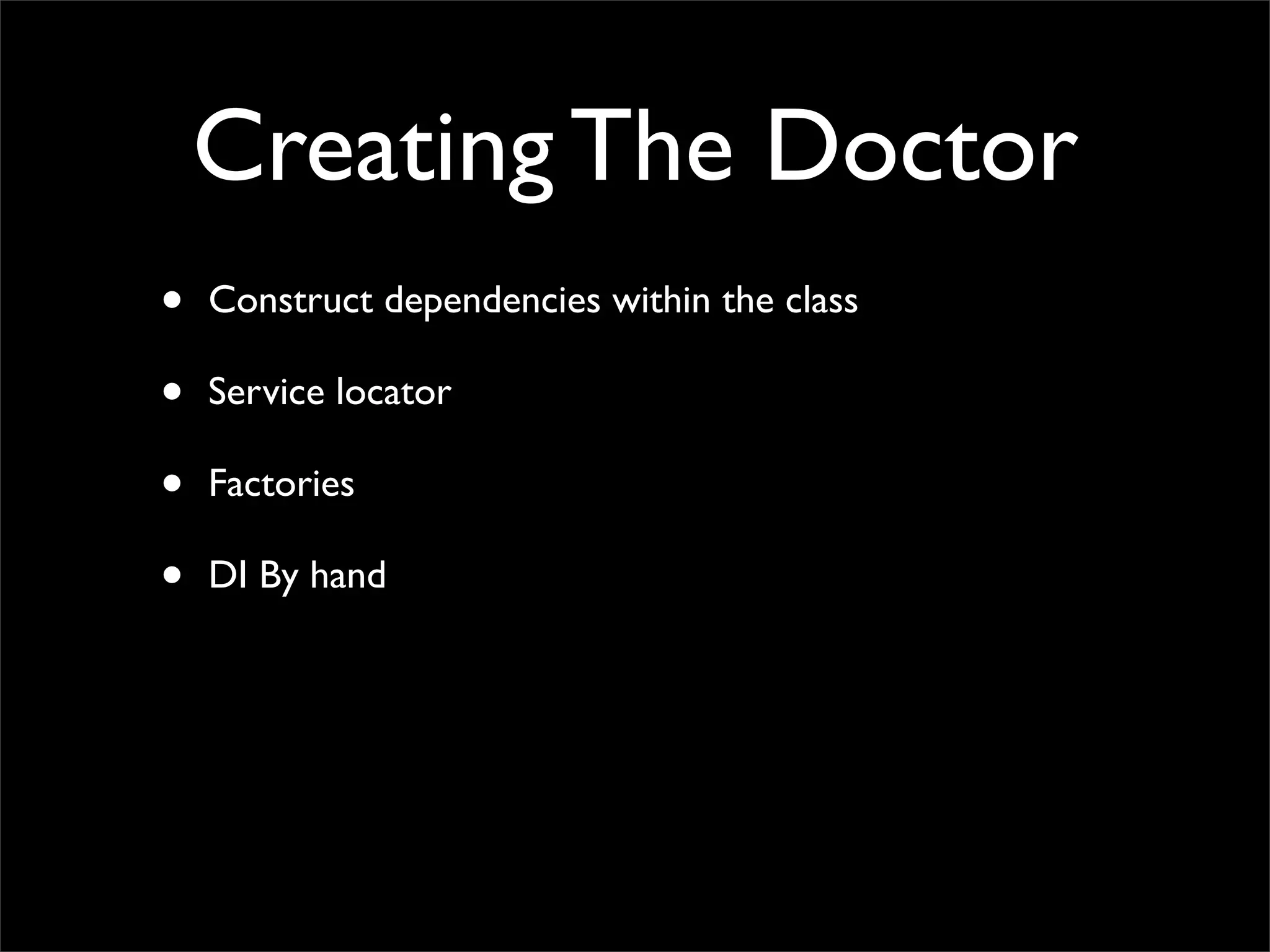

15. Creating The Doctor
• Construct dependencies within the class
• Service locator
• Factories
• DI By hand

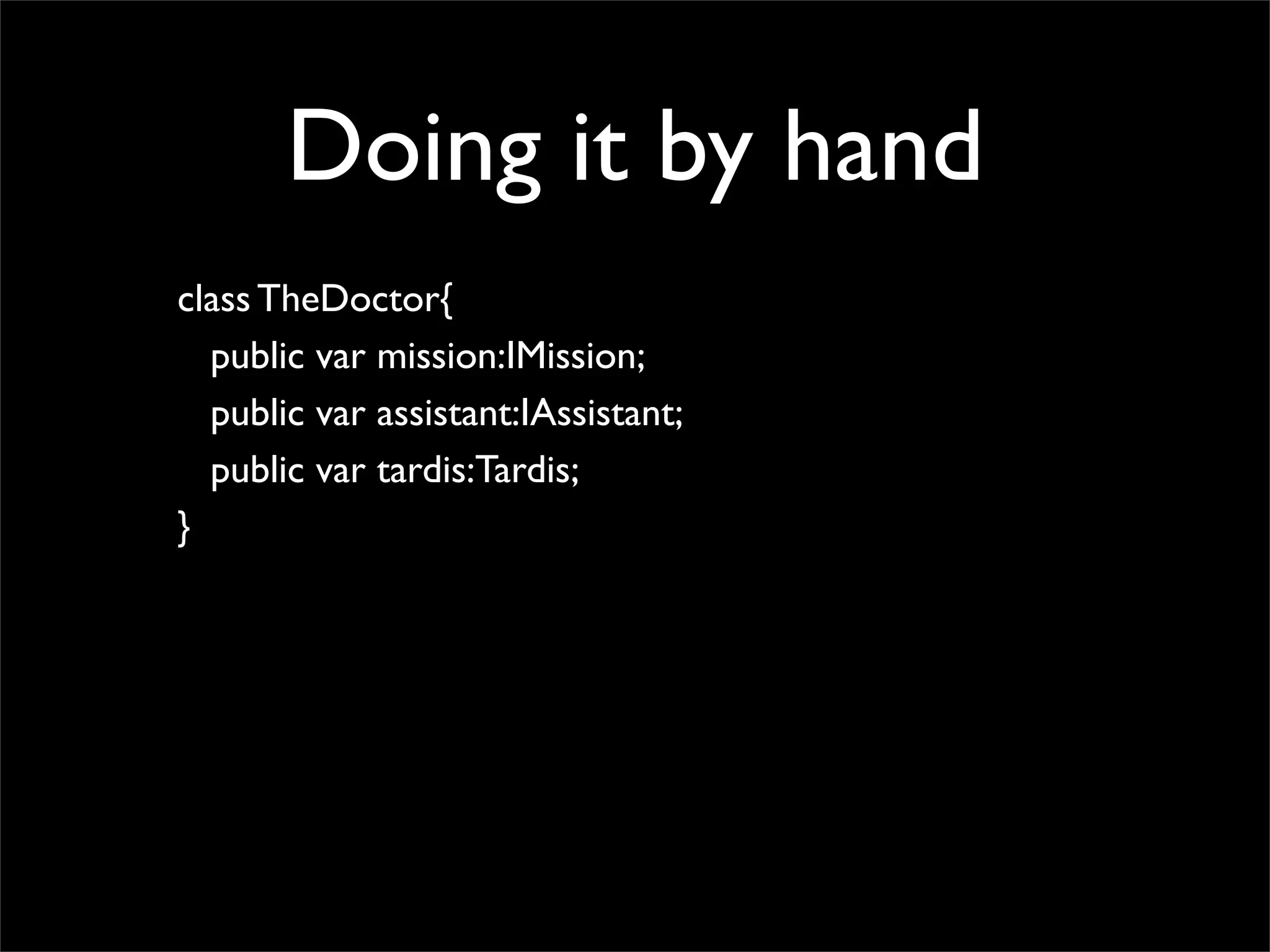

16. Doing it by hand
class TheDoctor{
public var mission:IMission;
public var assistant:IAssistant;
public var tardis:Tardis;
}

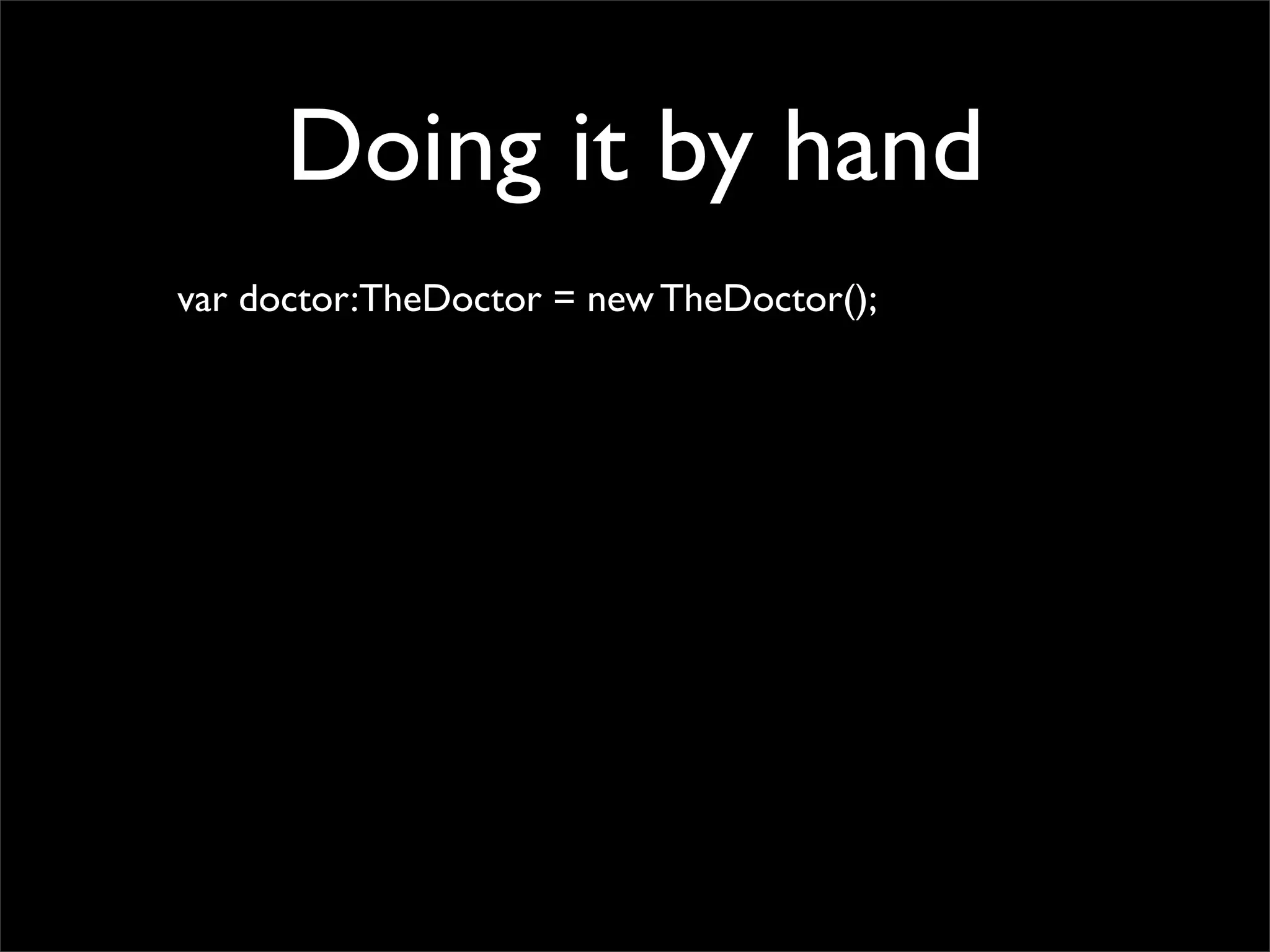

17. Doing it by hand
var doctor:TheDoctor = new TheDoctor();

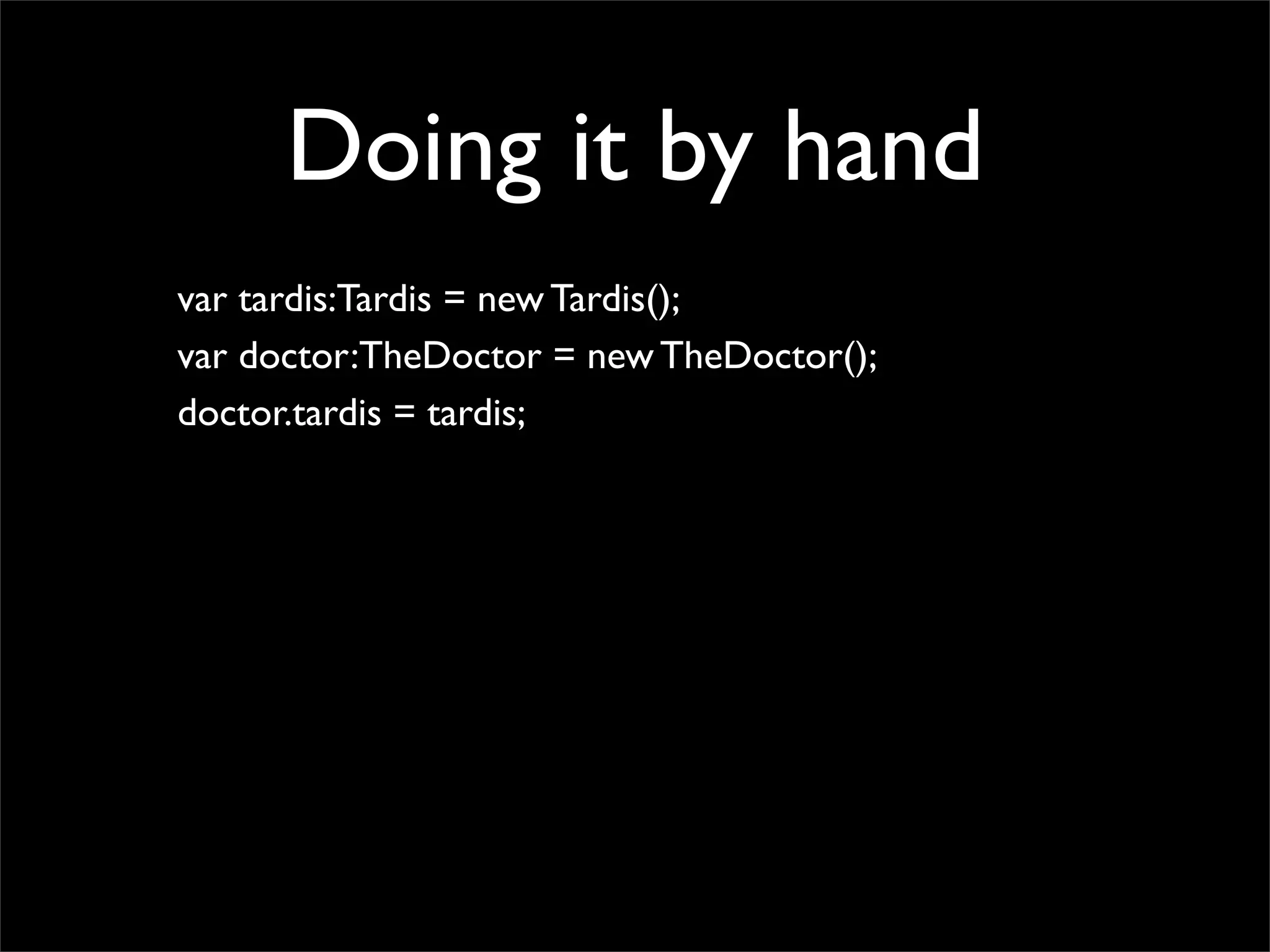

18. Doing it by hand
var tardis:Tardis = new Tardis();
var doctor:TheDoctor = new TheDoctor();
doctor.tardis = tardis;

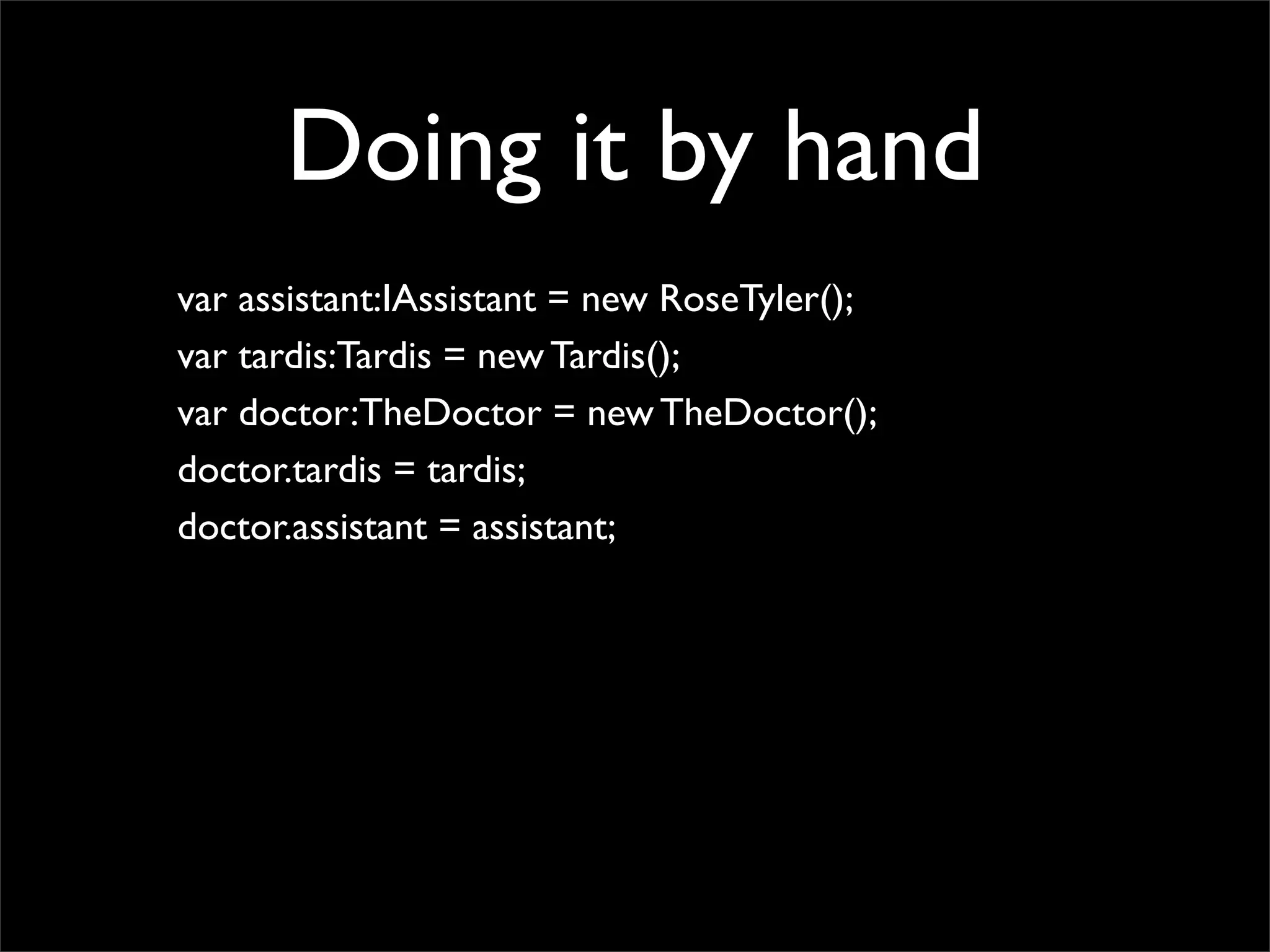

19. Doing it by hand
var assistant:IAssistant = new RoseTyler();
var tardis:Tardis = new Tardis();
var doctor:TheDoctor = new TheDoctor();
doctor.tardis = tardis;
doctor.assistant = assistant;

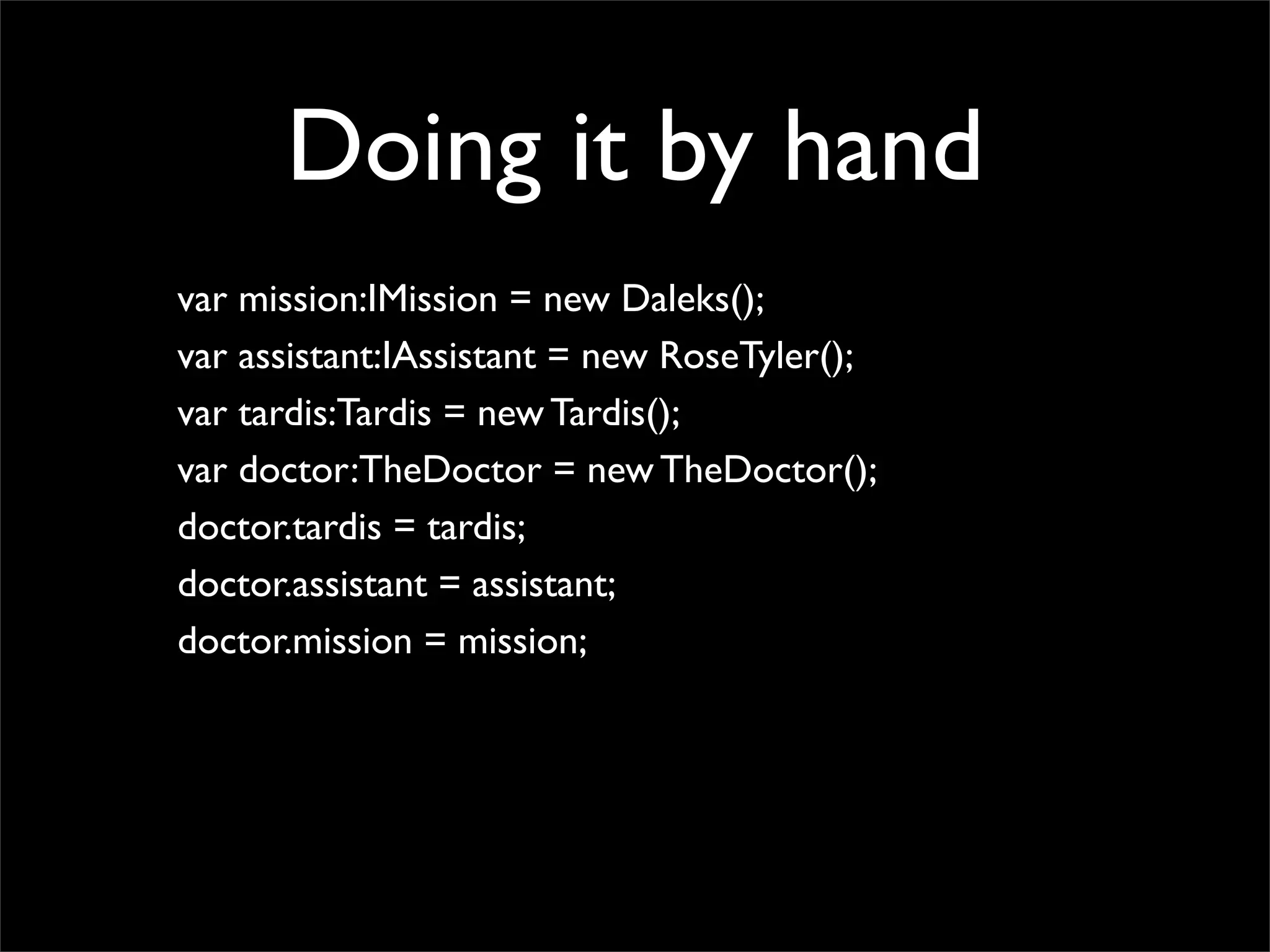

20. Doing it by hand
var mission:IMission = new Daleks();
var assistant:IAssistant = new RoseTyler();
var tardis:Tardis = new Tardis();
var doctor:TheDoctor = new TheDoctor();
doctor.tardis = tardis;
doctor.assistant = assistant;
doctor.mission = mission;

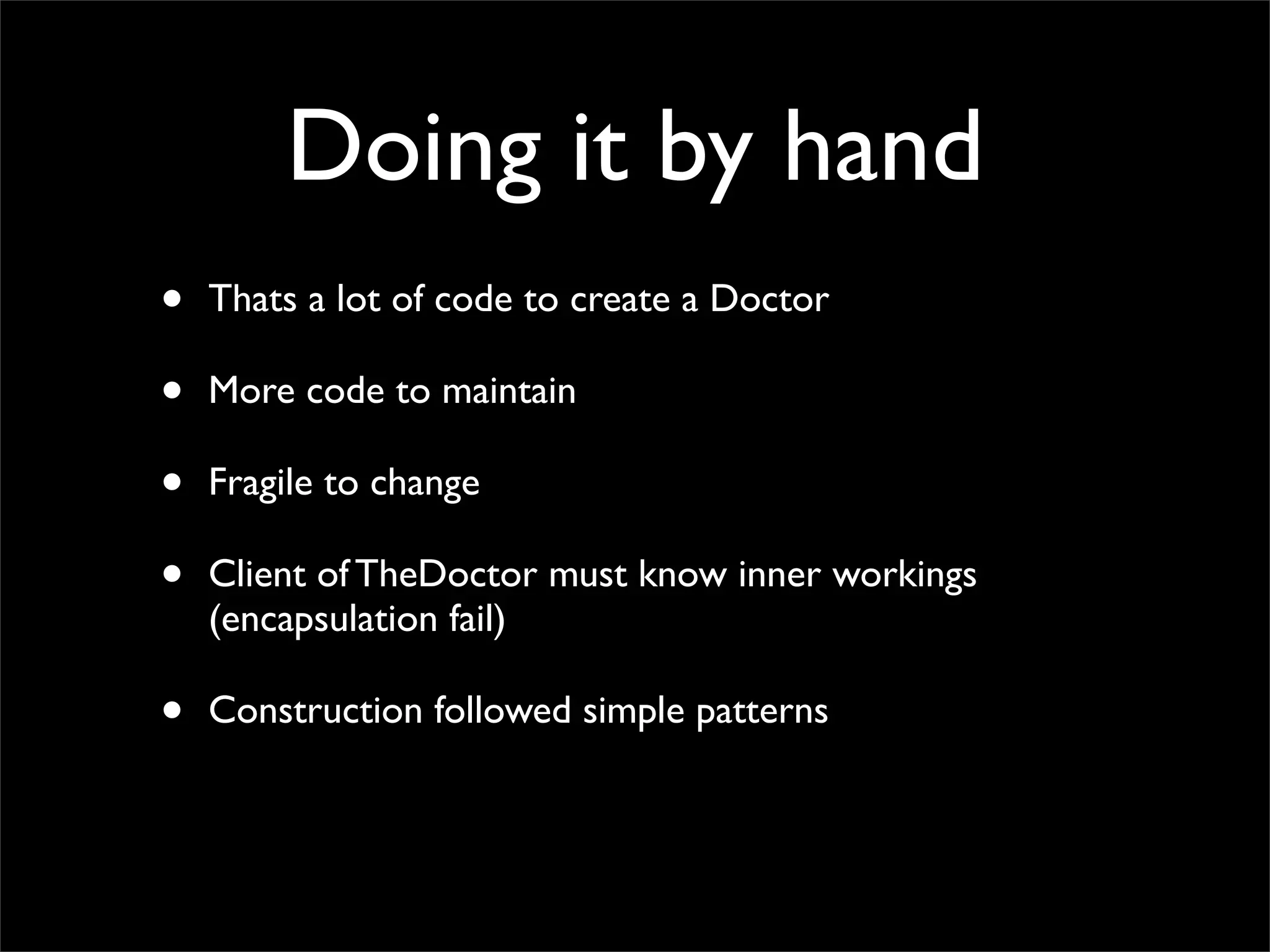

21. Doing it by hand
• Thats a lot of code to create a Doctor
• More code to maintain
• Fragile to change
• Client of TheDoctor must know inner workings
(encapsulation fail)
• Construction followed simple patterns

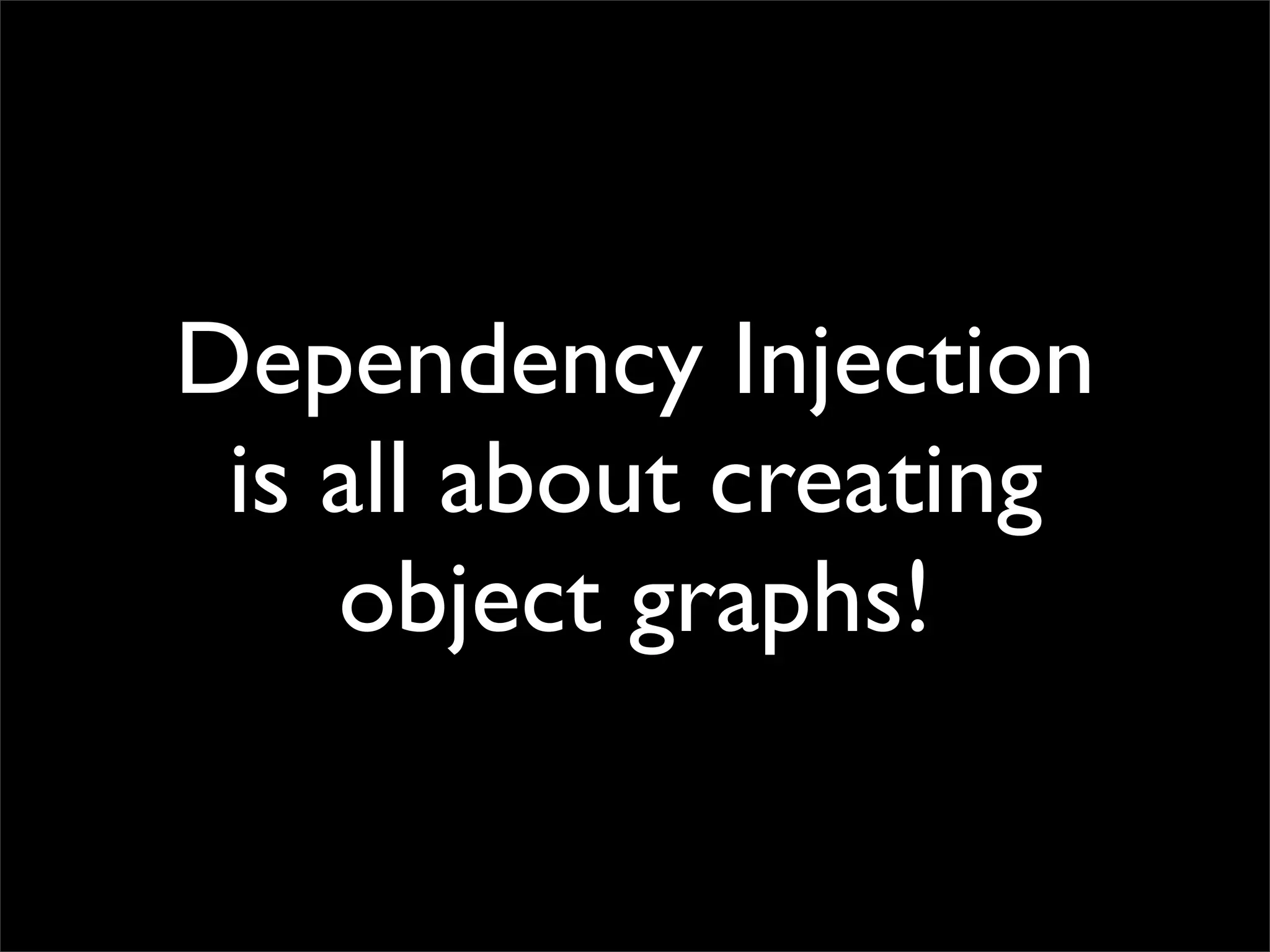

22. Dependency Injection
is all about creating
object graphs!

23. Dawn DI
• How can object creation be automated and easy?
• Meets design principles
• Thank you Google Guice!

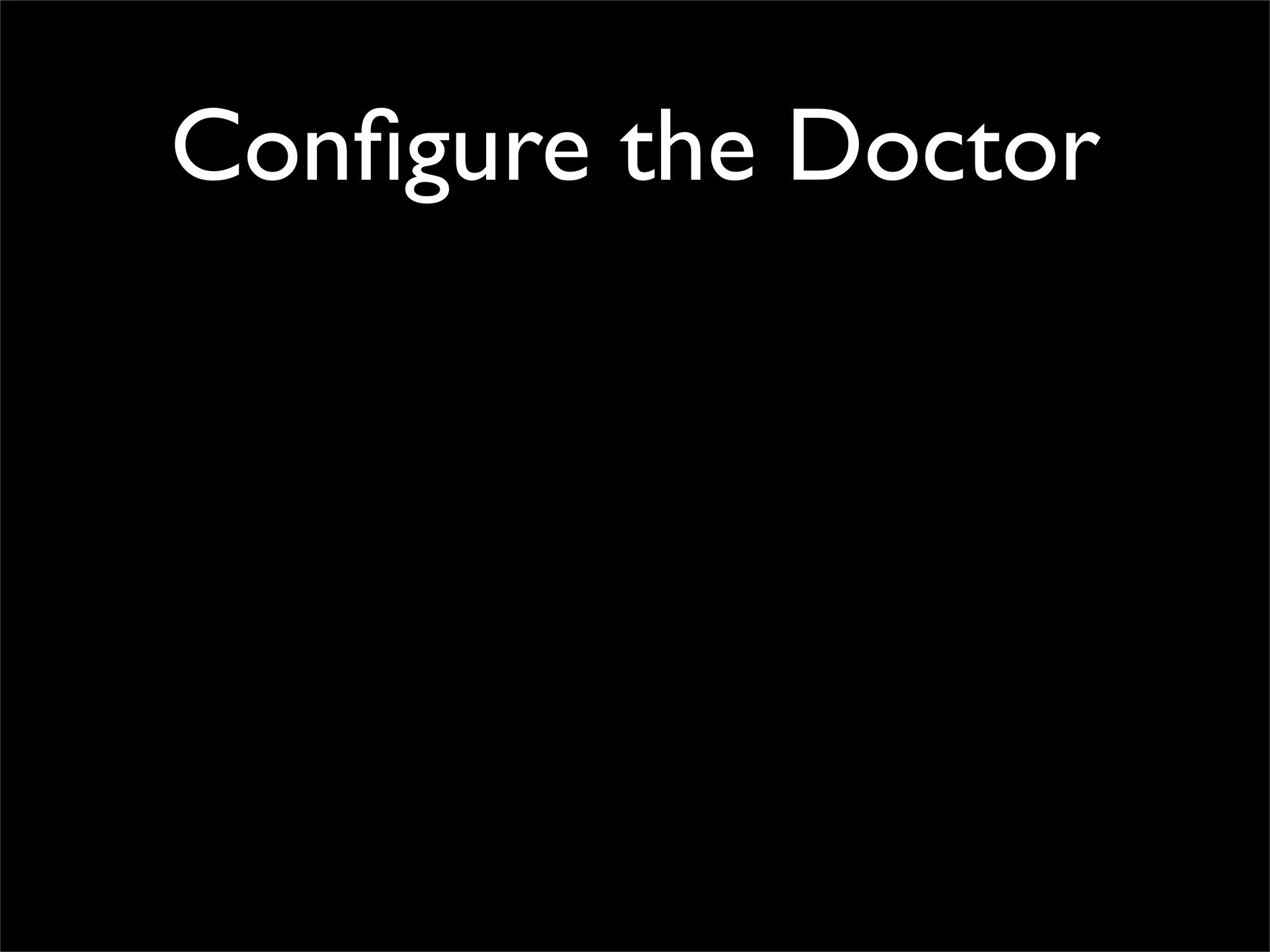

24. Configure the Doctor

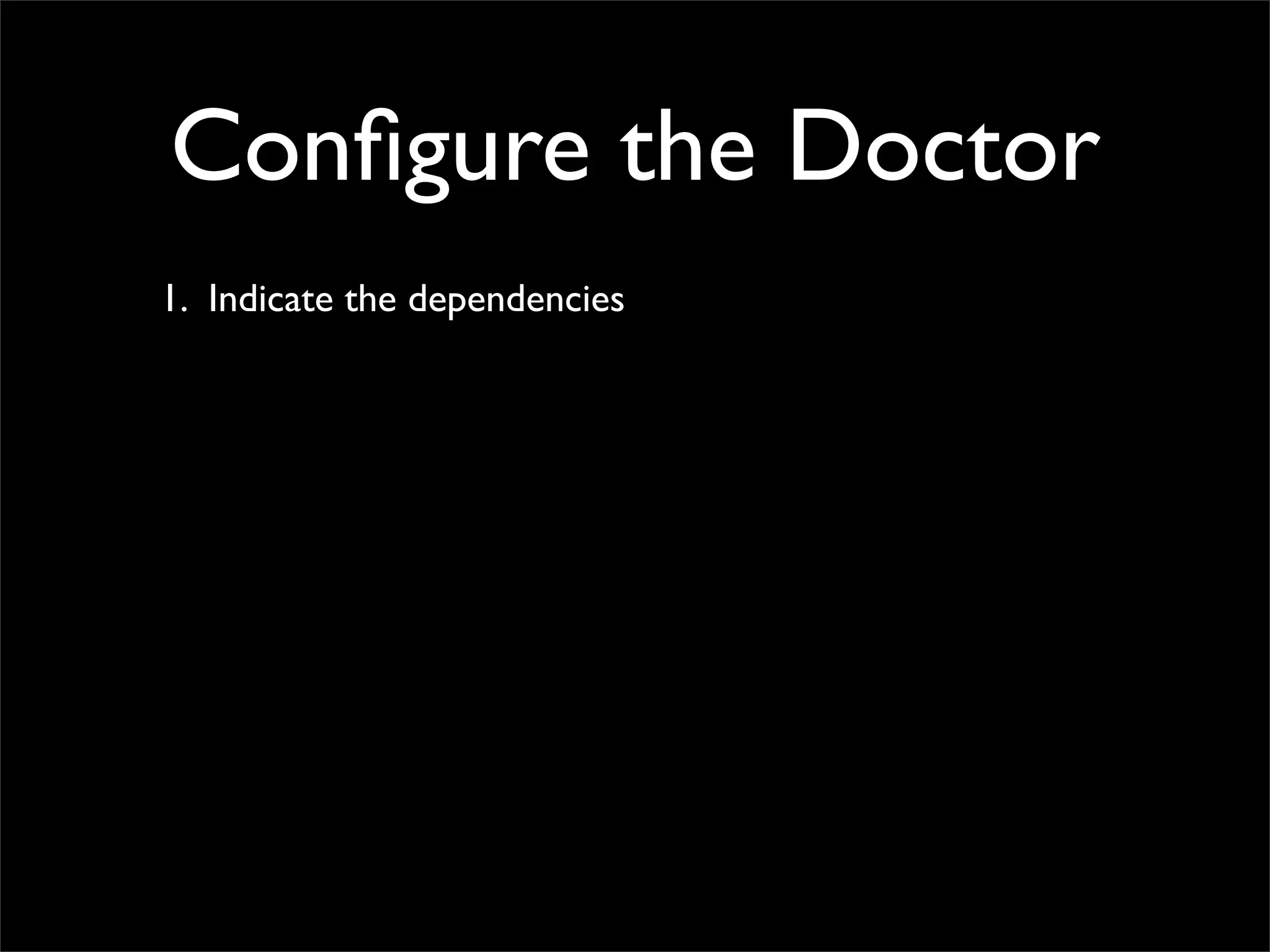

25. Configure the Doctor
1. Indicate the dependencies

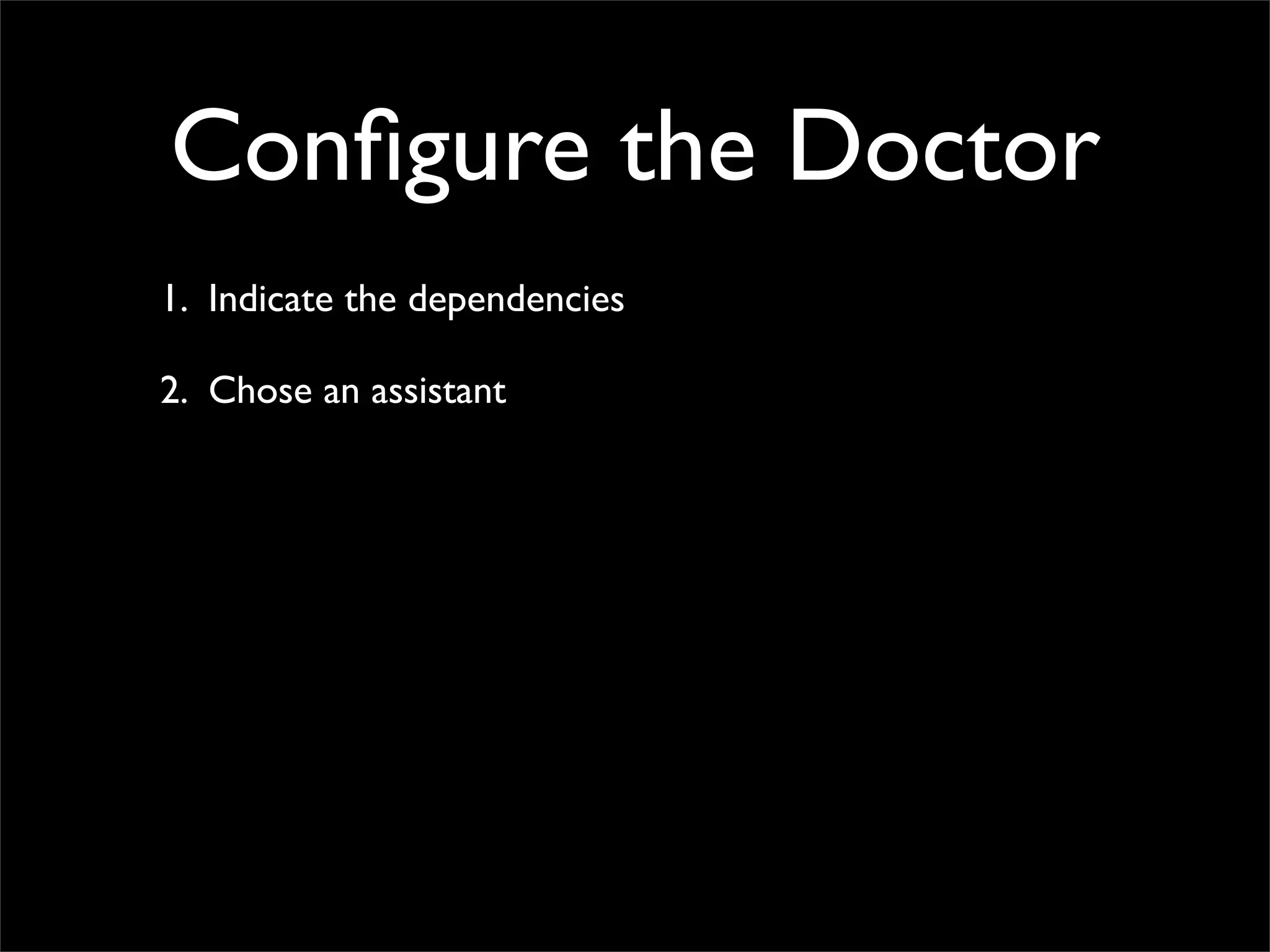

26. Configure the Doctor
1. Indicate the dependencies
2. Chose an assistant

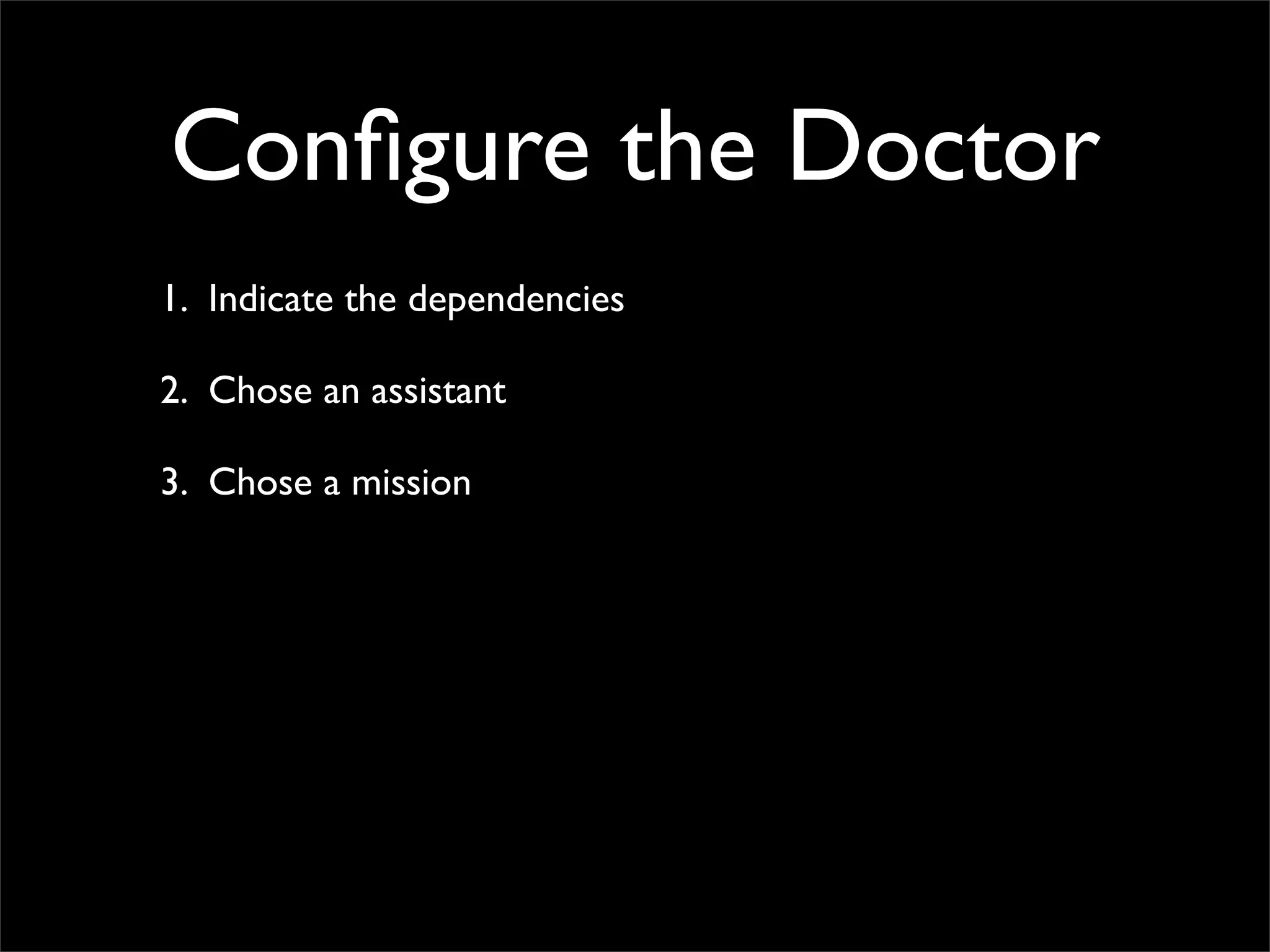

27. Configure the Doctor
1. Indicate the dependencies
2. Chose an assistant
3. Chose a mission

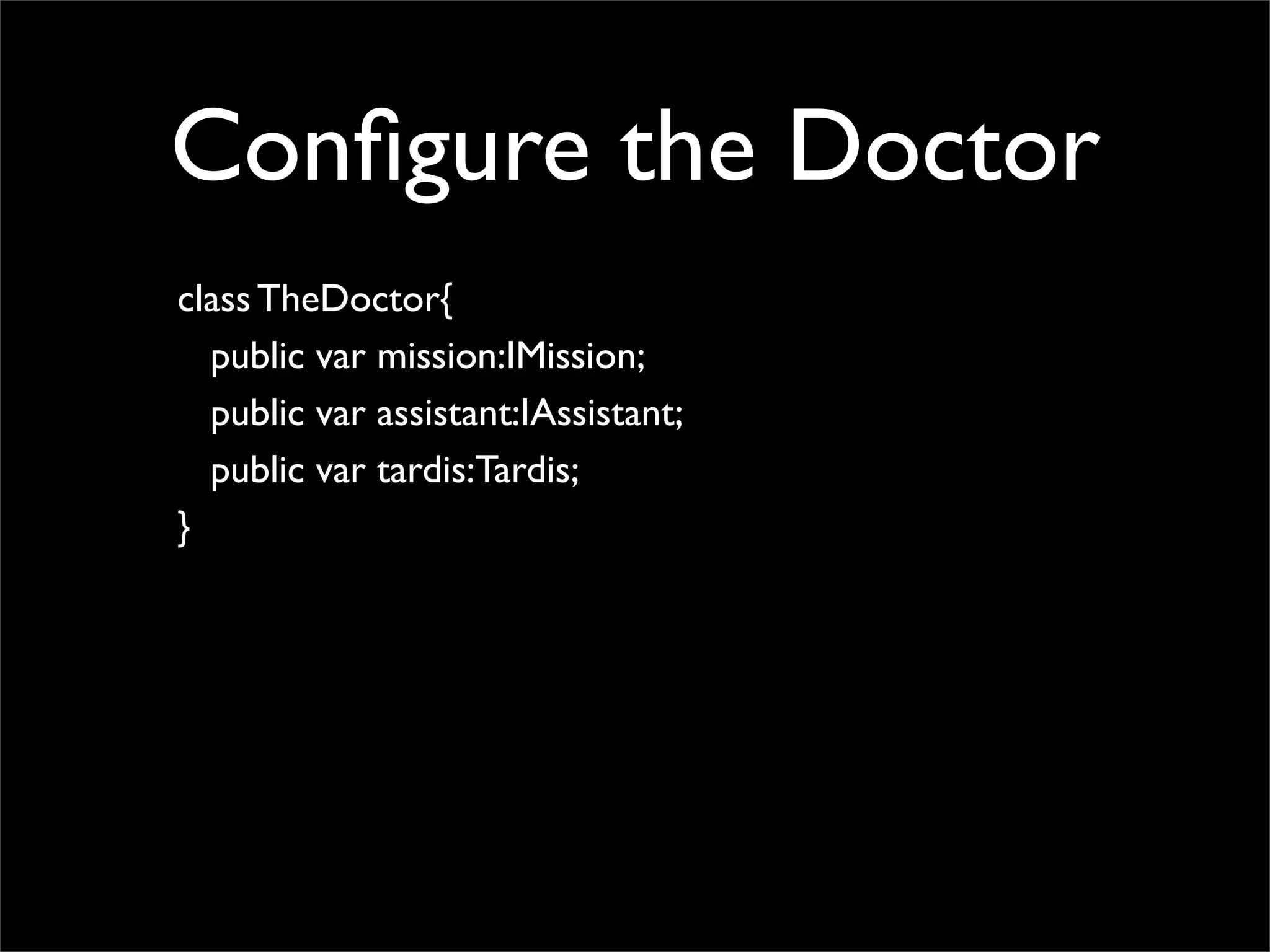

28. Configure the Doctor
class TheDoctor{
public var mission:IMission;
public var assistant:IAssistant;
public var tardis:Tardis;
}

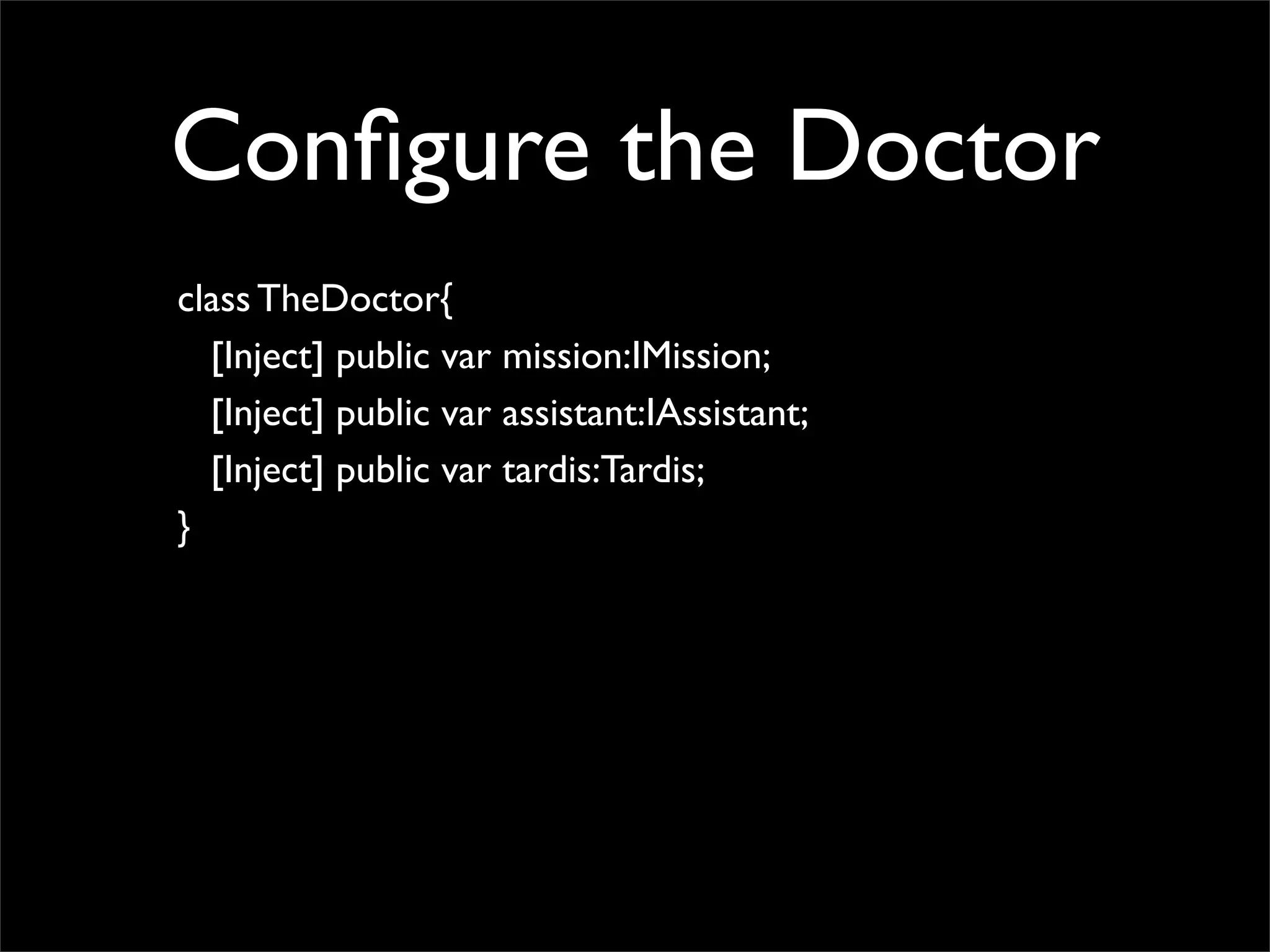

29. Configure the Doctor
class TheDoctor{
[Inject] public var mission:IMission;
[Inject] public var assistant:IAssistant;
[Inject] public var tardis:Tardis;
}

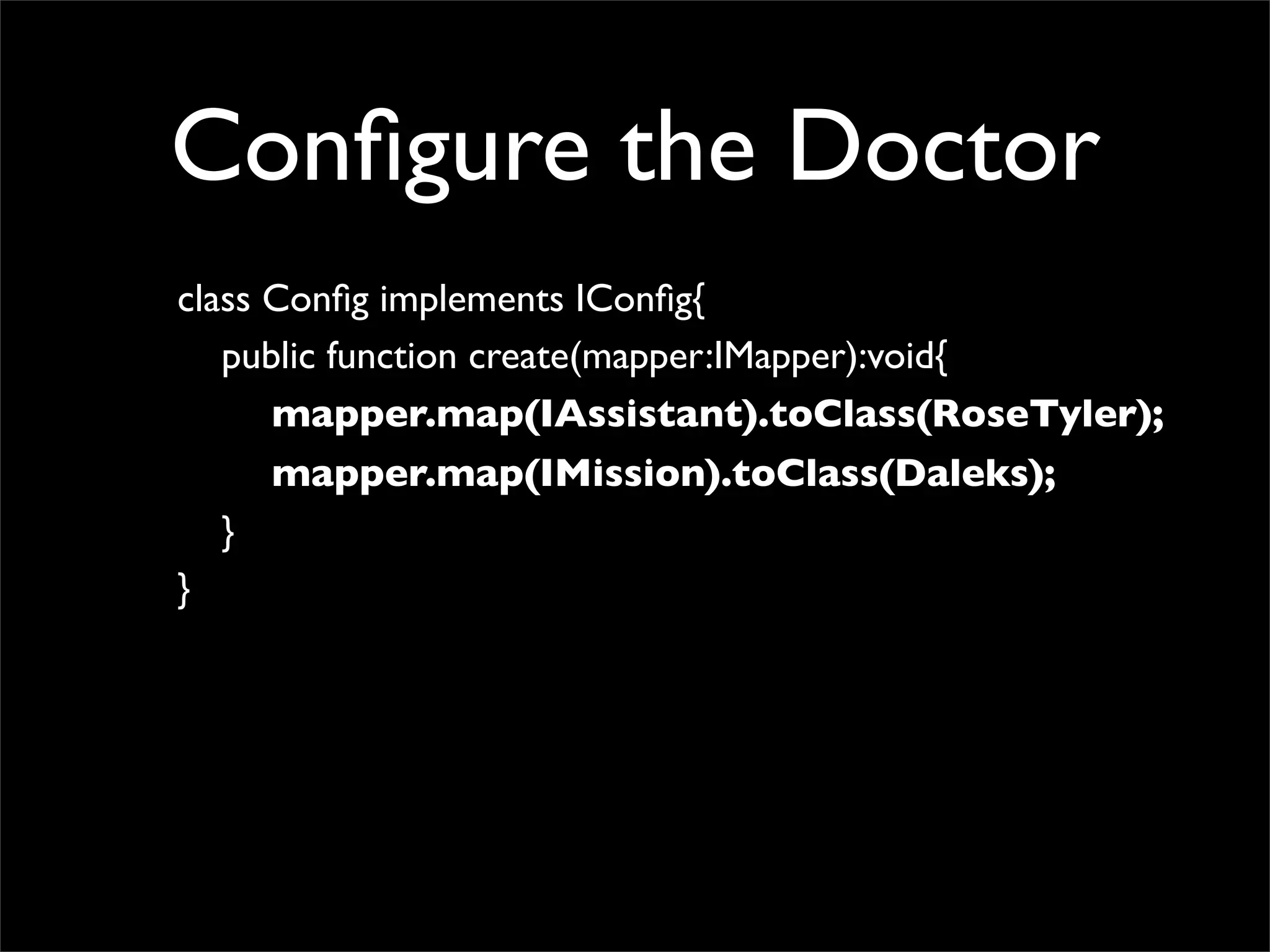

30. Configure the Doctor
class Config implements IConfig{
public function create(mapper:IMapper):void{
mapper.map(IAssistant).toClass(RoseTyler);
mapper.map(IMission).toClass(Daleks);
}
}

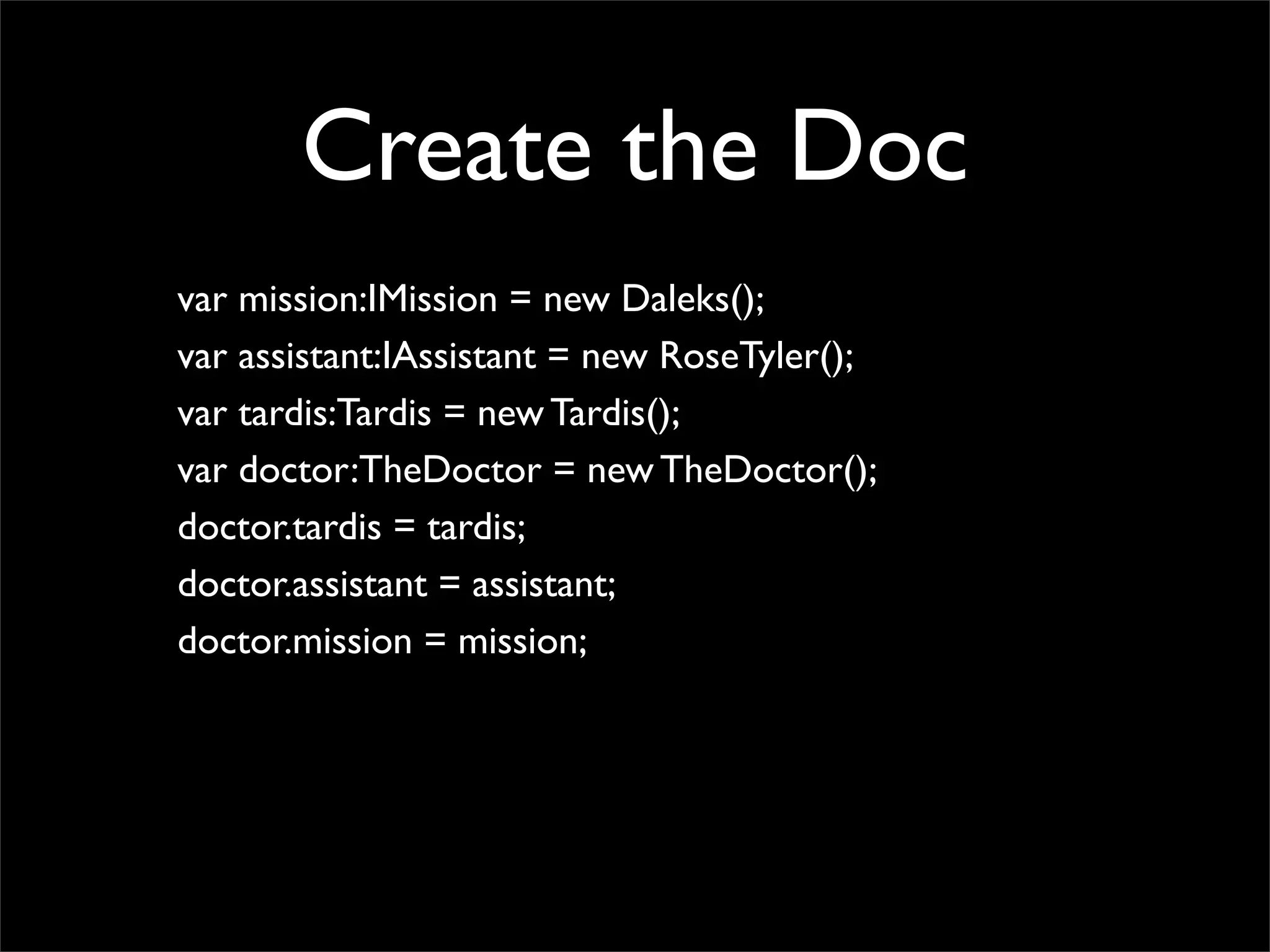

31. Create the Doc
var mission:IMission = new Daleks();
var assistant:IAssistant = new RoseTyler();
var tardis:Tardis = new Tardis();
var doctor:TheDoctor = new TheDoctor();
doctor.tardis = tardis;
doctor.assistant = assistant;
doctor.mission = mission;

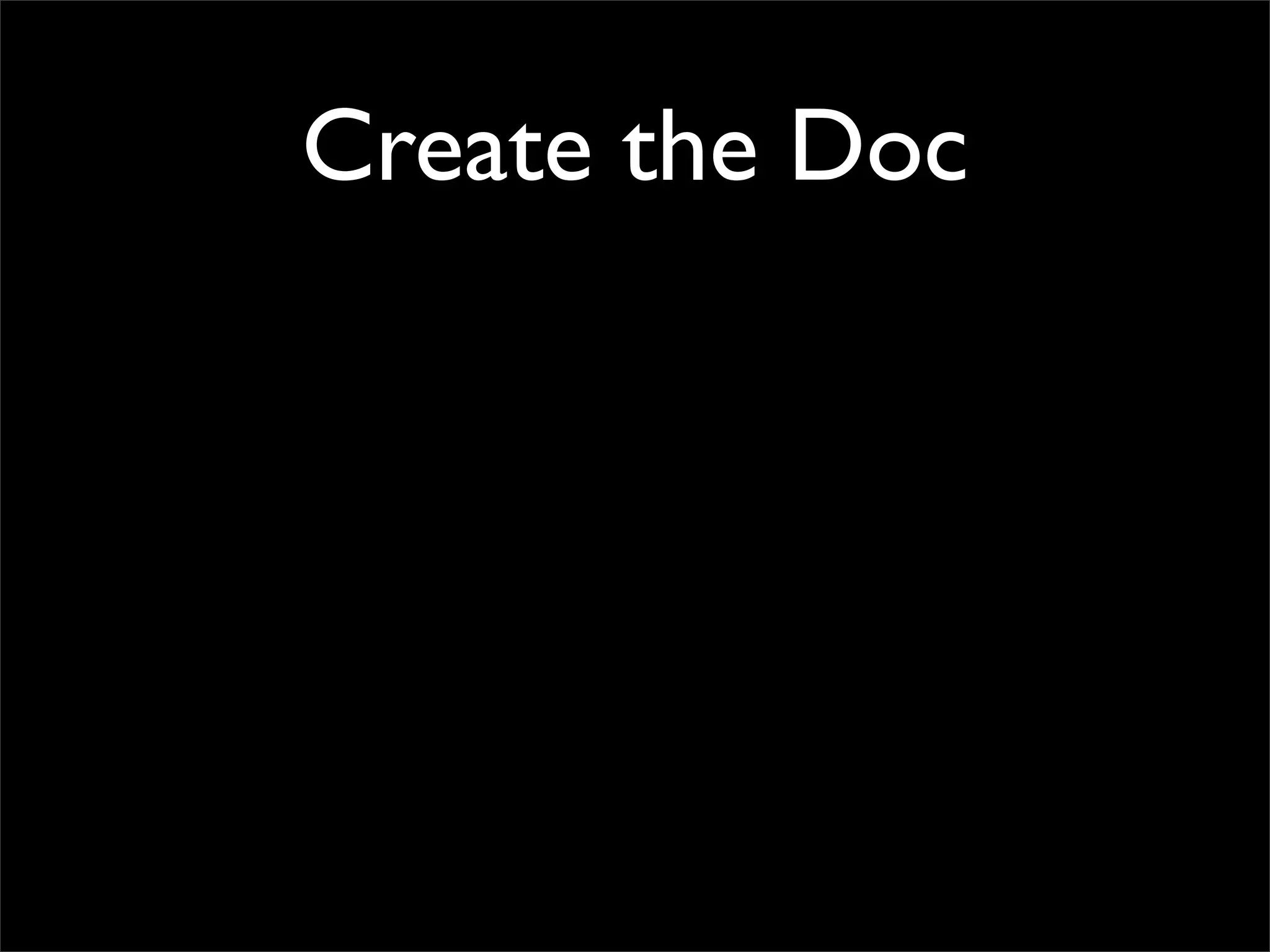

32. Create the Doc

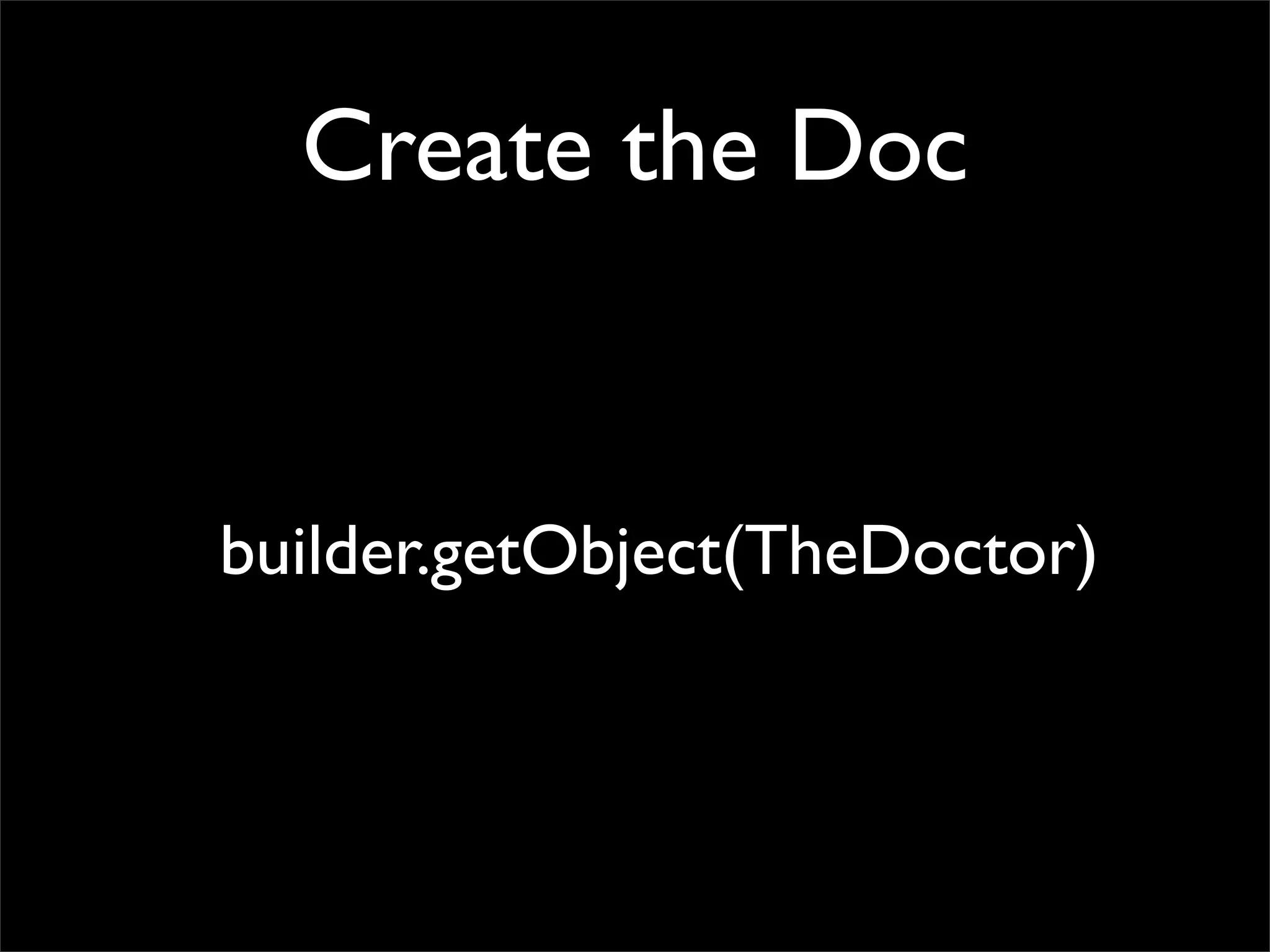

33. Create the Doc
builder.getObject(TheDoctor)

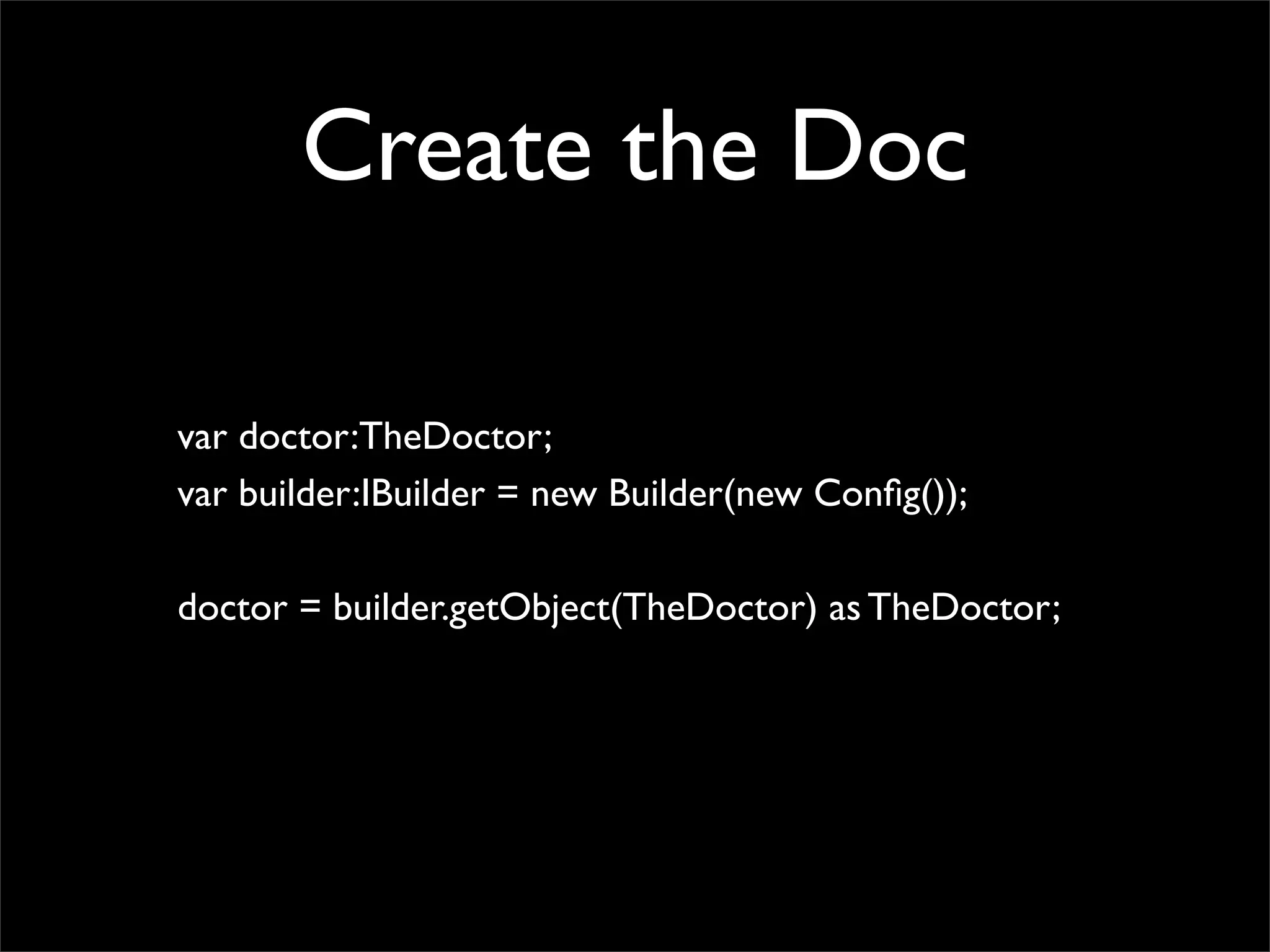

34. Create the Doc
var doctor:TheDoctor;
var builder:IBuilder = new Builder(new Config());
doctor = builder.getObject(TheDoctor) as TheDoctor;

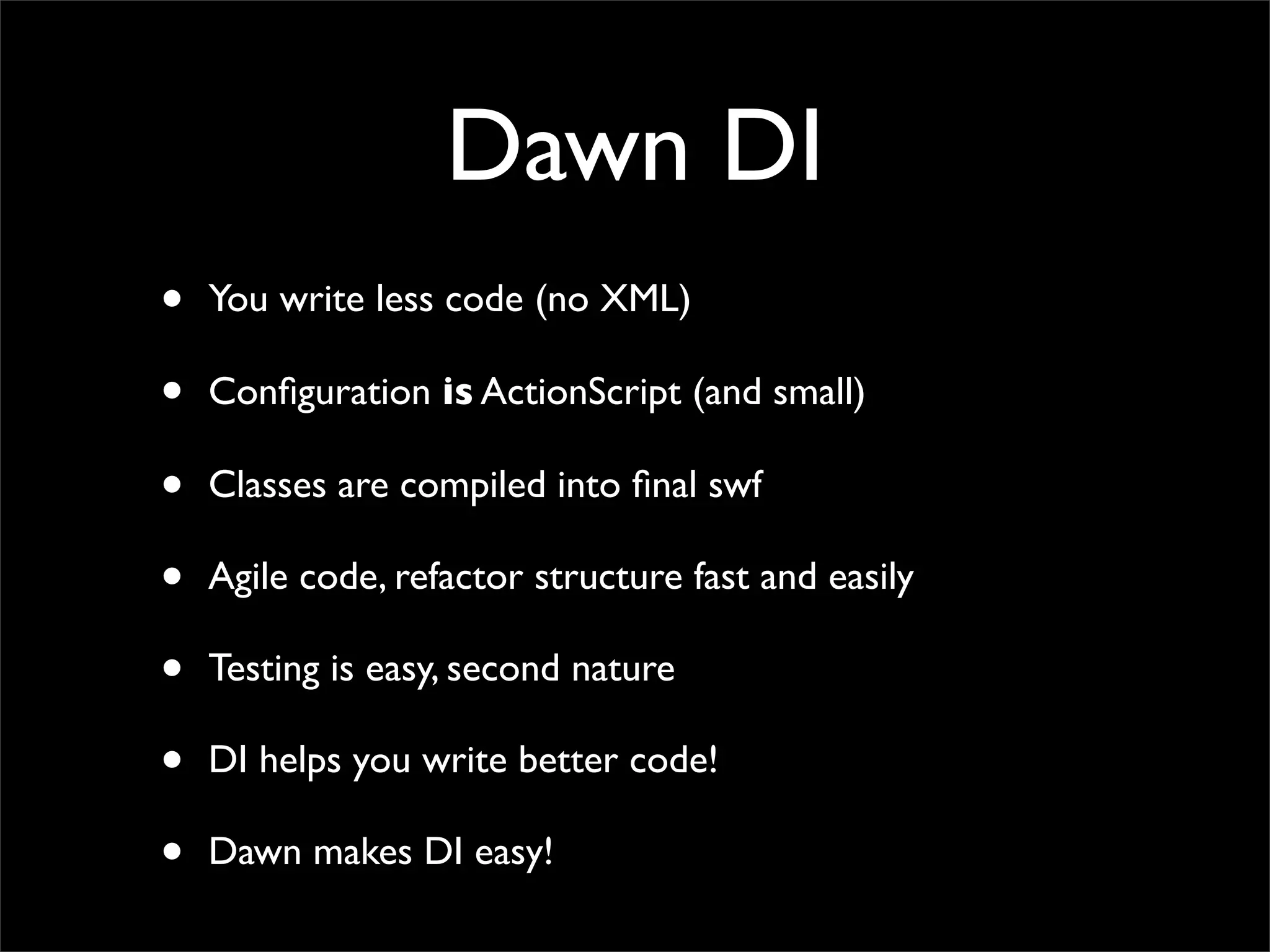

35. Dawn DI
• You write less code (no XML)
• Configuration is ActionScript (and small)
• Classes are compiled into final swf
• Agile code, refactor structure fast and easily
• Testing is easy, second nature
• DI helps you write better code!
• Dawn makes DI easy!

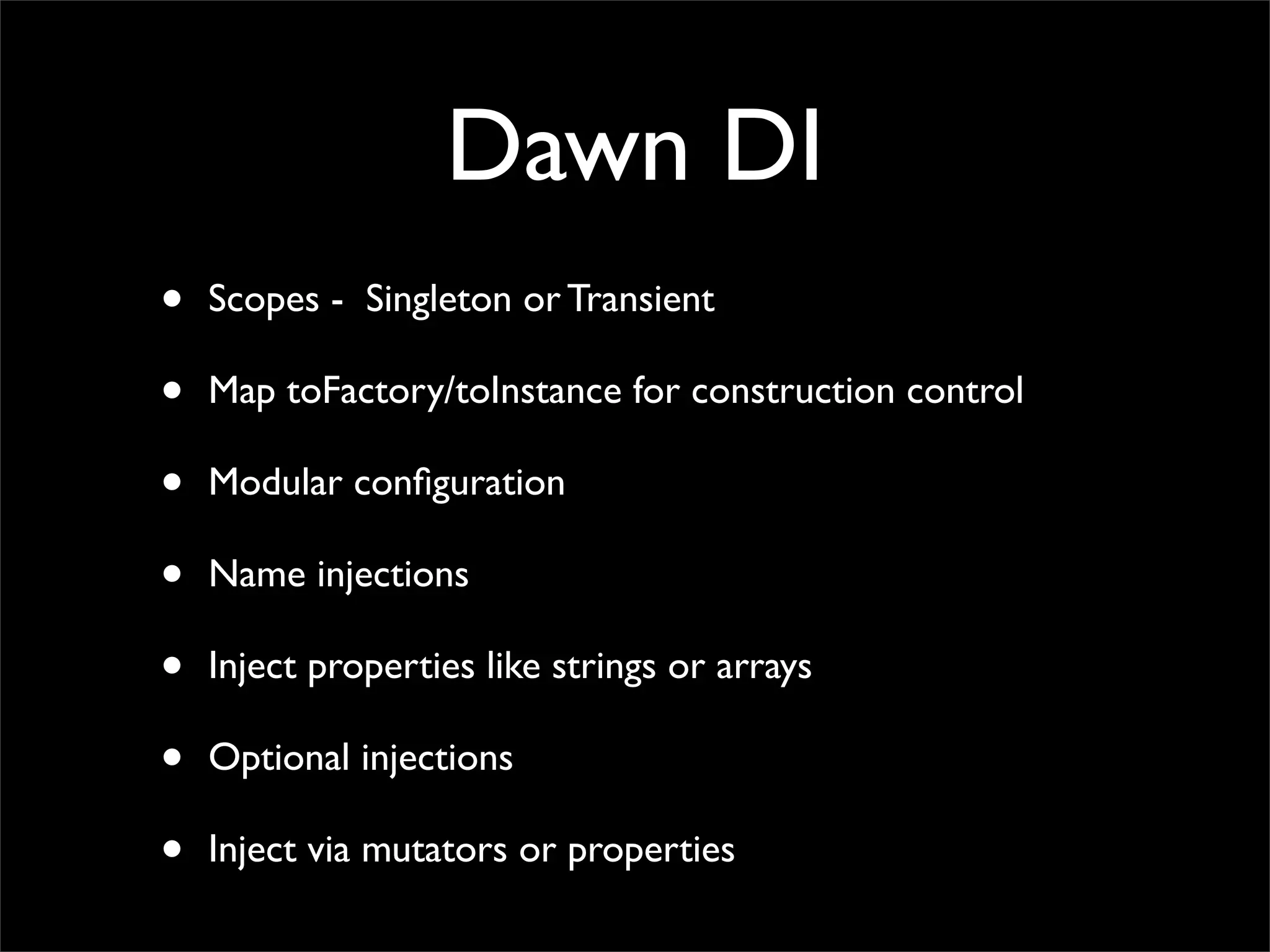

36. Dawn DI
• Scopes - Singleton or Transient
• Map toFactory/toInstance for construction control
• Modular configuration
• Name injections
• Inject properties like strings or arrays
• Optional injections
• Inject via mutators or properties

37. FP-183

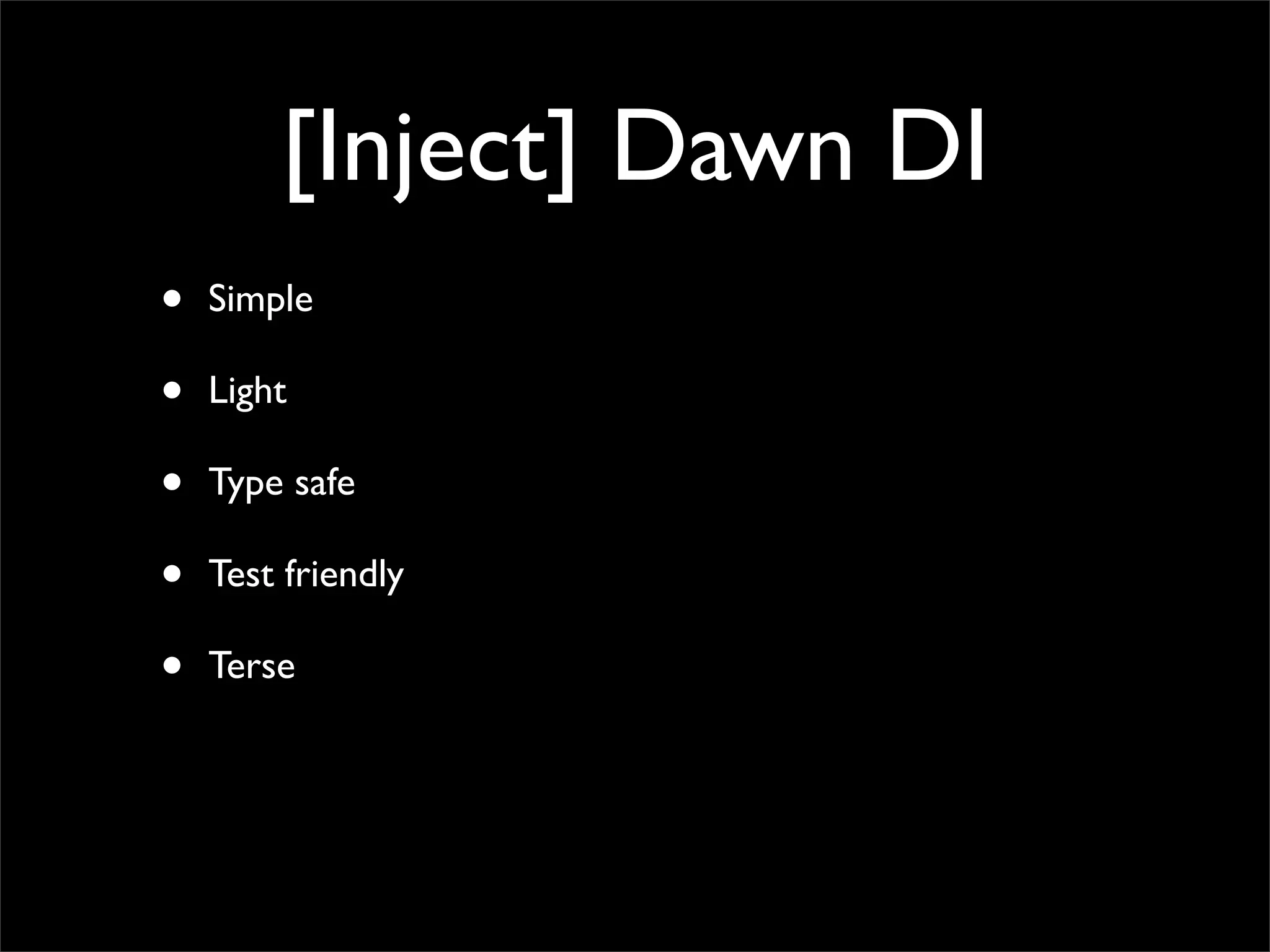

38. [Inject] Dawn DI
• Simple
• Light
• Type safe
• Test friendly
• Terse

39. Notifications
decoupling without the compromise

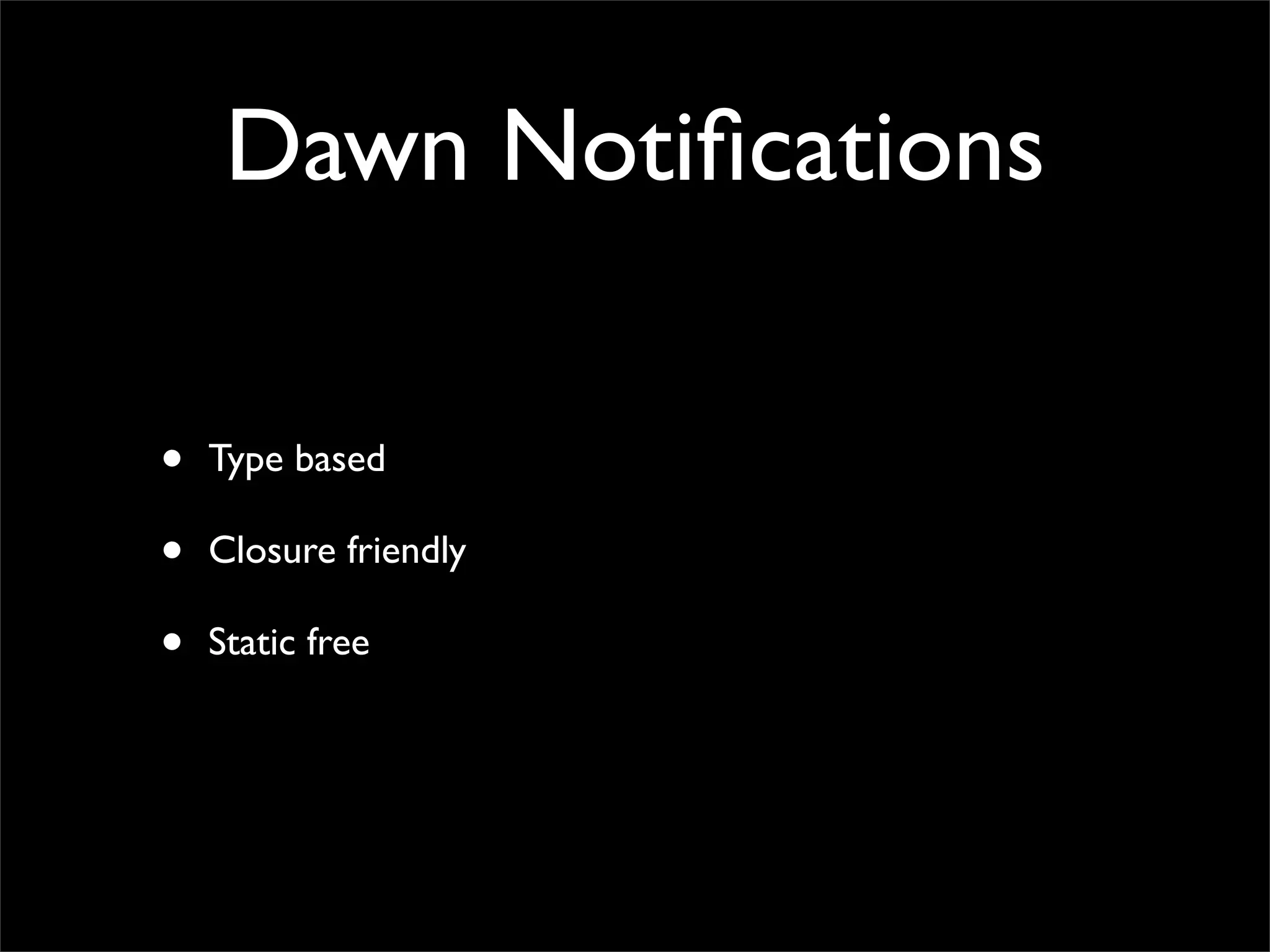

40. Dawn Notifications
• Type based
• Closure friendly
• Static free

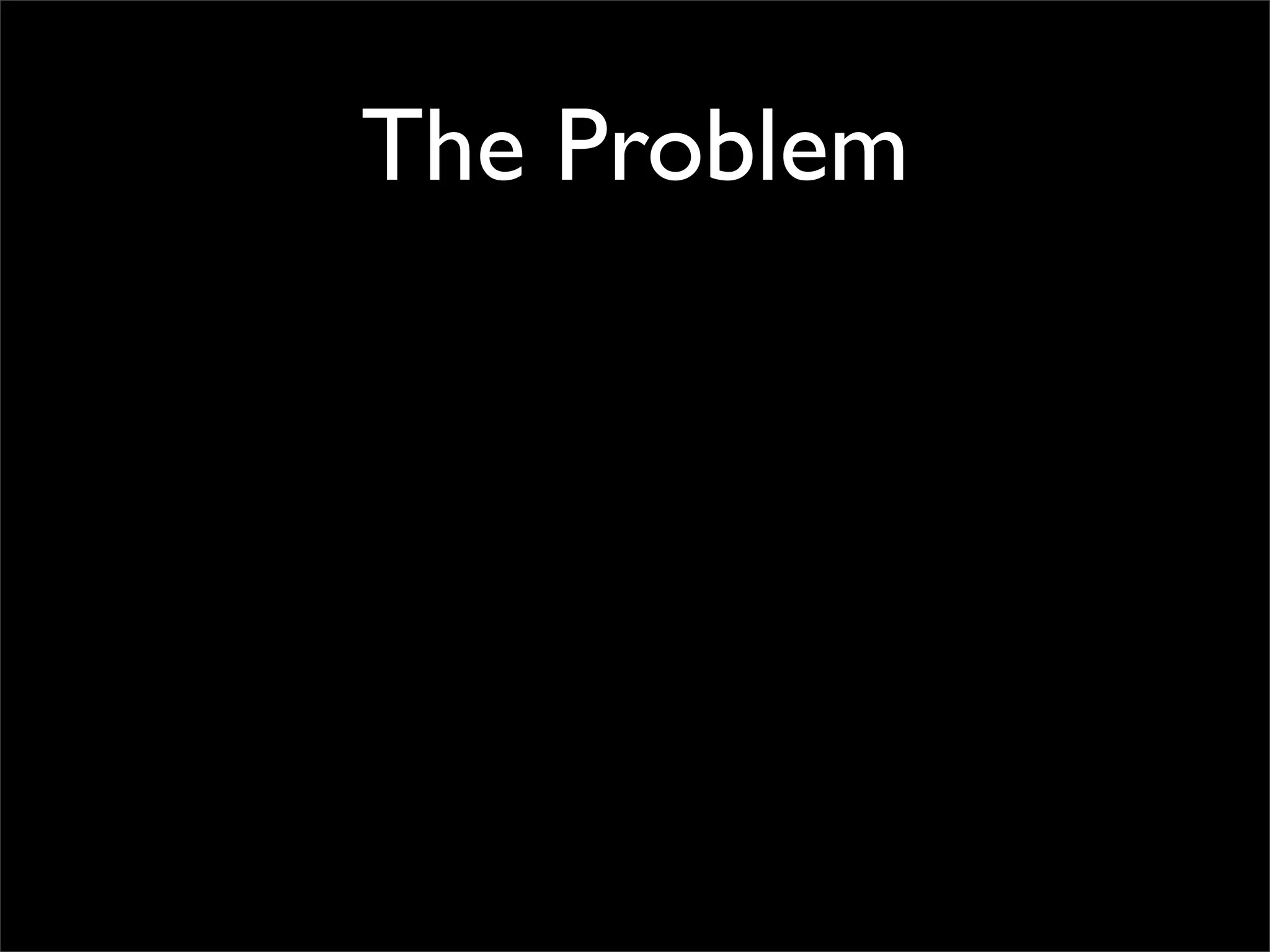

41. The Problem

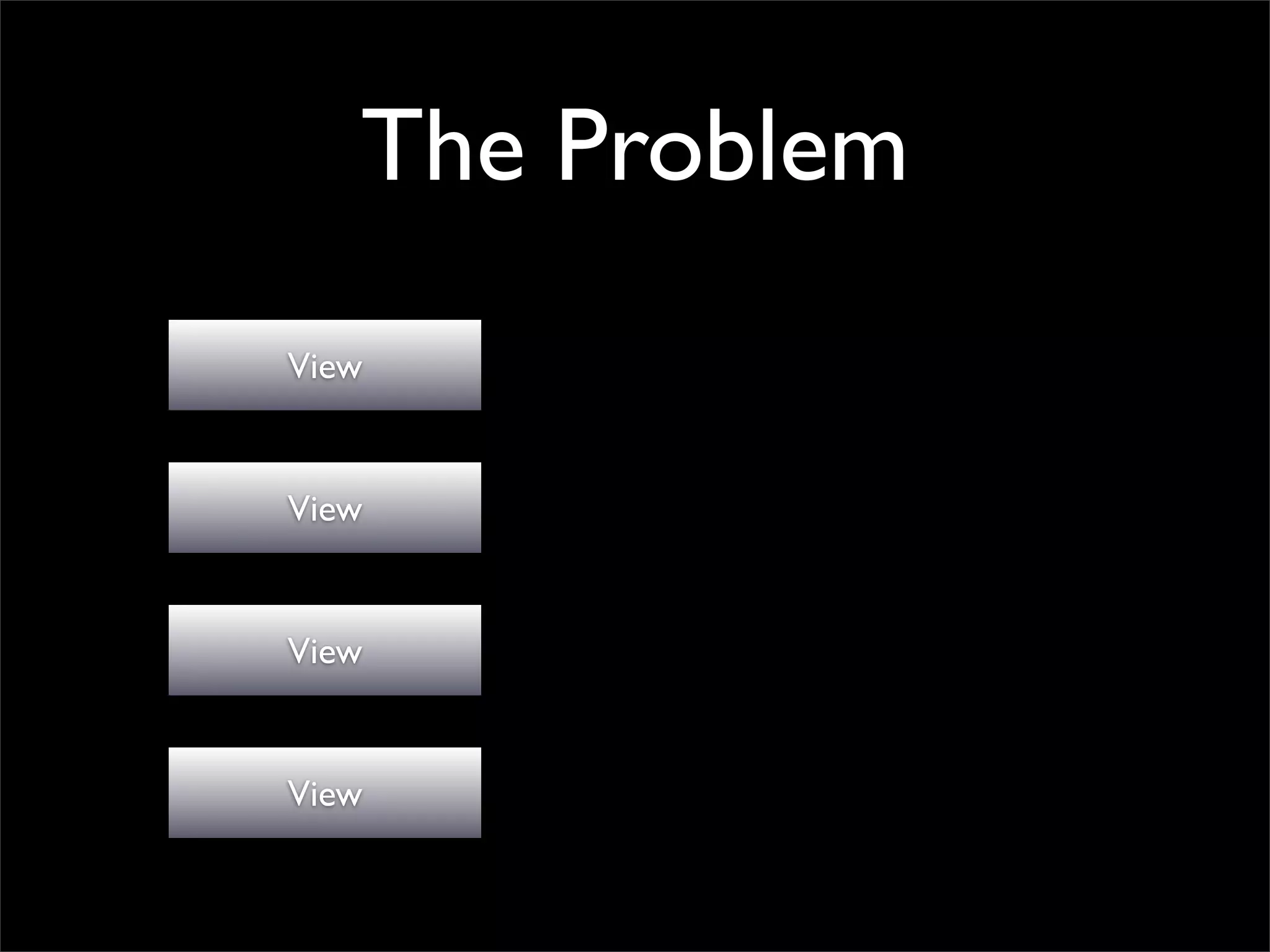

42. The Problem
View
View
View
View

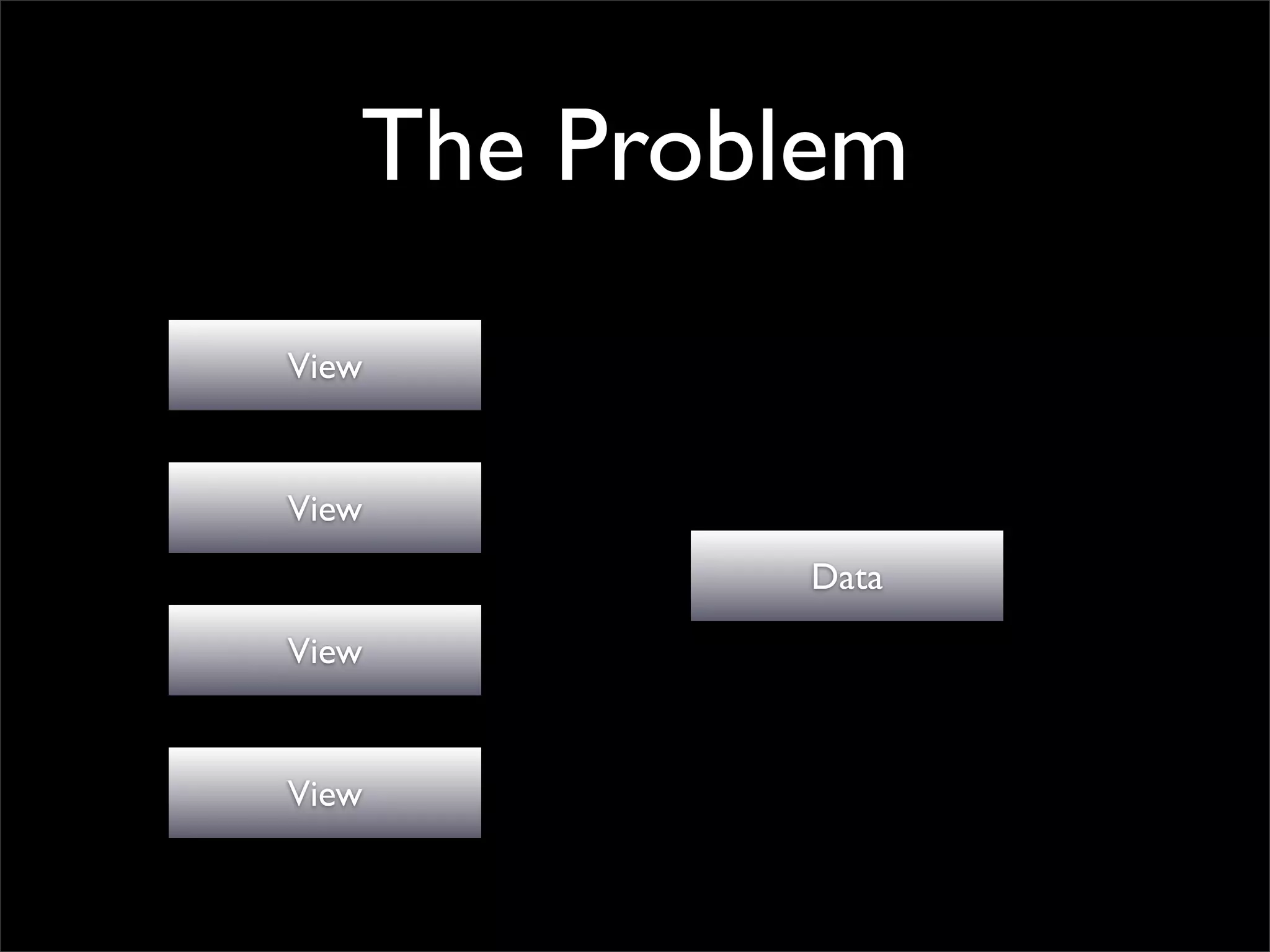

43. The Problem
View
View
Data
View
View

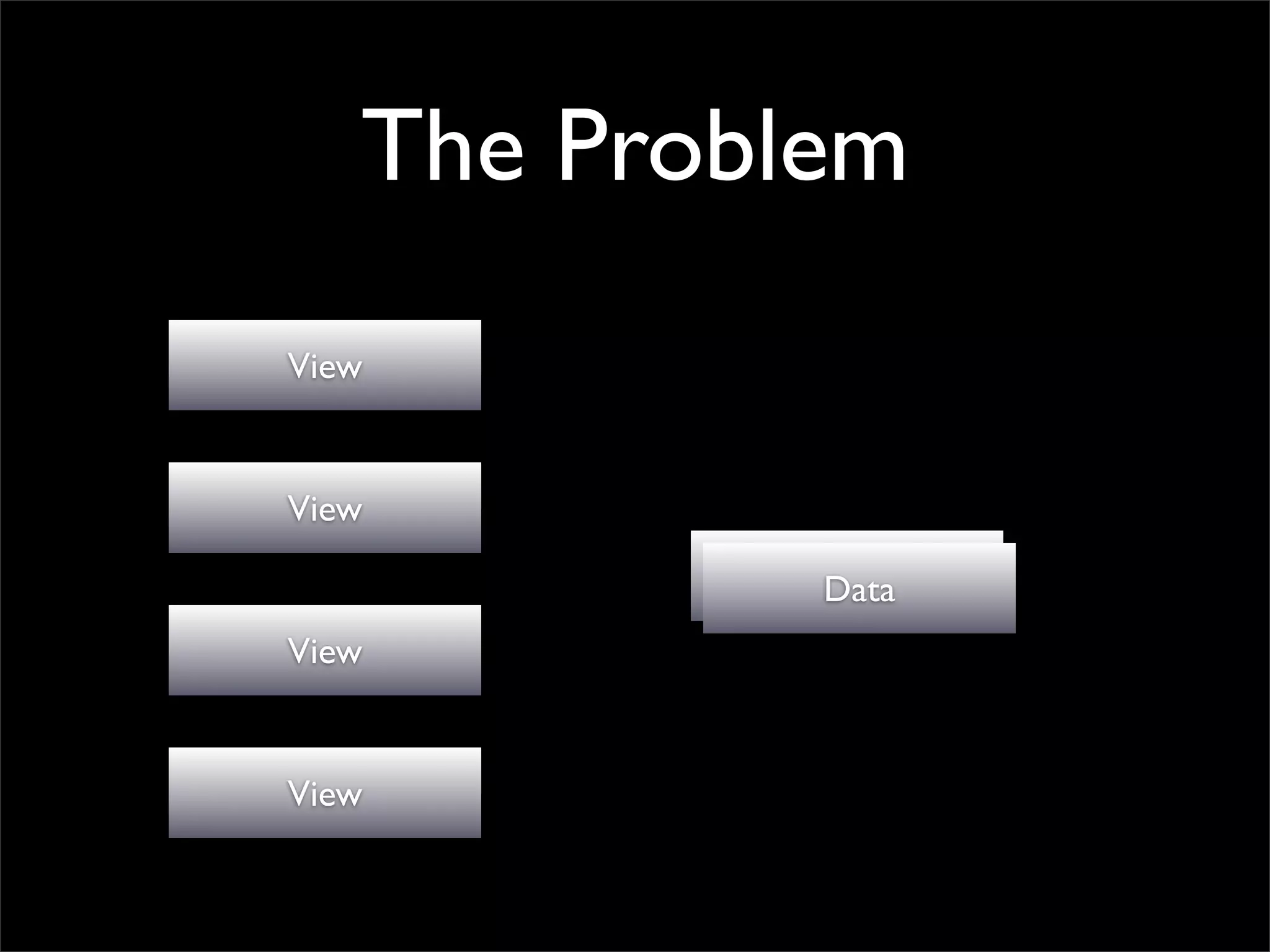

44. The Problem
View
View
Data
Data
View
View

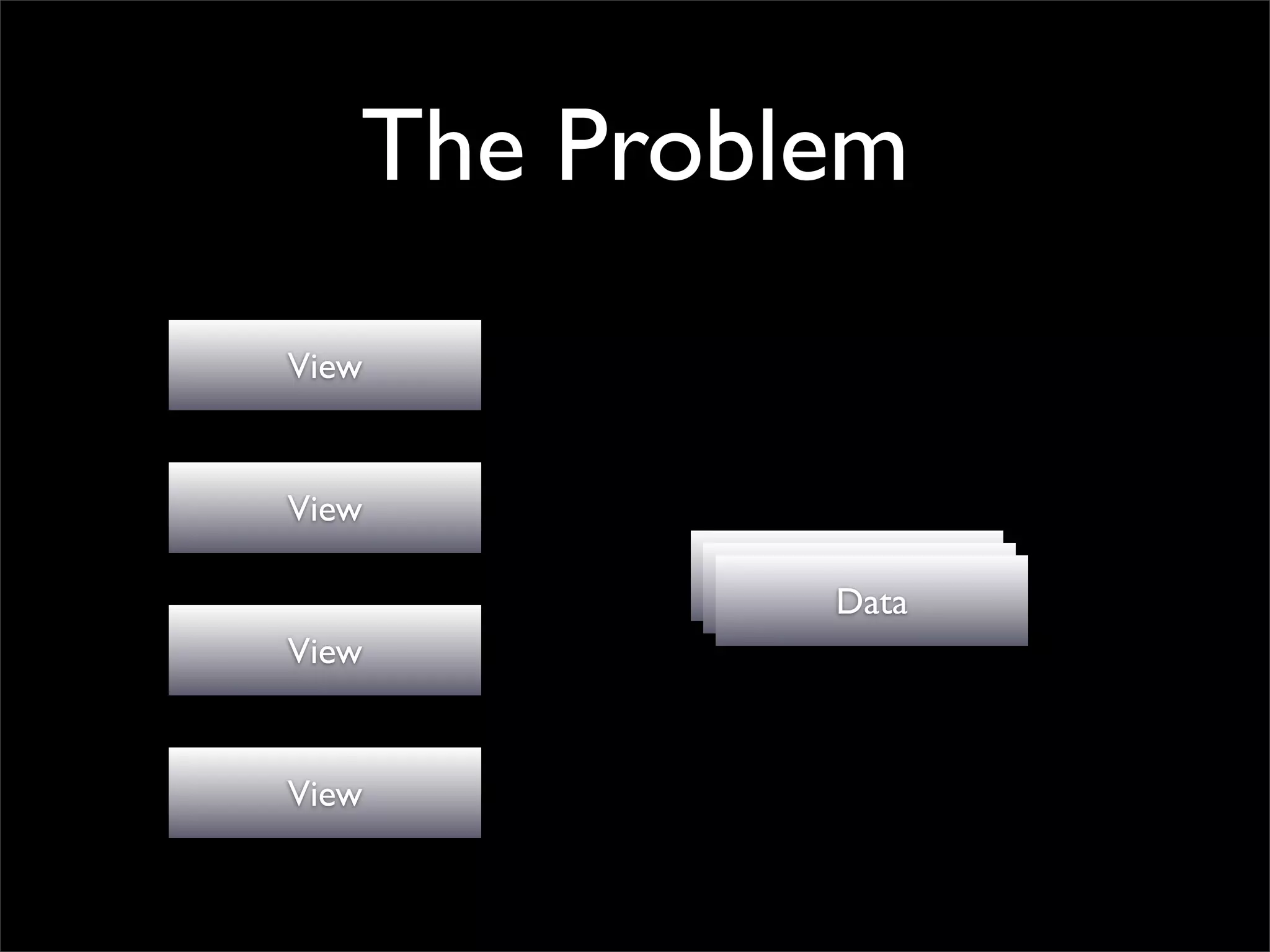

45. The Problem
View
View
Data
Data
Data
View
View

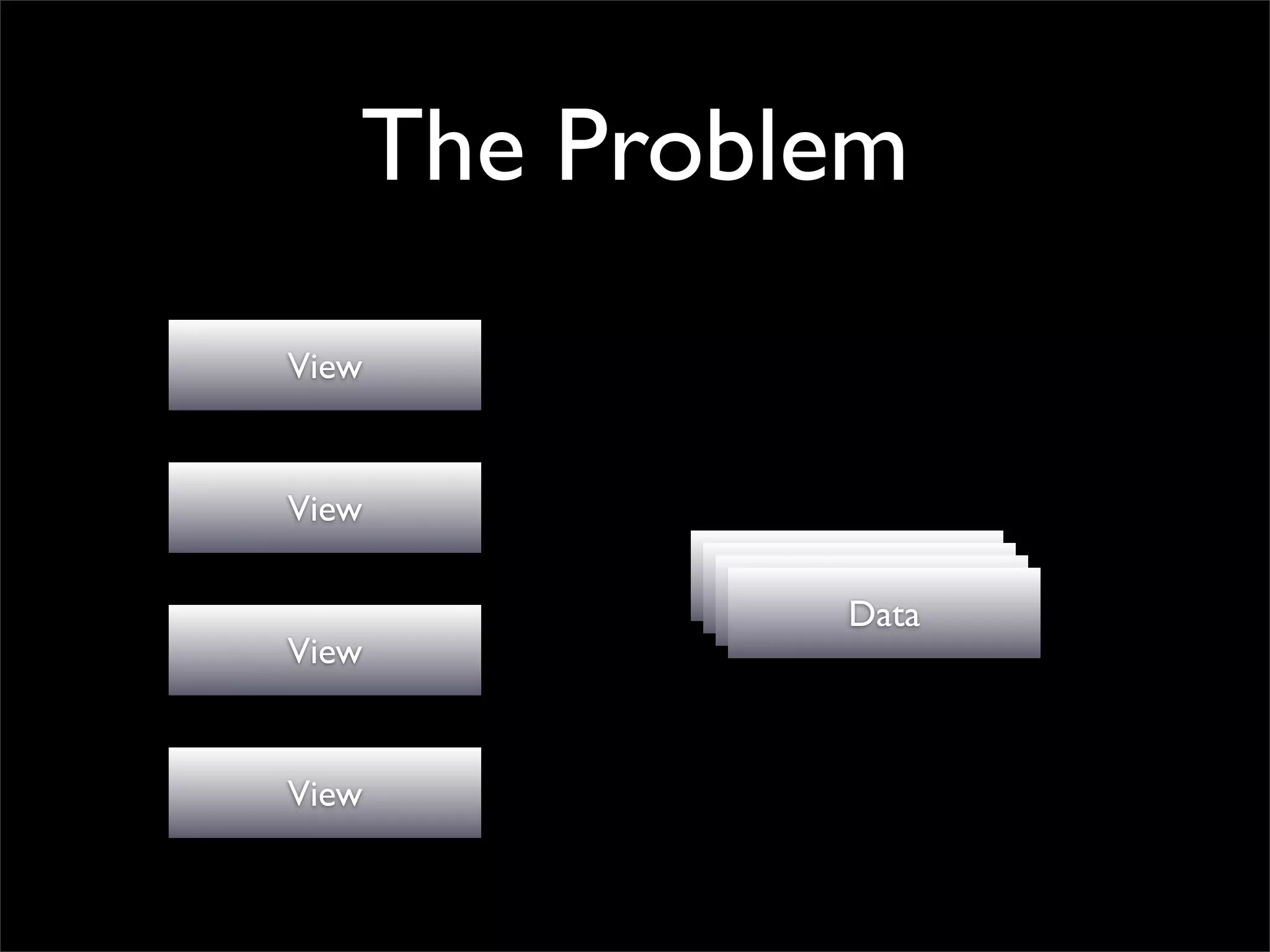

46. The Problem
View
View
Data
Data
Data
Data
View
View

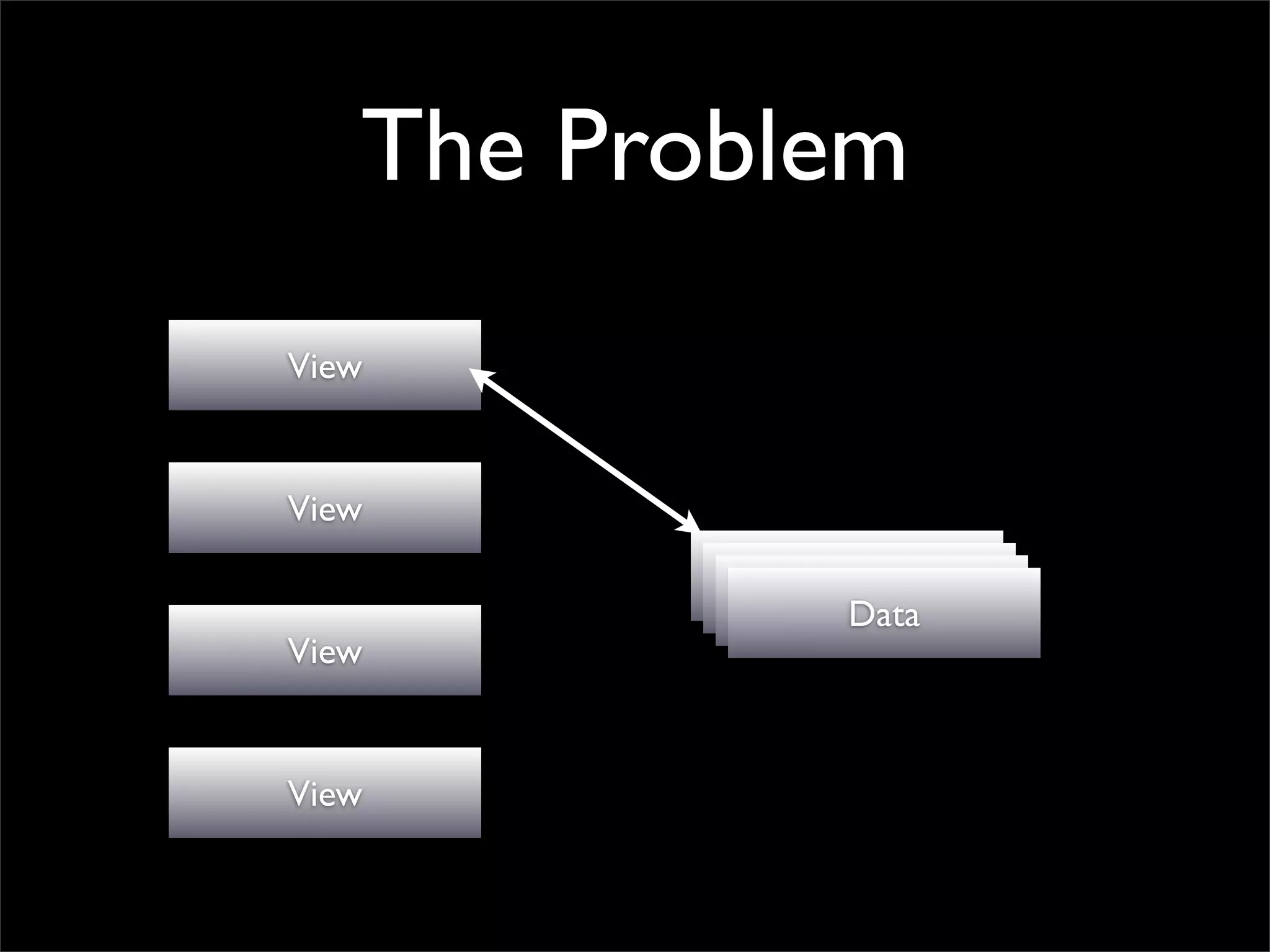

47. The Problem
View
View
Data
Data
Data
Data
View
View

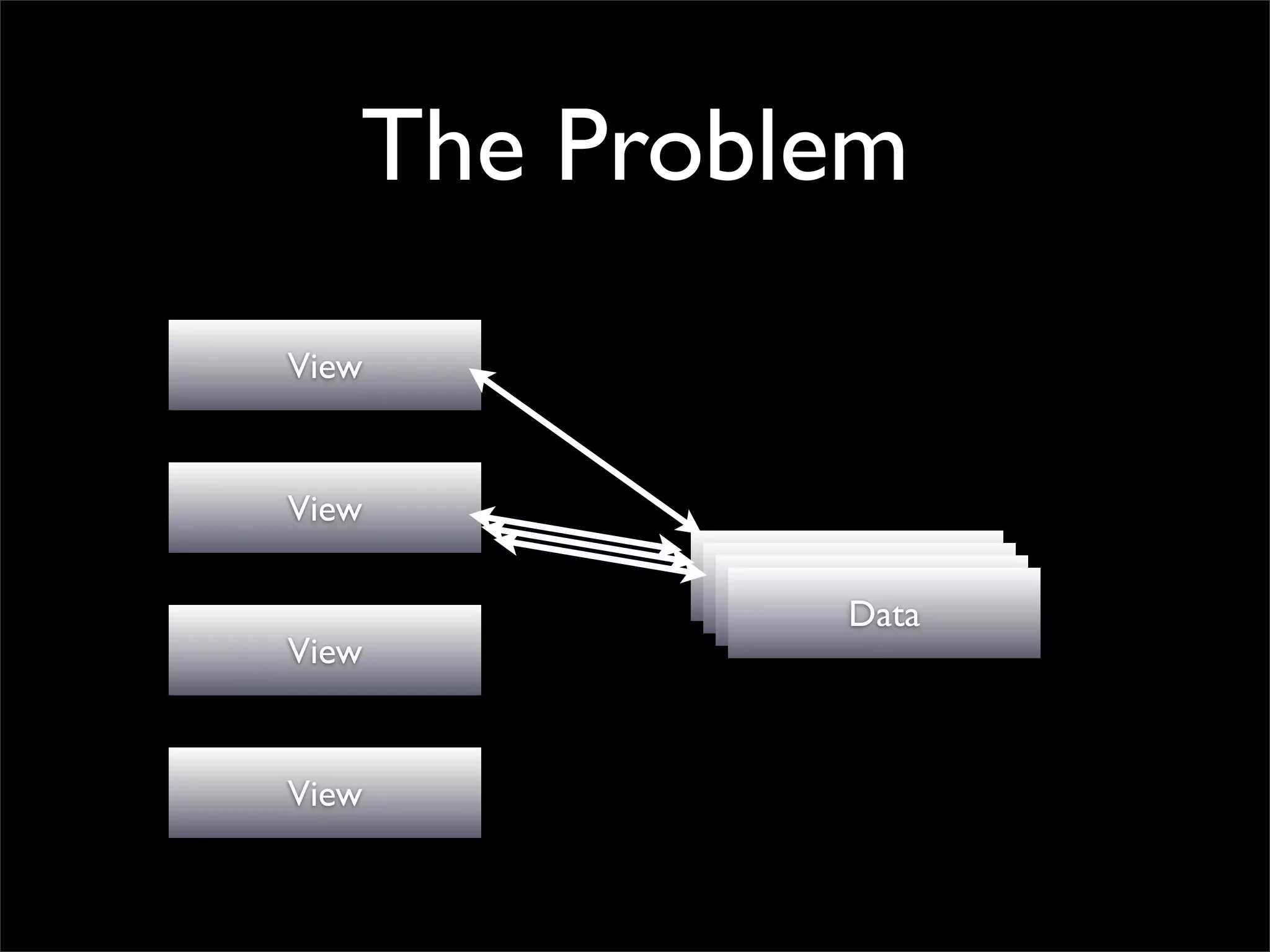

48. The Problem
View
View
Data
Data
Data
Data
View
View

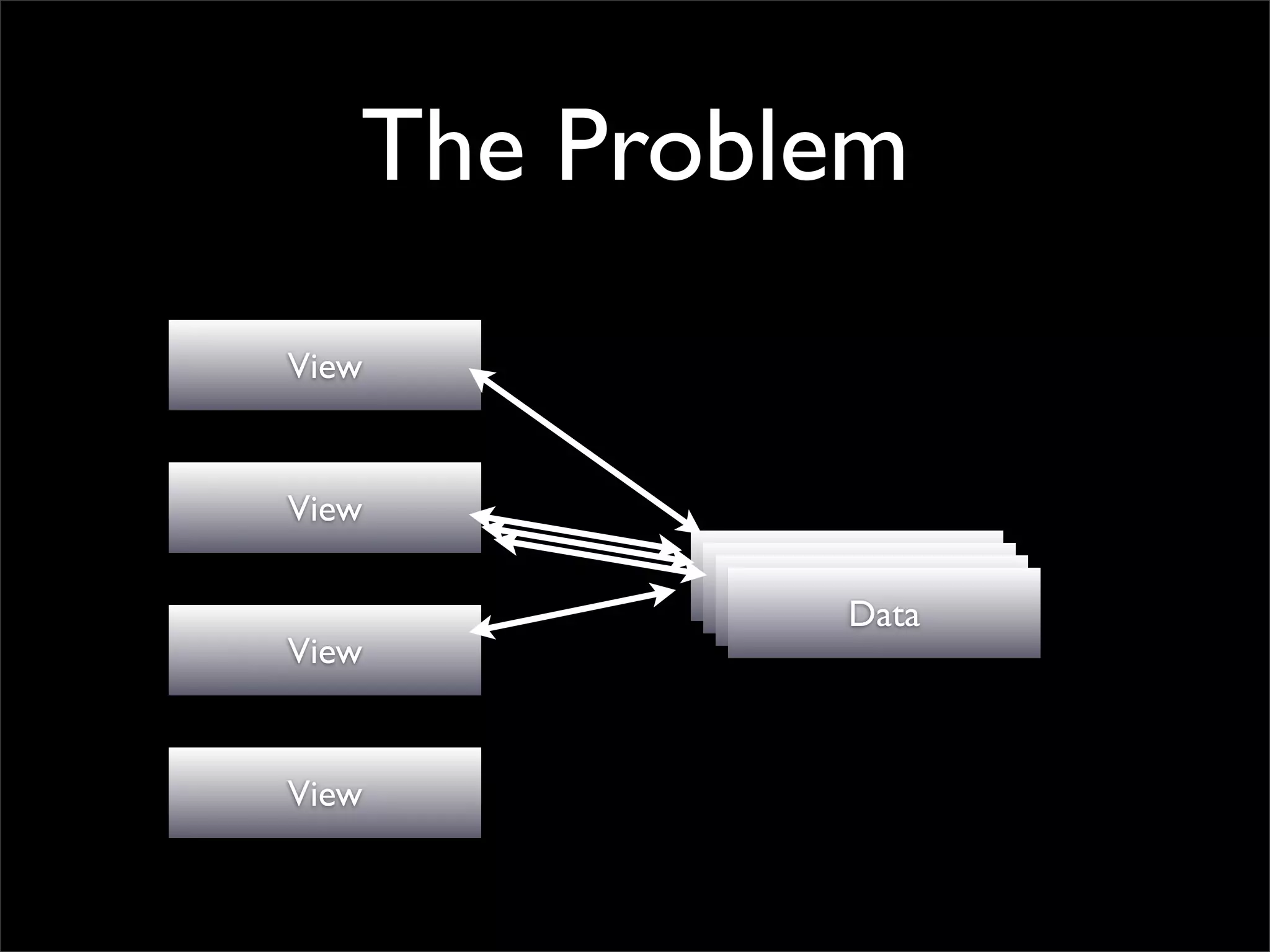

49. The Problem
View
View
Data
Data
Data
Data
View
View

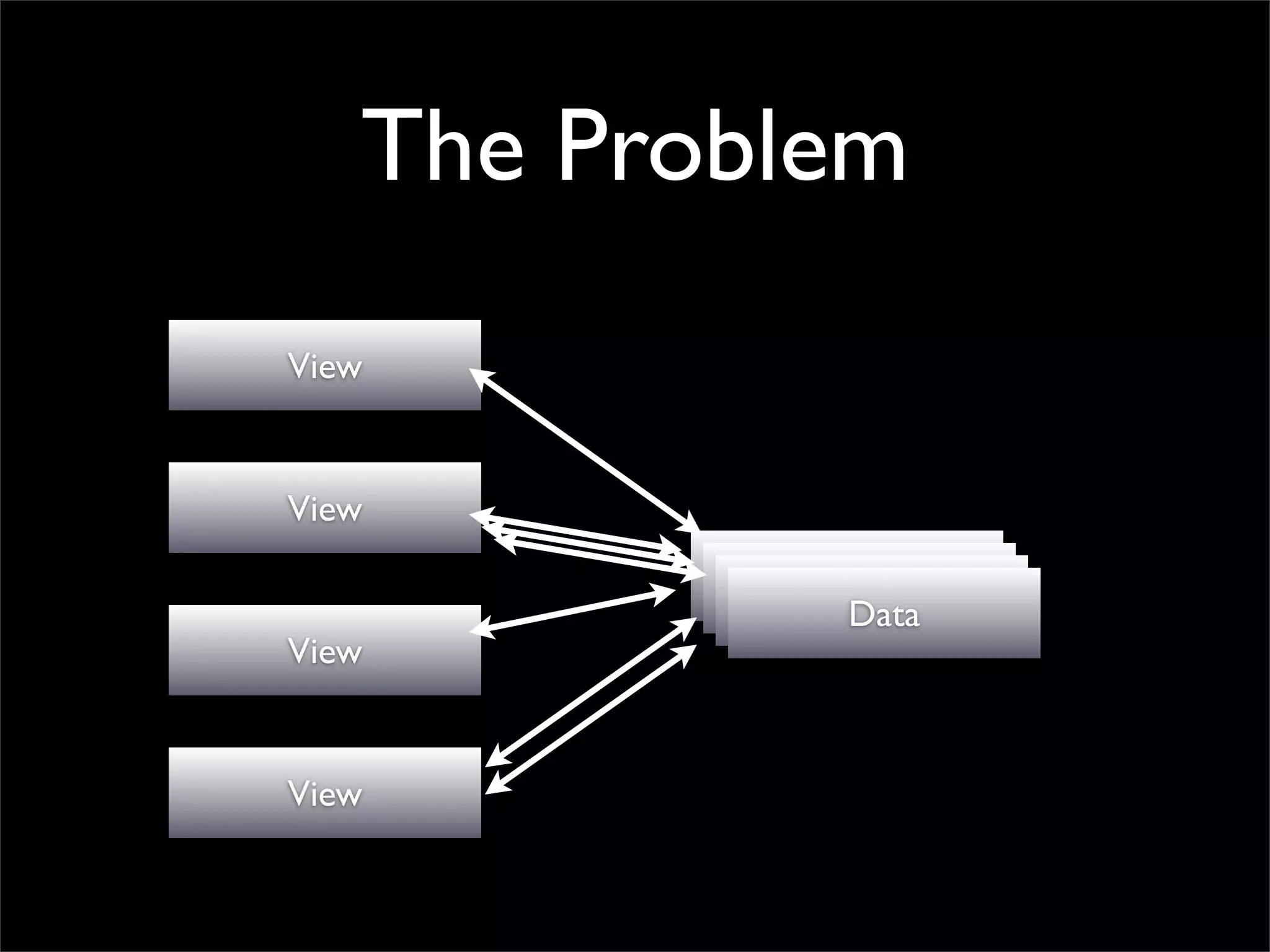

50. The Problem
View
View
Data
Data
Data
Data
View
View

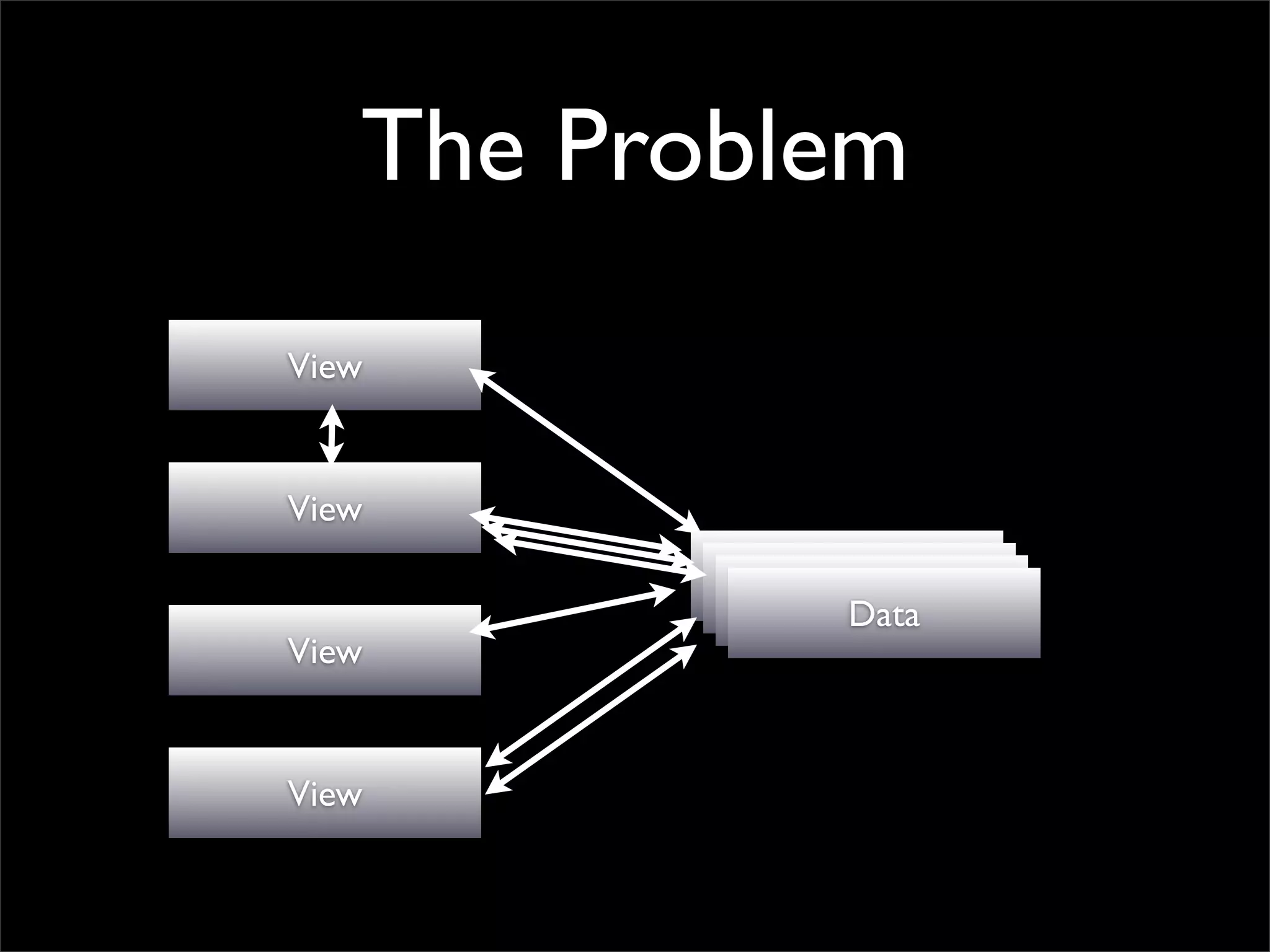

51. The Problem
View
View
Data
Data
Data
Data
View
View

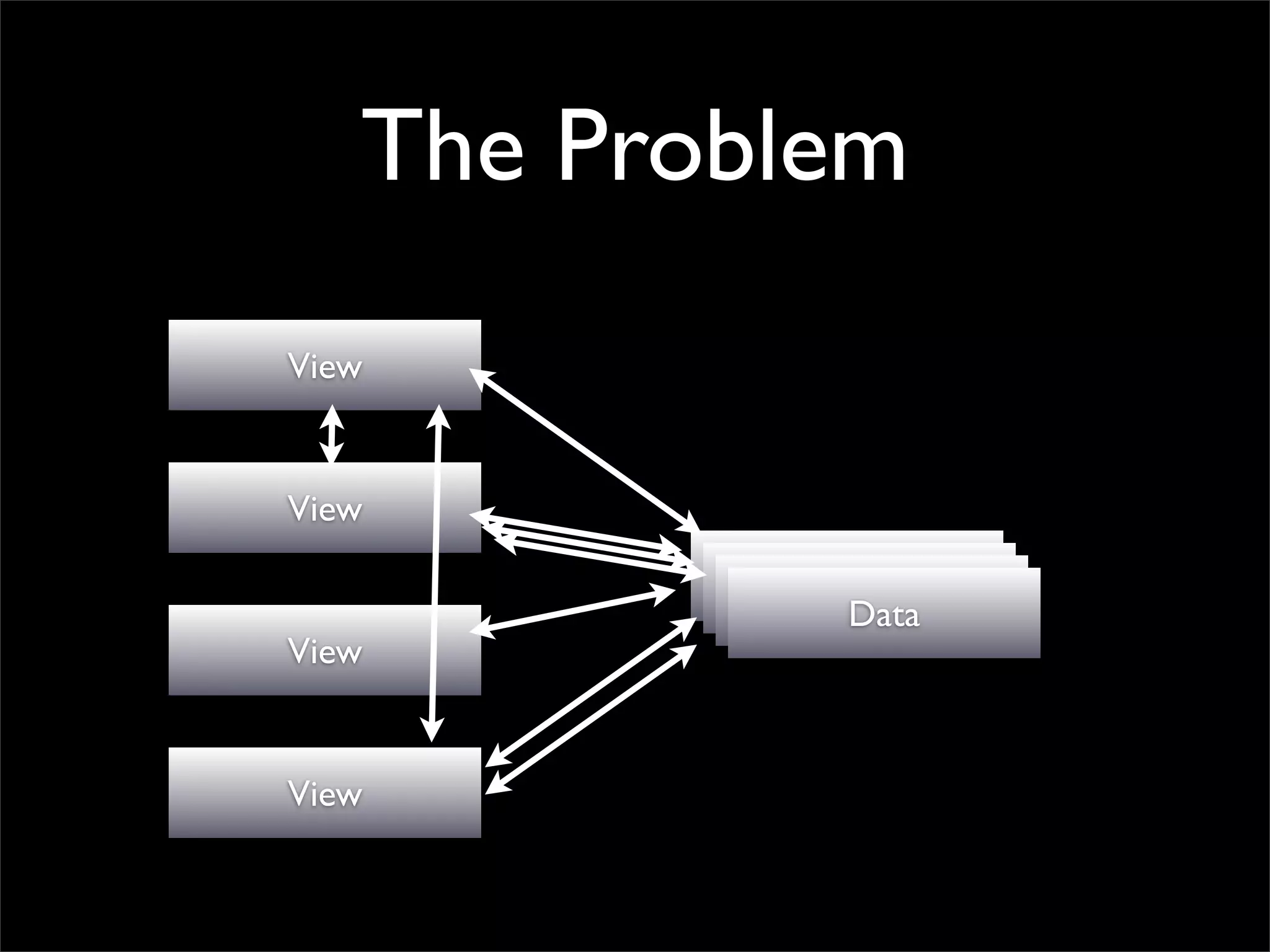

52. The Problem
View
View
Data
Data
Data
Data
View
View

53. The Problem
View
View
Data
Data
Data
Data
View
View

54. The Problem
View
View
Data
Data
Data
Data
View
View

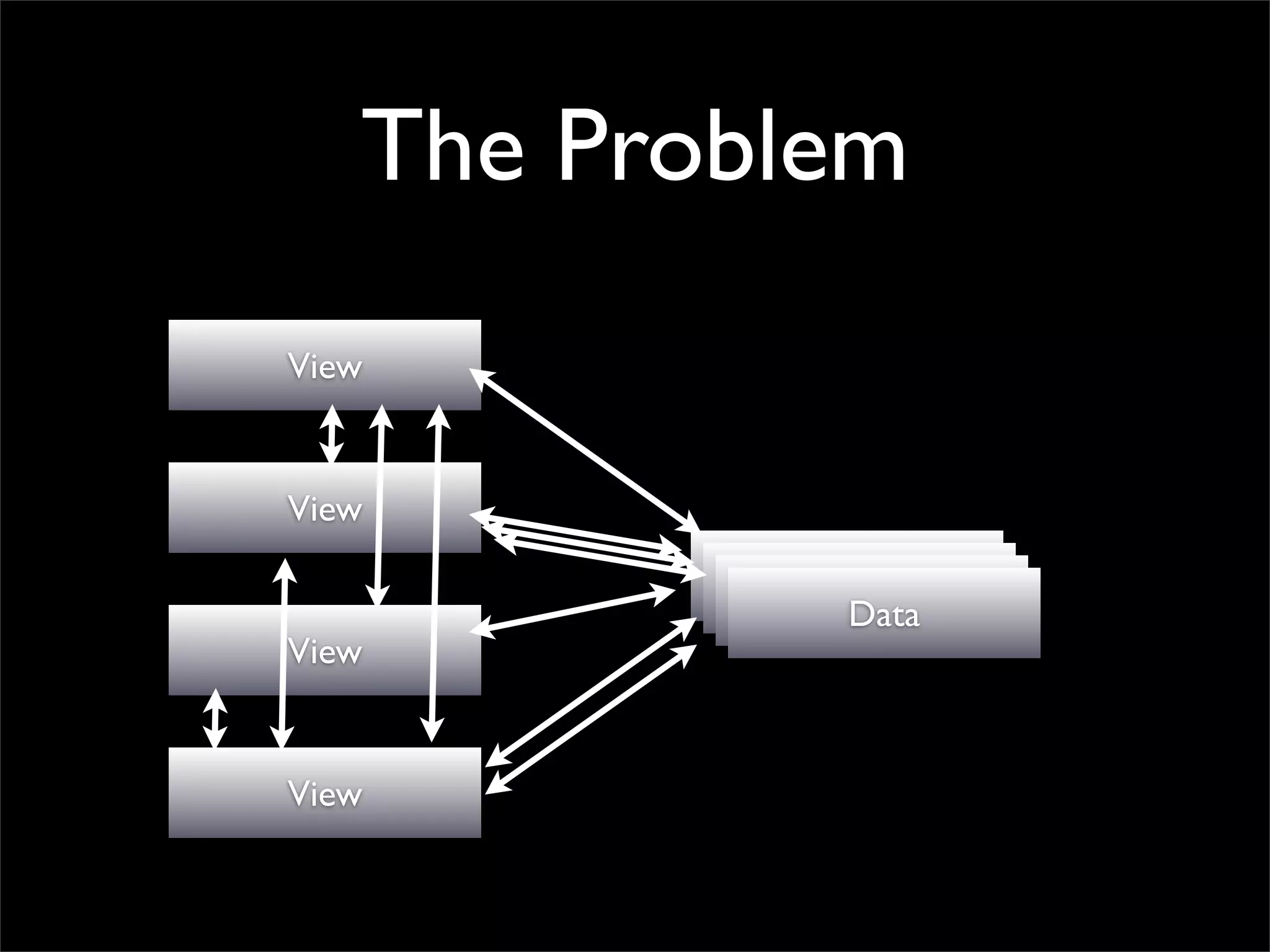

55. The Problem
View
View
Data
Data
Data
Data
View
View

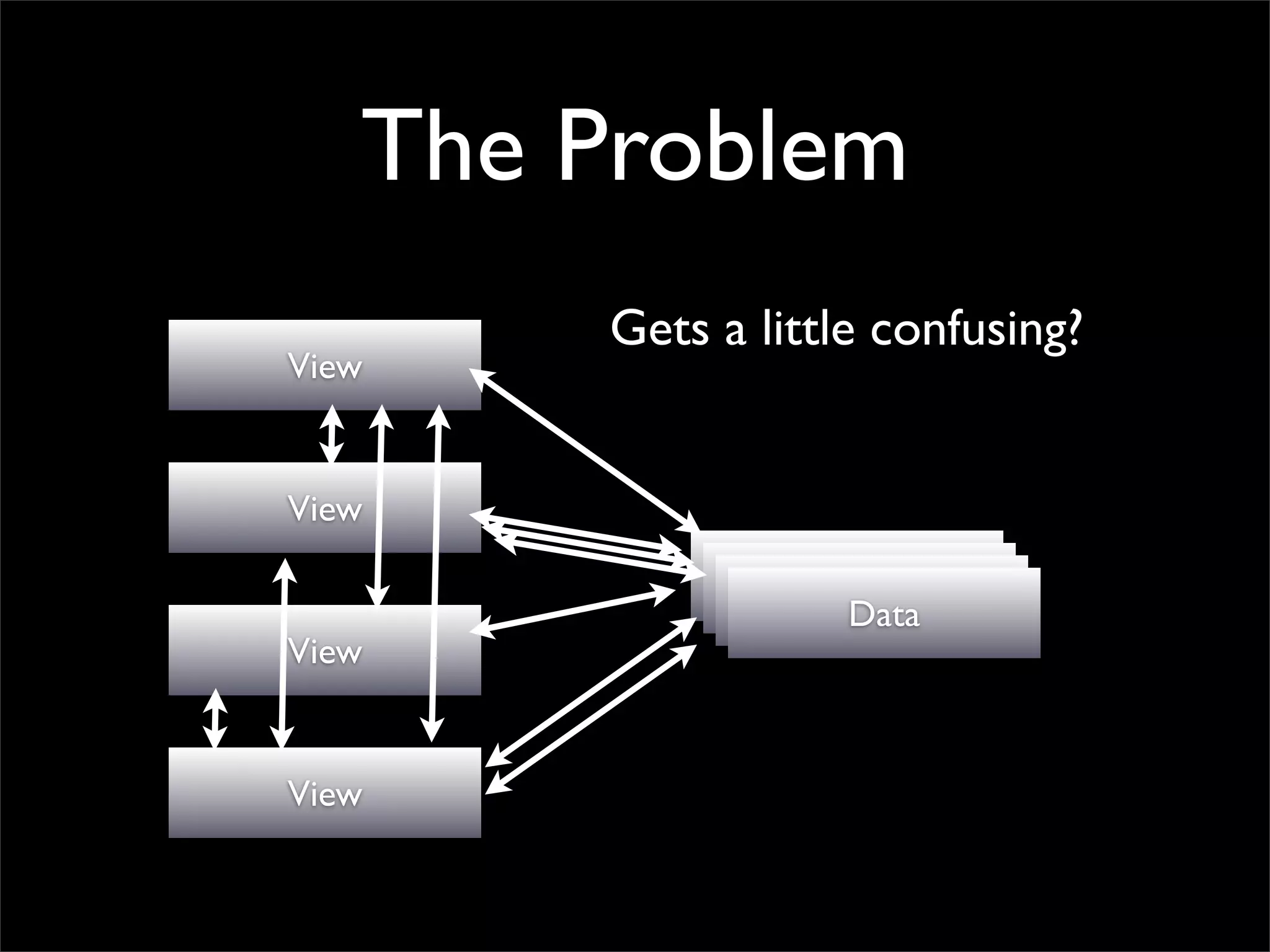

56. The Problem
Gets a little confusing?
View
View
Data
Data
Data
Data
View
View

57. Decouple and Scale

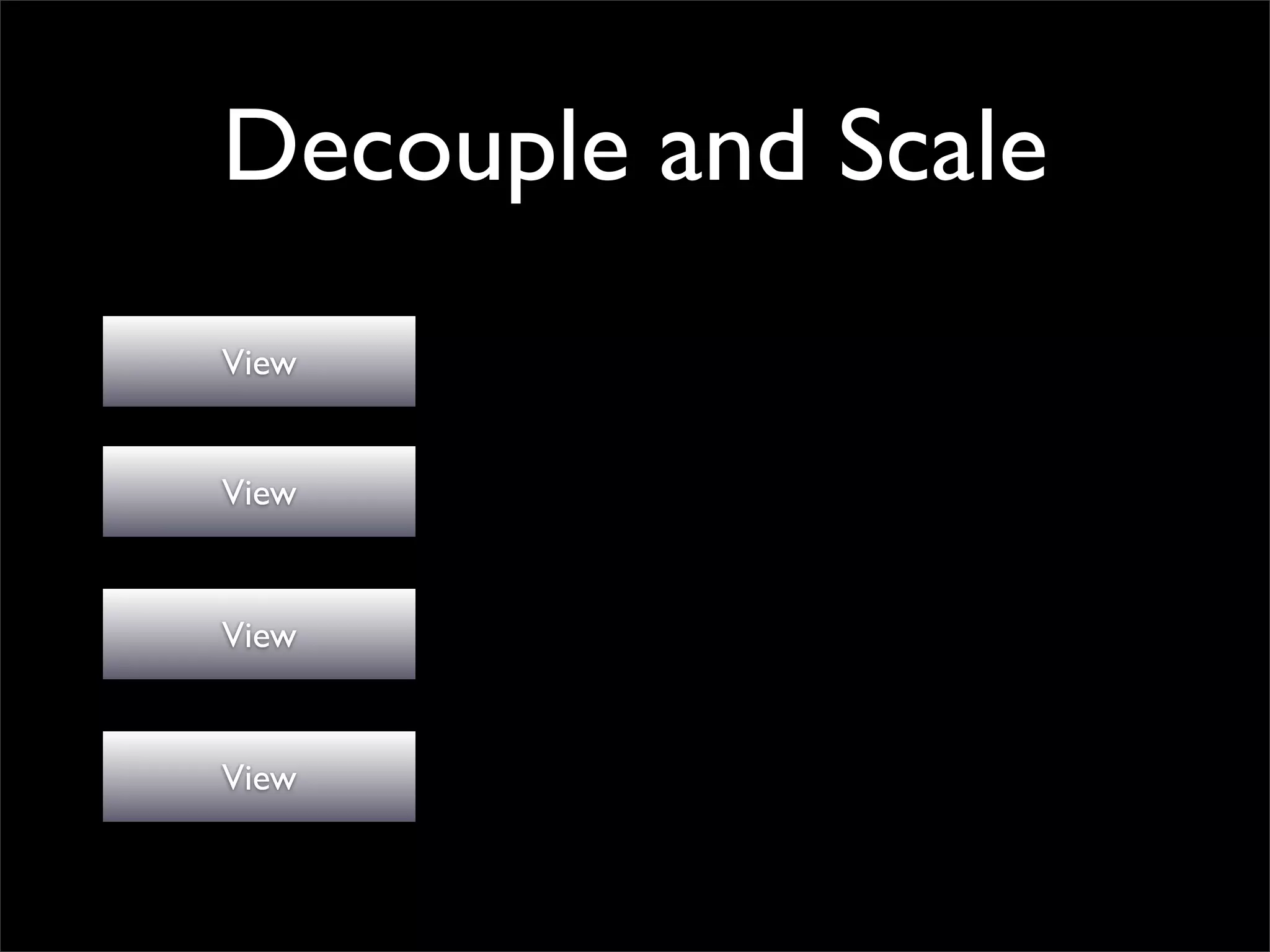

58. Decouple and Scale
View
View
View
View

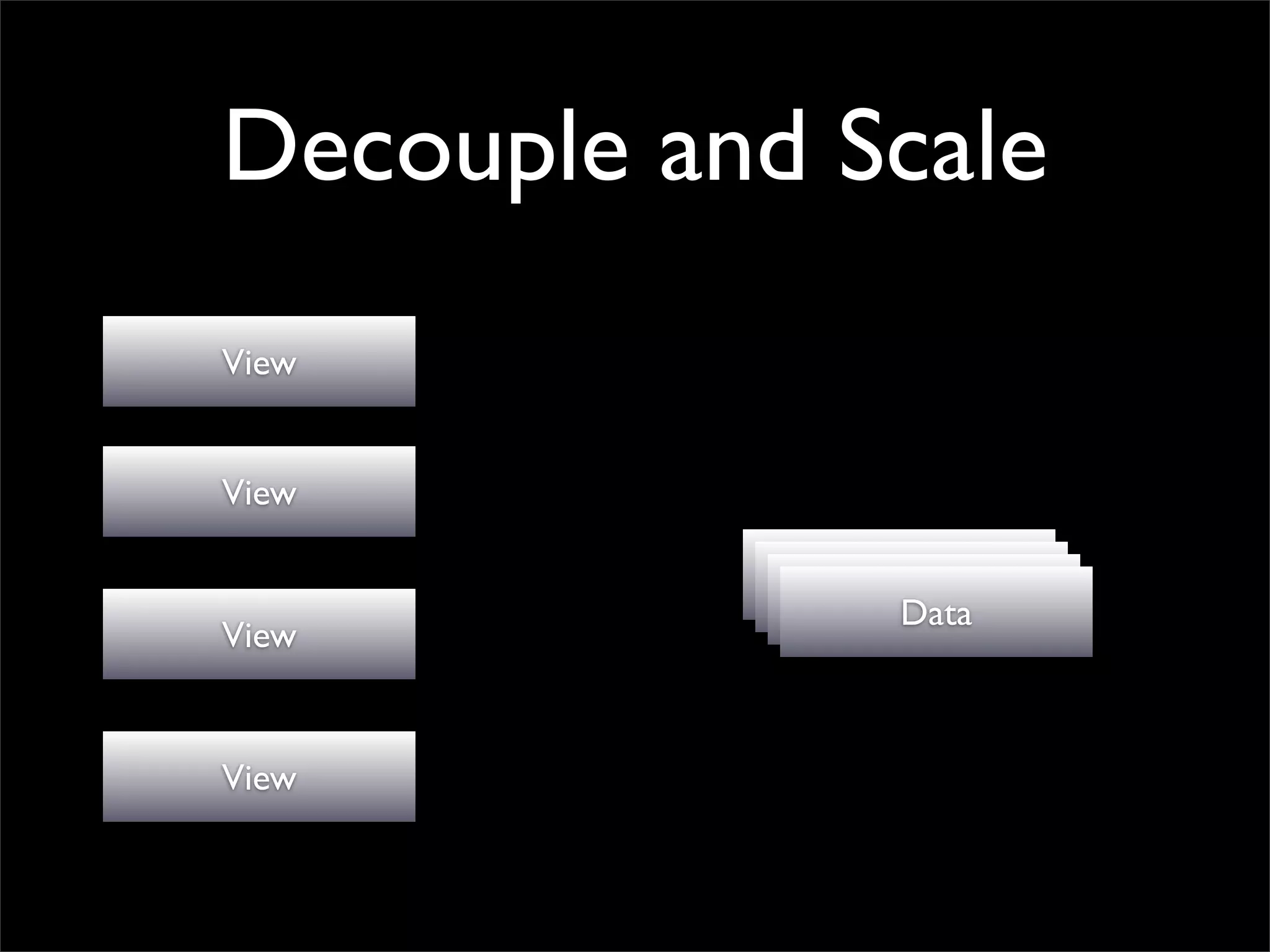

59. Decouple and Scale
View
View
Data
Data
Data
Data
View
View

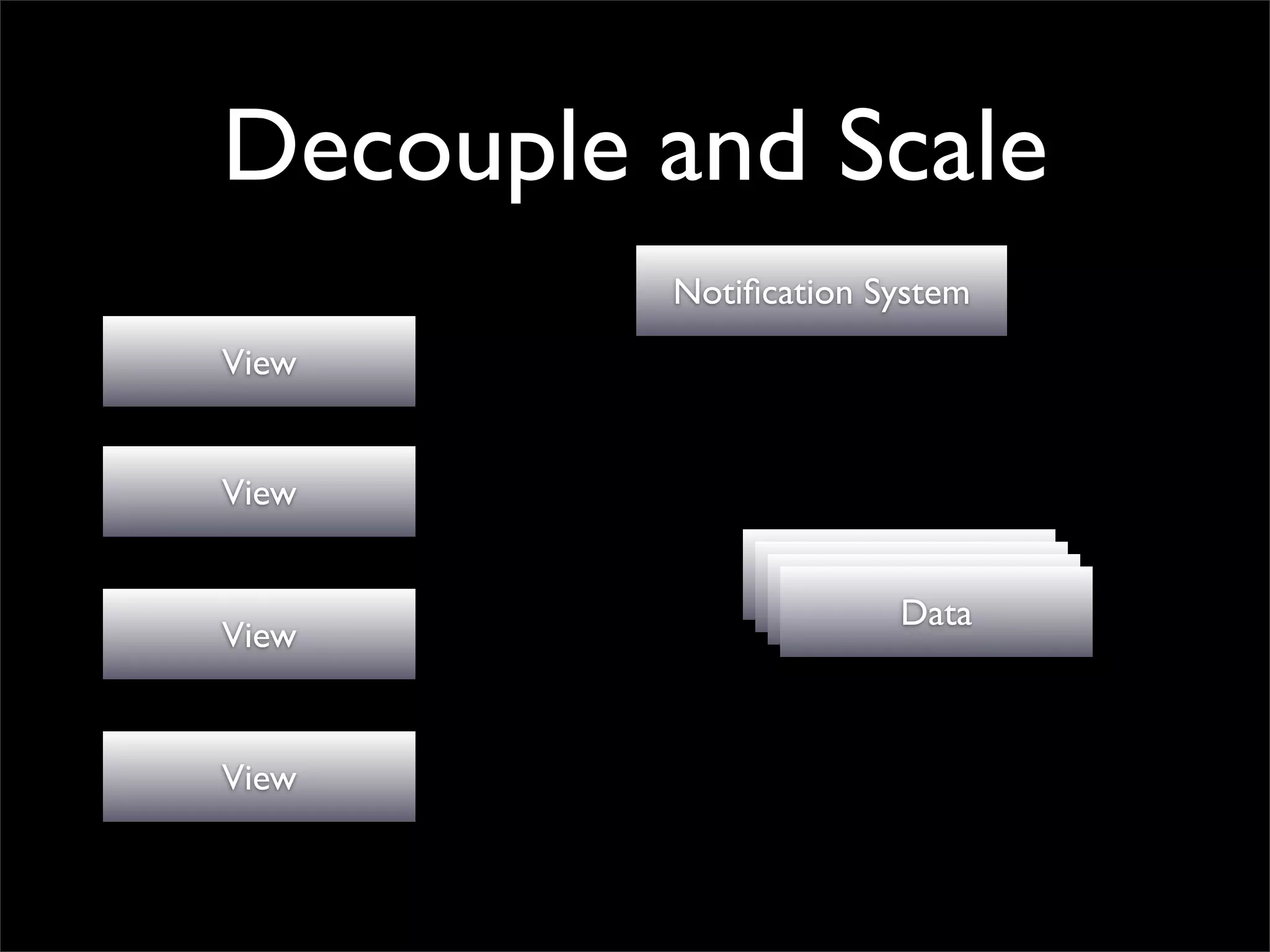

60. Decouple and Scale
Notification System
View
View
Data
Data
Data
Data
View
View

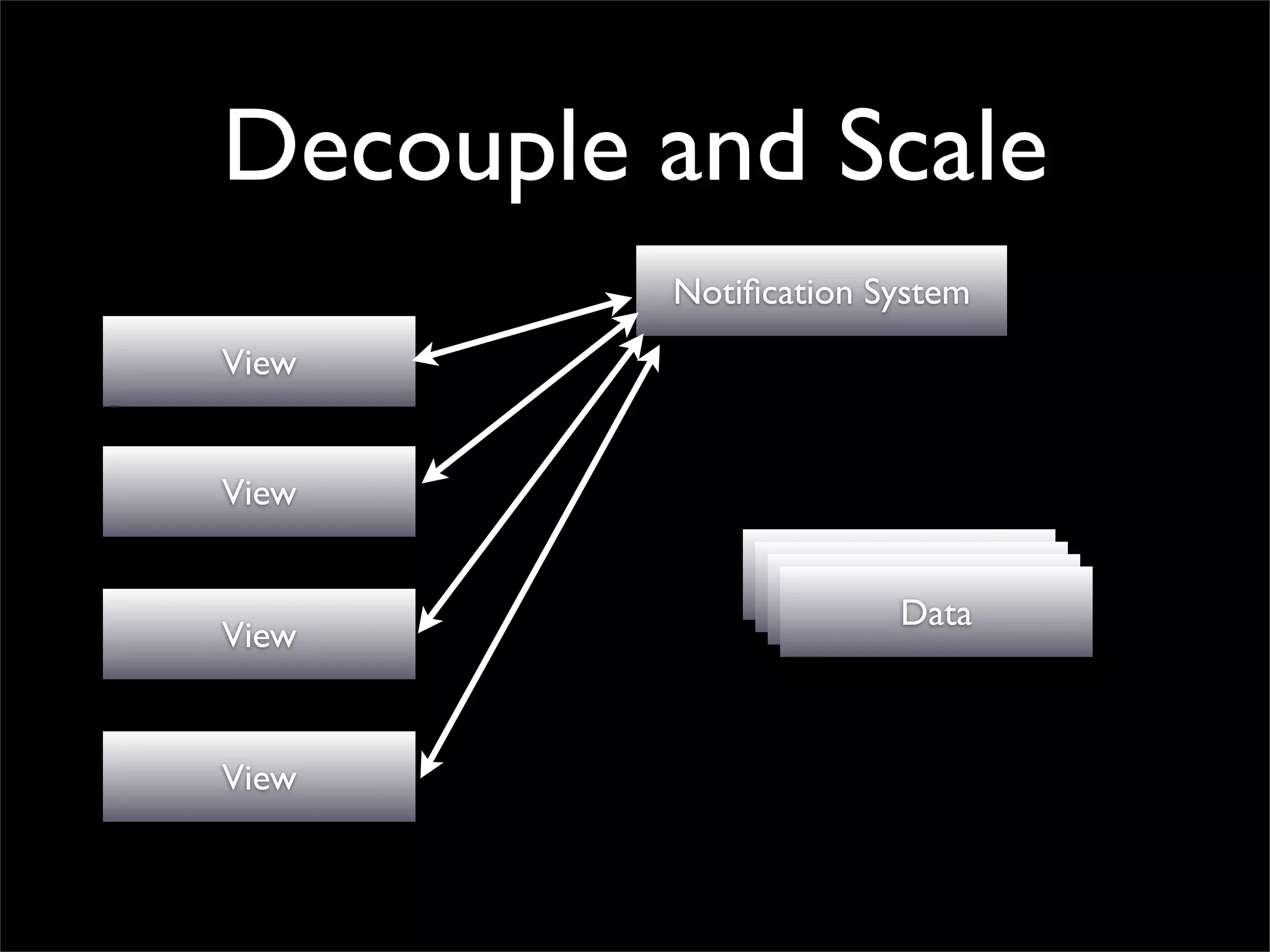

61. Decouple and Scale
Notification System
View
View
Data
Data
Data
Data
View
View

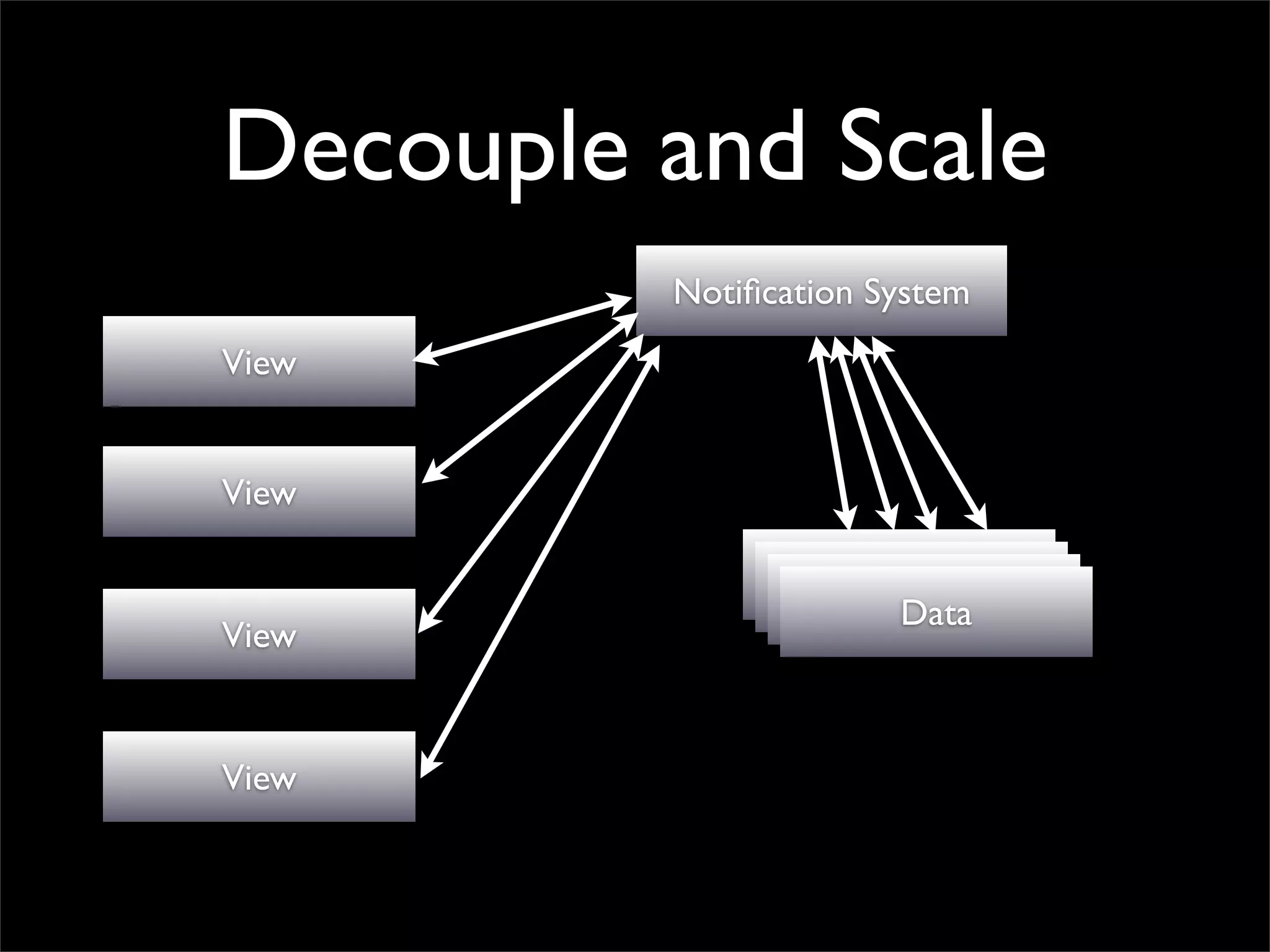

62. Decouple and Scale
Notification System
View
View
Data
Data
Data
Data
View
View

63. Type based

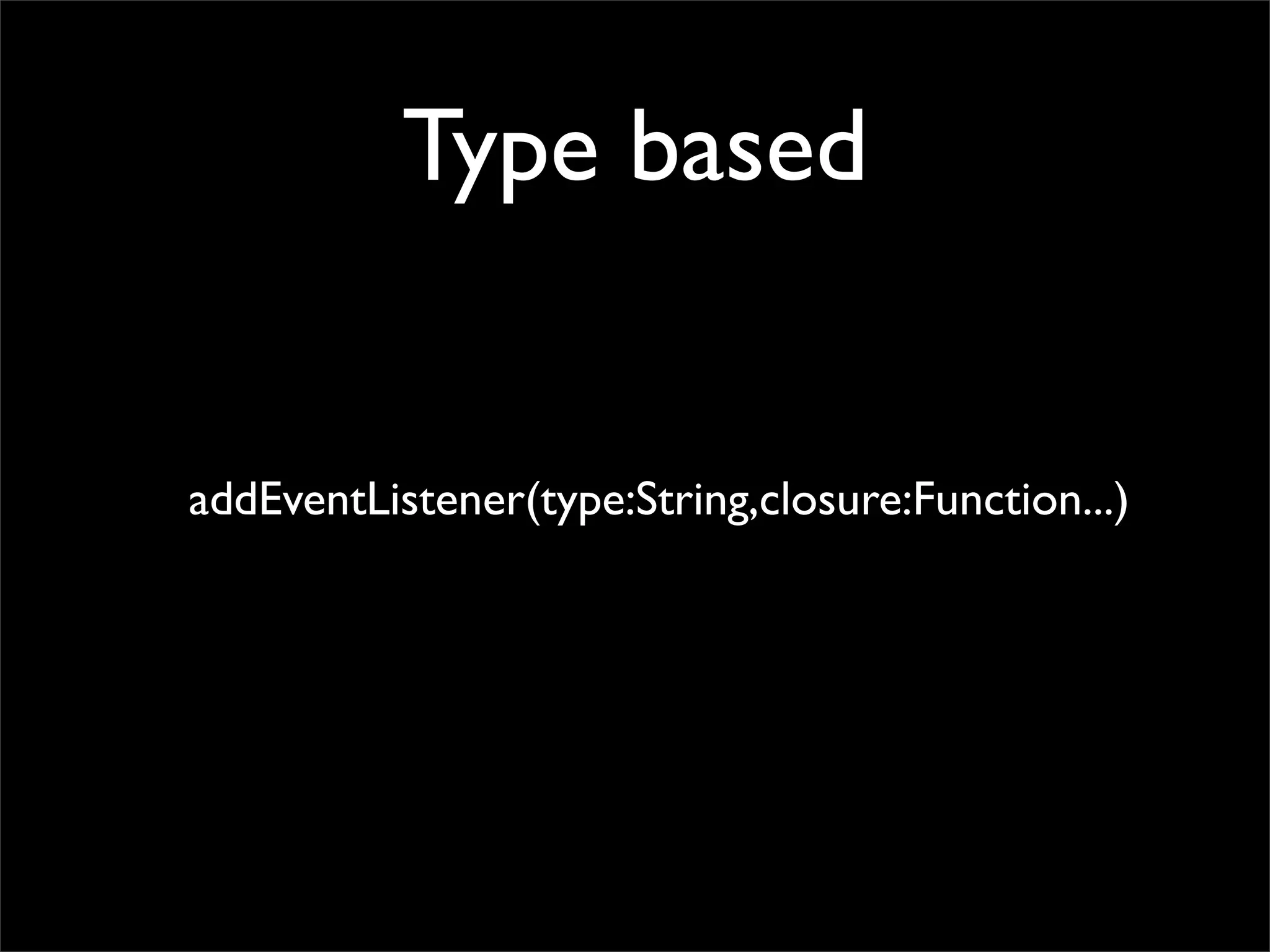

64. Type based
addEventListener(type:String,closure:Function...)

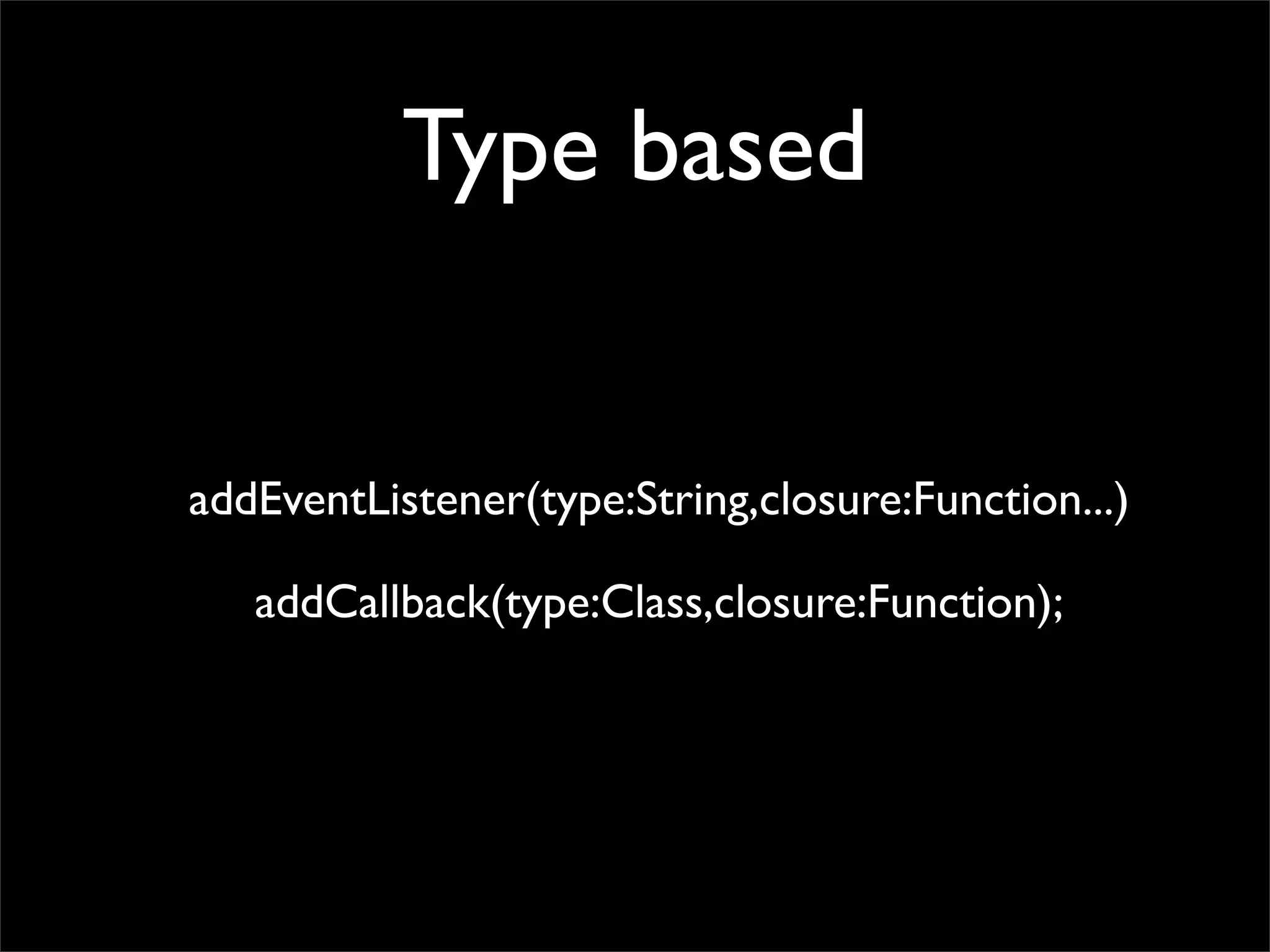

65. Type based
addEventListener(type:String,closure:Function...)
addCallback(type:Class,closure:Function);

66. Why Types

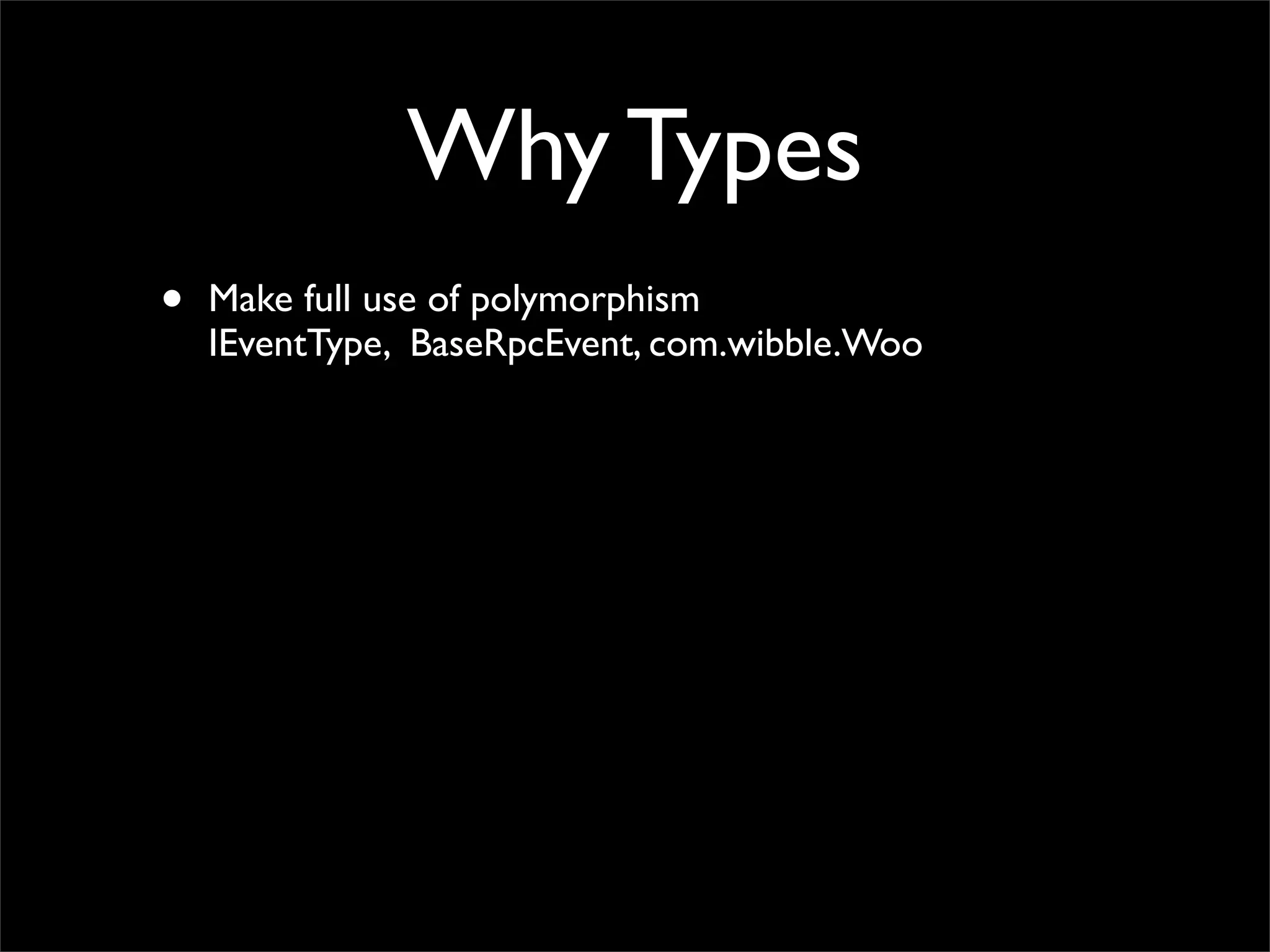

67. Why Types
• Make full use of polymorphism
IEventType, BaseRpcEvent, com.wibble.Woo

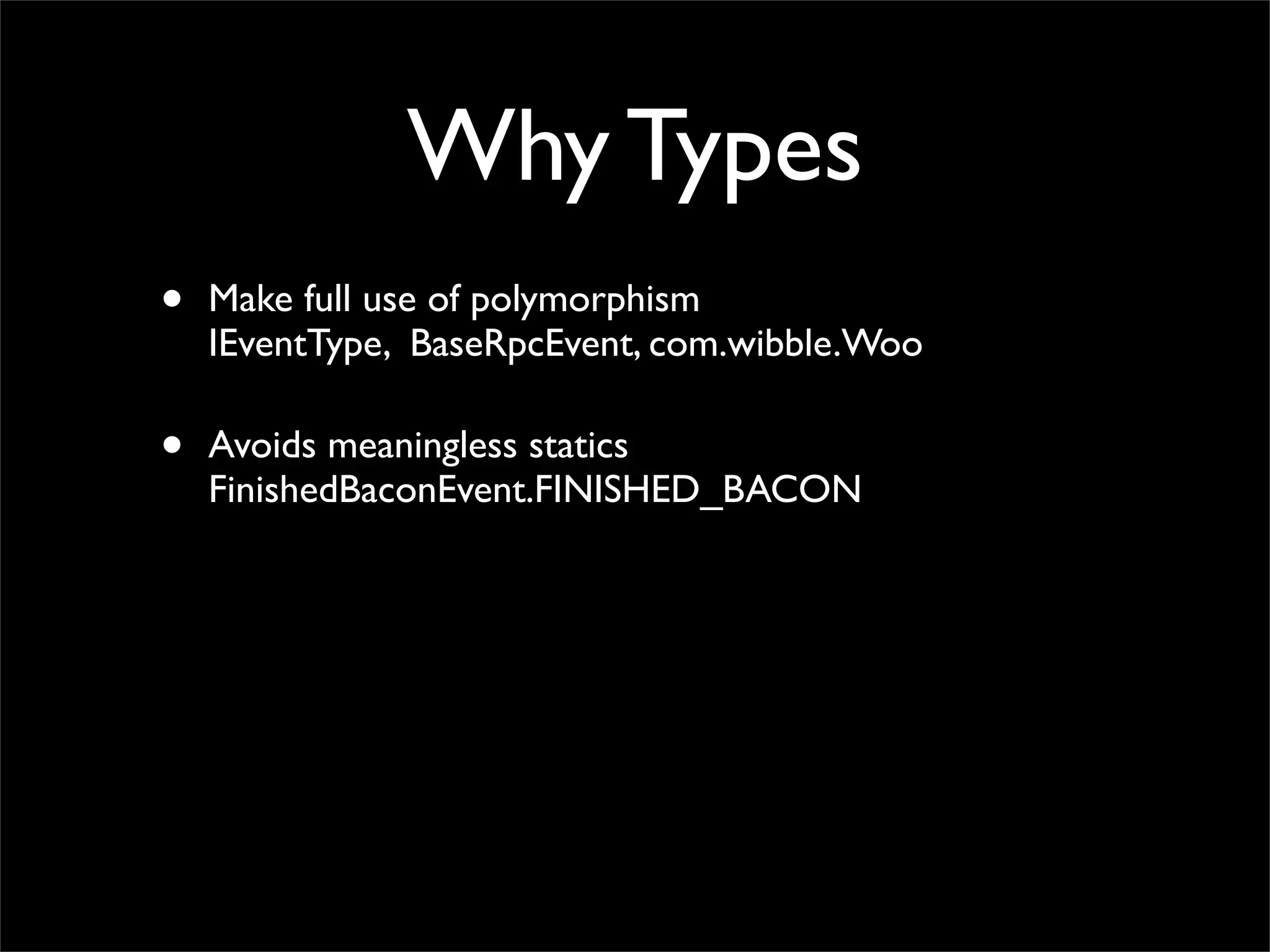

68. Why Types
• Make full use of polymorphism
IEventType, BaseRpcEvent, com.wibble.Woo
• Avoids meaningless statics
FinishedBaconEvent.FINISHED_BACON

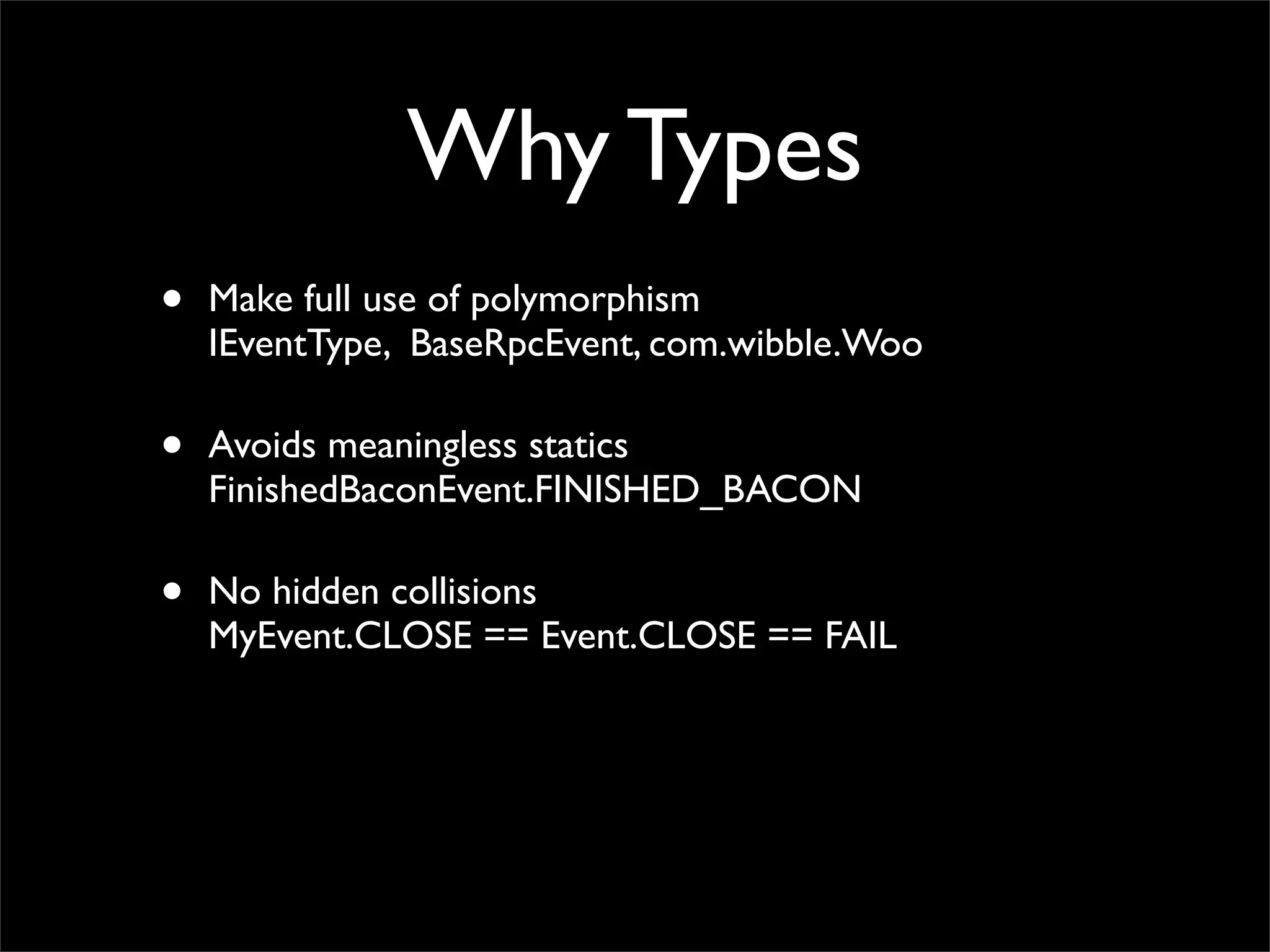

69. Why Types
• Make full use of polymorphism
IEventType, BaseRpcEvent, com.wibble.Woo
• Avoids meaningless statics
FinishedBaconEvent.FINISHED_BACON
• No hidden collisions
MyEvent.CLOSE == Event.CLOSE == FAIL

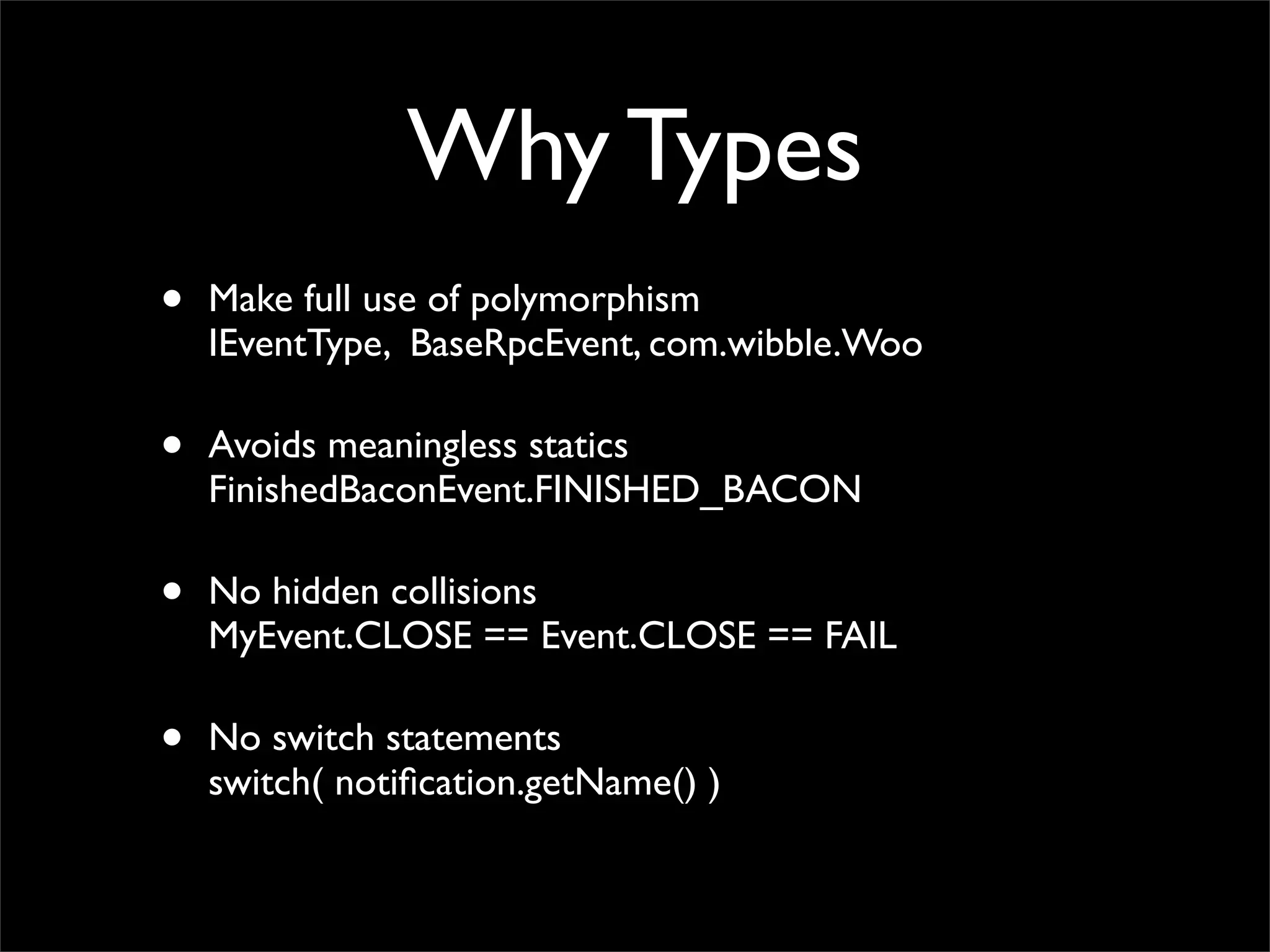

70. Why Types
• Make full use of polymorphism
IEventType, BaseRpcEvent, com.wibble.Woo
• Avoids meaningless statics
FinishedBaconEvent.FINISHED_BACON
• No hidden collisions
MyEvent.CLOSE == Event.CLOSE == FAIL
• No switch statements
switch( notification.getName() )

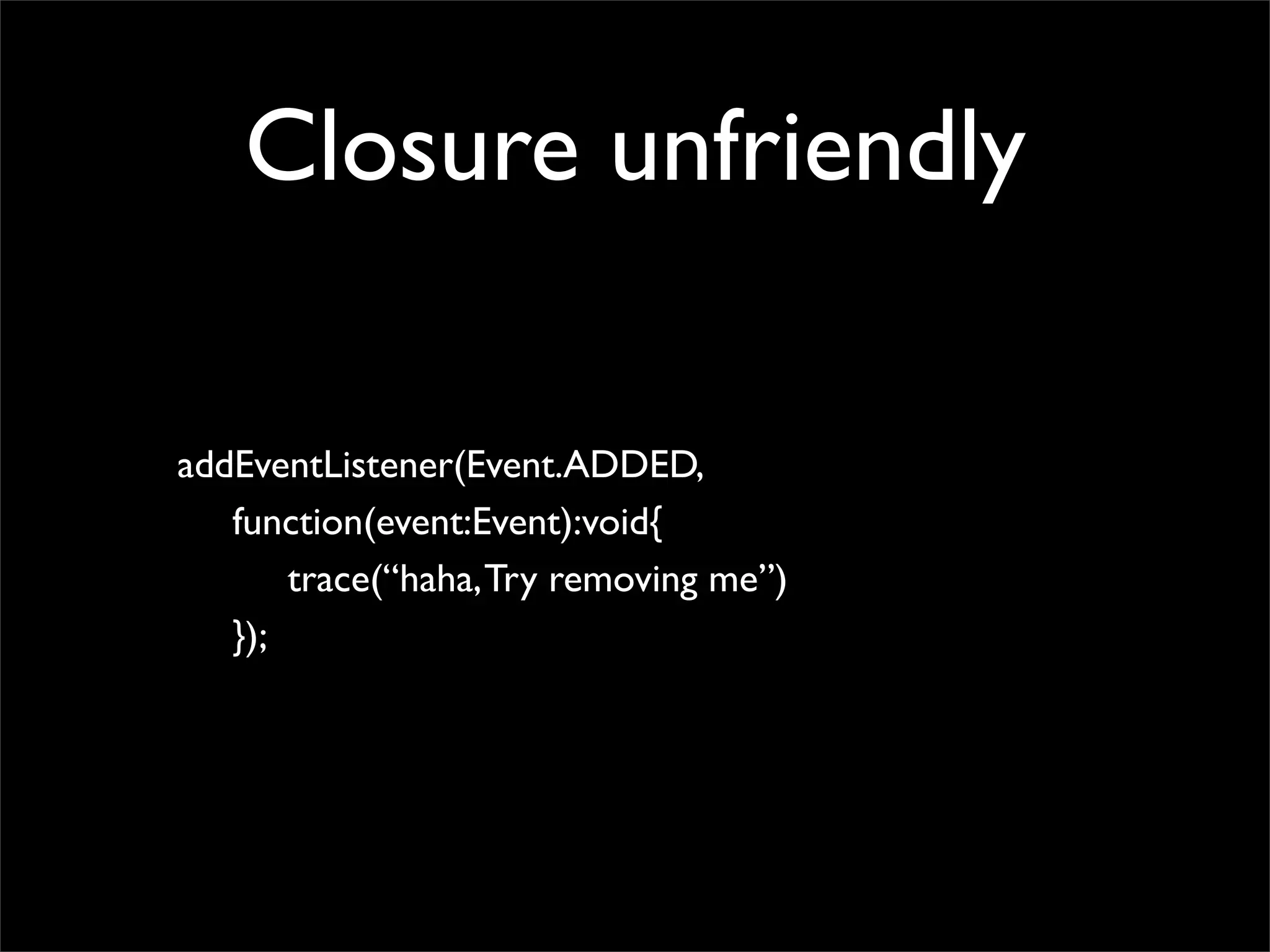

71. Closure unfriendly
addEventListener(Event.ADDED,
function(event:Event):void{
trace(“haha, Try removing me”)
});

72. Closure friendly!

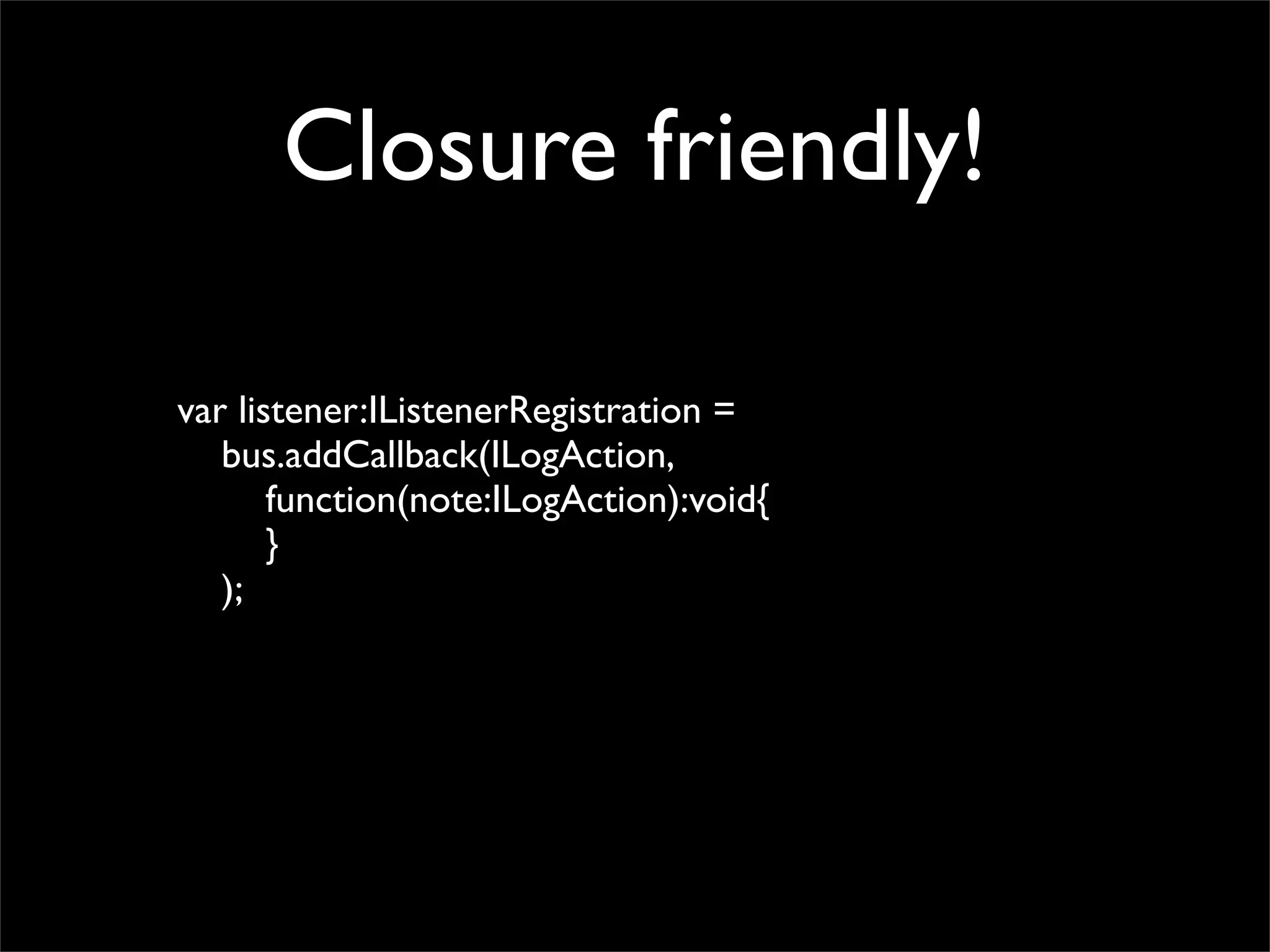

73. Closure friendly!
var listener:IListenerRegistration =
bus.addCallback(ILogAction,
function(note:ILogAction):void{
}
);

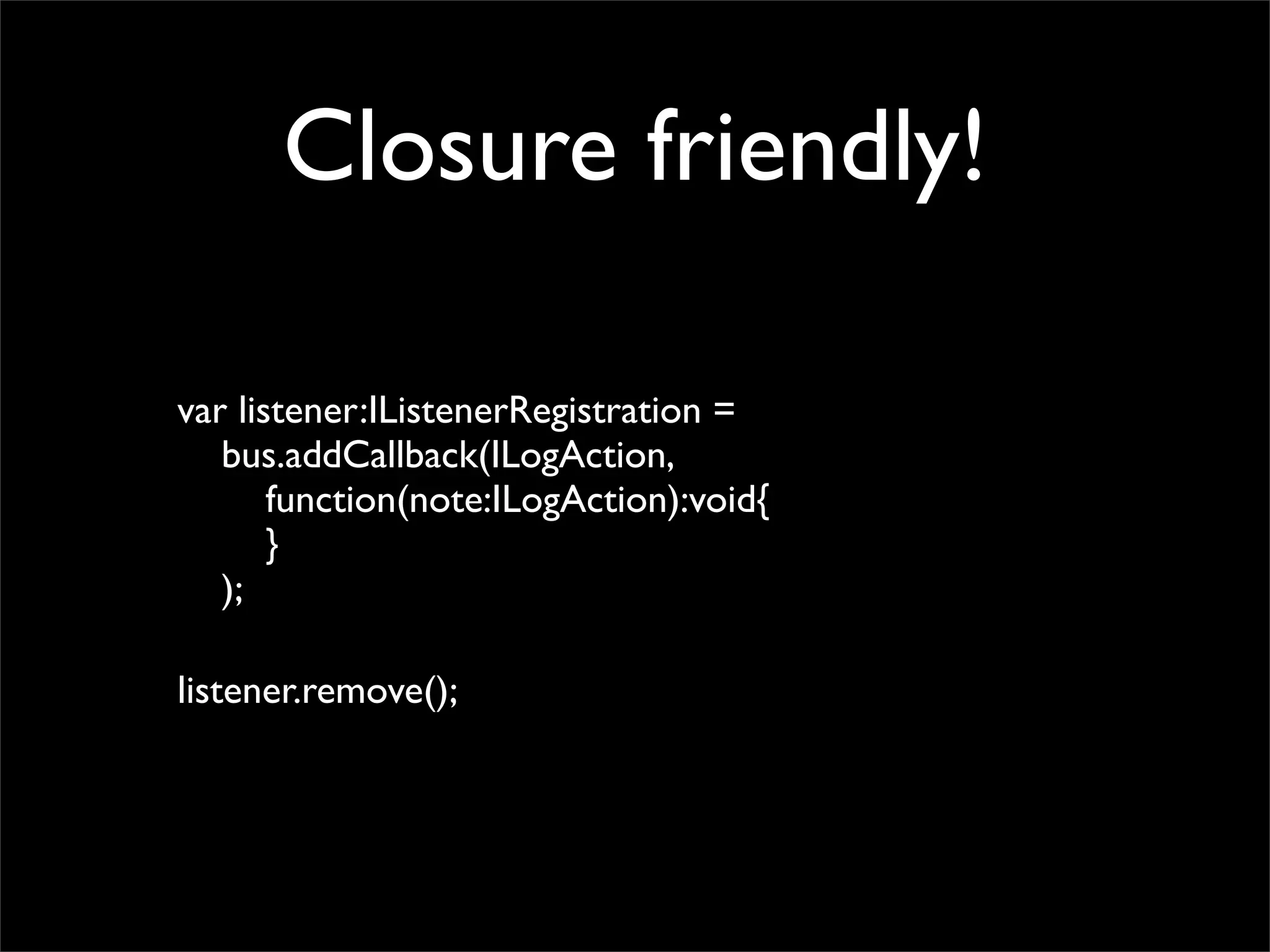

74. Closure friendly!
var listener:IListenerRegistration =
bus.addCallback(ILogAction,
function(note:ILogAction):void{
}
);
listener.remove();

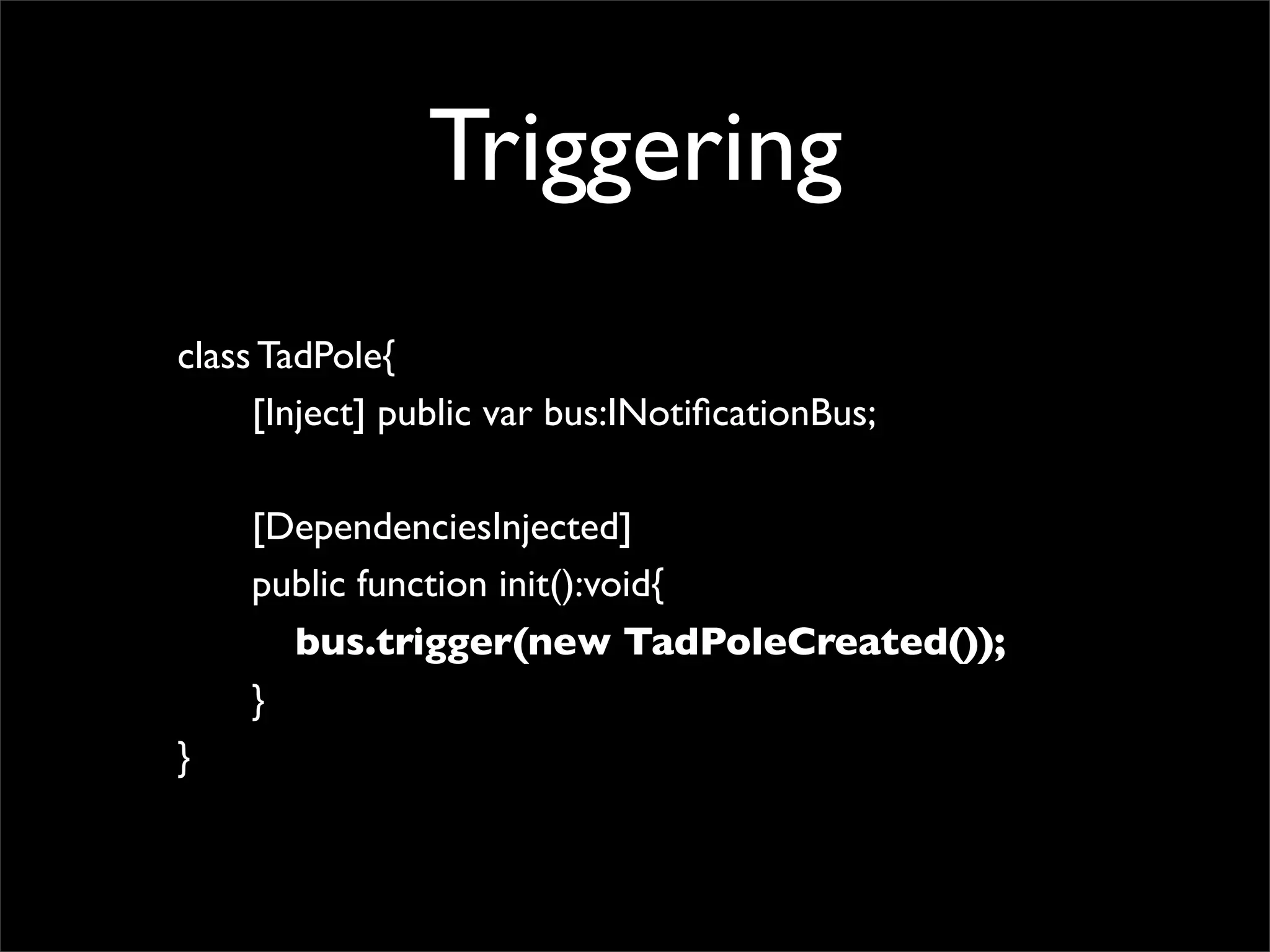

75. Triggering
class TadPole{
[Inject] public var bus:INotificationBus;
[DependenciesInjected]
public function init():void{
bus.trigger(new TadPoleCreated());
}
}

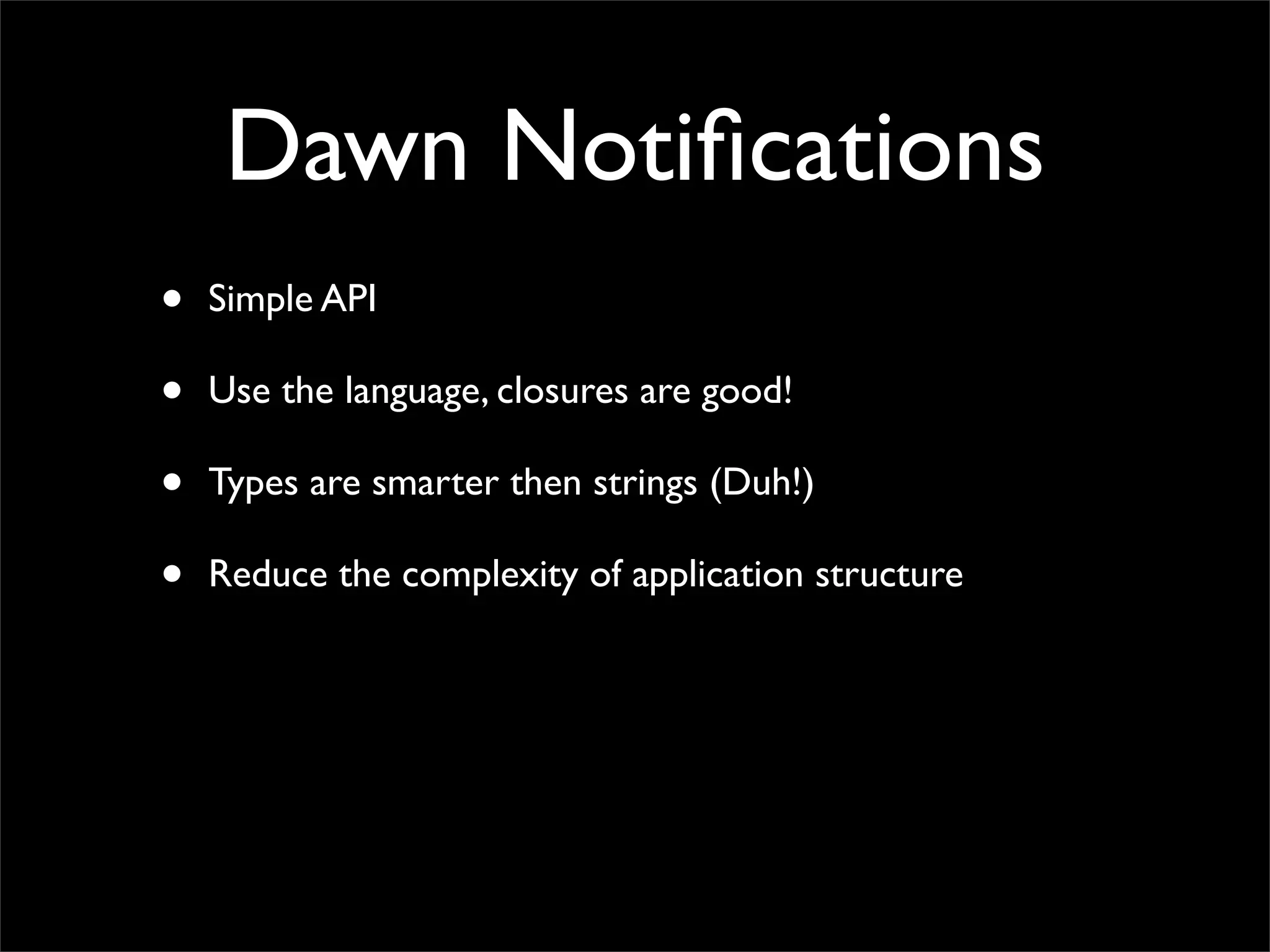

76. Dawn Notifications
• Simple API
• Use the language, closures are good!
• Types are smarter then strings (Duh!)
• Reduce the complexity of application structure

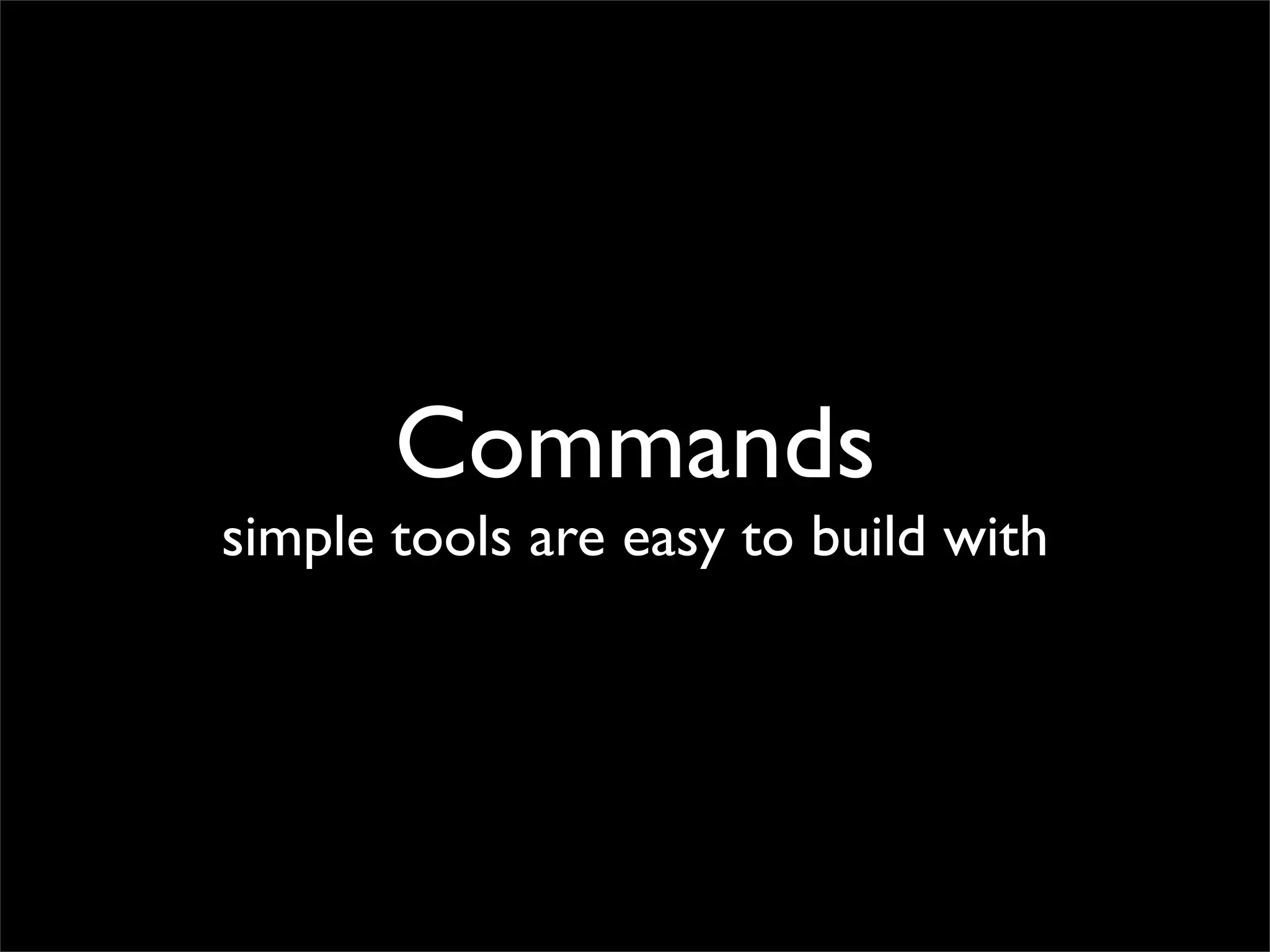

77. Commands
simple tools are easy to build with

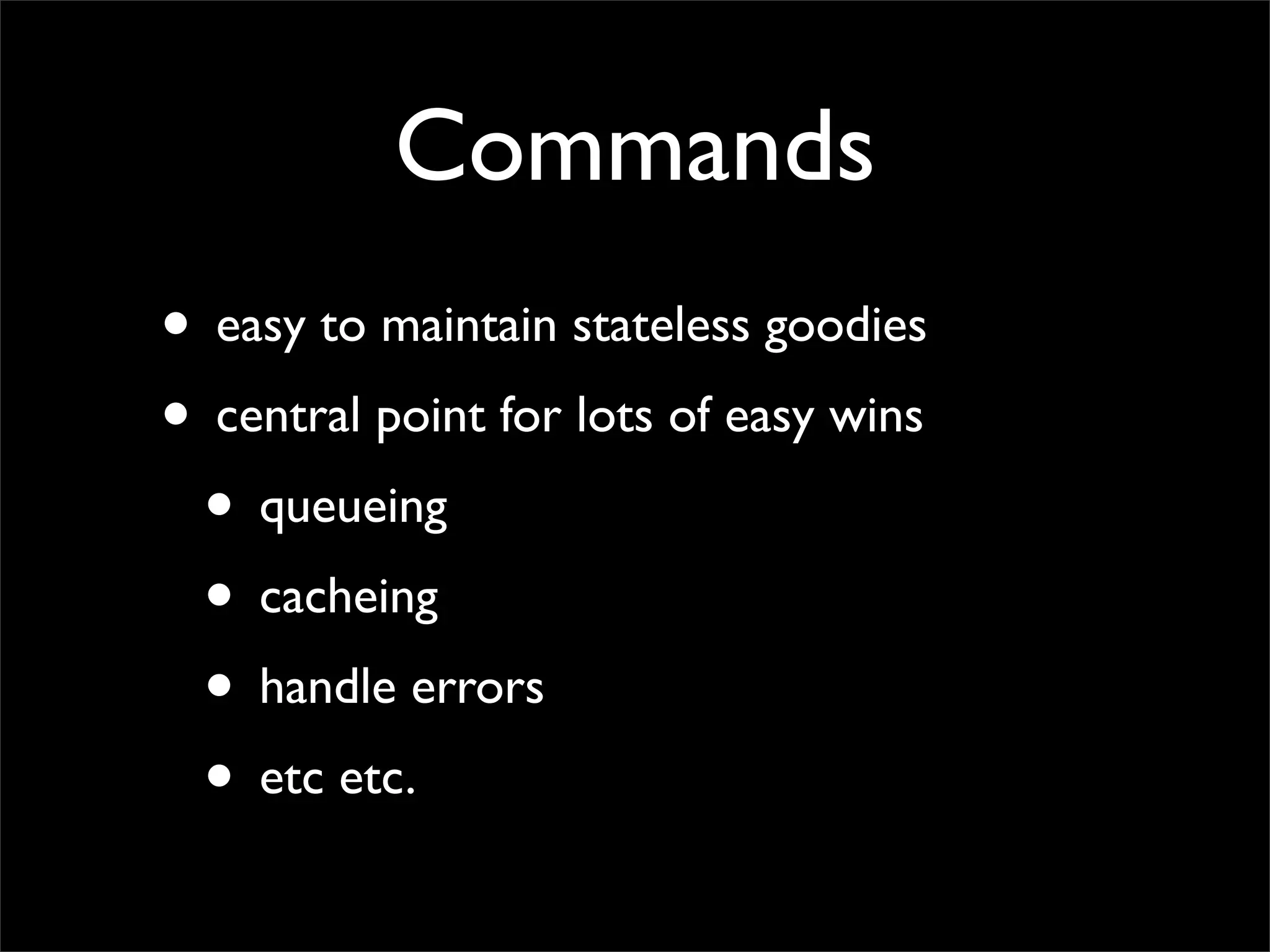

78. Commands
• easy to maintain stateless goodies
• central point for lots of easy wins
• queueing
• cacheing
• handle errors
• etc etc.

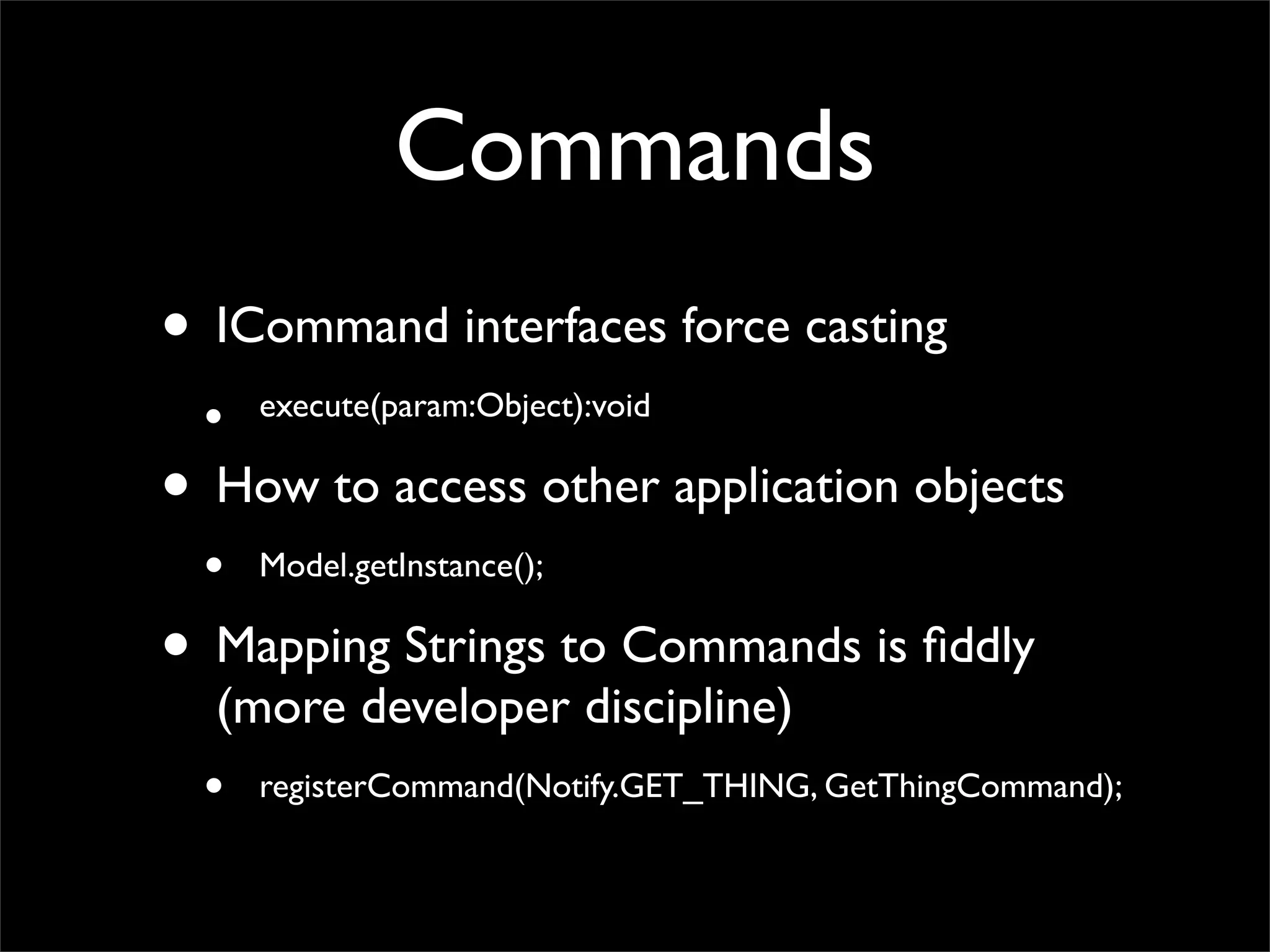

79. Commands
• ICommand interfaces force casting
• execute(param:Object):void
• How to access other application objects
• Model.getInstance();
• Mapping Strings to Commands is fiddly
(more developer discipline)
• registerCommand(Notify.GET_THING, GetThingCommand);

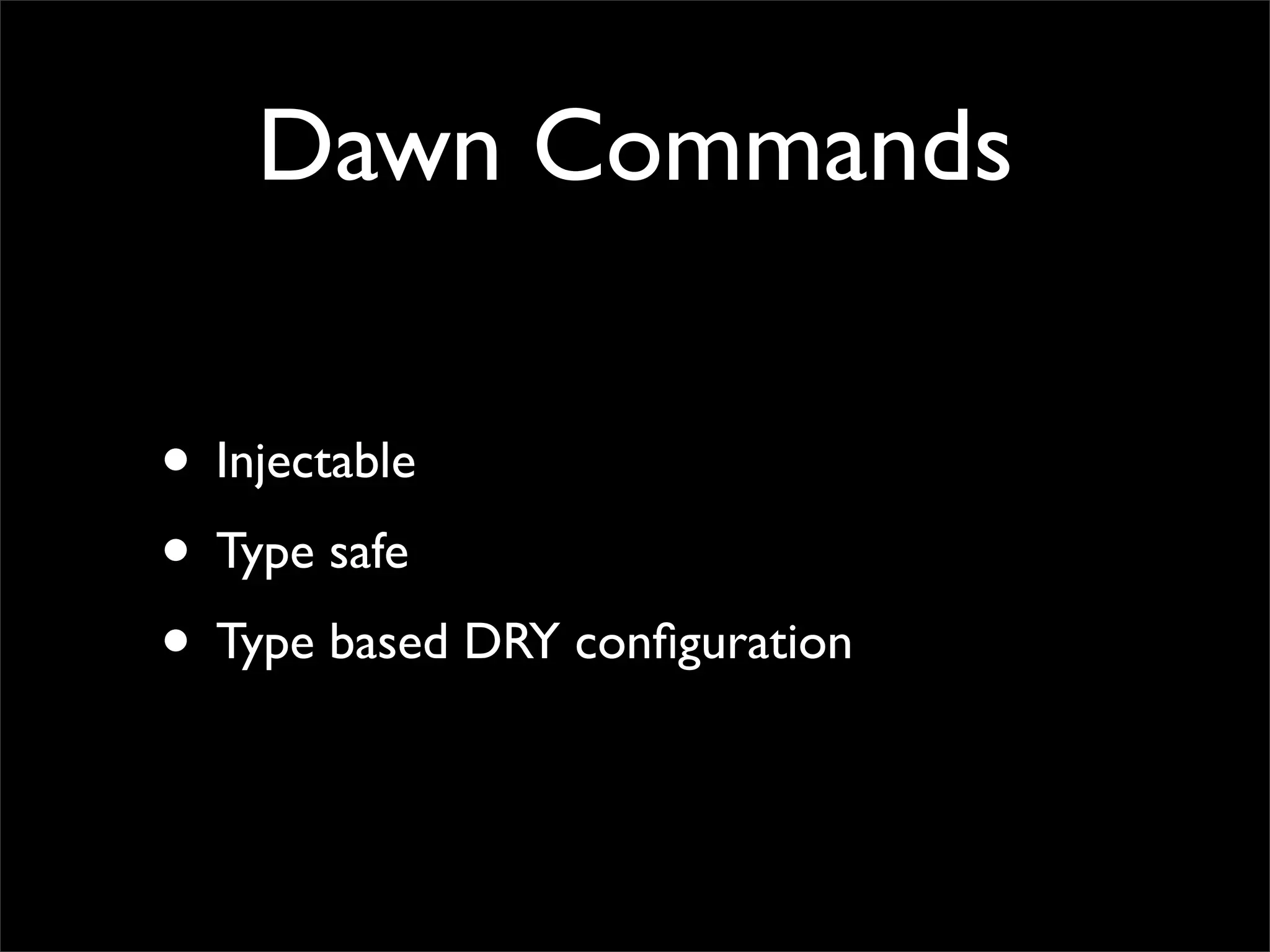

80. Dawn Commands
• Injectable
• Type safe
• Type based DRY configuration

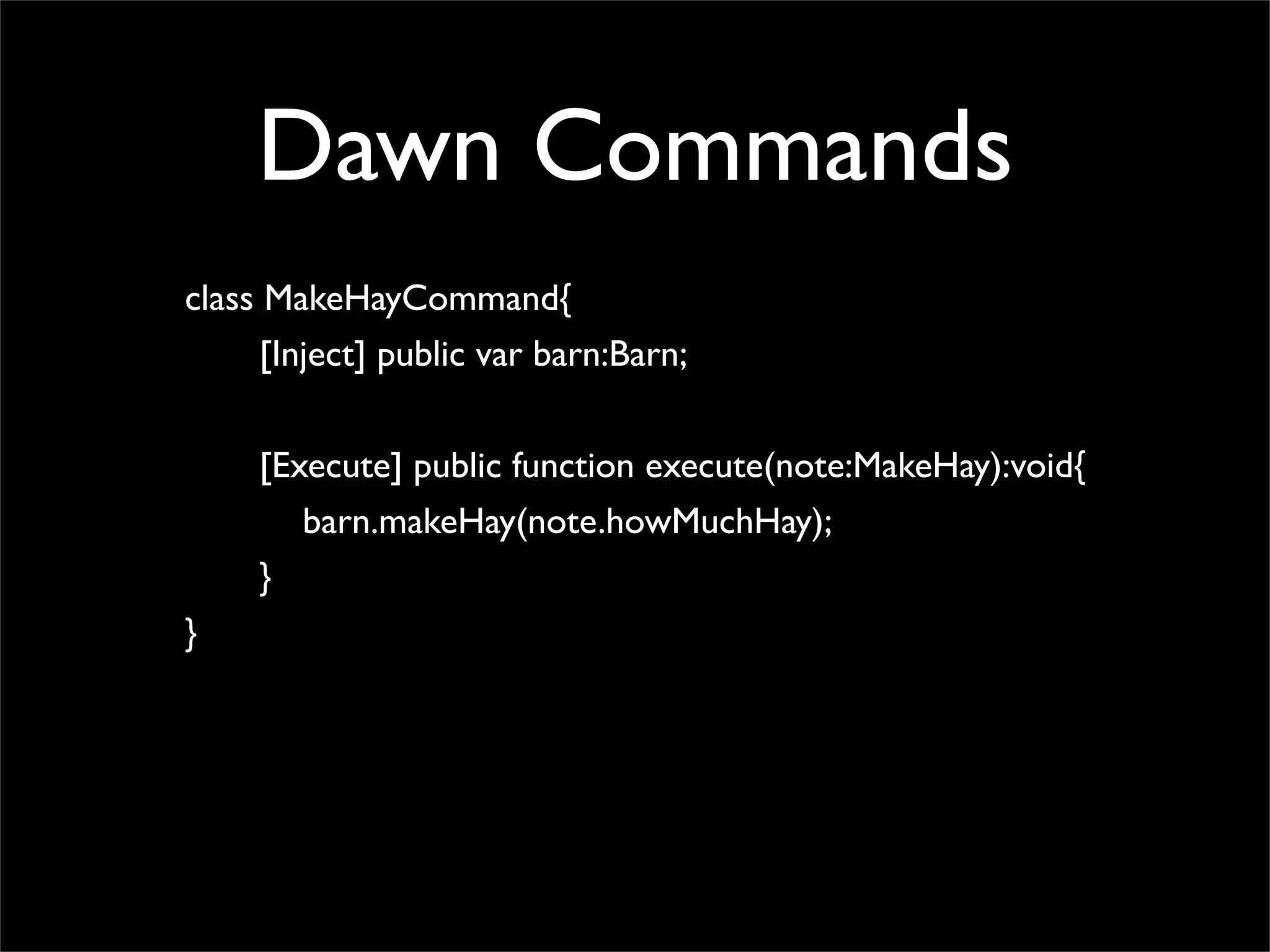

81. Dawn Commands
class MakeHayCommand{
[Inject] public var barn:Barn;
[Execute] public function execute(note:MakeHay):void{
barn.makeHay(note.howMuchHay);
}
}

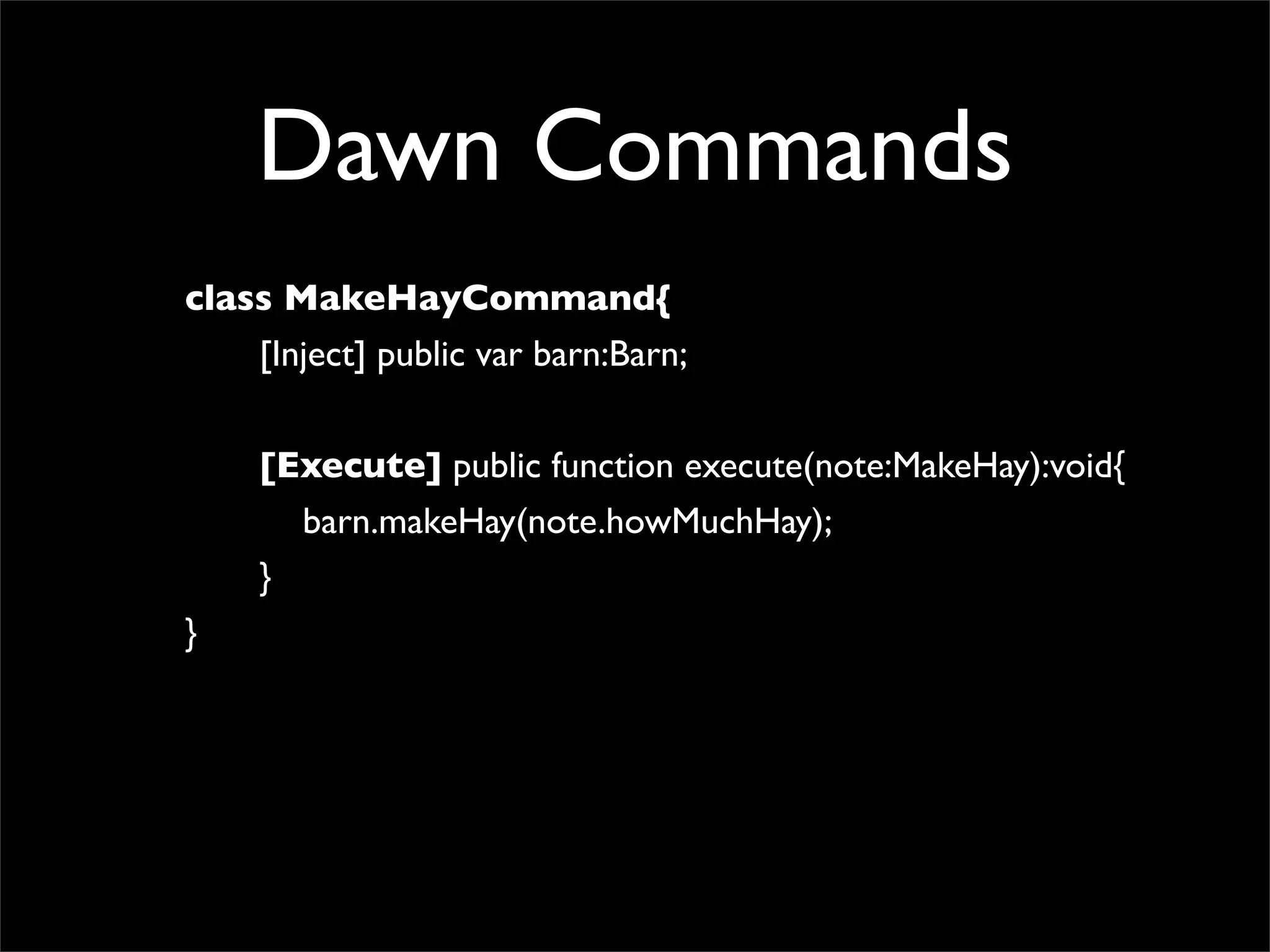

82. Dawn Commands
class MakeHayCommand{
[Inject] public var barn:Barn;
[Execute] public function execute(note:MakeHay):void{
barn.makeHay(note.howMuchHay);
}
}

83. Dawn Commands
class MakeHayCommand{
[Inject] public var barn:Barn;
[Execute] public function execute(note:MakeHay):void{
barn.makeHay(note.howMuchHay);
}
}

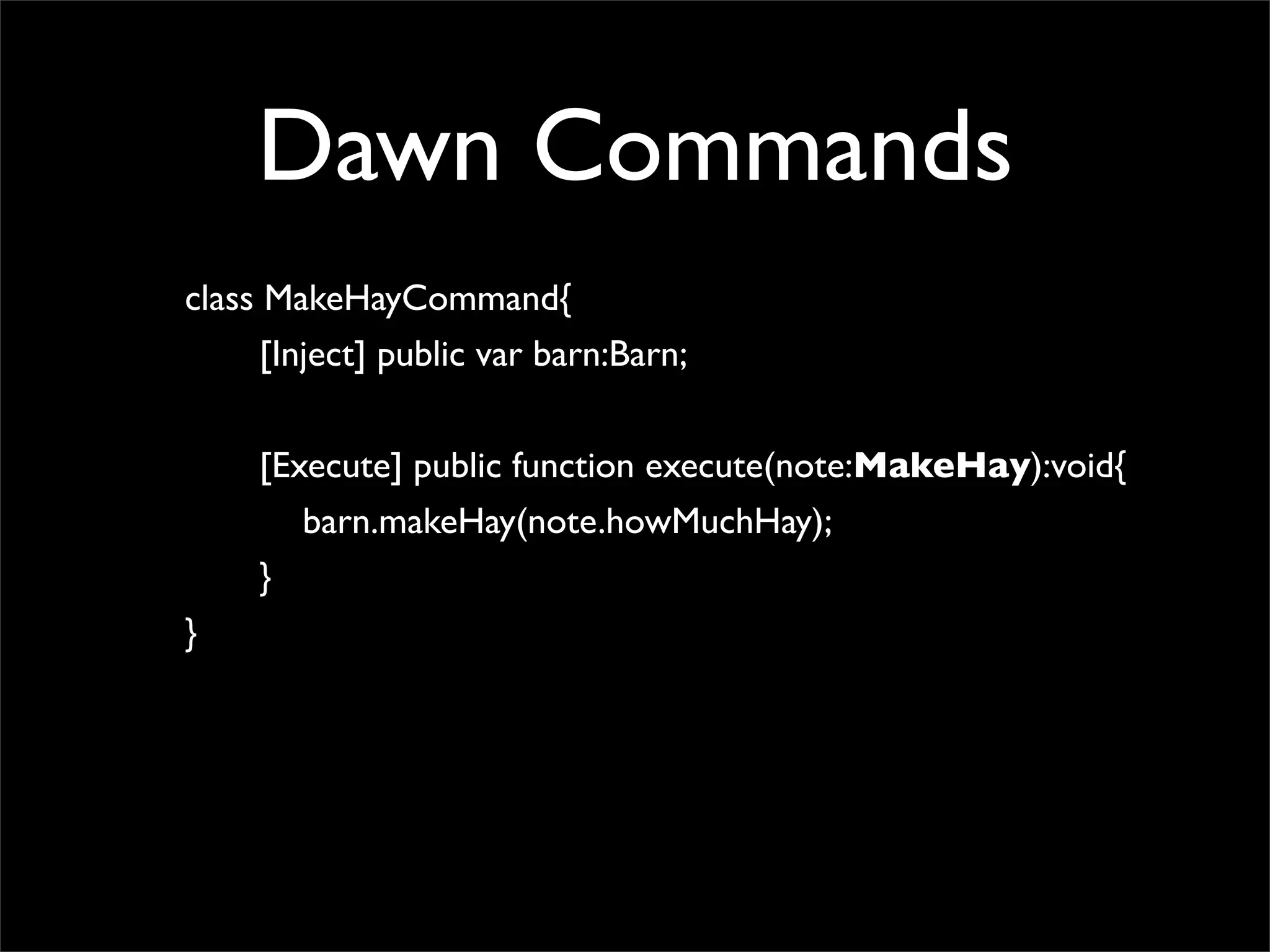

84. Dawn Commands
class MakeHayCommand{
[Inject] public var barn:Barn;
[Execute] public function execute(note:MakeHay):void{
barn.makeHay(note.howMuchHay);
}
}

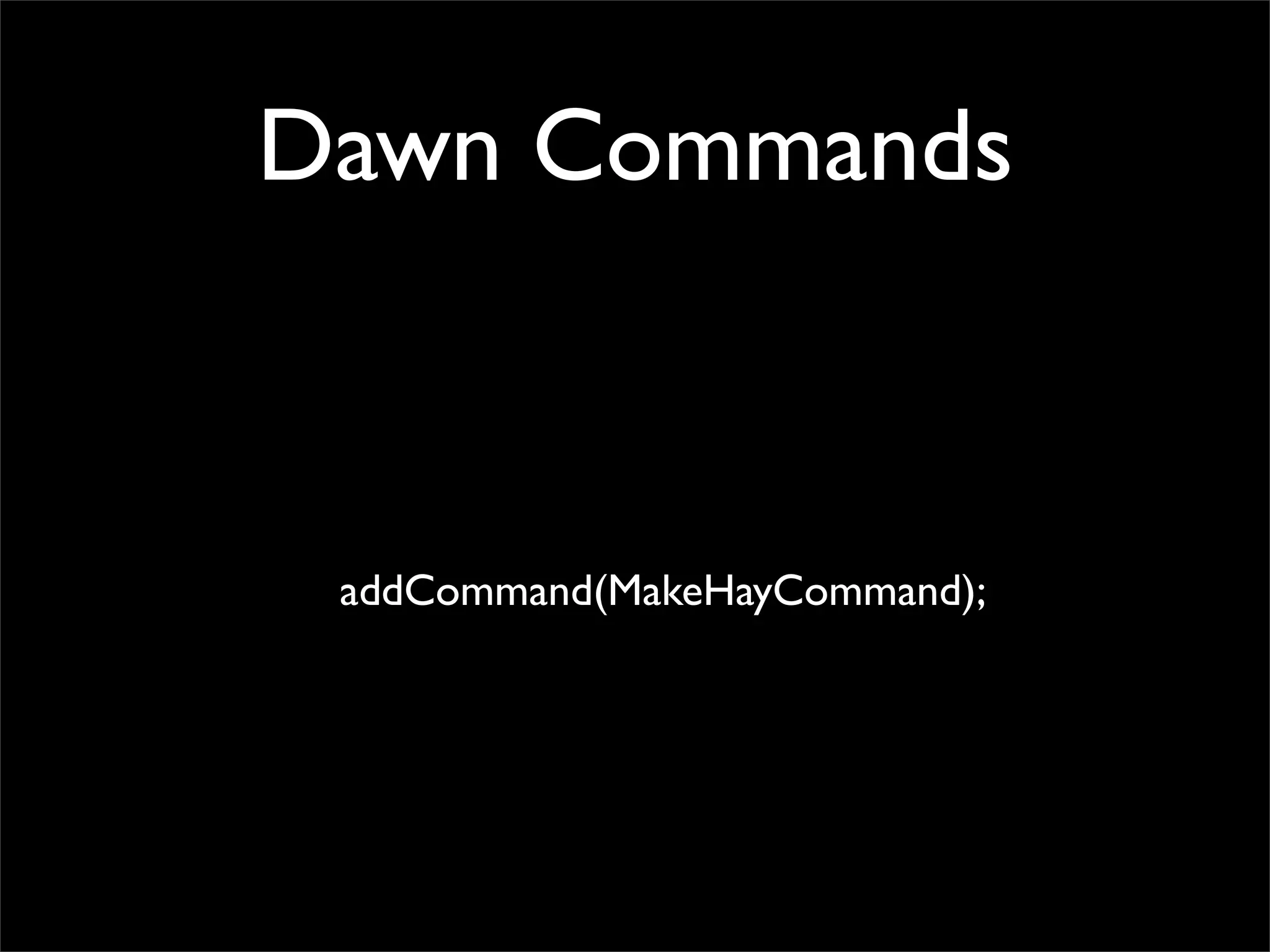

85. Dawn Commands
addCommand(MakeHayCommand);

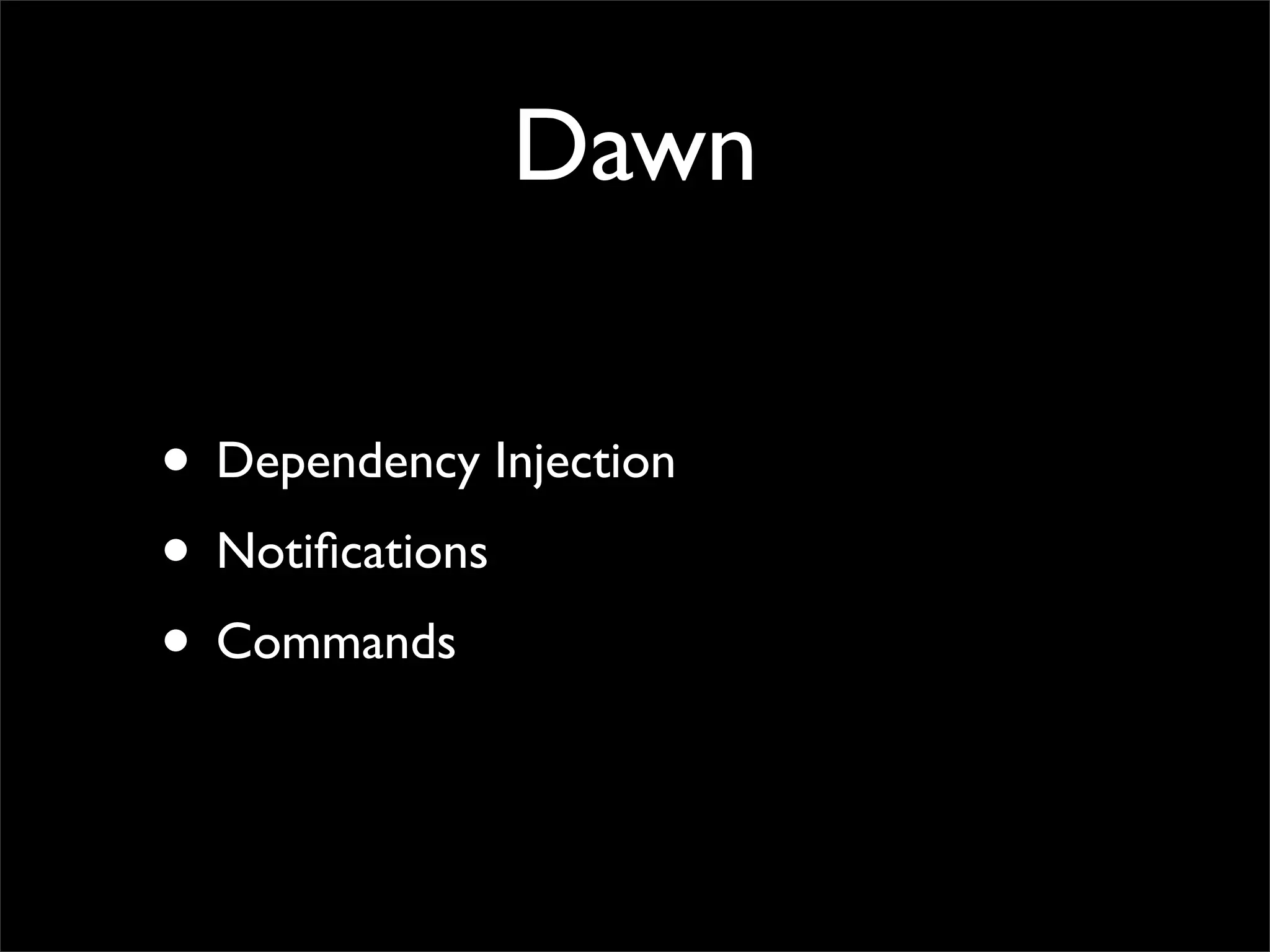

86. Dawn
• Dependency Injection
• Notifications
• Commands

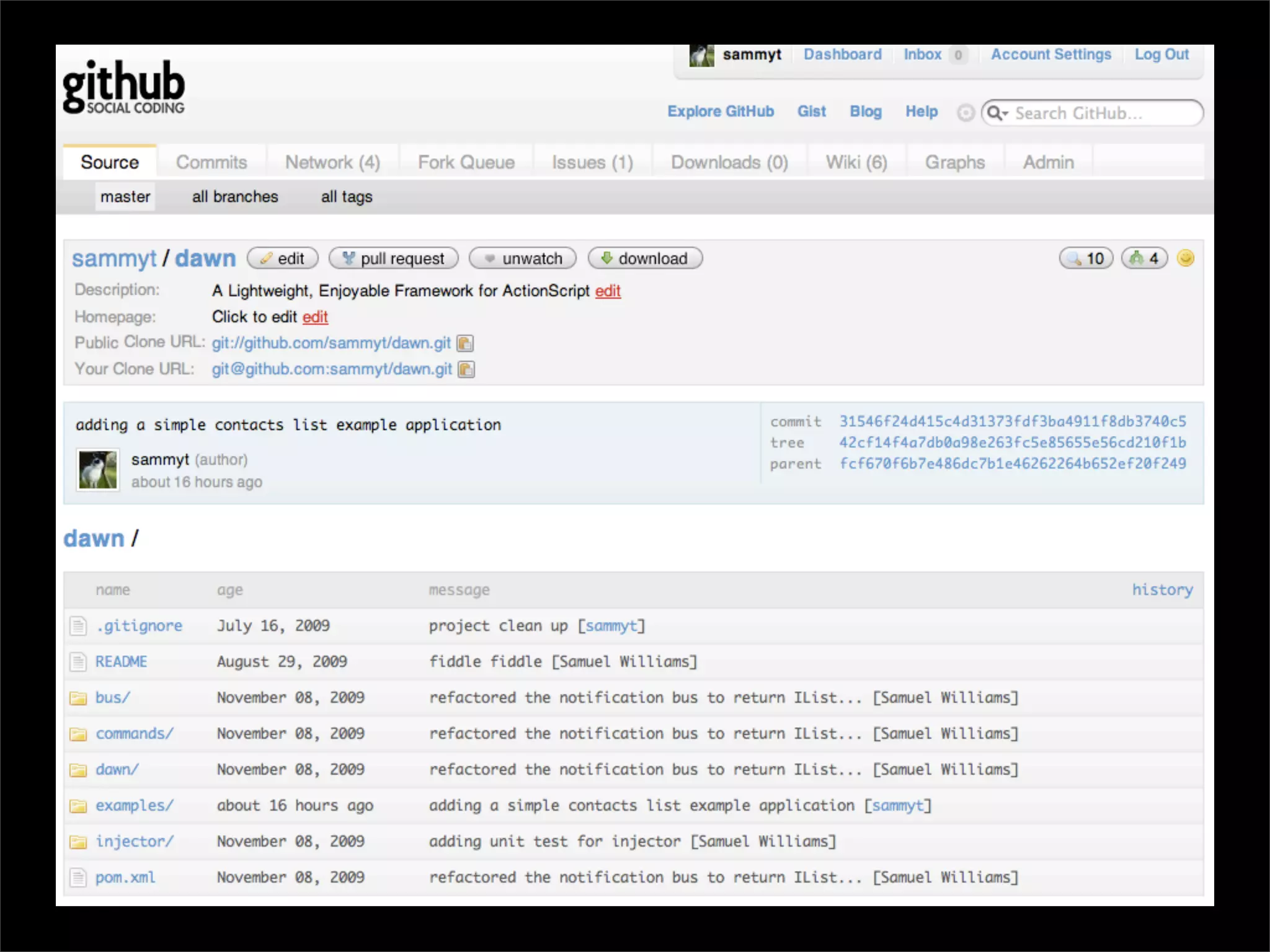

88. http://github.com/
sammyt/dawn

89. Questions etc?
