Lecture #16
Course: Data Structure
Instructor: Mohammad Dawood Saddiqi
Date: Wednesday, August 13, 2025
Graph
In the name of Allah
1

Outline
• Introduction
• Graph
• Uses of graph
• Type of Graph
• Basic Concepts
• Parent Node
• Loop edge
• Multiple Edges
• Path & Length of graph
• Graph Representation
Wednesday, August 13, 2025
Instructor: Mohammad Dawood Saddiqi - Ghalib
University
2

Introduction
• Tree data structures represent one to many relationships.
• In real life we frequently come across problems that can be best
described by many to many relationships.
• Such problems cannot be solved using trees or other data structures.
• To deal with such problems, graph data structures are used.
University
3

Graph
• Graph is a non-linear data structure. It is made up of sets of nodes and
lines.
• Nodes are called vertices or points.
• Lines are called edges or arcs.
• Lines are used to connect nodes.
• An edge of the graph is represented as:
e = [u, v]
• 'u' and 'v' denote the start and end nodes of edge 'e', respectively.
• They are also known as the tail and head nodes of edge
• Graphs can he used to represent essentially any relationship.
University
4

Uses of graph
• Graphs can be used to represent essentially any relationship.
They are used to study problems in a wide variety of areas
including computer science, electrical engineering, chemistry,
etc.
• For example. The transport networks, the following graph
represents transportation links between four cites. The vertices
represent cities. The edges correspond to the roads that link the
cities.
University
5
Herat
Kandahar
Kabul
Jalalabad

Type of Graph
• There are different types of graph some of them are mentioned
here.
1. Directed graph
2. Undirected graph
3. Weighted graph
4. Complete graph
5. Regular graph
6. Isomorphic graphs
University
6

(1)- Directed Graph
• A directed graph has edges that have direction. A directed graph
is also called a digraph. E.g.
University
7
A B
D E
C

(2)- Undirected graph
• An undirected graph has edges that have no direction. An
undirected graph is also called an undigraph.
University
8
A B
D E
C

(3)- Weighted graph
• A graph which has a weight or number associated with each
edge is called weighted graph. Weighted of an edge is sometime
called its cost.
University
9
B
A
C
20
08
15

(4)- Complete Graph
• A graph is said to be complete graph if there is an edge between every
pair of vertices.
• or A graph is said to be complete one, if each node of the graph is
adjacent with every other node.
• If a node has n nodes, then each node has (n-1) total degree. i.e. it is
connected with (n-1) nodes, so the number of edges can be calculated
by the formula e=n(n-1)/2; where n is the no of nodes.
• e= n(n-1)/2
• e= 4(4-1)/2
• e=12/2
• e= 6
University
10
A B
C D

(5)- Regular Graph
• A graph in which each node has equal total degree is called regular
graph.
Total- degree: The degree of a vertex is the number of edges incident to
that vertex
For Directed Graph
In-degree: the in-degree of a vertex v is the number of edges that have v as the head
Out –degree: the out-degree of a vertex v is the number of edges that have v as the
tail
About vertices ‘A’
Total Degree: 4
In-Degree:2
Out-Degree:2
University
11
B
A
C

(6)- Isomorphic Graph
• When two graphs have same behavior in term of graphical
properties are called isomorphic graph.
• Condition for isomorphism.
• Total number of nodes in two graphs must be same.
• Total number of edges in two graphs must be same.
• Same number of in-degree and out-degree of the two graphs
• Direction of edges must be same.
University
12
E
D
C
A
B
C
B
A
D
E

Basic Concepts:
• Source & Sink Nodes: The node that has a positive out-degree
but zero in-degree is called source node.
The node that that has zero out-degree but positive in-degree is
called sink node.
‘A’ is source node.
‘C’ is sink node.
University
13
B
A
C
20
08
15

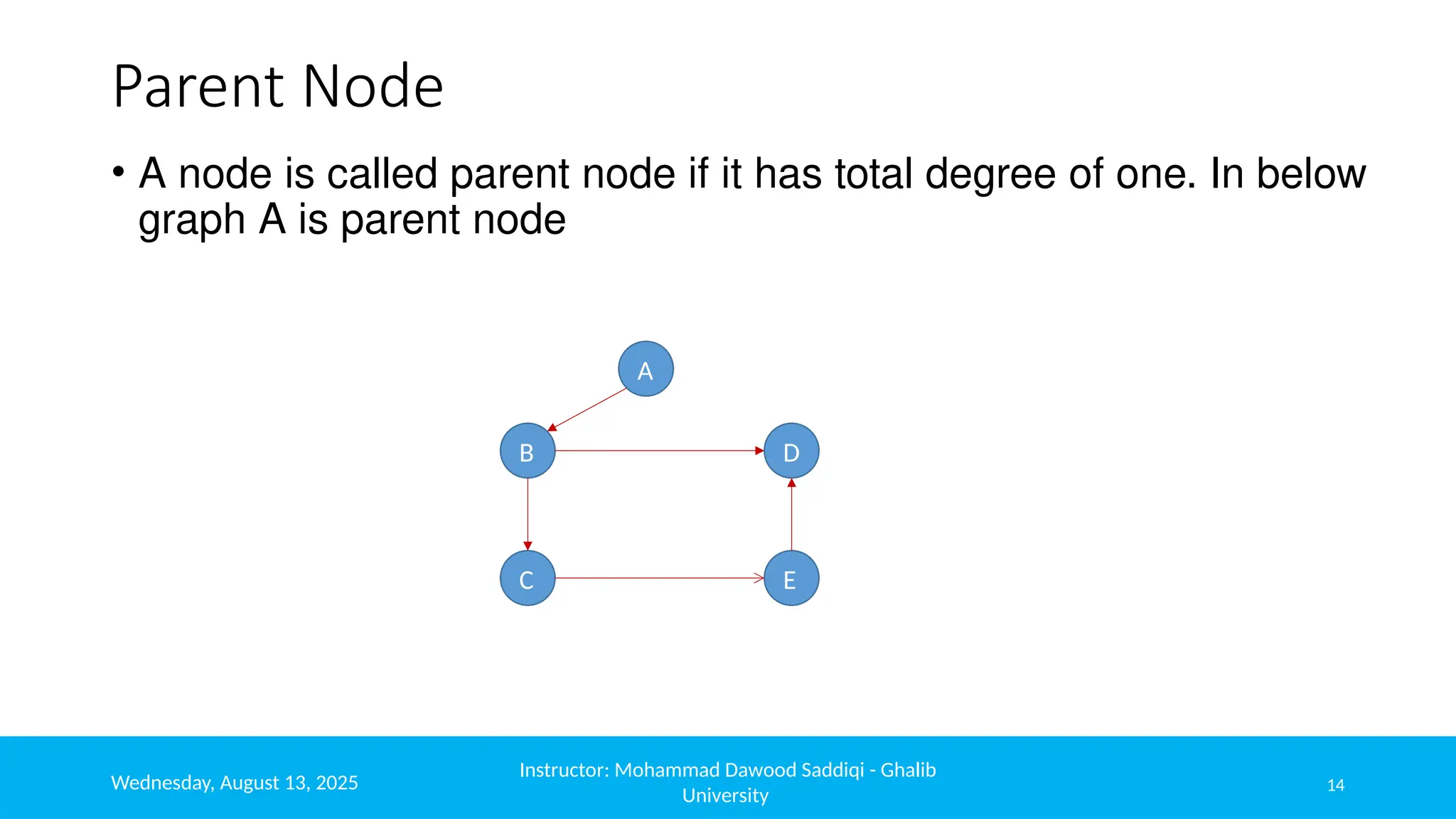

Parent Node
• A node is called parent node if it has total degree of one. In below
graph A is parent node
University
14
A
B
C
D
E

Loop edge
• An edge is said to be a loop edge if the same node is its tail and
head. E.g.
University
15
B
A
C

Multiple Edges
• A graph is said to be have multiple edges if it has more than one
edge have the same tail and head nodes.
University
16
B
A
C

Path & Length of graph
• A list of nodes of a graph where each node has an edge from it to
the next node is called path. It is written as a sequence of nodes,
A,B,C.
• A path which repeats no Node, is known as simple path.
• A path which begins and end at same node is called cycle.
• Moving from one node to other node is called walk.
University
17

Graph Representation
• There are two ways to represent a graph in computer memory.
1. Adjacency matrix
2. Adjacency list
University
18

Adjacency Matrix
• An adjacency matrix is a table, represents the edges between vertices of
the graph. In case of weight graph the adjacency matrix represent the
weights of the edges.
• If an edge e=(u,v) exists b/w two vertices u and v, it is represented in the
matrix by 1. absence of an edge is represented by 0.
• The adjacency matrix consist only 0’s and 1’s.
• If there are N vertices in the graph, the adjacency matrix will be an N x
N matrix.
• The columns of the matrix represent the “to” end of edge, while rows of
the matrix represent “from” start of edge.
University
19

Example
University
20
A B C D
A 0 1 0 1
B 0 1 0 1
C 0 1 0 0
D 1 0 1 0
A
D
B
C

Adjacency List
• In this method the graph is represented in computer memory by two link
list. One Node list and second Adjacency List.
• In Node List we will store the Nodes while in Adjacency List we will
store the adjacent nodes of a node.
University
21

Example
University
22
A D
E
C
B

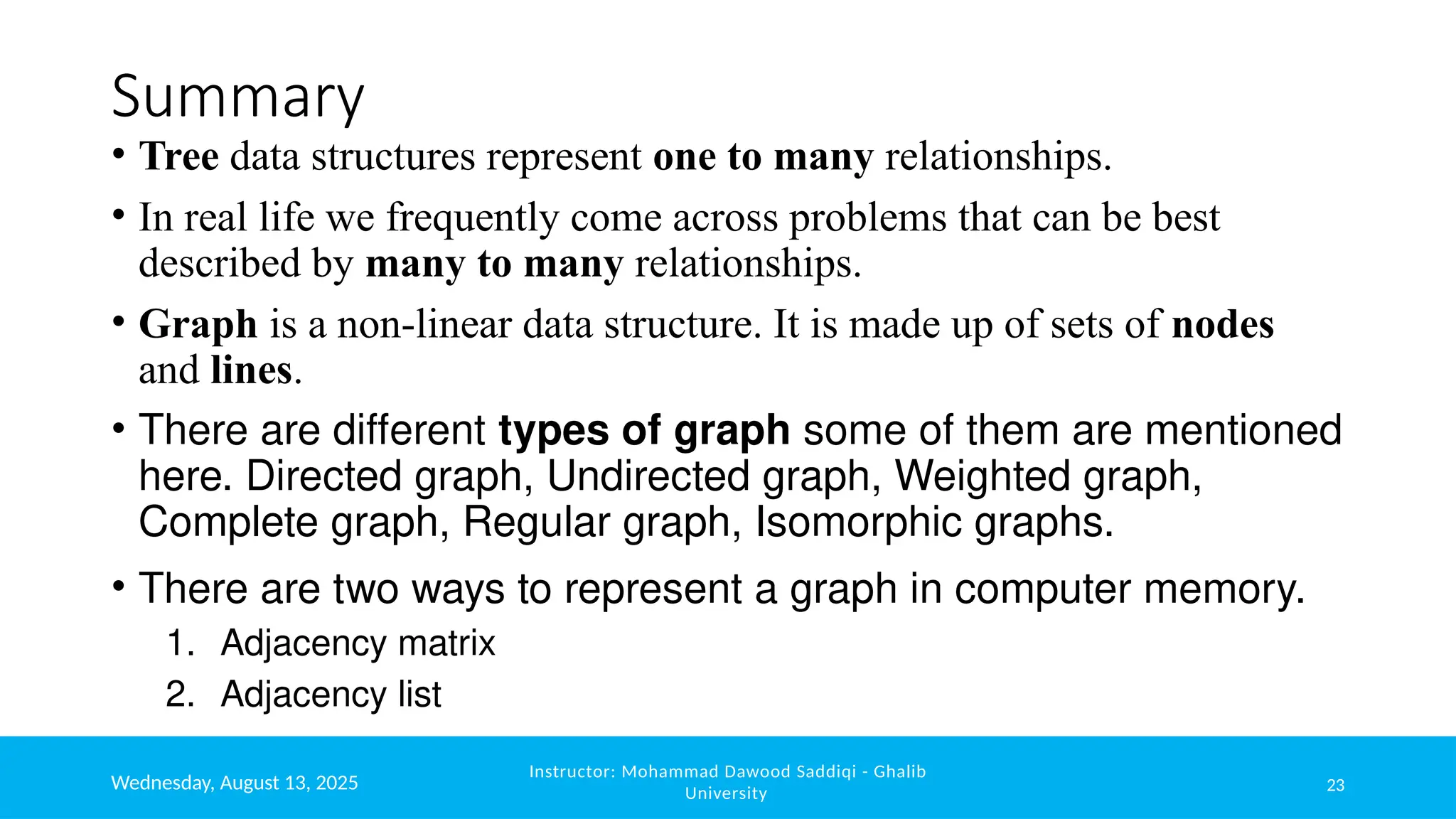

Summary
• Tree data structures represent one to many relationships.
• In real life we frequently come across problems that can be best
described by many to many relationships.
• Graph is a non-linear data structure. It is made up of sets of nodes
and lines.
• There are different types of graph some of them are mentioned
here. Directed graph, Undirected graph, Weighted graph,
Complete graph, Regular graph, Isomorphic graphs.
• There are two ways to represent a graph in computer memory.
1. Adjacency matrix
2. Adjacency list
University 23

The End
Thank You
24
