Data Cleansing

The document discusses the importance of data cleansing to ensure high data quality for accurate trend identification and analysis. It outlines the ETL (extract, transform, load) process and emphasizes continuous validation, proper data transformation techniques, and the significance of managing diverse data sources. Additionally, the document highlights challenges in data integration and the necessity for clear identifiers to join disparate data records.

Education◦
Download as PDF, PPTX
IBM Systems Michael Gildein IBM z/OS Analytics Test Architect megildei@us.ibm.com #NittanyWatson Data Cleansing Nittany Watson Challenge
IBM Systems Agenda • Objective • ETL Process • Extract • Transform • Load • Examples • Anonymizing Data • Joining Data | 224 January 2017
IBM Systems What is it? | 324 January 2017 IBM Confidential
IBM Systems What is it? | 424 January 2017 IBM Confidential River
IBM Systems What does it mean? “Before SVT can begin we must DCUT a new APAR then we can roll it out to the POC next week.” “I tried IPLing the second lpar of the plex but we hit a slip causing a waitstate.” | 524 January 2017 IBM Confidential
IBM Systems Objective Cleanse data sources to produce high data quality in order to accurately identify and extract trends and insights. | 624 January 2017 Why? Garbage In == Garbage Out!! Imagine, having a blurry or out of focus picture. How hard is it to figure out what the picture is of? Raw Data Data & Context Information
IBM Systems Data Constraints Amount Similar to the small numbers effect, having too few records to be analyzed can cause skewing and trends to be falsely identified. Completeness Missing key values of data can cause issues. 10,000 records are not very helpful if they only contain an unique identifier. Often times, one can combine multiple data sources to increase completeness. | 724 January 2017 Distribution Skewed data produces skewed results. Large volumes of one type of data limits the techniques available to perform analysis. Quality Data quality is an another attribute to focus on both, in both design and analysis. If decimals are being stored without enough significant figures, there will be issues. A review, by a retired construction worker, of a laptop is not as valuable as a one from a computer engineer. Amount Distribution Quality Missing
IBM Systems | 824 January 2017 ETL Process Extract • Read the data from the original data sources. Transform • Manipulate the data into a usable format and cleanse the data. Load • Load the data into a data warehouse intended for analysis.
IBM Systems Extract | 924 January 2017 • Go to the original source • Never trust other ETL processesSource • Get all of the data • Go as granular as possible • Let the data tell you what is important not "experts" Filtering • Gather as much data as possible • Be a data hoarder! • Start now, figure out what to do with it later Volume Guidelines for data extraction
IBM Systems Transform | 1024 January 2017 • Space, no value, null values, new lines • Bin the dataBlank • Are users entering data? • PSU == psu == Psu == pennstate == …Values • Are users just choosing defaults? • Default is 2; 90% of the data is 2 … is that true? • Bin the data?Defaults • DD/MM/YY => MM/DD/YYYY • (###)###-#### or ########## • Illegal characters • Expand acronyms Format • Valid zip code? • Valid social security number?Validate Guidelines for data transformation
IBM Systems Load | 1124 January 2017 • Single reputable source Single Truth • Continuous validation is key • Validate quantity and transformationValidate • Keep OLTP data separate from OLAP Separate • OLAP Cubes • Data WarehouseMultiple • Keep data through time • Now I am married but the purchases I made 10 years ago should not be labeled with married demographics Preserve Guidelines for data loading and storage

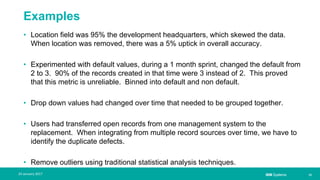

IBM Systems Examples • Location field was 95% the development headquarters, which skewed the data. When location was removed, there was a 5% uptick in overall accuracy. • Experimented with default values, during a 1 month sprint, changed the default from 2 to 3. 90% of the records created in that time were 3 instead of 2. This proved that this metric is unreliable. Binned into default and non default. • Drop down values had changed over time that needed to be grouped together. • Users had transferred open records from one management system to the replacement. When integrating from multiple record sources over time, we have to identify the duplicate defects. • Remove outliers using traditional statistical analysis techniques. | 1224 January 2017
IBM Systems Anonymizing Data Why? • To protect privacy for legal and/or ethical reasons. What? • Remove identifying features such as • Record ID, Names, DOB, Phone numbers • Keep things syntactically correct • Street Addresses (111 Main St. => 849 Alpaca Ln.) • Keep Zipcodes and country codes • Randomize record order • Translation key to back reference may be helpful or unwanted (hash vs encryption) | 1324 January 2017
IBM Systems Unstructured Data Data has no or less formatting than traditional data systems Examples: • Twitter • Reviews • Audio/video media Considerations: • Abbreviations • Slang • Domain specific terms | 1424 January 2017
IBM Systems Academia Model Student Records Student ID, Name, Gender, DOB, Credits Earned, Credits in Progress, Transfer Credits, Previous School(s) ID Courses Course ID, Course Name, Course Description Offerings Course ID, Semester ID, Professor, Section # Grades Student ID, Course Offering, Grade Semesters Semester ID, Start Date, End Date | 1524 January 2017 IBM Confidential
IBM Systems Joining Data Records and data are often stored in disparate systems. It would be is easy if… • All records of data have unique keys that can be joined to create a single record • Student ID: 0001 Name: Michael Gildein in all campuses Practical: • Join on complex unique identifiers (name & zip & DOB) • Possible issue Mike vs Michael and Jr. vs Sr. | 1624 January 2017 IBM Confidential
IBM Systems Summary • Data cleansing is a non-trivial task. • Data must continuously be cleansed and validated. • Data quality greatly effects the outcome of analysis. • Get as much data as possible. • Let the data tell you. | 1724 January 2017
IBM SystemsIBM Systems Questions? | 1824 January 2017
IBM SystemsIBM Systems Backup | 1924 January 2017
