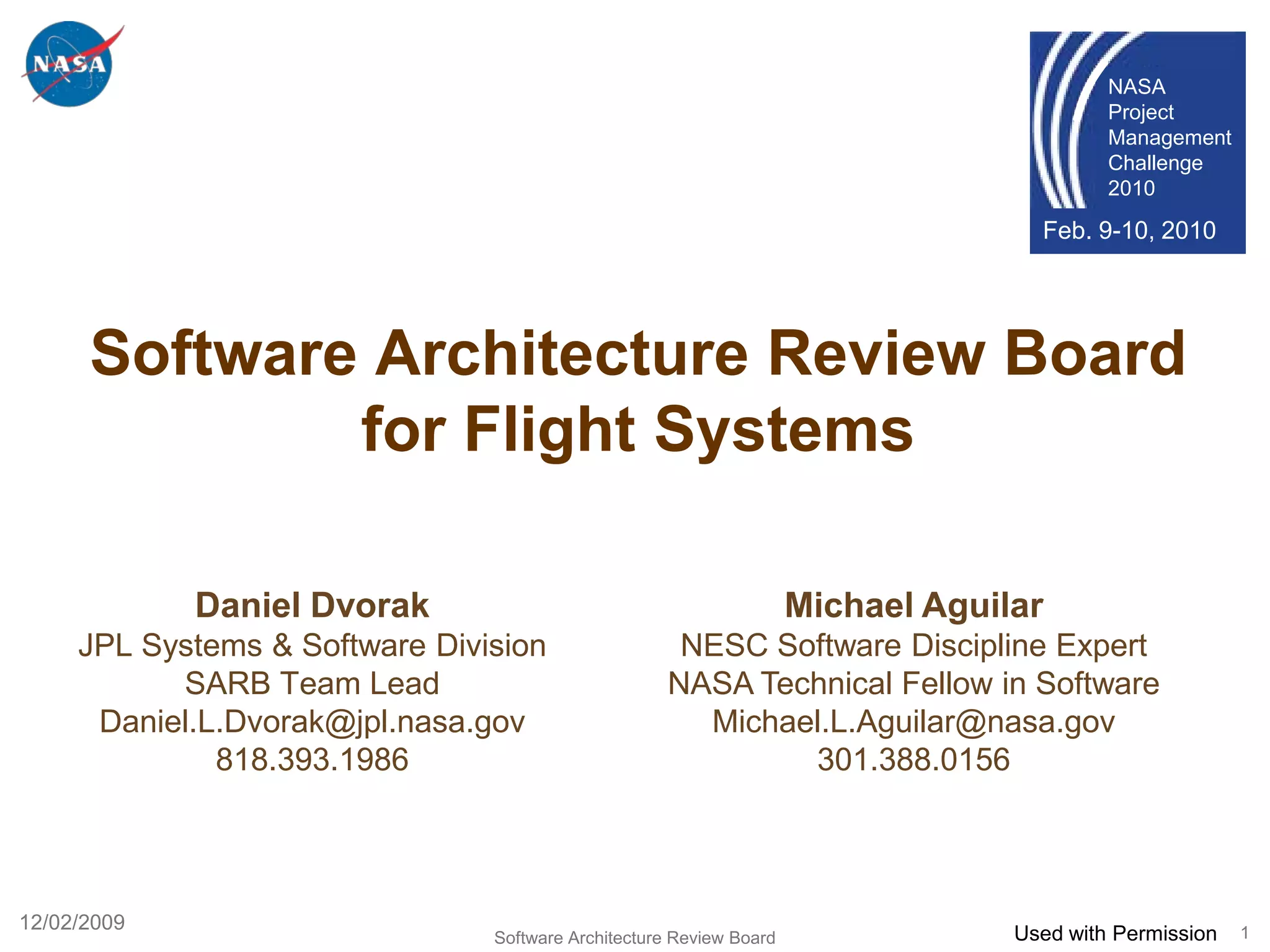

      Software Architecture Review Board
              for Flight Systems

             Daniel Dvorak                                           Michael Aguilar
     JPL Systems & Software Division                 NESC Software Discipline Expert
           SARB Team Lead                           NASA Technical Fellow in Software
      Daniel.L.Dvorak@jpl.nasa.gov                    Michael.L.Aguilar@nasa.gov
              818.393.1986                                  301.388.0156




12/02/2009
                                Software Architecture Review Board                Used with Permission   1
Motivating Questions

• What is the purpose of a software architecture review?
• What kinds of problems are found?
• What are the benefits?
• What is software architecture, anyway?
• How do you evaluate architecture?
• Are there impediments to good software architecture
  within NASA?
• What’s the relationship between systems architecture
  and software architecture?


                       Software Architecture Review Board   2
Overview
Goals
• Help NASA missions achieve higher
  reliability and cost savings
• Manage flight software complexity
  through better software architecture



Approach                                 Plan
                                         • Prepare introductory document,
• Create a NASA-wide
                                           review process, review checklist,
  software architecture                    sample problem statement, and
  review board (SARB)                      sample report
• Engage with flight projects            • Educate team on process
  in the formative stages of             • Practice on flown missions
  software architecture                  • Conduct real reviews
                          Software Architecture Review Board                   3
Outline
• Origin of this task
• Architecture reviews: history and benefits
• Architecture description
• Architecture review process
• Issues found in architecture reviews
• How you can help




                        Software Architecture Review Board   4
Origin
• NASA OCE study on flight software complexity involved
  flight software engineers from GSFC, JPL, JSC, MSFC,
  and APL

• The study recommended formation of a NASA software
  architecture review board

• Why? Because …
   – It saves projects time and money (AT&T and Lucent
     experience)
   – Weak software architecture is a contributor to problems on
     NASA missions (though rarely recognized as such)
   – Good architecture is the best defense against unnecessary
     complexity. “Point of view is worth 80 IQ points” (Alan Kay)

                         Software Architecture Review Board         5
NESC Support
• NASA Chief Engineer Michael Ryskewitsch was briefed
  on findings and recommendations of the Flight Software
  Complexity study on 4/23/2009

• One recommendation was to establish a NASA
  software architecture review board (SARB)

• Michael Aguilar, NESC Software Discipline Expert and
  NASA Technical Fellow in Software, volunteered to
  support the board as a technical discipline team (TDT)

• (Other recommendations are being followed up on. For
  example, static analysis of software code is now a
  NASA requirement.)

                     Software Architecture Review Board    6
Systems vs. Software Architecture
• Architecture provides a unifying vision
• Systems architecture is comprehensive: flight and
  ground systems, spacecraft instruments and
  subsystems, hardware, software, etc.
• Software controls most of the system behavior
• Thus, the architecture of behavior is in the software
  architecture
• Note: Growth in size and complexity of flight software
  is a reflection of its role in meeting increasingly
  ambitious mission & system requirements


                       Software Architecture Review Board   7
Architecture Reviews

    • Description
    • History
    • Benefits
What is an Architecture Review?
“Architectural Reviews are formal reviews held to evaluate how
well a proposed architecture meets the needs and operational
concept of the system under development. By focusing on the
architecture and ops concepts, they identify mismatches early in
the life cycle. An architectural review board or panel (an expert,
non-advocate group) usually conducts the review.”
                          Best Practices Clearinghouse
                          Defense Acquisition University
                          bcph.dau.mil



     • DAU lists architecture reviews as a best practice
       having the most supporting evidence
                           Software Architecture Review Board        9
History
       Software Architecture Reviews
   AT&T Bell Labs was developing software-
    intensive systems for telephony in the 1960’s

   By the 1990’s AT&T had a standing Architecture
    Review Board that examined proposed software
    architectures for projects, in depth, and pointed
    out problem areas for rework
    – The board members were experts in architecture & system
      analysis
    – They could spot common problems a mile away
    – The review was invited and the board provided constructive
      feedback
    – It helped immensely to avoid big problems


                     Software Architecture Review Board            10
History
  Benefits of Architecture Reviews (1 of 2)
• “Architecture reviews tend to increase quality, control
  cost, and decrease budget risk.”
   – [Bass, Clements, and Kazman, Software Architecture in Practice, 1998]

• “In our experience, the average [architecture] review
  pays back at least twelve times its cost.”
   – [Daniel Starr and Gus Zimmerman, STQE Magazine, July/August 2002]

• Beneficial side effects:
   – Cross-organizational learning is enhanced
   – Architectural reviews get management attention without
     personal retribution
   – Architectural reviews assist organizational change
   – Greater opportunities exist to find different defects in integration
     and system tests.
   – [Maranzano et al, IEEE Software, March/April 2005]

                              Software Architecture Review Board             11
History
       Benefits of Architecture Reviews (2 of 2)
“Project teams found that the preparation for the review
helped them get a clearer understanding of their projects.
In several reviews the people on the project team asked more
questions than the reviewers. Often, this was one of the few
opportunities for the project team members to have in-depth
discussions of the technical issues about the project. The
review served as a catalyst to bring them together.”
AT&T: “Best Current Practices: Software Architecture Validation”, 1991


       “The architecture review process has helped train people to
       become better architects and helped establish a consistent
       view across our companies, both of what architecture is and
       what good architecture’s characteristics are.”
       Maranzano et al, Architecture Reviews: Practice and Experience, IEEE
       Software, March/April 2005.
                               Software Architecture Review Board             12
Mission & Charter of SARB
                         Mission:
             Manage flight software complexity
            through better software architecture


Charter
• Provide constructive feedback to flight projects in the
  formative stages of software architecting
• Focus on architectural improvements to reduce and/or
  better manage complexity in requirements, analysis,
  design, implementation, verification, and operations
• Spread best architectural practices, principles, and
  patterns across flight software centers
• Contribute to NASA Lessons Learned
                       Software Architecture Review Board   13
Architecture Description

• Architecture reviews help carry out our mission
• A review requires an architecture description
• So …
  – What is architecture?
  – How should an architecture be described?
What is an Architecture Description?
                         IEEE 1471-2000:
              Recommended Practice for Architecture
             Description of Software-Intensive Systems



• Every system …
   – has an architecture (documented or not)
   – has stakeholders
• Every stakeholder has concerns
• An architecture is described by an architecture description
• An architecture description …
   – identifies stakeholders
   – is organized by views that address stakeholders’ concerns
   – provides rationale
                            Software Architecture Review Board   15
Conceptual Framework for Architecture
                                                             ANSI / IEEE 1471-2000:
                                  Mission                    Recommended Practice for Architecture
                                          1..*
                                                             Description of Software-Intensive Systems
                               fulfills




                  influences                                             has an
Environment   inhabits
                                  System                                              Architecture               Rationale
                                                                                1

                                                                                                                   provides

                                                                                      described by
                                  has 1..*                                                    1
                                                     1..*
                           Stakeholder                  identifies
                                                                                              Architecture Description
                                 1..*
                                                 is addressed to



                                 has                                                      selects          organized by
                                   1..*                                        1..*                               1..*
                                                      1..*
                                                                                          conforms to
                                 Concern                             Viewpoint                                View
                                                     1..*
                                                     Software Architecture Review Board                                       16
Scope of Architectural Concerns
                  • Architecture should address non-functional rqmts
Requirements
 Complexity
                     – performance, availability, maintainability,
                       modifiability, security, testability, operability, etc.
                     – Watch for unsubstantiated or ambiguous rqmts
 System-Level
  Analysis &      • Architecture should address analyzability
    Design            - “Point of view is worth 80 IQ points”

                   • Architecture should address principles of design
Flight Software        - Identify and follow architectural principles
  Complexity
                       - Leverage appropriate architectural patterns

Verification &    • Architecture should address verifiability
 Validation
                      - Design can simplify or complicate verification
 Complexity

                  • Architecture should address operability
 Operations           - Inadequate design complicates operations
 Complexity           - Operational workarounds raises risk
                              Software Architecture Review Board                 17
What is Architecture?

“ Architecture is the fundamental organization of a
system, embodied in its components, their
relationships to each other and the environment, and
the principles governing its design and evolution.”
   IEEE Standard 1471: Recommended Practice for
   Architectural Description of Software-Intensive Systems


• where:
  – fundamental = essential, unifying concepts and principles
  – system = application, system, platform, system-of-
    systems, enterprise, product line, …
  – environment = developmental, operational, programmatic,
    … context
                       Software Architecture Review Board       18
Two Notions of “Architecture”
• architecture — What gets built
  – Describing components and interfaces
  – The details of assembly and integration


• Architecture — Why it gets built the way it does
  – Identifying properties of interest beyond just the requirements,
    and from all essential points of view
  – Defining abstractions and other patterns of design that give the
    design shape and reflect fundamental concepts of the domain
  – Guiding design and maintaining principles throughout lifecycle
  – Building on a body of experience and refining concepts as necessary


       Architecting is about managing complexity
                            Software Architecture Review Board   Source: Bob Rasmussen, JPL   19
The Review Process

• AT&T Review Process
  •   Principles
  •   Participants
  •   Implementation
  •   Artifacts
• Issues found
What review process to use?
• For reviews within NASA, expert opinion favors the
  AT&T process over ATAM
   – David Garlan (CMU), Gus Zimmerman (Lucent), Katy Weiss (JPL)
• Reasons given in favor of AT&T process:
   – Review team composed of external experts whereas ATAM review
     team is all stakeholders (potentially biased)
   – Better transfer: encourages cross-fertilization of
     ideas/standards/approaches across organization.
   – Better residuals: reusable checklists, standard templates, shared
     understandings about common architectural approaches
   – ATAM not quantitative enough to characterize quality attribute
     requirements with testable figures of merit, and then map those
     testable requirements directly into the structures in the architecture
     that accomplish them
   – ATAM prioritizes scenarios by voting among all stakeholders thus
     allowing a serious issue, identified by an expert, to be ranked low
                              Software Architecture Review Board              21
AT&T Review Process: Principles
• A clearly defined problem statement (success criteria) drives the
  system architecture
   – The project writes it and the review team uses it
   – Often requires iteration before it’s good enough
• Product line and business application projects require a system
  architect at all phases
   – Architect is an explicitly defined role
• Independent experts conduct reviews
   – Chosen reviewers are recognized experts and are independent of the
     project
• Reviews are open processes
   – Open approach to identifying issues and strengths
   – Issues written on 5x8 “snow cards” and displayed on wall
• Conduct reviews for the project’s benefit
   – Reactions to issues are project management responsibility
   – Review team does not discuss issues later without project consent

                               Software Architecture Review Board         22
AT&T Review Process: Participants
          • Review client
             – Pays for system development, or is review’s sponsor
          • Project members
             – Creators, contributors, and users of the architecture
project
             – One member selected to be contact for logistics and artifacts
          • Project management
             – All managers responsible for project’s success
             – Management nominates project for review
          • Review team
review
 team        – Subject matter experts selected on basis of expertise,
               independence from project, and interpersonal skills
          • Architecture review board
             – Standing board that oversees and adjusts review process

 board    • Review angel
             – ARB member with managerial experience to address political issues
          • ARB chair
             – Strong process advocate; ensures effectiveness; secures support
                           Software Architecture Review Board                      23
AT&T Review Process: Implementation
• Phase 1: Screening
  – Project and ARB determine if a review would benefit project
  – If so, ARB selects a review angel

• Phase 2: Preparation
  – ARB selects a review team, including a review leader
  – Project prepares clear problem statement (success criteria) and docs

• Phase 3: Review Meeting
  – Typical review is 2 days plus ½ day of caucus plus 1-hour readout
  – Issues prioritized: management alert, critical, major, minor

• Phase 4: Follow-Up
  – Review team delivers report to project within 15 days
  – If management alert(s), project must respond within two weeks

                            Software Architecture Review Board             24
AT&T Review Process: Artifacts
• Architecture review checklist
   – Questions that architects and reviewers should consider
   – Evolves over time according to serious and prevalent issues
   – “An accumulated institutional knowledge repository”

• Input to the review
   – Problem statement (success criteria), system requirements,
     functional requirements, architectural specification, other
     informational docs

• Output from the review
   – Set of issues (often in the form of snow cards)
   – A review report
   – Optional management alert letter



                             Software Architecture Review Board    25
Kinds of Issues Found (AT&T, Lucent)
Category                                                                 Percent

Problem Definition                                                       10-18%
Problem isn’t completely or clearly defined

Product Architecture and Design                                          29-49%
Proposed solution doesn’t adequately solve the problem
Technology                                                               3-14%
Inadequate languages, tools and/or components to build system
Domain Knowledge                                                          2-5%
Team lacks adequate knowledge or experience

Process                                                                  4-19%
Process isn’t systematic, complete, or designed to make development
manageable
Management Controls                                                      14-26%
Inadequate management monitoring capabilities, staffing, controls, and
decision-making mechanisms
                                   Software Architecture Review Board              26
Example Issues from within NASA
• Boxes-and-lines diagrams lack clear semantics
• Flight software design details that are unnecessarily
  coupled to hardware details
• Lots of software “gadgets” but little in the way of
  abstractions tailored for the problem domain
• Excessive cross-strapping of hardware that complicates
  software without much reliability benefit
• Underestimation of time needed to adequately test
  redundancy management
• Fault protection design that doesn’t scale well
• Fault protection designed only to handle a laundry list of
  faults; lack of defensive mindset
                       Software Architecture Review Board      27
Impediments to Software Architecture
                        within NASA
• Inappropriate modeling techniques
    – “Software architecture is just boxes and lines”
    – “Software architecture is just code modules”
                                                                        As presented by
    – “A layered diagram says it all”
                                                                        Prof. David Garlan (CMU) at
• Misunderstanding about role of architecture                           NASA Planetary Spacecraft
  in product lines and architectural reuse                              Fault Management Workshop,
    – “A product line is just a reuse library”                          4/15/08

• Impoverished culture of architecture design
    –   No standards for arch description and analysis
    –   Architecture reviews are not productive
    –   Architecture is limited to one or two phases
    –   Lack of architecture education among engineers
• Failure to take architecture seriously
    – “We always do it that way. It’s cheaper/easier/less risky
      to do it the way we did it last time.”
    – “They do it a certain way ‘out there’ so we should too.”
    – “We need to reengineer it from scratch because the
      mission is different from all others.”

                                   Software Architecture Review Board                                 28
What an architecture review is NOT

An architecture review is …
• not a gate, not a mandatory review (in AT&T)
• not a pass/fail judgment
• not an audit for a cancellation decision
• not an evaluation of architect’s performance
• not a tutorial
• not a code review




                    Software Architecture Review Board   29
Timeline of SARB Activities
              Mike Ryschkewitsch approves recommendation for SARB
April 2009
              Mike Aguilar funds it as a NESC Technical Discipline Team

May 2009      Kickoff telecon with FSW Complexity team + Mike Aguilar

June 2009       Team formation and preparation phase
July 2009       • prepare charter
                • select review board members
Aug. 2009       • define review and reporting process
Sep. 2009       • identify focus areas for evaluation
                • get exposure to several flight software architectures
Oct. 2009
                • conduct mock reviews
Nov. 2009
Dec. 2009
Jan. 2010
Feb. 2010     Conduct first real review (goal)
                           Software Architecture Review Board             30
Current Team Members (as of 12/3/2009)
Name                                             Affiliation
Michael Aguilar                                  OCE/NESC
Dan Dvorak                                       JPL
Michel Ingham                                    JPL
Lou Hallock (leaving)                            GSFC
Michael Blau (coming)                            GSFC
John Weir                                        MSFC
Leann Thomas (observing)                         MSFC
Helen Neighbors                                  JSC
Kevin Balon                                      APL
Steve Williams (observing)                       APL

                  Software Architecture Review Board           31
How You Can Help
Projects:
• Identify candidate projects for review

People:
• Identify subject matter experts who may serve on reviews
• Suggest potential review board members

Architectural Concerns:
• Improve our architecture checklist
   – Offer your strongly felt architectural issues
   – Negative examples are among the best teachers




                        Software Architecture Review Board   32
Questions?




    “Great goulash, Stan. That reminds me, are you
    still in charge of our system architecture?”
                 Software Architecture Review Board   33
Backup
• What about ground software?
• SARB telecon topics
• “Early warning signs”
• Mindset for reviews
• Open questions
What About Ground Software?
• Initial focus is on flight software because the
  recommendation came from a FSW study

• Ideally, GSW should be included, but …
   – Architectural concerns will be somewhat different
   – Need different expertise on the review board
   – Need additional funds


• One way to “ease into” GSW is to review:
   – End-to-end information flow
   – Flight/ground operations paradigm and uplink/downlink




                       Software Architecture Review Board    35
SARB Telecon Topics (1 of 2)
Date      Topic
5/18/09   Pre-planning: NESC intro, identify board members and projects
6/01/09   Kickoff: charter, questions, speakers
6/08/09   Handbook for real-time analysis (Mike Aguilar)
6/15/09   Architecture review checklist (Lou Hallock)
6/22/09   Architecture docs and review process (Katy Weiss)
6/29/09   Altair FSW architecture study (Lore Williams)
7/13/09   General discussion of problems seen in FSW
7/20/09   cFE/CFS software architecture (Charlie Wildermann)
7/27/09   Observations on weak s/w architecture (Bob Rasmussen)
8/10/09   Space Shuttle Main Engine: s/w architecture (Andy Young)
8/17/09   Examples of weak s/w architecture (all)
8/24/09   Discuss architecture review checklist (Lou Hallock)


                            Software Architecture Review Board            36
SARB Telecon Topics (2 of 2)
Date       Topic
8/31/09    Overview of IEEE 1471-2000 “Recommended Practice for
           Architectural Description of Software-Intensive Systems”
           (Jeff Estefan)
9/21/09    Ares I upper stage flight computer software architecture (J. Weir)
10/05/09   Four documents we need to prepare (Dan Dvorak)
10/26/09   The architecture “problem statement” (Ken Costello)
11/02/09   Revisiting the architecture review checklist (Lou Hallock)
11/30/09   SDO Software Architecture (Manuel Maldonado, Mark Walters)
12/14/09   Architecture review overview document (H. Neighbors, J. Weir)
TBD        MLAS software architecture (Mike Aguilar)
TBD        Experiences in adapting cFE/CFS for LRO (Mike Blau)
TBD        MSAP Software Architecture (David Hecox or Bob Denise)
TBD        Architectural issues in fault protection (Dan Dvorak)

                              Software Architecture Review Board                37
What to look for
                Early Warning Signs (1 of 2)
1.   The architecture is forced to match current organization.
2.   Top-level architectural components number more than 25.
3.   One requirement drives the rest of the design.
4.   The architecture depends on alternatives in the OS.
5.   Proprietary components used when standard components
     would do.
6.   Component definition comes from the hardware division.
7.   There is redundancy not needed for reliability (e.g., two
     databases, two start-up routines, two error-locking
     procedures).
8.   The design is exception driven; that is, the emphasis is on
     extensibility and not core commonalities.
9.   Development unit unable to identify a system architect
                            Software Architecture Review Board     38
What to look for
                  Early Warning Signs (2 of 2)
  10. Difficulty identifying the architecture’s stakeholders
  11. The architecture provides no guidance on how to code an
      interaction between two components (silent or a plethora
      of choices)
  12. Architecture documentation consists of class diagrams and
      nothing else
  13. Architecture documentation is a large stack of documents
      automatically produced by some tool, but which no human
      has ever seen
  14. Documents provided are old, not kept up to date
  15. A designer or developer, when asked to describe the
      architecture, is either unable to or describes a much
      different architecture than what the architect presented
(from “Evaluating Software Architectures”, by Clements, Kazman, and Klein 2002)
                                Software Architecture Review Board                39
Mindset for Reviews
• Architecture addresses non-functional requirements
   – Quality attributes such as verifiability, operability, maintainability,
     interoperability, adaptability, reusability, scalability, portability, etc
• Architecture is about principles
   – “Software architecture involves the description of elements from
     which systems are built, interactions among those elements,
     patterns that guide their composition, and constraints on these
     patterns.”
     [Shaw & Garlan, 1996]
   – Fred Brooks writes emphatically that a system’s conceptual
     integrity is of overriding importance and that systems without it fail
     [Brooks 1975, Bass 2003]
• A major goal of a review is to elicit architectural risks
• Architecture is more than high-level design

                               Software Architecture Review Board                 40
Open Questions
• Should the board’s scope include aeronautics in
  addition to aerospace?
• How do we measure effectiveness of reviews?
• What kind of follow-up should we do with projects?
• Should architecture reviews be made part of
  standard project reviews?
• How do we keep findings confidential to projects but
  also report upward to OCE/NESC?




                     Software Architecture Review Board   41
About Software Architecture
                         Definitions
• Software architecture = { elements, form, rationale}
  [Perry & Wolf, 1992]

• “Software architecture involves the description of elements from
  which systems are built, interactions among those elements,
  patterns that guide their composition, and constraints on these
  patterns.”
  [Shaw & Garlan, 1996]

• “An architecture is a specification of the components of a system
  and the communication between them. Systems are constrained to
  conform to an architecture.”
  [Luckham et al, 1995]

• “An architecture is … a set of constraints on a design. The utility of
  an architecture is its ability to simplify the process of generating a
  design through the imposition of carefully chosen constraints.”
  [Gat, 1998]

                           Software Architecture Review Board              42
Architecture versus Design

• Architecture is design, but not all design is
  architectural.
  – Architects intentionally limit their focus and avoid
    the details of how elements do what they do.
     • Detailed designs and implementation details are left to
       downstream engineers/experts.
  – Downstream engineers are expected to respect
    the architecture to ensure properties promised by
    the architect are present in the product.


                                       Source: Anthony J. Lattanze and David Garlan
                        Software Architecture Review Board                            43
Two Sources of Software Complexity

Sw complexity = Essential complexity + Incidental complexity




 Essential complexity                       Incidental complexity
  comes from problem                          comes from choices
  domain and mission                          about architecture,
  requirements                                design, implementation,
 Can reduce it only by                       including avionics
  descoping
                                             Can reduce it by making
 Can move it (e.g. to ops),                  wise choices
  but can’t remove it
                          Software Architecture Review Board            44
Miscellaneous

• Architecture is concepts, patterns, interaction, and
  principles of design − the things you care so much
  about that they are the last thing you would
  change. They guide the design.
• There’s a real opportunity for the SARB to document
  and spread good design patterns and practices
• Software and hardware must support the system
  architecture
   – Historically, software has been made to conform to the selected
     hardware
   – Now, due to growth in software complexity, hardware decisions
     should be balanced with impacts on software


                          Software Architecture Review Board           45
Summary of IEEE 1471
• An architecture should address a system's stakeholders
  concerns
• Architecture descriptions are inherently multi-view
  (no single view adequately captures all stakeholder
  concerns)
• It separates the notion of view from viewpoint
   • a viewpoint identifies the set of concerns and the
     representations/modeling techniques, etc. used to describe the
     architecture to address those concerns
   • a view is the result of applying a viewpoint to a particular system
• It establishes content requirements for architecture
  descriptions
• It provides guidance for capturing architecture rationale
                             Software Architecture Review Board            46

More Related Content

What's hot

Carol daniele
Carol danieleCarol daniele
Carol daniele
NASAPMC

Friedenthal.sandford
Friedenthal.sandfordFriedenthal.sandford
Friedenthal.sandford
NASAPMC

Snow lee
Snow leeSnow lee
Snow lee
NASAPMC

Stefanini.trinh
Stefanini.trinhStefanini.trinh
Stefanini.trinh
NASAPMC

Murphy.dar jean.jean
Murphy.dar jean.jeanMurphy.dar jean.jean
Murphy.dar jean.jean
NASAPMC

Saltzman.john
Saltzman.johnSaltzman.john
Saltzman.john
NASAPMC

Hazen michael
Hazen michaelHazen michael
Hazen michael
NASAPMC

Bhasin reinert barnes_golden
Bhasin reinert barnes_goldenBhasin reinert barnes_golden
Bhasin reinert barnes_golden
NASAPMC

Kapruch steve
Kapruch steveKapruch steve
Kapruch steve
NASAPMC

Sean carter dan_deans
Sean carter dan_deansSean carter dan_deans
Sean carter dan_deans
NASAPMC

Housch
HouschHousch
Housch
NASAPMC

Jim.free
Jim.freeJim.free
Jim.free
NASAPMC

Terry.cooke davies
Terry.cooke daviesTerry.cooke davies
Terry.cooke davies
NASAPMC

Dawn.schaible
Dawn.schaibleDawn.schaible
Dawn.schaible
NASAPMC

Bobby.german
Bobby.germanBobby.german
Bobby.german
NASAPMC

Bauer.frank
Bauer.frankBauer.frank
Bauer.frank
NASAPMC

Terry.conroy
Terry.conroyTerry.conroy
Terry.conroy
NASAPMC

Odum.t.averbeck.r
Odum.t.averbeck.rOdum.t.averbeck.r
Odum.t.averbeck.r
NASAPMC

Mike.ryschkewitsch
Mike.ryschkewitschMike.ryschkewitsch
Mike.ryschkewitsch
NASAPMC

Mullane stanley-hamilton-wise
Mullane stanley-hamilton-wiseMullane stanley-hamilton-wise
Mullane stanley-hamilton-wise
NASAPMC


What's hot (20)

Carol daniele
Carol danieleCarol daniele
Carol daniele

Friedenthal.sandford
Friedenthal.sandfordFriedenthal.sandford
Friedenthal.sandford

Snow lee
Snow leeSnow lee
Snow lee

Stefanini.trinh
Stefanini.trinhStefanini.trinh
Stefanini.trinh

Murphy.dar jean.jean
Murphy.dar jean.jeanMurphy.dar jean.jean
Murphy.dar jean.jean

Saltzman.john
Saltzman.johnSaltzman.john
Saltzman.john

Hazen michael
Hazen michaelHazen michael
Hazen michael

Bhasin reinert barnes_golden
Bhasin reinert barnes_goldenBhasin reinert barnes_golden
Bhasin reinert barnes_golden

Kapruch steve
Kapruch steveKapruch steve
Kapruch steve

Sean carter dan_deans
Sean carter dan_deansSean carter dan_deans
Sean carter dan_deans

Housch
HouschHousch
Housch

Jim.free
Jim.freeJim.free
Jim.free

Terry.cooke davies
Terry.cooke daviesTerry.cooke davies
Terry.cooke davies

Dawn.schaible
Dawn.schaibleDawn.schaible
Dawn.schaible

Bobby.german
Bobby.germanBobby.german
Bobby.german

Bauer.frank
Bauer.frankBauer.frank
Bauer.frank

Terry.conroy
Terry.conroyTerry.conroy
Terry.conroy

Odum.t.averbeck.r
Odum.t.averbeck.rOdum.t.averbeck.r
Odum.t.averbeck.r

Mike.ryschkewitsch
Mike.ryschkewitschMike.ryschkewitsch
Mike.ryschkewitsch

Mullane stanley-hamilton-wise
Mullane stanley-hamilton-wiseMullane stanley-hamilton-wise
Mullane stanley-hamilton-wise


Similar to Daniel.dvorak

Introduction to Systems Engineering
Introduction to Systems EngineeringIntroduction to Systems Engineering
Introduction to Systems Engineering
Ali Saaboonchi

Software Architecture: introduction to the abstraction
Software Architecture: introduction to the abstractionSoftware Architecture: introduction to the abstraction
Software Architecture: introduction to the abstraction
Henry Muccini

Software Architecture
Software ArchitectureSoftware Architecture
Software Architecture
Vikas Dhyani

Lab Software Architecture (in spanish)
Lab Software Architecture (in spanish)Lab Software Architecture (in spanish)
Lab Software Architecture (in spanish)
Fáber D. Giraldo

[2015/2016] Software systems engineering PRINCIPLES
[2015/2016] Software systems engineering PRINCIPLES[2015/2016] Software systems engineering PRINCIPLES
[2015/2016] Software systems engineering PRINCIPLES
Ivano Malavolta

Fostering MBSE in Engineering Culture
Fostering MBSE in Engineering CultureFostering MBSE in Engineering Culture
Fostering MBSE in Engineering Culture
Obeo

C armstrong tbyers
C armstrong tbyersC armstrong tbyers
C armstrong tbyers
NASAPMC

Software architecture simplified
Software architecture simplifiedSoftware architecture simplified
Software architecture simplified
Prasad Chitta

Scope of software engineering
Scope of software engineeringScope of software engineering
Scope of software engineering
Muhammad Naveed Zafar

Lecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdfLecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdf
AkilaGamage2

Refactoring for Software Architecture Smells
Refactoring for Software Architecture SmellsRefactoring for Software Architecture Smells
Refactoring for Software Architecture Smells
Ganesh Samarthyam

Arch06 1
Arch06 1Arch06 1
Arch06 1
nazn

Oose unit 4 ppt
Oose unit 4 pptOose unit 4 ppt
Oose unit 4 ppt
Dr VISU P

Feasible
FeasibleFeasible
Feasible
anasamirah

TMPA-2017: Stemming Architectural Decay in Software Systems
TMPA-2017:  Stemming Architectural Decay in Software SystemsTMPA-2017:  Stemming Architectural Decay in Software Systems
TMPA-2017: Stemming Architectural Decay in Software Systems
Iosif Itkin

OOSE Unit 4 PPT.ppt
OOSE Unit 4 PPT.pptOOSE Unit 4 PPT.ppt
OOSE Unit 4 PPT.ppt
itadmin33

Geyer.m.sasaki.c
Geyer.m.sasaki.cGeyer.m.sasaki.c
Geyer.m.sasaki.c
NASAPMC

NISI Agile Software Architecture Slide Deck
NISI Agile Software Architecture Slide DeckNISI Agile Software Architecture Slide Deck
NISI Agile Software Architecture Slide Deck
Utrecht University

Moving To The Cloud, Evaluating Architectures
Moving To The Cloud, Evaluating ArchitecturesMoving To The Cloud, Evaluating Architectures
Moving To The Cloud, Evaluating Architectures
Mark Sigler

CHAPTER12.ppt
CHAPTER12.pptCHAPTER12.ppt
CHAPTER12.ppt
CharenReposposa


Similar to Daniel.dvorak (20)

Introduction to Systems Engineering
Introduction to Systems EngineeringIntroduction to Systems Engineering
Introduction to Systems Engineering

Software Architecture: introduction to the abstraction
Software Architecture: introduction to the abstractionSoftware Architecture: introduction to the abstraction
Software Architecture: introduction to the abstraction

Software Architecture
Software ArchitectureSoftware Architecture
Software Architecture

Lab Software Architecture (in spanish)
Lab Software Architecture (in spanish)Lab Software Architecture (in spanish)
Lab Software Architecture (in spanish)

[2015/2016] Software systems engineering PRINCIPLES
[2015/2016] Software systems engineering PRINCIPLES[2015/2016] Software systems engineering PRINCIPLES
[2015/2016] Software systems engineering PRINCIPLES

Fostering MBSE in Engineering Culture
Fostering MBSE in Engineering CultureFostering MBSE in Engineering Culture
Fostering MBSE in Engineering Culture

C armstrong tbyers
C armstrong tbyersC armstrong tbyers
C armstrong tbyers

Software architecture simplified
Software architecture simplifiedSoftware architecture simplified
Software architecture simplified

Scope of software engineering
Scope of software engineeringScope of software engineering
Scope of software engineering

Lecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdfLecture-2-Architectural_Concepts.pdf
Lecture-2-Architectural_Concepts.pdf

Refactoring for Software Architecture Smells
Refactoring for Software Architecture SmellsRefactoring for Software Architecture Smells
Refactoring for Software Architecture Smells

Arch06 1
Arch06 1Arch06 1
Arch06 1

Oose unit 4 ppt
Oose unit 4 pptOose unit 4 ppt
Oose unit 4 ppt

Feasible
FeasibleFeasible
Feasible

TMPA-2017: Stemming Architectural Decay in Software Systems
TMPA-2017:  Stemming Architectural Decay in Software SystemsTMPA-2017:  Stemming Architectural Decay in Software Systems
TMPA-2017: Stemming Architectural Decay in Software Systems

OOSE Unit 4 PPT.ppt
OOSE Unit 4 PPT.pptOOSE Unit 4 PPT.ppt
OOSE Unit 4 PPT.ppt

Geyer.m.sasaki.c
Geyer.m.sasaki.cGeyer.m.sasaki.c
Geyer.m.sasaki.c

NISI Agile Software Architecture Slide Deck
NISI Agile Software Architecture Slide DeckNISI Agile Software Architecture Slide Deck
NISI Agile Software Architecture Slide Deck

Moving To The Cloud, Evaluating Architectures
Moving To The Cloud, Evaluating ArchitecturesMoving To The Cloud, Evaluating Architectures
Moving To The Cloud, Evaluating Architectures

CHAPTER12.ppt
CHAPTER12.pptCHAPTER12.ppt
CHAPTER12.ppt


More from NASAPMC

Bejmuk bo
Bejmuk boBejmuk bo
Bejmuk bo
NASAPMC

Baniszewski john
Baniszewski johnBaniszewski john
Baniszewski john
NASAPMC

Yew manson
Yew mansonYew manson
Yew manson
NASAPMC

Wood frank
Wood frankWood frank
Wood frank
NASAPMC

Wood frank
Wood frankWood frank
Wood frank
NASAPMC

Wessen randi (cd)
Wessen randi (cd)Wessen randi (cd)
Wessen randi (cd)
NASAPMC

Vellinga joe
Vellinga joeVellinga joe
Vellinga joe
NASAPMC

Trahan stuart
Trahan stuartTrahan stuart
Trahan stuart
NASAPMC

Stock gahm
Stock gahmStock gahm
Stock gahm
NASAPMC

Smalley sandra
Smalley sandraSmalley sandra
Smalley sandra
NASAPMC

Seftas krage
Seftas krageSeftas krage
Seftas krage
NASAPMC

Sampietro marco
Sampietro marcoSampietro marco
Sampietro marco
NASAPMC

Rudolphi mike
Rudolphi mikeRudolphi mike
Rudolphi mike
NASAPMC

Roberts karlene
Roberts karleneRoberts karlene
Roberts karlene
NASAPMC

Rackley mike
Rackley mikeRackley mike
Rackley mike
NASAPMC

Paradis william
Paradis williamParadis william
Paradis william
NASAPMC

Osterkamp jeff
Osterkamp jeffOsterkamp jeff
Osterkamp jeff
NASAPMC

O'keefe william
O'keefe williamO'keefe william
O'keefe william
NASAPMC

Muller ralf
Muller ralfMuller ralf
Muller ralf
NASAPMC

Mulenburg jerry
Mulenburg jerryMulenburg jerry
Mulenburg jerry
NASAPMC


More from NASAPMC (20)

Bejmuk bo
Bejmuk boBejmuk bo
Bejmuk bo

Baniszewski john
Baniszewski johnBaniszewski john
Baniszewski john

Yew manson
Yew mansonYew manson
Yew manson

Wood frank
Wood frankWood frank
Wood frank

Wood frank
Wood frankWood frank
Wood frank

Wessen randi (cd)
Wessen randi (cd)Wessen randi (cd)
Wessen randi (cd)

Vellinga joe
Vellinga joeVellinga joe
Vellinga joe

Trahan stuart
Trahan stuartTrahan stuart
Trahan stuart

Stock gahm
Stock gahmStock gahm
Stock gahm

Smalley sandra
Smalley sandraSmalley sandra
Smalley sandra

Seftas krage
Seftas krageSeftas krage
Seftas krage

Sampietro marco
Sampietro marcoSampietro marco
Sampietro marco

Rudolphi mike
Rudolphi mikeRudolphi mike
Rudolphi mike

Roberts karlene
Roberts karleneRoberts karlene
Roberts karlene

Rackley mike
Rackley mikeRackley mike
Rackley mike

Paradis william
Paradis williamParadis william
Paradis william

Osterkamp jeff
Osterkamp jeffOsterkamp jeff
Osterkamp jeff

O'keefe william
O'keefe williamO'keefe william
O'keefe william

Muller ralf
Muller ralfMuller ralf
Muller ralf

Mulenburg jerry
Mulenburg jerryMulenburg jerry
Mulenburg jerry


Recently uploaded

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
IndexBug

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx
danishmna97

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students
KAMESHS29

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
Neo4j

GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
Neo4j

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
Neo4j


Recently uploaded (20)

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...

GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...


Daniel.dvorak

  • 1. NASA Project Management Challenge 2010 Feb. 9-10, 2010 Software Architecture Review Board for Flight Systems Daniel Dvorak Michael Aguilar JPL Systems & Software Division NESC Software Discipline Expert SARB Team Lead NASA Technical Fellow in Software Daniel.L.Dvorak@jpl.nasa.gov Michael.L.Aguilar@nasa.gov 818.393.1986 301.388.0156 12/02/2009 Software Architecture Review Board Used with Permission 1
  • 2. Motivating Questions • What is the purpose of a software architecture review? • What kinds of problems are found? • What are the benefits? • What is software architecture, anyway? • How do you evaluate architecture? • Are there impediments to good software architecture within NASA? • What’s the relationship between systems architecture and software architecture? Software Architecture Review Board 2
  • 3. Overview Goals • Help NASA missions achieve higher reliability and cost savings • Manage flight software complexity through better software architecture Approach Plan • Prepare introductory document, • Create a NASA-wide review process, review checklist, software architecture sample problem statement, and review board (SARB) sample report • Engage with flight projects • Educate team on process in the formative stages of • Practice on flown missions software architecture • Conduct real reviews Software Architecture Review Board 3
  • 4. Outline • Origin of this task • Architecture reviews: history and benefits • Architecture description • Architecture review process • Issues found in architecture reviews • How you can help Software Architecture Review Board 4
  • 5. Origin • NASA OCE study on flight software complexity involved flight software engineers from GSFC, JPL, JSC, MSFC, and APL • The study recommended formation of a NASA software architecture review board • Why? Because … – It saves projects time and money (AT&T and Lucent experience) – Weak software architecture is a contributor to problems on NASA missions (though rarely recognized as such) – Good architecture is the best defense against unnecessary complexity. “Point of view is worth 80 IQ points” (Alan Kay) Software Architecture Review Board 5
  • 6. NESC Support • NASA Chief Engineer Michael Ryskewitsch was briefed on findings and recommendations of the Flight Software Complexity study on 4/23/2009 • One recommendation was to establish a NASA software architecture review board (SARB) • Michael Aguilar, NESC Software Discipline Expert and NASA Technical Fellow in Software, volunteered to support the board as a technical discipline team (TDT) • (Other recommendations are being followed up on. For example, static analysis of software code is now a NASA requirement.) Software Architecture Review Board 6
  • 7. Systems vs. Software Architecture • Architecture provides a unifying vision • Systems architecture is comprehensive: flight and ground systems, spacecraft instruments and subsystems, hardware, software, etc. • Software controls most of the system behavior • Thus, the architecture of behavior is in the software architecture • Note: Growth in size and complexity of flight software is a reflection of its role in meeting increasingly ambitious mission & system requirements Software Architecture Review Board 7
  • 8. Architecture Reviews • Description • History • Benefits
  • 9. What is an Architecture Review? “Architectural Reviews are formal reviews held to evaluate how well a proposed architecture meets the needs and operational concept of the system under development. By focusing on the architecture and ops concepts, they identify mismatches early in the life cycle. An architectural review board or panel (an expert, non-advocate group) usually conducts the review.” Best Practices Clearinghouse Defense Acquisition University bcph.dau.mil • DAU lists architecture reviews as a best practice having the most supporting evidence Software Architecture Review Board 9
  • 10. History Software Architecture Reviews  AT&T Bell Labs was developing software- intensive systems for telephony in the 1960’s  By the 1990’s AT&T had a standing Architecture Review Board that examined proposed software architectures for projects, in depth, and pointed out problem areas for rework – The board members were experts in architecture & system analysis – They could spot common problems a mile away – The review was invited and the board provided constructive feedback – It helped immensely to avoid big problems Software Architecture Review Board 10
  • 11. History Benefits of Architecture Reviews (1 of 2) • “Architecture reviews tend to increase quality, control cost, and decrease budget risk.” – [Bass, Clements, and Kazman, Software Architecture in Practice, 1998] • “In our experience, the average [architecture] review pays back at least twelve times its cost.” – [Daniel Starr and Gus Zimmerman, STQE Magazine, July/August 2002] • Beneficial side effects: – Cross-organizational learning is enhanced – Architectural reviews get management attention without personal retribution – Architectural reviews assist organizational change – Greater opportunities exist to find different defects in integration and system tests. – [Maranzano et al, IEEE Software, March/April 2005] Software Architecture Review Board 11
  • 12. History Benefits of Architecture Reviews (2 of 2) “Project teams found that the preparation for the review helped them get a clearer understanding of their projects. In several reviews the people on the project team asked more questions than the reviewers. Often, this was one of the few opportunities for the project team members to have in-depth discussions of the technical issues about the project. The review served as a catalyst to bring them together.” AT&T: “Best Current Practices: Software Architecture Validation”, 1991 “The architecture review process has helped train people to become better architects and helped establish a consistent view across our companies, both of what architecture is and what good architecture’s characteristics are.” Maranzano et al, Architecture Reviews: Practice and Experience, IEEE Software, March/April 2005. Software Architecture Review Board 12
  • 13. Mission & Charter of SARB Mission: Manage flight software complexity through better software architecture Charter • Provide constructive feedback to flight projects in the formative stages of software architecting • Focus on architectural improvements to reduce and/or better manage complexity in requirements, analysis, design, implementation, verification, and operations • Spread best architectural practices, principles, and patterns across flight software centers • Contribute to NASA Lessons Learned Software Architecture Review Board 13
  • 14. Architecture Description • Architecture reviews help carry out our mission • A review requires an architecture description • So … – What is architecture? – How should an architecture be described?
  • 15. What is an Architecture Description? IEEE 1471-2000: Recommended Practice for Architecture Description of Software-Intensive Systems • Every system … – has an architecture (documented or not) – has stakeholders • Every stakeholder has concerns • An architecture is described by an architecture description • An architecture description … – identifies stakeholders – is organized by views that address stakeholders’ concerns – provides rationale Software Architecture Review Board 15
  • 16. Conceptual Framework for Architecture ANSI / IEEE 1471-2000: Mission Recommended Practice for Architecture 1..* Description of Software-Intensive Systems fulfills influences has an Environment inhabits System Architecture Rationale 1 provides described by has 1..* 1 1..* Stakeholder identifies Architecture Description 1..* is addressed to has selects organized by 1..* 1..* 1..* 1..* conforms to Concern Viewpoint View 1..* Software Architecture Review Board 16
  • 17. Scope of Architectural Concerns • Architecture should address non-functional rqmts Requirements Complexity – performance, availability, maintainability, modifiability, security, testability, operability, etc. – Watch for unsubstantiated or ambiguous rqmts System-Level Analysis & • Architecture should address analyzability Design - “Point of view is worth 80 IQ points” • Architecture should address principles of design Flight Software - Identify and follow architectural principles Complexity - Leverage appropriate architectural patterns Verification & • Architecture should address verifiability Validation - Design can simplify or complicate verification Complexity • Architecture should address operability Operations - Inadequate design complicates operations Complexity - Operational workarounds raises risk Software Architecture Review Board 17
  • 18. What is Architecture? “ Architecture is the fundamental organization of a system, embodied in its components, their relationships to each other and the environment, and the principles governing its design and evolution.” IEEE Standard 1471: Recommended Practice for Architectural Description of Software-Intensive Systems • where: – fundamental = essential, unifying concepts and principles – system = application, system, platform, system-of- systems, enterprise, product line, … – environment = developmental, operational, programmatic, … context Software Architecture Review Board 18
  • 19. Two Notions of “Architecture” • architecture — What gets built – Describing components and interfaces – The details of assembly and integration • Architecture — Why it gets built the way it does – Identifying properties of interest beyond just the requirements, and from all essential points of view – Defining abstractions and other patterns of design that give the design shape and reflect fundamental concepts of the domain – Guiding design and maintaining principles throughout lifecycle – Building on a body of experience and refining concepts as necessary Architecting is about managing complexity Software Architecture Review Board Source: Bob Rasmussen, JPL 19
  • 20. The Review Process • AT&T Review Process • Principles • Participants • Implementation • Artifacts • Issues found
  • 21. What review process to use? • For reviews within NASA, expert opinion favors the AT&T process over ATAM – David Garlan (CMU), Gus Zimmerman (Lucent), Katy Weiss (JPL) • Reasons given in favor of AT&T process: – Review team composed of external experts whereas ATAM review team is all stakeholders (potentially biased) – Better transfer: encourages cross-fertilization of ideas/standards/approaches across organization. – Better residuals: reusable checklists, standard templates, shared understandings about common architectural approaches – ATAM not quantitative enough to characterize quality attribute requirements with testable figures of merit, and then map those testable requirements directly into the structures in the architecture that accomplish them – ATAM prioritizes scenarios by voting among all stakeholders thus allowing a serious issue, identified by an expert, to be ranked low Software Architecture Review Board 21
  • 22. AT&T Review Process: Principles • A clearly defined problem statement (success criteria) drives the system architecture – The project writes it and the review team uses it – Often requires iteration before it’s good enough • Product line and business application projects require a system architect at all phases – Architect is an explicitly defined role • Independent experts conduct reviews – Chosen reviewers are recognized experts and are independent of the project • Reviews are open processes – Open approach to identifying issues and strengths – Issues written on 5x8 “snow cards” and displayed on wall • Conduct reviews for the project’s benefit – Reactions to issues are project management responsibility – Review team does not discuss issues later without project consent Software Architecture Review Board 22
  • 23. AT&T Review Process: Participants • Review client – Pays for system development, or is review’s sponsor • Project members – Creators, contributors, and users of the architecture project – One member selected to be contact for logistics and artifacts • Project management – All managers responsible for project’s success – Management nominates project for review • Review team review team – Subject matter experts selected on basis of expertise, independence from project, and interpersonal skills • Architecture review board – Standing board that oversees and adjusts review process board • Review angel – ARB member with managerial experience to address political issues • ARB chair – Strong process advocate; ensures effectiveness; secures support Software Architecture Review Board 23
  • 24. AT&T Review Process: Implementation • Phase 1: Screening – Project and ARB determine if a review would benefit project – If so, ARB selects a review angel • Phase 2: Preparation – ARB selects a review team, including a review leader – Project prepares clear problem statement (success criteria) and docs • Phase 3: Review Meeting – Typical review is 2 days plus ½ day of caucus plus 1-hour readout – Issues prioritized: management alert, critical, major, minor • Phase 4: Follow-Up – Review team delivers report to project within 15 days – If management alert(s), project must respond within two weeks Software Architecture Review Board 24
  • 25. AT&T Review Process: Artifacts • Architecture review checklist – Questions that architects and reviewers should consider – Evolves over time according to serious and prevalent issues – “An accumulated institutional knowledge repository” • Input to the review – Problem statement (success criteria), system requirements, functional requirements, architectural specification, other informational docs • Output from the review – Set of issues (often in the form of snow cards) – A review report – Optional management alert letter Software Architecture Review Board 25
  • 26. Kinds of Issues Found (AT&T, Lucent) Category Percent Problem Definition 10-18% Problem isn’t completely or clearly defined Product Architecture and Design 29-49% Proposed solution doesn’t adequately solve the problem Technology 3-14% Inadequate languages, tools and/or components to build system Domain Knowledge 2-5% Team lacks adequate knowledge or experience Process 4-19% Process isn’t systematic, complete, or designed to make development manageable Management Controls 14-26% Inadequate management monitoring capabilities, staffing, controls, and decision-making mechanisms Software Architecture Review Board 26
  • 27. Example Issues from within NASA • Boxes-and-lines diagrams lack clear semantics • Flight software design details that are unnecessarily coupled to hardware details • Lots of software “gadgets” but little in the way of abstractions tailored for the problem domain • Excessive cross-strapping of hardware that complicates software without much reliability benefit • Underestimation of time needed to adequately test redundancy management • Fault protection design that doesn’t scale well • Fault protection designed only to handle a laundry list of faults; lack of defensive mindset Software Architecture Review Board 27
  • 28. Impediments to Software Architecture within NASA • Inappropriate modeling techniques – “Software architecture is just boxes and lines” – “Software architecture is just code modules” As presented by – “A layered diagram says it all” Prof. David Garlan (CMU) at • Misunderstanding about role of architecture NASA Planetary Spacecraft in product lines and architectural reuse Fault Management Workshop, – “A product line is just a reuse library” 4/15/08 • Impoverished culture of architecture design – No standards for arch description and analysis – Architecture reviews are not productive – Architecture is limited to one or two phases – Lack of architecture education among engineers • Failure to take architecture seriously – “We always do it that way. It’s cheaper/easier/less risky to do it the way we did it last time.” – “They do it a certain way ‘out there’ so we should too.” – “We need to reengineer it from scratch because the mission is different from all others.” Software Architecture Review Board 28
  • 29. What an architecture review is NOT An architecture review is … • not a gate, not a mandatory review (in AT&T) • not a pass/fail judgment • not an audit for a cancellation decision • not an evaluation of architect’s performance • not a tutorial • not a code review Software Architecture Review Board 29
  • 30. Timeline of SARB Activities Mike Ryschkewitsch approves recommendation for SARB April 2009 Mike Aguilar funds it as a NESC Technical Discipline Team May 2009 Kickoff telecon with FSW Complexity team + Mike Aguilar June 2009 Team formation and preparation phase July 2009 • prepare charter • select review board members Aug. 2009 • define review and reporting process Sep. 2009 • identify focus areas for evaluation • get exposure to several flight software architectures Oct. 2009 • conduct mock reviews Nov. 2009 Dec. 2009 Jan. 2010 Feb. 2010 Conduct first real review (goal) Software Architecture Review Board 30
  • 31. Current Team Members (as of 12/3/2009) Name Affiliation Michael Aguilar OCE/NESC Dan Dvorak JPL Michel Ingham JPL Lou Hallock (leaving) GSFC Michael Blau (coming) GSFC John Weir MSFC Leann Thomas (observing) MSFC Helen Neighbors JSC Kevin Balon APL Steve Williams (observing) APL Software Architecture Review Board 31
  • 32. How You Can Help Projects: • Identify candidate projects for review People: • Identify subject matter experts who may serve on reviews • Suggest potential review board members Architectural Concerns: • Improve our architecture checklist – Offer your strongly felt architectural issues – Negative examples are among the best teachers Software Architecture Review Board 32
  • 33. Questions? “Great goulash, Stan. That reminds me, are you still in charge of our system architecture?” Software Architecture Review Board 33
  • 34. Backup • What about ground software? • SARB telecon topics • “Early warning signs” • Mindset for reviews • Open questions
  • 35. What About Ground Software? • Initial focus is on flight software because the recommendation came from a FSW study • Ideally, GSW should be included, but … – Architectural concerns will be somewhat different – Need different expertise on the review board – Need additional funds • One way to “ease into” GSW is to review: – End-to-end information flow – Flight/ground operations paradigm and uplink/downlink Software Architecture Review Board 35
  • 36. SARB Telecon Topics (1 of 2) Date Topic 5/18/09 Pre-planning: NESC intro, identify board members and projects 6/01/09 Kickoff: charter, questions, speakers 6/08/09 Handbook for real-time analysis (Mike Aguilar) 6/15/09 Architecture review checklist (Lou Hallock) 6/22/09 Architecture docs and review process (Katy Weiss) 6/29/09 Altair FSW architecture study (Lore Williams) 7/13/09 General discussion of problems seen in FSW 7/20/09 cFE/CFS software architecture (Charlie Wildermann) 7/27/09 Observations on weak s/w architecture (Bob Rasmussen) 8/10/09 Space Shuttle Main Engine: s/w architecture (Andy Young) 8/17/09 Examples of weak s/w architecture (all) 8/24/09 Discuss architecture review checklist (Lou Hallock) Software Architecture Review Board 36
  • 37. SARB Telecon Topics (2 of 2) Date Topic 8/31/09 Overview of IEEE 1471-2000 “Recommended Practice for Architectural Description of Software-Intensive Systems” (Jeff Estefan) 9/21/09 Ares I upper stage flight computer software architecture (J. Weir) 10/05/09 Four documents we need to prepare (Dan Dvorak) 10/26/09 The architecture “problem statement” (Ken Costello) 11/02/09 Revisiting the architecture review checklist (Lou Hallock) 11/30/09 SDO Software Architecture (Manuel Maldonado, Mark Walters) 12/14/09 Architecture review overview document (H. Neighbors, J. Weir) TBD MLAS software architecture (Mike Aguilar) TBD Experiences in adapting cFE/CFS for LRO (Mike Blau) TBD MSAP Software Architecture (David Hecox or Bob Denise) TBD Architectural issues in fault protection (Dan Dvorak) Software Architecture Review Board 37
  • 38. What to look for Early Warning Signs (1 of 2) 1. The architecture is forced to match current organization. 2. Top-level architectural components number more than 25. 3. One requirement drives the rest of the design. 4. The architecture depends on alternatives in the OS. 5. Proprietary components used when standard components would do. 6. Component definition comes from the hardware division. 7. There is redundancy not needed for reliability (e.g., two databases, two start-up routines, two error-locking procedures). 8. The design is exception driven; that is, the emphasis is on extensibility and not core commonalities. 9. Development unit unable to identify a system architect Software Architecture Review Board 38
  • 39. What to look for Early Warning Signs (2 of 2) 10. Difficulty identifying the architecture’s stakeholders 11. The architecture provides no guidance on how to code an interaction between two components (silent or a plethora of choices) 12. Architecture documentation consists of class diagrams and nothing else 13. Architecture documentation is a large stack of documents automatically produced by some tool, but which no human has ever seen 14. Documents provided are old, not kept up to date 15. A designer or developer, when asked to describe the architecture, is either unable to or describes a much different architecture than what the architect presented (from “Evaluating Software Architectures”, by Clements, Kazman, and Klein 2002) Software Architecture Review Board 39
  • 40. Mindset for Reviews • Architecture addresses non-functional requirements – Quality attributes such as verifiability, operability, maintainability, interoperability, adaptability, reusability, scalability, portability, etc • Architecture is about principles – “Software architecture involves the description of elements from which systems are built, interactions among those elements, patterns that guide their composition, and constraints on these patterns.” [Shaw & Garlan, 1996] – Fred Brooks writes emphatically that a system’s conceptual integrity is of overriding importance and that systems without it fail [Brooks 1975, Bass 2003] • A major goal of a review is to elicit architectural risks • Architecture is more than high-level design Software Architecture Review Board 40
  • 41. Open Questions • Should the board’s scope include aeronautics in addition to aerospace? • How do we measure effectiveness of reviews? • What kind of follow-up should we do with projects? • Should architecture reviews be made part of standard project reviews? • How do we keep findings confidential to projects but also report upward to OCE/NESC? Software Architecture Review Board 41
  • 42. About Software Architecture Definitions • Software architecture = { elements, form, rationale} [Perry & Wolf, 1992] • “Software architecture involves the description of elements from which systems are built, interactions among those elements, patterns that guide their composition, and constraints on these patterns.” [Shaw & Garlan, 1996] • “An architecture is a specification of the components of a system and the communication between them. Systems are constrained to conform to an architecture.” [Luckham et al, 1995] • “An architecture is … a set of constraints on a design. The utility of an architecture is its ability to simplify the process of generating a design through the imposition of carefully chosen constraints.” [Gat, 1998] Software Architecture Review Board 42
  • 43. Architecture versus Design • Architecture is design, but not all design is architectural. – Architects intentionally limit their focus and avoid the details of how elements do what they do. • Detailed designs and implementation details are left to downstream engineers/experts. – Downstream engineers are expected to respect the architecture to ensure properties promised by the architect are present in the product. Source: Anthony J. Lattanze and David Garlan Software Architecture Review Board 43
  • 44. Two Sources of Software Complexity Sw complexity = Essential complexity + Incidental complexity  Essential complexity  Incidental complexity comes from problem comes from choices domain and mission about architecture, requirements design, implementation,  Can reduce it only by including avionics descoping  Can reduce it by making  Can move it (e.g. to ops), wise choices but can’t remove it Software Architecture Review Board 44
  • 45. Miscellaneous • Architecture is concepts, patterns, interaction, and principles of design − the things you care so much about that they are the last thing you would change. They guide the design. • There’s a real opportunity for the SARB to document and spread good design patterns and practices • Software and hardware must support the system architecture – Historically, software has been made to conform to the selected hardware – Now, due to growth in software complexity, hardware decisions should be balanced with impacts on software Software Architecture Review Board 45
  • 46. Summary of IEEE 1471 • An architecture should address a system's stakeholders concerns • Architecture descriptions are inherently multi-view (no single view adequately captures all stakeholder concerns) • It separates the notion of view from viewpoint • a viewpoint identifies the set of concerns and the representations/modeling techniques, etc. used to describe the architecture to address those concerns • a view is the result of applying a viewpoint to a particular system • It establishes content requirements for architecture descriptions • It provides guidance for capturing architecture rationale Software Architecture Review Board 46
