Dipartimento di Ingegneria e Scienze
Università degli Studi dell’Aquila
dell’Informazione e Matematica
http://www.di.univaq.it/diruscio/
davide.diruscio@univaq.it
@ddiruscio
CrossSim:
exploiting mutual relationships
to detect similar OSS projects
Davide Di Ruscio
Joint work with Phuong T. Nguyen, Juri Di Rocco, Riccardo Rubei
2
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic

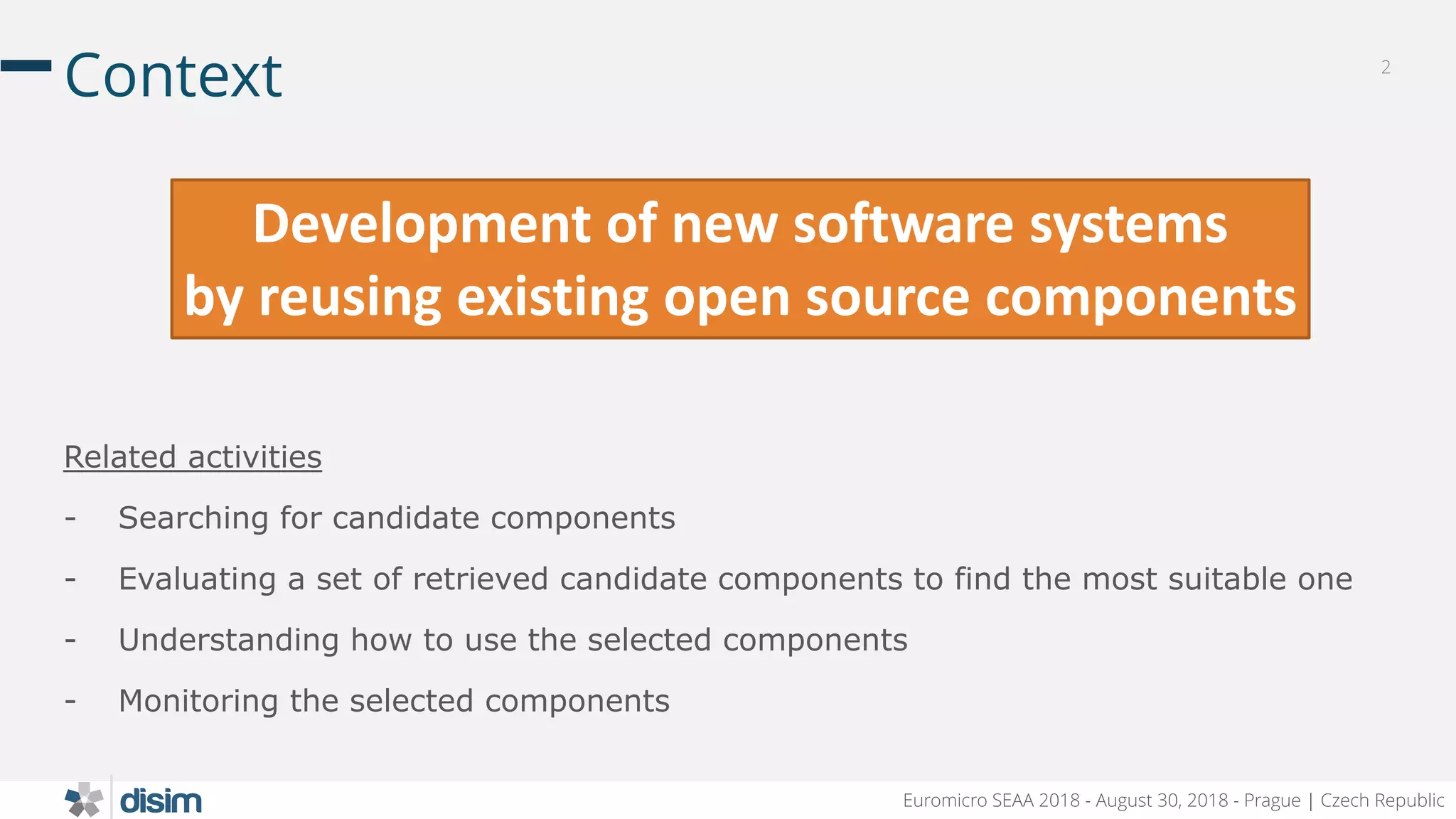

Context
Related activities
- Searching for candidate components
- Evaluating a set of retrieved candidate components to find the most suitable one
- Understanding how to use the selected components
- Monitoring the selected components
Development of new software systems
by reusing existing open source components
3
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Selecting and Using OSS components
Challenging tasks
▪ assessing quality, maturity,
activity of development
and user support is not a
straightforward process
Different and heterogeneous
source of information
▪ e.g., code repositories,
communication channels, bug
tracking systems
Source code
Q&A systems
Bug Reports
API
Documentation
Tutorials
Configuration
Management Systems
4
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Source code
Q&A systems
Bug Reports
API
Documentation
Tutorials
Configuration
Management Systems
www.crossminer.org
5
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CROSSMINER: high-level view
Data Preprocessing Capturing Context
Producing
Recommendations
Presenting
Recommendations
6
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Mining and Analysis Tools
CROSSMINER: high-level view
Data Preprocessing Capturing Context
Producing
Recommendations
Presenting
Recommendations
Knowledge Base
Source Code
Miner
NLP
Miner
Configuration
Miner
Cross project
Analysis
OSS forges
Source Code
Natural
language
channels
Configuration
Scripts
lookup/store
mine
7
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CROSSMINER: high-level view
Data Preprocessing Capturing Context
Producing
Recommendations
Presenting
Recommendations
Developer
IDE
Knowledge Base
query
recommendations
Data
Storage
Real-time recommendations that serve productivity and quality increase
8
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CROSSMINER: high-level view
The main intuition is to bring to the domain of software
development the notion of recommendation systems that are
typically used for popular e-commerce systems to present users
with interesting items previously unknown to them
9
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Recommendation examples
Depending on the set of selected third-party libraries, the system is able
to recommend additional libraries that should be included in the
project being developed
10
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Recommendation examples
Depending on the set of selected third-party libraries, the system is able
to recommend additional libraries that should be included in the
project being developed
Given a selected library, the system is able to suggest alternative ones
that share some similarities with the selected one
11
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Recommendation examples
Depending on the set of selected third-party libraries, the system is able
to recommend additional libraries that should be included in the
project being developed
Given a selected library, the system is able to suggest alternative ones
that share some similarities with the selected one
Depending on the set of selected libraries, the system shows API
documentation and Q&A posts that can help developers to understand
how to use the selected libraries
12
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Recommendation examples
Depending on the set of selected third-party libraries, the system is able
to recommend additional libraries that should be included in the
project being developed
Given a selected library, the system is able to suggest alternative ones
that share some similarities with the selected one
Depending on the set of selected libraries, the system shows API
documentation and Q&A posts that can help developers to understand
how to use the selected libraries
During the development, developers get recommendations about API
function calls that might be used
…
13
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Logical implications
Recommendations
 Automated classification of artifacts
 Clustering
 Definition of an extensible and configurable similarity
calculation approach
14
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Logical implications
Recommendations
 Automated classification of artifacts
 Clustering
 Definition of an extensible and configurable similarity
calculation approach
Understanding the similarities between open source software projects
allows for reusing of source code and prototyping,
or choosing alternative implementations
15
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Software Similarity: Overview
Low-level Software Similarity: Using source code
(variable/function names, API references, etc.)
High-level Software Similarity: Using metadata such as
readme files, description, GitHub star events
16
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Existing approaches
Algorithm Tec. Constraints/Characteristics Category
MUDABlue C programs with source code Low-level Similarity
CLAN Java programs with API calls Low-level Similarity
CLANdroid Mobile apps from Android Package, GitHub, Google Code;
The algorithm extracts identifiers and intents from source
code, APIs and sensors from JAR files, permissions from
AndroidManifest.xml
High and Low-
level Similarity
RepoPal GitHub Java repositories contain readme file and possess at least 20 stars High-level Similarity
GPLAG Programs with source code Low-level Similarity
LibRec Maven projects (pom.xml), contain more than 10.000 lines of code and
are not a fork of another project in GitHub and use at least 10 libraries.
High-level Similarity
SimApp Mobile applications with a set of 10 features:
Application name, category, developer, description,
update, permission, screenshot, content rating, size and user reviews
High-level Similarity
DroidVisor Android apps with security features High-level Similarity
AnDarwin App code information: app's market, signature, description Low-level Similarity
TagSim Sourceforge projects with proper tags High-level Similarity
17
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
SANER 2017 - http://ieeexplore.ieee.org/document/7884605/
18
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Overview of CrossSim
Graphs for representing different kinds of relationships in the
OSS ecosystem
• e.g., developers commit to repositories, users star repositories,
projects contain source code files, etc.
Cross Project Relationships for Computing Open Source Software Similarity
19
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim: OSS Ecosystem Representation
20
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim: OSS Ecosystem Representation
The main hypothesis is that
the projects are aiming at
creating common
functionalities by using
common libraries
21
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim: OSS Ecosystem Representation
The main hypothesis is that
the projects are aiming at
creating common
functionalities by using
common libraries
Based on the graph
structure, one can exploit
nodes, links, and the mutual
relationships to compute
similarity using existing
graph similarity algorithms
22
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim: Graph Similarity
The similarity between two nodes is dependent on their neighbors
Two nodes are considered to be similar if they are referenced by similar nodes
In the example A and B are highly similar since they are referenced by many
same nodes
Based on SimRank
23
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim Evaluation Process
24
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim Evaluation Process
Success rate: if at least one of the top-5 retrieved projects is labelled Similar or
Highly similar, the query is considered to be successful.
• Success rate is the ratio of successful queries to the total number of queries
25
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim Evaluation Process
Confidence: Given a pair of <query, retrieved project> the confidence of an
evaluator is the score she assigns to the similarity between the projects
26
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim Evaluation Process
Precision: The precision for each query is the proportion of projects in
the top-5 list that are labelled as Similar or Highly similar by humans
27
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim Evaluation Process
Ranking: correlations among the ranking calculated by the similarity tools
and the scores given by the human evaluation
28
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
CrossSim Evaluation Process
Execution time: related to the application of RepoPal and CROSSSIM on
the dataset to obtain the corresponding similarity matrices
29
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Data Collection
580 projects from GitHub satisfying the following
requirements:
– pom.xml or .gradle files available
– Having at least 9 dependencies
– Having the README.md file available
– Having at least 20 stars (as needed by RepoPal)
Filtered from an initial set retrieved from specific categories
(e.g., PDF processors, JSON parsers, ORM projects, Spring
MVC related tools)
30
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Definition of query
50 projects among the 580 in the data set have been selected
as queries
Queries have been chosen to equally cover all the considered
categories of the projects in the dataset
31
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Mix and shuffle of the results
For each query the top-5 most similar projects calculated by
RepoPal and CrossSim were retrieved
Results from RepoPal and CrossSim were mixed and shuffled
The obtained list was labelled by human evaluators
32
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Fragment of the collected human scores
Project 1 Project 2 Score
neo4j-contrib/sparql-plugin castagna/jena-examples 3
neo4j-contrib/sparql-plugin claudiomartella/dbpedia4neo 3
neo4j-contrib/sparql-plugin claudiomartella/dbpedia4neo 3
neo4j-contrib/sparql-plugin dbpedia/links 3
neo4j-contrib/sparql-plugin eclipse/rdf4j 3
neo4j-contrib/sparql-plugin jbarrasa/neosemantics 3
neo4j-contrib/sparql-plugin jbarrasa/neosemantics 3
neo4j-contrib/sparql-plugin niclashoyer/neo4j-sparql-extension 4
neo4j-contrib/sparql-plugin niclashoyer/neo4j-sparql-extension 4
neo4j-contrib/sparql-plugin streamreasoning/CSPARQL-engine 3
AskNowQA/AutoSPARQL AKSW/RDFUnit 3
AskNowQA/AutoSPARQL AKSW/SPARQL2NL 4
AskNowQA/AutoSPARQL AKSW/SPARQL2NL 4
AskNowQA/AutoSPARQL AKSW/Sparqlify 3
AskNowQA/AutoSPARQL castagna/jena-examples 3
AskNowQA/AutoSPARQL pyvandenbussche/sparqles 3
AskNowQA/AutoSPARQL rdfhdt/hdt-java 3
AskNowQA/AutoSPARQL rdfhdt/hdt-java 3
AskNowQA/AutoSPARQL socialsignin/spring-social-security-demo 2
AskNowQA/AutoSPARQL yhegde/facebook-page-scraper 2
33
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Considered CrossSim configurations
CrossSim1: star events and dependencies
CrossSim2: CrossSim1 + commiters
CrossSim3: CrossSim1 – most frequent dependencies
CrossSim4: CrossSim2 – most frequent dependencies
E.g., since testing is a common
functionality of many software projects,
JUnit does not help contribute towards
the characterization of a project and
thus, needs to be removed
from the graph
34
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Outcomes of the applied metrics: Precision
35
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Outcomes of the applied metrics: Precision
Both gain a success rate
of 100%, however CROSSSIM3
has a better precision.
36
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Outcomes of the applied metrics: Precision
The inclusion of all developers
who have committed updates
at least once to a project in the
graph is counterproductive as it
adds a decline in precision
Both gain a success rate
of 100%, however CROSSSIM3
has a better precision.
37
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Outcomes of the applied metrics: Precision
The inclusion of all developers
who have committed updates
at least once to a project in the
graph is counterproductive as it
adds a decline in precision
Both gain a success rate
of 100%, however CROSSSIM3
has a better precision.
Concerning ranking correlations
CROSSSIM3 performs slightly
better than RepoPal
• −0.214 for CROSSSIM3
• −0.163 for RepoPal
38
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Outcomes of the applied metrics: Confidence
39
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Outcomes of the applied metrics: Execution time
Intel Core i5-7200U
CPU @ 2.50GHz × 4, 8GB RAM,
Ubuntu 16.04
40
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Next Steps (in a short term)
Use of CrossSim for recommending libraries
– Exploiting the techniques proposed in CrossSim
– Representing OSS projects in graph
– Computing similarity between projects
– Using collaborative-filtering techniques to recommend libraries to OSS
projects
41
Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic
Conclusions www.crossminer.org
@crossminer eclipse.org/scava

More Related Content

Similar to CrossSim: exploiting mutual relationships to detect similar OSS projects

Flink for Everyone: Self-Service Data Analytics with StreamPipes
Flink for Everyone: Self-Service Data Analytics with StreamPipesFlink for Everyone: Self-Service Data Analytics with StreamPipes
Flink for Everyone: Self-Service Data Analytics with StreamPipes
Apache StreamPipes

Dynamic IoT data, protocol, and middleware interoperability with resource sli...
Dynamic IoT data, protocol, and middleware interoperability with resource sli...Dynamic IoT data, protocol, and middleware interoperability with resource sli...
Dynamic IoT data, protocol, and middleware interoperability with resource sli...
Hong-Linh Truong

Developing recommendation systems to support open source software developers ...
Developing recommendation systems to support open source software developers ...Developing recommendation systems to support open source software developers ...
Developing recommendation systems to support open source software developers ...
Davide Ruscio

OpenAIRE: Implementing Open Science
OpenAIRE: Implementing Open ScienceOpenAIRE: Implementing Open Science
OpenAIRE: Implementing Open Science
e-ROSA

Introduction to OpenAIRE services and the OpenAIRE Research Graph
Introduction to OpenAIRE services and the OpenAIRE Research GraphIntroduction to OpenAIRE services and the OpenAIRE Research Graph
Introduction to OpenAIRE services and the OpenAIRE Research Graph
OpenAIRE

OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018
OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018
OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018
OW2

Ramp up your testing solution, ExpoQA 2023
Ramp up your testing solution, ExpoQA 2023Ramp up your testing solution, ExpoQA 2023
Ramp up your testing solution, ExpoQA 2023
Gáspár Nagy

EUBrasilCloudFORUM Research Roadmap on Cloud Computing, including security
EUBrasilCloudFORUM Research Roadmap on Cloud Computing, including securityEUBrasilCloudFORUM Research Roadmap on Cloud Computing, including security
EUBrasilCloudFORUM Research Roadmap on Cloud Computing, including security
ATMOSPHERE .

Nieuwerburgh - Open science e-infrastructure for research analysis and impact...
Nieuwerburgh - Open science e-infrastructure for research analysis and impact...Nieuwerburgh - Open science e-infrastructure for research analysis and impact...
Nieuwerburgh - Open science e-infrastructure for research analysis and impact...
innovationoecd

Software Architecture Evaluation: A Systematic Mapping Study
Software Architecture Evaluation: A Systematic Mapping StudySoftware Architecture Evaluation: A Systematic Mapping Study
Software Architecture Evaluation: A Systematic Mapping Study
Sofia Ouhbi

Self-Service IoT Data Analytics with StreamPipes
Self-Service IoT Data Analytics with StreamPipesSelf-Service IoT Data Analytics with StreamPipes
Self-Service IoT Data Analytics with StreamPipes
Apache StreamPipes

Use of MDE to Analyse Open Source Software
Use of MDE to Analyse Open Source SoftwareUse of MDE to Analyse Open Source Software
Use of MDE to Analyse Open Source Software
Davide Ruscio

Top-N Recommendations from Implicit Feedback leveraging Linked Open Data
Top-N Recommendations from Implicit Feedback leveraging Linked Open DataTop-N Recommendations from Implicit Feedback leveraging Linked Open Data
Top-N Recommendations from Implicit Feedback leveraging Linked Open Data
Vito Ostuni

Towards a Resource Slice Interoperability Hub for IoT
Towards a Resource Slice Interoperability Hub for IoTTowards a Resource Slice Interoperability Hub for IoT
Towards a Resource Slice Interoperability Hub for IoT
Hong-Linh Truong

Product Engineer Certified Lean Six Sigma Black Belt by IASSC
Product Engineer Certified Lean Six Sigma Black Belt by IASSCProduct Engineer Certified Lean Six Sigma Black Belt by IASSC
Product Engineer Certified Lean Six Sigma Black Belt by IASSC
HAKKACHE Mohamed

4th International Conference on Artificial Intelligence and Machine Learning ...
4th International Conference on Artificial Intelligence and Machine Learning ...4th International Conference on Artificial Intelligence and Machine Learning ...
4th International Conference on Artificial Intelligence and Machine Learning ...
mlaij

4 th International Conference on Artificial Intelligence and Machine Learning...
4 th International Conference on Artificial Intelligence and Machine Learning...4 th International Conference on Artificial Intelligence and Machine Learning...
4 th International Conference on Artificial Intelligence and Machine Learning...
ijpla

Call for Research Papers - 4th International Conference on Artificial Intelli...
Call for Research Papers - 4th International Conference on Artificial Intelli...Call for Research Papers - 4th International Conference on Artificial Intelli...
Call for Research Papers - 4th International Conference on Artificial Intelli...
IJNSA Journal

TechEvent Customer Project "Trend-Analytics"
TechEvent Customer Project "Trend-Analytics"TechEvent Customer Project "Trend-Analytics"
TechEvent Customer Project "Trend-Analytics"
Trivadis

Modeling the Impact of R & Python Packages: Dependency and Contributor Networks
Modeling the Impact of R & Python Packages: Dependency and Contributor NetworksModeling the Impact of R & Python Packages: Dependency and Contributor Networks
Modeling the Impact of R & Python Packages: Dependency and Contributor Networks
Melissa Moody


Similar to CrossSim: exploiting mutual relationships to detect similar OSS projects (20)

Flink for Everyone: Self-Service Data Analytics with StreamPipes
Flink for Everyone: Self-Service Data Analytics with StreamPipesFlink for Everyone: Self-Service Data Analytics with StreamPipes
Flink for Everyone: Self-Service Data Analytics with StreamPipes

Dynamic IoT data, protocol, and middleware interoperability with resource sli...
Dynamic IoT data, protocol, and middleware interoperability with resource sli...Dynamic IoT data, protocol, and middleware interoperability with resource sli...
Dynamic IoT data, protocol, and middleware interoperability with resource sli...

Developing recommendation systems to support open source software developers ...
Developing recommendation systems to support open source software developers ...Developing recommendation systems to support open source software developers ...
Developing recommendation systems to support open source software developers ...

OpenAIRE: Implementing Open Science
OpenAIRE: Implementing Open ScienceOpenAIRE: Implementing Open Science
OpenAIRE: Implementing Open Science

Introduction to OpenAIRE services and the OpenAIRE Research Graph
Introduction to OpenAIRE services and the OpenAIRE Research GraphIntroduction to OpenAIRE services and the OpenAIRE Research Graph
Introduction to OpenAIRE services and the OpenAIRE Research Graph

OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018
OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018
OSS Projects Knowledge Mining with CROSSMINER, OW2con'18, June 7-8, 2018

Ramp up your testing solution, ExpoQA 2023
Ramp up your testing solution, ExpoQA 2023Ramp up your testing solution, ExpoQA 2023
Ramp up your testing solution, ExpoQA 2023

EUBrasilCloudFORUM Research Roadmap on Cloud Computing, including security
EUBrasilCloudFORUM Research Roadmap on Cloud Computing, including securityEUBrasilCloudFORUM Research Roadmap on Cloud Computing, including security
EUBrasilCloudFORUM Research Roadmap on Cloud Computing, including security

Nieuwerburgh - Open science e-infrastructure for research analysis and impact...
Nieuwerburgh - Open science e-infrastructure for research analysis and impact...Nieuwerburgh - Open science e-infrastructure for research analysis and impact...
Nieuwerburgh - Open science e-infrastructure for research analysis and impact...

Software Architecture Evaluation: A Systematic Mapping Study
Software Architecture Evaluation: A Systematic Mapping StudySoftware Architecture Evaluation: A Systematic Mapping Study
Software Architecture Evaluation: A Systematic Mapping Study

Self-Service IoT Data Analytics with StreamPipes
Self-Service IoT Data Analytics with StreamPipesSelf-Service IoT Data Analytics with StreamPipes
Self-Service IoT Data Analytics with StreamPipes

Use of MDE to Analyse Open Source Software
Use of MDE to Analyse Open Source SoftwareUse of MDE to Analyse Open Source Software
Use of MDE to Analyse Open Source Software

Top-N Recommendations from Implicit Feedback leveraging Linked Open Data
Top-N Recommendations from Implicit Feedback leveraging Linked Open DataTop-N Recommendations from Implicit Feedback leveraging Linked Open Data
Top-N Recommendations from Implicit Feedback leveraging Linked Open Data

Towards a Resource Slice Interoperability Hub for IoT
Towards a Resource Slice Interoperability Hub for IoTTowards a Resource Slice Interoperability Hub for IoT
Towards a Resource Slice Interoperability Hub for IoT

Product Engineer Certified Lean Six Sigma Black Belt by IASSC
Product Engineer Certified Lean Six Sigma Black Belt by IASSCProduct Engineer Certified Lean Six Sigma Black Belt by IASSC
Product Engineer Certified Lean Six Sigma Black Belt by IASSC

4th International Conference on Artificial Intelligence and Machine Learning ...
4th International Conference on Artificial Intelligence and Machine Learning ...4th International Conference on Artificial Intelligence and Machine Learning ...
4th International Conference on Artificial Intelligence and Machine Learning ...

4 th International Conference on Artificial Intelligence and Machine Learning...
4 th International Conference on Artificial Intelligence and Machine Learning...4 th International Conference on Artificial Intelligence and Machine Learning...
4 th International Conference on Artificial Intelligence and Machine Learning...

Call for Research Papers - 4th International Conference on Artificial Intelli...
Call for Research Papers - 4th International Conference on Artificial Intelli...Call for Research Papers - 4th International Conference on Artificial Intelli...
Call for Research Papers - 4th International Conference on Artificial Intelli...

TechEvent Customer Project "Trend-Analytics"
TechEvent Customer Project "Trend-Analytics"TechEvent Customer Project "Trend-Analytics"
TechEvent Customer Project "Trend-Analytics"

Modeling the Impact of R & Python Packages: Dependency and Contributor Networks
Modeling the Impact of R & Python Packages: Dependency and Contributor NetworksModeling the Impact of R & Python Packages: Dependency and Contributor Networks
Modeling the Impact of R & Python Packages: Dependency and Contributor Networks


More from Davide Ruscio

Detecting java software similarities by using different clustering
Detecting java software similarities by using different clusteringDetecting java software similarities by using different clustering
Detecting java software similarities by using different clustering
Davide Ruscio

On the way of listening to the crowd for supporting modeling activities
On the way of listening to the crowd for supporting modeling activitiesOn the way of listening to the crowd for supporting modeling activities
On the way of listening to the crowd for supporting modeling activities
Davide Ruscio

FOCUS: A Recommender System for Mining API Function Calls and Usage Patterns
FOCUS:  A Recommender System for Mining API Function Calls and  Usage PatternsFOCUS:  A Recommender System for Mining API Function Calls and  Usage Patterns
FOCUS: A Recommender System for Mining API Function Calls and Usage Patterns
Davide Ruscio

Consistency Recovery in Interactive Modeling
Consistency Recovery in Interactive ModelingConsistency Recovery in Interactive Modeling
Consistency Recovery in Interactive Modeling
Davide Ruscio

Edelta: an approach for defining and applying reusable metamodel refactorings
Edelta: an approach for defining and applying reusable metamodel refactoringsEdelta: an approach for defining and applying reusable metamodel refactorings
Edelta: an approach for defining and applying reusable metamodel refactorings
Davide Ruscio

Semantic based model matching with emf compare
Semantic based model matching with emf compareSemantic based model matching with emf compare
Semantic based model matching with emf compare
Davide Ruscio

Collaborative model driven software engineering: a Systematic Mapping Study
Collaborative model driven software engineering: a Systematic Mapping StudyCollaborative model driven software engineering: a Systematic Mapping Study
Collaborative model driven software engineering: a Systematic Mapping Study
Davide Ruscio

Model repositories: will they become reality?
Model repositories: will they become reality?Model repositories: will they become reality?
Model repositories: will they become reality?
Davide Ruscio

Mining Correlations of ATL Transformation and Metamodel Metrics
Mining Correlations of ATL Transformation and Metamodel MetricsMining Correlations of ATL Transformation and Metamodel Metrics
Mining Correlations of ATL Transformation and Metamodel Metrics
Davide Ruscio

MDEForge: an extensible Web-based modeling platform
MDEForge: an extensible Web-based modeling platformMDEForge: an extensible Web-based modeling platform
MDEForge: an extensible Web-based modeling platform
Davide Ruscio


More from Davide Ruscio (10)

Detecting java software similarities by using different clustering
Detecting java software similarities by using different clusteringDetecting java software similarities by using different clustering
Detecting java software similarities by using different clustering

On the way of listening to the crowd for supporting modeling activities
On the way of listening to the crowd for supporting modeling activitiesOn the way of listening to the crowd for supporting modeling activities
On the way of listening to the crowd for supporting modeling activities

FOCUS: A Recommender System for Mining API Function Calls and Usage Patterns
FOCUS:  A Recommender System for Mining API Function Calls and  Usage PatternsFOCUS:  A Recommender System for Mining API Function Calls and  Usage Patterns
FOCUS: A Recommender System for Mining API Function Calls and Usage Patterns

Consistency Recovery in Interactive Modeling
Consistency Recovery in Interactive ModelingConsistency Recovery in Interactive Modeling
Consistency Recovery in Interactive Modeling

Edelta: an approach for defining and applying reusable metamodel refactorings
Edelta: an approach for defining and applying reusable metamodel refactoringsEdelta: an approach for defining and applying reusable metamodel refactorings
Edelta: an approach for defining and applying reusable metamodel refactorings

Semantic based model matching with emf compare
Semantic based model matching with emf compareSemantic based model matching with emf compare
Semantic based model matching with emf compare

Collaborative model driven software engineering: a Systematic Mapping Study
Collaborative model driven software engineering: a Systematic Mapping StudyCollaborative model driven software engineering: a Systematic Mapping Study
Collaborative model driven software engineering: a Systematic Mapping Study

Model repositories: will they become reality?
Model repositories: will they become reality?Model repositories: will they become reality?
Model repositories: will they become reality?

Mining Correlations of ATL Transformation and Metamodel Metrics
Mining Correlations of ATL Transformation and Metamodel MetricsMining Correlations of ATL Transformation and Metamodel Metrics
Mining Correlations of ATL Transformation and Metamodel Metrics

MDEForge: an extensible Web-based modeling platform
MDEForge: an extensible Web-based modeling platformMDEForge: an extensible Web-based modeling platform
MDEForge: an extensible Web-based modeling platform


Recently uploaded

美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
widenerjobeyrl638

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio, Inc.

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
Bert Jan Schrijver

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx
Reetu63

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Paul Brebner

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?
ToXSL Technologies

What’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete RoadmapWhat’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete Roadmap
Envertis Software Solutions

All you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVMAll you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVM
Alina Yurenko

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
kgyxske

ACE - Team 24 Wrapup event at ahmedabad.
ACE - Team 24 Wrapup event at ahmedabad.ACE - Team 24 Wrapup event at ahmedabad.
ACE - Team 24 Wrapup event at ahmedabad.
Maitrey Patel

Upturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in NashikUpturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in Nashik
Upturn India Technologies

8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf
kalichargn70th171

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
Tier1 app

Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !
Marcin Chrost

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
gapen1

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech
Drona Infotech

DevOps Consulting Company | Hire DevOps Services
DevOps Consulting Company | Hire DevOps ServicesDevOps Consulting Company | Hire DevOps Services
DevOps Consulting Company | Hire DevOps Services
seospiralmantra

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理
dakas1

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024
Yara Milbes

Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
safelyiotech


Recently uploaded (20)

美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?

What’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete RoadmapWhat’s New in Odoo 17 – A Complete Roadmap
What’s New in Odoo 17 – A Complete Roadmap

All you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVMAll you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVM

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理

ACE - Team 24 Wrapup event at ahmedabad.
ACE - Team 24 Wrapup event at ahmedabad.ACE - Team 24 Wrapup event at ahmedabad.
ACE - Team 24 Wrapup event at ahmedabad.

Upturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in NashikUpturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in Nashik

8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS

Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !Enums On Steroids - let's look at sealed classes !
Enums On Steroids - let's look at sealed classes !

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech

DevOps Consulting Company | Hire DevOps Services
DevOps Consulting Company | Hire DevOps ServicesDevOps Consulting Company | Hire DevOps Services
DevOps Consulting Company | Hire DevOps Services

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024

Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)


CrossSim: exploiting mutual relationships to detect similar OSS projects

  • 1. Dipartimento di Ingegneria e Scienze Università degli Studi dell’Aquila dell’Informazione e Matematica http://www.di.univaq.it/diruscio/ davide.diruscio@univaq.it @ddiruscio CrossSim: exploiting mutual relationships to detect similar OSS projects Davide Di Ruscio Joint work with Phuong T. Nguyen, Juri Di Rocco, Riccardo Rubei
  • 2. 2 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Context Related activities - Searching for candidate components - Evaluating a set of retrieved candidate components to find the most suitable one - Understanding how to use the selected components - Monitoring the selected components Development of new software systems by reusing existing open source components
  • 3. 3 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Selecting and Using OSS components Challenging tasks ▪ assessing quality, maturity, activity of development and user support is not a straightforward process Different and heterogeneous source of information ▪ e.g., code repositories, communication channels, bug tracking systems Source code Q&A systems Bug Reports API Documentation Tutorials Configuration Management Systems
  • 4. 4 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Source code Q&A systems Bug Reports API Documentation Tutorials Configuration Management Systems www.crossminer.org
  • 5. 5 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CROSSMINER: high-level view Data Preprocessing Capturing Context Producing Recommendations Presenting Recommendations
  • 6. 6 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Mining and Analysis Tools CROSSMINER: high-level view Data Preprocessing Capturing Context Producing Recommendations Presenting Recommendations Knowledge Base Source Code Miner NLP Miner Configuration Miner Cross project Analysis OSS forges Source Code Natural language channels Configuration Scripts lookup/store mine
  • 7. 7 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CROSSMINER: high-level view Data Preprocessing Capturing Context Producing Recommendations Presenting Recommendations Developer IDE Knowledge Base query recommendations Data Storage Real-time recommendations that serve productivity and quality increase
  • 8. 8 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CROSSMINER: high-level view The main intuition is to bring to the domain of software development the notion of recommendation systems that are typically used for popular e-commerce systems to present users with interesting items previously unknown to them
  • 9. 9 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Recommendation examples Depending on the set of selected third-party libraries, the system is able to recommend additional libraries that should be included in the project being developed
  • 10. 10 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Recommendation examples Depending on the set of selected third-party libraries, the system is able to recommend additional libraries that should be included in the project being developed Given a selected library, the system is able to suggest alternative ones that share some similarities with the selected one
  • 11. 11 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Recommendation examples Depending on the set of selected third-party libraries, the system is able to recommend additional libraries that should be included in the project being developed Given a selected library, the system is able to suggest alternative ones that share some similarities with the selected one Depending on the set of selected libraries, the system shows API documentation and Q&A posts that can help developers to understand how to use the selected libraries
  • 12. 12 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Recommendation examples Depending on the set of selected third-party libraries, the system is able to recommend additional libraries that should be included in the project being developed Given a selected library, the system is able to suggest alternative ones that share some similarities with the selected one Depending on the set of selected libraries, the system shows API documentation and Q&A posts that can help developers to understand how to use the selected libraries During the development, developers get recommendations about API function calls that might be used …
  • 13. 13 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Logical implications Recommendations  Automated classification of artifacts  Clustering  Definition of an extensible and configurable similarity calculation approach
  • 14. 14 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Logical implications Recommendations  Automated classification of artifacts  Clustering  Definition of an extensible and configurable similarity calculation approach Understanding the similarities between open source software projects allows for reusing of source code and prototyping, or choosing alternative implementations
  • 15. 15 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Software Similarity: Overview Low-level Software Similarity: Using source code (variable/function names, API references, etc.) High-level Software Similarity: Using metadata such as readme files, description, GitHub star events
  • 16. 16 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Existing approaches Algorithm Tec. Constraints/Characteristics Category MUDABlue C programs with source code Low-level Similarity CLAN Java programs with API calls Low-level Similarity CLANdroid Mobile apps from Android Package, GitHub, Google Code; The algorithm extracts identifiers and intents from source code, APIs and sensors from JAR files, permissions from AndroidManifest.xml High and Low- level Similarity RepoPal GitHub Java repositories contain readme file and possess at least 20 stars High-level Similarity GPLAG Programs with source code Low-level Similarity LibRec Maven projects (pom.xml), contain more than 10.000 lines of code and are not a fork of another project in GitHub and use at least 10 libraries. High-level Similarity SimApp Mobile applications with a set of 10 features: Application name, category, developer, description, update, permission, screenshot, content rating, size and user reviews High-level Similarity DroidVisor Android apps with security features High-level Similarity AnDarwin App code information: app's market, signature, description Low-level Similarity TagSim Sourceforge projects with proper tags High-level Similarity
  • 17. 17 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic SANER 2017 - http://ieeexplore.ieee.org/document/7884605/
  • 18. 18 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Overview of CrossSim Graphs for representing different kinds of relationships in the OSS ecosystem • e.g., developers commit to repositories, users star repositories, projects contain source code files, etc. Cross Project Relationships for Computing Open Source Software Similarity
  • 19. 19 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim: OSS Ecosystem Representation
  • 20. 20 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim: OSS Ecosystem Representation The main hypothesis is that the projects are aiming at creating common functionalities by using common libraries
  • 21. 21 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim: OSS Ecosystem Representation The main hypothesis is that the projects are aiming at creating common functionalities by using common libraries Based on the graph structure, one can exploit nodes, links, and the mutual relationships to compute similarity using existing graph similarity algorithms
  • 22. 22 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim: Graph Similarity The similarity between two nodes is dependent on their neighbors Two nodes are considered to be similar if they are referenced by similar nodes In the example A and B are highly similar since they are referenced by many same nodes Based on SimRank
  • 23. 23 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim Evaluation Process
  • 24. 24 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim Evaluation Process Success rate: if at least one of the top-5 retrieved projects is labelled Similar or Highly similar, the query is considered to be successful. • Success rate is the ratio of successful queries to the total number of queries
  • 25. 25 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim Evaluation Process Confidence: Given a pair of <query, retrieved project> the confidence of an evaluator is the score she assigns to the similarity between the projects
  • 26. 26 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim Evaluation Process Precision: The precision for each query is the proportion of projects in the top-5 list that are labelled as Similar or Highly similar by humans
  • 27. 27 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim Evaluation Process Ranking: correlations among the ranking calculated by the similarity tools and the scores given by the human evaluation
  • 28. 28 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic CrossSim Evaluation Process Execution time: related to the application of RepoPal and CROSSSIM on the dataset to obtain the corresponding similarity matrices
  • 29. 29 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Data Collection 580 projects from GitHub satisfying the following requirements: – pom.xml or .gradle files available – Having at least 9 dependencies – Having the README.md file available – Having at least 20 stars (as needed by RepoPal) Filtered from an initial set retrieved from specific categories (e.g., PDF processors, JSON parsers, ORM projects, Spring MVC related tools)
  • 30. 30 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Definition of query 50 projects among the 580 in the data set have been selected as queries Queries have been chosen to equally cover all the considered categories of the projects in the dataset
  • 31. 31 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Mix and shuffle of the results For each query the top-5 most similar projects calculated by RepoPal and CrossSim were retrieved Results from RepoPal and CrossSim were mixed and shuffled The obtained list was labelled by human evaluators
  • 32. 32 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Fragment of the collected human scores Project 1 Project 2 Score neo4j-contrib/sparql-plugin castagna/jena-examples 3 neo4j-contrib/sparql-plugin claudiomartella/dbpedia4neo 3 neo4j-contrib/sparql-plugin claudiomartella/dbpedia4neo 3 neo4j-contrib/sparql-plugin dbpedia/links 3 neo4j-contrib/sparql-plugin eclipse/rdf4j 3 neo4j-contrib/sparql-plugin jbarrasa/neosemantics 3 neo4j-contrib/sparql-plugin jbarrasa/neosemantics 3 neo4j-contrib/sparql-plugin niclashoyer/neo4j-sparql-extension 4 neo4j-contrib/sparql-plugin niclashoyer/neo4j-sparql-extension 4 neo4j-contrib/sparql-plugin streamreasoning/CSPARQL-engine 3 AskNowQA/AutoSPARQL AKSW/RDFUnit 3 AskNowQA/AutoSPARQL AKSW/SPARQL2NL 4 AskNowQA/AutoSPARQL AKSW/SPARQL2NL 4 AskNowQA/AutoSPARQL AKSW/Sparqlify 3 AskNowQA/AutoSPARQL castagna/jena-examples 3 AskNowQA/AutoSPARQL pyvandenbussche/sparqles 3 AskNowQA/AutoSPARQL rdfhdt/hdt-java 3 AskNowQA/AutoSPARQL rdfhdt/hdt-java 3 AskNowQA/AutoSPARQL socialsignin/spring-social-security-demo 2 AskNowQA/AutoSPARQL yhegde/facebook-page-scraper 2
  • 33. 33 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Considered CrossSim configurations CrossSim1: star events and dependencies CrossSim2: CrossSim1 + commiters CrossSim3: CrossSim1 – most frequent dependencies CrossSim4: CrossSim2 – most frequent dependencies E.g., since testing is a common functionality of many software projects, JUnit does not help contribute towards the characterization of a project and thus, needs to be removed from the graph
  • 34. 34 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Outcomes of the applied metrics: Precision
  • 35. 35 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Outcomes of the applied metrics: Precision Both gain a success rate of 100%, however CROSSSIM3 has a better precision.
  • 36. 36 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Outcomes of the applied metrics: Precision The inclusion of all developers who have committed updates at least once to a project in the graph is counterproductive as it adds a decline in precision Both gain a success rate of 100%, however CROSSSIM3 has a better precision.
  • 37. 37 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Outcomes of the applied metrics: Precision The inclusion of all developers who have committed updates at least once to a project in the graph is counterproductive as it adds a decline in precision Both gain a success rate of 100%, however CROSSSIM3 has a better precision. Concerning ranking correlations CROSSSIM3 performs slightly better than RepoPal • −0.214 for CROSSSIM3 • −0.163 for RepoPal
  • 38. 38 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Outcomes of the applied metrics: Confidence
  • 39. 39 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Outcomes of the applied metrics: Execution time Intel Core i5-7200U CPU @ 2.50GHz × 4, 8GB RAM, Ubuntu 16.04
  • 40. 40 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Next Steps (in a short term) Use of CrossSim for recommending libraries – Exploiting the techniques proposed in CrossSim – Representing OSS projects in graph – Computing similarity between projects – Using collaborative-filtering techniques to recommend libraries to OSS projects
  • 41. 41 Euromicro SEAA 2018 - August 30, 2018 - Prague | Czech Republic Conclusions www.crossminer.org @crossminer eclipse.org/scava
