The document discusses approaches for building APIs over RDF data sources. It describes limitations of SPARQL and proposes the Linked Data API approach, which maps parameterized URLs to SPARQL queries to extract data views. The Linked Data API aims to optimize for common query patterns, prioritize simple RESTful interactions, and provide a pathway to exploring RDF and SPARQL. It presents a processing model involving selecting views, resources, and output formats. Open source implementations of the Linked Data API are also mentioned.

1. Leigh Dodds @ldodds http://kasabi.com Creating APIs over RDF Data Sources 8 th June 2011. SemTech 2011

2. The Trouble with SPARQL

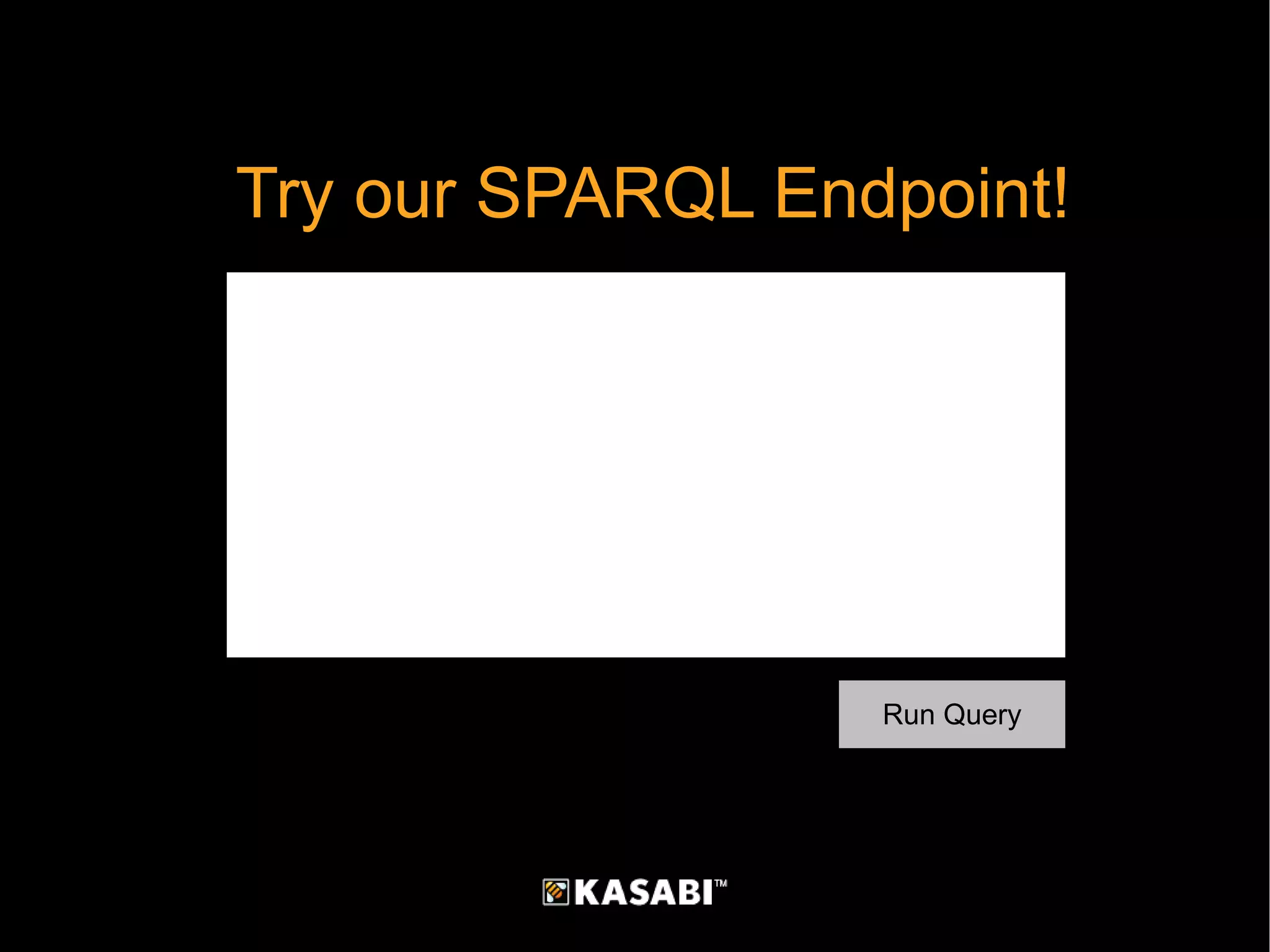

3. Try our SPARQL Endpoint! Run Query

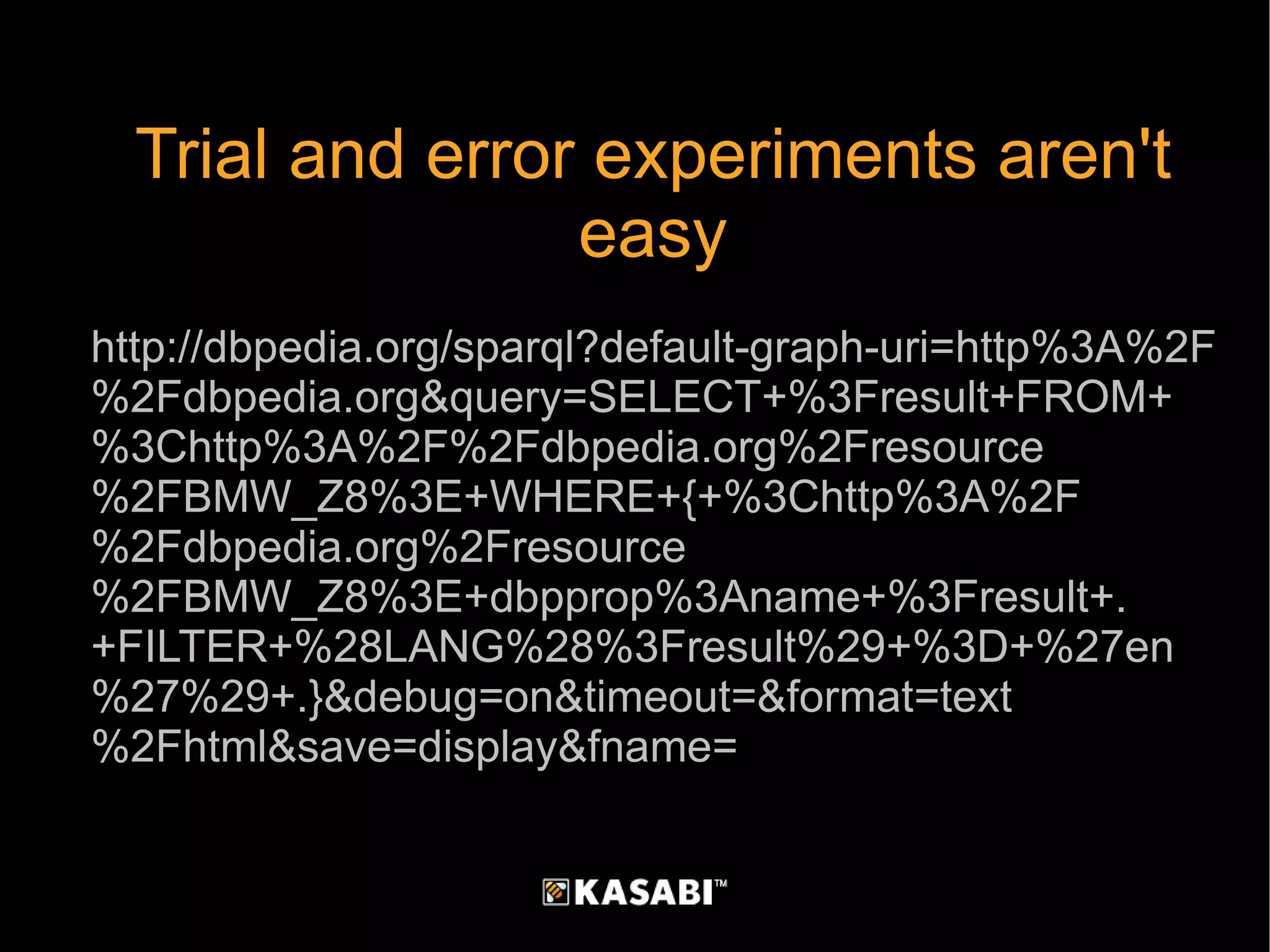

4. http://dbpedia.org/sparql?default-graph-uri=http%3A%2F%2Fdbpedia.org&query=SELECT+%3Fresult+FROM+%3Chttp%3A%2F%2Fdbpedia.org%2Fresource%2FBMW_Z8%3E+WHERE+{+%3Chttp%3A%2F%2Fdbpedia.org%2Fresource%2FBMW_Z8%3E+dbpprop%3Aname+%3Fresult+.+FILTER+%28LANG%28%3Fresult%29+%3D+%27en%27%29+.}&debug=on&timeout=&format=text%2Fhtml&save=display&fname= Trial and error experiments aren't easy

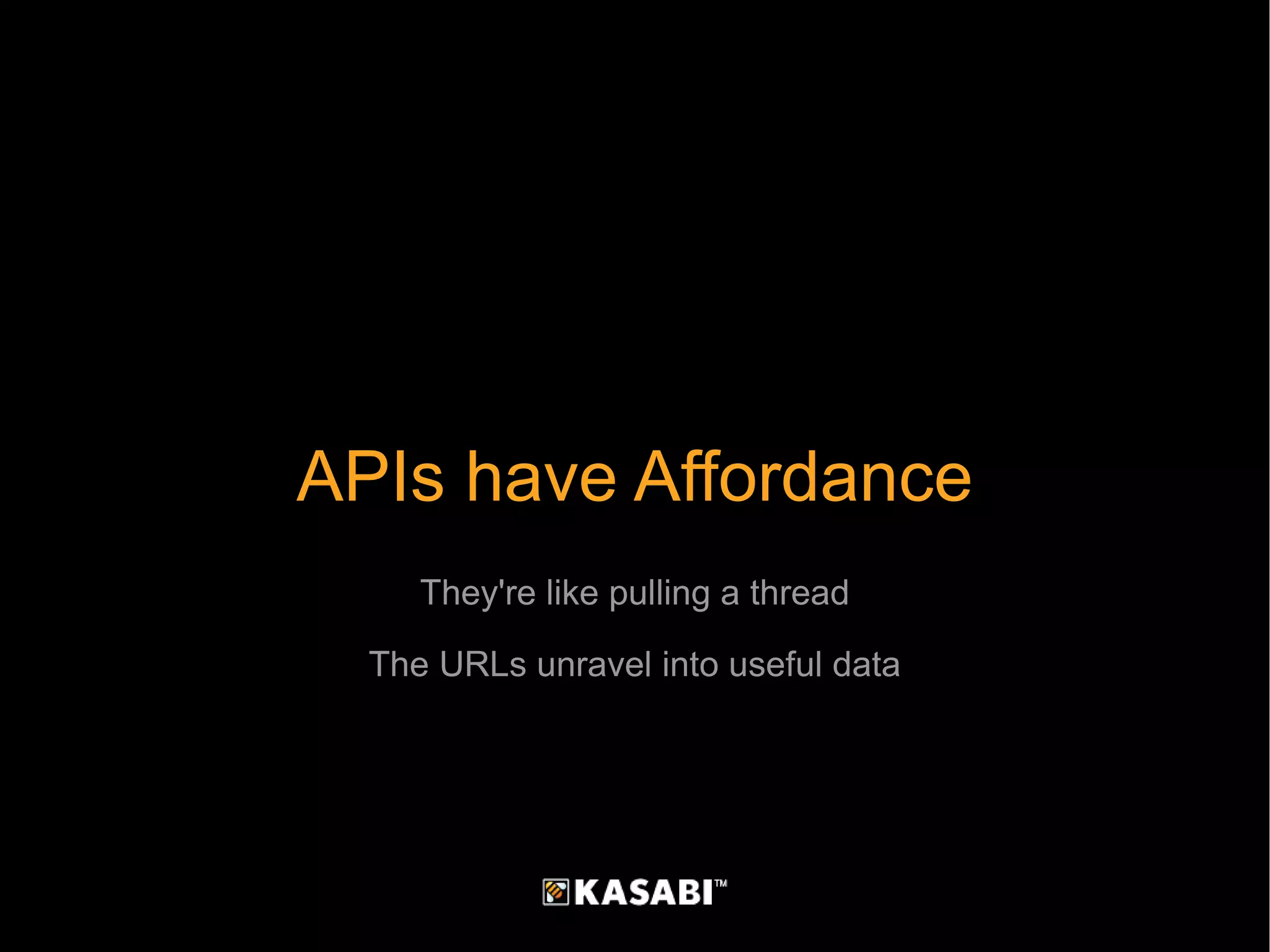

5. APIs have Affordance They're like pulling a thread The URLs unravel into useful data

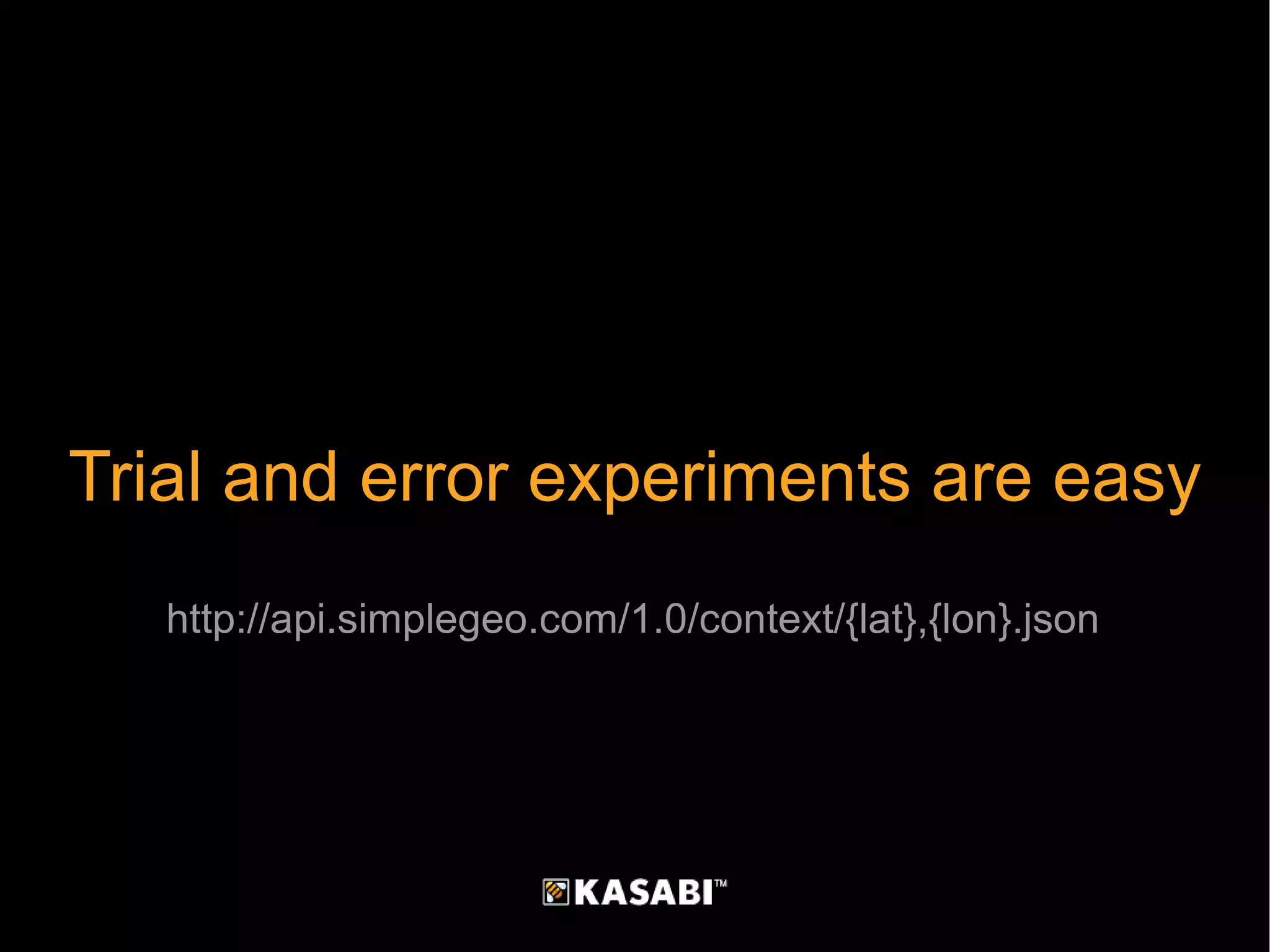

6. http://api.simplegeo.com/1.0/context/{lat},{lon}.json Trial and error experiments are easy

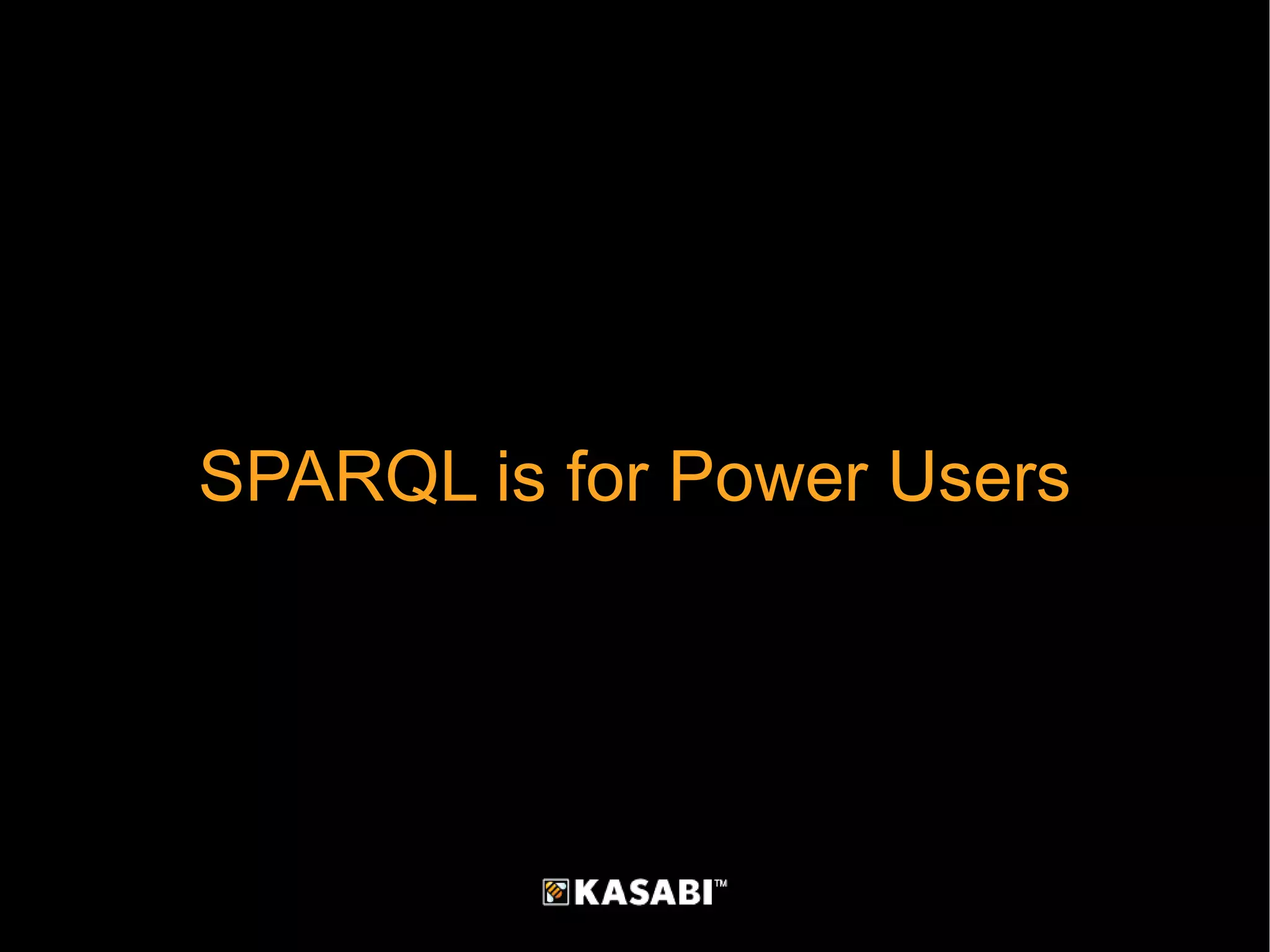

7. SPARQL is for Power Users

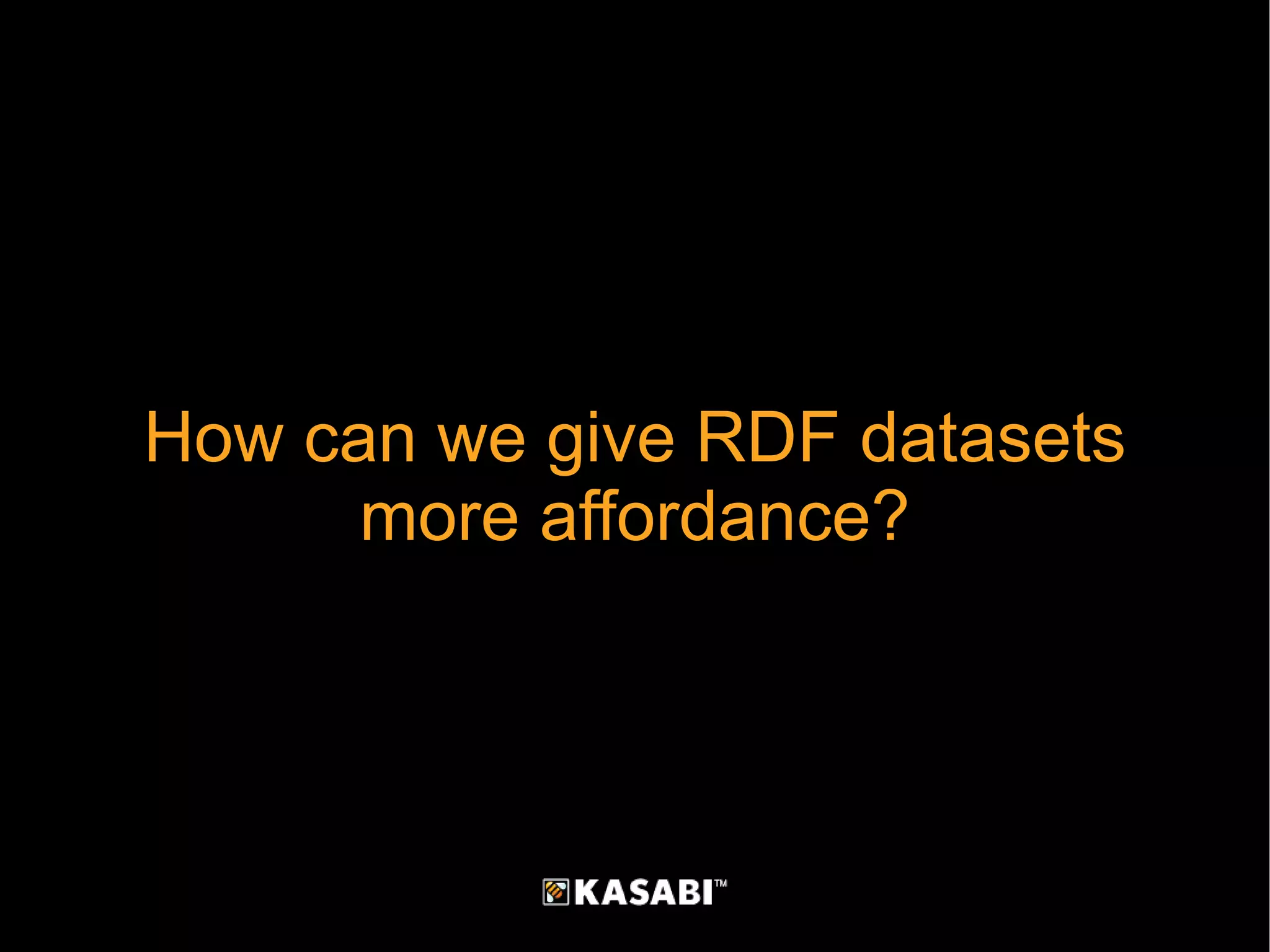

8. How can we give RDF datasets more affordance?

9. Linked Data? Typically not expressive enough to support all useful interactions Expensive to materialize all useful data partitions E.g. by date-time, location, top ranking, etc

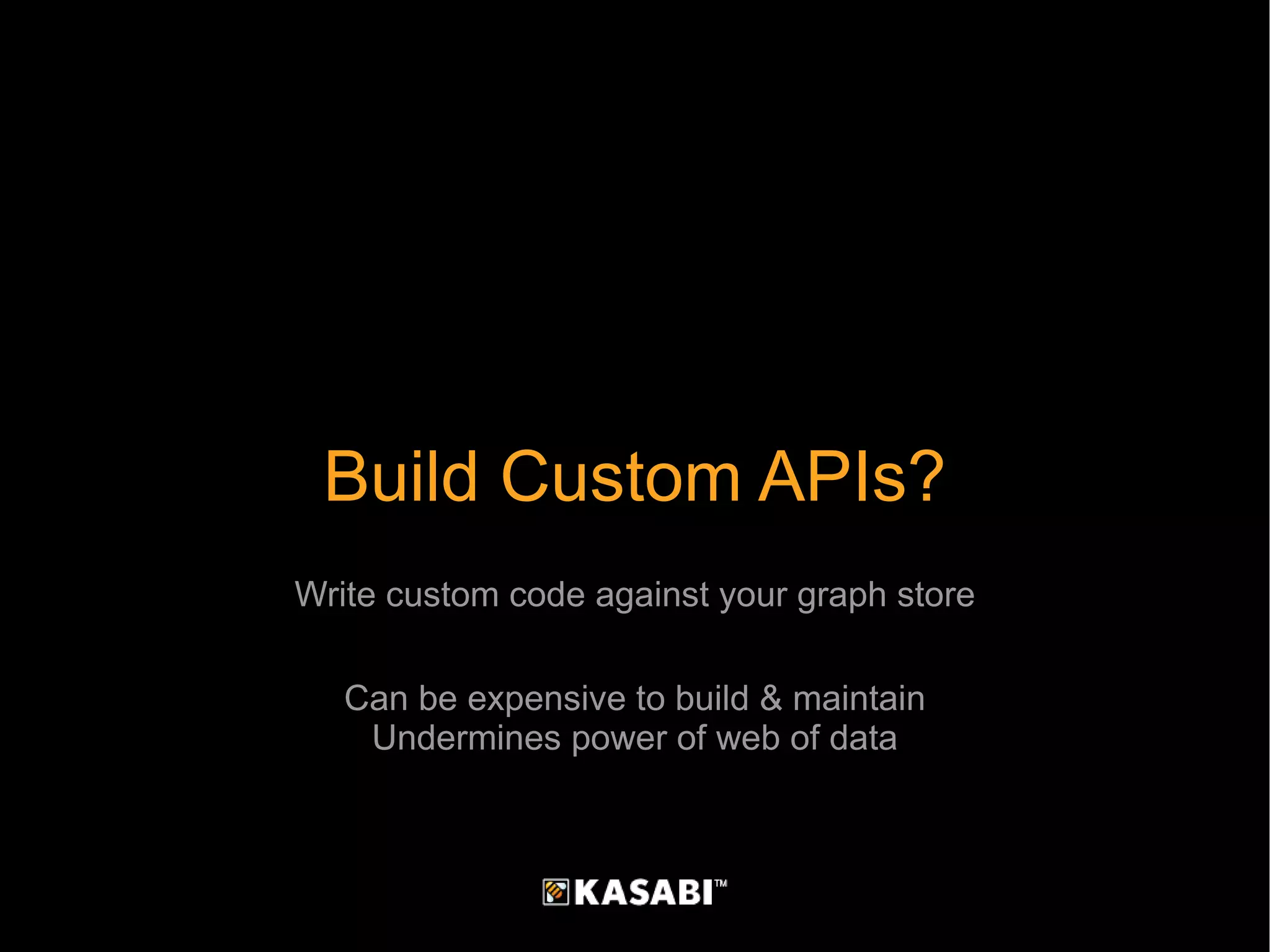

10. Build Custom APIs? Write custom code against your graph store Can be expensive to build & maintain Undermines power of web of data

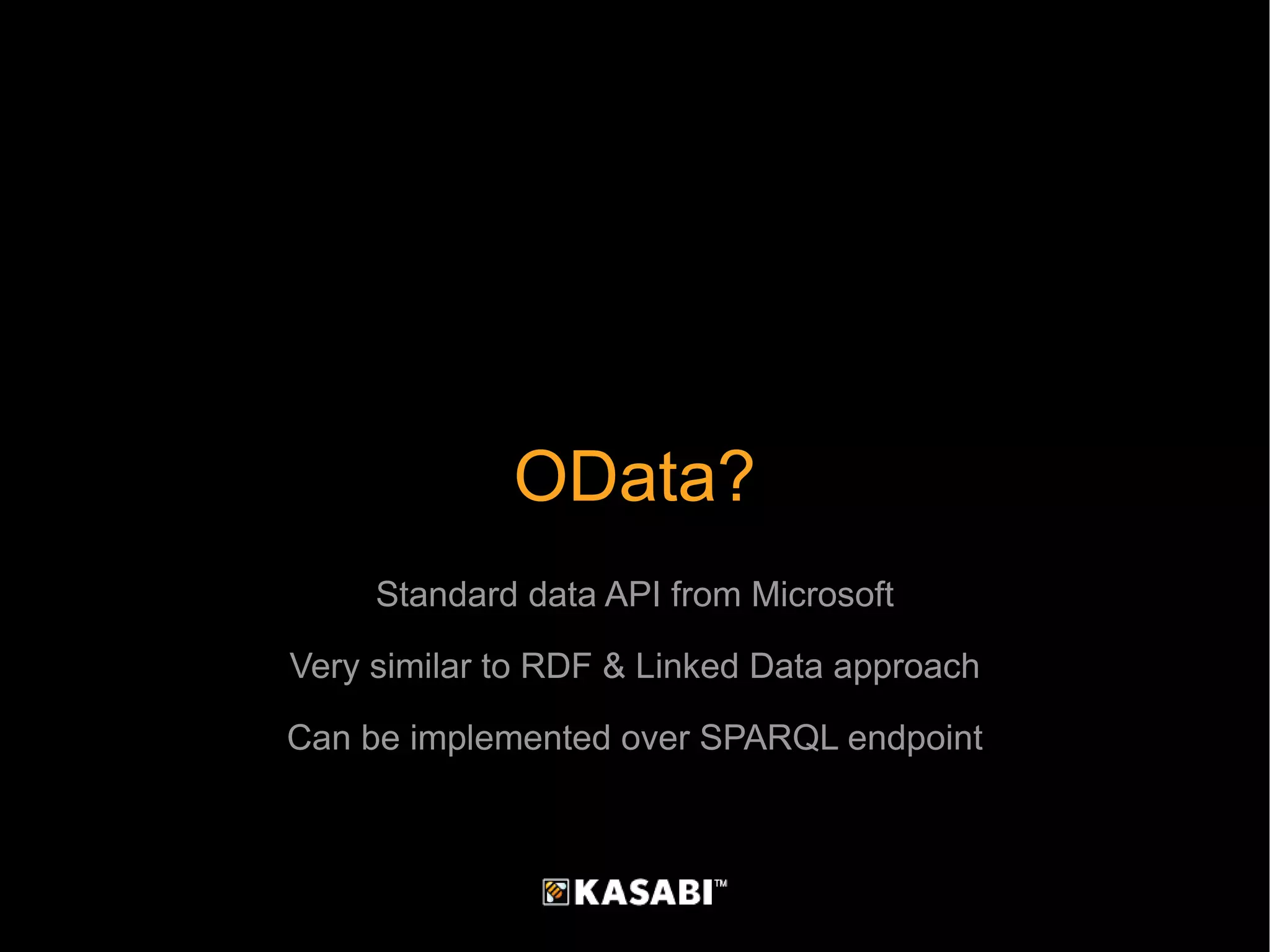

11. OData? Standard data API from Microsoft Very similar to RDF & Linked Data approach Can be implemented over SPARQL endpoint

12. SPARQL Stored Procedures & The Linked Data API

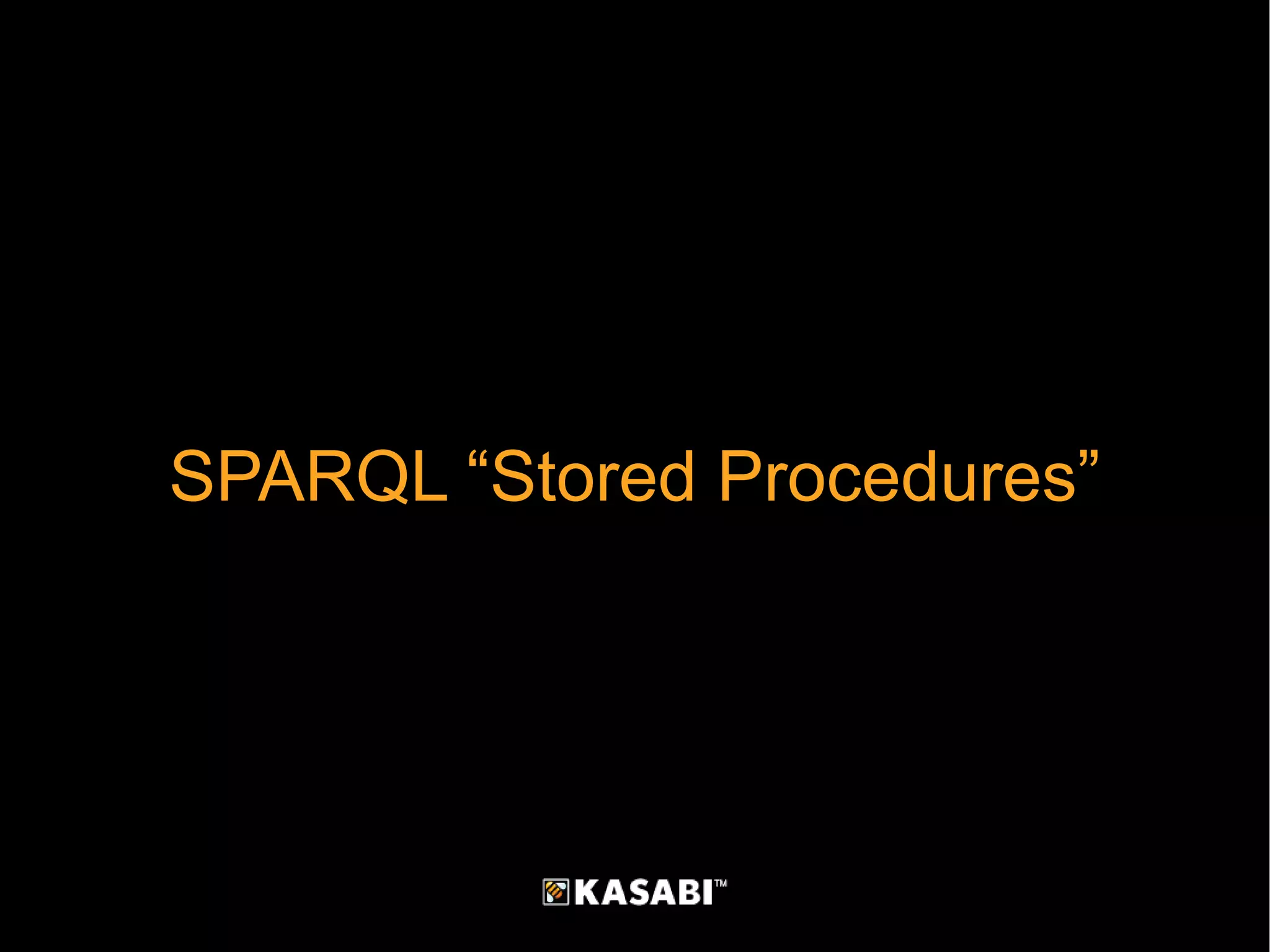

13. SPARQL “Stored Procedures”

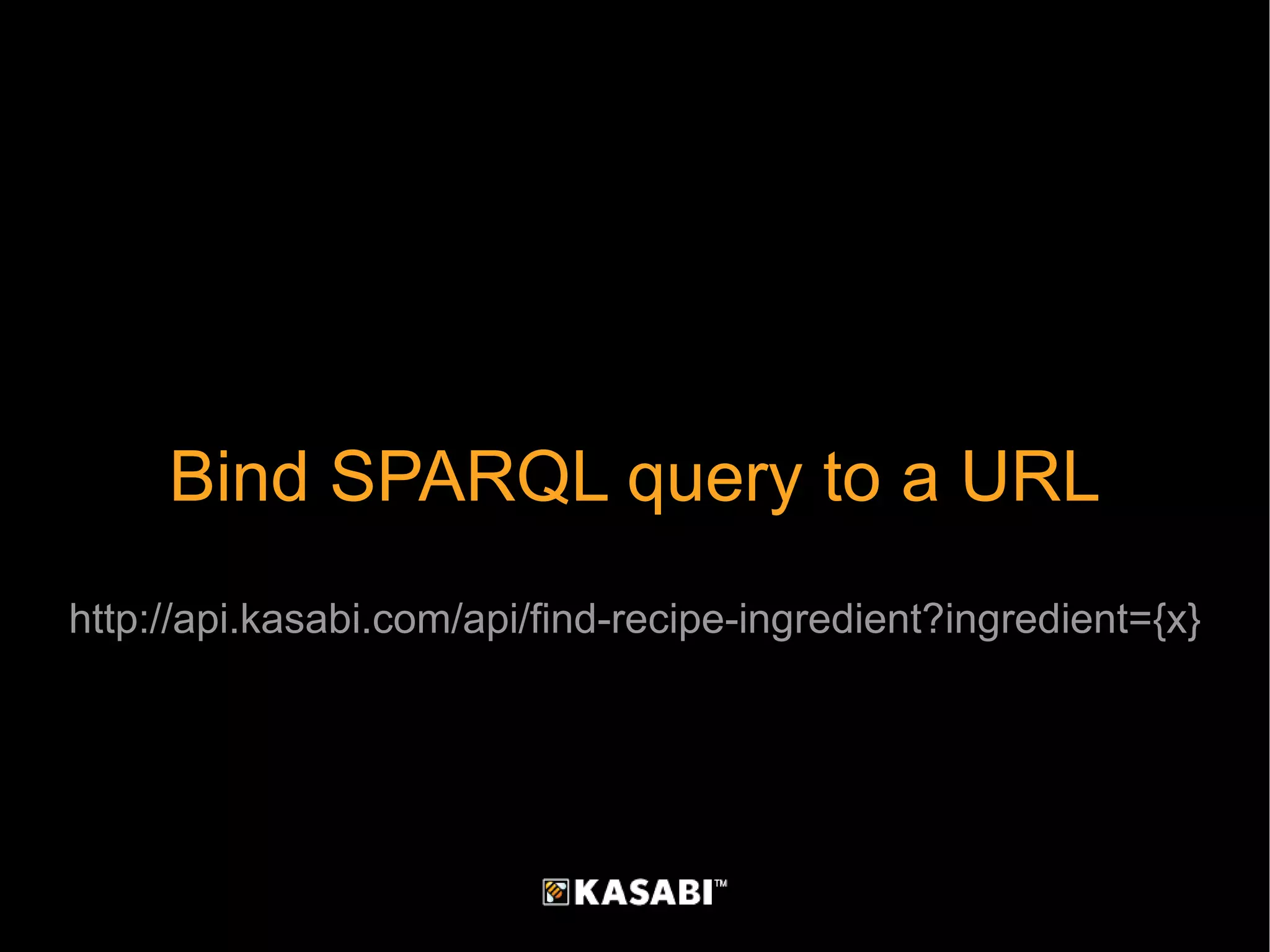

14. Bind SPARQL query to a URL http://api.kasabi.com/api/find-recipe-ingredient?ingredient={x}

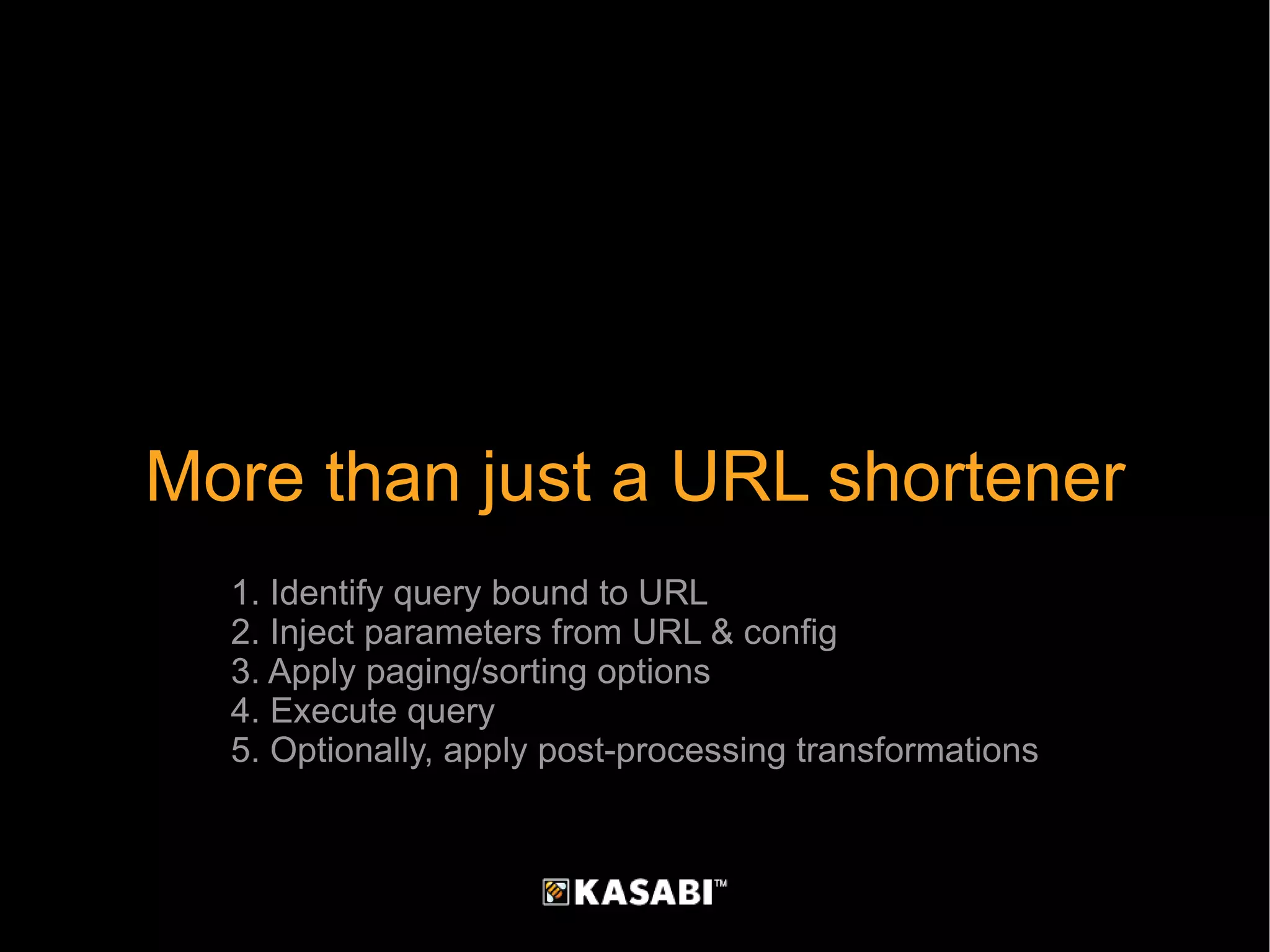

15. More than just a URL shortener 1. Identify query bound to URL 2. Inject parameters from URL & config 3. Apply paging/sorting options 4. Execute query 5. Optionally, apply post-processing transformations

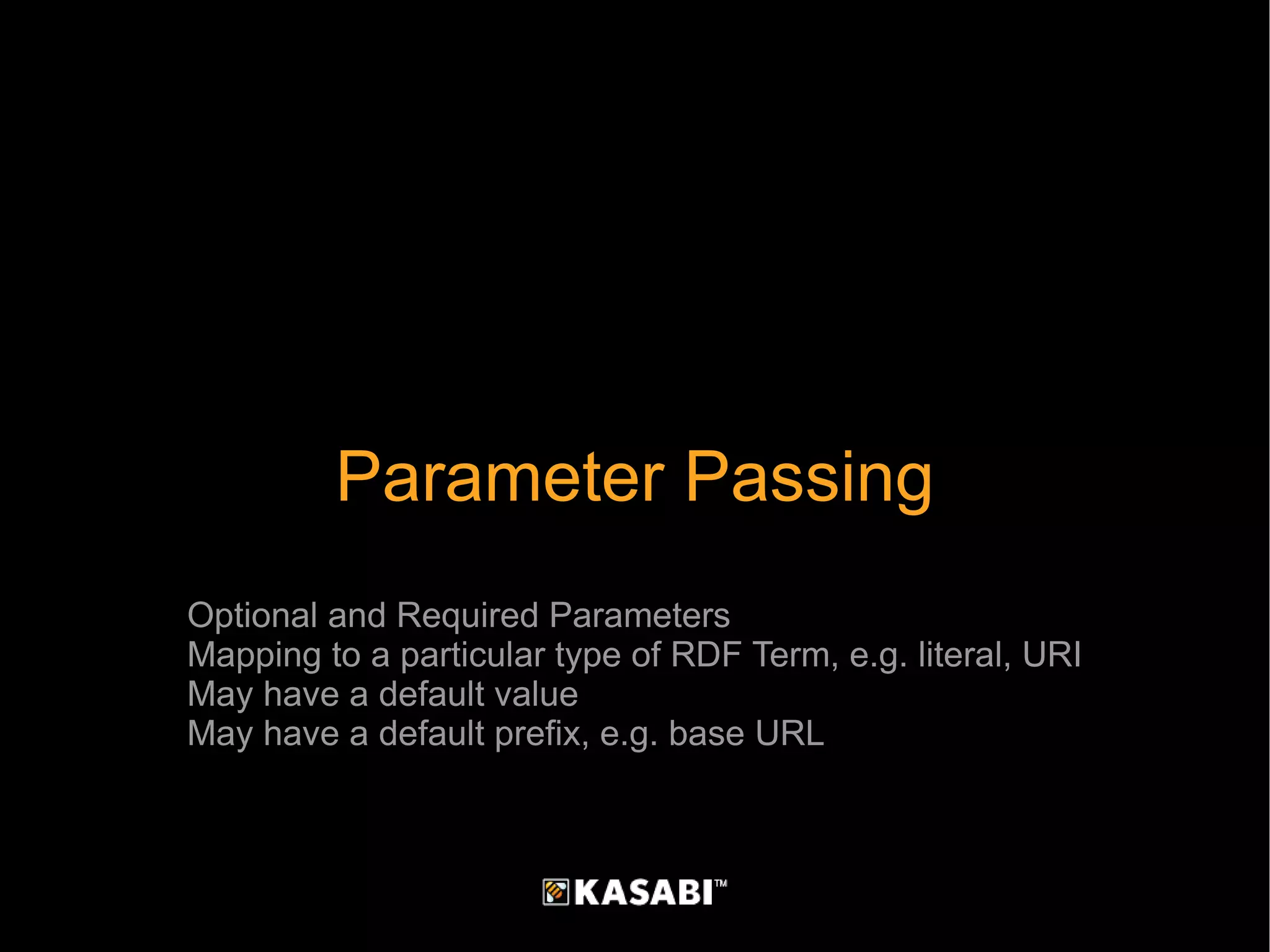

16. Parameter Passing Optional and Required Parameters Mapping to a particular type of RDF Term, e.g. literal, URI May have a default value May have a default prefix, e.g. base URL

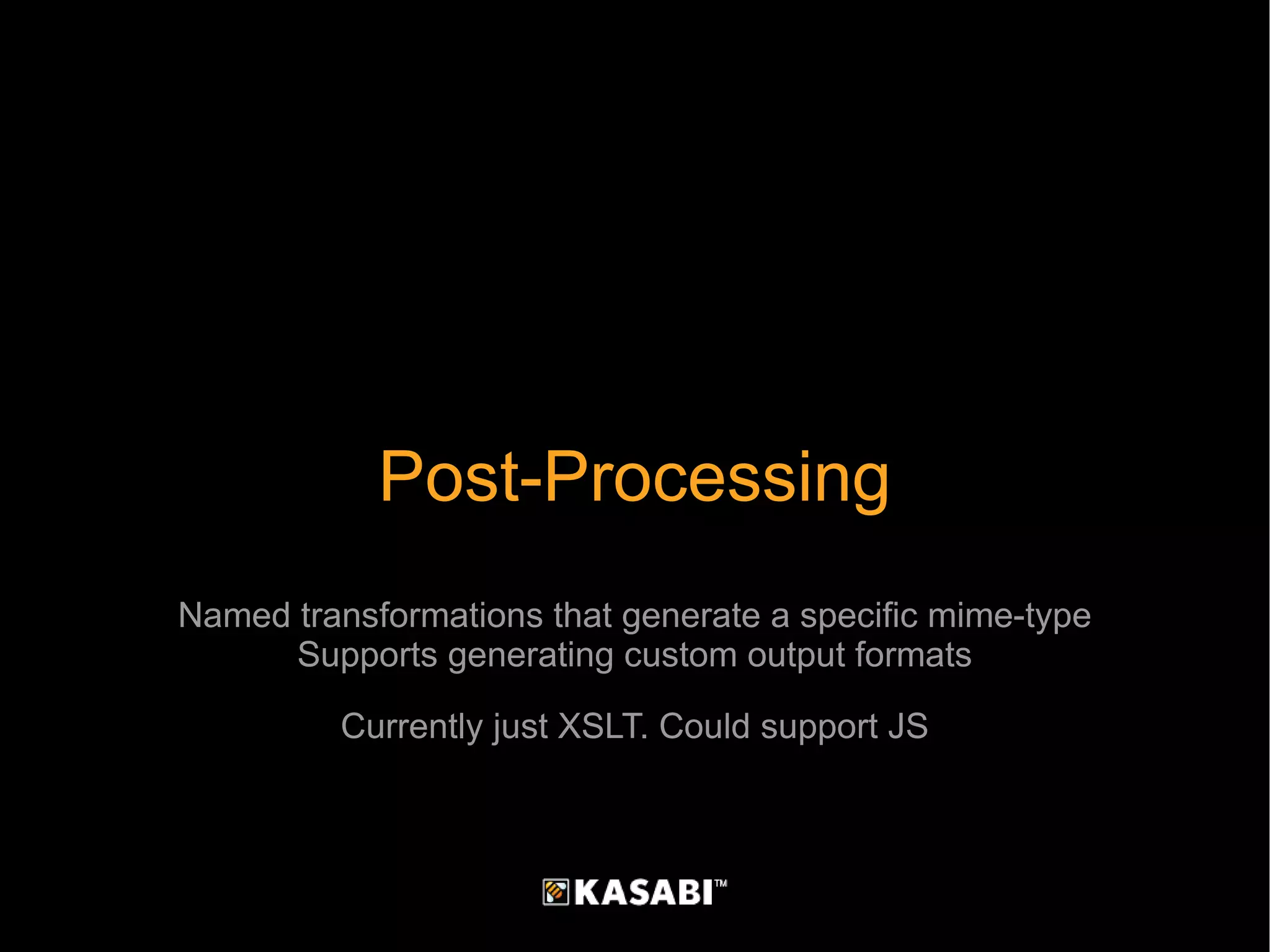

17. Post-Processing Named transformations that generate a specific mime-type Supports generating custom output formats Currently just XSLT. Could support JS

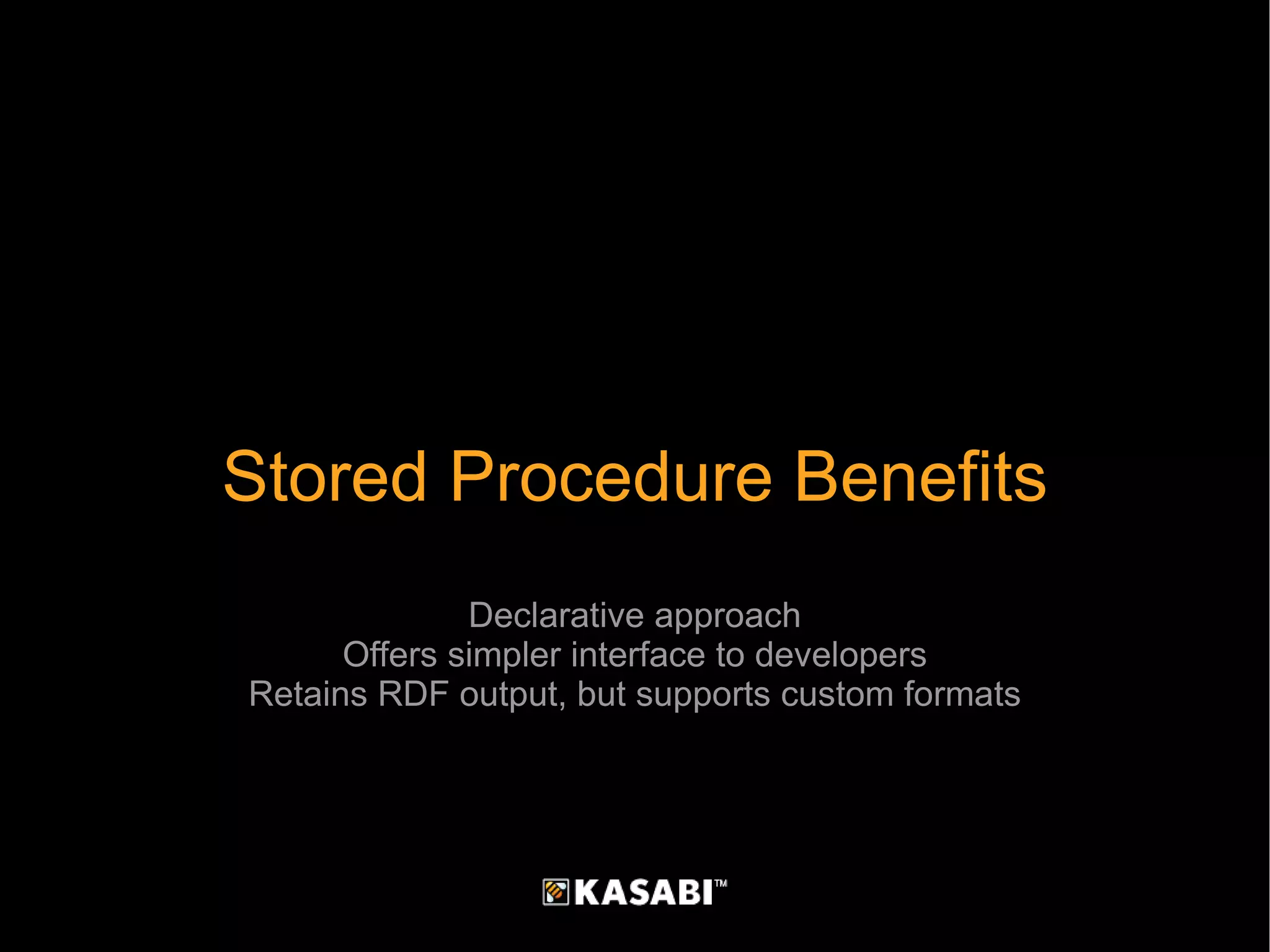

18. Stored Procedure Benefits Declarative approach Offers simpler interface to developers Retains RDF output, but supports custom formats

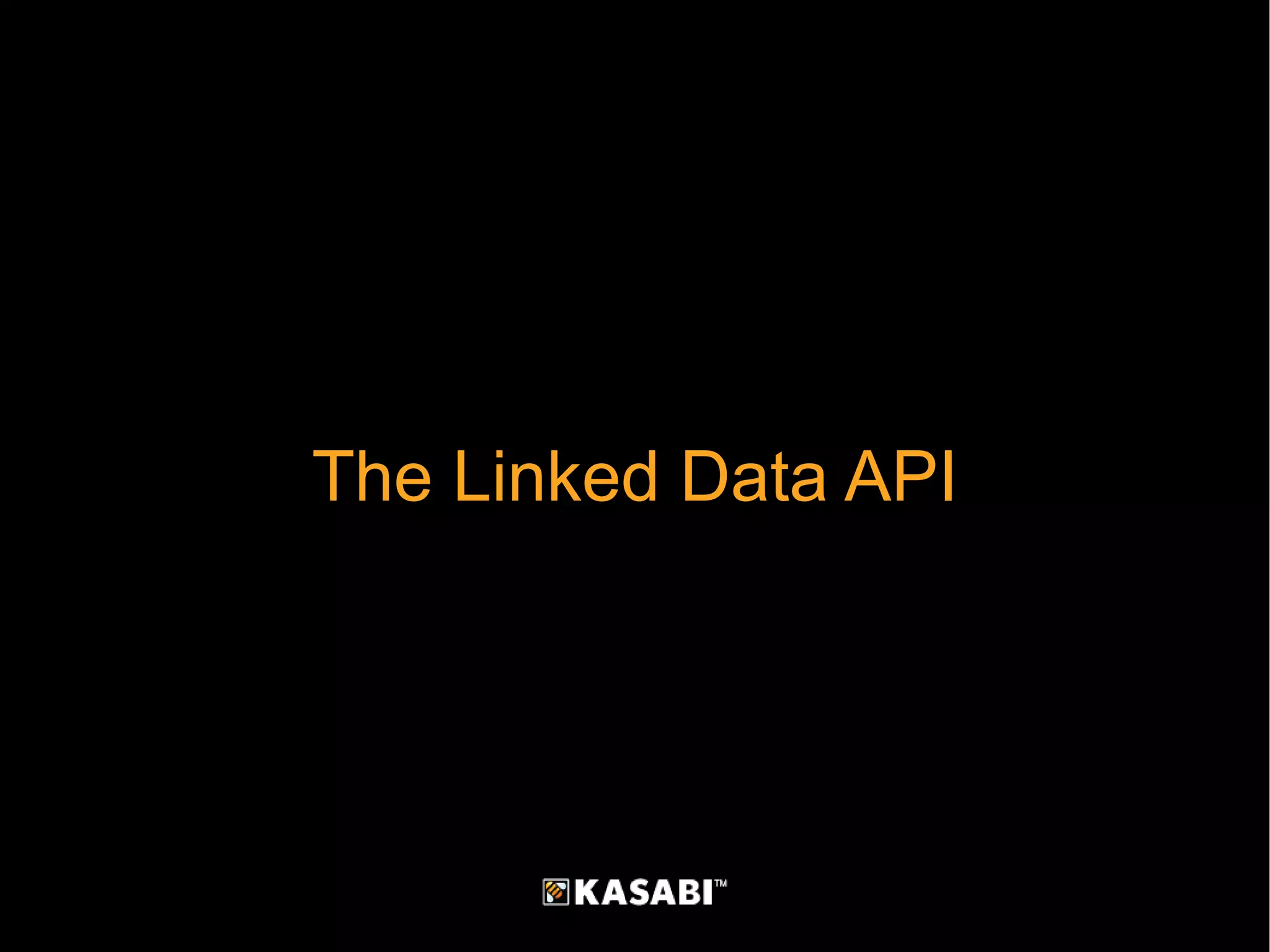

19. The Linked Data API

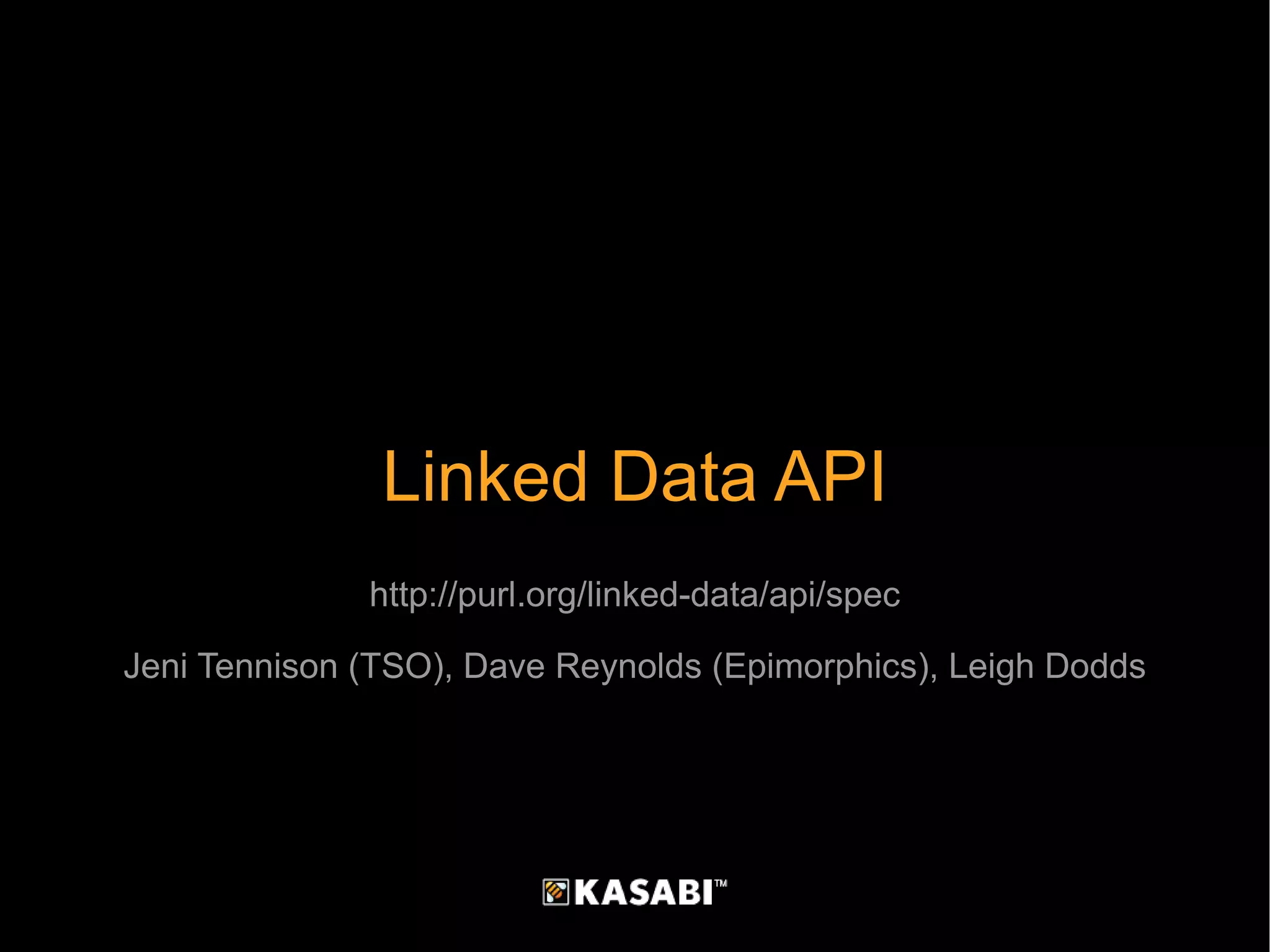

20. Linked Data API http://purl.org/linked-data/api/spec Jeni Tennison (TSO), Dave Reynolds (Epimorphics), Leigh Dodds

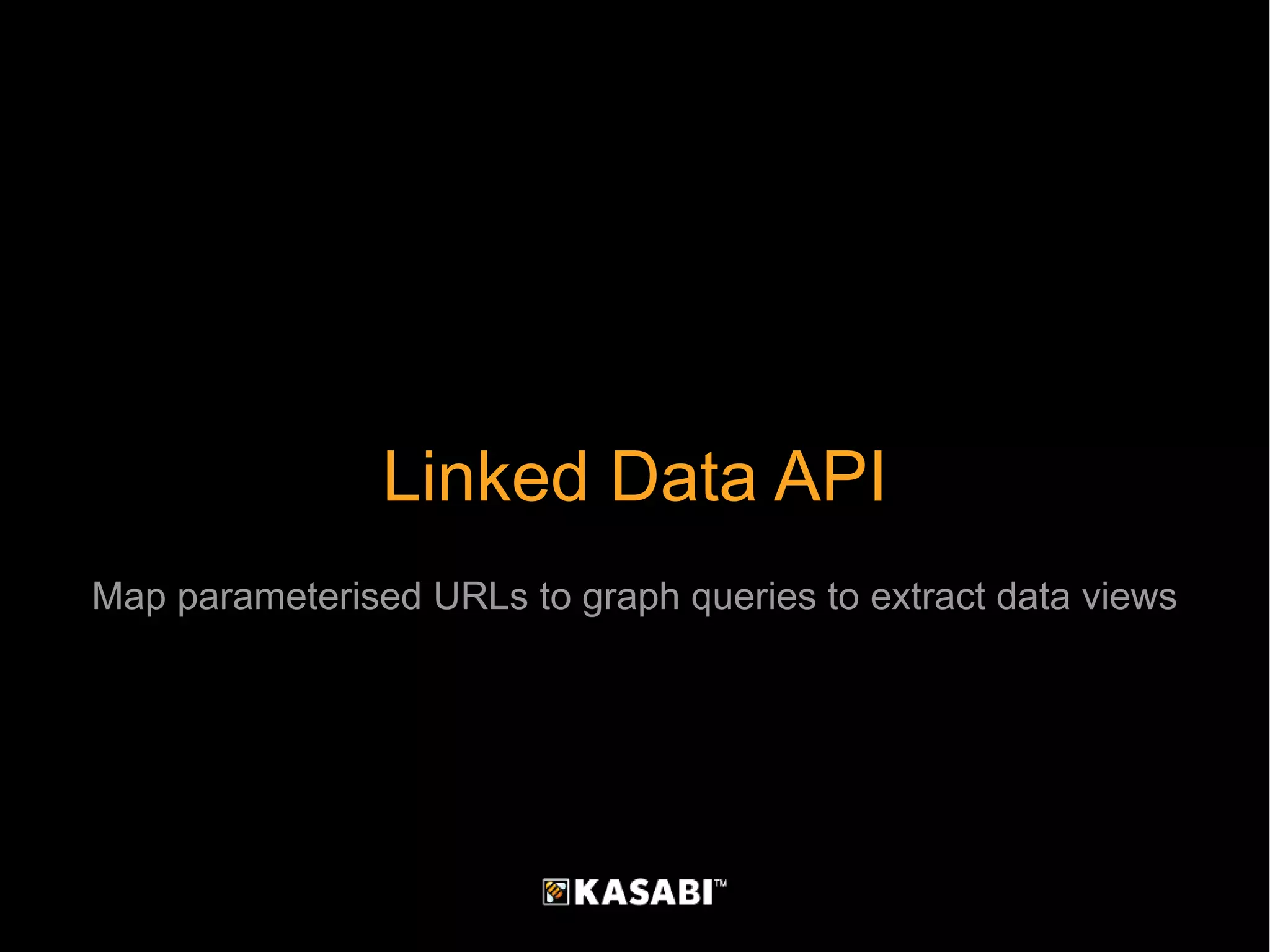

21. Linked Data API Map parameterised URLs to graph queries to extract data views

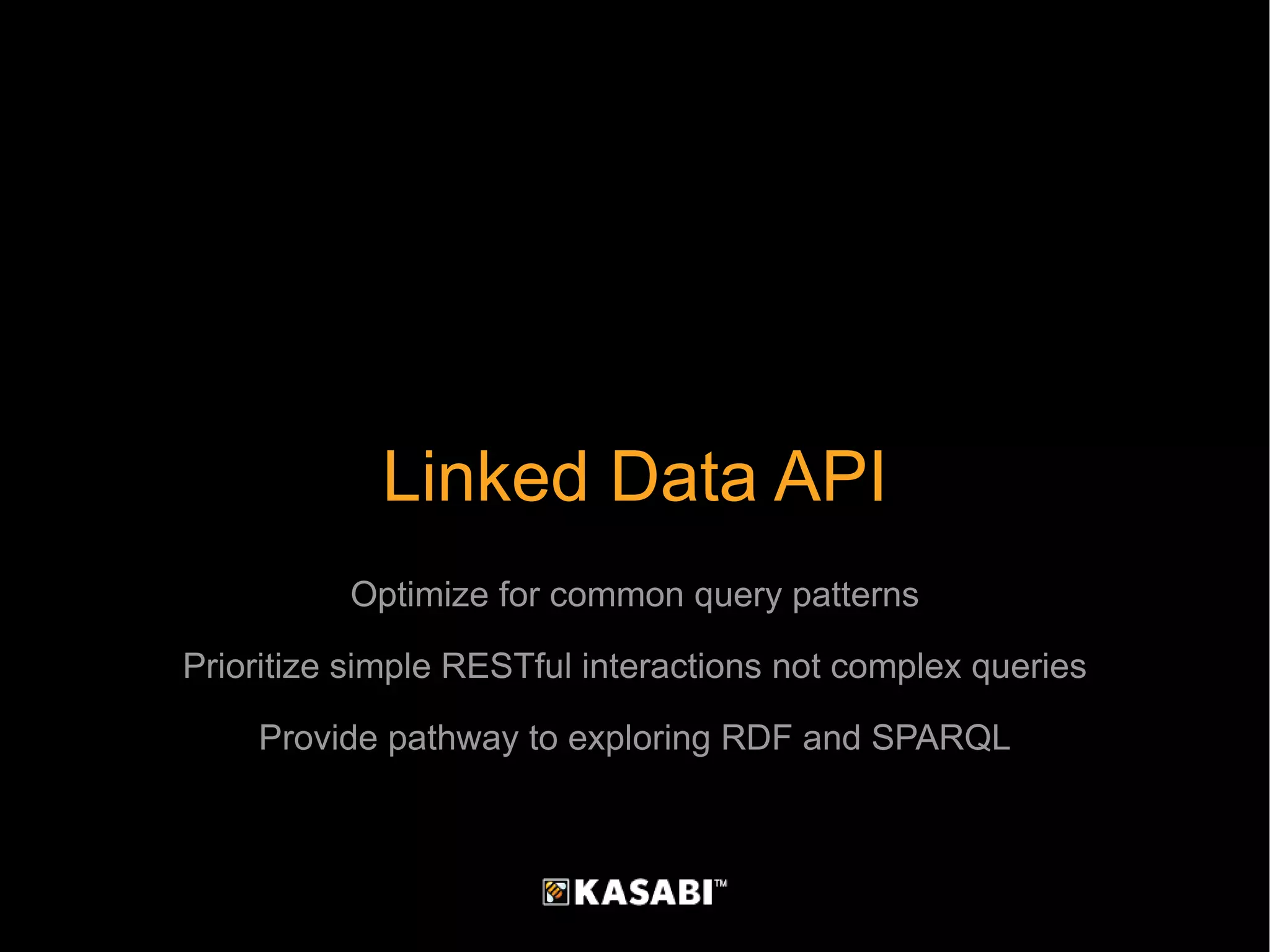

22. Linked Data API Optimize for common query patterns Prioritize simple RESTful interactions not complex queries Provide pathway to exploring RDF and SPARQL

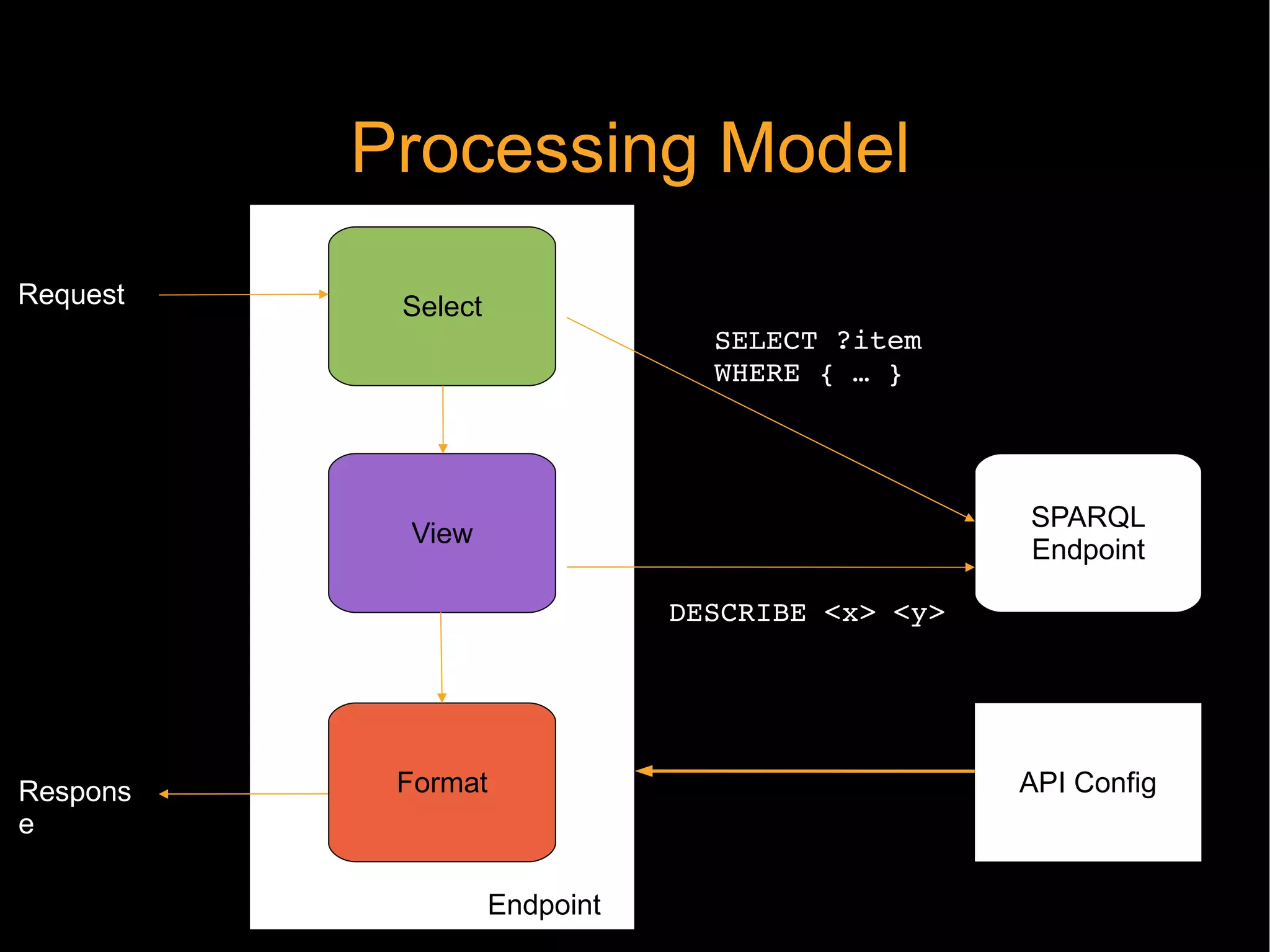

23. Processing Model Select View Request Response Format SPARQL Endpoint SELECT ?item WHERE { … } Endpoint DESCRIBE <x> <y> API Config

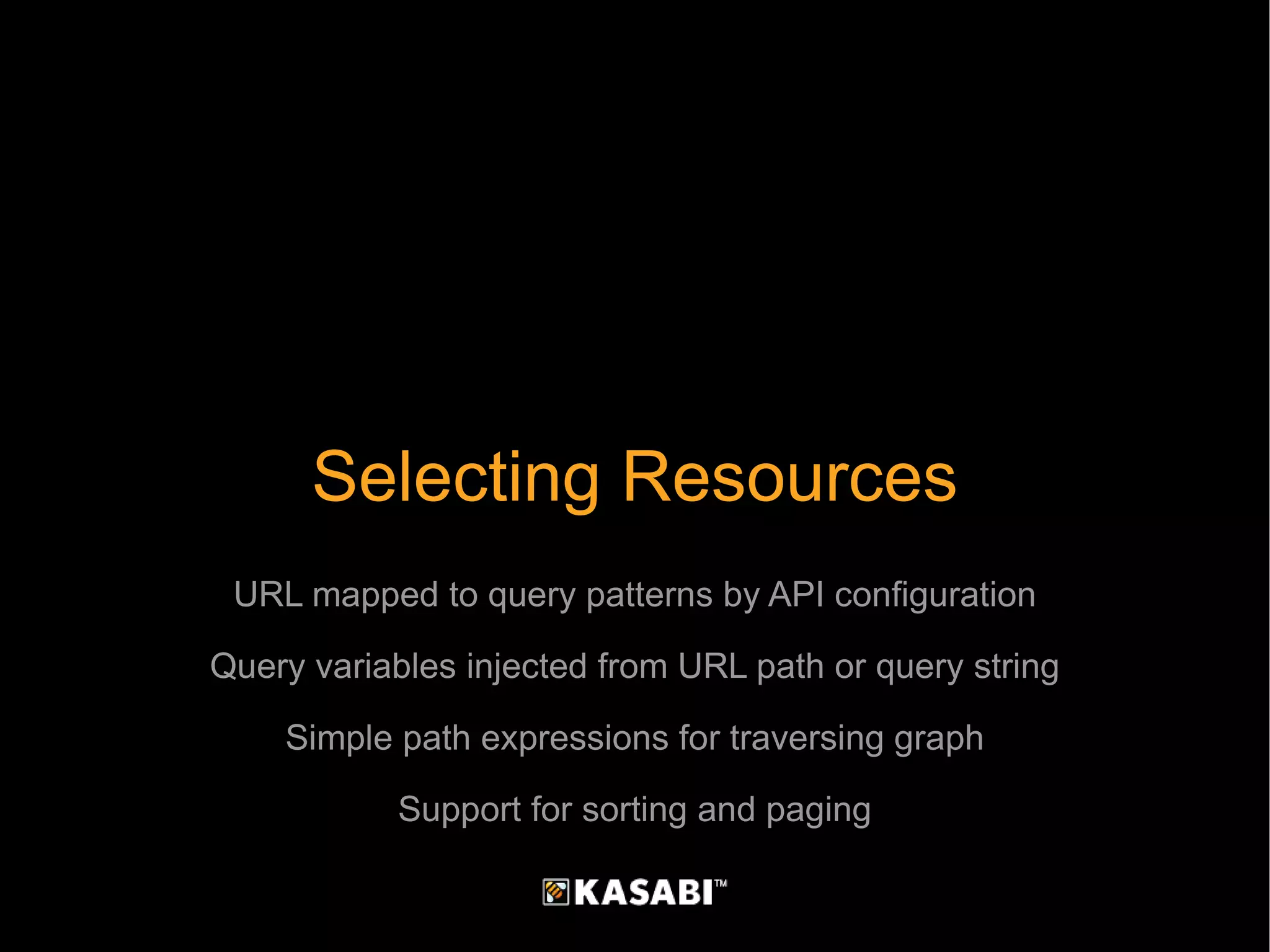

24. Selecting Resources URL mapped to query patterns by API configuration Query variables injected from URL path or query string Simple path expressions for traversing graph Support for sorting and paging

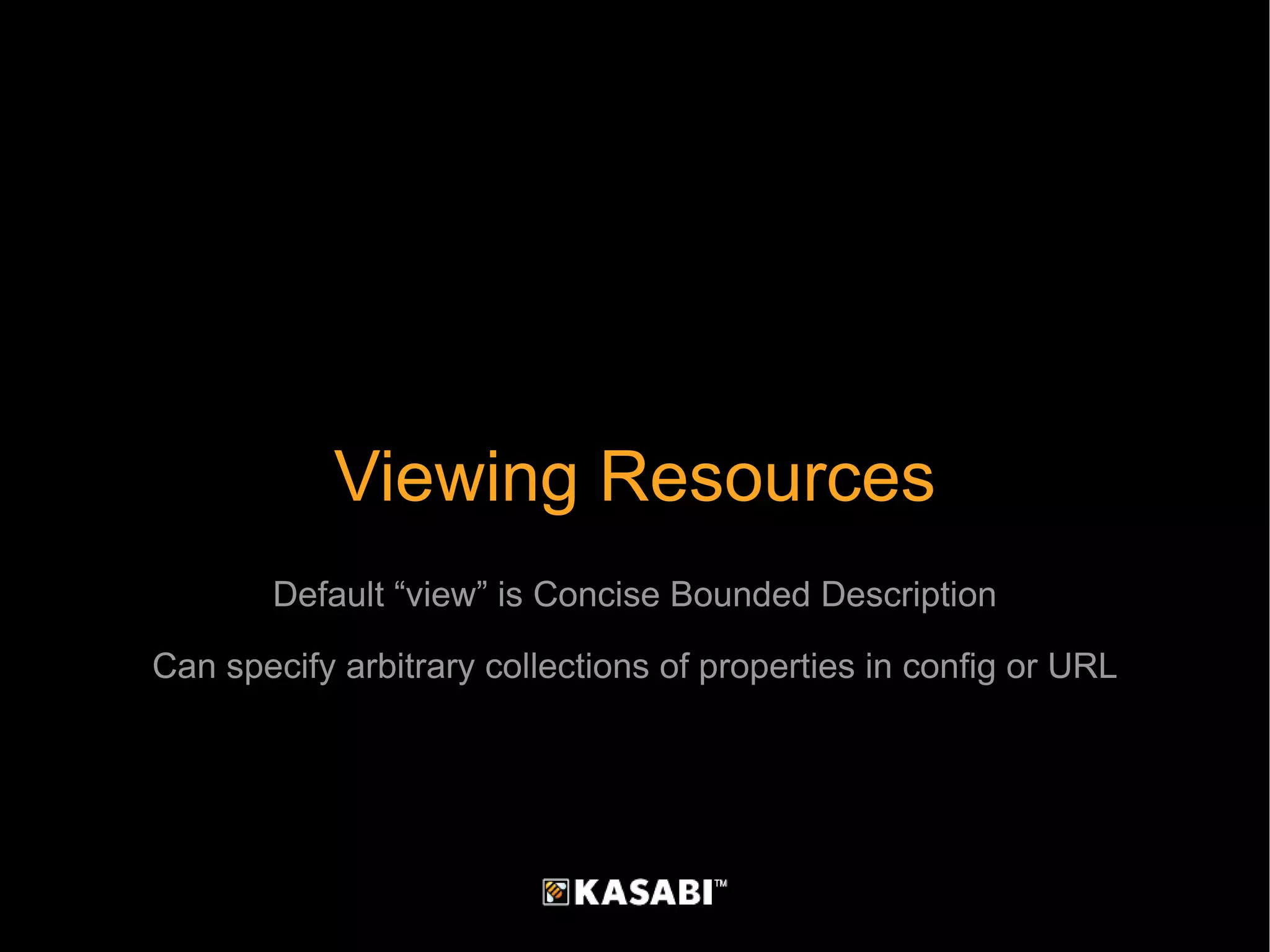

25. Viewing Resources Default “view” is Concise Bounded Description Can specify arbitrary collections of properties in config or URL

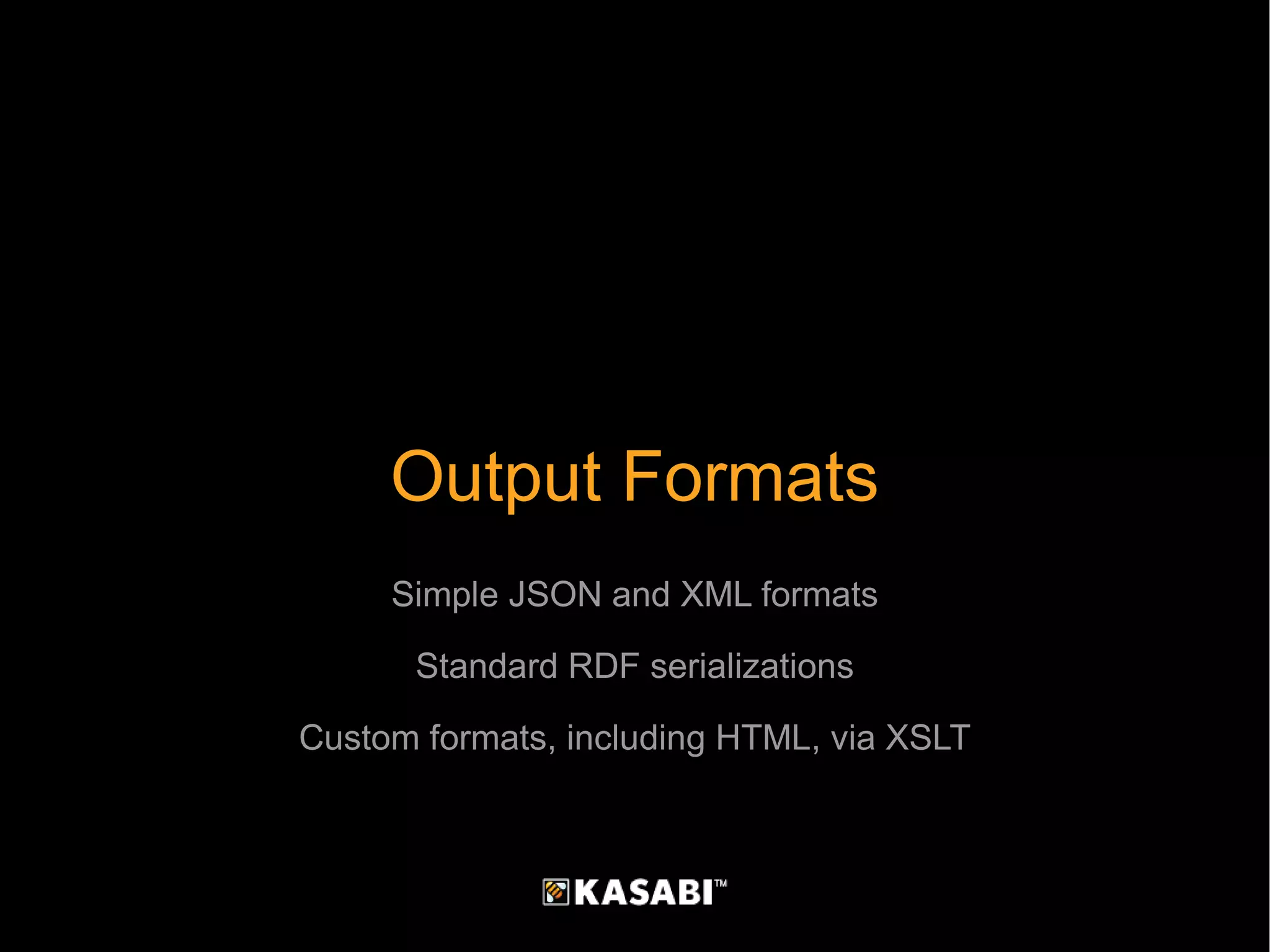

26. Output Formats Simple JSON and XML formats Standard RDF serializations Custom formats, including HTML, via XSLT

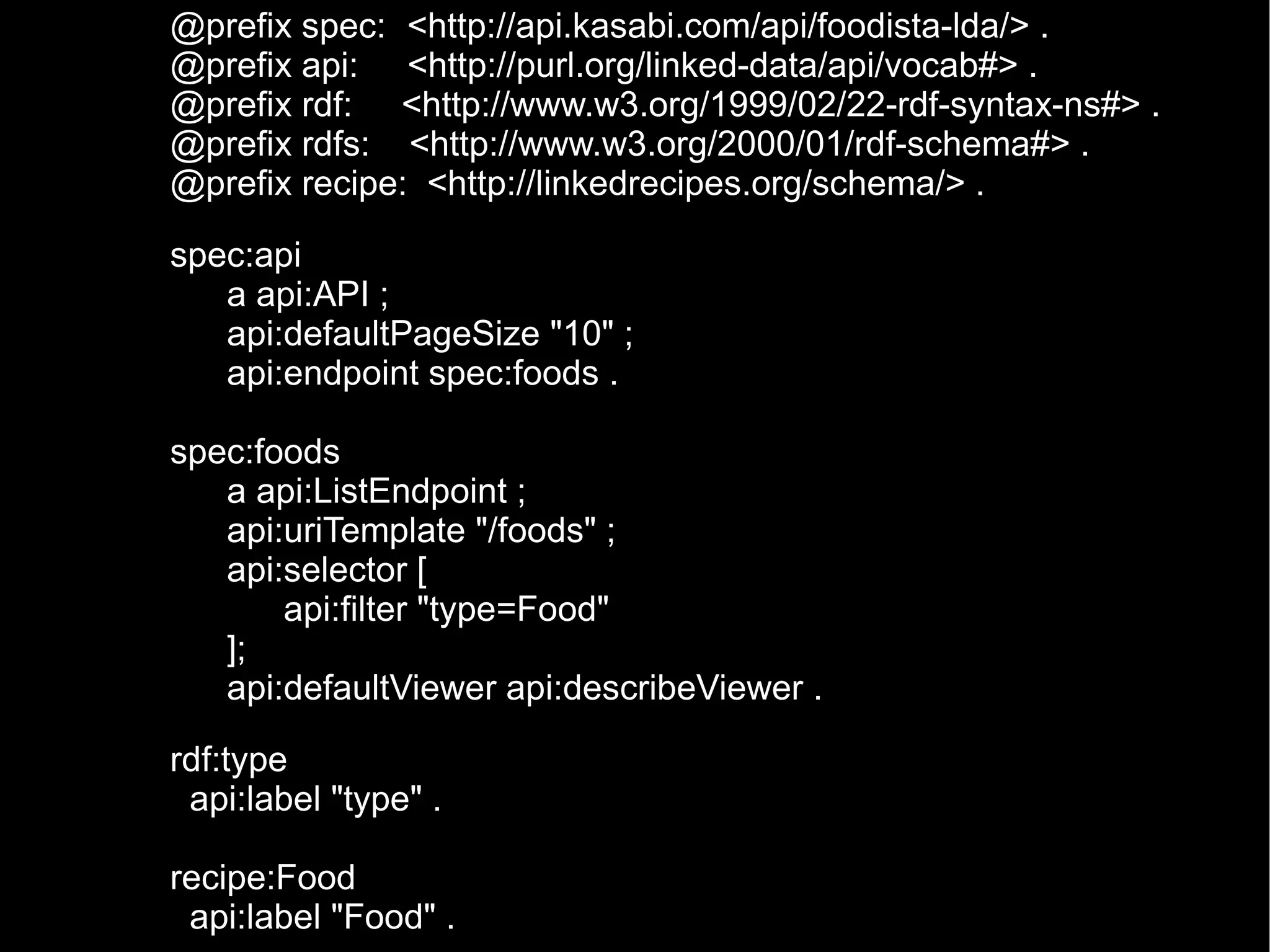

27. @prefix spec: <http://api.kasabi.com/api/foodista-lda/> . @prefix api: <http://purl.org/linked-data/api/vocab#> . @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> . @prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> . @prefix recipe: <http://linkedrecipes.org/schema/> . spec:api a api:API ; api:defaultPageSize &quot;10&quot; ; api:endpoint spec:foods . spec:foods a api:ListEndpoint ; api:uriTemplate &quot;/foods&quot; ; api:selector [ api:filter &quot;type=Food&quot; ]; api:defaultViewer api:describeViewer . rdf:type api:label &quot;type&quot; . recipe:Food api:label &quot;Food&quot; .

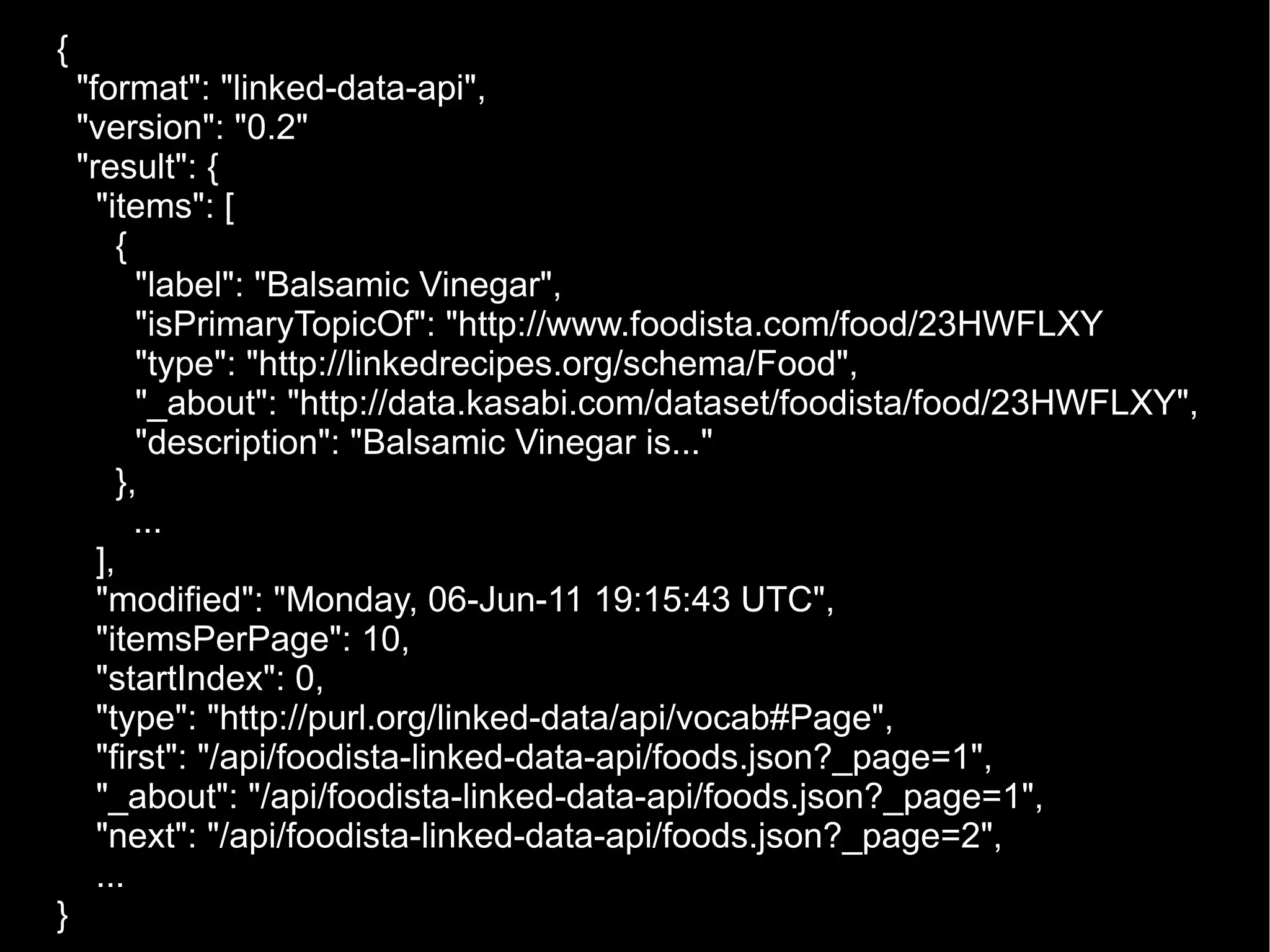

28. { &quot;format&quot;: &quot;linked-data-api&quot;, &quot;version&quot;: &quot;0.2&quot; &quot;result&quot;: { &quot;items&quot;: [ { &quot;label&quot;: &quot;Balsamic Vinegar&quot;, &quot;isPrimaryTopicOf&quot;: &quot;http://www.foodista.com/food/23HWFLXY &quot;type&quot;: &quot;http://linkedrecipes.org/schema/Food&quot;, &quot;_about&quot;: &quot;http://data.kasabi.com/dataset/foodista/food/23HWFLXY&quot;, &quot;description&quot;: &quot;Balsamic Vinegar is...&quot; }, ... ], &quot;modified&quot;: &quot;Monday, 06-Jun-11 19:15:43 UTC&quot;, &quot;itemsPerPage&quot;: 10, &quot;startIndex&quot;: 0, &quot;type&quot;: &quot;http://purl.org/linked-data/api/vocab#Page&quot;, &quot;first&quot;: &quot;/api/foodista-linked-data-api/foods.json?_page=1&quot;, &quot;_about&quot;: &quot;/api/foodista-linked-data-api/foods.json?_page=1&quot;, &quot;next&quot;: &quot;/api/foodista-linked-data-api/foods.json?_page=2&quot;, ... }

29. Open Source Implementations Puelia (PHP) http://code.google.com/p/puelia-php/ Elda (Java) http://code.google.com/p/elda/

30. Linked Data API Summary Declarative configuration-driven approach More sophisticated than SSPs Integrates well with Linked Data publishing Slightly higher learning curve

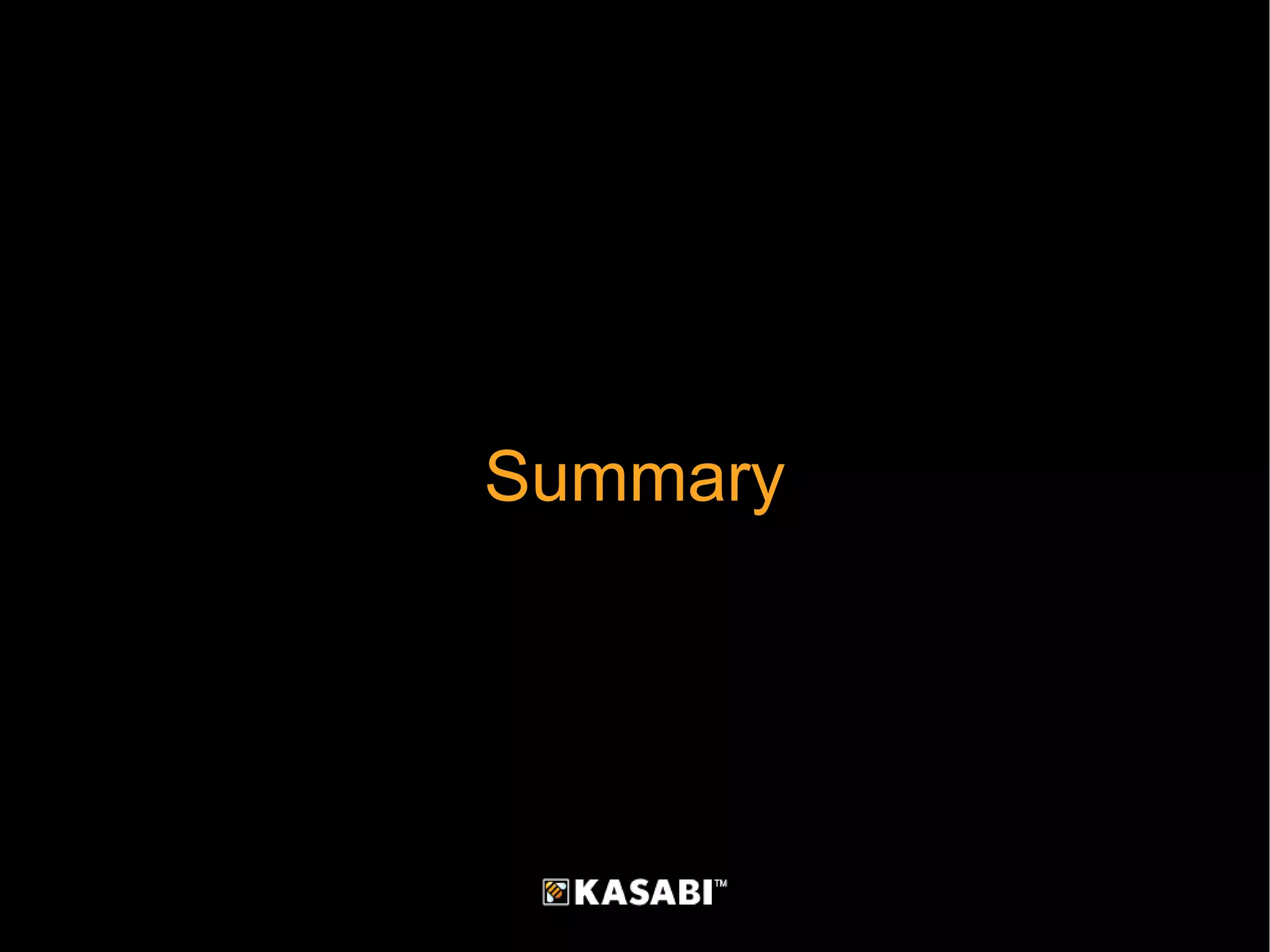

31. Summary

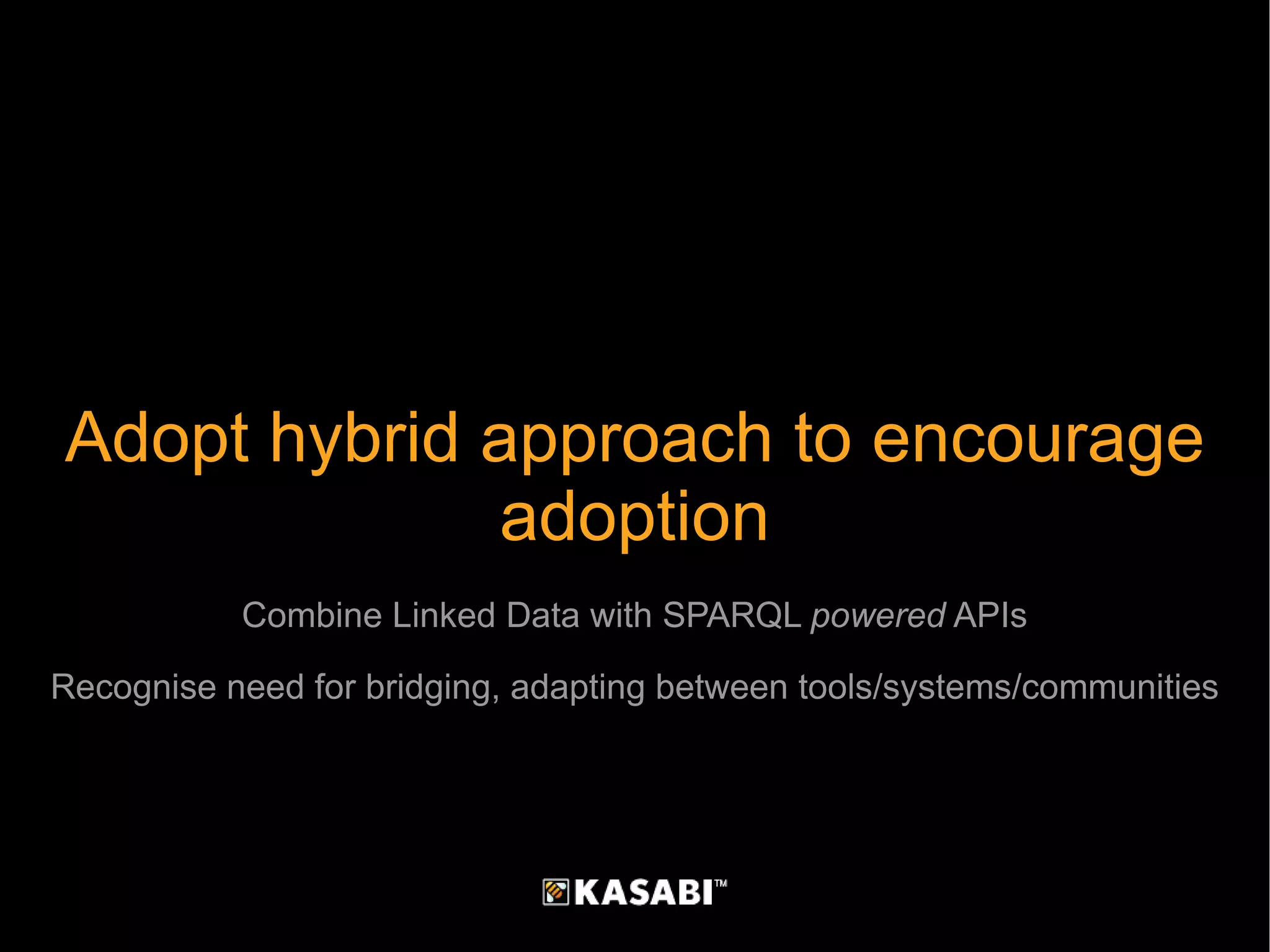

32. Adopt hybrid approach to encourage adoption Combine Linked Data with SPARQL powered APIs Recognise need for bridging, adapting between tools/systems/communities

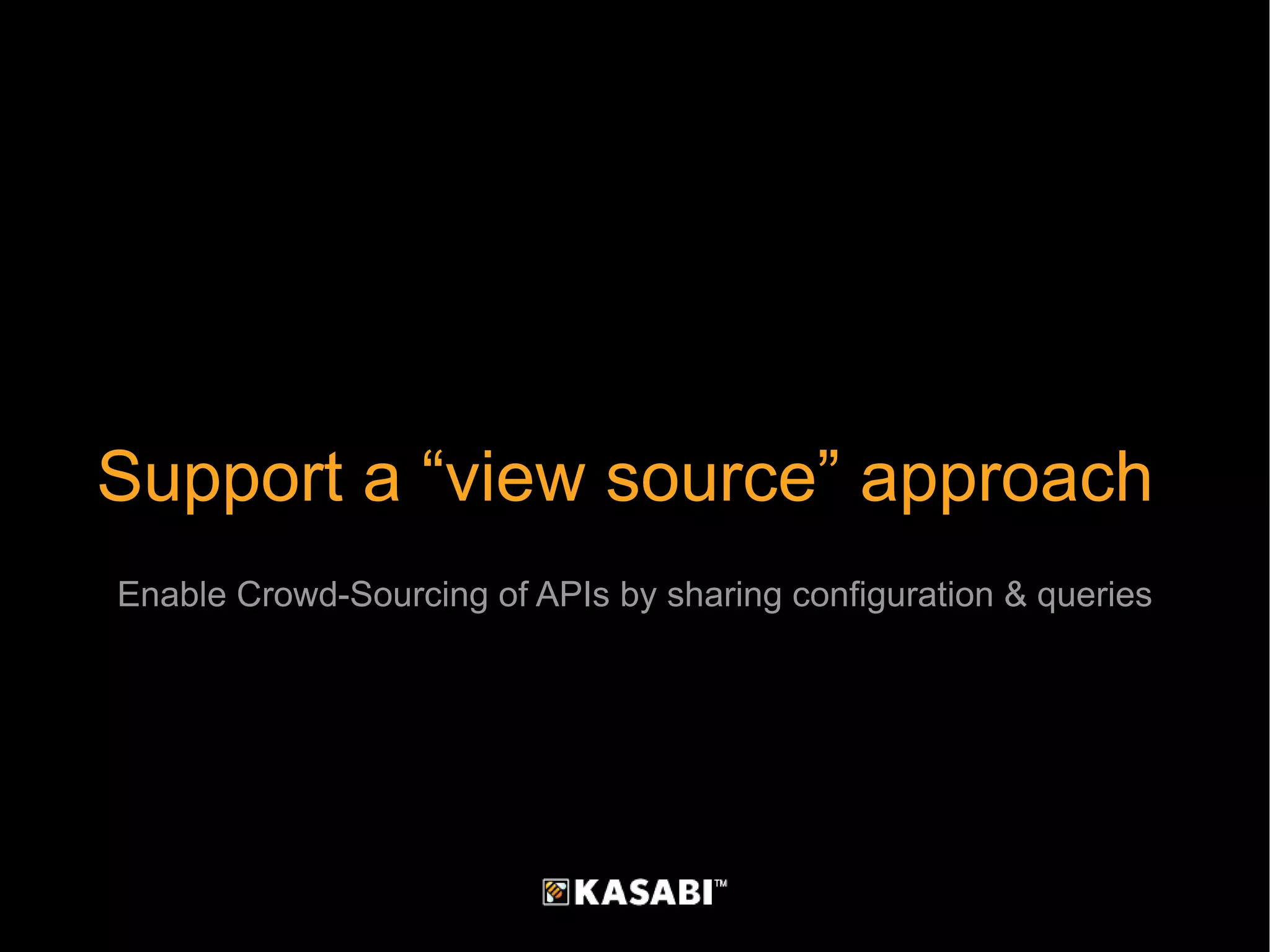

33. Support a “view source” approach Enable Crowd-Sourcing of APIs by sharing configuration & queries

34. Try It For Yourself! http://beta.kasabi.com Linked Data, RDF and API hosting Demo: 9.30 tomorrow
