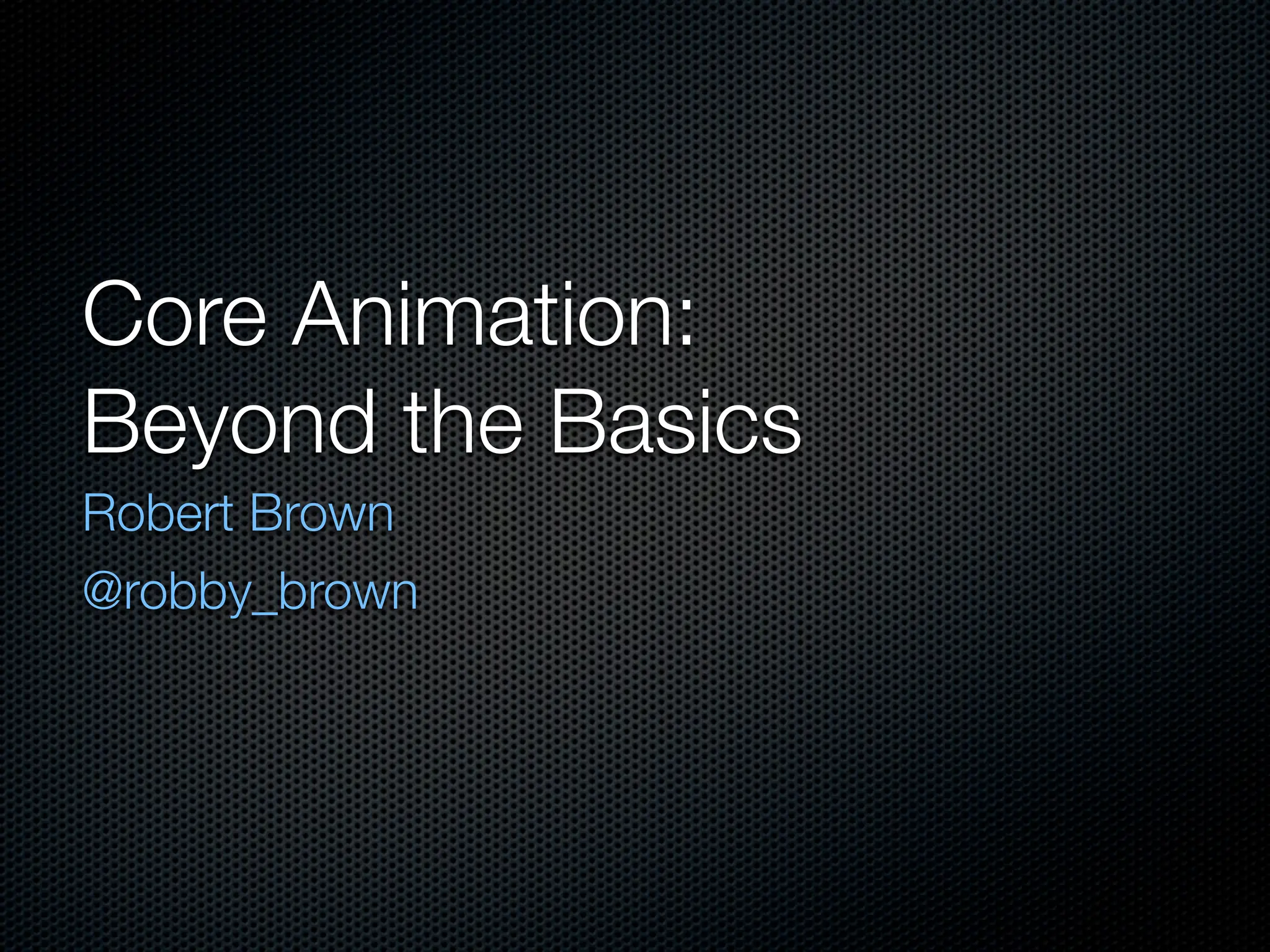

Core Animation:
Beyond the Basics
Robert Brown
@robby_brown

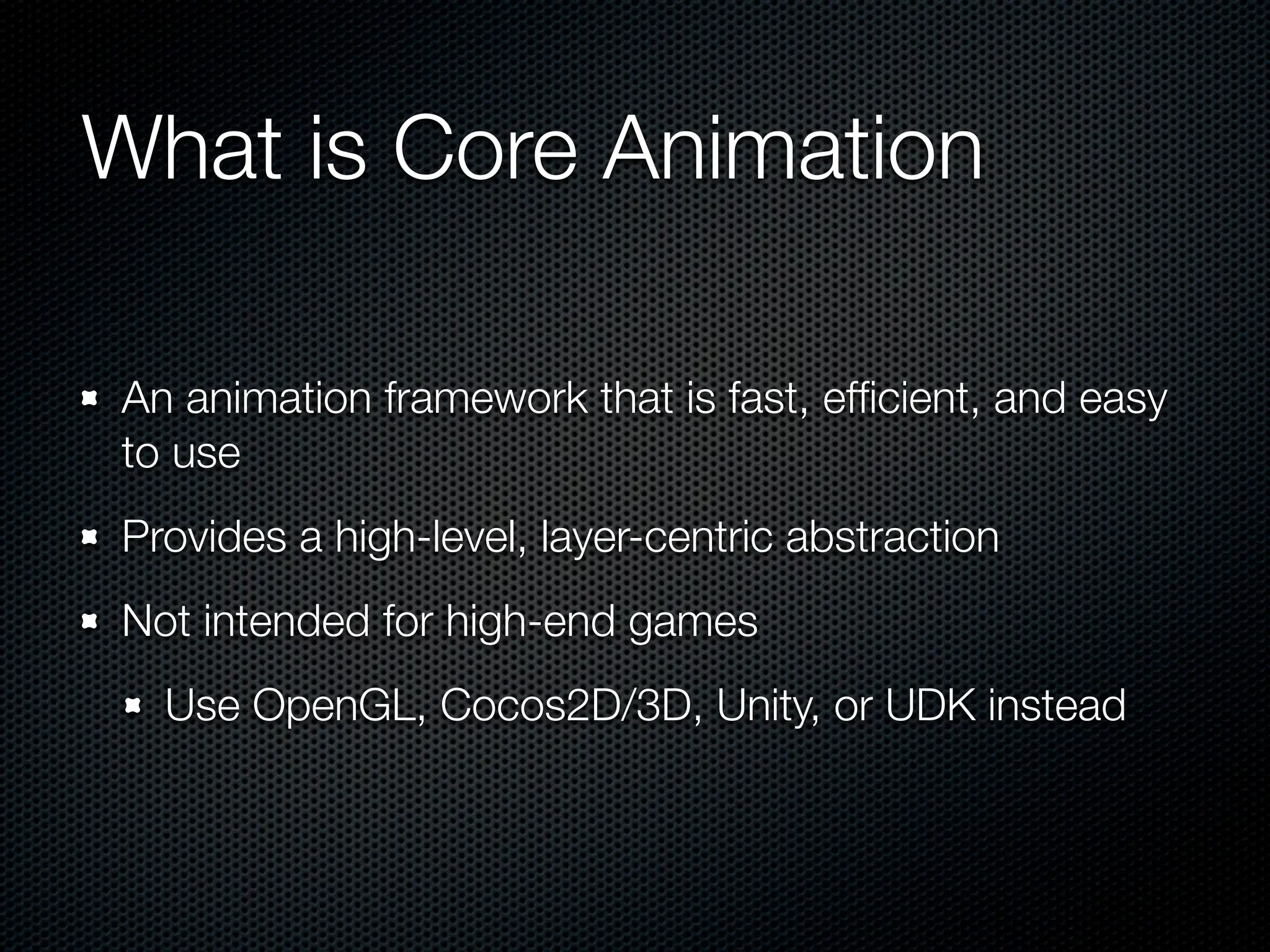

What is Core Animation

An animation framework that is fast, efficient, and easy
to use
Provides a high-level, layer-centric abstraction
Not intended for high-end games
  Use OpenGL, Cocos2D/3D, Unity, or UDK instead
Reviewing the Basics
CABasicAnimation

Provides some basic properties:
  fromValue
  toValue
  byValue
CABasicAnimation

fromValue & toValue => Interpolates from fromValue to
toValue
fromValue & byValue => Interpolates from fromValue to
(fromValue + byValue)
byValue & toValue => Interpolates from (toValue -
byValue) to toValue
CABasicAnimation

fromValue => Interpolates from current value to
fromValue
toValue => Interpolates from toValue to current value
byValue => Interpolates from current value to (current
value + byValue)
CABasicAnimation

CABasicAnimation * scaleAnimation =

[CABasicAnimation animationWithKeyPath:@"transform.scale"];

 scaleAnimation.duration = 1.0f;      // CGFloat
 scaleAnimation.fromValue = @0.0f;    // NSNumber
 scaleAnimation.toValue   = @1.0f;    // NSNumber

 [myView.layer addAnimation:scaleAnimation forKey:@"scale"];
CABasicAnimation

CABasicAnimation * shrinkAnimation =

[CABasicAnimation animationWithKeyPath:@"frame"];

 shrinkAnimation.duration = 1.0f;
 shrinkAnimation.fromValue = [NSValue valueWithCGRect:
   CGRectMake(0.0f, 0.0f, 320.0f, 480.0f)];
 shrinkAnimation.toValue   = [NSValue valueWithCGRect:
   CGRectMake(80.0f, 120.0f, 160.0f, 240.0f)];

 [myView.layer addAnimation:shrinkAnimation forKey:@"shrink"];
CAAnimationGroup


Allows many animations to be run simultaneously on
the same layer
Changing the duration of the group affects each of the
animations in the group
CAAnimationGroup


CAAnimationGroup * group = [CAAnimationGroup animation];

 group.duration   = 1.0f;
 group.animations = @[moveAnimation, scaleAnimation];

 [myView.layer addAnimation:group forKey:@"group"];
UIView Block Animation

UIView provides a convenient method called
+animateWithDuration:animations:completion:
Most UIView properties are animatable
Block animation can do anything a group of basic
animations can do
UIView Animatable
Properties

 frame         alpha
 bounds        backgroundColor
 center        contentStretch
 transform
UIView Block Animation

myView.transform = CGAffineTransformMakeScale(0.0f, 0.0f);


[UIView animateWithDuration:1.0f animations:^{

      CGPoint center = myView.center;
      center.y += 10.0f;
      myView.center = center;

      myView.transform = CGAffineTransformMakeScale(1.0f, 1.0f);
}];
Beyond the Basics
CAKeyFrameAnimation


Allows specific values at specific times
Core Animation interpolates between specified values
Alternatively allows a path to be specified
CAKeyFrameAnimation


   CAKeyframeAnimation * scaleAnimation =
[CAKeyframeAnimation animationWithKeyPath:@"transform.scale"];

scaleAnimation.keyTimes = @[@0.0f, @0.1f, @0.6f, @1.0f];
scaleAnimation.values   = @[@0.0f, @1.0f, @1.0f, @0.0f];

[myView.layer addAnimation:scaleAnimation forKey:@"scale"];
CAKeyFrameAnimation
CAKeyframeAnimation * moveAnimation =

[CAKeyframeAnimation animationWithKeyPath:@"position"];

 moveAnimation.calculationMode = kCAAnimationLinear;

 CGMutablePathRef curvedPath = CGPathCreateMutable();
 CGPathMoveToPoint(curvedPath, NULL, fromPoint.x, fromPoint.y);
 CGPathAddCurveToPoint(curvedPath,
                       NULL,
                       fromPoint.x, toPoint.y,
                       fromPoint.x, toPoint.y,
                       toPoint.x, toPoint.y);
 moveAnimation.path = curvedPath;
 CGPathRelease(curvedPath);

[myView.layer addAnimation:moveAnimation forKey:@"move"];
Demo
CAEmitterLayer

Used for particle effects
Automatically creates and animates particles from
CAEmitterCell objects
Many properties have built-in random ranges
Available since iOS 5
CAEmitterCell
contents       scaleSpeed   magnificationFilter
color          velocity     emissionLatitude
emitterCells   scale        emissionLongitude
spin           redSpeed     xAcceleration
lifetime       greenSpeed   yAcceleration
name           blueSpeed    zAcceleration
birthRate      alphaSpeed   ...and many more
CAEmitterLayer

1.Create a custom UIView
2.Set layer class to CAEmitterLayer
3.Create CAEmitterCell(s)
4.Add the cell(s) to the layer.
5.(Optional) Add sub-cell(s) to the layer’s cell(s)
Demo
Want to Learn More?

Core Animation for Mac OS X and the iPhone
WWDC 2010 424/425
WWDC 2011 421
WWDC 2012 238
Apple Docs
Questions?
