The document outlines various aspects of system software integration for embedded systems, focusing on continuous integration tools and automated testing processes. It discusses the use of open-source tools like Jenkins, Linaro's solutions for managing build farms, and various testing frameworks for Linux kernels. Additionally, it touches on custom solutions, infrastructure costs, and the importance of firmware upgrades in the context of embedded device testing.

1. System Software
Integrator for embedded
success
Continuous Integration for BSP

2. 2

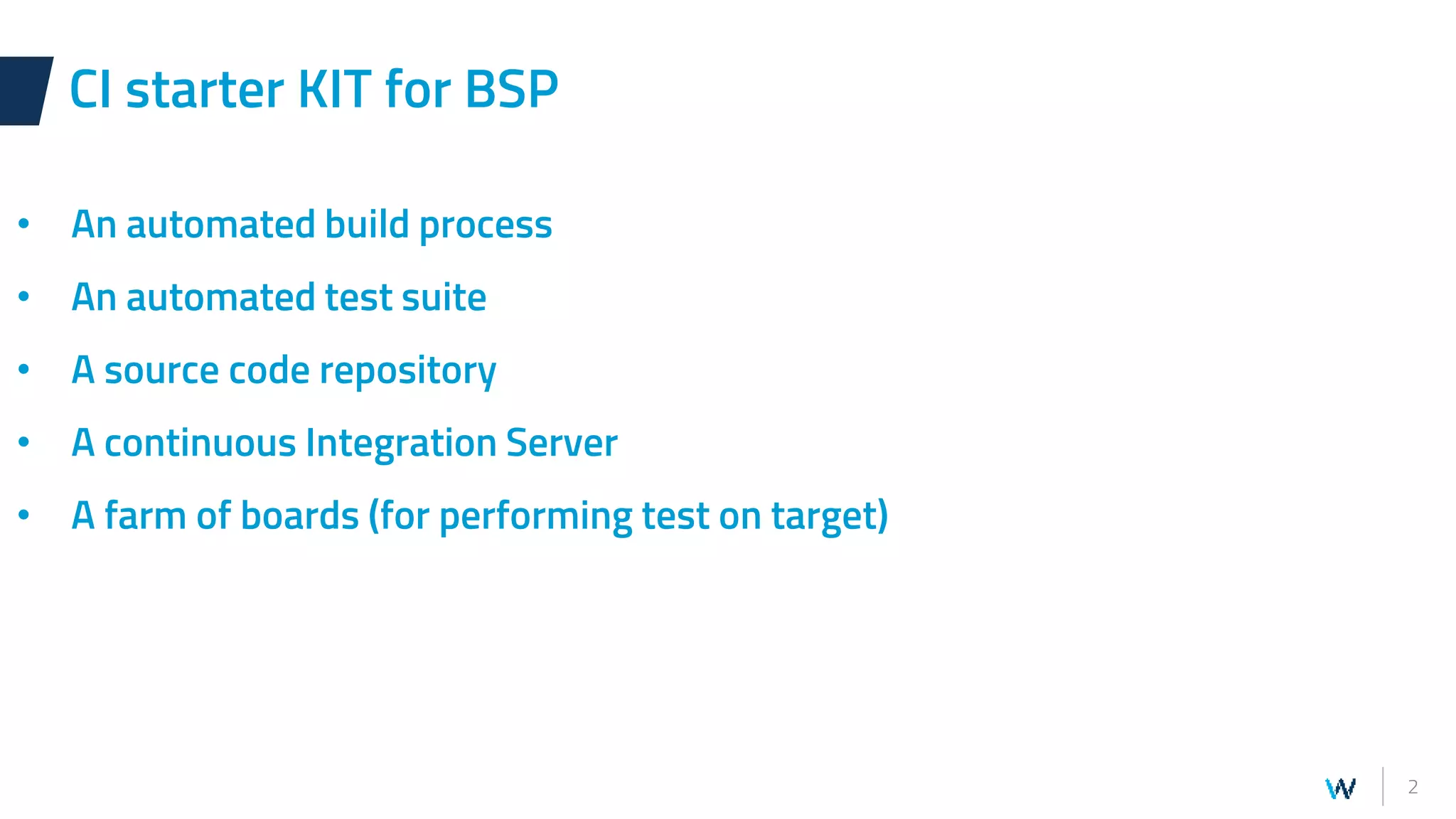

CI starter KIT for BSP
• An automated build process
• An automated test suite
• A source code repository
• A continuous Integration Server
• A farm of boards (for performing test on target)

3. 3

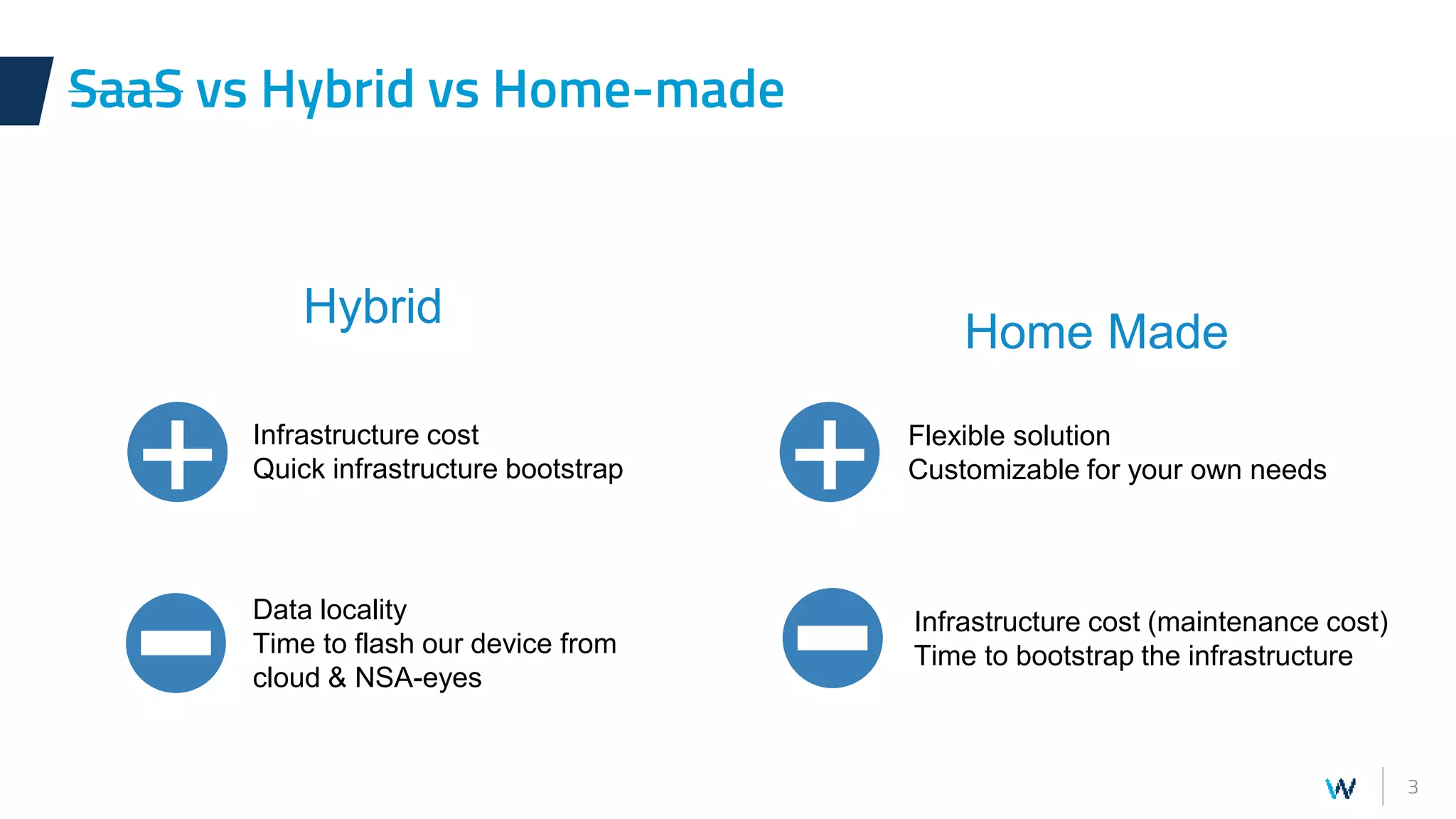

Hybrid
SaaS vs Hybrid vs Home-made
+ Infrastructure cost
Quick infrastructure bootstrap
Data locality
Time to flash our device from
cloud & NSA-eyes
Home Made
Flexible solution
Customizable for your own needs
Infrastructure cost (maintenance cost)
Time to bootstrap the infrastructure
+

4. 4

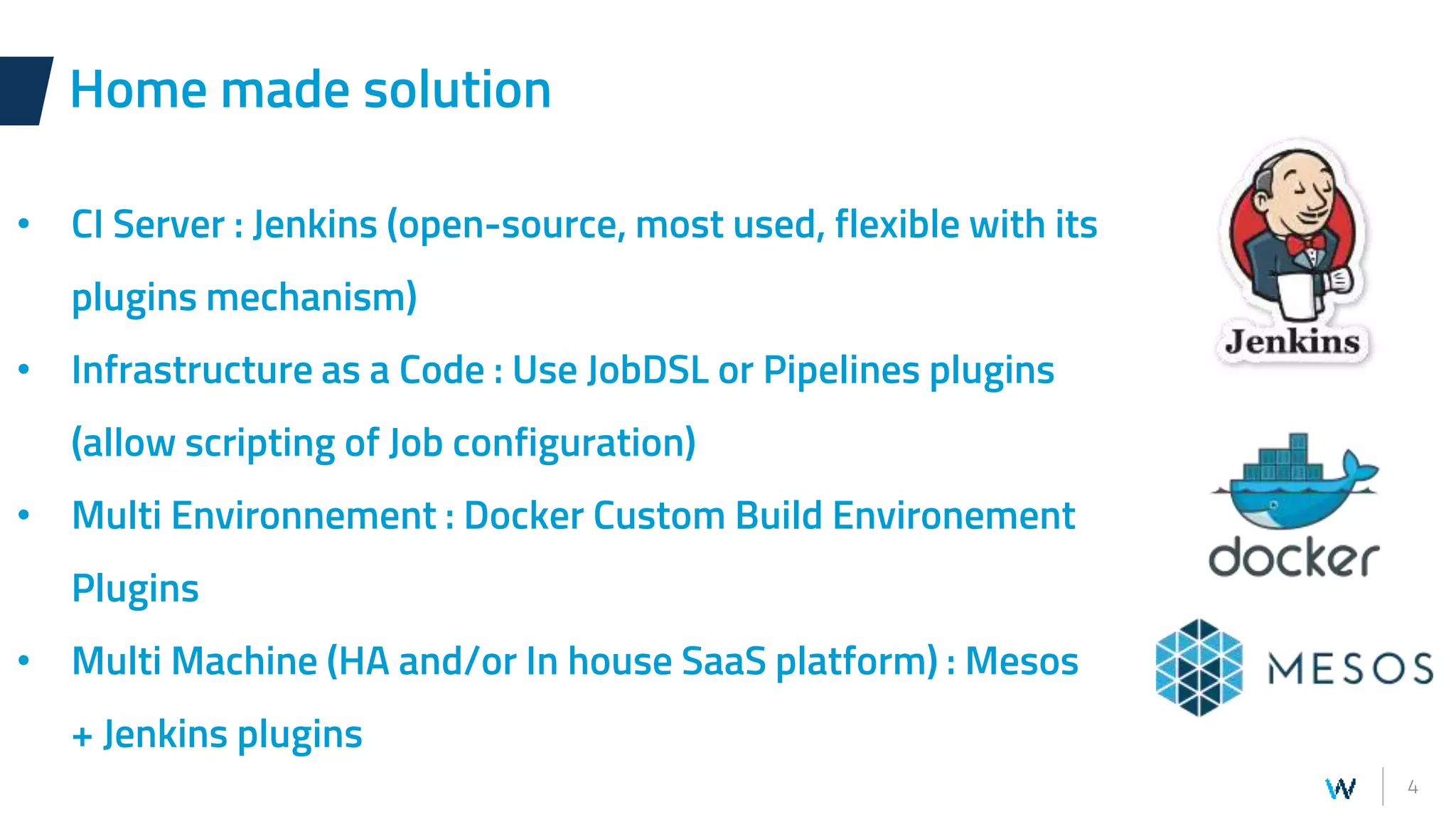

Home made solution
• CI Server : Jenkins (open-source, most used, flexible with its
plugins mechanism)
• Infrastructure as a Code : Use JobDSL or Pipelines plugins
(allow scripting of Job configuration)
• Multi Environnement : Docker Custom Build Environement
Plugins
• Multi Machine (HA and/or In house SaaS platform) : Mesos
+ Jenkins plugins

5. 5

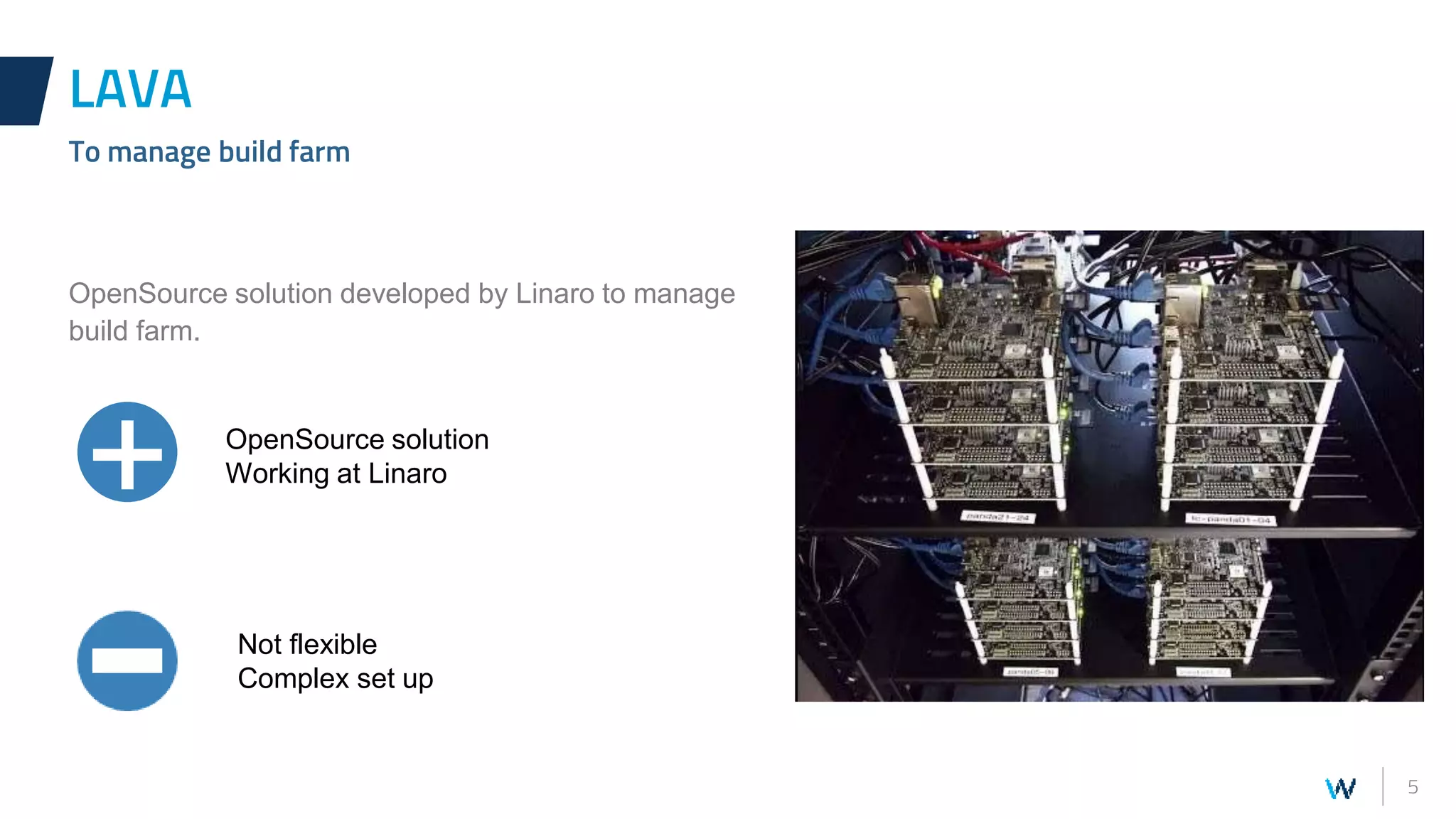

OpenSource solution developed by Linaro to manage
build farm.
LAVA
To manage build farm
+ OpenSource solution
Working at Linaro
Not flexible
Complex set up

6. 6

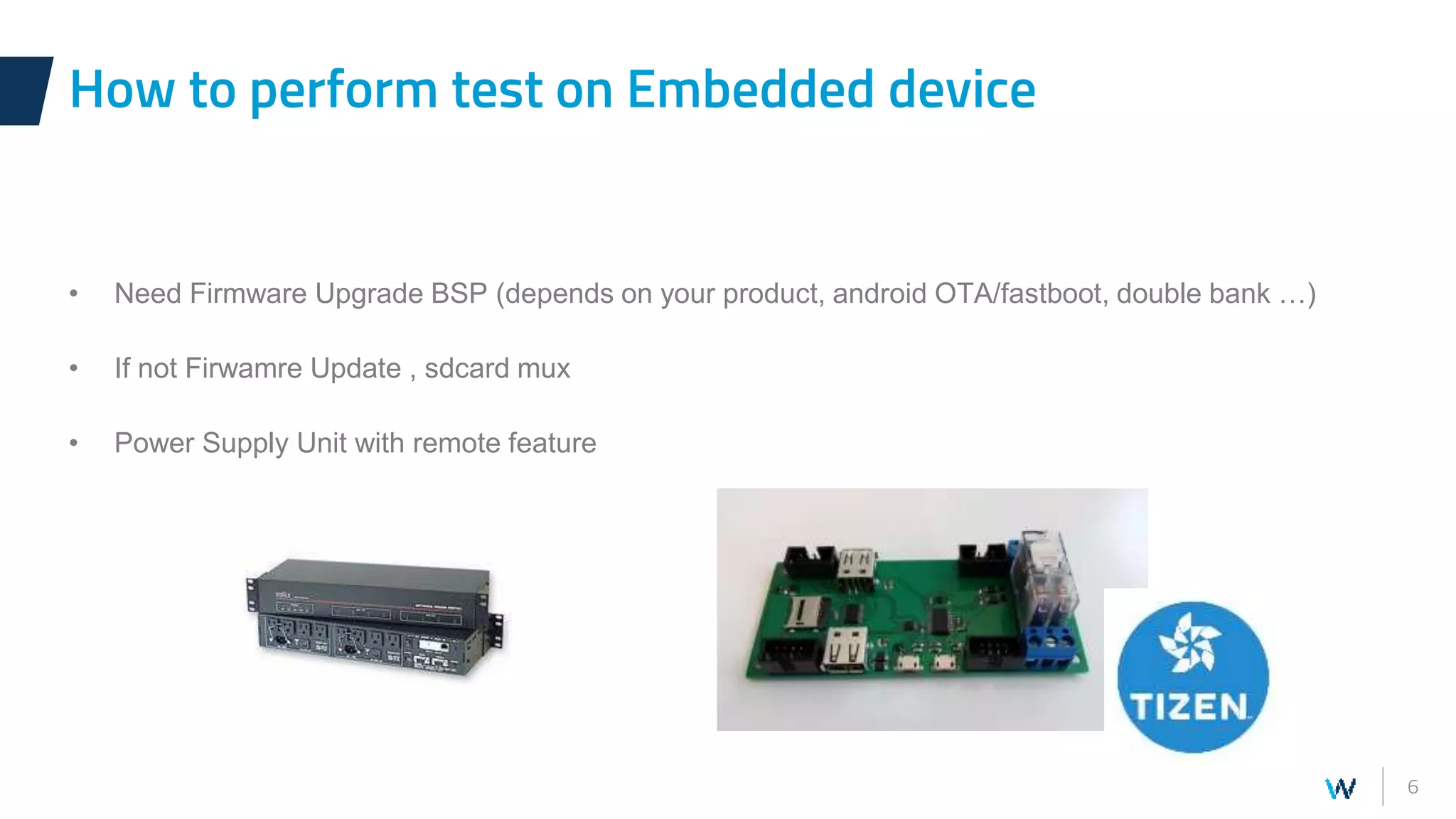

• Need Firmware Upgrade BSP (depends on your product, android OTA/fastboot, double bank …)
• If not Firwamre Update , sdcard mux
• Power Supply Unit with remote feature
How to perform test on Embedded device

7. 7

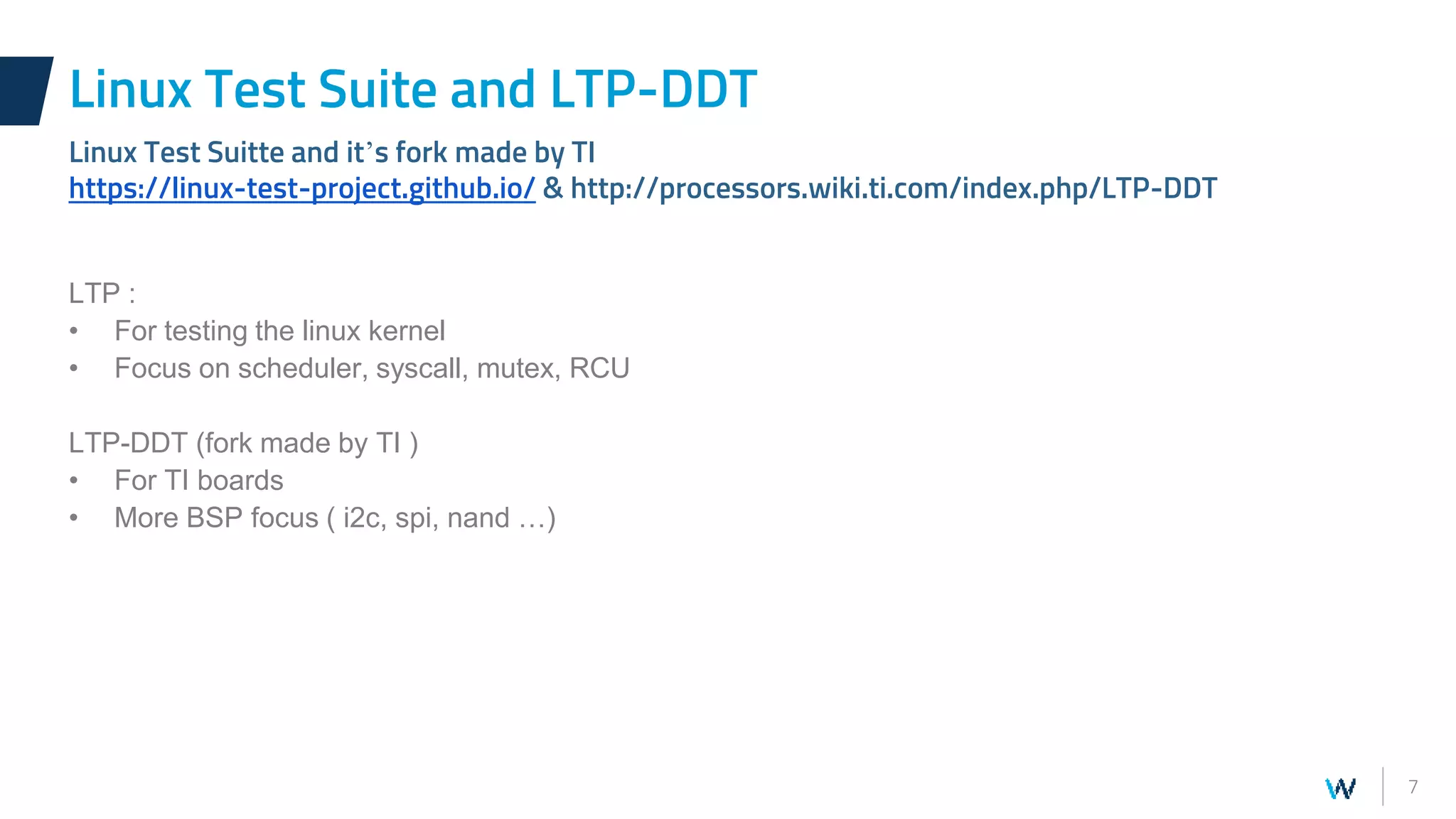

LTP :
• For testing the linux kernel
• Focus on scheduler, syscall, mutex, RCU
LTP-DDT (fork made by TI )
• For TI boards
• More BSP focus ( i2c, spi, nand …)
Linux Test Suite and LTP-DDT
Linux Test Suitte and it’s fork made by TI
https://linux-test-project.github.io/ & http://processors.wiki.ti.com/index.php/LTP-DDT

8. 8

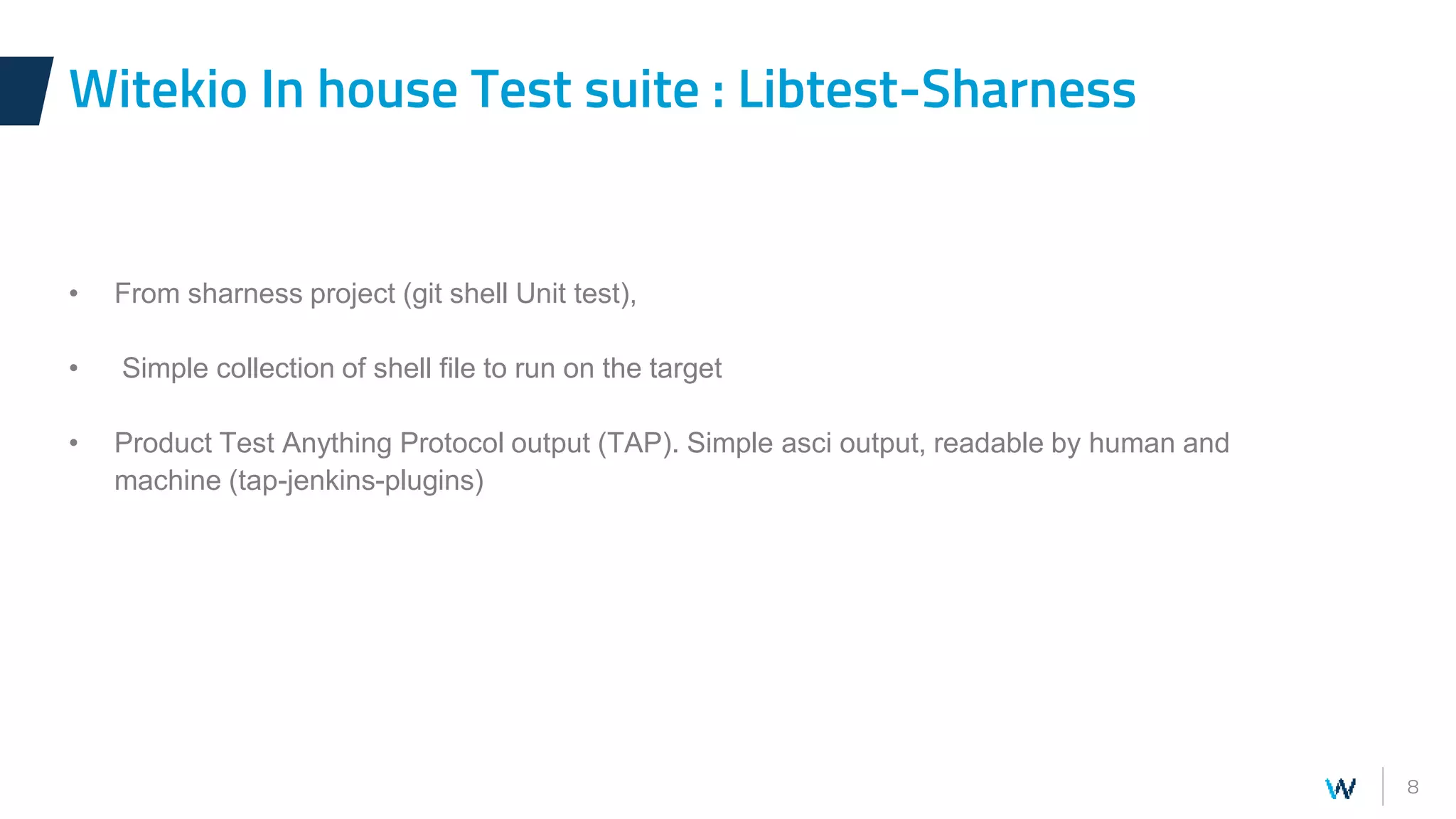

• From sharness project (git shell Unit test),
• Simple collection of shell file to run on the target
• Product Test Anything Protocol output (TAP). Simple asci output, readable by human and
machine (tap-jenkins-plugins)
Witekio In house Test suite : Libtest-Sharness

9. 9

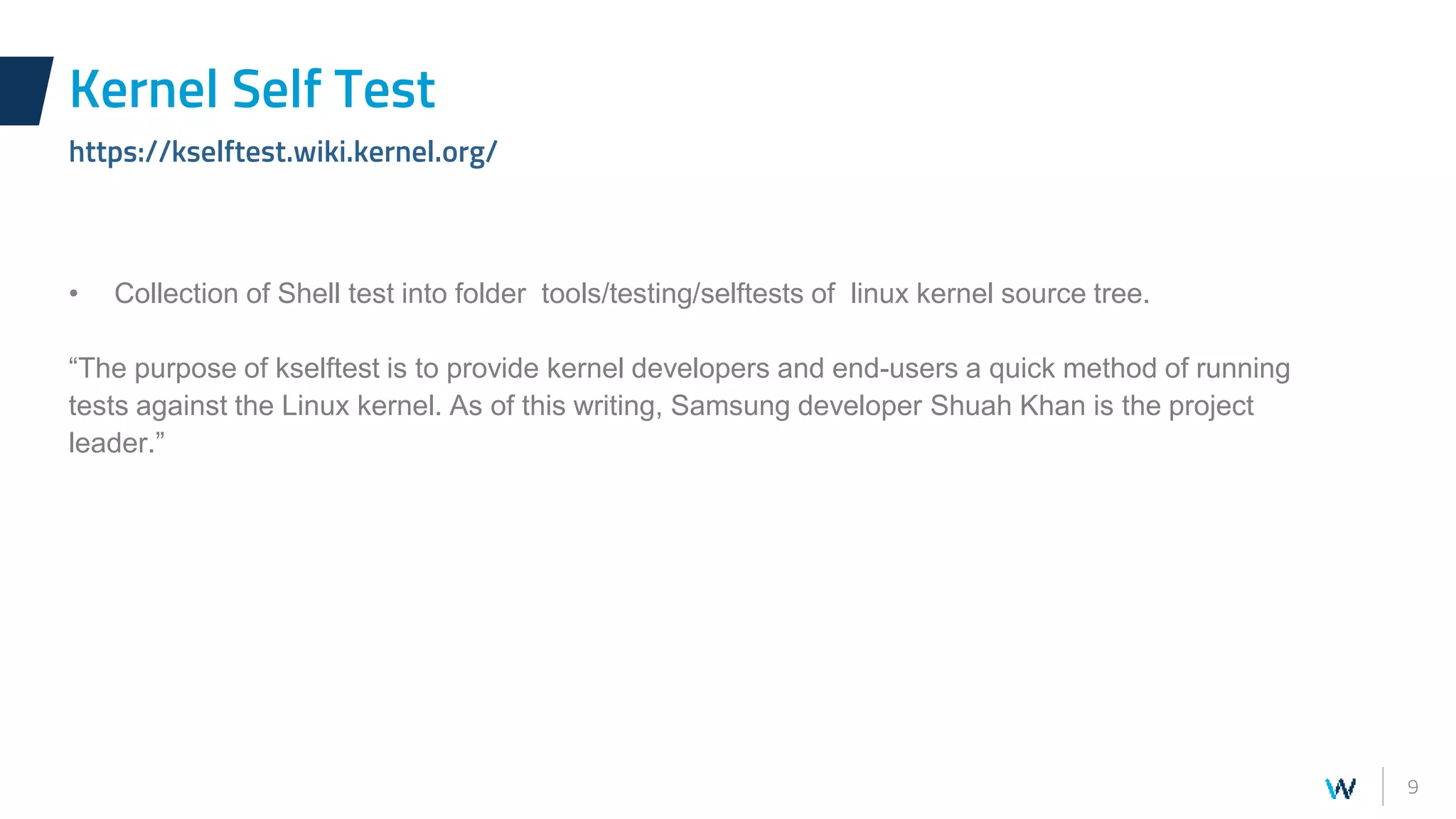

• Collection of Shell test into folder tools/testing/selftests of linux kernel source tree.
“The purpose of kselftest is to provide kernel developers and end-users a quick method of running
tests against the Linux kernel. As of this writing, Samsung developer Shuah Khan is the project
leader.”
Kernel Self Test
https://kselftest.wiki.kernel.org/

10. 10

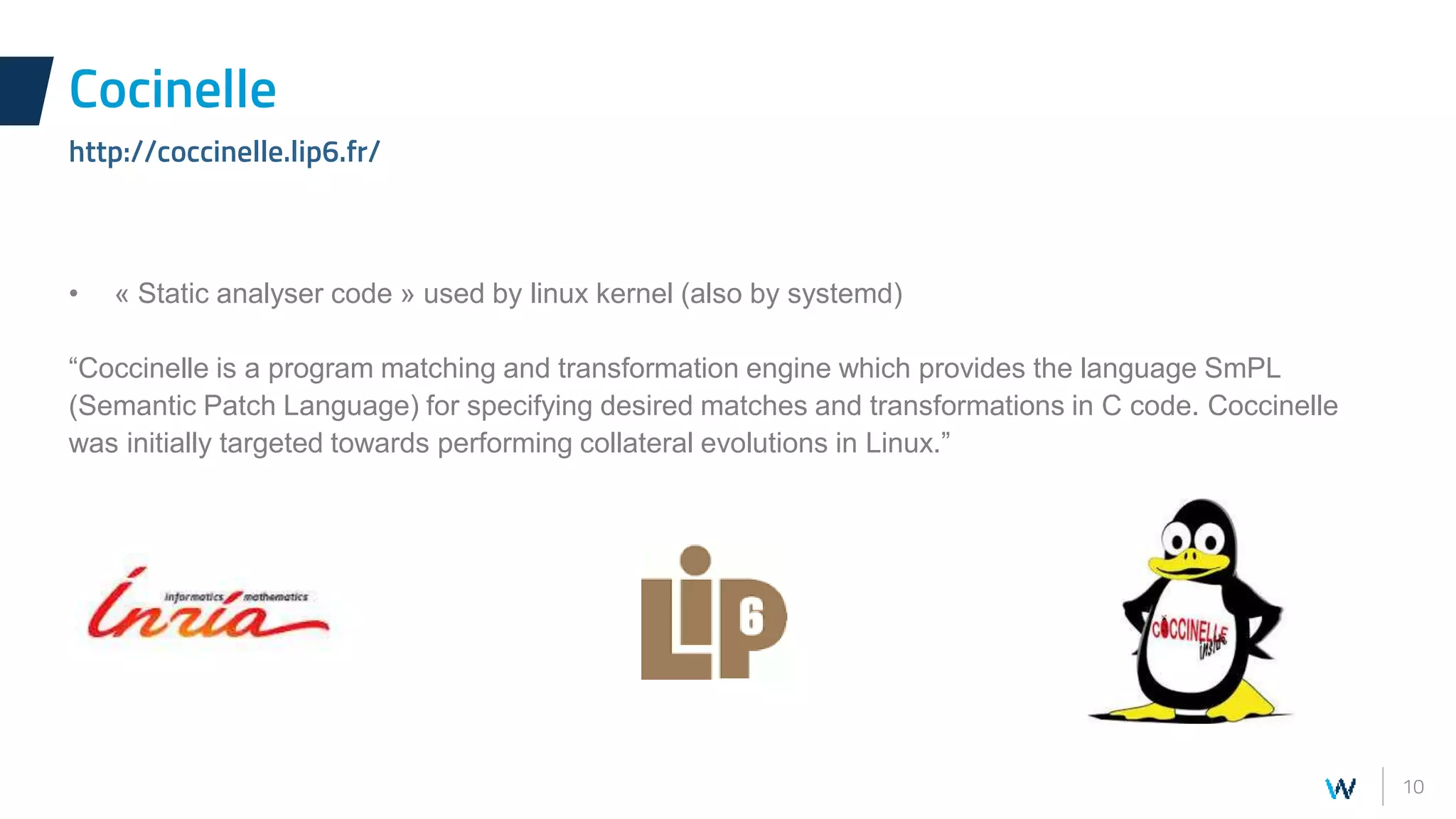

• « Static analyser code » used by linux kernel (also by systemd)
“Coccinelle is a program matching and transformation engine which provides the language SmPL
(Semantic Patch Language) for specifying desired matches and transformations in C code. Coccinelle
was initially targeted towards performing collateral evolutions in Linux.”
Cocinelle
http://coccinelle.lip6.fr/

11. 11

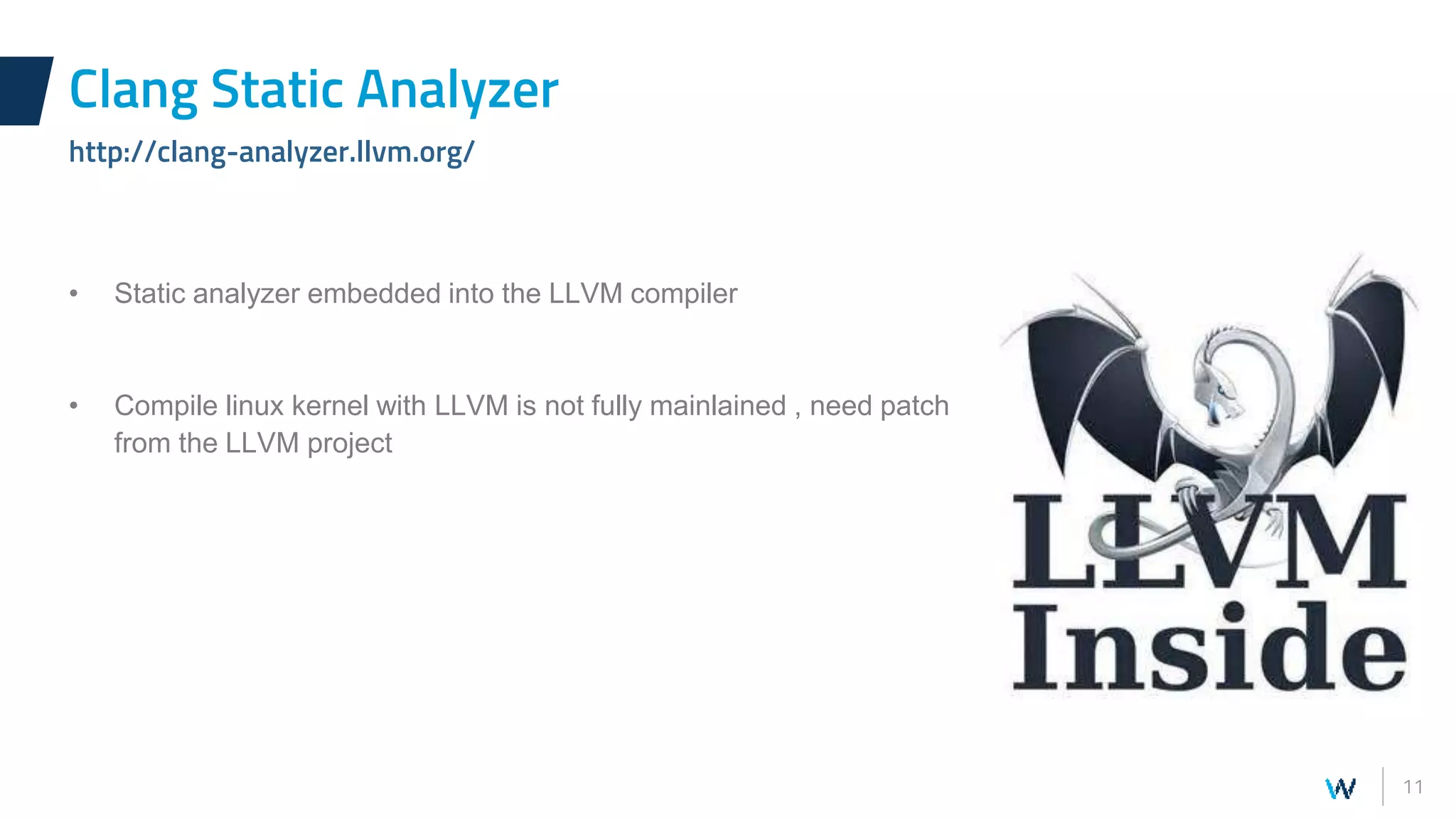

• Static analyzer embedded into the LLVM compiler
• Compile linux kernel with LLVM is not fully mainlained , need patch
from the LLVM project
Clang Static Analyzer
http://clang-analyzer.llvm.org/

12. 12

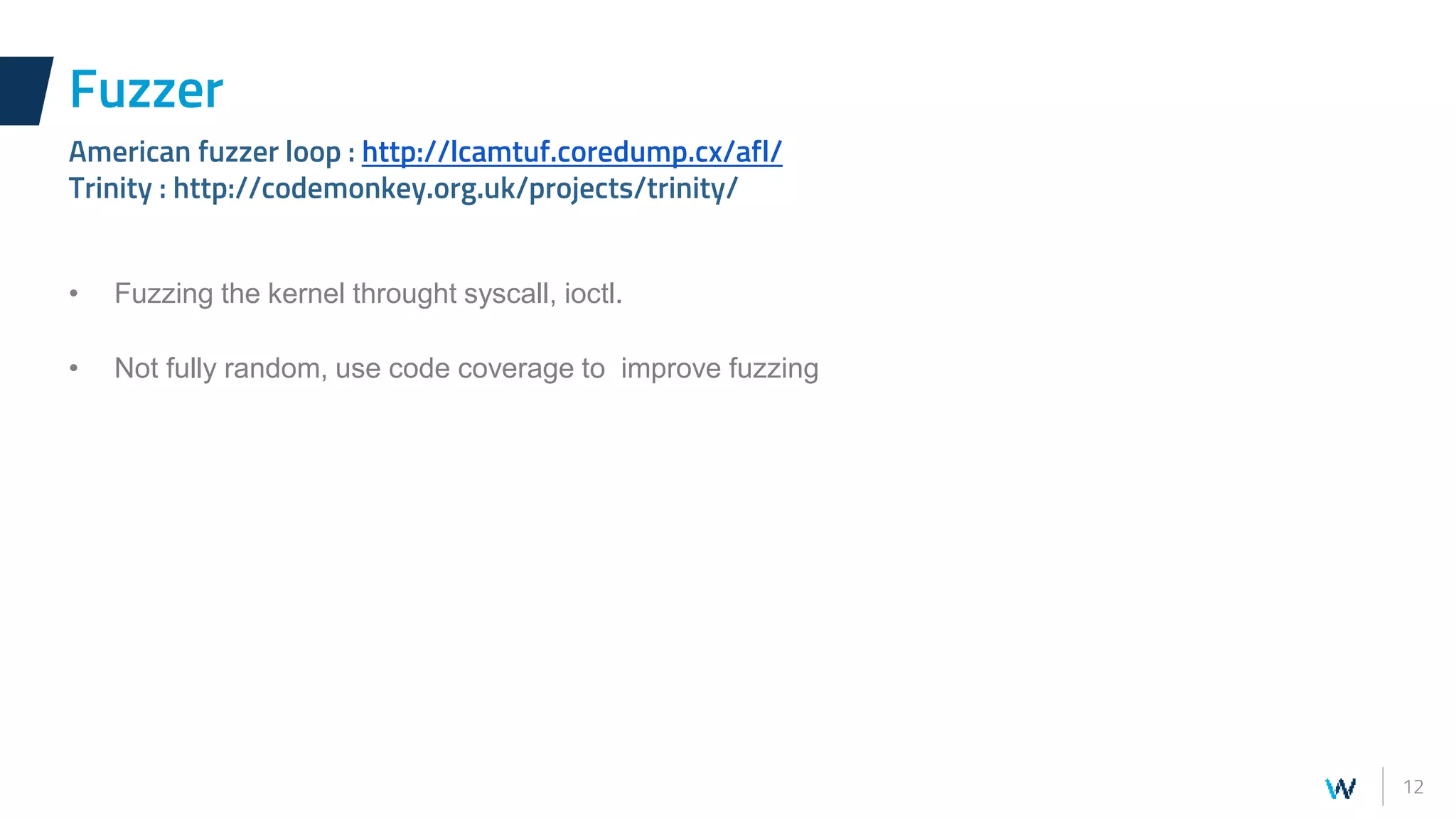

• Fuzzing the kernel throught syscall, ioctl.
• Not fully random, use code coverage to improve fuzzing
Fuzzer
American fuzzer loop : http://lcamtuf.coredump.cx/afl/
Trinity : http://codemonkey.org.uk/projects/trinity/

13. 13

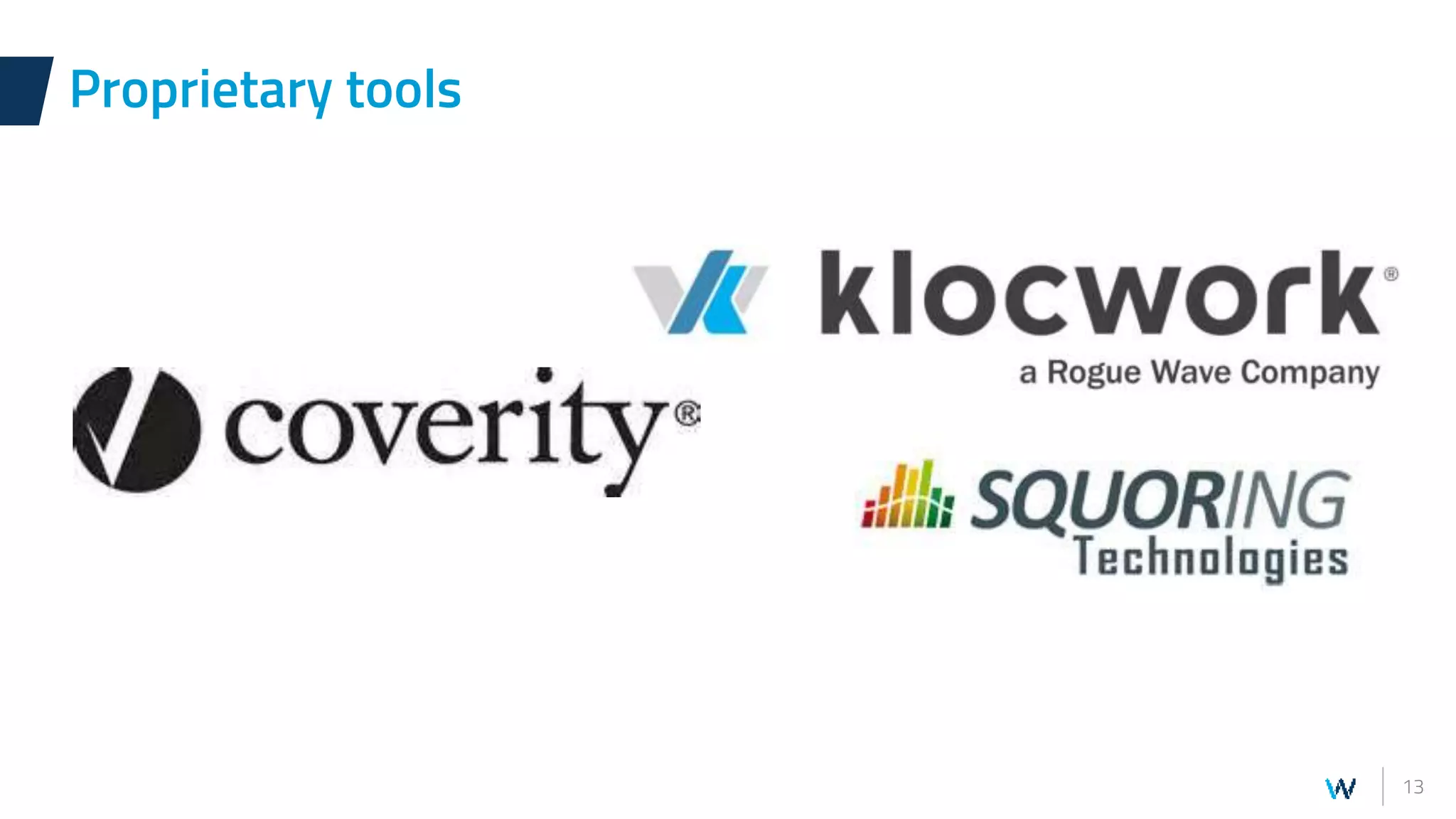

Proprietary tools

14. Headquarter
4, chemin du ruisseau
69134, Ecully France
Phone : + 33 4 26 25 39
Fax : + 33 4 72 18 08 41
sales.emea@witekio.com
Witekio USA
3150 Richards Roads Suite 210 Bellevue,
WA, 98005, USA
Phone : + 1 425 749 4335
Fax : + 1 425 818 1911
sales.amer@witekio.com
Witekio Germany
Am Wartfeld- 61169
Friedberg, Germany
Phone : + 49 6031 693 7070
Fax : + 49 6031 693 707 29
sales.dach@witekio.com
Witekio Asia
C/O 14F-3, No. 57, Fuxing Nth Rd,
Songshan District,
Taipei, 10595, Taiwan
Phone : +886 2 2740 0394
sales.asia@witekio.com
©2016 Witekio & Subsidiaries. All Rights Reserved.
This document and the information it contains is confidential and remains the property of our company. It may not be copied or communicated to a third party or used for any purpose other than that for which it is supplied without the prior written consent of our company.

15. Thanks
