1. www.mainiotech.fi
Antti Hukkanen / CEO, Mainio Tech Oy
concrete5 from developer
perspective
concrete5 café - 28.10.2014

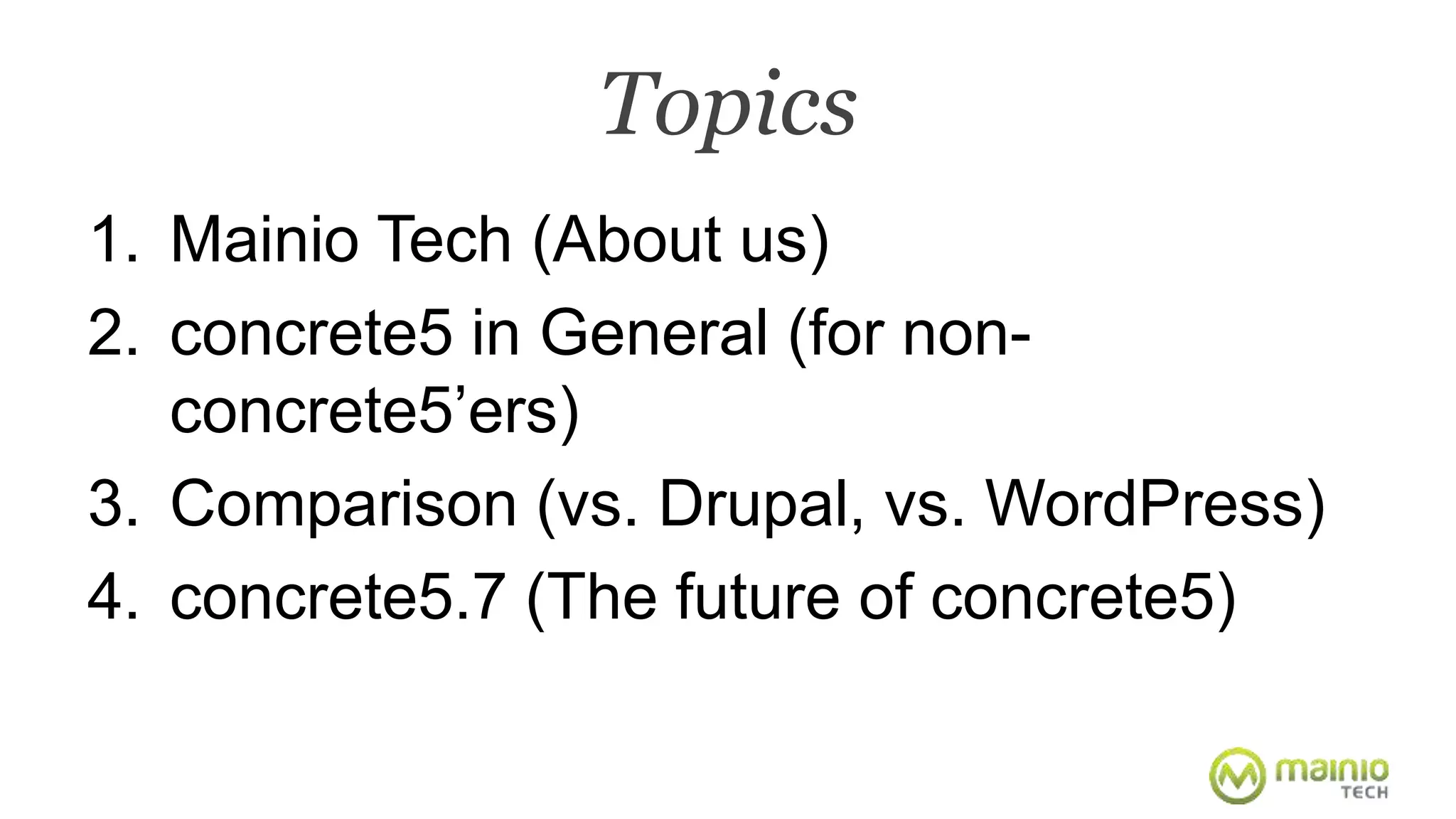

2. Topics
1. Mainio Tech (About us)
2. concrete5 in General (for non-concrete5’
ers)
3. Comparison (vs. Drupal, vs. WordPress)
4. concrete5.7 (The future of concrete5)

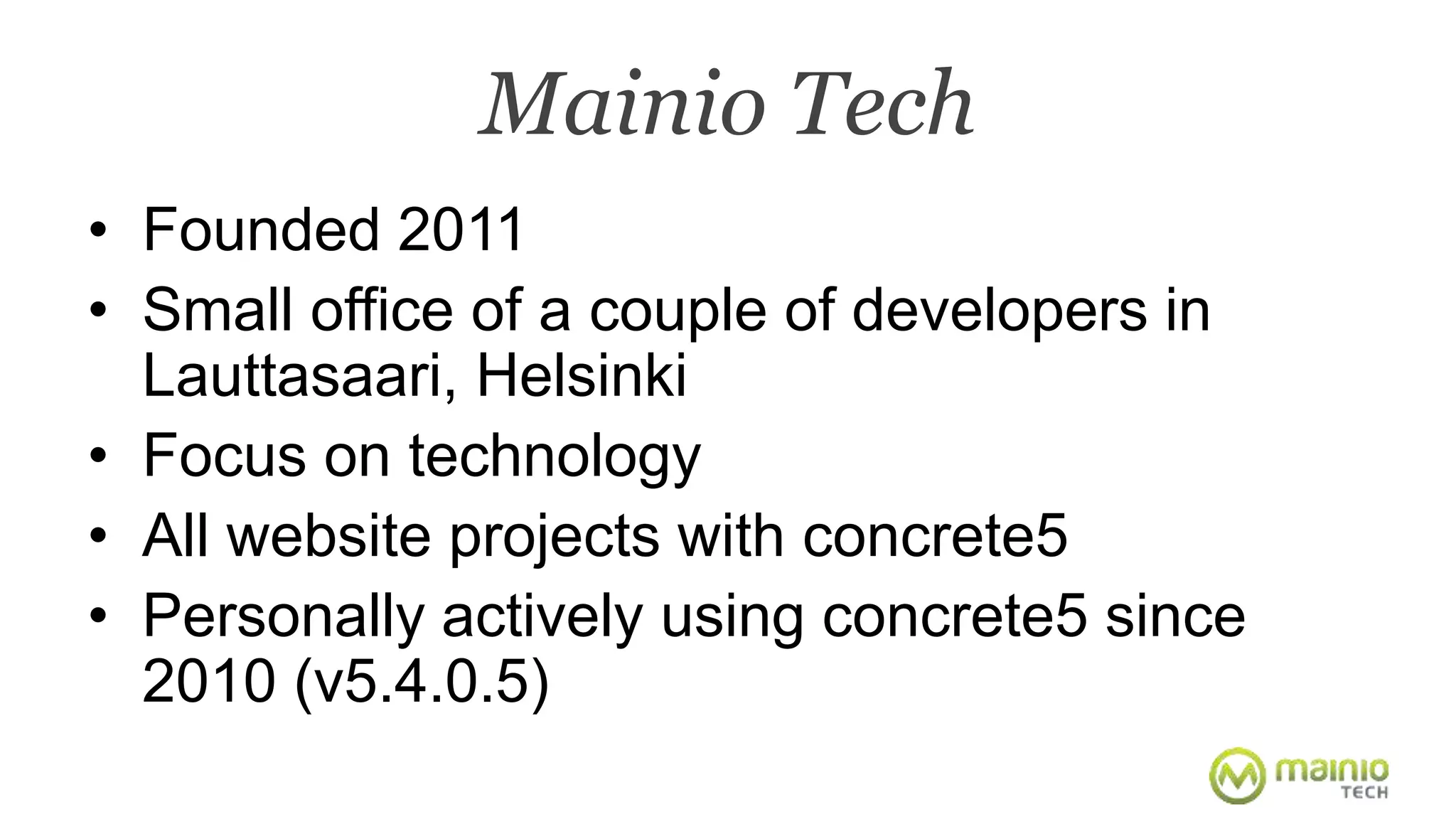

3. Mainio Tech
• Founded 2011
• Small office of a couple of developers in
Lauttasaari, Helsinki
• Focus on technology
• All website projects with concrete5
• Personally actively using concrete5 since
2010 (v5.4.0.5)

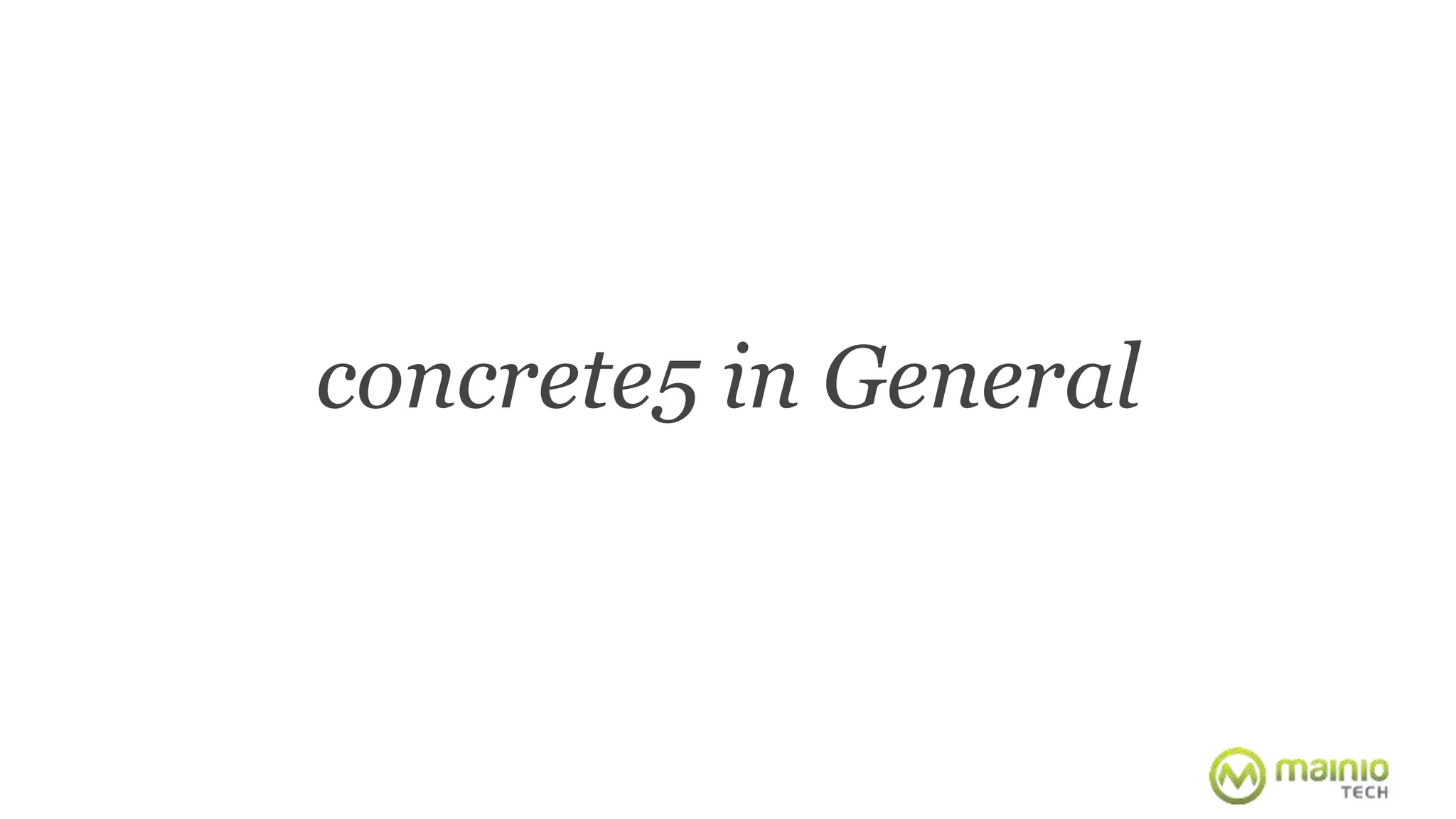

4. concrete5 in General

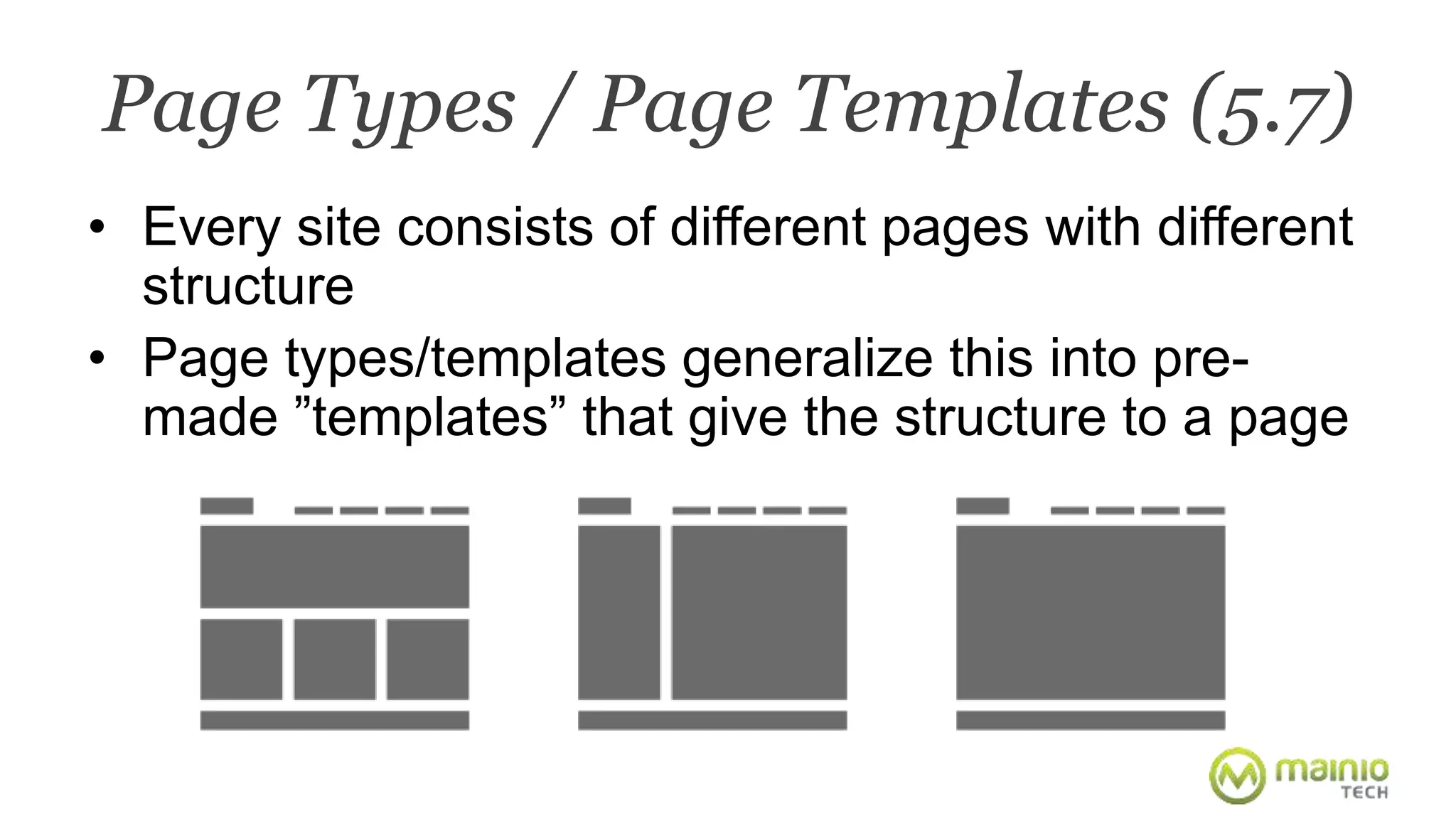

5. Page Types / Page Templates (5.7)
• Every site consists of different pages with different
structure
• Page types/templates generalize this into pre-made
”templates” that give the structure to a page

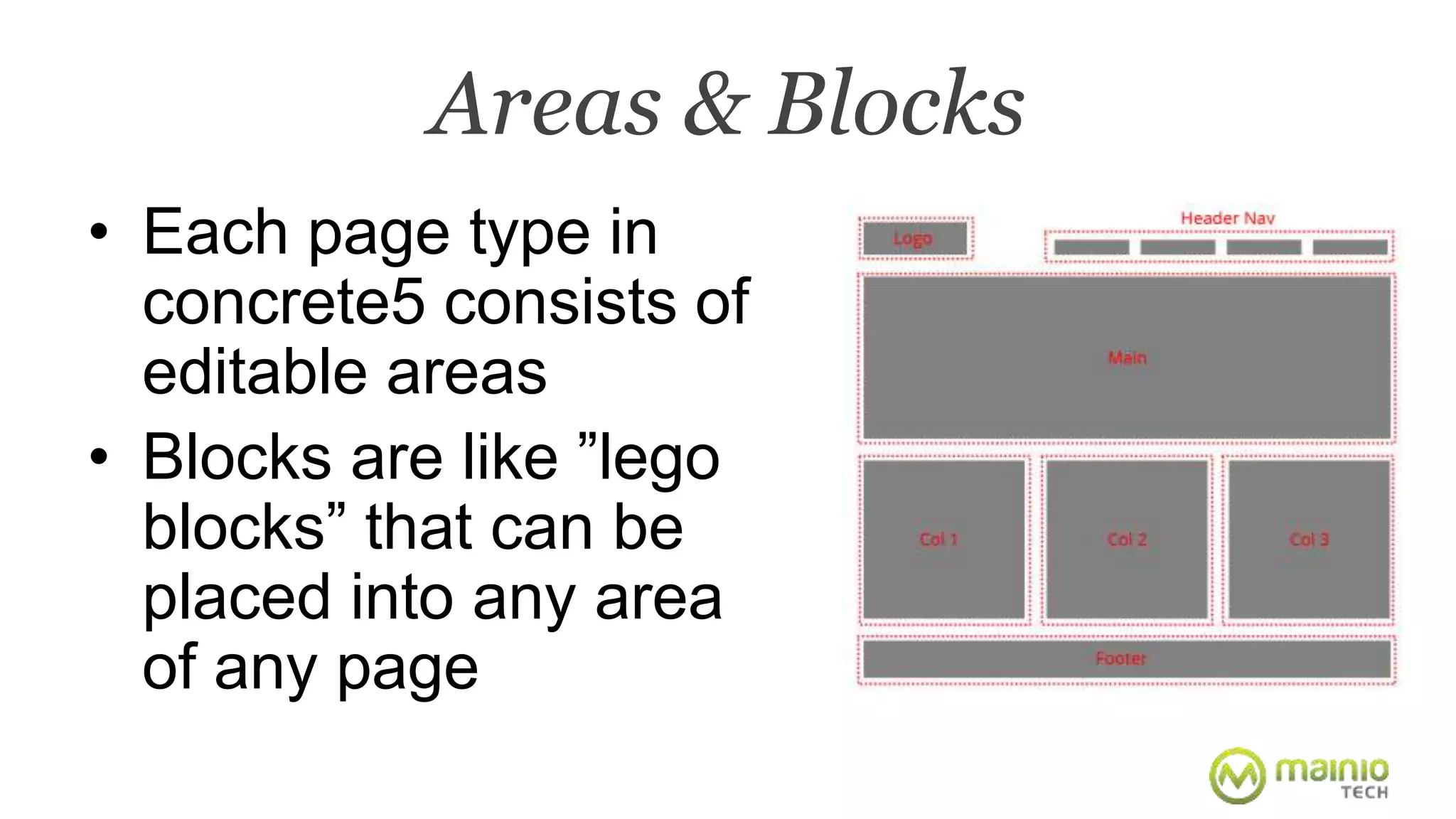

6. Areas & Blocks
• Each page type in
concrete5 consists of
editable areas
• Blocks are like ”lego
blocks” that can be
placed into any area
of any page

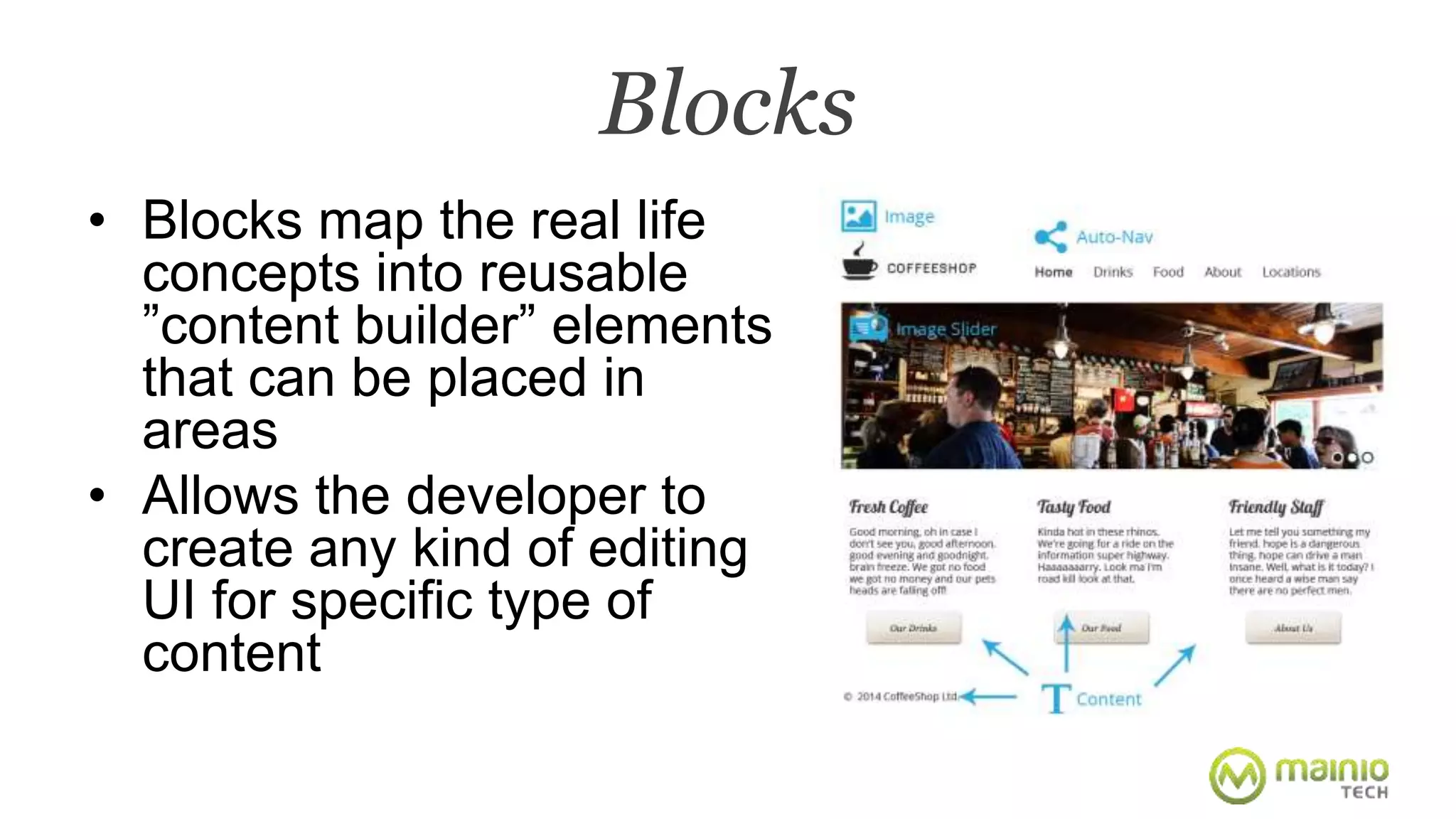

7. Blocks
• Blocks map the real life
concepts into reusable
”content builder” elements
that can be placed in
areas
• Allows the developer to
create any kind of editing
UI for specific type of
content

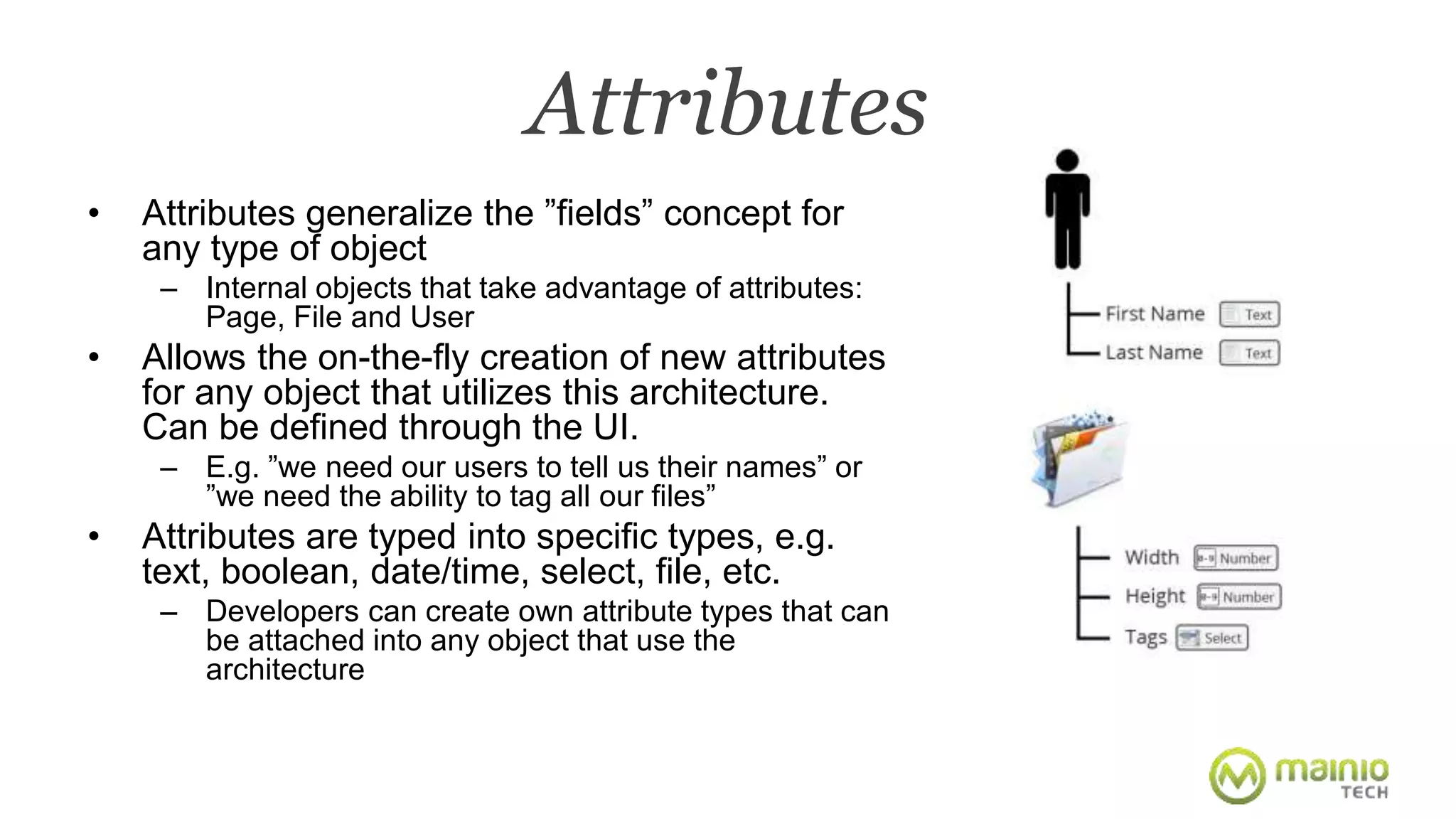

8. Attributes
• Attributes generalize the ”fields” concept for
any type of object
– Internal objects that take advantage of attributes:
Page, File and User
• Allows the on-the-fly creation of new attributes
for any object that utilizes this architecture.
Can be defined through the UI.
– E.g. ”we need our users to tell us their names” or
”we need the ability to tag all our files”
• Attributes are typed into specific types, e.g.
text, boolean, date/time, select, file, etc.
– Developers can create own attribute types that can
be attached into any object that use the
architecture

9. Single Pages
• Single purpose pages with view layer and
controller
– E.g. registration, login, dashboard pages, etc.
• ”Using concrete5 as a framework”
• Mainly used to build dashboard functionality
• Not great for multilingual sites
– Page types are better for ML sites, they also provide
the same kind of architecture (view-controller)

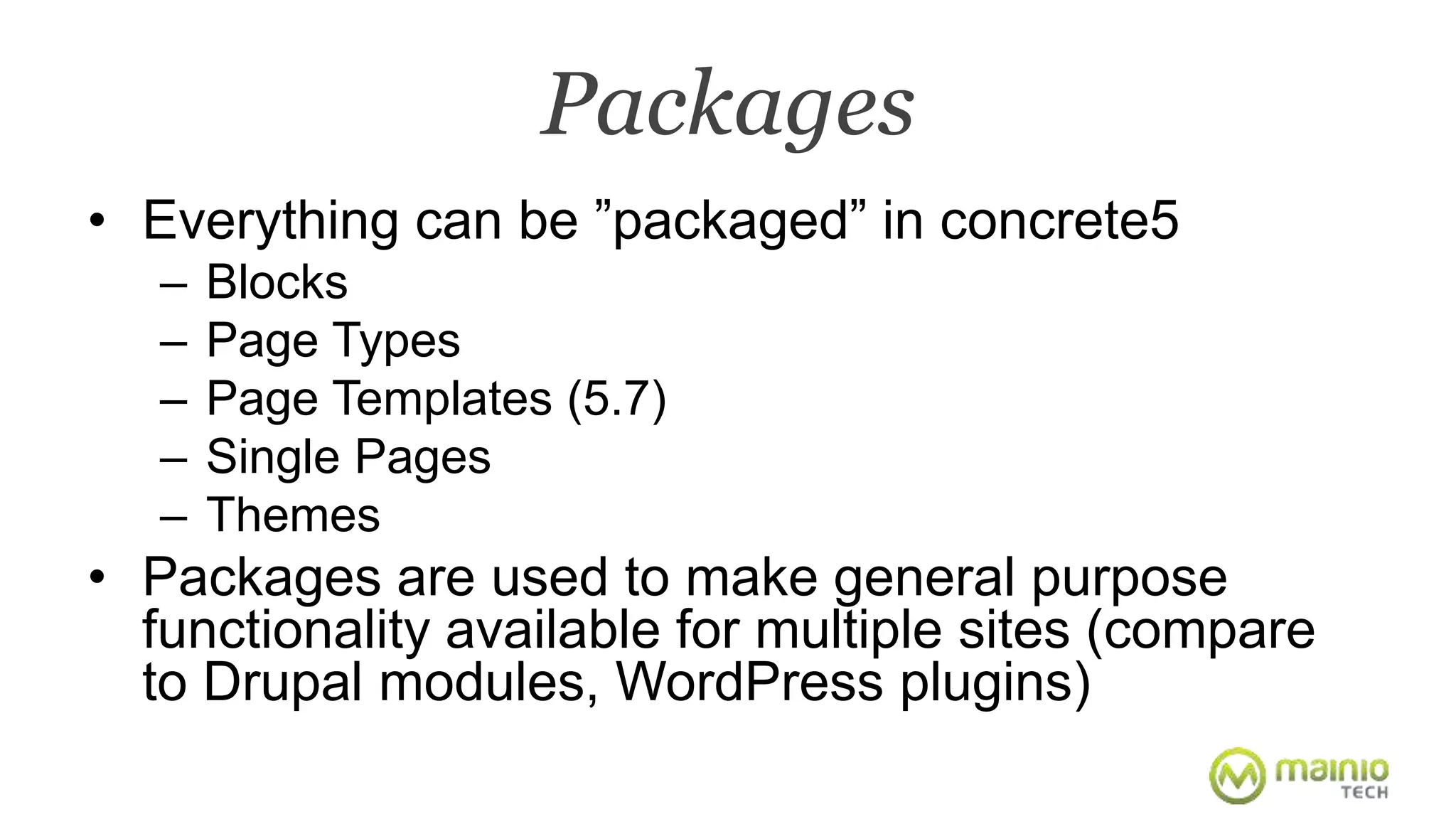

10. Packages
• Everything can be ”packaged” in concrete5
– Blocks
– Page Types
– Page Templates (5.7)
– Single Pages
– Themes
• Packages are used to make general purpose
functionality available for multiple sites (compare
to Drupal modules, WordPress plugins)

11. Some Technical Points
• MVC
– Blocks (view-controller)
– Page Types (view-controller)
– Single Pages (view-controller)
• Overrides architecture allows overriding any
part/file of the core
• Database abstraction layer (ADODB in 5.6,
Doctrine 2 in 5.7->)

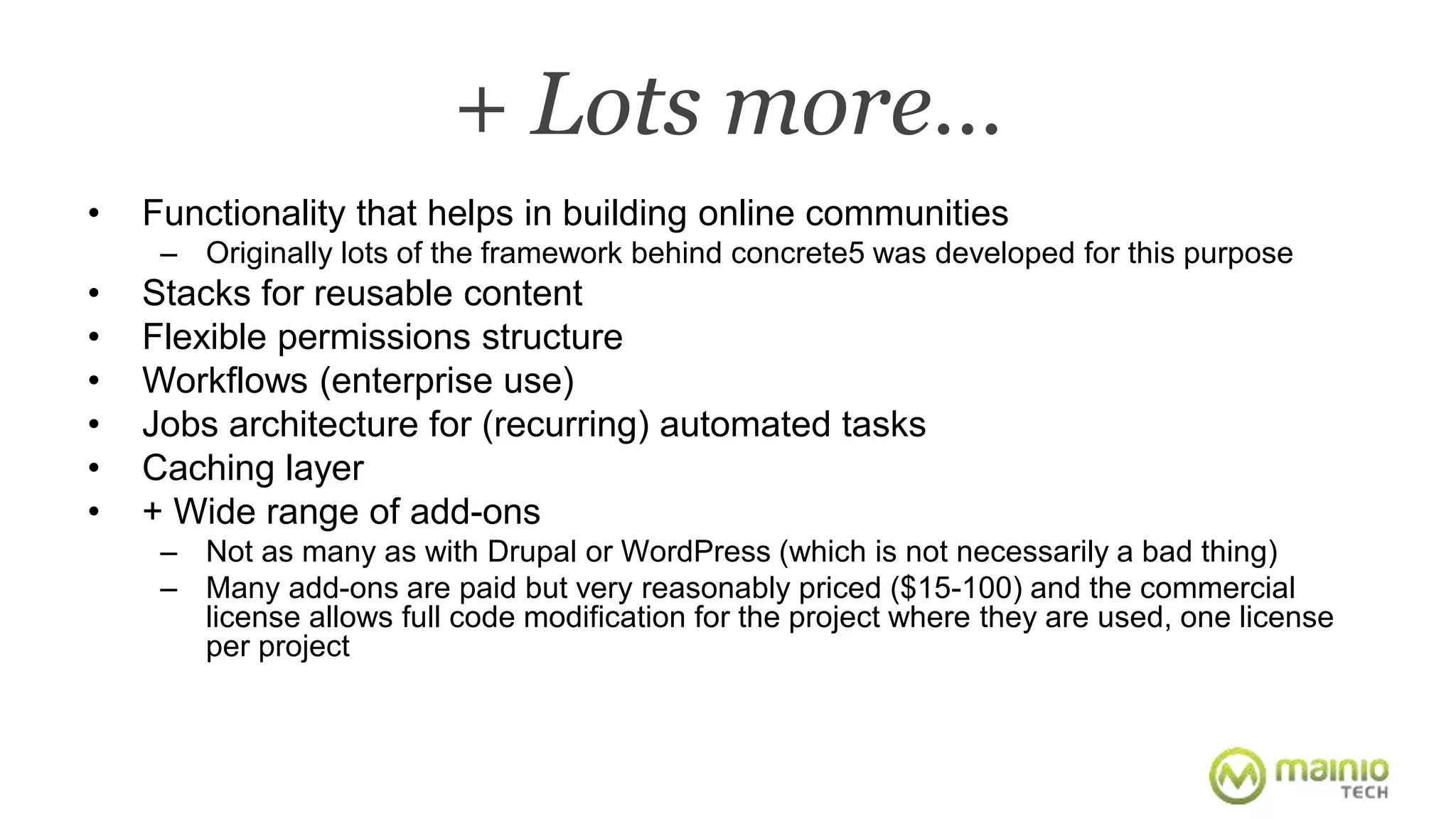

12. + Lots more…
• Functionality that helps in building online communities
– Originally lots of the framework behind concrete5 was developed for this purpose
• Stacks for reusable content
• Flexible permissions structure
• Workflows (enterprise use)
• Jobs architecture for (recurring) automated tasks
• Caching layer
• + Wide range of add-ons
– Not as many as with Drupal or WordPress (which is not necessarily a bad thing)
– Many add-ons are paid but very reasonably priced ($15-100) and the commercial
license allows full code modification for the project where they are used, one license
per project

13. Comparison

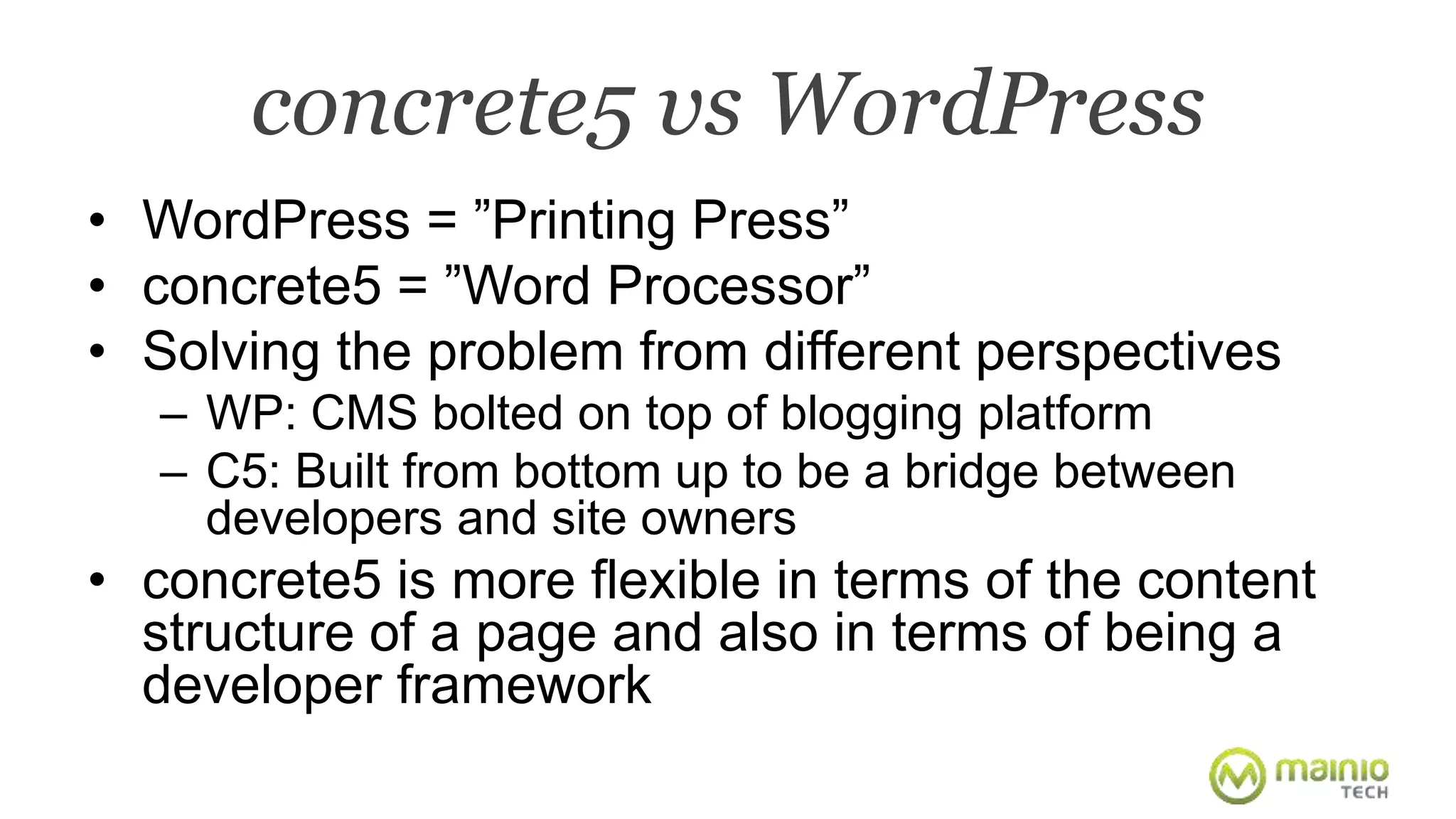

15. concrete5 vs WordPress
• WordPress = ”Printing Press”
• concrete5 = ”Word Processor”
• Solving the problem from different perspectives
– WP: CMS bolted on top of blogging platform
– C5: Built from bottom up to be a bridge between
developers and site owners
• concrete5 is more flexible in terms of the content
structure of a page and also in terms of being a
developer framework

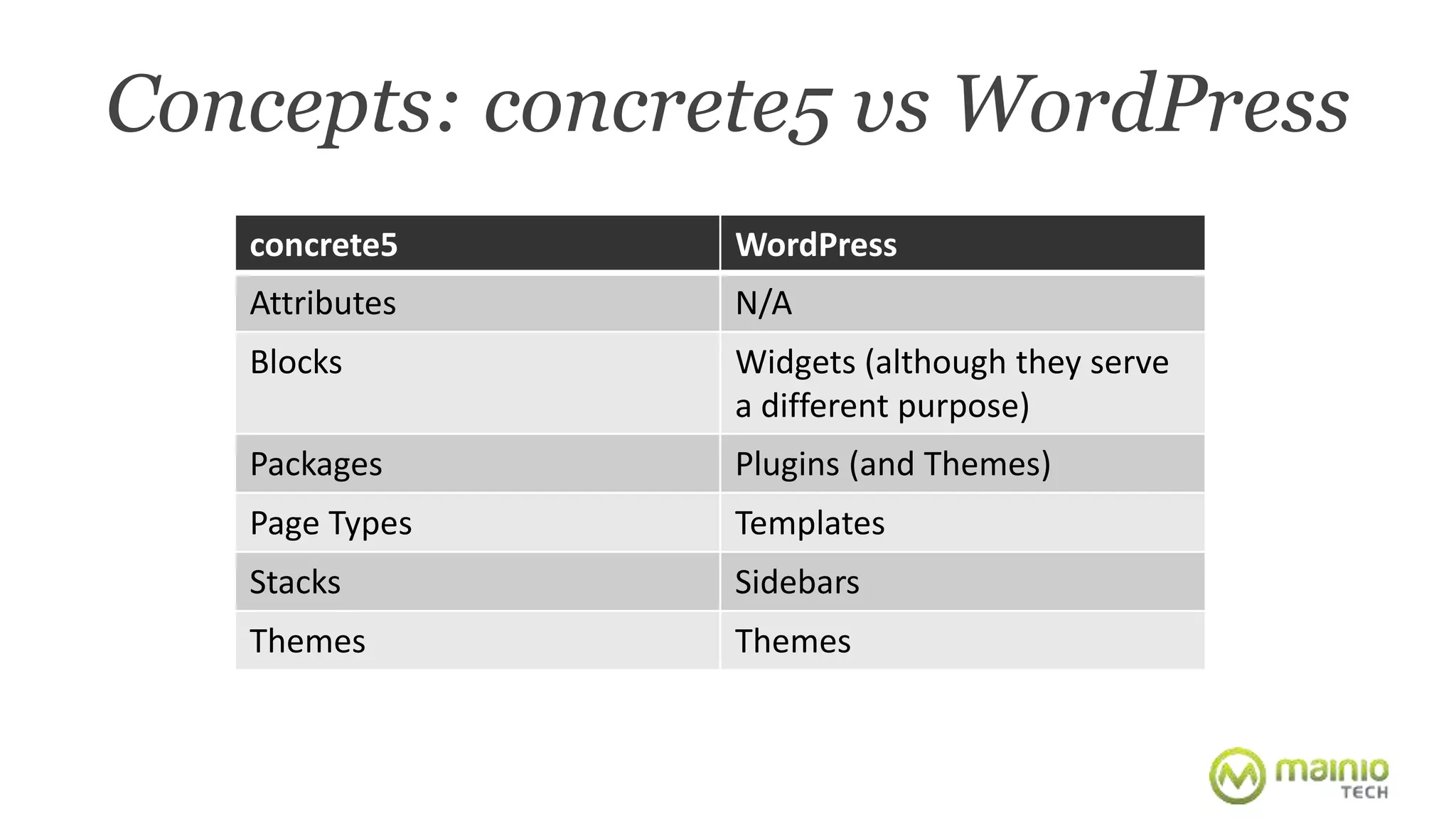

16. Concepts: concrete5 vs WordPress
concrete5 WordPress
Attributes N/A
Blocks Widgets (although they serve
a different purpose)
Packages Plugins (and Themes)
Page Types Templates
Stacks Sidebars
Themes Themes

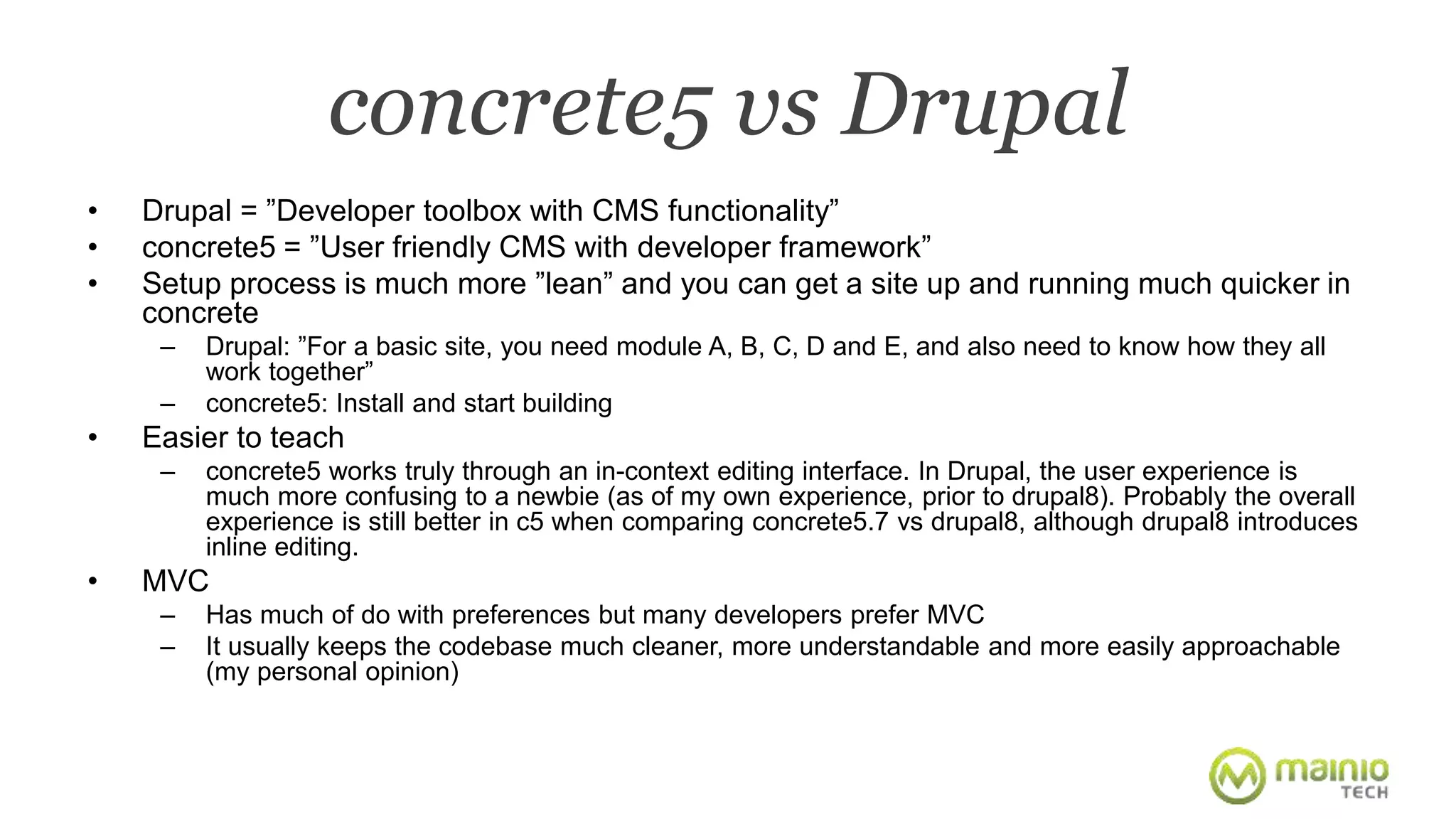

17. concrete5 vs Drupal
• Drupal = ”Developer toolbox with CMS functionality”
• concrete5 = ”User friendly CMS with developer framework”
• Setup process is much more ”lean” and you can get a site up and running much quicker in
concrete
– Drupal: ”For a basic site, you need module A, B, C, D and E, and also need to know how they all
work together”
– concrete5: Install and start building
• Easier to teach
– concrete5 works truly through an in-context editing interface. In Drupal, the user experience is
much more confusing to a newbie (as of my own experience, prior to drupal8). Probably the overall
experience is still better in c5 when comparing concrete5.7 vs drupal8, although drupal8 introduces
inline editing.
• MVC
– Has much of do with preferences but many developers prefer MVC
– It usually keeps the codebase much cleaner, more understandable and more easily approachable
(my personal opinion)

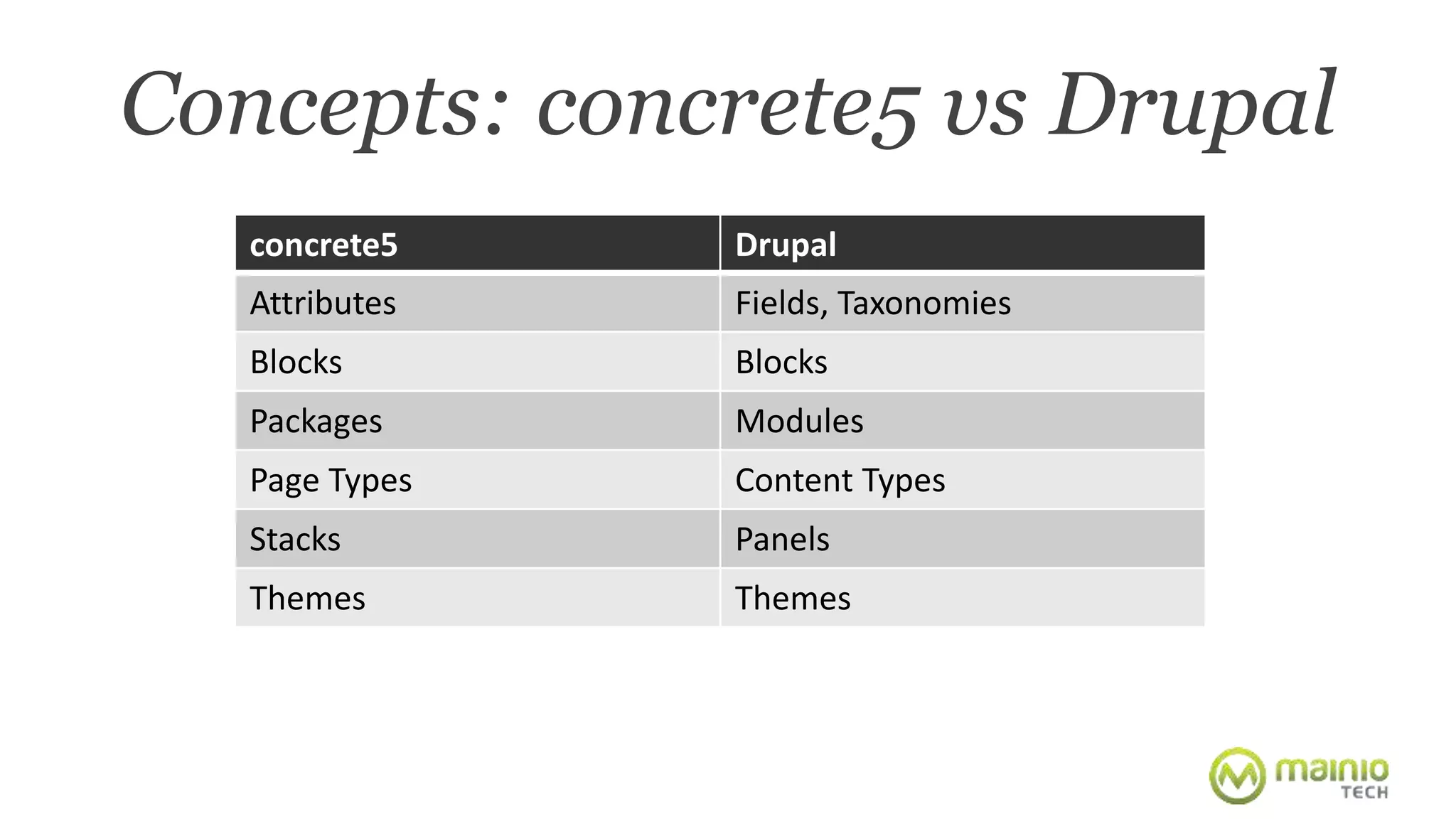

18. Concepts: concrete5 vs Drupal
concrete5 Drupal
Attributes Fields, Taxonomies
Blocks Blocks
Packages Modules
Page Types Content Types
Stacks Panels
Themes Themes

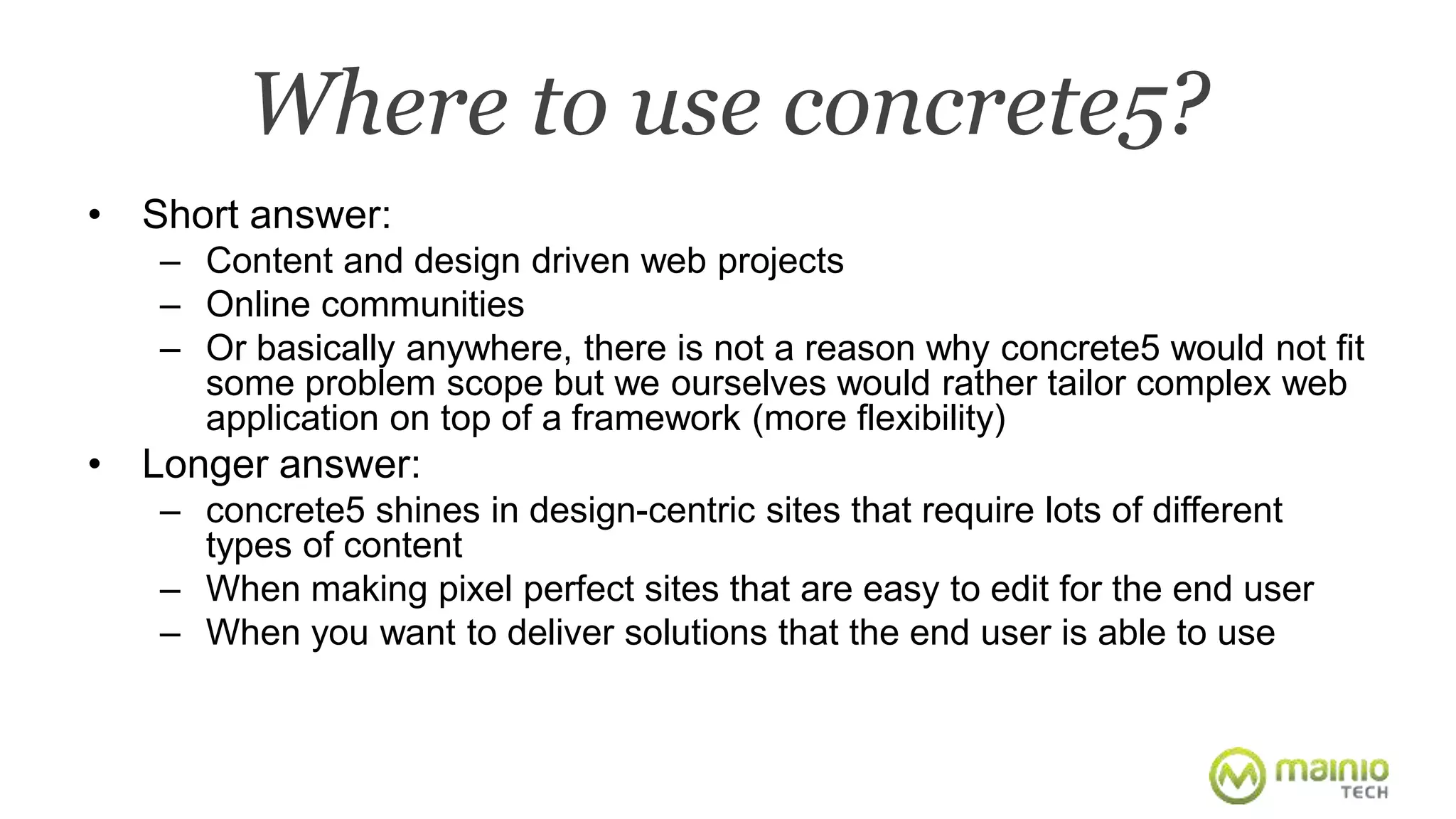

19. Where to use concrete5?
• Short answer:
– Content and design driven web projects
– Online communities
– Or basically anywhere, there is not a reason why concrete5 would not fit
some problem scope but we ourselves would rather tailor complex web
application on top of a framework (more flexibility)
• Longer answer:
– concrete5 shines in design-centric sites that require lots of different
types of content
– When making pixel perfect sites that are easy to edit for the end user
– When you want to deliver solutions that the end user is able to use

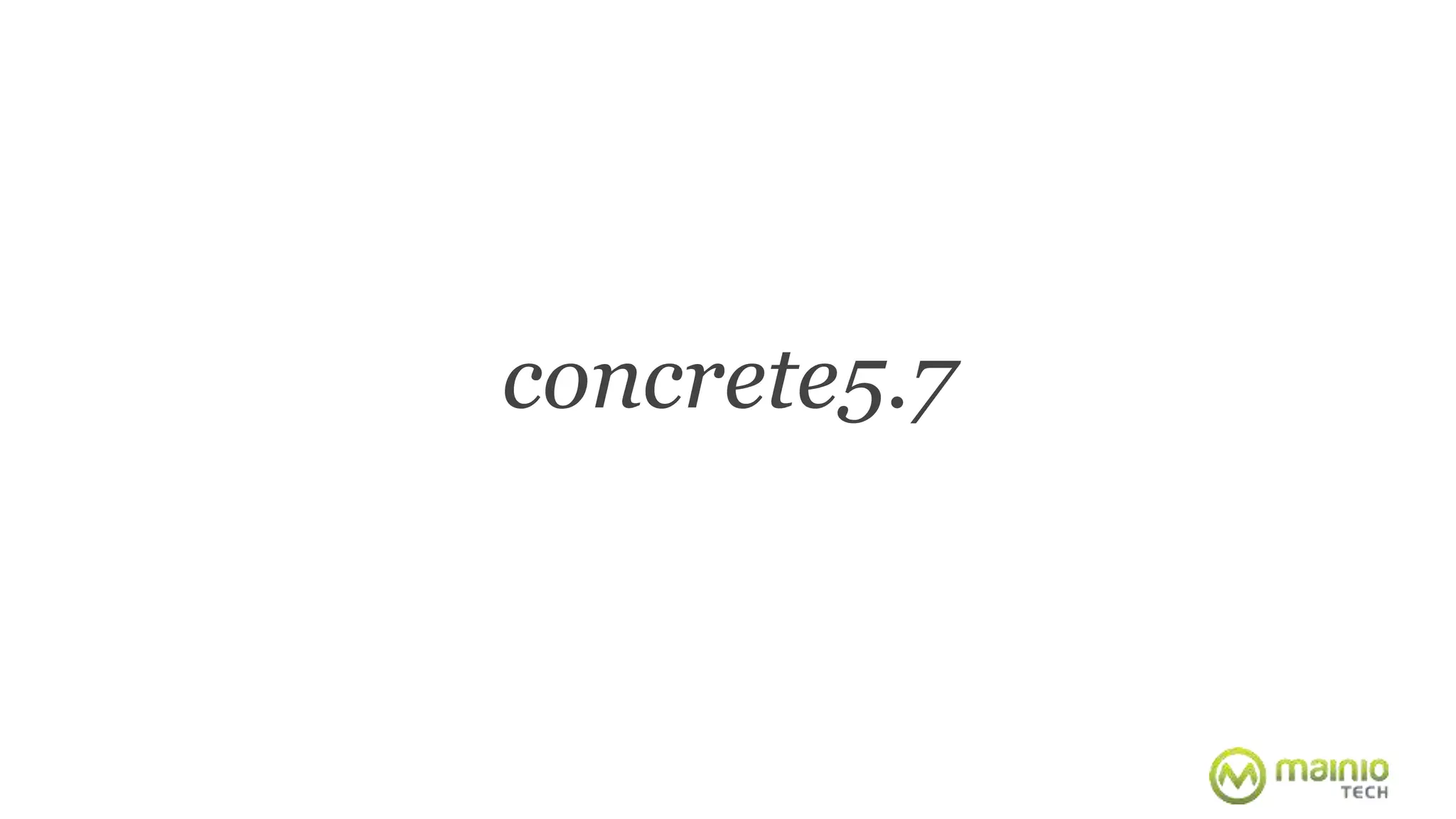

20. concrete5.7

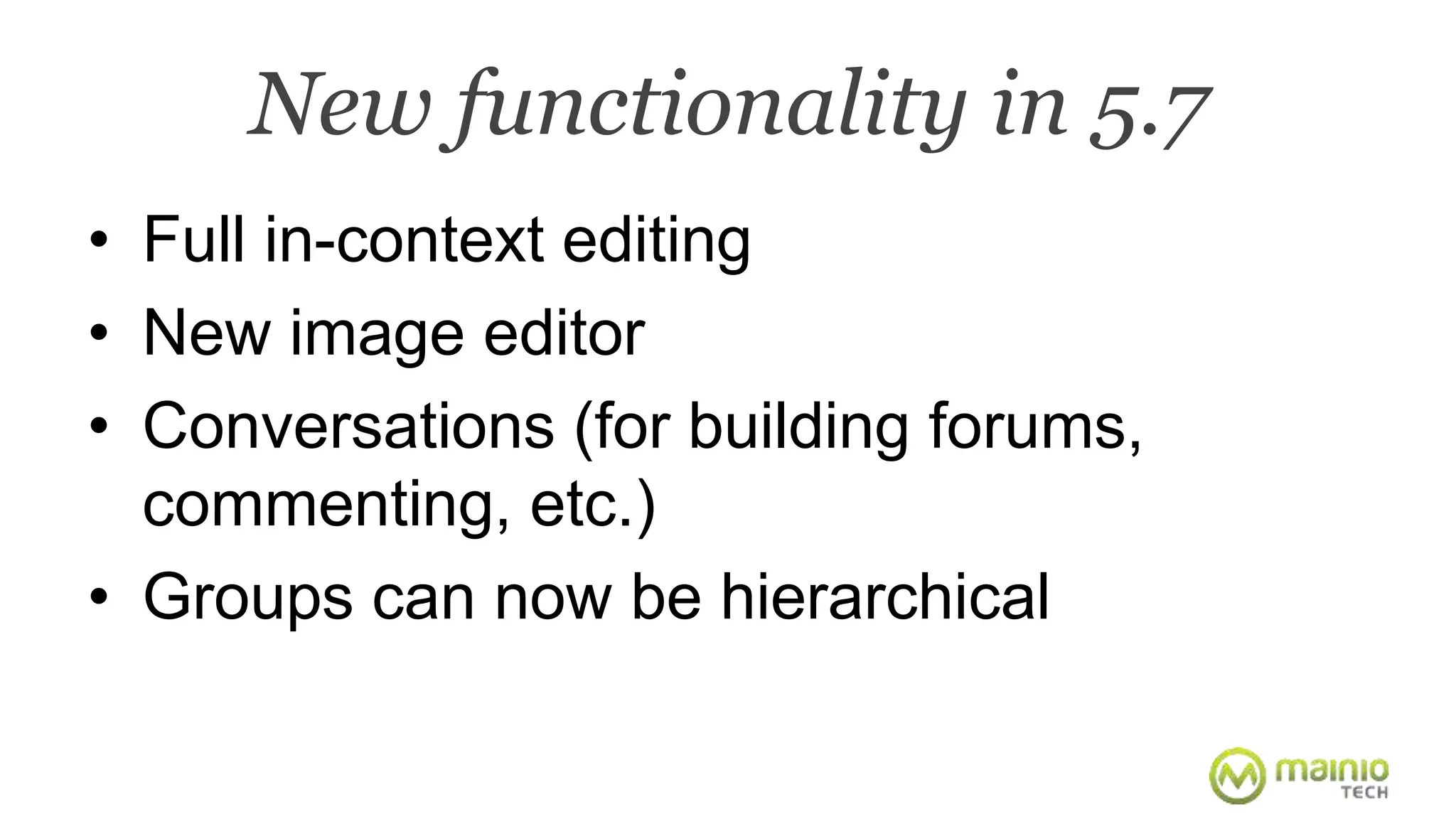

21. New functionality in 5.7
• Full in-context editing
• New image editor
• Conversations (for building forums,
commenting, etc.)
• Groups can now be hierarchical

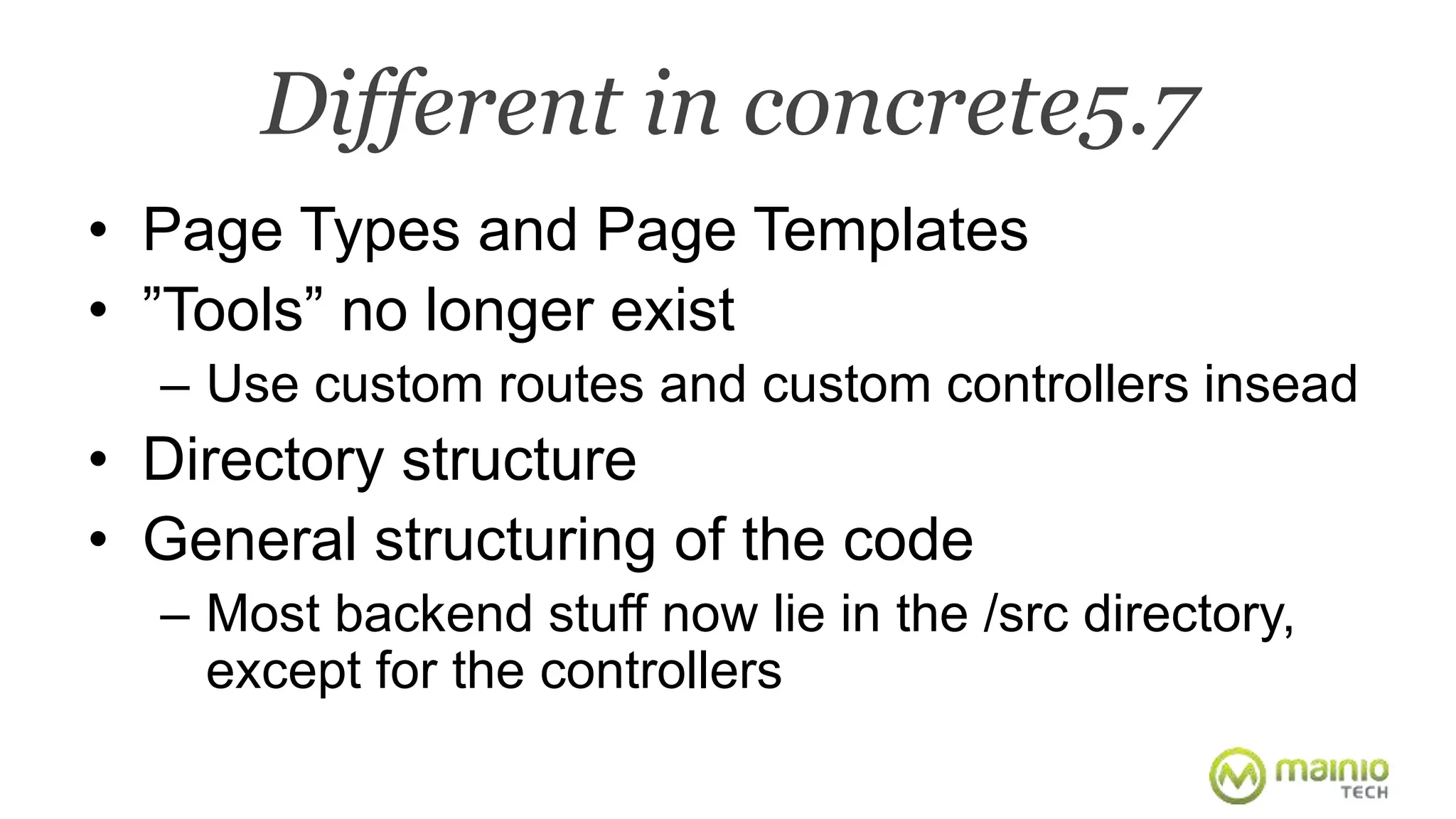

22. Different in concrete5.7
• Page Types and Page Templates
• ”Tools” no longer exist
– Use custom routes and custom controllers insead
• Directory structure
• General structuring of the code
– Most backend stuff now lie in the /src directory,
except for the controllers

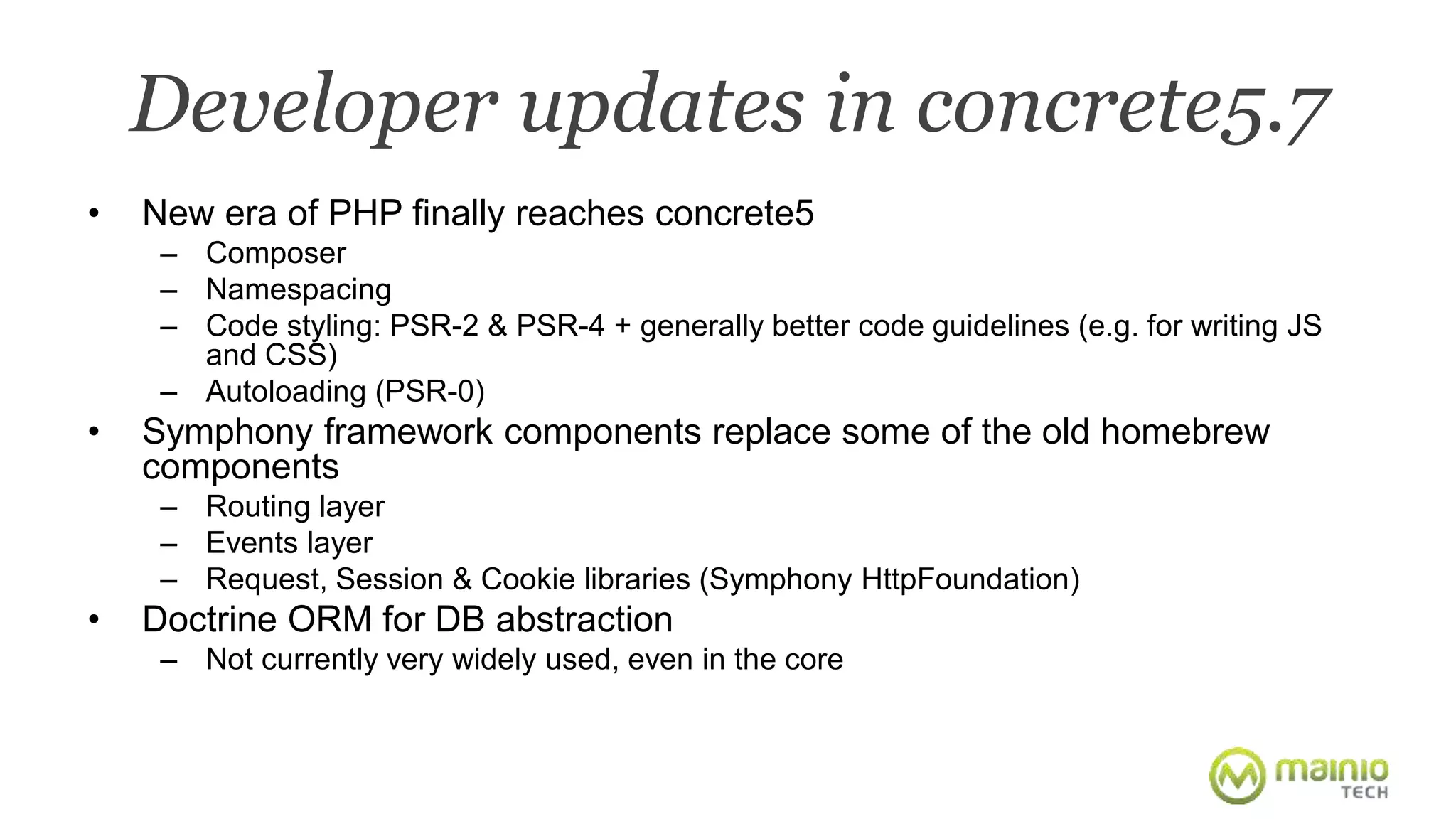

23. Developer updates in concrete5.7
• New era of PHP finally reaches concrete5
– Composer
– Namespacing
– Code styling: PSR-2 & PSR-4 + generally better code guidelines (e.g. for writing JS
and CSS)
– Autoloading (PSR-0)
• Symphony framework components replace some of the old homebrew
components
– Routing layer
– Events layer
– Request, Session & Cookie libraries (Symphony HttpFoundation)
• Doctrine ORM for DB abstraction
– Not currently very widely used, even in the core

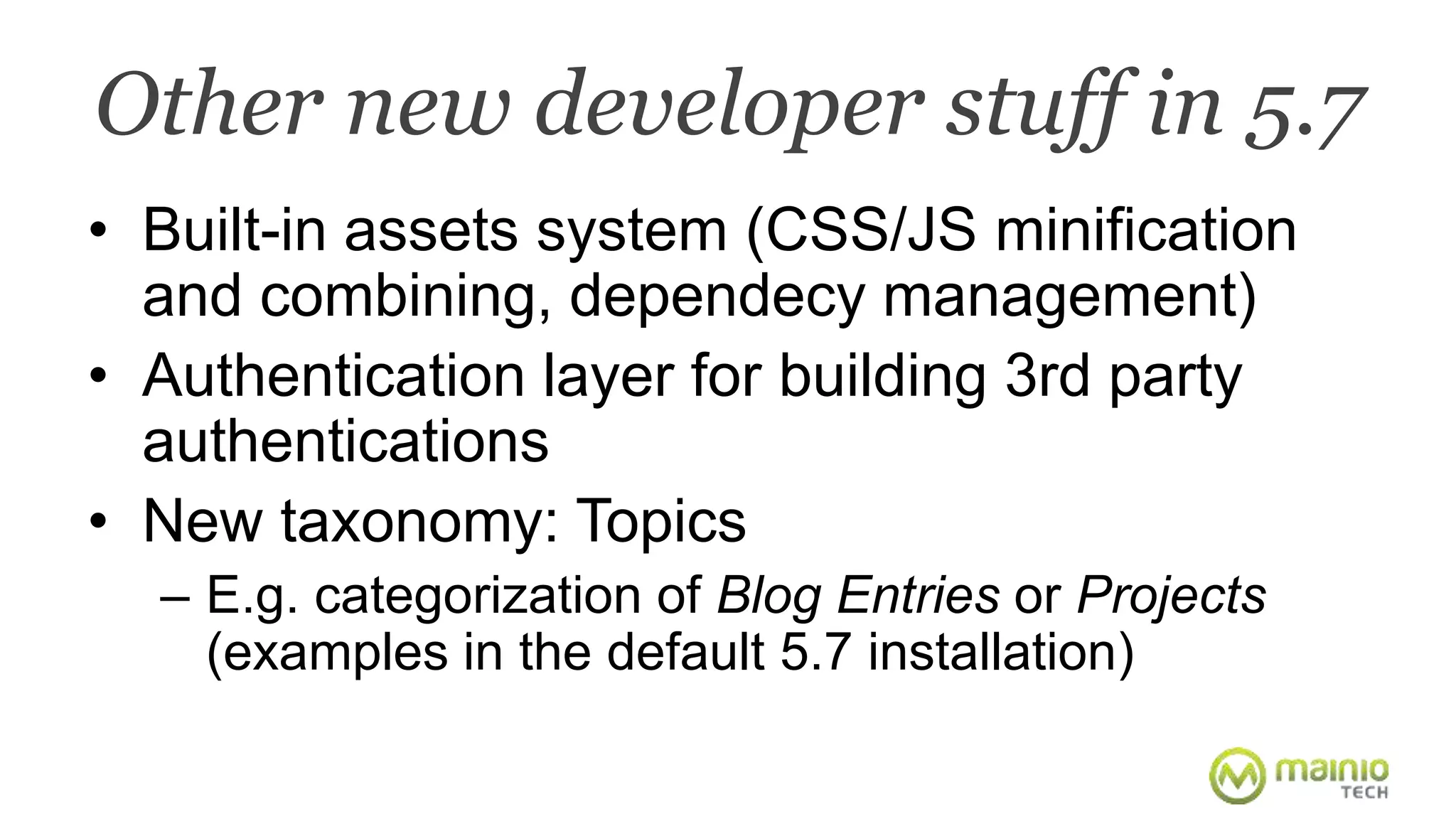

24. Other new developer stuff in 5.7
• Built-in assets system (CSS/JS minification
and combining, dependecy management)
• Authentication layer for building 3rd party
authentications
• New taxonomy: Topics
– E.g. categorization of Blog Entries or Projects
(examples in the default 5.7 installation)

25. ?
Antti Hukkanen
antti.hukkanen@mainiotech.fi
