CS8591 COMPUTER
NETWORKS
UNIT – I

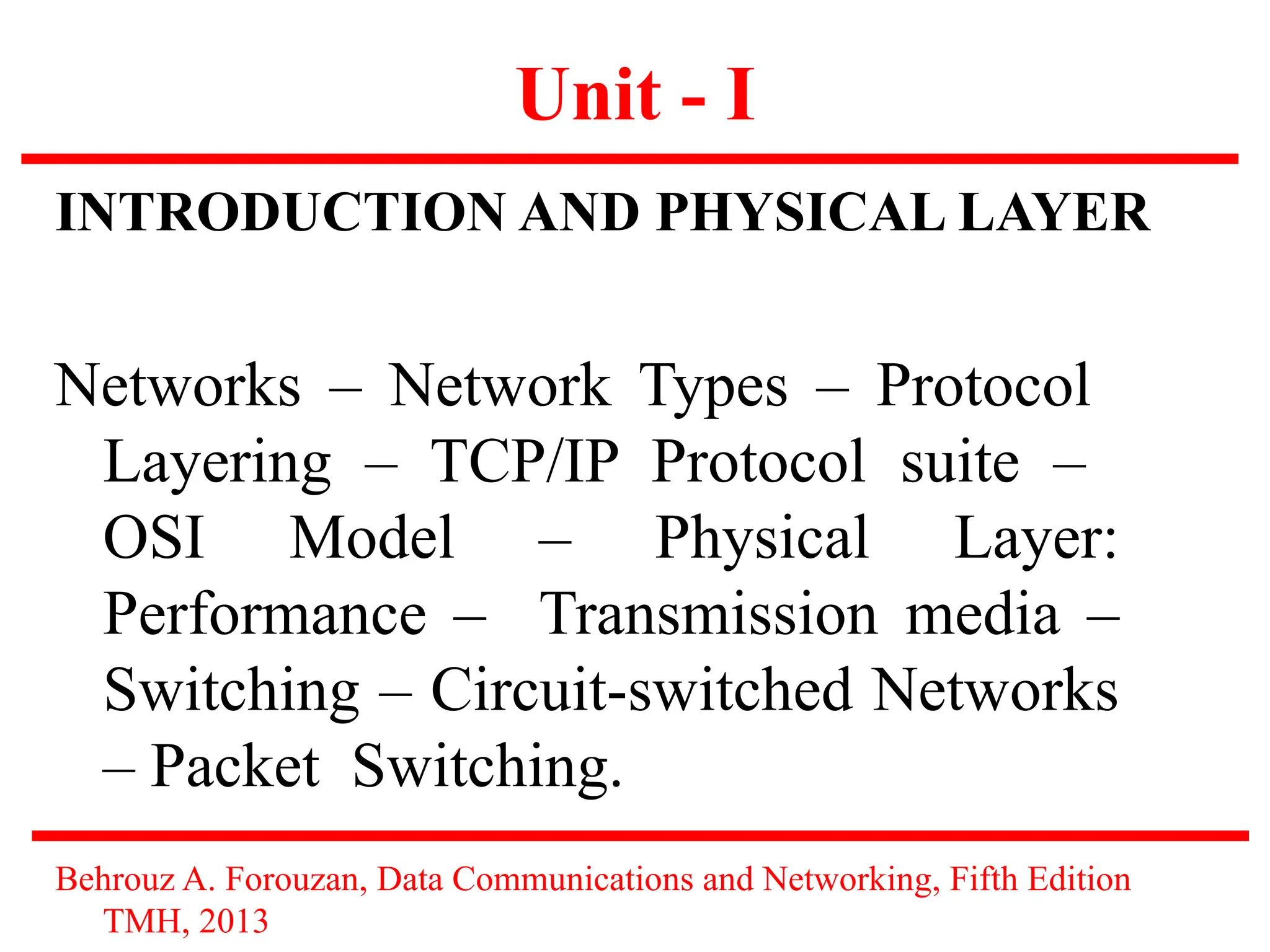

Unit - I
INTRODUCTION AND PHYSICAL LAYER
Networks – Network Types – Protocol
Layering – TCP/IP Protocol suite –
OSI Model – Physical Layer:

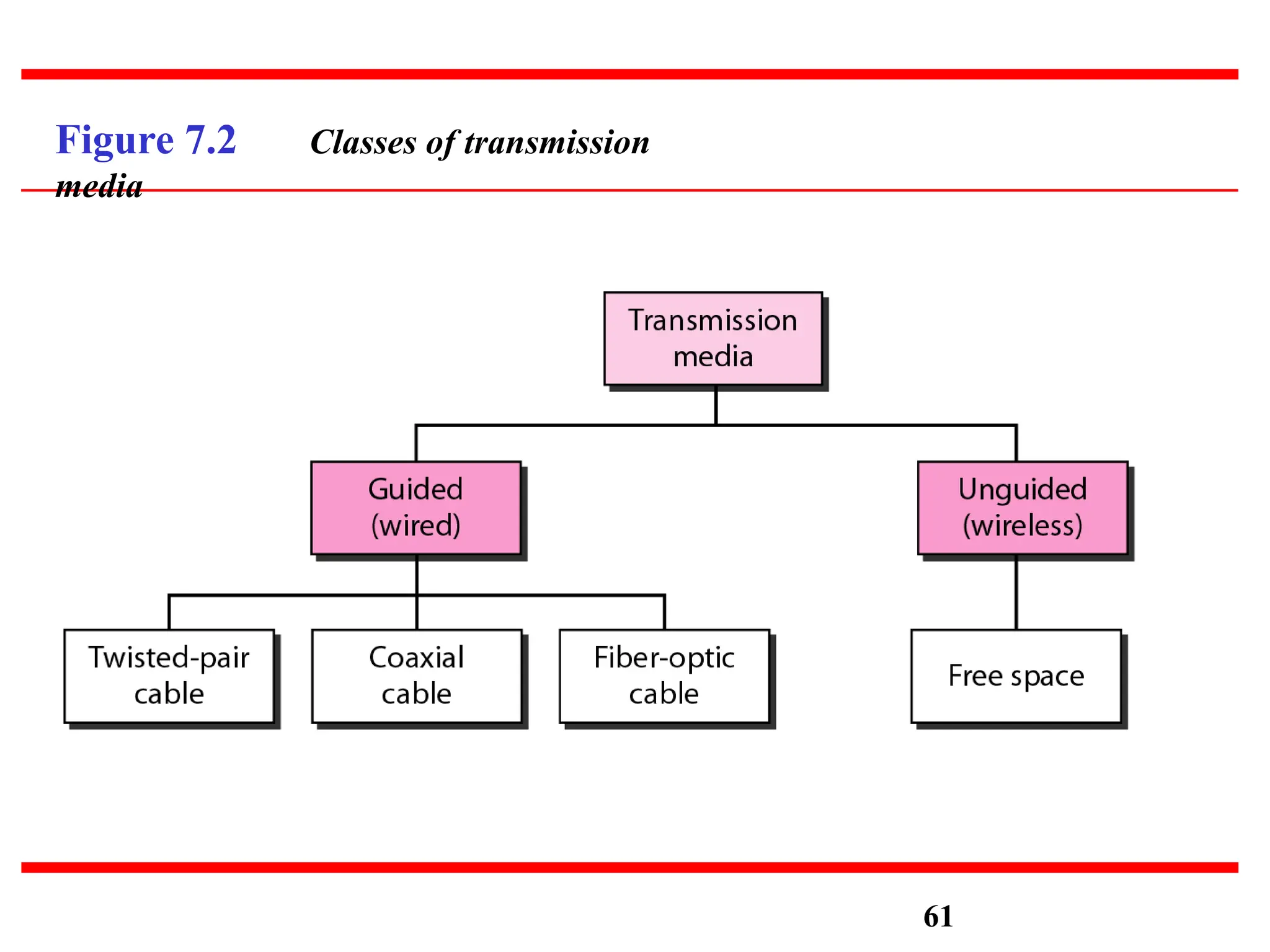

Performance – Transmission media –

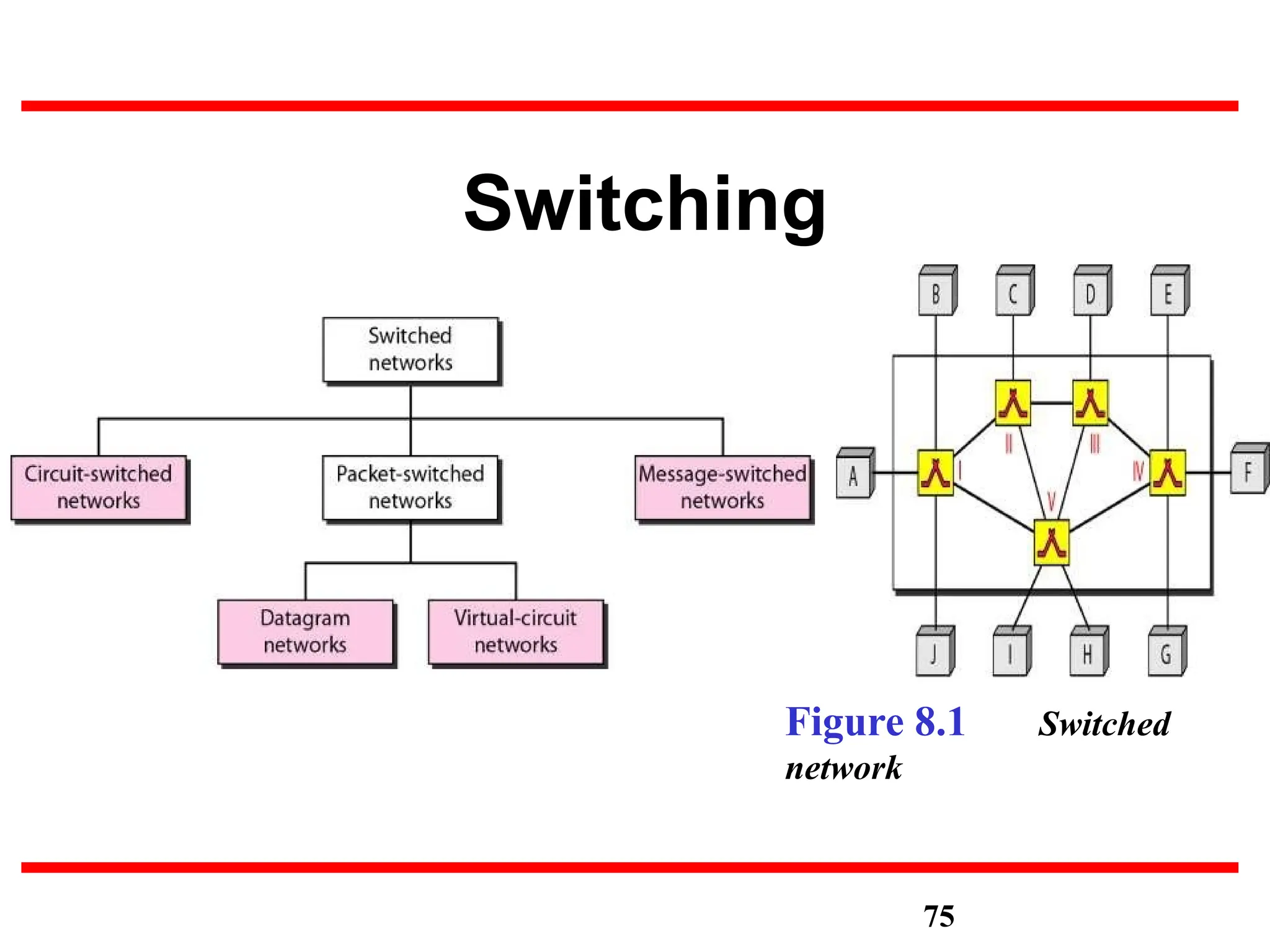

Switching – Circuit-switched Networks
– Packet Switching.
Behrouz A. Forouzan, Data Communications and Networking, Fifth Edition
TMH, 2013

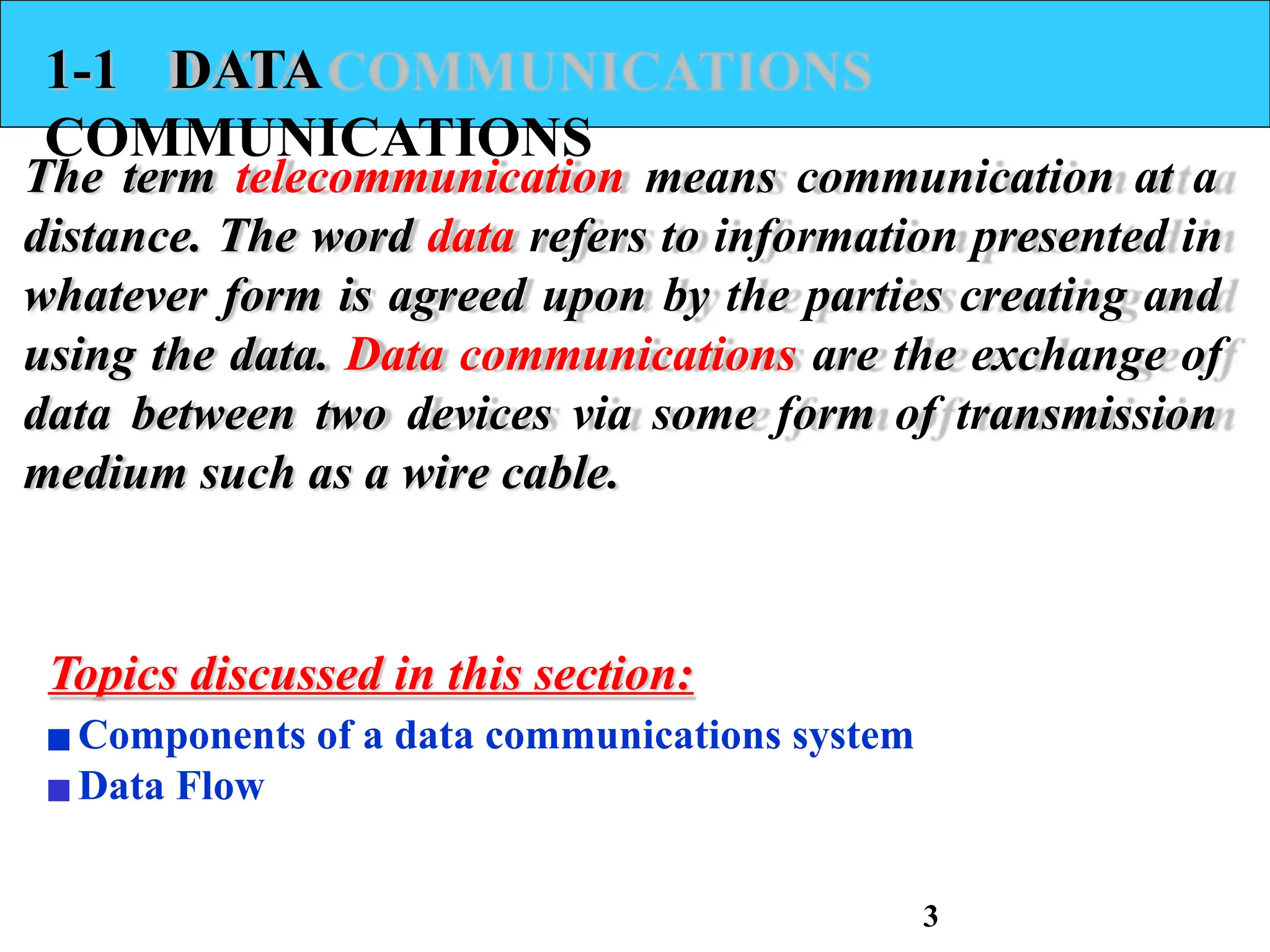

1-1 DATA
COMMUNICATIONS
The term telecommunication means communication at a
distance. The word data refers to information presented in
whatever form is agreed upon by the parties creating and
using the data. Data communications are the exchange of
data between two devices via some form of transmission
medium such as a wire cable.
Topics discussed in this section:
▪Components of a data communications system
▪Data Flow
3

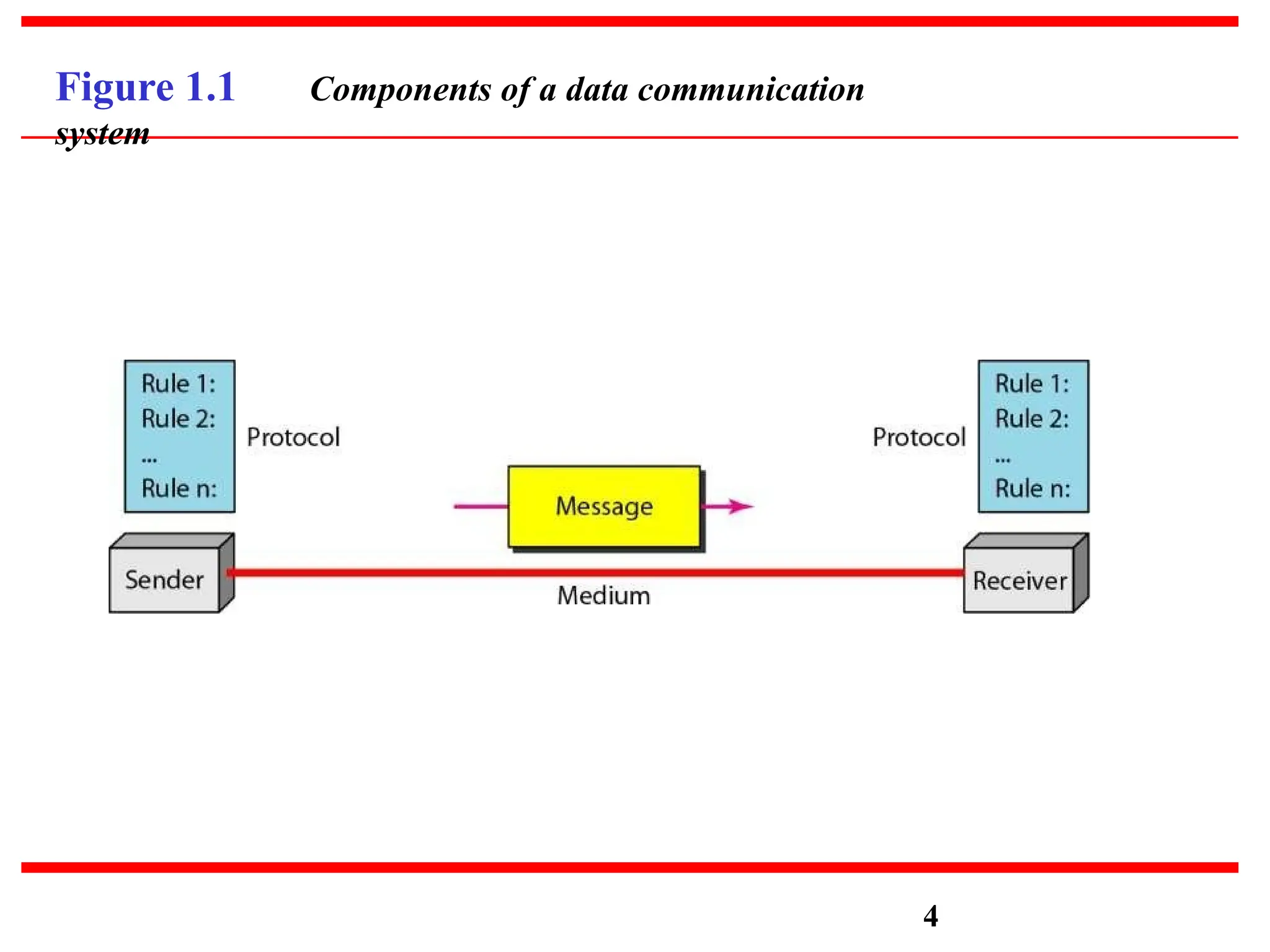

Figure 1.1 Components of a data communication
system
4

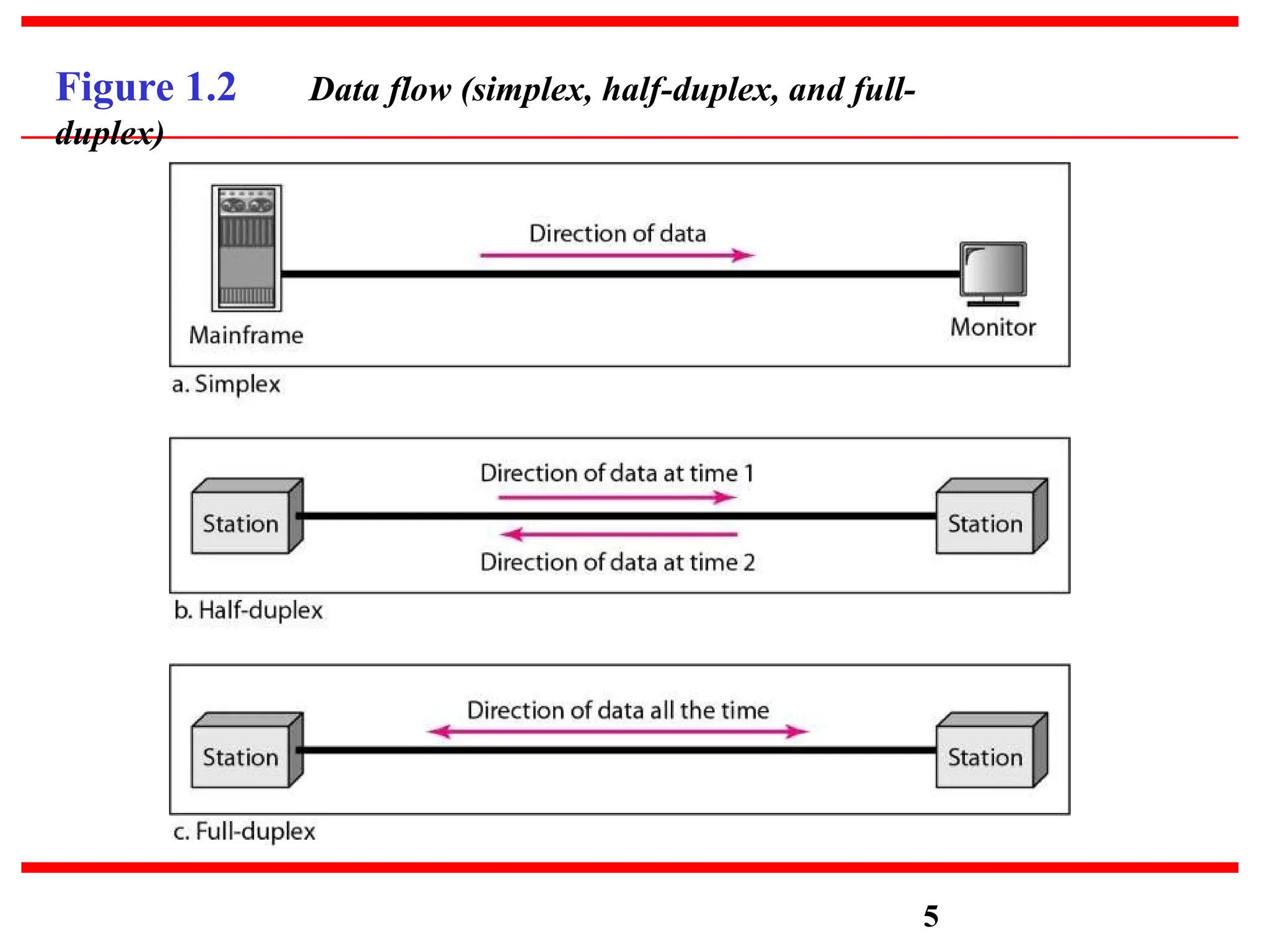

Figure 1.2 Data flow (simplex, half-duplex, and full-
duplex)
5

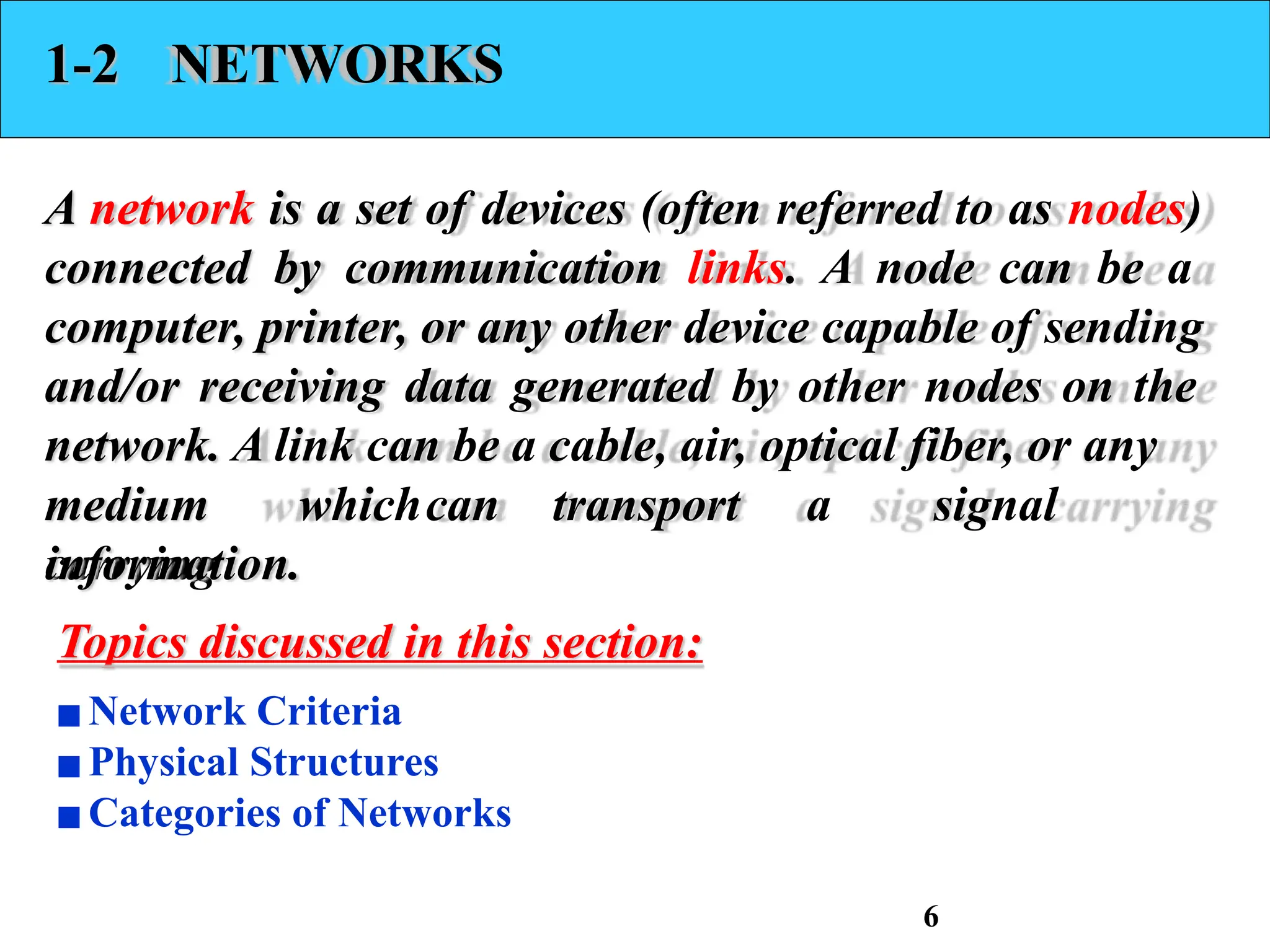

1-2 NETWORKS
A network is a set of devices (often referred to as nodes)
connected by communication links. A node can be a
computer, printer, or any other device capable of sending
and/or receiving data generated by other nodes on the
network. A link can be a cable, air, optical fiber, or any
medium whichcan transport a signal
carrying
information.
▪Network Criteria
▪Physical Structures
▪Categories of Networks
6

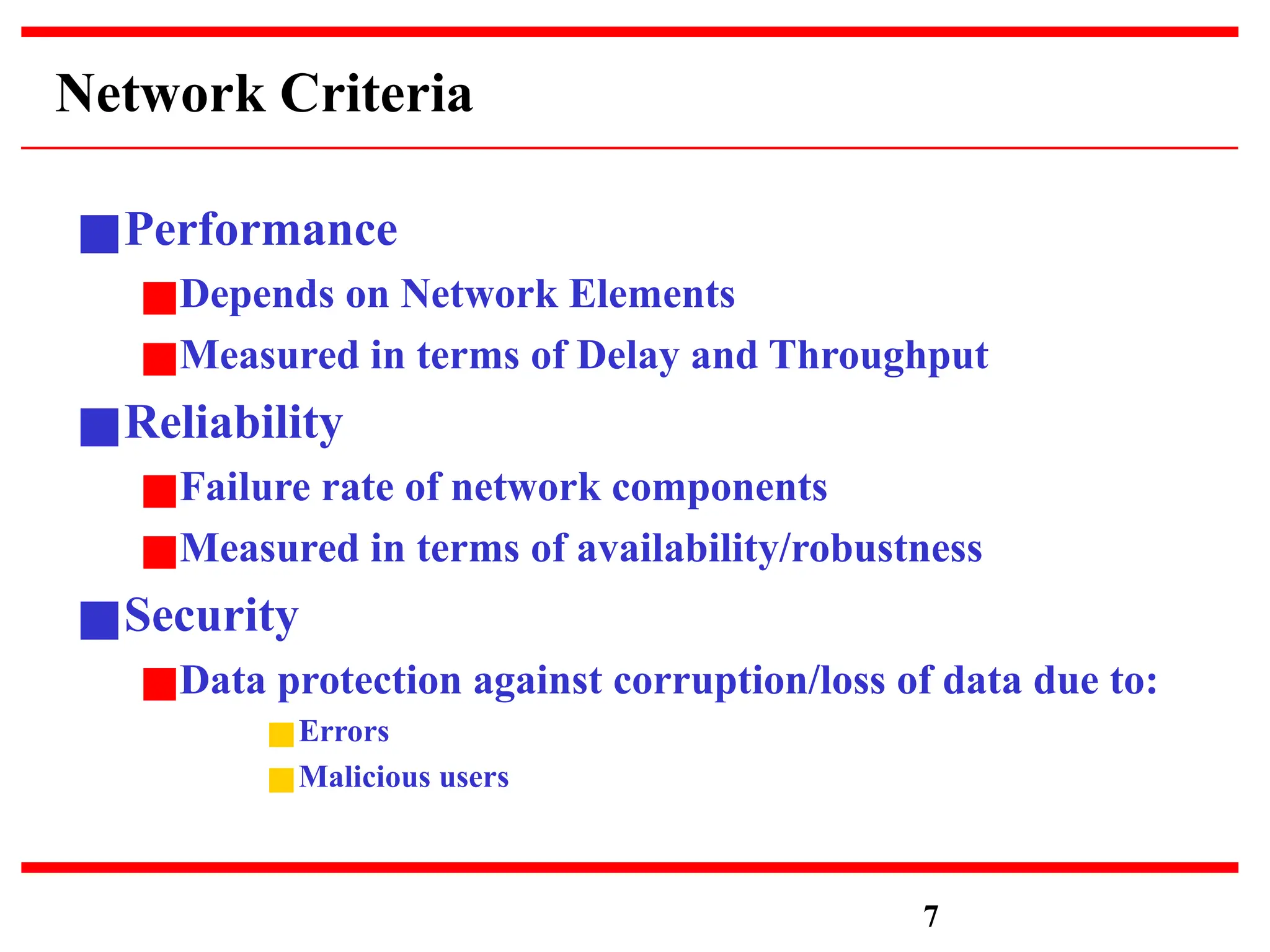

Network Criteria
■Performance
■Depends on Network Elements
■Measured in terms of Delay and Throughput
■Reliability
■Failure rate of network components
■Measured in terms of availability/robustness
■Security
■Data protection against corruption/loss of data due to:
■Errors
■Malicious users
7

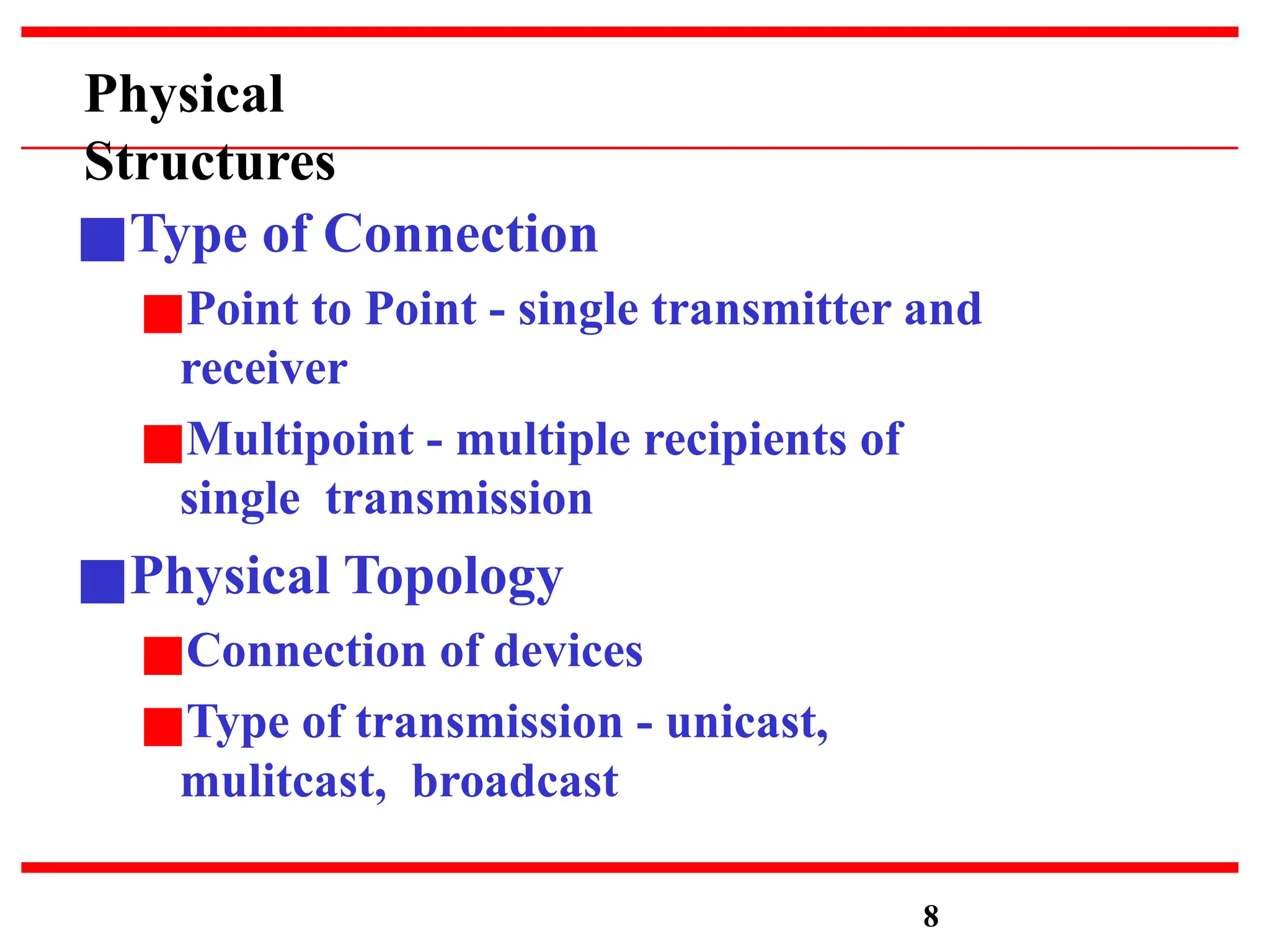

Physical
Structures
■Type of Connection
■Point to Point - single transmitter and
receiver
■Multipoint - multiple recipients of
single transmission
■Physical Topology
■Connection of devices
■Type of transmission - unicast,
mulitcast, broadcast
8

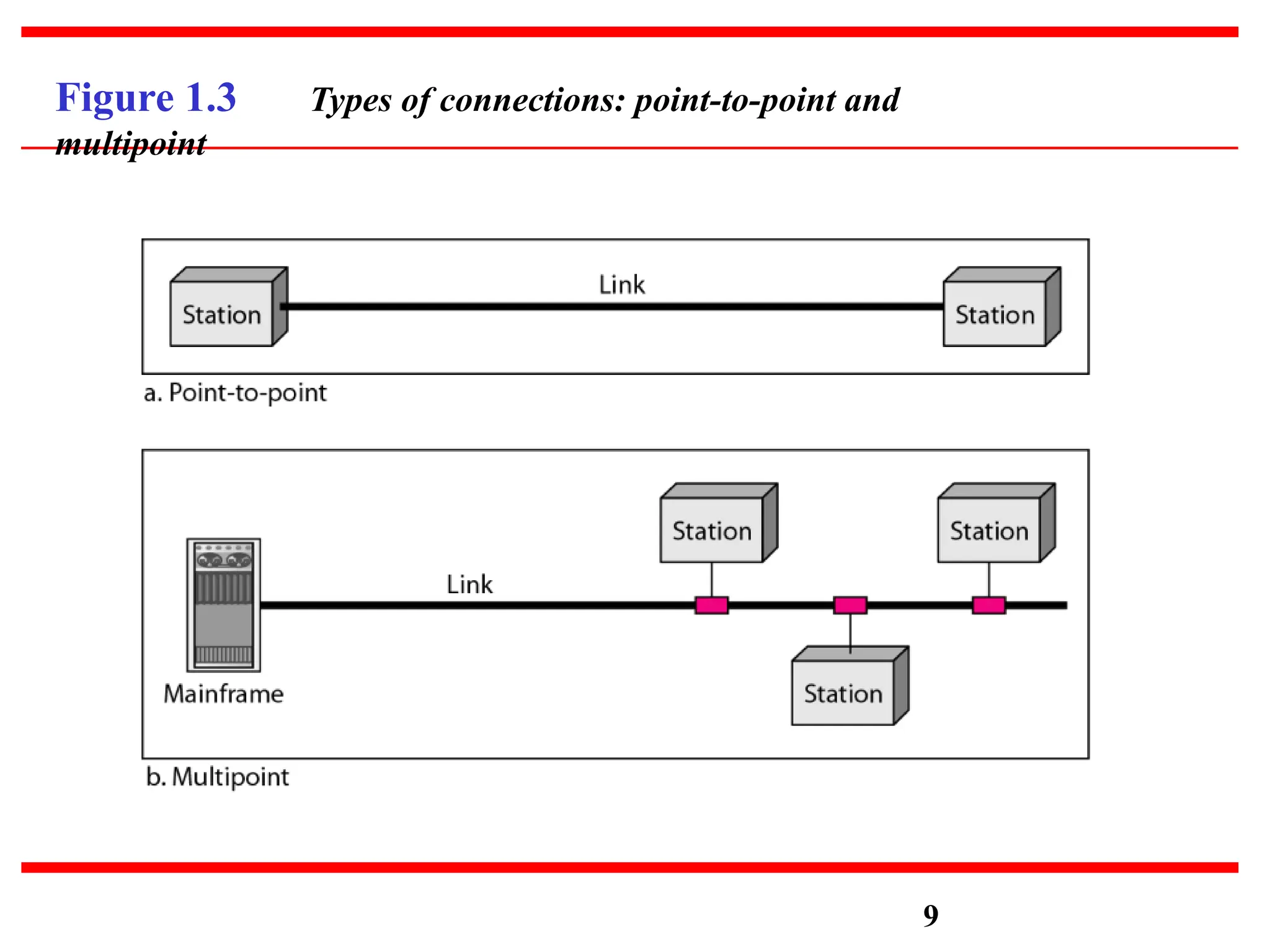

Figure 1.3 Types of connections: point-to-point and
multipoint
9

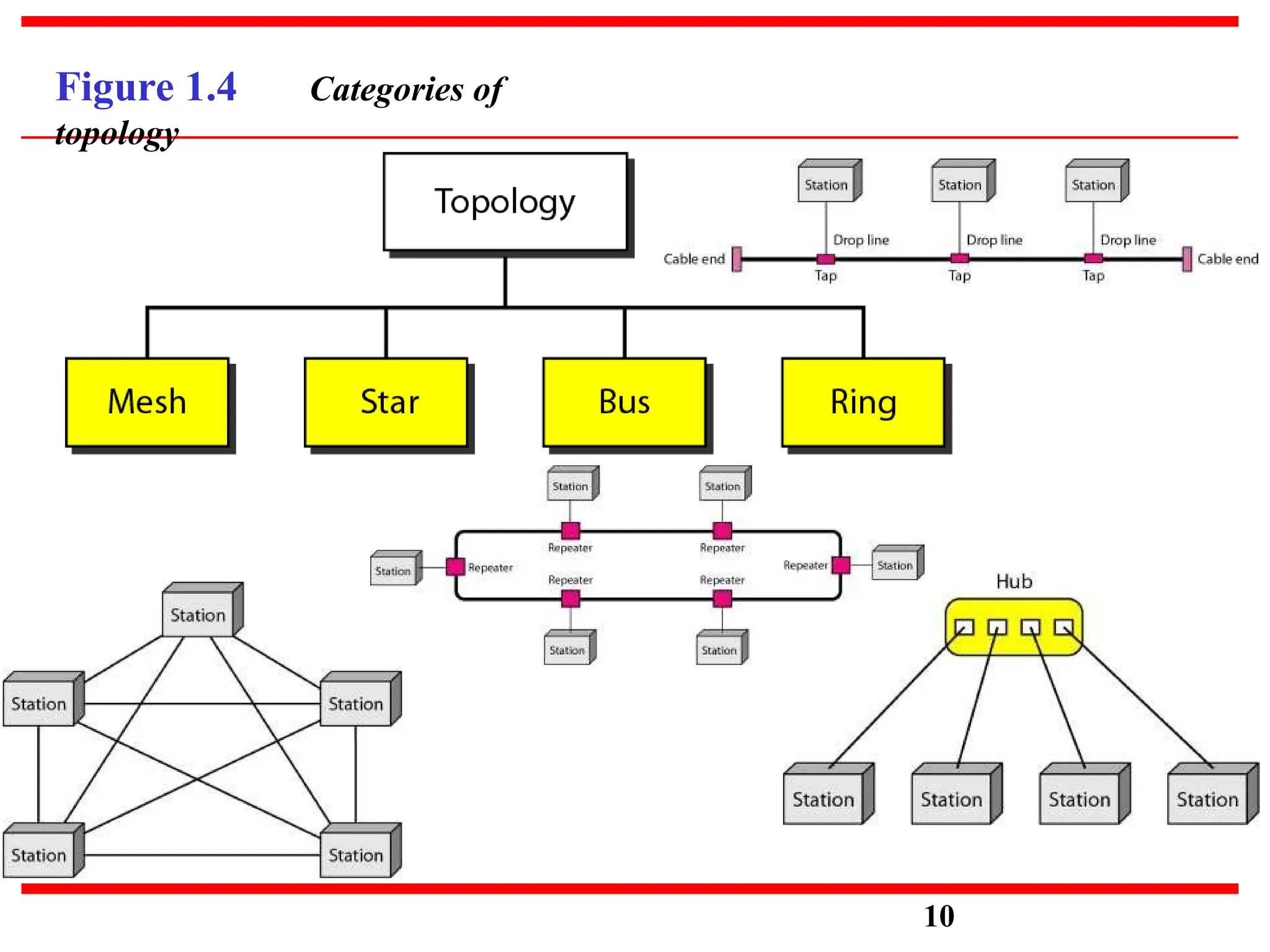

Figure 1.4 Categories of
topology
10

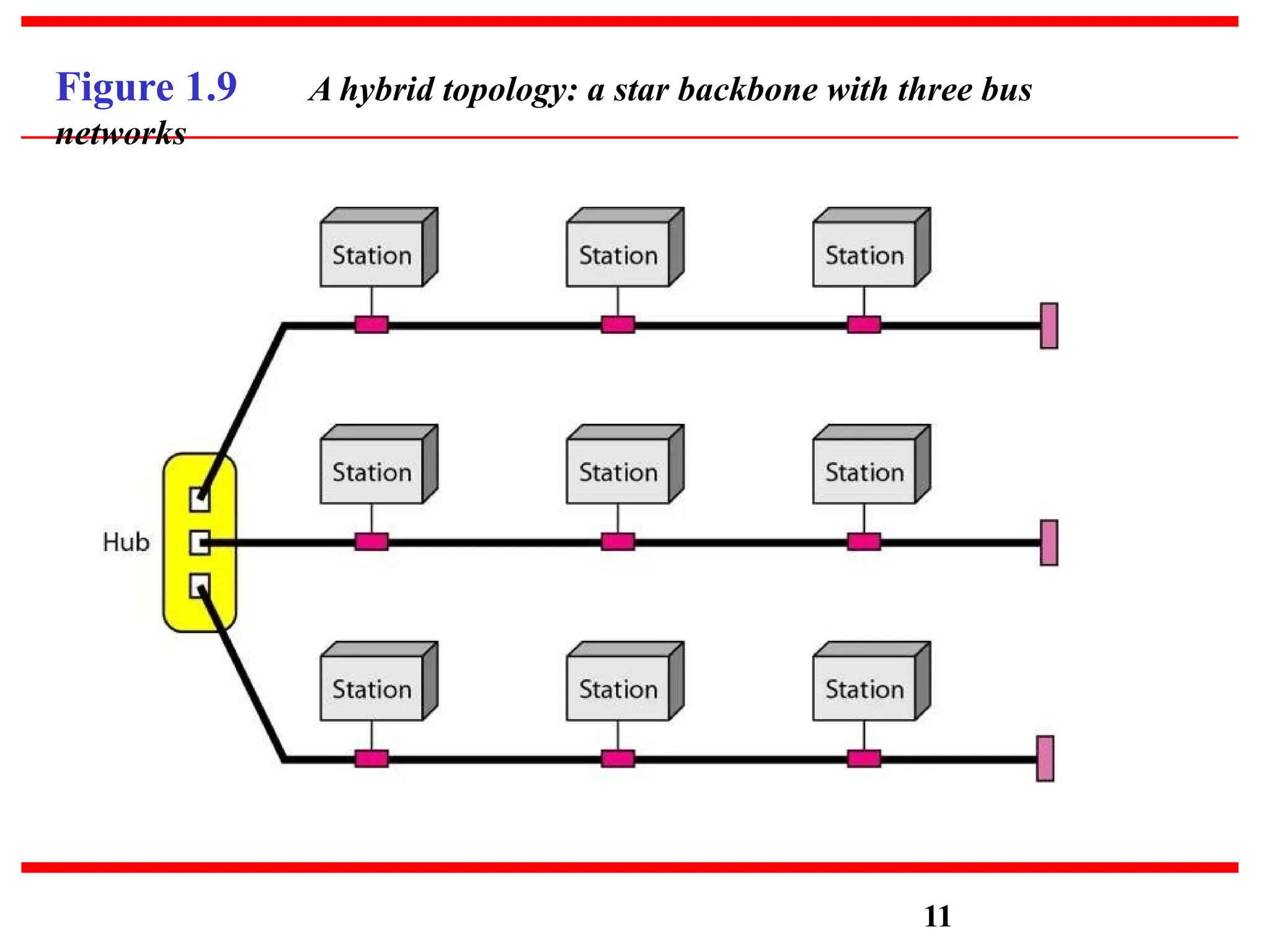

Figure 1.9 A hybrid topology: a star backbone with three bus
networks
11

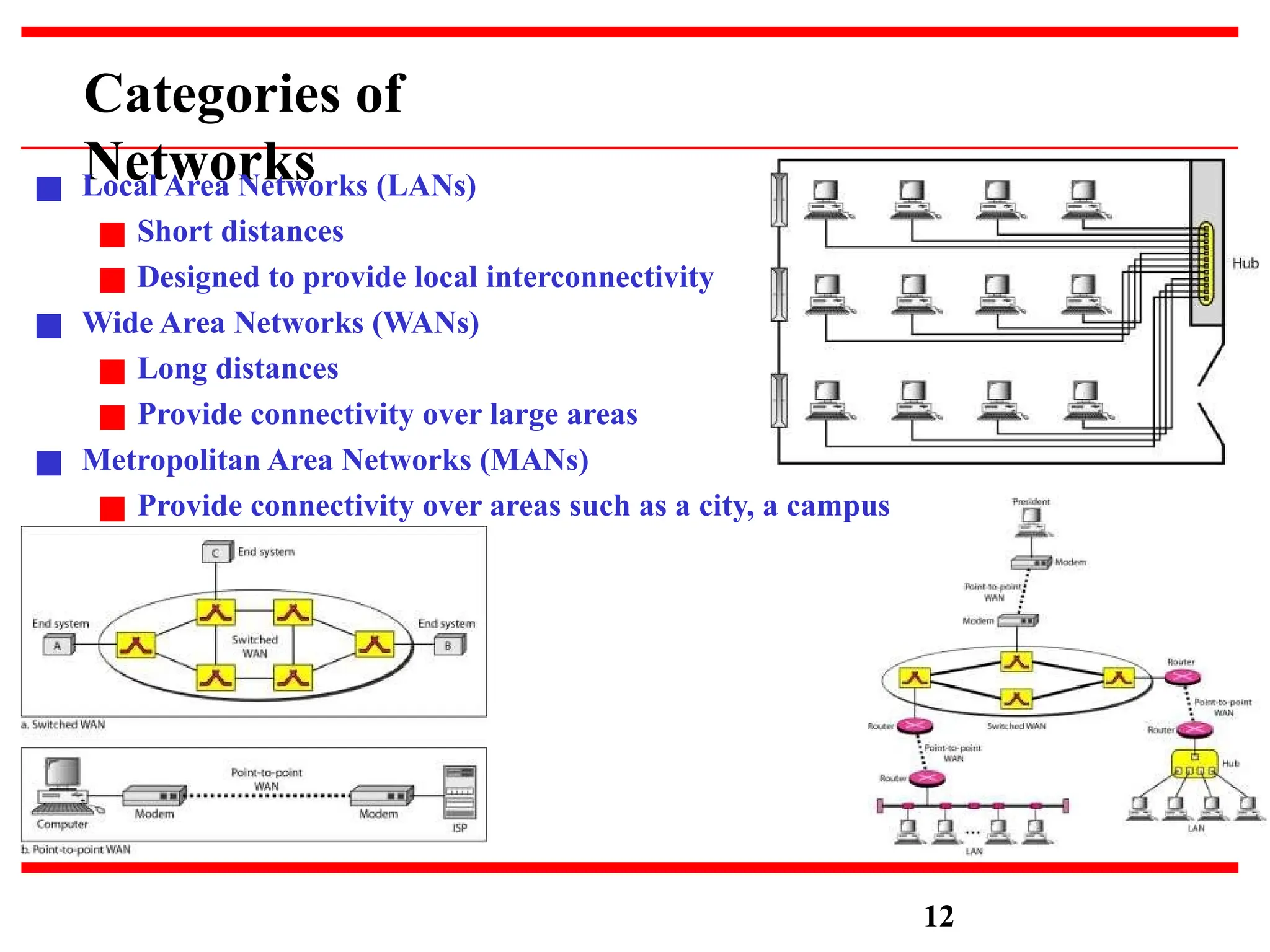

Categories of
Networks
■ Local Area Networks (LANs)
■ Short distances
■ Designed to provide local interconnectivity
■ Wide Area Networks (WANs)
■ Long distances
■ Provide connectivity over large areas
■ Metropolitan Area Networks (MANs)
■ Provide connectivity over areas such as a city, a campus
12

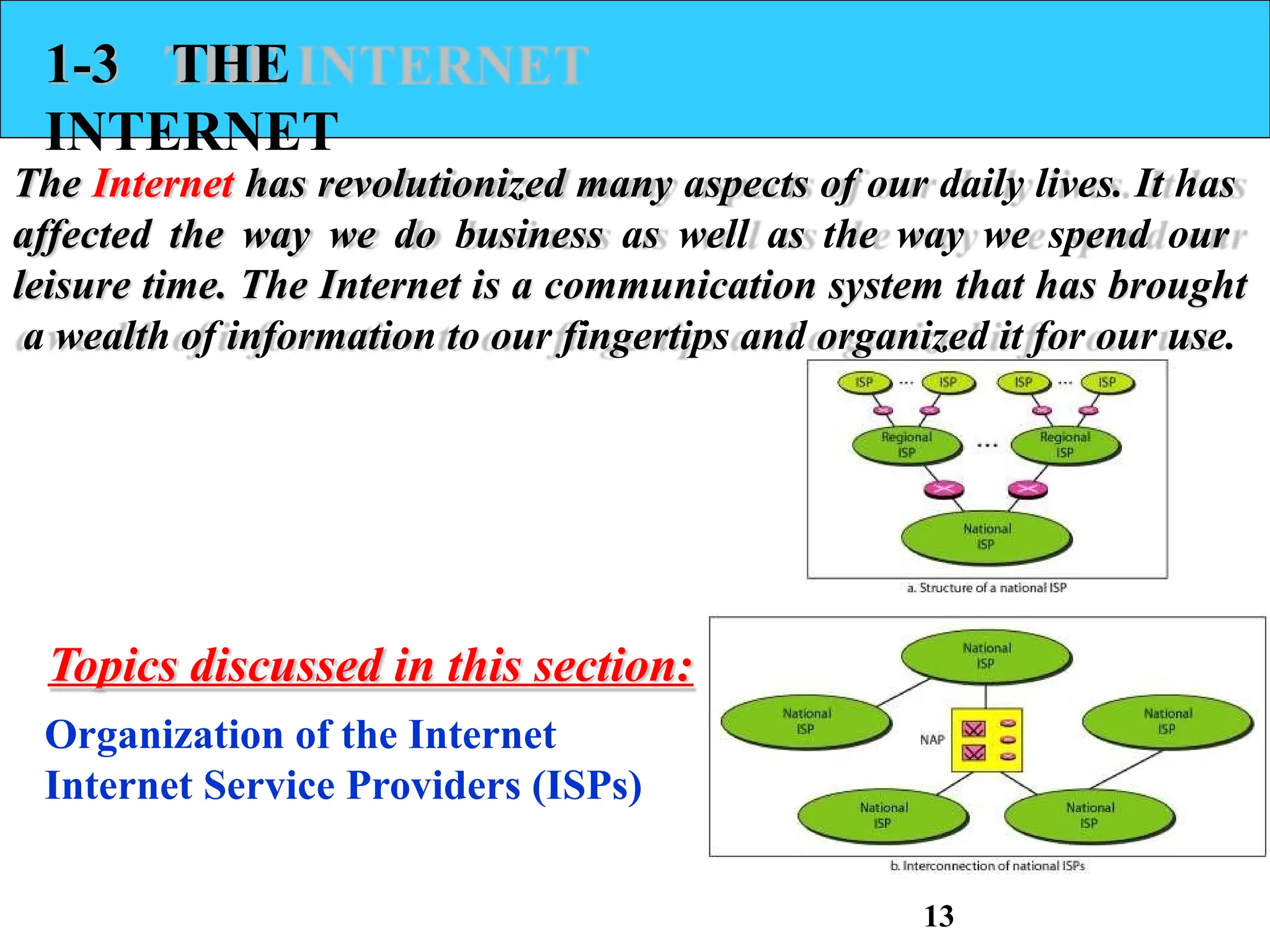

1-3 THE
INTERNET
The Internet has revolutionized many aspects of our daily lives. It has
affected the way we do business as well as the way we spend our
leisure time. The Internet is a communication system that has brought
a wealth of information to our fingertips and organized it for our use.
Organization of the Internet
Internet Service Providers (ISPs)
13

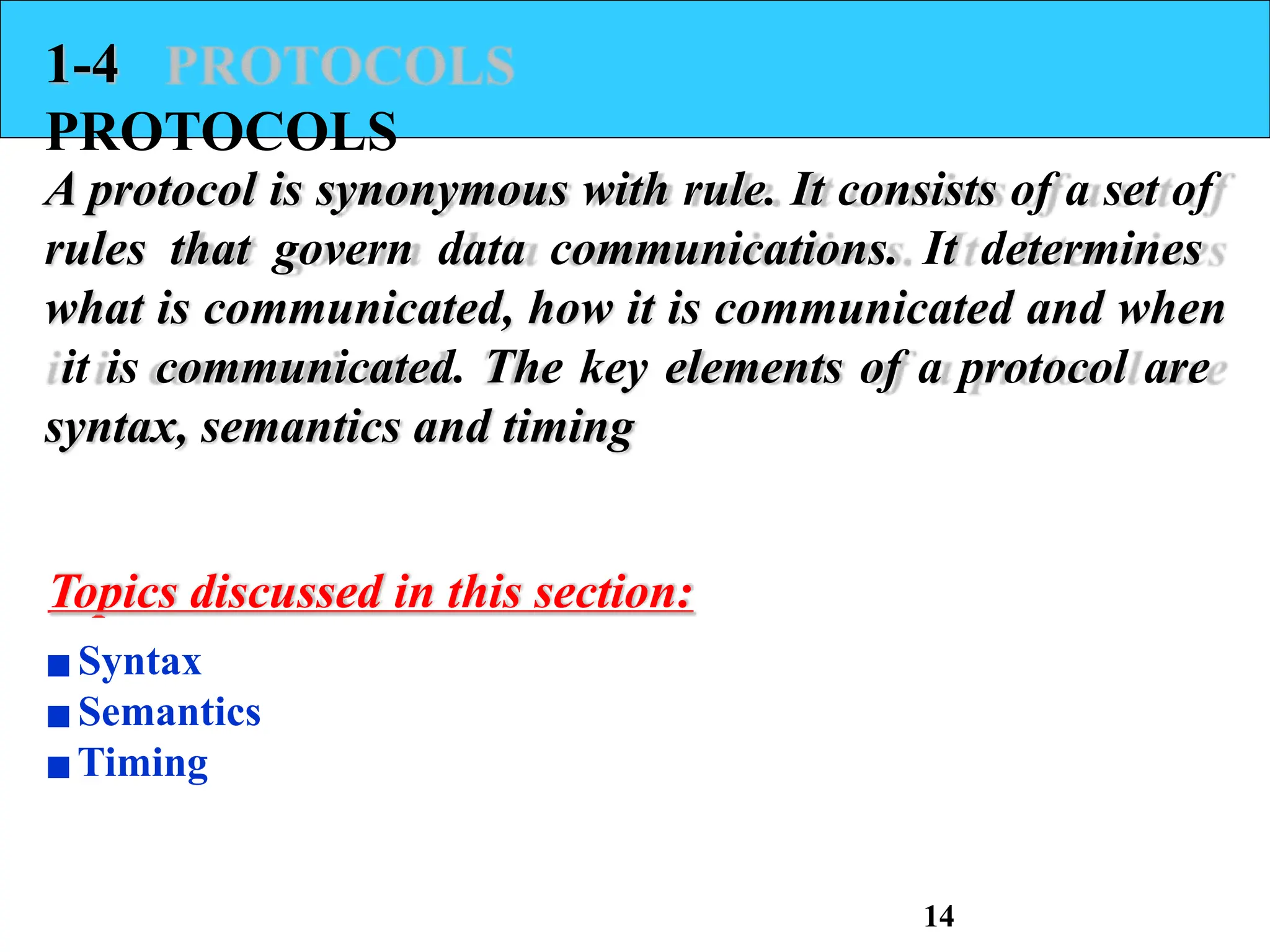

1-4
PROTOCOLS
A protocol is synonymous with rule. It consists of a set of
rules that govern data communications. It determines
what is communicated, how it is communicated and when
it is communicated. The key elements of a protocol are
syntax, semantics and timing
▪Syntax
▪Semantics
▪Timing
14

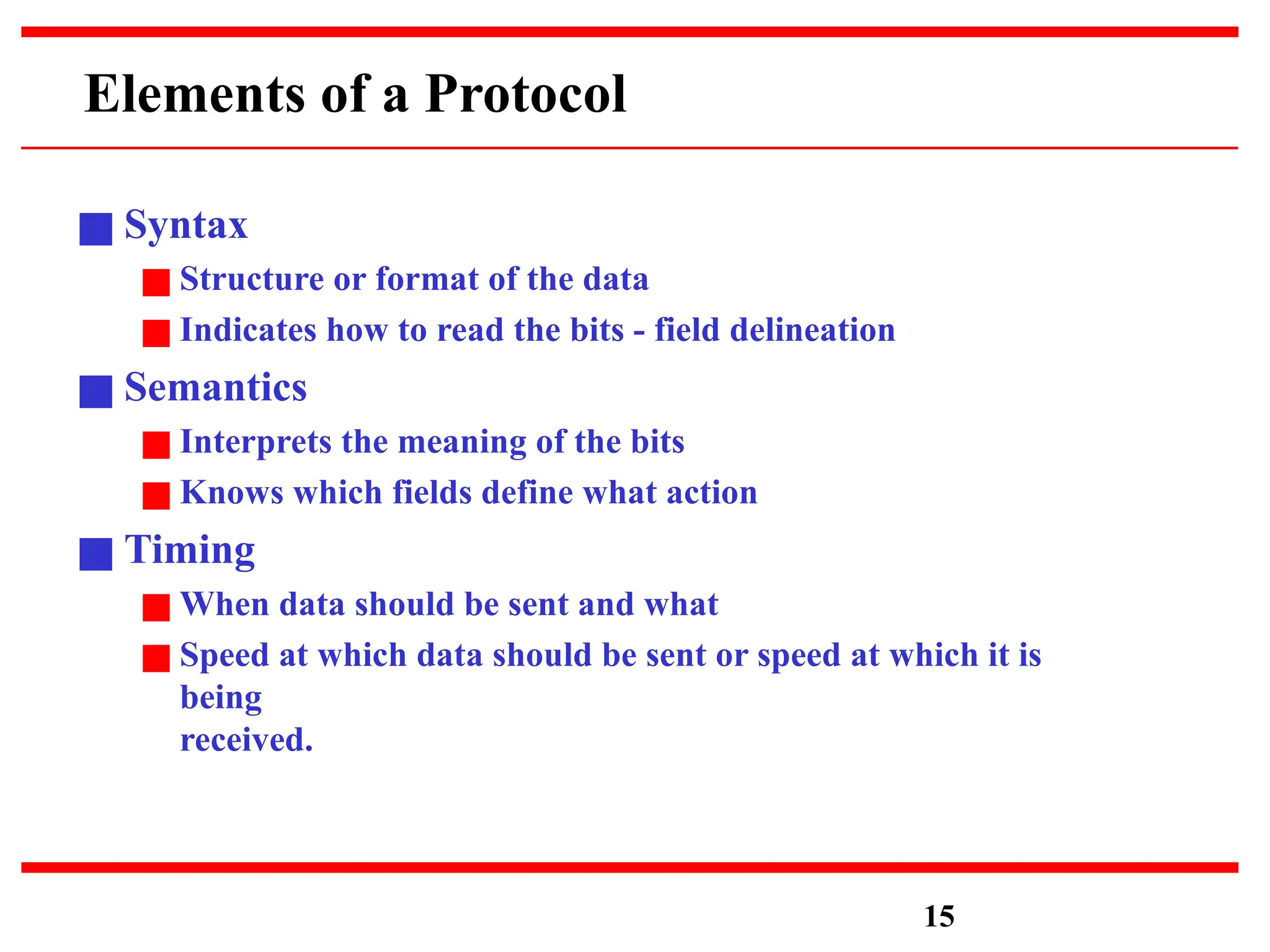

Elements of a Protocol
■ Syntax
■ Structure or format of the data
■ Indicates how to read the bits - field delineation
■ Semantics
■ Interprets the meaning of the bits
■ Knows which fields define what action
■ Timing
■ When data should be sent and what
■ Speed at which data should be sent or speed at which it is
being
received.
15

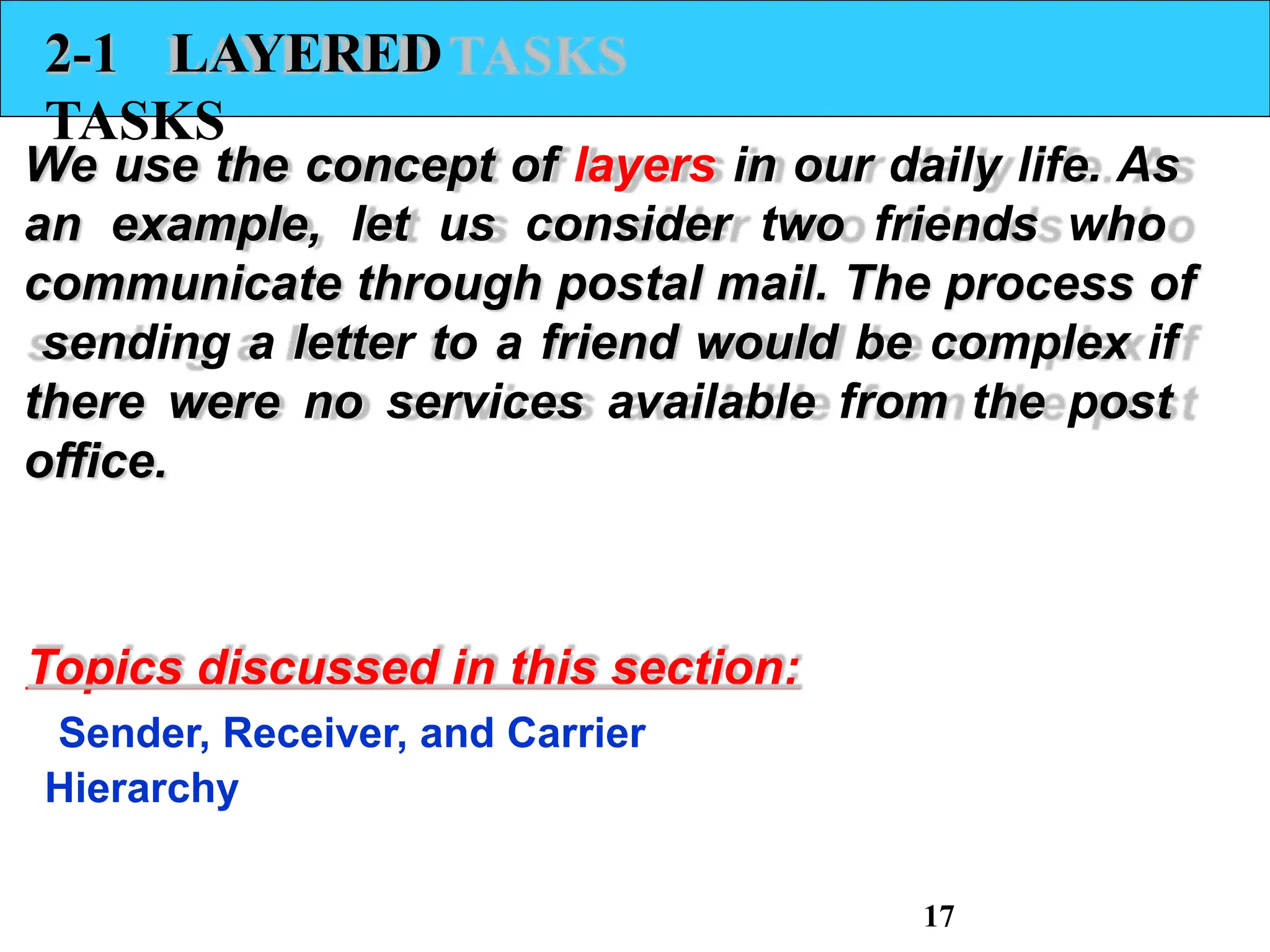

2-1 LAYERED
TASKS
We use the concept of layers in our daily life. As
an example, let us consider two friends who
communicate through postal mail. The process of
sending a letter to a friend would be complex if
there were no services available from the post
office.
Sender, Receiver, and Carrier
Hierarchy
17

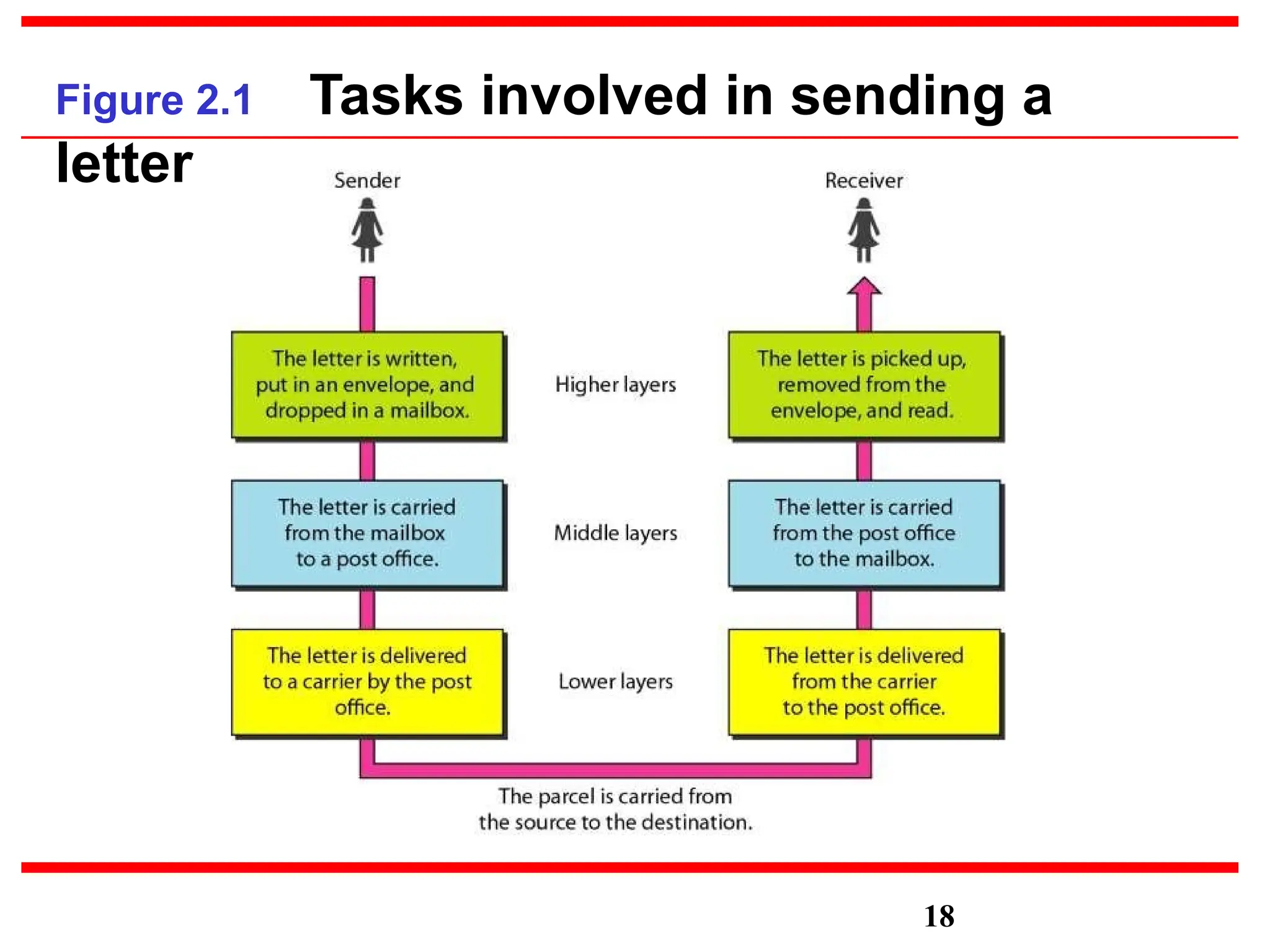

Figure 2.1 Tasks involved in sending a
letter
18

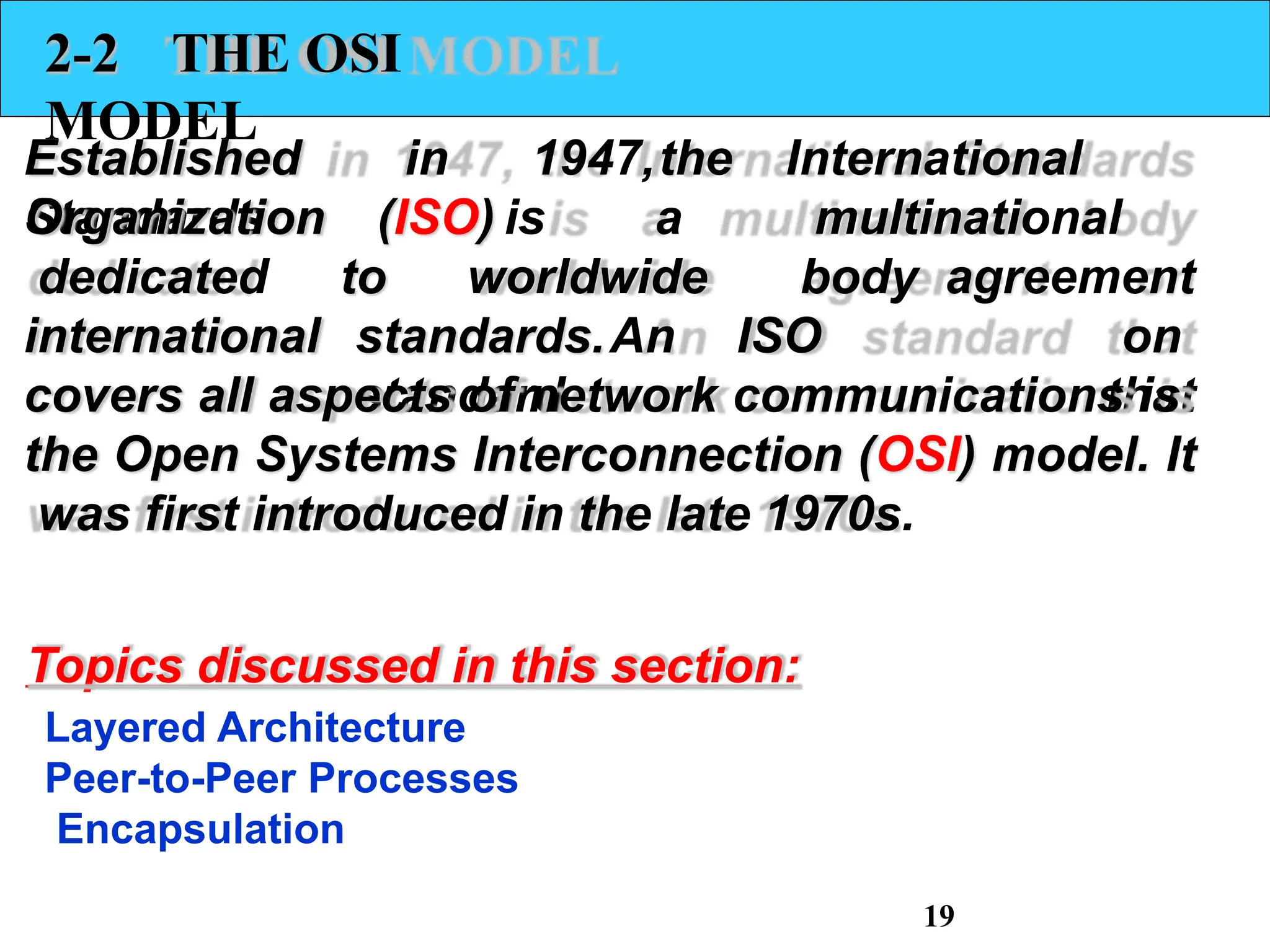

2-2 THE OSI
MODEL
Established in 1947,the International
Standards (ISO) is
to worldwide
Organization
dedicated
international standards.An ISO
standard
a multinational
body agreement
on
that
covers all aspects of network communications is
the Open Systems Interconnection (OSI) model. It
was first introduced in the late 1970s.
Layered Architecture
Peer-to-Peer Processes
Encapsulation
19

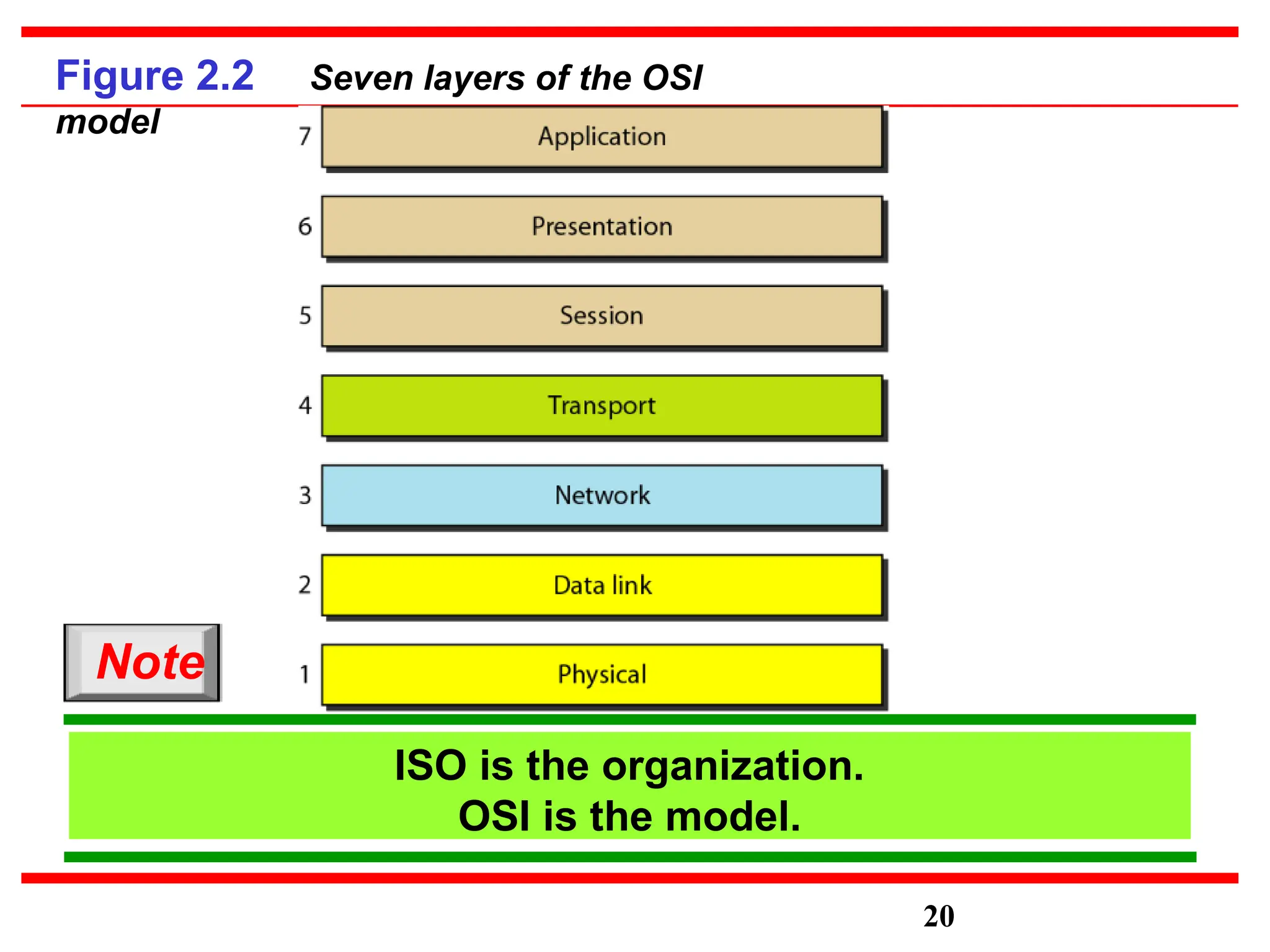

Figure 2.2 Seven layers of the OSI
model
ISO is the organization.
OSI is the model.
20
Note

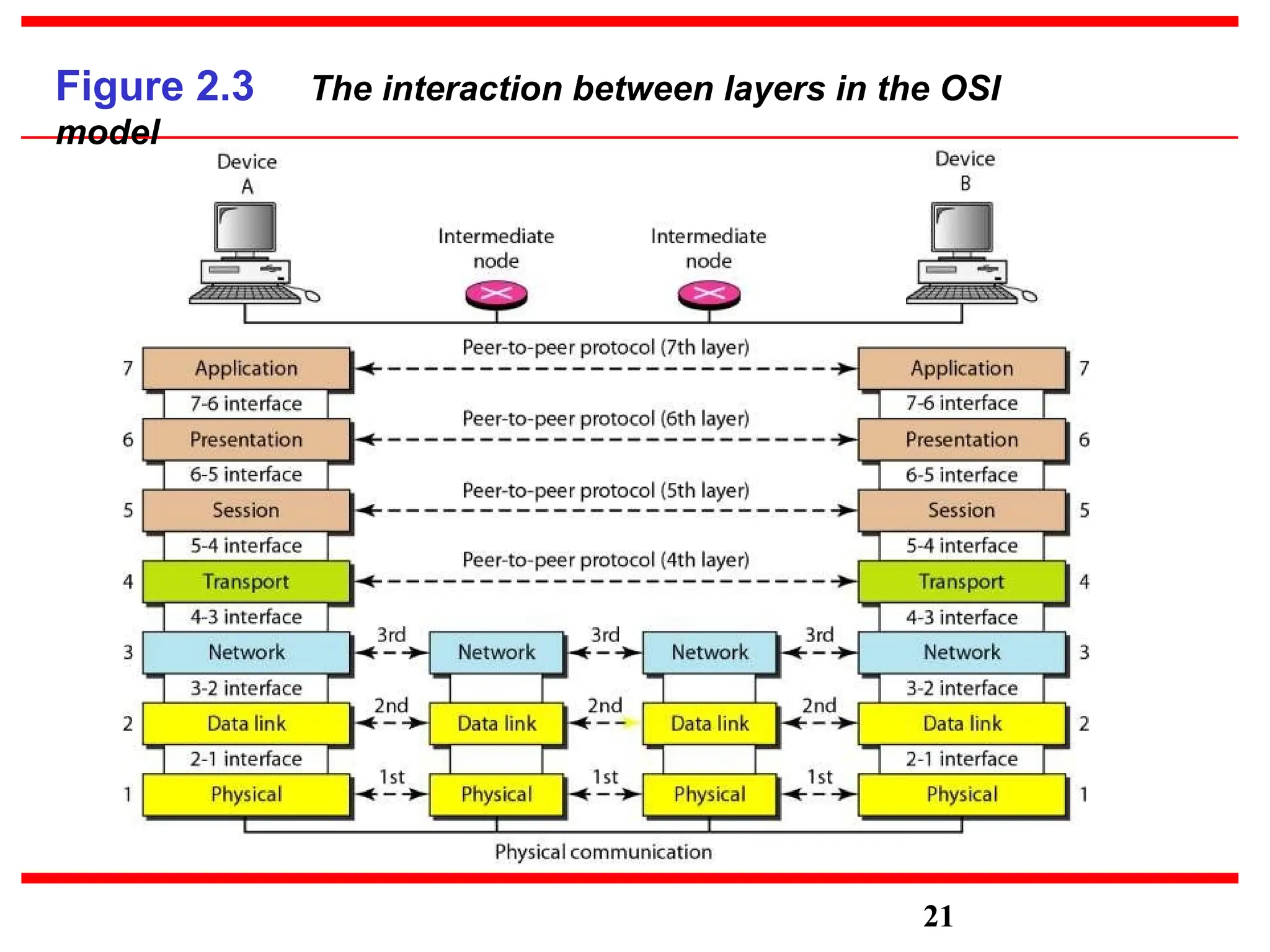

Figure 2.3 The interaction between layers in the OSI
model
21

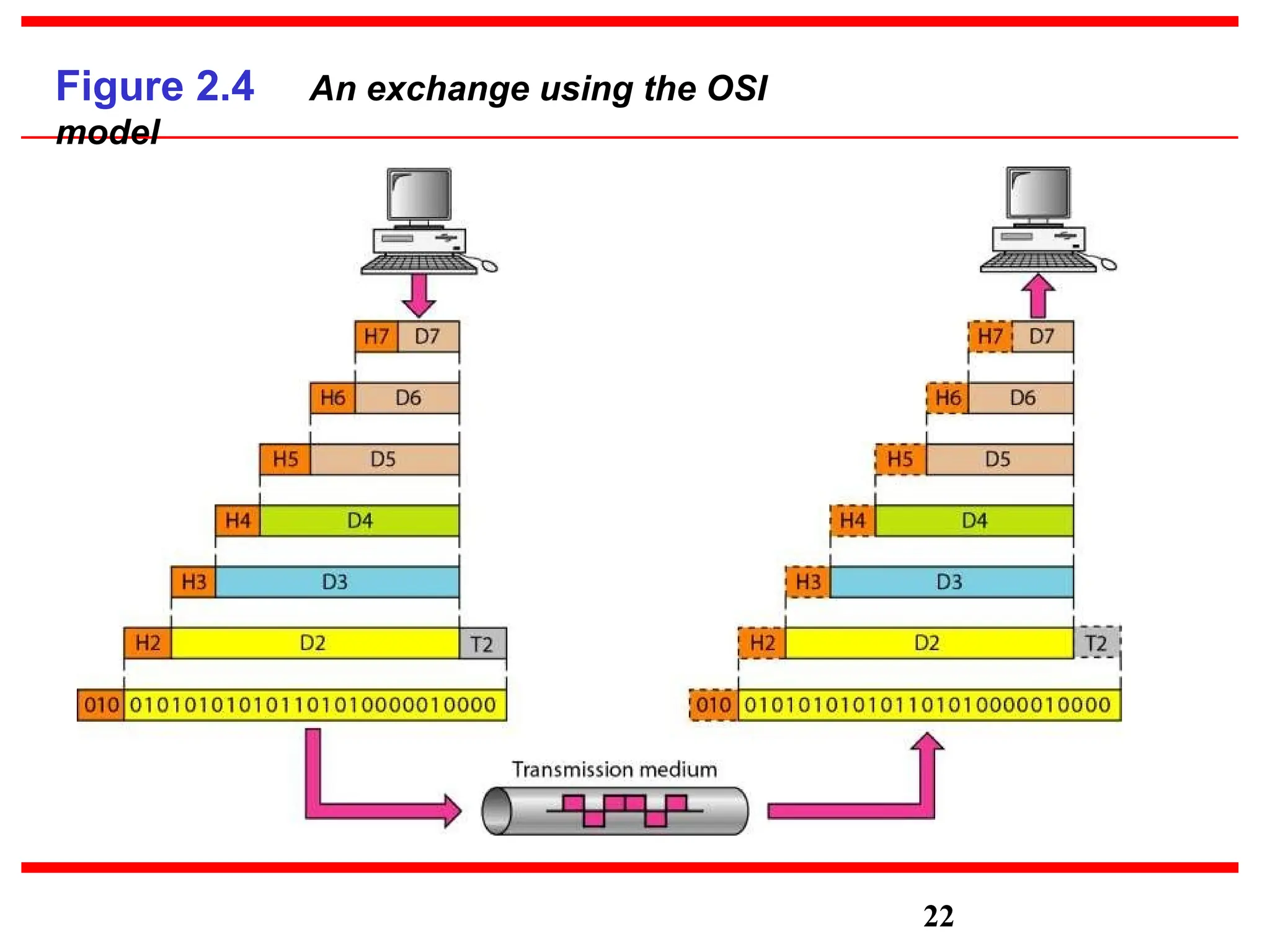

Figure 2.4 An exchange using the OSI
model
22

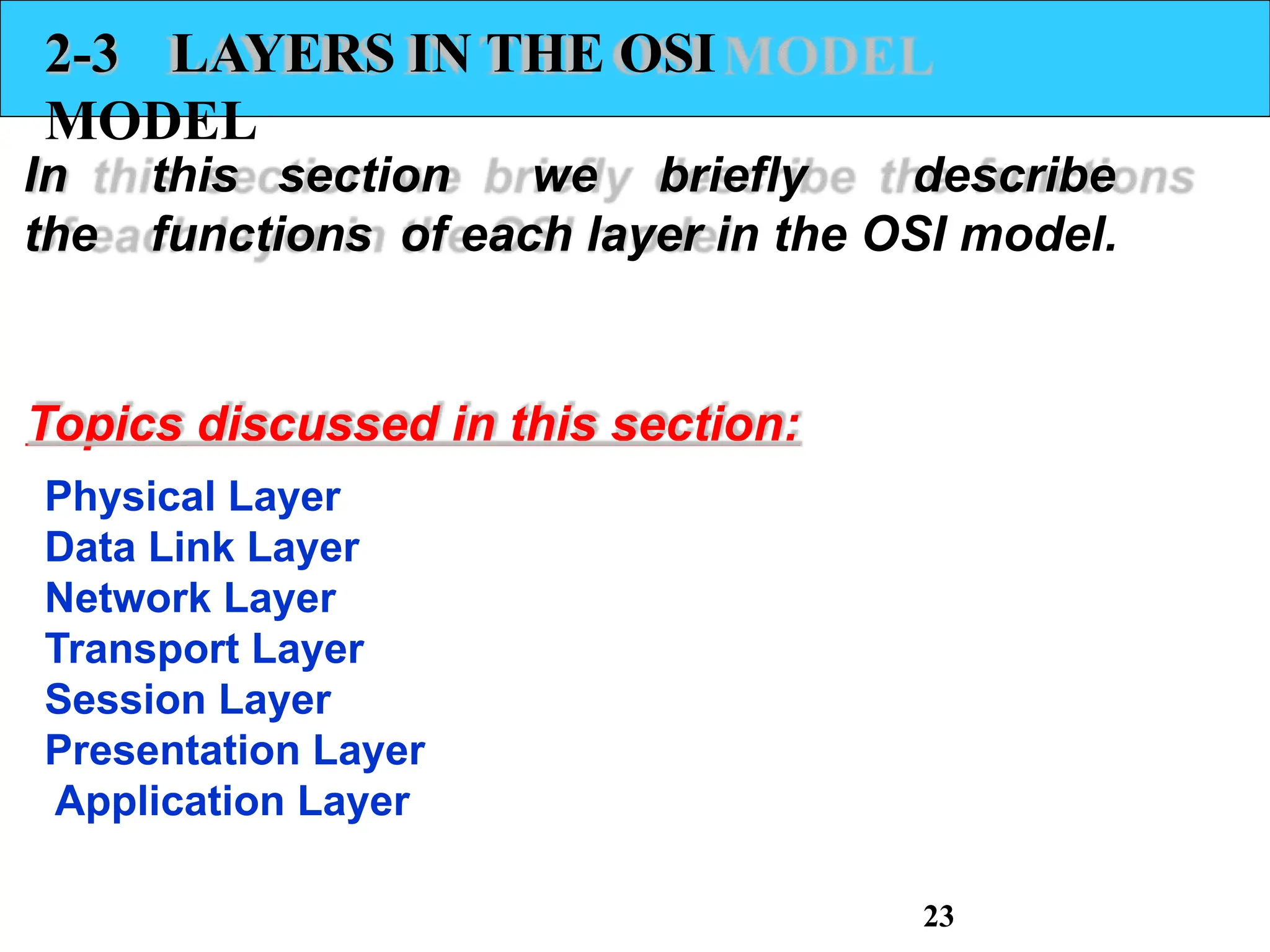

2-3 LAYERS IN THE OSI
MODEL
In this section we briefly describe
the functions of each layer in the OSI model.
Physical Layer
Data Link Layer
Network Layer
Transport Layer
Session Layer
Presentation Layer
Application Layer
23

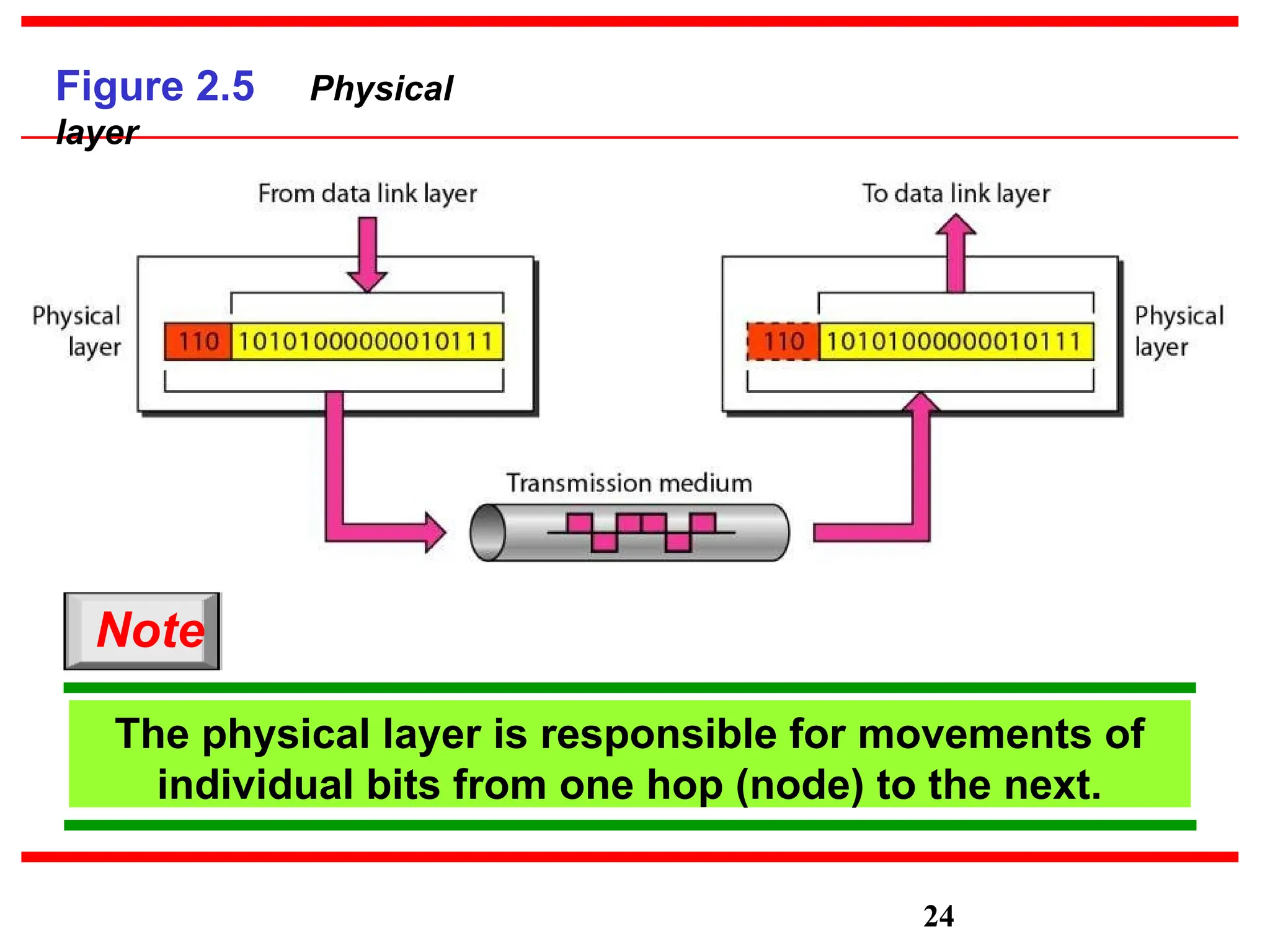

Figure 2.5 Physical
layer
The physical layer is responsible for movements of
individual bits from one hop (node) to the next.
Note
24

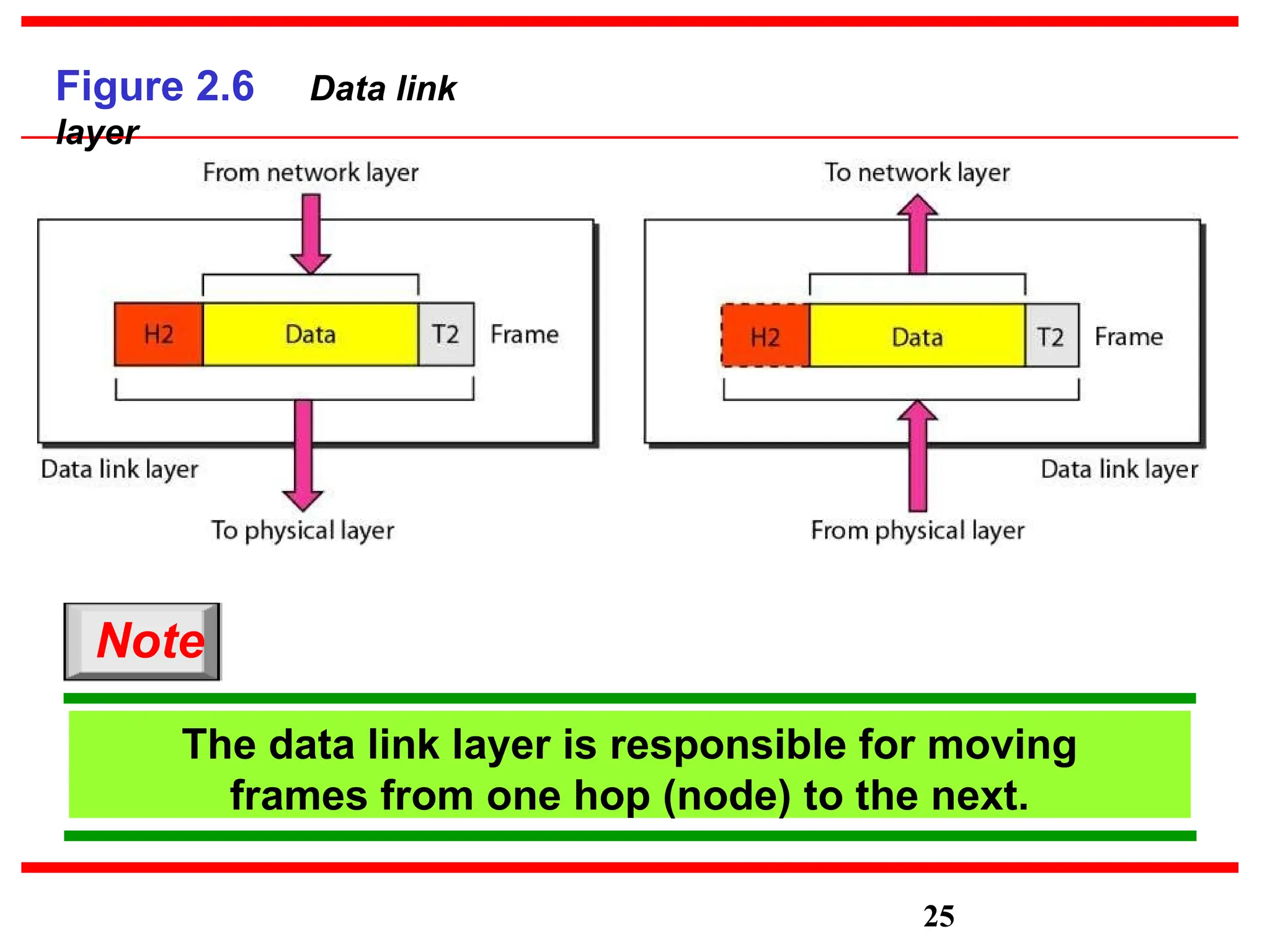

Figure 2.6 Data link
layer
The data link layer is responsible for moving
frames from one hop (node) to the next.
Note
25

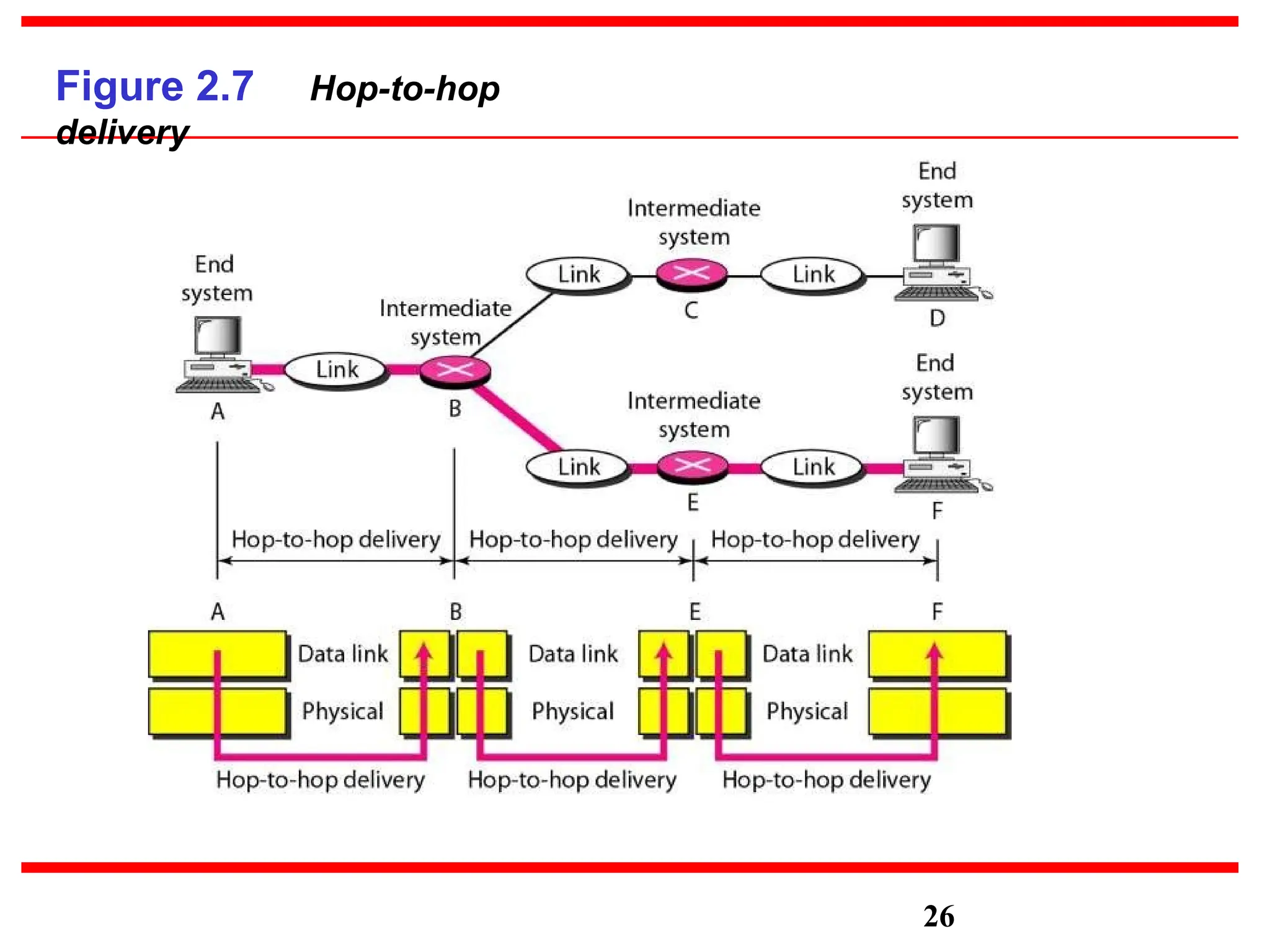

Figure 2.7 Hop-to-hop
delivery
26

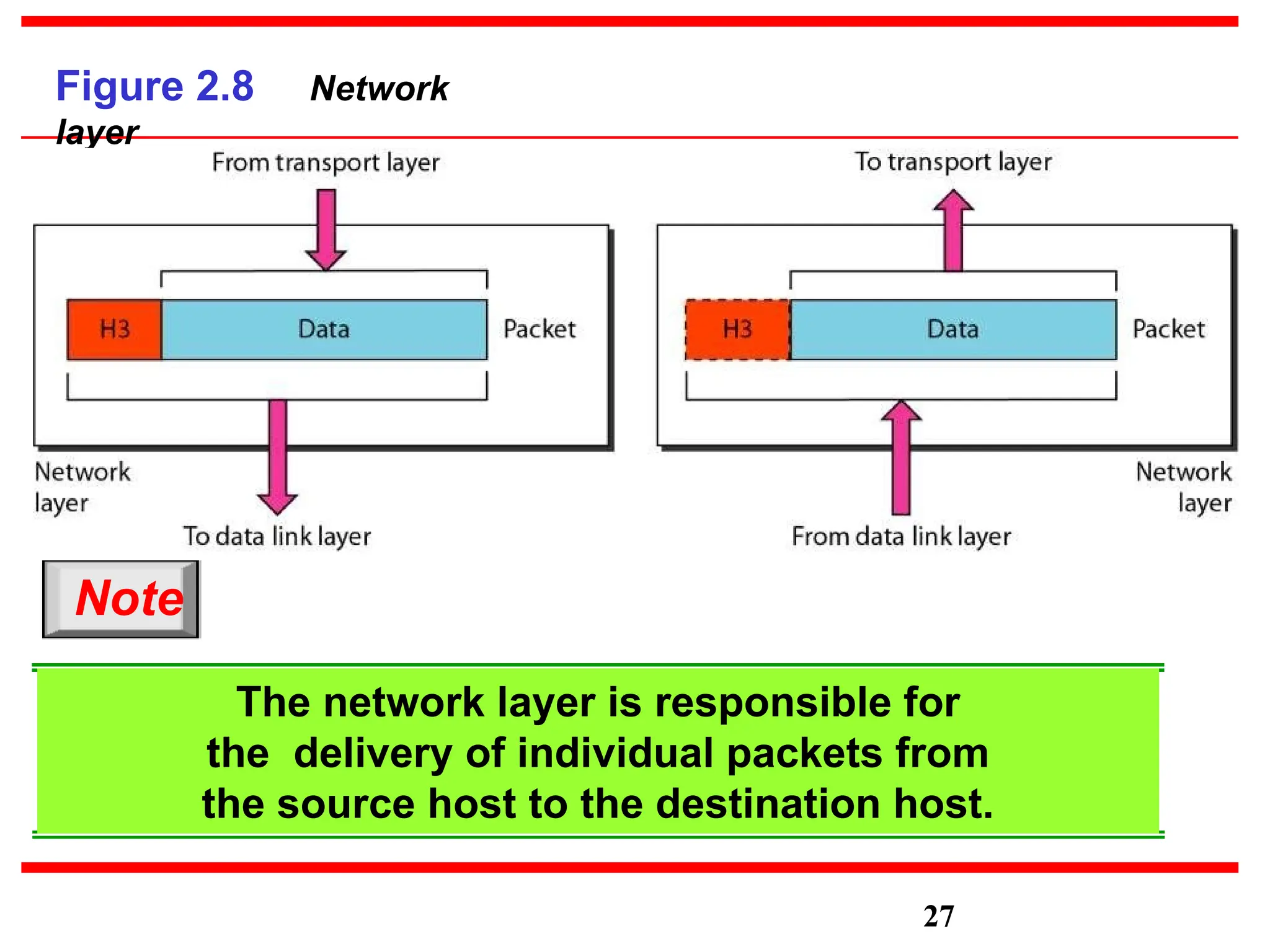

Figure 2.8 Network
layer
Note
The network layer is responsible for
the delivery of individual packets from
the source host to the destination host.
27

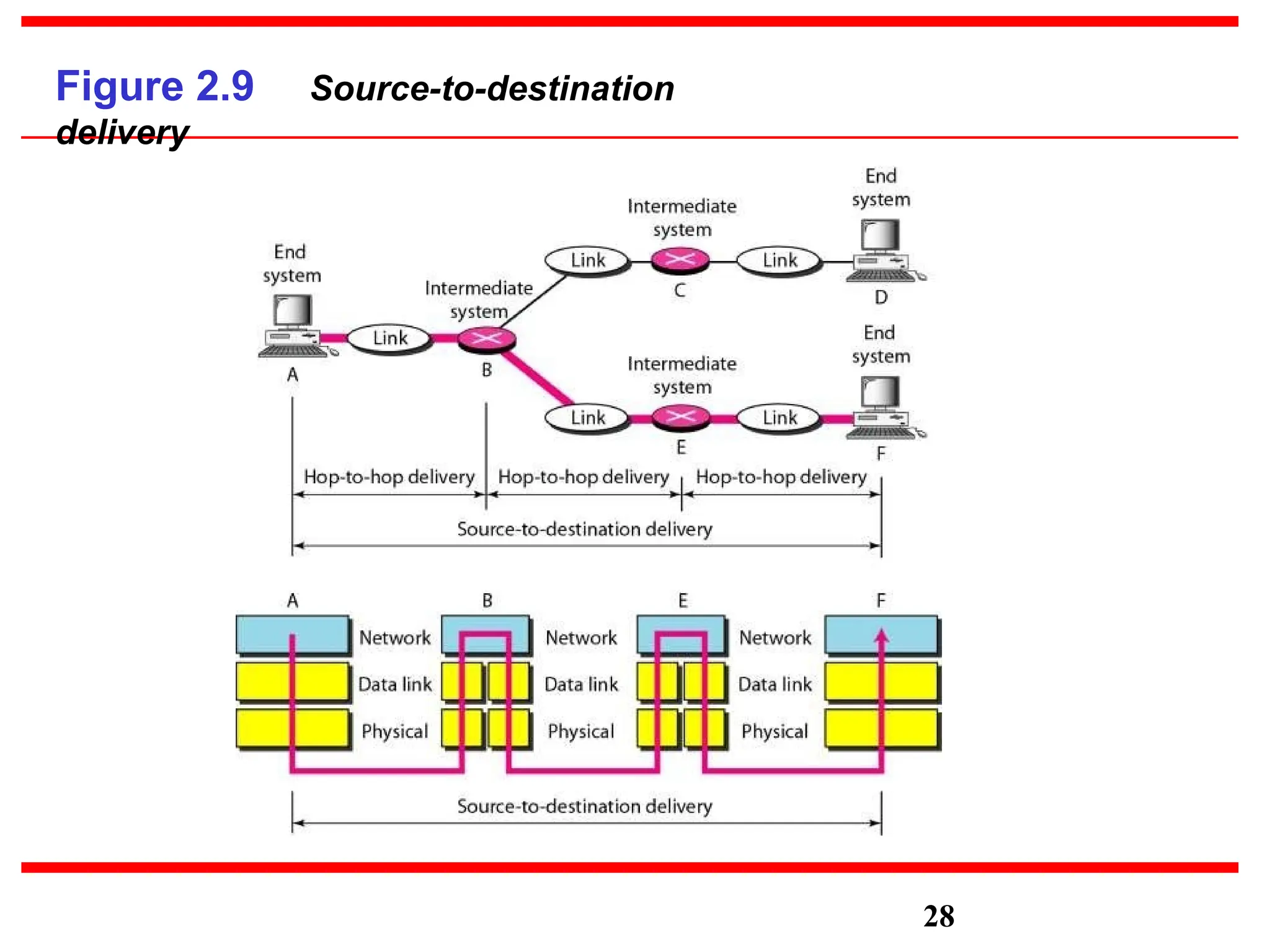

Figure 2.9 Source-to-destination
delivery
28

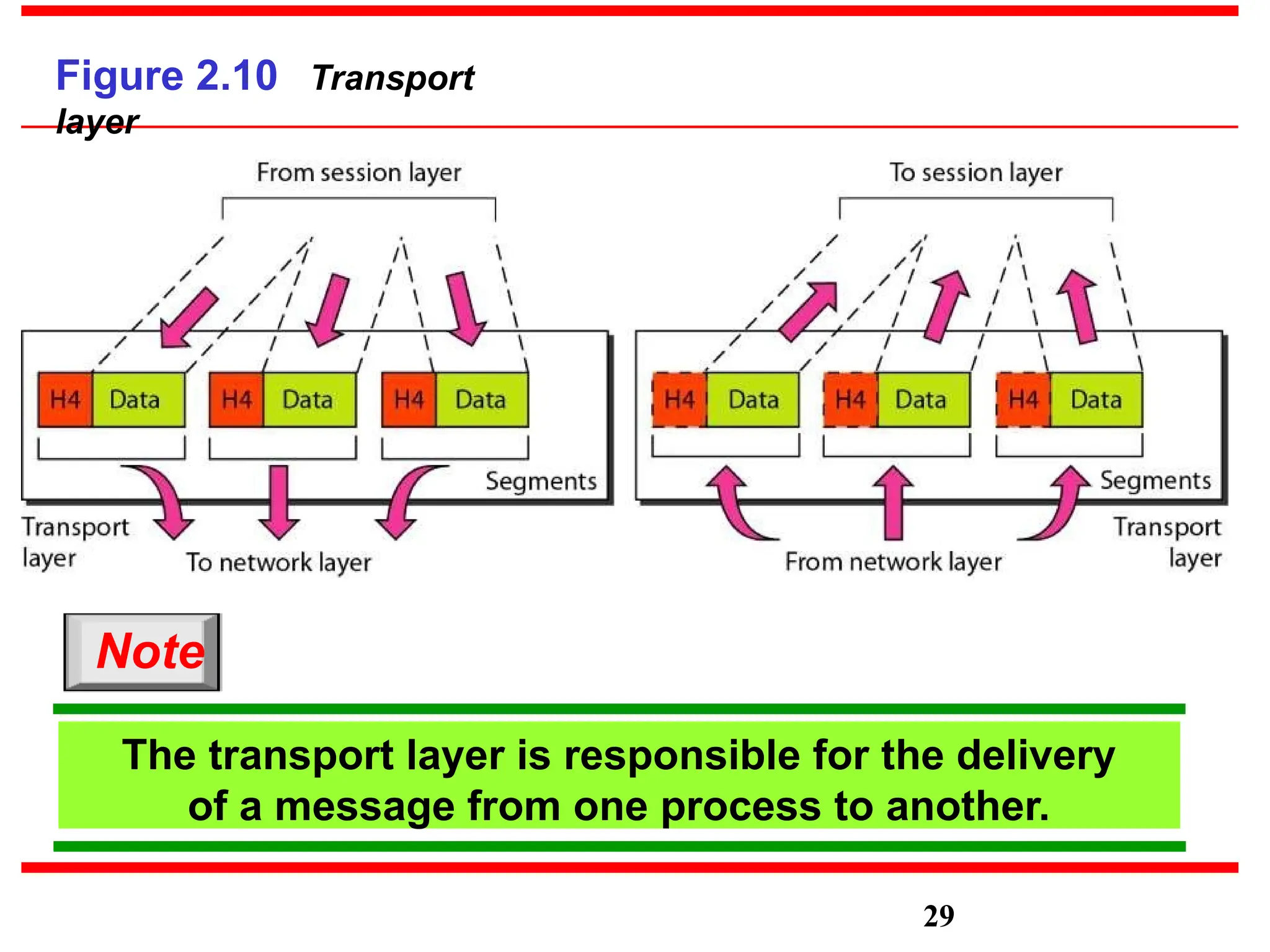

Figure 2.10 Transport
layer
The transport layer is responsible for the delivery
of a message from one process to another.
Note
29

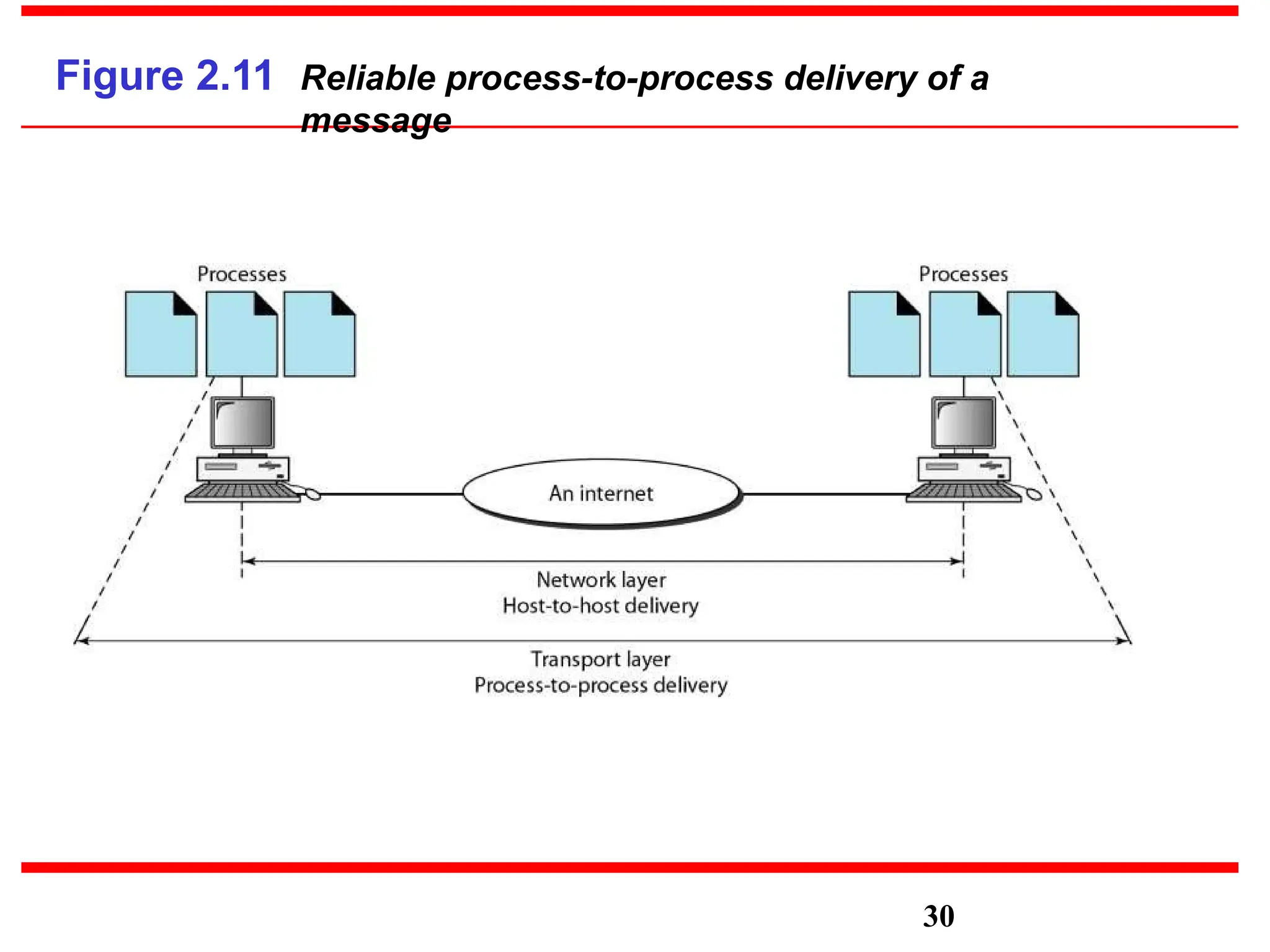

Figure 2.11 Reliable process-to-process delivery of a
message
30

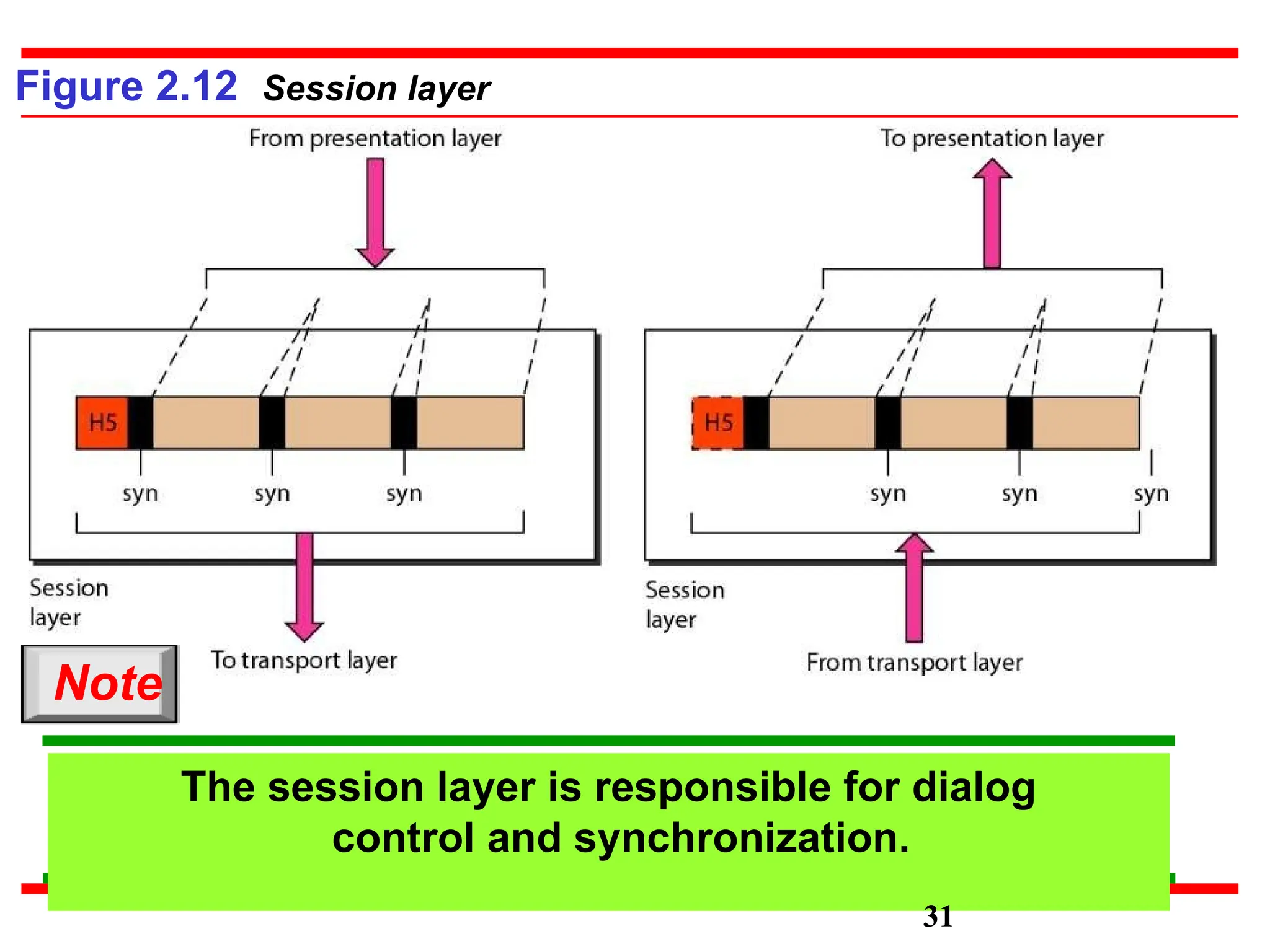

Figure 2.12 Session layer
The session layer is responsible for dialog
control and synchronization.
31
Note

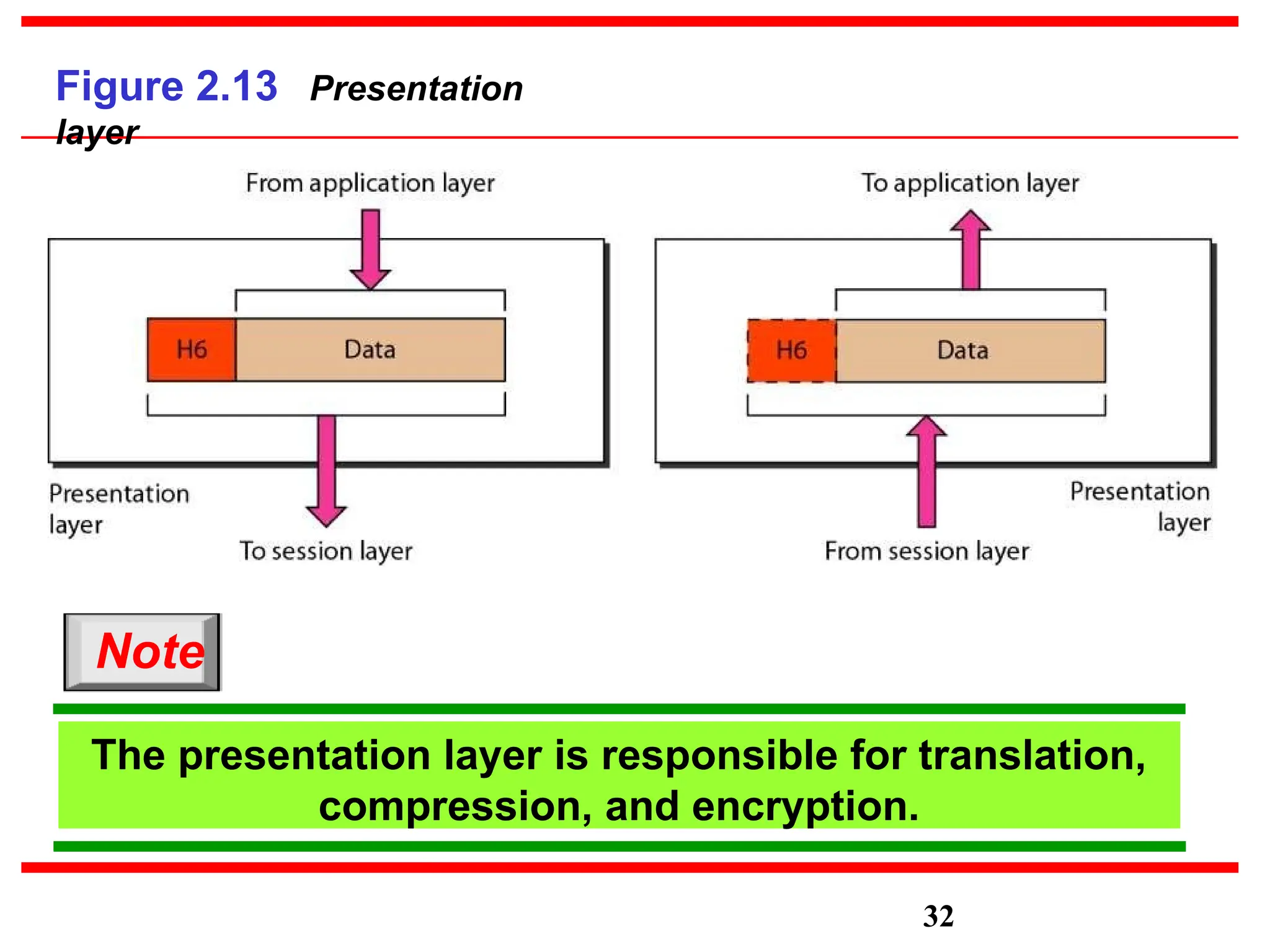

Figure 2.13 Presentation
layer
The presentation layer is responsible for translation,
compression, and encryption.
Note
32

Figure 2.14 Application
layer
Note
The application layer is responsible
for providing services to the user.
33

Figure 2.15 Summary of
layers
34

2-4 TCP/IP PROTOCOL
SUITE
The layers in the TCP/IP protocol
suite do not
match those in the OSI
model. The
TCP/IP protocol suite was defined
as
exactly
original
having
four layers: host-to-network,
internet,
transport, and application. However, when TCP/IP
is compared to OSI, we can say that the TCP/IP
protocol suite is made of five layers: physical,
data link, network, transport, and application.
Physical and Data Link Layers
Network Layer
Transport Layer
Application Layer
35

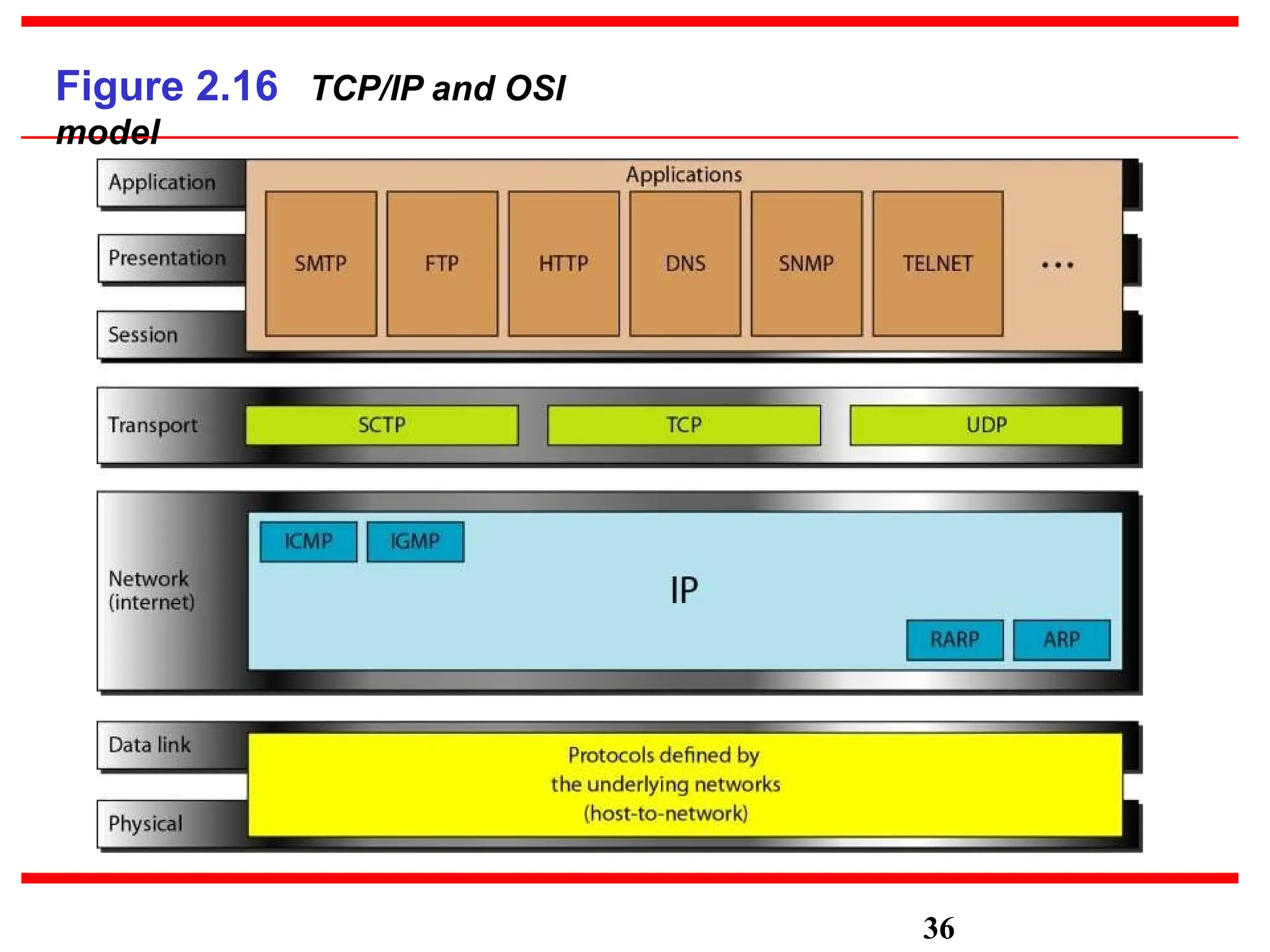

Figure 2.16 TCP/IP and OSI
model
36

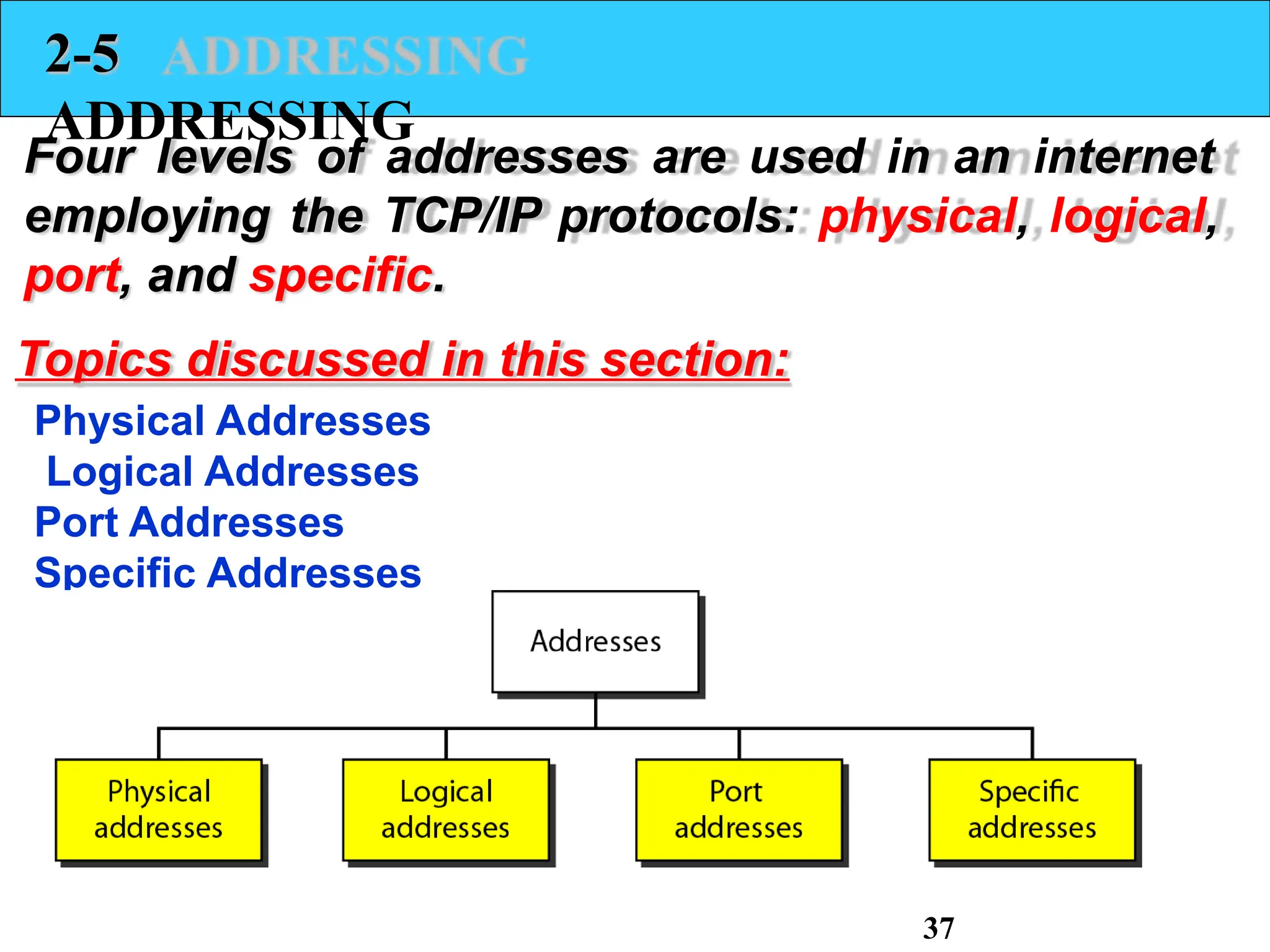

2-5
ADDRESSING
Four levels of addresses are used in an internet
employing the TCP/IP protocols: physical, logical,
port, and specific.
Physical Addresses
Logical Addresses
Port Addresses
Specific Addresses
37

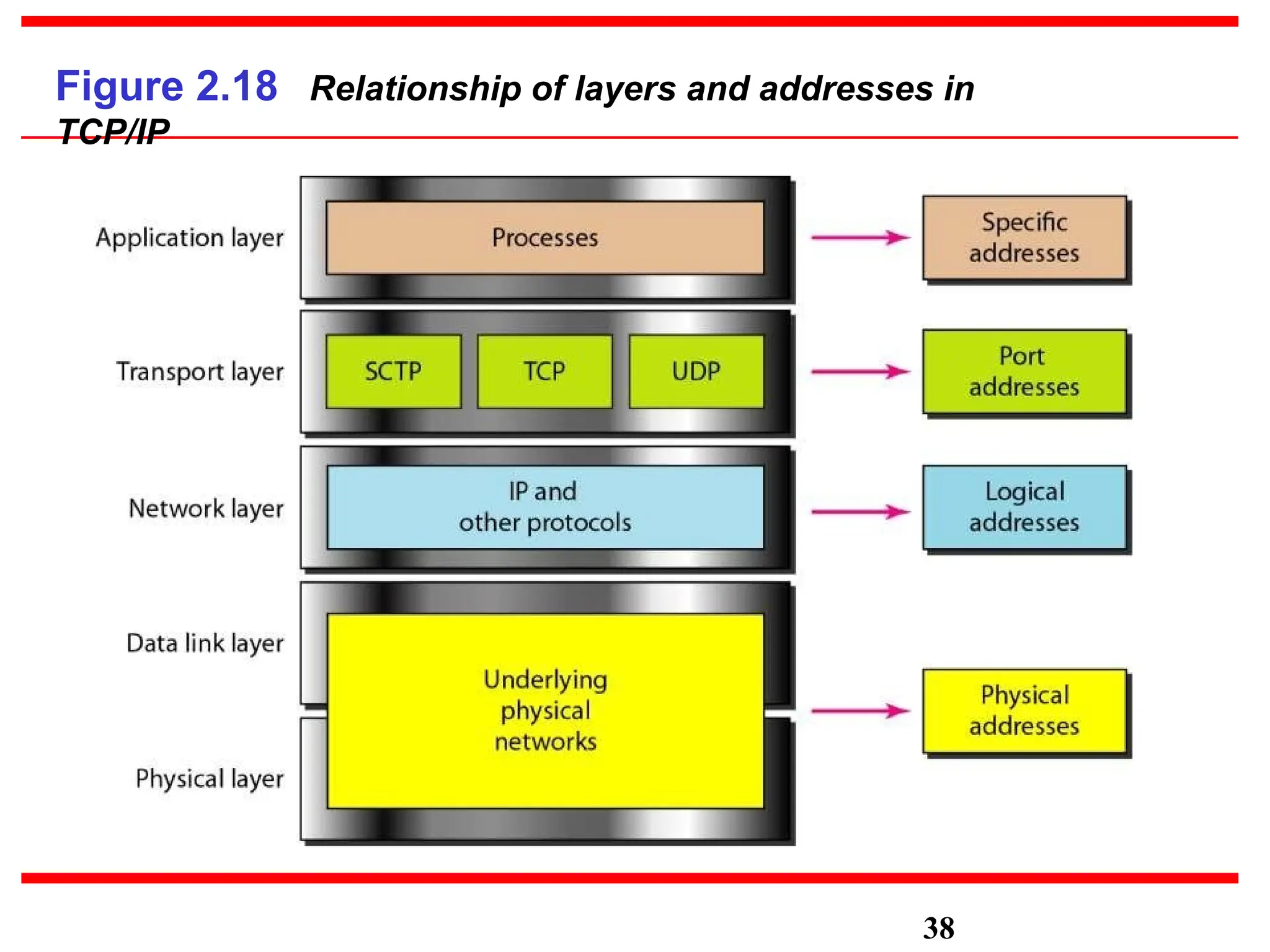

Figure 2.18 Relationship of layers and addresses in
TCP/IP
38

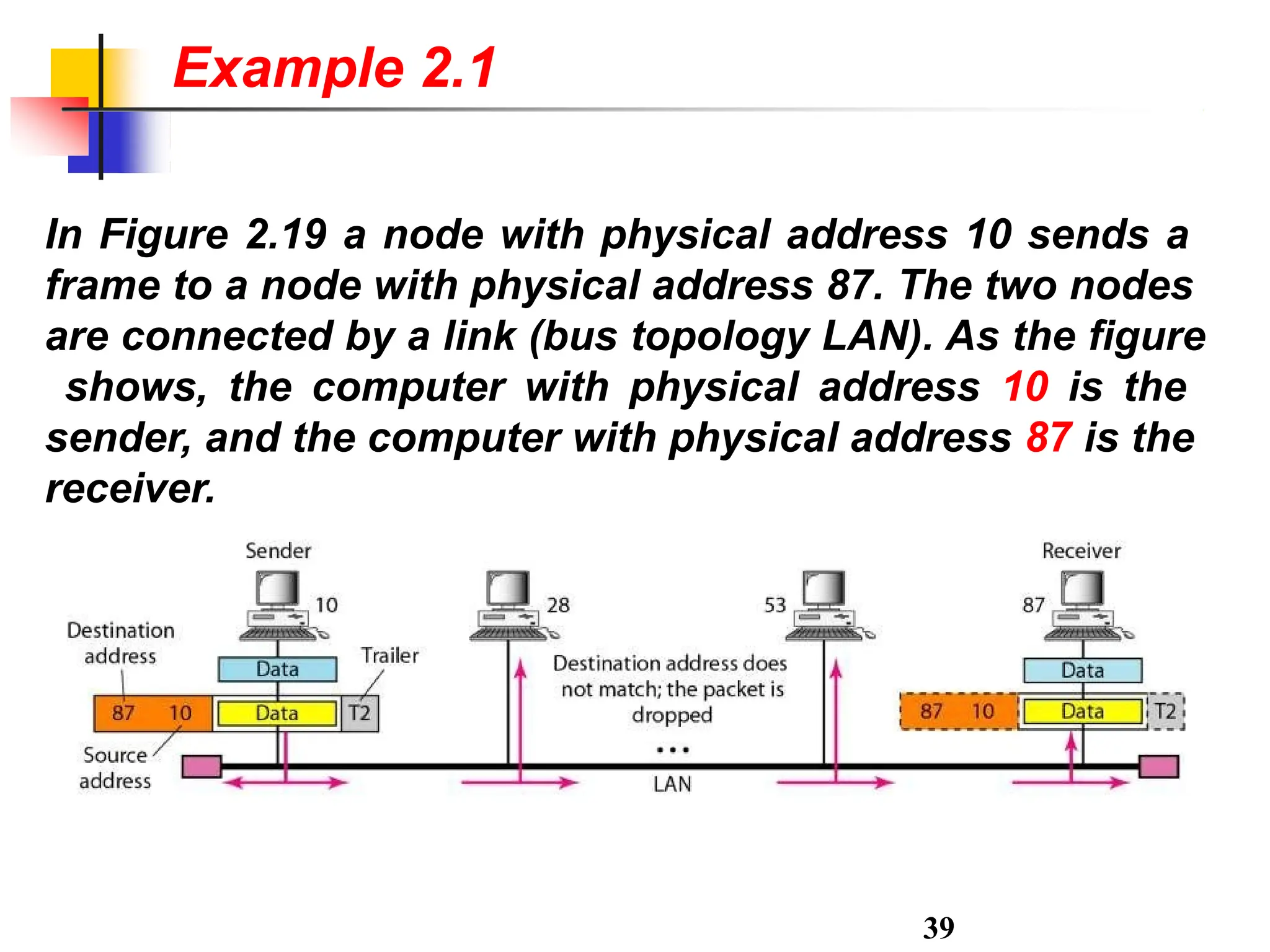

In Figure 2.19 a node with physical address 10 sends a
frame to a node with physical address 87. The two nodes
are connected by a link (bus topology LAN). As the figure
shows, the computer with physical address 10 is the
sender, and the computer with physical address 87 is the
receiver.
Example 2.1
39

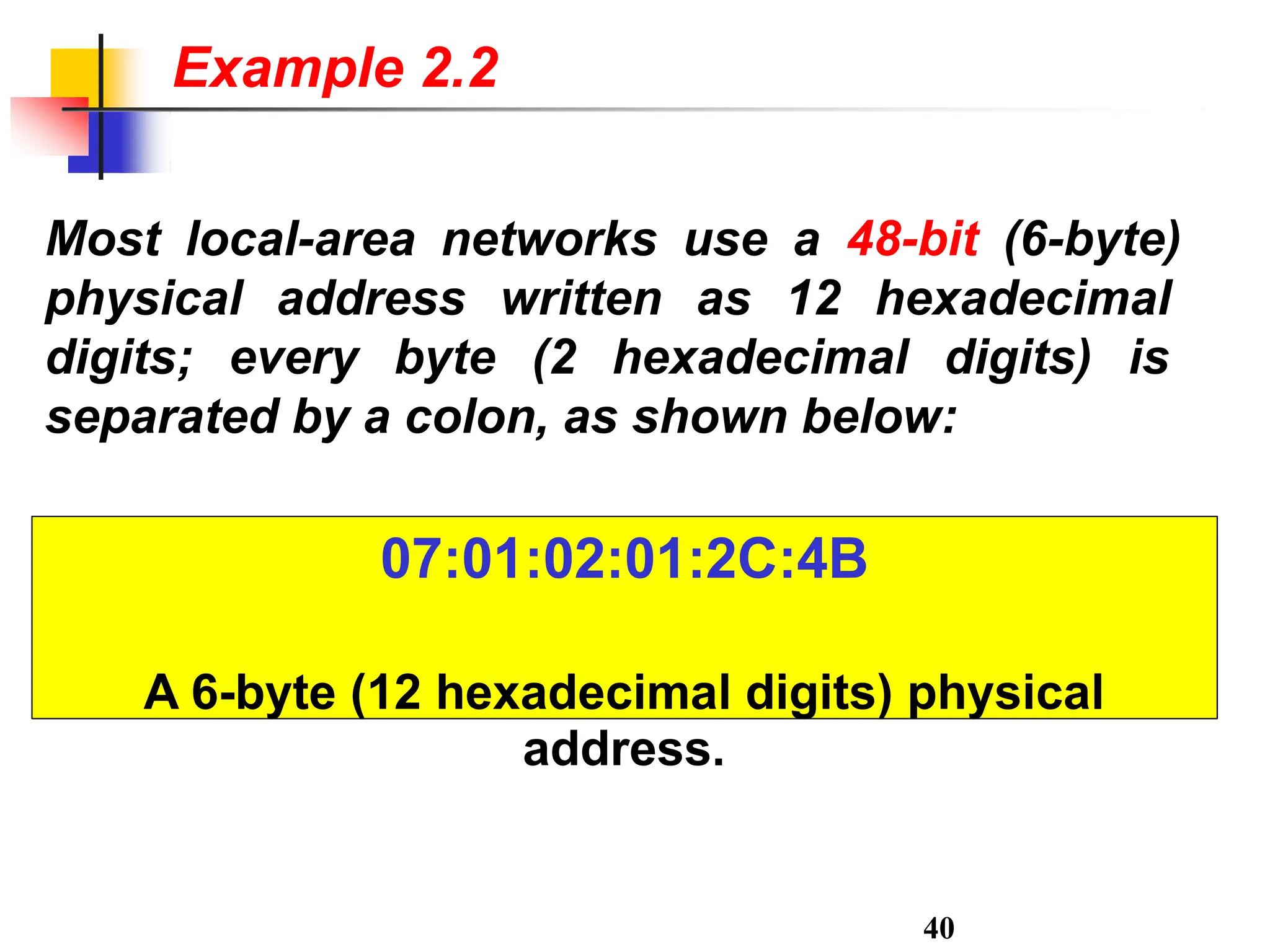

Most local-area networks use a 48-bit (6-byte)
physical address written as 12 hexadecimal
digits; every byte (2 hexadecimal digits) is
separated by a colon, as shown below:
40
Example 2.2
07:01:02:01:2C:4B
A 6-byte (12 hexadecimal digits) physical
address.

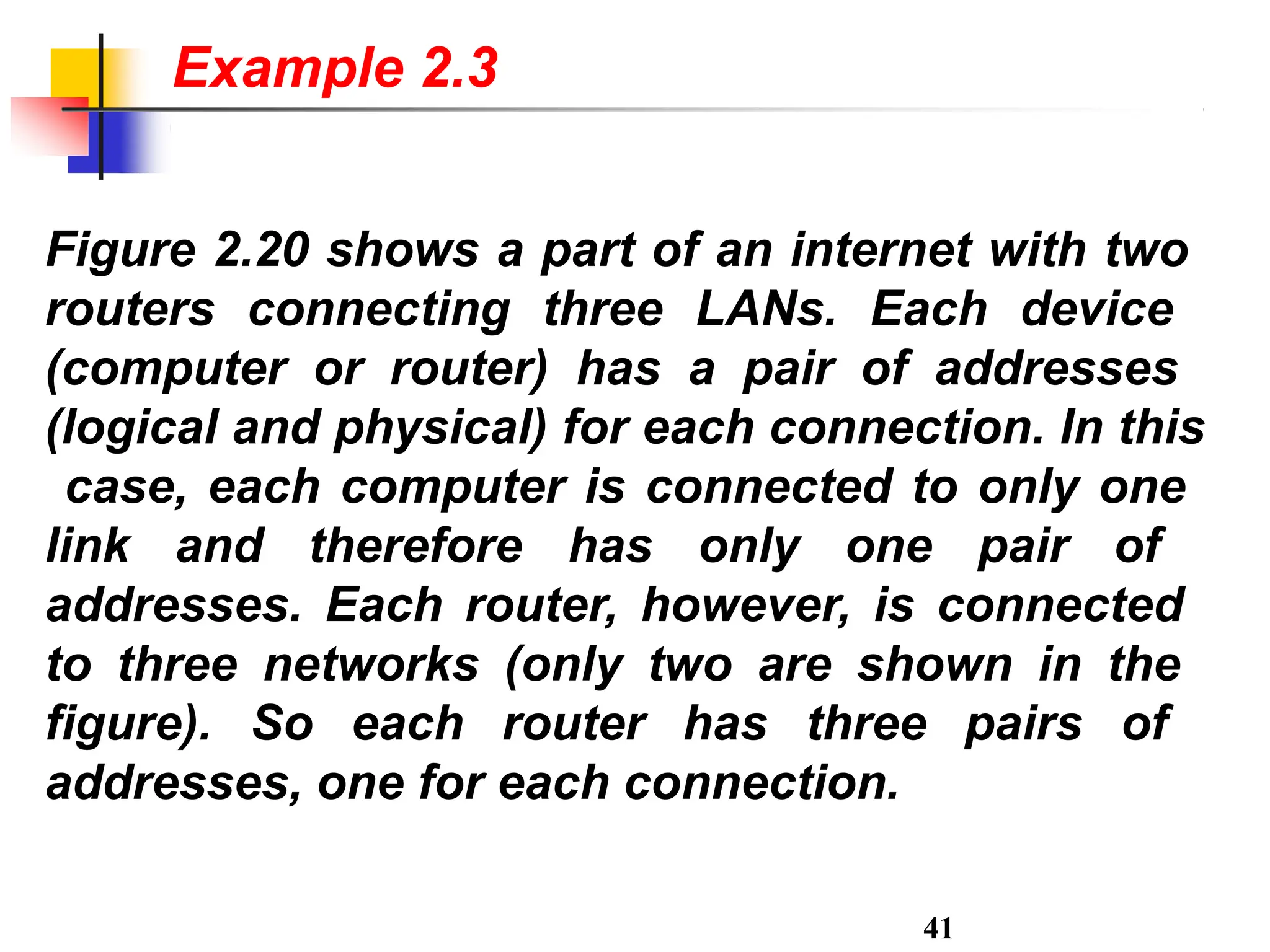

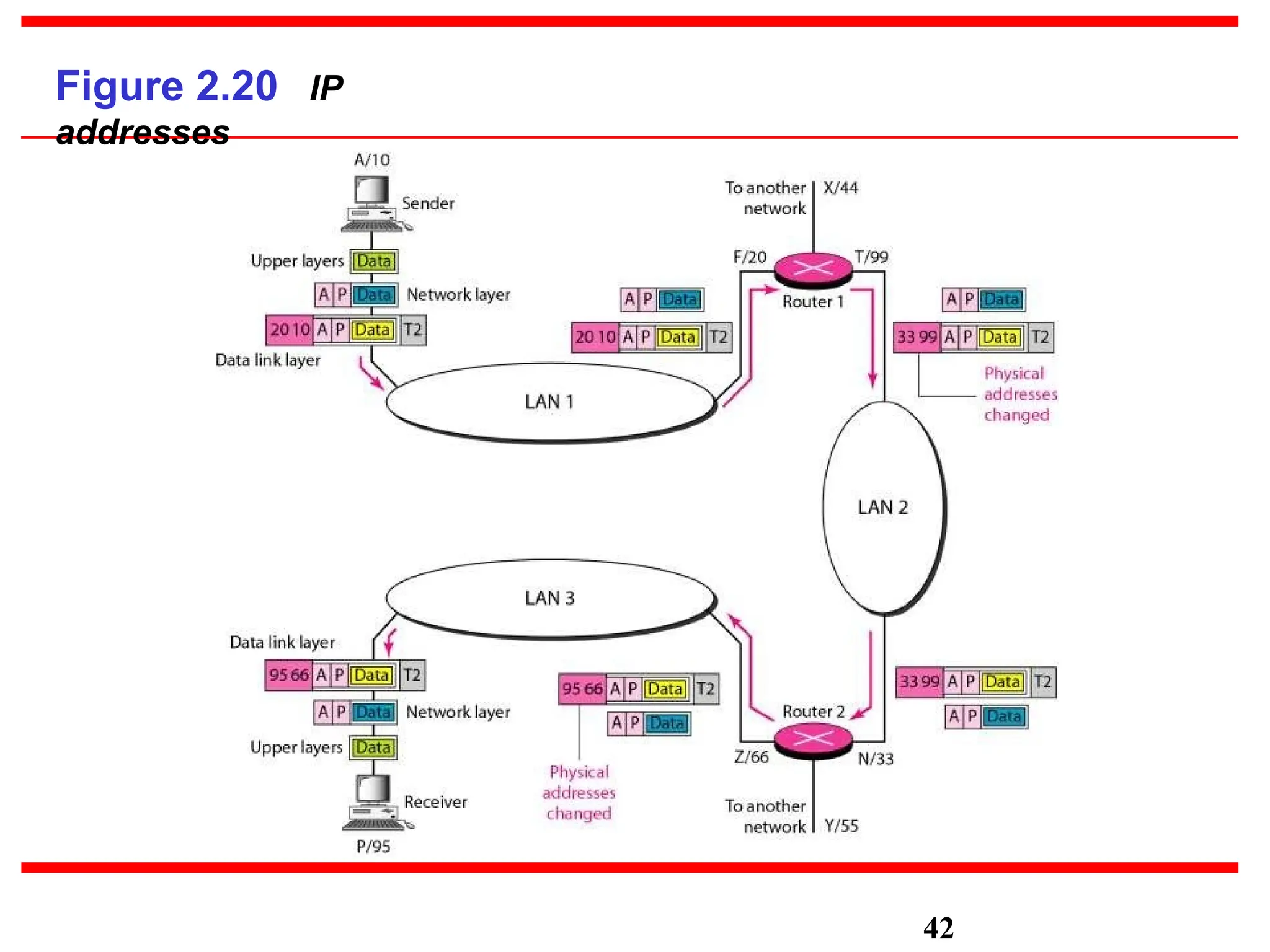

Figure 2.20 shows a part of an internet with two
routers connecting three LANs. Each device
(computer or router) has a pair of addresses
(logical and physical) for each connection. In this
case, each computer is connected to only one
link and therefore has only one pair of
addresses. Each router, however, is connected
to three networks (only two are shown in the
figure). So each router has three pairs of
addresses, one for each connection.
41
Example 2.3

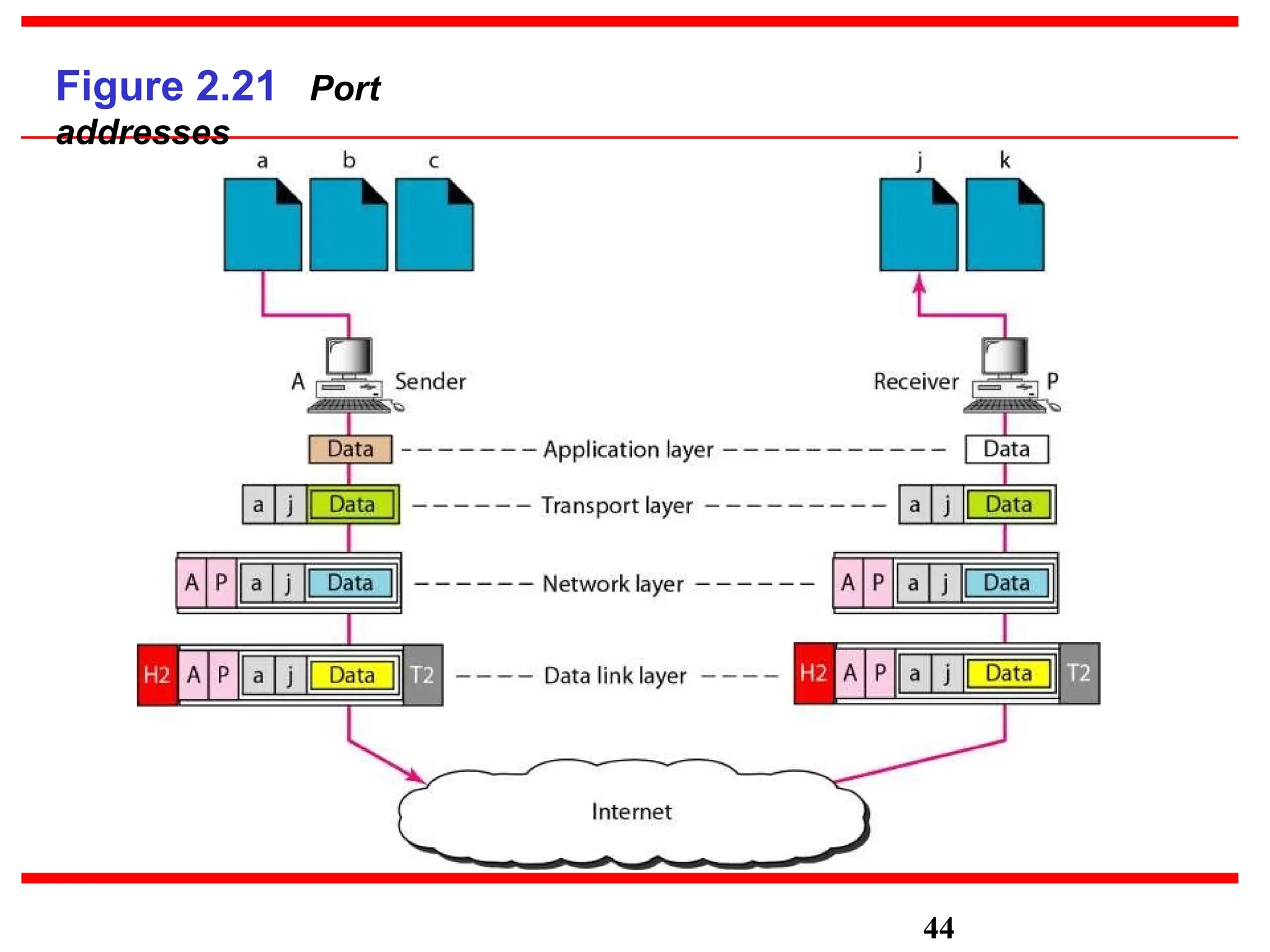

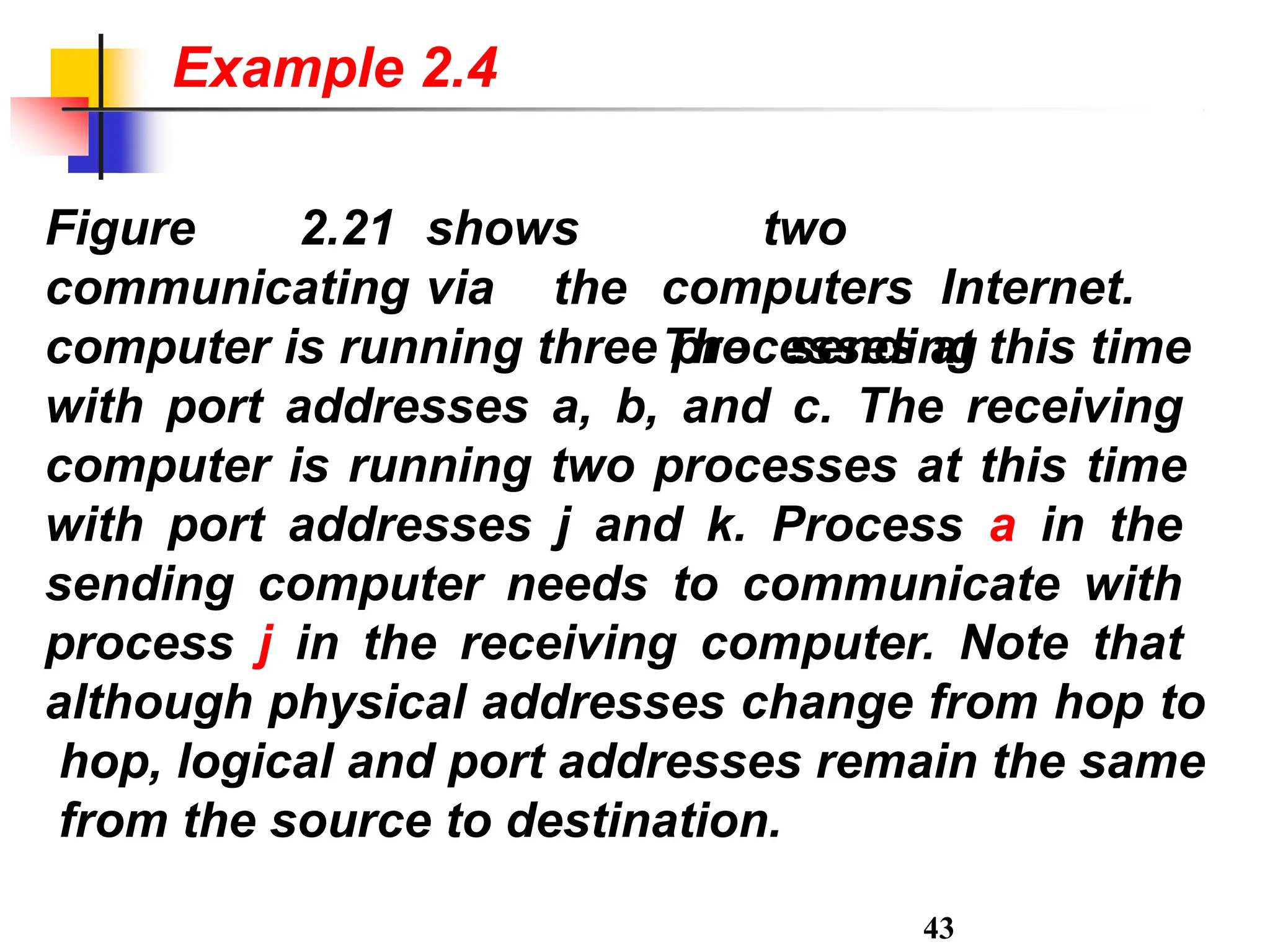

Figure 2.21 shows
43
communicating via the
two
computers Internet.
The sending
computer is running three processes at this time
with port addresses a, b, and c. The receiving
computer is running two processes at this time
with port addresses j and k. Process a in the
sending computer needs to communicate with
process j in the receiving computer. Note that
although physical addresses change from hop to
hop, logical and port addresses remain the same
from the source to destination.
Example 2.4

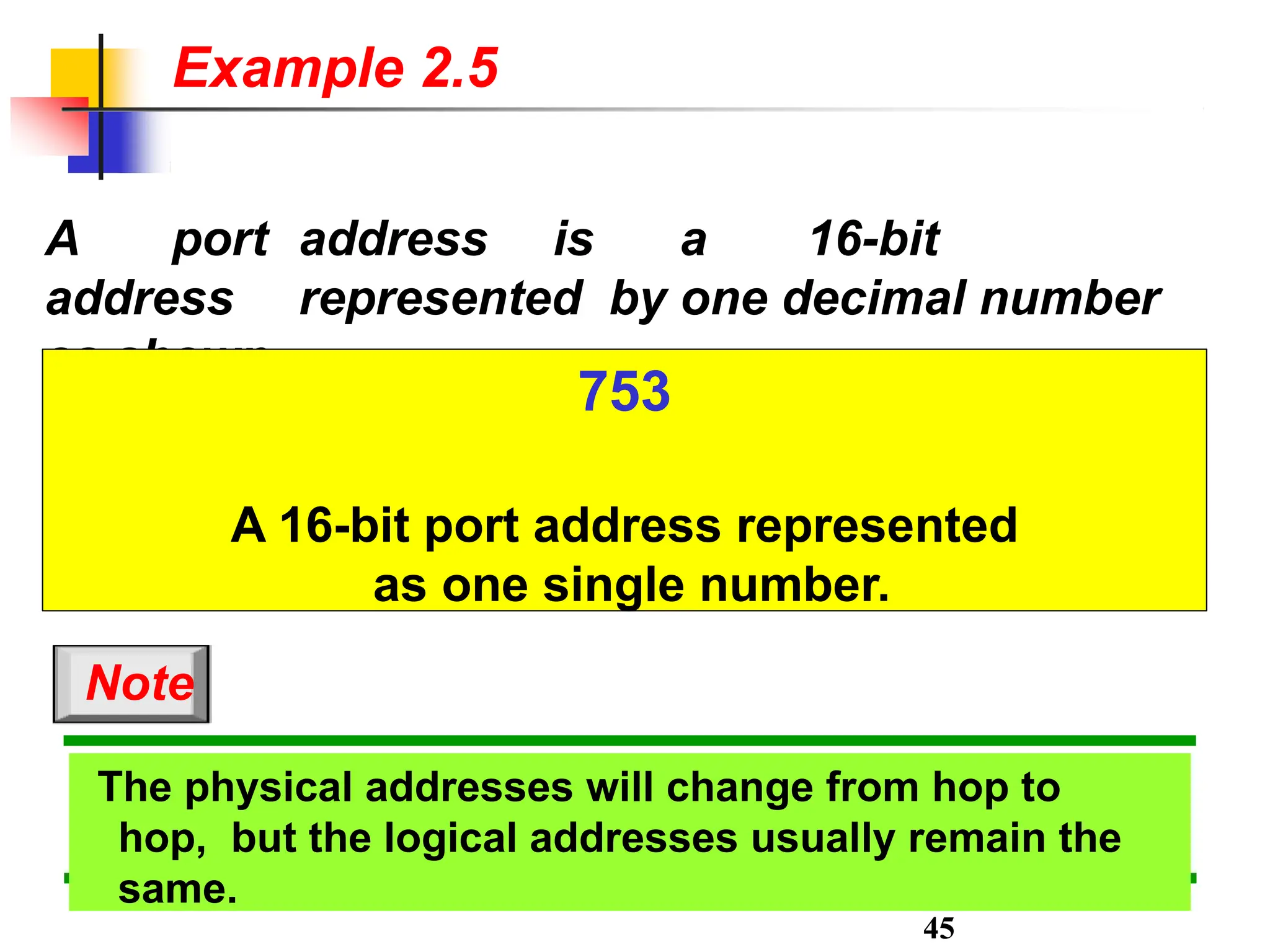

Example 2.5
A port address is a 16-bit
address represented by one decimal number
as shown.
753
A 16-bit port address represented
as one single number.
The physical addresses will change from hop to
hop, but the logical addresses usually remain the
same.
Note
45

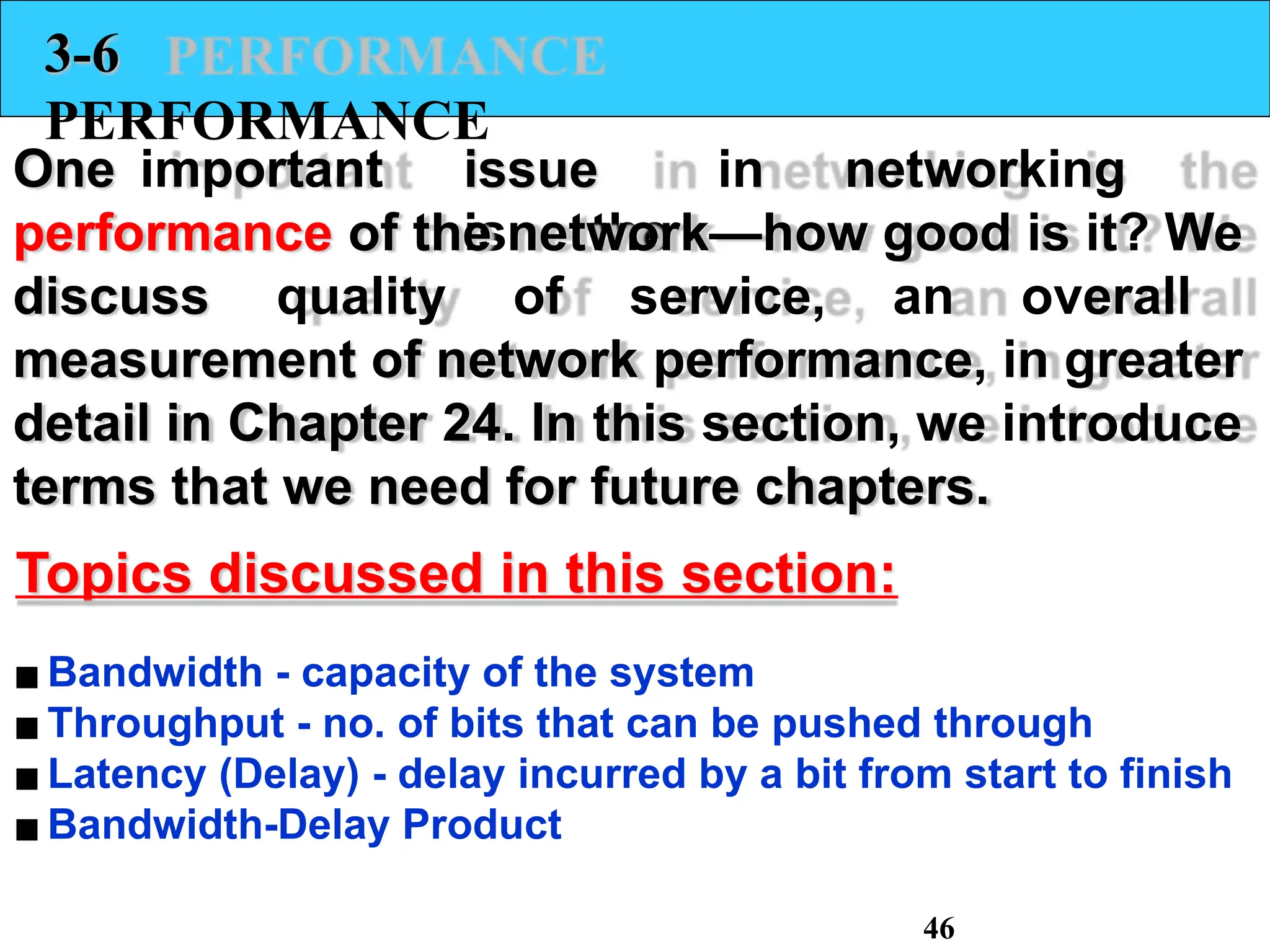

3-6
PERFORMANCE
One important issue in networking
is the
performance of the network—how good is it? We
discuss quality of service, an overall
measurement of network performance, in greater
detail in Chapter 24. In this section, we introduce
terms that we need for future chapters.
▪Bandwidth - capacity of the system
▪Throughput - no. of bits that can be pushed through
▪Latency (Delay) - delay incurred by a bit from start to finish
▪Bandwidth-Delay Product
46

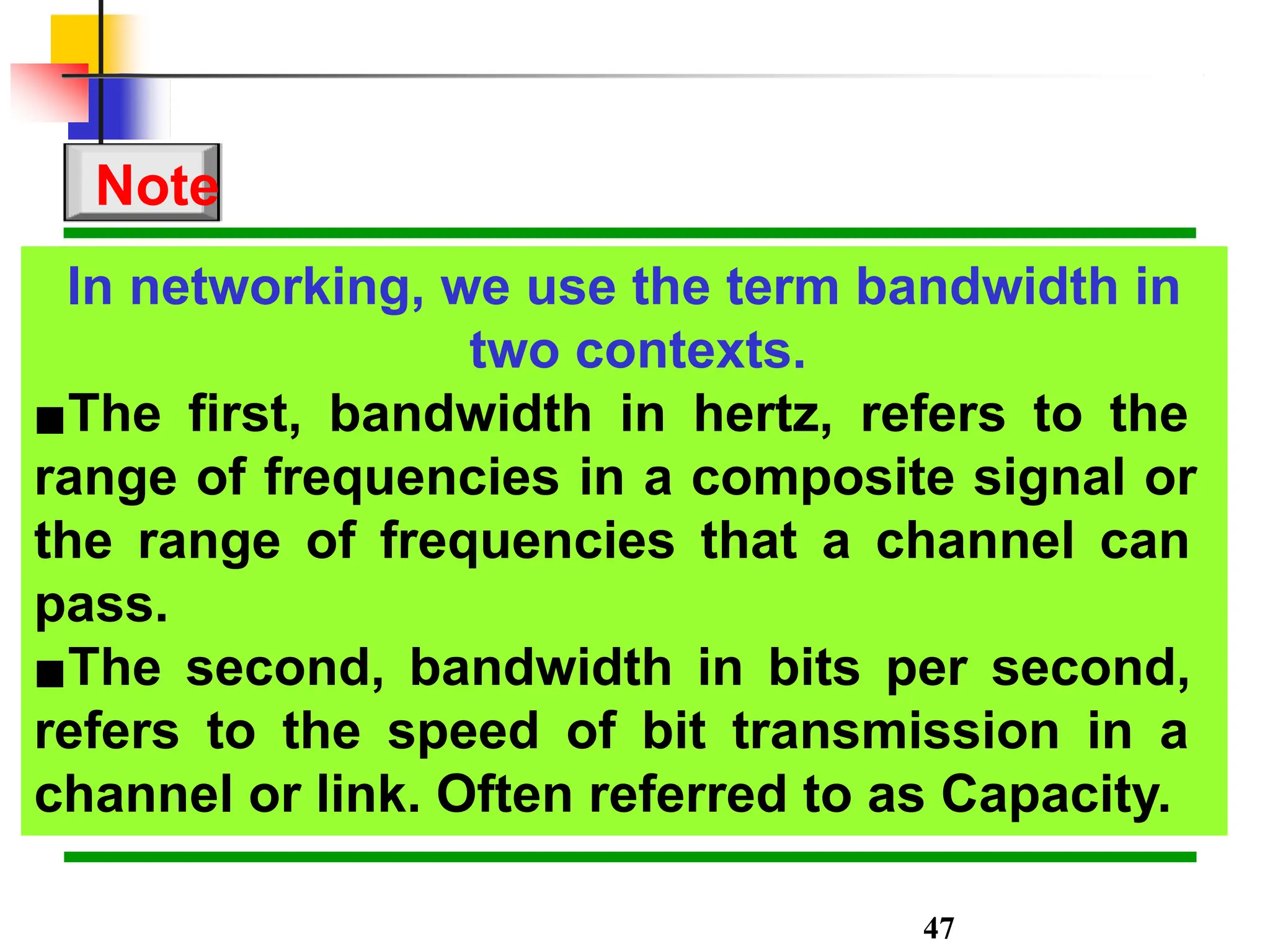

In networking, we use the term bandwidth in
two contexts.
▪The first, bandwidth in hertz, refers to the
range of frequencies in a composite signal or
the range of frequencies that a channel can
pass.
▪The second, bandwidth in bits per second,
refers to the speed of bit transmission in a
channel or link. Often referred to as Capacity.
Note
47

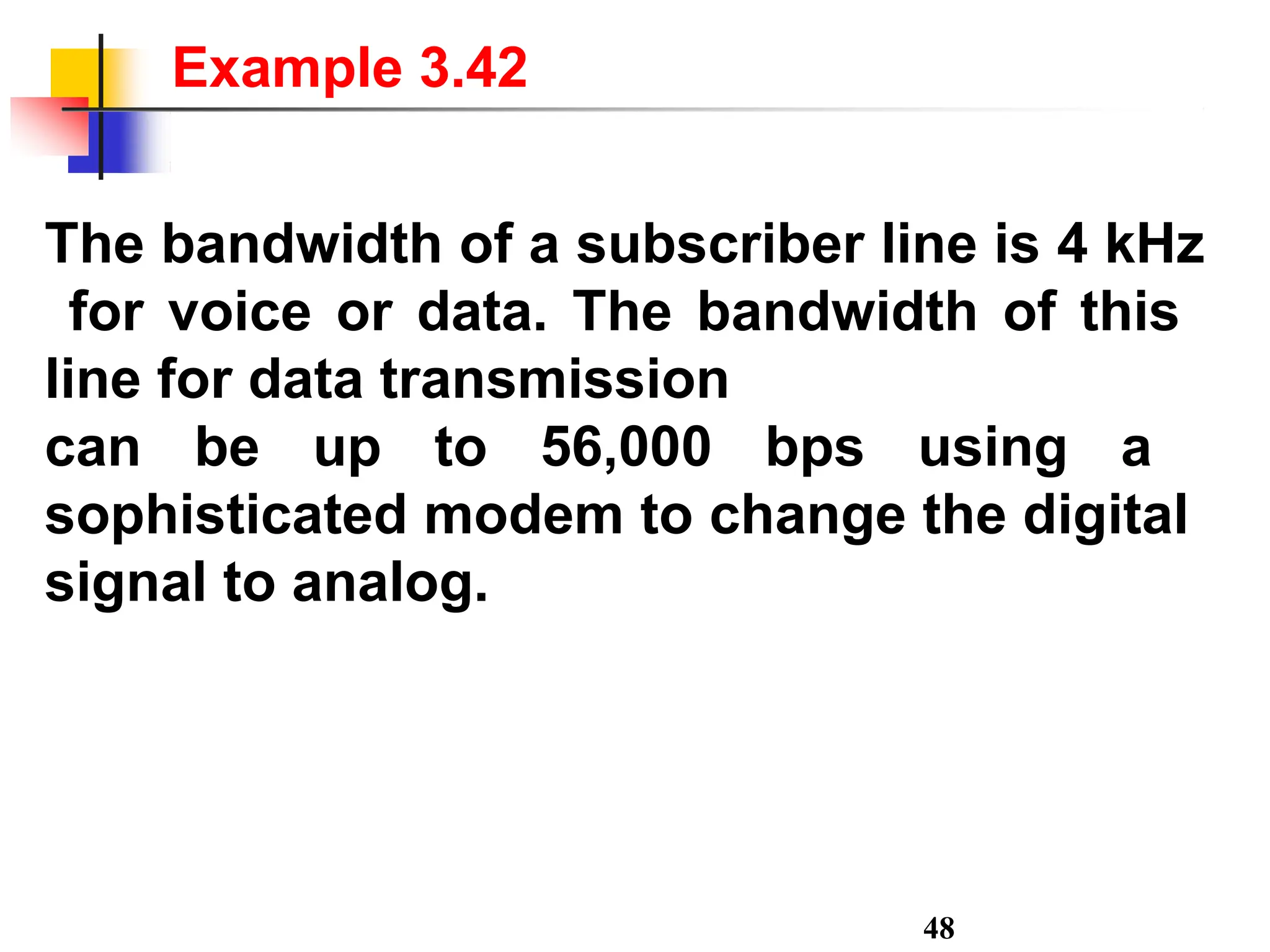

The bandwidth of a subscriber line is 4 kHz
for voice or data. The bandwidth of this
line for data transmission
can be up to 56,000 bps using a
sophisticated modem to change the digital
signal to analog.
48
Example 3.42

If the telephone
quality of
the line
49
and increases
companyimprovesthe
the
bandwidth to 8 kHz, we can send 112,000
bps by using the same technology as
mentioned in Example 3.42.
Example 3.43

Example 3.44
A network with bandwidth of 10 Mbps can
pass only an average of 12,000 frames per
minute with each frame carrying an average
of 10,000 bits. What is the throughput of this
network?
Solution
We can calculate the throughput as
The throughput is almost one-fifth
of the bandwidth in this case.
50

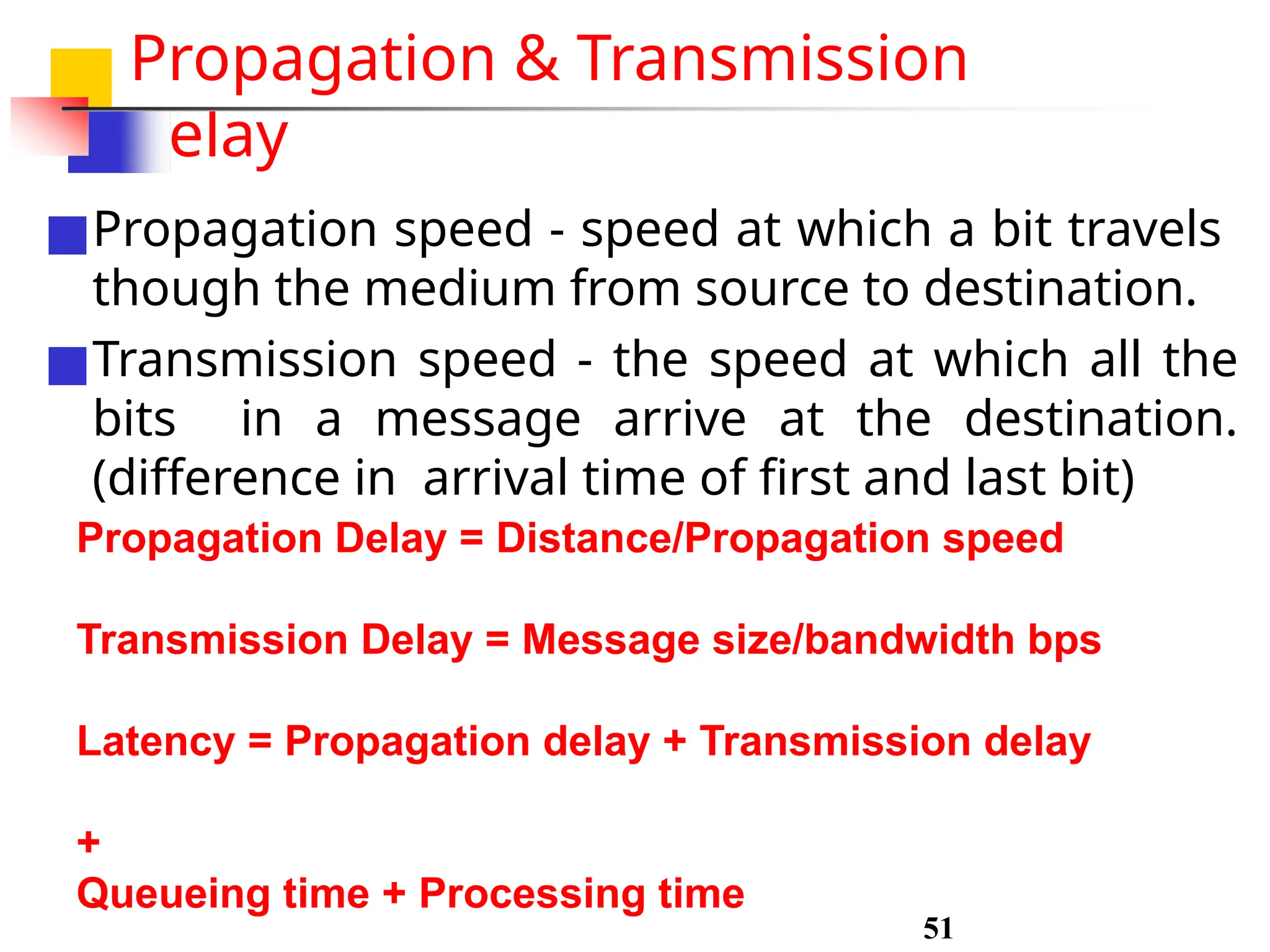

Propagation & Transmission
delay
■Propagation speed - speed at which a bit travels
though the medium from source to destination.
■Transmission speed - the speed at which all the
bits in a message arrive at the destination.
(difference in arrival time of first and last bit)
Propagation Delay = Distance/Propagation speed
Transmission Delay = Message size/bandwidth bps
Latency = Propagation delay + Transmission delay
+
Queueing time + Processing time
51

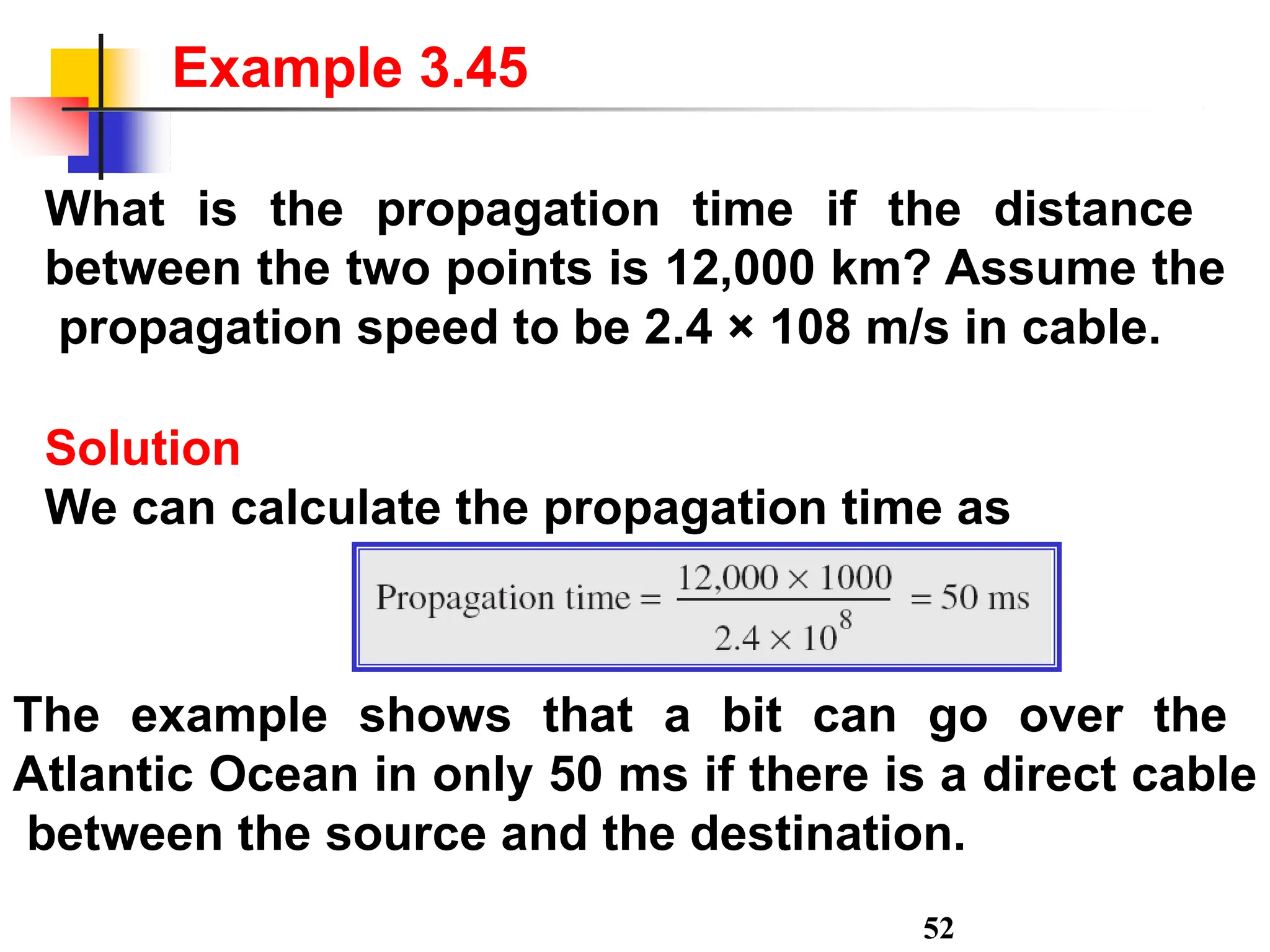

What is the propagation time if the distance
between the two points is 12,000 km? Assume the
propagation speed to be 2.4 × 108 m/s in cable.
Solution
We can calculate the propagation time as
Example 3.45
The example shows that a bit can go over the
Atlantic Ocean in only 50 ms if there is a direct cable
between the source and the destination.
52

What are the propagation time and the transmission time
for a 2.5-kbyte message (an e-mail) if the bandwidth of the
network is 1 Gbps? Assume that the distance between the
sender and the receiver is 12,000 km and that light travels at
2.4 × 108 m/s.
Solution
We can calculate the propagation and transmission time
Example 3.46
Note that in this case, because the message is short and the bandwidth is
high,
the dominant factor is the propagation time, not
the transmission time. The
transmission time can be ignored.
53

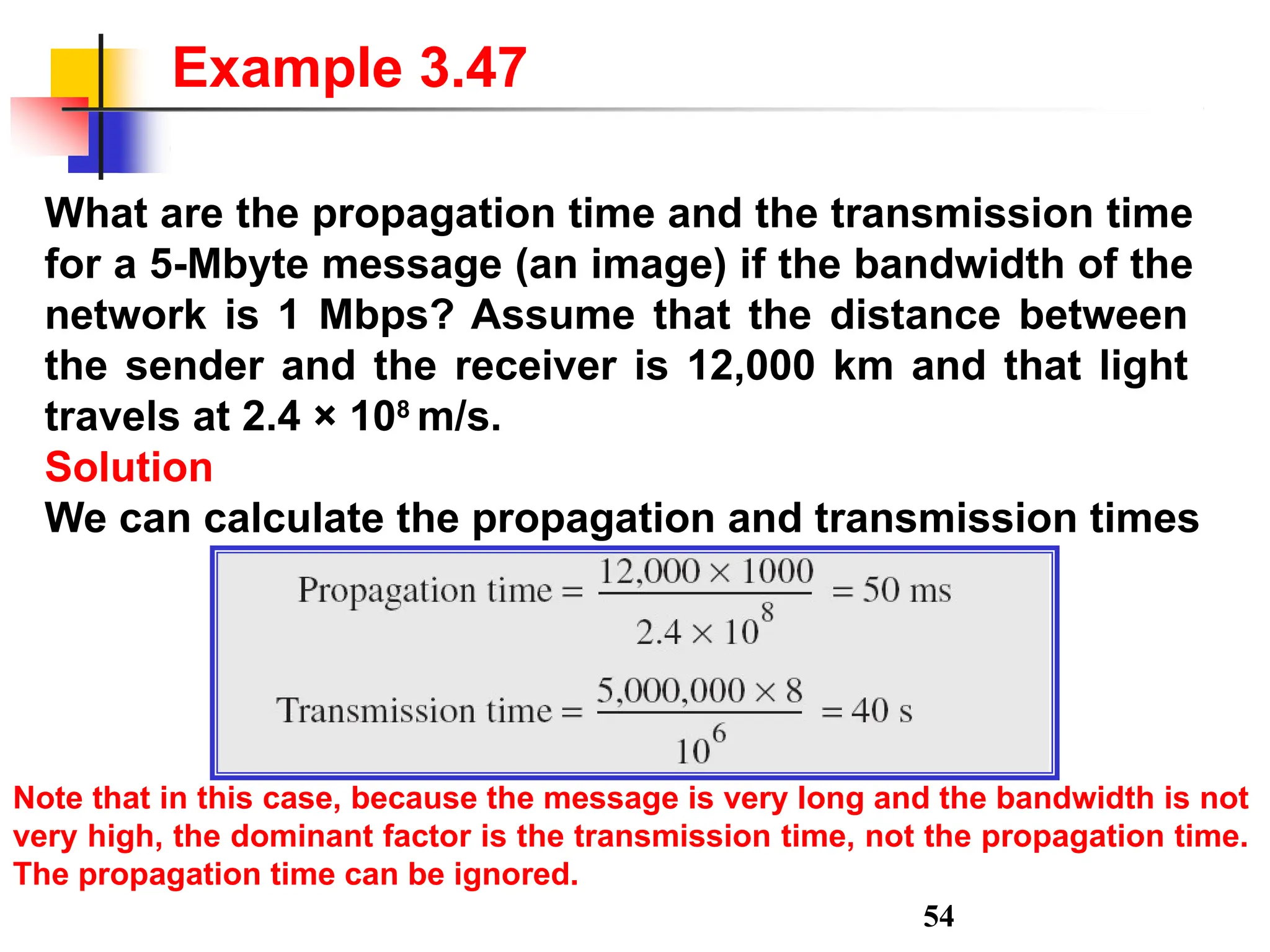

What are the propagation time and the transmission time
for a 5-Mbyte message (an image) if the bandwidth of the
network is 1 Mbps? Assume that the distance between
the sender and the receiver is 12,000 km and that light
travels at 2.4 × 108
m/s.
Solution
We can calculate the propagation and transmission times
Example 3.47
Note that in this case, because the message is very long and the bandwidth is not
very high, the dominant factor is the transmission time, not the propagation time.
The propagation time can be ignored.
54

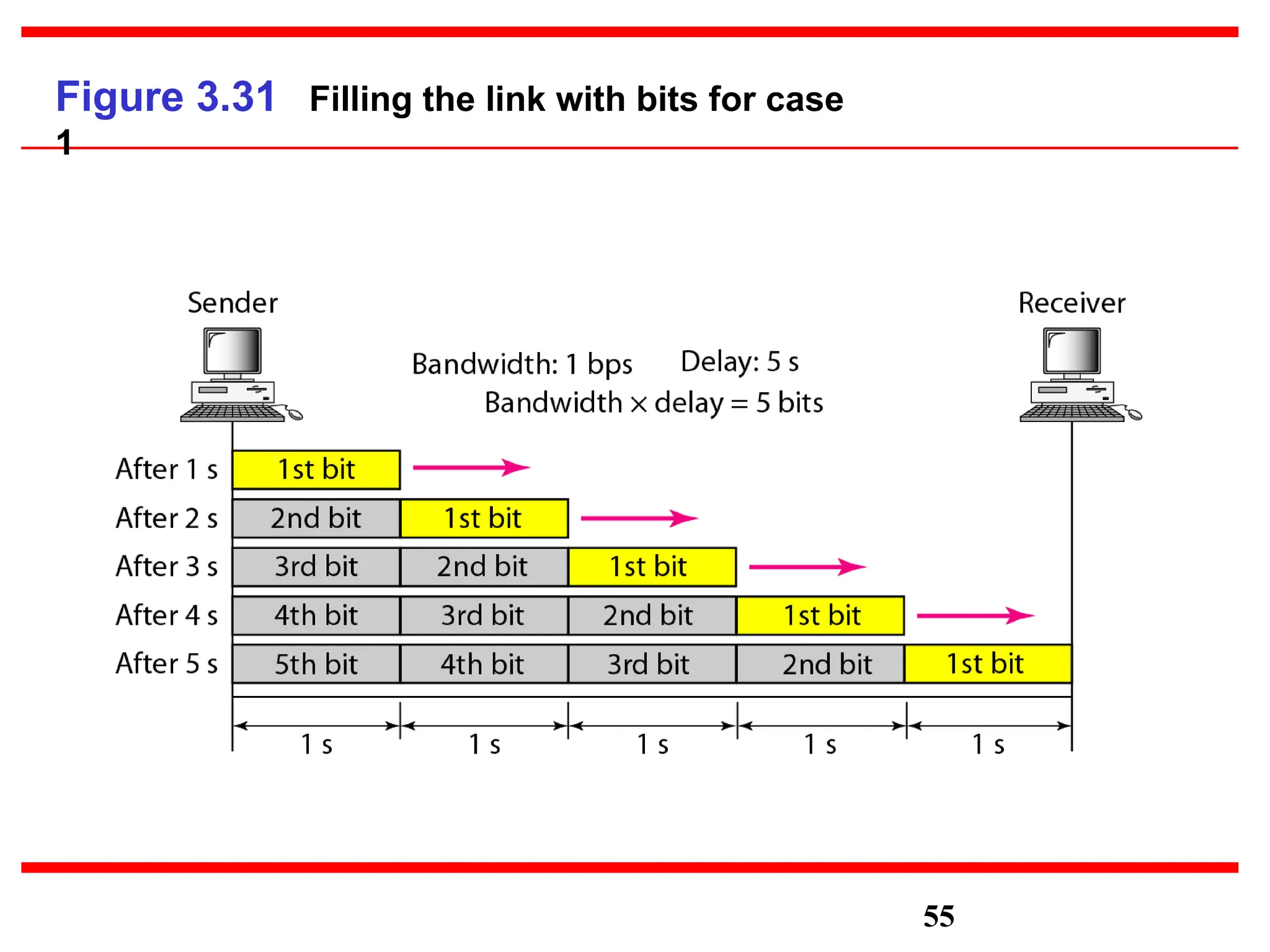

Figure 3.31 Filling the link with bits for case
1
55

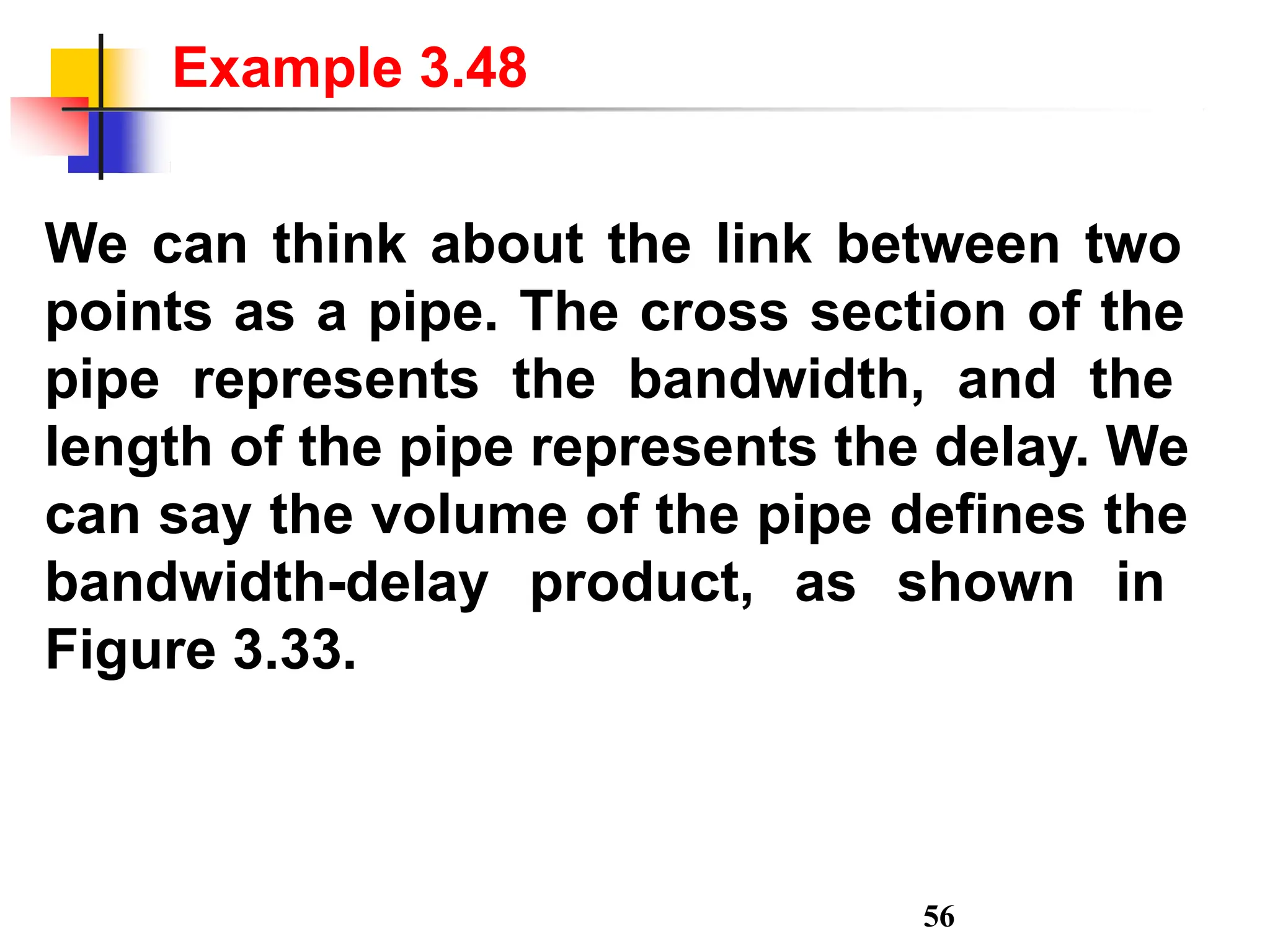

We can think about the link between two
points as a pipe. The cross section of the
pipe represents the bandwidth, and the
length of the pipe represents the delay. We
can say the volume of the pipe defines the
bandwidth-delay product, as shown in
Figure 3.33.
56
Example 3.48

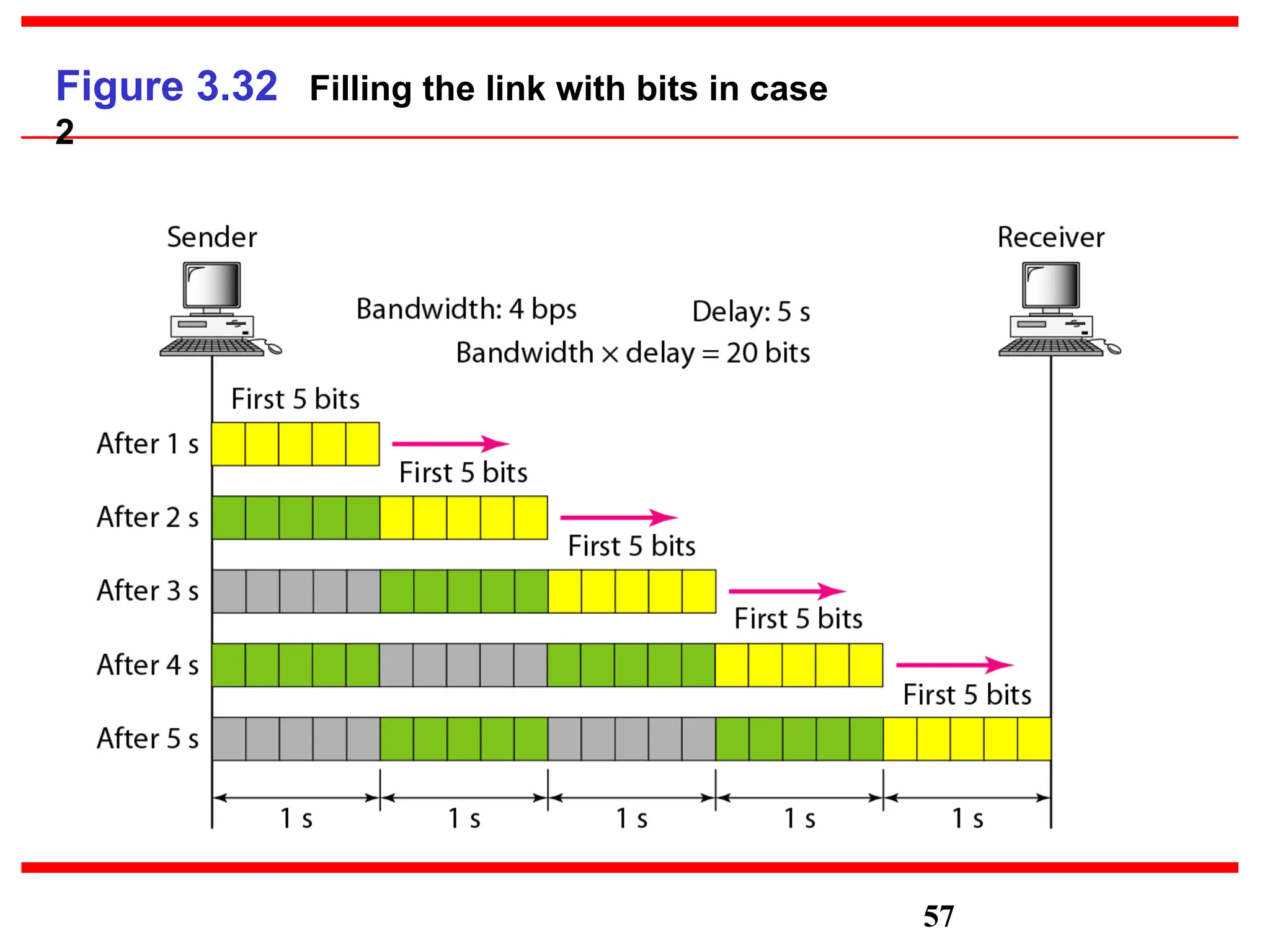

Figure 3.32 Filling the link with bits in case
2
57

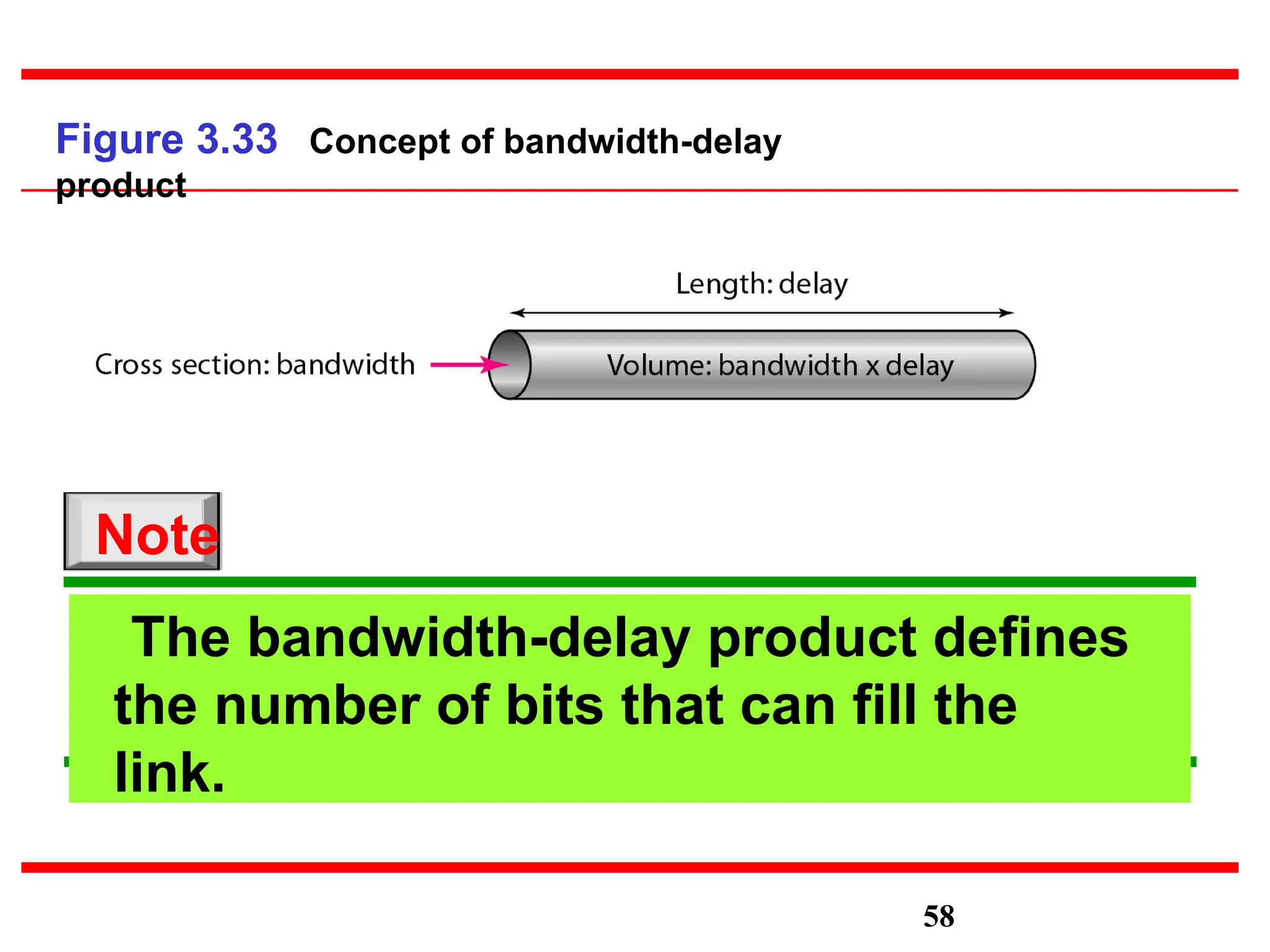

Figure 3.33 Concept of bandwidth-delay
product
The bandwidth-delay product defines
the number of bits that can fill the
link.
58
Note

Figure 7.1 Transmission medium and physical
layer
60

Figure 7.2 Classes of transmission
media
61

7-1 GUIDED
MEDIA
Guided media, which are those that provide a conduit from one device
to another, include twisted-pair cable, coaxial
cable, and fiber-optic
cable.
Coaxial Cable
Fiber-Optic Cable
Twisted-Pair Cable
62

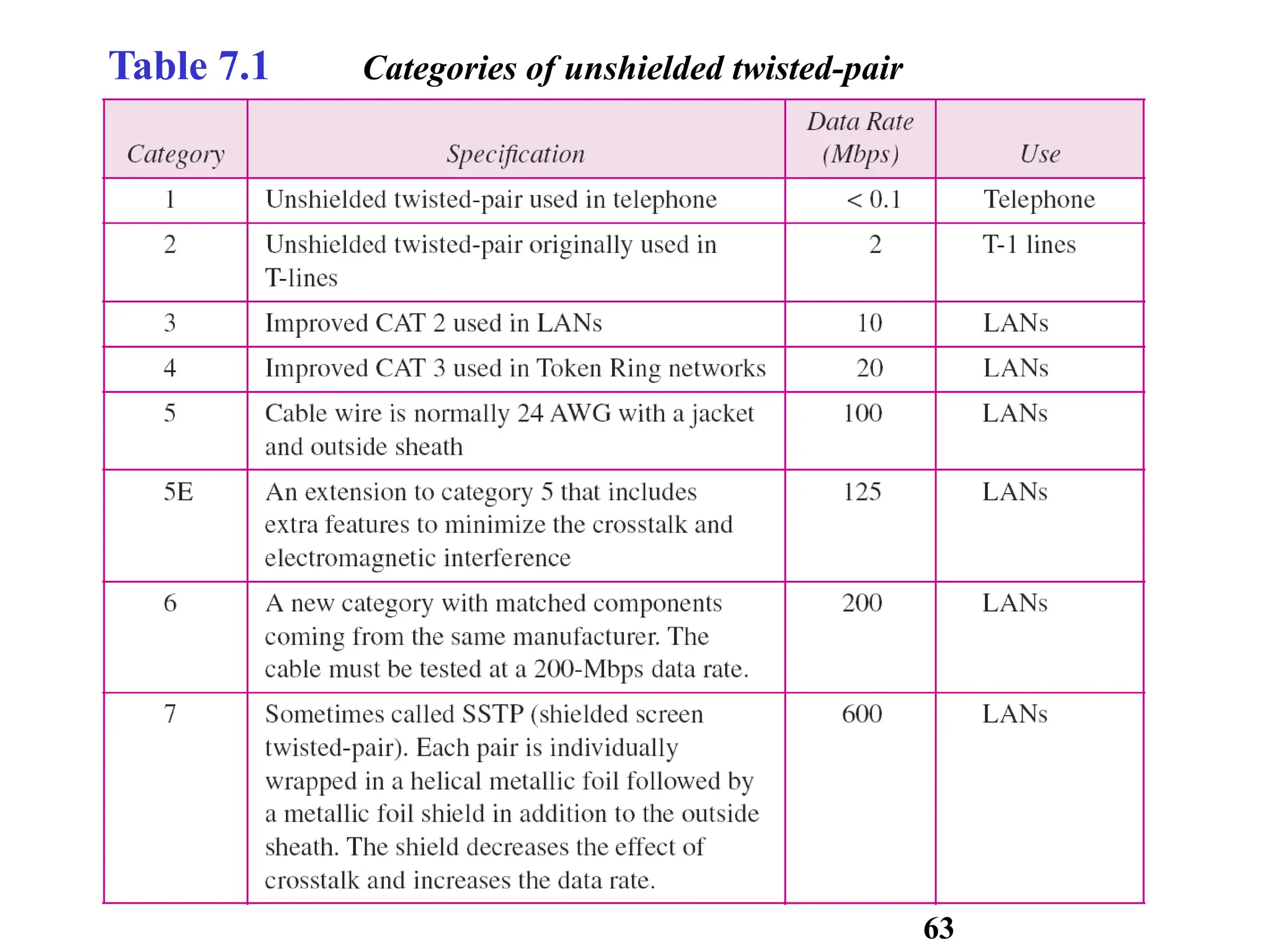

Table 7.1 Categories of unshielded twisted-pair
cables
63

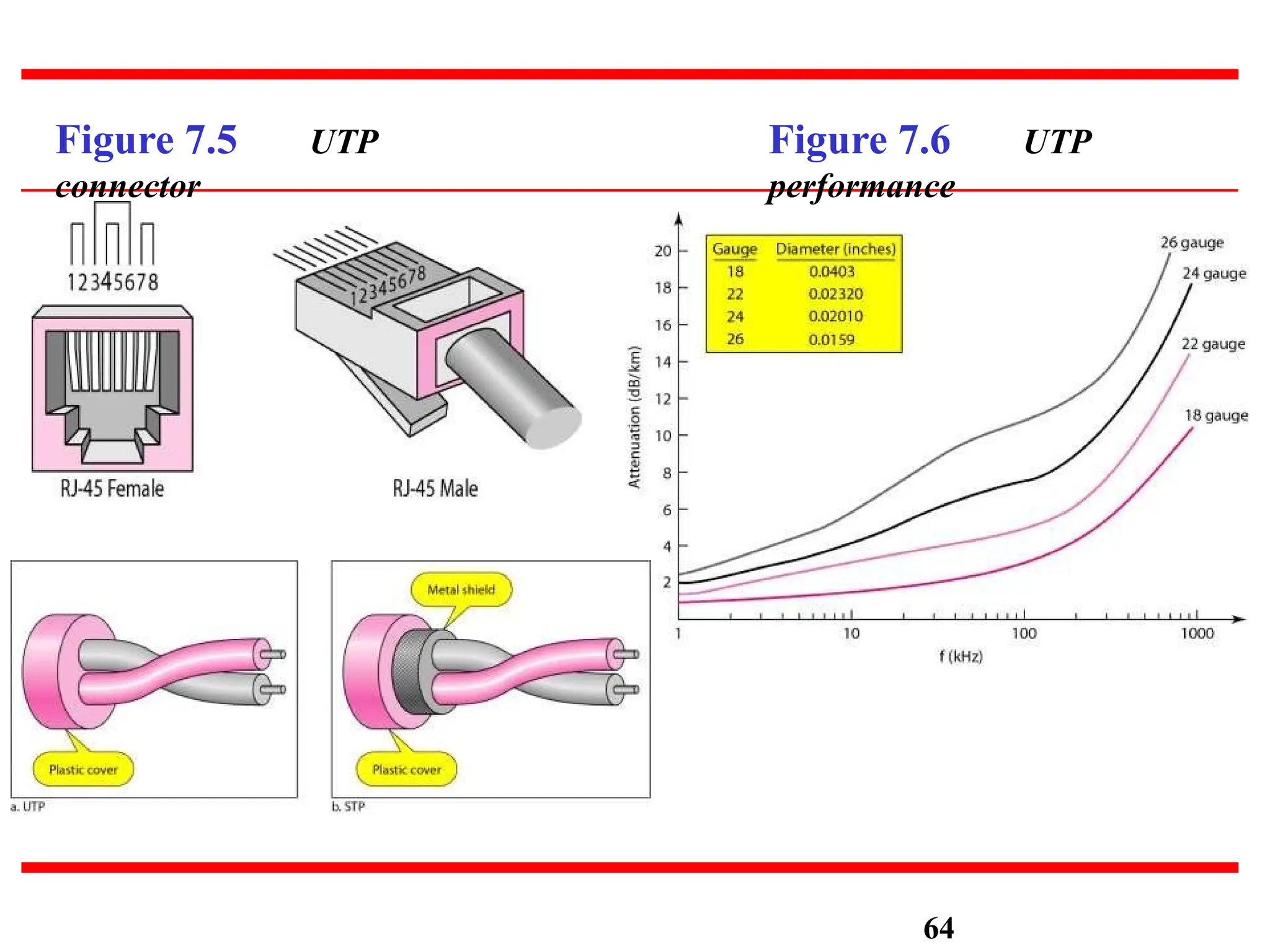

Figure 7.5 UTP
connector
Figure 7.6 UTP
performance
64

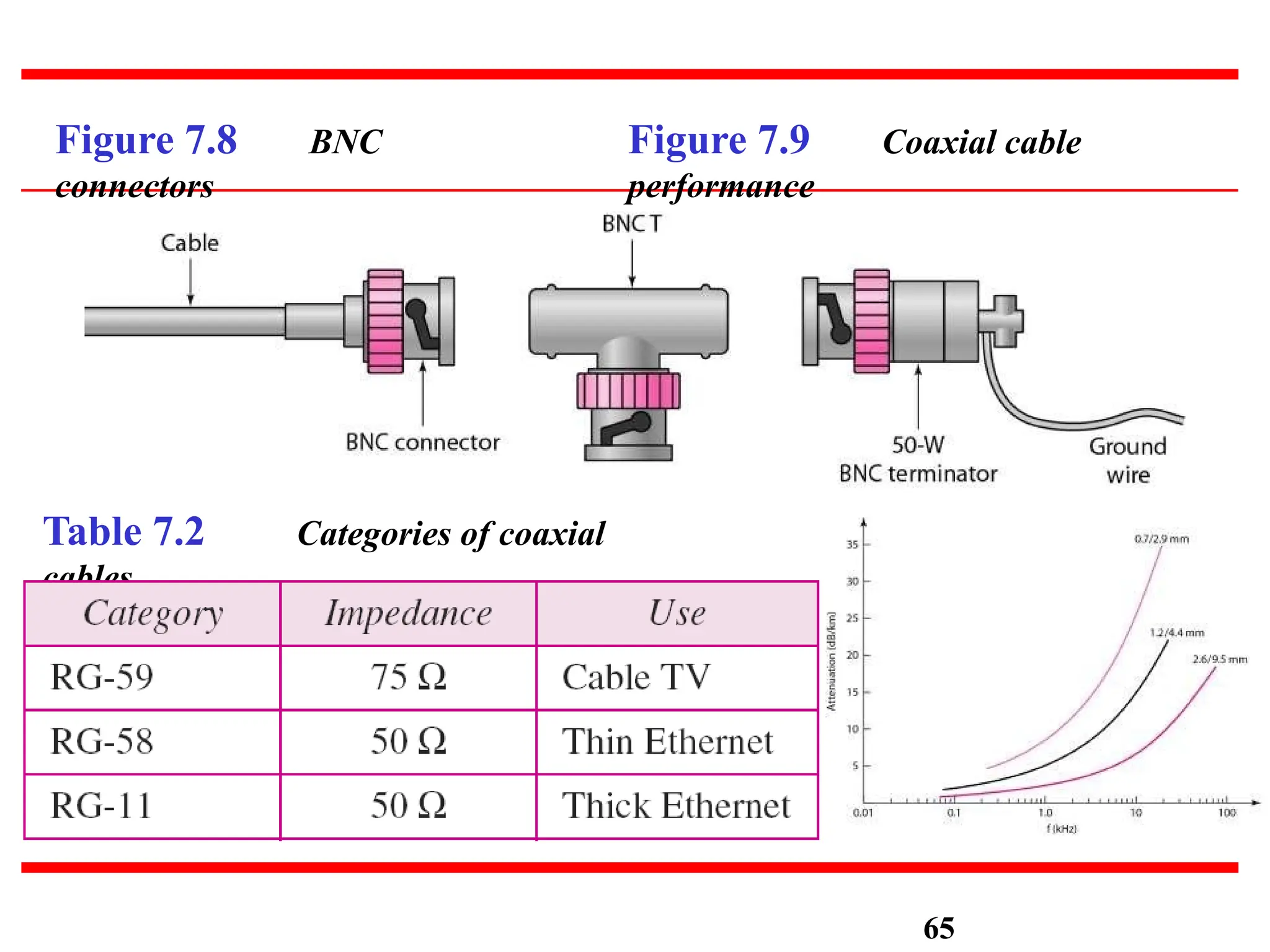

Figure 7.8 BNC
connectors
Table 7.2 Categories of coaxial
cables
Figure 7.9 Coaxial cable
performance
65

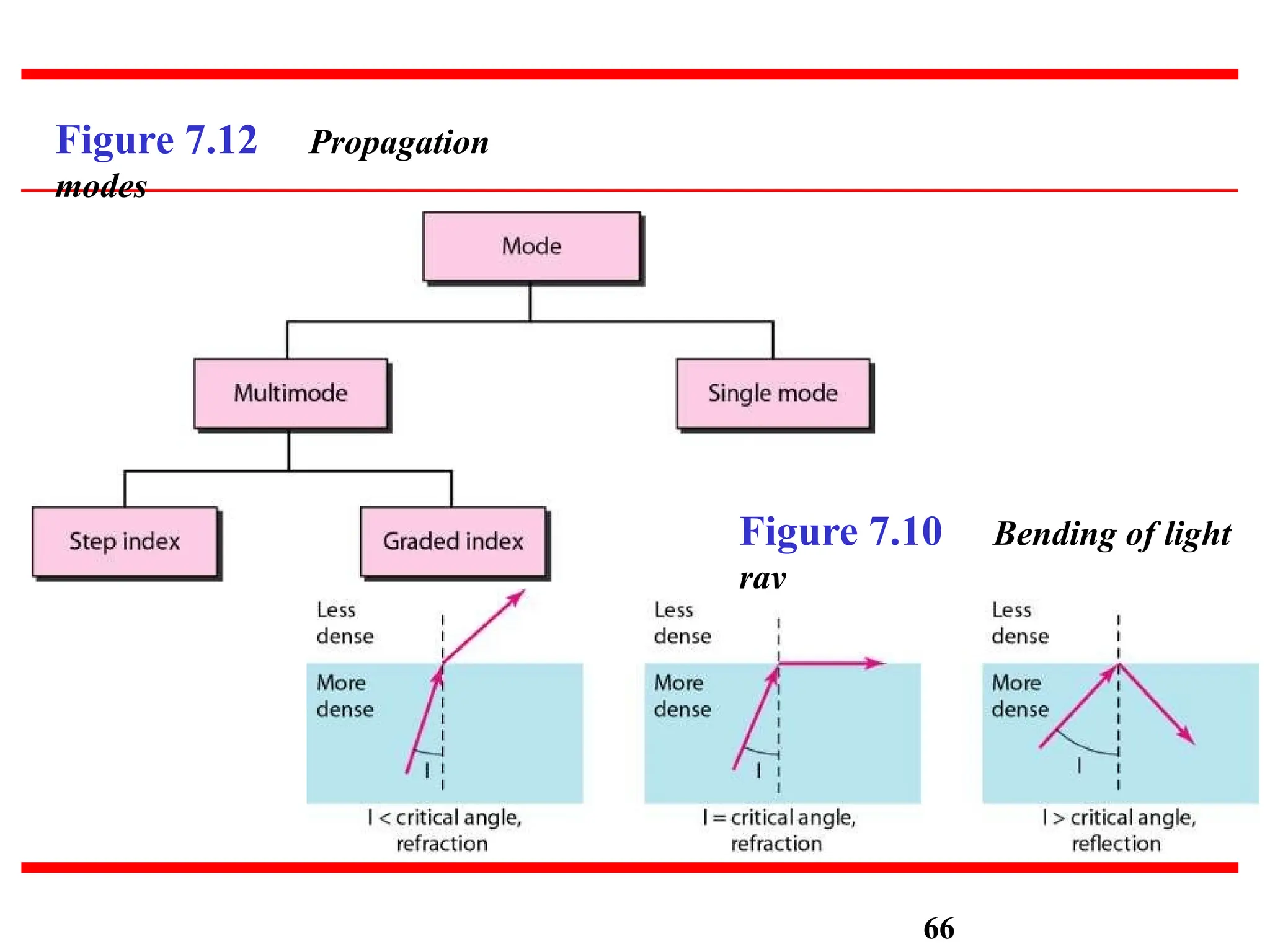

Figure 7.12 Propagation
modes
Figure 7.10 Bending of light
ray
66

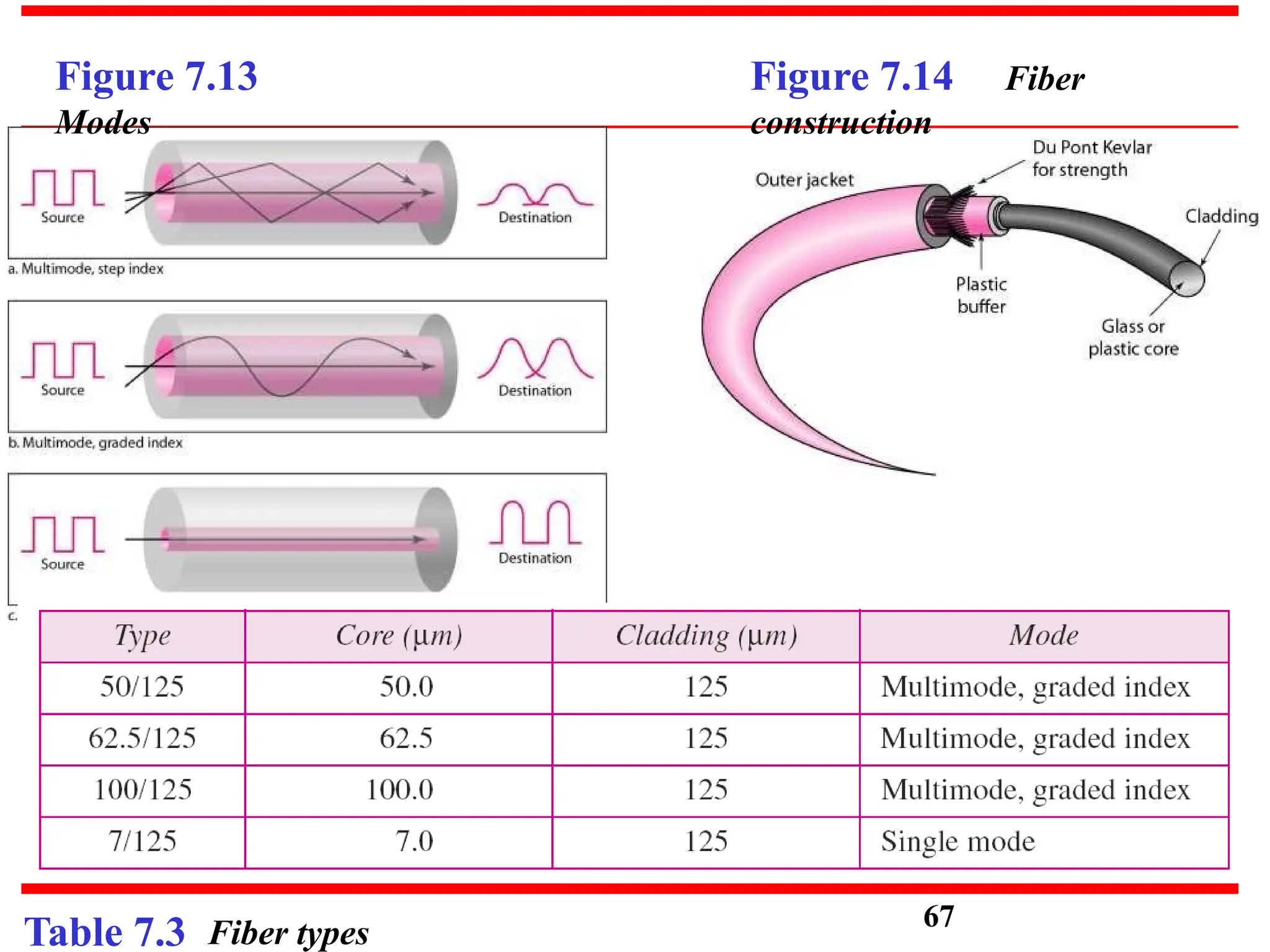

Figure 7.13
Modes
67
Table 7.3 Fiber types
Figure 7.14 Fiber
construction

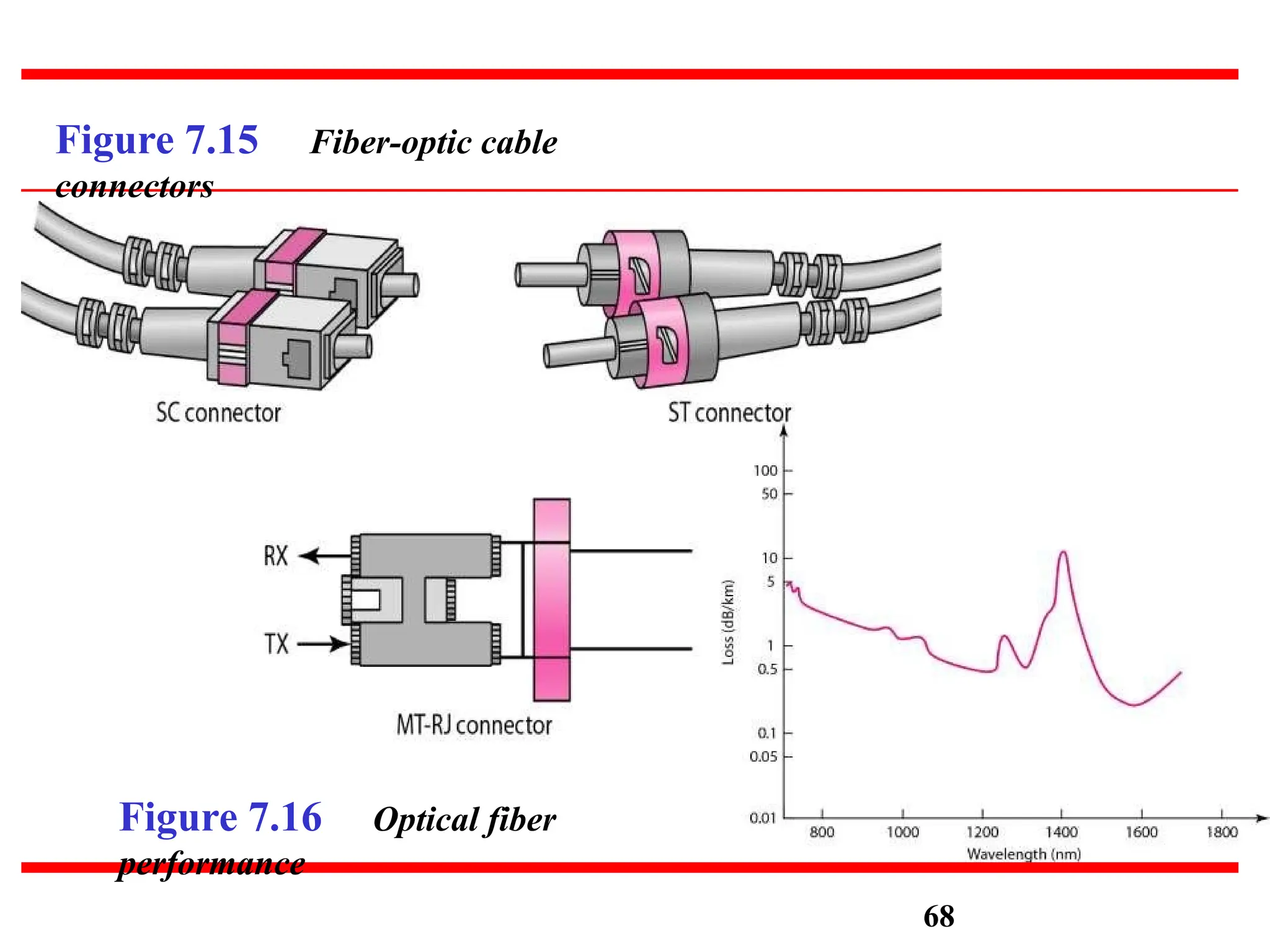

Figure 7.15 Fiber-optic cable
connectors
Figure 7.16 Optical fiber
performance
68

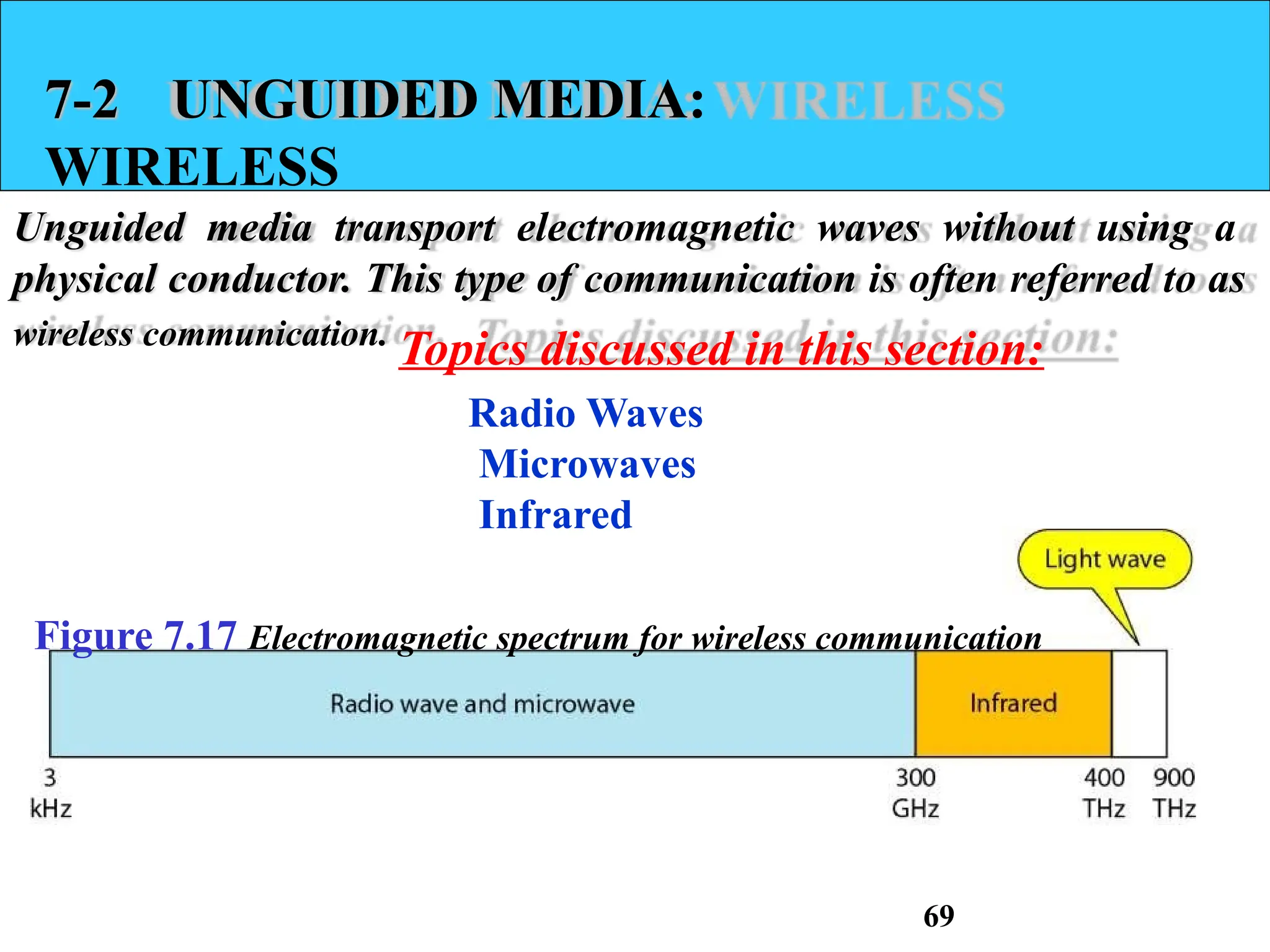

7-2 UNGUIDED MEDIA:
WIRELESS
Unguided media transport electromagnetic waves without using a
physical conductor. This type of communication is often referred to as
wireless communication.
Radio Waves
Microwaves
Infrared
Figure 7.17 Electromagnetic spectrum for wireless communication
69

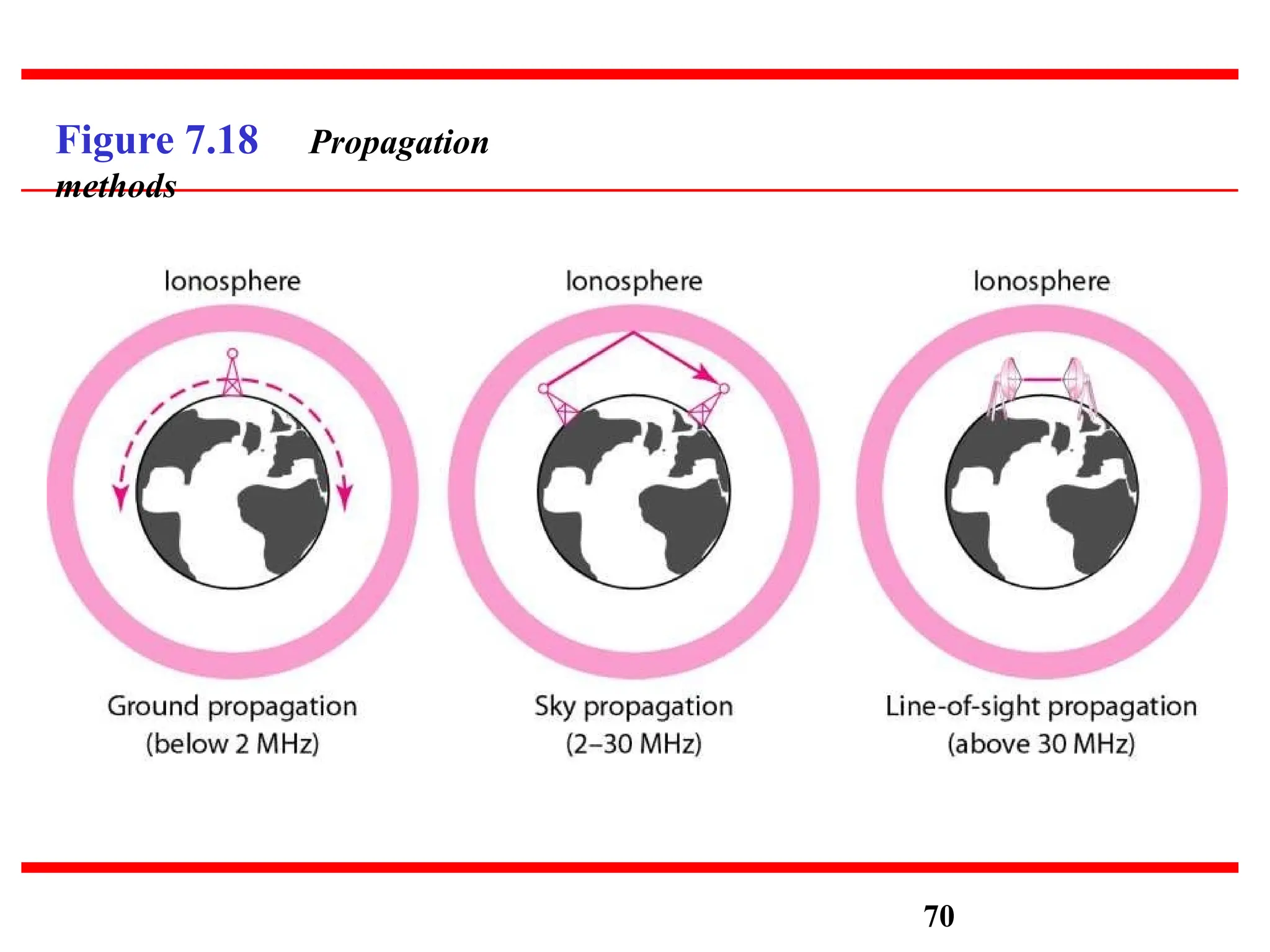

Figure 7.18 Propagation
methods
70

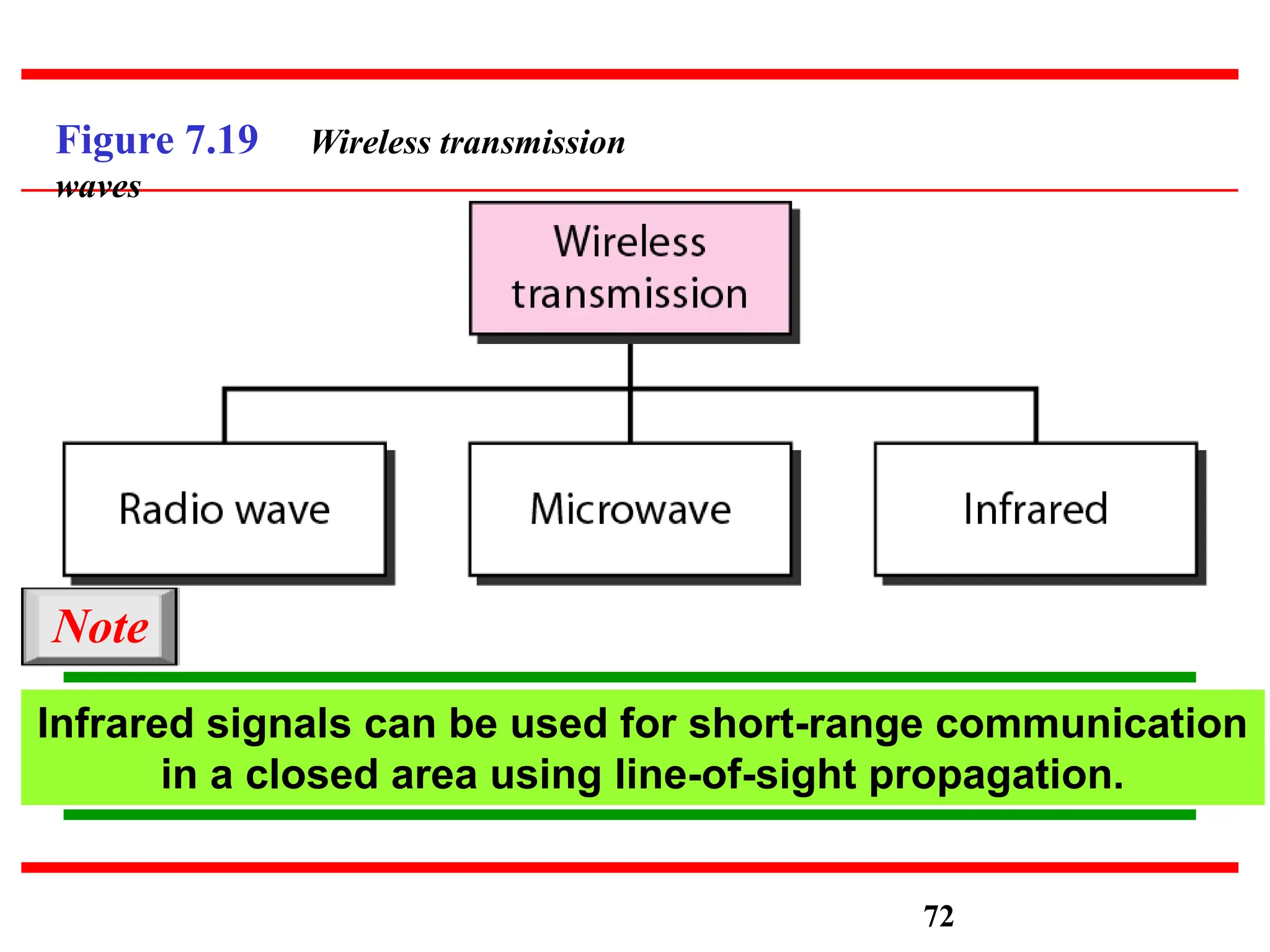

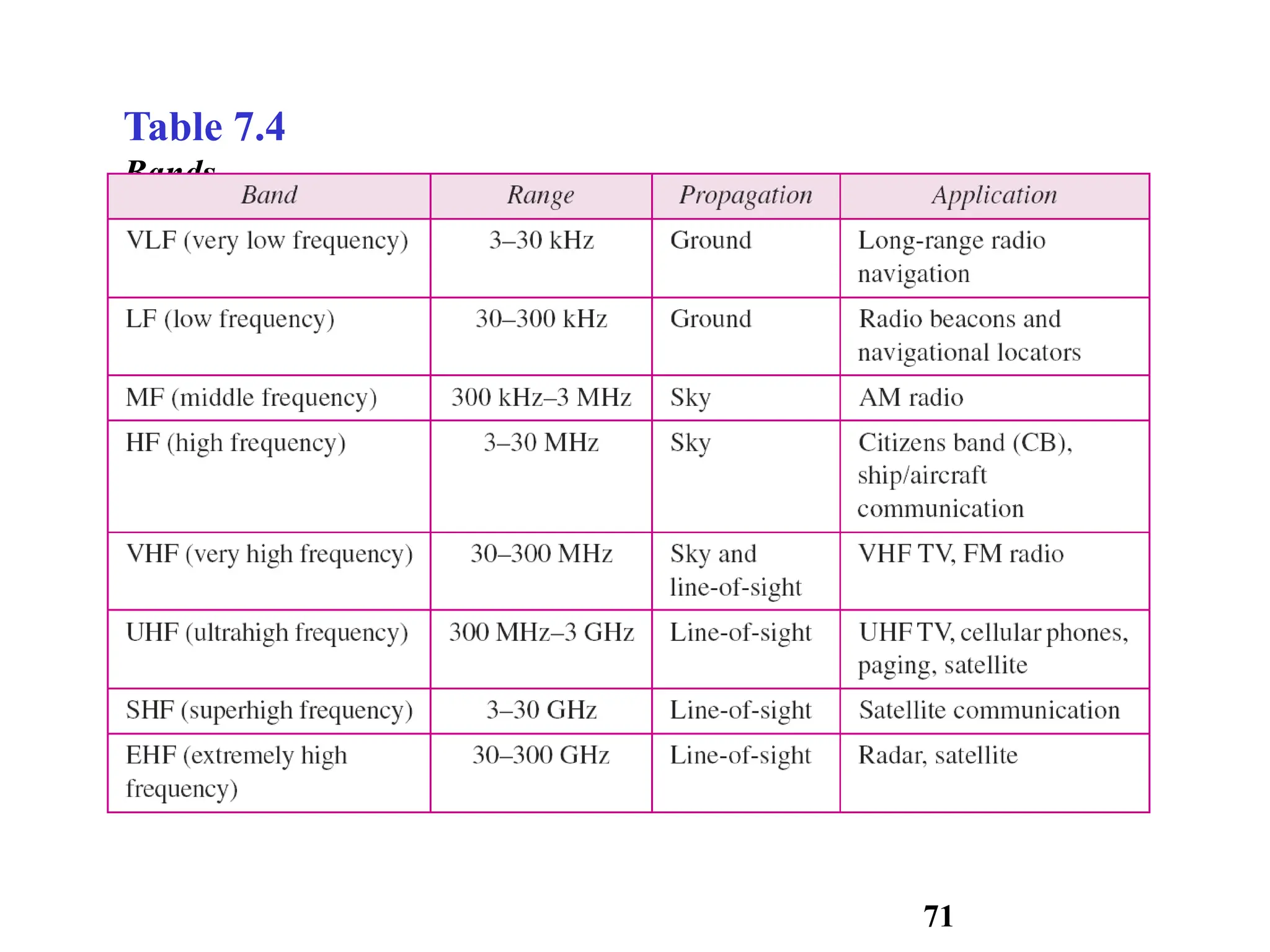

Figure 7.19 Wireless transmission
waves
Note
Infrared signals can be used for short-range communication
in a closed area using line-of-sight propagation.
72

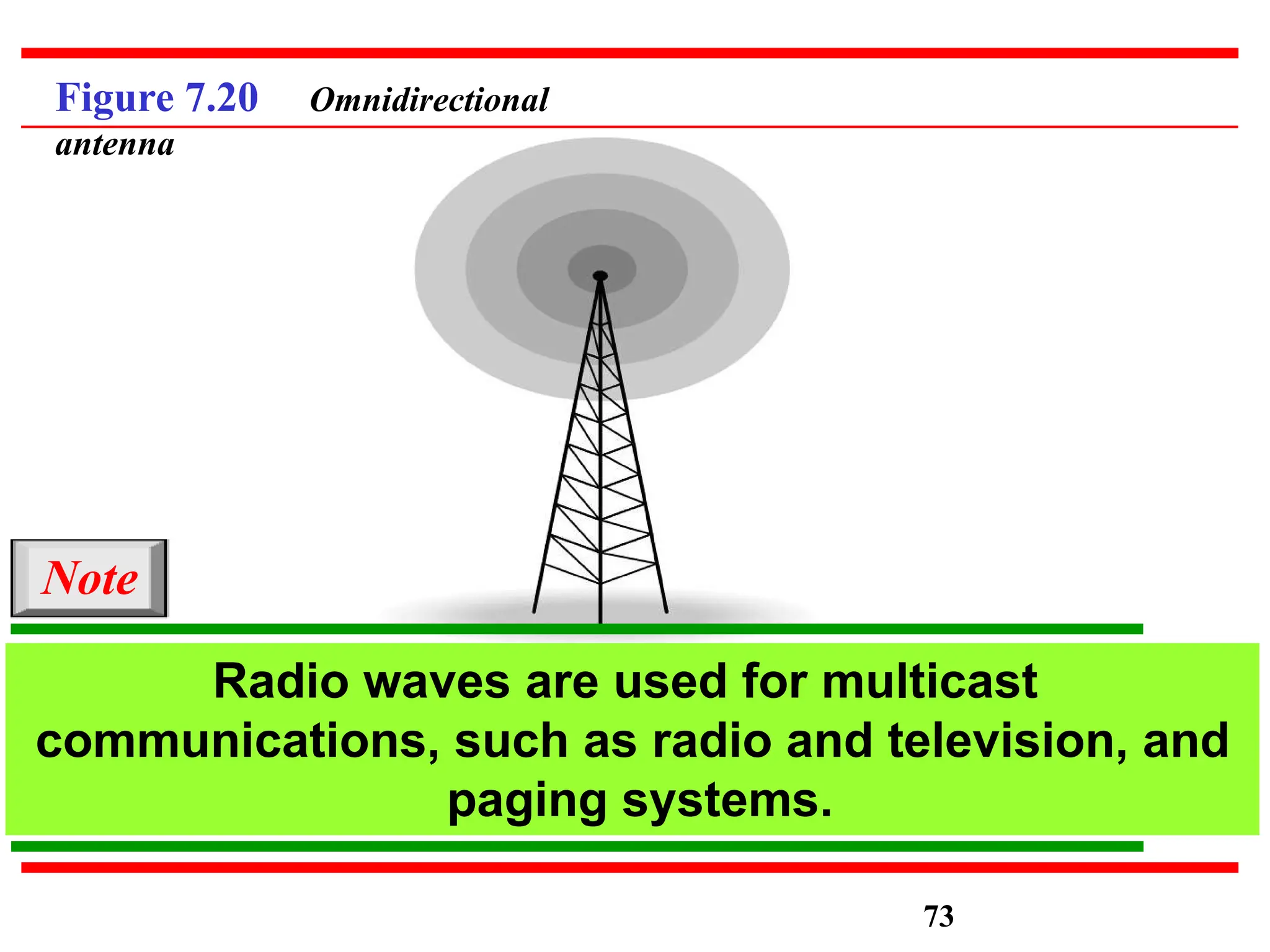

Figure 7.20 Omnidirectional
antenna
Note
Radio waves are used for multicast
communications, such as radio and television, and
paging systems.
73

Figure 7.21 Unidirectional
antennas
Microwaves are used for unicast communication such as
cellular telephones, satellite networks, and wireless
LANs.
Note
74

Switching
Figure 8.1 Switched
network
75

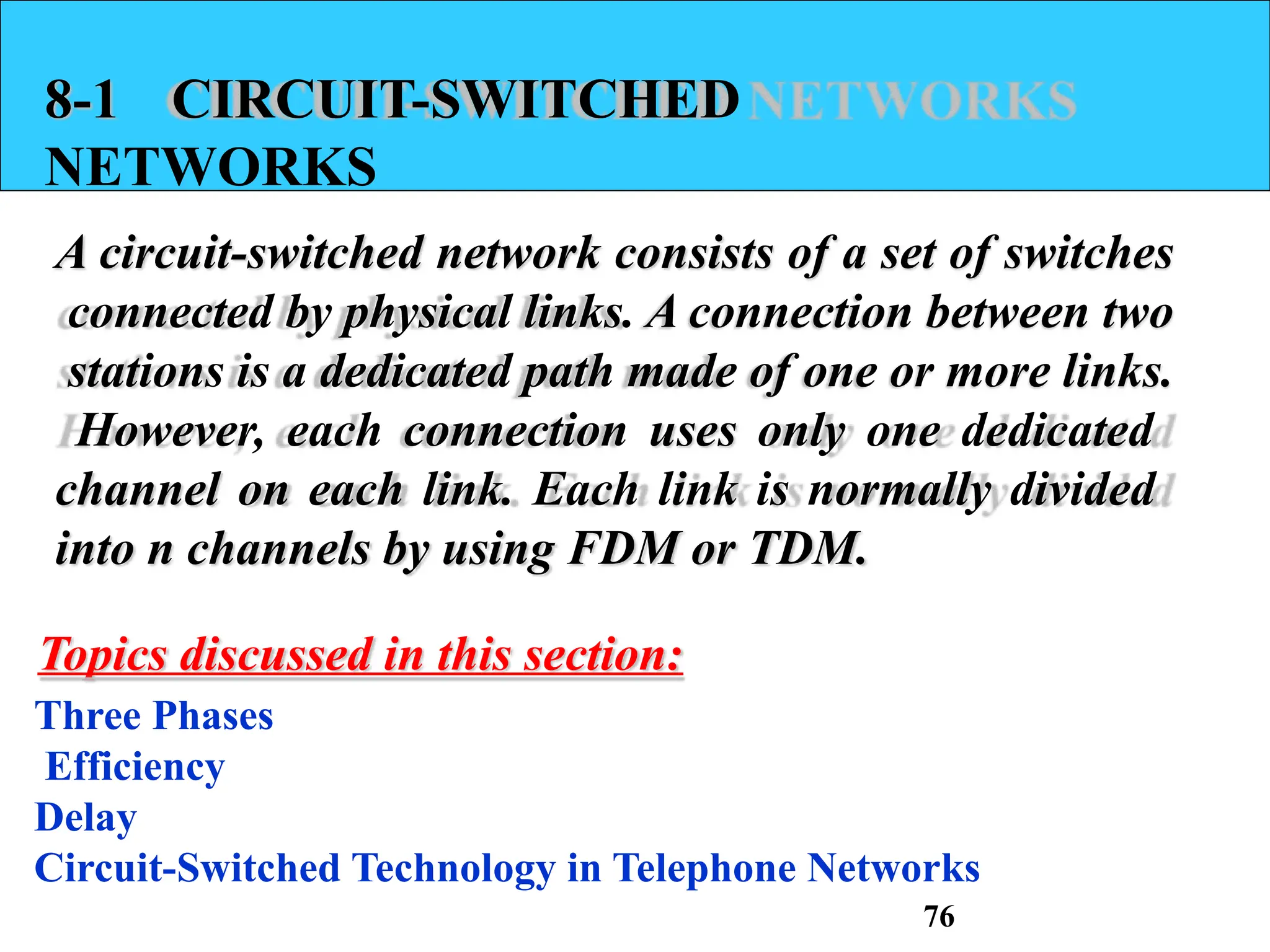

8-1 CIRCUIT-SWITCHED
NETWORKS
A circuit-switched network consists of a set of switches
connected by physical links. A connection between two
stations is a dedicated path made of one or more links.
However, each connection uses only one dedicated
channel on each link. Each link is normally divided
into n channels by using FDM or TDM.
Three Phases
Efficiency
Delay
Circuit-Switched Technology in Telephone Networks
76

Figure 8.3 A trivial circuit-switched
network
A circuit-switched network is made of a set of
switches connected by physical links, in
which each link is divided into n
channels.
Note
77

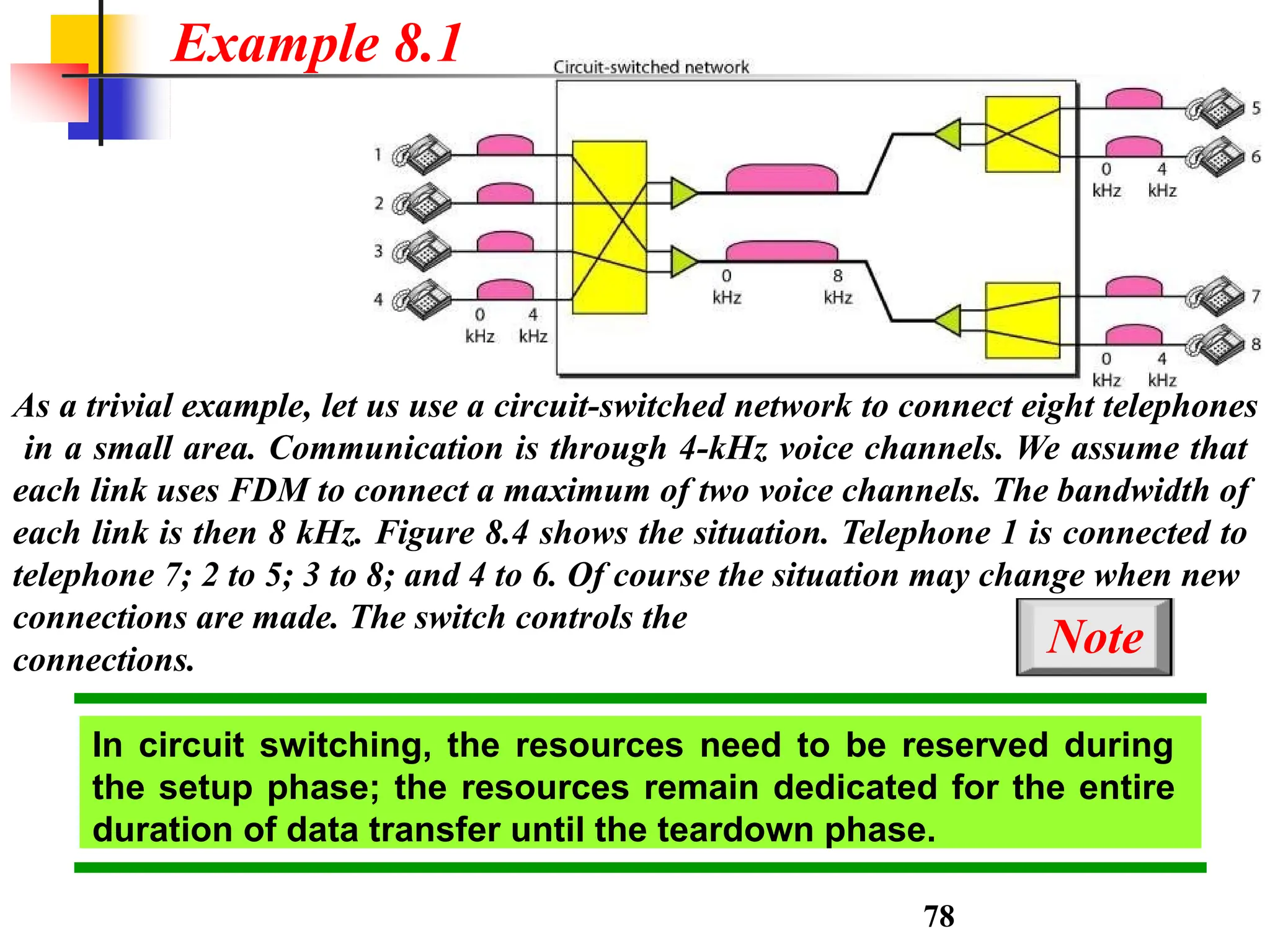

As a trivial example, let us use a circuit-switched network to connect eight telephones
in a small area. Communication is through 4-kHz voice channels. We assume that
each link uses FDM to connect a maximum of two voice channels. The bandwidth of
each link is then 8 kHz. Figure 8.4 shows the situation. Telephone 1 is connected to
telephone 7; 2 to 5; 3 to 8; and 4 to 6. Of course the situation may change when new
connections are made. The switch controls the
connections.
Example 8.1
In circuit switching, the resources need to be reserved during
the setup phase; the resources remain dedicated for the entire
duration of data transfer until the teardown phase.
Note
78

As another example, consider a circuit-switched network that connects computers in
two remote offices of a private company. The offices are connected using a T-1 line
leased from a communication service provider. There are two 4 × 8 (4 inputs and 8
outputs) switches in this network. For each switch, four output ports are folded into
the input ports to allow communication between computers in the same office. Four
other output ports allow communication between the two offices. Figure shows the
situation.
Example 8.2
79
Switching at the physical layer in the traditional
telephone network uses the circuit-switching approach.
Note

Figure 8.6 Delay in a circuit-switched
network
80

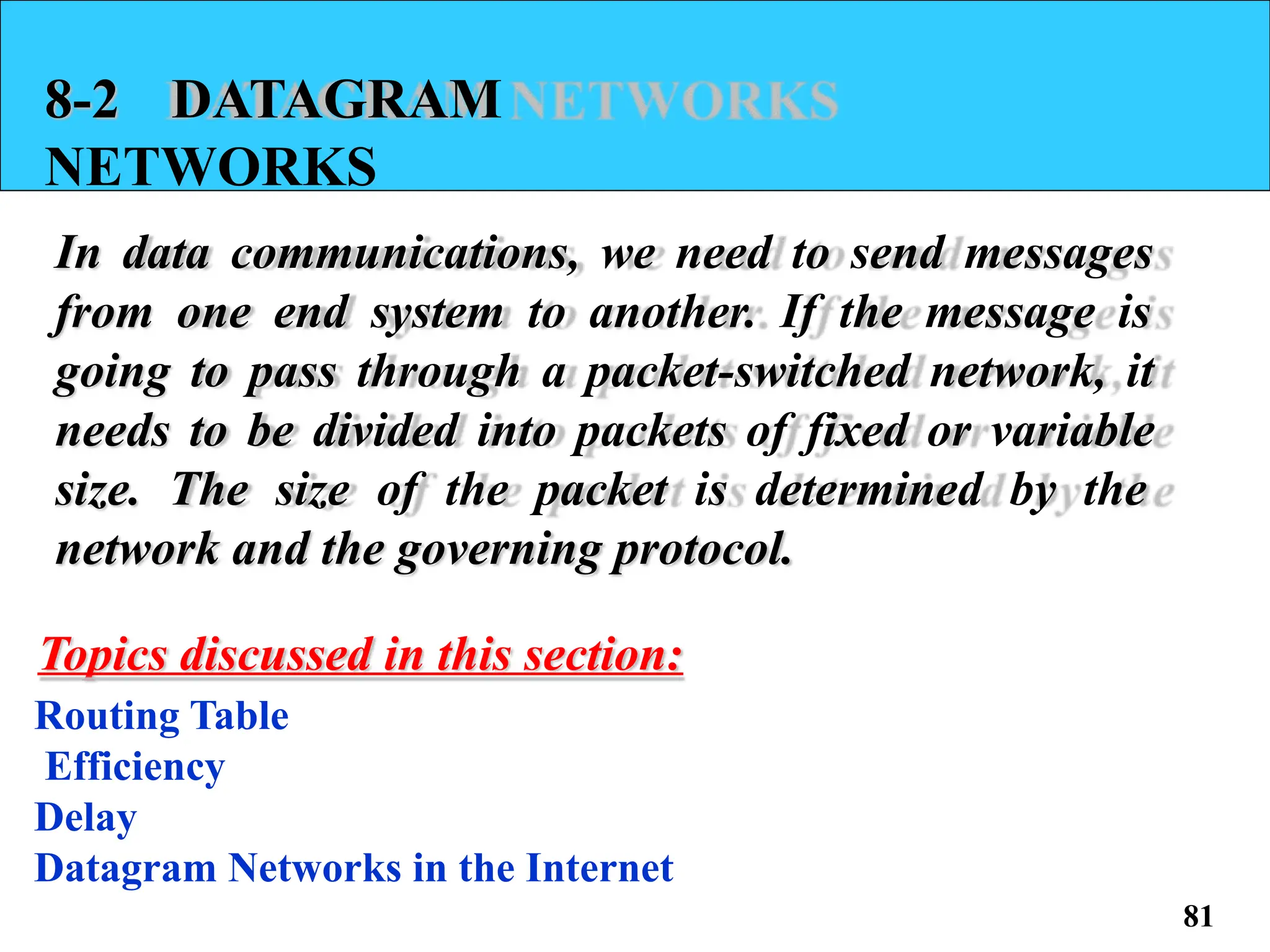

8-2 DATAGRAM
NETWORKS
In data communications, we need to send messages
from one end system to another. If the message is
going to pass through a packet-switched network, it
needs to be divided into packets of fixed or variable
size. The size of the packet is determined by the
network and the governing protocol.
Routing Table
Efficiency
Delay
Datagram Networks in the Internet
81

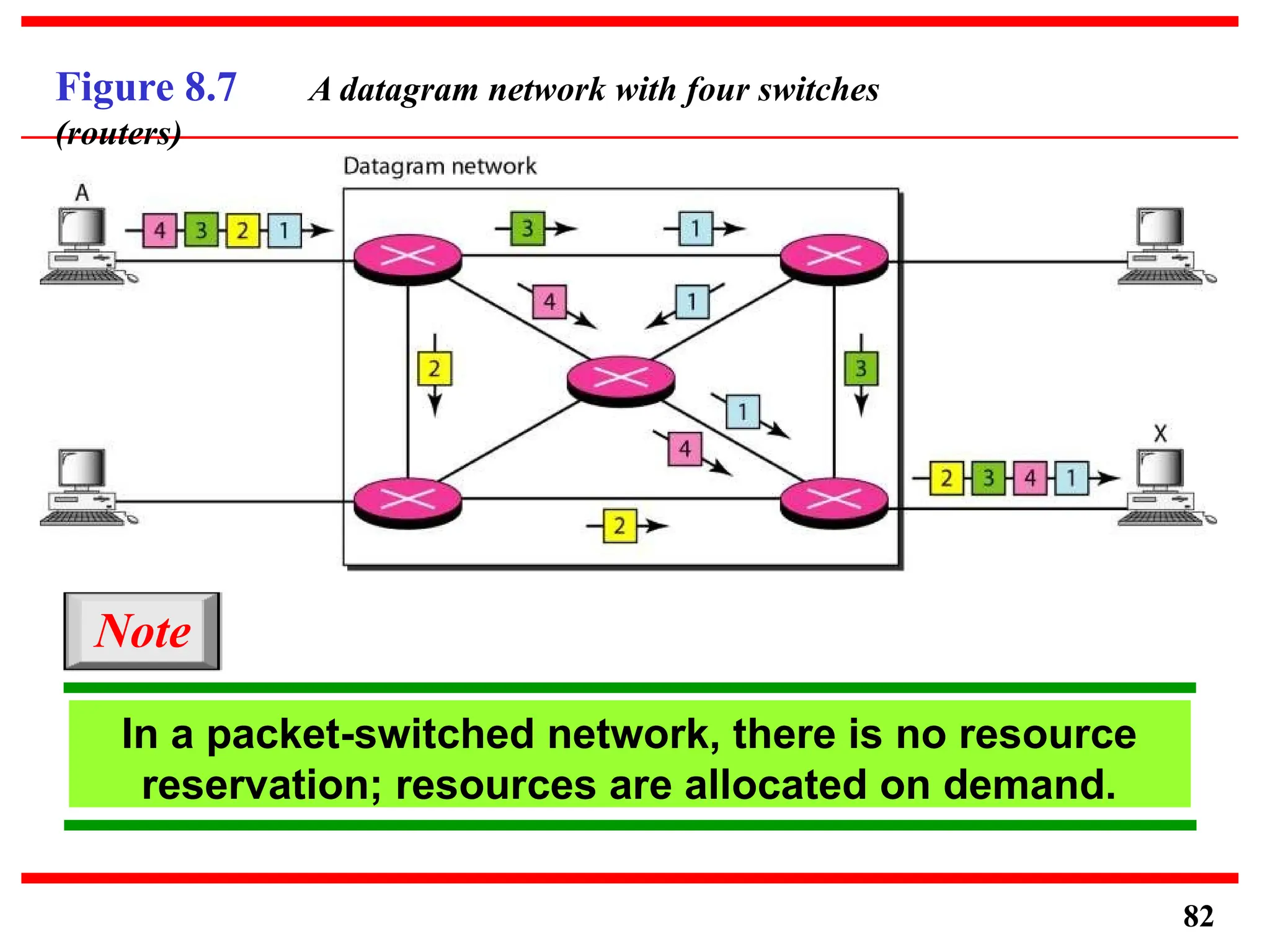

Figure 8.7 A datagram network with four switches
(routers)
In a packet-switched network, there is no resource
reservation; resources are allocated on demand.
Note
82

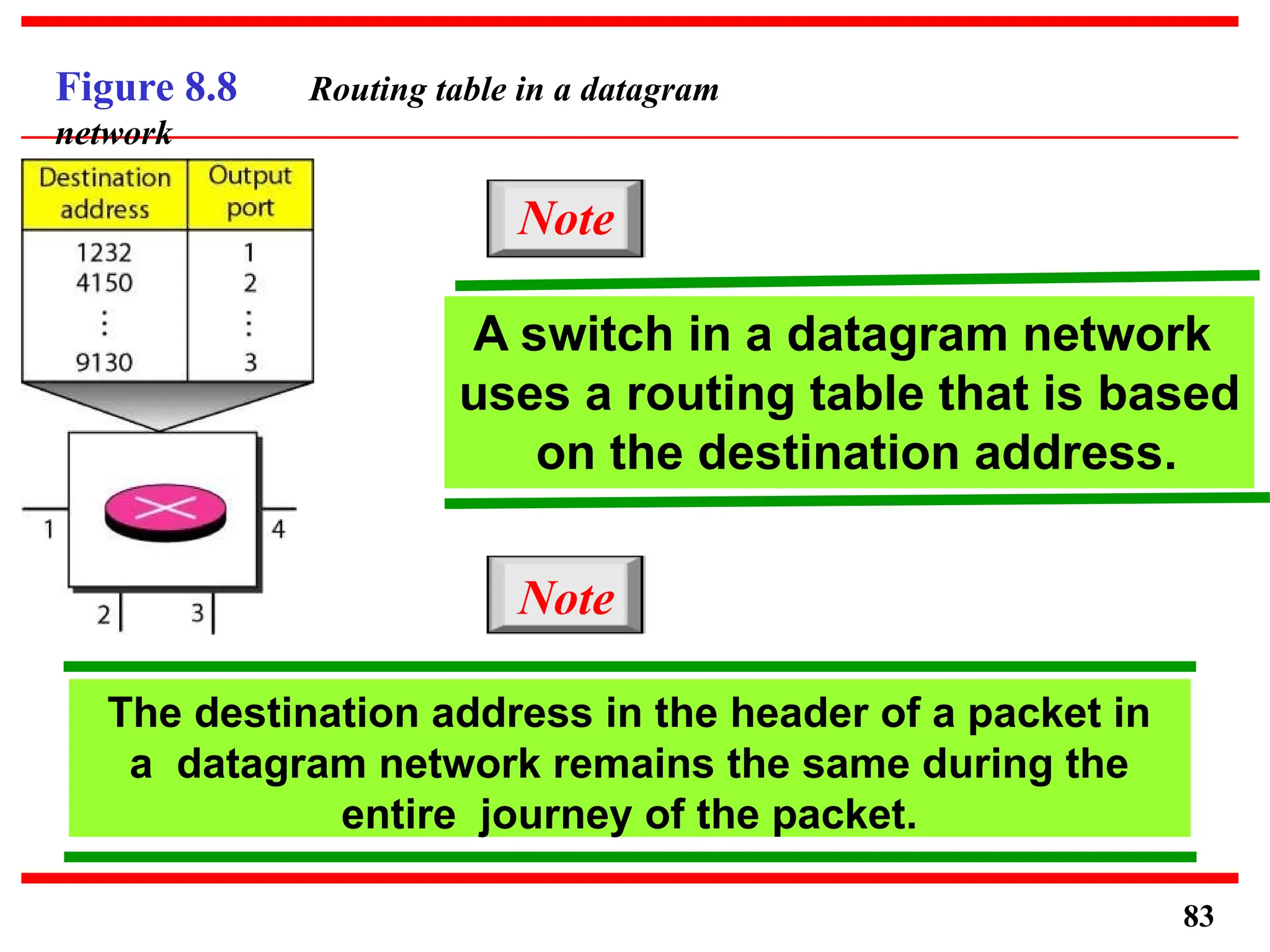

Figure 8.8 Routing table in a datagram
network
Note
The destination address in the header of a packet in
a datagram network remains the same during the
entire journey of the packet.
A switch in a datagram network
uses a routing table that is based
on the destination address.
Note
83

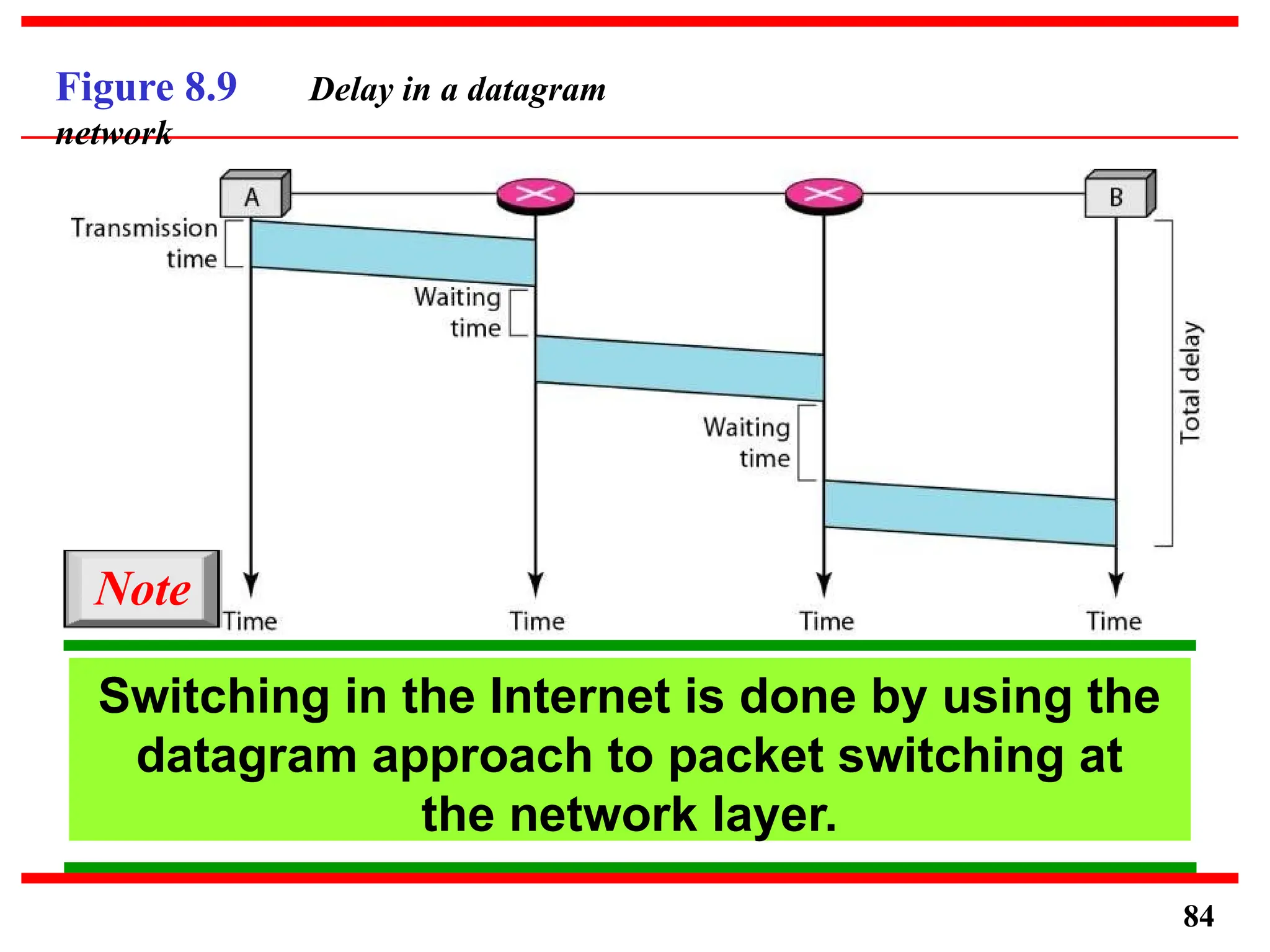

Figure 8.9 Delay in a datagram
network
Switching in the Internet is done by using the
datagram approach to packet switching at
the network layer.
84
Note

8-3 VIRTUAL-CIRCUIT
NETWORKS
A virtual-circuit network is a
cross between a circuit- switched network
and a datagram network. It has
some
characteristics of both.
Addressing
Three
Phases
Efficiency
Delay
Circuit-Switched Technology in
WANs

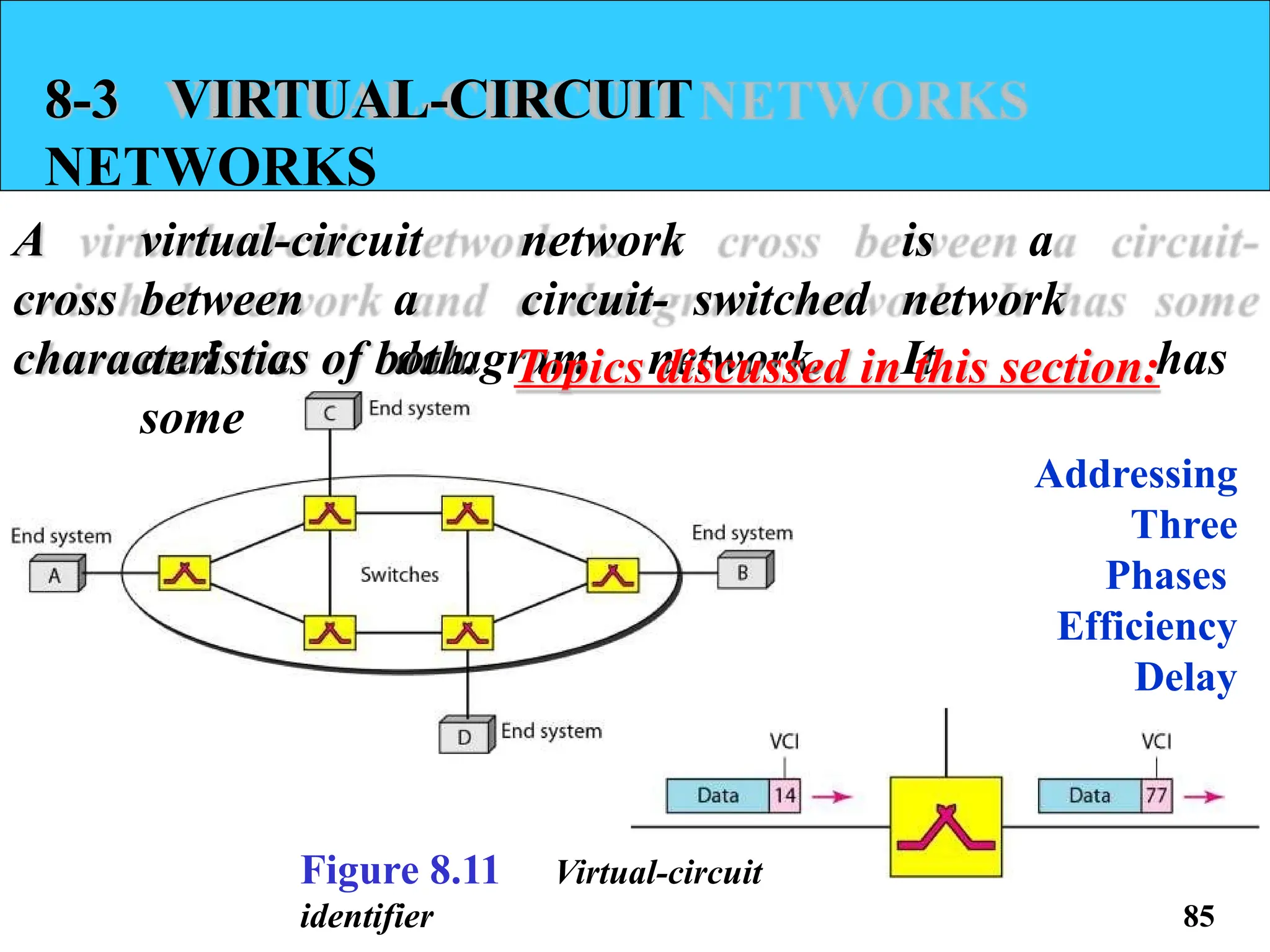

Figure 8.11 Virtual-circuit
identifier 85

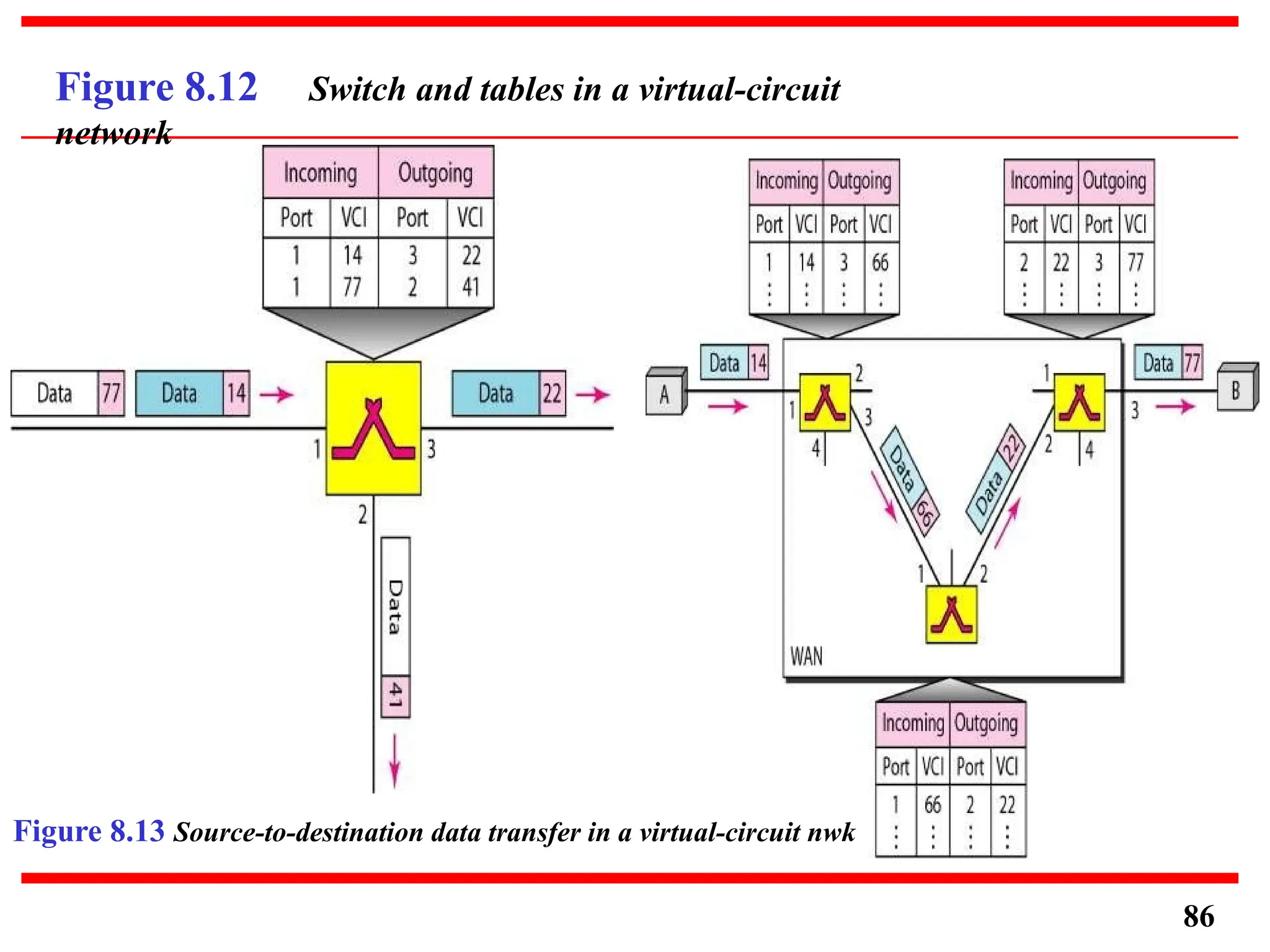

Figure 8.12 Switch and tables in a virtual-circuit
network
Figure 8.13 Source-to-destination data transfer in a virtual-circuit nwk
86

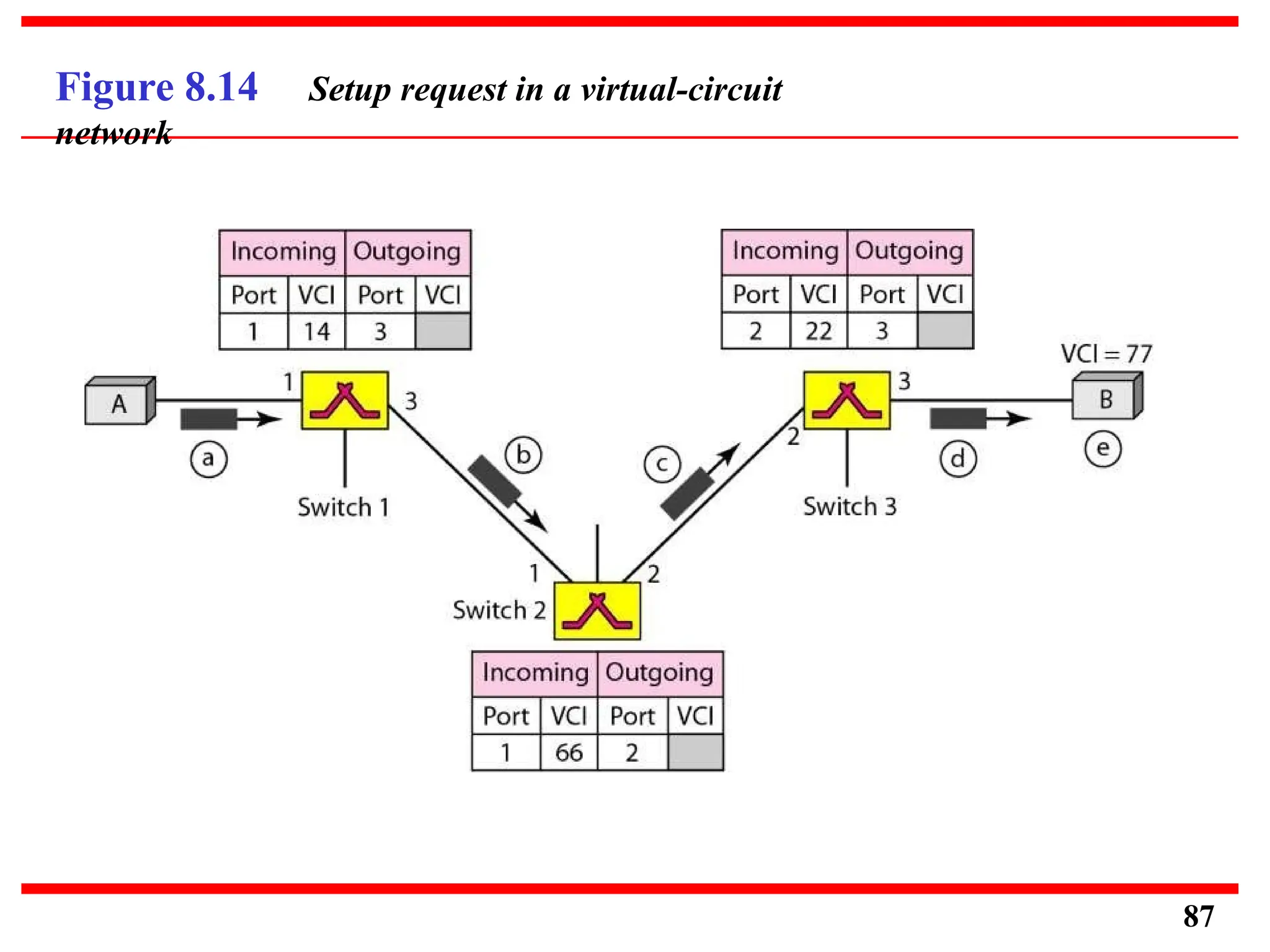

Figure 8.14 Setup request in a virtual-circuit
network
87

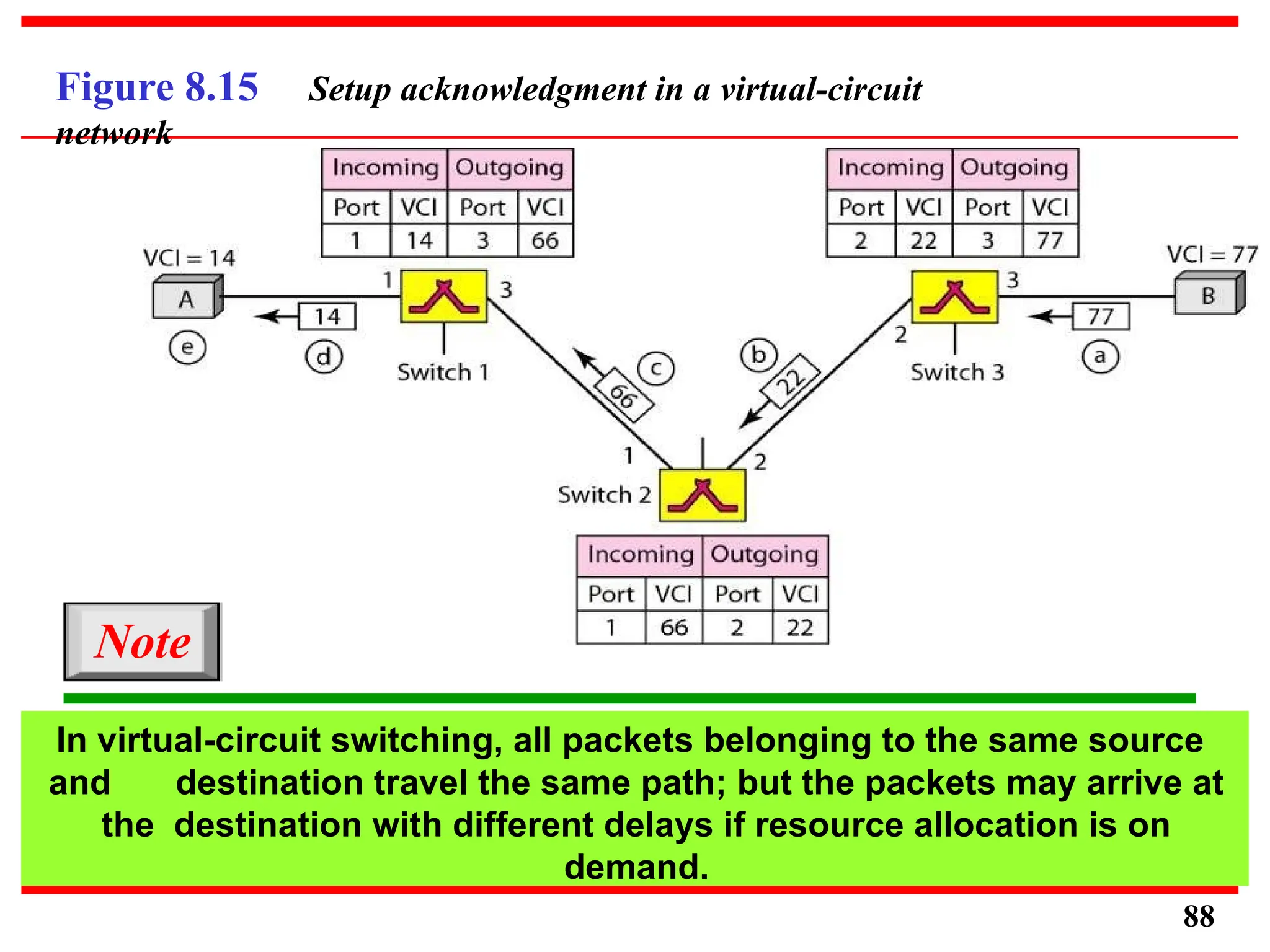

Figure 8.15 Setup acknowledgment in a virtual-circuit
network
In virtual-circuit switching, all packets belonging to the same source
and destination travel the same path; but the packets may arrive at
the destination with different delays if resource allocation is on
demand.
88
Note

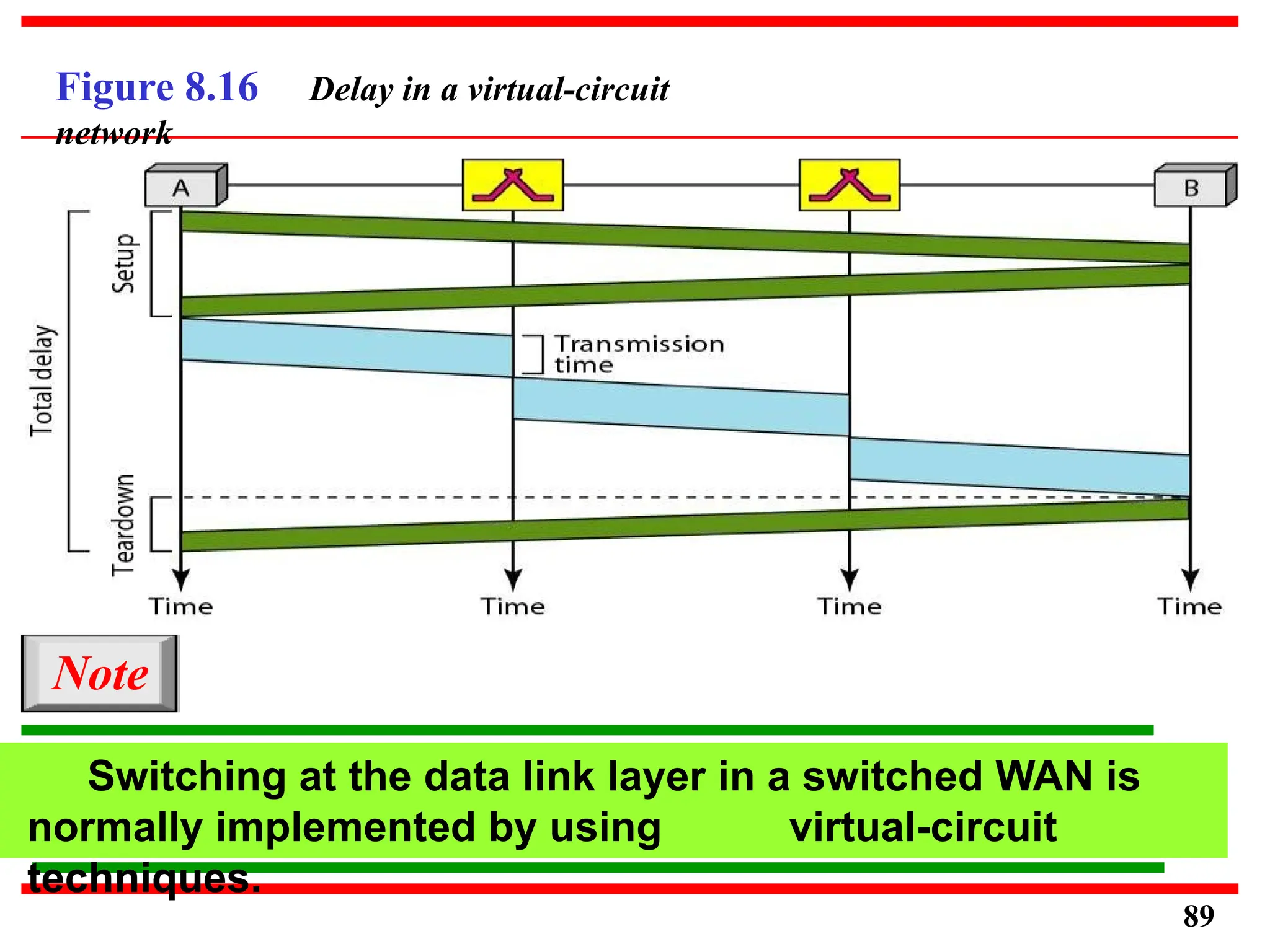

Figure 8.16 Delay in a virtual-circuit
network
Note
Switching at the data link layer in a switched WAN is
normally implemented by using virtual-circuit
techniques.
89

8-4 STRUCTURE OF A
SWITCH
We use switches in circuit-switched and packet-switched networks. In
this section, we discuss the structures of the switches used in each type
of network. Topics discussed in this section:
Structure of Circuit Switches
Structure of Packet Switches
90
Figure 8.17 Crossbar switch
with three inputs and four
outputs
Figure 8.18 Multistage switch

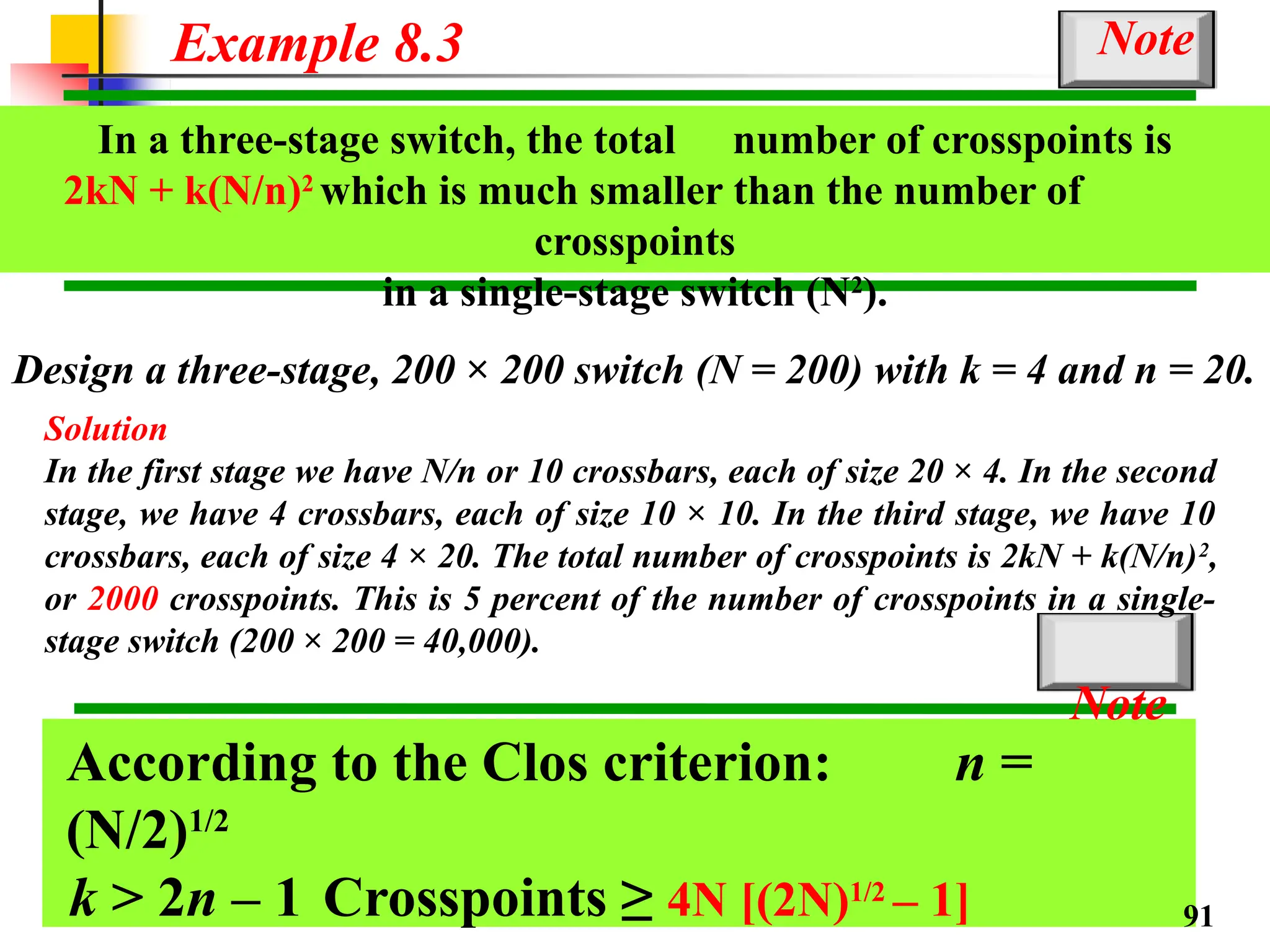

Example 8.3 Note
According to the Clos criterion: n =
(N/2)1/2
k > 2n – 1 Crosspoints ≥ 4N [(2N)1/2
– 1]
In a three-stage switch, the total number of crosspoints is
2kN + k(N/n)2
which is much smaller than the number of
crosspoints
in a single-stage switch (N2
).
Design a three-stage, 200 × 200 switch (N = 200) with k = 4 and n = 20.
Solution
In the first stage we have N/n or 10 crossbars, each of size 20 × 4. In the second
stage, we have 4 crossbars, each of size 10 × 10. In the third stage, we have 10
crossbars, each of size 4 × 20. The total number of crosspoints is 2kN + k(N/n)2
,
or 2000 crosspoints. This is 5 percent of the number of crosspoints in a single-
stage switch (200 × 200 = 40,000).
Note
91

Example 8.4
Redesign the previous three-stage, 200 × 200 switch, using
the Clos criteria with a minimum number of crosspoints.
Solution
We let n = (200/2)1/2
, or n = 10. We calculate k = 2n − 1 = 19. In the first stage, we
have 200/10, or 20, crossbars, each with 10 × 19 crosspoints. In the second stage,
we have 19 crossbars, each with 10 × 10 crosspoints. In the third stage, we have 20
crossbars each with 19 × 10 crosspoints. The total number of crosspoints is 20(10 ×
19) + 19(10 × 10) + 20(19 ×10) = 9500.

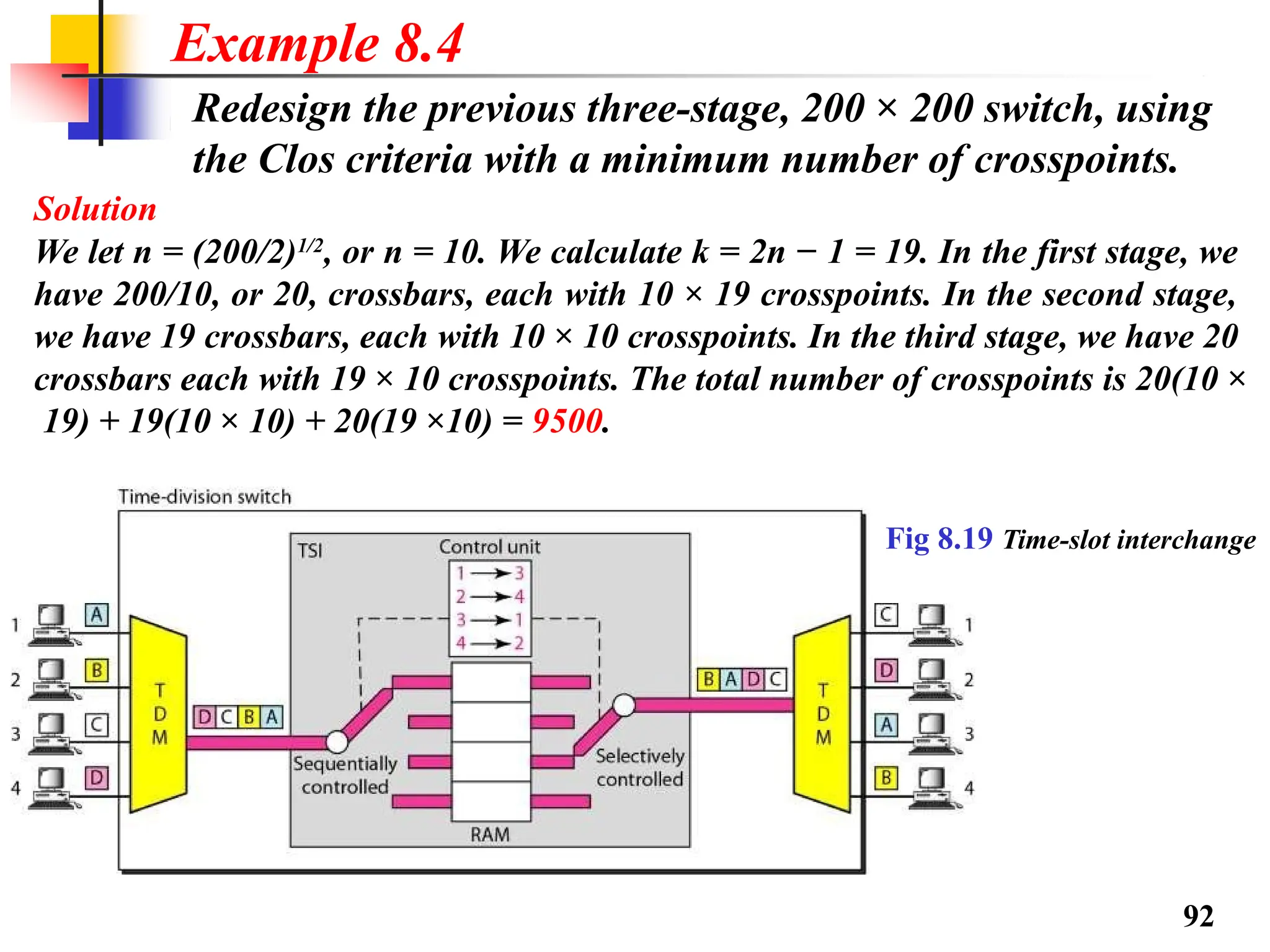

Fig 8.19 Time-slot interchange
92

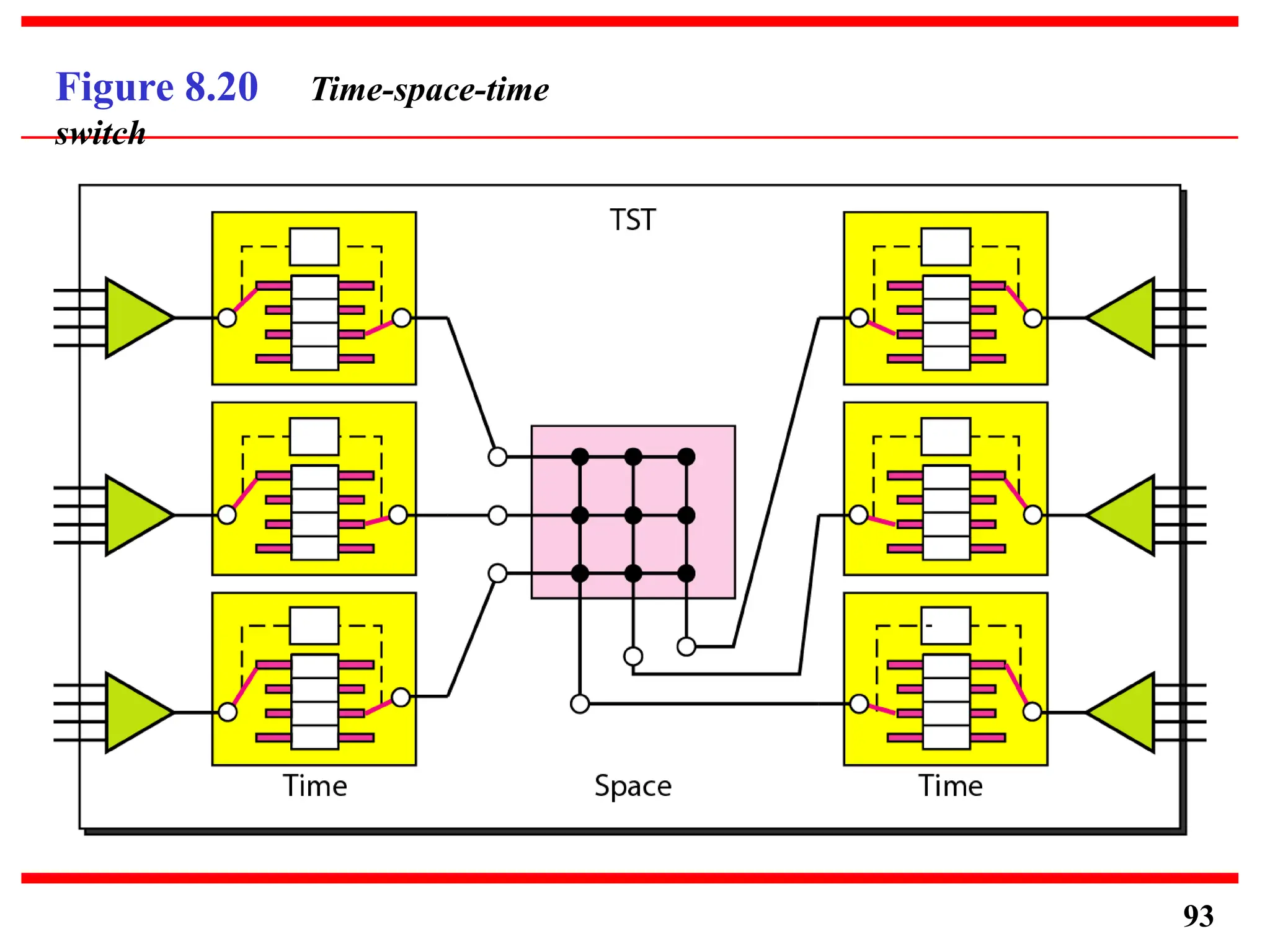

Figure 8.20 Time-space-time
switch
93

Figure 8.21 Packet switch
components
Figure 8.22 Input
port
94

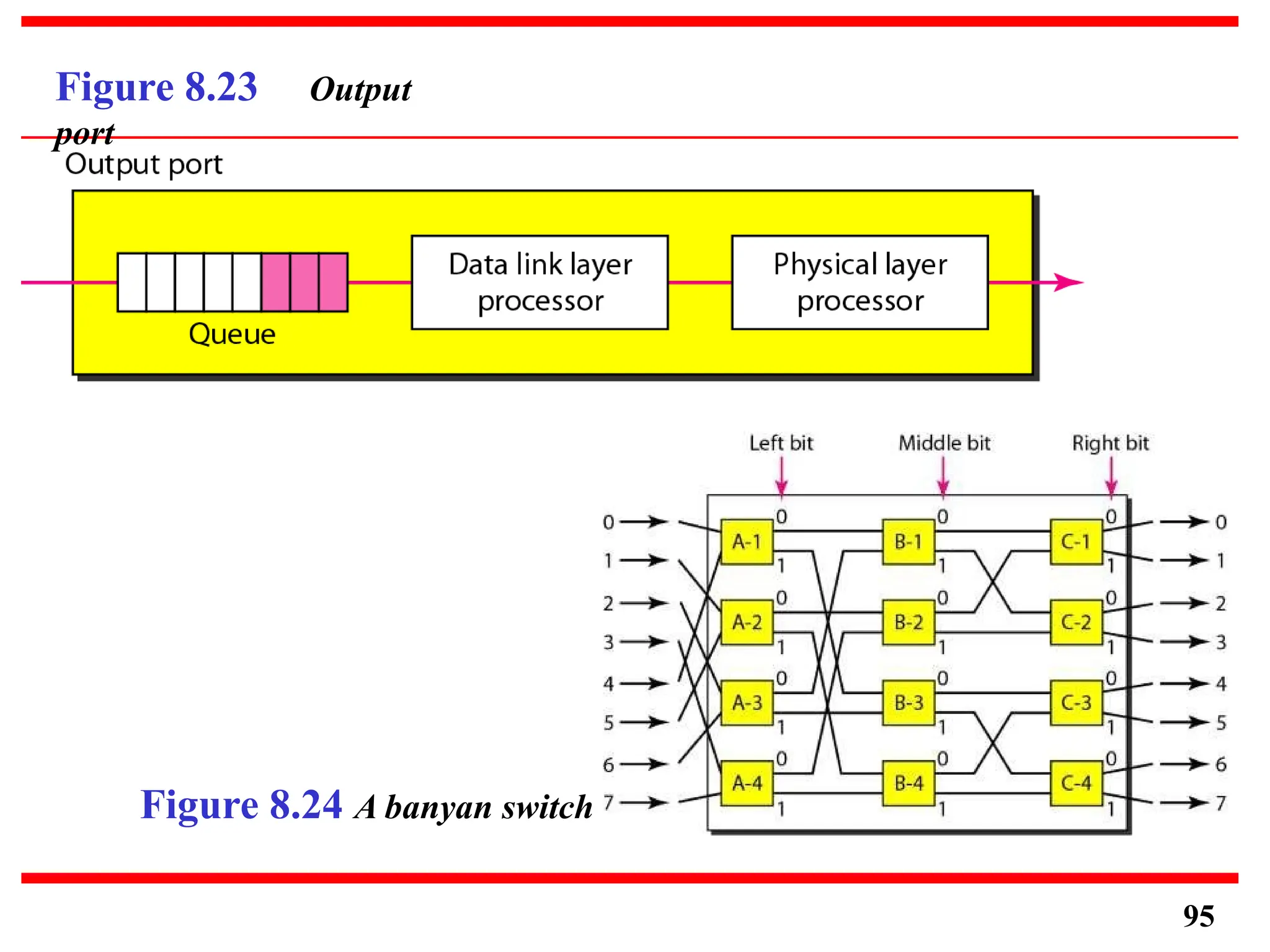

Figure 8.23 Output
port
Figure 8.24 A banyan switch
95

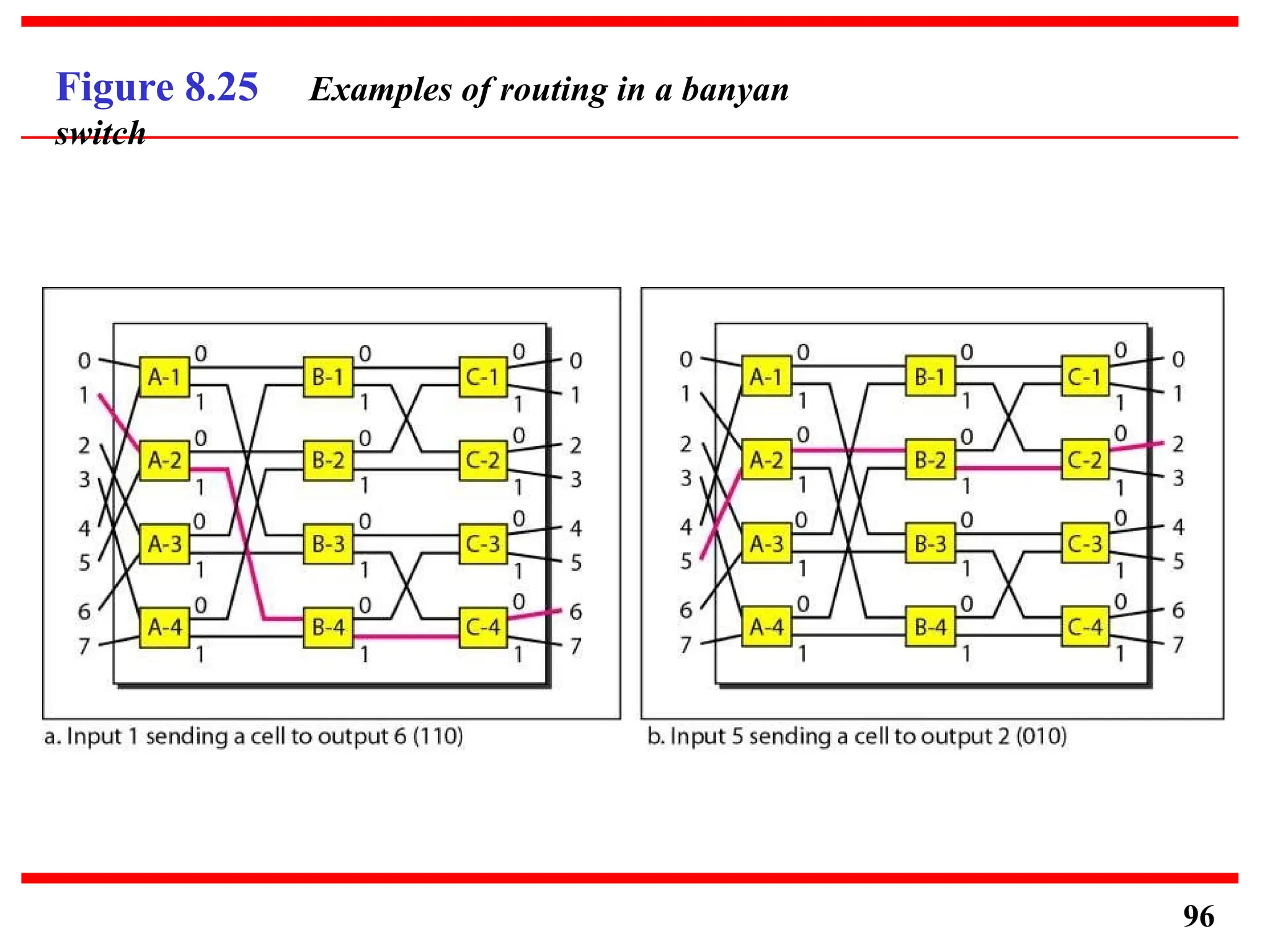

Figure 8.25 Examples of routing in a banyan
switch
96

Figure 8.26 Batcher-banyan
switch
97

Computer Networks Unit 1 Powerpoint Presentation

More Related Content

Similar to Computer Networks Unit 1 Powerpoint Presentation

Recently uploaded

Computer Networks Unit 1 Powerpoint Presentation
