Comprehensive Overview of Thermal Power Plants in India: Components, Working, and Advantages

Introduction A thermal power plant is a widely used type of electricity-generating station that relies on heat energy, usually obtained from the combustion of fossil fuels like coal, oil, or natural gas, or from nuclear reactions in the case of nuclear thermal power plants. The central idea is to convert thermal energy into mechanical energy and then into electrical energy efficiently. Thermal power contributes a significant portion of global electricity production and forms a backbone of industrial power systems. Main Components of a Thermal Power Plant The following are the primary components of a conventional thermal power plant: Boiler (Steam Generator): The boiler is responsible for converting water into high-pressure steam using heat from burning fuel. Fuels can include coal, oil, natural gas, or biomass. The generated steam must have sufficient pressure and temperature to drive the turbines efficiently. Steam Turbine: High-pressure steam from the boiler passes through a series of turbine blades, causing the shaft to rotate. This converts thermal energy into mechanical energy. Modern turbines are typically classified as high, intermediate, and low-pressure sections to maximize energy extraction from steam. Condenser: After passing through the turbine, steam enters the condenser where it is cooled using a coolant (generally water from a nearby river, lake, or cooling tower) and converted back to liquid form. This process creates a vacuum that improves turbine efficiency and enables the reuse of water in the boiler. Generator: The turbine shaft is coupled to an electrical generator. As the turbine rotates, the generator converts mechanical energy into electrical energy using electromagnetic induction. Feed Water Pump and Economizer: Water to be converted into steam is pumped from low to high pressure using feed water pumps. Economizers recover residual heat from flue gases to preheat the feed water, improving overall efficiency. Cooling System: Thermal power plants require substantial cooling for the condenser and auxiliary systems. Cooling towers are commonly used to dissipate waste heat into the atmosphere. Flue Gas Treatment and Chimney: Combustion produces flue gases containing CO₂, SOx, NOx, and particulate matter. Electrostatic precipitators, scrubbers, and chimneys manage pollution, ensuring environmental compliance. Control Systems: Modern plants utilize control systems to manage fuel input, temperature, pressure, and electricity output, ensuring safe and efficient operation. Working Principle The operation of a conventional thermal power plant can be summarized in several steps: Fuel Combustion: Fuel is burned in the boiler furnace, releasing heat. Coal is pulverized, oil is sprayed as fine droplets, and gas is combusted in burners. Steam Production: Heat energy converts water in the boiler tubes into high-pressure steam. Energy Conversion in Turbine: The high-pressure steam expands through the turbine blades, transferring kinetic en

Engineering◦
PRESENTED BY- MD OQUAB ARSHI THERMAL POWER PLANT
CONTENTS 1.Introduction 2.Definition 3.Main components of Thermal Power Plant 4.Description of Thermal Power Plant 5.Working of Thermal power plant 6.Adcantages & Disadvantages 7.Some Thermal Power Plant in India
 In INDIA 65%of total power is generated by thermal power stations.  In thermal generating stations coal,oil,natural gas , etc are employed as primary sources of energy.  A thermal power station basically work in Rankine cycle.  Thermal power plant convert the heat energy of coal into electrical energy.  Coal is burnt in a boiler which converts water into steam.  The expansion of steam in turbine produces mechanical power which drives the alternator coupled to the turbine INTRODUCTION

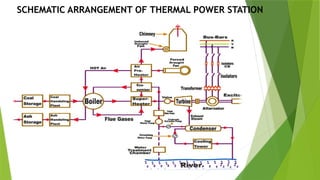

SCHEMATIC ARRANGEMENT OF THERMAL POWER STATION
 A generating station which converts heat energy of coal combustion into electrical energy is known as thermal powerplant  DEFINITION  Main components of Thermal Power Plant :  River & Camal  Circulating Water Pump  Condenser  Economizer  Boiler  Superheater  Turbine  Alternator
 1.RIVER OR CANALAs :-  we know in rivers and canals huge amount water is available as in thermal power plant water is needed for the generation of steam.  2.CIRCULATING WATER PUMP:-  Circulating water pump circulates the water from the river to the power plant at a high pressure.  3.CONDENSER:-  In thermal power plants, the purpose of a condenser is to condense the exhaust steam from a steam turbine to obtain maximum efficiency, and also to convert the turbine exhaust steam into pure water so that it may be reused in the steam generator or boiler as boiler feed water.  4.ECONOMIZER:-  Function of economizer in thermal power plant is to recover some of the heat from the heat carried away in the flue gases up the chimney and utilize for heating the feed water to the boiler.
 5.BOILER:-  Boiler is a device meant for producing steam under high pressure.  These are of two types 1. Water Tube 2. Fire tube  Generally water tube boilers are used in case of electric power stations 1. 6.SUPERHEATER:-  A superheater is a device used to convert saturated steam or wet steam into superheated steam or dry steam. Superheated steam is used in steam turbines for electricity generation  7.TURBINE:-  The main function turbine is that when pressurized steam is passed through it, It converts the heat energy to mechanical energy.  8.ALTERNATOR:-  Alternator in thermal power plant converts the generated mechanical energy to electrical energy in the form of alternating current.
 ADVANTAGES 1. 1.The installation cost is very low as compared to other power generation like hydro power plant. 2. Even the less space required. 3. The fuel we use in this Thermal power plant is cheaper. 4. The coal can be easily transported to the site  DISADVANTAGES 1. It pollutes the atmosphere due to production of large amount smoke and fumes. 2. Maintenance cost is more. 3. It is costlier in running cost as hydro electric power plants. 4. The thermal power plant efficiency is as below as 30%
 THERMAL POWER PLANTS IN INDIA 1. Sasan Ultra Mega Power Plant, Madhya Pradesh. 2. Trioda Thermal Power Plant, Maharashtra. 3. Talcher Super Thermal Power Station, Odisha. 4. Vindhyachal Power Station, Madhya Pradesh. 5. Mundra Thermal Power Station, Gujarat.  CONCLUSION
