Comprehensive Overview of Photosynthesis: Chloroplasts, Pigments, and Light Energy Capture

Explore the cellular location of photosynthesis, roles of chloroplasts and pigments, and how plants capture light energy through chlorophyll and accessory pigments for efficient photosynthesis.

Science◦
Download to read offline
College Biology Photosynthesis: From Chloroplasts to Pigments How autotrophs capture light energy "Where inside this leaf does photosynthesis actually happen?" College Biology | July 2026
Learning Competencies By the end of this lesson, students will connect the cellular location of photosynthesis to the role of specific pigment molecules. Students will: 01 Identify the cellular location of photosynthesis. 02 Explain the role of chloroplasts in plant cells. 03 Describe how chlorophyll captures light energy. 04 Explain the importance of accessory pigments. College Biology | July 2026 2
Opening Phenomenon How can a plant increase in mass without eating? Sunlight Energy source for photosynthesis Water Absorbed through roots from soil Carbon Dioxide Taken in via leaf stomata Growing Plant Builds mass from light and molecules Student Task Write an initial explanation in one or two sentences. (Think before you discuss.) College Biology | July 2026 3

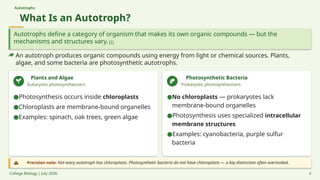

Autotrophs What Is an Autotroph? Autotrophs define a category of organism that makes its own organic compounds — but the mechanisms and structures vary. [1] An autotroph produces organic compounds using energy from light or chemical sources. Plants, algae, and some bacteria are photosynthetic autotrophs. Plants and Algae Eukaryotic photosynthesizers Photosynthetic Bacteria Prokaryotic photosynthesizers Precision note: Not every autotroph has chloroplasts. Photosynthetic bacteria do not have chloroplasts — a key distinction often overlooked. College Biology | July 2026 4 ●Photosynthesis occurs inside chloroplasts ●Chloroplasts are membrane-bound organelles ●Examples: spinach, oak trees, green algae ●No chloroplasts — prokaryotes lack membrane-bound organelles ●Photosynthesis uses specialized intracellular membrane structures ●Examples: cyanobacteria, purple sulfur bacteria
Where Does Photosynthesis Occur? Photosynthesis is a cellular process localized to a specific organelle — the chloroplast — found in abundance in leaf mesophyll cells. [2] Organism Organ Tissue Cell Organelle Plant Whole organism Leaf Photosynthetic organ Mesophyll Tissue Interior leaf layers Plant Cell Eukaryotic cell with organelles Chloroplast Site of photosynthesis In plants, photosynthesis takes place inside chloroplasts , which are abundant in many leaf mesophyll cells. College Biology | July 2026 5
Plant Cell and Chloroplast Understanding the plant cell layout helps students locate chloroplasts within the broader cellular context. Cell Wall Cell Membrane Nucleus Vacuole Chloroplasts — site of photosynthesis "Which labeled structure is directly associated with photosynthesis?" Quick Check College Biology | July 2026 Slide 6

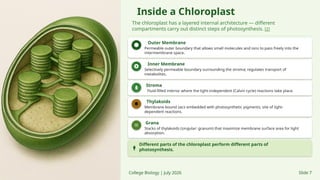

Inside a Chloroplast The chloroplast has a layered internal architecture — different compartments carry out distinct steps of photosynthesis. [2] Outer Membrane Permeable outer boundary that allows small molecules and ions to pass freely into the intermembrane space. Inner Membrane Selectively permeable boundary surrounding the stroma; regulates transport of metabolites. Stroma Fluid-filled interior where the light-independent (Calvin cycle) reactions take place. Thylakoids Membrane-bound sacs embedded with photosynthetic pigments; site of light- dependent reactions. Grana Stacks of thylakoids (singular: granum) that maximize membrane surface area for light absorption. Different parts of the chloroplast perform different parts of photosynthesis. College Biology | July 2026 Slide 7

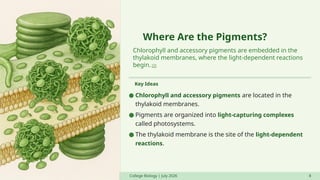

Where Are the Pigments? Chlorophyll and accessory pigments are embedded in the thylakoid membranes, where the light-dependent reactions begin. [2] Key Ideas College Biology | July 2026 8 ● Chlorophyll and accessory pigments are located in the thylakoid membranes. ● Pigments are organized into light-capturing complexes called photosystems. ● The thylakoid membrane is the site of the light-dependent reactions.
Chloroplast Is Not Chlorophyll A common confusion — the chloroplast is an organelle; chlorophyll is a pigment molecule inside it. Chloroplast An organelle An organelle found in plant and algal cells Visible under a light microscope Contains many pigment molecules Houses the thylakoids, grana, and stroma Chlorophyll A pigment molecule A molecule — not a structure or organelle Located inside the thylakoid membrane Absorbs light energy for photosynthesis One type among several photosynthetic pigments Hinge Question Which statement is correct? A Chlorophyll is an organelle. B Chloroplasts absorb no light. C Chlorophyll is located in chloroplasts. D Photosynthesis occurs outside plant cells. College Biology | July 2026 09
What Is Light? Visible light is a spectrum of wavelengths — a pigment's ability to absorb light depends on the wavelength, and not all colors are equal. [3] 400 nm (Violet) 700 nm (Red) College Biology | July 2026 ●Visible light spans roughly 400 nm (violet) to 700 nm (red). ●Different colors represent different wavelength ranges within this spectrum. ●Pigments do not absorb all wavelengths equally — selective absorption determines both function and color.
What Is a Pigment? 11 / 24 A pigment's identity is defined by which wavelengths it absorbs — determining both its energy- harvesting role and its apparent color.[1] Definition A pigment is a molecule that absorbs some wavelengths of light and reflects or transmits others. Two outcomes of light interacting with a pigment: Absorbed Light Result Provides energy for photochemical reactions — the foundation of photosynthesis. 400 nm (violet) 700 nm (red) Reflected or Transmitted Light Result Contributes to the color we observe — e.g., chlorophyll reflects green, making leaves appear green. Green reflected Perceived color College Biology | July 2026 Photosynthesis: From Chloroplasts to Pigments

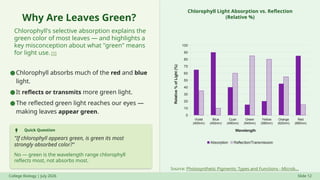

Why Are Leaves Green? Chlorophyll's selective absorption explains the green color of most leaves — and highlights a key misconception about what "green" means for light use. [1] Quick Question "If chlorophyll appears green, is green its most strongly absorbed color?" No — green is the wavelength range chlorophyll reflects most, not absorbs most. Chlorophyll Light Absorption vs. Reflection (Relative %) Source: Photosynthetic Pigments: Types and Functions - Microb... College Biology | July 2026 Slide 12 ●Chlorophyll absorbs much of the red and blue light. ●It reflects or transmits more green light. ●The reflected green light reaches our eyes — making leaves appear green. Violet (400nm) Blue (450nm) Cyan (490nm) Green (540nm) Yellow (580nm) Orange (620nm) Red (680nm) 0 10 20 30 40 50 60 70 80 90 100 Absorption Reflection/Transmission Wavelength Relative % of Light (%)
Major Photosynthetic Pigments Leaves contain several photosynthetic pigments, each with a distinct absorption profile and characteristic color. [1] Chlorophyll a Primary Pigment Blue-Green Participates directly in reaction centers Central pigment in oxygenic photosynthesis Absorbs red (~680 nm) and blue (~430 nm) light Chlorophyll b Accessory Pigment Yellow-Green Extends the light absorption range Transfers captured energy to chlorophyll a Absorbs slightly different wavelengths than chl a Carotenoids Accessory & Photoprotective Orange / Yellow Carotenes (orange) absorb blue-green light Xanthophylls (yellow) assist light harvesting Dissipate excess energy; protect from damage College Biology | July 2026 13
Role of Chlorophyll a Chlorophyll a is the central photosynthetic pigment in oxygenic photosynthesis, directly initiating the conversion of light energy into chemical energy. [4] Central pigment in oxygen-producing (oxygenic) photosynthesis. Absorbs light energy and participates directly in the reaction centers of Photosystem I and Photosystem II. Initiates conversion of light energy into chemical energy at the reaction center. Analogy Chlorophyll a acts like the central receiver in a light-capturing antenna system — it receives energy funneled from surrounding pigments and initiates photochemical conversion. Antenna System Model Accessory Pigments Chl a Chemical Energy College Biology | July 2026 14
Accessory Pigments Role of Accessory Pigments Accessory pigments extend the functional light-harvesting range of photosynthesis and provide photoprotection — making them essential, not optional. [1] Extended Absorption Chlorophyll b and carotenoids absorb additional wavelengths not strongly captured by chlorophyll a. Chlorophyll b Carotenoids Energy Transfer Captured energy is transferred toward the reaction center — chlorophyll a — initiating photochemical conversion. Broadened Light Range Together, accessory pigments expand the range of visible light wavelengths usable for photosynthesis. Absorption Range Comparison Chlorophyll b 453 & 642 nm Carotenoids 400–500 nm Photoprotection Carotenoids also dissipate excess light energy, protecting the photosynthetic machinery from damage caused by overexcitation. Key Insight Without accessory pigments, photosynthesis would be limited to a narrow slice of visible light — far less efficient in real-world light environments. College Biology | July 2026 Slide 15 of 24
Source: 8.5: The Light-Dependent Reactions of Photosynthesis ... Reading an Absorption Spectrum An absorption spectrum shows which wavelengths each pigment absorbs — together, multiple pigments cover more of the visible spectrum. [3] Discussion Questions Which colors are strongly absorbed by chlorophyll a? Blue (~430 nm) and red (~680 nm) Which region is less strongly absorbed by chlorophyll? Green (~500–600 nm) — reflected, making leaves appear green Why are several pigment curves useful? Together they cover a broader range of the visible spectrum 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 Absorption Spectra of Photosynthetic Pigments Chlorophyll a Chlorophyll b Carotenoids Wavelength (nm) Light Absorption (relative)
Pigment Chromatography Paper chromatography provides direct physical evidence that a green leaf contains multiple distinct pigments — despite appearing uniformly green. Discussion Questions Why are several bands visible? Different pigments have different polarities and travel different distances up the paper. What does each band represent? A distinct pigment separated from the mixture by polarity differences. What conclusion can we make about a green leaf? Key conclusion: A green leaf contains several pigments, even if chlorophyll visually dominates. College Biology | July 2026
From Light to Chemical Energy Light absorption by pigments sets off a chain of energy-transfer events that ultimately produces the chemical energy that powers cellular work.[4] 1 Light Arrives Light reaches the thylakoid membrane 2 Photon Absorbed Pigment molecules absorb photon energy 3 Electrons Excited Electrons reach an excited state 4 Energy Transfer Electrons passed to the reaction center 5 Chemical Energy Energy-rich compounds are formed Note: ATP, NADPH, and electron transport details are covered in subsequent lessons. College Biology | July 2026 18

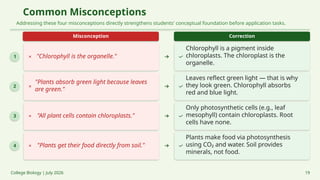

Common Misconceptions Addressing these four misconceptions directly strengthens students' conceptual foundation before application tasks. Misconception Correction 1 "Chlorophyll is the organelle." Chlorophyll is a pigment inside chloroplasts. The chloroplast is the organelle. 2 "Plants absorb green light because leaves are green." Leaves reflect green light — that is why they look green. Chlorophyll absorbs red and blue light. 3 "All plant cells contain chloroplasts." Only photosynthetic cells (e.g., leaf mesophyll) contain chloroplasts. Root cells have none. 4 "Plants get their food directly from soil." Plants make food via photosynthesis using CO₂ and water. Soil provides minerals, not food. College Biology | July 2026 19
Check for Understanding These four questions map directly to the lesson's learning competencies — answer individually before discussion begins. 1 Where does photosynthesis occur in a plant cell? 2 Where is chlorophyll located within the chloroplast? 3 Why do leaves appear green? 4 Why are accessory pigments important for photosynthesis? Answer individually first. Then compare with a partner before whole-class discussion. College Biology | July 2026

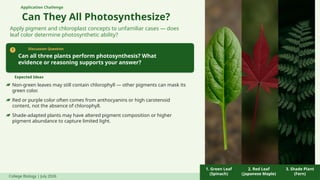

Application Challenge Can They All Photosynthesize? Apply pigment and chloroplast concepts to unfamiliar cases — does leaf color determine photosynthetic ability? Discussion Question Can all three plants perform photosynthesis? What evidence or reasoning supports your answer? Expected Ideas Non-green leaves may still contain chlorophyll — other pigments can mask its green color. Red or purple color often comes from anthocyanins or high carotenoid content, not the absence of chlorophyll. Shade-adapted plants may have altered pigment composition or higher pigment abundance to capture limited light. College Biology | July 2026 1. Green Leaf (Spinach) 2. Red Leaf (Japanese Maple) 3. Shade Plant (Fern)
Summary Five key takeaways consolidate the lesson — photosynthesis as a cellular, pigment-driven process localized to the chloroplast. Takeaway 01 Photosynthesis is a cellular process. Takeaway 02 In plants and algae, it occurs in chloroplasts. Takeaway 03 Chlorophyll is a pigment, not an organelle. Takeaway 04 Photosynthetic pigments are located in thylakoid membranes. Takeaway 05 Chlorophyll captures light energy and initiates its conversion to chemical energy. College Biology July 2026 22
Exit Ticket Recall, apply, and synthesize — submit before leaving class. Complete the Statements 1 Photosynthesis occurs in the . 2 Chlorophyll is located mainly in the membranes. 3 Leaves appear green because chlorophyll more green light. 4 Accessory pigments help plants by . Short Answer In one sentence, distinguish chlorophyll from a chloroplast . Students submit before leaving. Review responses to inform the next lesson. College Biology | July 2026 23
References [1] Photosynthetic Pigments: Types and Functions - Microb... [2] Thylakoid Membrane: Function, Structure, and Photosyn... [3] 8.5: The Light-Dependent Reactions of Photosynthesis ... [4] Photosynthesis - The light reactions | Britannica
