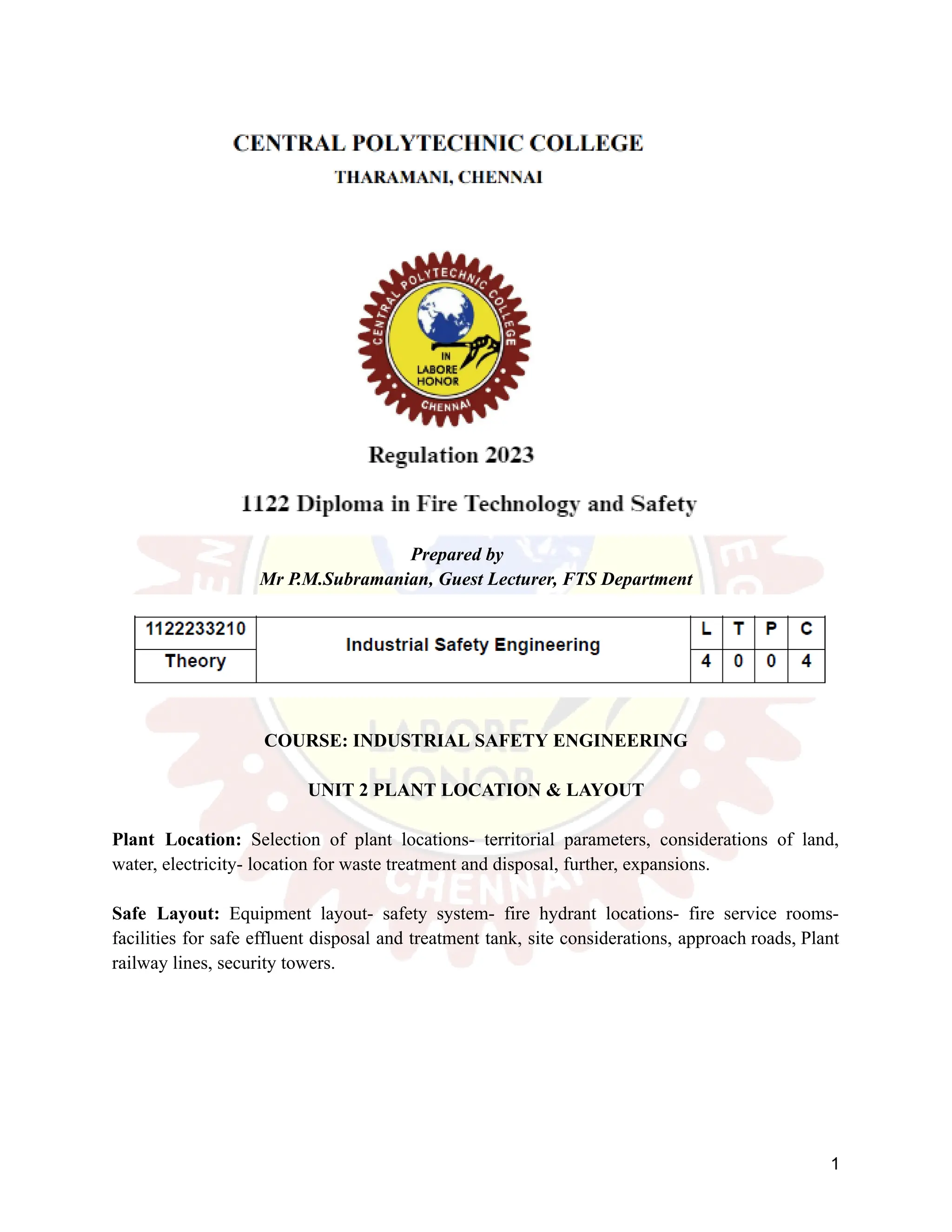

Comprehensive Guide to Industrial Plant Location and Safe Layout Planning

Prepared by
Mr P.M.Subramanian, Guest Lecturer, FTS Department
COURSE: INDUSTRIAL SAFETY ENGINEERING
UNIT 2 PLANT LOCATION & LAYOUT
Plant Location: Selection of plant locations- territorial parameters, considerations of land,
water, electricity- location for waste treatment and disposal, further, expansions.
Safe Layout: Equipment layout- safety system- fire hydrant locations- fire service rooms-
facilities for safe effluent disposal and treatment tank, site considerations, approach roads, Plant
railway lines, security towers.
1

Selection of Plant Locations:

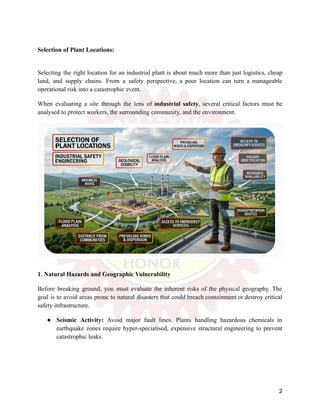

Selecting the right location for an industrial plant is about much more than just logistics, cheap
land, and supply chains. From a safety perspective, a poor location can turn a manageable
operational risk into a catastrophic event.
When evaluating a site through the lens of industrial safety, several critical factors must be
analysed to protect workers, the surrounding community, and the environment.
1. Natural Hazards and Geographic Vulnerability
Before breaking ground, you must evaluate the inherent risks of the physical geography. The
goal is to avoid areas prone to natural disasters that could breach containment or destroy critical
safety infrastructure.
● Seismic Activity: Avoid major fault lines. Plants handling hazardous chemicals in
earthquake zones require hyper-specialised, expensive structural engineering to prevent
catastrophic leaks.
2

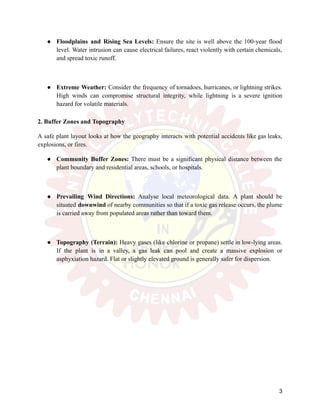

● Floodplains and Rising Sea Levels: Ensure the site is well above the 100-year flood
level. Water intrusion can cause electrical failures, react violently with certain chemicals,
and spread toxic runoff.
● Extreme Weather: Consider the frequency of tornadoes, hurricanes, or lightning strikes.
High winds can compromise structural integrity, while lightning is a severe ignition
hazard for volatile materials.
2. Buffer Zones and Topography
A safe plant layout looks at how the geography interacts with potential accidents like gas leaks,
explosions, or fires.
● Community Buffer Zones: There must be a significant physical distance between the
plant boundary and residential areas, schools, or hospitals.
● Prevailing Wind Directions: Analyse local meteorological data. A plant should be
situated downwind of nearby communities so that if a toxic gas release occurs, the plume
is carried away from populated areas rather than toward them.
● Topography (Terrain): Heavy gases (like chlorine or propane) settle in low-lying areas.
If the plant is in a valley, a gas leak can pool and create a massive explosion or
asphyxiation hazard. Flat or slightly elevated ground is generally safer for dispersion.
3

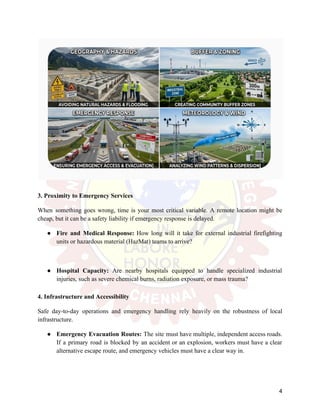

3. Proximity to Emergency Services
When something goes wrong, time is your most critical variable. A remote location might be
cheap, but it can be a safety liability if emergency response is delayed.
● Fire and Medical Response: How long will it take for external industrial firefighting
units or hazardous material (HazMat) teams to arrive?
● Hospital Capacity: Are nearby hospitals equipped to handle specialized industrial
injuries, such as severe chemical burns, radiation exposure, or mass trauma?
4. Infrastructure and Accessibility
Safe day-to-day operations and emergency handling rely heavily on the robustness of local
infrastructure.
● Emergency Evacuation Routes: The site must have multiple, independent access roads.
If a primary road is blocked by an accident or an explosion, workers must have a clear
alternative escape route, and emergency vehicles must have a clear way in.
4

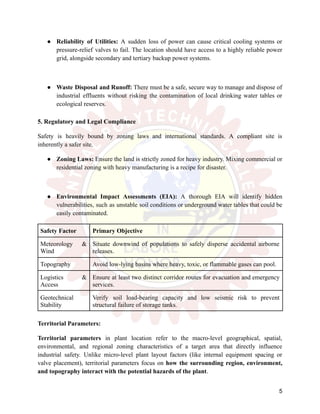

● Reliability of Utilities: A sudden loss of power can cause critical cooling systems or
pressure-relief valves to fail. The location should have access to a highly reliable power
grid, alongside secondary and tertiary backup power systems.
● Waste Disposal and Runoff: There must be a safe, secure way to manage and dispose of
industrial effluents without risking the contamination of local drinking water tables or
ecological reserves.
5. Regulatory and Legal Compliance
Safety is heavily bound by zoning laws and international standards. A compliant site is
inherently a safer site.
● Zoning Laws: Ensure the land is strictly zoned for heavy industry. Mixing commercial or
residential zoning with heavy manufacturing is a recipe for disaster.
● Environmental Impact Assessments (EIA): A thorough EIA will identify hidden
vulnerabilities, such as unstable soil conditions or underground water tables that could be
easily contaminated.
Safety Factor Primary Objective
Meteorology &
Wind
Situate downwind of populations to safely disperse accidental airborne
releases.
Topography Avoid low-lying basins where heavy, toxic, or flammable gases can pool.
Logistics &
Access
Ensure at least two distinct corridor routes for evacuation and emergency
services.
Geotechnical
Stability
Verify soil load-bearing capacity and low seismic risk to prevent
structural failure of storage tanks.
Territorial Parameters:
Territorial parameters in plant location refer to the macro-level geographical, spatial,
environmental, and regional zoning characteristics of a target area that directly influence
industrial safety. Unlike micro-level plant layout factors (like internal equipment spacing or
valve placement), territorial parameters focus on how the surrounding region, environment,
and topography interact with the potential hazards of the plant.
5

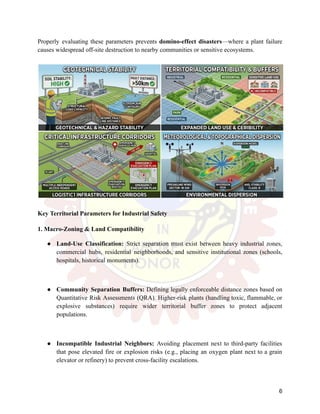

Properly evaluating these parameters prevents domino-effect disasters—where a plant failure
causes widespread off-site destruction to nearby communities or sensitive ecosystems.
Key Territorial Parameters for Industrial Safety
1. Macro-Zoning & Land Compatibility
● Land-Use Classification: Strict separation must exist between heavy industrial zones,
commercial hubs, residential neighborhoods, and sensitive institutional zones (schools,
hospitals, historical monuments).
● Community Separation Buffers: Defining legally enforceable distance zones based on
Quantitative Risk Assessments (QRA). Higher-risk plants (handling toxic, flammable, or
explosive substances) require wider territorial buffer zones to protect adjacent
populations.
● Incompatible Industrial Neighbors: Avoiding placement next to third-party facilities
that pose elevated fire or explosion risks (e.g., placing an oxygen plant next to a grain
elevator or refinery) to prevent cross-facility escalations.
6

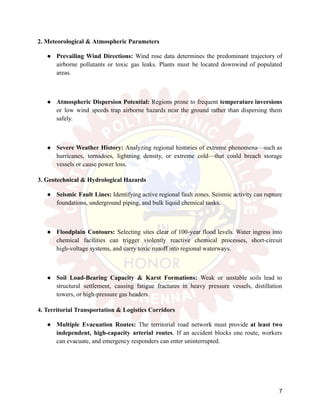

2. Meteorological & Atmospheric Parameters
● Prevailing Wind Directions: Wind rose data determines the predominant trajectory of
airborne pollutants or toxic gas leaks. Plants must be located downwind of populated
areas.
● Atmospheric Dispersion Potential: Regions prone to frequent temperature inversions
or low wind speeds trap airborne hazards near the ground rather than dispersing them
safely.
● Severe Weather History: Analyzing regional histories of extreme phenomena—such as
hurricanes, tornadoes, lightning density, or extreme cold—that could breach storage
vessels or cause power loss.
3. Geotechnical & Hydrological Hazards
● Seismic Fault Lines: Identifying active regional fault zones. Seismic activity can rupture
foundations, underground piping, and bulk liquid chemical tanks.
● Floodplain Contours: Selecting sites clear of 100-year flood levels. Water ingress into
chemical facilities can trigger violently reactive chemical processes, short-circuit
high-voltage systems, and carry toxic runoff into regional waterways.
● Soil Load-Bearing Capacity & Karst Formations: Weak or unstable soils lead to
structural settlement, causing fatigue fractures in heavy pressure vessels, distillation
towers, or high-pressure gas headers.
4. Territorial Transportation & Logistics Corridors
● Multiple Evacuation Routes: The territorial road network must provide at least two
independent, high-capacity arterial routes. If an accident blocks one route, workers
can evacuate, and emergency responders can enter uninterrupted.
7

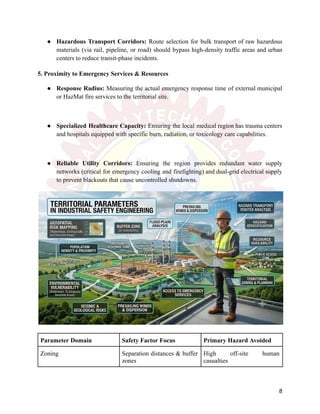

● Hazardous Transport Corridors: Route selection for bulk transport of raw hazardous
materials (via rail, pipeline, or road) should bypass high-density traffic areas and urban
centers to reduce transit-phase incidents.
5. Proximity to Emergency Services & Resources
● Response Radius: Measuring the actual emergency response time of external municipal
or HazMat fire services to the territorial site.
● Specialized Healthcare Capacity: Ensuring the local medical region has trauma centers
and hospitals equipped with specific burn, radiation, or toxicology care capabilities.
● Reliable Utility Corridors: Ensuring the region provides redundant water supply
networks (critical for emergency cooling and firefighting) and dual-grid electrical supply
to prevent blackouts that cause uncontrolled shutdowns.
Parameter Domain Safety Factor Focus Primary Hazard Avoided
Zoning Separation distances & buffer
zones
High off-site human
casualties
8

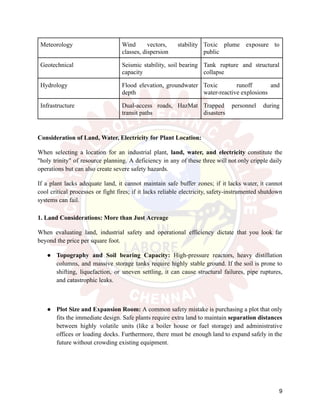

Meteorology Wind vectors, stability
classes, dispersion
Toxic plume exposure to
public
Geotechnical Seismic stability, soil bearing
capacity
Tank rupture and structural
collapse
Hydrology Flood elevation, groundwater
depth
Toxic runoff and
water-reactive explosions
Infrastructure Dual-access roads, HazMat
transit paths
Trapped personnel during
disasters
Consideration of Land, Water, Electricity for Plant Location:
When selecting a location for an industrial plant, land, water, and electricity constitute the
"holy trinity" of resource planning. A deficiency in any of these three will not only cripple daily
operations but can also create severe safety hazards.
If a plant lacks adequate land, it cannot maintain safe buffer zones; if it lacks water, it cannot
cool critical processes or fight fires; if it lacks reliable electricity, safety-instrumented shutdown
systems can fail.
1. Land Considerations: More than Just Acreage
When evaluating land, industrial safety and operational efficiency dictate that you look far
beyond the price per square foot.
● Topography and Soil bearing Capacity: High-pressure reactors, heavy distillation
columns, and massive storage tanks require highly stable ground. If the soil is prone to
shifting, liquefaction, or uneven settling, it can cause structural failures, pipe ruptures,
and catastrophic leaks.
● Plot Size and Expansion Room: A common safety mistake is purchasing a plot that only
fits the immediate design. Safe plants require extra land to maintain separation distances
between highly volatile units (like a boiler house or fuel storage) and administrative
offices or loading docks. Furthermore, there must be enough land to expand safely in the
future without crowding existing equipment.
9

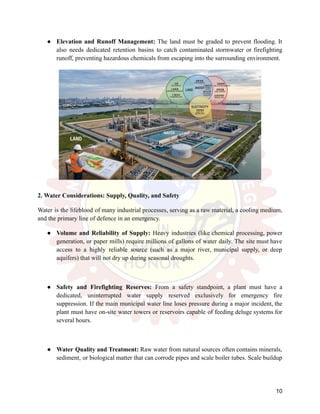

● Elevation and Runoff Management: The land must be graded to prevent flooding. It
also needs dedicated retention basins to catch contaminated stormwater or firefighting
runoff, preventing hazardous chemicals from escaping into the surrounding environment.
2. Water Considerations: Supply, Quality, and Safety
Water is the lifeblood of many industrial processes, serving as a raw material, a cooling medium,
and the primary line of defence in an emergency.
● Volume and Reliability of Supply: Heavy industries (like chemical processing, power
generation, or paper mills) require millions of gallons of water daily. The site must have
access to a highly reliable source (such as a major river, municipal supply, or deep
aquifers) that will not dry up during seasonal droughts.
● Safety and Firefighting Reserves: From a safety standpoint, a plant must have a
dedicated, uninterrupted water supply reserved exclusively for emergency fire
suppression. If the main municipal water line loses pressure during a major incident, the
plant must have on-site water towers or reservoirs capable of feeding deluge systems for
several hours.
● Water Quality and Treatment: Raw water from natural sources often contains minerals,
sediment, or biological matter that can corrode pipes and scale boiler tubes. Scale buildup
10

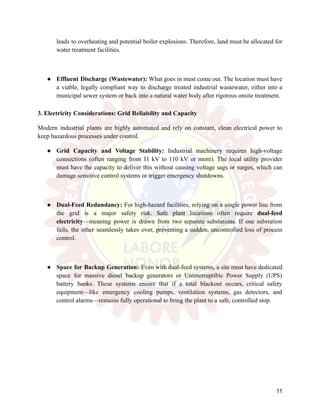

leads to overheating and potential boiler explosions. Therefore, land must be allocated for
water treatment facilities.
● Effluent Discharge (Wastewater): What goes in must come out. The location must have
a viable, legally compliant way to discharge treated industrial wastewater, either into a
municipal sewer system or back into a natural water body after rigorous onsite treatment.
3. Electricity Considerations: Grid Reliability and Capacity
Modern industrial plants are highly automated and rely on constant, clean electrical power to
keep hazardous processes under control.
● Grid Capacity and Voltage Stability: Industrial machinery requires high-voltage
connections (often ranging from 11 kV to 110 kV or more). The local utility provider
must have the capacity to deliver this without causing voltage sags or surges, which can
damage sensitive control systems or trigger emergency shutdowns.
● Dual-Feed Redundancy: For high-hazard facilities, relying on a single power line from
the grid is a major safety risk. Safe plant locations often require dual-feed
electricity—meaning power is drawn from two separate substations. If one substation
fails, the other seamlessly takes over, preventing a sudden, uncontrolled loss of process
control.
● Space for Backup Generation: Even with dual-feed systems, a site must have dedicated
space for massive diesel backup generators or Uninterruptible Power Supply (UPS)
battery banks. These systems ensure that if a total blackout occurs, critical safety
equipment—like emergency cooling pumps, ventilation systems, gas detectors, and
control alarms—remains fully operational to bring the plant to a safe, controlled stop.
11

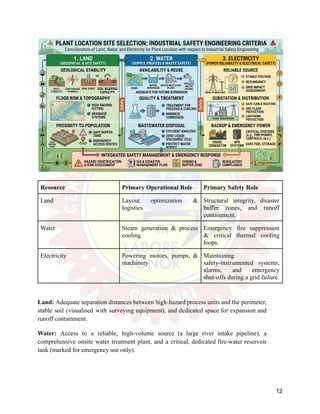

Resource Primary Operational Role Primary Safety Role
Land Layout optimization &
logistics
Structural integrity, disaster
buffer zones, and runoff
containment.
Water Steam generation & process
cooling
Emergency fire suppression
& critical thermal cooling
loops.
Electricity Powering motors, pumps, &
machinery
Maintaining
safety-instrumented systems,
alarms, and emergency
shut-offs during a grid failure.
Land: Adequate separation distances between high-hazard process units and the perimeter,
stable soil (visualised with surveying equipment), and dedicated space for expansion and
runoff containment.
Water: Access to a reliable, high-volume source (a large river intake pipeline), a
comprehensive onsite water treatment plant, and a critical, dedicated fire-water reservoir
tank (marked for emergency use only).
12

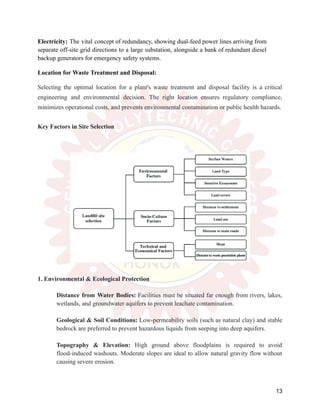

Electricity: The vital concept of redundancy, showing dual-feed power lines arriving from
separate off-site grid directions to a large substation, alongside a bank of redundant diesel
backup generators for emergency safety systems.
Location for Waste Treatment and Disposal:
Selecting the optimal location for a plant's waste treatment and disposal facility is a critical
engineering and environmental decision. The right location ensures regulatory compliance,
minimizes operational costs, and prevents environmental contamination or public health hazards.
Key Factors in Site Selection
1. Environmental & Ecological Protection

Distance from Water Bodies: Facilities must be situated far enough from rivers, lakes,
wetlands, and groundwater aquifers to prevent leachate contamination.

Geological & Soil Conditions: Low-permeability soils (such as natural clay) and stable
bedrock are preferred to prevent hazardous liquids from seeping into deep aquifers.

Topography & Elevation: High ground above floodplains is required to avoid
flood-induced washouts. Moderate slopes are ideal to allow natural gravity flow without
causing severe erosion.
13

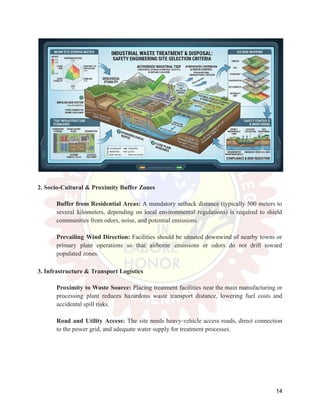

2. Socio-Cultural & Proximity Buffer Zones

Buffer from Residential Areas: A mandatory setback distance (typically 500 meters to
several kilometers, depending on local environmental regulations) is required to shield
communities from odors, noise, and potential emissions.

Prevailing Wind Direction: Facilities should be situated downwind of nearby towns or
primary plant operations so that airborne emissions or odors do not drift toward
populated zones.
3. Infrastructure & Transport Logistics

Proximity to Waste Source: Placing treatment facilities near the main manufacturing or
processing plant reduces hazardous waste transport distance, lowering fuel costs and
accidental spill risks.

Road and Utility Access: The site needs heavy-vehicle access roads, direct connection
to the power grid, and adequate water supply for treatment processes.
14

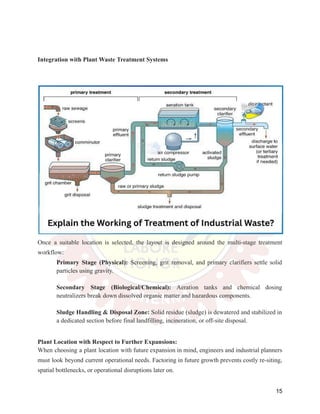

Integration with Plant Waste Treatment Systems
Once a suitable location is selected, the layout is designed around the multi-stage treatment
workflow:

Primary Stage (Physical): Screening, grit removal, and primary clarifiers settle solid
particles using gravity.

Secondary Stage (Biological/Chemical): Aeration tanks and chemical dosing
neutralizers break down dissolved organic matter and hazardous components.

Sludge Handling & Disposal Zone: Solid residue (sludge) is dewatered and stabilized in
a dedicated section before final landfilling, incineration, or off-site disposal.

Plant Location with Respect to Further Expansions:
When choosing a plant location with future expansion in mind, engineers and industrial planners
must look beyond current operational needs. Factoring in future growth prevents costly re-siting,
spatial bottlenecks, or operational disruptions later on.
15

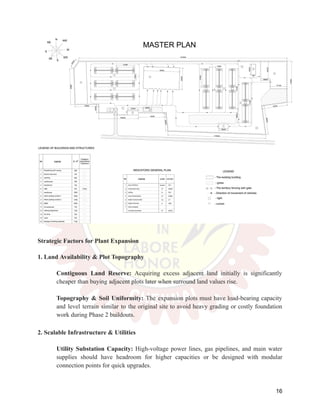

Strategic Factors for Plant Expansion
1. Land Availability & Plot Topography

Contiguous Land Reserve: Acquiring excess adjacent land initially is significantly
cheaper than buying adjacent plots later when surround land values rise.

Topography & Soil Uniformity: The expansion plots must have load-bearing capacity
and level terrain similar to the original site to avoid heavy grading or costly foundation
work during Phase 2 buildouts.
2. Scalable Infrastructure & Utilities

Utility Substation Capacity: High-voltage power lines, gas pipelines, and main water
supplies should have headroom for higher capacities or be designed with modular
connection points for quick upgrades.
16

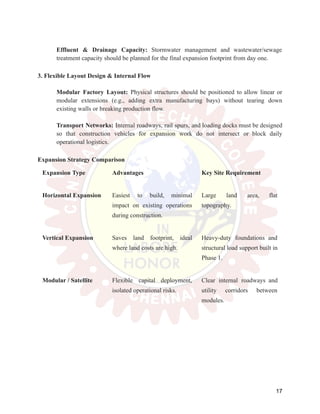

Effluent & Drainage Capacity: Stormwater management and wastewater/sewage
treatment capacity should be planned for the final expansion footprint from day one.
3. Flexible Layout Design & Internal Flow

Modular Factory Layout: Physical structures should be positioned to allow linear or
modular extensions (e.g., adding extra manufacturing bays) without tearing down
existing walls or breaking production flow.

Transport Networks: Internal roadways, rail spurs, and loading docks must be designed
so that construction vehicles for expansion work do not intersect or block daily
operational logistics.
Expansion Strategy Comparison
Expansion Type Advantages Key Site Requirement
Horizontal Expansion Easiest to build, minimal
impact on existing operations
during construction.
Large land area, flat
topography.
Vertical Expansion Saves land footprint, ideal
where land costs are high.
Heavy-duty foundations and
structural load support built in
Phase 1.
Modular / Satellite Flexible capital deployment,
isolated operational risks.
Clear internal roadways and
utility corridors between
modules.
17

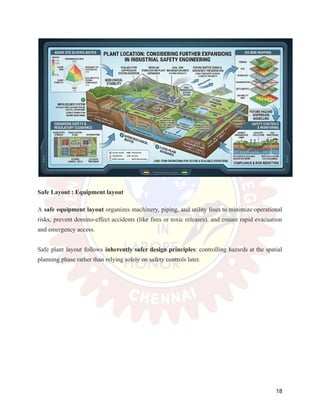

Safe Layout : Equipment layout
A safe equipment layout organizes machinery, piping, and utility lines to minimize operational
risks, prevent domino-effect accidents (like fires or toxic releases), and ensure rapid evacuation
and emergency access.
Safe plant layout follows inherently safer design principles: controlling hazards at the spatial
planning phase rather than relying solely on safety controls later.
18

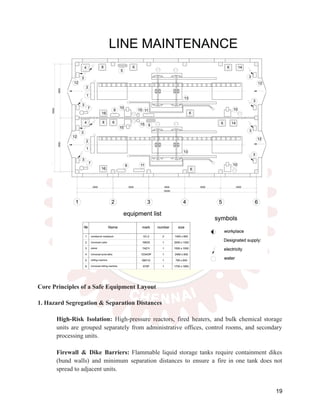

Core Principles of a Safe Equipment Layout
1. Hazard Segregation & Separation Distances

High-Risk Isolation: High-pressure reactors, fired heaters, and bulk chemical storage
units are grouped separately from administrative offices, control rooms, and secondary
processing units.

Firewall & Dike Barriers: Flammable liquid storage tanks require containment dikes
(bund walls) and minimum separation distances to ensure a fire in one tank does not
spread to adjacent units.
19

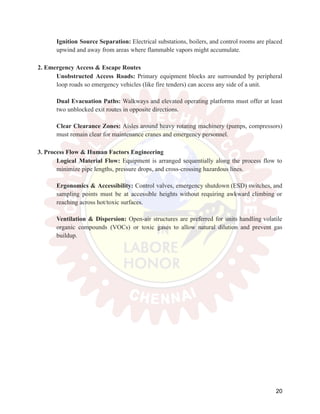

Ignition Source Separation: Electrical substations, boilers, and control rooms are placed
upwind and away from areas where flammable vapors might accumulate.
2. Emergency Access & Escape Routes

Unobstructed Access Roads: Primary equipment blocks are surrounded by peripheral
loop roads so emergency vehicles (like fire tenders) can access any side of a unit.

Dual Evacuation Paths: Walkways and elevated operating platforms must offer at least
two unblocked exit routes in opposite directions.

Clear Clearance Zones: Aisles around heavy rotating machinery (pumps, compressors)
must remain clear for maintenance cranes and emergency personnel.
3. Process Flow & Human Factors Engineering

Logical Material Flow: Equipment is arranged sequentially along the process flow to
minimize pipe lengths, pressure drops, and cross-crossing hazardous lines.

Ergonomics & Accessibility: Control valves, emergency shutdown (ESD) switches, and
sampling points must be at accessible heights without requiring awkward climbing or
reaching across hot/toxic surfaces.

Ventilation & Dispersion: Open-air structures are preferred for units handling volatile
organic compounds (VOCs) or toxic gases to allow natural dilution and prevent gas
buildup.
20

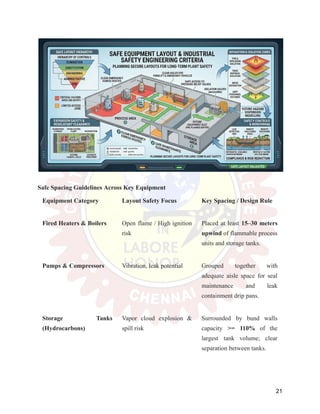

Safe Spacing Guidelines Across Key Equipment
Equipment Category Layout Safety Focus Key Spacing / Design Rule
Fired Heaters & Boilers Open flame / High ignition
risk
Placed at least 15–30 meters
upwind of flammable process
units and storage tanks.
Pumps & Compressors Vibration, leak potential Grouped together with
adequate aisle space for seal
maintenance and leak
containment drip pans.
Storage Tanks
(Hydrocarbons)
Vapor cloud explosion &
spill risk
Surrounded by bund walls
capacity >= 110% of the
largest tank volume; clear
separation between tanks.
21

Control Rooms Personnel protection Situated away from
high-hazard zones, often
blast-resistant and pressurized
to prevent toxic ingress.

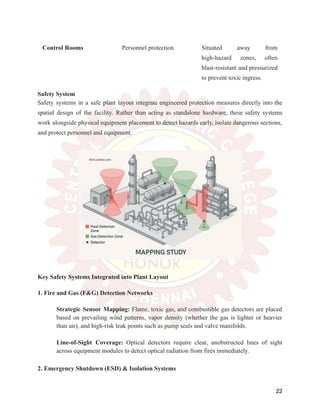

Safety System
Safety systems in a safe plant layout integrate engineered protection measures directly into the
spatial design of the facility. Rather than acting as standalone hardware, these safety systems
work alongside physical equipment placement to detect hazards early, isolate dangerous sections,
and protect personnel and equipment.
Key Safety Systems Integrated into Plant Layout
1. Fire and Gas (F&G) Detection Networks

Strategic Sensor Mapping: Flame, toxic gas, and combustible gas detectors are placed
based on prevailing wind patterns, vapor density (whether the gas is lighter or heavier
than air), and high-risk leak points such as pump seals and valve manifolds.

Line-of-Sight Coverage: Optical detectors require clear, unobstructed lines of sight
across equipment modules to detect optical radiation from fires immediately.
2. Emergency Shutdown (ESD) & Isolation Systems
22

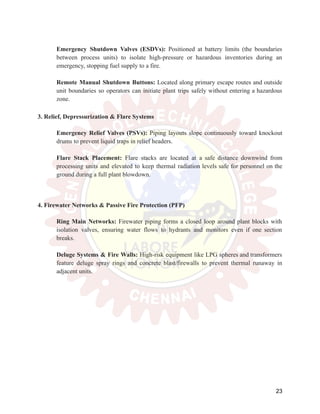

Emergency Shutdown Valves (ESDVs): Positioned at battery limits (the boundaries
between process units) to isolate high-pressure or hazardous inventories during an
emergency, stopping fuel supply to a fire.

Remote Manual Shutdown Buttons: Located along primary escape routes and outside
unit boundaries so operators can initiate plant trips safely without entering a hazardous
zone.
3. Relief, Depressurization & Flare Systems

Emergency Relief Valves (PSVs): Piping layouts slope continuously toward knockout
drums to prevent liquid traps in relief headers.

Flare Stack Placement: Flare stacks are located at a safe distance downwind from
processing units and elevated to keep thermal radiation levels safe for personnel on the
ground during a full plant blowdown.
4. Firewater Networks & Passive Fire Protection (PFP)

Ring Main Networks: Firewater piping forms a closed loop around plant blocks with
isolation valves, ensuring water flows to hydrants and monitors even if one section
breaks.

Deluge Systems & Fire Walls: High-risk equipment like LPG spheres and transformers
feature deluge spray rings and concrete blast/firewalls to prevent thermal runaway in
adjacent units.
23

Overview of Key Layout Safety Systems

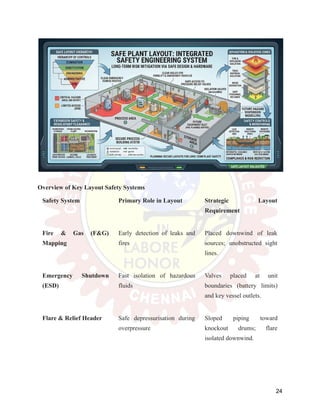

Safety System Primary Role in Layout Strategic Layout
Requirement
Fire & Gas (F&G)
Mapping
Early detection of leaks and
fires
Placed downwind of leak
sources; unobstructed sight
lines.
Emergency Shutdown
(ESD)
Fast isolation of hazardous
fluids
Valves placed at unit
boundaries (battery limits)
and key vessel outlets.
Flare & Relief Header Safe depressurisation during
overpressure
Sloped piping toward
knockout drums; flare
isolated downwind.
24

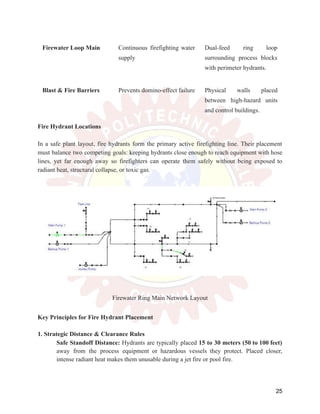

Firewater Loop Main Continuous firefighting water
supply
Dual-feed ring loop
surrounding process blocks
with perimeter hydrants.
Blast & Fire Barriers Prevents domino-effect failure Physical walls placed
between high-hazard units
and control buildings.
Fire Hydrant Locations
In a safe plant layout, fire hydrants form the primary active firefighting line. Their placement
must balance two competing goals: keeping hydrants close enough to reach equipment with hose
lines, yet far enough away so firefighters can operate them safely without being exposed to
radiant heat, structural collapse, or toxic gas.
Firewater Ring Main Network Layout
Key Principles for Fire Hydrant Placement
1. Strategic Distance & Clearance Rules

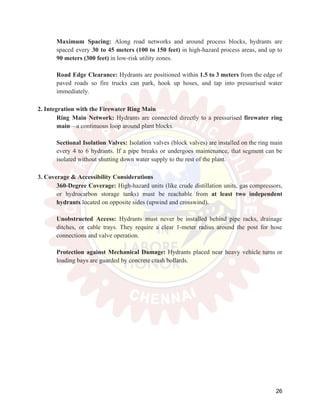

Safe Standoff Distance: Hydrants are typically placed 15 to 30 meters (50 to 100 feet)
away from the process equipment or hazardous vessels they protect. Placed closer,
intense radiant heat makes them unusable during a jet fire or pool fire.

25

Maximum Spacing: Along road networks and around process blocks, hydrants are
spaced every 30 to 45 meters (100 to 150 feet) in high-hazard process areas, and up to
90 meters (300 feet) in low-risk utility zones.

Road Edge Clearance: Hydrants are positioned within 1.5 to 3 meters from the edge of
paved roads so fire trucks can park, hook up hoses, and tap into pressurised water
immediately.
2. Integration with the Firewater Ring Main

Ring Main Network: Hydrants are connected directly to a pressurised firewater ring
main—a continuous loop around plant blocks.

Sectional Isolation Valves: Isolation valves (block valves) are installed on the ring main
every 4 to 6 hydrants. If a pipe breaks or undergoes maintenance, that segment can be
isolated without shutting down water supply to the rest of the plant.
3. Coverage & Accessibility Considerations

360-Degree Coverage: High-hazard units (like crude distillation units, gas compressors,
or hydrocarbon storage tanks) must be reachable from at least two independent
hydrants located on opposite sides (upwind and crosswind).

Unobstructed Access: Hydrants must never be installed behind pipe racks, drainage
ditches, or cable trays. They require a clear 1-meter radius around the post for hose
connections and valve operation.

Protection against Mechanical Damage: Hydrants placed near heavy vehicle turns or
loading bays are guarded by concrete crash bollards.
26

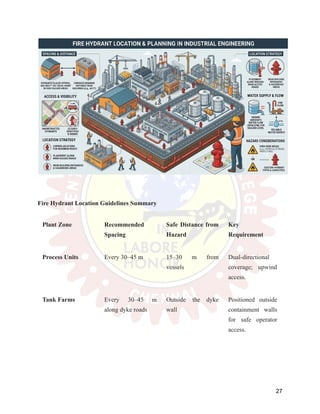

Fire Hydrant Location Guidelines Summary
Plant Zone Recommended
Spacing
Safe Distance from
Hazard
Key
Requirement
Process Units Every 30–45 m 15–30 m from
vessels
Dual-directional
coverage; upwind
access.
Tank Farms Every 30–45 m
along dyke roads
Outside the dyke
wall
Positioned outside
containment walls
for safe operator
access.
27

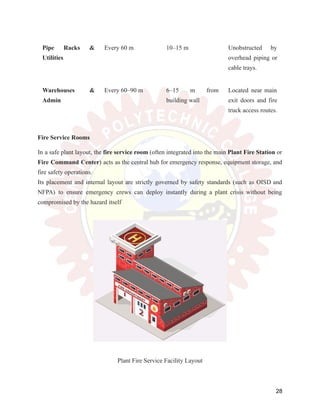

Pipe Racks &
Utilities
Every 60 m 10–15 m Unobstructed by
overhead piping or
cable trays.
Warehouses &
Admin
Every 60–90 m 6–15 m from
building wall
Located near main
exit doors and fire
truck access routes.
Fire Service Rooms
In a safe plant layout, the fire service room (often integrated into the main Plant Fire Station or
Fire Command Center) acts as the central hub for emergency response, equipment storage, and
fire safety operations.
Its placement and internal layout are strictly governed by safety standards (such as OISD and
NFPA) to ensure emergency crews can deploy instantly during a plant crisis without being
compromised by the hazard itself
Plant Fire Service Facility Layout
28

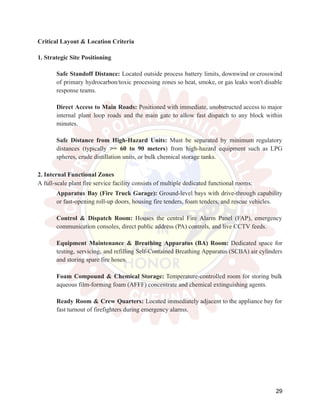

Critical Layout & Location Criteria
1. Strategic Site Positioning

Safe Standoff Distance: Located outside process battery limits, downwind or crosswind
of primary hydrocarbon/toxic processing zones so heat, smoke, or gas leaks won't disable
response teams.

Direct Access to Main Roads: Positioned with immediate, unobstructed access to major
internal plant loop roads and the main gate to allow fast dispatch to any block within
minutes.

Safe Distance from High-Hazard Units: Must be separated by minimum regulatory
distances (typically >= 60 to 90 meters) from high-hazard equipment such as LPG
spheres, crude distillation units, or bulk chemical storage tanks.
2. Internal Functional Zones
A full-scale plant fire service facility consists of multiple dedicated functional rooms:

Apparatus Bay (Fire Truck Garage): Ground-level bays with drive-through capability
or fast-opening roll-up doors, housing fire tenders, foam tenders, and rescue vehicles.

Control & Dispatch Room: Houses the central Fire Alarm Panel (FAP), emergency
communication consoles, direct public address (PA) controls, and live CCTV feeds.

Equipment Maintenance & Breathing Apparatus (BA) Room: Dedicated space for
testing, servicing, and refilling Self-Contained Breathing Apparatus (SCBA) air cylinders
and storing spare fire hoses.

Foam Compound & Chemical Storage: Temperature-controlled room for storing bulk
aqueous film-forming foam (AFFF) concentrate and chemical extinguishing agents.

Ready Room & Crew Quarters: Located immediately adjacent to the appliance bay for
fast turnout of firefighters during emergency alarms.

29

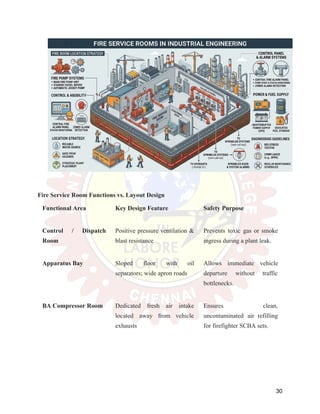

Fire Service Room Functions vs. Layout Design
Functional Area Key Design Feature Safety Purpose
Control / Dispatch
Room
Positive pressure ventilation &
blast resistance
Prevents toxic gas or smoke
ingress during a plant leak.
Apparatus Bay Sloped floor with oil
separators; wide apron roads
Allows immediate vehicle
departure without traffic
bottlenecks.
BA Compressor Room Dedicated fresh air intake
located away from vehicle
exhausts
Ensures clean,
uncontaminated air refilling
for firefighter SCBA sets.
30

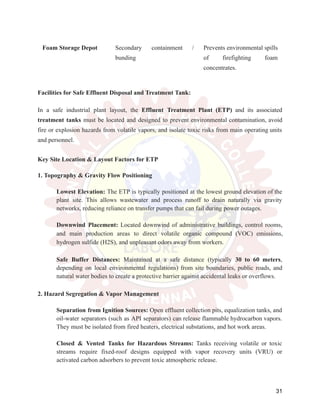

Foam Storage Depot Secondary containment /
bunding
Prevents environmental spills
of firefighting foam
concentrates.
Facilities for Safe Effluent Disposal and Treatment Tank:
In a safe industrial plant layout, the Effluent Treatment Plant (ETP) and its associated
treatment tanks must be located and designed to prevent environmental contamination, avoid
fire or explosion hazards from volatile vapors, and isolate toxic risks from main operating units
and personnel.
Key Site Location & Layout Factors for ETP
1. Topography & Gravity Flow Positioning

Lowest Elevation: The ETP is typically positioned at the lowest ground elevation of the
plant site. This allows wastewater and process runoff to drain naturally via gravity
networks, reducing reliance on transfer pumps that can fail during power outages.

Downwind Placement: Located downwind of administrative buildings, control rooms,
and main production areas to direct volatile organic compound (VOC) emissions,
hydrogen sulfide (H2S), and unpleasant odors away from workers.

Safe Buffer Distances: Maintained at a safe distance (typically 30 to 60 meters,
depending on local environmental regulations) from site boundaries, public roads, and
natural water bodies to create a protective barrier against accidental leaks or overflows.
2. Hazard Segregation & Vapor Management

Separation from Ignition Sources: Open effluent collection pits, equalization tanks, and
oil-water separators (such as API separators) can release flammable hydrocarbon vapors.
They must be isolated from fired heaters, electrical substations, and hot work areas.

Closed & Vented Tanks for Hazardous Streams: Tanks receiving volatile or toxic
streams require fixed-roof designs equipped with vapor recovery units (VRU) or
activated carbon adsorbers to prevent toxic atmospheric release.

31

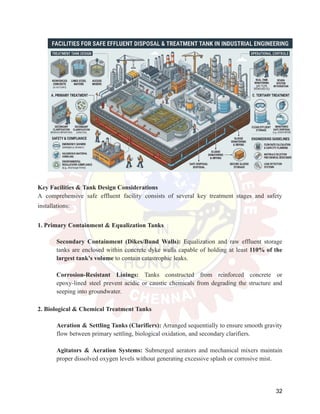

Key Facilities & Tank Design Considerations
A comprehensive safe effluent facility consists of several key treatment stages and safety
installations:
1. Primary Containment & Equalization Tanks

Secondary Containment (Dikes/Bund Walls): Equalization and raw effluent storage
tanks are enclosed within concrete dyke walls capable of holding at least 110% of the
largest tank's volume to contain catastrophic leaks.

Corrosion-Resistant Linings: Tanks constructed from reinforced concrete or
epoxy-lined steel prevent acidic or caustic chemicals from degrading the structure and
seeping into groundwater.
2. Biological & Chemical Treatment Tanks

Aeration & Settling Tanks (Clarifiers): Arranged sequentially to ensure smooth gravity
flow between primary settling, biological oxidation, and secondary clarifiers.

Agitators & Aeration Systems: Submerged aerators and mechanical mixers maintain
proper dissolved oxygen levels without generating excessive splash or corrosive mist.
32

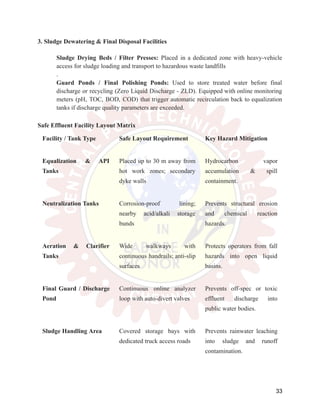

3. Sludge Dewatering & Final Disposal Facilities

Sludge Drying Beds / Filter Presses: Placed in a dedicated zone with heavy-vehicle
access for sludge loading and transport to hazardous waste landfills

.

Guard Ponds / Final Polishing Ponds: Used to store treated water before final
discharge or recycling (Zero Liquid Discharge - ZLD). Equipped with online monitoring
meters (pH, TOC, BOD, COD) that trigger automatic recirculation back to equalization
tanks if discharge quality parameters are exceeded.
Safe Effluent Facility Layout Matrix
Facility / Tank Type Safe Layout Requirement Key Hazard Mitigation
Equalization & API
Tanks
Placed up to 30 m away from
hot work zones; secondary
dyke walls
Hydrocarbon vapor
accumulation & spill
containment.
Neutralization Tanks Corrosion-proof lining;
nearby acid/alkali storage
bunds
Prevents structural erosion
and chemical reaction
hazards.
Aeration & Clarifier
Tanks
Wide walkways with
continuous handrails; anti-slip
surfaces
Protects operators from fall
hazards into open liquid
basins.
Final Guard / Discharge
Pond
Continuous online analyzer
loop with auto-divert valves
Prevents off-spec or toxic
effluent discharge into
public water bodies.
Sludge Handling Area Covered storage bays with
dedicated truck access roads
Prevents rainwater leaching
into sludge and runoff
contamination.
33

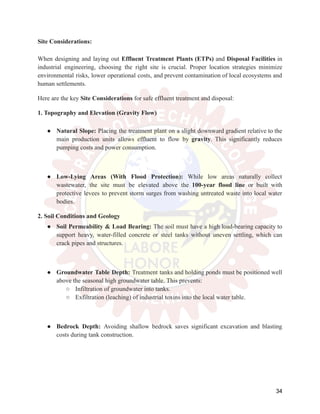

Site Considerations:
When designing and laying out Effluent Treatment Plants (ETPs) and Disposal Facilities in
industrial engineering, choosing the right site is crucial. Proper location strategies minimize
environmental risks, lower operational costs, and prevent contamination of local ecosystems and
human settlements.
Here are the key Site Considerations for safe effluent treatment and disposal:
1. Topography and Elevation (Gravity Flow)
● Natural Slope: Placing the treatment plant on a slight downward gradient relative to the
main production units allows effluent to flow by gravity. This significantly reduces
pumping costs and power consumption.
● Low-Lying Areas (With Flood Protection): While low areas naturally collect
wastewater, the site must be elevated above the 100-year flood line or built with
protective levees to prevent storm surges from washing untreated waste into local water
bodies.
2. Soil Conditions and Geology
● Soil Permeability & Load Bearing: The soil must have a high load-bearing capacity to
support heavy, water-filled concrete or steel tanks without uneven settling, which can
crack pipes and structures.
● Groundwater Table Depth: Treatment tanks and holding ponds must be positioned well
above the seasonal high groundwater table. This prevents:
○ Infiltration of groundwater into tanks.
○ Exfiltration (leaching) of industrial toxins into the local water table.
● Bedrock Depth: Avoiding shallow bedrock saves significant excavation and blasting
costs during tank construction.
34

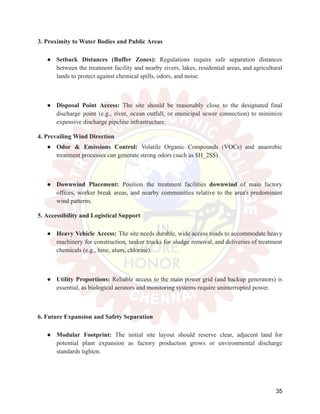

3. Proximity to Water Bodies and Public Areas
● Setback Distances (Buffer Zones): Regulations require safe separation distances
between the treatment facility and nearby rivers, lakes, residential areas, and agricultural
lands to protect against chemical spills, odors, and noise.
● Disposal Point Access: The site should be reasonably close to the designated final
discharge point (e.g., river, ocean outfall, or municipal sewer connection) to minimize
expensive discharge pipeline infrastructure.
4. Prevailing Wind Direction
● Odor & Emissions Control: Volatile Organic Compounds (VOCs) and anaerobic
treatment processes can generate strong odors (such as $H_2S$).
● Downwind Placement: Position the treatment facilities downwind of main factory
offices, worker break areas, and nearby communities relative to the area's predominant
wind patterns.
5. Accessibility and Logistical Support
● Heavy Vehicle Access: The site needs durable, wide access roads to accommodate heavy
machinery for construction, tanker trucks for sludge removal, and deliveries of treatment
chemicals (e.g., lime, alum, chlorine).
● Utility Proportions: Reliable access to the main power grid (and backup generators) is
essential, as biological aerators and monitoring systems require uninterrupted power.
6. Future Expansion and Safety Separation
● Modular Footprint: The initial site layout should reserve clear, adjacent land for
potential plant expansion as factory production grows or environmental discharge
standards tighten.
35

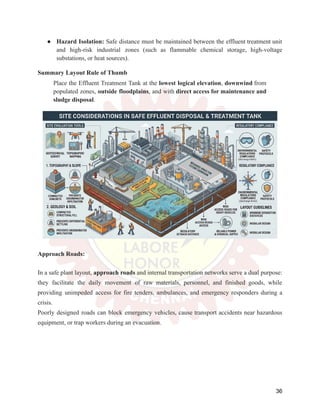

● Hazard Isolation: Safe distance must be maintained between the effluent treatment unit
and high-risk industrial zones (such as flammable chemical storage, high-voltage
substations, or heat sources).
Summary Layout Rule of Thumb
Place the Effluent Treatment Tank at the lowest logical elevation, downwind from
populated zones, outside floodplains, and with direct access for maintenance and
sludge disposal.

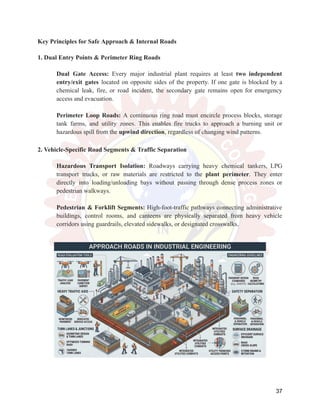

Approach Roads:
In a safe plant layout, approach roads and internal transportation networks serve a dual purpose:
they facilitate the daily movement of raw materials, personnel, and finished goods, while
providing unimpeded access for fire tenders, ambulances, and emergency responders during a
crisis.
Poorly designed roads can block emergency vehicles, cause transport accidents near hazardous
equipment, or trap workers during an evacuation.
36

Key Principles for Safe Approach & Internal Roads
1. Dual Entry Points & Perimeter Ring Roads

Dual Gate Access: Every major industrial plant requires at least two independent
entry/exit gates located on opposite sides of the property. If one gate is blocked by a
chemical leak, fire, or road incident, the secondary gate remains open for emergency
access and evacuation.

Perimeter Loop Roads: A continuous ring road must encircle process blocks, storage
tank farms, and utility zones. This enables fire trucks to approach a burning unit or
hazardous spill from the upwind direction, regardless of changing wind patterns.
2. Vehicle-Specific Road Segments & Traffic Separation

Hazardous Transport Isolation: Roadways carrying heavy chemical tankers, LPG
transport trucks, or raw materials are restricted to the plant perimeter. They enter
directly into loading/unloading bays without passing through dense process zones or
pedestrian walkways.

Pedestrian & Forklift Segments: High-foot-traffic pathways connecting administrative
buildings, control rooms, and canteens are physically separated from heavy vehicle
corridors using guardrails, elevated sidewalks, or designated crosswalks.

37

Geometric & Structural Road Requirements for Emergency Access
Road Feature Safety Standard /
Requirement
Operational Purpose
Minimum Road Width Primary roads: 8 to 10 meters
Secondary roads: 6 to 8
meters
Allows two fire tenders or
heavy transport trucks to pass
each other comfortably.
Clear Headroom Minimum 5.0 to 5.5 meters
below pipe racks / cable trays
Ensures high-reach ladder
trucks and oversized
industrial equipment can pass
under overhead structures.
Turning Radius Minimum 12 to 15 meters at
intersections and corners
Accommodates large
articulated trucks, foam
tenders, and heavy crane
vehicles.
Axle Load Bearing Engineered for heavy wheel
loads (e.g., Class AA / IRC
standards)
Prevents road collapse under
the weight of loaded fire
tenders and mobile cranes.
Physical Crash
Barriers
Heavy-duty concrete bollards
or guardrails
Installed along road edges
near exposed pipe racks, gas
manifolds, and storage
vessels.
38

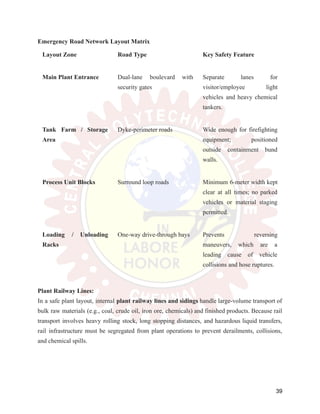

Emergency Road Network Layout Matrix
Layout Zone Road Type Key Safety Feature
Main Plant Entrance Dual-lane boulevard with
security gates
Separate lanes for
visitor/employee light
vehicles and heavy chemical
tankers.
Tank Farm / Storage
Area
Dyke-perimeter roads Wide enough for firefighting
equipment; positioned
outside containment bund
walls.
Process Unit Blocks Surround loop roads Minimum 6-meter width kept
clear at all times; no parked
vehicles or material staging
permitted.
Loading / Unloading
Racks
One-way drive-through bays Prevents reversing
maneuvers, which are a
leading cause of vehicle
collisions and hose ruptures.
Plant Railway Lines:
In a safe plant layout, internal plant railway lines and sidings handle large-volume transport of
bulk raw materials (e.g., coal, crude oil, iron ore, chemicals) and finished products. Because rail
transport involves heavy rolling stock, long stopping distances, and hazardous liquid transfers,
rail infrastructure must be segregated from plant operations to prevent derailments, collisions,
and chemical spills.
39

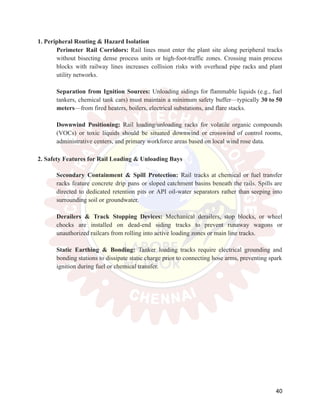

1. Peripheral Routing & Hazard Isolation

Perimeter Rail Corridors: Rail lines must enter the plant site along peripheral tracks
without bisecting dense process units or high-foot-traffic zones. Crossing main process
blocks with railway lines increases collision risks with overhead pipe racks and plant
utility networks.

Separation from Ignition Sources: Unloading sidings for flammable liquids (e.g., fuel
tankers, chemical tank cars) must maintain a minimum safety buffer—typically 30 to 50
meters—from fired heaters, boilers, electrical substations, and flare stacks.

Downwind Positioning: Rail loading/unloading racks for volatile organic compounds
(VOCs) or toxic liquids should be situated downwind or crosswind of control rooms,
administrative centers, and primary workforce areas based on local wind rose data.
2. Safety Features for Rail Loading & Unloading Bays

Secondary Containment & Spill Protection: Rail tracks at chemical or fuel transfer
racks feature concrete drip pans or sloped catchment basins beneath the rails. Spills are
directed to dedicated retention pits or API oil-water separators rather than seeping into
surrounding soil or groundwater.

Derailers & Track Stopping Devices: Mechanical derailers, stop blocks, or wheel
chocks are installed on dead-end siding tracks to prevent runaway wagons or
unauthorized railcars from rolling into active loading zones or main line tracks.

Static Earthing & Bonding: Tanker loading tracks require electrical grounding and
bonding stations to dissipate static charge prior to connecting hose arms, preventing spark
ignition during fuel or chemical transfer.
40

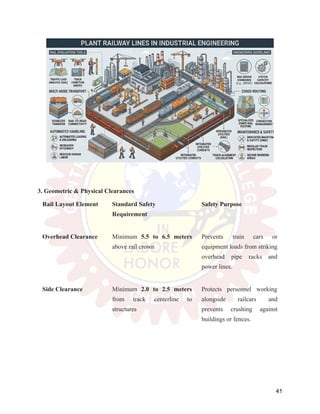

3. Geometric & Physical Clearances
Rail Layout Element Standard Safety
Requirement
Safety Purpose
Overhead Clearance Minimum 5.5 to 6.5 meters
above rail crown
Prevents train cars or
equipment loads from striking
overhead pipe racks and
power lines.
Side Clearance Minimum 2.0 to 2.5 meters
from track centerline to
structures
Protects personnel working
alongside railcars and
prevents crushing against
buildings or fences.
41

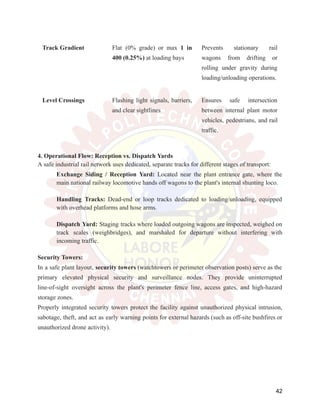

Track Gradient Flat (0% grade) or max 1 in
400 (0.25%) at loading bays
Prevents stationary rail
wagons from drifting or
rolling under gravity during
loading/unloading operations.
Level Crossings Flashing light signals, barriers,
and clear sightlines
Ensures safe intersection
between internal plant motor
vehicles, pedestrians, and rail
traffic.
4. Operational Flow: Reception vs. Dispatch Yards
A safe industrial rail network uses dedicated, separate tracks for different stages of transport:

Exchange Siding / Reception Yard: Located near the plant entrance gate, where the
main national railway locomotive hands off wagons to the plant's internal shunting loco.

Handling Tracks: Dead-end or loop tracks dedicated to loading/unloading, equipped
with overhead platforms and hose arms.

Dispatch Yard: Staging tracks where loaded outgoing wagons are inspected, weighed on
track scales (weighbridges), and marshaled for departure without interfering with
incoming traffic.

Security Towers:
In a safe plant layout, security towers (watchtowers or perimeter observation posts) serve as the
primary elevated physical security and surveillance nodes. They provide uninterrupted
line-of-sight oversight across the plant's perimeter fence line, access gates, and high-hazard
storage zones.
Properly integrated security towers protect the facility against unauthorized physical intrusion,
sabotage, theft, and act as early warning points for external hazards (such as off-site bushfires or
unauthorized drone activity).
42

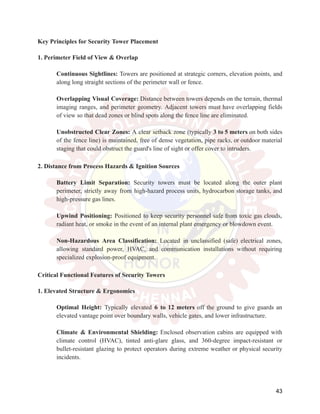

Key Principles for Security Tower Placement
1. Perimeter Field of View & Overlap

Continuous Sightlines: Towers are positioned at strategic corners, elevation points, and
along long straight sections of the perimeter wall or fence.

Overlapping Visual Coverage: Distance between towers depends on the terrain, thermal
imaging ranges, and perimeter geometry. Adjacent towers must have overlapping fields
of view so that dead zones or blind spots along the fence line are eliminated.

Unobstructed Clear Zones: A clear setback zone (typically 3 to 5 meters on both sides
of the fence line) is maintained, free of dense vegetation, pipe racks, or outdoor material
staging that could obstruct the guard's line of sight or offer cover to intruders.
2. Distance from Process Hazards & Ignition Sources

Battery Limit Separation: Security towers must be located along the outer plant
perimeter, strictly away from high-hazard process units, hydrocarbon storage tanks, and
high-pressure gas lines.

Upwind Positioning: Positioned to keep security personnel safe from toxic gas clouds,
radiant heat, or smoke in the event of an internal plant emergency or blowdown event.

Non-Hazardous Area Classification: Located in unclassified (safe) electrical zones,
allowing standard power, HVAC, and communication installations without requiring
specialized explosion-proof equipment.
Critical Functional Features of Security Towers
1. Elevated Structure & Ergonomics

Optimal Height: Typically elevated 6 to 12 meters off the ground to give guards an
elevated vantage point over boundary walls, vehicle gates, and lower infrastructure.

Climate & Environmental Shielding: Enclosed observation cabins are equipped with
climate control (HVAC), tinted anti-glare glass, and 360-degree impact-resistant or
bullet-resistant glazing to protect operators during extreme weather or physical security
incidents.
43

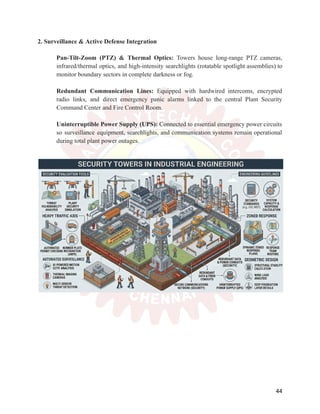

2. Surveillance & Active Defense Integration

Pan-Tilt-Zoom (PTZ) & Thermal Optics: Towers house long-range PTZ cameras,
infrared/thermal optics, and high-intensity searchlights (rotatable spotlight assemblies) to
monitor boundary sectors in complete darkness or fog.

Redundant Communication Lines: Equipped with hardwired intercoms, encrypted
radio links, and direct emergency panic alarms linked to the central Plant Security
Command Center and Fire Control Room.

Uninterruptible Power Supply (UPS): Connected to essential emergency power circuits
so surveillance equipment, searchlights, and communication systems remain operational
during total plant power outages.

44

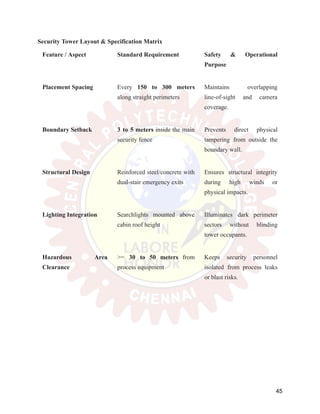

Security Tower Layout & Specification Matrix
Feature / Aspect Standard Requirement Safety & Operational
Purpose
Placement Spacing Every 150 to 300 meters
along straight perimeters
Maintains overlapping
line-of-sight and camera
coverage.
Boundary Setback 3 to 5 meters inside the main
security fence
Prevents direct physical
tampering from outside the
boundary wall.
Structural Design Reinforced steel/concrete with
dual-stair emergency exits
Ensures structural integrity
during high winds or
physical impacts.
Lighting Integration Searchlights mounted above
cabin roof height
Illuminates dark perimeter
sectors without blinding
tower occupants.
Hazardous Area
Clearance
>= 30 to 50 meters from
process equipment
Keeps security personnel
isolated from process leaks
or blast risks.
45

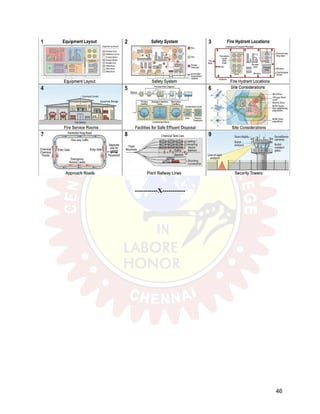

Comprehensive Guide to Industrial Plant Location and Safe Layout Planning

Comprehensive Guide to Industrial Plant Location and Safe Layout Planning

More Related Content

Similar to Comprehensive Guide to Industrial Plant Location and Safe Layout Planning

More from PM Subramanian

Recently uploaded

Comprehensive Guide to Industrial Plant Location and Safe Layout Planning
