Electrical Safety & Energy Conservation Grade 11 General Science – Utilization of Electricity
Why Electrical Safety Matters Electricity powers our daily lives, but it demands respect. Electrical accidents cause thousands of fires, injuries, and fatalities worldwide each year. In the Philippines alone, electrical fires account for a significant portion of residential fires. Safety is everyone's responsibility— at home, school, and work.

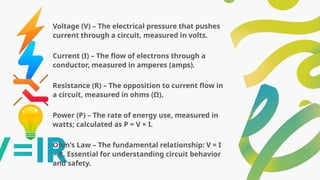

Voltage (V) – The electrical pressure that pushes current through a circuit, measured in volts. Current (I) – The flow of electrons through a conductor, measured in amperes (amps). Resistance (R) – The opposition to current flow in a circuit, measured in ohms (Ω). Power (P) – The rate of energy use, measured in watts; calculated as P = V × I. Ohm's Law – The fundamental relationship: V = I × R. Essential for understanding circuit behavior and safety.
Common Electrical Hazards Let's explore the five main electrical hazards: overloading, damaged insulation, damp conditions, faulty wiring, and electrocution.
Explain it to a Child Imagine a drinking straw. If you try to suck too much milkshake through it at once, it gets stuck! Overloading is like that—too many devices plugged in means too much electricity trying to flow through one wire, which makes it dangerously hot.

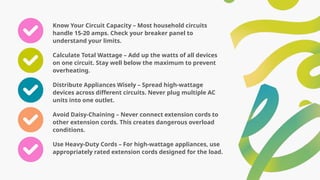

Know Your Circuit Capacity – Most household circuits handle 15-20 amps. Check your breaker panel to understand your limits. Calculate Total Wattage – Add up the watts of all devices on one circuit. Stay well below the maximum to prevent overheating. Distribute Appliances Wisely – Spread high-wattage devices across different circuits. Never plug multiple AC units into one outlet. Avoid Daisy-Chaining – Never connect extension cords to other extension cords. This creates dangerous overload conditions. Use Heavy-Duty Cords – For high-wattage appliances, use appropriately rated extension cords designed for the load.
Explain it to a Friend Imagine you're explaining damaged insulation to a classmate. How would you describe why cracked, frayed, or worn wire covering is dangerous in simple terms?

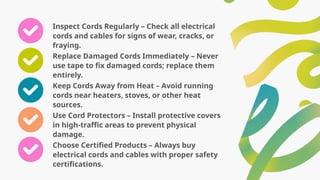

Inspect Cords Regularly – Check all electrical cords and cables for signs of wear, cracks, or fraying. Replace Damaged Cords Immediately – Never use tape to fix damaged cords; replace them entirely. Keep Cords Away from Heat – Avoid running cords near heaters, stoves, or other heat sources. Use Cord Protectors – Install protective covers in high-traffic areas to prevent physical damage. Choose Certified Products – Always buy electrical cords and cables with proper safety certifications.
Explain it to a Child Imagine explaining to a younger sibling: "Water and electricity are NOT friends! When water gets near wires or outlets, it creates a dangerous path for electricity to travel through - including through YOU!"

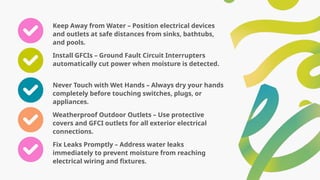

Keep Away from Water – Position electrical devices and outlets at safe distances from sinks, bathtubs, and pools. Install GFCIs – Ground Fault Circuit Interrupters automatically cut power when moisture is detected. Never Touch with Wet Hands – Always dry your hands completely before touching switches, plugs, or appliances. Weatherproof Outdoor Outlets – Use protective covers and GFCI outlets for all exterior electrical connections. Fix Leaks Promptly – Address water leaks immediately to prevent moisture from reaching electrical wiring and fixtures.
Explain it to a Child Imagine electrical wires are like water hoses. The plastic covering is like the hose wall that keeps water inside. When that covering gets old, cracked, or chewed by mice, electricity can "leak out" and cause sparks or fires - just like a broken hose sprays water everywhere!

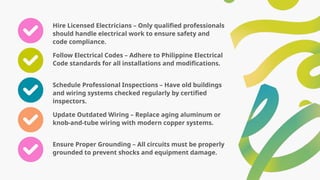

Hire Licensed Electricians – Only qualified professionals should handle electrical work to ensure safety and code compliance. Follow Electrical Codes – Adhere to Philippine Electrical Code standards for all installations and modifications. Schedule Professional Inspections – Have old buildings and wiring systems checked regularly by certified inspectors. Update Outdated Wiring – Replace aging aluminum or knob-and-tube wiring with modern copper systems. Ensure Proper Grounding – All circuits must be properly grounded to prevent shocks and equipment damage.
Explain it to a Child Imagine explaining electrocution to a 10-year- old: "Electricity wants to flow through things, and your body can conduct it like a wire. A tiny shock feels like a tingle, but too much can hurt your heart. That's why we never touch wires or outlets!"

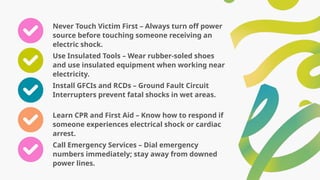

Never Touch Victim First – Always turn off power source before touching someone receiving an electric shock. Use Insulated Tools – Wear rubber-soled shoes and use insulated equipment when working near electricity. Install GFCIs and RCDs – Ground Fault Circuit Interrupters prevent fatal shocks in wet areas. Learn CPR and First Aid – Know how to respond if someone experiences electrical shock or cardiac arrest. Call Emergency Services – Dial emergency numbers immediately; stay away from downed power lines.

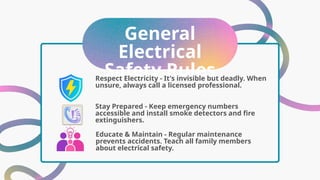

General Electrical Safety Rules Stay Prepared - Keep emergency numbers accessible and install smoke detectors and fire extinguishers. Respect Electricity - It's invisible but deadly. When unsure, always call a licensed professional. Educate & Maintain - Regular maintenance prevents accidents. Teach all family members about electrical safety.
Energy Loss & Wastage Understanding the difference between unavoidable losses and preventable waste – and why it matters for your bills, our environment, and the power grid.

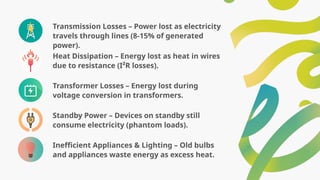

Transmission Losses – Power lost as electricity travels through lines (8-15% of generated power). Heat Dissipation – Energy lost as heat in wires due to resistance (I²R losses). Transformer Losses – Energy lost during voltage conversion in transformers. Standby Power – Devices on standby still consume electricity (phantom loads). Inefficient Appliances & Lighting – Old bulbs and appliances waste energy as excess heat.

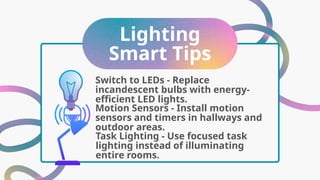

Lighting Smart Tips Motion Sensors - Install motion sensors and timers in hallways and outdoor areas. Switch to LEDs - Replace incandescent bulbs with energy- efficient LED lights. Task Lighting - Use focused task lighting instead of illuminating entire rooms.

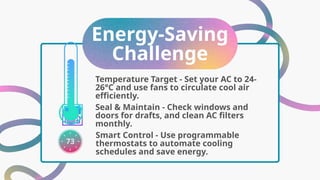

Energy-Saving Challenge Seal & Maintain - Check windows and doors for drafts, and clean AC filters monthly. Temperature Target - Set your AC to 24- 26°C and use fans to circulate cool air efficiently. Smart Control - Use programmable thermostats to automate cooling schedules and save energy.

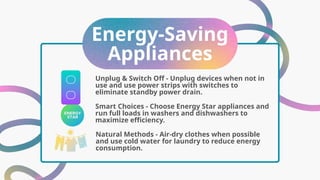

Energy-Saving Appliances Smart Choices - Choose Energy Star appliances and run full loads in washers and dishwashers to maximize efficiency. Unplug & Switch Off - Unplug devices when not in use and use power strips with switches to eliminate standby power drain. Natural Methods - Air-dry clothes when possible and use cold water for laundry to reduce energy consumption.

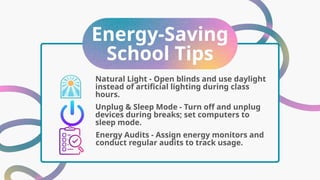

Energy-Saving School Tips Unplug & Sleep Mode - Turn off and unplug devices during breaks; set computers to sleep mode. Natural Light - Open blinds and use daylight instead of artificial lighting during class hours. Energy Audits - Assign energy monitors and conduct regular audits to track usage.

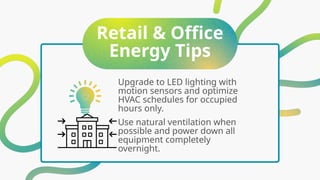

Retail & Office Energy Tips Upgrade to LED lighting with motion sensors and optimize HVAC schedules for occupied hours only. Use natural ventilation when possible and power down all equipment completely overnight.

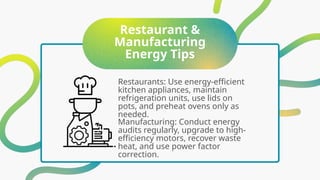

Restaurant & Manufacturing Energy Tips Restaurants: Use energy-efficient kitchen appliances, maintain refrigeration units, use lids on pots, and preheat ovens only as needed. Manufacturing: Conduct energy audits regularly, upgrade to high- efficiency motors, recover waste heat, and use power factor correction.

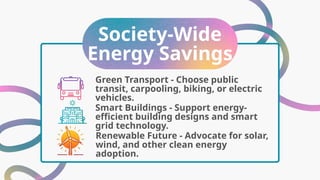

Society-Wide Energy Savings Smart Buildings - Support energy- efficient building designs and smart grid technology. Green Transport - Choose public transit, carpooling, biking, or electric vehicles. Renewable Future - Advocate for solar, wind, and other clean energy adoption.

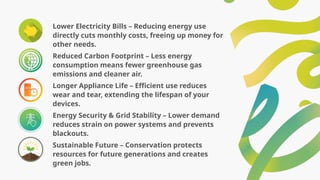

Lower Electricity Bills – Reducing energy use directly cuts monthly costs, freeing up money for other needs. Reduced Carbon Footprint – Less energy consumption means fewer greenhouse gas emissions and cleaner air. Longer Appliance Life – Efficient use reduces wear and tear, extending the lifespan of your devices. Energy Security & Grid Stability – Lower demand reduces strain on power systems and prevents blackouts. Sustainable Future – Conservation protects resources for future generations and creates green jobs.

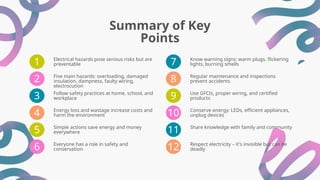

Summary of Key Points Electrical hazards pose serious risks but are preventable 1 2 Five main hazards: overloading, damaged insulation, dampness, faulty wiring, electrocution 3 Follow safety practices at home, school, and workplace 4 Energy loss and wastage increase costs and harm the environment 5 Simple actions save energy and money everywhere 6 Everyone has a role in safety and conservation Know warning signs: warm plugs, flickering lights, burning smells 7 8 Regular maintenance and inspections prevent accidents 9 Use GFCIs, proper wiring, and certified products 10 Conserve energy: LEDs, efficient appliances, unplug devices 11 Share knowledge with family and community 12 Respect electricity – it's invisible but can be deadly
Reflection Time 3 things I learned about electrical safety... 2 energy-saving tips I will apply at home... 1 way I can raise safety awareness...
Interactive Safety Quiz Test your knowledge! Identify hazards from scenarios, match safety practices to each hazard, and discuss energy-saving ideas with your group.
Thank You & Questions Thank you for your attention! Feel free to ask questions or share your experiences with electrical safety and energy conservation.
Stay Safe & Save Energy! Respect electricity, follow safety rules, and conserve energy every day!
