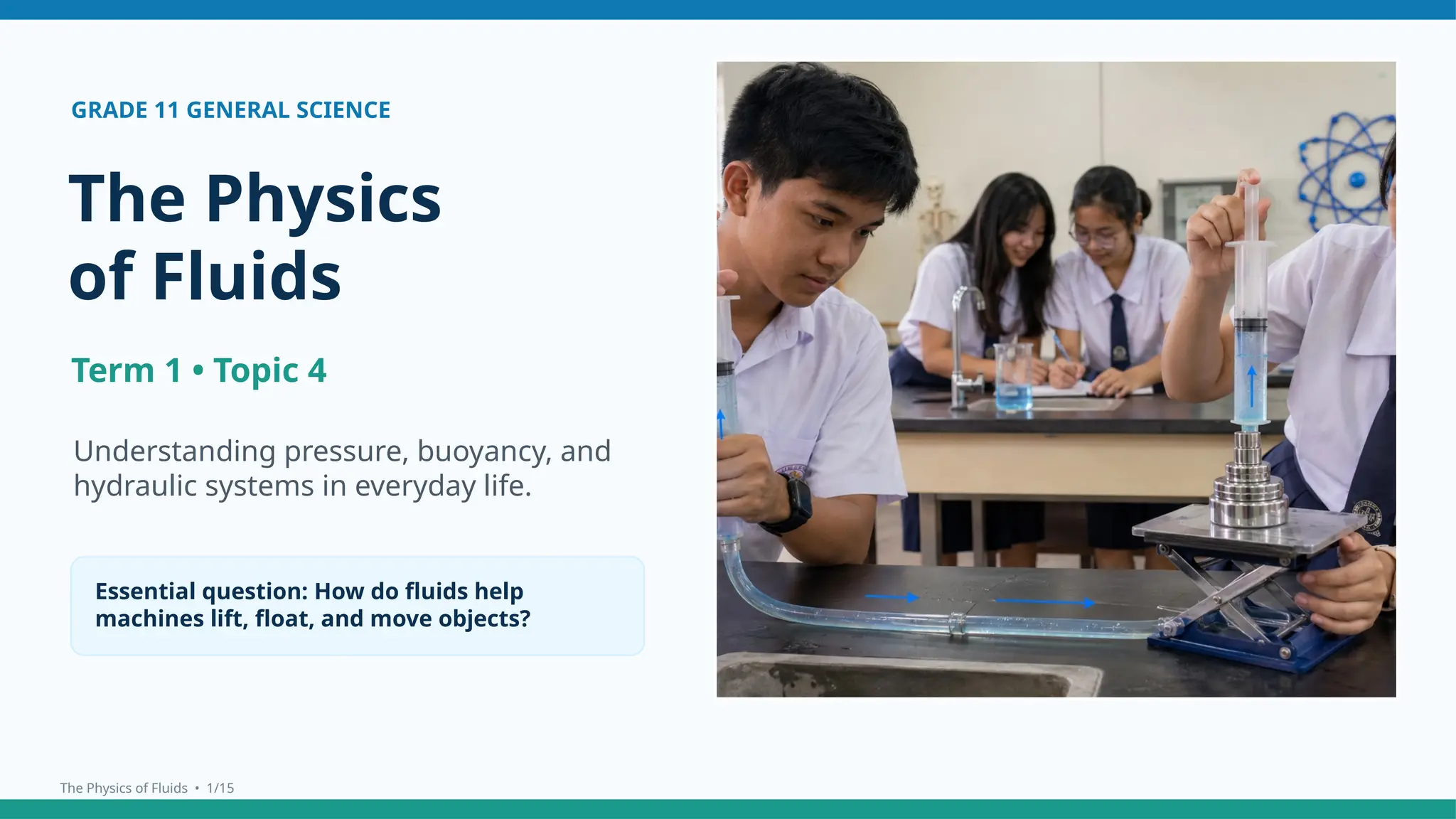

  GRADE 11 GENERALSCIENCE The Physics of Fluids Term 1 • Topic 4 Understanding pressure, buoyancy, and hydraulic systems in everyday life. Essential question: How do fluids help machines lift, float, and move objects? The Physics of Fluids • 1/15
• 2.
  Learning Goals By theend of the lesson, learners should be able to explain and apply fluid principles. G11 General Science • Term 1 • Topic 4 Explain how pressure works in liquids and gases. Describe how hydraulic systems use fluid pressure to multiply force. Identify applications of Archimedes’ principle and Pascal’s principle. Design simple practical models showing floating and sinking behavior. 1 Pressure 2 Hydraulics 3 Buoyancy 4 Design Science skill focus Observe test measure explain → → → using evidence. The Physics of Fluids • 2/15
• 3.
  What Are Fluids? Fluidsare substances that can flow and take the shape of their container. G11 General Science • Term 1 • Topic 4 Liquids Have definite volume but change shape. Gases Spread out to fill available space. Key Idea Fluid particles move and exert pressure in all directions. Examples: water, air, oil, steam, and blood. The Physics of Fluids • 3/15
• 4.
  Fluid Pressure Pressure isforce distributed over an area. G11 General Science • Term 1 • Topic 4 P = F ÷ A Pressure increases when force is larger or when the same force acts on a smaller area. low high Deeper water = greater pressure Daily example Water pushes harder at the bottom of a pool, dam, or water tank. The Physics of Fluids • 4/15
• 5.

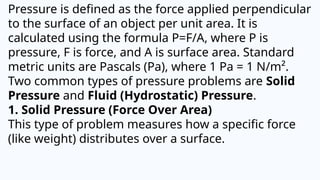

  Pressure is definedas the force applied perpendicular to the surface of an object per unit area. It is calculated using the formula P=F/A, where P is pressure, F is force, and A is surface area. Standard metric units are Pascals (Pa), where 1 Pa = 1 N/m². Two common types of pressure problems are Solid Pressure and Fluid (Hydrostatic) Pressure. 1. Solid Pressure (Force Over Area) This type of problem measures how a specific force (like weight) distributes over a surface.
• 6.

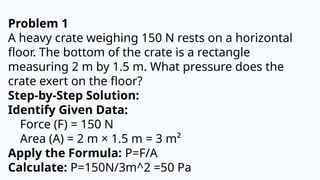

  Problem 1 A heavycrate weighing 150 N rests on a horizontal floor. The bottom of the crate is a rectangle measuring 2 m by 1.5 m. What pressure does the crate exert on the floor? Step-by-Step Solution: Identify Given Data: Force (F) = 150 N Area (A) = 2 m × 1.5 m = 3 m² Apply the Formula: P=F/A Calculate: P=150N/3m^2 =50 Pa
• 7.
  2. Fluid Pressure(Depth and Density) This type of problem determines the pressure exerted by a liquid at a specific depth. The formula is P = ρ × g × h, where ρ is the fluid density, g is gravitational acceleration ( 9.8 m/s²), and h is the depth. ≈ Problem: A swimming pool is filled with water to a depth of 3 meters. Calculate the water pressure at the bottom of the pool. (Given: Density of water ρ = 1,000 kg/m³ and g = 9.8 m/s²) •Identify Given Data: • Density (ρ) = 1,000 kg/m³ • Gravity (g) = 9.8 m/s² • Depth (h) = 3 m •Apply the Formula: P = ρ × g × h
• 8.
  Problem 1: SolidPressure with Unit Conversion A metal block exerts a force of 50 N on a flat table. The base of the block is a square with a side length of 20 cm. Calculate the pressure exerted by the block on the table in Pascals (Pa).
• 9.
  Problem 2: HydrostaticFluid Pressure A diver descends to the bottom of a freshwater lake that is 25 meters deep. Calculate the pure fluid (hydrostatic) pressure experienced by the diver at this depth. (Assume the density of water ρ = 1,000 kg/m³ and acceleration due to gravity g = 9.8 m/s²).
• 10.
  Problem 3: FindingForce from Pressure A hydraulic piston has a surface area of 0.05 m². If the fluid inside the system is pressurized to 300,000 Pa, what is the total upward force exerted by the piston?
• 11.
  Problem 1: FindingArea to Prevent Sinking (Snowshoes) A person weighing 800 N wants to walk across deep snow. To prevent sinking, the pressure exerted on the snow must not exceed 5,000 Pa. What is the minimum total surface area that their snowshoes must have?
• 12.
  Problem 2: HighHeel Contact Area (High Pressure) A woman walks across a wooden floor. When she rests her entire weight of 500N on a single sharp high heel, she exerts an intense pressure of 5,000,000 Pa on the floor. Calculate the surface area of the bottom of the heel.
• 13.

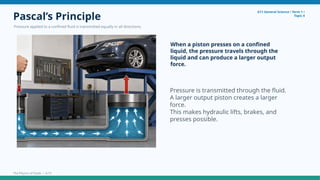

  Pascal’s Principle Pressure appliedto a confined fluid is transmitted equally in all directions. G11 General Science • Term 1 • Topic 4 When a piston presses on a confined liquid, the pressure travels through the liquid and can produce a larger output force. Pressure is transmitted through the fluid. A larger output piston creates a larger force. This makes hydraulic lifts, brakes, and presses possible. The Physics of Fluids • 5/15
• 14.

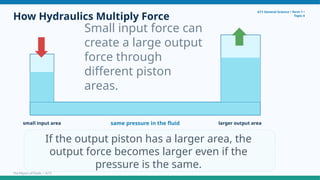

  How Hydraulics MultiplyForce Small input force can create a large output force through different piston areas. G11 General Science • Term 1 • Topic 4 small input area larger output area same pressure in the fluid If the output piston has a larger area, the output force becomes larger even if the pressure is the same. The Physics of Fluids • 6/15
• 15.

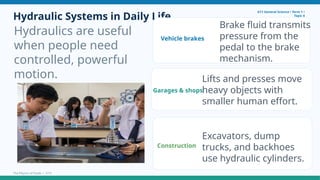

  Hydraulic Systems inDaily Life Hydraulics are useful when people need controlled, powerful motion. G11 General Science • Term 1 • Topic 4 Vehicle brakes Brake fluid transmits pressure from the pedal to the brake mechanism. Garages & shops Lifts and presses move heavy objects with smaller human effort. Construction Excavators, dump trucks, and backhoes use hydraulic cylinders. The Physics of Fluids • 7/15
• 16.
  Archimedes’ Principle An objectin a fluid experiences an upward buoyant force. G11 General Science • Term 1 • Topic 4 Buoyant force is equal to the weight of the fluid displaced by the object. If buoyant force object weight ≥ the object floats or rises. If object weight > buoyant force the object sinks. The Physics of Fluids • 8/15
• 17.
  Why Do SomeObjects Float? Floating depends on weight, buoyant force, density, and displaced fluid. G11 General Science • Term 1 • Topic 4 Buoyant force Object weight A boat floats because it pushes aside enough water to create an upward force. Shape matters: a metal block may sink, but the same metal shaped like a hollow boat may float. The Physics of Fluids • 9/15
• 18.

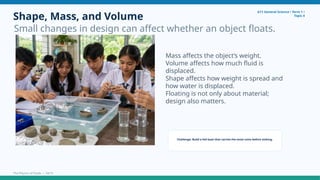

  Shape, Mass, andVolume Small changes in design can affect whether an object floats. G11 General Science • Term 1 • Topic 4 Mass affects the object’s weight. Volume affects how much fluid is displaced. Shape affects how weight is spread and how water is displaced. Floating is not only about material; design also matters. Challenge: Build a foil boat that carries the most coins before sinking. The Physics of Fluids • 10/15
• 19.
  Applications of FluidPrinciples Fluids help solve problems at home, in the community, in business, and in transportation. G11 General Science • Term 1 • Topic 4 Home Water tanks, faucets, toilets, pumps Community Flood control, drainage, water supply Business Hydraulic presses, car lifts, cleaning systems Transportation Ships, submarines, brakes, aircraft lift Common pattern: fluid pressure or buoyancy allows people to move, lift, carry, control, or protect things more efficiently. The Physics of Fluids • 11/15
• 20.
  Practical Activity 1:Float or Sink? Investigate how shape, mass, and volume affect buoyancy. G11 General Science • Term 1 • Topic 4 Materials Clay or foil Water basin Coins/weights Ruler or notes sheet Procedure Create two shapes. Predict which will float. Test each model. Record changes made. Guide Questions What changed? What stayed the same? How did shape affect floating? What evidence supports your answer? The Physics of Fluids • 12/15
• 21.
  Practical Activity 2:Syringe Hydraulics Build a simple model to show fluid pressure transmission. G11 General Science • Term 1 • Topic 4 Input syringe Output syringe Steps Connect two syringes using plastic tubing. Fill the system with water and remove air bubbles. Push the input syringe slowly. Observe how the output syringe moves. Observation focus: direction of motion, size of movement, and force needed. The Physics of Fluids • 13/15
• 22.
  Science and SafetyReminders Good experiments are careful, clean, and evidence-based. G11 General Science • Term 1 • Topic 4 1 Handle materials carefully Do not point loaded syringes at classmates. 2 Avoid spills Wipe wet surfaces immediately to prevent slipping. 3 Use evidence Record observations before making conclusions. 4 Work as a team Assign roles: builder, tester, recorder, presenter. Think like a scientist Claim Evidence Reasoning The Physics of Fluids • 14/15
• 23.
  Lesson Summary andAssessment Use these prompts to check understanding. G11 General Science • Term 1 • Topic 4 Key Takeaways Fluids flow and exert pressure. Pressure depends on force and area. Pascal’s principle explains hydraulic systems. Archimedes’ principle explains buoyancy and floating. Exit Questions How does a hydraulic lift raise a heavy object? Why can a wide boat float even if it is heavy? What variable would you change to improve your model? Give one local example of a fluid principle in action. Next topic: Utilization of Electricity The Physics of Fluids • 15/15
