Comprehensive Exploration of Fluid Physics and Hydraulic Systems in Engineering

An in-depth overview of fluid properties, pressure principles, Pascal's law, and hydraulic applications in machinery, safety, and industry.

Engineering◦

The Physics
of Fluids and
Hydraulic
Systems
UNDERSTANDING FLUID BEHAVIOR
AND HYDRAULIC APPLICATIONS

Understanding Fluids and Their Basic
Properties
Fluid Definition and Types
Fluids include liquids and gases that flow and deform under force; liquids are
key in hydraulic systems due to incompressibility.
Density and Pressure
Density describes mass per volume; denser fluids exert greater pressure which
increases with depth in fluids at rest.
Viscosity and Flow Resistance
Viscosity measures fluid resistance to flow; higher viscosity means slower
movement, like honey compared to water.
Pressure Transmission in Fluids
Pressure applied in an enclosed fluid transmits uniformly, enabling hydraulic
systems to lift and control heavy loads.

Defining Pressure and How It Acts in
Liquids
Fluid Pressure Definition
Pressure in fluids is force per unit area acting equally in all directions within a
liquid.
Pressure and Depth Relationship
Pressure increases with depth due to the weight of the fluid above exerting
force on a point.
Pressure Transmission in Liquids
Pressure changes in enclosed liquids transmit equally throughout, enabling
hydraulic system functionality.
Everyday Fluid Pressure Examples
Examples include blood pressure, water pressure in pipes, and oil pressure in
engines demonstrating fluid pressure's impact.

Exploring the Equation P = F / A
Pressure, Force, and Area Relation
Pressure equals force divided by area; smaller area means higher pressure for
the same force.
Everyday Examples
High heels increase pressure causing sinking; snowshoes reduce pressure
allowing walking on snow.
Sharp Objects and Cutting
Knives concentrate force on a small edge area, producing high pressure for
easier cutting.
Hydraulic Systems Application
Small piston force creates pressure transmitted to larger piston, amplifying
force output.

Transmission of Pressure in Enclosed
Fluids
Pascal’s Principle Explained
Pressure applied to an enclosed incompressible fluid is transmitted equally
throughout the fluid and container walls.
Hydraulic System Functionality
Hydraulic systems use incompressible fluids to amplify force based on pressure
transmission principles.
Pressure vs Force
Pressure remains constant across the fluid; force varies depending on the area
over which pressure acts.
Practical Demonstration
Connected syringes filled with water show pressure transmission by moving
plungers of different sizes.

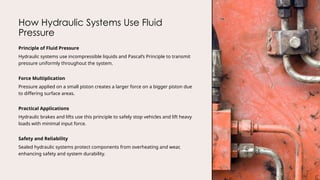

How Hydraulic Systems Use Fluid
Pressure
Principle of Fluid Pressure
Hydraulic systems use incompressible liquids and Pascal’s Principle to transmit
pressure uniformly throughout the system.
Force Multiplication
Pressure applied on a small piston creates a larger force on a bigger piston due
to differing surface areas.
Practical Applications
Hydraulic brakes and lifts use this principle to safely stop vehicles and lift heavy
loads with minimal input force.
Safety and Reliability
Sealed hydraulic systems protect components from overheating and wear,
enhancing safety and system durability.

Using Different Piston Areas to Increase
Force
Pascal's Principle in Hydraulics
Pressure transmits equally in enclosed fluid, enabling force multiplication using
different piston areas.
Force Multiplication Formula
Force relates to piston area by formula F₁/A₁ = F₂/A₂, explaining the increase in
output force.
Practical Applications
Hydraulic jacks and industrial presses use this principle to lift heavy loads and
shape metal precisely.
Force-Distance Trade-off
Larger output force moves shorter distance, conserving energy and
maintaining physics laws.

Enhancing Machines with Hydraulic
Systems
Simple and Compound Machines
Simple machines reduce effort by changing force direction or magnitude.
Compound machines combine multiple simple machines for complex tasks.
Hydraulic Force Amplification
Hydraulic systems amplify force smoothly and controllably, enhancing
machines like hydraulic jacks and presses.
Precision and Control
Hydraulics enable fine control of pressure and flow for precise motion, essential
in applications like airplane controls.
Durability and Efficiency
Hydraulic systems distribute forces evenly via fluid, reducing wear and creating
stronger, safer, and efficient machines.

Everyday and Industrial Uses of Fluid Pressure
Vehicle Hydraulic Systems
Hydraulic braking and power steering systems use fluid pressure to improve vehicle safety and control.
Industrial Hydraulic Machines
Hydraulic presses and construction equipment use fluid pressure to lift, mold, and compress heavy materials
efficiently.
Medical and Emergency Tools
Hydraulics power adjustable hospital beds and rescue cutters, enhancing medical care and emergency
response.

Connecting Pressure, Pascal’s
Principle, and Hydraulics
Understanding Pressure in Fluids
Pressure is force distributed over an area and acts equally in all directions
inside a fluid, described by P = F / A.
Pascal’s Principle
Pressure applied to an enclosed fluid is transmitted undiminished throughout
the fluid system.
Hydraulic Systems and Force Multiplication
Hydraulic devices use pressure transmission and piston area differences to
multiply small input forces into large output forces.
Real-World Applications
Hydraulics enable machines to lift heavy loads, stop vehicles, and perform
precise tasks efficiently in engineering.

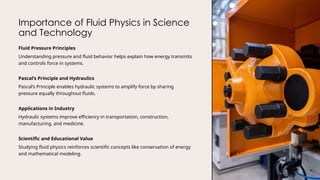

Importance of Fluid Physics in Science
and Technology
Fluid Pressure Principles
Understanding pressure and fluid behavior helps explain how energy transmits
and controls force in systems.
Pascal’s Principle and Hydraulics
Pascal’s Principle enables hydraulic systems to amplify force by sharing
pressure equally throughout fluids.
Applications in Industry
Hydraulic systems improve efficiency in transportation, construction,
manufacturing, and medicine.
Scientific and Educational Value
Studying fluid physics reinforces scientific concepts like conservation of energy
and mathematical modeling.
