Comprehensive Developer Design Spec for Web Install API Enhancements

Comprehensive Developer Design Spec for Web Install API Enhancements

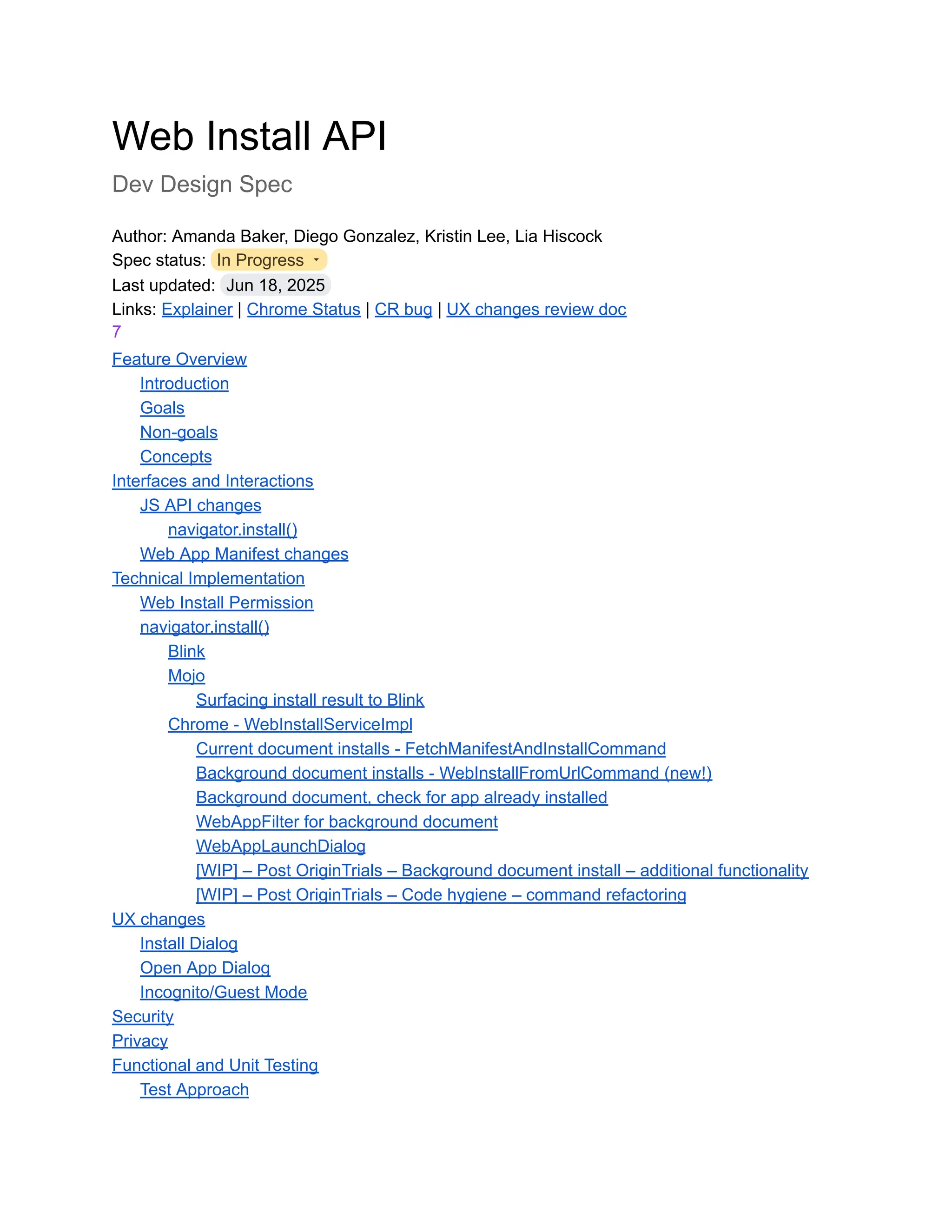

• 1.
  Web Install API DevDesign Spec Author: Amanda Baker, Diego Gonzalez, Kristin Lee, Lia Hiscock Spec status: In Progress Last updated: Jun 18, 2025 Links: Explainer | Chrome Status | CR bug | UX changes review doc 7 Feature Overview Introduction Goals Non-goals Concepts Interfaces and Interactions JS API changes navigator.install() Web App Manifest changes Technical Implementation Web Install Permission navigator.install() Blink Mojo Surfacing install result to Blink Chrome - WebInstallServiceImpl Current document installs - FetchManifestAndInstallCommand Background document installs - WebInstallFromUrlCommand (new!) Background document, check for app already installed WebAppFilter for background document WebAppLaunchDialog [WIP] – Post OriginTrials – Background document install – additional functionality [WIP] – Post OriginTrials – Code hygiene – command refactoring UX changes Install Dialog Open App Dialog Incognito/Guest Mode Security Privacy Functional and Unit Testing Test Approach
• 2.

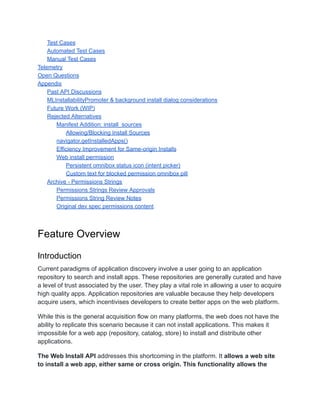

  Test Cases Automated TestCases Manual Test Cases Telemetry Open Questions Appendix Past API Discussions MLInstallabilityPromoter & background install dialog considerations Future Work (WIP) Rejected Alternatives Manifest Addition: install_sources Allowing/Blocking Install Sources navigator.getInstalledApps() Efficiency Improvement for Same-origin Installs Web install permission Persistent omnibox status icon (intent picker) Custom text for blocked permission omnibox pill Archive - Permissions Strings Permissions Strings Review Approvals Permissions String Review Notes Original dev spec permissions content Feature Overview Introduction Current paradigms of application discovery involve a user going to an application repository to search and install apps. These repositories are generally curated and have a level of trust associated by the user. They play a vital role in allowing a user to acquire high quality apps. Application repositories are valuable because they help developers acquire users, which incentivises developers to create better apps on the web platform. While this is the general acquisition flow on many platforms, the web does not have the ability to replicate this scenario because it can not install applications. This makes it impossible for a web app (repository, catalog, store) to install and distribute other applications. The Web Install API addresses this shortcoming in the platform. It allows a web site to install a web app, either same or cross origin. This functionality allows the
• 3.

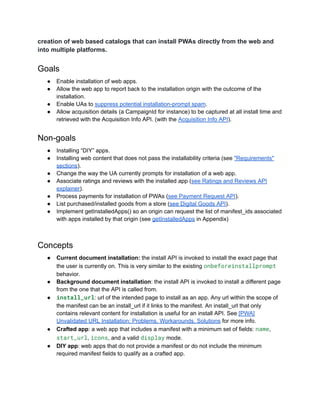

  creation of webbased catalogs that can install PWAs directly from the web and into multiple platforms. Goals ●​ Enable installation of web apps. ●​ Allow the web app to report back to the installation origin with the outcome of the installation. ●​ Enable UAs to suppress potential installation-prompt spam. ●​ Allow acquisition details (a CampaignId for instance) to be captured at all install time and retrieved with the Acquisition Info API. (with the Acquisition Info API). Non-goals ●​ Installing “DIY” apps. ●​ Installing web content that does not pass the installability criteria (see "Requirements" sections). ●​ Change the way the UA currently prompts for installation of a web app. ●​ Associate ratings and reviews with the installed app (see Ratings and Reviews API explainer). ●​ Process payments for installation of PWAs (see Payment Request API). ●​ List purchased/installed goods from a store (see Digital Goods API). ●​ Implement getInstalledApps() so an origin can request the list of manifest_ids associated with apps installed by that origin (see getInstalledApps in Appendix) Concepts ●​ Current document installation: the install API is invoked to install the exact page that the user is currently on. This is very similar to the existing onbeforeinstallprompt behavior. ●​ Background document installation: the install API is invoked to install a different page from the one that the API is called from. ●​ install_url: url of the intended page to install as an app. Any url within the scope of the manifest can be an install_url if it links to the manifest. An install_url that only contains relevant content for installation is useful for an install API. See [PWA] Unvalidated URL Installation: Problems, Workarounds, Solutions for more info. ●​ Crafted app: a web app that includes a manifest with a minimum set of fields: name, start_url, icons, and a valid display mode. ●​ DIY app: web apps that do not provide a manifest or do not include the minimum required manifest fields to qualify as a crafted app.

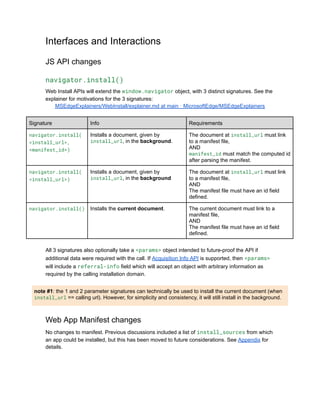

• 4.
  Interfaces and Interactions JSAPI changes navigator.install() Web Install APIs will extend the window.navigator object, with 3 distinct signatures. See the explainer for motivations for the 3 signatures: MSEdgeExplainers/WebInstall/explainer.md at main · MicrosoftEdge/MSEdgeExplainers Signature Info Requirements navigator.install( <install_url>, <manifest_id>) Installs a document, given by install_url, in the background. The document at install_url must link to a manifest file, AND manifest_id must match the computed id after parsing the manifest. navigator.install( <install_url>) Installs a document, given by install_url, in the background The document at install_url must link to a manifest file, AND The manifest file must have an id field defined. navigator.install() Installs the current document. The current document must link to a manifest file, AND The manifest file must have an id field defined. All 3 signatures also optionally take a <params> object intended to future-proof the API if additional data were required with the call. If Acquisition Info API is supported, then <params> will include a referral-info field which will accept an object with arbitrary information as required by the calling installation domain. note #1: the 1 and 2 parameter signatures can technically be used to install the current document (when install_url == calling url). However, for simplicity and consistency, it will still install in the background. Web App Manifest changes No changes to manifest. Previous discussions included a list of install_sources from which an app could be installed, but this has been moved to future considerations. See Appendix for details.
• 5.

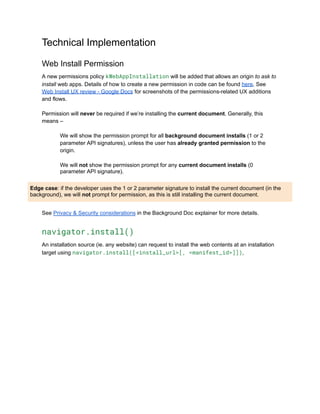

  Technical Implementation Web InstallPermission A new permissions policy kWebAppInstallation will be added that allows an origin to ask to install web apps. Details of how to create a new permission in code can be found here. See Web Install UX review - Google Docs for screenshots of the permissions-related UX additions and flows. Permission will never be required if we’re installing the current document. Generally, this means – We will show the permission prompt for all background document installs (1 or 2 parameter API signatures), unless the user has already granted permission to the origin. We will not show the permission prompt for any current document installs (0 parameter API signature). Edge case: if the developer uses the 1 or 2 parameter signature to install the current document (in the background), we will not prompt for permission, as this is still installing the current document. See Privacy & Security considerations in the Background Doc explainer for more details. navigator.install() An installation source (ie. any website) can request to install the web contents at an installation target using navigator.install([<install_url>[, <manifest_id>]]),

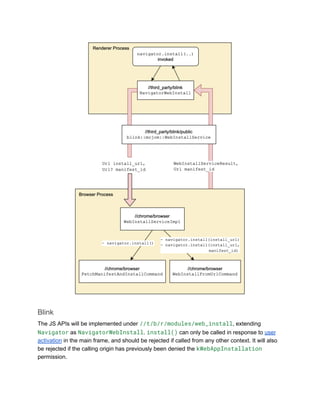

• 6.
  Blink The JS APIswill be implemented under //t/b/r/modules/web_install, extending Navigator as NavigatorWebInstall. install() can only be called in response to user activation in the main frame, and should be rejected if called from any other context. It will also be rejected if the calling origin has previously been denied the kWebAppInstallation permission.
• 7.

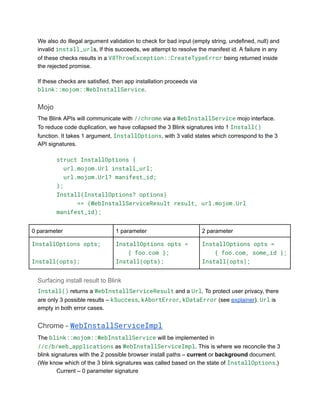

  We also doillegal argument validation to check for bad input (empty string, undefined, null) and invalid install_urls, If this succeeds, we attempt to resolve the manifest id. A failure in any of these checks results in a V8ThrowException::CreateTypeError being returned inside the rejected promise. If these checks are satisfied, then app installation proceeds via blink::mojom::WebInstallService. Mojo The Blink APIs will communicate with //chrome via a WebInstallService mojo interface. To reduce code duplication, we have collapsed the 3 Blink signatures into 1 Install() function. It takes 1 argument, InstallOptions, with 3 valid states which correspond to the 3 API signatures. struct InstallOptions { url.mojom.Url install_url; url.mojom.Url? manifest_id; }; Install(InstallOptions? options) => (WebInstallServiceResult result, url.mojom.Url manifest_id); 0 parameter 1 parameter 2 parameter InstallOptions opts; Install(opts); InstallOptions opts = { foo.com }; Install(opts); InstallOptions opts = { foo.com, some_id }; Install(opts); Surfacing install result to Blink Install() returns a WebInstallServiceResult and a Url. To protect user privacy, there are only 3 possible results – kSuccess, kAbortError, kDataError (see explainer). Url is empty in both error cases. Chrome - WebInstallServiceImpl The blink::mojom::WebInstallService will be implemented in //c/b/web_applications as WebInstallServiceImpl. This is where we reconcile the 3 blink signatures with the 2 possible browser install paths – current or background document. (We know which of the 3 blink signatures was called based on the state of InstallOptions.) ​ Current – 0 parameter signature
• 8.

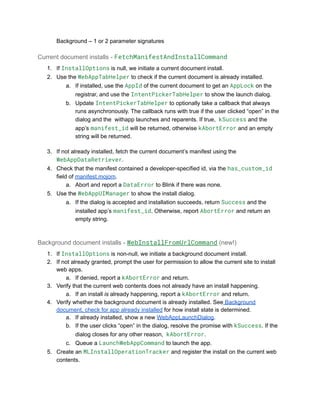

  ​ Background –1 or 2 parameter signatures Current document installs - FetchManifestAndInstallCommand 1.​ If InstallOptions is null, we initiate a current document install. 2.​ Use the WebAppTabHelper to check if the current document is already installed. a.​ If installed, use the AppId of the current document to get an AppLock on the registrar, and use the IntentPickerTabHelper to show the launch dialog. b.​ Update IntentPickerTabHelper to optionally take a callback that always runs asynchronously. The callback runs with true if the user clicked “open” in the dialog and the withapp launches and reparents. If true, kSuccess and the app’s manifest_id will be returned, otherwise kAbortError and an empty string will be returned. 3.​ If not already installed, fetch the current document’s manifest using the WebAppDataRetriever. 4.​ Check that the manifest contained a developer-specified id, via the has_custom_id field of manifest.mojom. a.​ Abort and report a DataError to Blink if there was none. 5.​ Use the WebAppUIManager to show the install dialog. a.​ If the dialog is accepted and installation succeeds, return Success and the installed app’s manifest_id. Otherwise, report AbortError and return an empty string. Background document installs - WebInstallFromUrlCommand (new!) 1.​ If InstallOptions is non-null, we initiate a background document install. 2.​ If not already granted, prompt the user for permission to allow the current site to install web apps. a.​ If denied, report a kAbortError and return. 3.​ Verify that the current web contents does not already have an install happening. a.​ If an install is already happening, report a kAbortError and return. 4.​ Verify whether the background document is already installed. See Background document, check for app already installed for how install state is determined. a.​ If already installed, show a new WebAppLaunchDialog. b.​ If the user clicks “open” in the dialog, resolve the promise with kSuccess. If the dialog closes for any other reason, kAbortError. c.​ Queue a LaunchWebAppCommand to launch the app. 5.​ Create an MLInstallOperationTracker and register the install on the current web contents.

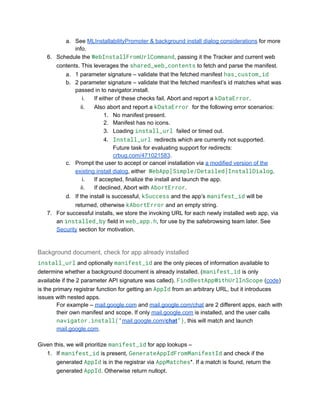

• 9.
  a.​ See MLInstallabilityPromoter& background install dialog considerations for more info. 6.​ Schedule the WebInstallFromUrlCommand, passing it the Tracker and current web contents. This leverages the shared_web_contents to fetch and parse the manifest. a.​ 1 parameter signature – validate that the fetched manifest has_custom_id b.​ 2 parameter signature – validate that the fetched manifest’s id matches what was passed in to navigator.install. i.​ If either of these checks fail, Abort and report a kDataError. ii.​ Also abort and report a kDataError for the following error scenarios: 1.​ No manifest present. 2.​ Manifest has no icons. 3.​ Loading install_url failed or timed out. 4.​ Install_url redirects which are currently not supported. Future task for evaluating support for redirects: crbug.com/471021583. c.​ Prompt the user to accept or cancel installation via a modified version of the existing install dialog, either WebApp[Simple/Detailed]InstallDialog. i.​ If accepted, finalize the install and launch the app. ii.​ If declined, Abort with AbortError. d.​ If the install is successful, kSuccess and the app’s manifest_id will be returned, otherwise kAbortError and an empty string. 7.​ For successful installs, we store the invoking URL for each newly installed web app, via an installed_by field in web_app.h, for use by the safebrowsing team later. See Security section for motivation. Background document, check for app already installed install_url and optionally manifest_id are the only pieces of information available to determine whether a background document is already installed. (manifest_id is only available if the 2 parameter API signature was called). FindBestAppWithUrlInScope (code) is the primary registrar function for getting an AppId from an arbitrary URL, but it introduces issues with nested apps. For example – mail.google.com and mail.google.com/chat are 2 different apps, each with their own manifest and scope. If only mail.google.com is installed, and the user calls navigator.install(“mail.google.com/chat”), this will match and launch mail.google.com. Given this, we will prioritize manifest_id for app lookups – 1.​ If manifest_id is present, GenerateAppIdFromManifestId and check if the generated AppId is in the registrar via AppMatches*. If a match is found, return the generated AppId. Otherwise return nullopt.

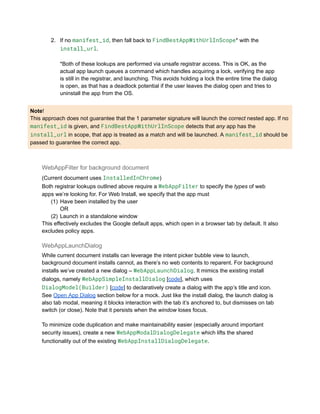

• 10.
  2.​ If nomanifest_id, then fall back to FindBestAppWithUrlInScope* with the install_url. *Both of these lookups are performed via unsafe registrar access. This is OK, as the actual app launch queues a command which handles acquiring a lock, verifying the app is still in the registrar, and launching. This avoids holding a lock the entire time the dialog is open, as that has a deadlock potential if the user leaves the dialog open and tries to uninstall the app from the OS. Note! This approach does not guarantee that the 1 parameter signature will launch the correct nested app. If no manifest_id is given, and FindBestAppWithUrlInScope detects that any app has the install_url in scope, that app is treated as a match and will be launched. A manifest_id should be passed to guarantee the correct app. WebAppFilter for background document (Current document uses InstalledInChrome) Both registrar lookups outlined above require a WebAppFilter to specify the types of web apps we’re looking for. For Web Install, we specify that the app must (1)​Have been installed by the user OR (2)​Launch in a standalone window This effectively excludes the Google default apps, which open in a browser tab by default. It also excludes policy apps. WebAppLaunchDialog While current document installs can leverage the intent picker bubble view to launch, background document installs cannot, as there’s no web contents to reparent. For background installs we’ve created a new dialog – WebAppLaunchDialog. It mimics the existing install dialogs, namely WebAppSimpleInstallDialog [code], which uses DialogModel(Builder) [code] to declaratively create a dialog with the app’s title and icon. See Open App Dialog section below for a mock. Just like the install dialog, the launch dialog is also tab modal, meaning it blocks interaction with the tab it’s anchored to, but dismisses on tab switch (or close). Note that it persists when the window loses focus. To minimize code duplication and make maintainability easier (especially around important security issues), create a new WebAppModalDialogDelegate which lifts the shared functionality out of the existing WebAppInstallDialogDelegate.
• 11.
  On acceptance ofthe dialog, we resolve the promise with kSuccess. We then queue a WebAppLaunchCommand [code] which handles safely checking that the app is still in the registrar, and launching. If the app is no longer there, or the dialog closes for any other reason, resolve with kAbort. [WIP] – Post OriginTrials – Background document install – additional functionality If no app with a matching manifest_id is initially found, we will queue a LoadUrlUntilIdleJob. This will load the spare web contents with the specified install_url and wait for a predetermined time to allow redirects, allowing up to a maximum number of redirects. Once the site stops redirecting, a WaitForManifestJob will wait for the manifest to load, up to a predetermined time. If a manifest is not found within this time, then Abort with kDataError. Once a manifest is found, WebInstallFromUrlCommand will proceed with the manifest id validation, and showing the install dialog as outlined above. FetchManifestAndInstallJob (similar to the existing FetchManifestAndInstallCommand) which will fetch the manifest, generate WebAppInstallInfo, and download icons for the app. Its manifest id will be validated against the provided manifest_id. [WIP] – Post OriginTrials – Code hygiene – command refactoring Eventually, we will also refactor FetchManifestAndInstallCommand and WebInstallFromUrlCommand by pulling out their shared functionalities into jobs. Currently, the commands are as follows – FetchManifestAndInstallCommand WebInstallFromUrlCommand
• 12.

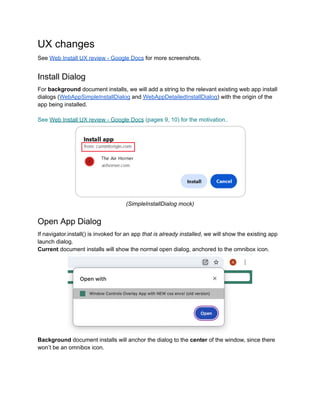

  UX changes See WebInstall UX review - Google Docs for more screenshots. Install Dialog For background document installs, we will add a string to the relevant existing web app install dialogs (WebAppSimpleInstallDialog and WebAppDetailedInstallDialog) with the origin of the app being installed. See Web Install UX review - Google Docs (pages 9, 10) for the motivation.. (SimpleInstallDialog mock) Open App Dialog If navigator.install() is invoked for an app that is already installed, we will show the existing app launch dialog. Current document installs will show the normal open dialog, anchored to the omnibox icon. Background document installs will anchor the dialog to the center of the window, since there won’t be an omnibox icon.
• 13.

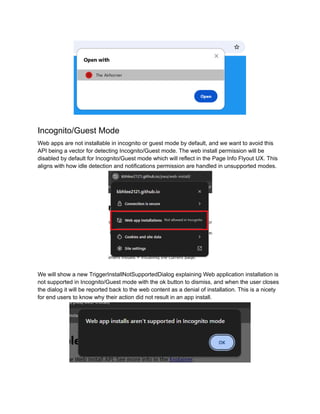

  Incognito/Guest Mode Web appsare not installable in incognito or guest mode by default, and we want to avoid this API being a vector for detecting Incognito/Guest mode. The web install permission will be disabled by default for Incognito/Guest mode which will reflect in the Page Info Flyout UX. This aligns with how idle detection and notifications permission are handled in unsupported modes. We will show a new TriggerInstallNotSupportedDialog explaining Web application installation is not supported in Incognito/Guest mode with the ok button to dismiss, and when the user closes the dialog it will be reported back to the web content as a denial of installation. This is a nicety for end users to know why their action did not result in an app install.
• 14.

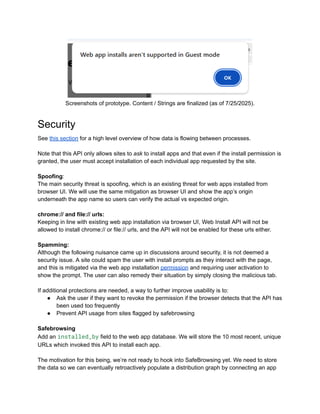

  Screenshots of prototype.Content / Strings are finalized (as of 7/25/2025). Security See this section for a high level overview of how data is flowing between processes. Note that this API only allows sites to ask to install apps and that even if the install permission is granted, the user must accept installation of each individual app requested by the site. Spoofing: The main security threat is spoofing, which is an existing threat for web apps installed from browser UI. We will use the same mitigation as browser UI and show the app’s origin underneath the app name so users can verify the actual vs expected origin. chrome:// and file:// urls: Keeping in line with existing web app installation via browser UI, Web Install API will not be allowed to install chrome:// or file:// urls, and the API will not be enabled for these urls either. Spamming: Although the following nuisance came up in discussions around security, it is not deemed a security issue. A site could spam the user with install prompts as they interact with the page, and this is mitigated via the web app installation permission and requiring user activation to show the prompt. The user can also remedy their situation by simply closing the malicious tab. If additional protections are needed, a way to further improve usability is to: ●​ Ask the user if they want to revoke the permission if the browser detects that the API has been used too frequently ●​ Prevent API usage from sites flagged by safebrowsing Safebrowsing Add an installed_by field to the web app database. We will store the 10 most recent, unique URLs which invoked this API to install each app. The motivation for this being, we’re not ready to hook into SafeBrowsing yet. We need to store the data so we can eventually retroactively populate a distribution graph by connecting an app

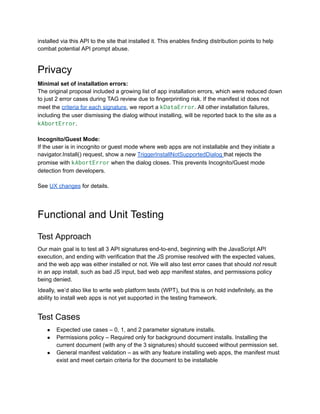

• 15.
  installed via thisAPI to the site that installed it. This enables finding distribution points to help combat potential API prompt abuse. Privacy Minimal set of installation errors: The original proposal included a growing list of app installation errors, which were reduced down to just 2 error cases during TAG review due to fingerprinting risk. If the manifest id does not meet the criteria for each signature, we report a kDataError. All other installation failures, including the user dismissing the dialog without installing, will be reported back to the site as a kAbortError. Incognito/Guest Mode: If the user is in incognito or guest mode where web apps are not installable and they initiate a navigator.Install() request, show a new TriggerInstallNotSupportedDialog that rejects the promise with kAbortError when the dialog closes. This prevents Incognito/Guest mode detection from developers. See UX changes for details. Functional and Unit Testing Test Approach Our main goal is to test all 3 API signatures end-to-end, beginning with the JavaScript API execution, and ending with verification that the JS promise resolved with the expected values, and the web app was either installed or not. We will also test error cases that should not result in an app install, such as bad JS input, bad web app manifest states, and permissions policy being denied. Ideally, we’d also like to write web platform tests (WPT), but this is on hold indefinitely, as the ability to install web apps is not yet supported in the testing framework. Test Cases ●​ Expected use cases – 0, 1, and 2 parameter signature installs. ●​ Permissions policy – Required only for background document installs. Installing the current document (with any of the 3 signatures) should succeed without permission set. ●​ General manifest validation – as with any feature installing web apps, the manifest must exist and meet certain criteria for the document to be installable
• 16.

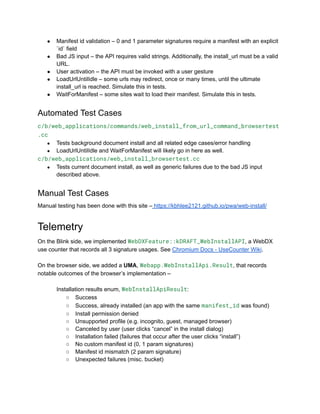

  ●​ Manifest idvalidation – 0 and 1 parameter signatures require a manifest with an explicit `id` field ●​ Bad JS input – the API requires valid strings. Additionally, the install_url must be a valid URL. ●​ User activation – the API must be invoked with a user gesture ●​ LoadUrlUntilIdle – some urls may redirect, once or many times, until the ultimate install_url is reached. Simulate this in tests. ●​ WaitForManifest – some sites wait to load their manifest. Simulate this in tests. Automated Test Cases c/b/web_applications/commands/web_install_from_url_command_browsertest .cc ●​ Tests background document install and all related edge cases/error handling ●​ LoadUrlUntilIdle and WaitForManifest will likely go in here as well. c/b/web_applications/web_install_browsertest.cc ●​ Tests current document install, as well as generic failures due to the bad JS input described above. Manual Test Cases Manual testing has been done with this site – https://kbhlee2121.github.io/pwa/web-install/ Telemetry On the Blink side, we implemented WebDXFeature::kDRAFT_WebInstallAPI, a WebDX use counter that records all 3 signature usages. See Chromium Docs - UseCounter Wiki. On the browser side, we added a UMA, Webapp.WebInstallApi.Result, that records notable outcomes of the browser’s implementation – Installation results enum, WebInstallApiResult: ○​ Success ○​ Success, already installed (an app with the same manifest_id was found) ○​ Install permission denied ○​ Unsupported profile (e.g. incognito, guest, managed browser) ○​ Canceled by user (user clicks “cancel” in the install dialog) ○​ Installation failed (failures that occur after the user clicks “install”) ○​ No custom manifest id (0, 1 param signatures) ○​ Manifest id mismatch (2 param signature) ○​ Unexpected failures (misc. bucket)
• 17.

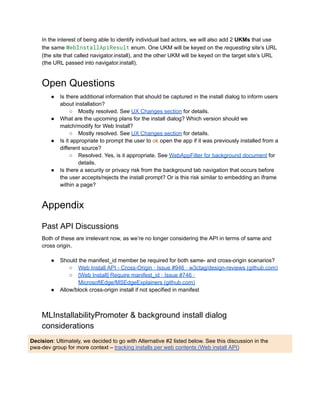

  In the interestof being able to identify individual bad actors, we will also add 2 UKMs that use the same WebInstallApiResult enum. One UKM will be keyed on the requesting site’s URL (the site that called navigator.install), and the other UKM will be keyed on the target site’s URL (the URL passed into navigator.install). Open Questions ●​ Is there additional information that should be captured in the install dialog to inform users about installation? ○​ Mostly resolved. See UX Changes section for details. ●​ What are the upcoming plans for the install dialog? Which version should we match/modify for Web Install? ○​ Mostly resolved. See UX Changes section for details. ●​ Is it appropriate to prompt the user to ok open the app if it was previously installed from a different source? ○​ Resolved. Yes, is it appropriate. See WebAppFilter for background document for details. ●​ Is there a security or privacy risk from the background tab navigation that occurs before the user accepts/rejects the install prompt? Or is this risk similar to embedding an iframe within a page? Appendix Past API Discussions Both of these are irrelevant now, as we’re no longer considering the API in terms of same and cross origin. ●​ Should the manifest_id member be required for both same- and cross-origin scenarios? ○​ Web Install API - Cross-Origin · Issue #946 · w3ctag/design-reviews (github.com) ○​ [Web Install] Require manifest_id · Issue #746 · MicrosoftEdge/MSEdgeExplainers (github.com) ●​ Allow/block cross-origin install if not specified in manifest MLInstallabilityPromoter & background install dialog considerations Decision: Ultimately, we decided to go with Alternative #2 listed below. See this discussion in the pwa-dev group for more context – tracking installs per web contents (Web install API)
• 18.

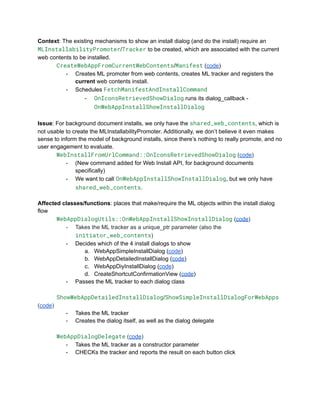

  Context: The existingmechanisms to show an install dialog (and do the install) require an MLInstallabilityPromoter/Tracker to be created, which are associated with the current web contents to be installed. ​ CreateWebAppFromCurrentWebContents/Manifest (code) -​ Creates ML promoter from web contents, creates ML tracker and registers the current web contents install. -​ Schedules FetchManifestAndInstallCommand -​ OnIconsRetrievedShowDialog runs its dialog_callback - OnWebAppInstallShowInstallDialog Issue: For background document installs, we only have the shared_web_contents, which is not usable to create the MLInstallabilityPromoter. Additionally, we don’t believe it even makes sense to inform the model of background installs, since there’s nothing to really promote, and no user engagement to evaluate. ​ WebInstallFromUrlCommand::OnIconsRetrievedShowDialog (code) -​ (New command added for Web Install API, for background documents specifically) -​ We want to call OnWebAppInstallShowInstallDialog, but we only have shared_web_contents. Affected classes/functions: places that make/require the ML objects within the install dialog flow WebAppDialogUtils::OnWebAppInstallShowInstallDialog (code) -​ Takes the ML tracker as a unique_ptr parameter (also the initiator_web_contents) -​ Decides which of the 4 install dialogs to show a.​ WebAppSimpleInstallDialog (code) b.​ WebAppDetailedInstallDialog (code) c.​ WebAppDiyInstallDialog (code) d.​ CreateShortcutConfirmationView (code) -​ Passes the ML tracker to each dialog class ​ ShowWebAppDetailedInstallDialog/ShowSimpleInstallDialogForWebApps (code) -​ Takes the ML tracker -​ Creates the dialog itself, as well as the dialog delegate WebAppDialogDelegate (code) -​ Takes the ML tracker as a constructor parameter -​ CHECKs the tracker and reports the result on each button click
• 19.

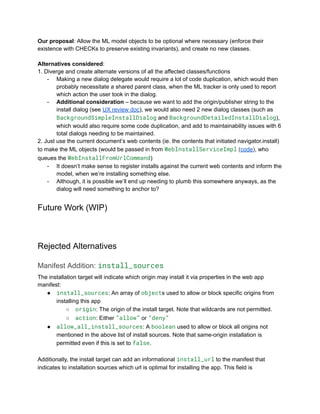

  Our proposal: Allowthe ML model objects to be optional where necessary (enforce their existence with CHECKs to preserve existing invariants), and create no new classes. ​ Alternatives considered: 1. Diverge and create alternate versions of all the affected classes/functions -​ Making a new dialog delegate would require a lot of code duplication, which would then probably necessitate a shared parent class, when the ML tracker is only used to report which action the user took in the dialog. -​ Additional consideration – because we want to add the origin/publisher string to the install dialog (see UX review doc), we would also need 2 new dialog classes (such as BackgroundSimpleInstallDialog and BackgroundDetailedInstallDialog), which would also require some code duplication, and add to maintainability issues with 6 total dialogs needing to be maintained. 2. Just use the current document’s web contents (ie. the contents that initiated navigator.install) to make the ML objects (would be passed in from WebInstallServiceImpl (code), who queues the WebInstallFromUrlCommand) -​ It doesn’t make sense to register installs against the current web contents and inform the model, when we’re installing something else. -​ Although, it is possible we’ll end up needing to plumb this somewhere anyways, as the dialog will need something to anchor to? Future Work (WIP) Rejected Alternatives Manifest Addition: install_sources The installation target will indicate which origin may install it via properties in the web app manifest: ●​ install_sources: An array of objects used to allow or block specific origins from installing this app ○​ origin: The origin of the install target. Note that wildcards are not permitted. ○​ action: Either ”allow” or ”deny” ●​ allow_all_install_sources: A boolean used to allow or block all origins not mentioned in the above list of install sources. Note that same-origin installation is permitted even if this is set to false. Additionally, the install target can add an informational install_url to the manifest that indicates to installation sources which url is optimal for installing the app. This field is
• 20.

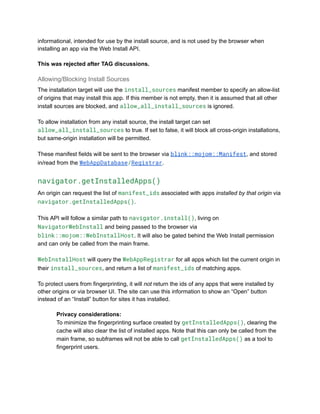

  informational, intended foruse by the install source, and is not used by the browser when installing an app via the Web Install API. This was rejected after TAG discussions. Allowing/Blocking Install Sources The installation target will use the install_sources manifest member to specify an allow-list of origins that may install this app. If this member is not empty, then it is assumed that all other install sources are blocked, and allow_all_install_sources is ignored. To allow installation from any install source, the install target can set allow_all_install_sources to true. If set to false, it will block all cross-origin installations, but same-origin installation will be permitted. These manifest fields will be sent to the browser via blink::mojom::Manifest, and stored in/read from the WebAppDatabase/Registrar. navigator.getInstalledApps() An origin can request the list of manifest_ids associated with apps installed by that origin via navigator.getInstalledApps(). This API will follow a similar path to navigator.install(), living on NavigatorWebInstall and being passed to the browser via blink::mojom::WebInstallHost. It will also be gated behind the Web Install permission and can only be called from the main frame. WebInstallHost will query the WebAppRegistrar for all apps which list the current origin in their install_sources, and return a list of manifest_ids of matching apps. To protect users from fingerprinting, it will not return the ids of any apps that were installed by other origins or via browser UI. The site can use this information to show an “Open” button instead of an “Install” button for sites it has installed. Privacy considerations: To minimize the fingerprinting surface created by getInstalledApps(), clearing the cache will also clear the list of installed apps. Note that this can only be called from the main frame, so subframes will not be able to call getInstalledApps() as a tool to fingerprint users.

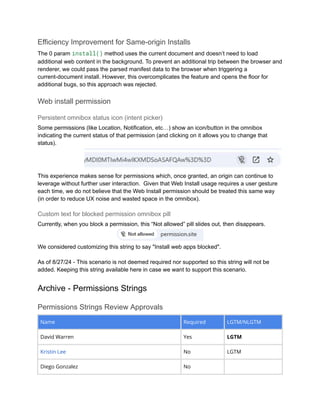

• 21.
  Efficiency Improvement forSame-origin Installs The 0 param install() method uses the current document and doesn’t need to load additional web content in the background. To prevent an additional trip between the browser and renderer, we could pass the parsed manifest data to the browser when triggering a current-document install. However, this overcomplicates the feature and opens the floor for additional bugs, so this approach was rejected. Web install permission Persistent omnibox status icon (intent picker) Some permissions (like Location, Notification, etc…) show an icon/button in the omnibox indicating the current status of that permission (and clicking on it allows you to change that status). This experience makes sense for permissions which, once granted, an origin can continue to leverage without further user interaction. Given that Web Install usage requires a user gesture each time, we do not believe that the Web Install permission should be treated this same way (in order to reduce UX noise and wasted space in the omnibox). Custom text for blocked permission omnibox pill Currently, when you block a permission, this “Not allowed” pill slides out, then disappears. We considered customizing this string to say "Install web apps blocked". As of 8/27/24 - This scenario is not deemed required nor supported so this string will not be added. Keeping this string available here in case we want to support this scenario. Archive - Permissions Strings Permissions Strings Review Approvals Name Required LGTM/NLGTM David Warren Yes LGTM Kristin Lee No LGTM Diego Gonzalez No
• 22.
  Amanda Baker No PermissionsString Review Notes Separate doc with a table of all the mocks/string content/notes (Same as above strings and as the table below): https://docs.google.com/document/d/1C-U0u1BMZcHuErpoL7Q0XPZ9OjKMN9_gmvejLj-1Drhtt ps://docs.google.com/document/d/12nSXJLm8mW0gWZ_yjlXfrV8r9gwJliVt4WVa-209-KA/edit?u sp=drivesdk&disco=AAABo17KyaM8/edit?usp=sharing Mock Content ​ (writers only, leave comments) Notes ​ (writers only, leave comments) Web app installations Sites usually ask to install web applications to enhance your experience on the site ●​ Sites can ask to install web apps on your device ●​ Don’t allow sites to install web apps on your device Not allowed to install web apps on your device Allowed to ask to install web apps on your device Changelist 1.​ Title: Dan is suggesting working in “installations”, which seems like a nice way to better convey “install” while not using a verb. I argue for “applications” below, but that would now be too long. “Web app” seems fairly understandable, and then we shift to “applications” in the body. 2.​ Description: The current proposal, “Sites can install web applications” feels wrong because this may not be true depending on the user’s choice.
• 23.
  Web app installationsapplications Canask to install web apps We had trouble understanding the context of this string. I’ve documented it below. 1.​ If you're viewing the New York Times and you open Page info, only permissions for which you've changed the default value should appear in the list. In the screenshot below, I chose to block the New York Times from using my Location (I think Pop-ups and redirects is an exception in that it appears here even in default state, probably because a site can abuse popups). Whether the user has chosen to Block or Allow Location (as long as the permission isn't in the default state), the permission should appear in this list without any subtext.​ 2.​ If the user chooses "Reset permissions", Page info immediately reloads. See the screenshot below. Now, we have a string beneath
• 24.
  Location to validatethe user's action. We're showing them the result of the "Reset permissions" action. In this case, Location goes back to the default state which means that the New York Times can now prompt me the next time I visit to use my location. Note also in this screenshot that the "Reset permissions" button is gone, because all permissions for the New York Times are in the default state.​ 3.​ Page info as shown above will persist as long as the New York Times remains open. I closed the tab and then returned to the New York Times and Page Info looks like the screenshot below. Location no longer appears, because it's simply in the default state and the user no longer needs confirmation of their past
• 25.
  choice to "Resetpermissions".​ Install web apps? Be able to install web apps Screen reader announcements: ●​ "Install web apps allowed" ●​ "Install web apps not allowed" Original dev spec permissions content Strings used on chrome://settings/content: ●​ Icon: ●​ Title: “Web applications” ●​ Description (menu item) (Same as Ask string in details page): “Sites can ask to install web apps on your device”
• 26.

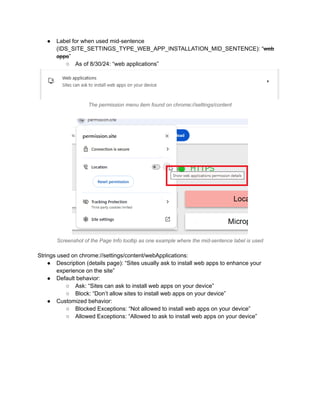

  ●​ Label forwhen used mid-sentence (IDS_SITE_SETTINGS_TYPE_WEB_APP_INSTALLATION_MID_SENTENCE): “web apps” ○​ As of 8/30/24: “web applications” The permission menu item found on chrome://settings/content Screenshot of the Page Info tooltip as one example where the mid-sentence label is used Strings used on chrome://settings/content/webApplications: ●​ Description (details page): “Sites usually ask to install web apps to enhance your experience on the site” ●​ Default behavior: ○​ Ask: “Sites can ask to install web apps on your device” ○​ Block: “Don’t allow sites to install web apps on your device” ●​ Customized behavior: ○​ Blocked Exceptions: “Not allowed to install web apps on your device” ○​ Allowed Exceptions: “Allowed to ask to install web apps on your device”

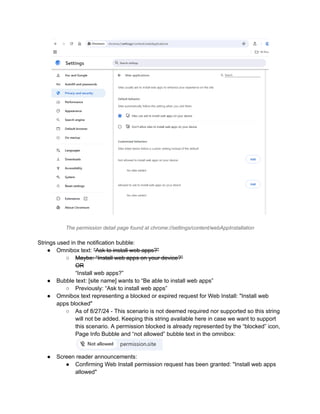

• 27.
  The permission detailpage found at chrome://settings/content/webAppInstallation Strings used in the notification bubble: ●​ Omnibox text: “Ask to install web apps?” ○​ Maybe: “Install web apps on your device?”​ OR​ “Install web apps?” ●​ Bubble text: [site name] wants to “Be able to install web apps” ○​ Previously: “Ask to install web apps” ●​ Omnibox text representing a blocked or expired request for Web Install: "Install web apps blocked" ○​ As of 8/27/24 - This scenario is not deemed required nor supported so this string will not be added. Keeping this string available here in case we want to support this scenario. A permission blocked is already represented by the “blocked” icon, Page Info Bubble and “not allowed” bubble text in the omnibox: ●​ Screen reader announcements: ●​ Confirming Web Install permission request has been granted: "Install web apps allowed"
• 28.
  ●​ Confirming WebInstall permission request has been denied: "Install web apps not allowed" Mock: (Actual) In Chromium: Strings used in the Page Info bubble: ●​ Title: “Web applications” ●​ Description: “Can ask to install web apps”
• 29.
  Icons (Allowed andBlocked) (In need of UX review): Link to the SVG of install-desktop icon (no slash): https://drive.google.com/file/d/1xxEqIB2BPLe5JTAvSnu9kYtGKfcGFkYD/view?usp=sharing Link to the SVG of the new install-desktop-off icon (has the slash): https://drive.google.com/file/d/1dxDHeF7gohg9qxA91HrAEiCQAefyE-81/view?usp=sharing Screenshot of the install-desktop and install-desktop-off icons (Currently available in code base with
• 30.
  feature flag, `WebAppInstallation`.See below for steps). To view these icons in Settings: 1.​ Launch chrome with feature flag: WebAppInstallation 2.​ Navigate to chrome://settings/content/webApplications
• 31.

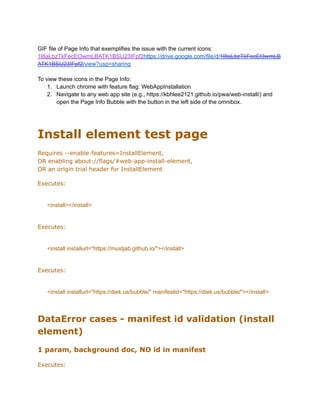

  GIF file ofPage Info that exemplifies the issue with the current icons: 1l8aLbzTkFecEt3wmLBATK1BSU23IFpf2https://drive.google.com/file/d/1l8aLbzTkFecEt3wmLB ATK1BSU23IFpf2/view?usp=sharing To view these icons in the Page Info: 1.​ Launch chrome with feature flag: WebAppInstallation 2.​ Navigate to any web app site (e.g., https://kbhlee2121.github.io/pwa/web-install/) and open the Page Info Bubble with the button in the left side of the omnibox. Install element test page Requires --enable-features=InstallElement, ​ OR enabling about://flags/#web-app-install-element,​ OR an origin trial header for InstallElement Executes: <install></install> Executes: <install installurl="https://mustjab.github.io/"></install> Executes: <install installurl="https://diek.us/bubble/" manifestid="https://diek.us/bubble/"></install> DataError cases - manifest id validation (install element) 1 param, background doc, NO id in manifest Executes:
• 32.

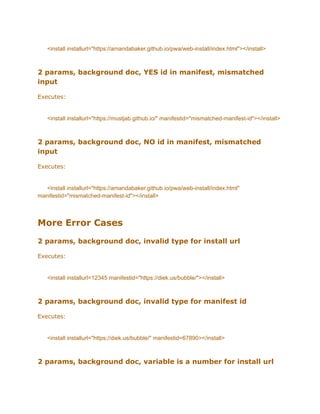

  <install installurl="https://amandabaker.github.io/pwa/web-install/index.html"></install> 2 params,background doc, YES id in manifest, mismatched input Executes: <install installurl="https://mustjab.github.io/" manifestid="mismatched-manifest-id"></install> 2 params, background doc, NO id in manifest, mismatched input Executes: <install installurl="https://amandabaker.github.io/pwa/web-install/index.html" manifestid="mismatched-manifest-id"></install> More Error Cases 2 params, background doc, invalid type for install url Executes: <install installurl=12345 manifestid="https://diek.us/bubble/"></install> 2 params, background doc, invalid type for manifest id Executes: <install installurl="https://diek.us/bubble/" manifestid=67890></install> 2 params, background doc, variable is a number for install url
• 33.

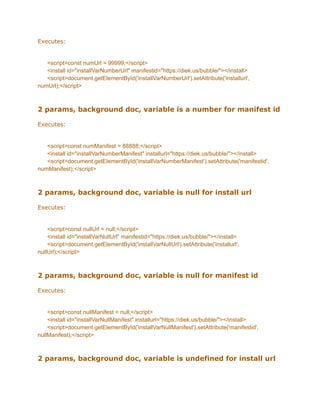

  Executes: <script>const numUrl =99999;</script> <install id="installVarNumberUrl" manifestid="https://diek.us/bubble/"></install> <script>document.getElementById('installVarNumberUrl').setAttribute('installurl', numUrl);</script> 2 params, background doc, variable is a number for manifest id Executes: <script>const numManifest = 88888;</script> <install id="installVarNumberManifest" installurl="https://diek.us/bubble/"></install> <script>document.getElementById('installVarNumberManifest').setAttribute('manifestid', numManifest);</script> 2 params, background doc, variable is null for install url Executes: <script>const nullUrl = null;</script> <install id="installVarNullUrl" manifestid="https://diek.us/bubble/"></install> <script>document.getElementById('installVarNullUrl').setAttribute('installurl', nullUrl);</script> 2 params, background doc, variable is null for manifest id Executes: <script>const nullManifest = null;</script> <install id="installVarNullManifest" installurl="https://diek.us/bubble/"></install> <script>document.getElementById('installVarNullManifest').setAttribute('manifestid', nullManifest);</script> 2 params, background doc, variable is undefined for install url
• 34.
  Executes: <script>let undefinedUrl;</script> <install id="installVarUndefinedUrl"manifestid="https://diek.us/bubble/"></install> <script>document.getElementById('installVarUndefinedUrl').setAttribute('installurl', undefinedUrl);</script> 2 params, background doc, variable is undefined for manifest id Executes: <script>let undefinedManifest;</script> <install id="installVarUndefinedManifest" installurl="https://diek.us/bubble/"></install> <script>document.getElementById('installVarUndefinedManifest').setAttribute('manifestid', undefinedManifest);</script>
