Comprehensive Clinical Overview of Human Brain Functional Anatomy and Subdivisions

Detailed exploration of the brain's hierarchical structures, functional systems, and homeostatic pathways regulating human physiology, including fore-brain, mid-brain, hind-brain, and key neural functions.

Health & Medicine◦

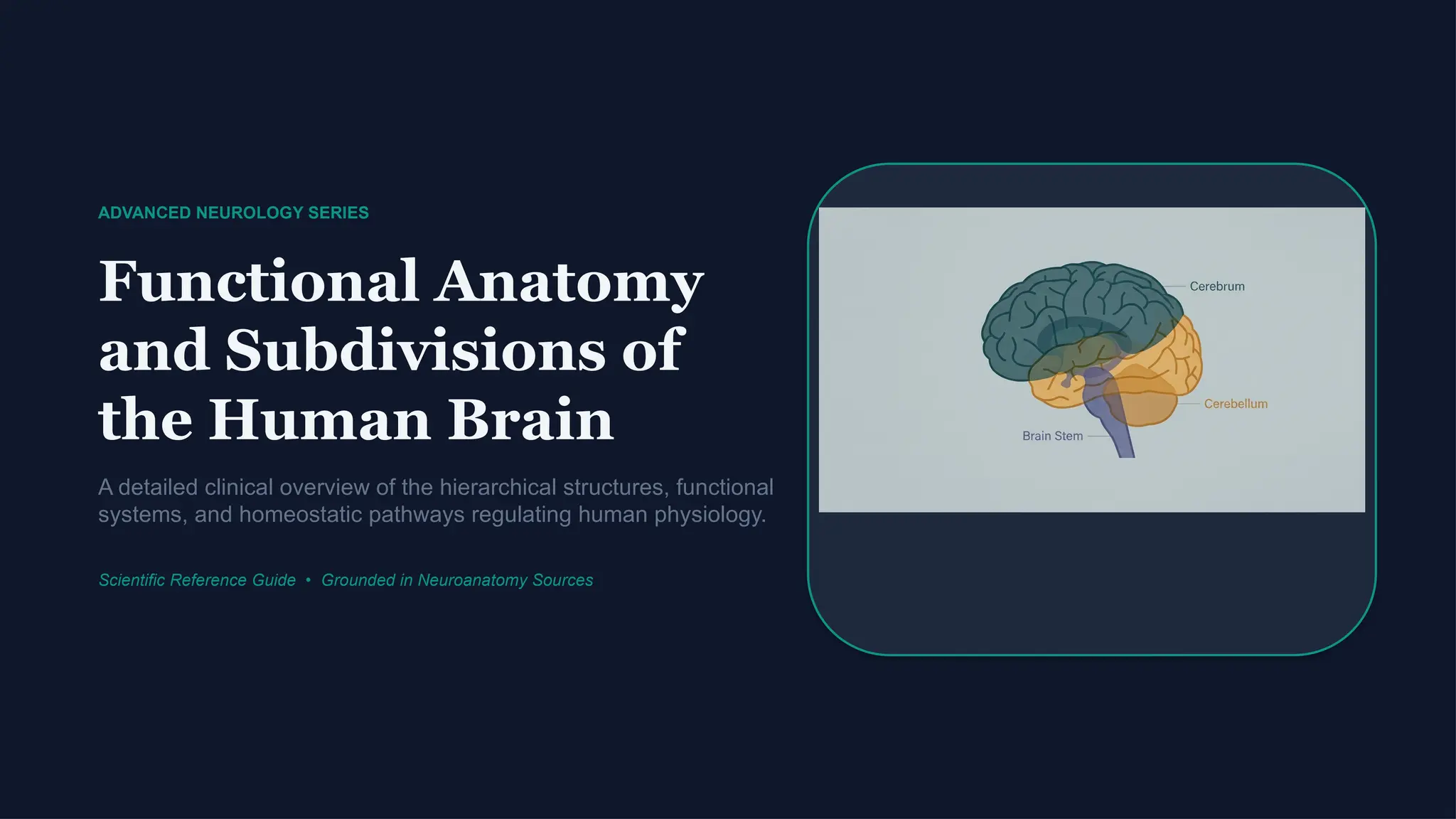

ADVANCED NEUROLOGY SERIES Functional Anatomy and Subdivisions of the Human Brain A detailed clinical overview of the hierarchical structures, functional systems, and homeostatic pathways regulating human physiology. Scientific Reference Guide • Grounded in Neuroanatomy Sources
NEUROANATOMY REFERENCE The Central Nervous System Coordinates Human Life Through Two Core Components The Central Nervous System (CNS): Formed by the brain and spinal cord, acting as the main nervous system structure [1]. The Brain: Serves as the central organ of the nervous system, responsible for coordinating sensory and motor pathways [1]. Spinal Cord Liaison: Works in tandem with the spinal cord to establish sensory-motor feedback loops throughout the body [1]. Integrating Biological Systems: Processes incoming physical data and coordinates crucial physiological and behavioral responses. Three Biological Divisions: The brain is anatomically and functionally divided into 3 major regions: Fore-brain, Mid- brain, and Hind-brain [1]. Fore-Brain (Prosencephalon): Composed of the telencephalon (cerebrum, olfactory bulb) and diencephalon (limbic system) [1, 2]. Mid-Brain (Mesencephalon): Strategically positioned between fore-brain and hind-brain to act as the primary relay station [1, 3]. Hind-Brain (Rhombencephalon): Composed of the metencephalon (pons, cerebellum) and myelencephalon (medulla oblongata) [1, 4].
NEUROANATOMY REFERENCE A Three-Tier Hierarchy Maps the Brain from Fore-Brain to Hind-Brain Prosencephalon: Biological name for the Fore-Brain [1]. Telencephalon Subdivision: Consists of the Cerebrum (largest part) and the Olfactory Bulb (sense of smell) [1]. Diencephalon Subdivision: Houses the deep-lying Limbic System, which manages memory and endocrine loops [1, 2]. Key Limbic Structures: Includes the Thalamus, Hypothalamus, Amygdala, and Hippocampus [1, 2]. Mesencephalon: Biological name for the Mid-Brain [3]. Central Bridge: Small region located directly between the fore-brain and hind- brain [3]. Relaying Tracts: Serves as a vital pathway for transmitting sensory and motor information [3]. Core Functions: Coordinates sleep-wake cycles, controls pupil and eyeball movements, and regulates auditory/visual reflexes [3, 4]. Rhombencephalon: Biological name for the Hind-Brain [1]. Metencephalon Subdivision: Houses the Cerebellum ('little brain') and the Pons (bridge structure) [1, 4]. Myelencephalon Subdivision: Houses the Medulla Oblongata [1, 4]. Autonomic Commands: Integrates vital survival mechanisms, posture, breathing, and spinal cord connectivity [4, 5].
NEUROANATOMY REFERENCE The Fore-Brain (Prosencephalon) Combines Complex Sensory and Executive Functions The Cerebrum: Biological name is Prosencephalon (representing the largest part of the fore-brain) [1]. Cerebral Cortex: The outer surface layer is called the cerebral cortex, mediating conscious cognitive functions [1]. Hemispheric Division: Divided symmetrically into the Right Cerebral Hemisphere (RCH) and Left Cerebral Hemisphere (LCH) [1]. Hemispheric Cross-Control: The RCH controls the left side of the physical body, while the LCH controls the right side [2]. Corpus Callosum: A heavy band of axons connecting LCH and RCH, allowing high-speed inter-hemispheric information transfers [2]. Olfactory Bulb: A specialized telencephalon structure dedicated to the sense of olfaction (smell) [1]. Deep Sensory Routing: Routes odor signals directly into evolutionary memory circuits in the brain. Diencephalon Transition: Connects the telencephalon with deep, homeostatic nuclei [1, 2]. Limbic System Integration: Directly interfaces with Thalamic and Hypothalamic structures to govern basic survival drives [2, 3].
NEUROANATOMY REFERENCE Four Specialized Lobes Divide the Cerebrum to Control Thought and Sensation Frontal Lobe: Governs primary voluntary movement, thinking, planning, judgment, decision-making, and reasoning [2]. Cognitive Center: Highly linked to executive control, emotional management, short-term working memory, and social intelligence [2]. Parietal Lobe: Interprets conscious somatic sensory input, processing physical touch and spatial orientation [2]. Sensory Synthesis: Integrates diverse sensory signals into cohesive spatial awareness maps of the environment. Temporal Lobe: Houses the auditory cortex, processing sound, music, voice inflections, and vocal expressions. Memory & Language: Integrates hearing, semantic language structures, and collaborates in storing episodic visual memories. Occipital Lobe: Primary processor of visual sensory input, resolving lines, motion, depth, and spatial details [2]. Visual Network: Translates retinal signals into complex conscious perceptions of objects, environments, and text.
NEUROANATOMY REFERENCE The Diencephalon's Limbic System Weaves Together Emotion and Memory Thalamus (Relay Station): Receives incoming sensory information from the body and sends it to appropriate brain areas [3]. Sensory Processor: Heavily aids in the conscious perception and cognitive interpretation of touch and pain sensations [3]. Hypothalamus (Master): Sits directly below the thalamus ('hypo' = below) [3]. Super Master Gland: Regulates the pituitary gland (master endocrine gland) [3]. Homeostasis: Core center for thermoregulation, osmoregulation, hunger, thirst, and hormonal output [3]. Amygdala (Emotions): Two almond-shaped masses of neurons situated symmetrically on either side of the thalamus [3]. Emotional Drivers: Directly regulates basic emotions including love, hate, anger, fear, and sexual arousal [3]. Hippocampus (Memory): Structurally continuous with limbic pathways [2]. Long-Term Memory: Primary structure responsible for consolidating new experiences into long-term memories [3]. Neural Plasticity: A key site of neurogenesis and synaptic strengthening.
NEUROANATOMY REFERENCE The Mid-Brain (Mesencephalon) Regulates Sleep and Reflexive Eyeball Movements Mesencephalon: Scientific and biological nomenclature of the Mid-Brain [3]. Anatomical Gateway: A compact, central brain region located strategically between the Fore-brain and Hind- brain [3]. Bidirectional Tracts: Coordinates heavy ascending sensory tracts and descending motor control pathways [3]. Central Core Relay: Acts as an essential neural switchboard ensuring rapid mid-level communication across subdivisions. Sleep-Wake Cycles: Plays a central role in regulating circadian rhythms and conscious arousal states [4]. Reflexive Coordination: Integrates visual and auditory reflexes, allowing instant head/neck orientation to unexpected stimuli [4]. Eyeball Motor Control: Directly coordinates nerve signals regulating precise and voluntary eyeball movements [4]. Sensory-Motor Integration: Fine-tunes rapid protective physical reflexes before higher cortical processing occurs.
NEUROANATOMY REFERENCE The Hind-Brain (Rhombencephalon) Integrates Balance in the 'Little Brain' and Vital Connections Cerebellum ('Little Brain'): The second largest part of the brain, structurally situated at the posterior back [4]. Motor Coordination: Plays an absolute vital role in coordinating smooth physical movement, balance, and upright posture [4]. Clinical Deficit: Damage to the cerebellum results in shaky, jerky, and uncoordinated voluntary physical movements [4]. Cognitive Roles: Integrates complex cognitive functions, showing vital active support for attention, language, and learning [4]. Pons ('The Bridge'): Named after the Greek/Latin word for 'bridge', a core component of the brain stem [4]. Anatomical Conduit: Establishes a direct neural bridge, connecting the medulla oblongata and cerebellum with the cerebrum [4]. Autonomic Breathing: Houses key respiratory nuclei that work with the medulla to regulate breathing rhythms [4]. Sleep & Arousal: Integrates with midbrain networks to regulate conscious sleep-wake cycle transitions [4].
NEUROANATOMY REFERENCE The Medulla Oblongata Controls the Six Essential Functions Needed for Survival Myelencephalon: Biological classification of the Medulla Oblongata [4]. Anatomical Gateway: Located at the posterior base of the brain, positioned directly above the spinal cord [4]. Vital Junction Box: Acts as the primary physical bridge connecting all spinal cord tracts with the brain stem [4]. Survival Command: Houses the autonomic nuclei responsible for regulating non-conscious, critical life-support mechanisms [5]. Survival Function Physiological Mechanism & Role 1. Breathing [5] Regulates automatic rhythmicity, depth, and muscular pacing of breathing. 2. Heart Rate [5] Drives autonomic cardiac pacing, contractility, and blood output. 3. Blood Pressure [5] Controls systemic blood pressure by regulating vasomotor constriction. 4. Blood Circulation [5] Coordinates peripheral blood distribution and arterial flow pathways. 5. Swallowing [5] Manages neuromuscular swallowing reflexes preventing tracheal aspiration. 6. Vomiting [5] Coordinates protective systemic emetic reflexes to purge systemic toxins.
NEUROANATOMY REFERENCE A Comprehensive Labeled Map Distills Brain Functional Anatomy Visualizing Subdivisions: The accompanying anatomical block diagram organizes the brain's 3 major divisions [1]. Interconnected Systems: Pathways map the links from the telencephalon to the medulla oblongata [1, 4]. Clinical Utility: Helps clinicians map a brain region to its autonomic, sensory, and cognitive functions [2, 5]. Structural Taxonomy: Organizes the complex terminology (Prosencephalon, Mesencephalon, Rhombencephalon) into a clean, logical grid [1].
