Comprehensive Cell Organelles Overview: Classic Structures to 2025 Discoveries

Comprehensive Cell Organelles Overview: Classic Structures to 2025 Discoveries

• 1.
  Biology Department Cell Organelles: FromClassic Structures to the Latest Discoveries A comprehensive overview for undergraduate biology students Biology Department | 2026
• 2.
  Cell Biology Overview TheCell as a Miniature City Organelles are the specialized "departments" of the cell — each with a distinct role that keeps the whole system alive. Biology Department | 2026 2 / 12 ● A cell is the fundamental unit of life, operating as a self-contained system ● Eukaryotic cells contain membrane-bound organelles that compartmentalize distinct biochemical processes ● Two broad categories: membranous organelles (lipid membrane-enclosed) and non-membranous organelles (cytoskeletal or cytoplasmic) [4] ● Understanding organelles unlocks insight into metabolism, disease, inheritance, and cellular communication
• 3.
  The Command Center— Nucleus and Cytoplasm The nucleus holds the cell's master blueprint, while the cytoplasm provides the working space for virtually every cellular process. Nucleus Nucleolus (rRNA) Chromatin / DNA Nuclear envelope (+ nuclear pores) Nucleolus Cytoplasm Nucleus Nucleus Mitochondria Vesicle Gel-like cytosol matrix Biology Department | 2026 3 / 12 ● Membrane-bound compartment housing DNA organized into chromosomes; bounded by a double nuclear envelope with nuclear pores for selective transport [1] ● Houses the nucleolus, the site of ribosomal RNA (rRNA) synthesis ● Gel-like matrix filling the cell between the nucleus and plasma membrane; the medium in which all organelles are suspended ● Supports metabolic reactions and intracellular transport throughout the cell
• 4.

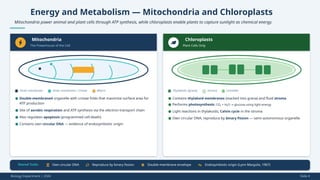

  Energy and Metabolism— Mitochondria and Chloroplasts Mitochondria power animal and plant cells through ATP synthesis, while chloroplasts enable plants to capture sunlight as chemical energy. Mitochondria The Powerhouse of the Cell Outer membrane Inner membrane / cristae Matrix Chloroplasts Plant Cells Only Thylakoids (grana) Stroma Lamellae Shared Traits Own circular DNA Reproduce by binary fission Double-membrane envelope Endosymbiotic origin (Lynn Margulis, 1967) Biology Department | 2026 Slide 4 ● Double-membraned organelle with cristae folds that maximize surface area for ATP production ● Site of aerobic respiration and ATP synthesis via the electron transport chain ● Also regulates apoptosis (programmed cell death) ● Contains own circular DNA — evidence of endosymbiotic origin ● Contains thylakoid membranes (stacked into grana) and fluid stroma ● Performs photosynthesis: CO₂ + H₂O glucose using light energy → ● Light reactions in thylakoids; Calvin cycle in the stroma ● Own circular DNA; reproduce by binary fission — semi-autonomous organelle
• 5.
  Protein Production —Ribosomes and Endoplasmic Reticulum Ribosomes synthesize every protein the cell needs; the endoplasmic reticulum then modifies and routes those proteins to their destinations. Ribosomes Non-membranous Rough ER Membranous Smooth ER Membranous Together, ribosomes and the ER form the first stage of the secretory pathway — translating, folding, and dispatching proteins to their cellular destinations. Biology Department | 2026 5 / 12 ● Composed of rRNA and proteins; translate mRNA into polypeptides [4] ● Found free in cytoplasm or bound to rough ER ● Two subunits: large (60S) and small (40S) in eukaryotes ● Studded with ribosomes on its cytoplasmic surface ● Modifies and folds newly synthesized proteins destined for secretion or membrane insertion ● Transfers finished proteins to the Golgi via vesicles ● Lacks ribosomes; synthesizes lipids and metabolizes carbohydrates ● Detoxifies drugs and poisons (especially in liver cells) ● Stores calcium ions for cellular signaling
• 6.
  Sorting, Shipping, andRecycling — Golgi Apparatus and Lysosomes The Golgi apparatus acts as the cell's postal service, while lysosomes serve as its waste-disposal and recycling centers. Golgi Apparatus Postal Service Plasma membrane Secretory vesicles Lysosomes Cargo delivery Lysosomes Recycling Center Lysosome dysfunction underlies lysosomal storage diseases such as Tay- Sachs disease Secretory pathway: Ribosome Rough ER Golgi cisternae (cis to trans) vesicle budding final destination → → → → ● Stack of flattened membrane cisternae; receives proteins from the ER and further modifies them via glycosylation and phosphorylation [4] ● Sorts and packages cargo into vesicles for targeted delivery throughout the cell ● Membrane-bound sacs containing hydrolytic enzymes active at ~pH 5; degrade ingested material, worn-out organelles (autophagy), and foreign particles [1] ● Acidic interior maintained by proton pumps in the tonoplast membrane; enzymes are inactive at cytoplasmic pH, providing a safety mechanism
• 7.

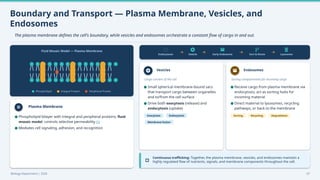

  Boundary and Transport— Plasma Membrane, Vesicles, and Endosomes The plasma membrane defines the cell's boundary, while vesicles and endosomes orchestrate a constant flow of cargo in and out. Fluid Mosaic Model — Plasma Membrane Phospholipid Integral Protein Peripheral Protein Plasma Membrane Endocytosis Vesicle Early Endosome Sort & Route Lysosome Vesicles Cargo carriers of the cell Exocytosis Endocytosis Membrane fusion Endosomes Sorting compartments for incoming cargo Sorting Recycling Degradation Continuous trafficking: Together, the plasma membrane, vesicles, and endosomes maintain a highly regulated flow of nutrients, signals, and membrane components throughout the cell. Biology Department | 2026 07 ● Phospholipid bilayer with integral and peripheral proteins; fluid mosaic model; controls selective permeability [1] ● Mediates cell signaling, adhesion, and recognition ● Small spherical membrane-bound sacs that transport cargo between organelles and to/from the cell surface ● Drive both exocytosis (release) and endocytosis (uptake) ● Receive cargo from plasma membrane via endocytosis; act as sorting hubs for incoming material ● Direct material to lysosomes, recycling pathways, or back to the membrane
• 8.
  Structural Support —Cytoskeleton, Centrioles, and Cilia The cytoskeleton is not just a scaffold — it is a dynamic network that drives cell movement, division, and intracellular transport. Filament Size Actin ~7 nm Intermediate ~10 nm Microtubule ~25 nm Centriole triplet MTs Microfilaments ~7 nm Actin filaments; support cell shape, enable motility, and anchor membrane proteins. [4] Intermediate Filaments ~10 nm Provide mechanical strength and resist tensile stress. Include keratins and lamins. Microtubules ~25 nm Hollow tubulin tubes; serve as tracks for kinesin and dynein; form the mitotic spindle during cell division. Centrioles Paired Cylindrical microtubule structures that organize the mitotic spindle and form the base of cilia and flagella. Cilia & Flagella Projections Microtubule-based projections that move fluids across cell surfaces or propel unicellular organisms. Biology Department | 2026 8 / 12
• 9.
  Slide 09 —Plant Biology Plant-Specific Organelles — Cell Wall, Vacuole, and Plastids Plant cells gain structural rigidity, long-term storage capacity, and photosynthetic versatility through organelles absent from animal cells. Cell Wall Rigid layer of cellulose microfibrils outside the plasma membrane; provides structural support and protects against osmotic lysis [1] Central Vacuole Large membrane-bound sac (tonoplast) occupying up to 90% of plant cell volume; stores water, ions, pigments, and waste products; maintains turgor pressure Plastids Family of organelles including chloroplasts (photosynthesis), chromoplasts (pigment storage), and amyloplasts (starch storage) Plasmodesmata Channels through cell walls linking adjacent plant cells; allow transport of water, nutrients, and signaling molecules Biology Department | 2026
• 10.

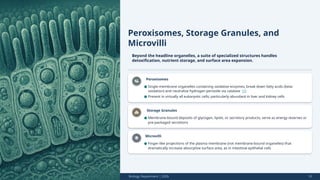

  Peroxisomes, Storage Granules,and Microvilli Beyond the headline organelles, a suite of specialized structures handles detoxification, nutrient storage, and surface area expansion. Peroxisomes Storage Granules Microvilli Biology Department | 2026 10 ● Single-membrane organelles containing oxidative enzymes; break down fatty acids (beta- oxidation) and neutralize hydrogen peroxide via catalase [1] ● Present in virtually all eukaryotic cells; particularly abundant in liver and kidney cells ● Membrane-bound deposits of glycogen, lipids, or secretory products; serve as energy reserves or pre-packaged secretions ● Finger-like projections of the plasma membrane (not membrane-bound organelles) that dramatically increase absorptive surface area, as in intestinal epithelial cells
• 11.
  New Discovery —2025 The Hemifusome — A 2025 Discovery In 2025, a previously invisible organelle was revealed inside human cells, challenging everything we thought we knew about intracellular recycling. Discovery Identified via Cryo-Electron Tomography Researchers at the University of Virginia School of Medicine and the NIH identified the hemifusome using cryo-ET, co-led by Seham Ebrahim, PhD (UVA) and Bechara Kachar, MD (NIH). Published in Nature Communications (2025). [3] Structure Hemifusion Diaphragm + Lipid Nanodroplets Two vesicle-like membranes joined by a stable hemifusion diaphragm , associated with lipid-rich proteolipid nanodroplets (PNDs) . [5] Function Loading Dock for Multivesicular Body Assembly Acts as a "loading dock" for assembling multivesicular bodies (MVBs) via a lipid-based pathway — independent of the known ESCRT protein system . Disease Implication Links to Multiple Conditions Potential links to: Hermansky-Pudlak Syndrome Alzheimer's Disease Viral Infections Certain Cancers ~1 in 10 vesicles near the cell membrane were identified as hemifusomes — suggesting major biological significance. [2] Why It Matters The hemifusome reveals a second, previously unknown recycling pathway inside cells — rewriting our understanding of how cells sort and process membrane cargo. Technique That Made It Possible Cryo-electron tomography (cryo-ET) — ultra-high- resolution 3D imaging of vitrified cells at near-native state, enabling visualization of structures invisible to conventional microscopy. Biology Department | 2026 11 / 12
• 12.
  References [1] Cell Organelles:Structures, Functions & Detailed Dia... [2] Scientists Discover Unknown Organelle Inside Our Cells [3] New Organelle Discovered: UVA and NIH Researchers Ide... [4] Cellular organelles and their functions | Kenhub [5] Hemifusome: Our Newly Discovered Organelle
