Comparing rock and fossil
 records in the deep sea




Graeme T. Lloyd, Andrew B. Smith
     and Jeremy R. Young

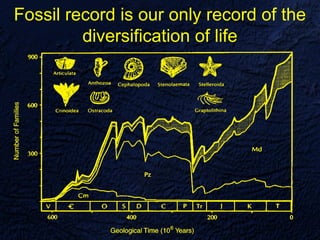

Fossil record is our only record of the
         diversification of life

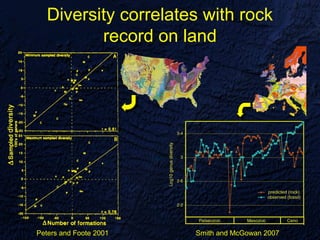

Diversity correlates with rock
          record on land




Peters and Foote 2001   Smith and McGowan 2007

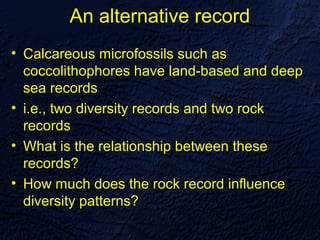

An alternative record
• Calcareous microfossils such as
  coccolithophores have land-based and deep
  sea records
• i.e., two diversity records and two rock
  records
• What is the relationship between these
  records?
• How much does the rock record influence
  diversity patterns?

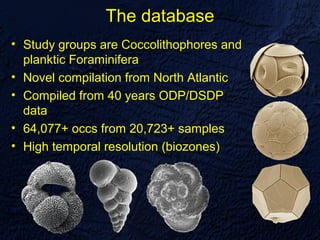

The database
• Study groups are Coccolithophores and
  planktic Foraminifera
• Novel compilation from North Atlantic
• Compiled from 40 years ODP/DSDP
  data
• 64,077+ occs from 20,723+ samples
• High temporal resolution (biozones)

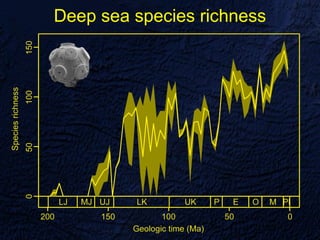

Deep sea species richness

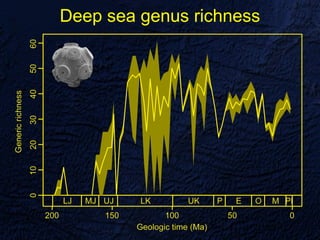

Deep sea genus richness

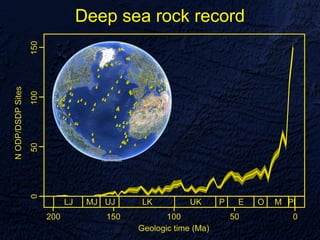

Deep sea rock record

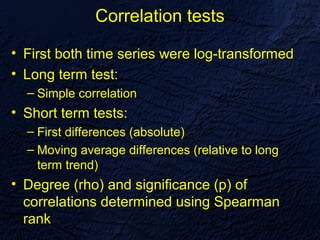

Correlation tests

• First both time series were log-transformed
• Long term test:
  – Simple correlation
• Short term tests:
  – First differences (absolute)
  – Moving average differences (relative to long
    term trend)
• Degree (rho) and significance (p) of
  correlations determined using Spearman
  rank

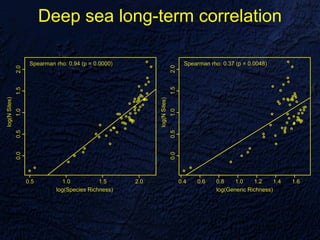

Deep sea long-term correlation

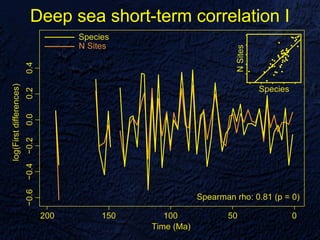

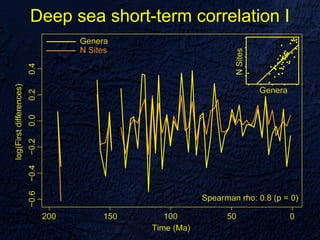

Deep sea short-term correlation I
Deep sea short-term correlation I

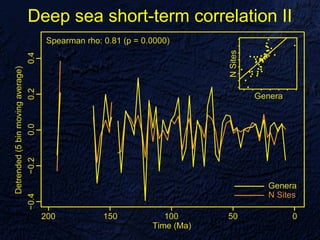

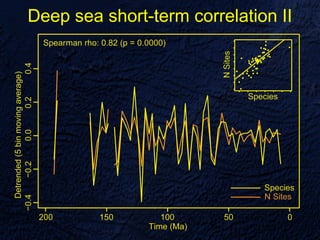

Deep sea short-term correlation II
Deep sea short-term correlation II
Modeling

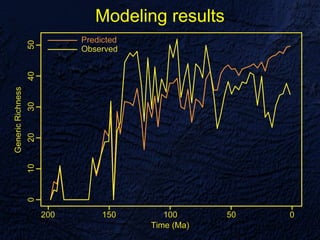

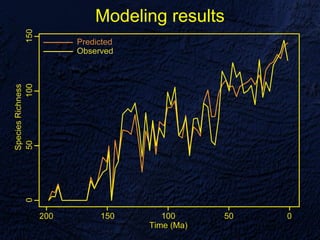

Modeling results
Modeling results
Subsampling

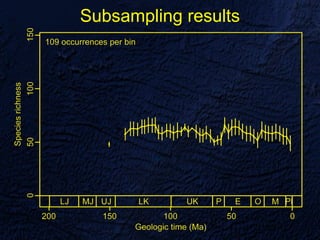

Subsampling results

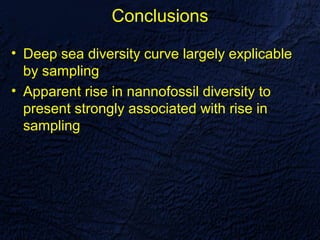

Conclusions

• Deep sea diversity curve largely explicable
  by sampling
• Apparent rise in nannofossil diversity to
  present strongly associated with rise in
  sampling

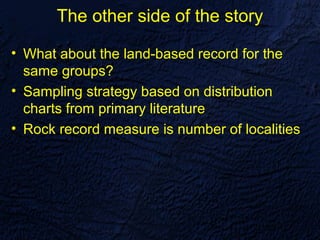

The other side of the story

• What about the land-based record for the
  same groups?
• Sampling strategy based on distribution
  charts from primary literature
• Rock record measure is number of localities

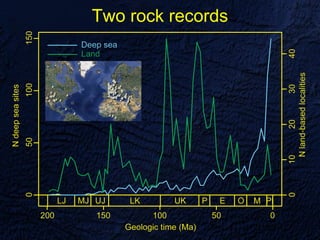

Two rock records

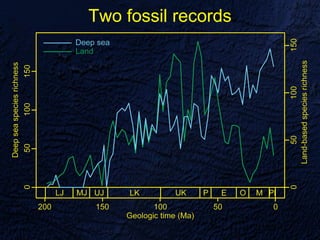

Two fossil records

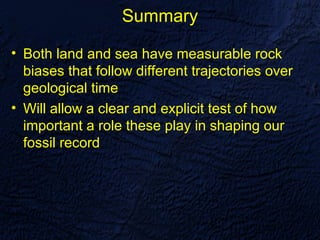

Summary

• Both land and sea have measurable rock
  biases that follow different trajectories over
  geological time
• Will allow a clear and explicit test of how
  important a role these play in shaping our
  fossil record
